Page 1
1
2
3
4
5
6
7
8
9
10
11
15 14 13
16
19
20
24
25
26
27
28
21
17
22
23
12
29
30
31
32
33
34

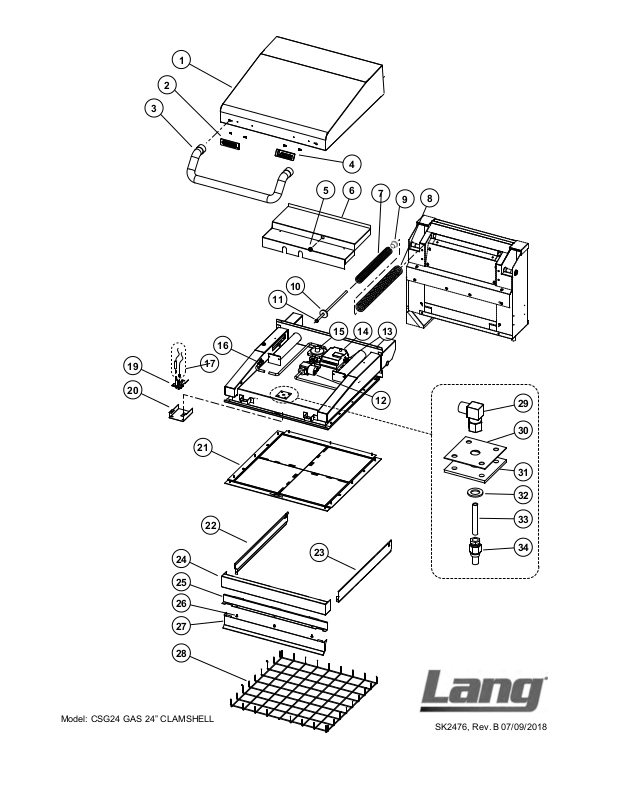

Model: CSG24 GAS 24” CLAMSHELL
SK2476, Rev. B 07/09/2018
Page 2
PARTS LIST
JULY 09, 2018, Rev. A
Gas Clamshell Hood Parts List
R
Fig No Part No Qty Description Application
1 K9-60101-851 1 HOOD WRAP ASSY, w/DIE CAST LOGOS
2 2M-60301-W2 1 LANG CLAMSHELL LOGO
3 K9-70603-24 1 AGC HOOD HANDLE ASSY COMPLETE
4 K9-60301-43-1 1 SATIN CHRM-LANG DIE CAST
5 2K-70801-19 1 BUSHING HEYCO 5/8#2077
6
7 2P-51002-11 2 HOOD SPRING
8 2P-51002-05 2 SPRING GAS HOOD
9
2P-70201-06
2
BRNZ BR FLN BUSHING
10 K9-50312-40 2 SPRING PISTON / WASHER
11 2C-20104-37 2 SCRW 3/8-16X12 H/H CAP 2 THD
12 2V-80502-03
1
SOLENOID VALVE 24VAC 1/2PIPE
2 CSG24B
CSG24
13 K9-30307-01 1 SWT MERC TLT W/250°C 18GA
14 2J-80300-10 1 SPRK IGN CNTRL
2V-80501-03 1 GAS REG 1/2X1/2CLSIISET10 LP
15
2V-80501-10 1 GAS REG 1/8X1/2 CLS I NAT
Y9-80403-04
2A-80400-26 ORIFICE HOOD .1360 #29
16
Y9-80403-05
2A-80400-27 ORIFICE HOOD .0860 #44
90 DEG FITING W/#29 DRL
1
90 DEG FITING W/#44DRL
1
NAT
LP
17 2E-103-232 1 HARNESS, AGC HOOD #1
19 2J-80302-06 1 IGNITOR/SENSOR CHANNEL
20 K9-103-3 1 SPARK COVER
21 K9-51100-59 1 BURNER TILE ASSY, GLUED
- - 2H-60106-67 1 INSULATION BURNER TILE KIT (INCLUDED w/K9-51100-59)
22 2U-103-193 1 LEFT SKIRT
23 2V-103-194 1 RIGHT SKIRT
24 2V-103-197 1 FRONT SKIRT w/HINGE
25 K9-60102-1964 1 FRONT SKIRT INNER WALL w/SCREWS
26 2C-20103-02 3 SCRW SM PLT 10 X .5 PHLSL
27 K9-103-A88 1 FLAPPER ASSY
28 2B-50201-08 1 WIRE GUARD ADD-ON-BROILER
29 2K-70101-51 1 BRAS TBE ELBOW 1/4CC X 1/4CC
30 K9-103-4 1 TOP SEAL PLATE
31 K9-103-89 1 TOP PLATE SEAL
32 2C-20201-03 1 WSHR FLT AN960-716
33 K9-103-71 1 TUBE #5
2A-80401-04
34
2A-80401-05 PILOT BURNER ORIFICE, .010DRL LP
PILOT BURNER ORIFICE, .021DRL NAT
1
NI 2H-103-124 1 COMPONENT COVER INSULATION
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
1
Page 3
1
2
11
10
6
5
7
12
13
14
15
17
16
8
3
4
9
18
19
21
22
23
20
27
Model: CSG24 GAS 24” CLAMSHELL, FRAME ASSY
24
25
26
SK2477, Rev. A, 3/23/2015
Page 4
PARTS LIST October 29, 2012, Rev. -
Gas Clamshell Frame Parts List
Fig No Part No Qty Description Application
K9-103-702-W2
1
K9-103-702-1 LEFT OUTER STANCHION CSG24B
LEFT OUTER STANCHION - ASSY CSG24
1
R
2 K9-103-701 1 BLOWER DUCT - SPOT
3 2U-30200-44 1 MOTOR & BLOWER ASSY FOR AGC
4 OB-60102-194 1 OBS AGC BLOWER HOUSE ASSY
K9-103-301
5
K9-103-301-2 CSG24B
K9-103-303
6
K9-103-303-2 CSG24B
1 STANCHION COVER LH
1 INNER DRIP EDGE
CSG24
CSG24
7 K9-103-304 1 BAFFLE CLIP RH
8 K9-103-305-1 1 BAFFLE CLIP LH
K9-103-300
9
K9-103-300-2 STANCHION COVER RH CSG24B
STANCHION COVER RH CSG24
1
10 K9-103-323 1 HOODWRAP DRIP CATCHER
11 K9-103-164 1 REAR ACCESS COVER
12 2C-20104-08 2 SCRW HXHD CAP PLT 1/4-20
13 2C-20202-05 2 WSHR PLT 1/4 LOCK SPLIT
14 2C-20201-05 2 WSHR LFT 1/4 USS PLTD
15 2P-70201-07 4 BRNZ BR FLN 5/8IDX3/4ODX1
16 K9-60102-1911 2 HOOD PIVOT SHAFT ASSY
K9-103-115-W3
17
K9-103-115-3 RH OUTER STANCHION CSG24B
RIGHT OUTER STANCHION CSG24
1
18 2C-20109-04 16 SCREW THD MS SS 10-32X
19 K9-103-102 1 FIXED BOTTOM
20 2E-30501-02 1 TRM STRP 3 POLE W/PUSH ON TRM
21 2E-31200-01 1 BOX CONNECTOR 3/8
2E-30600-11
22
2E-30600-04 RLAY 24VAC 2FRMC DPDT FLNG MNT
RELAY 120V SPDT FLANGE MNT used w/Envirozone Griddles
1
23 2E-31400-07 1 XFRMR, 120-208-240/24V,40V
24 K9-103-101 1 COMPONENT TRAY
25 2E-70505-07 1 CONDUIT CNNCTR 3/8 90° FLEX
26 2E-31107-06 1 CORD SET 14/3 X 6’ 15A
27 2V-80502-03 1 SOLENOID VALVE 24VAC
NI 2E-30308-01 1 SWITCH AIR 10WC 1/4
NI K9-103-95 1 AIR SWITCH HOSE
NI 2E-40704-04 1 CAP - BLOWER START FOR
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Page 5
23 RED
REDRAWN IN SOLDWORKS.
ADDED POWER JUMPER FOR 2ND & 3RD HOOD
6/8/2011
ECO 10748
F
REV. DATE/ECO DESCRIPTION OF CHANGE
TILT SWITCH
22 TAN
21 TAN
CARRIAGE HOOD
24 GRN
20 YEL
VALV E
SOLENOID
27 ORG
SENSOR
HVT
SPARK MODULE
GROUND
GROUND
SENSOR
VALVE
TH
26 GRN
25 GRN
28 TAN
IGNITOR
6-8-2011
2M-61113-24 Rev F
20 YEL
1 TAN
CLAMSHELL
TO 2ND OR 3RD
WHEN PRESENT
32 RED
35 GRN
5 BLK
8 BLK
1
1 A BLK
WHEN 2 OR 3 HOODS ARE PRESENT, ONLY ONE POWER
CORD IS USED FOR ALL HOODS.
1
AIR
6 WHT
31 WHT
7 GRN
2
1 B WHT
1
CORD
POWER
SWITCH
CNO
3
TB1
1 C GRN
GRN
WHT
BLK
10 BLK
9 WHT
6 WHT
115
TO 2ND OR 3RD
19 BLU
18 BLK
24
XFMR
11 YEL
WHEN PRESENT
CLAMSHELL TB1
F
17 BRN
16 BLU
15 BRN
12 YEL
EBM
BLOWER
CAPACITOR
30 GRN
29 YEL
2 TAN
4 TAN
3 TAN
TO 2ND OR 3RD
(ACV)
AUTOMATIC
CUTOFF VALVE
CLAMSHELL
WHEN PRESENT
34 GRN
33 GRN
TIMER RELAY.
CONNECTORS
FOR USE WITH
INSULATED SPADE
OPTIONAL EXTERNAL
NOT IN USE
STOWED WHEN
GRIDDLE SWITCH
(GRIDDLES ONLY - WIRES NOT SHOWN)
MODELS:
ADD ON GAS CLAMSHELL
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
