LANG MANUFACTURING COMPANY • 6500 Merrill Creek Parkway, Everett, WA 98203
TOLL FREE: 800.882.6368 • FAX: 425.349.2733 • www.langworld.com
Item No.
Project
Quantity

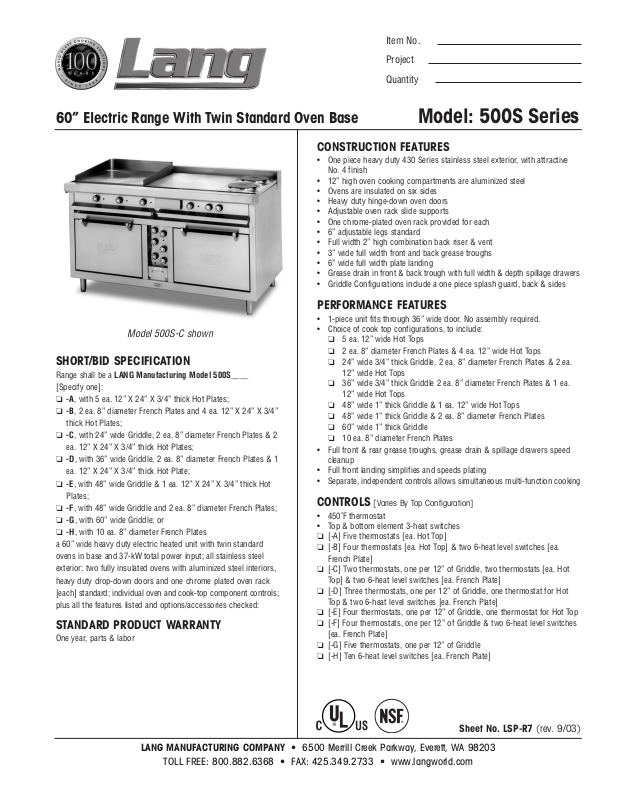

60” Electric Range With Twin Standard Oven Base Model: 500S Series
CONSTRUCTION FEATURES
• One piece heavy duty 430 Series stainless steel exterior, with attractive
No. 4 finish
• 12” high oven cooking compartments are aluminized steel
• Ovens are insulated on six sides
• Heavy duty hinge-down oven doors
• Adjustable oven rack slide supports
• One chrome-plated oven rack provided for each
• 6” adjustable legs standard
• Full width 2” high combination back riser & vent
• 3” wide full width front and back grease troughs
• 6” wide full width plate landing
• Grease drain in front & back trough with full width & depth spillage drawers
• Griddle Configurations include a one piece splash guard, back & sides
PERFORMANCE FEATURES
• 1-piece unit fits through 36” wide door. No assembly required.
• Choice of cook top configurations, to include:
❏ 5 ea. 12” wide Hot Tops
❏ 2 ea. 8” diameter French Plates & 4 ea. 12” wide Hot Tops
❏ 24” wide 3/4” thick Griddle, 2 ea. 8” diameter French Plates & 2 ea.
12” wide Hot Tops
❏ 36” wide 3/4” thick Griddle 2 ea. 8” diameter French Plates & 1 ea.
12” wide Hot Tops
❏ 48” wide 1” thick Griddle & 1 ea. 12” wide Hot Tops
❏ 48” wide 1” thick Griddle & 2 ea. 8” diameter French Plates
❏ 60” wide 1” thick Griddle
❏ 10 ea. 8” diameter French Plates
• Full front & rear grease troughs, grease drain & spillage drawers speed
cleanup
• Full front landing simplifies and speeds plating
• Separate, independent controls allows simultaneous multi-function cooking
CONTROLS [Varies By Top Configuration]
• 450˚F thermostat
•Top & bottom element 3-heat switches
❏ [-A] Five thermostats [ea. Hot Top]
❏ [-B] Four thermostats [ea. Hot Top] & two 6-heat level switches [ea.
French Plate]
❏ [-C] Two thermostats, one per 12” of Griddle, two thermostats [ea. Hot
Top] & two 6-heat level switches [ea. French Plate]
❏ [-D] Three thermostats, one per 12” of Griddle, one thermostat for Hot
Top & two 6-heat level switches [ea. French Plate]
❏ [-E] Four thermostats, one per 12” of Griddle, one thermostat for Hot Top
❏ [-F] Four thermostats, one per 12” of Griddle & two 6-heat level switches
[ea. French Plate]
❏ [-G] Five thermostats, one per 12” of Griddle
❏ [-H] Ten 6-heat level switches [ea. French Plate]
SHORT/BID SPECIFICATION
Range shall be a LANG Manufacturing Model 500S____
[Specify one]:
❏ -A, with 5 ea. 12” X 24” X 3/4” thick Hot Plates;
❏ -B, 2 ea. 8” diameter French Plates and 4 ea. 12” X 24” X 3/4”
thick Hot Plates;
❏ -C, with 24” wide Griddle, 2 ea. 8” diameter French Plates & 2
ea. 12” X 24” X 3/4” thick Hot Plates;
❏ -D, with 36” wide Griddle, 2 ea. 8” diameter French Plates & 1
ea. 12” X 24” X 3/4” thick Hot Plate;
❏ -E, with 48” wide Griddle & 1 ea. 12” X 24” X 3/4” thick Hot
Plates;
❏ -F, with 48” wide Griddle and 2 ea. 8” diameter French Plates;
❏ -G, with 60” wide Griddle; or
❏ -H, with 10 ea. 8” diameter French Plates
a 60” wide heavy duty electric heated unit with twin standard
ovens in base and 37-kW total power input; all stainless steel
exterior; two fully insulated ovens with aluminized steel interiors,
heavy duty drop-down doors and one chrome plated oven rack
[each] standard; individual oven and cook-top component controls;
plus all the features listed and options/accessories checked:
STANDARD PRODUCT WARRANTY
One year, parts & labor
Model 500S-C shown
Sheet No. LSP-R7 (rev. 9/03)
®
Page 2
LANG MANUFACTURING COMPANY • 6500 Merrill Creek Parkway, Everett, WA 98203
TOLL FREE: 800.882.6368 • FAX: 425.349.2733 • www.langworld.com
© 2003 Lang Manufacturing Company Printed in U.S.A. 9/03-M-12200
Due to continuous improvements, specifications subject to change without notice.
Model
Height x Width x Depth Clearance from
Weight
Freight
(Not including legs) combustible surface
Actual Shipping
Class
500S
32.0” x 60.0” x 35.2” Sides: 4” (100mm) 245-280* lbs. 295-330* lbs.
70
813mm x 1524mm x 894mm Back: 4” (100mm) 111-127 kg 132-150 kg
OPTIONS & ACCESSORIES
❏ Substitute 1” thick griddle plate for grooving [12” wide]
❏ Substitute 1” thick griddle plate for grooving [24” wide]
❏ Substitute 1” thick griddle plate for grooving [36” wide]
❏ Grooving on [1” thick ONLY] Range Griddle Plate
❏ Substitute Open Coil Units for French Plates [208/240V ONLY] Set of 2
❏ 480 Volt, 3-phase model
❏ Set of 6” casters, two-locking, two fixed
❏ High Storage Rack [for mounting above any 60” Range]
❏ Extra wire pan racks [One provided with each oven]
INSTALLATION REQUIREMENTS
• Unit is shipped in one piece
•E Single 208/240V, 1/ 3-Phase; or 480V, 3-phase electrical connection
• Installation under approved vent hood required. Consult local codes.
[Power connection from bottom. See below]
Sheet No. LSP-R7 (rev. 9/03)
[Front View/Elevation] [Right Side View] [Top View/Plan]
60” Electric Range With Twin Standard Oven Base Model: 500S Series
* Depending on configuration.
CAD SYMBOLS & PRICING
Model
E Electrical Requirements
Voltage Total kW Phase Amps/Line
208V/60Hz 37.0 1 177.9
240V/60Hz 37.0 1 154.2
500S 208V/60Hz 37.0 3 108.3
240V/60Hz 37.0 3 93.9
480V/60Hz 37.0 3 46.9
Model Has: 500S-A 500S-B 500S-C 500S-D 500S-E 500S-F 500S-G 500S-H
Oven Base: 2 each std. 2 each std. 2 each std. 2 each std. 2 each std. 2 each std. 2 each std. 2 each std.
Griddle: --24” wide 36” wide 48” wide 48” wide 60” wide -
French Plates: -2 each 2 each 2 each - 2 each - 10 each
Hot Plates: 5 each 4 each 2 each 1 each 1 each - - -
Pictogram:
[Unit Top View]
CONFIGURATION GUIDE
3.0"
75mm
54.1"
1374mm
60.0"
1524mm
30.0"/762mm
E ELECTRIC
CONNECTION
32.0"
813mm
3.0"
75mm
37.0"
940mm
5.0"/127mm
9.8"
249mm
3.0"
75mm
35.2"
894mm
8.0"/203mm
E ELECTRIC
CONNECTION
26.2"
664mm
3.0"
75mm
60.0"
1524m
35.2"
894mm
