OPERATING INSTRUCTIONS - 2.2
Laney
POWER TO THE MUSIC
100W ALL TUBE
GUITAR HEAD AMPLIFIER
w w w . l a n e y . c o . u k
0R
0V
WARNING: When using electric products, basic cautions should always be followed, including the following.
1
1. Read all safety and operating instructions before using this product
H
2. The product should be powered by a three pin `grounded (or earthed) plug connected to a power socket with a grounded earth outlet.
3. All safety and operating instructions should be retained for future reference
4. Obey all cautions in the Operating instructions and on the back of the unit
5. All operating instructions should be followed
6. This product should not be used near water, i.e. a bathtub, sink, swimming pool, wet basement, etc.
7. This product should be located so that its position does not interfere with its proper ventilation. It should not be placed flat against a wall or placed in a built up enclosure that
will impede the flow of cooling air.
8. This product should not be placed near a source of heat such as stove, radiator, or another heat producing amplifier.
9. Connect only to a power supply of the type marker on the unit adjacent to the power supply cord.
10. Never break off the ground pin on a power supply cord.
11. Power supply cords should always be handled carefully. Never walk or place equipment on power supply cords. Periodically check cords for cuts or signs of stress, especially at
the plug and the point where the chord exits the unit.
12. The power supply cord should be unplugged when the unit is to be unused for long periods of time.
13. If this product is to be mounted in an equipment rack, rear support should be provided.
14. The user should allow easy access to any mains plug, mains coupler and mains switch used in conjunction with this unit thus making it readily operable.
15. Metal parts can be cleaned with a damp cloth. The vinyl covering used on some units can be cleaned with a damp cloth or ammonia based household cleaner if necessary.
Disconnect the unit from the power supply before cleaning.
16. Care should be taken so that objects do not fall and liquids are not spilled into the unit through any ventilation holes or openings. On no account place drinks on the unit.
17. A qualified service technician should check the unit if:
!
The power cord has been damaged
!
Anything has fallen or spilled into the unit
!
The unit does not appear to operate correctly
!
18. The user should not attempt to service the equipment. All service work is done by a qualified service technician.
19. Exposure to extremely high noise levels may cause a permanent hearing gloss. Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone
Duration Per Day In Hours Sound Level dBA, slow response
According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors in the ear canals or over the ears must be
worn when operating this amplification system in order to prevent a permanent hearing loss if exposure exceeds the limits set forth above. To ensure against potentially dangerous
exposure to high sound pressure levels it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system
be protected by hearing protectors while this unit is in operation.
The unit has been dropped or the enclosure damaged.
will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified
the following permissible noise level exposure.
8 90
6 92
4 95
3 97
2 100
1 ½ 102
1 105
½ 110
¼ or less 115
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Page 2/20
0R
0V
1
H
Intended to alert the user to the presence of uninsulated
‘Dangerous Voltage’ within the products enclosure that may be
sufficient to constitute a risk of electrical shock to persons.
Este simbolo tiene el proposito de alertar al usuario de la presencia
de ‘(voltaje) peligroso’ que no tiene aislamiento dentro de la caja
del producto que puede tener una magnitud suficiente como para
constituir riesgo de corrientazo.
Intended to alert the user of the presence of important operating
and maintenance (Servicing) instructions in the literature
accompanying the product.
CAUTION:
CAUTION:
WARNING:
ATTENTION:
ATTENTION:
ADVERTISSEMENT:
Risk of electrical shock - DO NOT OPEN.
To reduce the risk of electrical shock, do NOT remove the cover.
No user serviceable parts inside. Refer servicing to qualified
personnel.
To prevent electrical shock or fire hazard, do not expose this
appliance to rain or moisture. Before using this appliance please
read the operating instructions for further warnings.
Ce symbole est utililise pur indiquer a l’utilisateur de ce produit de
tension non-isolee dangereuse pouvant etre d’intensite suffisante
pour constituer un risque de choc electrique
Ce symbole est utilise pour indiquer a l’utilisanter qu’il ou qu’elle
trouvera d’importantes instrucions sur l’utilisation et l’entrerien
(service) de l’appareil dans la litterature accompagnant le produit.
Risques de choc electrique - NE PAS OUVIRIR
Afin de reduire le risque de choc electrique, ne pas enlever le
couvercle. II ne se trouve a l’interieur aucune piece pouvant etre
reparee par l’utilisateur. Confier l’entretien a un personnel qualifie.
Afin de prevenir les risques de decharge electrique ou de feu,
n’exposez pas cet appareil a la pluie ou a l’humidite. Avant
d’utiliser cet appareil, lisez les advertissments supplentaires
situes dans le guide.
PRECAUCION:
PRECAUCION:
ADVERTENCIA:
VORSICHT:
VORSICHT:
ACHTUNG:
Este simbolo tiene el proposito de la alertar al usario de la
presencis de instrucccones importantes sobre la operacion y
mantenimiento en la literatura que viene conel producto.
Riesgo de corrientazo - no abra
Para disminuir el risego de carrientazo, no abra la cubierta. No hay
piezas adentro que el pueda reparar. Deje todo mantenimiento a los
tecnicos calificadod.
Para evitar corrientazos o peligro de incendio, no deja expuesto a la
lluvia o humedad este aparato Antes de usar este aparato, lea mas
advertcias en la guia de operacion.
Dieses Symbol soll den Anwender vor unsolierten gefahrlichen
Spannungen innerhalb des Gehauses warnen, die von Ausrichender
Starke sind, um einen elektrischen Schlag verursachen zu konnen.
Dieses Symbol soll den Benutzer auf wichtige Instruktionen in der
Bedienungsanleitung aufmerksam machen, die Handhabung und
Wartung des Produkts betreffen.
Risiko - Elektrischer Schlag! Nicht offen!
Um das Risiko eines elektrischen Schlages zu vermeiden, nicht die
Abdeckung enfernen. Es befinden sich keine Teile darin, die vom
Anwender repariert werden Konnten. Reparaturen nur von
qualifiziertem Fachpersonal durchfuhren lassen.
Um einen elektrischen Schalg oder Feuergefahr zu vermeiden, sollte
dieses Gerat nicht dem Regen oder Feuchtigkeit ausgesetzt werden.
Vor Inbetriebnahme unbedingt die Bedienungsanleitung lesen.
Page 3 /20
0R
0V
1
Laney
OPERATING INSTRUCTIONS
H
BEFORE SWITCHING ON
After unpacking your amplifier check that it is factory fitted with a three pin 'grounded' (or earthed) plug. Before plugging into the power
supply ensure you are connecting to a grounded earth outlet.
If you should wish to change the factory fitted plug yourself, ensure that the wiring convention applicable to the country where the amplifier is to be
used is strictly conformed to. As an example in the United Kingdom the cable colour code for connections are as follows.
EARTH OR GROUND - GREEN/YELLOW
NEUTRAL - BLUE
LIVE - BROWN
NOTE
This manual has been written for easy access of information. The front and rear panels are graphically illustrated, with each control and
feature numbered. For a description of the function of each control feature, simply check the number with the explanations adjacent to each
panel.
Your Laney amplifier has undergone a thorough two stage, pre-delivery inspection, involving actual play testing.
When you first receive your Laney guitar amplifier, follow these simple procedures:
(i) Ensure that the amplifier is the correct voltage for the country it is to be used in.
ii) Connect your instrument with a high quality shielded instrument cable. You have probably spent considerable money on your amplifier and
guitar - don’t use poor quality cable it won’t do your gear justice.
Please retain your original carton and packaging so in the unlikely event that some time in the future your amplifier should require servicing
you will be able to return it to your dealer securely packed.
Care of your Laney amplifier will prolong it's life.....and yours!
Page 4 /20
0R
0V
1
H
Laney
Dear Player,
Thank you very much for purchasing your new Laney product and becoming part
of the worldwide Laney family. Each and every Laney unit is designed and built
with the utmost attention to care and detail, so I trust yours will give you many
years of enjoyment.
Laney products have a heritage which stretches back to 1967 when I first began
building valve amplifiers in my parent’s garage. Since then we have moved on from
strength to strength developing an extensive range of guitar, bass, public address
and keyboard amplification products along with a list of Laney endorsees that
includes some of the world’s most famous and respected musicians. At the same
time we believe we have not lost sight of the reason Laney was founded in the
first place - a dedication to building great sounding amplification for working
musicians.
Warm Regards,
Lyndon Laney CEO
INTRODUCTION
The Dark Art: In an age where guitar players have developed an unhealthy fascination with pre-amp distortion, the fabled sound of a tube
power amp being pushed hard has almost passed into history. Until now that is!
The VH100R features twin footswitchable channels; each with its own footswitchable gain; independent 3 band EQ; independent reverb level
and dedicated FX loop, giving you an unprecedented level of flexibility. You can now go from a super clean shimmer; to a warm clean
crunch; to a stack style distortion; to a full on lead tone, as simply as stepping on a switch - which is included with the amp (FS4). The hand
wired 100W output stage is built to deliver: The harder you drive it, the better it sounds. The VH100R is designed to be used with the
GS412IA and GS412IS cabinets - to enhance the amplifiers huge tonal range and produce stunning tone at any volume.
total flexibility - flexibility of tone and flexibility of use.
Your VH100R should give you years of trouble-free amplification, however please take time to read this manual and familiarise yourself with
the controls as it will allow you to get the best from your amplifier. We hope you enjoy using your VH100R as much as we enjoyed
designing and making it. Best wishes from all at Laney
OPERATING INSTRUCTIONS
The VH100R offers
Page 5 /20
0R
0V
1
Laney
H
OPERATING INSTRUCTIONS
25252626
1
0
POWER STANDBY
3344 66778899131315151818 1717 55
PRESENCE
5
4
6
3
7
2
1
9
0
10
RESONANCE EFFECTS REVERB TREBLE MIDDLE BASS VOLUME DRIVE VOLUMEBRIGHT
EFFECTS REVERB TREBLE MIDDLE BASS VOLUME GAIN DRIVE
8
CHANNEL
5
4
3
2
1
0
5
4
3
2
1
0
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
10
6
10
6
3
7
9
7
9
7
2
8
8
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
7
2
8
1
9
0
10
5
4
6
3
2
1
0
10
5
4
6
3
2
1
0
10
20202121242423232222101011111212141416161919
11
7
8
9
7
8
9
INPUT
HI
LO
22
FRONT PANEL CONTROLS
HI INPUT:
‘Hi’ stands for high gain. This input is designed for the connection of low output level guitars making it well suited
for guitars with single coiled or low gain humbucker type pickups. Use of high gain pickups in this input may drive the preamp
too hard causing a "mushy" sound. Only use good quality guitar cable.
LO INPUT: ‘
high output level guitars. It is useful in obtaining output that is "tight" not "mushy" from high gain humbucker type pickups
Lo’ stands for low gain. This input is attenuated down approximately 50% from the Hi input and is designed for
.
Also use this input for the cleanest full range sound with extended low end response. Only use good quality guitar cable.
GAIN: Sets the level of tube preamplifier gain or how dirty your sound is for the drive channel - Channel B. This channel is
designed to produce full stack style distortion. This control should be used in conjunction with the Volume (4) Setting a low
gain level and medium Volume will give a nice crisp bluesy lead tone, again with the ability to drive the output stage at higher
Volume settings. Setting a medium level on the Gain control and a medium setting on the Volume will give you a punchy hard
rock lead tone, with the ability to again drive the output tubes at higher Volume settings, while setting a high level on the Gain
control and a low setting on the Volume will give you a full on metal lead tone, with the ability to again drive the output tubes at
higher Volume settings Having set the Gain and Volume controls to your desired sound try backing off your guitar volume and
tone controls for lots of other cool sounds. Good tube amplifiers have the unique ability to produce a wide range of sounds by
using only your guitar controls, playing weight and style.
VOLUME Sets the overall ‘loudness’ of Channel B
very open, warm and semi overdriven sound try reducing the amount of gain (3) and increasing the volume. This reduces pre
: It is useful to experiment with the gain and volume controls. If you want a
-
Page 6 /20
0R
0V
1
Laney
OPERATING INSTRUCTIONS
H
amp gain but pushes the power amp section and makes it work harder giving you a very desirable level of power amp
distortion which is a very pleasing “retro” style sound.
DRIVE SWITCH: Switch in to enable the extra tube drive stage for Channel B, the led will illuminate when active. This gives
you even more gain to play around with using the drive control (6) This channel is designed mainly for full on lead distortion.
This must be switched on for the drive channel to be switchable with the enclosed FS4 footswitch.
DRIVE: This sets the amount of drive sound provided by the extra tube drive stage for Channel B. This varies from subtle
crunch to hi-gain lead break sounds.
BASS, MIDDLE, TREBLE: These are a traditional set of passive tone controls. Passive controls have the advantage of
always sounding musical at any of their settings mainly due to their unique interactive nature. This gives players a more natural
set of tools to create their ideal sound. (Try them all set at midway (5) as a good starting point) (Top row of controls affects
channel B, bottom row of controls affects Channel A)
REVERB: Controls how loud the built in reverb sounds. The reverb in the VH100R is a legendary Sound Enhancements aka
‘Accutronics Reverb’. The only choice for that authentic reverb sound. There are separate controls for Channel A (bottom)
and Channel B (Top)
EFFECTS: Controls the amount of effect returned from an external effects unit via the effects loop/s located on the rear
panel. There are separate controls for channel A (bottom) and channel B (top)
CHANNEL SWITCH: Use this switch to select the active channel, the led will illuminate for the active channel (Top or
bottom row of controls) Channel A (Bottom) produces clean tone and mild overdrive that is reminiscent of a sixties American
tube combo. Channel B (Top) produces more substantial overdrive and distortion that is associated with British tube stacks.
Both channels feature an extra gain stage for more drive which is also footswitchable.
PRESENCE: An output stage tone control. This adjusts the high frequency response - it adjusts your sound from being dull
to giving it edge / sounding sparkly.
RESONANCE: Adjusts level of Power Tube damping. This allows the player to adjust how tight the bass response is - this
will be dependent on what speaker cabinet used. The Resonance allows you to adjust the bass damping to your particular
taste.
Page 7 /20
0R
0V
1
Laney
OPERATING INSTRUCTIONS
H
FRONT PANEL CONTROLS - CONTINUED
VOLUME: Adjusts the overall volume of the clean channel (Channel A) This channel is designed to produce ultra clean tones.
Try cranking the volume control up a little to push the output tubes harder for that real retro sound you can only get with a
quality tube amplifier. Now use your guitar volume control to adjust the amount of distortion. (Wind it up a little for mild
distortion, back it off a little for clean)
BRIGHT: Adds brightness and life to your tones when on the clean channel. Adds edge and picking emphasis when on the
clean drive channel (22-24) This switch has more effect at low clean volume (20)and drive (23) settings. Use in conjunction
with the clean treble control (12) for optimum performance.
DRIVE SWITCH: Switch in to enable the drive stage for the clean channel. When active the led will illuminate. Note: This
switch must be set to ‘on’ to enable remote switching via the FS4 footswitch.
DRIVE: Sets the level of tube preamplifier gain or how dirty your sound is for channel A drive. This channel is designed to
produce clean crunch sounds. This control should be used in conjunction with the Volume (23) Setting low levels of gain with
high levels of volume will give a clean preamplifier sound with tube output stage overdrive. Setting a medium gain level and
medium Volume will give a nice crisp bluesy lead tone, again with the ability to drive the output stage at higher Volume settings.
Setting a high level on the Gain control and a low setting on the Volume will give you a punchy hard rock lead tone, with the
ability to again drive the output tubes at higher Volume settings. Having set the Gain and Volume controls to your desired
sound try backing off your guitar volume and tone controls for lots of other cool sounds. Good tube amplifiers have the
unique ability to produce a wide range of sounds by using only your guitar controls, playing weight and style.
VOLUME: Sets the overall ‘loudness’ of Channel A drive.
want a very open, warm and semi overdriven sound try reducing the amount of gain (23) and increasing the volume. This
reduces pre amp gain but pushes the power amp section and makes it work harder giving you a very desirable level of power
amp distortion which is a very pleasing “retro” style sound.
STANDBY: Disconnects the HT supply from the Tubes whilst the heaters still keep them warm. This allows you to switch
out of standby and play without waiting for your amplifier to warm up. This is useful after you have sound checked and you are
waiting to go on stage - leave the amp in standby so its ready to go when performance time comes. Always switch off for
short breaks when you don’t want to wait for the tubes to warm up again.
POWER: Main power switch for the unit. The VH100R features delay turn on circuitry to increase tube life, the HT supply to
the tubes gets switched on only after they have warmed up and are ready to go - approx 30 seconds.
-
It is useful to experiment with the gain and volume controls. If you
Page 8 /20
0R
0V
1
Laney
H
OPERATING INSTRUCTIONS
3838 3636 3434
LOUDSPEAKERS
1*16 OHM
WARNING:
USE ONLY ONE IMPEDANCE
SELECTION AT A TIME
CLASS 2 WIRING MAY BE USED
2*16 OHM
1*8 OHM 1*4 OHM
37375151 3535
2*8 OHM
HT FUSE
MAINS FUSE
T1A L
~220-240V = T2A L 250V
~100-120V = T5A L 250V
CAUTION
TO REDUCE THE RISK OF FIRE REPLACE
ONLY WITH SAME TYPE AND RATING
3333 3232
MAXIMUM POWER CONSUMPTION
300 WATTS
SUPPLY VOLTAGE
3131
Laney
Power To The Music
www.laney.co.uk
A+B
SEND
EFFECTS LOOPEFFECTS LOOP
OVERDRIVE CHANNEL BCLEAN CHANNEL A
5252
MADE IN THE U.K.
SERIAL NO.
MODEL
SENDRETURNRETURNRETURN
INSERT
BYPASS SIDE/
RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION REMPLACER LE FUSIBLE PR LE MEME
ET CALIBRE
ATTENTION DEBRACHER A LA PRISE SECTEUR AVANT D’OUVRIR
WARNING - THIS APPARATUS MUST BE EARTHED
WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION - TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER SERVICABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONEL.
INSERT
RETURN
LEVEL
0 10
RETURNSEND
CHAIN
CAUTION
FOOTSWITCH EL34 6L6/
ONLY FOR USE
WITH LANEY FS4
BIAS
5881
PREAMP POWERAMP
LINE
INOUT
393940404141424243434444454546464747484849495050
REAR PANEL CONTROLS
POWER INLET SOCKET: Connect to your power source. Make sure the specified voltage is correct for your country!
POWER FUSE: This is the main safety fuse for the unit. The fuse protects the AC power to the amplifier. USE ONLY THE
CORRECT SIZE AND RATING OF FUSE AS SPECIFIED ON THE PANEL. If a fuse blows or fails and a replacement of the
same size and rating is installed and it in turn blows, the amplifier has suffered a malfunction internally and needs immediate
service from a qualified technician. DO NOT TRY USING A FUSE OF HIGHER RATING. Using a fuse that is too large in
current rating may cause serious, irreparable damage to the amplifier and presents a serious fire hazard. The mains fuse
ratings are detailed in the specs section at the rear of this manual
HT FUSE: This fuse protects the DC power to the tubes within the amplifier. USE ONLY THE CORRECT SIZE AND
RATING FUSE AS SPECIFIED ON THE PANEL. If a fuse blows or fails and a replacement of the same size and rating is
installed and it in turn blows, the amplifier has suffered a malfunction, at this point check the output tubes and replace faulty
ones if required. Should tubes not be the problem the amplifier should be checked out by a qualified technician. Do not try
using a fuse of greater value. Using a fuse that is too large in current rating may cause serious, irreparable damage to the
amplifier. Fuses are designed to protect, do not take chances.
LOUDSPEAKERS: Loudspeaker outlets are provided on a series of five jack sockets. The impedance of the
¼” (6.3mm)
loudspeaker/s should be checked and connected to the appropriate socket/s. Using the incorrect sockets will reduce the life
of your output tubes and won’t sound as good and in extreme cases could damage your amplifier.
IMPORTANT: Operation of your VH100R amplifier without a loudspeaker connected could result in expensive failure of
your output transformer. DO NOT OPERATE WITHOUT A LOUDSPEAKER CONNECTED. There are dedicated
optimised outputs for the following loudspeaker combinations: 1*16 ohm, 1*8 ohm, 2*16 ohm, 1*4 ohm, 2*8 ohm.
Page 9 /20
0R
0V
1
Laney
OPERATING INSTRUCTIONS
H
REAR PANEL CONTROLS - CONTINUED
LINE IN: The Line in socket provides the user with an input to the power amplifier stage. When a Jack is connected to the
Line In socket the preamp signal does not pass to the power amp.
LINE OUT: The line out socket gives the user an output for driving other amplifiers, mixing desks etc. . Can also be useful in
multi-amp setups where a single preamp can drive several VH power stages. This can be done by simply daisy chaining Line outs
to Line ins. The line out is an (unbalanced) line level output.
BIAS: This allows you to bias the amplifier to suit your chosen output tubes. The switch has two positions 5881/6L6 and EL34.
We recommend the use of matched sets of output tubes for best performance. Ensure the switch is in the correct position
otherwise you risk damaging your amplifier.
FOOTSWITCH: This is a 5 pin 180° DIN socket for connection of the dedicated FS4 footswitch enclosed with the amplifier.
The FS4 allows remote switching of Channel A/B, Drive on Channel A, Drive on channel B and Global Reverb
FX RETURN LEVEL: This control serves two purposes:
1) In Side chain mode it controls the mix level of the global FX Return signal (via 14) mixed with the dry signal.
2) In Insert mode it behaves as an overall level control for the global FX Return (via 14)
EFFECTS LOOP RETURN: Connect the output from your external effects to this socket. A notable feature on the
VH100R is that you won’t lose sustain when the FX loops are in use. This is because the power stages are still driven by a tube
FX loop buffer.
EFFECTS LOOP SWITCH: This allows the global effects loop to operate in three distinct modes:
1) Side Chain: The return signal is mixed with the dry signal, the level of FX return is controlled by the FX return
level control. This allows you to set the right mix between the dry signal and the effects signal. Use Side chain
mode for FX units such as delays, flangers etc where a direct signal path is maintained internally to avoid loss of
dynamics through the external FX processor. When using this mode the external FX processor should be switched
to ‘effect only mode’
2) Insert: The return signal is buffered and sent directly to the output tubes, no mixing with the dry signal happens.
The wet/dry mix is adjusted within the external FX processor. The FX return level control then acts as overall level
control allowing you to make up for any insertion loss that may occur in the FX processor. Use this mode when
the whole of the amplifier signal needs routing through any external processors such as graphic EQs etc.
Warning: In insert mode with the FX return level control at minimum the amplifier will have no output, good
normal level for this control is ‘5’ which is approx unity gain.
3) Bypass: The global FX loop circuitry is switched out of circuit altogether.
Page 10 /20
0R
0V
1
Laney
OPERATING INSTRUCTIONS
H
REAR PANEL CONTROLS - CONTINUED
EFFECTS LOOP SEND: Connect the input of your external effect to this socket. A ‘side chain’ effects loop allows you to
connect external effects such as tremolo’s, chorus and delays to your amplifier. Signal leaves the amplifier via the `Send’ (46)
socket and comes back from the effects via the `Return` (44) socket via the FX return level control (43). Some Effects are
better suited to being between the guitar and amplifer input - these are foot pedal types / distortion / wah wah pedals etc.
Rack mount effects will work better in the FX loop on the amplifer rear. Stomp boxes are normally designed for small signals
such as a guitar output whereas rack mount FX are designed for the higher signal level obtained from an FX send.
CHANNEL B SEND: This line level output provides a signal from the pre-amplifier for routing to external effects processors.
It operates in sidechain mode and any external processors should be set to ‘Effect only Mode’ if at all possible.
CHANNEL B RETURN: Connect the output of the Channel B FX processor here if you only want the effect to be assigned
to channel B. Control the amount of effect with the Channel B effect level control on the front panel. (15)
CHANNEL A+B RETURN: This socket is provided for use when a single external FX processor is going to be used on
both channels, but at different mix levels.
CHANNEL A RETURN: Connect the output of the Channel A FX processor here if you only want the effect to be assigned
to channel B. Control the amount of effect with the Channel B effect level control on the front panel. (16)
CHANNEL A SEND: This line level output provides a signal from the pre-amplifier for routing to external effects
processors. It operates in sidechain mode and any external processors should be set to ‘Effect only Mode’ if at all possible.
SERIAL NO: Displays the model and serial number of the unit.
Page 11 /20
0R
0V
1
Laney
H

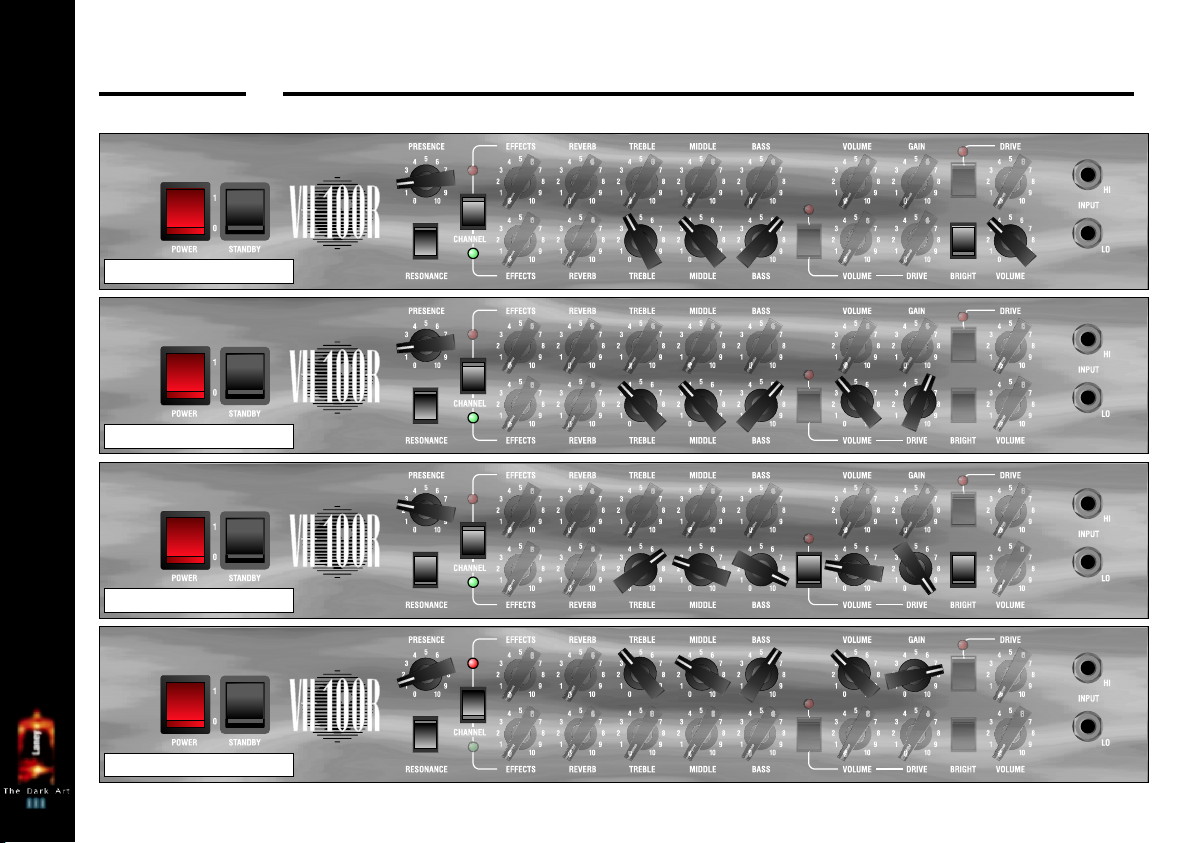

QUICK START SETTINGS
Ultra Clean
Clean Crunch
Grungy/Punk
OPERATING INSTRUCTIONS
Rock Rhythm
Page 12 /20
0R
0V
1
Laney
H
QUICK START SETTINGS - CONTINUED
Blues Lead
Rock Lead
Metal Lead
OPERATING INSTRUCTIONS
NOTES: These settings are suggestions only and will obviously vary depending on your guitar and playing style.
Experiment until you find something you like!
Page 13 /20
0R
0V
1
Laney
OPERATING INSTRUCTIONS
H
TUBE AMPLIFIER SURVIVAL TIPS
Tube amplifiers generally sound much warmer/sweeter than solid state transistor amplifiers but they also need a little more respect due to
the fragile glass tubes themselves. The VH100R uses top quality tubes, six ECC83 preamp tubes, and a matched set of four EL34B-STR output
tubes which should give you years of trouble free service, however like all tube amps; it is important to treat it with a certain amount of
respect.
" Take care when moving the amplifier. Tubes are fragile glass components, they can easily be damaged if thrown in and out of transit vans
etc.
" Make sure the impedance of your cabinets matches the setting on your amplifier. Improper impedance matching will result in reduced
output power output and compromised sound at best and amplifier failure/premature tube failure at worst.
" Allow the amplifier to warm up to room temperature before switching it on, The sudden thermal shock generated can crack the cold
glass tube housing plus any moisture is bad news around high voltage electronics.
" Allow the amplifier to cool down after playing before moving. Hot tubes are more suseptable to damage than cool ones.
Use good quality loudspeaker leads, cheap leads are often not up to the job of handling the large requirements for loudspeakers and can
often short out. Tube amps don't like running into a short circuit.
A tubes life expectancy is based upon a number of factors which include operating temperature, how hard and how often it is played,
vibration due to travel etc. Tubes should be changed in your amplifier If you notice any change in your amplifiers performance etc. They
need not be changed at any regular interval.
Typical problems with preamp tubes can be a crackley noise, hiss, hum and microphony. The preamp tubes can safely be changed with no
action required if they fail or reduce in performance.
Typical output tube problems can be blown HT fuse, sound lacking in punch, sound lacks extreme highs or lows and low level hum. The
Output tubes can be replaced singularly if you replace them with the exact same type AND grade as factory fitted otherwise they
should be replaced as a set. If the same type and grade are used then no rebiasing of the amplifier is required. See the diagram at the bottom
left hand corner to see how to check the tube grade fitted. If you wish to use a different grade of tube then they should only ever be changed
by a qualified service agent due to the grid bias voltage needing adjustment. Do not attempt to rebias your tube amplifier yourself, there are
potentially dangerous voltages inside.
Exact replacement preamp tubes and matched sets of output tubes are available from Laney via your dealer.
To change a tube, switch off the unit and unplug from the mains supply. Wait for the tubes to cool down. Remove the protective grille held in
place with four screws. You should now be able to access the chassis where the tubes are mounted. Preamp tubes are protected with a
screen can, to remove; gently twist the screen can anti clockwise and then pull up. The tube can then be gently pulled out. Take care when
pushing the new tube in to make sure the pins are all aligned properly Output tubes have a spring retainer which must be pushed downwards
before the tube will come out.
Page 14 /20
0R
0V
1
Laney
H
TUBE AMPLIFIER SURVIVAL TIPS - continued
OPERATING INSTRUCTIONS
EL34B
EL34B
Grade Number
Grade Number
V6V6
V10V10
V1 ECC83 Hi-Grade 1st Gain Stage Drive Ch.
V2 ECC83 Standard 2nd Gain Stage Drive Ch.
V3 ECC83 Hi-Grade 1st Gain Stage Clean Ch.
V4 ECC83 Standard 2nd Gain Stage Clean Ch.
V5 ECC83 Standard 3rd Gain Stage Drive Ch.
V6 ECC83 Standard Power Driver Stage
V7-10 EL34B-STR MATCHED SET
V9V9
V8V8
V7V7
V5V5
V3V3V4V4
V1V1V2V2
Page 15 /20
0R
0V
1
Laney
Laney
H
VH100R SAMPLE SYSTEM 1
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Input
FX Controller
Output
Sidechain Mode
Return level active for
mix level
Laney
Power To The Music
www.laney.co.uk
SEND
MADE IN THE U.K.
ATTENTION REMPLACER LE FUSIBLE PR LE MEME
SERIAL NO.
ET CALIBRE
ATTENTION DEBRACHER A LA PRISE SECTEUR AVANT D’OUVRIR
WARNING - THIS APPARATUS MUST BE EARTHED
WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
MODEL
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION - TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER SERVICABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONEL.
INSERT
EFFECTS LOOPEFFECTS LOOP
A+B
OVERDRIVE CHANNEL BCLEAN CHANNEL A
FOOTSWITCH EL34 6L6/
RETURN
LEVEL
BIAS
INSERT
BYPASS SIDE/
0 10
ONLY FOR USE
RETURNSEND
SENDRETURNRETURNRETURN
CHAIN
WITH LANEY FS4
2*16 OHM
2*8 OHM
LOUDSPEAKERS
1*16 OHM
1*8 OHM 1*4 OHM
LINE
WARNING:
INOUT
USE ONLY ONE IMPEDANCE
5881
SELECTION AT A TIME
CLASS 2 WIRING MAY BE USED
PREAMP POWERAMP
HT FUSE
T1A L
CAUTION
TO REDUCE THE RISK OF FIRE REPLACE
ONLY WITH SAME TYPE AND RATING
~220-240V = T2A L 250V
~100-120V = T5A L 250V
MAXIMUM POWER CONSUMPTION
300 WATTS
MAINS FUSE
SUPPLY VOLTAGE
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
Connected to the single
16 ohm socket.
Laney
Laney
Power To The Music
Power To The Music
Model RB115
Model RB115
Model RB115
Model RB115
Power Rating 300W Program
Power Rating 300W Program
Power Rating 300W Program
Power Rating 300W Program
GS412IA
Serial Number:Serial Number:
Serial Number:Serial Number:
SAMPLE
DESIGNED IN THE UK BY LANEY
DESIGNED IN THE UK BY LANEY
www.laney.co.uk
www.laney.co.uk
GS412IA 16 Ohm
Input
Input
Link
Link
8 Ohms
16 Ohms
General Notes
Amplifier connection: In order to avoid damage, it is advisable to establish and follow a pattern for turning on and off your
equipment. With all system parts connected, turn on source equipment, tape decks, cd players, mixers, effects processors etc.
BEFORE turning on your guitar amplifier. Many products have large transient surges at turn on and off which can cause damage to
your speakers. By turning on your guitar amplifier LAST and making sure its Volume controls are set to minimum any transients
from other equipment will not reach your loudspeakers. Wait until all system parts have stabilised; usually a couple of seconds.
Similarly when turning off your system always turn down the Volume controls on your guitar amplifier and then turn off its power
before turning off other equipment.
Cables: never use shielded or microphone cable for any speaker connections as this will not be substantial enough to handle the
amplifier load and could cause damage to your amplifier system.
Caution: These professional loudspeaker systems are capable of generating very high sound pressure levels. Use care with
placement and operation to avoid exposure to excessive levels that can cause permanent hearing damage. (Refer to guidelines on
page 2)
Servicing: The user should not attempt to service these products. Refer all servicing to qualified service personnel.
Page 16 /20
0R
0V
1
Laney
H
OPERATING INSTRUCTIONS
Front panel effects
level controls active
allowing independent
control of each channel
Laney
Power To The Music
www.laney.co.uk
SEND
EFFECTS LOOPEFFECTS LOOP
A+B
OVERDRIVE CHANNEL BCLEAN CHANNEL A
Laney
Laney
Power To The Music
Power To The Music
Model RB115
Model RB115
Model RB115
Model RB115
Power Rating 300W Program
Power Rating 300W Program
Power Rating 300W Program
Power Rating 300W Program
GS412IA
Serial Number:Serial Number:
Serial Number:Serial Number:
SAMPLE
DESIGNED IN THE UK BY LANEY
DESIGNED IN THE UK BY LANEY
www.laney.co.uk
www.laney.co.uk
Laney
Laney
Power To The Music
Power To The Music
Model RB115
Model RB115
Model RB115
Model RB115
Power Rating 300W Program
Power Rating 300W Program
Power Rating 300W Program
Power Rating 300W Program
GS412IS
Serial Number:Serial Number:
Serial Number:Serial Number:
SAMPLE
DESIGNED IN THE UK BY LANEY
DESIGNED IN THE UK BY LANEY
www.laney.co.uk
www.laney.co.uk
MADE IN THE U.K.
SERIAL NO.
MODEL
SENDRETURNRETURNRETURN
Input
Output
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION REMPLACER LE FUSIBLE PR LE MEME
ET CALIBRE
ATTENTION DEBRACHER A LA PRISE SECTEUR AVANT D’OUVRIR
WARNING - THIS APPARATUS MUST BE EARTHED
WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION - TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER SERVICABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONEL.
INSERT
FOOTSWITCH EL34 6L6/
RETURN
LEVEL
BIAS
INSERT
BYPASS SIDE/
0 10
CHAIN
ONLY FOR USE
RETURNSEND
WITH LANEY FS4
Input
Input
Link
Link
8 Ohms
16 Ohms
Input
Input
Link
Link
8 Ohms
16 Ohms
2*16 OHM
LOUDSPEAKERS
1*16 OHM
1*8 OHM 1*4 OHM
LINE
WARNING:
INOUT
USE ONLY ONE IMPEDANCE
5881
SELECTION AT A TIME
CLASS 2 WIRING MAY BE USED
PREAMP POWERAMP
GS412IA 16 Ohm
GS412IS 16 Ohm
FX Controller
Bypass mode.
2*8 OHM
MAXIMUM POWER CONSUMPTION
300 WATTS
HT FUSE
MAINS FUSE
T1A L
~220-240V = T2A L 250V
SUPPLY VOLTAGE
~100-120V = T5A L 250V
CAUTION
TO REDUCE THE RISK OF FIRE REPLACE
ONLY WITH SAME TYPE AND RATING
Connected to the single
8 ohm socket. (Two 16ohm
cabinets in parallel = 8ohms)
Page 15 /20
0R
0V
1
Laney
Laney
H

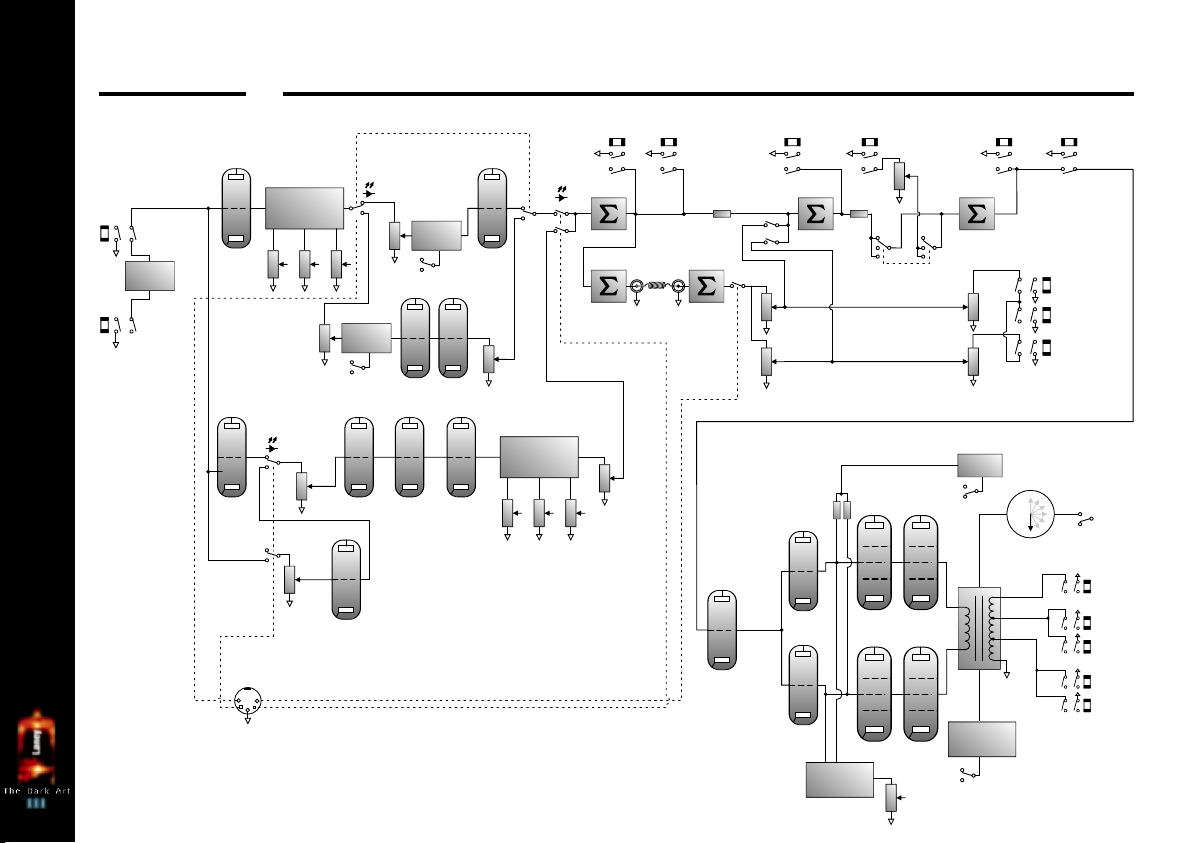

BLOCK DIAGRAM
HI INPUT
PADPAD
LO INPUT
DRIVEA
V1a
DRIVEB
V3a
CLEAN CHANNEL
BASS
FOOTSWITCH
EQEQ
MID
DRIVE
DRIVE
REVERB
CHANNEL
GAIN
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
X
F
REVERB
SEND
B
GLOBAL
CLEAN CH.
REVERB
CLEAN CH.
REVERB
FX SEND
V6a
GLOBAL FX RETURN
BYPASS
INSERT
SIDE
CHAIN
V7
FX RETURN
5881/6L6
EL34
V8
PR
BIAS
EAMP
OUT
5
50
45
0
4
DELAY TURN ON
0
5
5
5
3
30
A
D
SENFX
V3b
CLEAN
VOLUME
BRIGHTBRIGHT
SPRINGLINE
TREBLE
V1b
BRIGHTBRIGHT
V2a
V4b
V5a
V2b V5b
VOLUME
DRIVE CHANNEL
EQEQ
MID
BASS
VOLUME
TREBLE
V4a
16Ohms
8Ohms
4Ohms
V6b
V9
PRESENCE
V10
RESONANCE
POWERAM IN
FX R TUR
E
FX E RN
R
TU
1
0
15
20
25
LOUDSPEAKERS
1*16 Ohm
2*16 Ohm
1*8 Ohm
2*8 Ohm
1*4 Ohm
P
N FX RETUR
A
N A
+B
B
POWER
Page 18 /20
0R
0R
0V
0V
1
1
Laney
Laney
H
H
SPECIFICATIONS
Supply Voltage ~100V, ~120V, ~220V, ~230V, ~240V 50/60Hz Factory Option
Mains Fuse (~220V>240V = T2A L 250V) (~100>120V = T5A L 250V)
HT Fuse T1A L
Power Consumption 300W
Output Power Rating 100W
Loudspeaker Outputs 1*16 Ohm
1*8 Ohm 2*16 Ohm
1*4 Ohm 2*8 Ohm
Features Pure Class A/B Valve tone
4xEL34B-STR Power Tubes (Matched Set TAD)
6x12AX7 Preamp tubes (Premium TAD ECC83)
Hi & Lo Gain Inputs
Rugged construction
Selectable FX Loop with Level Control (Sidechain/Insert/Bypass, 500mV Nominal)
Individual Channel A+B FX loops (With Front panel controls, 500mV Nominal)
Line In/Line Out (Nominal)
EQ Passive Bass, Middle and Treble (Separate EQ For Clean and Drive)
Resonance Switch
Bright Switch (For Clean Channel+Clean Drive)
Presence
Footswitchable Channel, Drive A, Drive B, Reverb (Laney FS4 footswitch included)
Input Impedance 1MOhm/47pF
(H*W*D) 290*675*290
Size
Unit Weight 27.5Kg
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
This product conforms to the requirements of the following European Regulations, Directives & Rules:-
CE Mark (93/68/EEC), Low Voltage (72/23/EEC), EMC (93/68/EEC),
RoHS (EU2002/95/EC), WEEE (EU2002/96/EC)
In order to reduce environmental damage, at the end of its useful life, this product must not be disposed of along with normal
household waste to landfill sites. It must be taken to an approved recycling centre according to the recommendations of the WEEE
(Waste Electrical and Electronic Equipment) directive applicable in your country.
Page 19 /20
Laney
POWER TO THE MUSIC
METAL
L A NE Y A M P LI F I C A T I O N
In the interest of continued product development, Laney Reserves the right to amend product specification without prior notification.
JAZZ
AMPICONS ARE HERE TO HELP!
w w w. l a n e y. c o . u k
BLUES
ROCK
Loading...
