A
SSEMBLY
I
NSTRUCTIONS

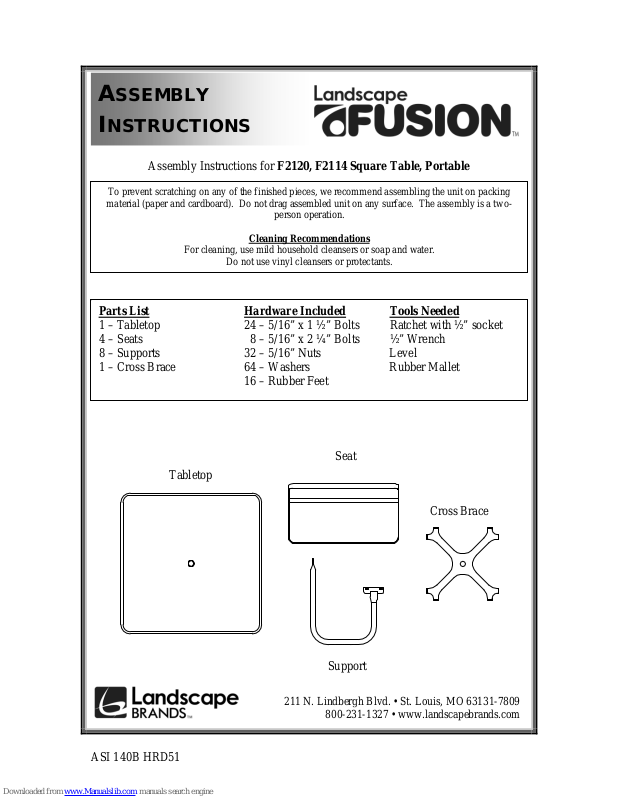

Assembly Instructions for F2120, F2114 Square Table, Portable
To prevent scratching on any of the finished pieces, we recommend assembling the unit on packing
material (paper and cardboard). Do not drag assembled unit on any surface. The assembly is a two-
person operation.
Cleaning Recommendations
For cleaning, use mild household cleansers or soap and water.
Do not use vinyl cleansers or protectants.
Parts List Hardware Included Tools Needed
1 – Tabletop 24 – 5/16” x 1 ½” Bolts Ratchet with ½” socket
4 – Seats 8 – 5/16” x 2 ¼” Bolts ½” Wrench
8 – Supports 32 – 5/16” Nuts Level
1 – Cross Brace 64 – Washers Rubber Mallet
16 – Rubber Feet
Tabletop
Seat
Cross Brace
Support
211 N. Lindbergh Blvd. • St. Louis, MO 63131-7809
800-231-1327 • www.landscapebrands.com
ASI 140B HRD51
A
SSEMBLY
I
NSTRUCTIONS
Diagram #1 Diagram #2
Note: Before assembling the nuts to the bolts, it is recommended that a light oil or petroleum
jelly be applied to the bolt threads.
1. Place tabletop upside down on level surface.
2. Align holes in supports with holes in tabletop, with supports on the inside of the table
brackets, as shown in Diagram #1.
3. Insert 1 ½” bolts through holes, with washers on both sides, and attach nuts, leaving
finger tight, as shown in Diagram #2.
4. Align holes in cross brace with holes in supports as shown in Diagram #1.
5. Insert 2 ¼” bolts through holes, with washers on both sides and attach nuts, leaving
finger tight.
6. Attach (2) rubber feet to the outer most holes of each support, using the rubber mallet.
7. Turn table upright.
8. Align holes, closest to front, in seats with holes in supports, with supports on the
outside of the seat brackets, as shown in Diagram #1.
9. Insert 1 ½” bolts through holes, with washers on both sides, and attach nuts, leaving
finger tight, as shown in Diagram #2.
10. Level the tabletop and seats.
11. Tighten all hardware. Retighten hardware two weeks after initial assembly.
ASI 140B HRD51
