Zero Turn Mowers
Z48 & Z54 Accu-Z Razor®
27790
357-344P
Parts Manual
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2013 Printed 03/14/14
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Main Frame, Seat & Bumper.......................6
Frame & Bumper S/N 664678-............................................6
Frame & Bumper S/N 664679+...........................................8
Rops Folding W/ Seat Belt................................................10
Seat & Footrest S/N 637189-............................................12
Seat & Footrest S/N 637190+...........................................14
Section 3: Electrical, Levers & Transmission............16
Brake Park.........................................................................16
Control Levers...................................................................18
Deck Lift............................................................................20
Electrical Components......................................................22

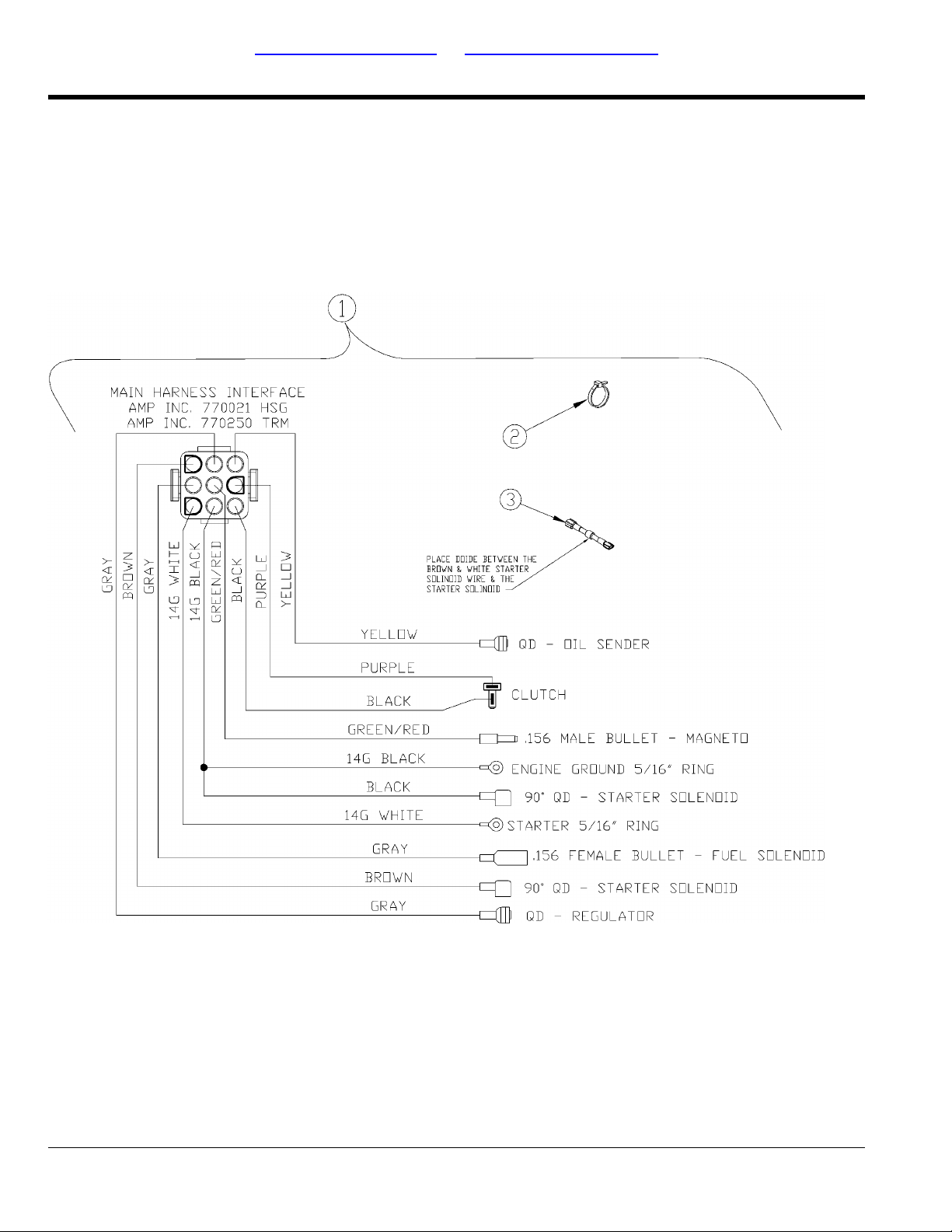

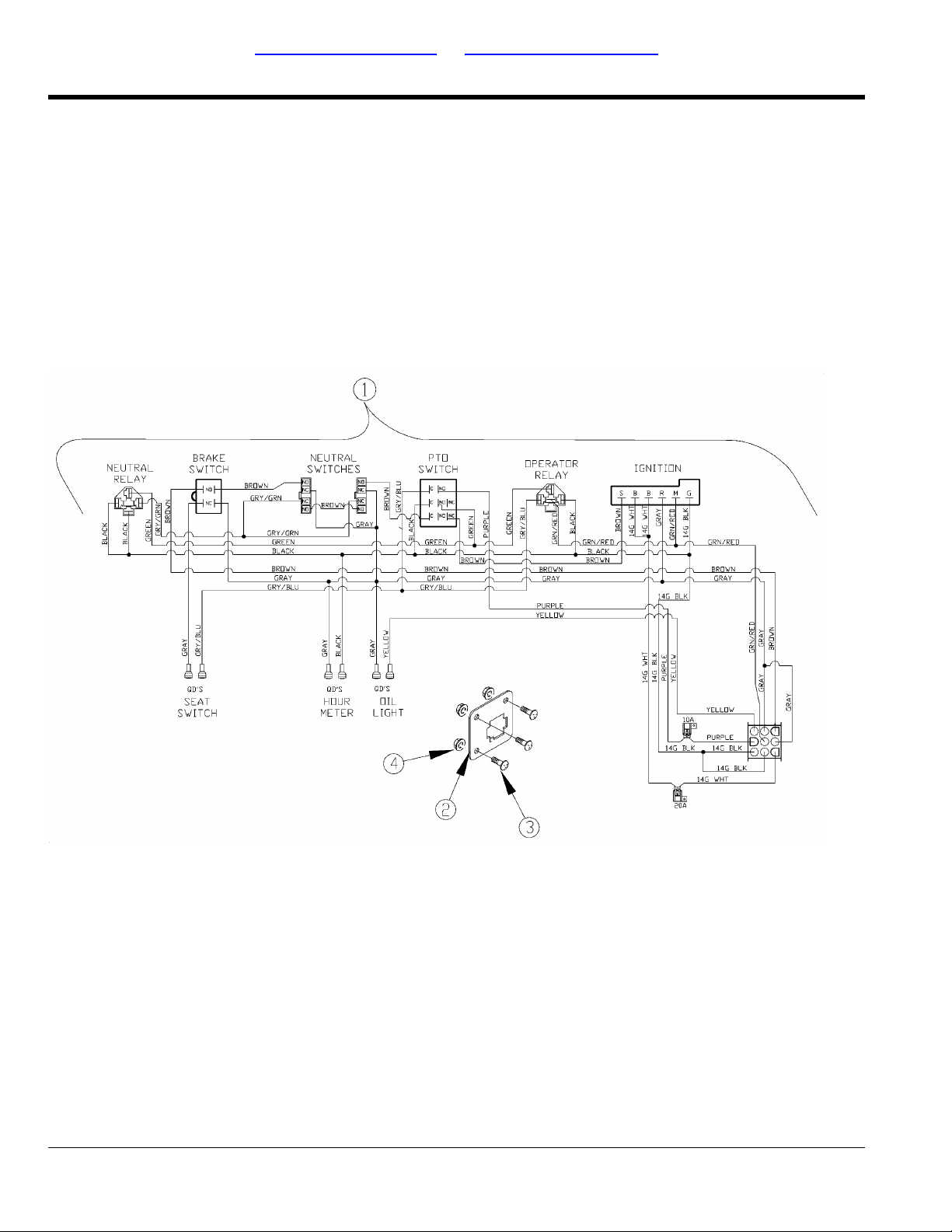

Electrical Wiring Schematic Briggs Engine.......................24

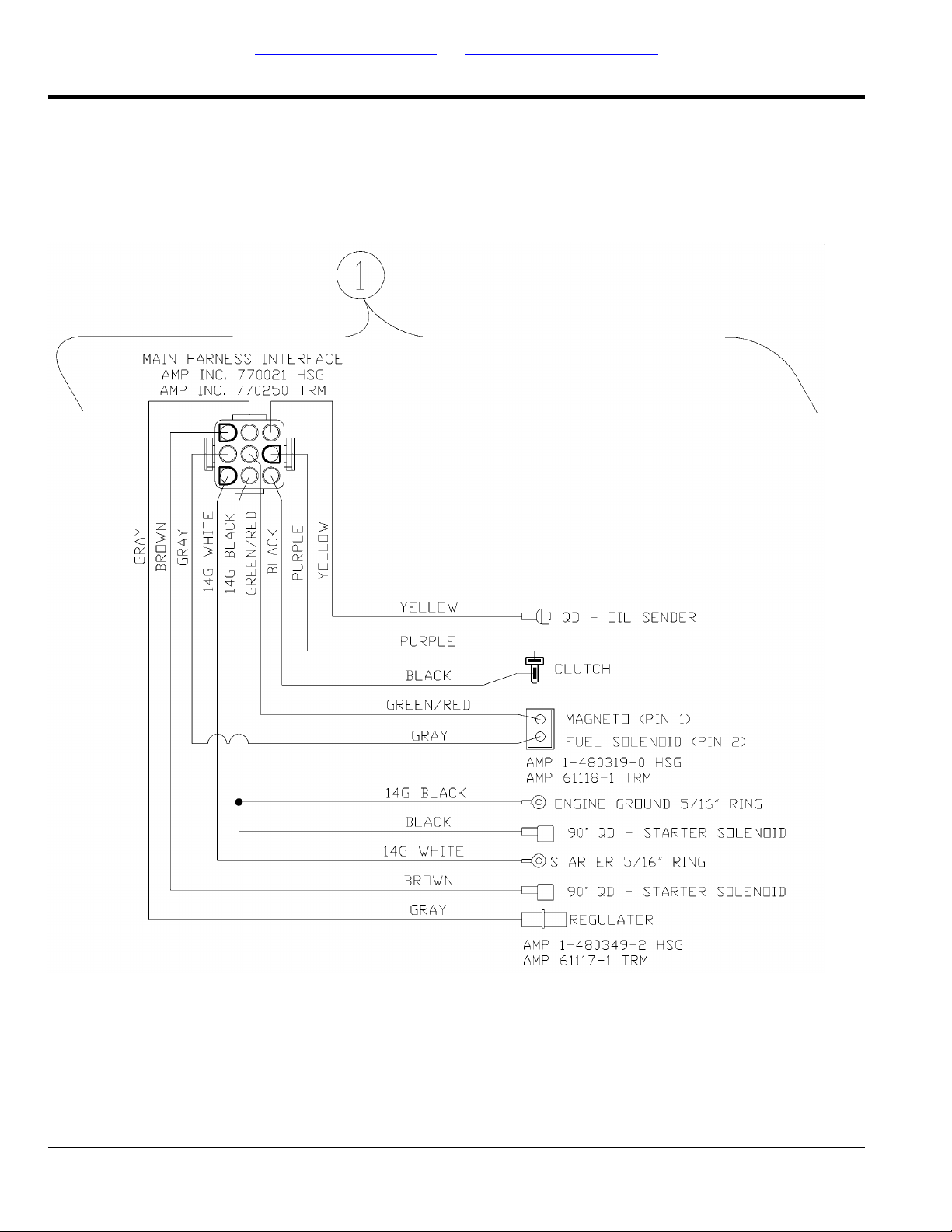

Electrical Wiring Schematic Kawasaki Engine..................26
Electrical Wiring Schematic Main Harness.......................28

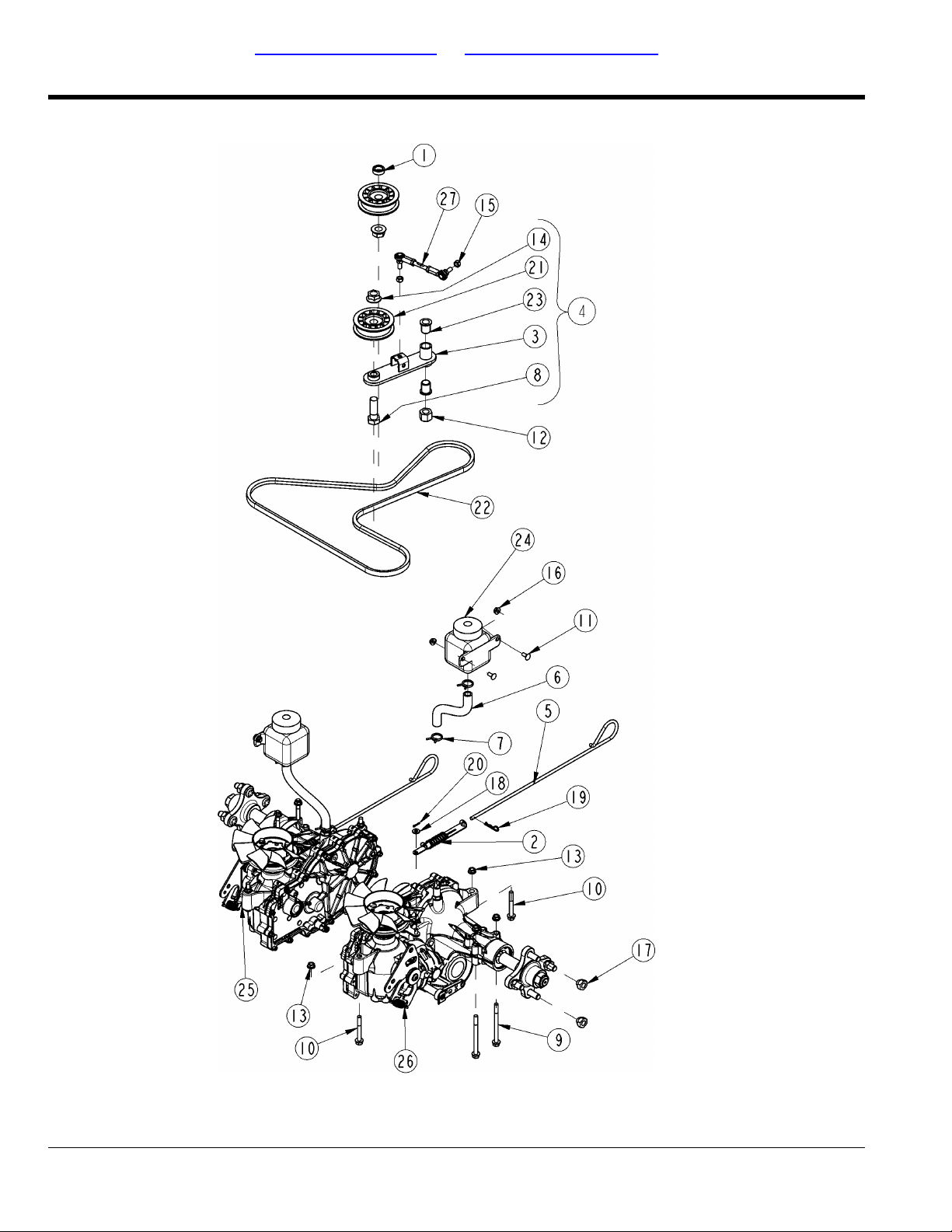

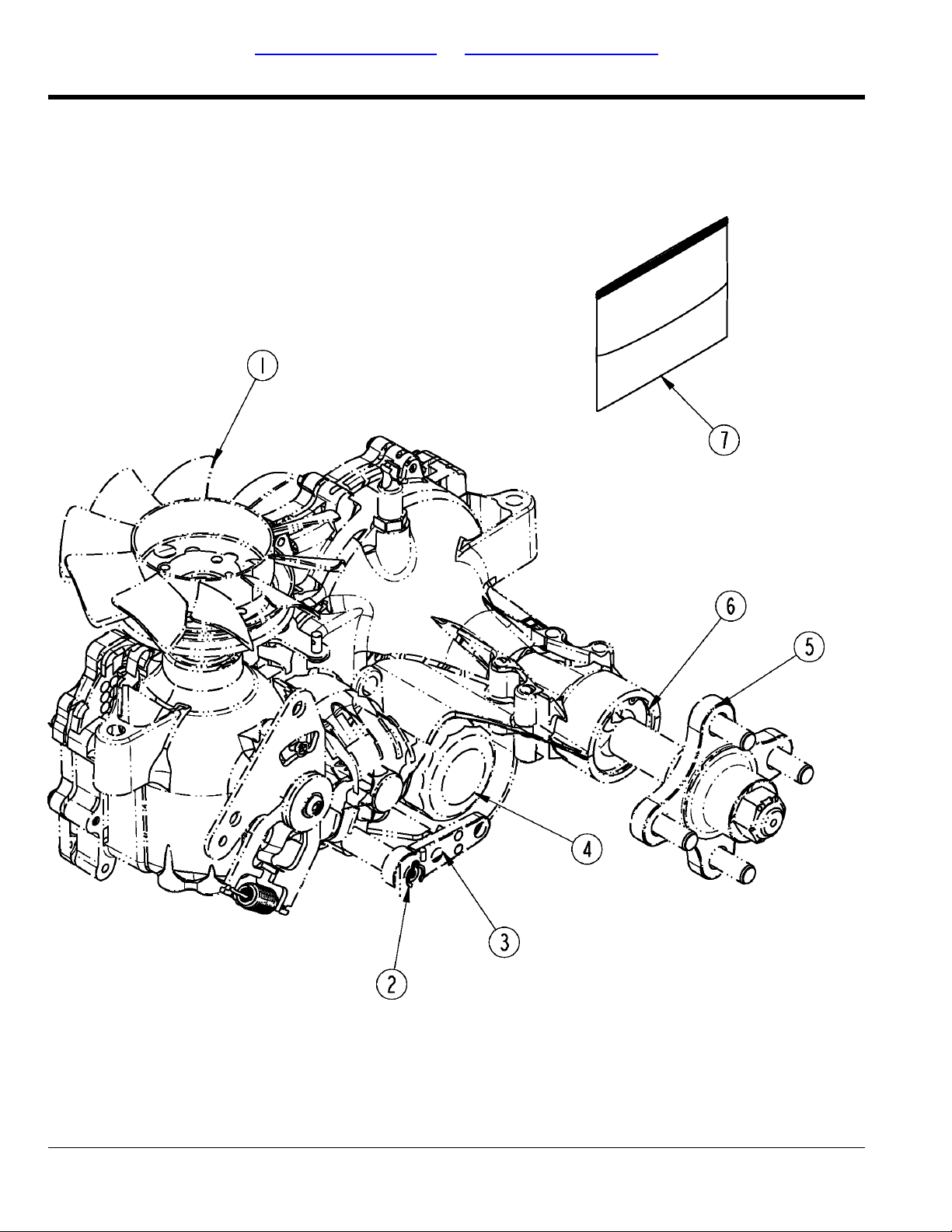

Transmission Components (831-069C & 831-070C)........30
Transmission to Frame Assembly......................................32
Section 4: Engine & Fuel System...............................34

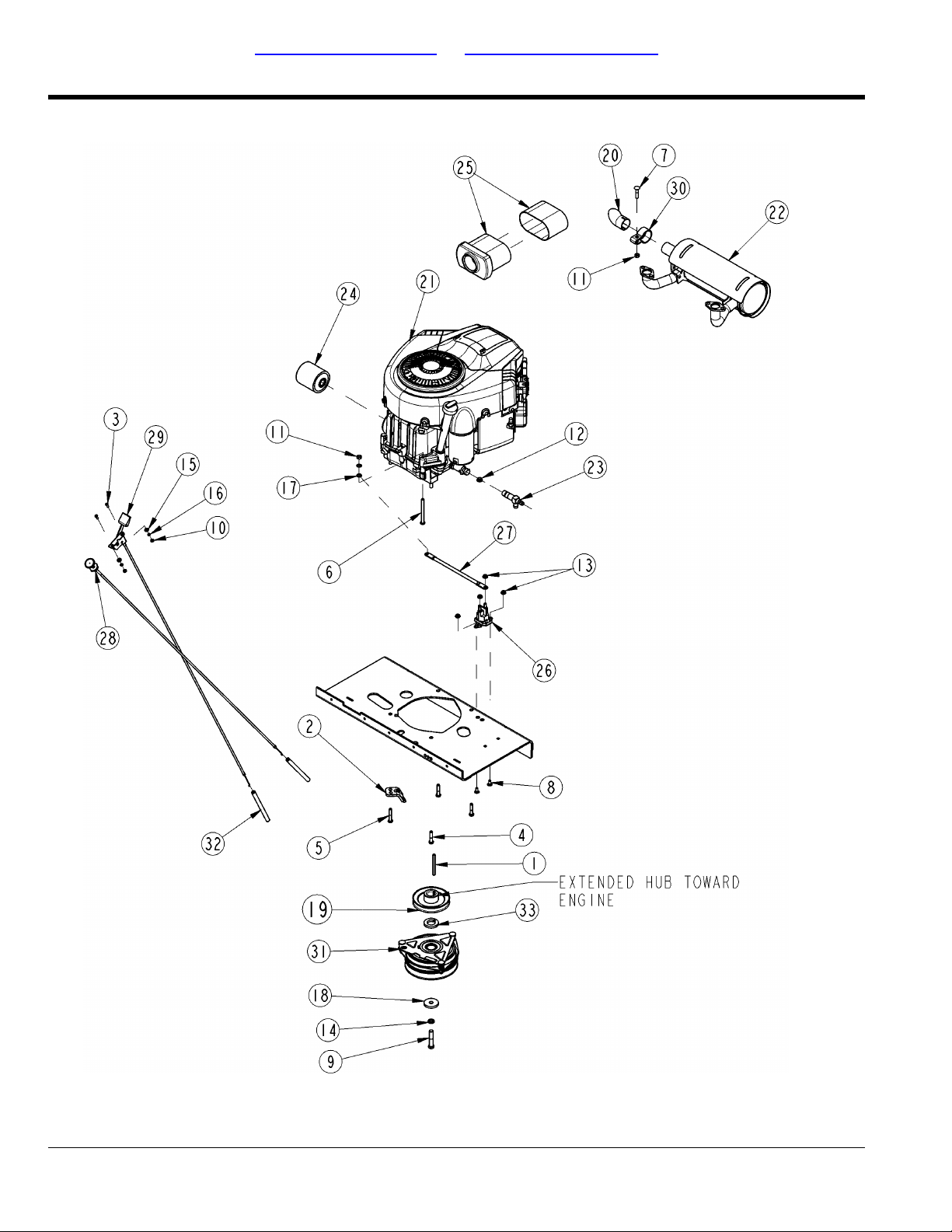

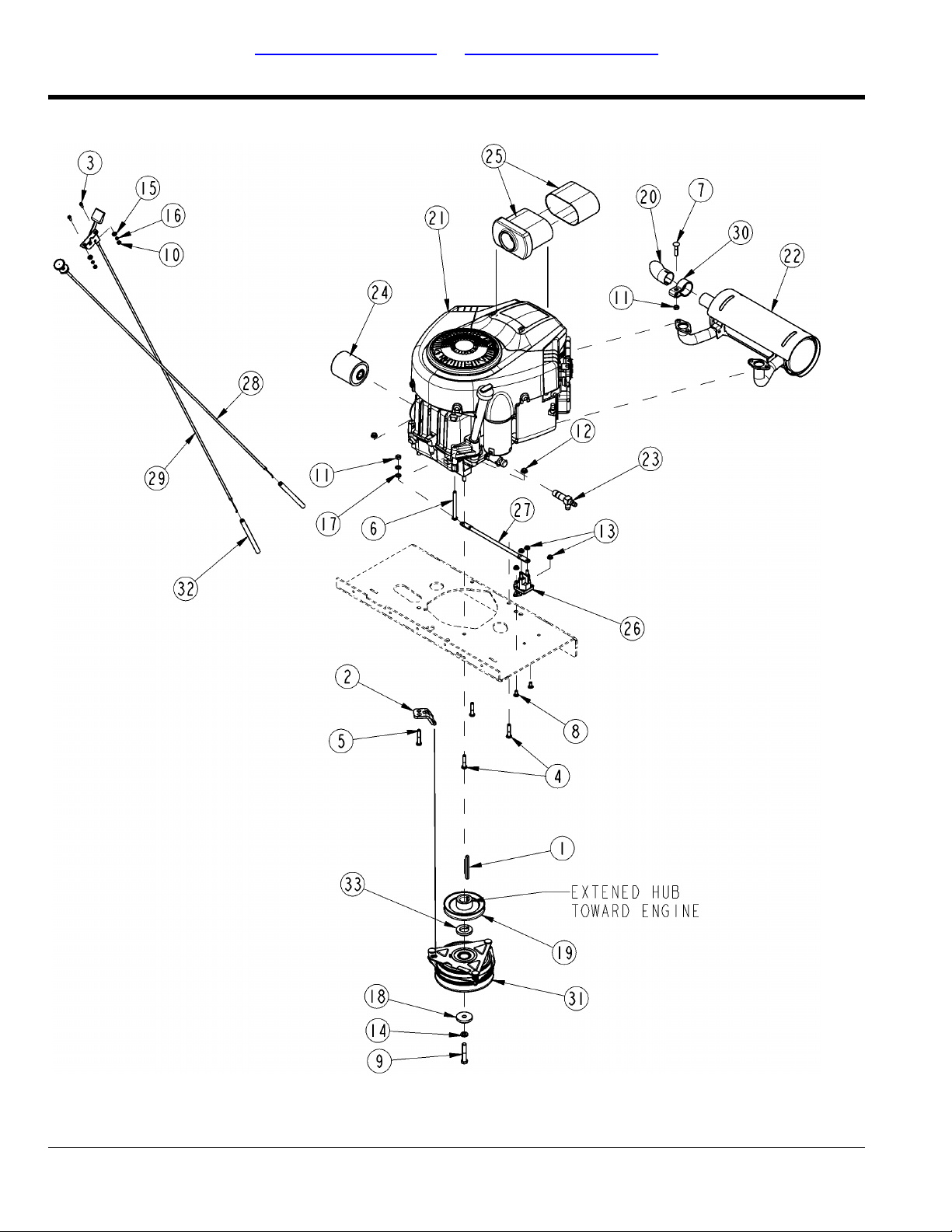

Engine Assembly Briggs & Stratton 22 HP.......................34
Engine Assembly Briggs & Stratton 26 HP.......................36

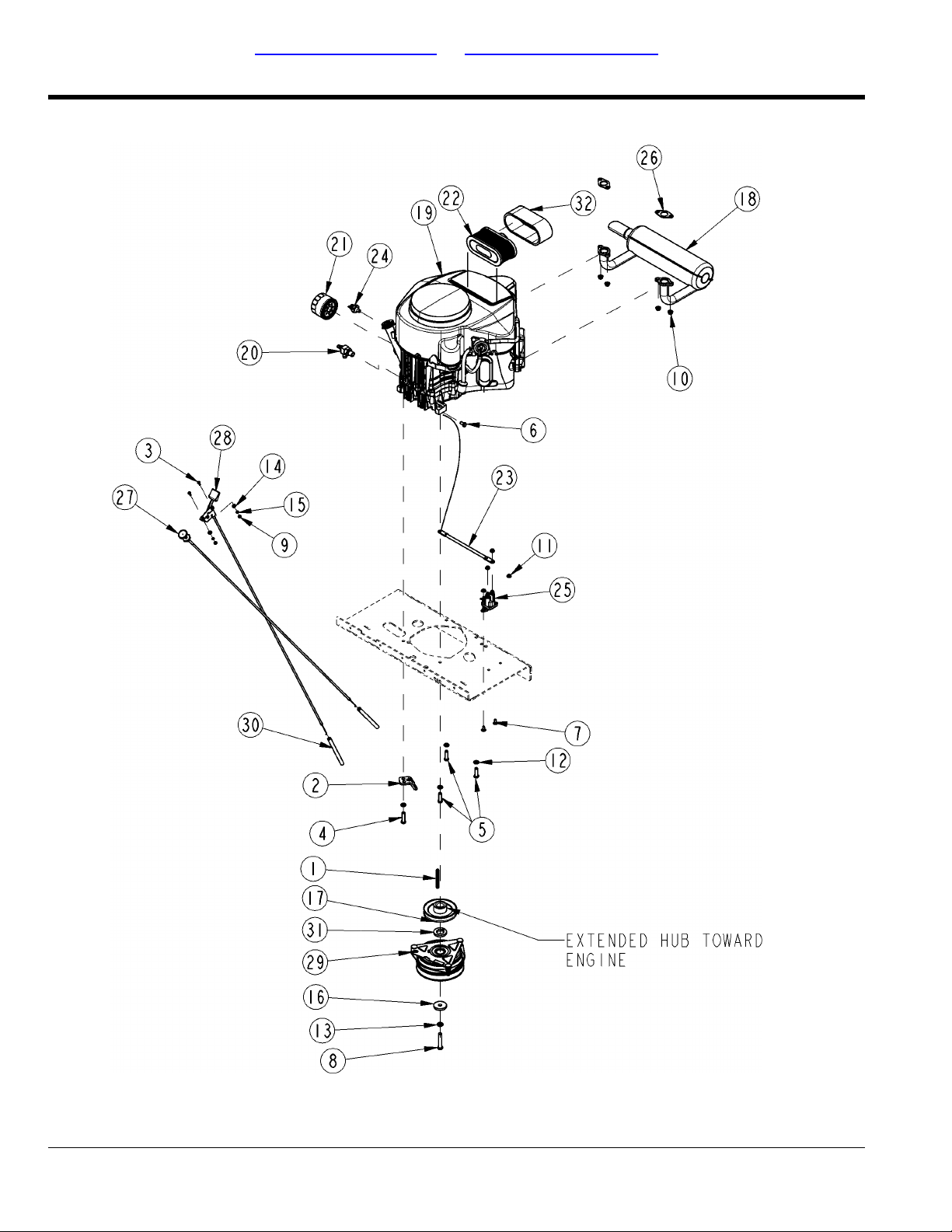

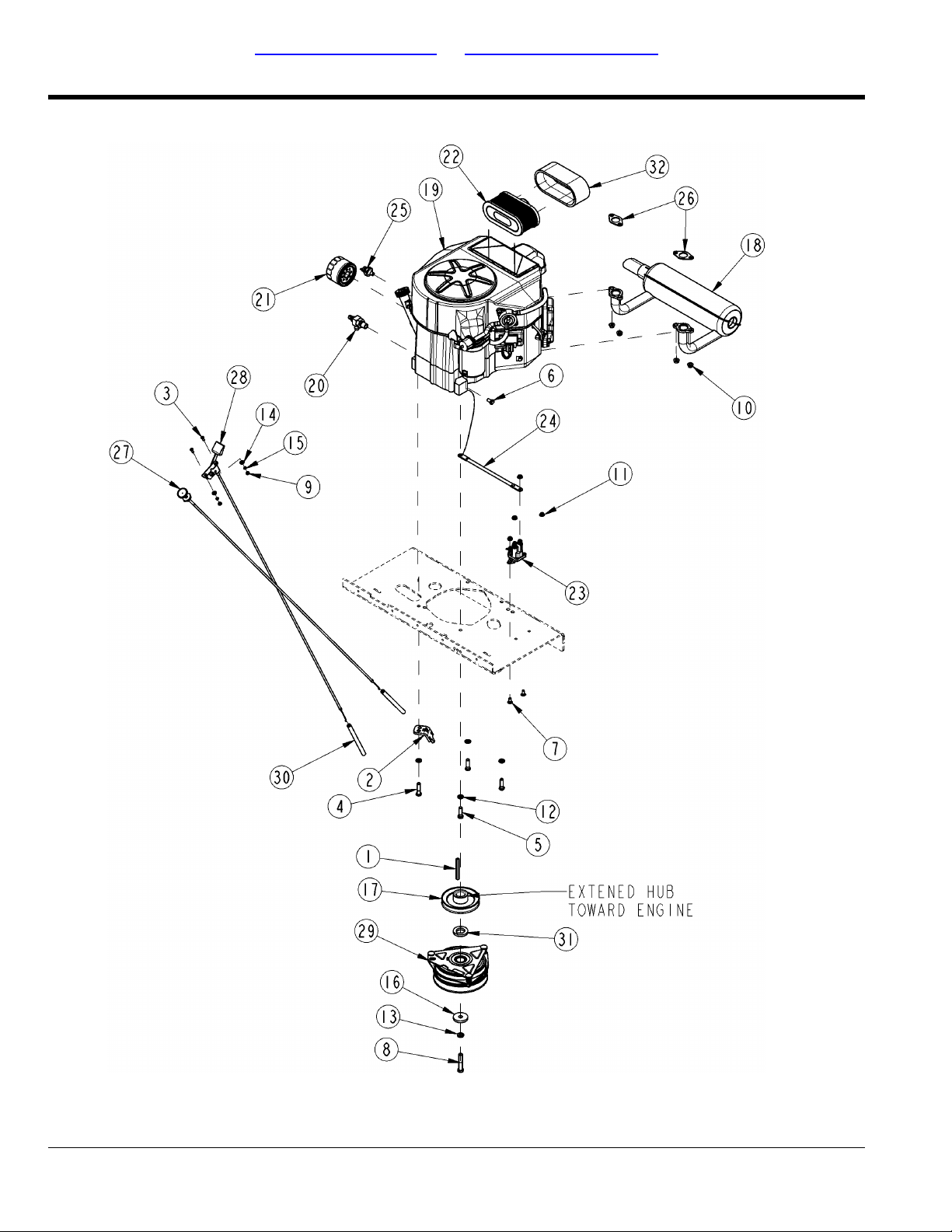

Engine Assembly Kawasaki 18.5HP.................................38
Engine Assembly Kawasaki 23 HP...................................40

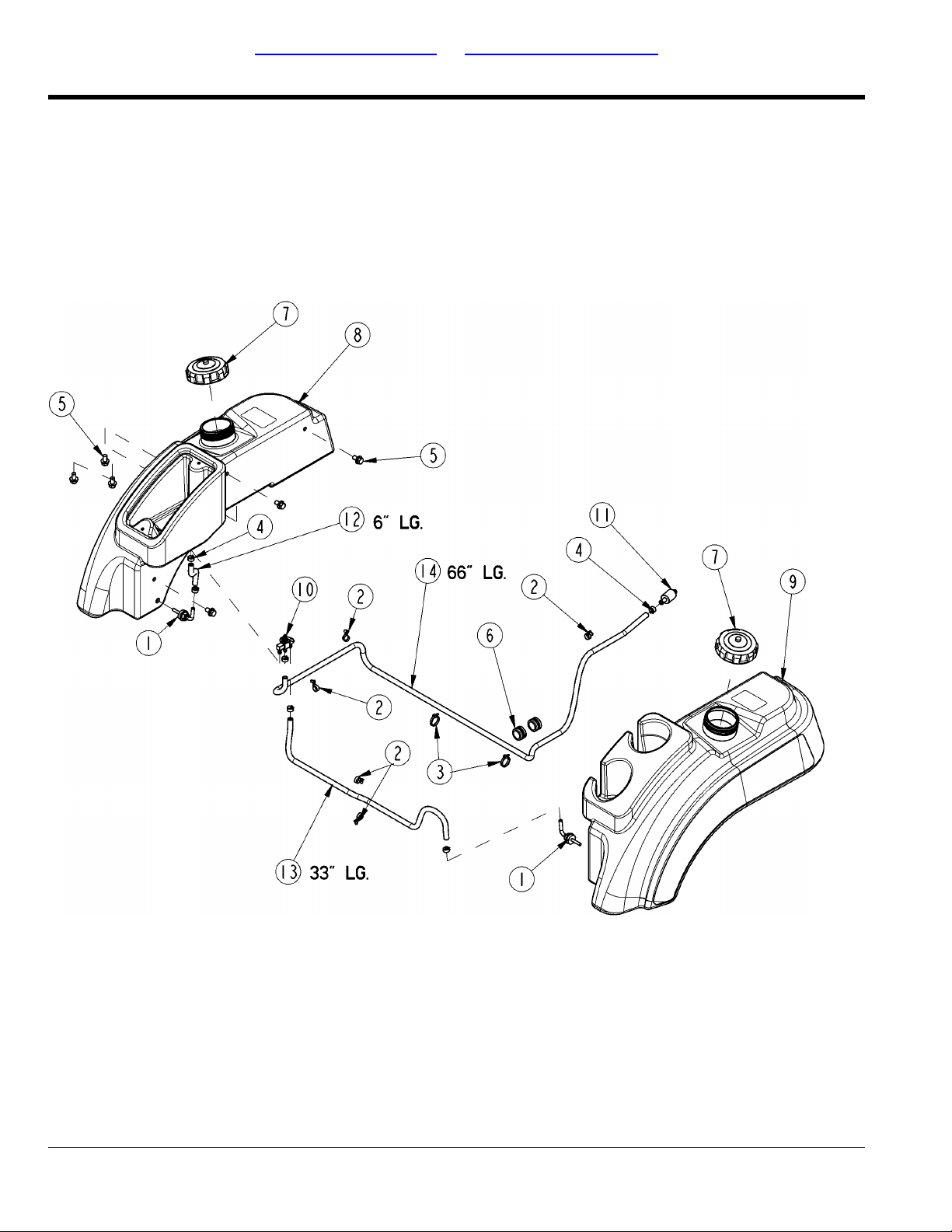

Fuel System S/N 672163-.................................................42
Fuel System S/N 672164+................................................44
Section 5: Wheels........................................................46

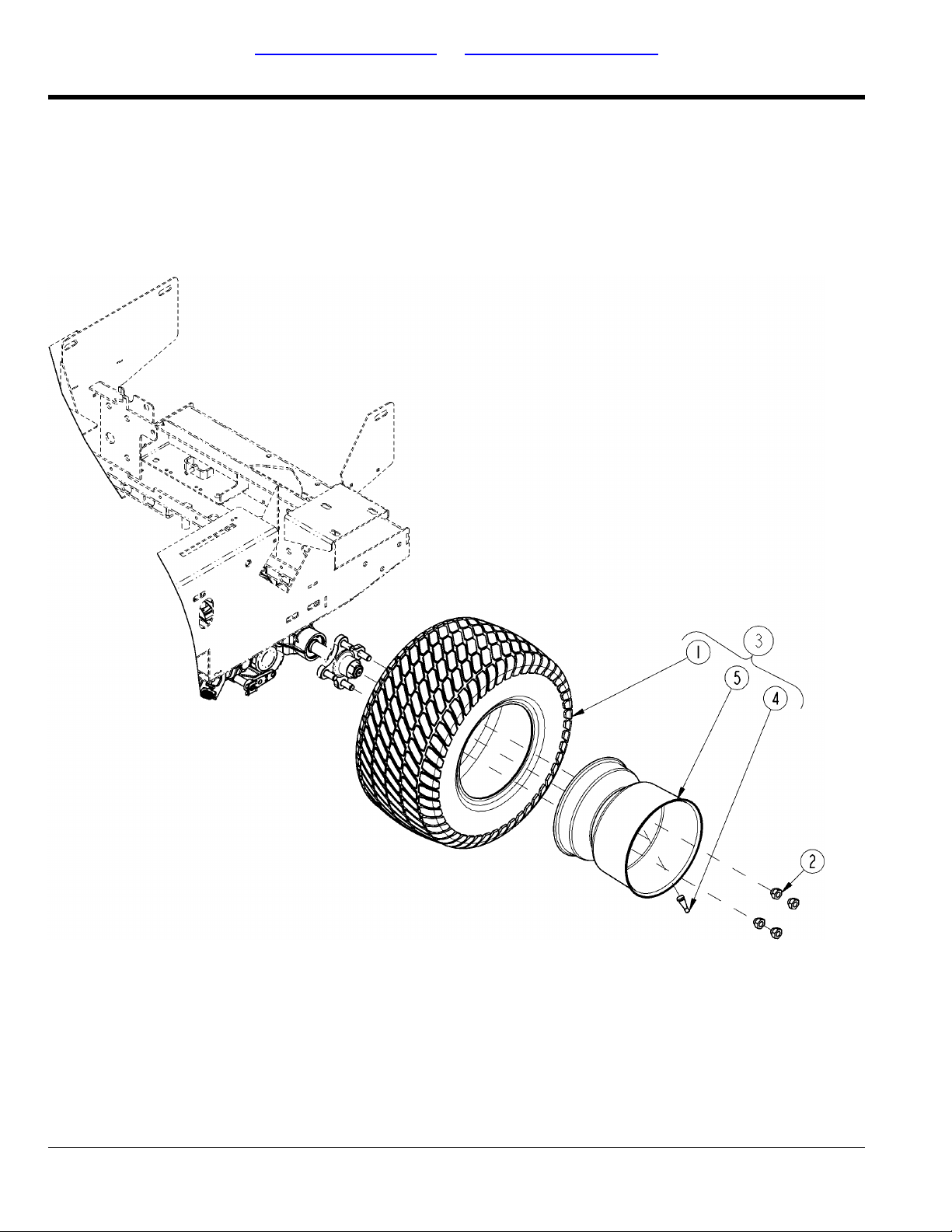

Drive Wheels.....................................................................46
Front Non-Floating Wheels...............................................48
Section 6: Deck............................................................50

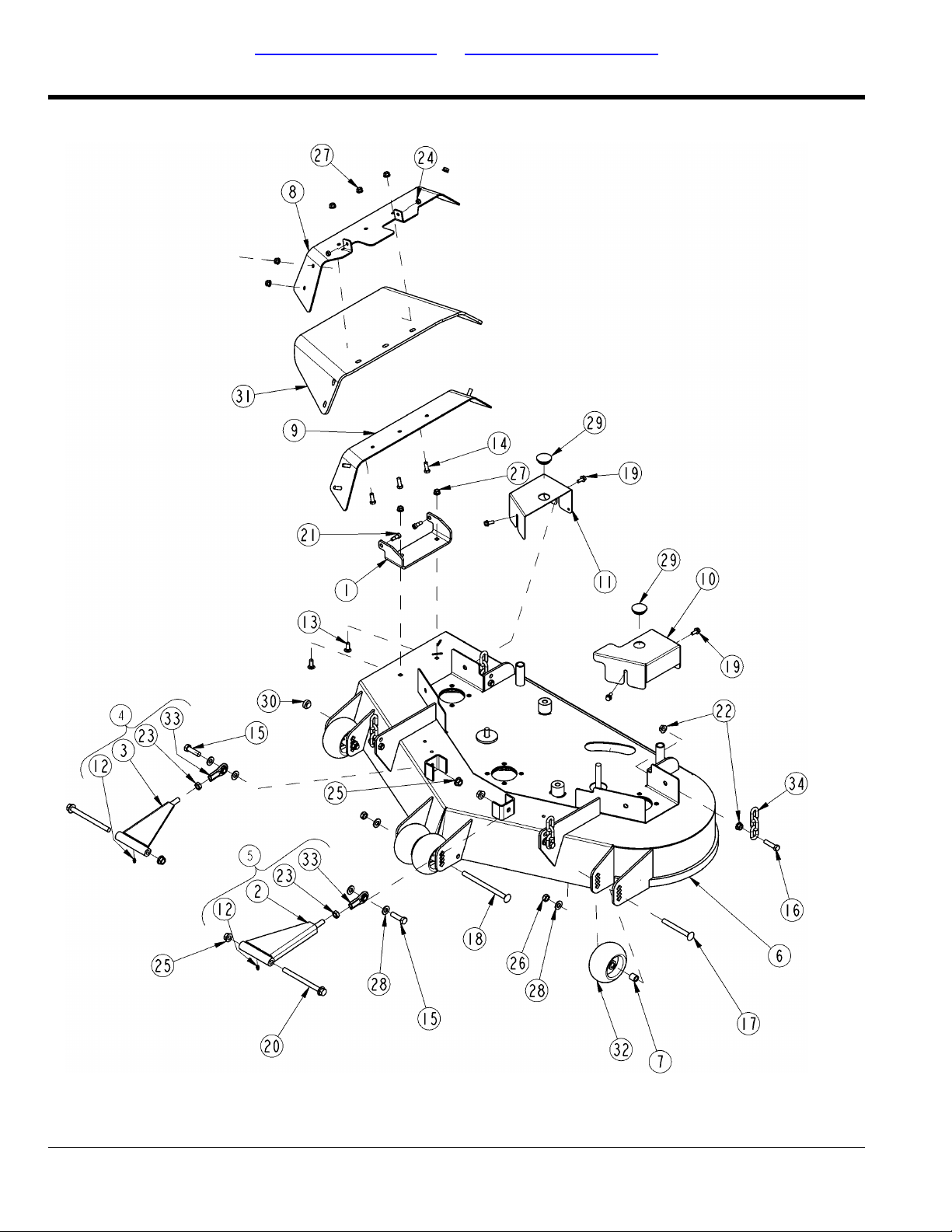

Deck Assembly..................................................................50

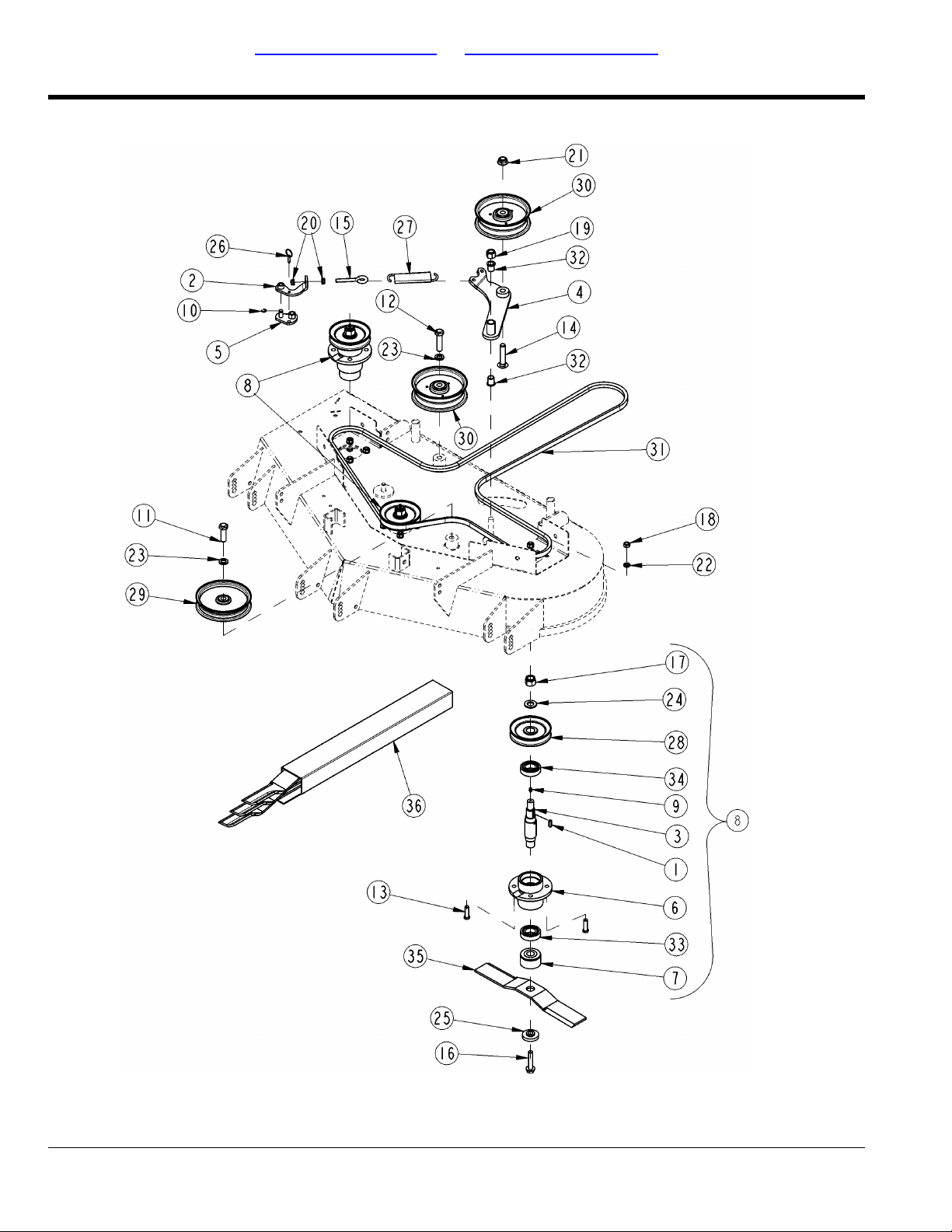

Deck Pulleys & Drive Belt..................................................52
Section 7: Labels.........................................................54
Label Placement...............................................................54
Section 8: Accessories...............................................56
Deck Lift Electric...............................................................56
Light Kit Z-Mowers............................................................58
Mulch Kit...........................................................................60
Soft Top Canopy................................................................62
Part Number Index.......................................................64
© Copyright 2013. All rights reserved.
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Land Pride is registered trademark.
Printed in the United States of America.
Page 3
Table of Contents Part Number Index
B
Brake Park....................................................................16
C
Control Levers..............................................................18
D
Deck Assembly.............................................................50
Deck Lift.......................................................................20
Deck Lift Electric..........................................................56
Deck Pulleys & Drive Belt.............................................52
Drive Wheels................................................................46
E

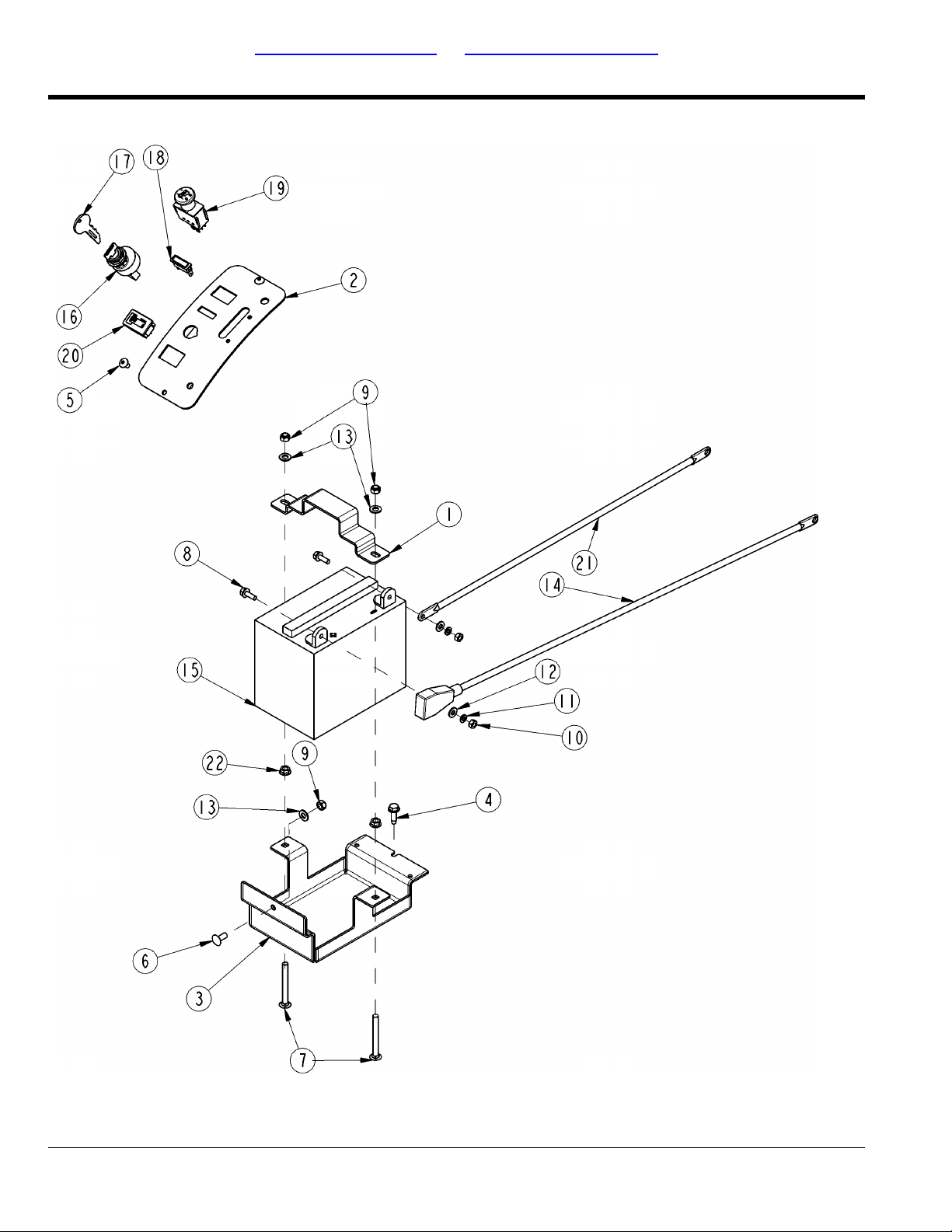

Electrical Components.................................................22
Electrical Wiring Schematic Briggs Engine..................24
Electrical Wiring Schematic Kawasaki Engine.............26
Electrical Wiring Schematic Main Harness..................28
Engine Assembly Briggs & Stratton 22 HP..................34
Engine Assembly Briggs & Stratton 26 HP..................36
Engine Assembly Kawasaki 18.5HP............................38
Engine Assembly Kawasaki 23 HP..............................40
Alphabetized Table of Contents
F
Frame & Bumper S/N 664678-.......................................6
Frame & Bumper S/N 664679+......................................8

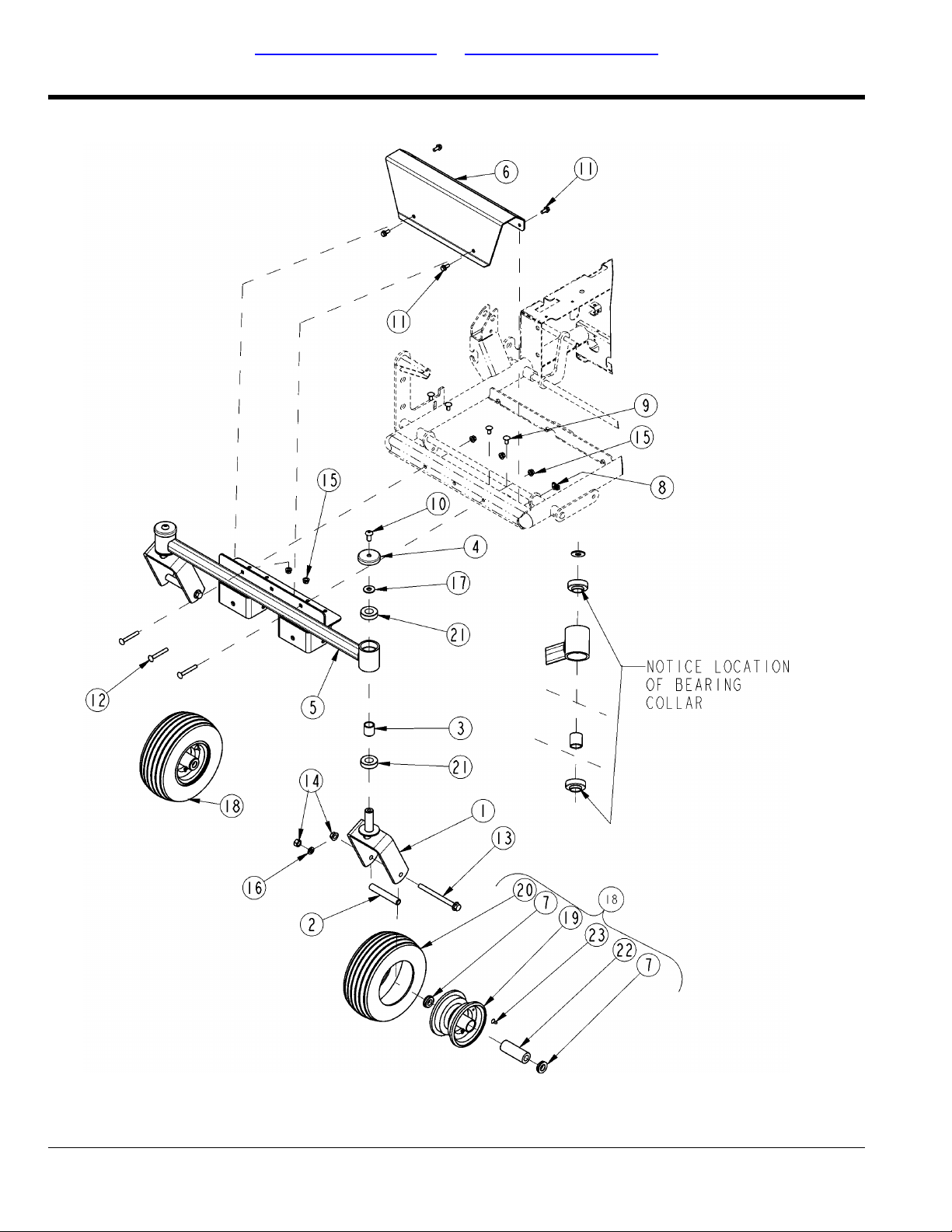

Front Non-Floating Wheels...........................................48

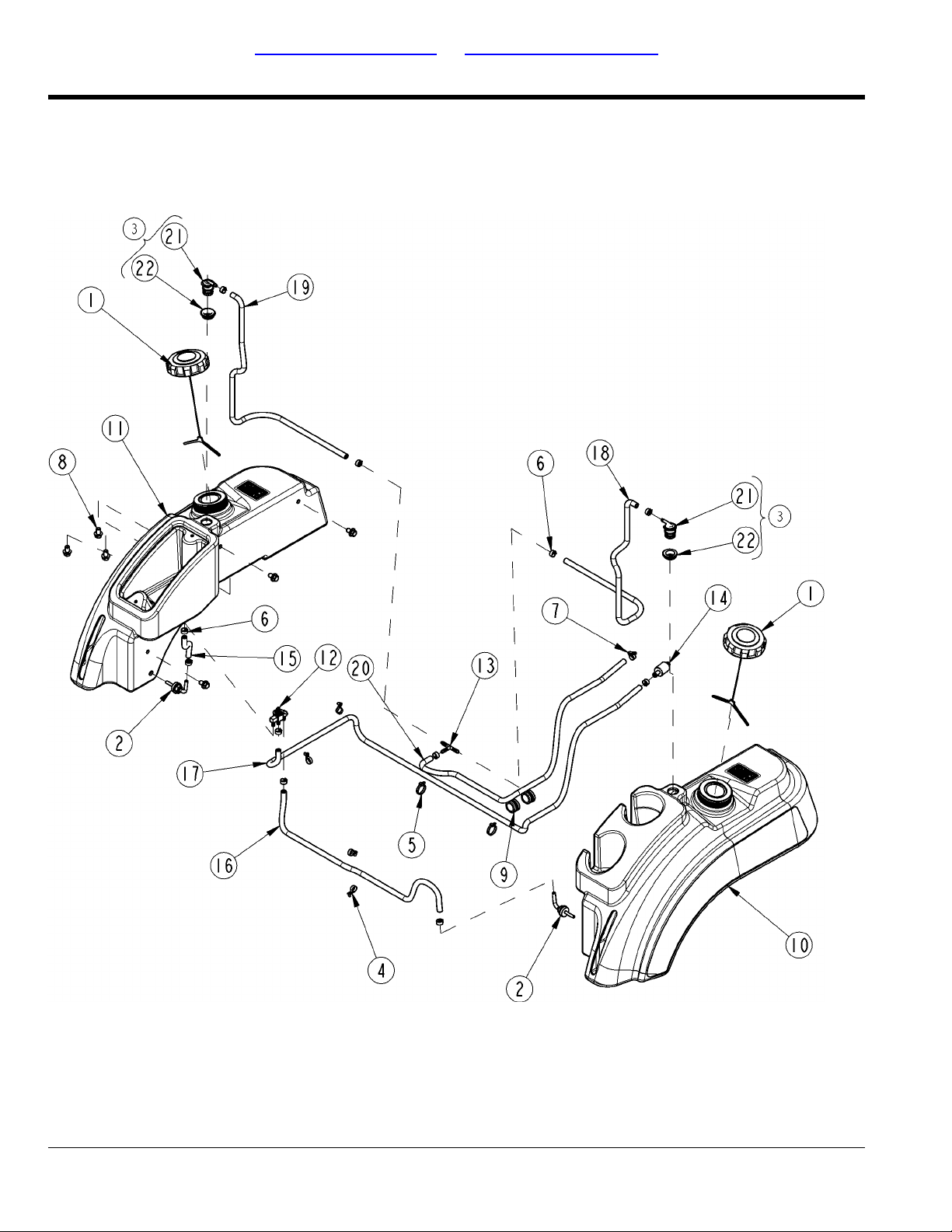

Fuel System S/N 672163-............................................42
Fuel System S/N 672164+...........................................44
L

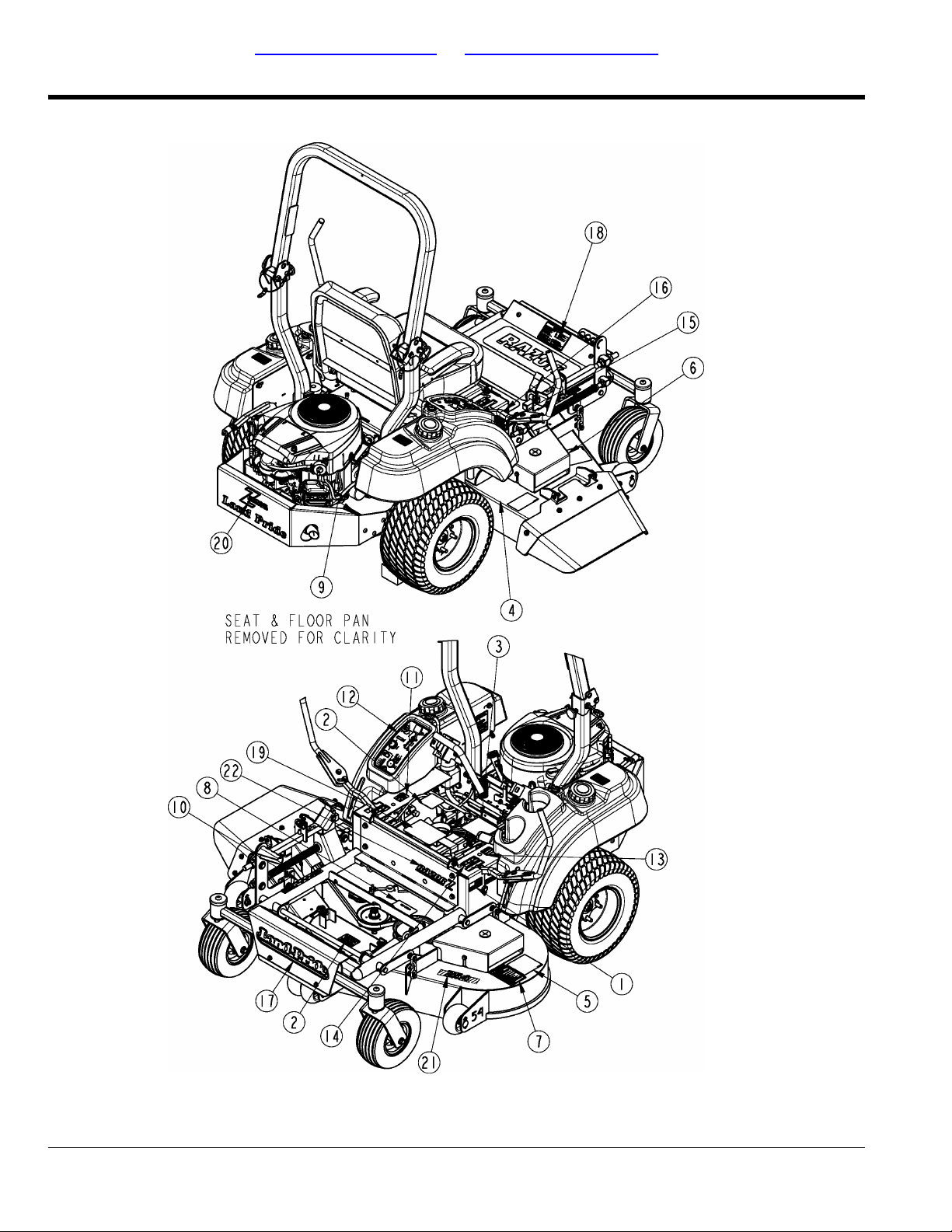

Label Placement..........................................................54

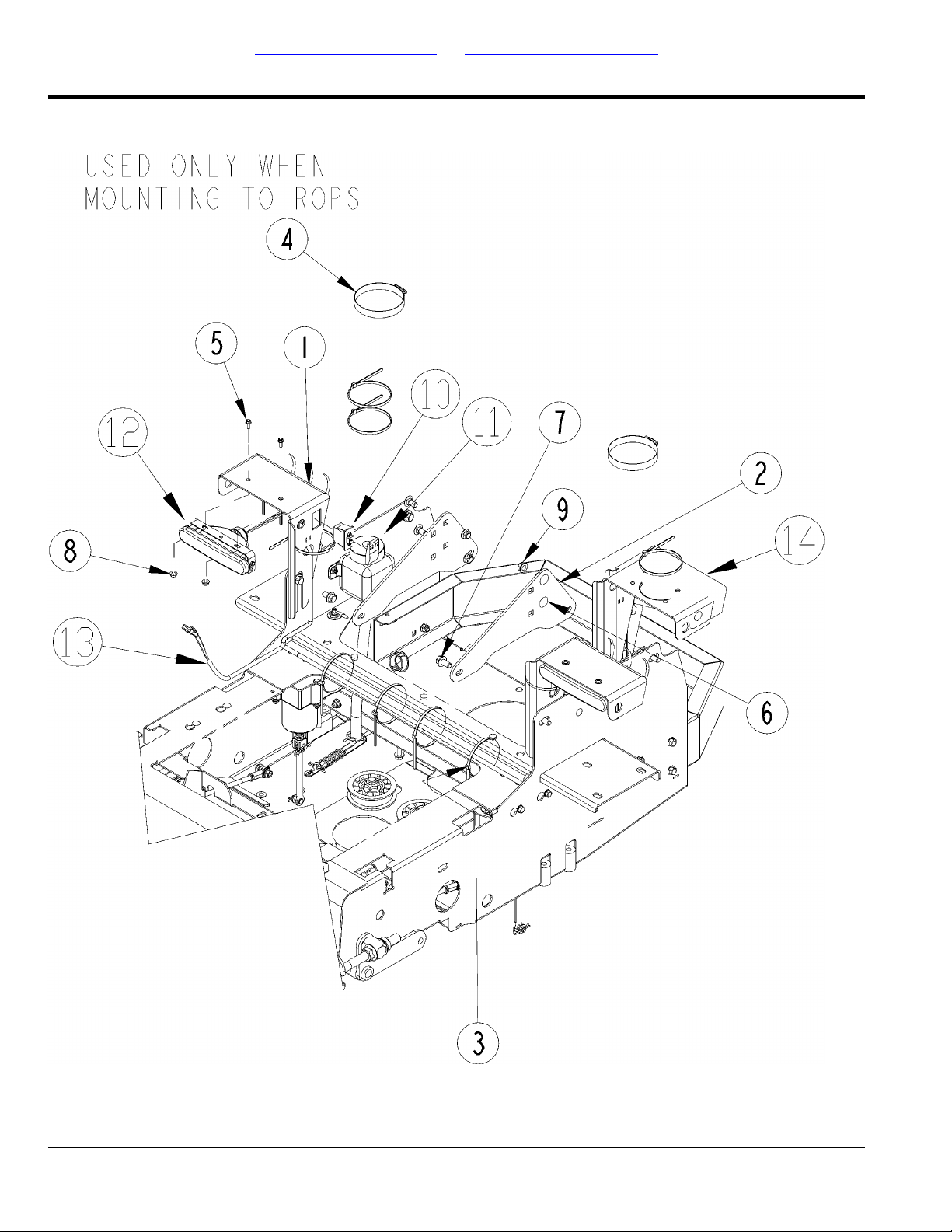

Light Kit Z-Mowers.......................................................58
M

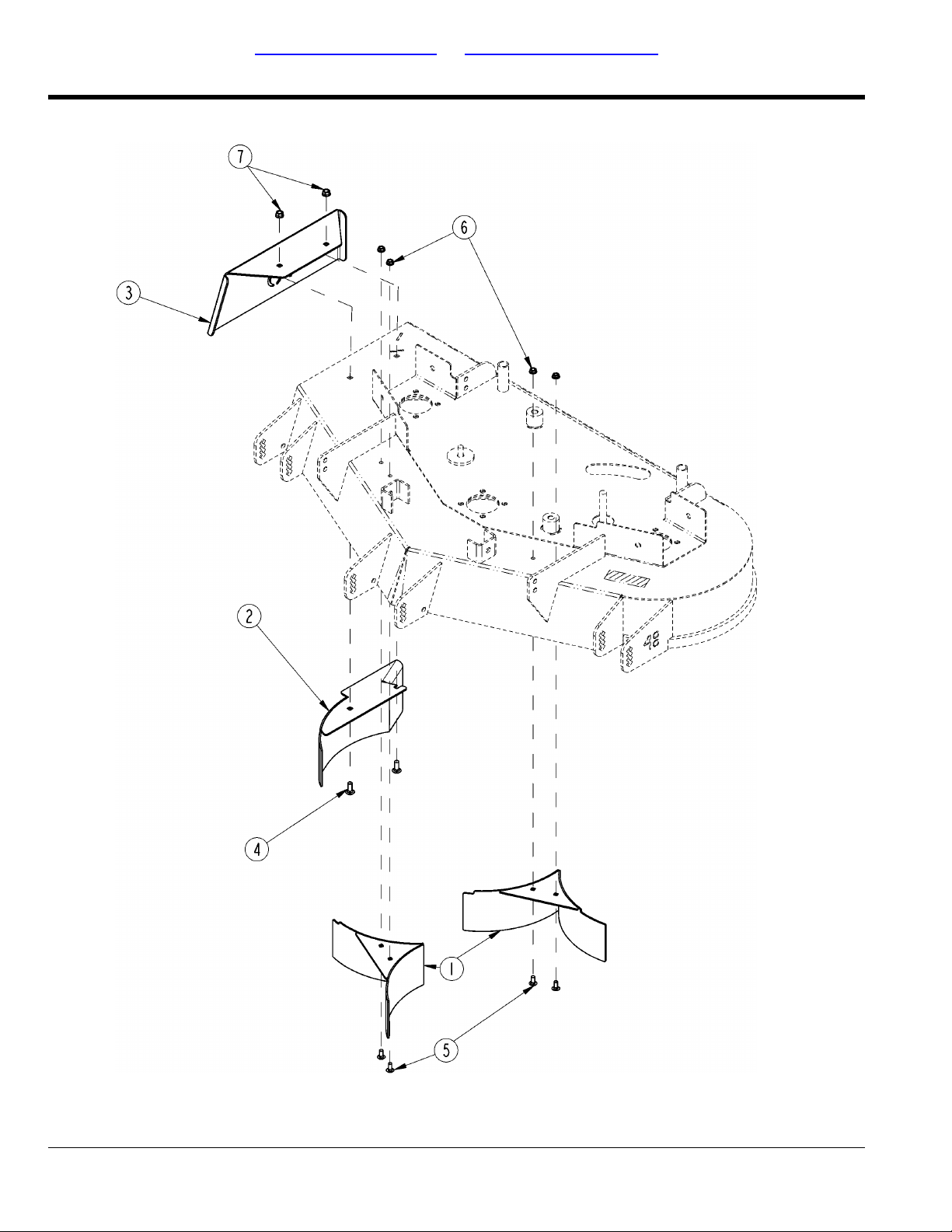

Mulch Kit......................................................................60
R
Rops Folding W/ Seat Belt...........................................10
S
Seat & Footrest S/N 637189-.......................................12
Seat & Footrest S/N 637190+......................................14
Soft Top Canopy...........................................................62
T
T ransmission Components (831-069C & 831-070C).....30
Transmission to Frame Assembly.................................32
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 3
Page 4
Table of Contents Part Number Index
4 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 5
Table of Contents Part Number Index
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 5
Page 6
Land Pride Section 2: Main Frame, Seat & Bumper
Table of Contents Part Number Index
Frame & Bumper S/N 664678-
Applies to RAZOR Z48, RAZOR Z54
27744
6 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 7
Section 2: Main Frame, Seat & Bumper Land Pride
Table of Contents Part Number Index
Frame & Bumper S/N 664678-
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27744
HITCH, BUMPER357-179D1.
BUMPER, CTR SECT W/NUTZERTS357-186V2.
WMT, ENGINE GUARD357-239H3.
ASY, ENGINE GUARD357-240S4.
FRAME WELDMENT, RAZOR357-317H5.
SCR HX SKT BUT CP 3/8-16X3/4801-078C6.
RHSNB 3/8-16X3/4 GR5802-149C7.
HFSS 5/16-18X1 GR5 PLT802-431C8.
HFSS 1/2-13X1 GR5802-568C9.
NUT HEX FLANGE 3/8-16 PLT803-068C10.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C11.
NUT FLANGE LOCK 3/8-16 PLT803-209C12.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 7
Page 8
Land Pride Section 2: Main Frame, Seat & Bumper
Table of Contents Part Number Index
Frame & Bumper S/N 664679+
Applies to RAZOR Z48, RAZOR Z54
30711
8 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 9
Section 2: Main Frame, Seat & Bumper Land Pride
Table of Contents Part Number Index
Frame & Bumper S/N 664679+
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30711
FRAME WELDMENT, RAZOR357-317H1.
BUMPER, REAR358-108D2.
SCR HX SKT BUT CP 3/8-16X3/4801-078C3.
NUT HEX FLANGE 3/8-16 PLT803-068C4.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 9
Page 10
Land Pride Section 2: Main Frame, Seat & Bumper
Table of Contents Part Number Index
Rops Folding W/ Seat Belt
Applies to RAZOR Z48, RAZOR Z54
27799
10 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 11
Section 2: Main Frame, Seat & Bumper Land Pride
Table of Contents Part Number Index
Rops Folding W/ Seat Belt
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27799
LOCKING KNOB2300247001.
PIN, ROPS HINGE2303216722.
ROPS STOP7119352723.
FOLDING ROPSN/A4.
HHCS 1/2-13X3 GR5802-039C5.
HHCS 1/2-13X3 3/4 GR5802-042C6.
HHCS 1/2-13X3 1/4 GR5802-099C7.
HHCS 7/16-20X1 1/4 GR8802-227C8.
NUT LOCK 1/2-13 PLT803-019C9.
NUT HEX NYLOCK 7/16-20 PLT803-333C10.
WASHER FLAT 7/16 SAE PLT804-041C11.
S/N 692615+ASY, RAZOR FOLDING ROPS ISO823-391C12.
S/N 692614-RPBY 823-391C823-302C12.
SEAT BELT RETRACTABLE840-272C13.
KIT, Z-MWRS RTRCTABLE SEATBLT357-420A14.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 11
Page 12
Land Pride Section 2: Main Frame, Seat & Bumper
Table of Contents Part Number Index
Seat & Footrest S/N 637189-
Applies to RAZOR Z48, RAZOR Z54
27743
12 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 13
Section 2: Main Frame, Seat & Bumper Land Pride
Table of Contents Part Number Index
Seat & Footrest S/N 637189-
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27743
SPCR DELUXE SEATMNT RAZOR PRO356-074D1.
PEDESTAL FRONT, RAZOR357-314H2.
SEAT PAN, RAZOR357-315H3.
FLOOR PAN357-783D4.
SEAT LATCH ARM357-852D5.
TPHMS Y 5/16-18X3/4 ZNYCR801-202C6.
RHSNB 5/16-18X3/4 GR5802-092C7.
HFSS 3/8-16X3/4 LG802-185C8.
HHCS 1/2-13X1 GR5802-258C9.
RHSNB 1/4-20X5/8 PLT802-633C10.
SHLDR BLT 1/2DX1/2L 3/8-16 SS802-747C11.
SHOULDER BOLT 3/8X1/2X5/16-18802-794C12.
NUT LOCK 5/16-18 PLT803-011C13.
NUT HEX NYLOCK 5/16-18 PLT803-084C14.
NUT HEX FLG LOCK 1/2-13 PLT803-169C15.
NUT HEX FLANGE 1/4-20 PLT803-230C16.
WASHER FLAT 1/2 SAE PLT804-016C17.
WASHER FLAT 5/16 SAE PLT804-036C18.
WASHER WAVE SPRING 5/16804-056C19.
SPRING TORSION .054 WIRE807-221C20.
SPRG 1.55ODX1.65WX3.5L SEATPAN807-288C21.
BSHG FLG .50IDX.62ODX.31L817-560C22.
OPERATOR PRESENCE SWITCH KIT839-148C23.
SEAT BLACK DELUXE CUSHION839-320C24.
SKING ARM REST KIT839-385C25.
SKING BACK SEAT COVER839-411C26.
SKING BOTTOM SEAT COVER839-416C27.
KY SEAT TRACK (PAIR) 839-320C839-971C28.
TREAD,FLOOR PANEL840-262C29.
TREAD,RAZOR FLOOR PANEL840-310C30.
If This Part Is Ordered Replace With
357-407A
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 13
Page 14
Land Pride Section 2: Main Frame, Seat & Bumper
Table of Contents Part Number Index
Seat & Footrest S/N 637190+
Applies to RAZOR Z48, RAZOR Z54
30035
14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 15
Section 2: Main Frame, Seat & Bumper Land Pride
Table of Contents Part Number Index
Seat & Footrest S/N 637190+
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30035
SPCR DELUXE SEATMNT RAZOR PRO356-074D1.
PEDESTAL FRONT, RAZOR357-314H2.
SEAT PAN, RAZOR357-315H3.
FLOOR PAN357-783D4.
SEAT LATCH ARM357-852D5.
TPHMS Y 5/16-18X3/4 ZNYCR801-202C6.
RHSNB 5/16-18X3/4 GR5802-092C7.
HFSS 3/8-16X3/4 LG802-185C8.
HHCS 1/2-13X1 GR5802-258C9.
RHSNB 1/4-20X5/8 PLT802-633C10.
SHLDR BLT 1/2DX1/2L 3/8-16 SS802-747C11.
SHOULDER BOLT 3/8X1/2X5/16-18802-794C12.
NUT LOCK 5/16-18 PLT803-011C13.
NUT HEX NYLOCK 5/16-18 PLT803-084C14.
NUT HEX FLG LOCK 1/2-13 PLT803-169C15.
NUT HEX FLANGE 1/4-20 PLT803-230C16.
WASHER FLAT 1/2 SAE PLT804-016C17.
WASHER FLAT 5/16 SAE PLT804-036C18.
WASHER WAVE SPRING 5/16804-056C19.
SPRING COMP 1/2 OD X 1 LG807-096C20.
SPRG 1.55ODX1.65WX3.5L SEATPAN807-288C21.
BSHG FLG .50IDX.62ODX.31L817-560C22.
OPERATOR PRESENCE SWITCH KIT839-148C23.
SEAT BLACK DELUXE CUSHION839-320C24.
SKING ARM REST KIT839-385C25.
SKING BACK SEAT COVER839-411C26.
SKING BOTTOM SEAT COVER839-416C27.
KY SEAT TRACK (PAIR) 839-320C839-971C28.
TREAD,FLOOR PANEL840-262C29.
TREAD,RAZOR FLOOR PANEL840-310C30.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 15
Page 16
Land Pride Section 3: Electrical, Levers & Transmission
Table of Contents Part Number Index
Brake Park
Applies to RAZOR Z48, RAZOR Z54
27749
16 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 17
Section 3: Electrical, Levers & Transmission Land Pride
Table of Contents Part Number Index
Brake Park
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27749
PARK LEVER PIVOTASSY357-324H1.
PARK BRAKE HANDLE357-728D2.
PARK BRAKE LINK357-759D3.
HSBHCS #10-24 X 3/4801-225C4.
RHSNB 3/8-16X1 1/4 GR5802-155C5.
NUT HEX 10-24 PLT803-001C6.
NUT FLANGE LOCK 3/8-16 PLT803-209C7.
WASHER FLAT 5/16 SAE PLT804-036C8.
WASHER LOCK #10804-054C9.
PIN COTTER 3/32 X 1 LONG805-063C10.
PIN CLEVIS 5/16 X 3/4 PLT805-400C11.
SPRING COMP .72 X 1.5 X .072WD807-119C12.
SPRING COMP .85DX3.5L X .068W807-244C13.
GRIP HANDLE .84 ID X 4 LG817-246C14.
BSHG FLG .50IDX.62ODX.31L817-560C15.
SWITCH, 2-POLE 12V 5A PLUNGER833-341C16.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 17
Page 18
Land Pride Section 3: Electrical, Levers & Transmission
Table of Contents Part Number Index
Control Levers
Applies to RAZOR Z48, RAZOR Z54
27745
18 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 19
Section 3: Electrical, Levers & Transmission Land Pride
Table of Contents Part Number Index
Control Levers
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27745
PIVOTARM, STEERING357-322H1.
BAR,DRIVE CONTROL STUB357-403D2.
BUSHING, .397ID X .75OD357-756D3.
HHCS 3/8-16X3 GR5802-024C4.
DOUBLE DISK ARM PIVOT BUSHINGS817-028C5.
WASHER FLAT 3/8 SAE PLT804-012C6.
SPRING COMP .905OD .24W 1.22L807-280C7.
NUT LOCK 3/8-16 NYLON INSERT803-078C8.
HSHCS 3/8-16X5/8 GR5 BLK802-889C9.
BALL STUD 10MM X 5/16-18 UNC800-383C10.
WASHER FLAT 5/16 SAE PLT804-036C11.
ROD ASSY,DRIVE CONTROL890-957C12.
HHCS 5/16-18X1 1/4 GR5802-010C13.
NUT HEX NYLOCK 5/16-18 PLT803-084C14.
WASHER FLAT 5/8 SAE PLT804-021C15.
S/N 643615+NUT 5/8-11 NYLON COLLAR THIN803-094C16.
S/N 643614- (Sub With 803-094C)NUT HEX NYLOCK 5/8-11 PLT803-148C16.
LEVER AY, DRIVE CONTROL LH357-002H17.
LEVER AY, DRIVE CONTROL RH357-042H18.
CAPLUG, CCF-7/8-14-20 BLACK817-618C19.
HFSS 3/8-16X1 1/2 GR5802-569C20.
WASHER FLAT 3/8 SAE PLT804-012C21.
NUT LOCK 3/8-16 NYLON INSERT803-078C22.
MOUNT, NEUTRAL SWITCH357-851D23.
RHSNB 1/4-20X5/8 PLT802-633C24.
NUT HEX FLANGE 1/4-20 PLT803-230C25.
SWITCH, 2 POLE 12 V PLUNGER833-503C26.
NUT CLIP U-TYPE 5/16-18800-120C27.
BALL STUD 10MM X 5/16-18 UNC800-383C28.
DAMPER, DRIVE CONTROL891-140C29.
BSHG FLG .31IDX.44ODX.19L817-755C30.
GRIP, DRIVE CONTROL LEVER816-461C31.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 19
Page 20
Land Pride Section 3: Electrical, Levers & Transmission
Table of Contents Part Number Index
Deck Lift
Applies to RAZOR Z48, RAZOR Z54
27746
20 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 21
Section 3: Electrical, Levers & Transmission Land Pride
Table of Contents Part Number Index
Deck Lift
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27746
STOP AY,DECK HEIGHT357-001H1.
ROD, DECK LIFT357-002D2.
YOKE AY, DECK LIFT ADJUSTING357-009H3.
BAR, DECK HEIGHT GAGE357-019D4.
TRUNION, 3/4 DECK LIFT357-020D5.
TRUNION, 5/8 DECK LIFT357-021D6.
DECK LIFT SPRING ASSY357-089S7.
PAWL, DECK HEIGHT GAUGE357-149D8.
BOLT ROCKER357-781D9.
GREASE ZERK 1/4-28 THD FORMING800-080C10.
EXTERNAL E-RING 3/4 I.D. HEAVY800-234C11.
HHCS 7/16-14X1 3/4 GR5802-113C12.
HHCS 5/16-18X1 1/2 FTHD G5802-179C13.
CLOSED EYE BOLT3/8-16X4 1/2802-674C14.
HHCS 7/16-14X2 GR5 FTHD802-814C15.
NUT HEX JAM 3/8-16 PLT803-012C16.
NUT HEX WHIZ 7/16-14 PLT803-052C17.
NUT HEX FLANGE 5/8-11 PLT803-196C18.
NUT HEX WHIZ 3/8-16 PLT803-198C19.
NUT HEX FLANGE 3/4-10 GR5 PLT803-214C20.
NUT HEX 5/16-18 GR8 PLT803-275C21.
WASHER FLAT 1/2 SAE PLT804-016C22.
WASHER FLAT 5/8 USS PLT804-019C23.
WASHER MACH 1 1/4X3/4X14GA804-156C24.
PIN,CLEVIS .75X2.5X2.00 E-CLIP805-106C25.
SPRING EXT 1 7/8ODX8 3/8X.25W807-113C26.
SPRING, COMP 1.05ODX16LX.148W807-240C27.
LID LATCH GRIP817-033C28.
RPBY 817-033C817-631C28.
CHAIN, 5/16 LONG LINK PROOF 3X890-907C29.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 21
Page 22
Land Pride Section 3: Electrical, Levers & Transmission
Table of Contents Part Number Index
Electrical Components
Applies to RAZOR Z48, RAZOR Z54
27748
22 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 23
Section 3: Electrical, Levers & Transmission Land Pride
Table of Contents Part Number Index
Electrical Components
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27748
BRACKET, BATTERY HOLD-DOWN357-014D1.
PANEL, CONTROL357-112D2.
BATTERY TRAY357-729D3.
SCREW HEX 5/16-12 X 1 THD CUTT801-031C4.
TTHMS 1/4-20X1/2 ZNYCR801-198C5.
RHSNB 5/16-18X3/4 GR5802-092C6.
RHSNB 5/16-18X3 FTHD802-232C7.
HFSS 1/4-20X3/4 GR5802-257C8.
NUT HEX NYLOCK 5/16-18 PLT803-084C9.
NUT HEX 1/4-20 ZNYCR803-326C10.
WASHER LOCK SPRING 1/4 PLT804-006C11.
WASHER FLAT 1/4 SAE PLT804-007C12.
WASHER FLAT 5/16 SAE PLT804-036C13.
BATTERY CABLE 6GA RED 32 1/4833-019C14.
BATTERYN/A15.
IGNITION SWITCH W/2 KEYS(6PIN)833-336C16.
KEY W/SHIELD (RP FOR 833-336C)833-342C17.
LIGHT, 14V INDICATOR833-350C18.
BLADE SWITCH833-351C19.
HOUR METER833-352C20.
CABLE,4GAX24X.25X.38 BLK BATT833-457C21.
NUT HEX FLANGE 5/16-18 PLT803-199C22.
UL1HD (245 CCA) Or U1L-X
(300CCA) B.C.I. Group Size
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 23
Page 24
Land Pride Section 3: Electrical, Levers & Transmission
Table of Contents Part Number Index
Electrical Wiring Schematic Briggs Engine
Applies to RAZOR Z48, RAZOR Z54
27789
24 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 25
Section 3: Electrical, Levers & Transmission Land Pride
Table of Contents Part Number Index
Electrical Wiring Schematic Briggs Engine
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27789
HARNESS ASY, B&S RAZOR ENG833-507C1.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 25
Page 26
Land Pride Section 3: Electrical, Levers & Transmission
Table of Contents Part Number Index
Electrical Wiring Schematic Kawasaki Engine
Applies to RAZOR Z48, RAZOR Z54
27824
26 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 27
Section 3: Electrical, Levers & Transmission Land Pride
Table of Contents Part Number Index
Electrical Wiring Schematic Kawasaki Engine
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27824
HARNESS ASY, KAW RAZOR ENG833-506C1.
CABLE TIE 2 DIA MIN - BLK800-303C2.
DIODE ASSY, STARTER833-465C3.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 27
Page 28
Land Pride Section 3: Electrical, Levers & Transmission
Table of Contents Part Number Index
Electrical Wiring Schematic Main Harness
Applies to RAZOR Z48, RAZOR Z54
27774
28 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 29
Section 3: Electrical, Levers & Transmission Land Pride
Table of Contents Part Number Index
Electrical Wiring Schematic Main Harness
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27748
HARNESS ASY, RAZOR MAIN833-504C1.
PLATE, HARNESS MOUNT357-855D2.
RHSNB 1/4-20X5/8 PLT802-633C3.
NUT HEX LOCK 1/4-20 FLG803-088C4.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 29
Page 30
Land Pride Section 3: Electrical, Levers & Transmission
Table of Contents Part Number Index
Transmission Components (831-069C & 831-070C)
Applies to RAZOR Z48, RAZOR Z54
27878
30 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 31
Section 3: Electrical, Levers & Transmission Land Pride
Table of Contents Part Number Index
Transmission Components (831-069C & 831-070C)
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27878
TRANSAXLE RH, POWDERED GEARS831-069C
ShownTRANSAXLE LH, POWDERED GEARS831-070C
*
HG FAN/PULLY KIT721241.
S/N 822610+HG CLIP, RETAINING530192.
S/N 822609-RPBY 53019520272.
HG HANDLE, BRAKE526393.
FILTER,2800 IZT TRANSMISSION831-060C4.
HG HUB W/STUDS 831-056C/057C714465.
Also in Seal KitHG SEAL, LIP 25X52X10 TC(GREY)536996.
SEAL KIT FOR THE ZT-2800714107.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 31
Page 32
Land Pride Section 3: Electrical, Levers & Transmission
Table of Contents Part Number Index
Transmission to Frame Assembly
Applies to RAZOR Z48, RAZOR Z54
27752
32 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 33
Section 3: Electrical, Levers & Transmission Land Pride
Table of Contents Part Number Index
Transmission to Frame Assembly
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27752
BUSHING, .64X1.00X.45L PLAIN357-181D1.
SPRING ASSY,IZT BYPASS ROD357-184L2.
HYDRO TENSIONER ARM, RAZOR357-316H3.
TENSIONER ARM ASSY357-325S4.
ROD,2800 IZT BYPASS357-455D5.
HYD RES TUBE 1/2"ID358-399D6.
HOSE CLAMP NO.12 3/4 ID800-321C7.
HHCS 5/8-11X2 GR5802-055C8.
HFS 5/16-18X4 G5 ZNYCR802-225C9.
HFSS 5/16-18X2 1/2 GR5802-439C10.
RHSNB 1/4-20X5/8 PLT802-633C11.
NUT HEX NYLOCK 5/8-11 PLT803-148C12.
NUT HEX FLG TP LK 5/16-18ZNYCR803-177C13.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C14.
NUT HEX NYLOCK 5/16-24803-270C15.
NUT HEX FLG TL 1/4-20 ZNYCR803-293C16.
NUT LUG 1/2-20X60DEG PLT(.81AF803-329C17.
WASHER FLAT 1/4 SAE PLT804-007C18.
PIN HAIR COTTER .094805-010C19.
PIN COTTER 3/32 X 1/2805-307C20.
PULLEY,3.00X.63IDX.72W IDLER808-375C21.
S/N 848901+V-BELT, A-SEC 67.30 EL816-779C22.
S/N 848900-RPBY 816-779C816-616C22.
DOUBLE DISK ARM PIVOT BUSHINGS817-028C23.
TANK, 350 ML EXPANSION817-749C24.
TRANSAXLE RH, POWDERED GEARS831-069C25.
TRANSAXLE LH, POWDERED GEARS831-070C26.
ROD ASSY,IZT PARKING BRAKE890-950C27.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 33
Page 34
Land Pride Section 4: Engine & Fuel System
Table of Contents Part Number Index
Engine Assembly Briggs & Stratton 22 HP
Applies to RAZOR Z48
27788
34 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 35
Section 4: Engine & Fuel System Land Pride
Table of Contents Part Number Index
Engine Assembly Briggs & Stratton 22 HP
Applies to RAZOR Z48
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27788
KEY, 1/4 X 1/4 X 3 LG357-618D1.
BRACKET, CLUTCH CLOCKING357-619D2.
TPHMS Y #10-24 X 1/2 ZNYCR801-205C3.
HHCS 5/16-18X1 1/2 GR5802-012C4.
HHCS 5/16-18X1 3/4 GR5802-013C5.
HHCS 5/16-18X3 1/2 GR5 FTHD802-190C6.
RHSNB 5/16-18X1 1/2 GR5802-270C7.
RHSNB 1/4-20X5/8 PLT802-633C8.
S/N 659121+HHCS 7/16-20X2 1/4 GR8802-923C9.
S/N 659120-HHCS 7/16-20X2 GR8 PLT802-862C9.
NUT HEX 10-24 PLT803-001C10.
NUT HEX 5/16-18 PLT803-008C11.
NUT HEX FLG TP LK 5/16-18ZNYCR803-177C12.
NUT HEX FLG TL 1/4-20 ZNYCR803-293C13.
WASHER LOCK 7/16 PLT804-014C14.
WASHER FLAT #10 SAE PLT804-046C15.
WASHER LOCK #10804-054C16.
WASHER INTERNAL STAR 5/16 PLT804-221C17.
WASHER .460 X 1.75 X.25 PLT804-231C18.
PULLEY, 4.5 PD X 1.00 ID A-SEC808-402C19.
EXTNSION, 1 3/8X60DEG TAILPIPE826-535C20.
S/N 714681+ENGINE, 22HP B&S EPA826-727C21.
S/N 714680-RPBY 826-727C826-543C21.
MUFFLER, 26 HP, BRIGGS826-620C22.
VALVE, B & S OIL DRAIN829-127C23.
FILTER, B&S INTEK ELS OIL831-053C24.
FILTER, B&S INTEK ELS AIR831-054C25.
S/N 699098+SOLENOID,SEALED ENGINE STARTR833-556C26.
S/N 699097-RPBY 357-509A833-405C26.
CABLE, 4GAX10X.25X.31833-414C27.
CABLE, 53X.062X1.87 CHOKE890-106C28.
CABLE, 50X.062X2.12 THROTTLE890-115C29.
CLAMP,1 1/2 MUFFLER890-947C30.
S/N 692674+CLUTCH, 12V HI TORQ BLD BRAKE891-230C31.
S/N 692673-RPBY 891-230C891-227C31.
RPBY 891-227C890-982C31.
Sold per FootHEAT SHIELD, 1/4" I.D.990-249R32.
S/N 659121+SPACER, ENG PTO, 1 ID, .25 THK358-079D33.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 35
Page 36
Land Pride Section 4: Engine & Fuel System
Table of Contents Part Number Index
Engine Assembly Briggs & Stratton 26 HP
Applies to RAZOR Z54
27797
36 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 37
Section 4: Engine & Fuel System Land Pride
Table of Contents Part Number Index
Engine Assembly Briggs & Stratton 26 HP
Applies to RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27797
KEY, 1/4 X 1/4 X 3 LG357-618D1.
BRACKET, CLUTCH CLOCKING357-619D2.
TPHMS Y #10-24 X 1/2 ZNYCR801-205C3.
HHCS 5/16-18X1 1/2 GR5802-012C4.
HHCS 5/16-18X1 3/4 GR5802-013C5.
HHCS 5/16-18X3 1/2 GR5 FTHD802-190C6.
RHSNB 5/16-18X1 1/2 GR5802-270C7.
RHSNB 1/4-20X5/8 PLT802-633C8.
S/N 659121+HHCS 7/16-20X2 1/4 GR8802-923C9.
S/N 659120-HHCS 7/16-20X2 GR8 PLT802-862C9.
NUT HEX 10-24 PLT803-001C10.
NUT HEX 5/16-18 PLT803-008C11.
NUT HEX FLG TP LK 5/16-18ZNYCR803-177C12.
NUT HEX FLG TL 1/4-20 ZNYCR803-293C13.
WASHER LOCK 7/16 PLT804-014C14.
WASHER FLAT #10 SAE PLT804-046C15.
WASHER LOCK #10804-054C16.
WASHER INTERNAL STAR 5/16 PLT804-221C17.
WASHER .460 X 1.75 X.25 PLT804-231C18.
PULLEY, 4.5 PD X 1.00 ID A-SEC808-402C19.
EXTNSION, 1 3/8X60DEG TAILPIPE826-535C20.
S/N 714681+ENGINE, 26HP B&S EPA826-728C21.
S/N 714680-RPBY 826-728C826-544C21.
MUFFLER, 26 HP, BRIGGS826-620C22.
VALVE, B & S OIL DRAIN829-127C23.
FILTER, B&S INTEK ELS OIL831-053C24.
FILTER, B&S INTEK ELS AIR831-054C25.
S/N 699098+SOLENOID,SEALED ENGINE STARTR833-556C26.
S/N 699097-RPBY 357-509A833-405C26.
CABLE, 4GAX10X.25X.31833-414C27.
CABLE, 53X.062X1.87 CHOKE890-106C28.
CABLE, 50X.062X2.12 THROTTLE890-115C29.
CLAMP,1 1/2 MUFFLER890-947C30.
S/N 692674+CLUTCH, 12V HI TORQ BLD BRAKE891-230C31.
S/N 692673-RPBY 891-230C891-227C31.
RPBY 891-227C890-982C31.
Sold per FootHEAT SHIELD, 1/4" I.D.990-249R32.
S/N 659121+SPACER, ENG PTO, 1 ID, .25 THK358-079D33.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 37
Page 38
Land Pride Section 4: Engine & Fuel System
Table of Contents Part Number Index
Engine Assembly Kawasaki 18.5HP
Applies to RAZOR Z48
27807
38 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 39
Section 4: Engine & Fuel System Land Pride
Table of Contents Part Number Index
Engine Assembly Kawasaki 18.5HP
Applies to RAZOR Z48
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27807
KEY, 1/4 X 1/4 X 3 LG357-618D1.
BRACKET, CLUTCH CLOCKING357-619D2.
TPHMS Y #10-24 X 1/2 ZNYCR801-205C3.
HHCS 3/8-16X1 1/2 GR5802-022C4.
HHCS 3/8-16X1 1/4 GR5802-079C5.
HHCS M8X1.25X16 GR8.8802-459C6.
RHSNB 1/4-20X5/8 PLT802-633C7.
S/N 659121+HHCS 7/16-20X2 1/4 GR8802-923C8.
S/N 659120-HHCS 7/16-20X2 GR8 PLT802-862C8.
NUT HEX 10-24 PLT803-001C9.
NUT HEX FLANGE M8X1.25 PLT803-220C10.
NUT HEX FLG TL 1/4-20 ZNYCR803-293C11.
WASHER LOCK SPRING 3/8 PLT804-013C12.
WASHER LOCK 7/16 PLT804-014C13.
WASHER FLAT #10 SAE PLT804-046C14.
WASHER LOCK #10804-054C15.
WASHER .460 X 1.75 X.25 PLT804-231C16.
PULLEY, 4.5 PD X 1.00 ID A-SEC808-402C17.
MUFFLER 20HP KAW826-637C18.
KAW, FS600V, 18.5HP826-639C19.
VALVE,20MM O-RING OIL DRAIN829-128C20.
FILTER, KAW OIL831-073C21.
FILTER, KAW FS AIR W/CLAMP831-074C22.
S/N 699098+SOLENOID,SEALED ENGINE STARTR833-556C23.
S/N 699097-RPBY 357-509A833-405C23.
CABLE, 4GAX10X.25X.31833-414C24.
SWITCH,N.C. OIL PRESSURE833-419C25.
KAW (23) GASKET, MUFFLER839-049C26.
CABLE, 53X.062X1.87 CHOKE890-106C27.
CABLE, 50X.062X2.12 THROTTLE890-115C28.
S/N 692674+CLUTCH, 12V HI TORQ BLD BRAKE891-230C29.
S/N 692673-RPBY 891-230C891-227C29.
RPBY 891-227C890-982C29.
Sold per FootHEAT SHIELD, 1/4" I.D.990-249R30.
S/N 659121+SPACER, ENG PTO, 1 ID, .25 THK358-079D31.
PRE FILTER, KAW FS SERIES AIR831-099C32.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 39
Page 40
Land Pride Section 4: Engine & Fuel System
Table of Contents Part Number Index
Engine Assembly Kawasaki 23 HP
Applies to RAZOR Z54
27808
40 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 41
Section 4: Engine & Fuel System Land Pride
Table of Contents Part Number Index
Engine Assembly Kawasaki 23 HP
Applies to RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27808
KEY, 1/4 X 1/4 X 3 LG357-618D1.
BRACKET, CLUTCH CLOCKING357-619D2.
TPHMS Y #10-24 X 1/2 ZNYCR801-205C3.
HHCS 3/8-16X1 1/2 GR5802-022C4.
HHCS 3/8-16X1 1/4 GR5802-079C5.
HHCS M8X1.25X16 GR8.8802-459C6.
RHSNB 1/4-20X5/8 PLT802-633C7.
S/N 659121+HHCS 7/16-20X2 1/4 GR8802-923C8.
S/N 659120-HHCS 7/16-20X2 GR8 PLT802-862C8.
NUT HEX 10-24 PLT803-001C9.
NUT HEX FLANGE M8X1.25 PLT803-220C10.
NUT HEX FLG TL 1/4-20 ZNYCR803-293C11.
WASHER LOCK SPRING 3/8 PLT804-013C12.
WASHER LOCK 7/16 PLT804-014C13.
WASHER FLAT #10 SAE PLT804-046C14.
WASHER LOCK #10804-054C15.
WASHER .460 X 1.75 X.25 PLT804-231C16.
PULLEY, 4.5 PD X 1.00 ID A-SEC808-402C17.
MUFFLER 26HP KAW826-638C18.
KAW, FS691V, 23HP826-640C19.
VALVE,20MM O-RING OIL DRAIN829-128C20.
FILTER, KAW OIL831-073C21.
FILTER, KAW FS AIR W/CLAMP831-074C22.
CABLE, 4GAX10X.25X.31833-414C23.
SWITCH,N.C. OIL PRESSURE833-419C24.
S/N 699098+SOLENOID,SEALED ENGINE STARTR833-556C25.
S/N 699097-RPBY 357-509A833-405C25.
GASKET MUFFLER HONDA 20HP839-383C26.
CABLE, 53X.062X1.87 CHOKE890-106C27.
CABLE, 50X.062X2.12 THROTTLE890-115C28.
S/N 692674+CLUTCH, 12V HI TORQ BLD BRAKE891-230C29.
S/N 692673-RPBY 891-230C891-227C29.
RPBY 891-227C890-982C29.
HEAT SHIELD, 1/4" I.D.990-249R30.
S/N 659121+SPACER, ENG PTO, 1 ID, .25 THK358-079D31.
PRE FILTER, KAW FS SERIES AIR831-099C32.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 41
Page 42
Land Pride Section 4: Engine & Fuel System
Table of Contents Part Number Index
Fuel System S/N 672163-
Applies to RAZOR Z48, RAZOR Z54
27761
42 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 43
Section 4: Engine & Fuel System Land Pride
Table of Contents Part Number Index
Fuel System S/N 672163-
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27761
GAS TANK FITTING W/NUT&WASHER356-137S1.
RETAINER PUSHIN, HOSE .56ID800-243C2.
CABLE TIE 2 DIA MIN - BLK800-303C3.
CLAMP PINCH FOR .50 OD HOSE800-356C4.
HFSS 3/8-16X5/8 GR5 ZNYCR802-732C5.
GROMMET,.875X1.25X.25T816-527C6.
CAP, LARGE DIAMETER FUEL817-630C7.
RH FUEL TANK,RED GRAPHICS817-760C8.
LH FUEL TANK,RED GRAPHICS817-761C9.
VALVE,FUEL SELECTOR829-129C10.
Briggs & StrattonFUEL FILTER831-035C11.
KawasakiFUEL FILTER831-031C11.
HOSE RUBBER.25ID/.5 OD SAE30R7990-225R12.
HOSE RUBBER.25ID/.5 OD SAE30R7990-225R13.
HOSE RUBBER.25ID/.5 OD SAE30R7990-225R14.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 43
Page 44
Land Pride Section 4: Engine & Fuel System
Table of Contents Part Number Index
Fuel System S/N 672164+
Applies to RAZOR Z48, RAZOR Z54
30754
44 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 45
Section 4: Engine & Fuel System Land Pride
Table of Contents Part Number Index
Fuel System S/N 672164+
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30754
CAP, NON-VENTED FUEL2032381.
GAS TANK FITTING W/NUT&WASHER356-137S2.
SV KIT, EPA VALVE & GROMMET357-501A3.
RETAINER PUSHIN, HOSE .56ID800-243C4.
CABLE TIE 2 DIA MIN - BLK800-303C5.
CLAMP PINCH FOR .50 OD HOSE800-356C6.
CLAMP WRM DRV (.21-.63)800-412C7.
HFSS 3/8-16X5/8 GR5 ZNYCR802-732C8.
GROMMET,.875X1.25X.25T816-527C9.
S/N ______+LH FUEL TANK,RED, COMPLIANT817-995C10.
S/N ______-RPBY 817-995C817-887C10.
S/N ______+RH FUEL TANK,RED, COMPLIANT817-996C11.
S/N ______-RPBY 817-996C817-888C11.
VALVE,FUEL SELECTOR829-129C12.
TEE 1/4HB POLYPROP830-009C13.
Briggs & StrattonFUEL FILTER831-035C14.
KawasakiFUEL FILTER831-031C14.
5 1/4" Lg.HOSE RUBBER.25ID/.5 OD SAE30R7990-225R15.
32" Lg.HOSE RUBBER.25ID/.5 OD SAE30R7990-225R16.
65" Lg.HOSE RUBBER.25ID/.5 OD SAE30R7990-225R17.
32" Lg.HOSE RUBBER.25ID/.5 OD SAE30R7990-225R18.
32" Lg.HOSE RUBBER.25ID/.5 OD SAE30R7990-225R19.
36" Lg.HOSE RUBBER.25ID/.5 OD SAE30R7990-225R20.
ROVASYN/A21.
GROMMET, FUEL TANK FITTINGN/A22.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 45
Page 46
Land Pride Section 5:Wheels
Table of Contents Part Number Index
Drive Wheels
Applies to RAZOR Z48, RAZOR Z54
27762
46 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 47
Section 5:Wheels Land Pride
Table of Contents Part Number Index
Drive Wheels
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27762
TURF TIRE 18-8.50814-306C1.
NUT LUG 1/2-20X60DEG PLT(.81AF803-329C2.
TIRE/WHEEL, 18X8.50X8 TURF814-270C3.
T1. VALVE MARTINTR-4124.
WHEEL-RIM 8.5814-307C5.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 47
Page 48
Land Pride Section 5:Wheels
Table of Contents Part Number Index
Front Non-Floating Wheels
Applies to RAZOR Z48, RAZOR Z54
27740
48 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 49
Section 5:Wheels Land Pride
Table of Contents Part Number Index
Front Non-Floating Wheels
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27740
FORK AY, CASTER WHEEL357-023H1.
TUBE, CASTER WHEEL AXLE357-105D2.
SPACER TUBE RD 1.25ODX11GWX1.3357-111D3.
CAP, CASTER SPINDLE HUB357-120D4.
SOLID AXLE WMT,RAZOR357-333H5.
BRACKET, FLOOR PAN ATTACHMENT357-784D6.
TILDEN RTNR 3/4IDX1 3/8OD53-1647.
NUT CLIP U-TYPE 5/16-18800-120C8.
RHSNB 3/8-16X3/4 GR5802-149C9.
HSBHCS 1/2-13X1 GR5 NYL802-371C10.
HFS 5/16-18X3/4 GR5802-387C11.
RHSNB 3/8-16X2 3/4 GR5 PLT802-468C12.
HFS 1/2-13X6 1/8GR5 PLT802-745C13.
S/N 644660+NUT HEX FLG LOCK 1/2-13 PLT803-169C14.
S/N 644659-NUT HEX 1/2-13 PLT803-020C14.
NUT FLANGE LOCK 3/8-16 PLT803-209C15.
S/N 644659-WASHER LOCK SPRING 1/2 PLT804-015C16.
WASHER FLAT 1/2 USS PLT804-017C17.
TIRE/WHEEL AY, 11X4.00-5 RIB814-061C18.
5X3.25 4.375CCL TL814-316C19.
11X4.00-5NHS 4PR RIB814-317C20.
BRG 1.00IDX2.04OD822-111C21.
BRG,.75X1.38X3.75L ROLLER822-222C22.
T1. VALVE MARTINTR-41223.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 49
Page 50
Land Pride Section 6: Deck
Table of Contents Part Number Index
Deck Assembly
Applies to RAZOR Z48, RAZOR Z54
27771
50 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 51
Section 6: Deck Land Pride
Table of Contents Part Number Index
Deck Assembly
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27771
CHUTE BRACKET357-282D1.
LH STRUT WMT, RAZOR357-330H2.
RH STRUT WMT, RAZOR357-331H3.
RH STRUT ASSY, RAZOR357-334S4.
LH STRUT ASSY, RAZOR357-335S5.
Razor 48DECK WMT, RAZOR 48357-354H6.
Razor 54DECK WMT, RAZOR 54357-352H6.
SPACER 3/4OD X 11GA WL X 3/4L357-722D7.
CHUTE BRACKET, TOP357-803D8.
CHUTE BRACKET, BOTTOM357-804D9.
Razor 48BELT GUARD, RAZOR 48 LH357-829D10.
Razor 54BELT GUARD, RAZOR 54 LH357-817D10.
Razor 48BELT GUARD, RAZOR 48 RH357-830D11.
Razor 54BELT GUARD, RAZOR 54 RH357-818D11.
GREASE ZERK 1/4-28 THD FORMING800-080C12.
RHSNB 3/8-16X1 GR5802-015C13.
HHCS 3/8-16X1 GR5802-017C14.
HHCS 1/2-13X1 3/4 GR5802-082C15.
HHCS 7/16-14X1 3/4 GR5802-113C16.
RHSNB 1/2-13X4 1/2 GR8 PLT802-137C17.
RHSNB 1/2-13X7 1/4 GR5 SPTHD802-218C18.
HFS 5/16-18X3/4 GR5802-387C19.
HFS 1/2-13X6 1/8GR5 PLT802-745C20.
SHOULDER BOLT 3/8X1/2X5/16-18802-794C21.
NUT HEX WHIZ 7/16-14 PLT803-052C22.
NUT HEX JAM 1/2-20 PLT803-059C23.
NUT HEX NYLOCK 5/16-18 PLT803-084C24.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C25.
NUT NYLOCK JAM NUT 1/2-13803-178C26.
NUT FLANGE LOCK 3/8-16 PLT803-209C27.
WASHER FLAT 1/2 SAE PLT804-016C28.
RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C29.
BUMPER, 1.00X.31THK PUSH IN816-483C30.
CHUTE, RUBBER DISCHARGE816-537C31.
WHEEL, ANTI SCALP817-581C32.
GIMBAL, 1/2 ROD END890-058C33.
CHAIN, 5/16 LONG LINK PROOF 3X890-907C34.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 51
Page 52
Land Pride Section 6: Deck
Table of Contents Part Number Index
Deck Pulleys & Drive Belt
Applies to RAZOR Z48, RAZOR Z54
27772
52 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 53
Section 6: Deck Land Pride
Table of Contents Part Number Index
Deck Pulleys & Drive Belt
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27772
1/4 SQ. KEY X 7/8 LG172-242D1.
CW SPRING EYE-BOLTBRACKET310-095H2.
BLADE SPINDLE SHAFT CW TG310-630D3.
LEVER AY, BELT TENSION IDLER357-024H4.
OVER CENTER LATCH-90357-224H5.
BLADE HUB BOTTOM MOUNT357-279D6.
BLADE HUB - 7/8 (PLATED) 1.29T357-280D7.
Razor 48SPINDLE ASSY,CW TG, 5" PULLEY357-303S8.
Razor 54SPINDLE ASSY,CW TG, 5.5 PULL357-234S8.
GREASE ZERK STRAIGHT 1/4-28800-001C9.
SNAP RING EXT 7/16800-099C10.
HHCS 5/8-11X2 GR5802-055C11.
HHCS 5/8-11X2 1/2 GR5802-058C12.
HHCS 7/16-20X1 1/2 GR8802-229C13.
RHSNB 5/8-11X3 GR5802-338C14.
SP EYE 3/8-16X 3 7/8802-567C15.
HFS 1/2-20X2 1/2 GR8802-698C16.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C17.
NUT HEX 7/16-20 PLT803-115C18.
NUT LOCK 5/8-18 NYLOK COLLAR P803-119C19.
NUT HEX WHIZ 3/8-16 PLT803-198C20.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C21.
WASHER LOCK 7/16 PLT804-014C22.
WASHER LOCK SPRING 5/8 PLT804-022C23.
WASHER FLAT 3/4 HARD ASTMF436804-093C24.
WASHER BLADE 2ODX.56THKX.51ID804-110C25.
PIN 1/4 X 1/2 COTTERLESS HITCH805-405C26.
SPRING EXT BELTHANDLE807-068C27.
Razor 48B-GROOVE PULLEY 5 O.D.808-075C28.
Razor 54B-GROOVE PULLEY 5.5 OD808-366C28.
FLAT IDLER 6" PULLEY (6 3/4 OD808-129C29.
FLAT IIDLER PULLEY, 6.75 O.D.808-414C30.
Razor 48V-BELT,B-SEC. 135.5 EL KEVLAR816-465C31.
Razor 54 S/N 805681+V-BELT, B-SEC, EL 146.00816-784C31.
Razor 54 S/N 805680-RPBY 816-784C816-639C31.
DOUBLE DISK ARM PIVOT BUSHINGS817-028C32.
BRG BALL 30IDX62OD 206822-006C33.
BRG 1.18IDX2.44OD 6206 W/SHLD822-161C34.
Razor 48 StandardMWR BLD 1/4X16 7/8SD ML CW890-325C35.
Razor 48 OptionalMWR BLD 1/4X16 7/8SD HL CW890-219C35.
Razor 48 OptionalMWR BLD 1/4X16 7/8SD LL CW890-323C35.
Razor 48 OptionalMWR BLD MULCH 1/4X16.87SD CW890-700C35.
Razor 54 StandardMWR BLD 1/4X18.77SD MLS CW890-978C35.
Razor 54 OptionalMWR BLD MULCH 1/4X18.77SD CW890-991C35.
3 CW Blades per Kit48" MOWER BLADE KIT, LOW LIFT310-462A36.
3 CW Blades per Kit48" MOWER BLADE KIT, MED. LIFT310-463A36.
3 CW Blades per Kit48" MOWER BLADE KIT, HIGH LIFT310-464A36.
3 CW Blades per Kit48" MOWER BLADE KIT, MULCH310-465A36.
3 CW Blades per Kit54" MOWER BLADE KIT, MED LIFT357-630A36.
3 CW Blades per Kit54" MOWER BLADE KIT, MULCH357-631A36.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 53
Page 54
Land Pride Section 7: Labels
Table of Contents Part Number Index
Label Placement
Applies to RAZOR Z48, RAZOR Z54
27773
54 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 55
Section 7: Labels Land Pride
Table of Contents Part Number Index
Label Placement
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27773
DECAL FLAG818-190C1.
DECAL DANGER PD GUARD MISS SML818-543C2.
DECAL DANGER BATTERY838-303C3.
DECAL WARNING DO NOT OPERATE838-306C4.
DECAL MOVING PART HAZARD838-307C5.
DECAL ROTATING BLADE HAZARD838-308C6.
DECAL WARNING GEN SAFE MOWER838-310C7.
DECAL BELT ROUTING Z60838-328C8.
DECAL DANGER HOT838-444C9.
DECAL DECK CUTTING HEIGHT RZR838-457C10.
DECAL FUEL SELECTOR 3 WAY838-785C11.
DECAL, RAZOR 2 CONTROL PANEL838-811C12.
DECAL, PARK LEVER OPERATION838-812C13.
DECAL, STEERING CONTROL838-814C14.
DECAL, ROLLOVER HAZARD838-815C15.
DECAL,CAUTION DO NOT PWR WASH838-829C16.
DECAL LANDPRIDE 16" BROWN/GOLD838-965C17.
DECAL,ZXT OPERATING848-268C18.
DECAL, RAZOR SERVICE PARTS848-389C19.
DECAL, RAZOR Z GOLD/RED848-453C20.
DECAL, Z48848-454C21.
DECAL, Z54848-455C21.
DECAL, RAZOR Z GOLD/BLACK848-456C22.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 55
Page 56
Land Pride Section 8: Accessories
Table of Contents Part Number Index

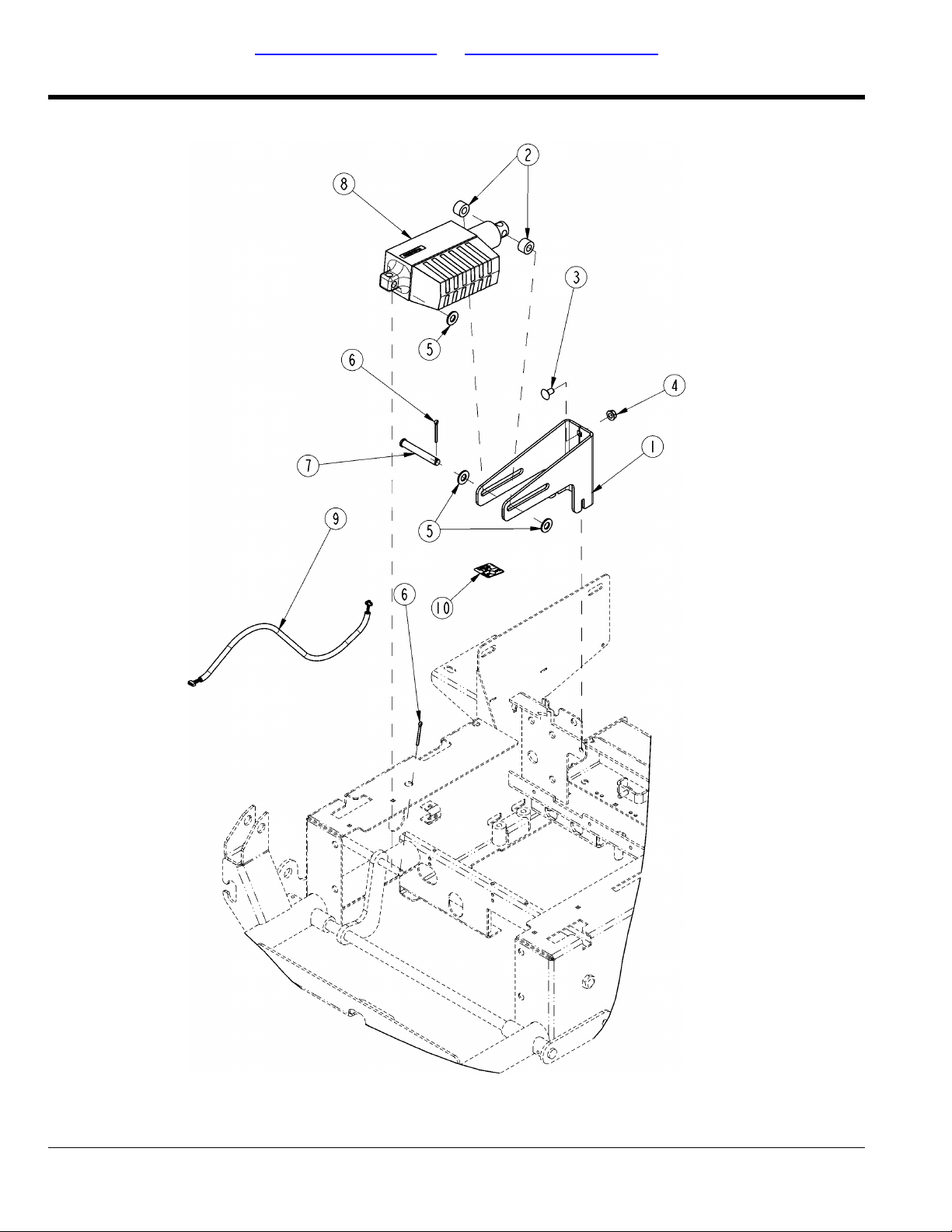

Deck Lift Electric
Applies to RAZOR Z48, RAZOR Z54
27792
56 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 57
Section 8: Accessories Land Pride
Table of Contents Part Number Index
Deck Lift Electric
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27792
ELECTRIC DECK LIFT KIT, RAZOR357-371A
*
ELEC DECK LIFT BRACKET357-370H1.
SPACER, 1ODX1/4WL357-859D2.
RHSNB 3/8-16X3/4 GR5802-149C3.
NUT HEX FLANGE 3/8-16 PLT803-068C4.
WASHER FLAT 1/2 SAE PLT804-016C5.
PIN COTTER 5/32 X 1 1/2 LONG805-089C6.
PIN CLEVIS 1/2 X 3 1/2 PLT805-108C7.
ELECT. LINEAR ACTUATOR 4IN STK833-466C8.
HARNESS,ELECTRIC DECK LIFT833-490C9.
DECAL, DECK LIFT,UP DOWN848-290C10.
Located by the Deck Cutting Height
Decal
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 57
Page 58
Land Pride Section 8: Accessories
Table of Contents Part Number Index
Light Kit Z-Mowers
Applies to RAZOR Z48, RAZOR Z54
33569
58 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 59
Section 8: Accessories Land Pride
Table of Contents Part Number Index
Light Kit Z-Mowers
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg33569
LIGHT KIT, Z-MOWER357-160A
*
LIGHT BRCKT RH, Z MOWER357-450D1.
ADAPTER PLATE LIGHT KIT357-634D2.
CABLE TIE .19X14.25 3DIA 50LB800-060C3.
CLAMP WRM DRV #48SS (1.63-3.5)800-241C4.
HFSS 1/4-20X1/2 GR5802-148C5.
RHSNB 3/8-16X3/4 GR5802-149C6.
HFSS 3/8-16X3/4 LG802-185C7.
NUT HEX LOCK 1/4-20 FLG803-088C8.
NUT FLANGE LOCK 3/8-16 PLT803-209C9.
SWITCH ROCKER SPST833-269C10.
SWITCH ACTUATOR833-271C11.
HEADLIGHT833-275C12.
WIRE HARNESS,LIGHT KIT Z-MOWER833-444C13.
LIGHT BRCKT LH, Z MOWER357-461D14.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 59
Page 60
Land Pride Section 8: Accessories
Table of Contents Part Number Index
Mulch Kit
Applies to RAZOR Z48, RAZOR Z54
27791
60 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 61
Section 8: Accessories Land Pride
Table of Contents Part Number Index
Mulch Kit
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27791
MULCH KIT, 48 IN RAZOR357-364A
MULCH KIT, 54 IN RAZOR357-361A
*
MULCH BAFFLE, 48 IN, RAZOR357-362H1.
MULCH BAFFLE, 54 IN, RAZOR357-359H1.
MULCH PLUG, 48 IN, RAZOR357-363H2.
MULCH PLUG, 54 IN, RAZOR357-360H2.
MULCH PLUG COVER, 48, Z357-938D3.
MULCH PLUG COVER, 54357-939D3.
RHSNB 3/8-16X1 GR5802-015C4.
RHSNB 5/16-18X3/4 GR5802-092C5.
NUT HEX WHIZ 5/16-18 PLT803-043C6.
NUT FLANGE LOCK 3/8-16 PLT803-209C7.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 61
Page 62
Land Pride Section 8: Accessories
Table of Contents Part Number Index
Soft Top Canopy
Applies to RAZOR Z48, RAZOR Z54
33570
62 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 63
Section 8: Accessories Land Pride
Table of Contents Part Number Index
Soft Top Canopy
Applies to RAZOR Z48, RAZOR Z54
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg33570
ZT SOFT TOP SUN CANOPY GREY357-194A
*
U-BOLT SQ. 2X3X23-180001.
TUBE MOUNTING 2" ROTATE3-187132.
3/8 WASHER3-100863.
3/8 NYLOCK3-100734.
TUBE FRONT HINGED3-186385.
TUBE REAR HINGED3-186416.
COVER FABRIC GREY3-186427.
STRAP ASSEMBLY3-186448.
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 63
Page 64
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
53172-242D ...................
45203238 ......................
11230024700 ................
11230321672 ................
633-10073 .....................
633-10086 .....................
633-18000 .....................
633-18638 .....................
633-18641 .....................
633-18642 .....................
633-18644 .....................
633-18713 .....................
53310-095H ...................
53310-462A ...................
53310-463A ...................
53310-464A ...................
53310-465A ...................
53310-630D ...................
13, 15356-074D ...................
43, 45356-137S ...................
21357-001H ...................
21357-002D ...................
19357-002H ...................
21357-009H ...................
23357-014D ...................
21357-019D ...................
21357-020D ...................
21357-021D ...................
49357-023H ...................
53357-024H ...................
19357-042H ...................
21357-089S ...................
49357-105D ...................
49357-111D ...................
23357-112D ...................
49357-120D ...................
21357-149D ...................
59357-160A ...................
7357-179D ...................
33357-181D ...................
33357-184L ...................
7357-186V ...................
63357-194A ...................
53357-224H ...................
53357-234S ...................
7357-239H ...................
7357-240S ...................
53357-279D ...................
53357-280D ...................
51357-282D ...................
53357-303S ...................
13, 15357-314H ...................
13, 15357-315H ...................
33357-316H ...................
7, 9357-317H ...................
19357-322H ...................
17357-324H ...................
33357-325S ...................
51357-330H ...................
51357-331H ...................
49357-333H ...................
51357-334S ...................
51357-335S ...................
51357-352H ...................
51357-354H ...................
61357-359H ...................
61357-360H ...................
61357-361A ...................
61357-362H ...................
61357-363H ...................
61357-364A ...................
57357-370H ...................
57357-371A ...................
19357-403D ...................
11357-420A ...................
59357-450D ...................
33357-455D ...................
59357-461D ...................
45357-501A ...................
35, 37, 39, 41357-618D ...................
35, 37, 39, 41357-619D ...................
53357-630A ...................
53357-631A ...................
59357-634D ...................
51357-722D ...................
17357-728D ...................
23357-729D ...................
19357-756D ...................
17357-759D ...................
21357-781D ...................
13, 15357-783D ...................
49357-784D ...................
51357-803D ...................
51357-804D ...................
51357-817D ...................
51357-818D ...................
51357-829D ...................
51357-830D ...................
19357-851D ...................
13, 15357-852D ...................
29357-855D ...................
57357-859D ...................
61357-938D ...................
61357-939D ...................
35, 37, 39, 41358-079D ...................
9358-108D ...................
33358-399D ...................
3152027 ........................
3152639 ........................
4953-164 .......................
3153019 ........................
3153699 ........................
11711935272 ................
3171410 ........................
3171446 ........................
3172124 ........................
53800-001C ...................
59800-060C ...................
21, 51800-080C ...................
53800-099C ...................
19, 49800-120C ...................
21800-234C ...................
59800-241C ...................
43, 45800-243C ...................
27, 43, 45800-303C ...................
33800-321C ...................
43, 45800-356C ...................
19800-383C ...................
45800-412C ...................
23801-031C ...................
7, 9801-078C ...................
23801-198C ...................
13, 15801-202C ...................
35, 37, 39, 41801-205C ...................
17801-225C ...................
19802-010C ...................
35, 37802-012C ...................
35, 37802-013C ...................
51, 61802-015C ...................
51802-017C ...................
802-633C ...................
39, 41802-022C ...................
19802-024C ...................
11802-039C ...................
11802-042C ...................
33, 53802-055C ...................
53802-058C ...................
39, 41802-079C ...................
51802-082C ...................
13, 15, 23, 61802-092C ...................
11802-099C ...................
21, 51802-113C ...................
51802-137C ...................
59802-148C ...................
7, 49, 57, 59802-149C ...................
17802-155C ...................
21802-179C ...................
13, 15, 59802-185C ...................
35, 37802-190C ...................
51802-218C ...................
33802-225C ...................
11802-227C ...................
53802-229C ...................
23802-232C ...................
23802-257C ...................
13, 15802-258C ...................
35, 37802-270C ...................
53802-338C ...................
49802-371C ...................
49, 51802-387C ...................
7802-431C ...................
33802-439C ...................
39, 41802-459C ...................
49802-468C ...................
53802-567C ...................
7802-568C ...................
19802-569C ...................
13, 15, 19, 29,
33, 35, 37, 39, 41
21802-674C ...................
53802-698C ...................
43, 45802-732C ...................
49, 51802-745C ...................
13, 15802-747C ...................
13, 15, 51802-794C ...................
21802-814C ...................
35, 37, 39, 41802-862C ...................
19802-889C ...................
35, 37, 39, 41802-923C ...................
17, 35, 37, 39, 41803-001C ...................
35, 37803-008C ...................
13, 15803-011C ...................
21803-012C ...................
11803-019C ...................
49803-020C ...................
61803-043C ...................
21, 51803-052C ...................
51803-059C ...................
7, 9, 57803-068C ...................
19803-078C ...................
13, 15, 19, 23, 51803-084C ...................
29, 59803-088C ...................
19803-094C ...................
53803-114C ...................
53803-115C ...................
53803-119C ...................
19, 33803-148C ...................
7, 13, 15, 49, 51803-169C ...................
33, 35, 37803-177C ...................
51803-178C ...................
21803-196C ...................
803-209C ...................
21, 53803-198C ...................
23803-199C ...................
7, 17, 49, 51, 59,
61
21803-214C ...................
39, 41803-220C ...................
13, 15, 19803-230C ...................
33, 53803-263C ...................
33803-270C ...................
21803-275C ...................
33, 35, 37, 39, 41803-293C ...................
23803-326C ...................
33, 47803-329C ...................
11803-333C ...................
23804-006C ...................
23, 33804-007C ...................
19804-012C ...................
39, 41804-013C ...................
35, 37, 39, 41, 53804-014C ...................
49804-015C ...................
13, 15, 21, 51, 57804-016C ...................
49804-017C ...................
21804-019C ...................
19804-021C ...................
53804-022C ...................
13, 15, 17, 19, 23804-036C ...................
11804-041C ...................
35, 37, 39, 41804-046C ...................
17, 35, 37, 39, 41804-054C ...................
13, 15804-056C ...................
53804-093C ...................
53804-110C ...................
21804-156C ...................
35, 37804-221C ...................
35, 37, 39, 41804-231C ...................
33805-010C ...................
17805-063C ...................
57805-089C ...................
21805-106C ...................
57805-108C ...................
33805-307C ...................
17805-400C ...................
53805-405C ...................
53807-068C ...................
15807-096C ...................
21807-113C ...................
17807-119C ...................
13807-221C ...................
21807-240C ...................
17807-244C ...................
19807-280C ...................
13, 15807-288C ...................
53808-075C ...................
53808-129C ...................
53808-366C ...................
33808-375C ...................
35, 37, 39, 41808-402C ...................
53808-414C ...................
49814-061C ...................
47814-270C ...................
47814-306C ...................
47814-307C ...................
49814-316C ...................
49814-317C ...................
51816-298C ...................
19816-461C ...................
53816-465C ...................
51816-483C ...................
43, 45816-527C ...................
51816-537C ...................
64 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 03/14/14
Page 65
Table of Contents Part Number Index
Part Number Index (continued)
PagePart Number
33816-616C ...................
53816-639C ...................
33816-779C ...................
53816-784C ...................
19, 33, 53817-028C ...................
21817-033C ...................
17817-246C ...................
13, 15, 17817-560C ...................
51817-581C ...................
19817-618C ...................
43817-630C ...................
21817-631C ...................
33817-749C ...................
19817-755C ...................
43817-760C ...................
43817-761C ...................
45817-887C ...................
45817-888C ...................
45817-995C ...................
45817-996C ...................
55818-190C ...................
55818-543C ...................
53822-006C ...................
49822-111C ...................
53822-161C ...................
49822-222C ...................
11823-302C ...................
11823-391C ...................
35, 37826-535C ...................
35826-543C ...................
37826-544C ...................
35, 37826-620C ...................
39826-637C ...................
41826-638C ...................
39826-639C ...................
41826-640C ...................
35826-727C ...................
37826-728C ...................
35, 37829-127C ...................
39, 41829-128C ...................
43, 45829-129C ...................
45830-009C ...................
43, 45831-031C ...................
43, 45831-035C ...................
35, 37831-053C ...................
35, 37831-054C ...................
31831-060C ...................
31, 33831-069C ...................
31, 33831-070C ...................
39, 41831-073C ...................
39, 41831-074C ...................
39, 41831-099C ...................
23833-019C ...................
59833-269C ...................
59833-271C ...................
59833-275C ...................
23833-336C ...................
17833-341C ...................
23833-342C ...................
23833-350C ...................
23833-351C ...................
23833-352C ...................
35, 37, 39, 41833-405C ...................
35, 37, 39, 41833-414C ...................
39, 41833-419C ...................
59833-444C ...................
23833-457C ...................
27833-465C ...................
57833-466C ...................
57833-490C ...................
19833-503C ...................
PagePart Number
29833-504C ...................
27833-506C ...................
25833-507C ...................
35, 37, 39, 41833-556C ...................
55838-303C ...................
55838-306C ...................
55838-307C ...................
55838-308C ...................
55838-310C ...................
55838-328C ...................
55838-444C ...................
55838-457C ...................
55838-785C ...................
55838-811C ...................
55838-812C ...................
55838-814C ...................
55838-815C ...................
55838-829C ...................
55838-965C ...................
39839-049C ...................
13, 15839-148C ...................
13, 15839-320C ...................
41839-383C ...................
13, 15839-385C ...................
13, 15839-411C ...................
13, 15839-416C ...................
13, 15839-971C ...................
13, 15840-262C ...................
11840-272C ...................
13, 15840-310C ...................
55848-268C ...................
57848-290C ...................
55848-389C ...................
55848-453C ...................
55848-454C ...................
55848-455C ...................
55848-456C ...................
51890-058C ...................
35, 37, 39, 41890-106C ...................
35, 37, 39, 41890-115C ...................
53890-219C ...................
53890-323C ...................
53890-325C ...................
53890-700C ...................
21, 51890-907C ...................
35, 37890-947C ...................
33890-950C ...................
19890-957C ...................
53890-978C ...................
35, 37, 39, 41890-982C ...................
53890-991C ...................
19891-140C ...................
35, 37, 39, 41891-227C ...................
35, 37, 39, 41891-230C ...................
43, 45990-225R ...................
35, 37, 39, 41990-249R ...................
49dwg27740 ..................
13dwg27743 ..................
7dwg27744 ..................
19dwg27745 ..................
21dwg27746 ..................
23, 29dwg27748 ..................
17dwg27749 ..................
33dwg27752 ..................
43dwg27761 ..................
47dwg27762 ..................
51dwg27771 ..................
53dwg27772 ..................
55dwg27773 ..................
35dwg27788 ..................
25dwg27789 ..................
PagePart Number
61dwg27791 ..................
57dwg27792 ..................
37dwg27797 ..................
11dwg27799 ..................
39dwg27807 ..................
41dwg27808 ..................
27dwg27824 ..................
31dwg27878 ..................
15dwg30035 ..................
9dwg30711 ..................
45dwg30754 ..................
59dwg33569 ..................
63dwg33570 ..................
11, 23, 45N/A ............................
47, 49TR-412 ......................
03/14/14 Z48 & Z54 Accu-Z Razor® Zero Turn Mowers 357-344P 65
Page 66
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
