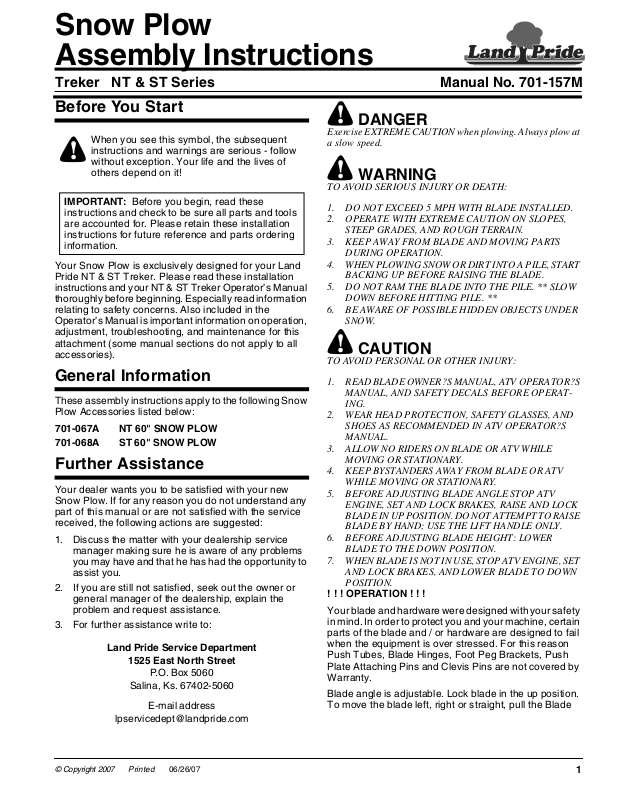

Land Pride Snow Plow User Manual

Snow Plow
Assembly Instructions

Treker NT & ST Series

Before You Start

When you see this symbol, the subsequent
instructions and warnings are serious - follow

!

without exception. Your life and the lives of
others depend on it!

IMPORTANT: Before you begin, read these
instructions and check to be sure all parts and tools
are accounted for. Please retain these installation
instructions for future reference and parts ordering
information.

Your Snow Plow is exclusively designed for your Land
Pride NT & ST Treker. Please read these installation
instructions and your NT & ST Treker Operator’s Manual
thoroughly before beginning. Especially read information
relating to safety concerns. Also included in the
Operator’s Manual is important information on operation,
adjustment, troubleshooting, and maintenance for this
attachment (some manual sections do not apply to all
accessories).

General Information

These assembly instructions apply to the following Snow
Plow Accessories listed below:

701-067A NT 60" SNOW PLOW
701-068A ST 60" SNOW PLOW

Further Assistance

Your dealer wants you to be satisfied with your new
Snow Plow. If for any reason you do not understand any
part of this manual or are not satisfied with the service
received, the following actions are suggested:

1. Discuss the matter with your dealership service
manager making sure he is aware of any problems
you may have and that he has had the opportunity to
assist you.

2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.

3. For further assistance write to:

Land Pride Service Department

1525 East North Street

P.O. Box 5060

Salina, Ks. 67402-5060

E-mail address

[e-mail]

Manual No. 701-157M

!

Exercise EXTREME CAUTION when plowing. Always plow at
a slow speed.

TO AVOID SERIOUS INJURY OR DEATH:

1. DO NOT EXCEED 5 MPH WITH BLADE INSTALLED.

2. OPERATE WITH EXTREME CAUTION ON SLOPES,

3. KEEP AWAY FROM BLADE AND MOVING PARTS

4. WHEN PLOWING SNOW OR DIRT INTO A PILE, START

5. DO NOT RAM THE BLADE INTO THE PILE. ** SLOW

6. BE AWARE OF POSSIBLE HIDDEN OBJECTS UNDER

TO AVOID PERSONAL OR OTHER INJURY:

1. READ BLADE OWNER?S MANUAL, ATV OPERATOR?S

2. WEAR HEAD PROTECTION, SAFETY GLASSES, AND

3. ALLOW NO RIDERS ON BLADE OR ATV WHILE

4. KEEP BYSTANDERS AWAY FROM BLADE OR ATV

5. BEFORE ADJUSTING BLADE ANGLE STOP ATV

6. BEFORE ADJUSTING BLADE HEIGHT: LOWER

7. WHEN BLADE IS NOT IN USE, STOP ATV ENGINE, SET

! ! ! OPERATION ! ! !

Your blade and hardware were designed with your safety
in mind. In order to protect you and your machine, certain
parts of the blade and / or hardware are designed to fail
when the equipment is over stressed. For this reason
Push Tubes, Blade Hinges, Foot Peg Brackets, Push
Plate Attaching Pins and Clevis Pins are not covered by
Warranty.

Blade angle is adjustable. Lock blade in the up position.
To move the blade left, right or straight, pull the Blade

DANGER

!

WARNING

STEEP GRADES, AND ROUGH TERRAIN.

DURING OPERATION.

BACKING UP BEFORE RAISING THE BLADE.

DOWN BEFORE HITTING PILE. **

SNOW.

!

CAUTION

MANUAL, AND SAFETY DECALS BEFORE OPERAT­ING.

SHOES AS RECOMMENDED IN ATV OPERATOR?S
MANUAL.

MOVING OR STATIONARY.

WHILE MOVING OR STATIONARY.

ENGINE, SET AND LOCK BRAKES, RAISE AND LOCK
BLADE IN UP POSITION. DO NOT ATTEMPT TO RAISE
BLADE BY HAND; USE THE LIFT HANDLE ONLY.

BLADE TO THE DOWN POSITION.

AND LOCK BRAKES, AND LOWER BLADE TO DOWN
POSITION.

© Copyright 2007 Printed

06/26/07

1

Assembly Instructions

Land Pride

Position Lever ahead and turn the blade to the desired
position. The Lever will spring back when the blade is at
the correct angle.

The blade skids are adjustable so the blade can be
lowered but still held a certain distance off the ground.

The blade is designed to trip when it strikes an object or
digs in too far. When pressure is released the blade
springs back into position. Blade spring tension may be
set stiffer by tightening the Locknuts on the bottom of the
Eyebolts. For less spring tension, loosen the Locknuts.

Do not exceed 5 MPH with blade installed.

Operate with extreme caution on slopes, steep grades
and rough terrain.

Keep away from blade and moving parts during
operation.

When plowing snow or dirt into a pile, start backing up
before raising the blade.

Do not ram the blade into the pile ** SLOW DOWN

BEFORE HITTING THE PILE. **

Be aware of possible hidden objects under snow.

Wear head protection, safety glasses and shoes as
recommended in the machine’s Operator’s Manual.

Allow no riders on blade or machine while moving or
stationary.

Keep bystanders away from blade and machine while
moving or stationary.

When blade is not in use, stop the machine?s engine, set
and lock brakes, and lower blade to down position.

Only mature adults over the age of 16 should operate the
machinery. Do not operate this machinery if you are
under the age of 16.

Please read and follow all of the instructions in the
owner?s manual.

Please read and follow all of the instructions in the
machine’s operations manual.

Keep all bystanders a minimum of 15 Meters away from
the machine and Blade when it is in operation.

Do not use this equipment at night (in the dark) or under
poor weather conditions, unless your machine has
adequate lighting, which produces clear safe vision.

Due to the extra length of the 60" (1.52 M) Blade, loss of
directional control may result when pushing heavy
material. Use with Caution!

Assembly Instructions

A detailed listing of parts for this accessory kit is provided
on page 6. Use the list as a checklist to inventory parts
received. Please contact your local Land Pride dealer for
any missing hardware.

UNIVERSAL PUSH TUBE Part No. 823-226C

!

! Due to reduced ground clearance remove plow Mount
Brackets before trail riding.
! Do not exceed 5 MPH with the blade or its brackets installed

OPERATION TIPS

! When plowing snow or dirt into a pile, back away from
the pile before attempting to raise the blade

! For best results set the suspension to the stiffest setting
if possible

! The Blade is shipped with the Blade Skids mounted
upside down for boxing. Be sure to mount the Skids
properly before using your blade.

MAINTENANCE

! Periodically check for wear and tightness of all bolts,
nuts and fasteners. Replace or tighten as necessary.
Grease all pivot points and hinges as needed

NOTICE

! The use of Winch Mounting Kits Not Manufactured by
Land Pride Accessories with Work Power Blades will
void all warranties.

! The Winch Kits are specifically designed to help prevent
damage to the Blades, Winch Kits and the Machine.

All directions referring to the right and the left are when
the operator is sitting on the machine.

Blade Connection

To secure the Blade to the Blade Hinge (#2), Place the
Steel Bushings (#9) into the holes in the Blade Hinge
(#2), Using the Top holes in the Blade, Secure the Blade

WARNING

Manual No. 701-157M 06/26/07

2

■

Assembly Instructions

Land Pride

Hinge (#2) to the Blade with the 1/2" x 1 " Bolts and
Locknuts (#15). Tighten Nuts to 60 Ft Pounds of Torque.
See diagram below.

Remove the two Blade Spring Attaching Brackets (#8)
from the LEFT side of the Blade Hinge. Fasten one on
either side of the Blade Hinge as shown in the parts
breakdown and picture.

Hang the two Blade Springs (#16) from the top holes in
the Blades ribs. Place the Eyebolts (#14) onto the
springs and fasten the Eyebolts to the Blade Spring
Attaching Brackets (#8) using the two locknuts.

Spring tension may be set stiffer by tightening the
locknuts on the Eyebolts, or for less tension loosen the
Locknuts. Setting the tension stiffer means the blade will
not trip as easily as when set with less tension.

These Instructions are for the Push Tube Assembly only.

Final Blade Installation

Position the Push Tube Assembly (#1) under the
machine. Lift the rear of the assembly up and secure it to
the Push Tube Attaching Brackets using the 3/8" Clevis
Pins and #3 Hairpins provided in the Attaching Kit.

The Blade Stops (#4) on either side of the Blade Hinge
are shipped loose. By turning the Stops around, the pitch
of the Blade changes. The recommended pitch is one
that allows the top and bottom of the blade to be
perpendicular to the ground. Set the Stops to the desired
position, they must be the same on both sides, and
tighten the bolts on the stops fully.

The Blade Skids on 60" blades are installed up side down
at the factory for shipping/boxing purposes. Turn the
Blade Skids around by loosening the two end bolts on the
Blade and tighten the Bolts before using the Blade.

Blade Angle Operation

To move the Blade Left, Right or Straight, pull the Blade
Position Lever (#5) forward and turn the blade to the
desired position. The Lever will automatically spring into
the slot when the Blade reaches the proper angle.

Blade Lift Operation with a winch

Method One:

The blade can be lifted using the winch. Hook the winch
hook onto the slot in the Blade Position Lever Bracke
(#3) and lift with the winch. See diagram below.

Install the Blade Position Lever (#5), and Blade Position
Spring using the 5/16" x 2 1/4" Bolt (#12), Roller
Bushings, and 5/16" Nylock Locknut provided. See
picture above. Tighten bolt fully and THEN

LOOSEN JUST ENOUGH TO ALLOW THE BLADE
POSITION LEVER TO MOVE FREELY. Both Roller
Bushings on the LEFT side.

06/26/07

■

Method Two:

Some assembly may be done for you.

Align the Cable Pulley (#1) between the two Snatch

Manual No. 701-157M

3

Assembly Instructions

Land Pride

Block Straps (#2), secure with the supplied 1/2"x 1 1/2
bolt (#3) and the 1/2"center lock nut (#4). Do not over
tighten. The Cable Pulley (#1) should be able to move
freely. See below.

Thread the winch cable under the Cable Pulley (#1) as
shown in the picture below.

Position the Snatch Block assembly over one of the
holes on the blade position lever bracket. Insure that the
Snatch Block assembly is free of any moving parts and
does not interfere with the normal use of the blade
system.

Attach the Lift Strap (#6) to the top of the brush guard.
Hook the winch hook onto the Lift Strap (#6).

823-230C ST MOUNT KIT-SNOW PLOW W/INST

PLOW MOUNT

1. Attach (#1) Blade Mount to bottom of frame tubes
(Shown above) using the (#5) 5/16" x 2" x 3" U-Bolts for
the rear and the (#4) 3/8" x 1 1/2" x 2 1/2"U-Bolts for the
front.

Manual No. 701-157M 06/26/07

4

■

Assembly Instructions

823-227C NT MOUNT KIT-SNOW PLOW W/INST

Land Pride

PLOW MOUNT

1. Attach (#1) Blade Mount to bottom of frame tubes

(Shown above) using the (#5) 5/16’" x 2" x 3" U-Bolts for
the rear and the (#4) 3/8" x 1 1/2"x 2 1/2U-Bolts for the
front.

06/26/07

■

Manual No. 701-157M

5

Land Pride

Listing of Parts

Kit No. 823-224C 60" STEEL SNOW PLOW

Item Part No. Part Description Qty

1 823-224C 60" STEEL SNOW PLOW 1
2 802-282C RHSNB 5/16-18X1 GR5 9
2 803-084C NUT HEX NYLOCK 5/16-18 PLT 9
3 PUR0400 5/8" X 1" SPACER 4
4 805-240C PIN LINCH 3/16 X 1 9/16 LONG 2
5 CYC0790 60" WEAR BAR METAL (Optional) 1
5 PUR1494 60" WEAR BAR PLASTIC (Optional) 1
6 804-021C WASHER FLAT 5/8 SAE PLT 12
7 PUR1467 H. D. SKID 2

6

Manual No. 701-157M 06/26/07

■

Assembly Instructions

Kit No. 823-226C PUSH ARMS FOR SNOW PLOW

Item Part No. Part Description Qty

823-226C PUSH ARMS FOR SNOW PLOW
1 CYC3154 Y2K PUSH TUBE 1
2 CYC2389 BLADE HINGE 1
3 CYC0345 BLADE POSITION LEVER BRACKET 1
4 CYC0813 ADJUSTABLE BLADE STOPS 2
5 CYC2259 BLADE POSITION LEVER 1
6 PUR1437 SPRING 1
7 PUR1361 SLEEVE BUSHING 2
8 CYC0812 BLADE SPRING BRACKETS 2
9 PUR1411 7/8" STEEL BUSHING 2
10 802-079C HHCS 3/8-16X1 1/4 GR5 2
11 803-155C NUT LT JAM 1 1/4-12 NYLN INSRT 1
12 802-138C HHCS 5/16-18X2 1/4 GR5 1
13 802-159C HHCS 5/16-18X1 GR5 2
14 PUR1216 5/16" X 4-1/4" EYE BOLT 2
15 802-091C HHCS 1/2-13X1 1/2 GR5 2
16 803-019C NUT LOCK 1/2-13 PLT 2
17 PUR1409 BLADE SPRING 2
18 U610 1 3/8" END CAP 2
19 SNATCH BLOCK ASSEMBLY 1

Land Pride

06/26/07

Manual No. 701-157M

■

7

Land Pride

Assembly Instructions

Kit No. 823-230C ST MOUNT KIT-SNOW PLOW

Item Part No. Part Description Qty

1 CYC4610 BLADE MOUNT
2 PUR1209 3/8" CLEVIS PIN
3 805-010C PIN HAIR COTTER .094
4 PUR1415 3/8" X 1-1/2" X 2-1/2" U-BOLT
5 PUR1435 5/16" X 2" X 3 U-BOLT
6 804-011C WASHER FLAT 3/8 USS PLT
7 804-010C WASHER FLAT 5/16 USS PLT

803-078C NUT LOCK 3/8-16 NYLON INSERT
803-084C NUT HEX NYLOCK 5/16-18 PL

Manual No. 701-157M 06/26/07

8

■

Assembly Instructions

Kit No. 823-227C NT MOUNT KIT-SNOW PLOW

Item Part No. Part Description Qty

1 CYC4598 BLADE MOUNT
2 PUR1209 3/8" CLEVIS PIN
3 805-010c RPBY 805-010C
4 PUR1415 3/8" X 1-1/2" X 2-1/2" U-BOLT
5 PUR1435 5/16" X 2" X 3 U-BOLT
6 804-011C WASHER FLAT 3/8 USS PLT
7 804-078C WASHER INTERNAL STAR 3/8 PLT.

803-078C NUT LOCK 3/8-16 NYLON INSERT

803-094C NUT 5/8-11 NYLON COLLAR THIN

Land Pride

06/26/07

Manual No. 701-157M

■

9

Corporate Office: P.O. Box 5060

Salina, Kansas 67402-5060 USA

www.landpride.com
