Rotary Tillers
RTR10 and RTR15 Series
22245
311-431P
Parts Manual
Read the Operator's manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!
© Copyright 2008 Printed 09/10/08
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
RTR10 SERIES
Section 2: Frames..........................................................6
Frame Components.............................................................6
Front & Rear Deflector......................................................10
Section 3: Rotor Drive.................................................12
Rotor Assembly.................................................................12
Rotor Drive........................................................................14
Section 4: Gearboxes..................................................17
Gearbox (826-016C) Comer.............................................18
Section 5: Drivelines...................................................20
Driveline (826-015C) Walterscheid....................................20
Driveline (826-257C) Eurocardan.....................................22
Driveline Slip Clutch (053314)...........................................24
Section 6: Labels.........................................................26
Label Placement...............................................................26
RTR15 SERIES
Section 2: Frames........................................................28
Frame Components...........................................................28
Front & Rear Deflector......................................................32
Section 3: Rotor Drive.................................................34
Gearbox Mounting & Driveshaft........................................34
Rotor Assembly.................................................................36
Rotor Drive........................................................................38
Section 4: Gearboxes..................................................40
Gearbox (826-016C) Comer.............................................40
Section 5: Drivelines...................................................42
Driveline (826-023C) Eurocardan.....................................42
Driveline (826-024C) Walterscheid....................................44
Driveline Slip Clutch (053331) Walterscheid.....................46
Section 6: Labels.........................................................48
Label Placement...............................................................48
Part Number Index.......................................................50
© Copyright 2008. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Land Pride is registered trademark.
Printed in the United States of America.
2 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 3
Table of Contents Part Number Index
RTR10 SERIES
D
Driveline (826-015C) Walterscheid...............................20
Driveline (826-257C) Eurocardan.................................22
Driveline Slip Clutch (053314)......................................24
F
Frame Components........................................................6
Front & Rear Deflector.................................................10
G
Gearbox (826-016C) Comer.........................................18
L
Label Placement..........................................................26
R
Rotor Assembly............................................................12
Rotor Drive...................................................................14
Alphabetized Table of Contents
RTR15 SERIES
D
Driveline (826-023C) Eurocardan.................................42
Driveline (826-024C) Walterscheid...............................44
Driveline Slip Clutch (053331) Walterscheid................46
F
Frame Components......................................................28
Front & Rear Deflector.................................................32
G
Gearbox (826-016C) Comer.........................................40
Gearbox Mounting & Driveshaft...................................34
L
Label Placement..........................................................48
R
Rotor Assembly............................................................36
Rotor Drive...................................................................38
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 3
Page 4
Table of Contents Part Number Index
4 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 5
Table of Contents Part Number Index
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 5
Page 6
Land Pride Section 2: Frames
RTR10 SERIES
Table of Contents Part Number Index
Frame Components

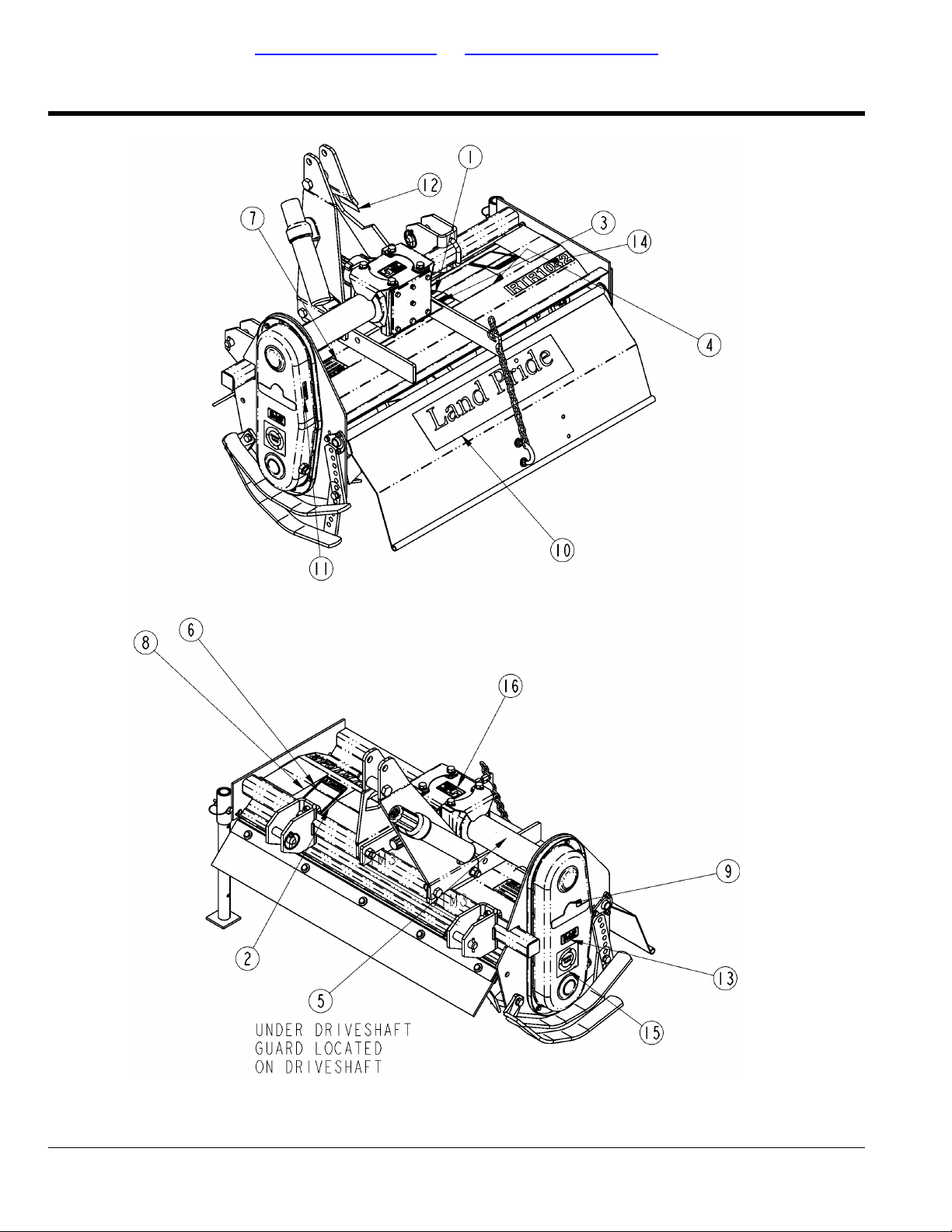

Applies to RTR1042, RTR1050, RTR1058

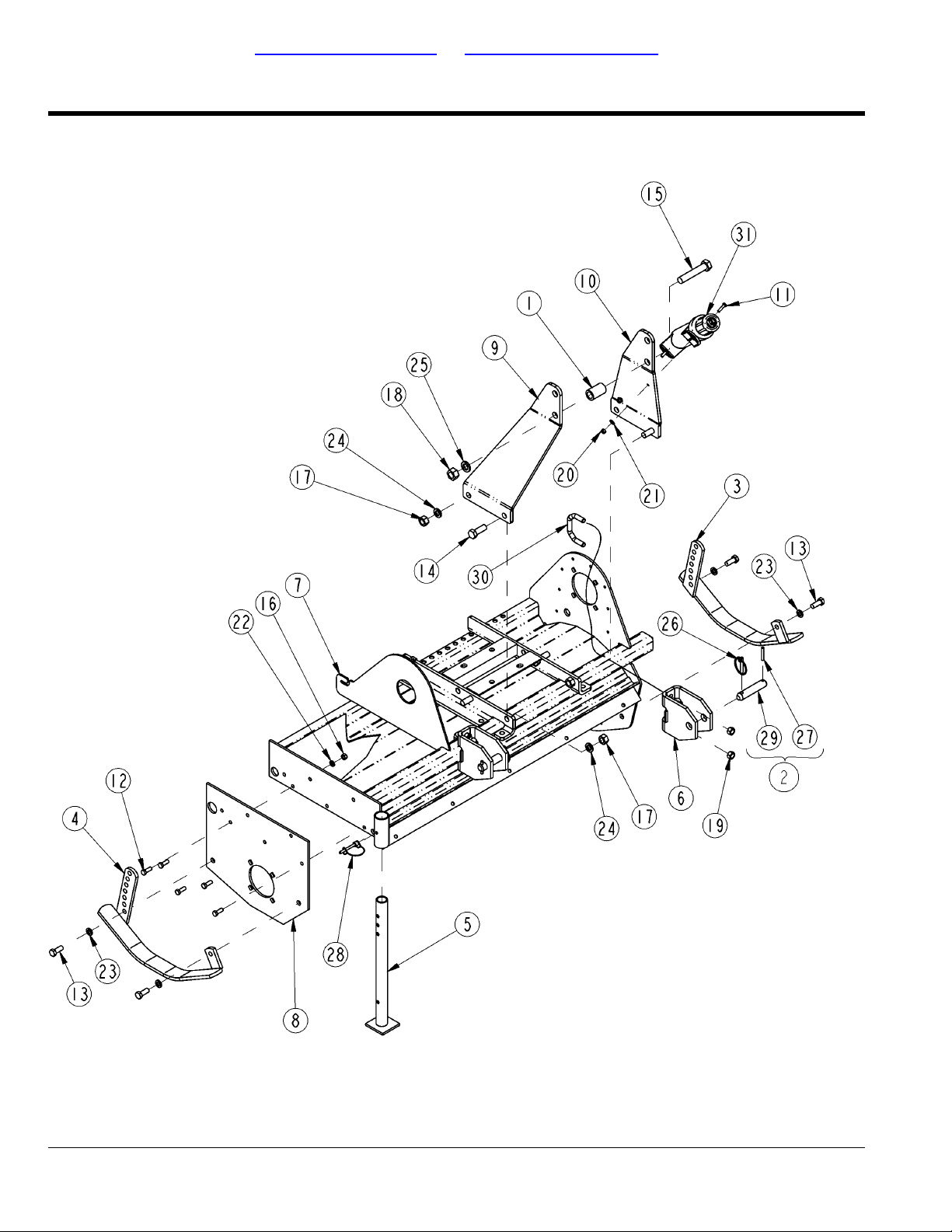

22298
6 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 7
Section 2: Frames Land Pride
Table of Contents Part Number Index
RTR10 SERIES
Frame Components
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22298
SPACER 1 1/4OD X 25/32ID X 2LG308-400D1.
LOWER HITCH PIN310-020S2.
LH SKIDSHOE RTA10/15/20 RTR20311-006H3.
LH SKIDSHOE RTA10/15/20 RTR20 GREEN311-006H813.
LH SKIDSHOE RTA10/15/20 RTR20 ORANGE311-006H823.
LH SKIDSHOE RTA10/15/20 RTR20 RED311-006H833.
LH SKIDSHOE RTA10/15/20 RTR20 BLUE311-006H843.
RH SKIDSHOE RTA10/15/20 RTR20311-007H4.
RH SKIDSHOE RTA10/15/20 RTR20 GREEN311-007H814.
RH SKIDSHOE RTA10/15/20 RTR20 ORANGE311-007H824.
RH SKIDSHOE RTA10/15/20 RTR20 RED311-007H834.
RH SKIDSHOE RTA10/15/20 RTR20 BLUE311-007H844.
STAND LEG RTA10/15/20 RTR20311-014H5.
STAND LEG RTA10/15/20 RTR20 GREEN311-014H815.
STAND LEG RTA10/15/20 RTR20 ORANGE311-014H825.
STAND LEG RTA10/15/20 RTR20 RED311-014H835.
STAND LEG RTA10/15/20 RTR20 BLUE311-014H845.
S/N 448120+LOWER HITCH WELDMENT311-418H6.
LOWER HITCH WELDMENT GREEN311-418H816.
LOWER HITCH WELDMENT ORANGE311-418H826.
LOWER HITCH WELDMENT RED311-418H836.
LOWER HITCH WELDMENT BLUE311-418H846.
S/N 448119-LOWER HITCH BRACKET311-582D6.
END PLATE WELDMENT RH311-423H7.
END PLATE WELDMENT RH GREEN311-423H817.
END PLATE WELDMENT RH ORANGE311-423H827.
END PLATE WELDMENT RH RED311-423H837.
END PLATE WELDMENT RH BLUE311-423H847.
FRAME WELDMENT RTR1042311-427H8.
FRAME WELDMENT RTR1042 GREEN311-427H818.
FRAME WELDMENT RTR1042 ORANGE311-427H828.
FRAME WELDMENT RTR1042 RED311-427H838.
FRAME WELDMENT RTR1042 BLUE311-427H848.
FRAME WELDMENT RTR1050311-444H8.
FRAME WELDMENT RTR1050 GREEN311-444H818.
FRAME WELDMENT RTR1050 ORANGE311-444H828.
FRAME WELDMENT RTR1050 RED311-444H838.
FRAME WELDMENT RTR1050 BLUE311-444H848.
FRAME WELDMENT RTR1058311-448H8.
FRAME WELDMENT RTR1058 GREEN311-448H818.
FRAME WELDMENT RTR1058 ORANGE311-448H828.
FRAME WELDMENT RTR1058 RED311-448H838.
FRAME WELDMENT RTR1058 BLUE311-448H848.
HITCH PLATE UPPER RH311-538D9.
HITCH PLATE UPPER RH GREEN311-538D819.
HITCH PLATE UPPER RH ORANGE311-538D829.
HITCH PLATE UPPER RH RED311-538D839.
HITCH PLATE UPPER RH BLUE311-538D849.
HITCH PLATE UPPER LH311-539D10.
HITCH PLATE UPPER LH GREEN311-539D8110.
HITCH PLATE UPPER LH ORANGE311-539D8210.
HITCH PLATE UPPER LH RED311-539D8310.
HITCH PLATE UPPER LH BLUE311-539D8410.
S/N 544081+HHCS 1/4-20X1 GR5802-005C11.
HHCS 3/8-16X1 GR5802-017C12.
HHCS 1/2-13X1 1/4 GR5802-034C13.
HHCS 5/8-11X1 3/4 GR5802-053C14.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 7
Page 8
Land Pride Section 2: Frames
RTR10 SERIES
Table of Contents Part Number Index
Frame Components (continued)
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
HHCS 3/4-10X4 GR5802-068C15.
NUT HEX 3/8-16 PLT803-014C16.
NUT HEX 5/8-11 PLT803-021C17.
NUT HEX 3/4-10 PLT803-027C18.
S/N 448120+NUT HEX NYLOCK 1/2-13803-147C19.
S/N 448119-NUT FLANGE LOCK 3/8-16 PLT803-209C19.
S/N 544081+NUT HEX NYLOCK 1/4-20803-255C20.
S/N 544081+WASHER FLAT 1/4 SAE PLT804-007C21.
WASHER LOCK SPRING 3/8 PLT804-013C22.
WASHER LOCK SPRING 1/2 PLT804-015C23.
WASHER LOCK SPRING 5/8 PLT804-022C24.
WASHER LOCK SPRING 3/4 PLT804-023C25.
PIN LYNCH 5/16 X 1 3/4805-015C26.
PIN ROLL 1/4X1 3/4805-041C27.
PIN WIRE RETAINING 1/4 X 1 3/4805-065C28.
PIN LOWER HITCH 7/8X3 1/16USBL805-198C29.
S/N 448120+U-BOLT 1/2-13 X2 7/8X2 1/16SPL806-048C30.
S/N 448119-U-BOLT 3/8-16 X 2 1/32 X 3806-166C30.
S/N 544081+MANUAL STORAGE CONTAINER816-504C31.
8 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 9
Section 2: Frames Land Pride
Table of Contents Part Number Index
RTR10 SERIES
Frame Components (continued)
Applies to RTR1042, RTR1050, RTR1058
This Page Intentionally Left Blank
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 9
Page 10
Land Pride Section 2: Frames
RTR10 SERIES
Table of Contents Part Number Index
Front & Rear Deflector
Applies to RTR1042, RTR1050, RTR1058

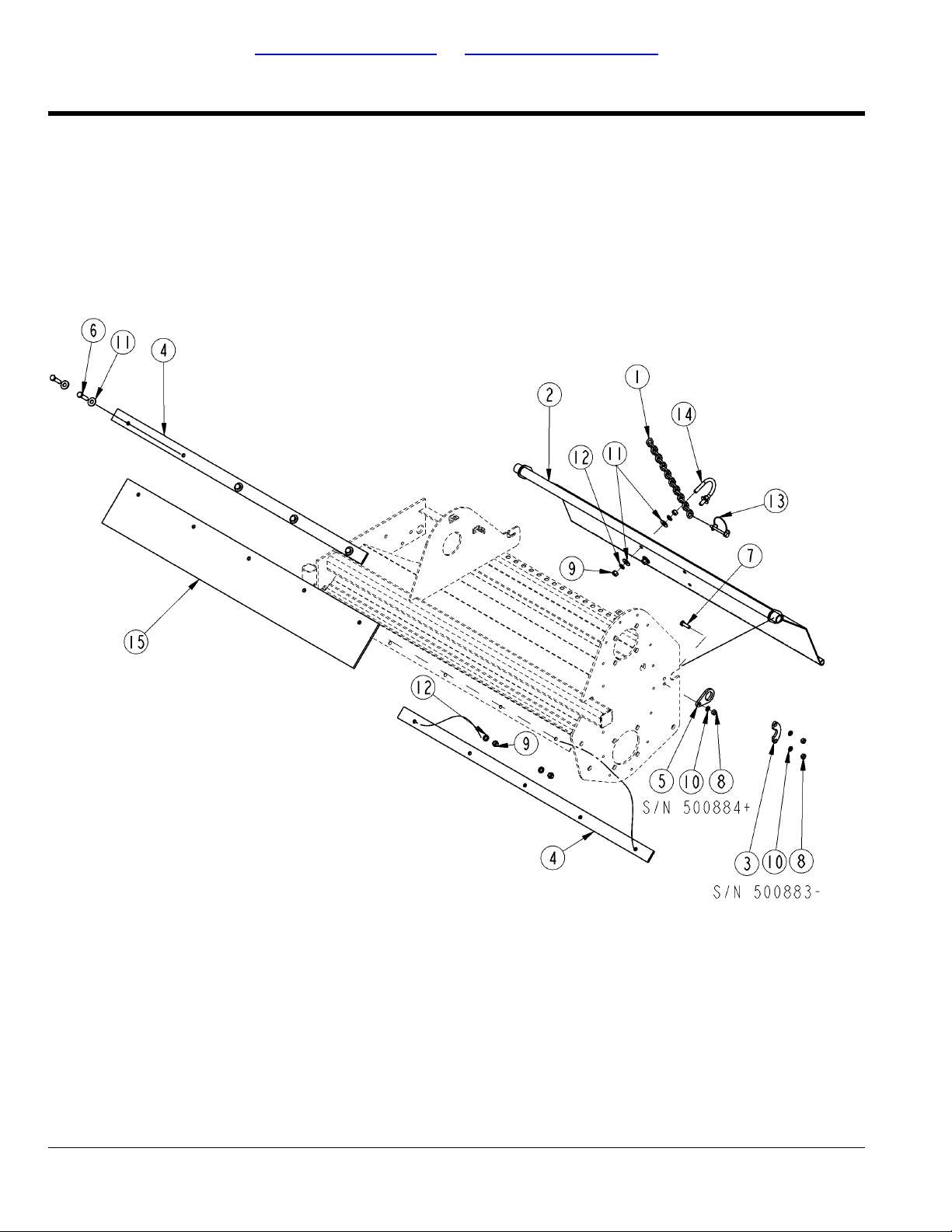

22300
10 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 11
Section 2: Frames Land Pride
Table of Contents Part Number Index
RTR10 SERIES
Front & Rear Deflector
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22300
REAR DEFLECTOR CHAIN 10/15311-077D1.
S/N 515788+TAILGATE WELDMENT RTR1042311-430H2.
TAILGATE WELDMENT RTR1042 GREEN311-430H812.
TAILGATE WELDMENT RTR1042 ORANGE311-430H822.
TAILGATE WELDMENT RTR1042 RED311-430H832.
TAILGATE WELDMENT RTR1042 BLUE311-430H842.
RPBY 311-430H311-422H2.
TAILGATE WELDMENT RTR1050 GREEN311-445H812.
TAILGATE WELDMENT RTR1050 ORANGE311-445H822.
TAILGATE WELDMENT RTR1050 RED311-445H832.
TAILGATE WELDMENT RTR1050 BLUE311-445H842.
RPBY 311-445H311-442H2.
TAILGATE WELDMENT RTR1058 GREEN311-449H812.
TAILGATE WELDMENT RTR1058 ORANGE311-449H822.
TAILGATE WELDMENT RTR1058 RED311-449H832.
TAILGATE WELDMENT RTR1058 BLUE311-449H842.
RPBY 311-449H311-417H2.
TAILGATE HOLDER311-553D3.
FRONT DEFLECTOR MOUNT BAR RTR1042311-565D4.
FRONT DEFLECTOR MOUNT BAR RTR1050311-577D4.
FRONT DEFLECTOR MOUNT BAR RTR1058311-566D4.
TAILGATE LOCK 10 & 15 SERIES311-663D5.
HHCS 3/8-16X1 1/2 GR5802-022C6.
HHCS 5/16-18X1 GR5 YELLOW DI802-738C7.
NUT HEX 5/16-18 PLT803-008C8.
NUT HEX 3/8-16 PLT803-014C9.
WASHER LOCK SPRING 5/16 PLT804-009C10.
WASHER FLAT 3/8 USS PLT804-011C11.
WASHER LOCK SPRING 3/8 PLT804-013C12.
FRONT DEFLECTOR RTR1042816-463C15.
FRONT DEFLECTOR RTR1050816-472C15.
FRONT DEFLECTOR RTR1058816-462C15.
S/N 515787- Requires U-Bolt &
Hardware
Requires U-Bolt & HardwareRPBY 311-430H 81311-422H812.
Requires U-Bolt & HardwareRPBY 311-430H 82311-422H822.
Requires U-Bolt & HardwareRPBY 311-430H 83311-422H832.
Requires U-Bolt & HardwareRPBY 311-430H 84311-422H842.
S/N 515788+TAILGATE WELDMENT RTR1050311-445H2.
S/N 515787- Requires U-Bolt &
Hardware
Requires U-Bolt & HardwareRPBY 311-445H81311-442H812.
Requires U-Bolt & HardwareRPBY 311-445H82311-442H822.
Requires U-Bolt & HardwareRPBY 311-445H83311-442H832.
Requires U-Bolt & HardwareRPBY 311-445H84311-442H842.
S/N 515788+TAILGATE WELDMENT RTR1058311-449H2.
S/N 515787- Requires U-Bolt &
Hardware
Requires U-Bolt & HardwareRPBY 311-449H81311-417H812.
Requires U-Bolt & HardwareRPBY 311-449H82311-417H822.
Requires U-Bolt & HardwareRPBY 311-449H83311-417H832.
Requires U-Bolt & HardwareRPBY 311-449H84311-417H842.
S/N 515787-PIN WIRE RETAINING 1/4 X 1 3/4805-065C13.
S/N 515788+U-BOLT 3/8-16 X2 1/32X2 5/8SPL806-049C14.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 11
Page 12
Land Pride Section 3: Rotor Drive
RTR10 SERIES
Table of Contents Part Number Index
Rotor Assembly
Applies to RTR1042, RTR1050, RTR1058
22317
12 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 13
Section 3: Rotor Drive Land Pride
Table of Contents Part Number Index
RTR10 SERIES

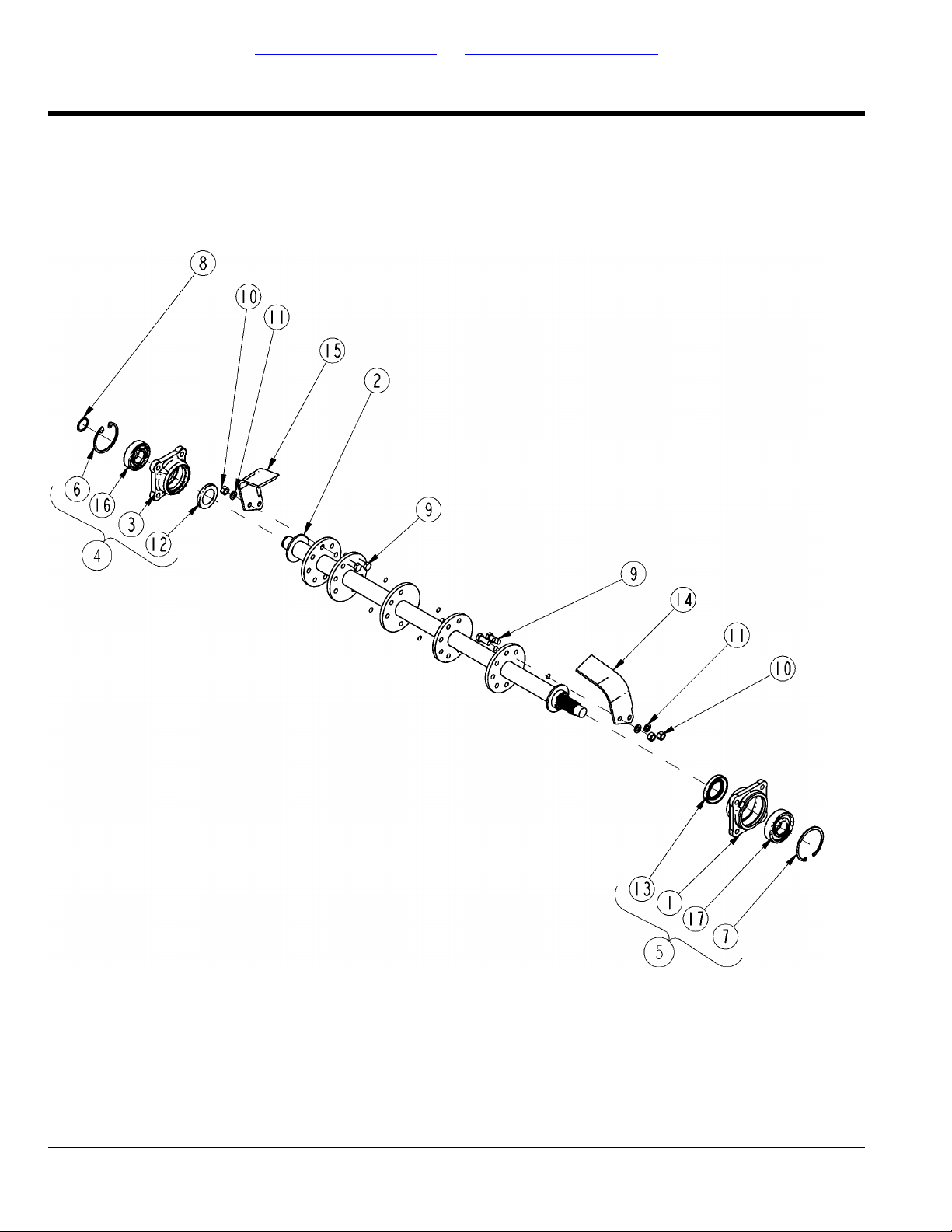

Rotor Assembly
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22317
RTR1542 ROTOR SUBASSY311-409K
RTR1550 ROTOR SUBASSY311-410K
RTR1558 ROTOR SUBASSY311-411K
BOTTOM BRG MOUNT 15 TILLER311-015D1.
ROTOR SHAFT WELDMENT 1542311-020H2.
ROTOR SHAFT WELDMENT 1550311-019H2.
ROTOR SHAFT WELDMENT 1558311-018H2.
RH BOTTOM BRG MNT 10/15 TILR311-042D3.
RH BOTTOM BRG ASSY 10/15 TLR311-042S4.
LH BOTTOM BRG ASSY 15 TILLER311-049S5.
SNAP RING INT3.523OD N5000-315800-053C6.
SNAP RING INT 90 MM800-078C7.
SNAP RING EXT 1 3/8 5100-137800-079C8.
SP TINE HHCS 1/2-20X1 1/4 GR5802-248C9.
NUT HEX 1/2-20 PLT803-018C10.
WASHER LOCK SPRING 1/2 PLT804-015C11.
SEAL 1.75 X 2.75 X .313816-068C12.
SEAL 2 X 3.1875 X 0.469816-084C13.
BLADE TILLER 10 & 15 SERIES LH820-055C14.
BLADE TILLER 10 & 15 SERIES RH820-056C15.
BEARING 307822-082C16.
BEARING 308822-084C17.
RTR1042 10 Ea., RTR1050 12 Ea.,
RTR1058 14 Ea.
RTR1042 10 Ea., RTR1050 12 Ea.,
RTR1058 14 Ea.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 13
Page 14
Land Pride Section 3: Rotor Drive
RTR10 SERIES
Table of Contents Part Number Index
Rotor Drive
Applies to RTR1042, RTR1050, RTR1058
22305
14 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 15
Section 3: Rotor Drive Land Pride
Table of Contents Part Number Index
RTR10 SERIES

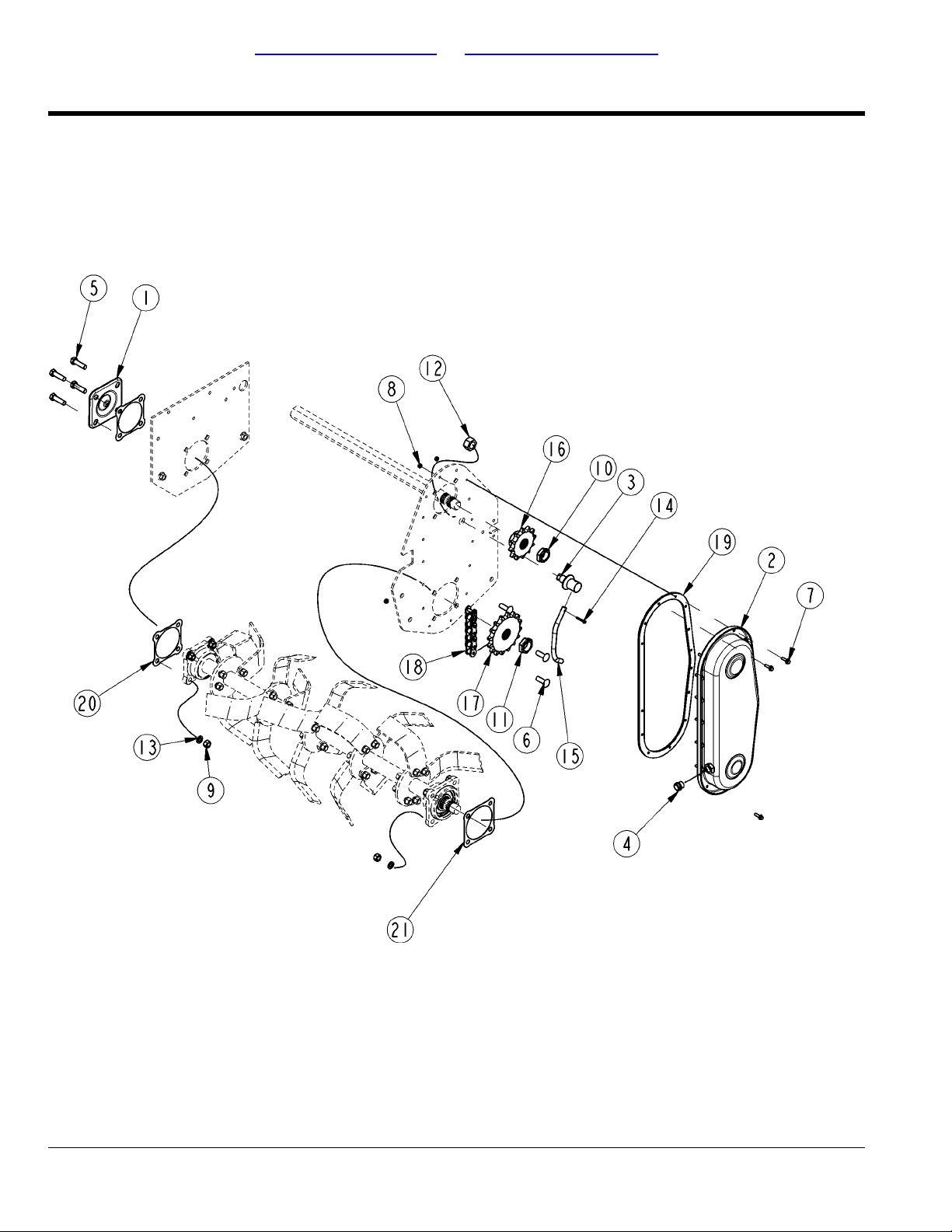

Rotor Drive
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22305
BEARING MNT RTA10/15/20 RTR20311-014D1.
BRG HSNG ASSY RTA10/15/20 RTR20311-041S2.
TOP BRG SPCR RTA10/15/20 RTR20311-054D3.
RH BRG COVER W/ZRK RTA10/15/25311-135S4.
RH BRG COVER W/ZRK R TA10/15/25 GREEN311-135S814.
311-135S824.
311-446H815.
311-446H825.
311-446H835.
311-446H845.
311-450H815.
311-450H825.
311-450H835.
311-450H845.
RH BRG COVER W/ZRK RTA10/15/25
ORANGE
RH BRG COVER W/ZRK RTA10/15/25 RED311-135S834.
RH BRG COVER W/ZRK RTA10/15/25 BLUE311-135S844.
DRIVE SHAFT GUARD WELDMENT RTR1042311-440H5.
DRIVE SHAFT GUARD WELDMENT RTR1042311-440H815.
DRIVE SHAFT GUARD WELDMENT RTR1042311-440H825.
DRIVE SHAFT GUARD WELDMENT RTR1042311-440H835.
DRIVE SHAFT GUARD WELDMENT RTR1042311-440H845.
DRIVE SHAFT GUARD WELDMENT RTR1050311-446H5.
DRIVE SHAFT GUARD WELDMENT RTR1050
GREEN
DRIVE SHAFT GUARD WELDMENT RTR1050
ORANGE
DRIVE SHAFT GUARD WELDMENT RTR1050
RED
DRIVE SHAFT GUARD WELDMENT RTR1050
BLUE
DRIVE SHAFT GUARD WELDMENT RTR1058311-450H5.
DRIVE SHAFT GUARD WELDMENT RTR1058
GREEN
DRIVE SHAFT GUARD WELDMENT RTR1058
ORANGE
DRIVE SHAFT GUARD WELDMENT RTR1058
RED
DRIVE SHAFT GUARD WELDMENT RTR1058
BLUE
CHAIN CASE WELDMENT RTR311-451H6.
CHAIN CASE WELDMENT RTR GREEN311-451H816.
CHAIN CASE WELDMENT RTR ORANGE311-451H826.
CHAIN CASE WELDMENT RTR RED311-451H836.
CHAIN CASE WELDMENT RTR BLUE311-451H846.
CHAIN TENSIONER LH311-559D7.
DRIVE COVER311-583D8.
DRIVE COVER GREEN311-583D818.
DRIVE COVER ORANGE311-583D828.
DRIVE COVER RED311-583D838.
DRIVE COVER BLUE311-583D848.
SNAP RING INT3.523OD N5000-315800-053C9.
DRAIN PLUG 3/4-16 UNF PLATED800-066C10.
HHCS 1/2-13X3/4 GR5802-032C11.
HHCS 1/2-13X1 3/4 GR5802-082C12.
HHCS 1/2-13X1 GR5802-258C13.
RHSSNB 1/2-13X1 1/2 GR5802-477C14.
HFSS 1/4-20X7/8 GR5802-719C15.
NUT LOCK 1/4-20 PLT803-007C16.
NUT HEX 1/2-13 PLT803-020C17.
NUT LT JAM 1 1/8-12 NYLN INSRT803-153C18.
NUT LT JAM 1 1/4-12 NYLN INSRT803-155C19.
NUT HEX FLG 7/8-14 LH PLT803-348C20.
WASHER LOCK SPRING 1/2 PLT804-015C21.
WASHER FLAT 1/2 HARD ASTMF436804-094C22.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 15
Page 16
Land Pride Section 3: Rotor Drive
RTR10 SERIES
Table of Contents Part Number Index
Rotor Drive (continued)
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
PIN COTTER 3/16 X 1805-069C23.
CHAIN TIGHTENER 10/15 TILR807-062C24.
SPKT 80B10 1 3/8-21 SPLINE808-081C25.
SPKT 80B16 16/32-23 SPLINE808-093C26.
CHAIN RL HT #80 X 43 PITCH809-079C27.
DRIVE SHAFT RTR1042815-254C28.
DRIVE SHAFT 1550 TILLER815-028C28.
DRIVE SHAFT 1558 TILLER815-027C28.
SEAL 1.75 X 2.75 X .313816-068C29.
GASKET CHAIN GRD 10/15 TILR816-069C30.
GASKET BRG MNT 10/15 TILLER816-070C31.
15 TILLER LH BOTTOM BRG GASKET816-071C32.
GASKET 1.03OD.515SQ.HL1/32THK816-280C33.
BEARING 307822-082C34.
PTO SLIP CLUTCH 10 TILLER826-015C35.
DRIVELINE SHRBLT HEAVY 540826-257C35.
GEARBOX RTA15 EBM25826-016C36.
GEARBOX RTA15 EBM25 GREEN826-016C8136.
GEARBOX RTA15 EBM25 ORANGE826-016C8236.
GEARBOX RTA15 EBM25 RED826-016C8336.
GEARBOX RTA15 EBM25 BLUE826-016C8436.
16 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 17
Section 3: Rotor Drive Land Pride
Table of Contents Part Number Index
RTR10 SERIES
Rotor Drive (continued)
Applies to RTR1042, RTR1050, RTR1058
This Page Intentionally Left Blank
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 17
Page 18
Land Pride Section 4: Gearboxes
RTR10 SERIES
Table of Contents Part Number Index
Gearbox (826-016C) Comer
Applies to RTR1042, RTR1050, RTR1058
10142
18 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 19
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
RTR10 SERIES
Gearbox (826-016C) Comer
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10142
15 SERIES TILLER GEARBOX826-016C
CO HOUSING0.267.0508.001.
CO REAR COVER0.267.1300.002.
CO OIL FILTER PLUG0.107.7100.013.
CO OIL PLUG 3/88.6.5.000064.
CO BOLT M10X20 8.88.1.1.000545.
CO OUTPUT SHAFT 1 1/2 HEX BORE0.267.4601.006.
CO KEY 14X9X358.4.1.010287.
CO BEARING 60128.0.1.001698.
CO SHIM KIT0.268.7500.009.
CO SNAP RING8.5.2.0102710.
CO SEAL DOUBLE LIP 60X95X100.267.7104.0011.
CO RING GEAR 23 TOOTH0.267.6001.0012.
CO PINION SHAFT GEAR 12 TOOTH0.267.5002.0013.
CO ADJUST SPACER KIT, 35.3 X48A.259.50014.
BEARING TAPER ROLLER 30207 SET822-167C15.
CO SNAP RING INT 72 UN174378.5.2.0013116.
CO SPACER0.267.7100.0017.
BEARING BALL 6207822-166C18.
CO SNAP RING EXT 35 UN174358.5.1.0000519.
OIL SEAL, 35 X 72 X 12/108.7.1.0015220.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 19
Page 20
Land Pride Section 5: Drivelines
RTR10 SERIES
Table of Contents Part Number Index
Driveline (826-015C) Walterscheid
Applies to RTR1042, RTR1050, RTR1058
10973
20 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 21
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
RTR10 SERIES

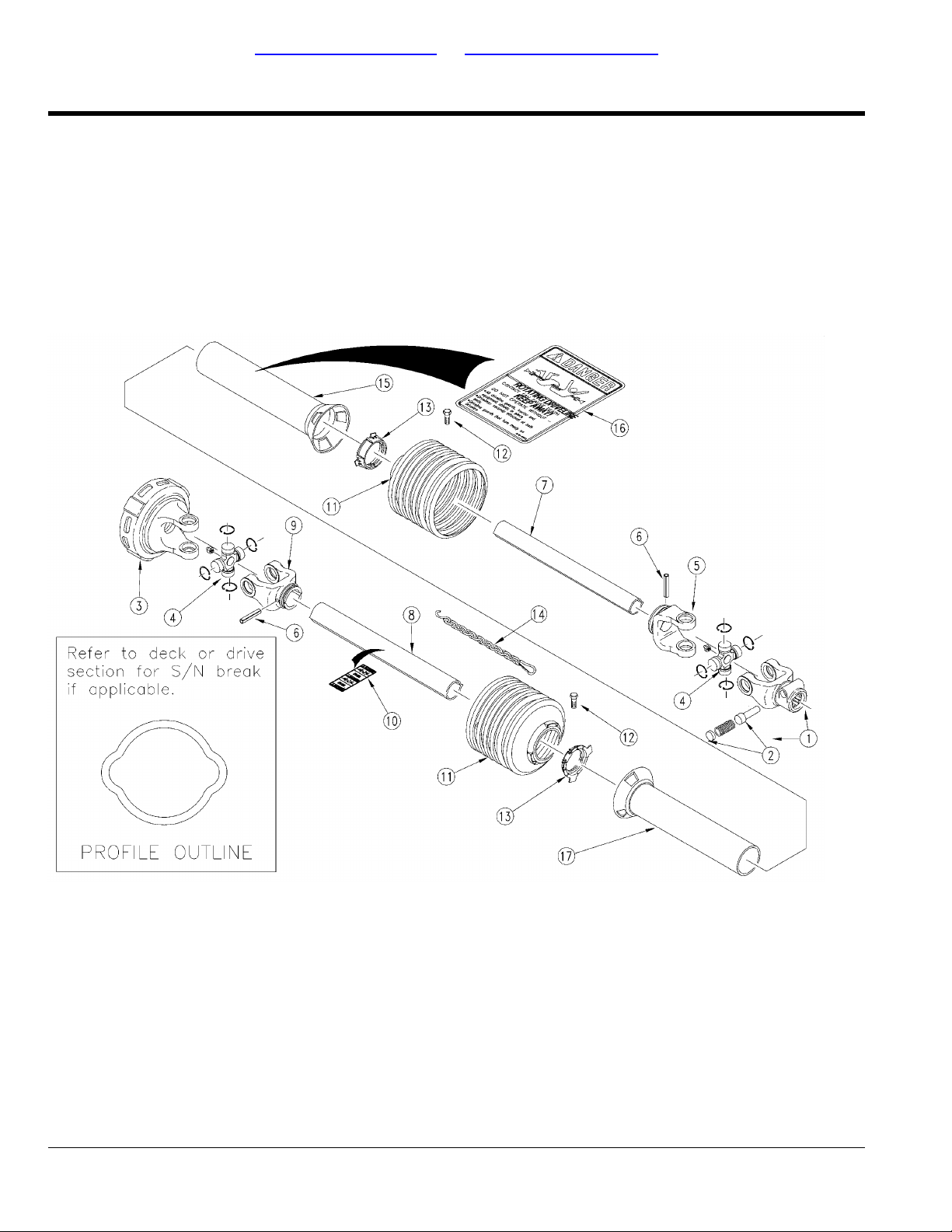

Driveline (826-015C) Walterscheid
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10973
PTO SLIP CLUTCH 10 TILLER826-015C
WALTERSCHEID YOKE 1 3/8-6 SPL0410491.
WS Q.D. PIN KIT3391072.
WS FRICTION CLUTCH0533143.
WALTSCHEID CROSS & BRG KIT0444394.
WALTERSCHEID INBOARD YOKE0410655.
WALTERSCHEID SPRING PIN0206146.
WALTERSCHEID INNER PROFILE OV0478827.
WALTERSCHEID OUTER PROFILE I0478928.
WALTERSCHEID INBOARD YOKE0410689.
DECAL DANGER GUARD MISS PTO818-540C10.
WALTERSCHEID SHIELD CONE-4 RIB37723411.
WALTERSCHEID SCREW36530512.
WALTERSCHEID BEARING RING08727913.
DRIVELINE SHIELD SAFETY CHAIN04432114.
WALTERSCHEID OUT SHIELD TB OVL38568915.
DECAL DANGER PTO DRIVELINE818-552C16.
WALTERSCHEID INN SHIELD TB RND38505817.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 21
Page 22
Land Pride Section 5: Drivelines
RTR10 SERIES
Table of Contents Part Number Index
Driveline (826-257C) Eurocardan
Applies to RTR1042, RTR1050, RTR1058
17409
22 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 23
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
RTR10 SERIES
Driveline (826-257C) Eurocardan
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17409

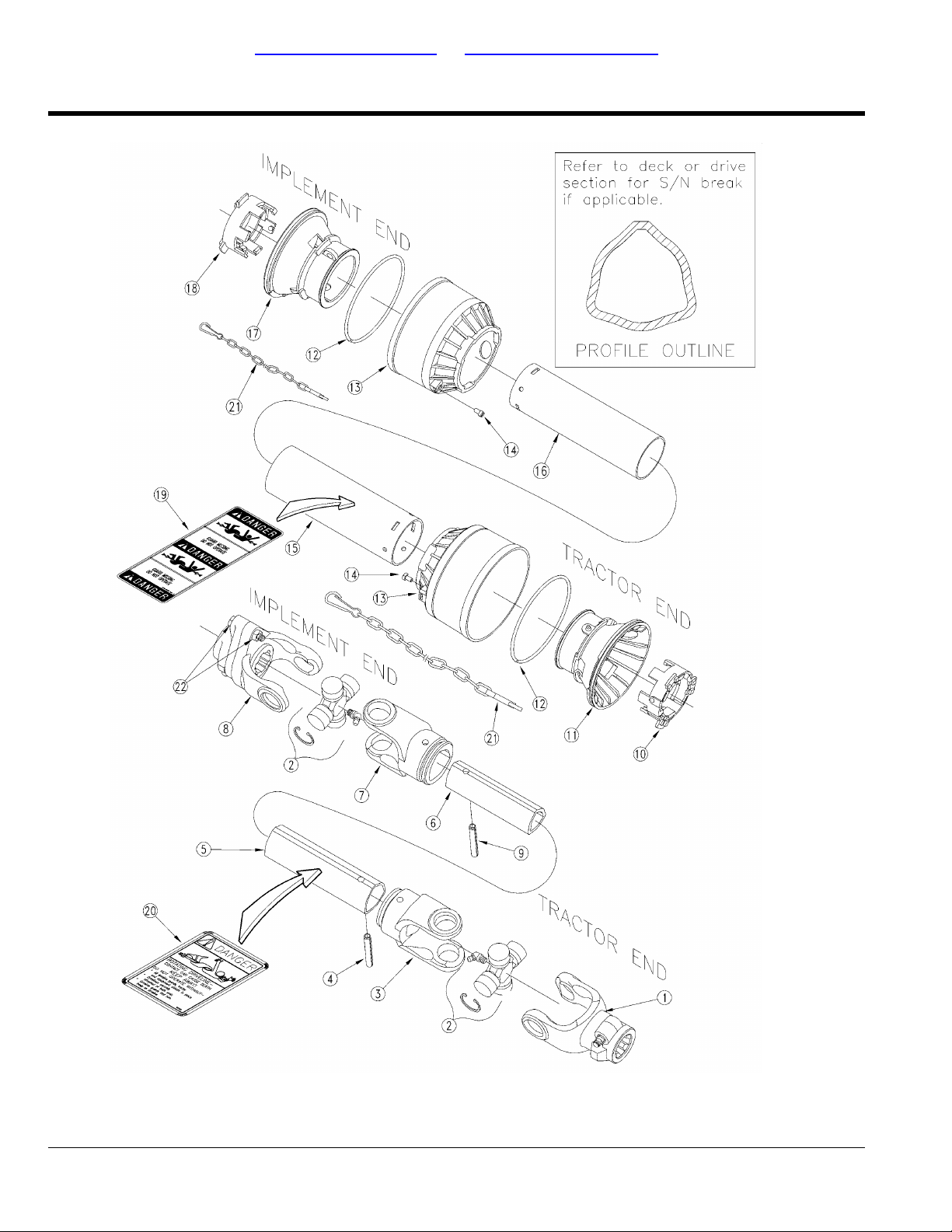

DRIVELINE SHRBLT HEAVY 540826-257C
EC YOKE ASSEMBLY (TRACTOR END)10230101.
EC CROSS ASSEMBLY10030202.
EC OUTER TUBE YOKE17030273.
EC 08X60 1485DIN ROLL PIN63308604.
EC OUTER TUBE (1524062) 370MM15240375.
EC INNER TUBE (1523038) 370MM)15230376.
EC INNER TUBE YOKE17030297.
EC BOLT LIMITER (LC3)14830498.
EC 8X55-DIN-1481 O/TUBE R/PIN63308559.
EC TUBE BEARING178421010.
EC OUTER TUBE RIGID CONE188420111.
EC STIFFENING RING121323312.
EC SOFT CONE188420313.
EC PIN STOP ROTATION178421214.
EC OUTER TUBE (1873050) 290MM187302915.
EC INNER TUBE (1872050) 290MM187202916.
EC INNER TUBE RIGID CONE188420217.
EC TUBE BEARING178421118.
DECAL DANGER GUARD MISS PTO818-540C19.
DECAL DANGER PTO DRIVELINE818-552C20.
DRIVELINE SHIELD SAFETY CHAIN04432121.
EC COMP. BOLT M8X45 W/NUT669084522.
EC YOKE ASSY (TRACTOR END)101401323.
EC PULL COLLAR KIT EVOLUTION100422724.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 23
Page 24
Land Pride Section 5: Drivelines
RTR10 SERIES
Table of Contents Part Number Index
Driveline Slip Clutch (053314)
Applies to RTR1042, RTR1050, RTR1058
10600
24 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 25
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
RTR10 SERIES

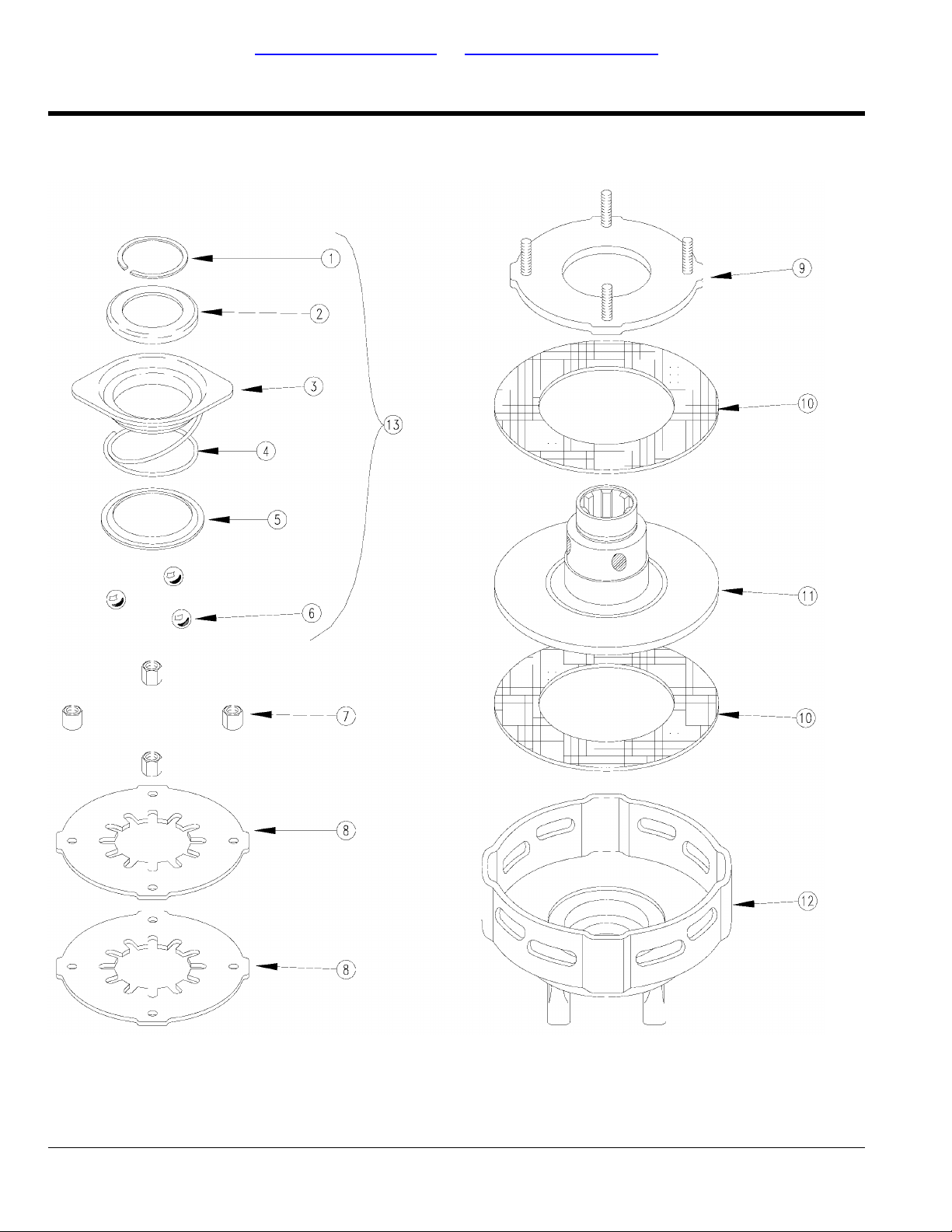

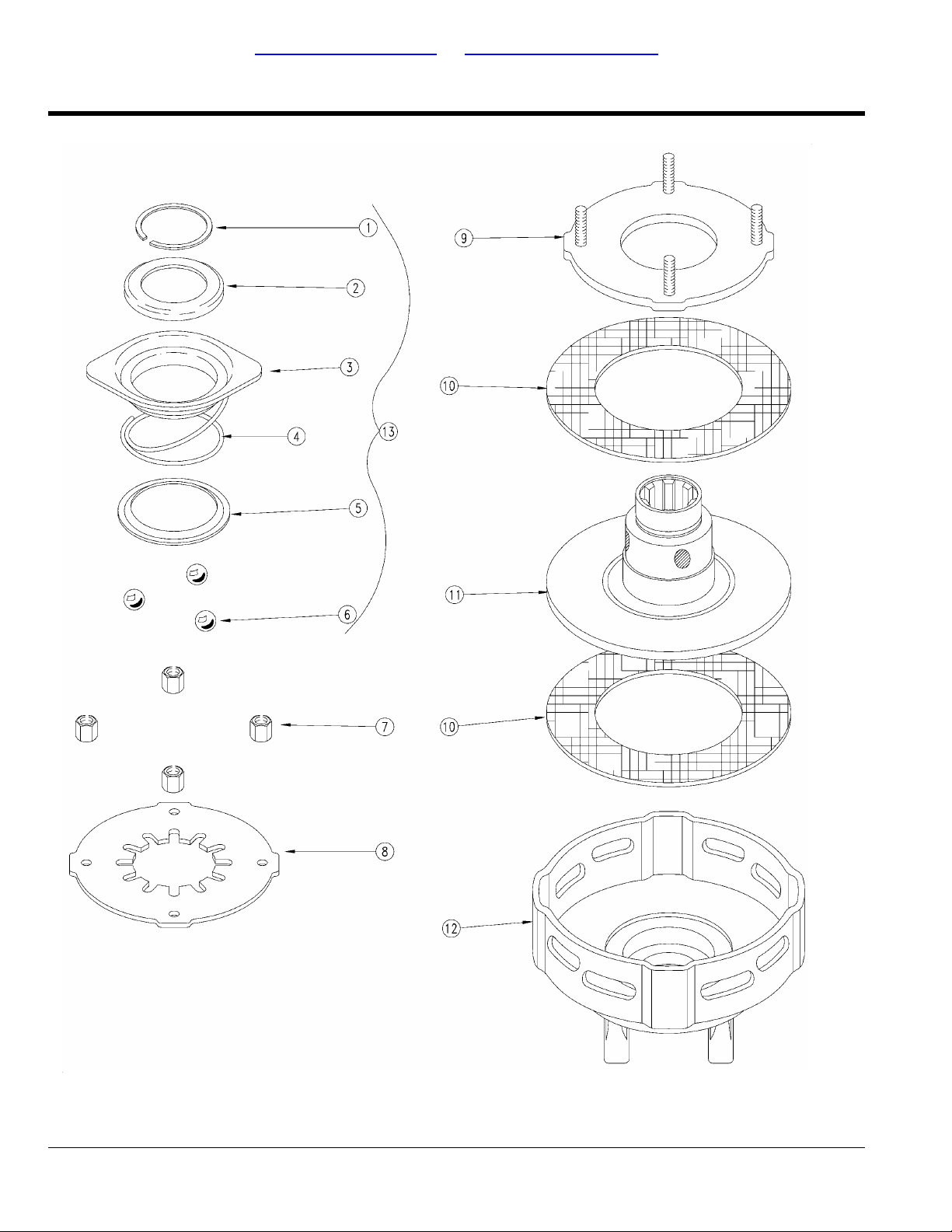

Driveline Slip Clutch (053314)
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10600
WS FRICTION CLUTCH053314
WS SNAP RING3041491.
WS FLANGED RING3385312.
WALTERSCHEID LOCK COLLAR0457903.
WALTERSCHEID COMPRESSION SPRNG0457934.
WALTERSCHEID BACK UP RING0478255.
WALTERSCHEID BALL0206926.
WALTERSCHEID HEX NUT M83819577.
WS BELLEVILLE SPRING0434878.
WALTERSCHEID THRUST PLATE3814959.
WS FRICTION DISK16855610.
WALTERSCHEID HUB 1 3/8-6 SPL05155111.
WALTERSCHEID CLUTCH HOUSING04118012.
Includes items 1 through 6WS Q.D. FLG. KIT34195313.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 25
Page 26
Land Pride Section 6: Labels

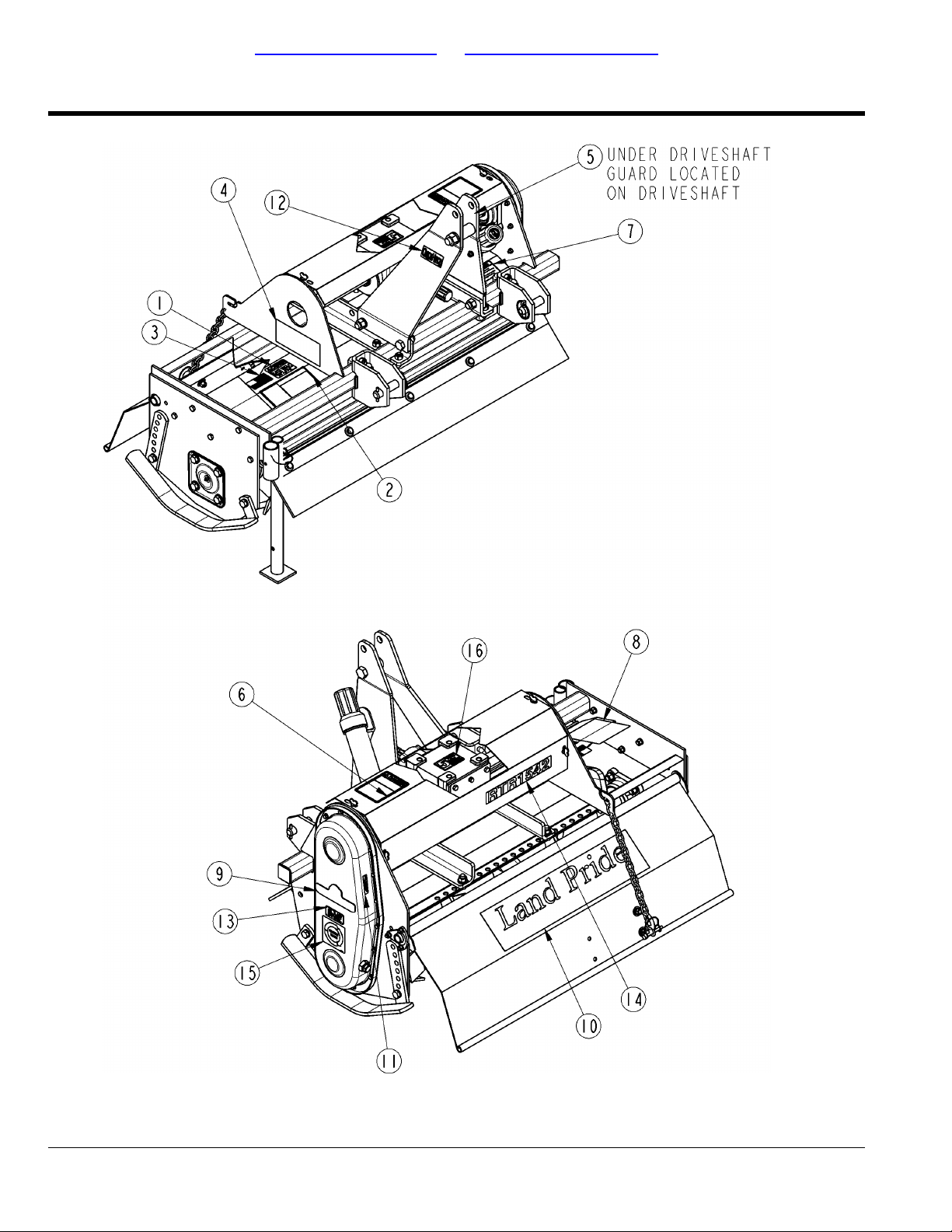

RTR10 SERIES
Table of Contents Part Number Index
Label Placement
Applies to RTR1042, RTR1050, RTR1058
22319
26 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 27
Section 6: Labels Land Pride
Table of Contents Part Number Index
RTR10 SERIES
Label Placement
Applies to RTR1042, RTR1050, RTR1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22319
DECAL CAUTION 540 RPM818-130C1.
DECAL DANGER ROTATING TINES818-171C2.
DECAL FLAG818-190C3.
S/N 486046+DECAL, WARNING FLYING DEBRIS818-284C4.
DECAL DANGER PD GUARD MISS SML818-543C5.
DECAL DANGER PTO DRIVELINE818-552C6.
DECAL NOTICE TO OWNER-NO WARRA818-560C7.
DECAL CAUTION GENERAL SAFETY818-858C8.
Beige UnitDECAL LP W/TREE 6" - 2 COLOR818-896C9.
Green, Orange, Red & Blue UnitDECAL LP 6 W/TREE BROWN/GOLD838-968C9.
Beige UnitDECAL LANDPRIDE 22" - BROWN818-907C10.
Green, Orange, Red & Blue UnitDECAL LANDPRIDE 22" BROWN/GOLD838-966C10.
DECAL SHELL ALVANIA EP 00838-415C11.
DECAL QUICK HITCH SYSTEM838-517C12.
DECAL SOLID ROTOR SHAFT STEEL838-537C13.
Beige UnitDECAL RTR1042-BROWN838-691C14.
Green, Orange, Red & Blue UnitDECAL RTR1042-GOLD838-911C14.
Beige UnitDECAL RTR1050-BROWN838-716C14.
Green, Orange, Red & Blue UnitDECAL RTR1050-GOLD838-912C14.
Beige UnitDECAL RTR1058-BROWN838-715C14.
Green, Orange, Red & Blue UnitDECAL RTR1058-GOLD838-913C14.
Beige UnitDECAL REVERSE TILLING W/ARROWS838-706C15.
Green, Orange, Red & Blue UnitDECAL REV TILLING W/ARROWS GLD838-897C15.
DECAL 5 YEAR GEARBOX WARRANTY818-862C16.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 27
Page 28
Land Pride Section 2: Frames
RTR15 SERIES
Table of Contents Part Number Index
Frame Components
Applies to RTR1542, RTR1550, RTR1558
22323
28 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 29
Section 2: Frames Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Frame Components
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22323
SPACER 1 1/4OD X 25/32ID X 2LG308-400D1.
LOWER HITCH PIN310-020S2.
LH SKIDSHOE RTA10/15/20 RTR20311-006H3.
LH SKIDSHOE RTA10/15/20 RTR20 GREEN311-006H813.
LH SKIDSHOE RTA10/15/20 RTR20 ORANGE311-006H823.
LH SKIDSHOE RTA10/15/20 RTR20 RED311-006H833.
LH SKIDSHOE RTA10/15/20 RTR20 BLUE311-006H843.
RH SKIDSHOE RTA10/15/20 RTR20311-007H4.
RH SKIDSHOE RTA10/15/20 RTR20 GREEN311-007H814.
RH SKIDSHOE RTA10/15/20 RTR20 ORANGE311-007H824.
RH SKIDSHOE RTA10/15/20 RTR20 RED311-007H834.
RH SKIDSHOE RTA10/15/20 RTR20 BLUE311-007H844.
STAND LEG RTA10/15/20 RTR20311-014H5.
STAND LEG RTA10/15/20 RTR20 GREEN311-014H815.
STAND LEG RTA10/15/20 RTR20 ORANGE311-014H825.
STAND LEG RTA10/15/20 RTR20 RED311-014H835.
STAND LEG RTA10/15/20 RTR20 BLUE311-014H845.
S/N 448120+LOWER HITCH WELDMENT311-418H6.
LOWER HITCH WELDMENT GREEN311-418H816.
LOWER HITCH WELDMENT ORANGE311-418H826.
LOWER HITCH WELDMENT RED311-418H836.
LOWER HITCH WELDMENT BLUE311-418H846.
S/N 448119-LOWER HITCH BRACKET311-582D6.
RTR1542FRAME WELDMENT RTR1542311-420H7.
FRAME WELDMENT RRT1542 GREEN311-420H817.
FRAME WELDMENT RTR1542 ORANGE311-420H827.
FRAME WELDMENT RTR1542 RED311-420H837.
FRAME WELDMENT RTR1542 BLUE311-420H847.
RTR1550FRAME WELDMENT RTR1550311-441H7.
FRAME WELDMENT RTR1550 GREEN311-441H817.
FRAME WELDMENT RTR1550 ORANGE311-441H827.
FRAME WELDMENT RTR1550 RED311-441H837.
FRAME WELDMENT RTR1550 BLUE311-441H847.
RTR1558FRAME WELDMENT RTR1558311-414H7.
FRAME WELDMENT RTR1558 GREEN311-414H817.
FRAME WELDMENT RTR1558 ORANGE311-414H827.
FRAME WELDMENT RTR1558 RED311-414H837.
FRAME WELDMENT RTR1558 BLUE311-414H847.
END PLATE WELDMENT RH311-423H8.
END PLATE WELDMENT RH GREEN311-423H818.
END PLATE WELDMENT RH ORANGE311-423H828.
END PLATE WELDMENT RH RED311-423H838.
END PLATE WELDMENT RH BLUE311-423H848.
HITCH PLATE UPPER RH311-538D9.
HITCH PLATE UPPER RH GREEN311-538D819.
HITCH PLATE UPPER RH ORANGE311-538D829.
HITCH PLATE UPPER RH RED311-538D839.
HITCH PLATE UPPER RH BLUE311-538D849.
HITCH PLATE UPPER LH311-539D10.
HITCH PLATE UPPER LH GREEN311-539D8110.
HITCH PLATE UPPER LH ORANGE311-539D8210.
HITCH PLATE UPPER LH RED311-539D8310.
HITCH PLATE UPPER LH BLUE311-539D8410.
S/N 544523+HHCS 1/4-20X1 GR5802-005C11.
HHCS 3/8-16X1 GR5802-017C12.
HHCS 1/2-13X1 1/4 GR5802-034C13.
HHCS 5/8-11X1 3/4 GR5802-053C14.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 29
Page 30
Land Pride Section 2: Frames
RTR15 SERIES
Table of Contents Part Number Index
Frame Components (continued)
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
HHCS 3/4-10X4 GR5802-068C15.
NUT HEX 3/8-16 PLT803-014C16.
NUT HEX 5/8-11 PLT803-021C17.
NUT HEX 3/4-10 PLT803-027C18.
S/N 448120+NUT HEX NYLOCK 1/2-13803-147C19.
S/N 448119-NUT FLANGE LOCK 3/8-16 PLT803-209C19.
S/N 544523+NUT HEX NYLOCK 1/4-20803-255C20.
S/N 544523+WASHER FLAT 1/4 SAE PLT804-007C21.
WASHER LOCK SPRING 3/8 PLT804-013C22.
WASHER LOCK SPRING 1/2 PLT804-015C23.
WASHER LOCK SPRING 5/8 PLT804-022C24.
WASHER LOCK SPRING 3/4 PLT804-023C25.
PIN LYNCH 5/16 X 1 3/4805-015C26.
PIN ROLL 1/4X1 3/4805-041C27.
PIN WIRE RETAINING 1/4 X 1 3/4805-065C28.
PIN LOWER HITCH 7/8X3 1/16USBL805-198C29.
S/N 448120+U-BOLT 1/2-13 X2 7/8X2 1/16SPL806-048C30.
S/N 448119-U-BOLT 3/8-16 X 2 1/32 X 3806-166C30.
S/N 544523+MANUAL STORAGE CONTAINER816-504C31.
30 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 31
Section 2: Frames Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Frame Components (continued)
Applies to RTR1542, RTR1550, RTR1558
This Page Intentionally Left Blank
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 31
Page 32
Land Pride Section 2: Frames
RTR15 SERIES
Table of Contents Part Number Index
Front & Rear Deflector
Applies to RTR1542, RTR1550, RTR1558
22324
32 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 33
Section 2: Frames Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Front & Rear Deflector
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22324
REAR DEFLECTOR CHAIN 10/15311-077D1.
S/N 515910+TAILGATE WELDMENT RTR1542311-430H2.
TAILGATE WELDMENT RTR1542 GREEN311-430H812.
TAILGATE WELDMENT RTR1542 ORANGE311-430H822.
TAILGATE WELDMENT RTR1542 RED311-430H832.
TAILGATE WELDMENT RTR1542 BLUE311-430H842.
RPBY 311-430H311-422H2.
TAILGATE WELDMENT RTR1550 GREEN311-445H812.
TAILGATE WELDMENT RTR1550 ORANGE311-445H822.
TAILGATE WELDMENT RTR1550 RED311-445H832.
TAILGATE WELDMENT RTR1550 BLUE311-445H842.
RPBY 311-445H311-442H2.
TAILGATE WELDMENT RTR1558 GREEN311-449H812.
TAILGATE WELDMENT RTR1558 ORANGE311-449H822.
TAILGATE WELDMENT RTR1558 RED311-449H832.
TAILGATE WELDMENT RTR1558 BLUE311-449H842.
RPBY 311-449H311-417H2.
TAIGATE HOLDER GREEN311-553D813.
TAIGATE HOLDER ORANGE311-553D823.
TAIGATE HOLDER RED311-553D833.
TAIGATE HOLDER BLUE311-553D843.
FRONT DEFLECTOR MOUNT BAR RTR1542311-565D4.
FRONT DEFLECTOR MOUNT BAR RTR1558311-566D4.
FRONT DEFLECTOR MOUNT BAR RTR1550311-577D4.
HHCS 3/8-16X1 1/2 GR5802-022C6.
HHCS 5/16-18X1 GR5 ZNYCR802-738C7.
NUT HEX 5/16-18 PLT803-008C8.
WASHER LOCK SPRING 5/16 PLT804-009C10.
FRONT DEFLECTOR RTR1542816-463C15.
FRONT DEFLECTOR RTR1550816-472C15.
FRONT DEFLECTOR RTR1558816-462C15.
S/N 515909- Requires U-Bolt &
Hardware
Requires U-Bolt & HardwareRPBY 311-430H81311-422H812.
Requires U-Bolt & HardwareRPBY 311-430H82311-422H822.
Requires U-Bolt & HardwareRPBY 311-430H83311-422H832.
Requires U-Bolt & HardwareRPBY 311-430H84311-422H842.
S/N 515910+TAILGATE WELDMENT RTR1550311-445H2.
S/N 515909- Requires U-Bolt &
Hardware
Requires U-Bolt & HardwareRPBY 311-445H81311-442H812.
Requires U-Bolt & HardwareRPBY 311-445H82311-442H822.
Requires U-Bolt & HardwareRPBY 311-445H83311-442H832.
Requires U-Bolt & HardwareRPBY 311-445H84311-442H842.
S/N 515910+TAILGATE WELDMENT RTR1558311-449H2.
S/N 515909- Requires U-Bolt &
Hardware
Requires U-Bolt & HardwareRPBY 311-449H81311-417H812.
Requires U-Bolt & HardwareRPBY 311-449H82311-417H822.
Requires U-Bolt & HardwareRPBY 311-449H83311-417H832.
Requires U-Bolt & HardwareRPBY 311-449H84311-417H842.
S/N 500883-TAIGATE HOLDER311-553D3.
S/N 500884+TAILGATE LOCK 10 & 15 SERIES311-663D5.
S/N 515910+NUT HEX 3/8-16 PLT803-014C9.
S/N 515910+WASHER FLAT 3/8 USS PLT804-011C11.
S/N 515910+WASHER LOCK SPRING 3/8 PLT804-013C12.
S/N 515909-PIN WIRE RETAINING 1/4 X 1 3/4805-065C13.
S/N 515910+U-BOLT 3/8-16 X2 1/32X2 5/8SPL806-049C14.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 33
Page 34
Land Pride Section 3: Rotor Drive
RTR15 SERIES
Table of Contents Part Number Index
Gearbox Mounting & Driveshaft
Applies to RTR1542, RTR1550, RTR1558
22327
34 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 35
Section 3: Rotor Drive Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Gearbox Mounting & Driveshaft
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22327
BEARING MNT RTA10/15/20 RTR20311-014D1.
BRG HSNG ASSY RTA10/15/20 RTR20311-041S2.
TOP BRG SPCR RTA10/15/20 RTR20311-054D3.
GEARBOX MOUNT311-415H4.
GEARBOX MOUNT GREEN311-415H814.
GEARBOX MOUNT ORANGE311-415H824.
GEARBOX MOUNT RED311-415H834.
GEARBOX MOUNT BLUE311-415H844.
SHAFT GUARD RTR1542311-561D5.
SHAFT GUARD RTR1542 GREEN311-561D815.
SHAFT GUARD RTR1542 ORANGE311-561D825.
SHAFT GUARD RTR1542 RED311-561D835.
SHAFT GUARD RTR1542 BLUE311-561D845.
SHAFT GUARD RTR1550311-578D5.
SHAFT GUARD RTR1550 GREEN311-578D815.
SHAFT GUARD RTR1550 ORANGE311-578D825.
SHAFT GUARD RTR1550 RED311-578D835.
SHAFT GUARD RTR1550 BLUE311-578D845.
SHAFT GUARD RTR1558311-552D5.
SHAFT GUARD RTR1558 GREEN311-552D815.
SHAFT GUARD RTR1558 ORANGE311-552D825.
SHAFT GUARD RTR1558 RED311-552D835.
SHAFT GUARD RTR1558 BLUE311-552D845.
SNAP RING INT3.523OD N5000-315800-053C6.
SCREW THUMB 5/16-18 X 5/8 PLT801-042C7.
HHCS 1/2-13X1 1/4 GR5802-034C8.
HHCS 1/2-13X1 GR5802-258C9.
RHSSNB 1/2-13X1 1/2 GR5802-477C10.
NUT HEX 1/2-13 PLT803-020C11.
NUT HEX NYLOCK 1/2-13803-147C12.
WASHER LOCK SPRING 1/2 PLT804-015C13.
S/N 540858+WASHER FLAT 1/2 SAE PLT804-016C14.
U-BOLT 1/2-13 X2 7/8X2 1/16SPL806-048C15.
DRIVE SHAFT 1542 TILLER815-029C16.
DRIVE SHAFT 1550 TILLER815-028C16.
DRIVE SHAFT 1558 TILLER815-027C16.
SEAL 1.75 X 2.75 X .313816-068C17.
GASKET BRG MNT 10/15 TILLER816-070C18.
BEARING 307822-082C19.
GEARBOX RTA15 EBM25826-016C20.
GEARBOX RTA15 EBM25 GREEN826-016C8120.
GEARBOX RTA15 EBM25 ORANGE826-016C8220.
GEARBOX RTA15 EBM25 RED826-016C8320.
GEARBOX RTA15 EBM25 BLUE826-016C8420.
PTO SLIP CLUTCH 15 TILLER826-024C21.
PTO SHEAR BOLT 15 TILLER826-023C21.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 35
Page 36
Land Pride Section 3: Rotor Drive
RTR15 SERIES
Table of Contents Part Number Index
Rotor Assembly
Applies to RTR1542, RTR1550, RTR1558
22317
36 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 37
Section 3: Rotor Drive Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Rotor Assembly
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22317
RTR1542 ROTOR SUBASSY311-409K
RTR1550 ROTOR SUBASSY311-410K
RTR1558 ROTOR SUBASSY311-411K
BOTTOM BRG MOUNT 15 TILLER311-015D1.
ROTOR SHAFT WELDMENT 1542311-020H2.
ROTOR SHAFT WELDMENT 1550311-019H2.
ROTOR SHAFT WELDMENT 1558311-018H2.
RH BOTTOM BRG MNT 10/15 TILR311-042D3.
RH BOTTOM BRG ASSY 10/15 TLR311-042S4.
LH BOTTOM BRG ASSY 15 TILLER311-049S5.
SNAP RING INT3.523OD N5000-315800-053C6.
SNAP RING INT 90 MM800-078C7.
SNAP RING EXT 1 3/8 5100-137800-079C8.
SP TINE HHCS 1/2-20X1 1/4 GR5802-248C9.
NUT HEX 1/2-20 PLT803-018C10.
WASHER LOCK SPRING 1/2 PLT804-015C11.
SEAL 1.75 X 2.75 X .313816-068C12.
SEAL 2 X 3.1875 X 0.469816-084C13.
BLADE TILLER 10 & 15 SERIES LH820-055C14.
BLADE TILLER 10 & 15 SERIES RH820-056C15.
BEARING 307822-082C16.
BEARING 308822-084C17.
RTR1042 10 Ea., RTR1050 12 Ea.,
RTR1058 14 Ea.
RTR1042 10 Ea., RTR1050 12 Ea.,
RTR1058 14 Ea.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 37
Page 38
Land Pride Section 3: Rotor Drive
RTR15 SERIES
Table of Contents Part Number Index
Rotor Drive
Applies to RTR1542, RTR1550, RTR1558
22326
38 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 39
Section 3: Rotor Drive Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Rotor Drive
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22326
RH BRG COVER W/ZRK RTA10/15/25311-135S1.
RH BRG COVER W/ZRK R TA10/15/25 GREEN311-135S811.
311-135S821.
RH BRG COVER W/ZRK RTA10/15/25
ORANGE
RH BRG COVER W/ZRK RTA10/15/25 RED311-135S831.
RH BRG COVER W/ZRK RTA10/15/25 BLUE311-135S841.
CHAIN CASE WELDMENT RTR311-451H2.
CHAIN CASE WELDMENT RTR GREEN311-451H812.
CHAIN CASE WELDMENT RTR ORANGE311-451H822.
CHAIN CASE WELDMENT RTR RED311-451H832.
CHAIN CASE WELDMENT RTR BLUE311-451H842.
CHAIN TENSIONER LH311-559D3.
DRAIN PLUG 3/4-16 UNF PLATED800-066C4.
HHCS 1/2-13X1 3/4 GR5802-082C5.
RHSSNB 1/2-13X1 1/2 GR5802-477C6.
HFSS 1/4-20X7/8 GR5802-719C7.
NUT LOCK 1/4-20 PLT803-007C8.
NUT HEX 1/2-13 PLT803-020C9.
NUT LT JAM 1 1/8-12 NYLN INSRT803-153C10.
NUT LT JAM 1 1/4-12 NYLN INSRT803-155C11.
NUT HEX FLG 7/8-14 LH PLT803-348C12.
WASHER LOCK SPRING 1/2 PLT804-015C13.
PIN COTTER 3/16 X 1805-069C14.
CHAIN TIGHTENER 10/15 TILR807-062C15.
SPKT 80B12 1 3/8-21808-092C16.
SPKT 80B16 16/32-23 SPLINE808-093C17.
CHAIN RL #80X44 HIGH TENSILE809-083C18.
GASKET CHAIN GRD 10/15 TILR816-069C19.
GASKET BRG MNT 10/15 TILLER816-070C20.
15 TILLER LH BOTTOM BRG GASKET816-071C21.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 39
Page 40
Land Pride Section 4: Gearboxes
RTR15 SERIES
Table of Contents Part Number Index
Gearbox (826-016C) Comer
Applies to RTR1542, RTR1550, RTR1558
10142
40 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 41
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Gearbox (826-016C) Comer
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10142
15 SERIES TILLER GEARBOX826-016C
CO HOUSING0.267.0508.001.
CO REAR COVER0.267.1300.002.
CO OIL FILTER PLUG0.107.7100.013.
CO OIL PLUG 3/88.6.5.000064.
CO BOLT M10X20 8.88.1.1.000545.
CO OUTPUT SHAFT 1 1/2 HEX BORE0.267.4601.006.
CO KEY 14X9X358.4.1.010287.
CO BEARING 60128.0.1.001698.
CO SHIM KIT0.268.7500.009.
CO SNAP RING8.5.2.0102710.
CO SEAL DOUBLE LIP 60X95X100.267.7104.0011.
CO RING GEAR 23 TOOTH0.267.6001.0012.
CO PINION SHAFT GEAR 12 TOOTH0.267.5002.0013.
CO ADJUST SPACER KIT, 35.3 X48A.259.50014.
BEARING TAPER ROLLER 30207 SET822-167C15.
CO SNAP RING INT 72 UN174378.5.2.0013116.
CO SPACER0.267.7100.0017.
BEARING BALL 6207822-166C18.
CO SNAP RING EXT 35 UN174358.5.1.0000519.
OIL SEAL, 35 X 72 X 12/108.7.1.0015220.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 41
Page 42
Land Pride Section 5: Drivelines
RTR15 SERIES
Table of Contents Part Number Index
Driveline (826-023C) Eurocardan
Applies to RTR1542, RTR1550, RTR1558
13205
42 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 43
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Driveline (826-023C) Eurocardan
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13205
PTO SHEAR BOLT 15 TILLER826-023C
EC COMPLETE PUSH-PIN KIT15810381.
DRIVELINE SHIELD SAFETY CHAIN0443212.
EC YOKE ASSEMBLY (TRACT. END)10240103.
EC CROSS ASSEMBLY ( U JOINT)10040204.
EC TUBE BEARING17842115.
EC INNER TUBE YOKE17040296.
EC 08X60 1485DIN ROLL PIN63308607.
EC INNER TUBE (1525062) 370MM15250378.
EC OUTER TUBE (1524062) 370MM15240379.
EC OUTER TUBE YOKE170402710.
DECAL DANGER PTO DRIVELINE818-552C11.
EC INNER TUBE (1872050) 290MM187202912.
EC BOLT TRQ LIMITER (IMP END)148403713.
EC SOFT CONE188420314.
EC OUTER TUBE (1873050) 290MM187302915.
DECAL DANGER GUARD MISS PTO818-540C16.
EC OUTER TUBE RIGID CONE188420117.
EC COMP. BOLT M8X45 W/NUT669084518.
EC INNER TUBE RIGID CONE188420219.
EC TUBE BEARING178421020.
EC PIN STOP ROTATION178421221.
EC 8X55-DIN-1481 O/TUBE R/PIN633085522.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 43
Page 44
Land Pride Section 5: Drivelines
RTR15 SERIES
Table of Contents Part Number Index
Driveline (826-024C) Walterscheid
Applies to RTR1542, RTR1550, RTR1558
10144
44 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 45
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Driveline (826-024C) Walterscheid
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10144
PTO SLIP CLUTCH 15 TILLER826-024C
WS YOKE 1 3/8-6 SPL0413781.
WS Q.D. PIN KIT3391072.
WS FRICTION CLUTCH0533313.
WS CROSS & BRG KIT0444444.
WS INBOARD YOKE0413155.
WS SPRING PIN0206146.
WS INNER PROFILE OV0483607.
WS OUTER PROFILE I0482428.
WS INBOARD YOKE0413189.
DECAL DANGER PTO DRIVELINE818-552C10.
WS SHIELD CONE 5 RIB37723511.
WS SCREW36530512.
WS BEARING RING08727913.
DRIVELINE SHIELD SAFETY CHAIN04432114.
WS OUT SHIELD TB OVL38671715.
DECAL DANGER GUARD MISS PT818-540C16.
WS INN SHIELD TB RND38192417.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 45
Page 46
Land Pride Section 5: Drivelines
RTR15 SERIES
Table of Contents Part Number Index
Driveline Slip Clutch (053331) Walterscheid
Applies to RTR1542, RTR1550, RTR1558
10139
46 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 47
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Driveline Slip Clutch (053331) Walterscheid
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10139
WS FRICTION CLUTCH053331
WS SNAP RING3041491.
WS FLANGED RING3385312.
WS LOCK COLLAR0457903.
WS COMPRESSION SPRNG0457934.
WS BACK UP RING0478255.
WS BALL0206926.
WS HEX NUT M83819577.
WS BELLEVILLE SPRING0434898.
WS THRUST PLATE3814959.
WS FRICTION DISK16855610.
WS HUB 1 3/8-6 SPL05155111.
WS CLUTCH HOUSING04136812.
WS Q.D. FLG. KIT34195313.
Includes items 1 through 5; three of
item 6
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 47
Page 48
Land Pride Section 6: Labels
RTR15 SERIES
Table of Contents Part Number Index
Label Placement
Applies to RTR1542, RTR1550, RTR1558
22329
48 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 49
Section 6: Labels Land Pride
Table of Contents Part Number Index
RTR15 SERIES
Label Placement
Applies to RTR1542, RTR1550, RTR1558
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22329
DECAL CAUTION 540 RPM818-130C1.
DECAL DANGER ROTATING TINES818-171C2.
DECAL FLAG818-190C3.
S/N 486046DECAL, WARNING FLYING DEBRIS818-284C4.
DECAL DANGER PD GUARD MISS SML818-543C5.
DECAL DANGER PTO DRIVELINE818-552C6.
DECAL NOTICE TO OWNER-NO WARRA818-560C7.
DECAL CAUTION GENERAL SAFETY818-858C8.
Beige UnitDECAL LP W/TREE 6" - 2 COLOR818-896C9.
Green, Orange, Red & Blue UnitDECAL LP 6 W/TREE BROWN/GOLD838-968C9.
Beige UnitDECAL LANDPRIDE 22" - BROWN818-907C10.
Green, Orange, Red & Blue UnitDECAL LANDPRIDE 22" BROWN/GOLD838-966C10.
DECAL SHELL ALVANIA EP 00838-415C11.
DECAL QUICK HITCH SYSTEM838-517C12.
DECAL SOLID ROTOR SHAFT STEEL838-537C13.
Beige UnitDECAL RTR1542-BROWN838-690C14.
Green, Orange, Red & Blue UnitDECAL RTR1542-GOLD838-918C14.
Beige UnitDECAL RTR1550-BROWN838-717C14.
Green, Orange, Red & Blue UnitDECAL RTR1550-GOLD838-919C14.
Beige UnitDECAL RTR1558-BROWN838-689C14.
Green, Orange, Red & Blue UnitDECAL RTR1558-GOLD838-917C14.
Beige UnitDECAL REVERSE TILLING W/ARROWS838-706C15.
Green, Orange, Red & Blue UnitDECAL REV TILLING W/ARROWS GLD838-897C15.
DECAL 5 YEAR GEARBOX WARRANTY818-862C16.
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 49
Page 50
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
19, 410.107.7100.01 ...........
19, 410.267.0508.00 ...........
19, 410.267.1300.00 ...........
19, 410.267.4601.00 ...........
19, 410.267.5002.00 ...........
19, 410.267.6001.00 ...........
19, 410.267.7100.00 ...........
19, 410.267.7104.00 ...........
19, 410.268.7500.00 ...........
21, 45020614 ......................
25, 47020692 ......................
21041049 ......................
21041065 ......................
21041068 ......................
25041180 ......................
45041315 ......................
45041318 ......................
47041368 ......................
45041378 ......................
25043487 ......................
47043489 ......................
21, 23, 43, 45044321 ......................
21044439 ......................
45044444 ......................
25, 47045790 ......................
25, 47045793 ......................
25, 47047825 ......................
21047882 ......................
21047892 ......................
45048242 ......................
45048360 ......................
25, 47051551 ......................
21, 25053314 ......................
45, 47053331 ......................
21, 45087279 ......................
231003020 ....................
431004020 ....................
231004227 ....................
231014013 ....................
231023010 ....................
431024010 ....................
231213233 ....................
231483049 ....................
431484037 ....................
231523037 ....................
23, 431524037 ....................
431525037 ....................
431581038 ....................
25, 47168556 ......................
231703027 ....................
231703029 ....................
431704027 ....................
431704029 ....................
23, 431784210 ....................
23, 431784211 ....................
23, 431784212 ....................
23, 431872029 ....................
23, 431873029 ....................
23, 431884201 ....................
23, 431884202 ....................
23, 431884203 ....................
25, 47304149 ......................
7, 29308-400D ...................
7, 29310-020S ...................
7, 29311-006H ...................
7, 29311-006H81 ...............
7, 29311-006H82 ...............
7, 29311-006H83 ...............
7, 29311-006H84 ...............
7, 29311-007H ...................
7, 29311-007H81 ...............
7, 29311-007H82 ...............
7, 29311-007H83 ...............
7, 29311-007H84 ...............
15, 35311-014D ...................
7, 29311-014H ...................
7, 29311-014H81 ...............
7, 29311-014H82 ...............
7, 29311-014H83 ...............
7, 29311-014H84 ...............
13, 37311-015D ...................
13, 37311-018H ...................
13, 37311-019H ...................
13, 37311-020H ...................
15, 35311-041S ...................
13, 37311-042D ...................
13, 37311-042S ...................
13, 37311-049S ...................
15, 35311-054D ...................
11, 33311-077D ...................
15, 39311-135S ...................
15, 39311-135S81 ...............
15, 39311-135S82 ...............
15, 39311-135S83 ...............
15, 39311-135S84 ...............
13, 37311-409K ...................
13, 37311-410K ...................
13, 37311-411K ...................
29311-414H ...................
29311-414H81 ...............
29311-414H82 ...............
29311-414H83 ...............
29311-414H84 ...............
35311-415H ...................
35311-415H81 ...............
35311-415H82 ...............
35311-415H83 ...............
35311-415H84 ...............
11, 33311-417H ...................
11, 33311-417H81 ...............
11, 33311-417H82 ...............
11, 33311-417H83 ...............
11, 33311-417H84 ...............
7, 29311-418H ...................
7, 29311-418H81 ...............
7, 29311-418H82 ...............
7, 29311-418H83 ...............
7, 29311-418H84 ...............
29311-420H ...................
29311-420H81 ...............
29311-420H82 ...............
29311-420H83 ...............
29311-420H84 ...............
11, 33311-422H ...................
11, 33311-422H81 ...............
11, 33311-422H82 ...............
11, 33311-422H83 ...............
11, 33311-422H84 ...............
7, 29311-423H ...................
7, 29311-423H81 ...............
7, 29311-423H82 ...............
7, 29311-423H83 ...............
7, 29311-423H84 ...............
7311-427H ...................
7311-427H81 ...............
7311-427H82 ...............
7311-427H83 ...............
7311-427H84 ...............
11, 33311-430H ...................
11, 33311-430H81 ...............
11, 33311-430H82 ...............
11, 33311-430H83 ...............
11, 33311-430H84 ...............
15311-440H ...................
15311-440H81 ...............
15311-440H82 ...............
15311-440H83 ...............
15311-440H84 ...............
29311-441H ...................
29311-441H81 ...............
29311-441H82 ...............
29311-441H83 ...............
29311-441H84 ...............
11, 33311-442H ...................
11, 33311-442H81 ...............
11, 33311-442H82 ...............
11, 33311-442H83 ...............
11, 33311-442H84 ...............
7311-444H ...................
7311-444H81 ...............
7311-444H82 ...............
7311-444H83 ...............
7311-444H84 ...............
11, 33311-445H ...................
11, 33311-445H81 ...............
11, 33311-445H82 ...............
11, 33311-445H83 ...............
11, 33311-445H84 ...............
15311-446H ...................
15311-446H81 ...............
15311-446H82 ...............
15311-446H83 ...............
15311-446H84 ...............
7311-448H ...................
7311-448H81 ...............
7311-448H82 ...............
7311-448H83 ...............
7311-448H84 ...............
11, 33311-449H ...................
11, 33311-449H81 ...............
11, 33311-449H82 ...............
11, 33311-449H83 ...............
11, 33311-449H84 ...............
15311-450H ...................
15311-450H81 ...............
15311-450H82 ...............
15311-450H83 ...............
15311-450H84 ...............
15, 39311-451H ...................
15, 39311-451H81 ...............
15, 39311-451H82 ...............
15, 39311-451H83 ...............
15, 39311-451H84 ...............
7, 29311-538D ...................
7, 29311-538D81 ...............
7, 29311-538D82 ...............
7, 29311-538D83 ...............
7, 29311-538D84 ...............
7, 29311-539D ...................
7, 29311-539D81 ...............
7, 29311-539D82 ...............
7, 29311-539D83 ...............
7, 29311-539D84 ...............
35311-552D ...................
35311-552D81 ...............
35311-552D82 ...............
35311-552D83 ...............
35311-552D84 ...............
11, 33311-553D ...................
33311-553D81 ...............
33311-553D82 ...............
33311-553D83 ...............
33311-553D84 ...............
15, 39311-559D ...................
35311-561D ...................
35311-561D81 ...............
35311-561D82 ...............
35311-561D83 ...............
35311-561D84 ...............
11, 33311-565D ...................
11, 33311-566D ...................
11, 33311-577D ...................
35311-578D ...................
35311-578D81 ...............
35311-578D82 ...............
35311-578D83 ...............
35311-578D84 ...............
7, 29311-582D ...................
15311-583D ...................
15311-583D81 ...............
15311-583D82 ...............
15311-583D83 ...............
15311-583D84 ...............
11, 33311-663D ...................
25, 47338531 ......................
21, 45339107 ......................
25, 47341953 ......................
21, 45365305 ......................
21377234 ......................
45377235 ......................
25, 47381495 ......................
45381924 ......................
25, 47381957 ......................
21385058 ......................
21385689 ......................
45386717 ......................
23, 436330855 ....................
23, 436330860 ....................
23, 436690845 ....................
19, 418.0.1.00169 ...............
19, 418.1.1.00054 ...............
19, 418.4.1.01028 ...............
19, 418.5.1.00005 ...............
19, 418.5.2.00131 ...............
19, 418.5.2.01027 ...............
19, 418.6.5.00006 ...............
19, 418.7.1.00152 ...............
13, 15, 35, 37800-053C ...................
15, 39800-066C ...................
13, 37800-078C ...................
13, 37800-079C ...................
35801-042C ...................
7, 29802-005C ...................
7, 29802-017C ...................
11, 33802-022C ...................
15802-032C ...................
7, 29, 35802-034C ...................
7, 29802-053C ...................
8, 30802-068C ...................
15, 39802-082C ...................
13, 37802-248C ...................
15, 35802-258C ...................
15, 35, 39802-477C ...................
15, 39802-719C ...................
11, 33802-738C ...................
15, 39803-007C ...................
11, 33803-008C ...................
8, 11, 30, 33803-014C ...................
13, 37803-018C ...................
15, 35, 39803-020C ...................
50 RTR10 and RTR15 Series Rotary Tillers 311-431P 09/10/08
Page 51
Table of Contents Part Number Index
Part Number Index (continued)
804-015C ...................
818-552C ...................
PagePart Number
8, 30803-021C ...................
8, 30803-027C ...................
8, 30, 35803-147C ...................
15, 39803-153C ...................
15, 39803-155C ...................
8, 30803-209C ...................
8, 30803-255C ...................
15, 39803-348C ...................
8, 30804-007C ...................
11, 33804-009C ...................
11, 33804-011C ...................
8, 11, 30, 33804-013C ...................
8, 13, 15, 30, 35,
37, 39
35804-016C ...................
8, 30804-022C ...................
8, 30804-023C ...................
15804-094C ...................
8, 30805-015C ...................
8, 30805-041C ...................
8, 11, 30, 33805-065C ...................
16, 39805-069C ...................
8, 30805-198C ...................
8, 30, 35806-048C ...................
11, 33806-049C ...................
8, 30806-166C ...................
16, 39807-062C ...................
16808-081C ...................
39808-092C ...................
16, 39808-093C ...................
16809-079C ...................
39809-083C ...................
16, 35815-027C ...................
16, 35815-028C ...................
35815-029C ...................
16815-254C ...................
13, 16, 35, 37816-068C ...................
16, 39816-069C ...................
16, 35, 39816-070C ...................
16, 39816-071C ...................
13, 37816-084C ...................
16816-280C ...................
11, 33816-462C ...................
11, 33816-463C ...................
11, 33816-472C ...................
8, 30816-504C ...................
27, 49818-130C ...................
27, 49818-171C ...................
27, 49818-190C ...................
27, 49818-284C ...................
21, 23, 43, 45818-540C ...................
27, 49818-543C ...................
21, 23, 27, 43,
45, 49
27, 49818-560C ...................
27, 49818-858C ...................
27, 49818-862C ...................
27, 49818-896C ...................
27, 49818-907C ...................
13, 37820-055C ...................
13, 37820-056C ...................
13, 16, 35, 37822-082C ...................
13, 37822-084C ...................
19, 41822-166C ...................
19, 41822-167C ...................
16, 21826-015C ...................
16, 19, 35, 41826-016C ...................
16, 35826-016C81 ...............
16, 35826-016C82 ...............
16, 35826-016C83 ...............
16, 35826-016C84 ...............
PagePart Number
35, 43826-023C ...................
35, 45826-024C ...................
16, 23826-257C ...................
27, 49838-415C ...................
27, 49838-517C ...................
27, 49838-537C ...................
49838-689C ...................
49838-690C ...................
27838-691C ...................
27, 49838-706C ...................
27838-715C ...................
27838-716C ...................
49838-717C ...................
27, 49838-897C ...................
27838-911C ...................
27838-912C ...................
27838-913C ...................
49838-917C ...................
49838-918C ...................
49838-919C ...................
27, 49838-966C ...................
27, 49838-968C ...................
19, 41A.259.500 ..................
47dwg10139 ..................
19, 41dwg10142 ..................
45dwg10144 ..................
25dwg10600 ..................
21dwg10973 ..................
43dwg13205 ..................
23dwg17409 ..................
7dwg22298 ..................
11dwg22300 ..................
15dwg22305 ..................
13, 37dwg22317 ..................
27dwg22319 ..................
29dwg22323 ..................
33dwg22324 ..................
39dwg22326 ..................
35dwg22327 ..................
49dwg22329 ..................
09/10/08 RTR10 and RTR15 Series Rotary Tillers 311-431P 51
Page 52
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
