Land Pride RTA35, RTA25, RTR25, RTA10, RTA15 User Manual
Table of Contents Part Number Index

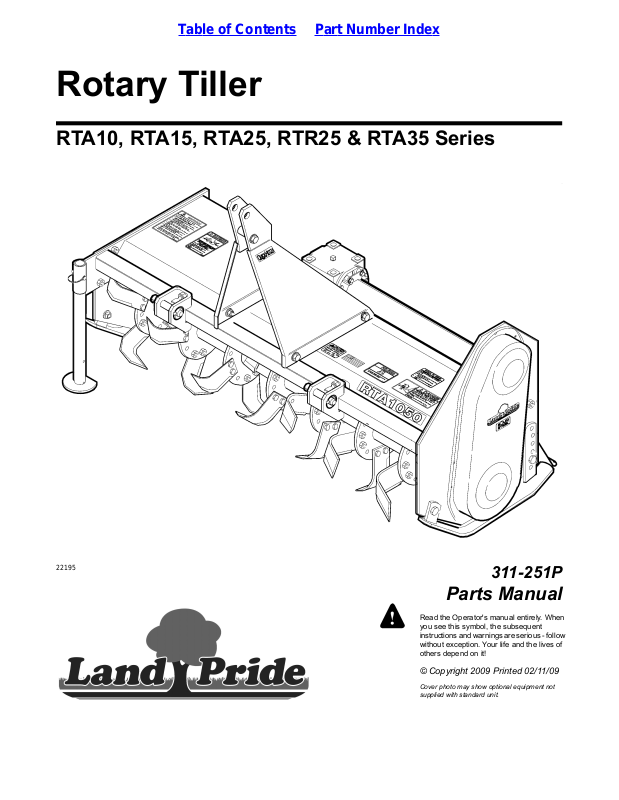

Rotary Tiller
RTA10, RTA15, RTA25, RTR25 & RTA35 Series
22195
311-251P
Parts Manual
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2009 Printed 02/11/09
Cover photo may show optional equipment not
supplied with standard unit.
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................6
Using This Manual...............................................................6
Manual Replacement Information.......................................6
Manual Revisions................................................................6
Touch-up Paint....................................................................6
Hardware Legend................................................................7
Replacement Hardware......................................................7
Serial Numbers...................................................................7
Part Number Service Coding..............................................7
RTA10 SERIES
Section 2: Frames..........................................................8
Frame..................................................................................8
Section 3: Drives.........................................................12
Drive..................................................................................12
Driveline (826-014C) Eurocardan (S/N 246674-)..............16
Driveline (826-014C) Walterscheid (S/N 246674-)............18
Driveline (826-015C) Eurocardan.....................................20
Driveline (826-015C) Walterscheid....................................22
Driveline (826-257C) EC (S/N 426012+)...........................24
Driveline (826-257C) Eurocardan (S/N 246675 to
426011).......................................................................26
Driveline (826-257C) Walterscheid (S/N 246675+)...........28
Driveline Slip Clutch (053314) Walterscheid.....................30
Driveline Slip Clutch (1384603) EC...................................32
Section 4: Gearboxes..................................................34
EC Gearbox (826-299C) (S/N 361706+) RTA1058 (S/N
314974-315293).........................................................34
Gearbox (826-013C) Comer (S/N +).................................36
Gearbox (826-013C) Curtis...............................................38
Gearbox (826-271C) OMNI...............................................40
Section 5: Labels.........................................................42
Label Placement...............................................................42
RTA15 SERIES
Section 2: Frames........................................................44
Frame................................................................................44
Section 3: Drives.........................................................48
Drive..................................................................................48
Driveline (826-023C) Eurocardan.....................................52
Driveline (826-023C) Walterscheid....................................54
Driveline (826-024C) Eurocardan.....................................56
Driveline (826-024C) Walterscheid....................................58
Driveline Slip Clutch (053331) Walterscheid.....................60
Driveline Slip Clutch (1385605) Eurocardan.....................62
Section 4: Gearboxes..................................................64
Gearbox (826-016C) Comer (S/N 362216- and
469909+)....................................................................64
Gearbox (826-300C) EC (S/N 362217 to 469908) RTA1558
(S/N 315213 to 317507).............................................66
Section 5: Labels.........................................................68
Label Placement...............................................................68
RTA25 SERIES
Section 2: Frames........................................................70
Frame................................................................................70
Rear Deflector (RTA 2562 Shown) (S/N 395687+)...........74
Section 3: Drives.........................................................76
Drive..................................................................................76
Drive S/N 535196-.............................................................80
Drive S/N 535197+............................................................84
Driveline (826-025C) Eurocardan.....................................88
Driveline (826-025C) Walterscheid....................................90
Driveline (826-031C) EC New Shields..............................92
Driveline (826-031C) EC Old Shields................................94
Driveline (826-031C) Walterscheid....................................96
Driveline Slip Clutch (1465603) Eurocardan.....................98
Driveline Slip Clutch (318851) Walterscheid...................100
Gearbox 826-537C..........................................................102
Gearbox 826-542C..........................................................104
Gearbox (311-146S) (311-147S) (311-148S) (311-149S)
(311-150S) Comer....................................................106
Gearbox MR 826-426C, 826-427C & 826-428C.............108
Section 4: Labels.......................................................110
Label Placement.............................................................110
Section 5: Options.....................................................112
Rear Deflector Down Pressure Kit..................................112
RTA35 SERIES
Section 2: Frames......................................................114
Frame..............................................................................114
Rear Deflector (RTA3568 Shown) (S/N 395687+)..........118
Section 3: Drives.......................................................120
Drive................................................................................120
Driveline (826-032C) Eurocardan...................................124
Driveline (826-032C) Walterscheid..................................126
Driveline Slip Clutch (1465603) Eurocardan...................128
Driveline Slip Clutch (1466607) Eurocardan...................130
Driveline Slip Clutch (321166) Walterscheid...................132
Gearbox (826-048C) (826-049C) (826-050C) (826-051C)
Comer.......................................................................134
Gearbox (826-430C) MR (S/N 415755 to 524493-) Rotis (S/N
524494+)..................................................................136
Section 4: Labels.......................................................138
Label Placement.............................................................138
© Copyright 2009. All rights reserved.
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Land Pride is registered trademark.
Printed in the United States of America.
Table of Contents Part Number Index
Section 5: Options................................................140
Rear Deflector Down Pressure Kit.............................140
RTR25 SERIES
Section 2: Frames.................................................142
Frame.........................................................................142
Frame.........................................................................144
Hitch And Parking Stand Assembly............................148
Rear Deflector (RTR2562 Shown)(S/N 395687+)......150
Section 3: Drives...................................................152
Drive...........................................................................152
Drive...........................................................................156
Drive S/N 535196-......................................................160
Drive S/N 535197+.....................................................164
Driveline (826-025C) Eurocardan...............................168
Driveline (826-025C) Walterscheid.............................170
Driveline Slip Clutch (1465603) Eurocardan..............172
Driveline Slip Clutch (318851) Walterscheid..............174
Gearbox (311-261S) (311-262S) (311-263S) (311-264S)
(311-265S) Comer...............................................176
Gearbox 826-549C.....................................................178
Gearbox 826-550C.....................................................180
Gearbox MR 826-426C, 826-427C & 826-428C........182
Section 4: Labels...................................................184
Label Placement........................................................184
Section 5: Options................................................186
Rear Deflector Down Pressure Kit.............................186
Table of Contents (continued)
Part Number Index................................................188
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 3
Table of Contents Part Number Index
Alphabetized Table of Contents
RTA10 SERIES
D
Drive..................................................................................12
Driveline (826-014C) Eurocardan (S/N 246674-)..............16
Driveline (826-014C) Walterscheid (S/N 246674-)............18
Driveline (826-015C) Eurocardan.....................................20
Driveline (826-015C) Walterscheid....................................22
Driveline (826-257C) EC (S/N 426012+)...........................24
Driveline (826-257C) Eurocardan (S/N 246675 to
426011).......................................................................26
Driveline (826-257C) Walterscheid (S/N 246675+)...........28
Driveline Slip Clutch (053314) Walterscheid.....................30
Driveline Slip Clutch (1384603) EC...................................32
E
EC Gearbox (826-299C) (S/N 361706+) RTA1058 (S/N
314974-315293).........................................................34
F
Frame..................................................................................8
G
Gearbox (826-013C) Comer (S/N +).................................36
Gearbox (826-013C) Curtis...............................................38
Gearbox (826-271C) OMNI...............................................40
RTA25 SERIES
D
Drive..................................................................................76
Drive S/N 535196-.............................................................80
Drive S/N 535197+............................................................84
Driveline (826-025C) Eurocardan.....................................88
Driveline (826-025C) Walterscheid....................................90
Driveline (826-031C) EC New Shields..............................92
Driveline (826-031C) EC Old Shields................................94
Driveline (826-031C) Walterscheid....................................96
Driveline Slip Clutch (1465603) Eurocardan.....................98
Driveline Slip Clutch (318851) Walterscheid...................100
F
Frame................................................................................70
G
Gearbox 826-537C..........................................................102
Gearbox 826-542C..........................................................104
Gearbox (311-146S) (311-147S) (311-148S) (311-149S)
(311-150S) Comer....................................................106
Gearbox MR 826-426C, 826-427C & 826-428C.............108
L
Label Placement.............................................................110
L
Label Placement...............................................................42
RTA15 SERIES
D
Drive..................................................................................48
Driveline (826-023C) Eurocardan.....................................52
Driveline (826-023C) Walterscheid....................................54
Driveline (826-024C) Eurocardan.....................................56
Driveline (826-024C) Walterscheid....................................58
Driveline Slip Clutch (053331) Walterscheid.....................60
Driveline Slip Clutch (1385605) Eurocardan.....................62
F
Frame................................................................................44
G
Gearbox (826-016C) Comer (S/N 362216- and
469909+)....................................................................64
Gearbox (826-300C) EC (S/N 362217 to 469908) RTA1558
(S/N 315213 to 317507).............................................66
L
Label Placement...............................................................68
R
Rear Deflector (RTA 2562 Shown) (S/N 395687+)...........74
Rear Deflector Down Pressure Kit..................................112
RTA35 SERIES
D
Drive................................................................................120
Driveline (826-032C) Eurocardan...................................124
Driveline (826-032C) Walterscheid..................................126
Driveline Slip Clutch (1465603) Eurocardan...................128
Driveline Slip Clutch (1466607) Eurocardan...................130
Driveline Slip Clutch (321166) Walterscheid...................132
F
Frame..............................................................................114
G
Gearbox (826-048C) (826-049C) (826-050C) (826-051C)
Comer.......................................................................134
Gearbox (826-430C) MR (S/N 415755 to 524493-) Rotis (S/N
524494+)..................................................................136
L
Label Placement.............................................................138
R
Rear Deflector (RTA3568 Shown) (S/N 395687+)..........118
Rear Deflector Down Pressure Kit..................................140
4 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Table of Contents Part Number Index
Alphabetized Table of Contents (continued)
RTR25 SERIES
D
Drive...........................................................................152
Drive...........................................................................156
Drive S/N 535196-......................................................160
Drive S/N 535197+.....................................................164
Driveline (826-025C) Eurocardan...............................168
Driveline (826-025C) Walterscheid.............................170
Driveline Slip Clutch (1465603) Eurocardan..............172
Driveline Slip Clutch (318851) Walterscheid..............174
F
Frame.........................................................................142
Frame.........................................................................144
G
Gearbox (311-261S) (311-262S) (311-263S) (311-264S)
(311-265S) Comer...............................................176
Gearbox 826-549C.....................................................178
Gearbox 826-550C.....................................................180
Gearbox MR 826-426C, 826-427C & 826-428C........182
H
Hitch And Parking Stand Assembly............................148
L
Label Placement........................................................184
R
Rear Deflector (RTR2562 Shown)(S/N 395687+)......150
Rear Deflector Down Pressure Kit.............................186
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 5
Table of Contents Part Number Index
6 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Table of Contents Part Number Index
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 7
Land Pride Section 2: Frames
RTA10 SERIES
Table of Contents Part Number Index
Frame
Applies to RTA1034, RTA1042, RTA1050, RTA1058
10360
8 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 2: Frames Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Frame
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10360
FRAME WELDMENT 1034 TILLER311-011H1.
FRAME WELDMENT 1034 TILLER GREEN311-011H811.
FRAME WELDMENT 1034 TILLER ORANGE311-011H821.
FRAME WELDMENT 1034 TILLER RED311-011H831.
FRAME WELDMENT 1034 TILLER BLUE311-011H841.
FRAME WELDMENT 1042 TILLER311-010H1.
FRAME WELDMENT 1042 TILLER GREEN311-010H811.
FRAME WELDMENT 1042 TILLER ORANGE311-010H821.
FRAME WELDMENT 1042 TILLER RED311-010H831.
FRAME WELDMENT 1042 TILLER BLUE311-010H841.
FRAME WELDMENT 1050 TILLER311-009H1.
FRAME WELDMENT 1050 TILLER GREEN311-009H811.
FRAME WELDMENT 1050 TILLER ORANGE311-009H821.
FRAME WELDMENT 1050 TILLER RED311-009H831.
FRAME WELDMENT 1050 TILLER BLUE311-009H841.
FRAME WELDMENT RTA1058311-053H1.
FRAME WELDMENT RTA1058 GREEN311-053H811.
FRAME WELDMENT RTA1058 ORANGE311-053H821.
FRAME WELDMENT RTA1058 RED311-053H831.
FRAME WELDMENT RTA1058 BLUE311-053H841.
RH END PLATEWELDMT 10/15 TILR311-017H2.
RH END PLATEWELDMT 10/15 TILR GREEN311-017H812.
RHEND PLATE WELDMT10/15 TILRORANGE311-017H822.
RH END PLATEWELDMT 10/15 TILR RED311-017H832.
RH END PLATEWELDMT 10/15 TILR BLUE311-017H842.
RH SKIDSHOE 10/15 TILLER311-007H3.
RH SKIDSHOE 10/15 TILLER GREEN311-007H813.
RH SKIDSHOE 10/15 TILLER ORANGE311-007H823.
RH SKIDSHOE 10/15 TILLER RED311-007H833.
RH SKIDSHOE 10/15 TILLER BLUE311-007H843.
HHCS 1/2-13X1 1/4 GR5802-034C4.
WASHER LOCK SPRING 1/2 PLT804-015C5.
HHCS 3/8-16X1 GR5802-017C6.
WASHER LOCK SPRING 3/8 PLT804-013C7.
NUT HEX 3/8-16 PLT803-014C8.
PIN WIRE RETAINING1/4 X 1 3/4805-065C9.
STAND LEG 10/15 TILLER311-014H10.
STAND LEG 10/15 TILLER GREEN311-014H8110.
STAND LEG 10/15 TILLER ORANGE311-014H8210.
STAND LEG 10/15 TILLER RED311-014H8310.
STAND LEG 10/15 TILLER BLUE311-014H8410.
LOWER HITCH CLEVIS RTA 10/15311-052H11.
LOWER HITCH CLEVIS RTA 10/15 GREEN311-052H8111.
LOWER HITCH CLEVIS RTA 10/15 ORANGE311-052H8211.
LOWER HITCH CLEVIS RTA 10/15 RED311-052H8311.
LOWER HITCH CLEVIS RTA 10/15 BLUE311-052H8411.
U-BOLT 1/2-13 X2 7/8X2 1/16SPL806-048C12.
NUT HEX NYLOCK 1/2-13803-147C13.
LH SKIDSHOE 10/15 TILLER311-006H14.
LH SKIDSHOE 10/15 TILLER GREEN311-006H8114.
LH SKIDSHOE 10/15 TILLER ORANGE311-006H8214.
LH SKIDSHOE 10/15 TILLER RED311-006H8314.
LH SKIDSHOE 10/15 TILLER BLUE311-006H8414.
PTO GUARD 10/15 TILR311-071D15.
SCREW THUMB 5/16-18 X 5/8 PLT801-042C16.
TOP HITCH BRACE WELDMT 10/15311-030H17.
HHCS 5/8-11X1 1/2 GR5802-051C18.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 9
Land Pride Section 2: Frames
Table of Contents Part Number Index
RTA10 SERIES
Frame (continued)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
TOP HITCH SPACER 10/15 TLR311-038D19.
HHCS 5/8-11X3 1/2 GR5802-162C20.
WASHER LOCK SPRING 5/8 PLT804-022C21.
NUT HEX 5/8-11 PLT803-021C22.
TOP HITCH ARM 10/15 TLR311-032D23.
U-BOLT 3/8-16 X2 1/32X2 5/8SPL806-049C24.
REAR DEFLECTOR CHAIN 10/15311-077D25.
S/N 500883-RTA10/1534 REAR DEFL WELDMENT311-191H26.
RTA10/1534 REARDEFL WELDMENTGREEN311-191H8126.
311-191H8226.
311-190H8226.
311-189H8226.
311-192H8226.
RTA10/1534 REAR DEFL WELDMENT
ORANGE
RTA10/1534 REAR DEFL WELDMENT RED311-191H8326.
RTA10/1534 REAR DEFL WELDMENT BLUE311-191H8426.
RTA10/1542 REARDEFL WELDMENTGREEN311-190H8126.
RTA10/1542 REAR DEFL WELDMENT
ORANGE
RTA10/1542 REAR DEFL WELDMENT RED311-190H8326.
RTA10/1542 REAR DEFL WELDMENT BLUE311-190H8426.
RTA10/1550 REARDEFL WELDMENTGREEN311-189H8126.
RTA10/1550 REAR DEFL WELDMENT
ORANGE
RTA10/1550 REAR DEFL WELDMENT RED311-189H8326.
RTA10/1550 REAR DEFL WELDMENT BLUE311-189H8426.
RTA10/1558 REARDEFL WELDMENTGREEN311-192H8126.
RTA10/1558 REAR DEFL WELDMENT
ORANGE
RTA10/1558 REAR DEFL WELDMENT RED311-192H8326.
RTA10/1558 REAR DEFL WELDMENT BLUE311-192H8426.
REAR DEFL ROD 10/1534 TILR311-053D27.
REAR DEFL ROD 10/1542 TILR311-052D27.
REAR DEFL ROD 10/1550 TILR311-051D27.
REAR DEFL ROD 10/1558 TILLER311-062D27.
WASHER FLAT 3/8 USS PLT804-011C28.
NUT LOCK 3/8-16 PLT803-013C29.
PIN ROLL 1/4X1 3/4805-041C31.
PIN LYNCH 5/16 X 1 3/4805-015C32.
RH HEAVY HITCH RTA15311-173E34.
TOP SPACER HEAVY HITCH RTA15311-093D35.
LH HEAVY HITCH RTA15311-174E36.
PTO GUARD RTA15(HEAVY HITCH)311-215D37.
STUD 1/4 TURN WING HD #85-360800-096C39.
RETAINER SPLIT RING #85800-098C40.
RECPTCLE 1/4 TURN CLIP ON #85800-097C41.
NUT HEX 3/4-10 PLT803-027C42.
S/N 500883-RTA10/1542 REAR DEFL WELDMENT311-190H26.
S/N 500883-RTA10/1550 REAR DEFL WELDMENT311-189H26.
S/N 500883-RTA10/1558 REAR DEFL WELDMENT311-192H26.
Rev. 2PIN LOWER HITCH 7/8X3 1/16USBL805-198C30.
Rev 1; Use up stockRPBY 805-198C310-074D30.
Includes items 30 and 31LOWER HITCH PIN ASSEMBLY310-020S33.
(S/N 278043-); For the Optional
Heavy Hitch
(S/N 278043-); For the Optional
Heavy Hitch
(S/N 278043-); For the Optional
Heavy Hitch
(S/N 278043-); For the Optional
Heavy Hitch
For the Optional Heavy HitchHHCS 5/8-11X1 1/4 GR5802-050C38.
(S/N 278043-); For the Optional
Heavy Hitch
(S/N 278043-); For the Optional
Heavy Hitch
(S/N 278043-); For the Optional
Heavy Hitch
(S/N 278044+); For the Optional
Heavy Hitch
10 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 2: Frames Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Frame (continued)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
WASHER LOCK SPRING 3/4 PLT804-023C43.
RH HVY TOP HITCH RTA10/15311-266E44.
RH HVY TOP HITCH RTA10/15 GREEN311-266E8144.
RH HVY TOP HITCH RTA10/15 ORANGE311-266E8244.
RH HVY TOP HITCH RTA10/15 RED311-266E8344.
RH HVY TOP HITCH RTA10/15 BLUE311-266E8444.
SPACER 1 1/4OD X 25/32ID X 2LG308-400D45.
LH HVY TOP HITCH RTA10/15311-265E46.
LH HVY TOP HITCH RTA10/15 GREEN311-265E8146.
LH HVY TOP HITCH RTA10/15 ORANGE311-265E8246.
LH HVY TOP HITCH RTA10/15 RED311-265E8346.
LH HVY TOP HITCH RTA10/15 BLUE311-265E8446.
SCREW THUMB 5/16-18 X 5/8 PLT801-042C47.
RTA10/15 3PT GB SHAFT GUARD311-347D48.
RTA10/15 3PT GB SHAFT GUARD GREEN311-347D8148.
RTA10/15 3PT GB SHAFT GUARD ORANGE311-347D8248.
RTA10/15 3PT GB SHAFT GUARD RED311-347D8348.
RTA10/15 3PT GB SHAFT GUARD BLUE311-347D8448.
HHCS 3/4-10X4 GR5802-068C49.
HHCS 3/4-10X4 GR5 FTHD802-067C49.
TAILGATE WELDMENT GREEN311-430H8154.
TAILGATE WELDMENT ORANGE311-430H8254.
TAILGATE WELDMENT RED311-430H8354.
TAILGATE WELDMENT BLUE311-430H8454.
TAILGATE WELDMENT GREEN311-445H8154.
TAILGATE WELDMENT ORANGE311-445H8254.
TAILGATE WELDMENT RED311-445H8354.
TAILGATE WELDMENT BLUE311-445H8454.
TAILGATE WELDMENT GREEN311-449H8154.
TAILGATE WELDMENT ORANGE311-449H8254.
TAILGATE WELDMENT RED311-449H8354.
TAILGATE WELDMENT BLUE311-449H8454.
WASHER LOCK SPRING 5/16 PLT804-009C55.
TAILGATE LOCK 10 & 15 SERIES311-663D56.
HHCS 5/16-18X1 GR5 ZNYCR802-738D57.
(S/N 278044+); For the Optional
Heavy Hitch
(S/N 278044+); For the Optional
Heavy Hitch
(S/N 278044+); For the Optional
Heavy Hitch
(S/N 278044+); For the Optional
Heavy Hitch
(S/N 278044+); For the Optional
Heavy Hitch
(S/N 278044+); For the Optional
Heavy Hitch
Rev. 2(S/N306787+); For the Optional
Heavy Hitch
Rev 1; Use up stock(S/N 278044 <-> 306786); For the
Optional Heavy Hitch
(S/N 543059+)HHCS 1/4-20X1 GR5802-005C50.
(S/N 543059+)MANUAL STORAGE CONTAINER816-504C51.
(S/N 543059+)WASHER FLAT 1/4 SAE PLT804-007C52.
(S/N 543059+)NUT HEX NYLOCK 1/4-20803-255C53.
RTA1042TAILGATE WELDMENT311-430H54.
RTA1050TAILGATE WELDMENT311-445H54.
RTA1058TAILGATE WELDMENT311-449H54.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 11
Land Pride Section 3: Drives
RTA10 SERIES
Table of Contents Part Number Index
Drive
Applies to RTA1034, RTA1042, RTA1050, RTA1058
13546
12 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 3: Drives Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Drive
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13546
ROTOR SHAFT WELDMENT RTA1058311-038H1.
ROTOR SHAFT WELDMENT 1050311-002H1.
ROTOR SHAFT WELDMENT 1042311-003H1.
ROTOR SHAFT WELDMENT 1034311-004H1.
34" = 8; 42" = 10; 50" = 12; 58" = 14BLADE TILLER 10 & 15 SERIES RH820-056C2.
34" = 8; 42" = 10; 50" = 12; 58" = 14BLADE TILLER 10 & 15 SERIES LH820-055C3.
SP TINE HHCS 1/2-20X1 1/4 GR5802-248C4.
NUT HEX 1/2-20 PLT803-018C5.
WASHER LOCK SPRING 1/2 PLT804-015C6.
SNAP RING INT 3.523 OD800-053C7.
BEARING 307822-082C8.
GASKET BRG MNT 10/15 TILLER816-070C9.
BEARING MOUNT 10/15 TILLER311-014D10.
SEAL 1.75 X 2.75 X .313816-068C11.
RH BOTTOM BRG MNT 10/15 TILR311-042D12.
SNAP RING EXT 1 3/8 5100-137800-079C13.
NUT HEX 1/2-13 PLT803-020C14.
Rev. 2 not compat. w/Rev. 1(S/N 148160+)RHSSNB 1/2-13 X 1 1/2 GR5802-477C15.
Rev. 1(S/N148159-)HHCS 1/2-13X1 1/2 GR5802-091C15.
SPKT 80B16 1 3/8-21 SPLINE808-082C16.
GASKET CHAIN GRD 10/15 TILR816-069C17.
CHAIN GUARD WELDMT 10/15 TILR311-012H18.
CHAIN GUARD WELDMT 10/15 TILR GREEN311-012H8118.
CHAINGUARD WELDMT 10/15 TILR ORANGE311-012H8218.
CHAIN GUARD WELDMT 10/15 TILR RED311-012H8318.
CHAIN GUARD WELDMT 10/15 TILR BLUE311-012H8418.
DRAIN PLUG 3/4-16 UNF PLATED800-066C19.
Rev. 2(S/N372753+)HFSS 1/4-20X7/8 GR5802-719C20.
Rev. 1HFSS 1/4-20X3/4 GR5802-257C20.
CHAIN RL #80 X 43 PITCH809-079C21.
CONNECTOR #80 OFFSET PEER809-088C22.
CONNECTOR #80 PEER809-087C23.
NUT LT JAM 1 1/8-12 NYLN INSRT803-153C24.
SPKT 80B10 1 3/8-21 SPLINE808-081C25.
CHAIN TIGHTENER 10/15 TILR807-062C26.
For (S/N 13955-) used with item 41CHAIN TENSIONER ADJUSTER308-171D27.
WASHER FLAT 1/2 SAE PLT804-016C28.
PIN COTTER 3/16 X 1805-069C29.
NUT LOCK 1/4-20 PLT803-007C30.
HHCS 1/2-13X3/4 GR5802-032C31.
NUT HEX FLANGE 7/8-14 UNF PLT803-157C32.
DRIVE SHAFT RTA1058311-055H33.
DRIVE SHAFT 1050 TILLER311-035H33.
Rev. 2(S/N195360 <-> 236705)RTA34/42 OS48/DRIVE SHFT WLDMT308-274H33.
Rev. 1(S/N195359-) (S/N 236706+)RPBY 308-274H & 804-166C311-008H33.
Rev. 2(S/N48037+)DRIVE SHAFT GUARD RTA1058311-184H34.
DRIVE SHAFT GUARD RTA1058 GREEN311-184H8134.
DRIVE SHAFT GUARD RTA1058 ORANGE311-184H8234.
DRIVE SHAFT GUARD RTA1058 RED311-184H8334.
DRIVE SHAFT GUARD RTA1058 BLUE311-184H8434.
Rev 1; Use up stock(S/N 48036-)RPBY 311-184H311-054H34.
Rev. 2(S/N48037+)DRIVE SHAFT GUARD RTA1050311-183H34.
DRIVE SHAFT GUARD RTA1050 GREEN311-183H8134.
DRIVE SHAFT GUARD RTA1050 ORANGE311-183H8234.
DRIVE SHAFT GUARD RTA1050 RED311-183H8334.
DRIVE SHAFT GUARD RTA1050 BLUE311-183H8434.
Rev 1; Use up stock(S/N 48036-)RPBY 311-183H311-034H34.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 13
Land Pride Section 3: Drives
Table of Contents Part Number Index
RTA10 SERIES
Drive (continued)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 2(S/N48037+)DRIVE SHAFT GUARD RTA1034/42311-182H34.
DRIVE SHAFT GUARD RTA1034/42 GREEN311-182H8134.
DRIVE SHAFT GUARD RTA1034/42 ORANGE311-182H8234.
DRIVE SHAFT GUARD RTA1034/42 RED311-182H8334.
DRIVE SHAFT GUARD RTA1034/42 BLUE311-182H8434.
Rev 1; Use up stock(S/N 48036-)RPBY 311-182H311-029H34.
HFSS 5/16-18X1 3/4 G5802-094C35.
HHCS 1/2-13X1 GR5802-258C36.
Rev. 3(S/N314973-) (S/N 315294+)10 TILLER GEAR BOX826-013C37.
10 TILLER GEAR BOX GREEN826-013C8137.
10 TILLER GEAR BOX ORANGE826-013C8237.
10 TILLER GEAR BOX RED826-013C8337.
10 TILLER GEAR BOX BLUE826-013C8437.
Rev 2; Use up stock(S/N 314974 <-> 315293)FRANKLIN GBOX RTA10 EBM20826-299C37.
Rev 1; Use up stock(S/N 246681-246685)OBSOLETE RPBY 826-299C826-271C37.
Rev. 2RH BRG COVER W/ZRK RTA10/15/25311-135S38.
Rev 1; Use up stockRPBY 311-135S311-005H38.
Rev. 3 not compat. w/Rev. 2(S/N 242272+)GREASE ZERK 1/4-28 THD FORMING800-080C39.
Rev. 2 not compat. w/Rev. 1(S/N 242271-)ZERK GREASE 1/4 DRIVE #1952800-095C39.
Rev. 1GREASE ZERK STRAIGHT 1/4-28800-001C39.
HHCS 1/2-13X1 3/4 GR5802-082C40.
WASHER LOCK SPRING 7/8 PLT804-037C41.
WASHER MACH 2 X 1.406 X .250804-166C43.
GASKET 1.03OD.515SQ.HL1/32THK816-280C44.
WASHER FLAT 1/2 HARD ASTMF436804-094C45.
Used only with old style 308-171D
(S/N 139355-)
Rev. 2DRIVELINE SHRBLT CAT2 HVY 540826-257C42.
Rev 1; Use up stockRefer to page 2-5 & 2-6RPBY 826-257C826-014C42.
Refer to page 2-7PTO SLIP CLUTCH 10 TILLER826-015C42.
14 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 3: Drives Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Drive (continued)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
This Page Intentionally Left Blank
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 15
Land Pride Section 3: Drives
RTA10 SERIES
Table of Contents Part Number Index
Driveline (826-014C) Eurocardan (S/N 246674-)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
13205
16 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 3: Drives Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Driveline (826-014C) Eurocardan (S/N 246674-)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13205
RPBY 826-257C826-014C
Rev. 2EC COMPLETE PUSH-PIN KIT15810381.
Rev 1; Use up stockRPBY 158103810060381.
DRIVELINE SHIELD SAFETY CHAIN0443212.
Rev. 2EC YOKEASSEMBLY(TRACTOR END)10220103.
Rev 1; Use up stockRPBY 102201017021103.
EC CROSS ASSEMBLY10020204.
Rev. 2EC TUBE BEARING17822105.
Rev 1; Use up stockEC TUBE BEARING17820165.
EC INNER TUBE YOKE17020296.
EC 8X55-DIN-1481 O/TUBE R/PIN63308557.
Rev. 2EC INNER TUBE (1522083) 380MM15220388.
Rev 1; Use up stockRPBY 152203815323028.
Rev. 2EC OUTER TUBE (1523085) 370MM15230389.
Rev 1; Use up stockRPBY 152303815323169.
EC OUTER TUBE YOKE170202710.
Rev. 2DECAL DANGER PTO DRIVELINE818-552C11.
Rev 1; Use up stockDECAL DANGER DRIVELINE SHIELD818-187C11.
Rev. 2EC INNER TUBE (1872050) 300MM187203012.
Rev 1; Use up stockRPBY 1872030177232912.
Rev. 2EC BOLT TRQ LIMITER (IMP END)148203713.
Rev 1; Use up stockRPBY 1482037100203413.
Rev. 2EC SOFT CONE188420314.
Rev 1; Use up stockRPBY 1884203188301314.
Rev. 2EC OUTER TUBE (1873050) 300MM187303015.
Rev 1; Use up stockRPBY 1873030188234215.
Rev. 2DECAL DANGER GUARD MISS PTO818-540C16.
Rev 1; Use up stockDECAL DANGER PTO DRIVELINE EN818-142C16.
Rev. 2EC OUTER TUBE RIGID CONE188420117.
Rev 1; Use up stockRPBY 1884201188323017.
Rev. 2RPBY 6690640148064018.
Rev 1; Use up stockRPBY 1480640337064518.
Rev. 2EC INNER TUBE RIGID CONE188420219.
Rev 1; Use up stockRPBY 1884202188323120.
Rev. 2EC TUBE BEARING178221020.
EC PIN STOP ROTATION178421221.
EC 8X50-DIN-1481 ROLL PIN633085022.
SHIELD KIT, AX2826-556C23.
RPBY 1012013101201224.
EC PULL COLLAR KIT100422525.
EC YOKEASM101201326.
EC PULL COLLAR KIT100422727.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 17
Land Pride Section 3: Drives
RTA10 SERIES
Table of Contents Part Number Index
Driveline (826-014C) Walterscheid (S/N 246674-)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
10972
18 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 3: Drives Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Driveline (826-014C) Walterscheid (S/N 246674-)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10972
RPBY 826-257C826-014C
WALTERSCHEID YOKE 1 3/8-6 SPL0410491.
WS Q.D. PIN KIT3391072.
WS SHEAR BOLTCLUTCH3229283.
HHCS M6X1X35 DIN931 GR8.8802-267C4.
NUT HEX LOCK M6 PLT803-154C5.
WALTSCHEID CROSS & BRG KIT0444396.
WALTERSCHEID INBOARD YOKE0410657.
WALTERSCHEID SPRING PIN0206148.
WALTERSCHEID INNER PROFILE OV0478829.
WALTERSCHEID OUTER PROFILE I04789210.
WALTERSCHEID INBOARD YOKE04106811.
Rev. 2DECAL DANGER GUARD MISS PTO818-540C12.
Rev 1; Use up stockWALTERSCHEID DNGR DECAL-STEEL38333412.
WALTERSCHEID SHIELD CONE-4 RIB37723413.
WALTERSCHEID SCREW36530514.
WALTERSCHEID BEARING RING08727915.
WALTERSCHEID SAFETY CHAIN04432116.
WALTERSCHEID OUT SHIELD TB OVL38568917.
Rev. 2DECAL DANGER PTO DRIVELINE818-552C18.
Rev 1; Use up stockWALTERSCHEID DANGER DECAL-SHLD38333318.
WALTERSCHEID INN SHIELD TB RND38505819.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 19
Land Pride Section 3: Drives
RTA10 SERIES
Table of Contents Part Number Index
Driveline (826-015C) Eurocardan
Applies to RTA1034, RTA1042, RTA1050, RTA1058
22309
20 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 3: Drives Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Driveline (826-015C) Eurocardan
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22309
PTO SLIP CLUTCH 10 TILLER826-015C
*
EC YOKEASSEMBLY10140121.
EC CROSS ASSEMBLY ( U JOINT)10040202.
EC OUTER TUBE YOKE17040273.
EC 08X60 1485DIN ROLL PIN63308604.
EC OUTER TUBE (1524062) 350MM15240355.
EC INNER TUBE (1525095) 350MM15250356.
EC 8X55-DIN-1481 O/TUBE R/PIN63308557.
EC INNER TUBE YOKE17040298.
EC CLUTCH ASSY. BD2/4 450Nm13846039.
EC TUBE BEARING178421010.
EC OUTER TUBE RIGID CONE188420111.
EC STIFFENING RING121323312.
EC SOFT CONE188420313.
EC PIN STOP ROTATION178421214.
EC OUTER TUBE (1873050) 270MM187302715.
EC INNER TUBE (1872050) 270MM187202716.
EC SOFT CONE (LONG)188420417.
EC INNER TUBE RIGID CONE188420218.
EC TUBE BEARING178421119.
EC PULL COLLAR KIT100422520.
Rev. 2DRIVELINE SHIELD SAFETY CHAIN04432121.
Rev 1; Use up stockREP BY 044321100606521.
Rev. 2DECAL DANGER PTO DRIVELINE818-552C22.
Rev 1; Use up stockREP BY 818-552C114000122.
Rev. 2DECAL DANGER GUARD MISS PTO818-540C23.
Rev 1; Use up stockREP BY 818-540C114000323.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 21
Land Pride Section 3: Drives
RTA10 SERIES
Table of Contents Part Number Index
Driveline (826-015C) Walterscheid
Applies to RTA1034, RTA1042, RTA1050, RTA1058
10973
22 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 3: Drives Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Driveline (826-015C) Walterscheid
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10973
PTO SLIP CLUTCH 10 TILLER826-015C
WALTERSCHEID YOKE 1 3/8-6 SPL0410491.
WS Q.D. PIN KIT3391072.
Refer to page 2-8WS FRICTION CLUTCH0533143.
WALTSCHEID CROSS & BRG KIT0444394.
WALTERSCHEID INBOARD YOKE0410655.
WALTERSCHEID SPRING PIN0206146.
WALTERSCHEID INNER PROFILE OV0478827.
WALTERSCHEID OUTER PROFILE I0478928.
WALTERSCHEID INBOARD YOKE0410689.
Rev. 2DECAL DANGER GUARD MISS PTO818-540C10.
Rev 1; Use up stockWALTERSCHEID DNGR DECAL-STEEL38333410.
WALTERSCHEID SHIELD CONE-4 RIB37723411.
WALTERSCHEID SCREW36530512.
WALTERSCHEID BEARING RING08727913.
DRIVELINE SHIELD SAFETY CHAIN04432114.
WALTERSCHEID OUT SHIELD TB OVL38568915.
Rev. 2DECAL DANGER PTO DRIVELINE818-552C16.
Rev 1; Use up stockWALTERSCHEID DANGER DECAL-SHLD38333316.
WALTERSCHEID INN SHIELD TB RND38505817.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 23
Land Pride Section 3: Drives
RTA10 SERIES
Table of Contents Part Number Index
Driveline (826-257C) EC (S/N 426012+)
Applies to RTA1042
26645
24 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 3: Drives Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Driveline (826-257C) EC (S/N 426012+)
Applies to RTA1042
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26645
DRIVELINE SHRBLT HEAVY 540826-257C
*
EC YOKEASSY (TRACTOREND)10140131.
EC CROSS ASSEMBLY ( U JOINT)10040202.
EC OUTER TUBE YOKE17040273.
EC 08X60 1485DIN ROLL PIN63308604.
EC OUTER TUBE (1524062) 370MM15240375.
EC INNER TUBE (1525095) 370MM15250376.
EC INNER TUBE YOKE17040297.
EC YOKEASSEMBLY14840498.
EC 8X55-DIN-1481 O/TUBE R/PIN63308559.
EC TUBE BRG178421010.
EC OUTER TUBE RIGID CONE188420111.
EC STIFFENING RING121323312.
EC SOFT CONE188420313.
EC PIN STOP ROTATION178421214.
EC OUTER TUBE (1873050) 290MM187302915.
EC INNER TUBE (1872050) 290MM187202916.
EC INNER TUBE RIGID CONE188420217.
EC TUBE BRG178421118.
DECAL DANGER PTO DRIVELINE818-552C19.
DECAL DANGER GUARD MISS PTO818-540C20.
DRIVELINE SHIELD SAFETY CHAIN4432121.
EC PULL COLLAR KIT EVOLUTION100422722.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 25
Land Pride Section 3: Drives
RTA10 SERIES
Table of Contents Part Number Index
Driveline (826-257C) Eurocardan (S/N 246675 to 426011)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
17409
26 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 3: Drives Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Driveline (826-257C) Eurocardan (S/N 246675 to 426011)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17409
DRIVELINE SHRBLT826-257C
*
EC YOKEASSEMBLY(TRACTOR END)10230101.
EC CROSS ASSEMBLY10030202.
EC OUTER TUBE YOKE17030273.
EC 08X60 1485DIN ROLL PIN63308604.
EC OUTER TUBE (1524062) 370MM15240375.
EC INNER TUBE (1523038) 370MM)15230376.
EC INNER TUBE YOKE17030297.
EC BOLT LIMITER (LC3)14830498.
EC 8X55-DIN-1481 O/TUBE R/PIN63308559.
EC TUBE BEARING178421010.
EC OUTER TUBE RIGID CONE188420111.
EC STIFFENING RING121323312.
EC SOFT CONE188420313.
EC PIN STOP ROTATION178421214.
EC OUTER TUBE (1873050) 290MM187302915.
EC INNER TUBE (1872050) 290MM187202916.
EC INNER TUBE RIGID CONE188420217.
EC TUBE BEARING178421118.
DECAL DANGER GUARD MISS PTO818-540C19.
DECAL DANGER PTO DRIVELINE818-552C20.
DRIVELINE SHIELD SAFETY CHAIN04432121.
EC COMP. BOLT M8X45 W/NUT669084522.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 27
Land Pride Section 3: Drives
RTA10 SERIES
Table of Contents Part Number Index
Driveline (826-257C) Walterscheid (S/N 246675+)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
10972
28 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Section 3: Drives Land Pride
Table of Contents Part Number Index
RTA10 SERIES
Driveline (826-257C) Walterscheid (S/N 246675+)
Applies to RTA1034, RTA1042, RTA1050, RTA1058
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10972
DRIVELINE SHRBLT HEAVY 540826-257C
WALTERSCHEID YOKE 1 3/8-6 SPL0410491.
WS Q.D. PIN KIT3391072.
WS SHEAR BOLTCLUTCH3566093.
HHCS M6X1X35 DIN931 GR8.8802-267C4.
NUT HEX LOCK M6 PLT803-154C5.
WALTSCHEID CROSS & BRG KIT0444396.
WALTERSCHEID INBOARD YOKE0410657.
WALTERSCHEID SPRING PIN0206148.
WALTERSCHEID INNER PROFILE OV0478829.
WALTERSCHEID OUTER PROFILE I04789210.
WALTERSCHEID INBOARD YOKE04106811.
Rev. 2DECAL DANGER GUARD MISS PTO818-540C12.
Rev 1; Use up stockWALTERSCHEID DNGR DECAL-STEEL38333412.
WALTERSCHEID SHIELD CONE-4 RIB37723413.
WALTERSCHEID SCREW36530514.
WALTERSCHEID BEARING RING08727915.
DRIVELINE SHIELD SAFETY CHAIN04432116.
WALTERSCHEID OUT SHIELD TB OVL38568917.
Rev. 2DECAL DANGER PTO DRIVELINE818-552C18.
Rev 1; Use up stockWALTERSCHEID DANGER DECAL-SHLD38333318.
WALTERSCHEID INN SHIELD TB RND38505819.
02/11/09 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 29
Land Pride Section 3: Drives
RTA10 SERIES
Table of Contents Part Number Index
Driveline Slip Clutch (053314) Walterscheid
Applies to RTA1034, RTA1042, RTA1050, RTA1058
10600
30 RTA10, RTA15, RTA25, RTR25 & RTA35 Series Rotary Tiller 311-251P 02/11/09
Loading...
