Page 1
Table of Contents Part Number Index
Box Scrapers
BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25
26546
303-082P
Parts Manual
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2008 Printed 05/02/08
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
BB15 & BB25 SERIES
Complete Assembly......................................................6
Fixed Bar Box Scrapers......................................................6
Fixed Bar Scraper.............................................................10
Label Placement...............................................................14
Rear Hinge And Rear Grader Blade.................................18
HR(L)35 SERIES
Complete Assembly....................................................22
Hydraulic Cylinder Double Acting (810-125C) Red Lion....22
Hydraulic Cylinder Double Acting EGY (810-125C)..........24
Hydraulic Retractable Box Scraper...................................26
Label Placement...............................................................30
MR(L)35 SERIES
Complete Assembly....................................................33
Label Placement...............................................................34
Manual Retractable Box Scraper......................................38
RO25 SERIES
Complete Assembly....................................................41
Label Placement...............................................................42
Rollover Box Scraper........................................................44
Part Number Index.......................................................46
© Copyright 2008. All rights reserved.
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Land Pride is registered trademark.
Printed in the United States of America.
2 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 3
Table of Contents Part Number Index
BB15 & BB25 SERIES
F
Fixed Bar Box Scrapers..................................................6
Fixed Bar Scraper........................................................10
L

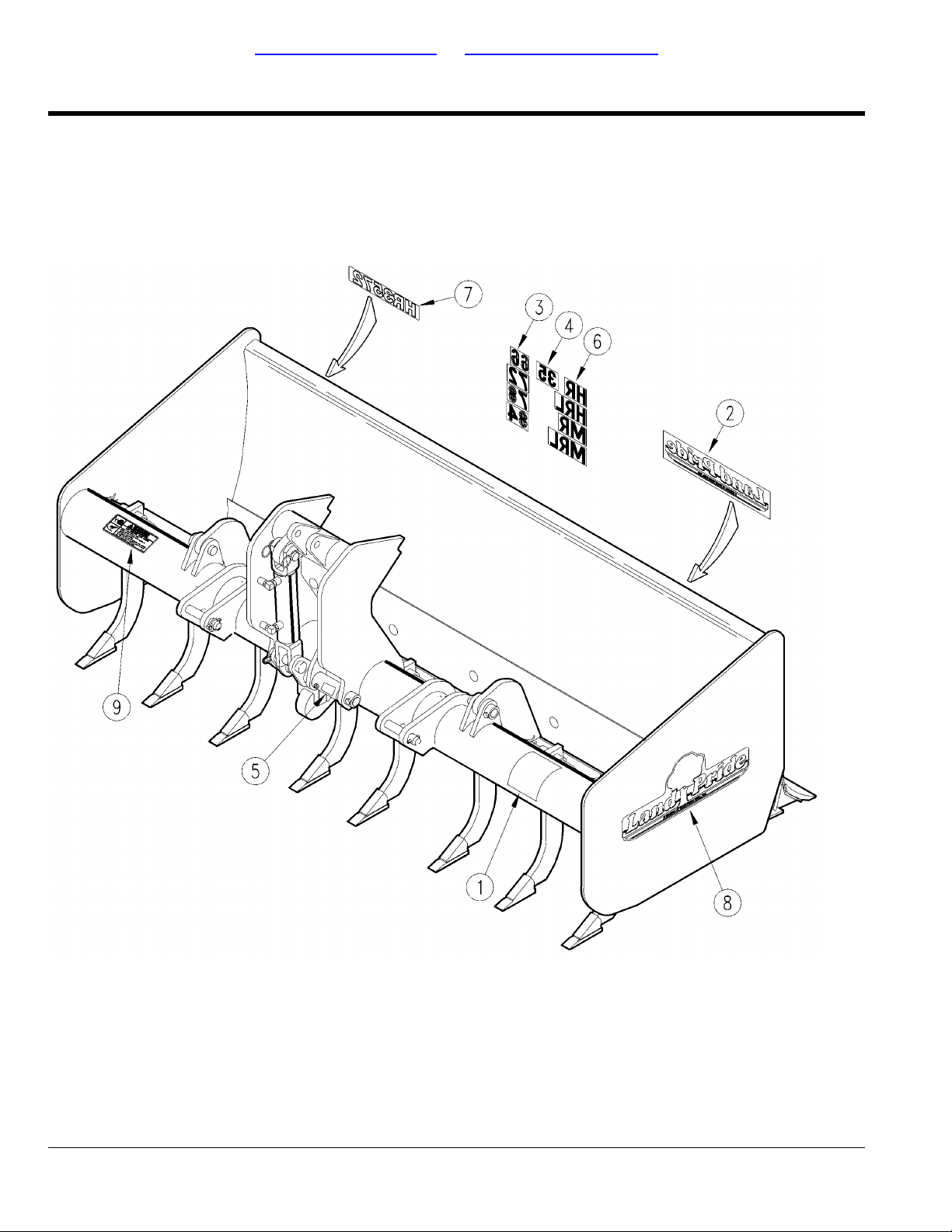

Label Placement..........................................................14
R
Rear Hinge And Rear Grader Blade.............................18
HR(L)35 SERIES
H
Hydraulic Cylinder Double Acting (810-125C) Red
Lion........................................................................22
Hydraulic Cylinder Double Acting EGY (810-125C).....24
Hydraulic Retractable Box Scraper..............................26
Alphabetized Table of Contents
L
Label Placement..........................................................30
MR(L)35 SERIES
L
Label Placement..........................................................34
M
Manual Retractable Box Scraper..................................38
RO25 SERIES
L
Label Placement..........................................................42
R
Rollover Box Scraper....................................................44
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 3
Page 4
Table of Contents Part Number Index
4 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 5
Table of Contents Part Number Index
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 5
Page 6
Land Pride Complete Assembly
BB15 & BB25 SERIES
Table of Contents Part Number Index
Fixed Bar Box Scrapers
Applies to BB2560, BB2566, BB2572, BB2584, BB2596

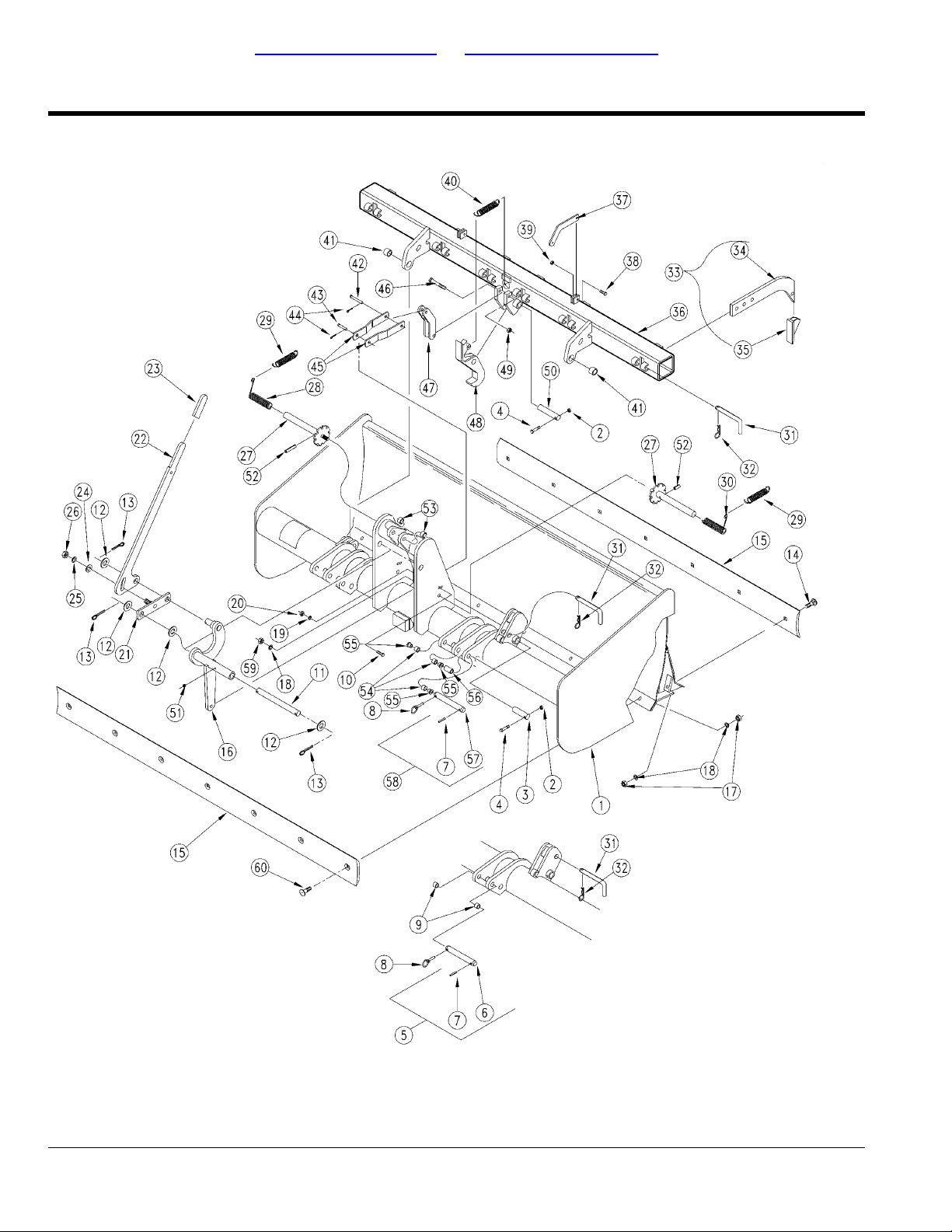

14621
6 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 7
Complete Assembly Land Pride
Table of Contents Part Number Index
BB15 & BB25 SERIES
Fixed Bar Box Scrapers
Applies to BB2560, BB2566, BB2572, BB2584, BB2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg14621
With rear gate option2560 FIXED BAR SCRAPER-5 SHANK)303-075H1.
2560FIXED BARSCRAPER-5 SHANK) BLACK303-075H851.
2560 FIX BAR SCRPR OPT41 ORANGE303-075H821.
With rear gate option25-84 FIXED BAR SCRAPER303-060H1.
25-84 FIXED BAR SCRAPER BLACK303-060H851.
2584 FIX BAR SCRPR OPT41 ORANGE303-060H821.
With rear gate option2596 BOX WELDMENT303-065H1.
2596 BOX WELDMENT BLACK303-065H851.
2596 FIX BAR SCRPR OPT41 ORANGE303-065H821.
With rear gate option66 FIXED BAR SCRAPER303-004H1.
66 FIXED BAR SCRAPER BLACK303-004H851.
2566 FIX BAR SCRPR OPT41 ORANGE303-004H821.
With rear gate option72 FIXED BAR SCRAPER303-005H1.
72 FIXED BAR SCRAPER BLACK303-005H851.
2572 FIX BAR SCRPR OPT41 ORANGE303-005H821.
With rear blade60 25-42 FIXED BAR SCRAPER303-094H1.
60 25-42 FIXED BAR SCRAPER BLACK303-094H851.
2560 FIX BAR SCRPR OPT42 ORANGE303-094H821.
With rear blade66 25-42 FIXED BAR SCRAPER303-095H1.
66 25-42 FIXED BAR SCRAPER BLACK303-095H851.
2566 FIX BAR SCRPR OPT42 ORANGE303-095H821.
With rear blade72 25-42 FIXED BAR SCRAPER303-096H1.
72 25-42 FIXED BAR SCRAPER BLACK303-096H851.
2572 FIX BAR SCRPR OPT42 ORANGE303-096H821.
With rear blade84 25-42 FIXED BAR SCRAPER303-097H1.
84 25-42 FIXED BAR SCRAPER BLACK303-097H851.
2584 FIX BAR SCRPR OPT42 ORANGE303-097H821.
With rear blade96 25-42 FIXED BAR SCRAPER303-098H1.
96 25-42 FIXED BAR SCRAPER BLACK303-098H851.
2596 FIX BAR SCRPR OPT42 ORANGE303-098H821.
Rev. 2 not compat. w/Rev. 1.(S/N 273900+)TOP HITCH REAR BRACE303-084D2.
TOP HITCH REAR BRACE BLACK303-084D852.
TOP HITCH REAR BRACE ORANGE303-084D822.
Rev. 1(S/N 273899-)HITCH BRACE303-034D2.
Rev. 2 not compat. w/Rev. 1.(S/N 273900+)SPACER 1 1/4OD X 25/321D X 2LG308-400D3.
Rev. 1(S/N 273899-)TOP HITCH SPACER303-037D3.
Rev. 2 not compat. w/Rev. 1.(S/N 273900+)HHCS 3/4-10X5 GR5802-069C4.
Rev. 1(S/N 273899-)HHCS 3/4-10X4 GR5802-068C4.
WASHER LOCK SPRING 3/4 PLT804-023C5.
NUT HEX 3/4-10 PLT803-027C6.
LOWER HITCH PIN 7/8 X 5 5/8303-017S7.
Rev. 2PIN 7/8 OD X 4 15/32 USABLE805-207C8.
Rev 1; Use up stockRPBY 805-207C303-044D8.
PIN ROLL 1/4X1 3/4805-041C9.
PIN LYNCH 5/16 X 1 3/4805-015C10.
Rev. 2 not compat. w/Rev. 1.(S/N 273900+)BB25 HEAVY RH HITCH PLATE303-086D11.
BB25 HEAVY RH HITCH PLATE BLACK303-086D8511.
BB25 HVY RH HITCH PLATE ORANGE303-086D8211.
Rev. 1(S/N 273899-)RH HITCH PLATE303-032D11.
Rev. 2 not compat. w/Rev. 1.(S/N 273900+)BB25 HEAVY LH HITCH PLATE303-085D12.
BB25 HEAVY LH HITCH PLATE BLACK303-085D8512.
BB25 HVY LH HITCH PLATE ORANGE303-085D8212.
Rev. 1(S/N 273899-)LH HITCH PLATE303-033D12.
HHCS 3/4-10X2 GR5802-064C13.
Rev. 2(S/N 162205+)SCARIFIER SHANK - 18 W/TIP820-152C14.
Rev 1; Use up stock(S/N 162204-)RPBY 820-152C820-044C14.
Rev. 2 not compat. w/Rev. 1.(S/N 173469+)SHANK TIP DIMPLE-ON WIDE FLARE820-153C15.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 7
Page 8
Land Pride Complete Assembly
BB15 & BB25 SERIES
Table of Contents Part Number Index
Fixed Bar Box Scrapers (continued)
Applies to BB2560, BB2566, BB2572, BB2584, BB2596
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 1(S/N 173468-)RPBY 820-153C820-050C15.
Rev. 2PIN BENT SHANK LOCK 5/8 OD805-197C16.
Rev 1; Use up stockRPBY 805-197C303-038D16.
PIN HAIR COTTER .148 WIRE805-032C17.
GRADER BLADE 1/2 X 6 X 59 1/2820-041C18.
GRADER BLADE 1/2 X 6 X 65 1/2820-042C18.
GRADER BLADE 1/2 X 6 X 71 1/2820-043C18.
GRADER BLADE 1/2 X 6 X 83 1/2820-046C18.
GRADER BLADE 1/2 X 6 X 95 1/2820-035C18.
PLOW 5/8-11X1 1/4 GR5802-813C19.
NUT HEX FLANGE LOCK 5/8-11803-263C20.
PIN HITCH 3/4 X 4 3/8805-081C21.
(S/N 363809+) BB25; Includes hair
pin cotter
8 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 9
Complete Assembly Land Pride
Table of Contents Part Number Index
BB15 & BB25 SERIES
Fixed Bar Box Scrapers (continued)
Applies to BB2560, BB2566, BB2572, BB2584, BB2596
This Page Intentionally Left Blank
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 9
Page 10
Land Pride Complete Assembly
BB15 & BB25 SERIES
Table of Contents Part Number Index
Fixed Bar Scraper
Applies to BB1542, BB1548, BB1554, BB1560, BB1566, BB1572

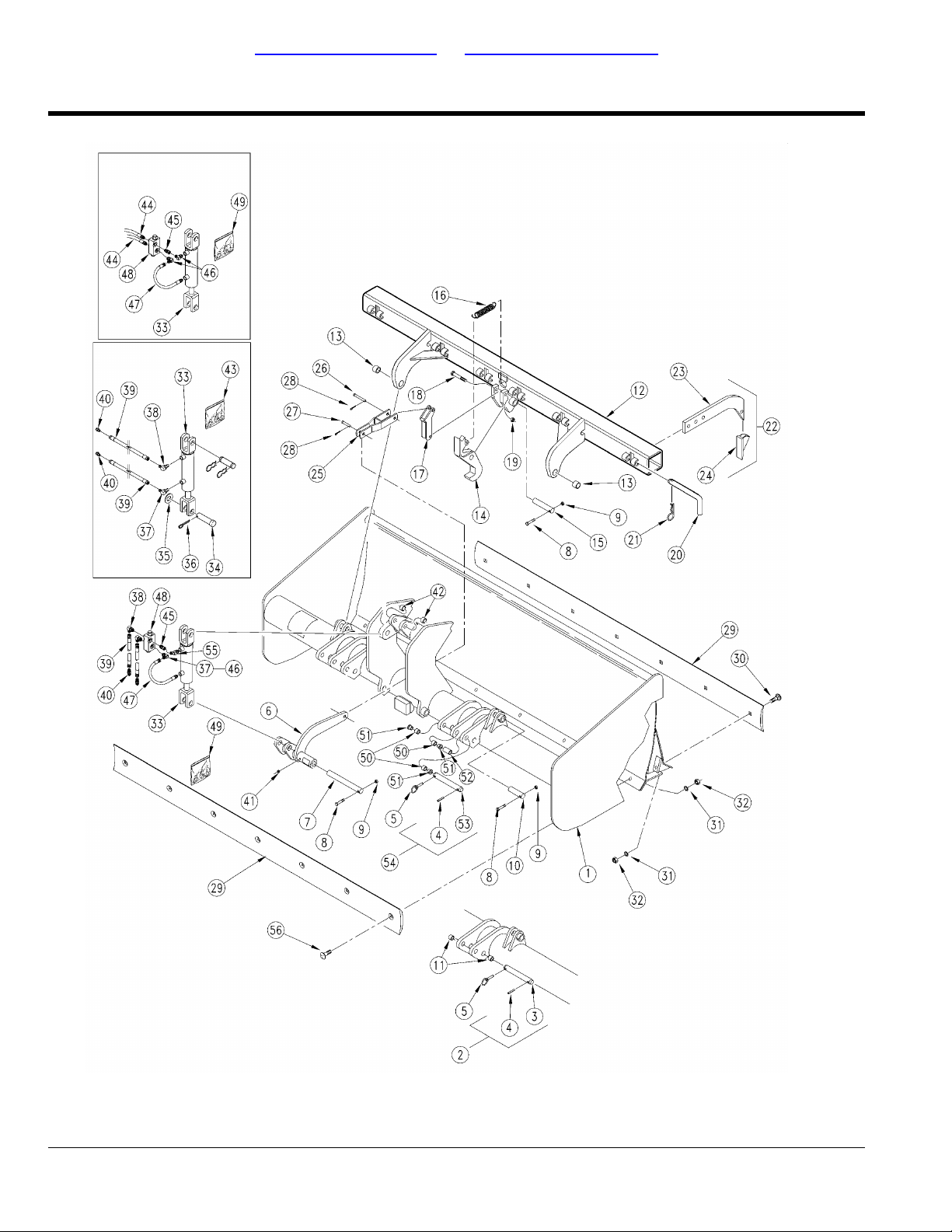

22411
10 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 11
Complete Assembly Land Pride
Table of Contents Part Number Index
BB15 & BB25 SERIES
Fixed Bar Scraper
Applies to BB1542, BB1548, BB1554, BB1560, BB1566, BB1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22411
Rev. 2(S/N 459055 +)1542 FIXED BAR SCRAPER OPT. 41303-122H1.
1542 FIXED BAR SCRAPER OPT. 41 GREEN303-122H811.
1542FIXED BARSCRAPER OPT.41ORANGE303-122H821.
1542 FIXED BAR SCRAPER OPT. 41 RED303-122H831.
1542 FIXED BAR SCRAPER OPT. 41 BLUE303-122H941.
1542 FIXED BAR SCRAPER OPT. 41 BLACK303-122H851.
Rev. 1With rear gate option(S/N 459054 -)1542 FIXED BAR SCRAPER OPT. 41303-053H1.
Rev. 2(S/N 459055 +)1548 FIXED BAR SCRAPER OPT. 41303-123H1.
1548 FIXED BAR SCRAPER OPT. 41 GREEN303-123H811.
1548FIXED BARSCRAPER OPT.41ORANGE303-123H821.
1548 FIXED BAR SCRAPER OPT. 41 RED303-123H831.
1548 FIXED BAR SCRAPER OPT. 41 BLUE303-123H841.
1548 FIXED BAR SCRAPER OPT. 41 BLACK303-123H851.
Rev. 1With rear gate option(S/N 459054 -)1548 FIXED BAR SCRAPER OPT. 41303-001H1.
Rev. 2(S/N 459055 +)1554 FIXED BAR SCRAPER OPT. 41303-124H1.
1554 FIXED BAR SCRAPER OPT. 41 GREEN303-124H811.
1554FIXED BARSCRAPER OPT.41ORANGE303-124H821.
1554 FIXED BAR SCRAPER OPT. 41 RED303-124H831.
1554 FIXED BAR SCRAPER OPT. 41 BLUE303-124H841.
1554 FIXED BAR SCRAPER OPT. 41 BLACK303-124H851.
Rev. 1With rear gate option(S/N 459054 -)1554 FIXED BAR SCRAPER OPT. 41303-072H1.
Rev. 2(S/N 459055 +)1560 FIXED BAR SCRAPER OPT. 41303-125H1.
1560 FIXED BAR SCRAPER OPT. 41 GREEN303-125H811.
1560FIXED BARSCRAPER OPT.41ORANGE303-125H821.
1560 FIXED BAR SCRAPER OPT. 41 RED303-125H831.
1560 FIXED BAR SCRAPER OPT. 41 BLUE303-125H841.
1560 FIXED BAR SCRAPER OPT. 41 BLACK303-125H851.
Rev. 1With rear gate option(S/N 459054 -)1560 FIXED BAR SCRAPER OPT. 41303-003H1.
Rev. 2(S/N 459055 +)1572 FIXED BAR SCRAPER OPT. 41303-126H1.
1572 FIXED BAR SCRAPER OPT. 41 GREEN303-126H811.
1572FIXED BARSCRAPER OPT.41ORANGE303-126H821.
1572 FIXED BAR SCRAPER OPT. 41 RED303-126H831.
1572 FIXED BAR SCRAPER OPT. 41 BLUE303-126H841.
1572 FIXED BAR SCRAPER OPT. 41 BLACK303-126H851.
Rev. 1With rear gate option(S/N 459054 -)1572 FIXED BAR SCRAPER OPT. 41303-054H1.
Rev. 2(S/N 459055 +)1542 FIXED BAR SCRAPER OPT. 42303-127H1.
1542 FIXED BAR SCRAPER OPT. 42 GREEN303-127H811.
1542FIXED BARSCRAPER OPT.42ORANGE303-127H821.
1542 FIXED BAR SCRAPER OPT. 42 RED303-127H831.
1542 FIXED BAR SCRAPER OPT. 42 BLUE303-127H841.
1542 FIXED BAR SCRAPER OPT. 42303-127H851.
Rev. 1With rear gate option(S/N 459054 -)1542 FIXED BAR SCRAPER OPT. 42303-089H1.
Rev. 2(S/N 459055 +)1548 FIXED BAR SCRAPER OPT. 42303-128H1.
1548 FIXED BAR SCRAPER OPT. 42 GREEN303-128H811.
1548FIXED BARSCRAPER OPT.42ORANGE303-128H821.
1548 FIXED BAR SCRAPER OPT. 42 RED303-128H831.
1548 FIXED BAR SCRAPER OPT. 42 BLUE303-128H841.
1548 FIXED BAR SCRAPER OPT. 42 BLACK303-128H851.
Rev. 1With rear gate option(S/N 459054 -)1548 FIXED BAR SCRAPER OPT. 42303-090H1.
Rev. 2(S/N 459055 +)1554 FIXED BAR SCRAPER OPT. 42303-129H1.
1554 FIXED BAR SCRAPER OPT. 42 GREEN303-129H811.
1554FIXED BARSCRAPER OPT.42ORANGE303-129H821.
1554 FIXED BAR SCRAPER OPT. 42 RED303-129H831.
1554 FIXED BAR SCRAPER OPT. 42 BLUE303-129H841.
1554 FIXED BAR SCRAPER OPT. 42 BLACK303-129H851.
Rev. 1With rear gate option(S/N 459054 -)1554 FIXED BAR SCRAPER OPT. 42303-091H1.
Rev. 2(S/N 459055 +)1560 FIXED BAR SCRAPER OPT. 42303-130H1.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 11
Page 12
Land Pride Complete Assembly
Table of Contents Part Number Index
BB15 & BB25 SERIES
Fixed Bar Scraper (continued)
Applies to BB1542, BB1548, BB1554, BB1560, BB1566, BB1572
RevisionCommentsPart DescriptionPart No.Ref.
1560 FIXED BAR SCRAPER OPT. 42 GREEN303-130H811.
1560FIXED BARSCRAPER OPT.42ORANGE303-130H821.
1560 FIXED BAR SCRAPER OPT. 42 RED303-130H831.
1560 FIXED BAR SCRAPER OPT. 42 BLUE303-130H841.
1560 FIXED BAR SCRAPER OPT. 42 BLACK303-130H851.
Rev. 1With rear gate option(S/N 459054 -)1560 FIXED BAR SCRAPER OPT. 42303-092H1.
1566 FIXED BAR SCRAPER WLDMNT303-250H1.
1566FIXED BARSCRAPER WLDMNTGREEN303-250H811.
303-250H821.
1566 FIXED BAR SCRAPER WLDMNT
ORANGE
1566 FIXED BAR SCRAPER WLDMNT RED303-250H831.
1566 FIXED BAR SCRAPER WLDMNT BLUE303-250H841.
1566 FIXED BAR SCRAPER WLDMNT BLACK303-250H851.
Rev. 2(S/N 459055 +)1572 FIXED BAR SCRAPER OPT. 42303-131H1.
1572 FIXED BAR SCRAPER OPT. 42 GREEN303-131H811.
1572FIXED BARSCRAPER OPT.42ORANGE303-131H821.
1572 FIXED BAR SCRAPER OPT. 42 RED303-131H831.
1572 FIXED BAR SCRAPER OPT. 42 BLUE303-131H841.
1572 FIXED BAR SCRAPER OPT. 42 BLACK303-131H851.
Rev. 1With rear gate option(S/N 459054 -)1572 FIXED BAR SCRAPER OPT. 42303-093H1.
Rev. 3 not compat. w/Rev. 2.(S/N 459055 +)HITCH TOP REAR BRACE303-121D2.
HITCH TOP REAR BRACE GREEN303-121D812.
HITCH TOP REAR BRACE ORANGE303-121D822.
HITCH TOP REAR BRACE RED303-121D832.
HITCH TOP REAR BRACE BLUE303-121D842.
HITCH TOP REAR BRACE BLACK303-121D852.
Rev. 2 not compat. w/Rev. 1.(S/N 271260+) (S/N 459054)TOP HITCH REAR BRACE303-084D2.
Rev. 1(S/N 271259-)HITCH BRACE303-034D2.
Rev. 2 not compat. w/Rev. 1.(S/N 271260+)SPACER 1 1/4OD X 25/32ID X 2LG308-400D3.
Rev. 1(S/N 271259-)TOP HITCH SPACER303-037D3.
Rev. 2 not compat. w/Rev. 1.(S/N 271260+)HHCS 3/4-10X5 GR5802-069C4.
Rev. 1(S/N 271259-)HHCS 3/4-10X4 GR5802-068C4.
WASHER LOCK SPRING 3/4 PLT804-023C5.
NUT HEX 3/4-10 PLT803-027C6.
PIN DRAW 7/8 X 5805-111C7.
LOWER HITCH PIN310-020S8.
Rev. 2PIN LOWER HITCH 7/8X3 1/16USBL805-198C9.
Rev 1; Use up stockRPBY 805-198C310-074D9.
PIN ROLL 1/4X1 3/4805-041C10.
PIN LYNCH 5/16 X 1 3/4805-015C11.
(S/N 271259-)48 HITCH STRAP303-036D12.
HHCS 3/4-10X2 GR5802-064C13.
Rev. 2(S/N 162205+)SCARIFIER SHANK - 18 W/TIP820-152C14.
Rev 1; Use up stock(S/N 162204-)RPBY 820-152C820-044C14.
Rev. 2(S/N 173469+)SHANK TIP DIMPLE-ON WIDE FLARE820-153C15.
Rev. 1(S/N 173468-)RPBY 820-153C820-050C15.
Rev. 2PIN BENT SHANK LOCK 5/8 OD805-197C16.
Rev 1; Use up stockRPBY 805-197C303-038D16.
PIN HAIR COTTER .148 WIRE805-032C17.
GRADER BLADE 1/2 X 6 X 41 1/2820-069C18.
GRADER BLADE 1/2 X 6 X 47 1/2820-039C18.
GRADER BLADE 1/2 X 6 X 53 1/2820-040C18.
GRADER BLADE 1/2 X 6 X 59 1/2820-041C18.
GRADER BLADE 1/2 X 6 X 65 1/2820-042C18.
GRADER BLADE 1/2 X 6 X 71 1/2820-043C18.
PLOW 5/8-11X1 1/4 GR5802-813C19.
NUT HEX FLANGE LOCK 5/8-11 PLT803-236C20.
(S/N 271260) to (S/N 459054)DISC UPPER 3PT STRAP SHORT322-010D21.
12 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 13
Complete Assembly Land Pride
Table of Contents Part Number Index
BB15 & BB25 SERIES
Fixed Bar Scraper (continued)
Applies to BB1542, BB1548, BB1554, BB1560, BB1566, BB1572
RevisionCommentsPart DescriptionPart No.Ref.
(S/N 459055 +)HITCH TOP RH STRAP303-122D22.
HITCH TOP RH STRAP GREEN303-122D8122.
HITCH TOP RH STRAP ORANGE303-122D8222.
HITCH TOP RH STRAP RED303-122D8322.
HITCH TOP RH STRAP BLUE303-122D8422.
HITCH TOP RH STRAP BLACK303-122D8522.
(S/N 459055 +)HITCH TOP LH STRAP303-123D23.
HITCH TOP LH STRAP GREEN303-123D8123.
HITCH TOP LH STRAP ORANGE303-123D8223.
HITCH TOP LH STRAP RED303-123D8323.
HITCH TOP LH STRAP BLUE303-123D8423.
Includes Hair Pin CotterHITCH TOP LH STRAP BLACK303-123D8523.
PIN HITCH 3/4 X 4 3/8805-081C24.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 13
Page 14
Land Pride Complete Assembly
BB15 & BB25 SERIES
Table of Contents Part Number Index
Label Placement
Applies to BB1542, BB1548, BB1554, BB1560, BB1566, BB1572, BB2560, BB2566, BB2572, BB2584, BB2596
17566
14 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 15
Complete Assembly Land Pride
Table of Contents Part Number Index
BB15 & BB25 SERIES
Label Placement
Applies to BB1542, BB1548, BB1554, BB1560, BB1566, BB1572, BB2560, BB2566, BB2572, BB2584, BB2596
RevisionCommentsPart DescriptionPart No.Ref.

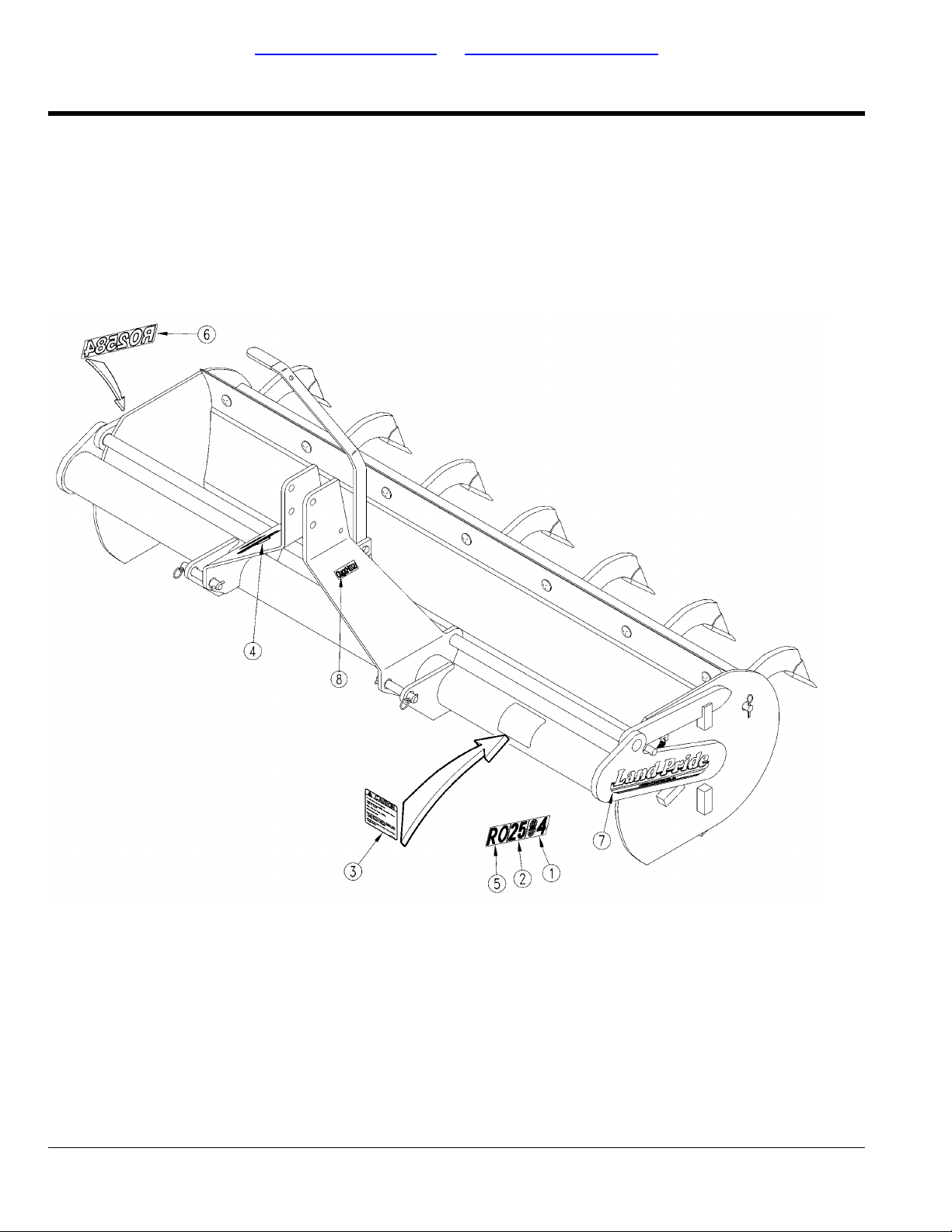

Drawing Image Numberdwg17566
BB1542 DECAL PACKAGE303-078A
BB1548 DECALS303-032A
BB1554 DECALS303-074A
BB1560 DECALS303-037A
BB1572 DECAL PACKAGE303-079A
BB2560 DECALS303-077A
BB2566 DECALS303-047A
BB2572 DECALS303-052A
BB2584 DECAL PACKAGE303-080A
BB2596 DECAL PACKAGE303-081A
(S/N 252285-)DECAL 42 LP - BLACK818-168C1.
(S/N 252285-)DECAL 48 LP - BLACK818-087C2.
(S/N 252285-)DECAL 54 LP - BLACK818-088C3.
(S/N 252285-)DECAL 60 LP - BLACK818-090C4.
(S/N 252285-)DECAL 66 LP - BLACK818-091C5.
(S/N 252285-)DECAL 72 LP - BLACK818-092C6.
(S/N 252285-)DECAL 84 LP - BLACK818-094C7.
(S/N 252285-)DECAL 96 LP - BLACK818-099C8.
(S/N 252285-)DECAL 15 SERIES LP - BLACK818-084C9.
(S/N 252285-)DECAL 25 SERIES LP - BLACK818-085C10.
(S/N 252285-)LP LOGO LARGE GREEN818-162C11.
DECAL CAUTION - BOX SCRAPER818-267C12.
(S/N 252285-)DECAL BB LAND PRIDE BLACK818-725C13.
(S/N 252286+) Beige UnitDECAL BB1548-BROWN838-006C14.
Green, Orange, Red & Blue UnitDECAL BB1548-GOLD838-927C14.
Black UnitDECAL BB1548-BEIGE838-861C14.
(S/N 252286+) Beige UnitDECAL BB1554-BROWN838-007C14.
Green, Orange, Red & Blue UnitDECAL BB1554-GOLD838-928C14.
Black UnitDECAL BB1554-BEIGE838-852C14.
(S/N 252286+) Beige UnitDECAL BB1560-BROWN838-008C14.
Green, Orange, Red & Blue UnitDECAL BB1560-GOLD838-929C14.
Black UnitDECAL BB1560-BEIGE838-853C14.
Beige UnitDECAL, BB1566 BROWN848-287C14.
Green, Orange, Red & Blue UnitDECAL, BB1566 GOLD848-288C14.
Black UnitDECAL, BB1566 BEIGE848-289C14.
(S/N 252286+) Beige UnitDECAL BB1572-BROWN838-009C14.
Green, Orange, Red & Blue UnitDECAL BB1572-GOLD838-930C14.
Black UnitDECAL BB1572-BEIGE838-854C14.
(S/N 252286+) Beige UnitDECAL BB2560-BROWN838-010C14.
Black UnitDECAL BB2560-BEIGE838-855C14.
Orange UnitDECAL BB2560-GOLD848-178C14.
(S/N 252286+) Beige UnitDECAL BB2566-BROWN838-011C14.
Black UnitDECAL BB2566-BEIGE838-856C14.
Orange UnitDECAL BB2566-GOLD848-179C14.
(S/N 252286+) Beige UnitDECAL BB2572-BROWN838-012C14.
Black UnitDECAL BB2572-BEIGE838-857C14.
Orange UnitDECAL BB2572-GOLD848-180C14.
(S/N 252286+) Beige UnitDECAL BB2584-BROWN838-013C14.
Black UnitDECAL BB2584-BEIGE838-858C14.
Orange UnitDECAL BB2584-GOLD848-181C14.
(S/N 252286+) Beige UnitDECAL BB2596-BROWN838-014C14.
Black UnitDECAL BB2596-BEIGE838-859C14.
Orange UnitDECAL BB2596-GOLD848-182C14.
(S/N 252286+) Beige UnitDECAL LANDPRIDE 16" - BROWN818-901C15.
DECAL LANDPRIDE 16" BROWN/GOLD838-965C15.
Green, Orange, Red, Blue & Black
Unit
Rev. 2 not compat. w/Rev. 1.(S/N 252286+) Beige UnitDECAL LP W/TREE 16" - 2 COLOR818-893C16.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 15
Page 16
Land Pride Complete Assembly
BB15 & BB25 SERIES
Table of Contents Part Number Index
Label Placement (continued)
Applies to BB1542, BB1548, BB1554, BB1560, BB1566, BB1572, BB2560, BB2566, BB2572, BB2584, BB2596
RevisionCommentsPart DescriptionPart No.Ref.
DECAL LP 16" W/TREE BROWN/GOLD838-964C16.
DECAL QUICK HITCH SYSTEM838-517C17.
Green, Orange, Red, Blue & Black
Unit
Rev. 1(S/N 252285-)LP LOGO LARGE GREEN818-162C16.
16 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 17
Complete Assembly Land Pride
Table of Contents Part Number Index
BB15 & BB25 SERIES
Label Placement (continued)
Applies to BB1542, BB1548, BB1554, BB1560, BB1566, BB1572, BB2560, BB2566, BB2572, BB2584, BB2596
This Page Intentionally Left Blank
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 17
Page 18
Land Pride Complete Assembly
BB15 & BB25 SERIES
Table of Contents Part Number Index

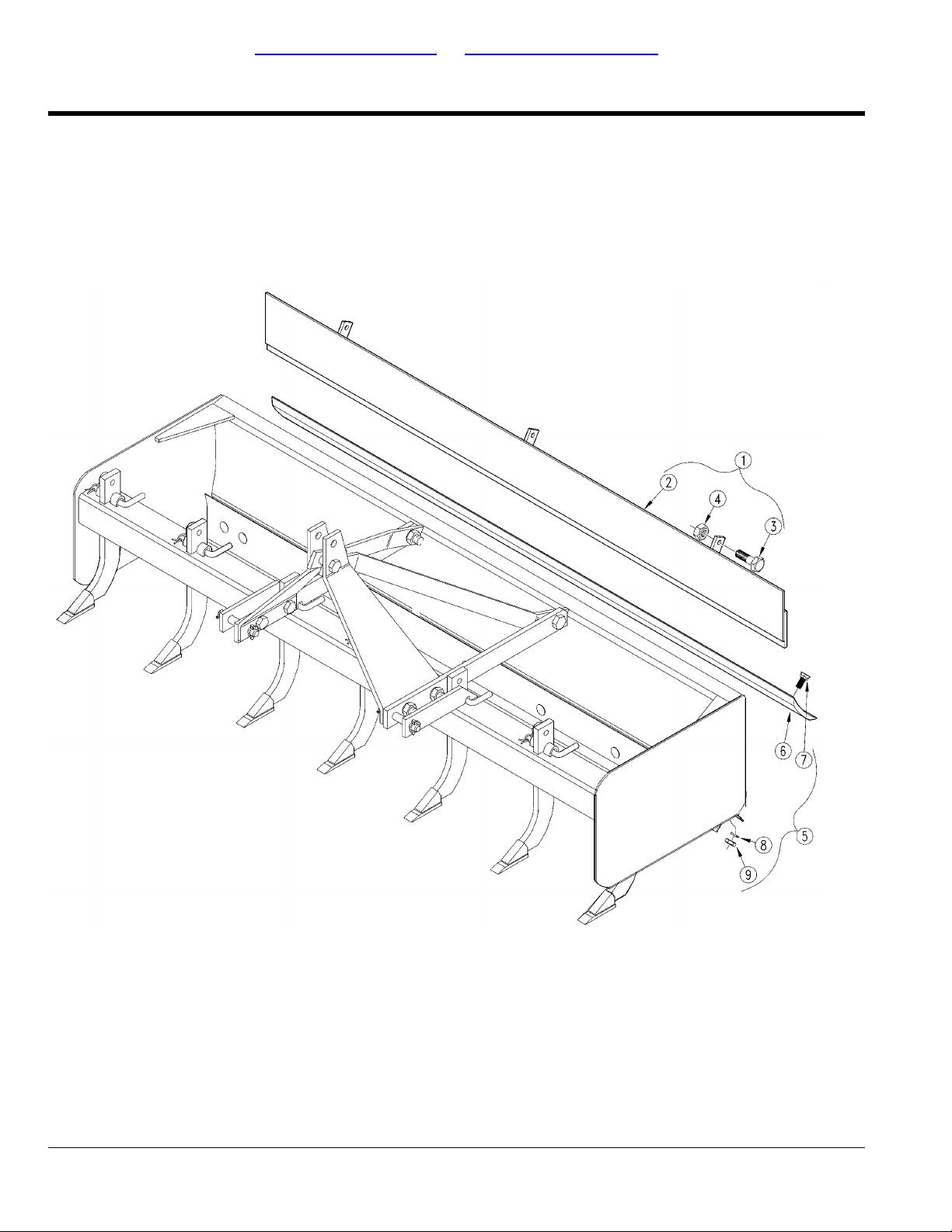

Rear Hinge And Rear Grader Blade
Applies to BB1542, BB1548, BB1554, BB1560, BB1572, BB2560, BB2566, BB2572, BB2584, BB2596
14241
18 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 19
Complete Assembly Land Pride
Table of Contents Part Number Index
BB15 & BB25 SERIES
Rear Hinge And Rear Grader Blade
Applies to BB1542, BB1548, BB1554, BB1560, BB1572, BB2560, BB2566, BB2572, BB2584, BB2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg14241
42 HINGED REAR GATE ASSY303-058A1.
42 HINGED REAR GATE ASSY GREEN303-058A811.
42 HINGED REAR GATE ASSY ORANGE303-058A821.
42 HINGED REAR GATE ASSY RED303-058A831.
42 HINGED REAR GATE ASSY BLUE303-058A841.
42 HINGED REAR GATE ASSY BLACK303-058A851.
48 HINGED REAR GATE ASSEMBLY303-018A1.
48 HINGED REAR GATE ASSEMBLY GREEN303-018A811.
48HINGED REAR GATEASSEMBLYORANGE303-018A821.
48 HINGED REAR GATE ASSEMBLY RED303-018A831.
48 HINGED REAR GATE ASSEMBLY BLUE303-018A841.
48 HINGED REAR GATE ASSEMBLY BLACK303-018A851.
54 HINGED REAR GATE ASSEMBLY303-019A1.
54 HINGED REAR GATE ASSEMBLY GREEN303-019A811.
54HINGED REAR GATEASSEMBLYORANGE303-019A821.
54 HINGED REAR GATE ASSEMBLY RED303-019A831.
54 HINGED REAR GATE ASSEMBLY BLUE303-019A841.
54 HINGED REAR GATE ASSEMBLY BLACK303-019A851.
60 HINGED REAR GATE ASSEMBLY303-020A1.
60 HINGED REAR GATE ASSEMBLY GREEN303-020A811.
60HINGED REAR GATEASSEMBLYORANGE303-020A821.
60 HINGED REAR GATE ASSEMBLY RED303-020A831.
60 HINGED REAR GATE ASSEMBLY BLUE303-020A841.
60 HINGED REAR GATE ASSEMBLY BLACK303-020A851.
66 HINGED REAR GATE ASSEMBLY303-021A1.
66 HINGED REAR GATE ASSEMBLY GREEN303-021A811.
66HINGED REAR GATEASSEMBLYORANGE303-021A821.
66 HINGED REAR GATE ASSEMBLY RED303-021A831.
66 HINGED REAR GATE ASSEMBLY BLUE303-021A841.
66 HINGED REAR GATE ASSEMBLY BLACK303-021A851.
72 HINGED REAR GATE ASSEMBLY303-022A1.
72 HINGED REAR GATE ASSEMBLY GREEN303-022A811.
72HINGED REAR GATEASSEMBLYORANGE303-022A821.
72 HINGED REAR GATE ASSEMBLY RED303-022A831.
72 HINGED REAR GATE ASSEMBLY BLUE303-022A841.
72 HINGED REAR GATE ASSEMBLY BLACK303-022A851.
84 REAR HINGED GATE ASS'Y303-063A1.
84 REAR HINGED GATE ASS'Y GREEN303-063A811.
84 REAR HINGED GATE ASS'Y ORANGE303-063A821.
84 REAR HINGED GATE ASS'Y RED303-063A831.
84 REAR HINGED GATE ASS'Y BLUE303-063A841.
84 REAR HINGED GATE ASS'Y BLACK303-063A851.
96 REAR HINGED GATE ASSY303-068A1.
96 REAR HINGED GATE ASSY303-068A811.
96 REAR HINGED GATE ASSY303-068A821.
96 REAR HINGED GATE ASSY303-068A831.
96 REAR HINGED GATE ASSY303-068A841.
96 REAR HINGED GATE ASSY303-068A851.
42 REAR HINGED GATE303-055H2.
42 REAR HINGED GATE GREEN303-055H812.
42 REAR HINGED GATE ORANGE303-055H822.
42 REAR HINGED GATE RED303-055H832.
42 REAR HINGED GATE BLUE303-055H842.
42 REAR HINGED GATE BLACK303-055H852.
48 REAR HINGED BLADE303-006H2.
48 REAR HINGED BLADE GREEN303-006H812.
48 REAR HINGED BLADE ORANGE303-006H822.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 19
Page 20
Land Pride Complete Assembly
Table of Contents Part Number Index
BB15 & BB25 SERIES
Rear Hinge And Rear Grader Blade (continued)
Applies to BB1542, BB1548, BB1554, BB1560, BB1572, BB2560, BB2566, BB2572, BB2584, BB2596
RevisionCommentsPart DescriptionPart No.Ref.
48 REAR HINGED BLADE RED303-006H832.
48 REAR HINGED BLADE BLUE303-006H842.
48 REAR HINGED BLADE BLACK303-006H852.
54 REAR HINGED BLADE303-007H2.
54 REAR HINGED BLADE GREEN303-007H812.
54 REAR HINGED BLADE ORANGE303-007H822.
54 REAR HINGED BLADE RED303-007H832.
54 REAR HINGED BLADE BLUE303-007H842.
54 REAR HINGED BLADE BLACK303-007H852.
60 REAR HINGED BLADE303-008H2.
60 REAR HINGED BLADE GREEN303-008H812.
60 REAR HINGED BLADE ORANGE303-008H822.
60 REAR HINGED BLADE BLUE303-008H842.
60 REAR HINGED BLADE RED303-008H832.
60 REAR HINGED BLADE BLACK303-008H852.
66 REAR HINGED BLADE303-009H2.
66 REAR HINGED BLADE GREEN303-009H812.
66 REAR HINGED BLADE ORANGE303-009H822.
66 REAR HINGED BLADE RED303-009H832.
66 REAR HINGED BLADE BLUE303-009H842.
66 REAR HINGED BLADE BLACK303-009H852.
72 REAR HINGED BLADE303-010H2.
72 REAR HINGED BLADE GREEN303-010H812.
72 REAR HINGED BLADE ORANGE303-010H822.
72 REAR HINGED BLADE RED303-010H832.
72 REAR HINGED BLADE BLUE303-010H842.
72 REAR HINGED BLADE BLACK303-010H852.
84 REAR HINGED GATE303-061H2.
84 REAR HINGED GATE GREEN303-061H812.
84 REAR HINGED GATE ORANGE303-061H822.
84 REAR HINGED GATE RED303-061H832.
84 REAR HINGED GATE BLUE303-061H842.
84 REAR HINGED GATE BLACK303-061H852.
96 HINGED REAR GATE WELD.303-066H2.
96 HINGED REAR GATE WELD. GREEN303-066H812.
96 HINGED REAR GATE WELD. ORANGE303-066H822.
96 HINGED REAR GATE WELD. RED303-066H832.
96 HINGED REAR GATE WELD. BLUE303-066H842.
96 HINGED REAR GATE WELD. BLACK303-066H852.
HHCS 1/2-13X1 3/4 GR5802-082C3.
NUT LOCK 1/2-13 PLT803-019C4.
42 REAR GRADER BLADE ASSY303-059A5.
48-1/2 X 6 GRADE BLADE ASSY303-023A5.
54-1/2 X 6 GRADER BLADE ASSY303-024A5.
60-1/2 X 6 GRADER BLADE ASSY303-025A5.
66-1/2 X 6 GRADER BLADE ASSY303-026A5.
72-1/2 X 6 GRADER BLADE ASSY303-027A5.
84 REAR GRADER BLADE ASS'Y303-064A5.
96 GRADER BLADE ASSY303-069A5.
GRADER BLADE 1/2 X 6 X 41 1/2820-069C6.
GRADER BLADE 1/2 X 6 X 47 1/2820-039C6.
GRADER BLADE 1/2 X 6 X 53 1/2820-040C6.
GRADER BLADE 1/2 X 6 X 59 1/2820-041C6.
GRADER BLADE 1/2 X 6 X 65 1/2820-042C6.
GRADER BLADE 1/2 X 6 X 71 1/2820-043C6.
GRADER BLADE 1/2 X 6 X 83 1/2820-046C6.
GRADER BLADE 1/2 X 6 X 95 1/2820-035C6.
PLOW 5/8-11X1 1/2 GR5802-236C7.
20 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 21
Complete Assembly Land Pride
Table of Contents Part Number Index
BB15 & BB25 SERIES
Rear Hinge And Rear Grader Blade (continued)
Applies to BB1542, BB1548, BB1554, BB1560, BB1572, BB2560, BB2566, BB2572, BB2584, BB2596
RevisionCommentsPart DescriptionPart No.Ref.
WASHER LOCK SPRING 5/8 PLT804-022C8.
NUT HEX 5/8-11 PLT803-021C9.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 21
Page 22
Land Pride Complete Assembly
HR(L)35 SERIES
Table of Contents Part Number Index
Hydraulic Cylinder Double Acting (810-125C) Red Lion
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
13565
22 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 23
Complete Assembly Land Pride
Table of Contents Part Number Index
HR(L)35 SERIES
Hydraulic Cylinder Double Acting (810-125C) Red Lion
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
RevisionCommentsPart DescriptionPart No.Ref.

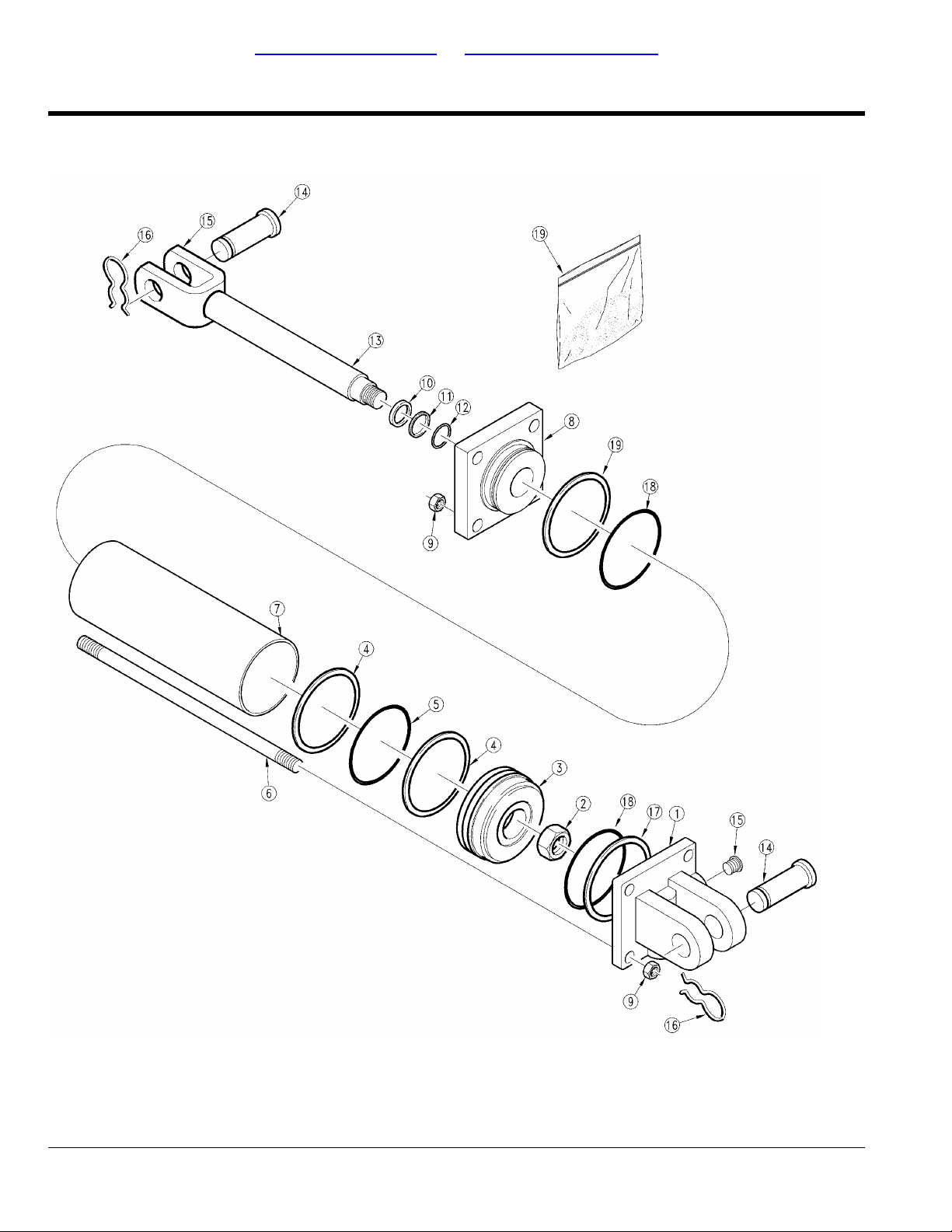

Drawing Image Numberdwg13565
CYL 2X4X1.12 ROD DBL ACTING810-125C
LION CLEVIS CAP 2.0, 9/16 ORB4926681.
LION NUT 3/4UNC1290902.
LION PISTON 2.0 DIA CST DI4925483.
Only found in seal kit 19SEAL073-326 BU WASHER4.
Only found in seal kit 19O-RING326*DWG* 1 5/8" X 2" D905.
LION TIE ROD 3/8 X 44927426.
LION CYL. TUBE 2 X 44916047.
LION ROD CAP 2.0X1.125 9/16ORB4926678.
NUT HEX 3/8-16 PLT803-014C9.
Only found in seal kit 19SEALC/R 11130 OIL10.
Only found in seal kit 19SEAL074-216 BU WASHER11.
Only found in seal kit 19O-RING326*DWG* 1 58 X 2" D9012.
LION ROD WLDMT 1 1/8X4 STROKE43720813.
LION PIN13495314.
LION PLUG 9/16-18UNF SOCKET HD18656115.
LION PIN CLIP-CLEVIS13495216.
Only found in seal kit 19SEAL073-133 BU WASHER17.
Only found in seal kit 19O-RING133 1 13/16" X 2" BUNA-N D9018.
Rev. 2SEAL KIT LN 639572 2.0BX1.125R810-252C19.
Rev 1; Use up stockRPBY 810-252C63957219.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 23
Page 24
Land Pride Complete Assembly
HR(L)35 SERIES
Table of Contents Part Number Index
Hydraulic Cylinder Double Acting EGY (810-125C)
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
10639
24 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 25
Complete Assembly Land Pride
Table of Contents Part Number Index
HR(L)35 SERIES
Hydraulic Cylinder Double Acting EGY (810-125C)
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
RevisionCommentsPart DescriptionPart No.Ref.

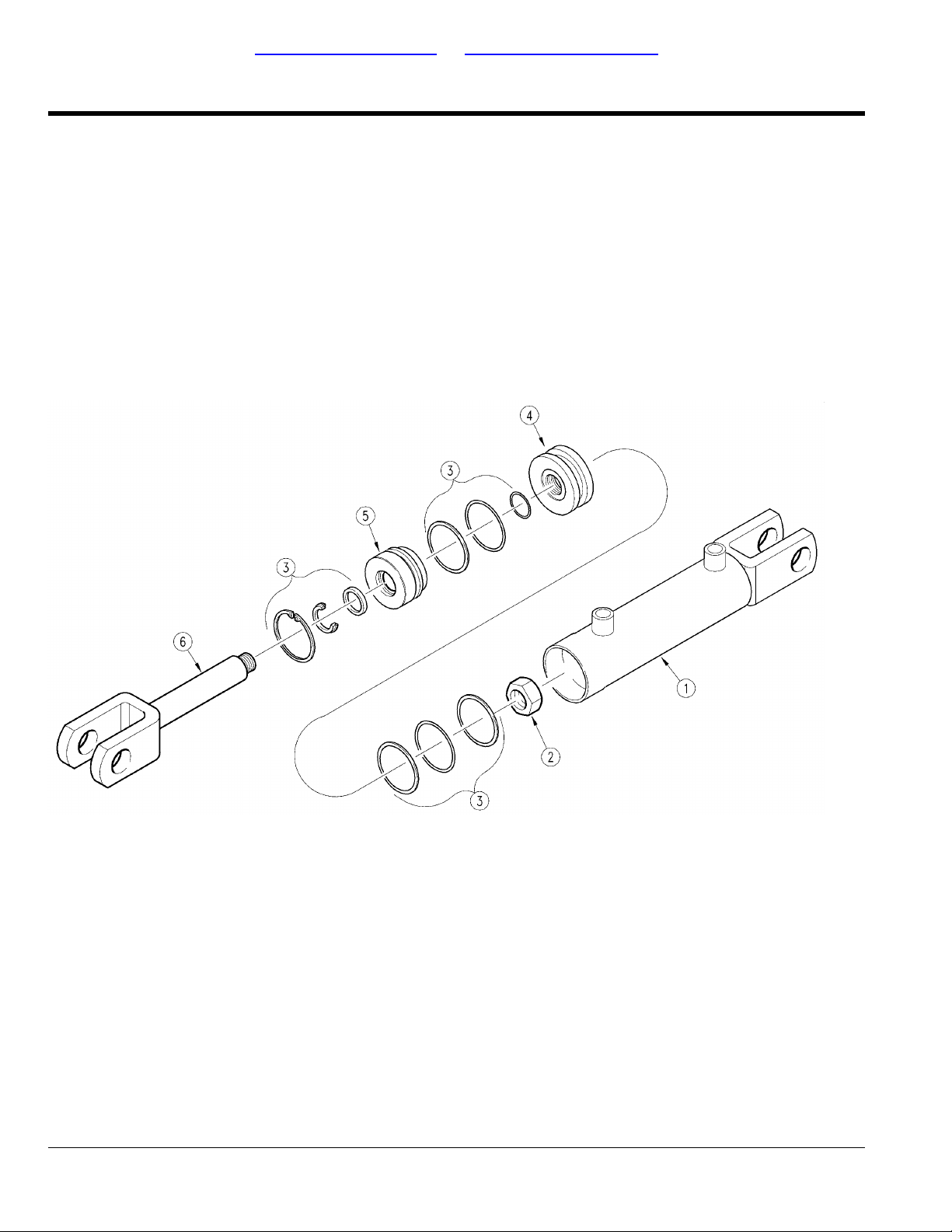

Drawing Image Numberdwg10639
CYL 2X4X1.12 ROD DBL ACTING810-125C
EGY CYL BODY 2 ID W/C12171B1.
EGY NUT HEX JAM 7/8-14 UNF000802812.
SEAL KIT 810-125C ENRGY 11888X810-132C3.
EGY PISTON 2 DIA0A0018454.
EGY GUIDE 2 OD X 1 1/8 ID11056B5.
EGY ROD 1.125 DIA W/C0B007307-04.126.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 25
Page 26
Land Pride Complete Assembly
HR(L)35 SERIES
Table of Contents Part Number Index
Hydraulic Retractable Box Scraper
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
10617
26 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 27
Complete Assembly Land Pride
Table of Contents Part Number Index
HR(L)35 SERIES
Hydraulic Retractable Box Scraper
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
RevisionCommentsPart DescriptionPart No.Ref.

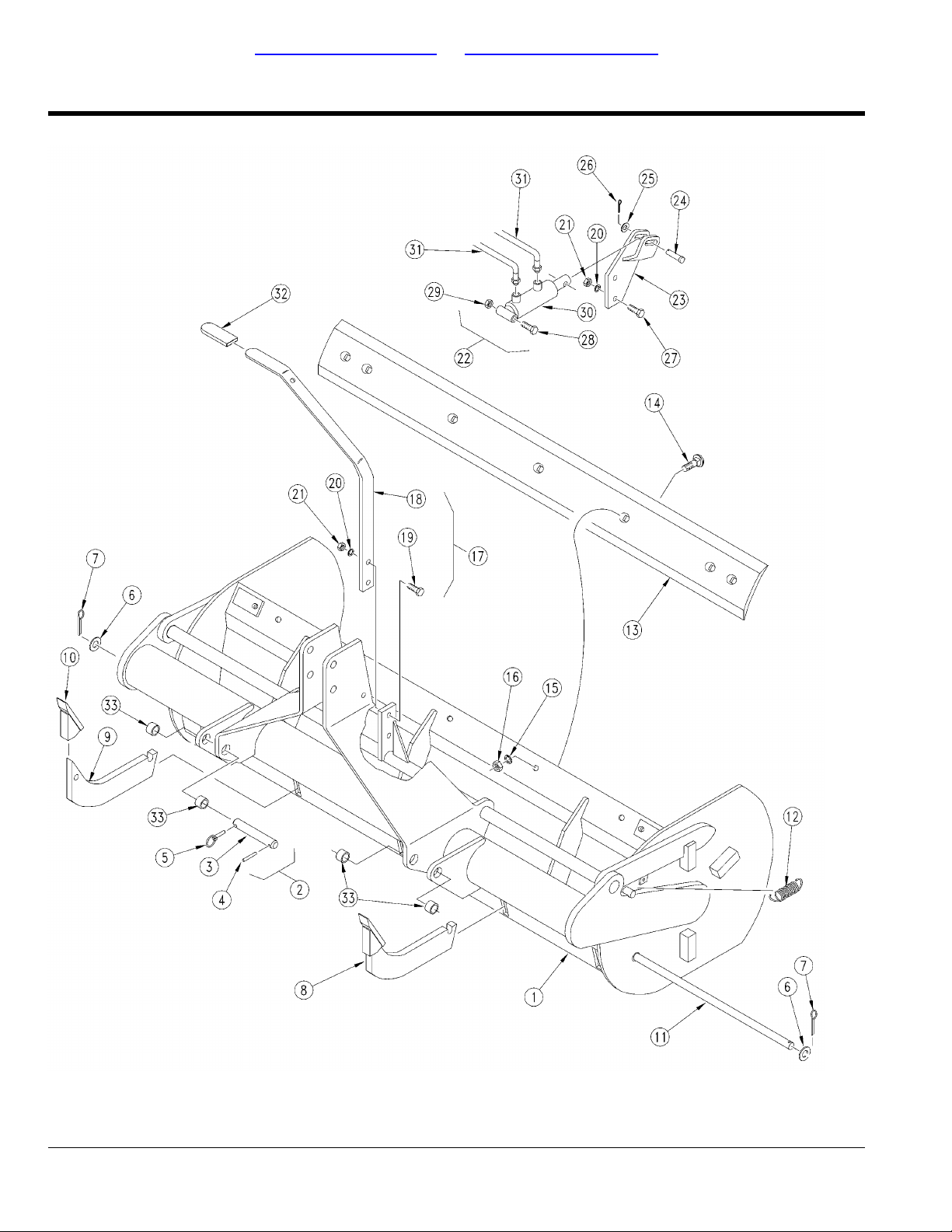

Drawing Image Numberdwg10617
66 HYDRAULIC RETRACTABLE305-015H1.
66 HYDRAULIC RETRACTABLEBLACK305-015H851.
72 HYD RETRACTABLE - LOWBACK305-044H1.
72 HYD RETRACTABLE - LOWBACK BLACK305-044H851.
72 HYD RETRCT - LOWBACK ORANGE305-044H821.
72 HYDRAULIC RETRACTABLE305-016H1.
72 HYDRAULIC RETRACTABLEBLACK305-016H851.
72 HYD RETRCT ORANGE305-016H821.
78 HYD RETRACTABLE - LOWBACK305-045H1.
78 HYD RETRACTABLE - LOWBACK BLACK305-045H851.
78 HYD RETRCT - LOWBACK ORANGE305-045H821.
78 HYDRAULIC RETRACTABLE305-017H1.
78 HYDRAULIC RETRACTABLEBLACK305-017H851.
84 HYDRAULIC RETRACTABLE305-018H1.
84 HYDRAULIC RETRACTABLEBLACK305-018H851.
84 HYD RETRCT ORANGE305-018H821.
(S/N 252642-)LOWER HITCH PIN 7/8 X 5 5/8303-017S2.
Rev. 2(S/N 252642-)PIN 7/8 OD X 4 15/32 USABLE805-207C3.
Rev 1; Use up stockRPBY 805-207C303-044D3.
PIN ROLL 1/4X1 3/4805-041C4.
PIN LYNCH 5/16 X 1 3/4805-015C5.
CYLINDER PIVOT TUBE305-012H6.
CYLINDER PIVOT TUBE BLACK305-012H856.
CYLINDER PIVOT TUBE ORANGE305-012H826.
CYLINDER TUBE SHAFT305-054D7.
HHCS 1/4-20X2 GR5802-152C8.
NUT LOCK 1/4-20 PLT803-007C9.
TOOL BAR UPPER PIVOT PIN305-056D10.
(S/N 252642-)BUSHING 1 1/8 X 7/8 X 5/8890-144C11.
66 SHANK TUBE305-005H12.
66 SHANK TUBE BLACK305-005H8512.
72 SHANK TUBE305-006H12.
72 SHANK TUBE BLACK305-006H8512.
72 SHANK TUBE ORANGE305-006H8212.
78 SHANK TUBE305-007H12.
78 SHANK TUBE BLACK305-007H8512.
78 SHANK TUBE ORANGE305-007H8212.
84 SHANK TUBE305-008H12.
84 SHANK TUBE BLACK305-008H8512.
84 SHANK TUBE ORANGE305-008H8212.
BUSHING HARDENED 1 1/4-1-3/4 L890-143C13.
SHANK TUBE LOCK305-057D14.
SHANK TUBE LOCK BLACK305-057D8514.
SHANK TUBE LOCK ORANGE305-057D8214.
TOOL BAR MAIN PIVOT PIN305-055D15.
SPRING EXT LOCK ARM807-043C16.
LIFT LINK305-013H17.
LIFT LINK BLACK305-013H8517.
LIFT LINK ORANGE305-013H8217.
HHCS 1/2-13X3 3/4 GR5802-042C18.
NUT LOCK 1/2-13 PLT803-019C19.
Rev. 2PIN BENT SHANK LOCK 5/8 OD805-197C20.
Rev 1; Use up stockRPBY 805-197C303-038D20.
PIN HAIR COTTER .148 WIRE805-032C21.
Rev. 3(S/N 173469+)SCARIFIER SHANK - 16 W/TIP820-151C22.
Rev 2; Use up stock(S/N 173468-)RPBY 820-151C820-048C22.
Rev. 1RPBY 820-048C820-053C23.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 27
Page 28
Land Pride Complete Assembly
Table of Contents Part Number Index
HR(L)35 SERIES
Hydraulic Retractable Box Scraper (continued)
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 2 not compat. w/Rev. 1.(S/N 173469+)SHANK TIP DIMPLE-ON WIDE FLARE820-153C24.
Rev. 1(S/N 173468-)RPBY 820-153C820-050C24.
CONNECT LINK305-014H25.
CONNECT LINK BLACK305-014H8525.
CONNECT LINK ORANGE305-014H8225.
PIN CLEVIS 1/2 X 1 3/4805-127C26.
PIN CLEVIS 1/2 X 2 3/4805-128C27.
PIN COTTER 5/32 X 1 1/4 LG805-045C28.
GRADER BLADE 1/2 X 6 X 65 1/2820-042C29.
GRADER BLADE 1/2 X 6 X 71 1/2820-043C29.
GRADER BLADE 1/2 X 6 X 77 1/2820-045C29.
GRADER BLADE 1/2 X 6 X 83 1/2820-046C29.
PLOW 5/8-11X1 3/4 GR5802-206C30.
S/N 499203*-WASHER LOCK SPRING 5/8 PLT804-022C31.
S/N 499204+NUT HEX FLANGE LOCK 5/8-11803-263C32.
S/N 499203-NUT HEX 5/8-11 PLT803-021C32.
Rev. 2 not compat. w/Rev. 1.(S/N 53001+)CYL 2X4X1.12 ROD DBL ACTING810-125C33.
Rev. 1(S/N 53000-)CYL 3X4X1.12 ROD810-101C33.
PIN CLEVIS 1 X 3 11/16 PLT805-079C34.
WASHER FLAT 1 SAE804-029C35.
PIN COTTER 3/16 X 1 3/4 PLT805-017C36.
OREL 1/32 9/16MJIC 9/16MORB811-062C37.
GREASE ZERK STRAIGHT 1/4-28800-001C41.
EL 9/16MJIC 9/16MORB811-065C46.
VALVE CYLINDER CUSHION810-102C48.
PLOW 5/8-11X2802-288C56.
(S/N 53001<->234196) (S/N
393471+)
(S/N 53001<->234196)EL 9/16MJIC 9/16MORB811-065C38.
Rev. 2 not compat. w/Rev. 1.(S/N 53001+)HH1/4R2 045 9/16FJIC811-056C39.
Rev. 1(S/N 53000-)HH1/4R1 042 1/2MNPT 9/16MORB811-275C39.
(S/N 53001+)AD 9/16MJIC 3/4MORB811-133C40.
Rev. 2 not compat. w/Rev. 1.(S/N 252643+)BUSHING,1 1/32X49/64X5/8 KNURL890-619C42.
Rev. 1(S/N 132928<->252642)BUSHING 1 OD X 3/4 ID X 5/8 LG890-352C42.
(S/N 53001+)SEAL KIT 810-125C ENRGY 11888X810-132C43.
(S/N 234197+)EL 9/16MJIC 9/16MORB811-065C44.
(S/N 234197+) (S/N 53000-)AD 9/16MORB 9/16FJIC811-627C45.
(S/N 53000-) (S/N 234197+) (S/N
393470-)
(S/N 234197+) (S/N 53000-)HH1/4R2 012 9/16MORB 9/16FJIC811-277C47.
(S/N 53000-)SEAL KIT 3 ENERGY A-2525810-112C49.
(S/N 252643+)BUSHING,1 1/2X1 5/32X5/8 KNURL890-617C50.
(S/N 252643+)BUSHING, 1 9/64ODX57/64IDX3/4890-618C51.
(S/N 252643+)BUSHING300-296D52.
(S/N 252643+)PIN 7/8 OD X 8.25 USABLE805-359C53.
(S/N 252643+)LWR HTCH PIN ASY 7/8DX8.25USBL305-071S54.
(S/N 234198+)EL 45 9/16MJIC 9/16MORB811-416C55.
28 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 29
Complete Assembly Land Pride
Table of Contents Part Number Index
HR(L)35 SERIES
Hydraulic Retractable Box Scraper (continued)
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
This Page Intentionally Left Blank
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 29
Page 30
Land Pride Complete Assembly
HR(L)35 SERIES
Table of Contents Part Number Index
Label Placement
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
17567
30 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 31
Complete Assembly Land Pride
Table of Contents Part Number Index
HR(L)35 SERIES
Label Placement
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17567
MR3566 DECAL PACKAGE305-027A
MR3572 DECAL PACKAGE305-032A
MR3578 DECAL PACKAGE305-037A
MR3584 DECAL PACKAGE305-042A
HR3566 DECAL PACKAGE305-049A
HR3572 DECAL PACKAGE305-050A
HR3578 DECAL PACKAGE305-051A
HR3584 DECAL PACKAGE305-052A
HRL3572 DECAL PACKAGE305-057A
HRL3578 DECAL PACKAGE305-058A
MRL3572 DECAL PACKAGE305-059A
MRL3578 DECAL PACKAGE305-060A
DECAL CAUTION - BOX SCRAPER818-267C1.
Rev. 2 not compat. w/Rev. 1.(S/N 252286+) Beige UnitDECAL LANDPRIDE 16" - BROWN818-901C2.
Black Unit & Orange UnitDECAL LANDPRIDE 16" BROWN/GOLD838-965C2.
Rev. 1(S/N 252285-)LP LOGO LARGE GREEN818-162C2.
(S/N 252285-)DECAL 66 LP - BLACK818-091C3.
(S/N 252285-)DECAL 72 LP - BLACK818-092C3.
(S/N 252285-)DECAL 78 LP - BLACK818-093C3.
(S/N 252285-)DECAL 84 LP - BLACK818-094C3.
(S/N 252285-)DECAL 35 SERIES LP - BLACK818-086C4.
DECAL GREASE EVERY 25 HOURS818-138C5.
(S/N 252285-)DECAL HR LAND PRIDE BLACK818-733C6.
(S/N 252285-)DECAL HRL LAND PRIDE BLACK818-734C6.
(S/N 252285-)DECAL MR LAND PRIDE BLACK818-736C6.
(S/N 252285-)DECAL MRL LAND PRIDE BLACK818-737C6.
(S/N 252286+) Beige UnitDECAL MR3572-BROWN838-015C7.
Black UnitDECAL MR3572-BEIGE838-866C7.
Orange UnitDECAL MR3572-GOLD848-183C7.
(S/N 252286+) Beige UnitDECAL MR3578-BROWN838-016C7.
Black UnitDECAL MR3578-BEIGE838-867C7.
(S/N 252286+) Beige UnitDECAL MR3584-BROWN838-017C7.
Black UnitDECAL MR3584-BEIGE838-869C7.
Orange UnitDECAL MR3584-GOLD848-184C7.
(S/N 252286+) Beige UnitDECAL HR3572-BROWN838-018C7.
Black UnitDECAL HR3572-BEIGE838-870C7.
Orange UnitDECAL HR3572-GOLD848-185C7.
(S/N 252286+) Beige UnitDECAL HR3584-BROWN838-019C7.
Black UnitDECAL HR3584-BEIGE838-871C7.
Orange UnitDECAL HR3584-GOLD848-186C7.
(S/N 252286+) Beige UnitDECAL MRL3566-BROWN838-020C7.
Black UnitDECAL MRL3566-BEIGE838-872C7.
(S/N 252286+) Beige UnitDECAL MRL3572-BROWN838-021C7.
Black UnitDECAL MRL3572-BEIGE838-873C7.
Orange UnitDECAL MRL3572-GOLD848-187C7.
(S/N 252286+) Beige UnitDECAL MRL3578-BROWN838-022C7.
Black UnitDECAL MRL3578-BEIGE838-874C7.
Orange UnitDECAL MRL3578-GOLD848-188C7.
(S/N 252286+) Beige UnitDECAL HRL3572-BROWN838-023C7.
Black UnitDECAL HRL3572-BEIGE838-857C7.
Orange UnitDECAL HRL3572-GOLD848-189C7.
(S/N 252286+) Beige UnitDECAL HRL3578-BROWN838-024C7.
Black UnitDECAL HRL3578-BEIGE838-876C7.
Orange UnitDECAL HRL3578-GOLD848-190C7.
Rev. 2 not compat. w/Rev. 1.(S/N 252286+) Beige UnitDECAL LP W/TREE 19" - 2 COLOR818-895C8.
Black Unit & Orange UnitDECAL LP 16" W/TREE BROWN/GOLD838-964C8.
Rev. 1(S/N 252285-)LP LOGO LARGE GREEN818-162C8.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 31
Page 32
Land Pride Complete Assembly
HR(L)35 SERIES
Table of Contents Part Number Index
Label Placement (continued)
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
RevisionCommentsPart DescriptionPart No.Ref.
(S/N 266622+)DECAL WARNING HYD PRESS LONG838-094C9.
32 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 33
Complete Assembly Land Pride
Table of Contents Part Number Index
HR(L)35 SERIES
Label Placement (continued)
Applies to HR3566, HR3572, HR3578, HR3584, HRL3572, HRL3578
This Page Intentionally Left Blank
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 33
Page 34
Land Pride Complete Assembly
MR(L)35 SERIES
Table of Contents Part Number Index
Label Placement
Applies to MR3566, MR3572, MR3578, MR3584, MRL3566, MRL3572, MRL3578
17567
34 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 35
Complete Assembly Land Pride
Table of Contents Part Number Index
MR(L)35 SERIES
Label Placement
Applies to MR3566, MR3572, MR3578, MR3584, MRL3566, MRL3572, MRL3578
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17567
MR3566 DECAL PACKAGE305-027A
MR3572 DECAL PACKAGE305-032A
MR3578 DECAL PACKAGE305-037A
MR3584 DECAL PACKAGE305-042A
HR3566 DECAL PACKAGE305-049A
HR3572 DECAL PACKAGE305-050A
HR3578 DECAL PACKAGE305-051A
HR3584 DECAL PACKAGE305-052A
HRL3572 DECAL PACKAGE305-057A
HRL3578 DECAL PACKAGE305-058A
MRL3572 DECAL PACKAGE305-059A
MRL3578 DECAL PACKAGE305-060A
DECAL CAUTION - BOX SCRAPER818-267C1.
Rev. 2 not compat. w/Rev. 1.(S/N 252286+) Beige UnitDECAL LANDPRIDE 16" - BROWN818-901C2.
Black Unit & Orange UnitDECAL LANDPRIDE 16" BROWN/GOLD838-965C2.
Rev. 1(S/N 252285-)LP LOGO LARGE GREEN818-162C2.
(S/N 252285-)DECAL 66 LP - BLACK818-091C3.
(S/N 252285-)DECAL 72 LP - BLACK818-092C3.
(S/N 252285-)DECAL 78 LP - BLACK818-093C3.
(S/N 252285-)DECAL 84 LP - BLACK818-094C3.
(S/N 252285-)DECAL 35 SERIES LP - BLACK818-086C4.
DECAL GREASE EVERY 25 HOURS818-138C5.
(S/N 252285-)DECAL HR LAND PRIDE BLACK818-733C6.
(S/N 252285-)DECAL HRL LAND PRIDE BLACK818-734C6.
(S/N 252285-)DECAL MR LAND PRIDE BLACK818-736C6.
(S/N 252285-)DECAL MRL LAND PRIDE BLACK818-737C6.
(S/N 252286+) Beige UnitDECAL MR3572-BROWN838-015C7.
Black UnitDECAL MR3572-BEIGE838-866C7.
Orange UnitDECAL MR3572-GOLD848-183C7.
(S/N 252286+) Beige UnitDECAL MR3578-BROWN838-016C7.
Black UnitDECAL MR3578-BEIGE838-867C7.
(S/N 252286+) Beige UnitDECAL MR3584-BROWN838-017C7.
Black UnitDECAL MR3584-BEIGE838-869C7.
Orange UnitDECAL MR3584-GOLD848-184C7.
(S/N 252286+) Beige UnitDECAL HR3572-BROWN838-018C7.
Black UnitDECAL HR3572-BEIGE838-870C7.
Orange UnitDECAL HR3572-GOLD848-185C7.
(S/N 252286+) Beige UnitDECAL HR3584-BROWN838-019C7.
Black UnitDECAL HR3584-BEIGE838-871C7.
Orange UnitDECAL HR3584-GOLD848-186C7.
(S/N 252286+) Beige UnitDECAL MRL3566-BROWN838-020C7.
Black UnitDECAL MRL3566-BEIGE838-872C7.
(S/N 252286+) Beige UnitDECAL MRL3572-BROWN838-021C7.
Black UnitDECAL MRL3572-BEIGE838-873C7.
Orange UnitDECAL MRL3572-GOLD848-187C7.
(S/N 252286+) Beige UnitDECAL MRL3578-BROWN838-022C7.
Black UnitDECAL MRL3578-BEIGE838-874C7.
Orange UnitDECAL MRL3578-GOLD848-188C7.
(S/N 252286+) Beige UnitDECAL HRL3572-BROWN838-023C7.
Black UnitDECAL HRL3572-BEIGE838-857C7.
Orange UnitDECAL HRL3572-GOLD848-189C7.
(S/N 252286+) Beige UnitDECAL HRL3578-BROWN838-024C7.
Black UnitDECAL HRL3578-BEIGE838-876C7.
Orange UnitDECAL HRL3578-GOLD848-190C7.
Rev. 2 not compat. w/Rev. 1.(S/N 252286+) Beige UnitDECAL LP W/TREE 19" - 2 COLOR818-895C8.
Black Unit & Orange UnitDECAL LP 16" W/TREE BROWN/GOLD838-964C8.
Rev. 1(S/N 252285-)LP LOGO LARGE GREEN818-162C8.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 35
Page 36
Land Pride Complete Assembly
MR(L)35 SERIES
Table of Contents Part Number Index
Label Placement (continued)
Applies to MR3566, MR3572, MR3578, MR3584, MRL3566, MRL3572, MRL3578
RevisionCommentsPart DescriptionPart No.Ref.
(S/N 266622+)DECAL WARNING HYD PRESS LONG838-094C9.
36 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 37
Complete Assembly Land Pride
Table of Contents Part Number Index
MR(L)35 SERIES
Label Placement (continued)
Applies to MR3566, MR3572, MR3578, MR3584, MRL3566, MRL3572, MRL3578
This Page Intentionally Left Blank
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 37
Page 38
Land Pride Complete Assembly
MR(L)35 SERIES
Table of Contents Part Number Index
Manual Retractable Box Scraper
Applies to MR3566, MR3572, MR3578, MR3584, MRL3566, MRL3572, MRL3578
10655
38 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 39
Complete Assembly Land Pride
Table of Contents Part Number Index
MR(L)35 SERIES
Manual Retractable Box Scraper
Applies to MR3566, MR3572, MR3578, MR3584, MRL3566, MRL3572, MRL3578
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10655
66 MANUAL RETRACTABLE SCRAPER306-004H1.
66MANUALRETRACT ABLESCRAPERBLACK306-004H851.
72 MANUAL RETRACTABLE LOWBACK306-019H1.
72 MANUAL RETRCT LOWBACK BLACK306-019H851.
72 MANUAL RETRCT LOWBACK ORANGE306-019H821.
72 MANUAL RETRACTABLE SCRAPER306-005H1.
72 MANUAL RETRCT SCRAPER BLACK306-005H851.
72 MANUAL RETRCT SCPR ORANGE306-005H821.
78 MANUAL RETRACTABLE LOWBACK306-020H1.
78 MANUAL RETRCT LOWBACK BLACK306-020H851.
78 MNL RETRCT LOWBACK ORANGE306-020H821.
78 MANUAL RETRACTABLE SCRAPER306-006H1.
78 MANUAL RETRCT SCRAPER BLACK306-006H851.
84 MANUAL RETRACTABLE SCRAPER306-007H1.
84 MANUAL RETRCT SCRAPER BLACK306-007H851.
84 MANUAL RETRCT SCPR ORANGE306-007H821.
NUT LOCK 1/4-20 PLT803-007C2.
TOOL BAR UPPER PIVOT PIN305-056D3.
HHCS 1/4-20X2 GR5802-152C4.
(S/N 252642-)LOWER HITCH PIN 7/8 X 5 5/8303-017S5.
Rev. 2(S/N 252642-)PIN 7/8 OD X 4 15/32 USABLE805-207C6.
Rev 1; Use up stockRPBY 805-207C303-044D6.
PIN ROLL 1/4X1 3/4805-041C7.
PIN LYNCH 5/16 X 1 3/4805-015C8.
(S/N 252642-)BUSHING 1 1/8 X 7/8 X 5/8890-144C9.
HHCS 3/8-16X1 1/2 GR5802-022C10.
HANDLE SHAFT306-007D11.
WASHER FLAT 1 SAE804-029C12.
PIN COTTER 3/16 X 1 3/4 PLT805-017C13.
PLOW 5/8-11X1 3/4 GR5802-206C14.
GRADER BLADE 1/2 X 6 X 65 1/2820-042C15.
GRADER BLADE 1/2 X 6 X 71 1/2820-043C15.
GRADER BLADE 1/2 X 6 X 77 1/2820-045C15.
GRADER BLADE 1/2 X 6 X 83 1/2820-046C15.
HANDLE PIVOT TUBE306-024H16.
Rev. 2 not compat. w/Rev. 1.(S/N 53001+)HANDLE PIVOT TUBE BLACK306-024H8516.
HANDLE PIVOT TUBE ORANGE306-024H16.
Rev. 1(S/N 53000-)HANDLE PIVOT TUBE306-001H16.
(S/N 499204+)NUT HEX FLANGE LOCK 5/8-11803-263C17.
(S/N 499203-)NUT HEX 5/8-11 PLT803-021C17.
(S/N 234196-)WASHER LOCK SPRING 5/8 PLT804-022C18.
Rev 1; Use up stockReplaced by 803-171C item 20WASHER LOCK SPRING 3/8 PLT804-013C19.
Rev. 2MAC-LOK 3/8-16 SUPER FLANGE803-171C20.
Rev 1; Use up stockNUT HEX 3/8-16 PLT803-014C20.
(S/N 53001+)HANDLE BACKING PLATE WELDMENT306-025H21.
HANDLEBACKINGPLATEWELDMENTBLACK306-025H8521.
HANDLE BACKING PLT WMT ORANGE306-025H8221.
Rev. 2 not compat. w/Rev. 1.(S/N 53001+)SLOTTEDHANDLE306-022D22.
SLOTTED HANDLE BLACK306-022D8522.
SLOTTED HANDLE ORANGE306-022D8222.
Rev. 1(S/N 53000-)HANDLE306-018D22.
HANDLE COVER 4 X 1 1/2 BLACK817-076C23.
WASHER FLAT 3/4 USS PLT804-024C24.
WASHER LOCK SPRING 3/4 PLT804-023C25.
NUT HEX 3/4-10 PLT803-027C26.
Rev. 2(S/N 142683+)SPRING HOLDER SHAFT WELDMENT306-026H27.
SPRINGHOLDER SHAFTWELDMENT BLACK306-026H8527.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 39
Page 40
Land Pride Complete Assembly
Table of Contents Part Number Index
MR(L)35 SERIES
Manual Retractable Box Scraper (continued)
Applies to MR3566, MR3572, MR3578, MR3584, MRL3566, MRL3572, MRL3578
RevisionCommentsPart DescriptionPart No.Ref.
SPRING HOLDER SFT WMT ORANGE306-026H8227.
Rev 1; Use up stock(S/N 142682-)RPBY 306-026H306-003H27.
SPRING RH TORSION807-052C28.
SPRING EXT 1 13/32 X 6 EXT807-050C29.
SPRING LH TORSION807-051C30.
Rev. 2PIN BENT SHANK LOCK 5/8 OD805-197C31.
Rev 1; Use up stockRPBY 805-197C303-038D31.
PIN HAIR COTTER .148 WIRE805-032C32.
Rev. 2(S/N 173469+)SCARIFIER SHANK - 16 W/TIP820-151C33.
Rev 1; Use up stock(S/N 173468-)RPBY 820-151C820-048C33.
(S/N 173468-)SHANK-16 LONG(OBRPLBY820-048C)820-053C34.
Rev. 2 not compat. w/Rev. 1.(S/N 173469+)SHANK TIP DIMPLE-ON WIDE FLARE820-153C35.
Rev. 1(S/N 173468-)RPBY 820-153C820-050C35.
66 SHANK TUBE - MANUAL306-008H36.
66 SHANK TUBE - MANUAL BLACK306-008H8536.
72 SHANK TUBE - MANUAL306-009H36.
72 SHANK TUBE - MANUAL BLACK306-009H8536.
72 SHANK TUBE - MANUAL ORANGE306-009H8236.
78 SHANK TUBE - MANUAL306-010H36.
78 SHANK TUBE - MANUAL BLACK306-010H8536.
78 SHANK TUBE - MANUAL ORANGE306-010H8236.
84 SHANK TUBE - MANUAL306-011H36.
84 SHANK TUBE - MANUAL BLACK306-011H8536.
84 SHANK TUBE - MANUAL ORANGE306-011H8236.
ANGLED SPRING TAB306-027D37.
ANGLED SPRING TABBLACK306-027D8537.
HHCS 3/8-16X1 1/4 GR5802-079C38.
NUT LOCK 3/8-16 PLT803-013C39.
SPRING EXT LOCK ARM807-043C40.
BUSHING HARDENED 1 1/4-1-3/4 L890-143C41.
PIN CLEVIS 1/2 X 1 3/4805-127C42.
PIN CLEVIS 1/2 X 2 3/4805-128C43.
PIN COTTER 5/32 X 1 1/4 LG805-045C44.
CONNECT LINK306-009D45.
CONNECT LINK BLACK306-009D8545.
CONNECT LINK ORANGE306-009D8245.
HHCS 1/2-13X3 3/4 GR5802-042C46.
SHANK BAR CONNECT LINK306-017H47.
SHANK BAR CONNECT LINK BLACK306-017H8547.
SHANK BAR CONNECT LINK ORANGE306-017H8247.
SHANK TUBE LOCK305-057D48.
SHANK TUBE LOCK BLACK305-057D8548.
SHANK TUBE LOCK ORANGE305-057D8248.
NUT LOCK 1/2-13 PLT803-019C49.
TOOL BAR MAIN PIVOT PIN305-055D50.
Rev. 2GREASE ZERK 1/4-28 THD FORMING800-080C51.
Rev 1; Use up stockGREASE ZERK STRAIGHT 1/4-28800-001C51.
(S/N 142683+)PIN ROLL 5/16 X 2 1/4 PLT805-029C52.
Rev. 2 not compat. w/Rev. 1.(S/N 252643+)BUSHING,1 1/32X49/64X5/8 KNURL890-619C53.
Rev. 1(S/N 132928,<->252642)BUSHING 1 OD X 3/4 ID X 5/8 LG890-352C53.
(S/N 252643+)BUSHING,1 1/2X1 5/32X5/8 KNURL890-617C54.
(S/N 252643+)BUSHING, 1 9/64ODX57/64IDX3/4890-618C55.
(S/N 252643+)BUSHING300-296D56.
(S/N 252643+)PIN 7/8 OD X 8.25 USABLE805-359C57.
(S/N 252643+)LWR HTCH PIN ASY 7/8DX8.25USBL305-071S58.
Rev. 2(S/N 234197+)NUT LOCK 5/8-11 PLT803-024C59.
Rev 1; Use up stock(S/N 234196-)NUT HEX 5/8-11 PLT803-021C59.
PLOW 5/8-11X2802-288C60.
40 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 41
Complete Assembly Land Pride
Table of Contents Part Number Index
MR(L)35 SERIES
Manual Retractable Box Scraper (continued)
Applies to MR3566, MR3572, MR3578, MR3584, MRL3566, MRL3572, MRL3578
This Page Intentionally Left Blank
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 41
Page 42
Land Pride Complete Assembly
RO25 SERIES
Table of Contents Part Number Index
Label Placement
Applies to RO2560, RO2566, RO2572, RO2578, RO2584
17568
42 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 43
Complete Assembly Land Pride
Table of Contents Part Number Index
RO25 SERIES
Label Placement
Applies to RO2560, RO2566, RO2572, RO2578, RO2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17568
RO2560 BUCKSKIN W/DECALS304-040A
RO2566 BUCKSKIN W/DECALS304-018A
RO2572 BUCKSKIN W/DECALS304-023A
RO2578 BUCKSKIN W/DECALS304-028A
RO2584 BUCKSKIN W/DECALS304-033A
(S/N 252458-)DECAL 60 LP - BLACK818-090C1.
(S/N 252458-)DECAL 66 LP - BLACK818-091C1.
(S/N 252458-)DECAL 72 LP - BLACK818-092C1.
(S/N 252458-)DECAL 78 LP - BLACK818-093C1.
(S/N 252458-)DECAL 84 LP - BLACK818-094C1.
(S/N 252458-)DECAL 25 SERIES LP - BLACK818-085C2.
DECAL CAUTION - BOX SCRAPER818-267C3.
Rev. 2 not compat. w/Rev. 1.(S/N 252459+)DECAL LP W/TREE 6" - 2 COLOR818-896C4.
Rev. 1(S/N 252458-)LP LOGO SMALL GREEN818-164C4.
(S/N 252458-)DECAL RO LAND PRIDE BLACK818-743C5.
(S/N 252459+)DECAL RO2560-BROWN838-025C6.
(S/N 252459+)DECAL RO2566-BROWN838-026C6.
(S/N 252459+)DECAL RO2572-BROWN838-027C6.
(S/N 252459+)DECAL RO2578-BROWN838-028C6.
(S/N 252459+)DECAL RO2584-BROWN838-029C6.
(S/N 252459+)DECAL LANDPRIDE 13.25" - BROWN818-899C7.
DECAL QUICK HITCH SYSTEM838-517C8.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 43
Page 44
Land Pride Complete Assembly
RO25 SERIES
Table of Contents Part Number Index
Rollover Box Scraper
Applies to RO2560, RO2566, RO2572, RO2578, RO2584
10641
44 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 45
Complete Assembly Land Pride
Table of Contents Part Number Index
RO25 SERIES
Rollover Box Scraper
Applies to RO2560, RO2566, RO2572, RO2578, RO2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10641
60 ROLLOVER BOX SCRAPER304-038H1.
66 ROLLOVER BOX SCRAPER304-004H1.
72 ROLLOVER BOX SCRAPER304-005H1.
78 ROLLOVER BOX SCRAPER304-006H1.
84 ROLLOVER BOX SCRAPER304-007H1.
LOWER HITCH PIN 7/8 X 5 5/8303-017S2.
Rev. 2PIN 7/8 OD X 4 15/32 USABLE805-207C3.
Rev 1; Use up stockRPBY 805-207C303-044D3.
PIN ROLL 1/4X1 3/4805-041C4.
PIN LYNCH 5/16 X 1 3/4805-015C5.
WASHER FLAT 3/4 SAE PLT804-025C6.
PIN COTTER 3/16 X 1 3/4 PLT805-017C7.
SHANK SINGLE NOTCH W/TIP820-047C8.
SINGLE NOTCH SHANK BAR820-052C9.
Rev. 2 not compat. w/Rev. 1.(S/N 173469+)SHANK TIP DIMPLE-ON WIDE FLARE820-153C10.
Rev. 1(S/N 173468-)RPBY 820-153C820-050C10.
60 SHANK LOCK BAR304-042D11.
66 SHANK LOCK BAR304-034D11.
72 SHANK LOCK BAR304-035D11.
78 SHANK LOCK BAR304-036D11.
84 SHANK LOCK BAR304-037D11.
SPRING EXT LOCK ARM807-043C12.
GRADER BLADE 1/2 X 6 X 59 1/2820-041C13.
GRADER BLADE 1/2 X 6 X 65 1/2820-042C13.
GRADER BLADE 1/2 X 6 X 71 1/2820-043C13.
GRADER BLADE 1/2 X 6 X 77 1/2820-045C13.
GRADER BLADE 1/2 X 6 X 83 1/2820-046C13.
PLOW 5/8-11X1 3/4 GR5802-206C14.
WASHER LOCK SPRING 5/8 PLT804-022C15.
NUT HEX 5/8-11 PLT803-021C16.
MANUAL TRIP HANDLE BUNDLE304-012A17.
MANUAL HANDLE304-038D18.
HHCS 1/2-13X1 3/4 GR5802-082C19.
WASHER LOCK SPRING 1/2 PLT804-015C20.
NUT HEX 1/2-13 PLT803-020C21.
HYDRAULIC CYLINDER TIP BUNDLE304-013A22.
HYDRAULIC CYLINDER MTG LUG304-034H23.
PIN CLEVIS 1/2 X 2 3/4805-128C24.
WASHER FLAT 1/2 SAE PLT804-016C25.
PIN COTTER 5/32 X 1 1/4 LG805-045C26.
HHCS 1/2-13X1 1/2 GR5802-091C27.
HHCS 1/2-13X4 GR5802-044C28.
NUT LOCK 1/2-13 PLT803-019C29.
CYL 1.5X1.5X1 ROD810-100C30.
HH1/4R1 042 1/2MNPT 9/16MORB811-275C31.
HANDLE COVER 4 X 1 1/2 BLACK817-076C32.
Rev. 2BUSHING 1 1/8 X 7/8 X 1/2890-232C33.
Rev 1; Use up stockBUSHING 1 1/8 X 7/8 X 5/8890-144C33.
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 45
Page 46
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
2500080281 ..................
250A001845 ..................
250B007307-04.12 ........
2511056B ......................
2512171B ......................
23129090 ......................
23134952 ......................
23134953 ......................
23186561 ......................
28, 40300-296D ...................
11303-001H ...................
11303-003H ...................
7303-004H ...................
7303-004H82 ...............
7303-004H85 ...............
7303-005H ...................
7303-005H82 ...............
7303-005H85 ...............
19303-006H ...................
19303-006H81 ...............
19303-006H82 ...............
20303-006H83 ...............
20303-006H84 ...............
20303-006H85 ...............
20303-007H ...................
20303-007H81 ...............
20303-007H82 ...............
20303-007H83 ...............
20303-007H84 ...............
20303-007H85 ...............
20303-008H ...................
20303-008H81 ...............
20303-008H82 ...............
20303-008H83 ...............
20303-008H84 ...............
20303-008H85 ...............
20303-009H ...................
20303-009H81 ...............
20303-009H82 ...............
20303-009H83 ...............
20303-009H84 ...............
20303-009H85 ...............
20303-010H ...................
20303-010H81 ...............
20303-010H82 ...............
20303-010H83 ...............
20303-010H84 ...............
20303-010H85 ...............
7, 27, 39, 45303-017S ...................
19303-018A ...................
19303-018A81 ...............
19303-018A82 ...............
19303-018A83 ...............
19303-018A84 ...............
19303-018A85 ...............
19303-019A ...................
19303-019A81 ...............
19303-019A82 ...............
19303-019A83 ...............
19303-019A84 ...............
19303-019A85 ...............
19303-020A ...................
19303-020A81 ...............
19303-020A82 ...............
19303-020A83 ...............
19303-020A84 ...............
19303-020A85 ...............
19303-021A ...................
19303-021A81 ...............
19303-021A82 ...............
19303-021A83 ...............
19303-021A84 ...............
19303-021A85 ...............
19303-022A ...................
19303-022A81 ...............
19303-022A82 ...............
19303-022A83 ...............
19303-022A84 ...............
19303-022A85 ...............
20303-023A ...................
20303-024A ...................
20303-025A ...................
20303-026A ...................
20303-027A ...................
15303-032A ...................
7303-032D ...................
7303-033D ...................
7, 12303-034D ...................
12303-036D ...................
15303-037A ...................
7, 12303-037D ...................
8, 12, 27, 40303-038D ...................
7, 27, 39, 45303-044D ...................
15303-047A ...................
15303-052A ...................
11303-053H ...................
11303-054H ...................
19303-055H ...................
19303-055H81 ...............
19303-055H82 ...............
19303-055H83 ...............
19303-055H84 ...............
19303-055H85 ...............
19303-058A ...................
19303-058A81 ...............
19303-058A82 ...............
19303-058A83 ...............
19303-058A84 ...............
19303-058A85 ...............
20303-059A ...................
7303-060H ...................
7303-060H82 ...............
7303-060H85 ...............
20303-061H ...................
20303-061H81 ...............
20303-061H82 ...............
20303-061H83 ...............
20303-061H84 ...............
20303-061H85 ...............
19303-063A ...................
19303-063A81 ...............
19303-063A82 ...............
19303-063A83 ...............
19303-063A84 ...............
19303-063A85 ...............
20303-064A ...................
7303-065H ...................
7303-065H82 ...............
7303-065H85 ...............
20303-066H ...................
20303-066H81 ...............
20303-066H82 ...............
20303-066H83 ...............
20303-066H84 ...............
20303-066H85 ...............
19303-068A ...................
19303-068A81 ...............
19303-068A82 ...............
19303-068A83 ...............
19303-068A84 ...............
19303-068A85 ...............
20303-069A ...................
11303-072H ...................
15303-074A ...................
7303-075H ...................
7303-075H82 ...............
7303-075H85 ...............
15303-077A ...................
15303-078A ...................
15303-079A ...................
15303-080A ...................
15303-081A ...................
7, 12303-084D ...................
7303-084D82 ...............
7303-084D85 ...............
7303-085D ...................
7303-085D82 ...............
7303-085D85 ...............
7303-086D ...................
7303-086D82 ...............
7303-086D85 ...............
11303-089H ...................
11303-090H ...................
11303-091H ...................
12303-092H ...................
12303-093H ...................
7303-094H ...................
7303-094H82 ...............
7303-094H85 ...............
7303-095H ...................
7303-095H82 ...............
7303-095H85 ...............
7303-096H ...................
7303-096H82 ...............
7303-096H85 ...............
7303-097H ...................
7303-097H82 ...............
7303-097H85 ...............
7303-098H ...................
7303-098H82 ...............
7303-098H85 ...............
12303-121D ...................
12303-121D81 ...............
12303-121D82 ...............
12303-121D83 ...............
12303-121D84 ...............
12303-121D85 ...............
13303-122D ...................
13303-122D81 ...............
13303-122D82 ...............
13303-122D83 ...............
13303-122D84 ...............
13303-122D85 ...............
11303-122H ...................
11303-122H81 ...............
11303-122H82 ...............
11303-122H83 ...............
11303-122H85 ...............
11303-122H94 ...............
13303-123D ...................
13303-123D81 ...............
13303-123D82 ...............
13303-123D83 ...............
13303-123D84 ...............
13303-123D85 ...............
11303-123H ...................
11303-123H81 ...............
11303-123H82 ...............
11303-123H83 ...............
11303-123H84 ...............
11303-123H85 ...............
11303-124H ...................
11303-124H81 ...............
11303-124H82 ...............
11303-124H83 ...............
11303-124H84 ...............
11303-124H85 ...............
11303-125H ...................
11303-125H81 ...............
11303-125H82 ...............
11303-125H83 ...............
11303-125H84 ...............
11303-125H85 ...............
11303-126H ...................
11303-126H81 ...............
11303-126H82 ...............
11303-126H83 ...............
11303-126H84 ...............
11303-126H85 ...............
11303-127H ...................
11303-127H81 ...............
11303-127H82 ...............
11303-127H83 ...............
11303-127H84 ...............
11303-127H85 ...............
11303-128H ...................
11303-128H81 ...............
11303-128H82 ...............
11303-128H83 ...............
11303-128H84 ...............
11303-128H85 ...............
11303-129H ...................
11303-129H81 ...............
11303-129H82 ...............
11303-129H83 ...............
11303-129H84 ...............
11303-129H85 ...............
11303-130H ...................
12303-130H81 ...............
12303-130H82 ...............
12303-130H83 ...............
12303-130H84 ...............
12303-130H85 ...............
12303-131H ...................
12303-131H81 ...............
12303-131H82 ...............
12303-131H83 ...............
12303-131H84 ...............
12303-131H85 ...............
12303-250H ...................
12303-250H81 ...............
12303-250H82 ...............
12303-250H83 ...............
12303-250H84 ...............
12303-250H85 ...............
45304-004H ...................
45304-005H ...................
45304-006H ...................
45304-007H ...................
45304-012A ...................
45304-013A ...................
43304-018A ...................
43304-023A ...................
43304-028A ...................
43304-033A ...................
45304-034D ...................
45304-034H ...................
45304-035D ...................
45304-036D ...................
45304-037D ...................
46 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 47
Table of Contents Part Number Index
Part Number Index (continued)
PagePart Number
45304-038D ...................
45304-038H ...................
43304-040A ...................
45304-042D ...................
27305-005H ...................
27305-005H85 ...............
27305-006H ...................
27305-006H82 ...............
27305-006H85 ...............
27305-007H ...................
27305-007H82 ...............
27305-007H85 ...............
27305-008H ...................
27305-008H82 ...............
27305-008H85 ...............
27305-012H ...................
27305-012H82 ...............
27305-012H85 ...............
27305-013H ...................
27305-013H82 ...............
27305-013H85 ...............
28305-014H ...................
28305-014H82 ...............
28305-014H85 ...............
27305-015H ...................
27305-015H85 ...............
27305-016H ...................
27305-016H82 ...............
27305-016H85 ...............
27305-017H ...................
27305-017H85 ...............
27305-018H ...................
27305-018H82 ...............
27305-018H85 ...............
31, 35305-027A ...................
31, 35305-032A ...................
31, 35305-037A ...................
31, 35305-042A ...................
27305-044H ...................
27305-044H82 ...............
27305-044H85 ...............
27305-045H ...................
27305-045H82 ...............
27305-045H85 ...............
31, 35305-049A ...................
31, 35305-050A ...................
31, 35305-051A ...................
31, 35305-052A ...................
27305-054D ...................
27, 40305-055D ...................
27, 39305-056D ...................
31, 35305-057A ...................
27, 40305-057D ...................
27, 40305-057D82 ...............
27, 40305-057D85 ...............
31, 35305-058A ...................
31, 35305-059A ...................
31, 35305-060A ...................
28, 40305-071S ...................
39306-001H ...................
40306-003H ...................
39306-004H ...................
39306-004H85 ...............
39306-005H ...................
39306-005H82 ...............
39306-005H85 ...............
39306-006H ...................
39306-006H85 ...............
39306-007D ...................
39306-007H ...................
39306-007H82 ...............
PagePart Number
39306-007H85 ...............
40306-008H ...................
40306-008H85 ...............
40306-009D ...................
40306-009D82 ...............
40306-009D85 ...............
40306-009H ...................
40306-009H82 ...............
40306-009H85 ...............
40306-010H ...................
40306-010H82 ...............
40306-010H85 ...............
40306-011H ...................
40306-011H82 ...............
40306-011H85 ...............
40306-017H ...................
40306-017H82 ...............
40306-017H85 ...............
39306-018D ...................
39306-019H ...................
39306-019H82 ...............
39306-019H85 ...............
39306-020H ...................
39306-020H82 ...............
39306-020H85 ...............
39306-022D ...................
39306-022D82 ...............
39306-022D85 ...............
39306-024H ...................
39306-024H85 ...............
39306-025H ...................
39306-025H82 ...............
39306-025H85 ...............
39306-026H ...................
40306-026H82 ...............
39306-026H85 ...............
40306-027D ...................
40306-027D85 ...............
7, 12308-400D ...................
12310-020S ...................
12310-074D ...................
12322-010D ...................
23437208 ......................
23491604 ......................
23492548 ......................
23492667 ......................
23492668 ......................
23492742 ......................
23639572 ......................
28, 40800-001C ...................
40800-080C ...................
39802-022C ...................
27, 40802-042C ...................
45802-044C ...................
7, 12802-064C ...................
7, 12802-068C ...................
7, 12802-069C ...................
40802-079C ...................
20, 45802-082C ...................
45802-091C ...................
27, 39802-152C ...................
28, 39, 45802-206C ...................
20802-236C ...................
28, 40802-288C ...................
8, 12802-813C ...................
27, 39803-007C ...................
40803-013C ...................
23, 39803-014C ...................
20, 27, 40, 45803-019C ...................
45803-020C ...................
21, 28, 39, 40, 45803-021C ...................
PagePart Number
40803-024C ...................
7, 12, 39803-027C ...................
39803-171C ...................
12803-236C ...................
8, 28, 39803-263C ...................
39804-013C ...................
45804-015C ...................
45804-016C ...................
21, 28, 39, 45804-022C ...................
7, 12, 39804-023C ...................
39804-024C ...................
45804-025C ...................
28, 39804-029C ...................
7, 12, 27, 39, 45805-015C ...................
28, 39, 45805-017C ...................
40805-029C ...................
8, 12, 27, 40805-032C ...................
7, 12, 27, 39, 45805-041C ...................
28, 40, 45805-045C ...................
28805-079C ...................
8, 13805-081C ...................
12805-111C ...................
28, 40805-127C ...................
28, 40, 45805-128C ...................
8, 12, 27, 40805-197C ...................
12805-198C ...................
7, 27, 39, 45805-207C ...................
28, 40805-359C ...................
27, 40, 45807-043C ...................
40807-050C ...................
40807-051C ...................
40807-052C ...................
45810-100C ...................
28810-101C ...................
28810-102C ...................
28810-112C ...................
23, 25, 28810-125C ...................
25, 28810-132C ...................
23810-252C ...................
28811-056C ...................
28811-062C ...................
28811-065C ...................
28811-133C ...................
28, 45811-275C ...................
28811-277C ...................
28811-416C ...................
28811-627C ...................
39, 45817-076C ...................
15818-084C ...................
15, 43818-085C ...................
31, 35818-086C ...................
15818-087C ...................
15818-088C ...................
15, 43818-090C ...................
15, 31, 35, 43818-091C ...................
15, 31, 35, 43818-092C ...................
31, 35, 43818-093C ...................
15, 31, 35, 43818-094C ...................
15818-099C ...................
31, 35818-138C ...................
15, 16, 31, 35818-162C ...................
43818-164C ...................
15818-168C ...................
15, 31, 35, 43818-267C ...................
15818-725C ...................
31, 35818-733C ...................
31, 35818-734C ...................
31, 35818-736C ...................
31, 35818-737C ...................
43818-743C ...................
15818-893C ...................
820-042C ...................
820-043C ...................
PagePart Number
31, 35818-895C ...................
43818-896C ...................
43818-899C ...................
15, 31, 35818-901C ...................
8, 20820-035C ...................
12, 20820-039C ...................
12, 20820-040C ...................
8, 12, 20, 45820-041C ...................
8, 12, 20, 28, 39,
45
8, 12, 20, 28, 39,
45
7, 12820-044C ...................
28, 39, 45820-045C ...................
8, 20, 28, 39, 45820-046C ...................
45820-047C ...................
27, 40820-048C ...................
8, 12, 28, 40, 45820-050C ...................
45820-052C ...................
27, 40820-053C ...................
12, 20820-069C ...................
27, 40820-151C ...................
7, 12820-152C ...................
7, 12, 28, 40, 45820-153C ...................
15838-006C ...................
15838-007C ...................
15838-008C ...................
15838-009C ...................
15838-010C ...................
15838-011C ...................
15838-012C ...................
15838-013C ...................
15838-014C ...................
31, 35838-015C ...................
31, 35838-016C ...................
31, 35838-017C ...................
31, 35838-018C ...................
31, 35838-019C ...................
31, 35838-020C ...................
31, 35838-021C ...................
31, 35838-022C ...................
31, 35838-023C ...................
31, 35838-024C ...................
43838-025C ...................
43838-026C ...................
43838-027C ...................
43838-028C ...................
43838-029C ...................
32, 36838-094C ...................
16, 43838-517C ...................
15838-852C ...................
15838-853C ...................
15838-854C ...................
15838-855C ...................
15838-856C ...................
15, 31, 35838-857C ...................
15838-858C ...................
15838-859C ...................
15838-861C ...................
31, 35838-866C ...................
31, 35838-867C ...................
31, 35838-869C ...................
31, 35838-870C ...................
31, 35838-871C ...................
31, 35838-872C ...................
31, 35838-873C ...................
31, 35838-874C ...................
31, 35838-876C ...................
15838-927C ...................
15838-928C ...................
15838-929C ...................
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 47
Page 48
Table of Contents Part Number Index
Part Number Index (continued)
PagePart Number
15838-930C ...................
16, 31, 35838-964C ...................
15, 31, 35838-965C ...................
15848-178C ...................
15848-179C ...................
15848-180C ...................
15848-181C ...................
15848-182C ...................
31, 35848-183C ...................
31, 35848-184C ...................
31, 35848-185C ...................
31, 35848-186C ...................
31, 35848-187C ...................
31, 35848-188C ...................
31, 35848-189C ...................
31, 35848-190C ...................
15848-287C ...................
15848-288C ...................
15848-289C ...................
27, 40890-143C ...................
27, 39, 45890-144C ...................
45890-232C ...................
28, 40890-352C ...................
28, 40890-617C ...................
28, 40890-618C ...................
28, 40890-619C ...................
27dwg10617 ..................
25dwg10639 ..................
45dwg10641 ..................
39dwg10655 ..................
23dwg13565 ..................
19dwg14241 ..................
7dwg14621 ..................
15dwg17566 ..................
31, 35dwg17567 ..................
43dwg17568 ..................
11dwg22411 ..................
48 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 05/02/08
Page 49
Table of Contents Part Number Index
This Page Intentionally Left Blank
05/02/08 BB15, BB25, MR35, MRL35, HR35, HRL35 & RO25 Box Scrapers 303-082P 49
Page 50
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
