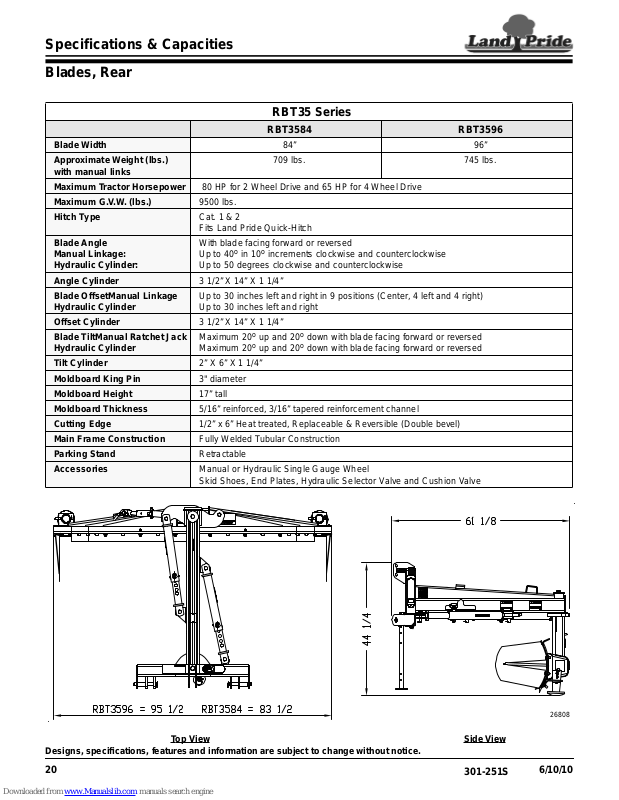

Specifications & Capacities
Blades, Rear
RBT35 Series
RBT3584 RBT3596
Blade Width 84” 96”
Approximate Weight (lbs.)
with manual links
Maximum Tractor Horsepower 80 HP for 2 Wheel Drive and 65 HP for 4 Wheel Drive
Maximum G.V.W. (lbs.) 9500 lbs.
Hitch Type Cat. 1 & 2
Fits Land Pride Quick-Hitch
Blade Angle
Manual Linkage:
Hydraulic Cylinder:
Angle Cylinder 3 1/2” X 14” X 1 1/4”
Blade OffsetManual Linkage
Hydraulic Cylinder
Offset Cylinder 3 1/2” X 14” X 1 1/4”
Blade TiltManual Ratchet Jack
Hydraulic Cylinder
Tilt Cylinder 2” X 6” X 1 1/4”
Moldboard King Pin 3" diameter
Moldboard Height 17” tall
Moldboard Thickness 5/16” reinforced, 3/16” tapered reinforcement channel
Cutting Edge 1/2” x 6” Heat treated, Replaceable & Reversible (Double bevel)
Main Frame Construction Fully Welded Tubular Construction
Parking Stand Retractable
Accessories Manual or Hydraulic Single Gauge Wheel
With blade facing forward or reversed
Up to 40
Up to 50 degrees clockwise and counterclockwise
Up to 30 inches left and right in 9 positions (Center, 4 left and 4 right)
Up to 30 inches left and right
Maximum 20o up and 20o down with blade facing forward or reversed
Maximum 20
Skid Shoes, End Plates, Hydraulic Selector Valve and Cushion Valve
o
in 10o increments clockwise and counterclockwise
709 lbs. 745 lbs.
o
up and 20o down with blade facing forward or reversed
Top View Side View
Designs, specifications, features and information are subject to change without notice.
20
301-251S
26808
6/10/10
