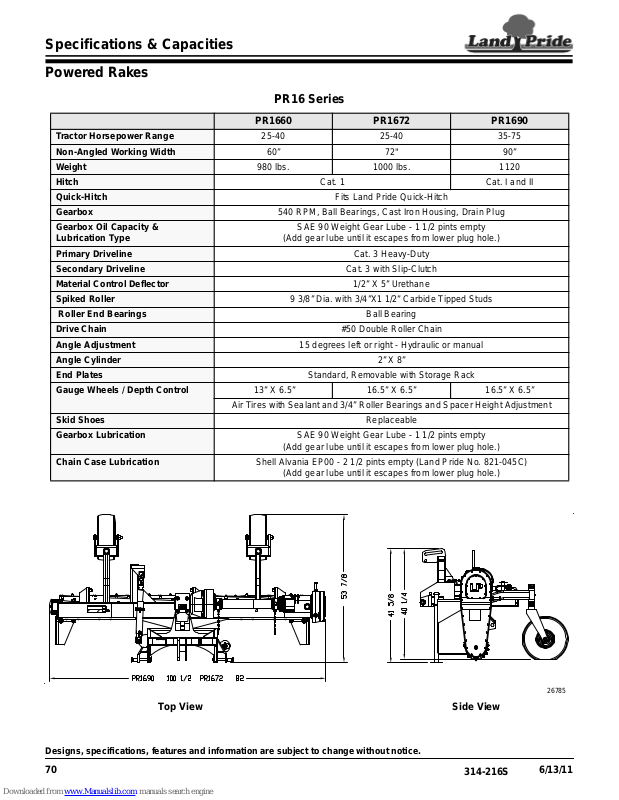

Powered Rakes
Specifications & Capacities
Powered Rakes
PR16 Series
PR1660 PR1672 PR1690
Tractor Horsepower Range 25-40 25-40 35-75
Non-Angled Working Width 60” 72" 90”
Weight 980 lbs. 1000 lbs. 1120
Hitch Cat. 1 Cat. I and II
Quick-Hitch Fits Land Pride Quick-Hitch
Gearbox 540 RPM, Ball Bearings, Cast Iron Housing, Drain Plug
Gearbox Oil Capacity &
Lubrication Type
Primary Driveline Cat. 3 Heavy-Duty
Secondary Driveline Cat. 3 with Slip-Clutch
Material Control Deflector 1/2” X 5” Urethane
Spiked Roller 9 3/8” Dia. with 3/4”X1 1/2” Carbide Tipped Studs
Roller End Bearings Ball Bearing
Drive Chain #50 Double Roller Chain
Angle Adjustment 15 degrees left or right - Hydraulic or manual
Angle Cylinder 2” X 8”
End Plates Standard, Removable with Storage Rack
Gauge Wheels / Depth Control 13” X 6.5” 16.5” X 6.5” 16.5” X 6.5”
Air Tires with Sealant and 3/4” Roller Bearings and Spacer Height Adjustment
Skid Shoes Replaceable
Gearbox Lubrication SAE 90 Weight Gear Lube - 1 1/2 pints empty
Chain Case Lubrication Shell Alvania EP00 - 2 1/2 pints empty (Land Pride No. 821-045C)
SAE 90 Weight Gear Lube - 1 1/2 pints empty
(Add gear lube until it escapes from lower plug hole.)
(Add gear lube until it escapes from lower plug hole.)
(Add gear lube until it escapes from lower plug hole.)
Top View Side View
Designs, specifications, features and information are subject to change without notice.
70
314-216S
26785
6/13/11
