Land Pride PR1572 Operator's Manual

Table of Contents

Powered Rakes

PR1560 & PR1572

18601

314-164M

Operator’s Manual

Read the Operator’s manual entirely. When
you see this symbol, the subsequent

!

instructions andwarningsare serious - follow
without exception. Your life and the lives of
others depend on it!

© Copyright 2008 Printed

Cover photo may show optional equipment
not supplied with standard unit.

7/14/08

Table of Contents

Table of Contents

Land Pride

Important Safety Information . . . . . . . . . . .1

Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1

Look For The Safety Alert Symbol . . . . . . . . . . . . .1

Introduction . . . . . . . . . . . . . . . . . . . . . . . .8

Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . .8

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . 8

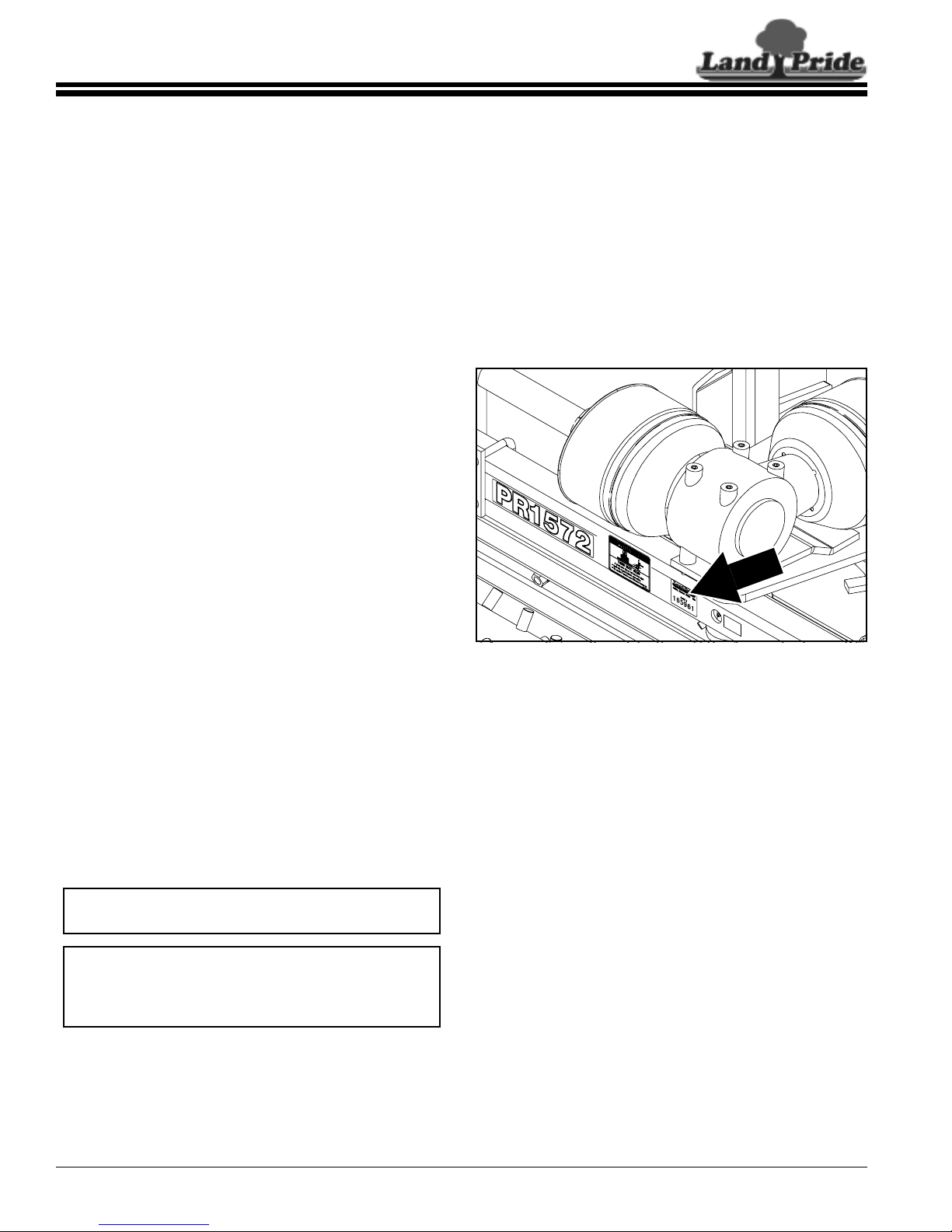

Serial Number Plate . . . . . . . . . . . . . . . . . . . . . 8

Further Assistance . . . . . . . . . . . . . . . . . . . . . .8

Section 1: Assembly and Set-Up . . . . . . . .9

Tractor Requirements . . . . . . . . . . . . . . . . . . . . . .9

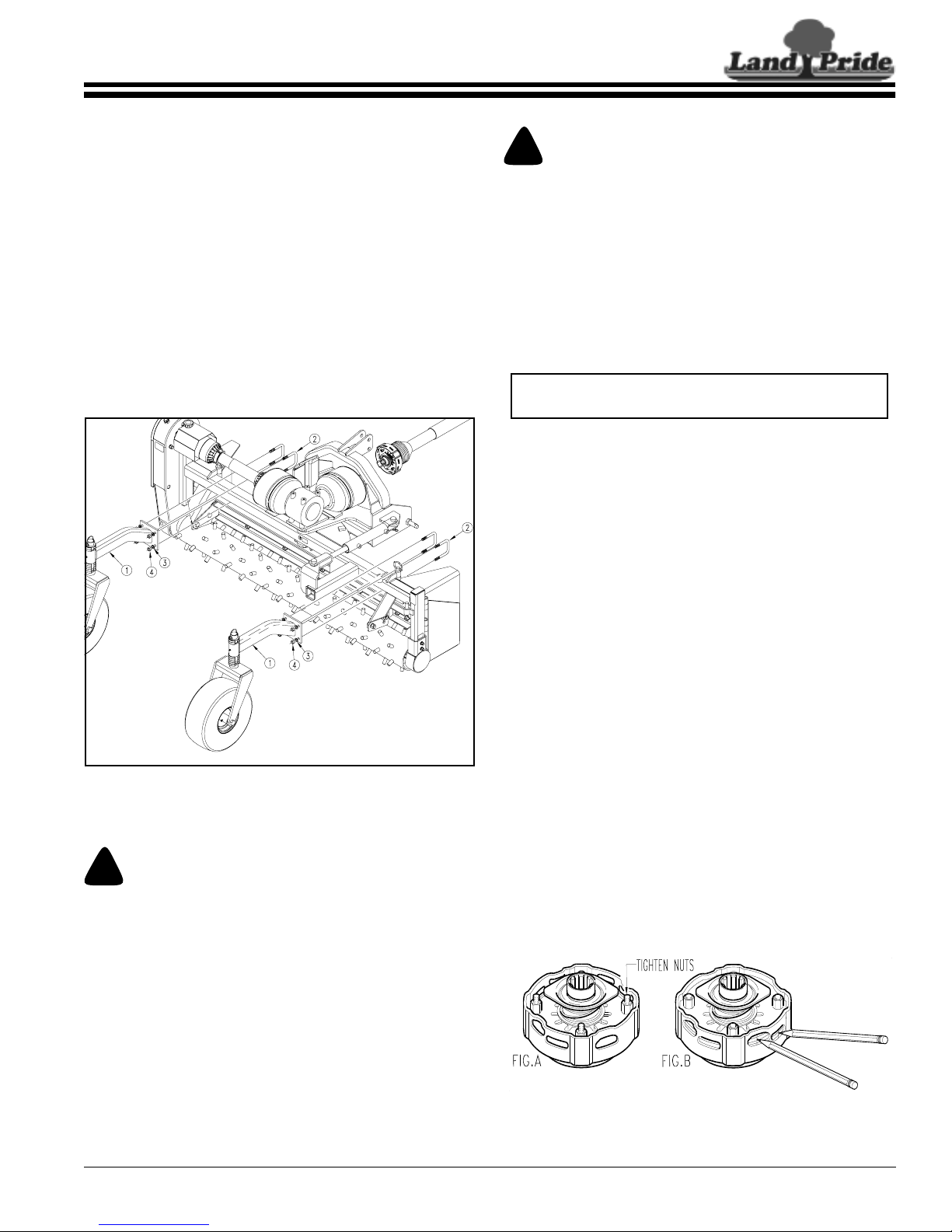

Gauge Wheel Assembly (PR1572) . . . . . . . . . . . . 9

Tractor Hook-Up . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Driveline Installation . . . . . . . . . . . . . . . . . . . . . . . . 9

Section 2: Operating . . . . . . . . . . . . . . . .10

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operating Checklist . . . . . . . . . . . . . . . . . . . . . . .10

Operating Instructions . . . . . . . . . . . . . . . . . . . . . 10

Section 3: Adjustments . . . . . . . . . . . . . .11

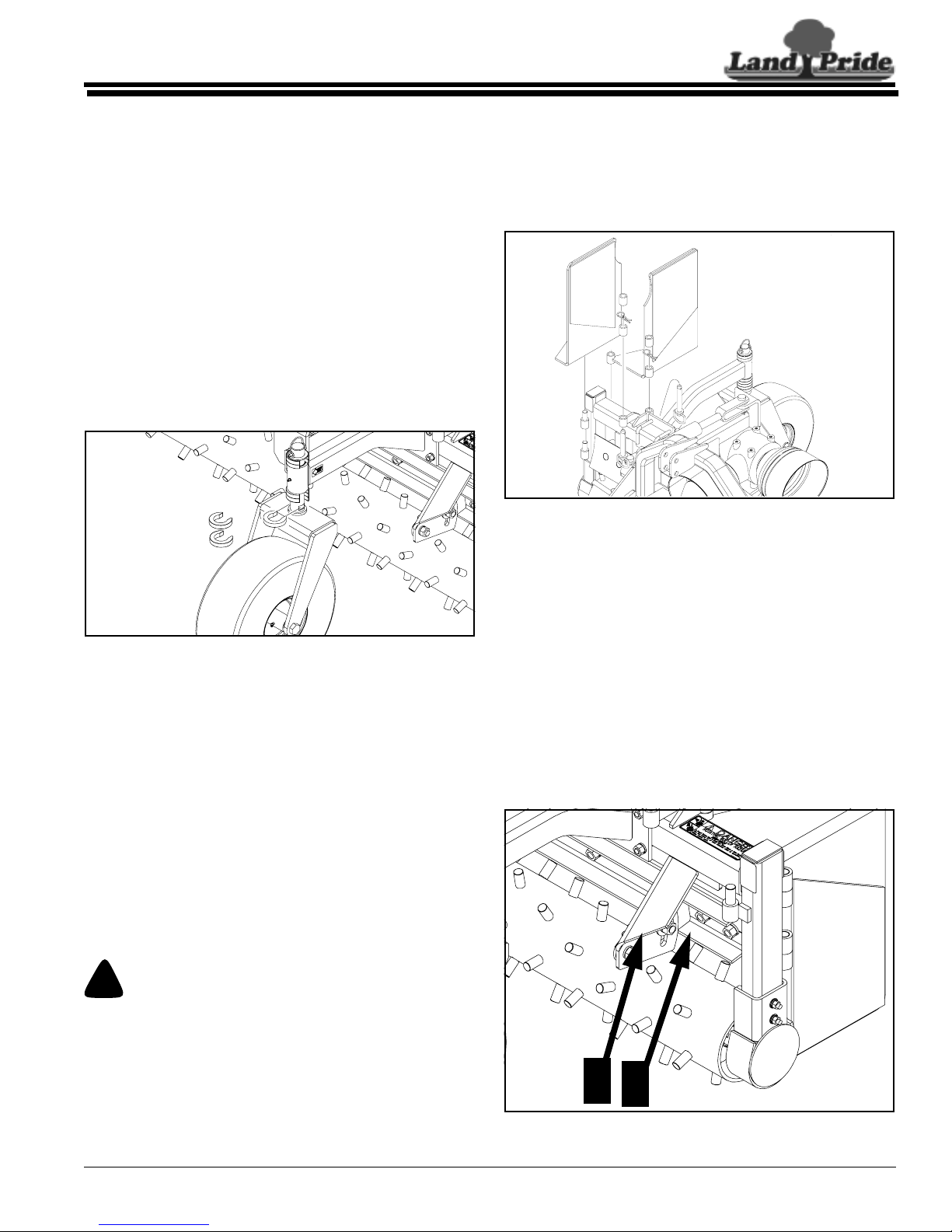

Gauge Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Setting the Working Depth . . . . . . . . . . . . . . . . . . 11

Powered Rake Roller . . . . . . . . . . . . . . . . . . . . . . 11

Drive Chain Adjustment . . . . . . . . . . . . . . . . . . . . 11

End Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Material Control Deflector Adjustment . . . . . . . . .11

Section 4: Maintenance and Lubrication 12

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Drive Chain Maintenance . . . . . . . . . . . . . . . . . . .12

Chain Case Skid Shoe Replacement . . . . . . . . . .12

Sprocket & Drive Chain Replacement . . . . . . . . .12

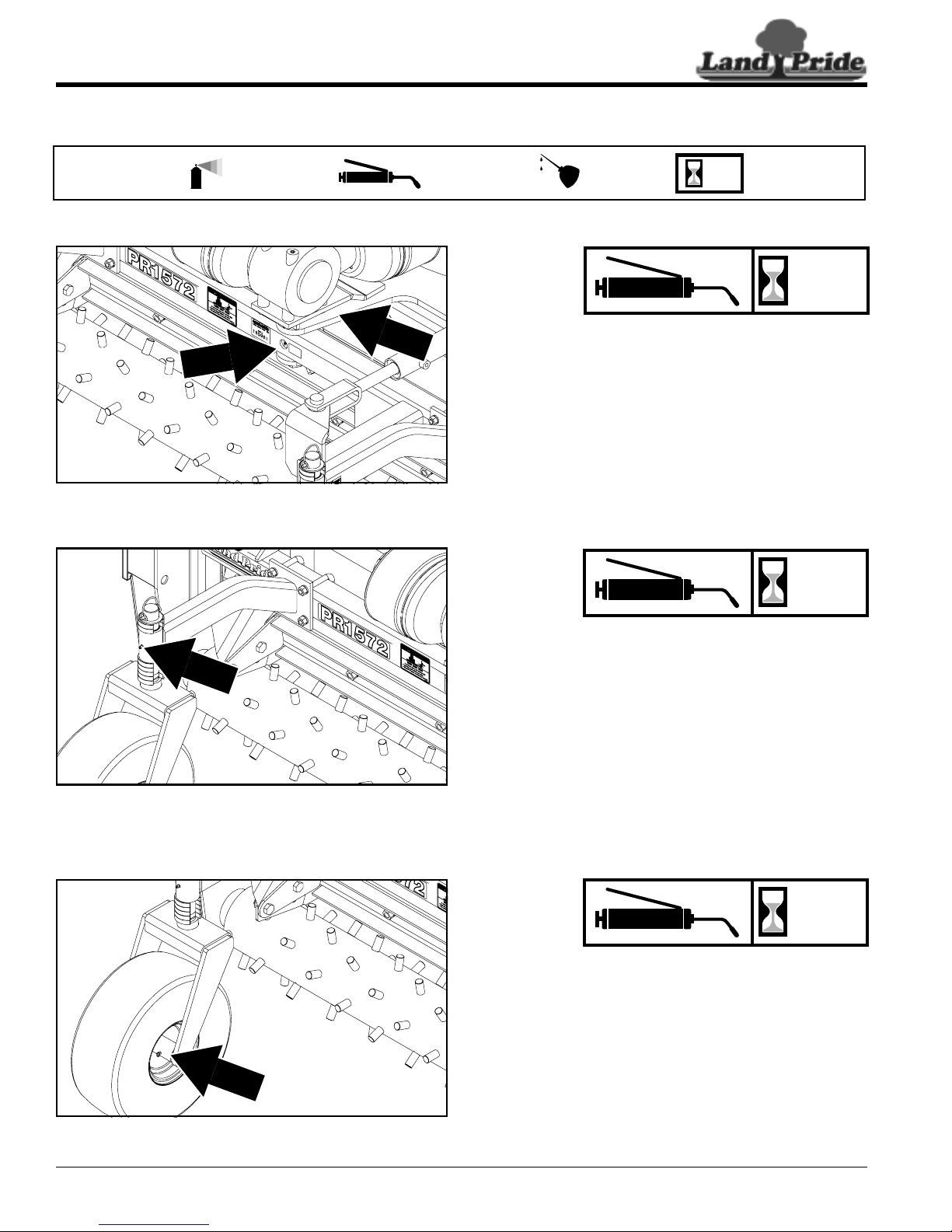

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Pivot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Gauge Wheel Spindle . . . . . . . . . . . . . . . . . . .14

Gauge Wheel . . . . . . . . . . . . . . . . . . . . . . . . .14

Drive Chain . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Non-Drive Bearing . . . . . . . . . . . . . . . . . . . . . .15

Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Section 5: Specifications & Capacities . .16

Section 6: Features & Benefits . . . . . . . .17

Section 7: Troubleshooting . . . . . . . . . . .18

Section 8: Appendix . . . . . . . . . . . . . . . . .19

Torque Values Chart . . . . . . . . . . . . . . . . . . . . . .19

Tire Inflation Chart . . . . . . . . . . . . . . . . . . . . . . . .19

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . .21

© Copyright 2008 All rights Reserved

Land Pride provides this publication “asis” without warranty ofany kind, either expressedor implied. While every precaution has beentaken in the preparationof this manual, Land
Pride assumesno responsibility forerrors oromissions. Neither isany liability assumedfor damagesresulting from theuse of theinformation contained herein.Land Pride reserves
the rightto revise andimprove itsproducts as it sees fit. This publicationdescribes the stateof this productat the time of its publication,and may notreflect the productin the future.

All other brands and product names are trademarksor registered trademarks of their respectiveholders.

PR1560 & PR1572 Powered Rakes 314-164M

Land Pride isa registered trademark.

Printed in the United States of America.

7/14/08

Land Pride

▲

Table of Contents

Important Safety Information

Important Safety Information

These are common practices that may or may not be applicable to the products described in
this manual.

Safety at All Times

Thoroughly read and understand
the instructions given in this
manual before operation. Refer to
the “Safety Label” section, read
all instructions noted on them.

Do not allow anyone to operate
this equipment who has not fully
read and comprehended this
manual and who has not been
properly trained in the safe
operation of the equipment.

▲ Operator should be familiar with

all functions of the unit.

▲ Operate implement from the

driver’s seat only.

▲ Make sure all guards and shields

are in place and secured before
operating the implement.

▲ Do not leave tractor or implement

unattended with engine running.

▲ Dismounting from a moving

tractor could cause serious injury
or death.

▲ Do not stand between the tractor

and implement during hitching.

▲ Keep hands, feet, and clothing

away from power-driven parts.

▲ Wear snug fitting clothing to avoid

entanglement with moving parts.

▲ Watch out for wires, trees, etc.,

when raising implement. Make
sure all persons are clear of
working area.

▲ Turning tractor too tight may

cause implement to ride up on
wheels. This could result in injury
or equipment damage.

Look For The Safety Alert Symbol

The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of

!

Be Aware of
Signal Words

A Signal word designates a degree or
level of hazard seriousness. The
signal words are:

!

DANGER

Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury. This
signal word is limited to the most
extreme situations, typically for
machine components that, for
functional purposes, cannot be
guarded.

For Your Protection

▲ Thoroughly read and understand

the “Safety Label” section, read all
instructions noted on them.

equipment, hazard control and accident prevention
are dependent upon the awareness, concern,
prudence and proper training of personnelinvolved in
the operation, transport, maintenance and storage of
equipment.

!

WARNING

Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It mayalso
be used to alert against unsafe
practices.

!

CAUTION

Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.

Shutdown and Storage

▲ Lower machine to ground, put

tractor in park, turn off engine, and
remove the key.

▲ Detach and store implements in a

area where children normally do
not play. Secure implement by
using blocks and supports.

7/14/08

OFF

REMO

VE

PR1560 & PR1572 Powered Rakes 314-164M

1

Table of Contents

Land Pride

Important Safety Information

These are common practices that may or may not be applicable to the products described in
this manual.

Use Safety
Lights and Devices

▲ Slow moving tractors, self-

propelled equipment, and towed
implements can create a hazard
when driven on public roads. They
are difficult to see, especially at
night.

▲ Flashing warning lights and turn

signals are recommended
whenever driving on public roads.
Use lights and devices provided
with implement.

Transport
Machinery Safely

▲ Comply with state and local laws.
▲ Maximum transport speed for

implement is 20 mph. DO NOT
EXCEED.Never travel at a speed
which does not allow adequate
control of steering and stopping.
Some rough terrain require a
slower speed.

▲ Sudden braking can cause a

towed load to swerve and upset.
Reduce speed if towed load is not
equipped with brakes.

▲ Use the following maximum

speed - tow load weight ratios as
a guideline:

20 mph when weight is less
than or equal to the weight of
tractor.

10 mph when weight is double
the weight of tractor.

IMPORTANT: Do not tow a load that

is more than double the weight of
tractor.

Keep Riders
Off Machinery

▲ Riders obstruct the operator’s

view, they could be struck by
foreign objects or thrown from the
machine.

▲ Never allow children to operate

equipment.

Practice Safe Maintenance

▲ Understand procedure before

doing work. Use proper tools and
equipment, refer to Operator’s
Manual for additional information.

▲ Work in a clean dry area.
▲ Lower the implement to the

ground, put tractor in park, turn off
engine, and remove key before
performing maintenance.

▲ Allow implement to cool

completely.

▲ Do not grease or oil implement

while it is in operation.

▲ Inspect all parts. Make sure parts

are in good condition & installed
properly.

▲ Remove buildup of grease, oil or

debris.

▲ Remove all tools and unused

parts from implement before
operation.

PR1560 & PR1572 Powered Rakes 314-164M

2

7/14/08

Land Pride

Table of Contents

Important Safety Information

These are common practices that may or may not be applicable to the products described in
this manual.

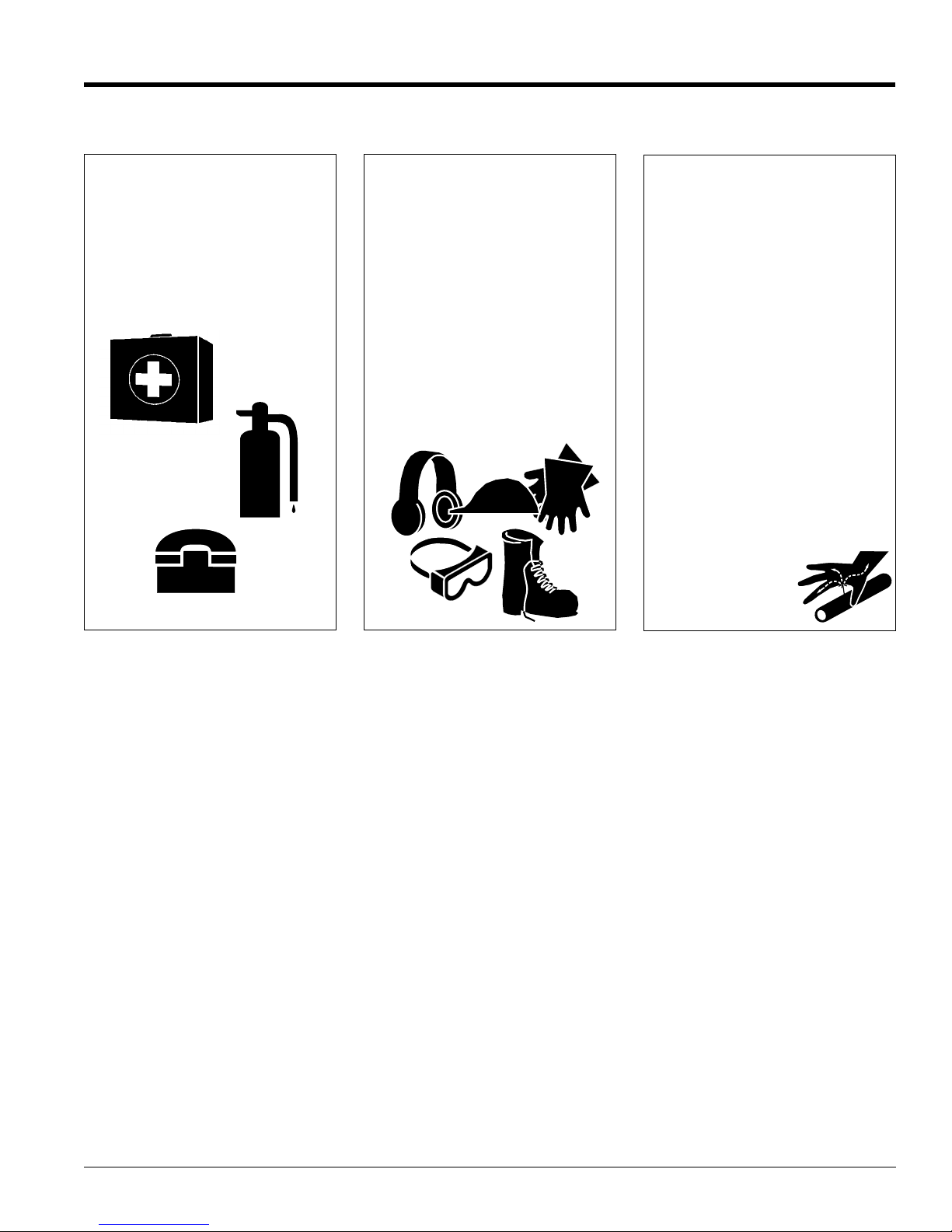

Prepare for Emergencies

▲ Be prepared if a fire starts.
▲ Keep a first aid kit and fire

extinguisher handy.

▲ Keep emergency numbers for

doctor, ambulance, hospital and
fire department near phone.

911

Wear
Protective Equipment

▲ Protectiveclothingandequipment

should be worn.

▲ Wear clothing and equipment

appropriate for the job. Avoid
loose fitting clothing.

▲ Prolonged exposure to loud noise

can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.

▲ Operating equipment safely

requires the full attention of the
operator. Avoid wearing radio
headphones while operating
machinery.

Avoid High
Pressure Fluids Hazard

▲ Escaping fluid underpressurecan

penetratetheskincausingserious
injury.

▲ Avoid the hazard by relieving

pressure before disconnecting
hydraulic lines or performing work
on the system.

▲ Make sure all hydraulic fluid

connections are tight and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.

▲ Use a piece of paper or

cardboard, NOT BODYPARTS, to
check for suspected leaks.

▲ Wear protective gloves and safety

glasses or goggles when working
with hydraulic systems.

▲ If an accident occurs, see a

doctor immediately. Any fluid
injected into the skin must be
treated within a few hours or
gangrene may result.

7/14/08

PR1560 & PR1572 Powered Rakes 314-164M

3

Important Safety Information

Table of Contents

Land Pride

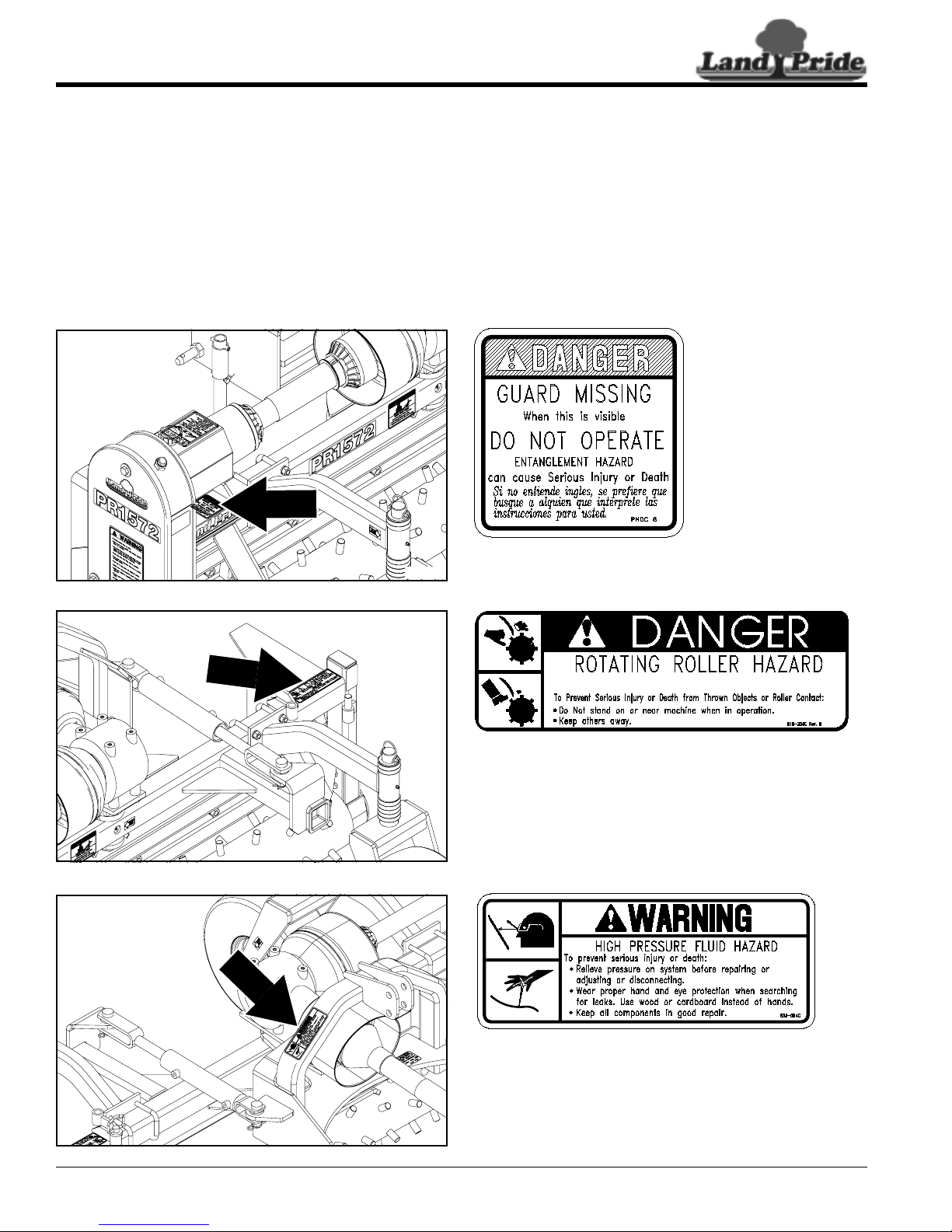

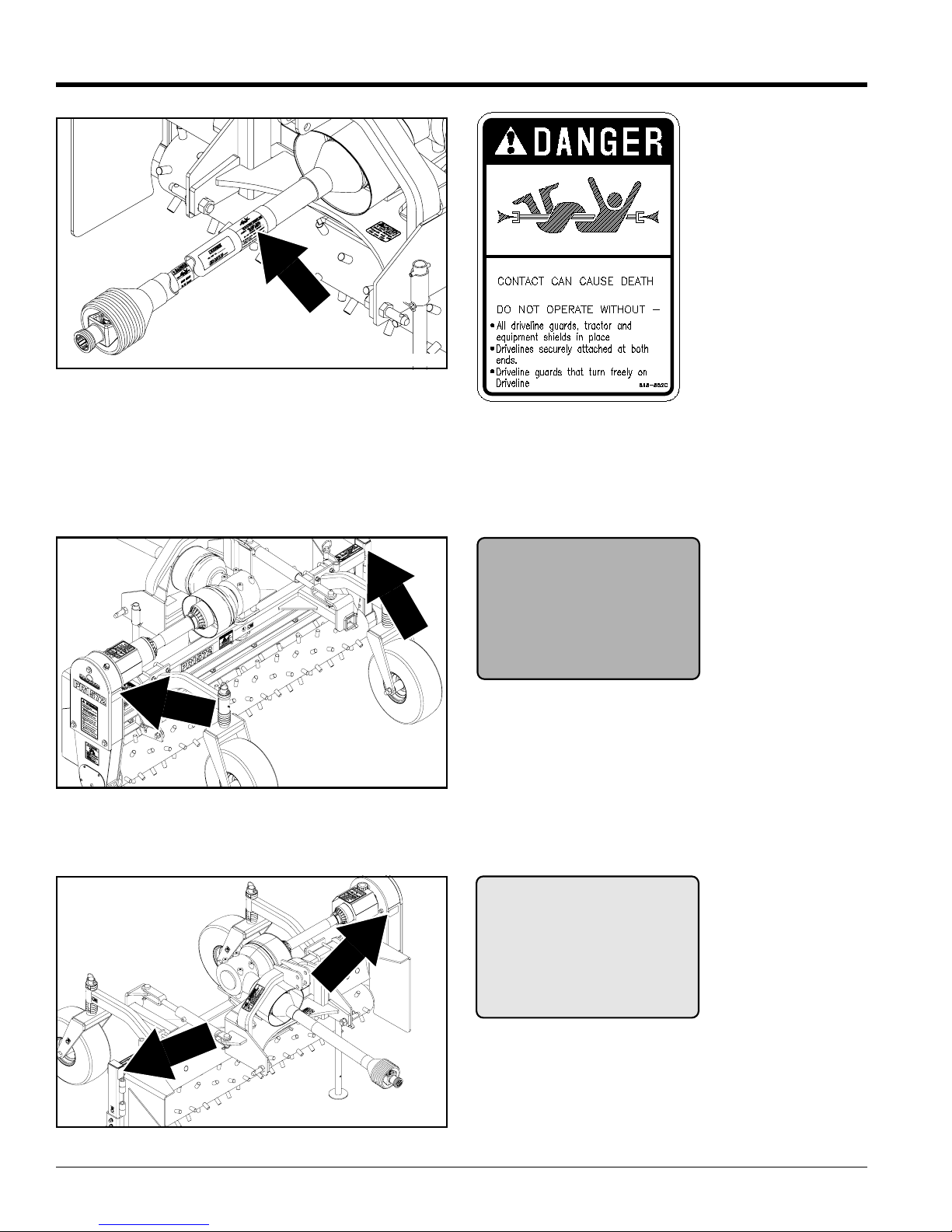

Safety Labels

Your Powered Rake comes equipped with all safety labels in
place. They were designed to help you safely operate your
implement. Read and follow their directions.

1. Keep all safety labels clean and legible.

2. Replace all damaged or missing labels. To order new
labels go to your nearest Land Pride dealer or visit our
dealer locator at landpride.com.

3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as

specified by Land Pride. When ordering new components
make sure the correct safety labels are included in the
request.

4. Refer to this section for proper label placement.
To install new labels:

a. Clean the area the label is to be placed.
b. Spray soapy water on the surface where the label is to

be placed.
c. Peel backing from label.Pressfirmlyontothe surface.
d. Squeeze out air bubbles with the edge of a credit card.

818-543C

Danger: Guard Missing

18598

18598

KEEP AWAY

818-254C

Danger: Rotating Roller Hazard

PR1560 & PR1572 Powered Rakes 314-164M

4

838-094C

Warning: High Pressure Fluid
Hazard

18599

7/14/08

Land Pride

Important Safety Information

Table of Contents

18598

18598

818-255C

Warning: General Safety

838-111C

Danger: Moving Parts

7/14/08

18598

818-603C

Warning: Thrown Object

PR1560 & PR1572 Powered Rakes 314-164M

5

Important Safety Information

Table of Contents

ROTATING DRIVELINE

18601

Land Pride

KEEP AWAY!

818-552C

Danger: Rotating Driveline

PR1560 & PR1572 Powered Rakes 314-164M

6

18598

18599

818-230C

Red Reflector

818-229C

Amber Reflector

7/14/08

Land Pride

Important Safety Information

Table of Contents

18601

18601

818-130C

Caution: 540 RPM

818-540C

Danger: Guard Missing

7/14/08

18598

ROTATING DRIVELINE

KEEP AWAY!

818-552C

Danger:
Rotating Driveline

(Also on Driveline
Beneath Guard)

PR1560 & PR1572 Powered Rakes 314-164M

7

Table of Contents

Introduction

Introduction

Land Pride welcomes you to the growing family of new
product owners.

This Powered Rake has been designed with care and
built by skilled workers using quality materials. Proper
assembly, maintenance, and safe operating practices
will help you get years of satisfactory use from the
machine.

Application

The PR15 Series PoweredRakes are designedand built
by Land Pride to be multi-functional seed bed or soil
surface preparation tools for landscapers and turf care
professionals. They are capable of grading, leveling,
shaping, cultivating, renovating and pulverizing various
types of soilsurfaces. Theyare also capable of rakingor
windrowingsoil, rocks and constructionsitedebris. Their
60” or 72” working width and compatibility with 20 - 40
horsepower Cat. 1 540 RPM PTO tractors make them a
goodchoiceforsmalleror“space restricted” landscaping
and turf renovation jobs. See “Features and Benefits”,
“Section 6” for additional information.

Land Pride

LandPridedealer. A dealer has trained personnel, repair
parts and equipment needed to service the ?????.

The parts on your Powered Rake have been specially
designedandshouldonlybe replaced with genuine Land
Pride parts. Therefore, should your ????? require
replacement parts go to your Land Pride Dealer.

Serial Number Plate

For prompt service always use the serial number and
modelnumber when ordering partsfromyour Land Pride
dealer.Besuretoincludeyourserialandmodel numbers
incorrespondencealso. Refer to Figure 1forthelocation
of your serial number plate.

Using This Manual

This Operator’s Manual is designed to help familiarize

•

you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.

• The information contained within this manual was

current at thetime of printing. Some partsmay change
slightly to assure you of the best performance.

• To order a new Operator’s or Parts Manual contact

your authorized dealer. Manuals can also be
downloaded, free-of-charge from our website at
www.landpride.com or printed from the Land Pride
Service & Support Center by your dealer.

Terminology

“Right” or “Left” as used in this manual is determined by
facing the directionthe machine will operate while in use
unless otherwise stated.

Definitions

NOTE: A special point of information that the

operator must be aware of before continuing.

IMPORTANT: A special point of information related
to its preceding topic. Land Pride’s intention is that
this information should be read and noted before
continuing.

Owner Assistance

The Warranty Registration card should be filled out by
the dealer at the time of purchase. This information is
necessary to provide you with quality customer service.

If customer service or repair parts are required contact a

18600

Serial Number Plate Location

Figure 1

Further Assistance

Your dealer wants you to be satisfied with your new
Powered Rake. If for any reason you do not understand
any part of this manual or are not satisfied with the
service received, the following actions are suggested:

1. Discuss the matter with your dealership ser vice
manager making sure he is aware of any problems
youmay haveand that he has had the opportunity to
assist you.

2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.

3. For further assistance write to:

Land Pride Service Department

1525 East North Street

P.O. Box 5060

Salina, Ks. 67402-5060

E-mail address

[email protected]

PR1560 & PR1572 Powered Rakes 314-164M

8

7/14/08

Land Pride

Table of Contents

Section 1: Assembly and Set-Up

Section 1: Assembly and Set-Up

Tractor Requirements

ThePoweredRakeisdesignedwitha category 1, 3-point
hitch and will fit a Land Pride Cat. 1 Quick-Hitch. The
maximum horsepower rating for the tractor is 45 HP
depending on lift capacity and field conditions. Front
tractor weights and/or ballast to tires may be required to
offset weight of unit. Consult your tractor manual for
details.

!

WARNING

Hydraulic fluid under pressure can penetrate skin. Wear
protective gloves and safety glasses or goggles when working
with hydraulic systems. Use a piece of cardboard or wood
rather than hands when searching for hydraulic leaks. If
hydraulic fluid is injected into the skin, it must be surgically
removedwithin a few hours by a doctor or gangrene may result.

Gauge Wheel Assembly (PR1572)

Refer to Figure 1-1:

PR1572isshown.On the PR1560 the gauge wheel arms
are part of the frame.

1. Install the gauge wheels (#1) to the frame with the u­bolts (#2) lock washers (#3) and nuts (#4) as shown.

18602

Gauge Wheel

Figure 1-1

Tractor Hook-Up

!

CAUTION

Do not stand between the tractor and implement during
hook-up.

1. Be certain that the tractor drawbar will not interfere.
Movedrawbaraheadorremoveifrequired.Drawbar
should also be checked for clearance when unit is
being raised for the first time.

2. Align lower link arms of tractor to hitch lugs on
Powered Rake. Insert lower hitch pins into lower ball
swivels and attach linch pins.

3. Attach tractor top link to upper hitch of Powered
Rake. Secure with pin.

4. Connect hydraulic hoses on Powered Rake to the
tractor.

Driveline Installation

1. Slide the driveline over the splined shaft at the front
of the Powered Rake and secure with the locking
device of dr iveline.

IMPORTANT: The inner shield half attaches to the
Powered Rake.

2. Slide the driveline over the tractor’s splined PTO
shaft and secure with the lockingdevice of driveline.

3. Hookthe safetychain on the drivelinePoweredRake
end around a tube on the front of the Powered Rake
to prevent the shield from rotating.

4. Thedriveline should now bemovedbackandforth to
insure that it is secure on thePTOshaft of thetractor
and Powered Rake dr ive shaft.

5. Should the driveline require shortening:
a. Hold the half-shafts next to each other in the

shortest working position and mark them.
b. Shorten inner and outer guard tubes equally.
c. Shorten inner and outer sliding profiles by the

same length as the guard tubes.
d. Proper overlap is a minimum of one-half the

lengthofeachtube,with both tubesbeingofequal

length.
e. Round off all sharp edges and remove burrs.

Grease sliding profiles.

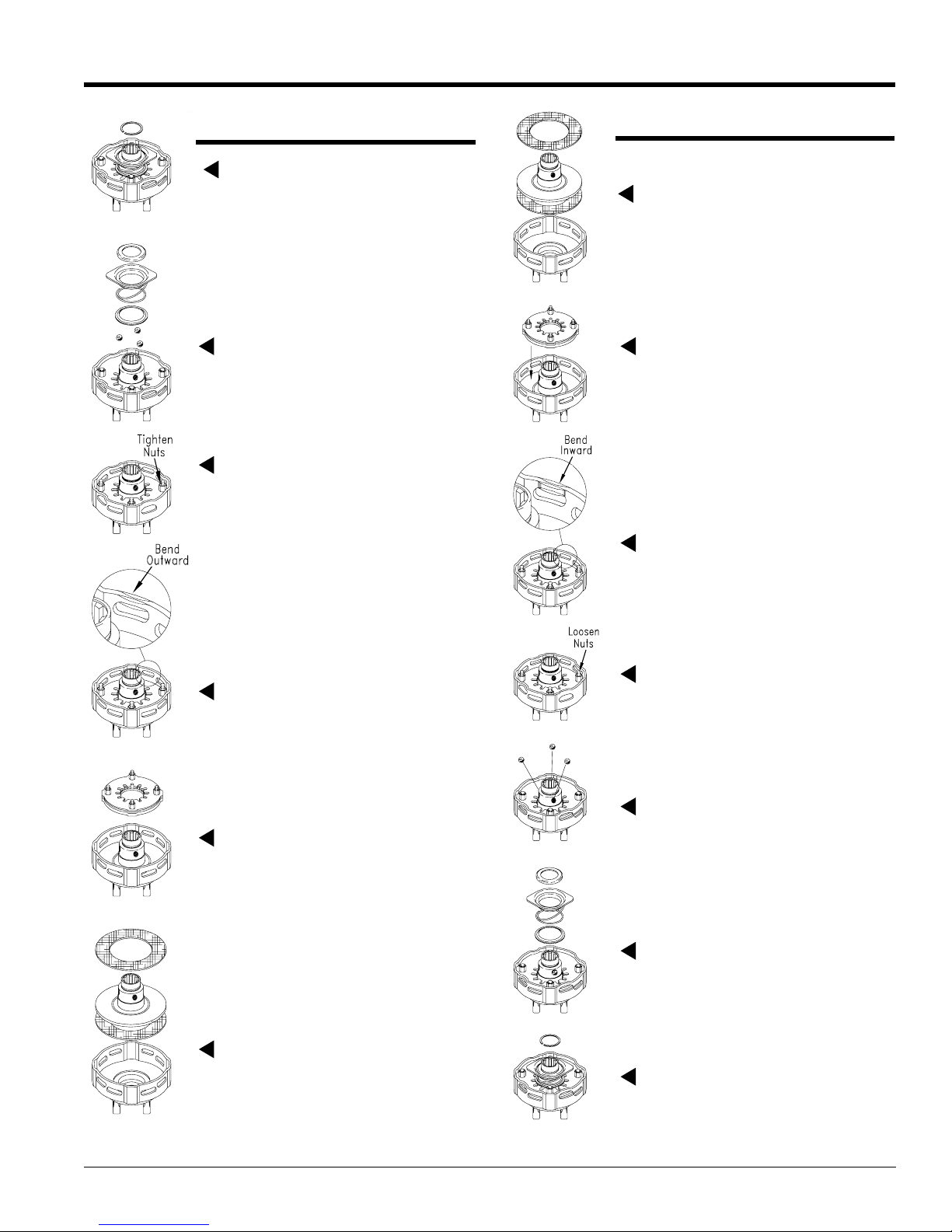

Prior to initial operation and after long periods of
inactivity, the Friction Clutch should be “run-in”. Refer to
Figure 1-2.

1. Tightenall4nutsuniformlyuntilthespringloadislow
enough that the clutch slips freely with the PTO
engaged.

2. Turn nuts fully back. Clutch is ready for use.

10103

Friction Clutch “Run In”

Figure 1-2

7/14/08

PR1560 & PR1572 Powered Rakes 314-164M

9

Table of Contents

Section 2: Operating

Section 2: Operating

Transporting

IMPORTANT: ALWAYS disengage PTO before

raising the Powered Rake to transport position.

1. When raising the Powered Rake to the transport
position, be sure that the driveline does not contact
tractor or Powered Rake.

2. Be sure to reduce tractor ground speed when
turning; and leave enough clearance so thePowered
Rake does not contact obstacles such as buildings,
trees or fences.

3. Select a safeground travel speed when transporting
from one area to another. When travelingon
roadways,transport in sucha waythat faster moving
vehicles may pass you safely.

4. Whentravelingoverrough or hilly terrain, shift tractor
to a lower gear.

!

CAUTION

When traveling on public roads, whether at night or during the
day, use accessory lights and devices for adequate warning to
operators of other vehicles. Comply with all federal, state, and
local laws.

Operating Checklist

1. Check chain tension. Refer to “Drive Chain
Adjustment” on page 11.

2. Check oil level in gearbox and chain case. Refer to
“Lubrication” on page 14 of this manual.

3. Check that all plugs have been replaced properly in
the gearbox and chain case.

4. Be sure all bolts and nuts are tight.

5. Be certain all guards and shields are in place and
secure.

6. Grease driveline shaft and all other grease fittings.
Refer to “Lubrication” on page 14.

7. Checkair pressure ingauge wheel tires.It should be
45 psi.

Operating Instructions

Once you have familiarized yourself with the Operator’s
Manual, completed the Operator’s checklist, properly
attachthePowered Rake to your tractor,andmadeinitial
depthsetting, leveling, androllerangle adjustments, you
are almost ready to begin using your Land Pride
Powered Rake.

Hopefullyyou have chosenawork site that isdry and will
allow you to make at least a straight 50ft. long pass to
determine final adjustments. Powered Rakes do not
perform well in wet sticky soil conditions and are not
designedto make sharp turns or backupwhenin contact
with the ground.

It’s now time fora running operationalsafety check. With
the tractor’s park brake engaged, the tractor PTO

Land Pride

disengaged, and the Powered Rake resting on the
ground, start the tractor and back off to approximately
one-quarter throttle. Using the rear draft link hydraulic
control, lift the Powered Rake about half way off the
ground. Now engage the rear PTO and, if everything is
running smoothly, keep increasing the tractor throttle
until you have reached full tractor PTO operating speed.
If at any time the PTO driveline or Powered Rake is not
operating properly shut off all power and make
necessary adjustments. Never engage the tractor PTO
at full rpm or with the Powered Rake in the fully raised
position or driveline and unit damage could occur.

With the running operational safety check complete, it’s
time to do some serious soil renovation at your chosen
work site. With the PoweredRake raised half way off the
ground and the tractor PTO disengaged, release the
park brake and travel to your starting point. Choose a
tractorgear selection or rangethatwill allow you to travel
between 3-5mph.Withthetractor engine at idle,
engage the rear tractor PTO and increase engine speed
until the PTO is at full 540 rpm output. Begin forward
travelwhilegently lowering the running Powered Raketo
the ground. Observe changes in the finish as you travel
forward and make slight changes to ground speed.
Generally,a slower speedresultsin a finerfinish,while a
higher speed results in a coarser finish. Excessive
ground speed may result in dirt or material passing over
the top of the material control deflector or too much
material being windrowed off to the side. While 15
degrees left or right is the normal operating angle, you
may want to make subtle hydraulic adjustments to the
roller to determine the varying effect on the surface
finish. If you notice too many rocks or excessive debris
passing under the roller, you will probably have to make
a depth control adjustment. A one-inch cultivation depth
is normally considered ideal for a surface finish.

Setting the working depth and leveling the rake is
controlled by the caster gauge wheels and not the
tractor. The Powered Rake is equipped with C-spacers
on the gauge wheel spindles. This enables depth and
leveling adjustments without gauge wheel removal.
Simply add spacers to decrease working depth or
remove spacers to increase working depth. In order to
compensate for the additional weight of the chain case
on the left side of the rake, you will probably need to add
spacers to the left side gauge wheel lowering it
approximately one inch for proper side-to-side and level
running operation. See Figure 3-1 page 11.

After you have traveled 50 feet, stop the tractor,
disengage the PTO, set the park brake, turn off the
tractor,andremovethekey.Nowclimbdownandinspect
the finish and determine what, if any, adjustments need
to be made. Check for any foreign objects that may be
wrapped around the roller or lodged between the studs.
Remember that the right finish is achieved through a
combinationofpropersoilmoistureconditions,operating
depth, ground speed, material gate opening, and roller
angle. Your Powered Raking capabilities will improve
rapidly with experience.

PR1560 & PR1572 Powered Rakes 314-164M

10

7/14/08

Land Pride

Section 3: Adjustments

Section 3: Adjustments

Table of Contents

Gauge Wheels

Caster gauge wheels are mounted on the rear of the
frame to control the height of the roller during field
operation.

Setting the Working Depth

The operating depth is controlled by the caster gauge
wheels and not the tractor. The Powered Rake is
equipped with C-spacers on the gauge wheel spindles so
that the gauge wheels do not have to be removed for
adjustment. Simply remove the spacers at the cut outs at
the bottom of the gauge wheel spindles as shown in
Figure 3-1. Move the gauge wheels up for greater depth
or move themdown for lessdepth. To allowfor weight the
gauge wheel on the chain case side should be
approximately 1 inch lower than the non-drive side gauge
wheel for best results.

18014

Depth Adjustment

Figure 3-1

Powered Rake Roller

The roller is powered by a roller chain attached to a
sprocket mounted on a driveline that runs off the
gearbox. A hydraulic cylinder angles the roller frame 20
degrees in either direction for windrowing material to the
side. There are two roller options available. The scrolled
roller is designed for hard rocky ground to scrape rocks
out of the top few inches of dirt. The roller and material
control deflector, screenthe material forunwanted rocks
and debris while letting through finely sifted dirt. The
carbide enhanced tuff studs roller is for ground
preparation. The tuff studs roller can also be used to rip
away low growing vegetation.

End Plates

End plates are utilized to gather and keep rocks and
debris in front of the roller to distribute the material to fill
in low spots. End plates can be removed and stored on
the unit for final grading as shown in Figure 3-2.

18646

End Plates (Not in use)

Figure 3-2

Material Control Deflector
Adjustment

A material control deflector is mounted above the roller
so control can be established over both the size and
shape of the materials being cleaned or raked. The gap
between the material controldeflector and the rakeroller
can be adjusted to widen or narrow the opening. A wider
opening will allow more dirt and rock to pass through. A
narrow opening will allow for finer raking.

The height of the material control deflector can be
adjusted by loosening the bolts (A) and rotating the
material control deflector (B) to desired height. Refer to
Figure 3-3.

Drive Chain Adjustment

!

CAUTION

BEFORE any maintenance is performed, lower the Powered
Rake to the ground, stop tractor engine andremovethe key.DO
NOTattempt to make maintenance adjustments while tractor is
running.

1. If the chain should become loose, either the spring

on the idler arms or the chain needs to be replaced.
See “Sprocket and Drive Chain Replacement”
page 12.

7/14/08

A

B

Material Control Deflector Adjustment

Figure 3-3

PR1560 & PR1572 Powered Rakes 314-164M

18600

11

Table of Contents

Section 4: Maintenance and Lubrication

Section 4: Maintenance and Lubrication

Land Pride

Maintenance

!

CAUTION

BEFORE any maintenance is performed, lower the Powered
Rake to the ground, stop tractor engine and remove key. DO
NOTattempt to make maintenance adjustments while tractor is
running.

IMPORTANT: Properservicing and adjustment is the
key to the long life of any machine. With careful and
systematic inspection of the Powered Rake, costly
maintenance, time and repair can be avoided.

Storage

At the end of the working season or when the Powered
Rakewill not beusedfor a long period,it is good practice
tocleanoffanydirtorgreasethatmayhaveaccumulated
on any of the moving parts.

Check the roller studs or bars for wear and replace the
roller and/or studs if necessary.

Inspect the Powered Rake for loose, damaged or worn
parts and adjust or replace if needed.

Lubricate as noted in “Lubrication” on page 14.
Repaintpartswherepaintiswornorscratchedtoprevent

rust.
Drain gearbox andchain case oil. Drain oil in gearbox by

removingthebottomdrainplug.Drainoilinchaincaseby
removing bottom cover (#2) Figure 5-2. Be sure to refill
gearbox and chain case at this time.

Apply a light coat of grease to any exposed hydraulic
cylinder rod.

Store Powered Rake in a clean, dry place.

Sprocket & Drive Chain Replacement

Refer to Figure 5-2:

1. Remove cover plate (#1) and bottom plate (#2).
NOTE: Oil in chain case! Be prepared to capture oil

when taking off bottom cover.

2. Loosen chain tension by removing spring (#3) from

idler arm.

3. Remove nut (#4) on and/or (#5) sprockets.

4. Remove sprockets and chain.

5. Install new chain and sprockets.

6. Reinstall nut (#4) and (#5).

7. Reinstall spring (#3).

8. Turnthe roller severalturns andobserve the chain to

make sure everything is working properly.

9. Reinstall cover plate (#1) and bottom plate (#2).

10. Check the oil level in the chain case. See

“Lubrication” on page 14.

Drive Chain Maintenance

Theoperator should check periodicallytomakesure that
the drive chain is tight. If adjustment is needed refer to

“Drive Chain Adjustment” on page 11.

Chain Case Skid Shoe Replacement

IMPORTANT: If chain case skid shoe needs to be

replaced, it is important that the carriage bolt threads
and nuts are coated generously with Sikaflex. This
willinsure that thereisno oil leakagefromchain case.

Chain Case Skid Shoe Replacement

Figure 5-1

PR1560 & PR1572 Powered Rakes 314-164M

12

18644

Sprocket and Drive Chain Replacement

Figure 5-2

2-Plate Slip Clutch

NOTE: Before proceeding, secure the clutch firmly

in a vise or other clamping device to prevent injury.

18013

7/14/08

Land Pride

Table of Contents

Section 4: Maintenance and Lubrication

2-Plate Disassembly

Step 1

Remove snap ring.

Step 2

Remove backup ring, lock collar,
compression spring, bottom
backup ring, and balls.

Step 3

Tighten the four hex nuts
uniformly until the clutch pack
and hub are loose.

2-Plate Assembly

Step 1

Place hub and friction discs into
the housing.

Step 2

Compress Belleville Springs to
the pressure plate by tightening
the four hex nuts and then
placing the assembly into the
clutch housing.

Step 3

Bend retaining lugs inward over
the Belleville Spring edges to
secure the spring before backing
the four hex nuts off.

10435

Step 4

Bendallfour retaining lugs outon
edge of clutch housing.

Step 5

Remove thrust plate with
BellevilleSpringsandlugringsto
access friction discs and hub for
inspection or service.

Step 6

Inspect friction discs and hub.

Step 4

With lugs bent in, loosen the four
hex nuts completely to the end of
the threaded studs.

Step 5

Insert greased balls.

Step 6

Install bottom backup ring,
compression spring, lock collar,
and top backup ring.

Step 7

Install snap ring.

10449

7/14/08

PR1560 & PR1572 Powered Rakes 314-164M

13

Table of Contents

Section 4: Maintenance and Lubrication

Lubrication

Land Pride

Lubrication
Legend

18600

Multi-purpose
spray lube

Multi-purpose
grease lube

Multi-purpose
oil lube

50

Intervals in hours
at which lubrication
is required

Pivot

18012
Type of Lubrication: Multi-Purpose Grease

25

Hours

25

Hours

18600

Gauge Wheel Spindle

Type of Lubrication: Multi-Purpose Grease

25

Hours

Gauge Wheel

Type of Lubrication: Multi-Purpose Grease

18600

PR1560 & PR1572 Powered Rakes 314-164M

14

7/14/08

Land Pride

Table of Contents

Section 4: Maintenance and Lubrication

Fill Plug

18013

As

Required

Drive Chain

Oil should escape from the lower plug hole in chain
case when the lower plug is removed. If oil is needed
remove top fill plug and add oil until it escapes from
lower plug hole.

Type of Lubrication: Shell Alvania EP 00

18012

Inside
Skid Shoe

25

Hours

Non-Drive Bearing

Type of Lubrication: Multi-Purpose Grease (Remove
Skid Shoe to grease)

50

Hours

Gearbox

7/14/08

15843

Type of Lubrication: SAE 90

PR1560 & PR1572 Powered Rakes 314-164M

15

Table of Contents

Section 5: Specifications & Capacities

Section 5: Specifications & Capacities

PR1560 & PR1572 Powered Rakes

Working Width

Quick-Hitch

Tractor Horsepower Range

Gearbox

Primary Driveline

Secondary Driveline

Material Control Deflector

Ball Bearings

Drive Chain

Chain Case Oil

Angle Adjustment

Angle Cylinder

End Plates

Gauge Wheels

Skid Shoes

Weight

Model

Hitch

Roller

Land Pride

PR1560 PR1572

60” 72"

Cat. 1

Fits Land Pride Quick-Hitch

30 HP 40 HP

540 RPM, Ball Bearings, Cast Iron Housing, Drain Plug

Cat. 2 with Slip-Clutch

Cat. 2 Heavy-Duty

1/2” X 6” Heat treated reversible

9 3/8” Dia. with 3/4”X1 1/2” ISC Tuff Studs or

8 3/16” Dia. with 3/4” Spiral Bars, 180-260 RPM

at Roller Ends

#50 Double

Shell Alvania EP 00

15 degrees left or right

2” X 8”

Standard, Removable with Storage Rack

PR1560: 13” X 6.5”, PR1572: 16.5” X 6.5”

Air Tires with Sealant and 3/4” Roller Bearings and Spacer Height Adjustment

Replaceable

880 lbs. 970 lbs.

PR1560 & PR1572 Powered Rakes 314-164M

16

7/14/08

Land Pride

Section 6: Features & Benefits

Section 6: Features & Benefits

Table of Contents

Features
Working widths 60”, 72”
Tractor Horsepower Range 30 - 40 HP
Cat. 2 driveline with

slip-clutch (primary shaft)
3/4” x 1 1/2” Carbide ISC

Tuff Studs Roller
Scrolled roller available Scrolled roller will windrow rocks and other debris, leaving an excellent seedbed.
15 Degrees left or right angling By angling either direction, the user has many options on what direction to work his area.
Gauge wheels with sealant Tall and wide tires keep turning in fluffy soil. Sealant helps seal against punctures.
End plates with storage End plates can be used to hold dirt in which can aid in filling low spots. Easily store the

Material control deflector Material control deflector is used to determine what size of material to let pass through

Replaceable skid shoes Skidshoesprotect larger and vital parts of the unit. Asthey wear due to soil contact, they

#50 Double continuous roller chain Double chain can take the fluctuation loads from the roller due to varying ground

Drive chain enclosed in oil bath A small amount of oil keeps the chain and sprockets lubricated to keep abrasion to a

1 Year gearbox warranty Shows our confidence in the gearbox integrity.

Benefits

Slip-clutch offers protection to the gearbox and entire power train when a tough
obstruction is encountered with the roller.

Carbide enhanced Tuff Studs are very tough, used in the mining industry, this offers a
long life to the studs. Studs can be replaced one at a time.

end plates on the Powered Rake. End plates are always with the Rake when needed.

the roller, and what size to move out.

can easily be replaced.

conditions.

minimum.

7/14/08

PR1560 & PR1572 Powered Rakes 314-164M

17

Table of Contents

Section 7: Troubleshooting

Section 7: Troubleshooting

Problem Solution

Land Pride

Machine makes intermittent clicking
noise

Roller will not turn

Operating depth insufficient

Roller gouging on the end

T oo muc h dirt going into the windrow or
dirt going over the top of the material
control deflector

T oo many r ocks passing between
material control deflector and the roller

Check for damaged gear and replace if necessary
Check for worn drive chain and replace if necessary
Obstruction between roller and material control deflector
Chain off
Burnt or mis-adjusted slip-clutch on driveline shaft
Broken drive spindle
Raise gauge wheels
Increase tractor RPM
Clean roller
The gauge wheel on chain case side should be approximately 1” lower than the

non-drive side gauge wheel for consistent leveling
Set gauge wheel depth
Correct air pressure in gauge wheels
Level 3-point arms on tractor
Reduce ground speed
Raise material control deflector
Lower gauge wheels
Lower material control deflector

Roller balling up with soil
Powered Rake b umping on ground

Wait until soil dries
Clean roller

PR1560 & PR1572 Powered Rakes 314-164M

18

7/14/08

Land Pride

Section 8: Appendix

Section 8: Appendix

Table of Contents

Torque Values Chart

Bolt Head Identification

Bolt Head Identification

Bolt Size
(Inches)

1

in-tpi

1/4" - 20 7.4 5.6 11 8 16 12 M 5 X 0.8 436597
1/4" - 28 8.5 6 13 10 18 14 M 6 X 1 7 5 11 8 15 11
5/16" - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27
5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29
3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53
3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62
7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93
7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97
1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105
1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150
9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 l215 160
9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230
5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245
5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300
3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355
3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450
7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665
7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780
1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845
1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 1120 2100 1550
1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710
1 1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700
1 1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220
1 1/4" - 12 750 555 1680 1240 2730 20101 in-tpi = nominal thread diameter in inches-threads per inch
1 3/8" - 6 890 655 1990 1470 3230 2380
1 3/8" - 12 1010 745 2270 1670 3680 27103 ft-lb= foot pounds
1 1/2" - 6 1180 870 2640 1950 4290 3160
1 1/2" - 12 1330 980 2970 2190 4820 3560
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.

Grade 2 Grade 5

Grade 8

N·m2ft-lb3N·m ft-lb N·m ft-lb mm x pitch N·m ft-lb N·m ft-lb N·m ft-lb

Bolt Size

(Metric)

2

N· m = newton-meters

4

mm x pitch = nominal thread diameter in millimeters x thread

pitch

5.8

Class 5.8 Class 8.8 Class 10.9

8.8 10.9

Tire Size Inflation PSI

16.5 x 6.5 2- Ply 45

7/14/08

Tire Inflation Chart

PR1560 & PR1572 Powered Rakes 314-164M

19

Section 8: Appendix

Notes

Table of Contents

Land Pride

PR1560 & PR1572 Powered Rakes 314-164M

20

7/14/08

Land Pride

Section 8: Appendix

Land Pride warrants tothe original purchaser that thisLand Pride product will
be free from defects in material and workmanship beginning on the date of
purchase by the end user according to the following schedule when used as
intended and under normal service and conditions for personal use.

Overall Unit and Driveline: One year Parts and Labor

Primary Driveline: One year Parts and Labor, Slip-clutch Friction discs

Gearbox: 1 year Parts and Labor

Roller: Considered a wear item

Hydraulic Cylinder: 1 year parts and labor, hoses and seals

This Warranty is limited to the replacement of any defective part by Land
Pride and the installation by the dealer of any such replacement part, and does
not cover common wear items. Land Pride reserves the right to inspect any
equipment or parts which are claimed to have been defective in material or
workmanship.

This Warranty does not apply to any part or product which in Land Pride’s
judgment shall have been misused or damaged by accident or lack of normal
maintenance or care, or which has been repaired or altered in a way which
adversely affects its performance or reliability, or which has been used for a
purpose for which the product is not designed. Misuse also specifically includes
failure to properly maintain oil levels, grease points, and driveline shafts.

Claims under this Warrantyshould be made tothe dealer which originallysold
the product and all warranty adjustments must be made through an authorized
Land Pride dealer. Land Pride reserves the right to make changes in materials
or design of the product at any time without notice.

This Warranty shall not beinterpreted to render Land Prideliable for damages
of any kind, direct, consequential, or contingent to property. Furthermore, Land
Pride shall not be liable for damages resulting from any cause beyond its
reasonable control. This Warranty does not extend to loss of crops, any expense
or loss for labor, supplies, rental machinery or for any other reason.

No other warranty of any kind whatsoever, express or implied, is made
with respect to this sale; and all implied warranties of merchantability and
fitness for a particular purpose which exceed the obligations set forth in
this written warranty are hereby disclaimed and excluded from this sale.

This Warranty is not valid unless registered with Land Pride within 30 days
from the date of purchase by the end user.

Table of Contents

Limited Warranty

considered wear items

considered wear items.

7/14/08

PR1560 & PR1572 Powered Rakes 314-164M
