Page 1
Table of Contents Part Number Index
Grading Scrapers
GS2584 & GS2596
26653
303-268P
Parts Manual
Read the Operator's manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!
© Copyright 2008 Printed 12/17/08
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Frame............................................................6
Complete Assembly............................................................6
Section 3: Labels...........................................................8
Label Placememt................................................................8
Part Number Index.......................................................10
© Copyright 2008. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 GS2584 & GS2596 Grading Scrapers 303-268P 12/17/08
Land Pride is registered trademark.
Printed in the United States of America.
Page 3
Table of Contents Part Number Index
C
Complete Assembly.......................................................6
L
Label Placememt...........................................................8
Alphabetized Table of Contents
12/17/08 GS2584 & GS2596 Grading Scrapers 303-268P 3
Page 4
Table of Contents Part Number Index
4 GS2584 & GS2596 Grading Scrapers 303-268P 12/17/08
Page 5
Table of Contents Part Number Index
12/17/08 GS2584 & GS2596 Grading Scrapers 303-268P 5
Page 6
Land Pride Section 2: Frame
Table of Contents Part Number Index
Complete Assembly
Applies to GS2584, GS2596
26651
6 GS2584 & GS2596 Grading Scrapers 303-268P 12/17/08
Page 7
Section 2: Frame Land Pride
Table of Contents Part Number Index
Complete Assembly
Applies to GS2584, GS2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26651
BSH 1-1/8X7/8X2-3/4300-296D1.
TOP HITCH REAR BRACE303-084D2.
TOP HITCH REAR BRACE ORANGE303-084D822.
BB25 HEAVY LH HITCH PLATE303-085D3.
BB25 HVY LH HITCH PLATE ORANGE303-085D823.
BB25 HEAVY RH HITCH PLATE303-086D4.
BB25 HVY RH HITCH PLATE ORANGE303-086D824.
SHOE, HARDENED SKID303-168D5.
WELDMENT, GS2584 BUCK FRAME303-263H6.
WELDMENT, GS2584 ORANGE FRAME303-263H826.
WELDMENT, GS2596 BUCK FRAME303-262H6.
WELDMENT, GS2596 ORANGE FRAME303-262H826.
WLDMNT, 84" DUAL BLADE CARRIER303-267H7.
WLDMNT, 84" ORNG BLD CARRIER303-267H827.
WLDMNT, 96" DUAL BLADE CARRIER303-266H7.
WLDMNT, 96" ORNG BLD CARRIER303-266H827.
LWR HTCH PIN ASY 7/8DX8.25USBL305-071S8.
SPACER 1 1/4OD X 25/32ID X 2LG308-400D9.
HHCS 3/4-10X2 GR5802-064C10.
HHCS 3/4-10X5 GR5802-069C11.
PLOW 5/8-11X1 1/2 GR5802-236C12.
PLOW 3/8-16X1 1/4 GR5802-466C13.
HFS 5/8-11 X 1 3/4 GR8802-657C14.
NUT HEX 3/4-10 PLT803-027C15.
NUT FLANGE LOCK 3/8-16 PLT803-209C16.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C17.
WASHER LOCK SPRING 3/4 PLT804-023C18.
PIN LINCH 5/16 X 1 3/4805-015C19.
PIN HAIR COTTER .148 WIRE805-032C20.
PIN ROLL 1/4X1 3/4805-041C21.
PIN HITCH 3/4 X 4 3/8805-081C22.
PIN BENT SHANK LOCK 5/8 OD805-197C23.
PIN 7/8 OD X 8.25 USABLE805-359C24.
GRADER BLADE 1/2 X 6 X 83 1/2820-046C25.
GRADER BLADE 1/2 X 6 X 95 1/2820-035C25.
OptionalSCARIFIER SHANK - 18 W/TIP820-152C26.
Service PartSHANK TIP DIMPLE-ON WIDE FLARE820-153C27.
12/17/08 GS2584 & GS2596 Grading Scrapers 303-268P 7
Page 8
Land Pride Section 3: Labels
Table of Contents Part Number Index

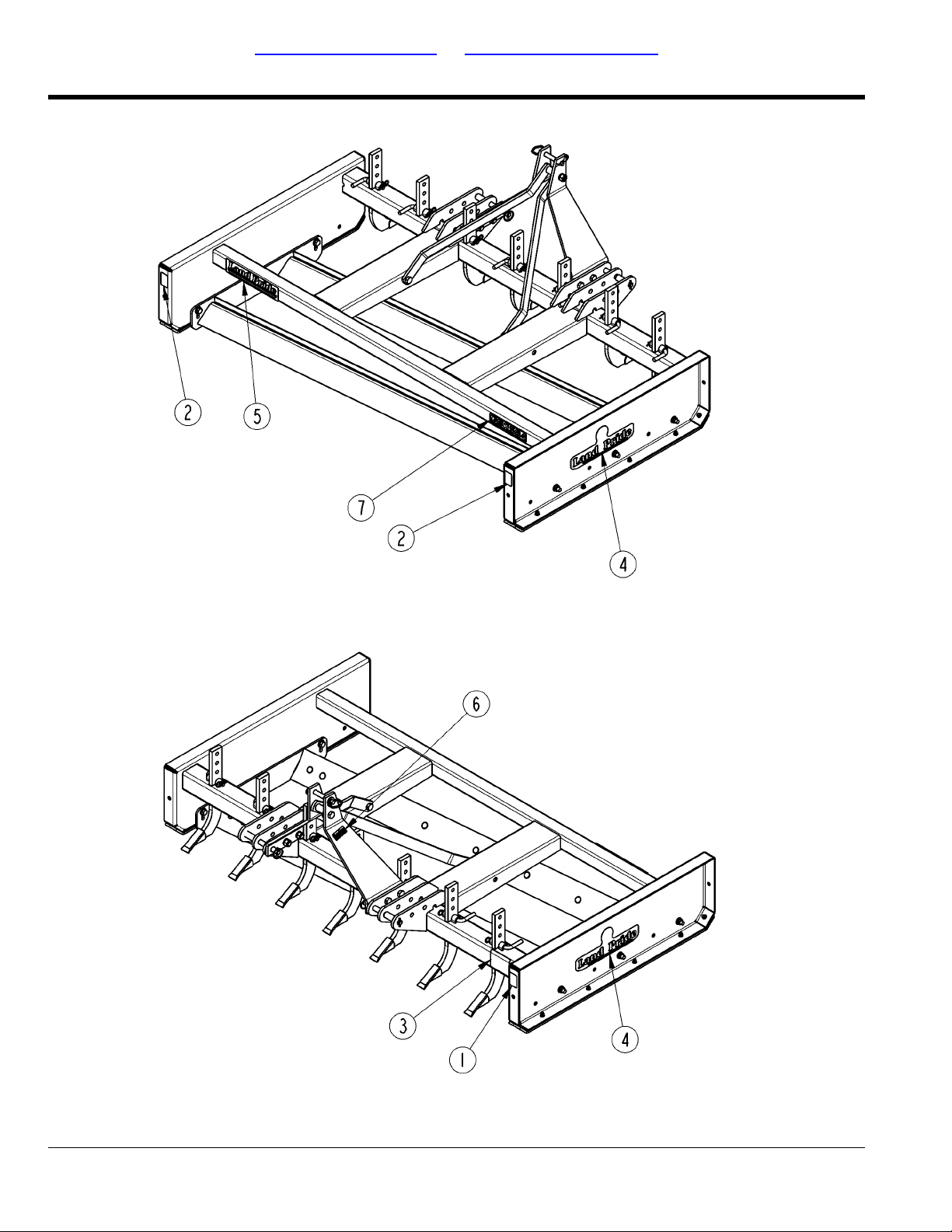

Label Placememt
Applies to GS2584, GS2596
26652
8 GS2584 & GS2596 Grading Scrapers 303-268P 12/17/08
Page 9
Section 3: Labels Land Pride
Table of Contents Part Number Index
Label Placememt
Applies to GS2584, GS2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26652
DECAL AMBER REFLECTOR818-229C1.
DECAL RED REFLECTOR818-230C2.
DECAL CAUTION - BOX SCRAPER818-267C3.
Beige UnitDECAL LP W/TREE 16" - 2 COLOR818-893C4.
Orange UnitDECAL LP 16" W/TREE BROWN/GOLD838-964C4.
Beige UnitDECAL LANDPRIDE 13.25" - BROWN818-899C5.
Orange UnitDECAL LANDPRIDE 13.25 BRWN/GLD848-161C5.
DECAL QUICK HITCH SYSTEM838-517C6.
Beige UnitDECAL, GS2584 BROWN848-334C7.
Orange UnitDECAL, GS2584 GOLD848-335C7.
Beige UnitDECAL, GS2596 BROWN848-336C7.
Orange UnitDECAL, GS2596 GOLD848-337C7.
12/17/08 GS2584 & GS2596 Grading Scrapers 303-268P 9
Page 10
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
7300-296D ...................
7303-084D ...................
7303-084D82 ...............
7303-085D ...................
7303-085D82 ...............
7303-086D ...................
7303-086D82 ...............
7303-168D ...................
7303-262H ...................
7303-262H82 ...............
7303-263H ...................
7303-263H82 ...............
7303-266H ...................
7303-266H82 ...............
7303-267H ...................
7303-267H82 ...............
7305-071S ...................
7308-400D ...................
7802-064C ...................
7802-069C ...................
7802-236C ...................
7802-466C ...................
7802-657C ...................
7803-027C ...................
7803-209C ...................
7803-263C ...................
7804-023C ...................
7805-015C ...................
7805-032C ...................
7805-041C ...................
7805-081C ...................
7805-197C ...................
7805-359C ...................
9818-229C ...................
9818-230C ...................
9818-267C ...................
9818-893C ...................
9818-899C ...................
7820-035C ...................
7820-046C ...................
7820-152C ...................
7820-153C ...................
9838-517C ...................
9838-964C ...................
9848-161C ...................
9848-334C ...................
9848-335C ...................
9848-336C ...................
9848-337C ...................
7dwg26651 ..................
9dwg26652 ..................
10 GS2584 & GS2596 Grading Scrapers 303-268P 12/17/08
Page 11
Table of Contents Part Number Index
This Page Intentionally Left Blank
12/17/08 GS2584 & GS2596 Grading Scrapers 303-268P 11
Page 12
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
