Page 1
Table of Contents Part Number Index
Fertilizer Spreader
FS500, FS700 & FS1000
15594
309-500P
Parts Manual
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2008 Printed 05/02/08
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Complete Assembly....................................6
Complete Assembly S/N 445606-.......................................6
Complete Assembly S/N 445607+......................................8
Section 3: Drivelines...................................................10
Driveline (311.001) Eurocardan (S/N 279499-).................10
Driveline (311.001) Eurocardan (S/N 279500+)................12
Section 4: Gearbox......................................................14
Gearbox (315.010)............................................................14
Gearbox (322.002)............................................................16

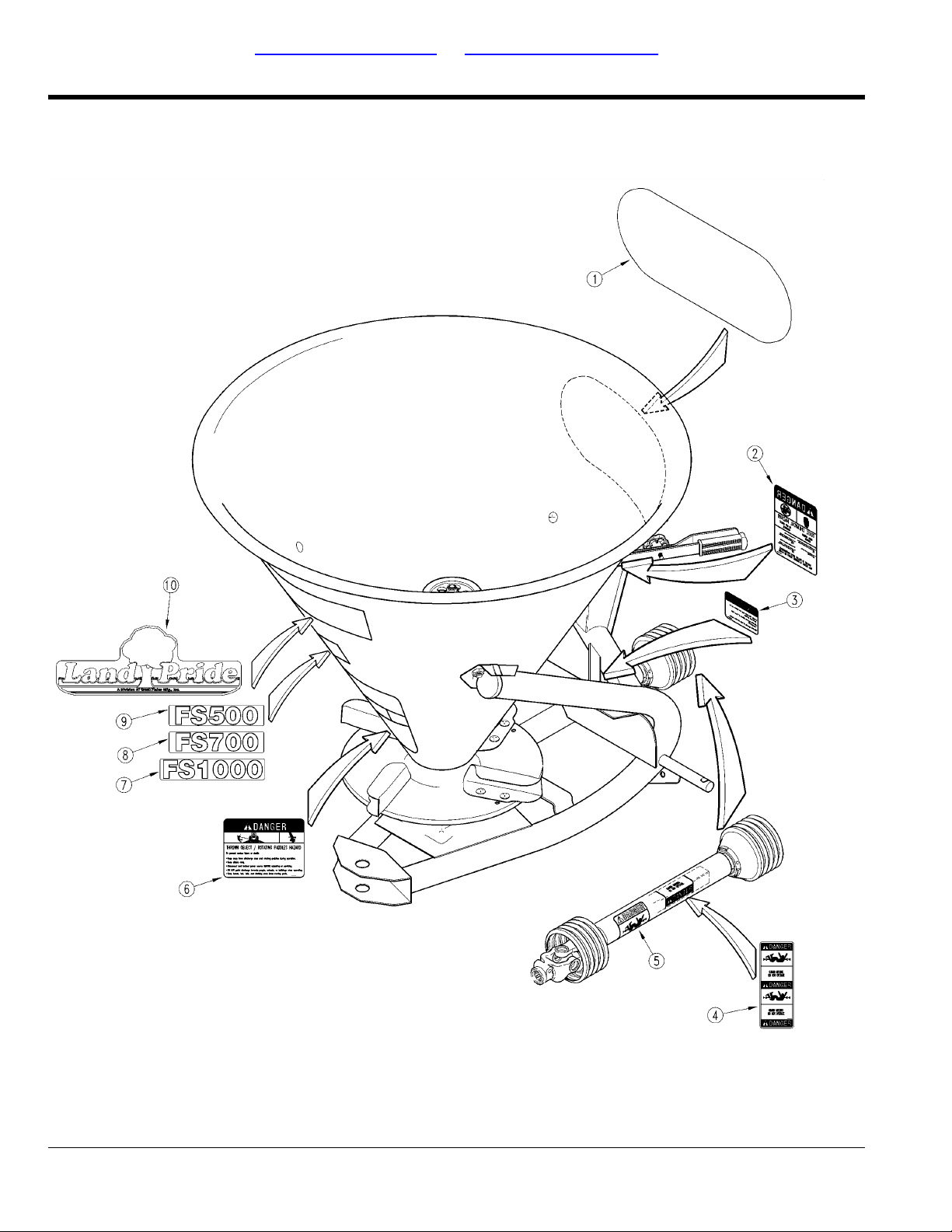

Section 5: Labels.........................................................18
Label Placement...............................................................18
Section 6: Options.......................................................20

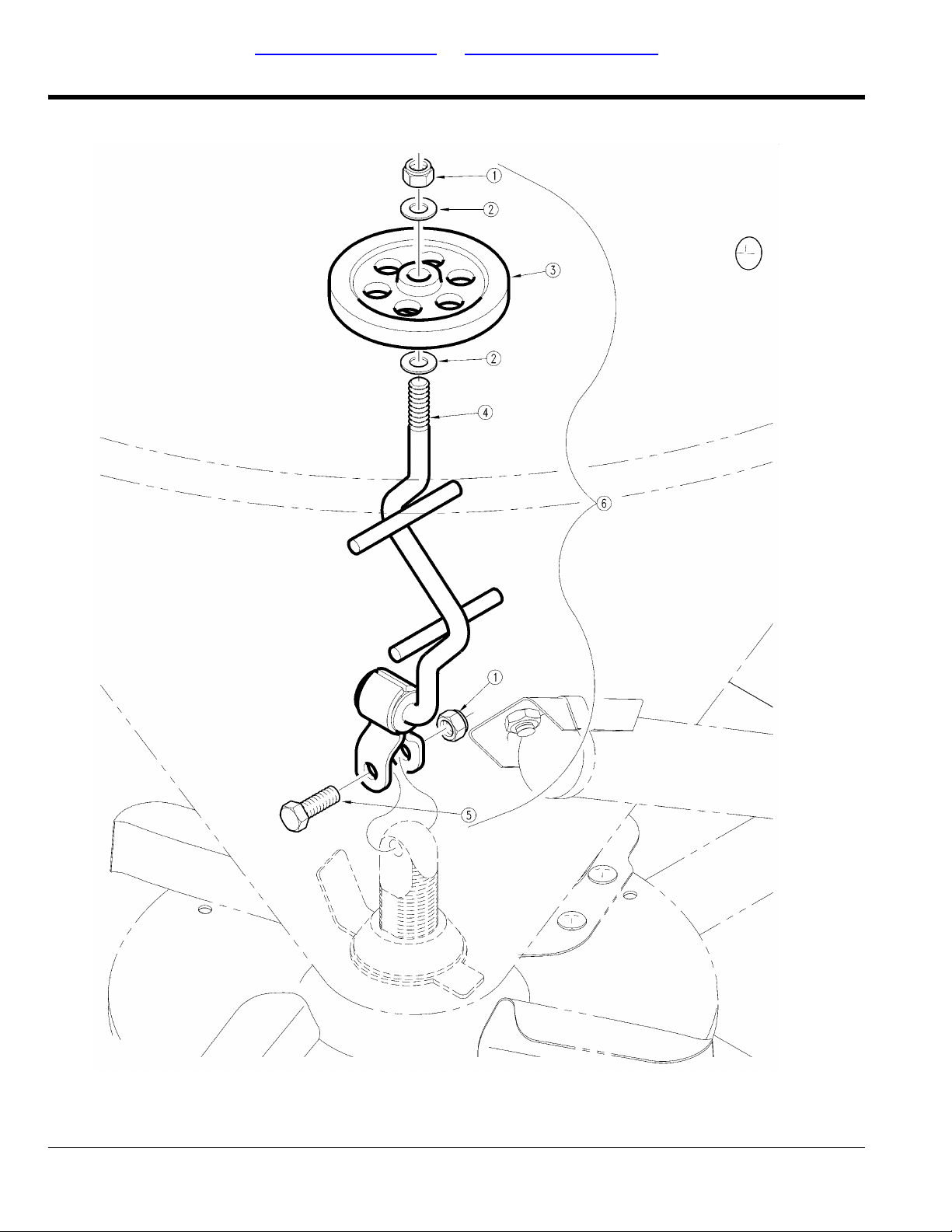

Agitator..............................................................................20
Hopper Cover....................................................................22
Part Number Index.......................................................24
© Copyright 2008. All rights reserved.
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Land Pride is registered trademark.
Printed in the United States of America.
2 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 3
Table of Contents Part Number Index
A
Agitator.........................................................................20
C
Complete Assembly S/N 445606-..................................6
Complete Assembly S/N 445607+.................................8
D
Driveline (311.001) Eurocardan (S/N 279499-)............10
Driveline (311.001) Eurocardan (S/N 279500+)...........12
G
Gearbox (315.010).......................................................14
Gearbox (322.002).......................................................16
H
Hopper Cover...............................................................22
L
Label Placement..........................................................18
Alphabetized Table of Contents
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 3
Page 4
Table of Contents Part Number Index
4 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 5
Table of Contents Part Number Index
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 5
Page 6
Land Pride Section 2: Complete Assembly
Table of Contents Part Number Index
Complete Assembly S/N 445606-
Applies to FS1000, FS500, FS700
23945
6 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 7
Section 2: Complete Assembly Land Pride
Table of Contents Part Number Index
Complete Assembly S/N 445606-
Applies to FS1000, FS500, FS700
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13608
COSMO ENTRAINER330.0011.
Rev. 2 not compat. w/Rev. 1COSMO SPRING PIN 8X40305.0012.
Rev. 1COSMO SPLIT PIN305.0022.
Rev. 2 not compat. w/Rev. 1COSMO RING RUBBER304.0133.
Rev. 1COSMO RUBBER RING303.0083.
COSMO LOWER AGITATOR619.0024.
COSMO SCRW RND HD 10X20UNI5731300.0235.
Rev 3COSMO HOPPER 500609.0086.
Rev. 2COSMO HOPPER 700609.0116.
Rev. 1COSMO HOPPER 1000609.0136.
COSMO LEVER LOCK KNOB302.0037.
COSMO RIGHT LEVER604.0018.
COSMO WSHR FLT10.5X21 UNI6592303.0099.
Rev. 2 not compat. w/Rev. 1COSMO NUT HEX M10 UNI 5588301.01010.
Rev. 1COSMO NUT HEX301.00510.
COSMO RUBBER GRIP304.00811.
COSMO LEFT LEVER604.00212.
COSMO SCRW HX HD 12X35 UNI5739300.02413.
Rev. 2(S/N 445607+ )COSMO FRAME "PIN" STYLE613.00314.
Rev 1; Use up stock(S/N 445606- )RPBY 613.003613.00114.
COSMO DRIVELINE311.00115.
COSMO LEFT TIE ROD602.00216.
Rev. 2 not compat. w/Rev. 1COSMO NUT M10 UNI 5589301.01417.
Rev. 1COSMO NUT HEX M10 UNI 5588301.01017.
Rev. 2COSMO LEFT SHUTTER605.00618.
Rev. 1REP BY 605.006605.00418.
Rev. 2COSMO RIGHT SHUTTER605.00519.
Rev. 1REP BY 605.005605.00319.
COSMO RIGHT TIE ROD602.00120.
Rev. 2COSMO G-BOX322.00221.
Rev. 1REP BY 322.002315.01021.
Rev. 2 not compat. w/Rev. 1COSMO HX SCKT HD CP SCRW 8X16300.01422.
Rev. 1COSMO HX SOCKET HEAD CAP SCREW300.02922.
COSMO NUT HEX M8 UNI 5588301.01223.
Rev. 2COSMO SPRDR DSK W/STNLS STL VN610.00924.
Rev. 1REP BY 610.009610.00224.
Rev. 2COSMO STAINLESS STL DIST. VANE601.00225.
Rev. 1REP BY 601.002601.00125.
Rev. 2 not compat. w/Rev. 1COSMO RND HD SCRW 8X16 UNI5731300.03026.
Rev. 1COSMO BOLT TTQST 8X16300.02026.
COSMO PIN HAIR COTTER307.00127.
COSMO SELF LOCK NUT M12301.00828.
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 7
Page 8
Land Pride Section 2: Complete Assembly
Table of Contents Part Number Index
Complete Assembly S/N 445607+
Applies to FS1000, FS500, FS700
13608
8 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 9
Section 2: Complete Assembly Land Pride
Table of Contents Part Number Index
Complete Assembly S/N 445607+
Applies to FS1000, FS500, FS700
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13608
COSMO ENTRAINER330.0011.
Rev. 2 not compat. w/Rev. 1COSMO SPRING PIN 8X40305.0012.
Rev. 1COSMO SPLIT PIN305.0022.
Rev. 2 not compat. w/Rev. 1COSMO RING RUBBER304.0133.
Rev. 1COSMO RUBBER RING303.0083.
COSMO LOWER AGITATOR619.0024.
COSMO SCRW RND HD 10X20UNI5731300.0235.
Rev 3COSMO HOPPER 500609.0086.
Rev. 2COSMO HOPPER 700609.0116.
COSMO HOPPER 1000609.0136.
COSMO LEVER LOCK KNOB302.0037.
COSMO RIGHT LEVER604.0018.
COSMO WSHR FLT10.5X21 UNI6592303.0099.
Rev. 2 not compat. w/Rev. 1COSMO NUT HEX M10 UNI 5588301.01010.
Rev. 1COSMO NUT HEX301.00510.
COSMO RUBBER GRIP304.00811.
COSMO LEFT LEVER604.00212.
COSMO SCRW HX HD 12X35 UNI5739300.02413.
Rev. 2(S/N 445607+ )COSMO FRAME "PIN" STYLE613.00314.
Rev 1; Use up stock(S/N 445606- )RPBY 613.003613.00114.
COSMO DRIVELINE311.00115.
COSMO LEFT TIE ROD602.00216.
Rev. 2 not compat. w/Rev. 1COSMO NUT M10 UNI 5589301.01417.
Rev. 1COSMO NUT HEX M10 UNI 5588301.01017.
Rev. 2COSMO LEFT SHUTTER605.00618.
Rev. 1REP BY 605.006605.00418.
Rev. 2COSMO RIGHT SHUTTER605.00519.
Rev. 1REP BY 605.005605.00319.
COSMO RIGHT TIE ROD602.00120.
Rev. 2COSMO G-BOX322.00221.
Rev. 1REP BY 322.002315.01021.
Rev. 2 not compat. w/Rev. 1COSMO HX SCKT HD CP SCRW 8X16300.01422.
Rev. 1COSMO HX SOCKET HEAD CAP SCREW300.02922.
COSMO NUT HEX M8 UNI 5588301.01223.
Rev. 2COSMO SPRDR DSK W/STNLS STL VN610.00924.
Rev. 1REP BY 610.009610.00224.
Rev. 2COSMO STAINLESS STL DIST. VANE601.00225.
Rev. 1REP BY 601.002601.00125.
Rev. 2 not compat. w/Rev. 1COSMO RND HD SCRW 8X16 UNI5731300.03026.
Rev. 1COSMO BOLT TTQST 8X16300.02026.
COSMO PIN HAIR COTTER307.00127.
COSMO SELF LOCK NUT M12301.00828.
(S/N 445607+ )COSMO PIN LOWER LINK633.00129.
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 9
Page 10
Land Pride Section 3: Drivelines
Table of Contents Part Number Index

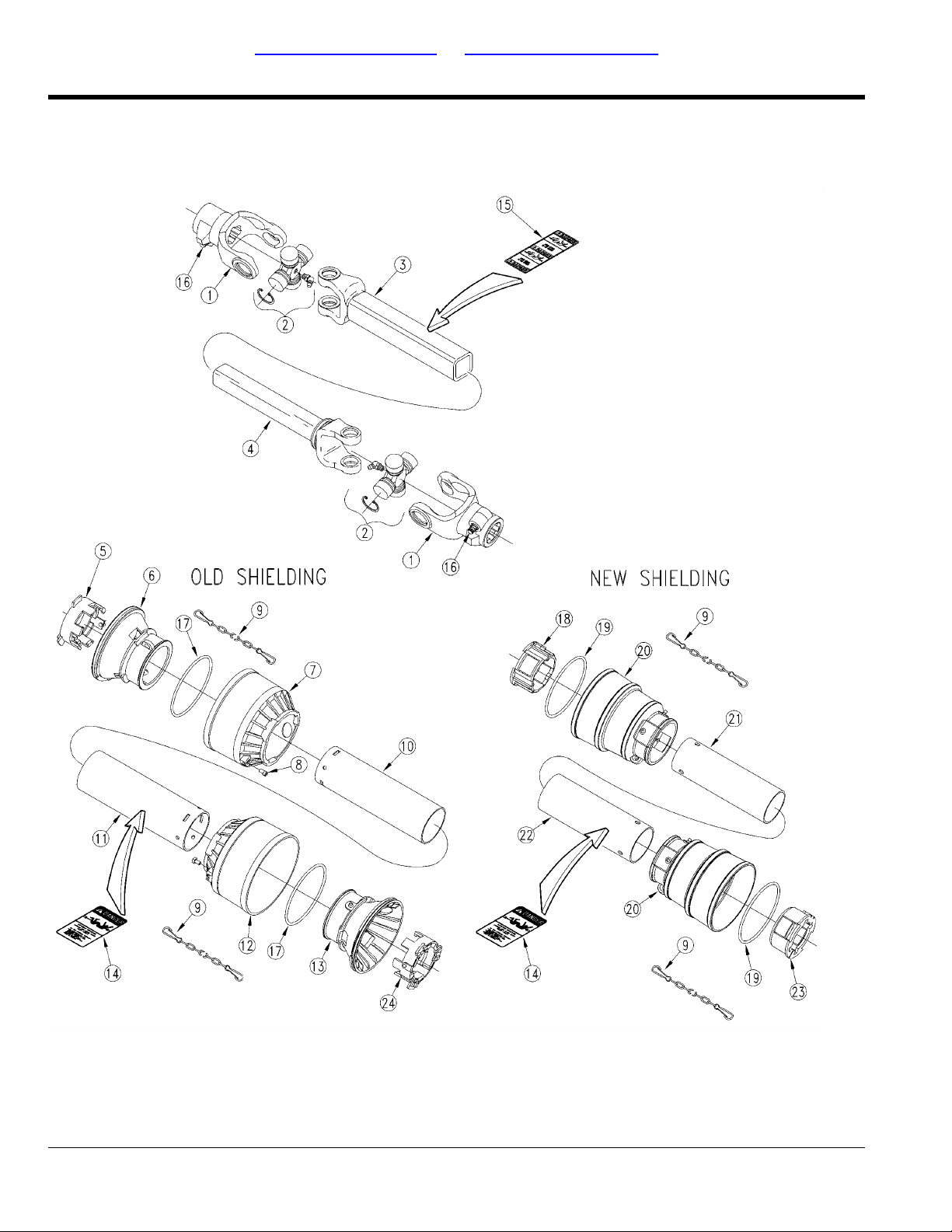

Driveline (311.001) Eurocardan (S/N 279499-)
Applies to FS1000, FS500, FS700
18110
10 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 11
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline (311.001) Eurocardan (S/N 279499-)
Applies to FS1000, FS500, FS700
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18110
COSMO DRIVELINE311.001
EC YOKEASSEMBLY(TRACT.END)10210101.
EC CROSS ASSEMBLY (U JOINT)10010202.
RPBY 311.00119810323.
RPBY 311.00119910344.
EC TUBE BEARING17812105.
EC OUTER TUBE RIGID CONE18842016.
RPBY 188420417842057.
EC PIN STOP ROTATION17842128.
DRIVELINE SHIELD SAFETY CHAIN0443219.
RPBY 1873030177303010.
EC INNER TUBE (1872050) 300MM187203011.
EC INNER TUBE RIGID CONE188420212.
EC TUBE BEARING178121113.
DECAL DANGER PTO DRIVELINE818-552C14.
DECAL DANGER GUARD MISS PTO818-540C15.
EC COMPLETE PUSH-PIN KIT158103816.
EC STIFFENING RING121323317.
EC TUBE BEARING (INNER)178100418.
EC STIFFENING RING121123319.
EC STANDARD SOFT CONE178100320.
EC INNER TUBE187103121.
EC OUTER TUBE177003122.
EC TUBE BEARING (OUTER)178100523.
EC TUBE BEARING178121124.
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 11
Page 12
Land Pride Section 3: Drivelines
Table of Contents Part Number Index

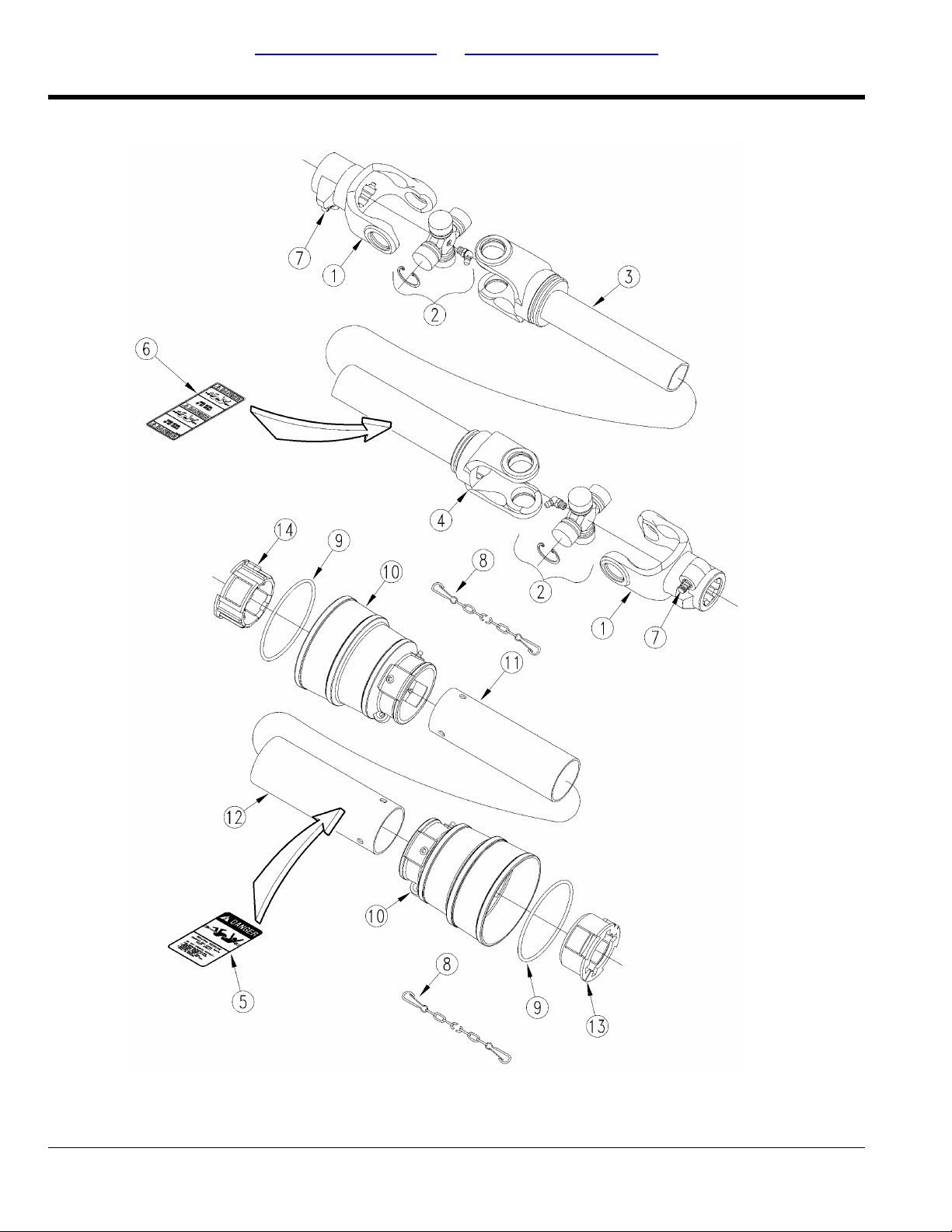

Driveline (311.001) Eurocardan (S/N 279500+)
Applies to FS1000, FS500, FS700
18111
12 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 13
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline (311.001) Eurocardan (S/N 279500+)
Applies to FS1000, FS500, FS700
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18111
COSMO DRIVELINE311.001
EC YOKEASSEMBLY(TRACT.END)10210101.
EC CROSS ASSEMBLY (U JOINT)10010202.
EC INSIDE TUBE WITH YOKE1991034N3.
EC OUTSIDE TUBE WITH YOKE1981032N4.
DECAL DANGER PTO DRIVELINE818-552C5.
DECAL DANGER GUARD MISS PTO818-540C6.
EC COMPLETE PUSH-PIN KIT15810387.
DRIVELINE SHIELD SAFETY CHAIN0443218.
EC STIFFENING RING12112339.
EC STANDARD SOFT CONE178100310.
EC INNER TUBE187103111.
EC OUTER TUBE177003112.
EC TUBE BEARING (OUTER)178100513.
EC TUBE BEARING (INNER)178100414.
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 13
Page 14
Land Pride Section 4: Gearbox
Table of Contents Part Number Index

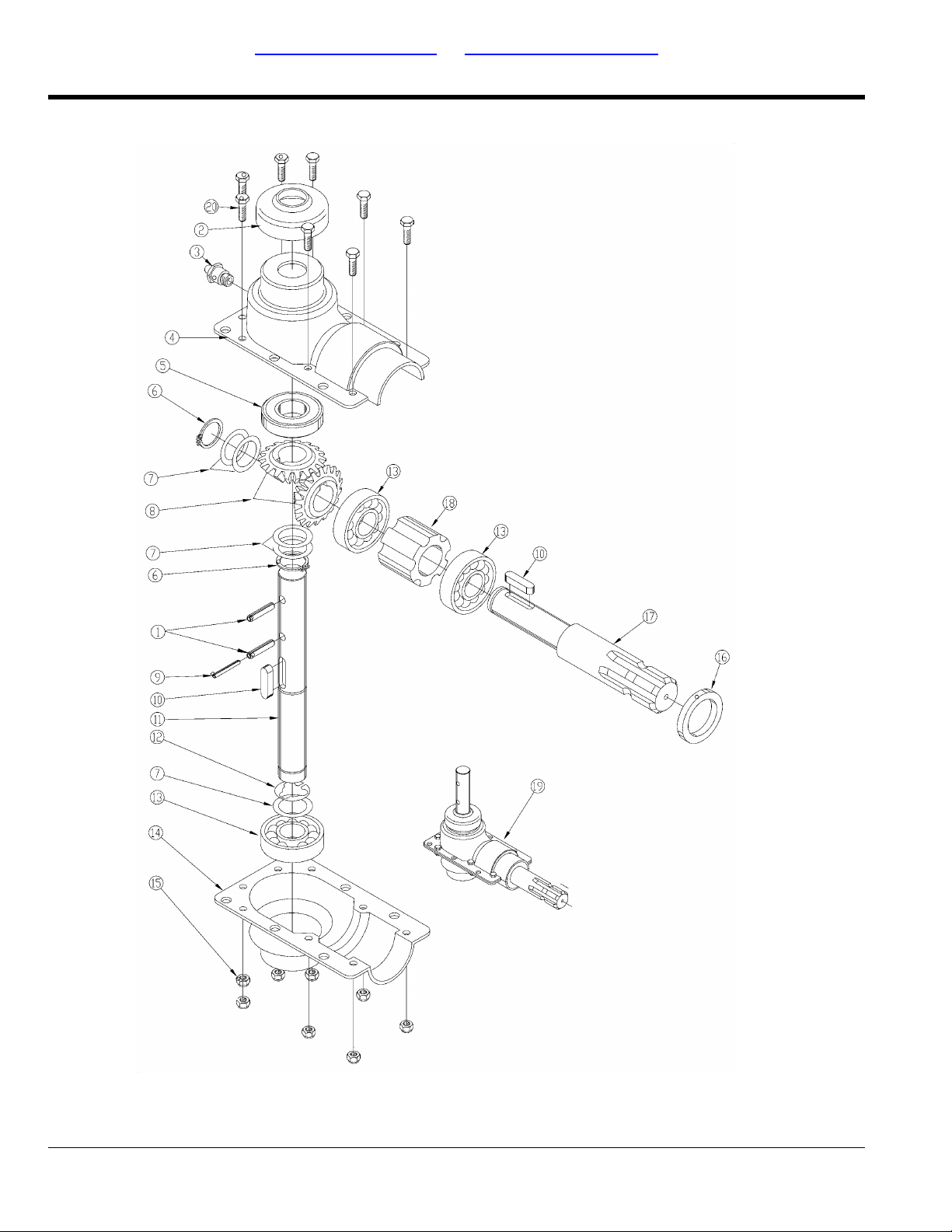

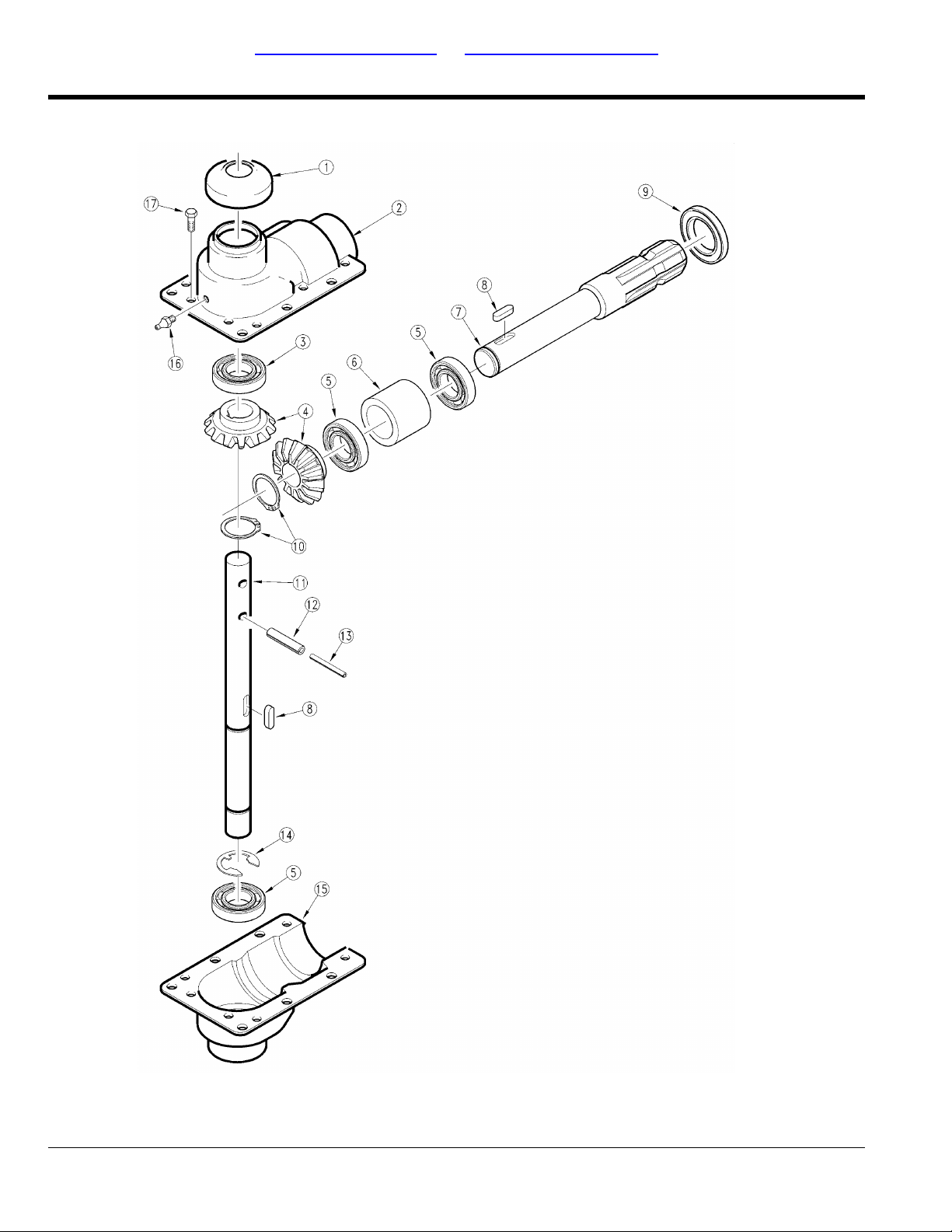

Gearbox (315.010)
Applies to FS1000, FS500, FS700
15325
14 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 15
Section 4: Gearbox Land Pride
Table of Contents Part Number Index
Gearbox (315.010)
Applies to FS1000, FS500, FS700
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15325
COSMO GEAR BOX ASSY315.010
COSMO OUTPUT COWLING304.0031.
COSMO UPPER SHELL314.0022.
COSMO BALL BEARING OUTPUT TOP310.0013.
COSMO PINION GEAR316.0034.
COSMO BALL BEARING IN/OUTPUT310.0025.
COSMO SPACER INPUT SHAFT329.0116.
COSMO INPUT SHAFT323.0087.
COSMO SPLINE KEY326.0038.
COSMO INPUT SHAFT OILSEAL309.0019.
COSMO INTERNAL RETAINERRING313.01110.
COSMO OUTPUT SHAFT323.00911.
COSMO SPLIT PIN305.00212.
COSMO SPLIT PIN305.00313.
COSMO EXTERNAL RETAINERRING313.01014.
COSMO LOWER SHELL314.00115.
COSMO GREASE NIPPLE306.00216.
COSMO HEX HEAD CAP SCREW300.02617.
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 15
Page 16
Land Pride Section 4: Gearbox
Table of Contents Part Number Index
Gearbox (322.002)
Applies to FS1000, FS500, FS700
22166
16 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 17
Section 4: Gearbox Land Pride
Table of Contents Part Number Index
Gearbox (322.002)
Applies to FS1000, FS500, FS700
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22166
COSMO G-BOX322.002
*
COSMO SPRING PIN 8X40305.0011.
OUTPUT SHAFT COWLING304.0022.
COSMO GREASE NIPPLE306.0023.
COSMO UPPER SHELL314.0024.
COSMO BALL BEARING OUTPUT TOP310.0015.
COSMO INTERNAL RETAINERRING313.0116.
WASHER 25X35X0,5 DIN 988303.0117.
COSMO PINION GEAR316.0038.
COSMO SPLIT PIN305.0039.
COSMO SPLINE KEY326.00310.
COSMO OUTPUT SHAFT323.00911.
COSMO EXTERNAL RETAINERRING313.01012.
COSMO BALL BEARING IN/OUTPUT310.00213.
COSMO LOWER SHELL314.00114.
SELF LOCKING NUT M6301.00915.
COSMO INPUT SHAFT OILSEAL309.00116.
COSMO INPUT SHAFT323.00817.
COSMO SPACER INPUT SHAFT329.01118.
COSMO G-BOX322.00219.
COSMO HEX HEAD CAP SCREW300.02620.
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 17
Page 18
Land Pride Section 5: Labels
Table of Contents Part Number Index
Label Placement
Applies to FS1000, FS500, FS700
17571
18 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 19
Section 5: Labels Land Pride
Table of Contents Part Number Index
Label Placement
Applies to FS1000, FS500, FS700
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17571
Rev. 2DECAL FERT. SPREADING CHART818-764C1.
Rev 1; Use up stockRPBY 818-764C308.1081.
DECAL DANGER TOXIC CHEMICAL818-541C2.
DECAL NOTICE FERT PTO INFO818-542C3.
DECAL DANGER GUARD MISS PTO818-540C4.
DECAL DANGER PTO DRIVELINE818-552C5.
DECAL DANGER THROWN OBJ FERT818-539C6.
Rev. 2 not compat. w/Rev. 1.DECAL FS1000-BROWN818-963C7.
Rev. 1DECAL FS1000 LAND PRIDE BLACK818-732C7.
Rev. 2 not compat. w/Rev. 1.DECAL FS700-BROWN818-962C8.
Rev. 1DECAL FS700 LAND PRIDE BLACK818-731C8.
Rev. 2 not compat. w/Rev. 1.DECAL FS500-BROWN818-961C9.
Rev. 1DECAL FS500 LAND PRIDE BLACK818-730C9.
Rev. 2 not compat. w/Rev. 1.DECAL LP W/TREE 19" - 2 COLOR818-895C10.
Rev. 1LP LOGO LARGE GREEN818-162C10.
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 19
Page 20
Land Pride Section 6: Options
Table of Contents Part Number Index
Agitator
Applies to FS1000, FS500, FS700
15311
20 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 21
Section 6: Options Land Pride
Table of Contents Part Number Index
Agitator
Applies to FS1000, FS500, FS700
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15311
COSMO SELF LOCK NUT301.0081.
COSMO FLAT WASHER303.0102.
COSMO BUFFER WHEEL304.0113.
COSMO UPPER AGIT FRAME613.0554.
COSMO SCREW HEX HEAD300.0325.
FERT SPREADER AGITATOR 619.004309-501A6.
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 21
Page 22
Land Pride Section 6: Options
Table of Contents Part Number Index
Hopper Cover
Applies to FS1000, FS500, FS700
22168
22 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 23
Section 6: Options Land Pride
Table of Contents Part Number Index
Hopper Cover
Applies to FS1000, FS500, FS700
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22168
FS500 HOPPER COVER890-722C1.
FS700 HOPPER COVER890-723C1.
FS1000 HOPPER COVER890-724C1.
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 23
Page 24
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
11, 13044321 ......................
11, 131001020 ....................
11, 131021010 ....................
11, 131211233 ....................
111213233 ....................
11, 131581038 ....................
11, 131770031 ....................
111773030 ....................
11, 131781003 ....................
11, 131781004 ....................
11, 131781005 ....................
111781210 ....................
111781211 ....................
111784205 ....................
111784212 ....................
11, 131871031 ....................
111872030 ....................
111884201 ....................
111884202 ....................
111981032 ....................
131981032N ..................
111991034 ....................
131991034N ..................
7, 9300.014 .....................
7, 9300.020 .....................
7, 9300.023 .....................
7, 9300.024 .....................
15, 17300.026 .....................
7, 9300.029 .....................
7, 9300.030 .....................
21300.032 .....................
7, 9301.005 .....................
7, 9, 21301.008 .....................
17301.009 .....................
7, 9301.010 .....................
7, 9301.012 .....................
7, 9301.014 .....................
7, 9302.003 .....................
7, 9303.008 .....................
7, 9303.009 .....................
21303.010 .....................
17303.011 .....................
17304.002 .....................
15304.003 .....................
7, 9304.008 .....................
21304.011 .....................
7, 9304.013 .....................
7, 9, 17305.001 .....................
7, 9, 15305.002 .....................
15, 17305.003 .....................
15, 17306.002 .....................
7, 9307.001 .....................
19308.108 .....................
21309-501A ...................
15, 17309.001 .....................
15, 17310.001 .....................
15, 17310.002 .....................
7, 9, 11, 13311.001 .....................
15, 17313.010 .....................
15, 17313.011 .....................
15, 17314.001 .....................
15, 17314.002 .....................
7, 9, 15315.010 .....................
15, 17316.003 .....................
7, 9, 17322.002 .....................
15, 17323.008 .....................
15, 17323.009 .....................
15, 17326.003 .....................
15, 17329.011 .....................
7, 9330.001 .....................
7, 9601.001 .....................
7, 9601.002 .....................
7, 9602.001 .....................
7, 9602.002 .....................
7, 9604.001 .....................
7, 9604.002 .....................
7, 9605.003 .....................
7, 9605.004 .....................
7, 9605.005 .....................
7, 9605.006 .....................
7, 9609.008 .....................
7, 9609.011 .....................
7, 9609.013 .....................
7, 9610.002 .....................
7, 9610.009 .....................
7, 9613.001 .....................
7, 9613.003 .....................
21613.055 .....................
7, 9619.002 .....................
9633.001 .....................
19818-162C ...................
19818-539C ...................
11, 13, 19818-540C ...................
19818-541C ...................
19818-542C ...................
11, 13, 19818-552C ...................
19818-730C ...................
19818-731C ...................
19818-732C ...................
19818-764C ...................
19818-895C ...................
19818-961C ...................
19818-962C ...................
19818-963C ...................
23890-722C ...................
23890-723C ...................
23890-724C ...................
7, 9dwg13608 ..................
21dwg15311 ..................
15dwg15325 ..................
19dwg17571 ..................
11dwg18110 ..................
13dwg18111 ..................
17dwg22166 ..................
23dwg22168 ..................
24 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 05/02/08
Page 25
Table of Contents Part Number Index
This Page Intentionally Left Blank
05/02/08 FS500, FS700 & FS1000 Fertilizer Spreader 309-500P 25
Page 26
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
