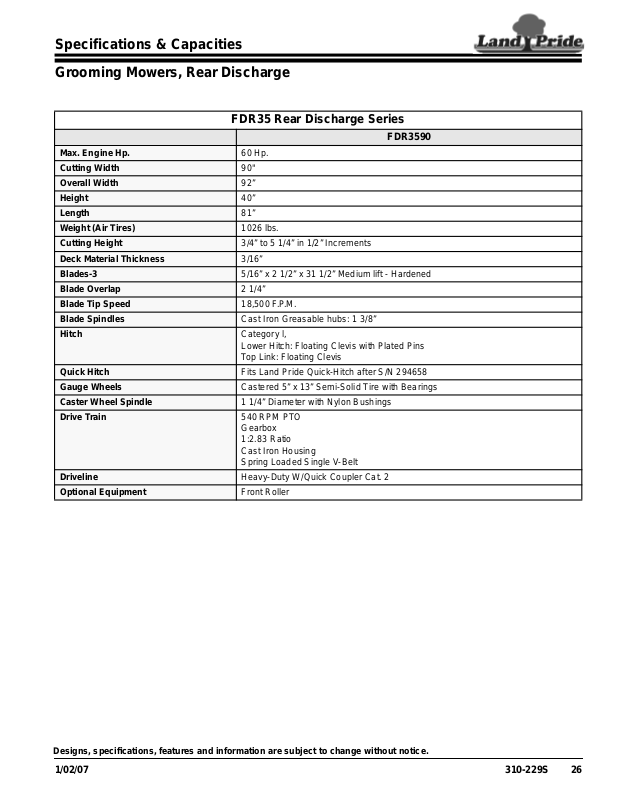

Specifications & Capacities
Grooming Mowers, Rear Discharge

FDR35 Rear Discharge Series

FDR3590

Max. Engine Hp. 60 Hp.
Cutting Width 90"
Overall Width 92”
Height 40”
Length 81”
Weight (Air Tires) 1026 lbs.
Cutting Height 3/4” to 5 1/4” in 1/2” Increments
Deck Material Thickness 3/16”
Blades-3 5/16” x 2 1/2” x 31 1/2” Medium lift - Hardened
Blade Overlap 2 1/4”
Blade Tip Speed 18,500 F.P.M.
Blade Spindles Cast Iron Greasable hubs: 1 3/8”
Hitch Category l,

Lower Hitch: Floating Clevis with Plated Pins
Top Link: Floating Clevis

Quick Hitch Fits Land Pride Quick-Hitch after S/N 294658
Gauge Wheels Castered 5” x 13” Semi-Solid Tire with Bearings
Caster Wheel Spindle 1 1/4” Diameter with Nylon Bushings
Drive Train 540 RPM PTO

Gearbox
1:2.83 Ratio
Cast Iron Housing
Spring Loaded Single V-Belt

Driveline Heavy-Duty W/Quick Coupler Cat. 2
Optional Equipment Front Roller

Designs, specifications, features and information are subject to change without notice.
