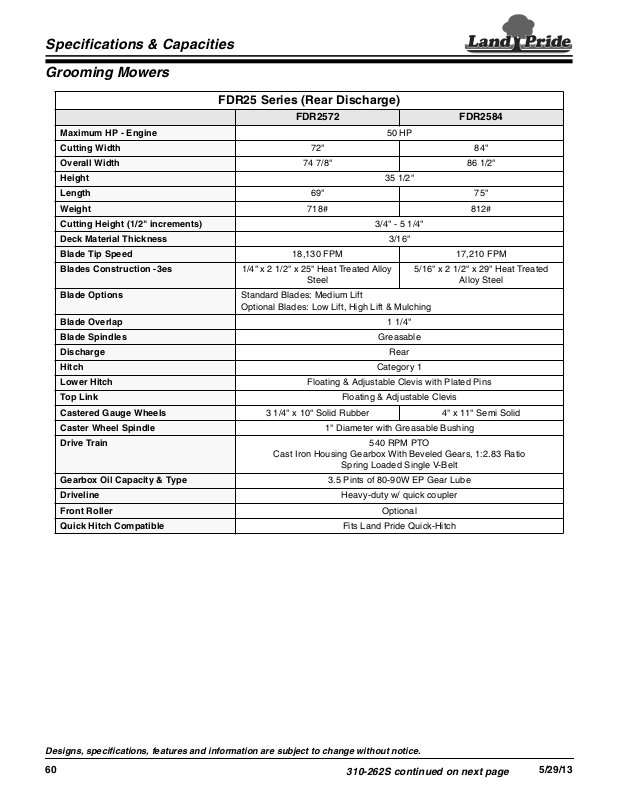

Specifications & Capacities

Grooming Mowers

FDR25 Series (Rear Discharge)

FDR2572 FDR2584

Maximum HP - Engine 50 HP

Cutting Width 72" 84"

Overall Width 74 7/8" 86 1/2"

Height 35 1/2"

Length 69" 75"

Weight 718# 812#

Cutting Height (1/2" increments) 3/4" - 5 1/4"

Deck Material Thickness 3/16"

Blade Tip Speed 18,130 FPM 17,210 FPM

Blades Construction -3es 1/4" x 2 1/2" x 25" Heat Treated Alloy

Steel

Blade Options Standard Blades: Medium Lift

Optional Blades: Low Lift, High Lift & Mulching

Blade Overlap 1 1/4"

Blade Spindles Greasable

Discharge Rear

Hitch Category 1

Lower Hitch Floating & Adjustable Clevis with Plated Pins

Top Link Floating & Adjustable Clevis

Castered Gauge Wheels 3 1/4" x 10" Solid Rubber 4" x 11" Semi Solid

Caster Wheel Spindle 1" Diameter with Greasable Bushing

Drive Train 540 RPM PTO

Cast Iron Housing Gearbox With Beveled Gears, 1:2.83 Ratio

Spring Loaded Single V-Belt

Gearbox Oil Capacity & Type 3.5 Pints of 80-90W EP Gear Lube

Driveline Heavy-duty w/ quick coupler

Front Roller Optional

Quick Hitch Compatible Fits Land Pride Quick-Hitch

5/16" x 2 1/2" x 29" Heat Treated

Alloy Steel

Designs, specifications, features and information are subject to change without notice.

60

310-262S continued on next page

5/29/13

Specifications & Capacities

Grooming Mowers

Designs, specifications, features and information are subject to change without notice.

61

26761

310-262S end
