Page 1
Table of Contents Part Number Index
Rear Discharge Grooming
Mower
FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 &
FDR1672
13600
310-066P
Parts Manual
Read the Operator's manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!
© Copyright 2007 Printed 11/06/07
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
FDR15 SERIES
Section 2: Deck..............................................................6
Deck....................................................................................6
Gauge Wheel Tire (814-108C) (814-079C).........................8
Section 2: Decks..........................................................10
Deck..................................................................................10
Deck..................................................................................14
Gauge Wheel Tire (814-071C) (814-188C).......................18
Section 3: Drive...........................................................20
Belt Drive (S/N 212180-)...................................................20
Belt Drive (S/N 212180-)...................................................24
Belt Drive (S/N 212180-)...................................................28
Belt Drive (S/N 212181+)..................................................32
Belt Drive (S/N 212181+)..................................................36
Belt Drive (S/N 212181+)..................................................40
Section 4: Gearboxes..................................................43
Gearbox (826-085C) IEG..................................................44
Gearbox (826-085C) ITG..................................................46
Gearbox (826-204C).........................................................48
Gearbox (826-204C) OMNI...............................................50
Gearbox (826-206C) OMNI...............................................52
Gearbox (826-294C) OMNI...............................................54
Gearbox (826-294C) OMNI...............................................56
Gearbox (826-296C) OMNI...............................................58
Gearbox (826-326C).........................................................60
Gearbox (826-326C) Comer.............................................62
Gearbox (826-367C) Comer.............................................64
Gearbox (826-367C) Comer.............................................66
Section 5: Drivelines...................................................68
Driveline (826-107C) Eurocardan (S/N 231582-)..............68
Driveline (826-107C) Eurocardan (S/N 231582-)..............70
Driveline (826-107C) Eurocardan (S/N 231583+).............72
Driveline (826-107C) Eurocardan (S/N 231583+).............74
Driveline (826-140C) Eurocardan (S/N 231582-)..............76
Driveline (826-140C) Eurocardan (S/N 231583+).............78
Section 6: Labels.........................................................80
Label Placement...............................................................80
Label Placement...............................................................82
FDR16 SERIES
Section 2: Decks..........................................................84
Belt Covers........................................................................84
Front Roller........................................................................86
Hitch..................................................................................88
Hitch..................................................................................90
Section 3: Gauge Wheel..............................................92
Gauge Wheel Assembly....................................................92
Gauge Wheel Assembly....................................................94
Gauge Wheel, Air (814-071C)...........................................96
Gauge Wheel, Solid Tire (814-188C)................................98
Section 4: Gearbox & Drive......................................100
Belt Drive.........................................................................100
Belt Drive - Gearbox........................................................102
Belt Drive - Take-Up........................................................106
Gearbox (826-367C) Comer...........................................108
Section 5: Drivelines.................................................110
Driveline (826-273C).......................................................110
Driveline (826-410C) S/N 392473+.................................112
Section 6: Labels.......................................................114
Label Placement.............................................................114
Part Number Index.....................................................116
© Copyright 2007. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Land Pride is registered trademark.
Printed in the United States of America.
Page 3
Table of Contents Part Number Index
Alphabetized Table of Contents
FDR15 SERIES
B
Belt Drive (S/N 212180-)..............................................20
Belt Drive (S/N 212180-)..............................................24
Belt Drive (S/N 212180-)..............................................28
Belt Drive (S/N 212181+).............................................32
Belt Drive (S/N 212181+).............................................36
Belt Drive (S/N 212181+).............................................40
D
Deck...............................................................................6
Deck.............................................................................10
Deck.............................................................................14
Driveline (826-107C) Eurocardan (S/N 231582-).........68
Driveline (826-107C) Eurocardan (S/N 231582-).........70
Driveline (826-107C) Eurocardan (S/N 231583+)........72
Driveline (826-107C) Eurocardan (S/N 231583+)........74
Driveline (826-140C) Eurocardan (S/N 231582-).........76
Driveline (826-140C) Eurocardan (S/N 231583+)........78
G
Gauge Wheel Tire (814-071C) (814-188C)..................18
Gauge Wheel Tire (814-108C) (814-079C)....................8
Gearbox (826-085C) IEG.............................................44
Gearbox (826-085C) ITG.............................................46
Gearbox (826-204C)....................................................48
Gearbox (826-204C) OMNI..........................................50
Gearbox (826-206C) OMNI..........................................52
Gearbox (826-294C) OMNI..........................................54
Gearbox (826-294C) OMNI..........................................56
Gearbox (826-296C) OMNI..........................................58
Gearbox (826-326C)....................................................60
Gearbox (826-326C) Comer.........................................62
Gearbox (826-367C) Comer.........................................64
Gearbox (826-367C) Comer.........................................66
G
Gauge Wheel Assembly...............................................92
Gauge Wheel Assembly...............................................94
Gauge Wheel, Air (814-071C)......................................96
Gauge Wheel, Solid Tire (814-188C)...........................98
Gearbox (826-367C) Comer.......................................108
H
Hitch.............................................................................88
Hitch.............................................................................90
L
Label Placement........................................................114
L
Label Placement..........................................................80
Label Placement..........................................................82
FDR16 SERIES
B
Belt Covers...................................................................84
Belt Drive....................................................................100
Belt Drive - Gearbox...................................................102
Belt Drive - Take-Up...................................................106
D
Driveline (826-273C)..................................................110
Driveline (826-410C) S/N 392473+............................112
F
Front Roller...................................................................86
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 3
Page 4
Table of Contents Part Number Index
4 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 5
Table of Contents Part Number Index
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 5
Page 6
Land Pride Section 2: Deck
FDR15 SERIES
Table of Contents Part Number Index
Deck
Applies to FDR1548
13285
6 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 7
Section 2: Deck Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Deck
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13285
SPACER - TOP HITCH310-012D1.
PIVOTING HITCH - UPPER310-015D2.
UPPER HITCH 4 WHL310-307D3.
WASHER LOCK SPRING 5/8 PLT804-022C4.
NUT HEX 5/8-18 PLT803-022C5.
UPPER HITCH BRACE FDR1548310-365D6.
48" DECK BELT GUARD315-481D7.
KNOB 3 PRONG 1/4-20 X 1/2 LG817-192C8.
CLIP U-TYPE NUT 1/4-20 SLF-RET800-163C9.
GW ARM W/BUSHING FDR1548310-185S10.
HHCS 1/2-20X1 3/4 GR5802-329C11.
Rev. 2(S/N 264391+)PIN LYNCH 1/4 X 1 3/4 PLT805-126C12.
Rev 1; Use up stock(S/N 264390-)PIN WIRE RETAINING 1/4 X 1 3/4805-065C12.
SPINDLE BUSHING817-048C13.
SPACER 1"827-002C14.
SPACER 1/2"827-001C15.
GAUGE WHEEL YOKE 1560310-124H16.
WASHER LOCK SPRING 1/2 PLT804-015C17.
NUT HEX 1/2-20 PLT803-018C18.
G.W. SPACER TUBE-SHORT827-007C19.
RPBY 814-298C814-108C20.
WHEEL-SOLID 2 3/4 X 8 1/4814-079C20.
Rev. 2G.W. SPACER TUBE-LONG827-012C21.
Rev 1; Use up stockRPBY 827-012C310-305D21.
HHCS 1/2-20X5 GR5802-322C22.
GREASE ZERK STRAIGHT 1/4-28800-001C23.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C24.
LOWER HITCH PIN310-020S25.
LOWER HITCH LUG 1560310-125H26.
PIN LYNCH 5/16 X 1 3/4805-015C27.
HHCS 3/4-16X2 1/2 GR5802-321C28.
DECK WELDMENT FDR1548310-181H29.
PIN HAIR COTTER .120 PLT805-143C30.
PIN CLEVIS 3/4 X 3 1/2 PLT805-142C31.
HHCS 5/8-18X5 GR5802-307C32.
GW ARM FDR1548310-182H33.
HHCS 5/8-18X1 3/4 GR5802-246C34.
HHCS 3/8-16X3/4 GR5802-014C35.
Rev. 2(S/N 176001+)FRONT ROLLER BRKT L.H.315-133H36.
Rev 1; Use up stock(S/N 176000-)LOW LH FRONT ROLLER WELDMENT310-319H36.
4 X 5 1/2 FRONT ROLLER817-082C37.
WASHER LOCK SPRING 3/8 PLT804-013C38.
NUT HEX 3/8-16 PLT803-014C39.
Rev. 2(S/N 176001+)FRONT ROLLER MOUNT-R.H.315-409D40.
Rev 1; Use up stock(S/N 176000-)LOW FRONT ROLLER RH BRACKET310-533D40.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C41.
(S/N 239292+)RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C42.
FRONT ANTI-SCALP ROLLER ASSY310-210S43.
(S/N 317416+)DRIVELINE HOOK HANGER W/HRDWR800-320C44.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 7
Page 8
Land Pride Section 2: Deck
FDR15 SERIES
Table of Contents Part Number Index

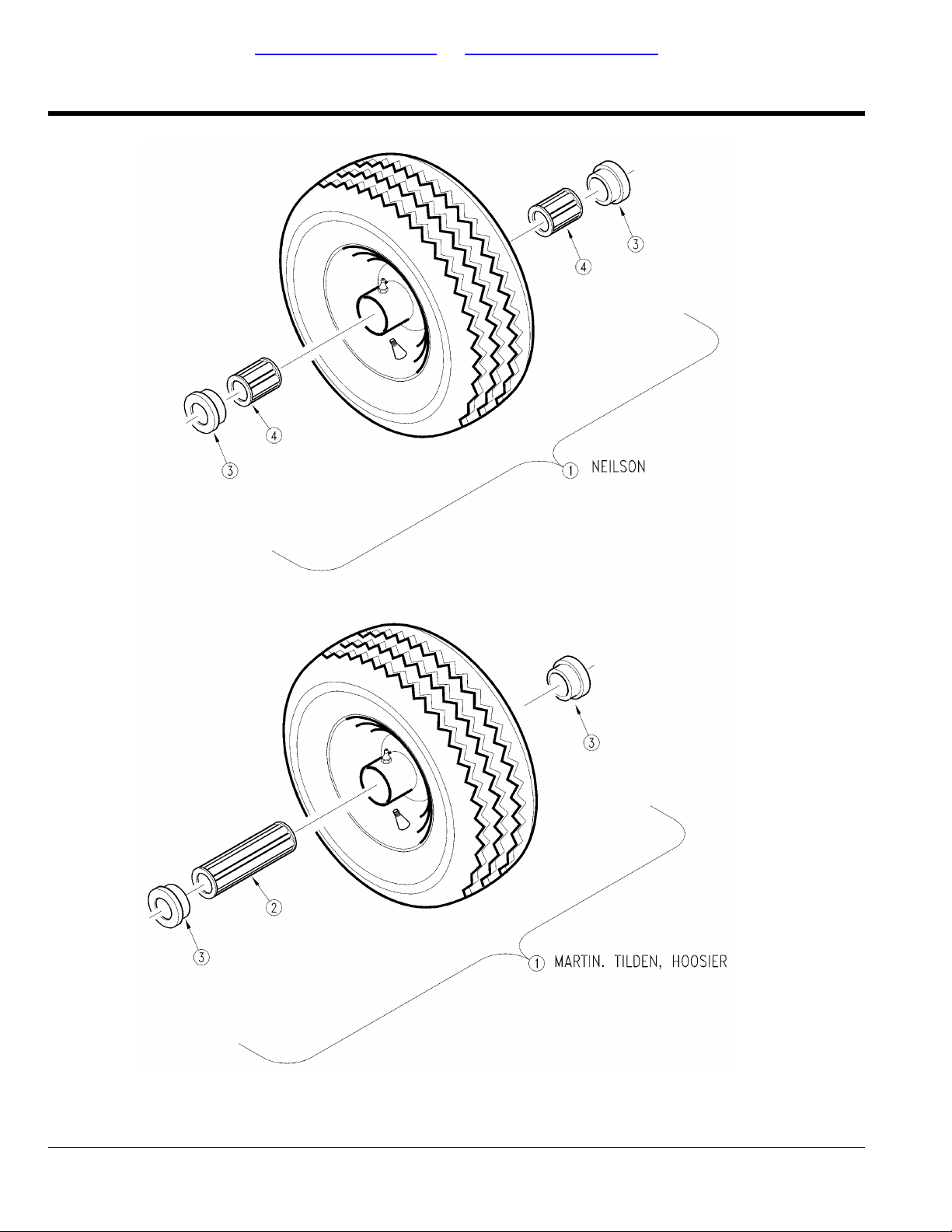

Gauge Wheel Tire (814-108C) (814-079C)
Applies to FDR1548
13713
8 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 9
Section 2: Deck Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gauge Wheel Tire (814-108C) (814-079C)
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13713
MartinMRTN RETAINER 3/4ID-1/4 PRESSRT-34141.
TildenTILDEN RTNR 3/4IDX1 3/8ODX1/4L53-1641.
Martin 814-108CMRTN OPEN CAGE ROLL.BRG.3/4 ID95340NA2.
Tilden 814-108CTDN BRG 3/4-10X1 3/8ODX2 1/2RB53-2172.
Two required 814-079CBUSHING 3/4 I.D. 1 3/8 X 1 LG890-189C2.
Martin/TildenTIRE/WHEEL ASSY 8X3.00X4, 3/4B814-108C3.
WHEEL-SOLID 2 3/4 X 8 1/4814-079C3.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 9
Page 10
Land Pride Section 2: Decks
FDR15 SERIES
Table of Contents Part Number Index
Deck
Applies to FDR1572
13601
10 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 11
Section 2: Decks Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Deck
Applies to FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13601
SPACER - TOP HITCH310-012D1.
PIVOTING HITCH - UPPER310-015D2.
FDR UPPER HITCH BAR310-375D3.
WASHER LOCK SPRING 5/8 PLT804-022C4.
NUT HEX 5/8-18 PLT803-022C5.
FDR1572 UPPER HITCH BRACE310-376D6.
Rev. 2 not compat. w/Rev. 1(S/N 209513<->286329)NUT HEX 1/2-13 PLT803-020C7.
Rev. 1(S/N 209512-)NUT HEX 1/2-20 PLT803-018C7.
(S/N 286329-)WASHER LOCK SPRING 1/2 PLT804-015C8.
Rev. 2 not compat. w/Rev. 1(S/N 241352+)FDR1572 RH & LH BELT COVER315-785D9.
Rev. 1(S/N 241351-)DECK BELT GUARD315-233D9.
KNOB 3 PRONG 1/4-20 X 1/2 LG817-192C10.
1572-60 REAR GW ARM ASSY310-194S11.
(S/N 286330+)HFSS 1/2-13X1 1/2 GR5802-203C12.
PIN LYNCH 1/4 X 1 3/4 PLT805-126C13.
1572-60 FRONT GW ARM ASSY310-193S14.
SPINDLE BUSHING817-048C15.
SPACER 1"827-002C16.
SPACER 1/2"827-001C17.
TIRE 10 X 4 TUBELESS AIR814-071C18.
TIRE 10X3.25 SOLID STRT RIB CR814-188C18.
SPACER TUBE GA.WHL. 5 1/8 LG310-328D19.
Air TireGAUGE WHEEL SPACER - SHORT310-024D20.
GAUGE WHEEL SPACER(SOLID TIRE)310-329D20.
HHCS 1/2-20X6 1/2 GR5802-350C21.
GAUGE WHEEL YOKE(5 1/8 INSIDE)310-149H22.
GREASE ZERK STRAIGHT 1/4-28800-001C23.
CLIP U-TYPE NUT 1/4-20 SLF-RET800-163C24.
GEAR BOX CHANNEL SPACER315-562D25.
HHCS 5/8-18X1 3/4 GR5802-246C26.
HHCS 5/8-11X4 1/2 GR5802-100C27.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C28.
LOWER HITCH PIN310-020S29.
LOWER HITCH LUG 1560310-125H30.
PIN LYNCH 5/16 X 1 3/4805-015C31.
HHCS 3/4-16X2 1/2 GR5802-321C32.
FDR1572 DECK WELDMENT310-192H34.
PIN HAIR COTTER .120 PLT805-143C35.
PIN CLEVIS 3/4 X 3 1/2 PLT805-142C36.
HHCS 5/8-18X5 GR5802-307C37.
(S/N 286329-)WASHER FLAT 1/2 SAE PLT804-016C38.
HHCS 5/8-18X1 1/2 GR5802-207C39.
1572-60 FRONT GW ARM WELD310-196H40.
1572-60 REAR GW ARM WELD310-197H41.
HHCS 1/2-20X1 3/4 GR5802-329C42.
HHCS 3/8-16X3/4 GR5802-014C43.
4 X 5 1/2 FRONT ROLLER817-082C45.
WASHER LOCK SPRING 3/8 PLT804-013C46.
NUT HEX 3/8-16 PLT803-014C47.
Rev. 3 not compat. w/Rev. 1 &
2
Rev. 2 not compat. w/Rev. 1(S/N 209513+)HHCS 1/2-13X1 1/2 GR5802-091C12.
Rev. 1(S/N 209512-)HHCS 1/2-20X1 1/2 GR5802-036C12.
Rev. 2 not compat. w/Rev. 1(S/N 241352+)FDR1572 GEARBOX CHANNEL WLDMNT315-408H33.
Rev. 1(S/N 241351-)FDR1572 GEAR BOX CHANNEL WELD310-195H33.
Rev. 2(S/N 176001+)FRONT ROLLER BRKT L.H.315-133H44.
Rev 1; Use up stock(S/N 176000-)LOW LH FRONT ROLLER WELDMENT310-319H44.
Rev. 2(S/N 176001+)FRONT ROLLER MOUNT-R.H.315-409D48.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11
Page 12
Land Pride Section 2: Decks
FDR15 SERIES
Table of Contents Part Number Index
Deck (continued)
Applies to FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Rev 1; Use up stock(S/N 176000-)LOW FRONT ROLLER RH BRACKET310-533D48.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C49.
(S/N 241352+)RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C50.
(S/N 241352+)NUT HEX WHIZ 1/2-13 PLT803-037C51.
(S/N 241351-)HFSS 1/2-13X1 1/2 GR5802-203C52.
FRONT ANTI-SCALP ROLLER ASSY310-210S53.
(S/N 317416+)DRIVELINE HOOK HANGER W/HRDWR800-320C54.
12 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 13
Section 2: Decks Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Deck (continued)
Applies to FDR1572
This Page Intentionally Left Blank
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 13
Page 14
Land Pride Section 2: Decks
FDR15 SERIES
Table of Contents Part Number Index
Deck
Applies to FDR1560
13592
14 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 15
Section 2: Decks Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Deck
Applies to FDR1560
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13592
SPACER - TOP HITCH310-012D1.
PIVOTING HITCH - UPPER310-015D2.
FDR UPPER HITCH BAR310-375D3.
WASHER LOCK SPRING 5/8 PLT804-022C4.
NUT HEX 5/8-18 PLT803-022C5.
FDR1560 HITCH BRACE310-407D6.
Rev. 2 not compat. w/Rev. 1(S/N 239292+)FD1560 RH & LH BELT COVER310-449D7.
Rev. 1(S/N 239291-)BELT COVER-1560310-280D7.
KNOB 3 PRONG 1/4-20 X 1/2 LG817-192C8.
(S/N 286329-)WASHER LOCK SPRING 1/2 PLT804-015C9.
Rev. 2 not compat. w/Rev. 1(S/N 209513<->286329)NUT HEX 1/2-13 PLT803-020C10.
Rev. 1(S/N 2095-12-)NUT HEX 1/2-20 PLT803-018C10.
1572-60 REAR GW ARM ASSY310-194S11.
PIN LYNCH 1/4 X 1 3/4 PLT805-126C13.
1572-60 FRONT GW ARM ASSY310-193S14.
SPINDLE BUSHING817-048C15.
SPACER 1"827-002C16.
SPACER 1/2"827-001C17.
TIRE 10 X 4 TUBELESS AIR814-071C18.
TIRE 10X3.25 SOLID STRT RIB CR814-188C18.
SPACER TUBE GA.WHL. 5 1/8 LG310-328D19.
GAUGE WHEEL SPACER(SOLID TIRE)310-329D20.
HHCS 1/2-20X6 1/2 GR5802-350C21.
GAUGE WHEEL YOKE(5 1/8 INSIDE)310-149H22.
GREASE ZERK STRAIGHT 1/4-28800-001C23.
CLIP U-TYPE NUT 1/4-20 SLF-RET800-163C24.
GEAR BOX CHANNEL SPACER315-562D25.
HHCS 5/8-18X1 3/4 GR5802-246C26.
HHCS 5/8-11X4 1/2 GR5802-100C27.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C28.
LOWER HITCH PIN310-020S29.
LOWER HITCH LUG 1560310-125H30.
PIN LYNCH 5/16 X 1 3/4805-015C31.
HHCS 3/4-16X2 1/2 GR5802-321C32.
FDR1560 GEAR BOX CHANNEL WELD310-201H33.
FDR1560 DECK WELD310-200H34.
PIN HAIR COTTER .120 PLT805-143C35.
PIN CLEVIS 3/4 X 3 1/2 PLT805-142C36.
HHCS 5/8-18X5 GR5802-307C37.
HHCS 1/2-20X1 3/4 GR5802-329C39.
1572-60 FRONT GW ARM WELD310-196H40.
1572-60 REAR GW ARM WELD310-197H41.
HHCS 3/8-16X3/4 GR5802-014C42.
4 X 5 1/2 FRONT ROLLER817-082C44.
WASHER LOCK SPRING 3/8 PLT804-013C45.
NUT HEX 3/8-16 PLT803-014C46.
Includes items 23 and 41; two of item
15
(S/N 286330+)HFSS 1/2-13X1 1/2 GR5802-203C12.
Includes items 23 and 40; two of item
15
Air TireGAUGE WHEEL SPACER - SHORT310-024D20.
(S/N 286329-)WASHER FLAT 1/2 SAE PLT804-016C38.
Rev. 4 not compat. w/Rev. 1, 2
or 3
Rev. 3HHCS 1/2-20X1 3/4 GR5802-329C12.
Rev. 2 not compat. w/Rev. 1(S/N 209513+)HHCS 1/2-13X1 1/2 GR5802-091C12.
Rev. 1(S/N 209512-)HHCS 1/2-20X1 1/2 GR5802-036C12.
Rev. 2(S/N 176001+)FRONT ROLLER BRKT L.H.315-133H43.
Rev 1; Use up stock(S/N 176000-)LOW LH FRONT ROLLER WELDMENT310-319H43.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 15
Page 16
Land Pride Section 2: Decks
FDR15 SERIES
Table of Contents Part Number Index
Deck (continued)
Applies to FDR1560
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 2(S/N 176001+)FRONT ROLLER MOUNT-R.H.315-409D47.
Rev 1; Use up stock(S/N 176000-)LOW FRONT ROLLER RH BRACKET310-533D47.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C48.
(S/N 239292+)RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C49.
(S/N 286330+)NUT HEX WHIZ 1/2-13 PLT803-037C50.
(S/N 286330+)HFSS 1/2-13X1 1/2 GR5802-203C51.
FRONT ANTI-SCALP ROLLER ASSY310-210S52.
(S/N 317416+)DRIVELINE HOOK HANGER W/HRDWR800-320C53.
16 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 17
Section 2: Decks Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Deck (continued)
Applies to FDR1560
This Page Intentionally Left Blank
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 17
Page 18
Land Pride Section 2: Decks
FDR15 SERIES
Table of Contents Part Number Index
Gauge Wheel Tire (814-071C) (814-188C)
Applies to FDR1560, FDR1572
13629
18 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 19
Section 2: Decks Land Pride
Table of Contents Part Number Index
FDR15 SERIES

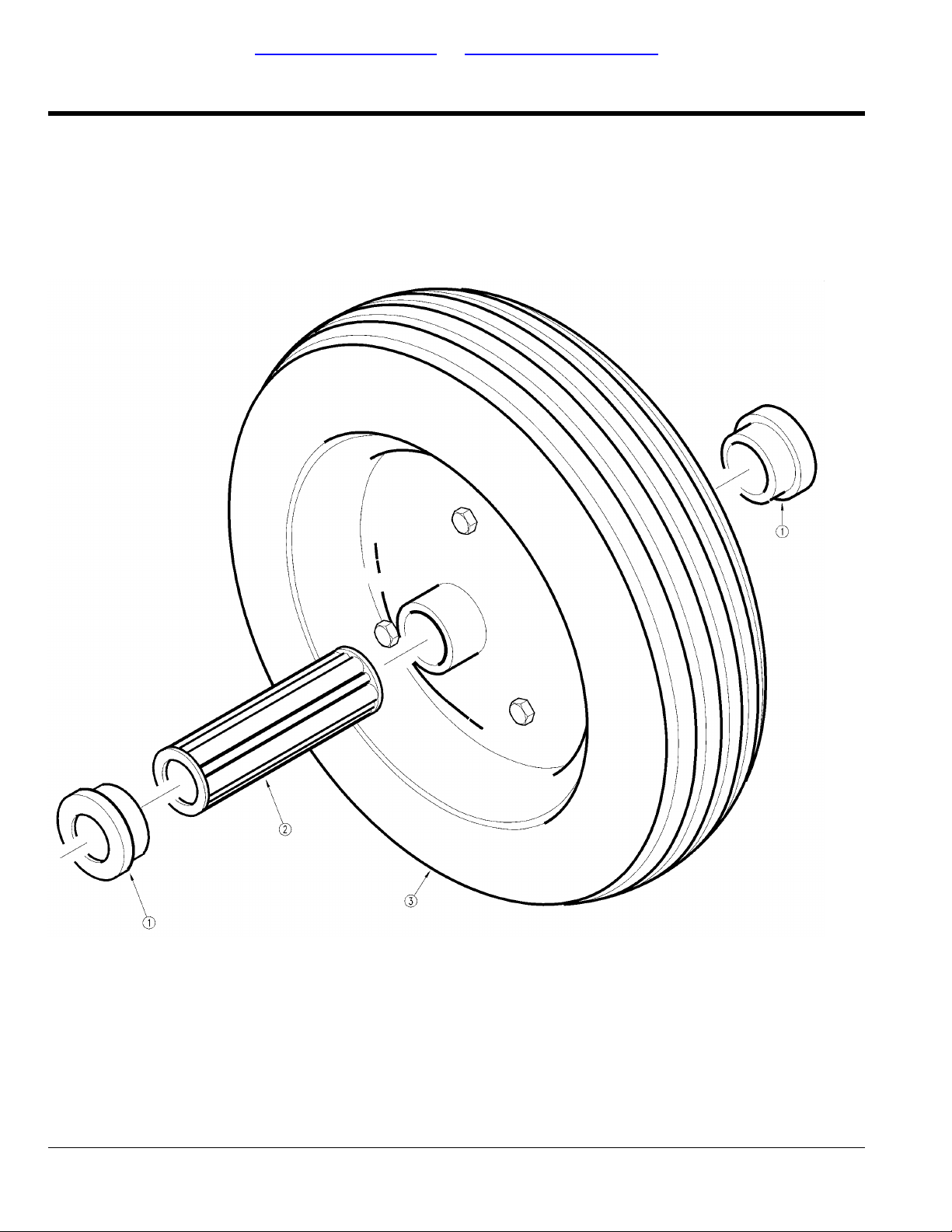

Gauge Wheel Tire (814-071C) (814-188C)
Applies to FDR1560, FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13629
TIRE 10 X 4 TUBELESS AIR814-071C1.
TIRE 10X3.25 SOLID STRT RIB CR814-188C1.
814-071CTILDEN BRG 3/4IDX1 3/8ODX3 1/453-1822.
814-188CHS CGD RLR BRG.75IDX1.37X1.5LG874102.
814-071CTILDEN RTNR 3/4IDX1 3/8ODX1/4L53-1643.
814-188CHS BRG 3/4ID X 1.407OD X 5/8LG870403.
814-071CTILDEN BRG 3/4ID1.34ODX15/16L53-1894.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 19
Page 20
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index

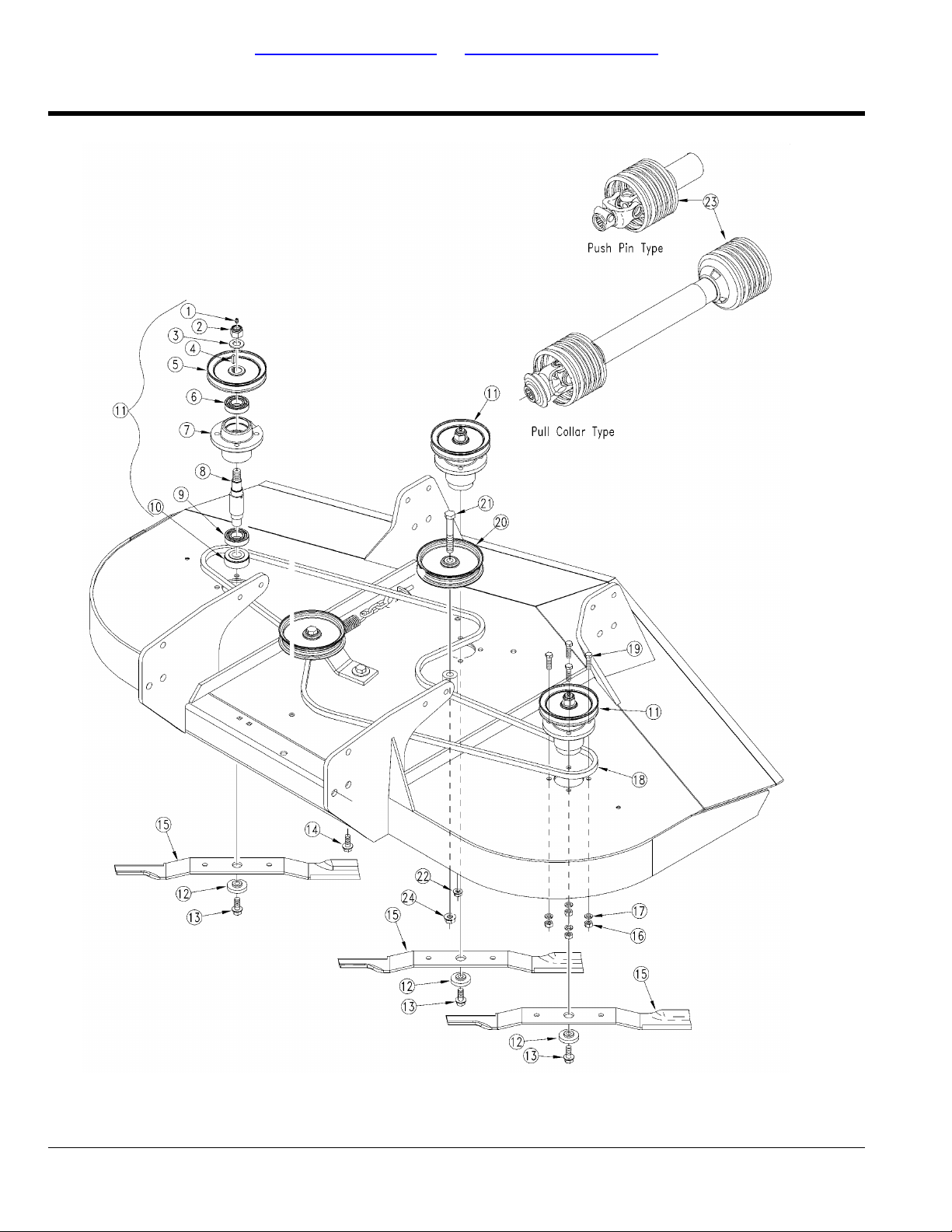

Belt Drive (S/N 212180-)
Applies to FDR1548
13284
20 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 21
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212180-)
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13284
GEAR BOX CHANNEL FDR1548310-183H1.
Rev. 2 not compat. w/Rev. 1(S/N 209513+)HHCS 1/2-13X1 1/2 GR5802-091C2.
Rev. 1(S/N 209512-)HHCS 1/2-13X1 1/4 GR5802-034C2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-18 PLT803-022C4.
Rev. 2 not compat. w/Rev. 1(S/N 174815+)NUT HEX 3/8-16 PLT803-014C5.
Rev. 1(S/N 174814-)NUT HEX 1/4-20 PLT803-006C5.
SNAP RING EXT 7/16800-099C6.
SPRING EYE-BOLT BRACKET310-095H7.
Rev. 2 not compat. w/Rev. 1(S/N 174815+)SP EYE 3/8-16X4802-567C8.
Rev. 1(S/N 174814-)SP EYE 1/4-20X4 1/4-4 1/2802-443C8.
SPRING EXT BELT HANDLE807-068C9.
HHCS 5/8-18X4 GR5802-237C10.
OVER-CENTER LATCH-90310-094H11.
FLAT IDLE PULLEY 6 1/4 O.D.808-073C12.
IDLER SPACER310-051D13.
CW SPDLE HUB ASSY 5"PULL 9.8TB310-139S14.
CW SPDLE HUB ASSY 5"PULL 3"TB310-132S15.
Standard High LiftMWR BLD 1/4X16 7/8SD HL CW890-219C16.
Optional Medium LiftMWR BLD 1/4X16 7/8SD ML CW890-325C16.
Optional Low LiftMWR BLD 1/4X16 7/8SD LL CW890-323C16.
Optional Mulch BladesMWR BLD MULCH 1/4X16 7/8SD CW890-700C16.
V-BELT B93 95.75 E.L. KEVLAR816-142C17.
NUT HEX 7/16-20 PLT803-115C18.
WASHER LOCK 7/16 PLT804-014C19.
HHCS 7/16-20X1 1/2 GR8802-229C20.
NUT LOCK 5/8-11 PLT803-024C21.
IDLER LINK BAR LONG310-353D22.
IDLER LINK BAR SHORT310-354D23.
HHCS 5/8-11X1 1/2 GR5 NYL802-228C24.
IDLER MOUNT BAR310-165H25.
HHCS 5/8-11X1 1/2 GR5802-051C26.
PIN COTTER 3/16 X 1 3/4 PLT805-017C27.
NUT M 24 X 28.2.2.0114428.
WASHER FLAT 1 SAE PLT804-029C29.
B-GROOVE DRIVE PULLEY 12 OD808-182C30.
KEY 1/4" X 11/16" LONG310-331D31.
Rev. 2(S/N 204085 <-> 215623)REP BY 826-326C826-204C32.
Rev. 1(S/N 204084-)RPBY 826-204C & 826-206C826-085C32.
GEARBOX SHAFT PROTECTOR817-050C33.
Rev. 2 not compat. w/Rev. 1(S/N 209513+)NUT HEX 1/2-13 PLT803-020C34.
Rev. 1(S/N 209512-)NUT HEX 1/2-20 PLT803-018C34.
WASHER LOCK SPRING 1/2 PLT804-015C35.
WASHER FLAT 1/2 SAE PLT804-016C36.
WASHER BLADE 2ODX.56THKX.51ID804-110C37.
Rev. 2 not compat. w/Rev. 1Service PartHFS 1/2-20X2 GR8802-695C38.
Rev. 1HFS 1/2-20X1 1/4 GR5802-384C38.
BLADE HUB310-300D39.
BLADE SPINDLE SHAFT310-361D40.
BEARING 206822-006C41.
BLADE HUB- MACH.-90310-224D42.
B-GROOVE PULLEY 5 O.D.808-075C43.
1/4 SQ. KEY X 7/8 LG172-242D44.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C45.
ZERK 5/16-24 STRAIGHT #1711B800-075C46.
Used with item 15LUBE FITTING 3" EXTENSION310-312D47.
Used with item 1472 CENTER GREASE TUBE310-176D47.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 21
Page 22
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212180-) (continued)
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 2(S/N 174548+)WASHER FLAT 3/4 HARD ASTMF436804-093C48.
Rev 1; Use up stock(S/N 174547-)WASHER FLAT 3/4 SAE PLT804-025C48.
Rev. 2(S/N 174548+)BEARING 6206 W/ METAL SHIELD822-161C49.
Rev 1; Use up stock(S/N 174547-)BEARING 206822-006C49.
22 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 23
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212180-) (continued)
Applies to FDR1548
This Page Intentionally Left Blank
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 23
Page 24
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index

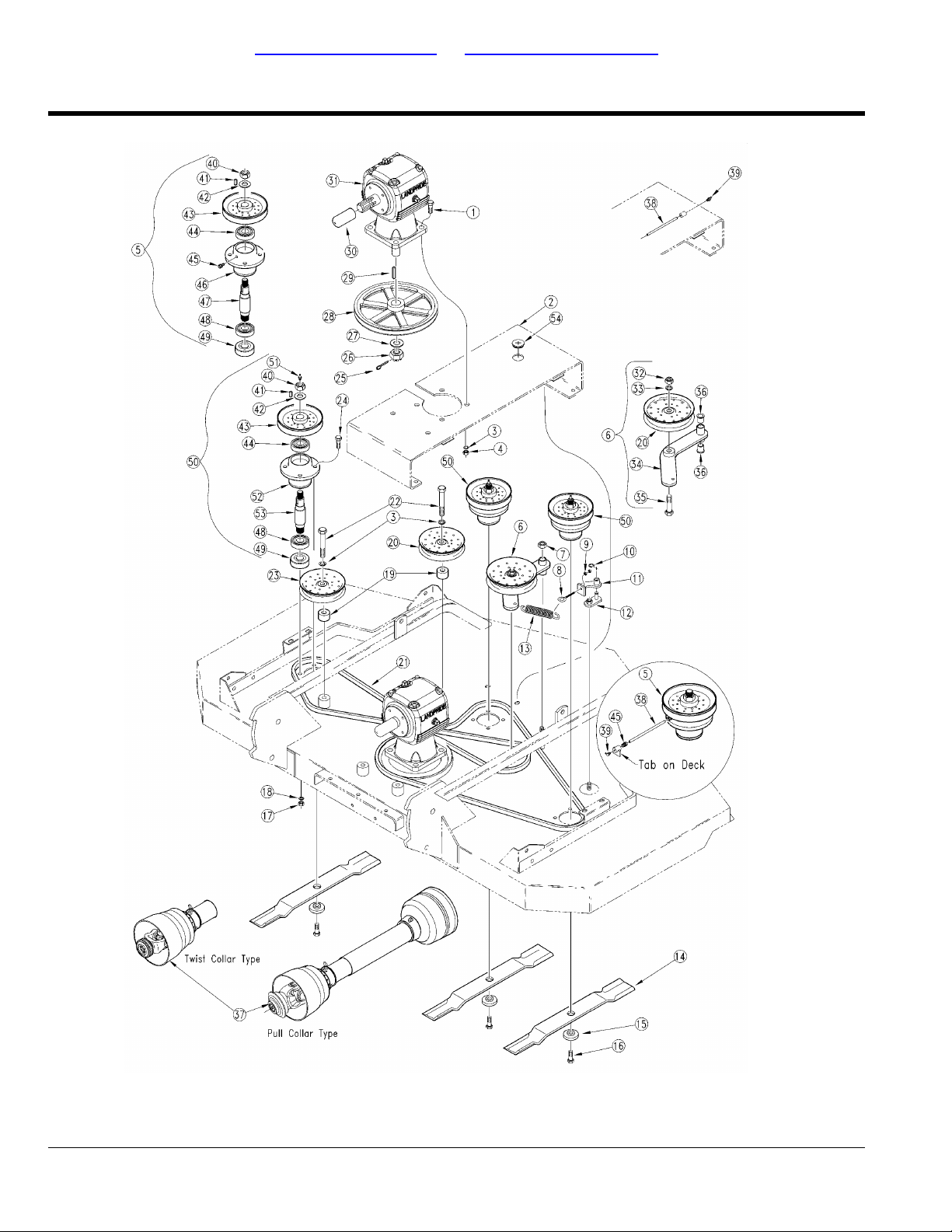

Belt Drive (S/N 212180-)
Applies to FDR1572
13602
24 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 25
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212180-)
Applies to FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13602
HHCS 5/8-18X1 3/4 GR5802-246C1.
FDR1572 GEAR BOX CHANNEL WELD310-195H2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-18 PLT803-022C4.
CW SPDLE HUB ASSY 6"PULL 9.8TB310-177S5.
CW SPDLE HUB ASSY 6"PULL 3"TB310-161S6.
AFM BELT TAKE UP HANDLE ASSY315-075S7.
NUT LOCK 5/8-18 NYLOK COLLAR P803-119C8.
Rev. 2 not compat. w/Rev. 1(S/N 174815+)SP EYE 3/8-16X4802-567C9.
Rev. 1(S/N 174814-)SP EYE 1/4-20X2 3/4802-233C9.
Rev. 2 not compat. w/Rev. 1(S/N 174815+)NUT HEX 3/8-16 PLT803-014C10.
Rev. 1(S/N 174814-)NUT HEX 1/4-20 PLT803-006C10.
SNAP RING EXT 7/16800-099C11.
SPRING EYE-BOLT BRACKET310-095H12.
OVER-CENTER LATCH-90310-094H13.
SPRING EXT BELT HANDLE807-068C14.
MWR BLD 1/4 X 25SD ML CW890-318C15.
MWR BLD 1/4 X 25SD HL CW890-172C15.
HFS 1/2-20X1 1/4 GR5802-384C17.
NUT HEX 7/16-20 PLT803-115C18.
WASHER LOCK 7/16 PLT804-014C19.
IDLER PULLEY SPACER-SHORT315-563D20.
FLAT IDLER PULLEY 6 O.D.808-129C21.
V-BELT B173 175.9 E.L. KEVLAR816-141C22.
HHCS 5/8-11X2 3/4 GR5802-281C23.
B-GROOVE IDLER PULLEY 6.25 OD808-128C24.
HHCS 7/16-20X1 1/2 GR8802-229C25.
PIN COTTER 3/16 X 1 3/4 PLT805-017C26.
NUT M 24 X 28.2.2.0114427.
WASHER FLAT 1 SAE PLT804-029C28.
KEY 1/4" X 11/16" LONG310-331D30.
GEARBOX SHAFT PROTECTOR817-050C31.
NUT HEX 5/8-18 PLT803-022C33.
WASHER LOCK SPRING 5/8 PLT804-022C34.
CW BELT TAKE-UP HANDLE315-103H35.
HHCS 5/8-18X2 1/2 GR5802-239C36.
DOUBLE DISK ARM PIVOT BUSHINGS817-028C37.
PTO CAT 2 X 24.02 NO CLUTCH826-140C38.
BLADE HUB310-300D39.
BLADE SPINDLE SHAFT310-361D40.
BEARING 206822-006C41.
BLADE HUB- MACH.-90310-224D42.
B-GROOVE DRIVE PULLEY 6 O.D.808-127C43.
B-GROOVE PULLEY 5 O.D.808-075C43.
1/4 SQ. KEY X 7/8 LG172-242D44.
Standard Medium Lift Blades 3 per
Mower
Optional High Lift Blades 3 per
Mower
Optional Low Lift Blades 3 per MowerMWR BLD 5/16 X 25SD LL CW890-200C15.
Optional Mulch Blades 3 per MowerMWR BLD MULCH 1/4X25SD CW890-698C15.
Rev. 2WASHER BLADE 2ODX.56THKX.51ID804-110C16.
Rev 1; Use up stockREP BY 804-110C310-043D16.
Rev. 2(S/N 343620+)B-GROOVE PULLEY 11" CAST-IRON808-335C29.
Rev. 1(S/N 343619-)B-GROOVE DRIVE PULLEY 11 O.D.808-126C29.
Rev. 2 not compat. w/Rev. 1(S/N 204085+)REP BY 826-326C826-204C32.
Rev. 1(S/N 204084-)RPBY 826-204C & 826-206C826-085C32.
Rev. 2FDR1560 S/N 360678+; FDR 1572
S/N 360653+
Rev. 1FDR1560 S/N 360677-; FDR1572
S/N 360652-
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 25
Page 26
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212180-) (continued)
Applies to FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C45.
ZERK 5/16-24 STRAIGHT #1711B800-075C46.
72 CENTER GREASE TUBE310-176D47.
LUBE FITTING 3" EXTENSION310-312D47.
Rev. 2(S/N 174548+)WASHER FLAT 3/4 HARD ASTMF436804-093C48.
Rev 1; Use up stock(S/N 174547-)WASHER FLAT 3/4 SAE PLT804-025C48.
Rev. 2(S/N 174548+)BEARING 6206 W/ METAL SHIELD822-161C49.
Rev 1; Use up stock(S/N 174547-)BEARING 206822-006C49.
26 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 27
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212180-) (continued)
Applies to FDR1572
This Page Intentionally Left Blank
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 27
Page 28
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212180-)
Applies to FDR1560
13593
28 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 29
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212180-)
Applies to FDR1560
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13593
HHCS 5/8-18X1 3/4 GR5802-246C1.
FDR1560 GEAR BOX CHANNEL WELD310-201H2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-18 PLT803-022C4.
CW SPDLE HUB ASSY 5"PULL 3"TB310-132S5.
HHCS 7/16-20X1 1/2 GR8802-229C6.
Rev. 2 not compat. w/Rev. 1(S/N 174815+)NUT HEX 3/8-16 PLT803-014C7.
Rev. 1(S/N 174814-)NUT HEX 1/4-20 PLT803-006C7.
SNAP RING EXT 7/16800-099C8.
OVER-CENTER LATCH-90310-094H9.
SPRING EYE-BOLT BRACKET310-095H10.
Rev. 2 not compat. w/Rev. 1(S/N 174815+)SP EYE 3/8-16X4802-567C11.
Rev. 1(S/N 174814-)SP EYE 1/4-20X2 3/4802-233C11.
SPRING EXT BELT HANDLE807-068C12.
WASHER LOCK 7/16 PLT804-014C13.
NUT HEX 7/16-20 PLT803-115C14.
MWR BLD 1/4 X 20 29/32SD ML CW890-375C15.
MWR BLD 1/4 X 20 29/32SD HL CW890-171C15.
HFS 1/2-20X1 1/4 GR5802-384C17.
V-BELT B136 138.9 E.L. KEVLAR816-116C18.
IDLER PULLEY SPACER-SHORT315-563D19.
FLAT IDLE PULLEY 6 1/4 O.D.808-073C20.
HHCS 5/8-11X2 3/4 GR5802-281C21.
CW SPDLE HUB ASSY 5"PULL 9.8TB310-139S22.
NUT LOCK 5/8-18 NYLOK COLLAR P803-119C23.
40168 CW BELT TAKE-UP HANDLE315-248S24.
PIN COTTER 3/16 X 1 3/4 PLT805-017C25.
NUT M 24 X 28.2.2.0114426.
WASHER FLAT 1 SAE PLT804-029C27.
KEY 1/4" X 11/16" LONG310-331D29.
GEARBOX SHAFT PROTECTOR817-050C30.
NUT HEX 5/8-18 PLT803-022C32.
WASHER LOCK SPRING 5/8 PLT804-022C33.
CW BELT TAKE-UP HANDLE315-103H34.
HHCS 5/8-18X2 1/2 GR5802-239C35.
DOUBLE DISK ARM PIVOT BUSHINGS817-028C36.
PTO CAT2 X 19 7/8 NO CLUTCH826-107C37.
BLADE HUB310-300D38.
BLADE SPINDLE SHAFT310-361D39.
BEARING 206822-006C40.
BLADE HUB- MACH.-90310-224D41.
B-GROOVE DRIVE PULLEY 6 O.D.808-127C42.
B-GROOVE PULLEY 5 O.D.808-075C42.
1/4 SQ. KEY X 7/8 LG172-242D43.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C44.
Standard Medium Lift Blades 3 per
Mower
Optional High Lift Blades 3 per
Mower
Optional Low Lift Blades 3 per MowerMWR BLD 5/16X20 29/32SD LL CW890-204C15.
Optional Mulch Blades 3 per MowerMWR BLD MULCH 1/4X20.91SD CW890-702C15.
Rev. 2WASHER BLADE 2ODX.56THKX.51ID804-110C16.
Rev 1; Use up stockREP BY 804-110C310-043D16.
Rev. 2(S/N 343620+)B-GROOVE PULLEY 11" CAST-IRON808-335C28.
Rev. 1(S/N 343619-)B-GROOVE DRIVE PULLEY 11 O.D.808-126C28.
Rev. 2 not compat. w/Rev. 1(S/N 204085+)REP BY 826-326C826-204C31.
Rev. 1(S/N 204084-)GBOX 1:2.83SU 1 3/8-6 CW826-085C31.
Rev. 2FDR1560 S/N 360678+; FDR 1572
S/N 360653+
Rev. 1FDR1560 S/N 360677-; FDR1572
S/N 360652-
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 29
Page 30
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212180-) (continued)
Applies to FDR1560
RevisionCommentsPart DescriptionPart No.Ref.
ZERK 5/16-24 STRAIGHT #1711B800-075C45.
72 CENTER GREASE TUBE310-176D46.
LUBE FITTING 3" EXTENSION310-312D46.
Rev. 2(S/N 174548+)WASHER FLAT 3/4 HARD ASTMF436804-093C47.
Rev 1; Use up stock(S/N 174547-)WASHER FLAT 3/4 SAE PLT804-025C47.
Rev. 2(S/N 174548+)BEARING 6206 W/ METAL SHIELD822-161C48.
Rev 1; Use up stock(S/N 174547-)BEARING 206822-006C48.
30 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 31
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212180-) (continued)
Applies to FDR1560
This Page Intentionally Left Blank
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 31
Page 32
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212181+)
Applies to FDR1548
16497
32 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 33
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212181+)
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16497
Rev. 2 not compat. w/Rev. 1(S/N 239292+)FDR1548 GEARBOX CHANNEL WLDMNT315-406H1.
Rev. 1(S/N 239291-)GEAR BOX CHANNEL FDR1548310-183H1.
Rev. 2 not compat. w/Rev. 1(S/N 286330+)HFSS 1/2-13X1 1/2 GR5802-203C2.
Rev. 1(S/N 286329-)HHCS 1/2-13X1 1/2 GR5802-091C2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-18 PLT803-022C4.
NUT HEX 3/8-16 PLT803-014C5.
SNAP RING EXT 7/16800-099C6.
SPRING EYE-BOLT BRACKET310-095H7.
SP EYE 3/8-16X4802-567C8.
SPRING EXT BELT HANDLE807-068C9.
HHCS 5/8-18X4 GR5802-237C10.
OVER-CENTER LATCH-90310-094H11.
FLAT IDLE PULLEY 6 1/4 O.D.808-073C12.
IDLER SPACER310-051D13.
(S/N 239291-)CW SPINDLE HUB ASSEMBLY 5"315-375S14.
Standard High LiftMWR BLD 1/4X16 7/8SD HL CW890-219C15.
Optional Medium LiftMWR BLD 1/4X16 7/8SD ML CW890-325C15.
Optional Low LiftMWR BLD 1/4X16 7/8SD LL CW890-323C15.
Optional Mulch BladesMWR BLD MULCH 1/4X16.87SD CW890-700C15.
V-BELT B93 95.75 E.L. KEVLAR816-142C16.
NUT HEX 7/16-20 PLT803-115C17.
WASHER LOCK 7/16 PLT804-014C18.
HHCS 7/16-20X1 1/2 GR8802-229C19.
NUT LOCK 5/8-11 PLT803-024C20.
IDLER LINK BAR LONG310-353D21.
IDLER LINK BAR SHORT310-354D22.
HHCS 5/8-11X1 1/2 GR5 NYL802-228C23.
IDLER MOUNT BAR310-165H24.
HHCS 5/8-11X1 1/2 GR5802-051C25.
PIN COTTER 3/16 X 1 3/4 PLT805-017C26.
NUT M 24 X 28.2.2.0114427.
WASHER FLAT 1 SAE PLT804-029C28.
Rev. 2(S/N 343620 +)B-GROOVE PULLEY 12" CAST-IRON808-336C29.
Rev. 1(S/N 343619 -)B-GROOVE DRIVE PULLEY 12 OD808-182C29.
KEY 1/4" X 11/16" LONG310-331D30.
Rev. 3(S/N 372831+)GBOX MOWER FDR16 1:2.8 REV.826-367C31.
Rev. 2(S/N 344460 <-> S/N 372830)GBOX MOWER 50 HP 1:2.8 CW826-326C31.
RPBY 826-326C826-204C31.
217025 <-> S/N 344459)
(S/N 220346-)GEARBOX SHAFT PROTECTOR817-050C32.
(S/N 286329-)NUT HEX 1/2-13 PLT803-020C33.
(S/N 286329-)WASHER LOCK SPRING 1/2 PLT804-015C34.
(S/N 286329-)WASHER FLAT 1/2 SAE PLT804-016C35.
WASHER BLADE 2ODX.56THKX.51ID804-110C36.
HHCS 5/8-18X1 3/4 GR5802-246C38.
TUBE NYLON 1/4OD X 062WL990-109R39.
GREASE ZERK 1/8NPT 45-DEG800-193C40.
FTG TUBE,CONNECTOR 1/8 MNPT800-157C41.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C42.
WASHER FLAT 3/4 HARD ASTMF436804-093C43.
1/4 SQ. KEY X 7/8 LG172-242D44.
B-GROOVE PULLEY 5 O.D.808-075C45.
BEARING 6206 W/ METAL SHIELD822-161C46.
Rev 1; Use up stock(S/N 204085 <-> S/N 215623) (S/N
Rev 1; Use up stock(S/N 215624 <-> S/N 217024)RC-25 1:2.8 CW 90 BOX(RC25HR)826-206C31.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)HFS 1/2-20X2 GR8802-695C37.
Rev. 1(S/N 329660-)HFS 1/2-20X1 1/4 GR5802-384C37.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 33
Page 34
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212181+) (continued)
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
(S/N 239291-)BLADE HUB - MACH310-224D47.
(S/N 239291-)BLADE SPINDLE SHAFT310-361D48.
BEARING 206822-006C49.
BLADE HUB - 7/8310-300D50.
(S/N 239292+)CW TG SPINDLE HUB ASSY 5" PULL310-248S51.
(S/N 239292+)GREASE ZERK STRAIGHT 1/4-28800-001C52.
(S/N 239292+)BLADE HUB MACHINED TOP GREASE310-457D53.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)BLADE SPINDLE SHAFT CW TG310-630D54.
Rev. 1(S/N 239292 <-> 329660)RPBY 310-349S310-454D54.
(S/N 239292+)RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C55.
(S/N 286330+)NUT HEX WHIZ 1/2-13 PLT803-037C56.
(S/N 286330+)HFSS 1/2-13X1 1/2 GR5802-203C57.
34 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 35
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212181+) (continued)
Applies to FDR1548
This Page Intentionally Left Blank
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 35
Page 36
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index

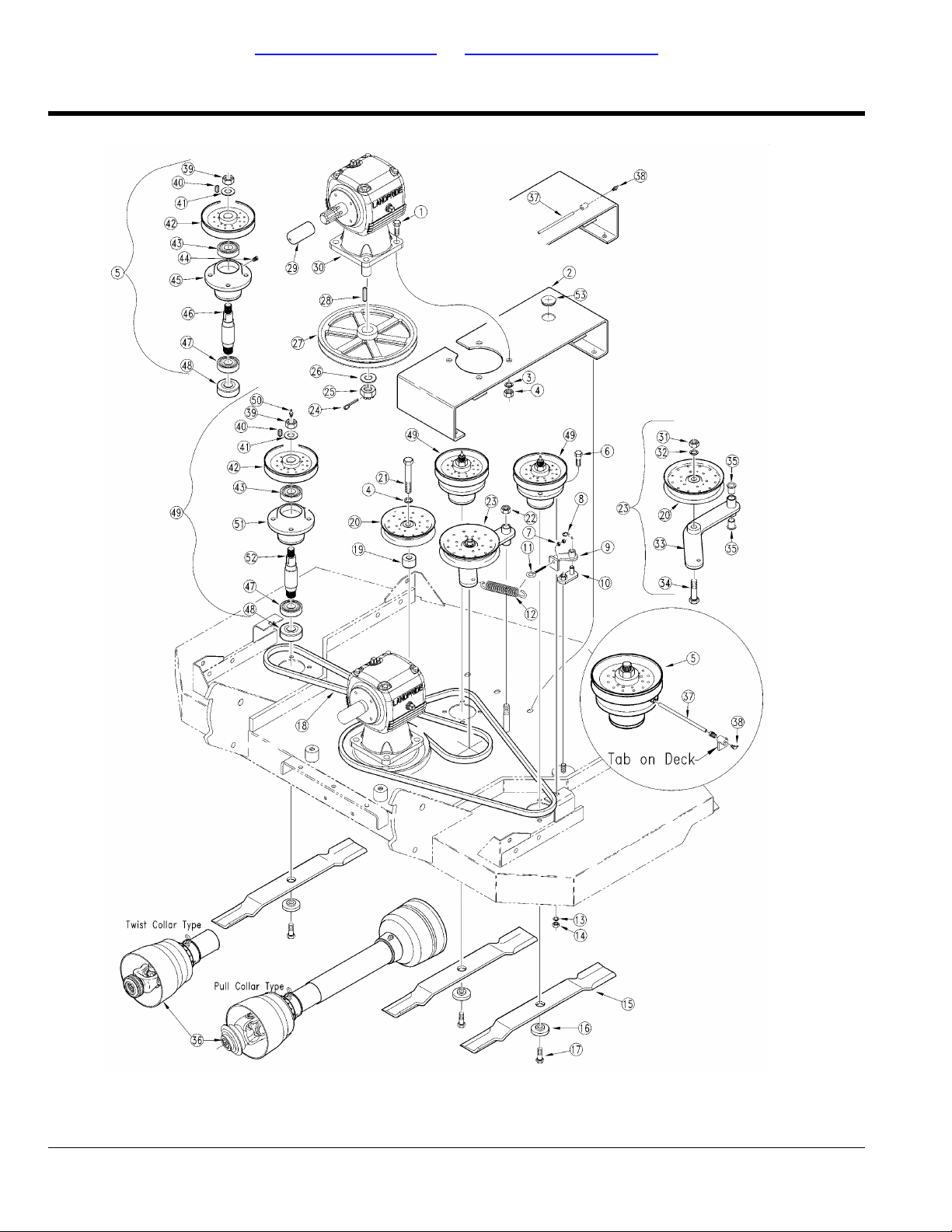

Belt Drive (S/N 212181+)
Applies to FDR1572
16485
36 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 37
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212181+)
Applies to FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16485
HHCS 5/8-18X1 3/4 GR5802-246C1.
Rev. 2 not compat. w/Rev. 1(S/N 241352+)FDR1572 GEARBOX CHANNEL WLDMNT315-408H2.
Rev. 1(S/N 241351-)FDR1572 GEAR BOX CHANNEL WELD310-195H2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-18 PLT803-022C4.
CW SPINDLE HUB ASSEMBLY 6IN.315-378S5.
AFM BELT TAKE UP HANDLE ASSY315-075S6.
NUT LOCK 5/8-18 NYLOK COLLAR P803-119C7.
SP EYE 3/8-16X4802-567C8.
NUT HEX 3/8-16 PLT803-014C9.
SNAP RING EXT 7/16800-099C10.
SPRING EYE-BOLT BRACKET310-095H11.
OVER-CENTER LATCH-90310-094H12.
SPRING EXT BELT HANDLE807-068C13.
MWR BLD 1/4 X 25SD ML CW890-318C14.
MWR BLD 1/4 X 25SD HL CW890-172C14.
WASHER BLADE 2ODX.56THKX.51ID804-110C15.
NUT HEX 7/16-20 PLT803-115C17.
WASHER LOCK 7/16 PLT804-014C18.
IDLER PULLEY SPACER-SHORT315-563D19.
FLAT IDLER PULLEY 6 O.D.808-129C20.
V-BELT B173 175.9 E.L. KEVLAR816-141C21.
HHCS 5/8-11X2 3/4 GR5802-281C22.
B-GROOVE IDLER PULLEY 6.25 OD808-128C23.
HHCS 7/16-20X1 1/2 GR8802-229C24.
PIN COTTER 3/16 X 1 3/4 PLT805-017C25.
NUT M 24 X 28.2.2.0114426.
WASHER FLAT 1 SAE PLT804-029C27.
KEY 1/4" X 11/16" LONG310-331D29.
NUT HEX 5/8-18 PLT803-022C32.
WASHER LOCK SPRING 5/8 PLT804-022C33.
CW BELT TAKE-UP HANDLE315-103H34.
HHCS 5/8-18X2 1/2 GR5802-239C35.
DOUBLE DISK ARM PIVOT BUSHINGS817-028C36.
PTO CAT 2 X 24.02 NO CLUTCH826-140C37.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C40.
1/4 SQ. KEY X 7/8 LG172-242D41.
WASHER FLAT 3/4 HARD ASTMF436804-093C42.
B-GROOVE DRIVE PULLEY 6 O.D.808-127C43.
BEARING 6206 W/ METAL SHIELD822-161C44.
Standard Medium Lift Blades 3 per
Mower
Optional High Lift Blades 3 per
Mower
Optional Low Lift Blades 3 per MowerMWR BLD 5/16 X 25SD LL CW890-200C14.
Optional Mulch Blades 3 per MowerMWR BLD MULCH 1/4X25SD CW890-698C14.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)HFS 1/2-20X2 GR8802-695C16.
Rev. 1(S/N 329660-)HFS 1/2-20X1 1/4 GR5802-384C16.
Rev. 2(S/N 343620+)B-GROOVE PULLEY 11" CAST-IRON808-335C28.
Rev. 1(S/N 343619-)B-GROOVE DRIVE PULLEY 11 O.D.808-126C28.
(S/N 220346-)GEARBOX SHAFT PROTECTOR817-050C30.
Rev. 3(S/N 372831+)GBOX MOWER FDR16 1:2.8 REV.826-367C31.
Rev. 2 not compat. w/Rev. 1(S/N 341832 <-> S/N372830)GBOX MOWER 50 HP 1:2.8 CW826-326C31.
Rev. 1(S/N 341831-)RPBY 826-326C826-204C31.
(S/N 239291-)TUBE NYLON 1/4OD X 062WL990-109R38.
(S/N 239291-)GREASE ZERK 1/8NPT 45-DEG800-193C39.
(S/N 239291-)FTG TUBE,CONNECTOR 1/8 MNPT800-157C45.
(S/N 239291-)BLADE HUB - MACH310-224D46.
(S/N 239291-)BLADE SPINDLE SHAFT310-361D47.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 37
Page 38
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212181+) (continued)
Applies to FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
BEARING 206822-006C48.
BLADE HUB - 7/8310-300D49.
(S/N 241352+)CW TG SPINDLE HUB ASSY 6" PULL310-249S50.
(S/N 241352+)GREASE ZERK STRAIGHT 1/4-28800-001C51.
(S/N 241352+)BLADE HUB MACHINED TOP GREASE310-457D52.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)BLADE SPINDLE SHAFT CW TG310-630D53.
Rev. 1(S/N 241352 <-> 329660)RPBY 310-349S310-454D53.
(S/N 241352+)RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C54.
38 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 39
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212181+) (continued)
Applies to FDR1572
This Page Intentionally Left Blank
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 39
Page 40
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index

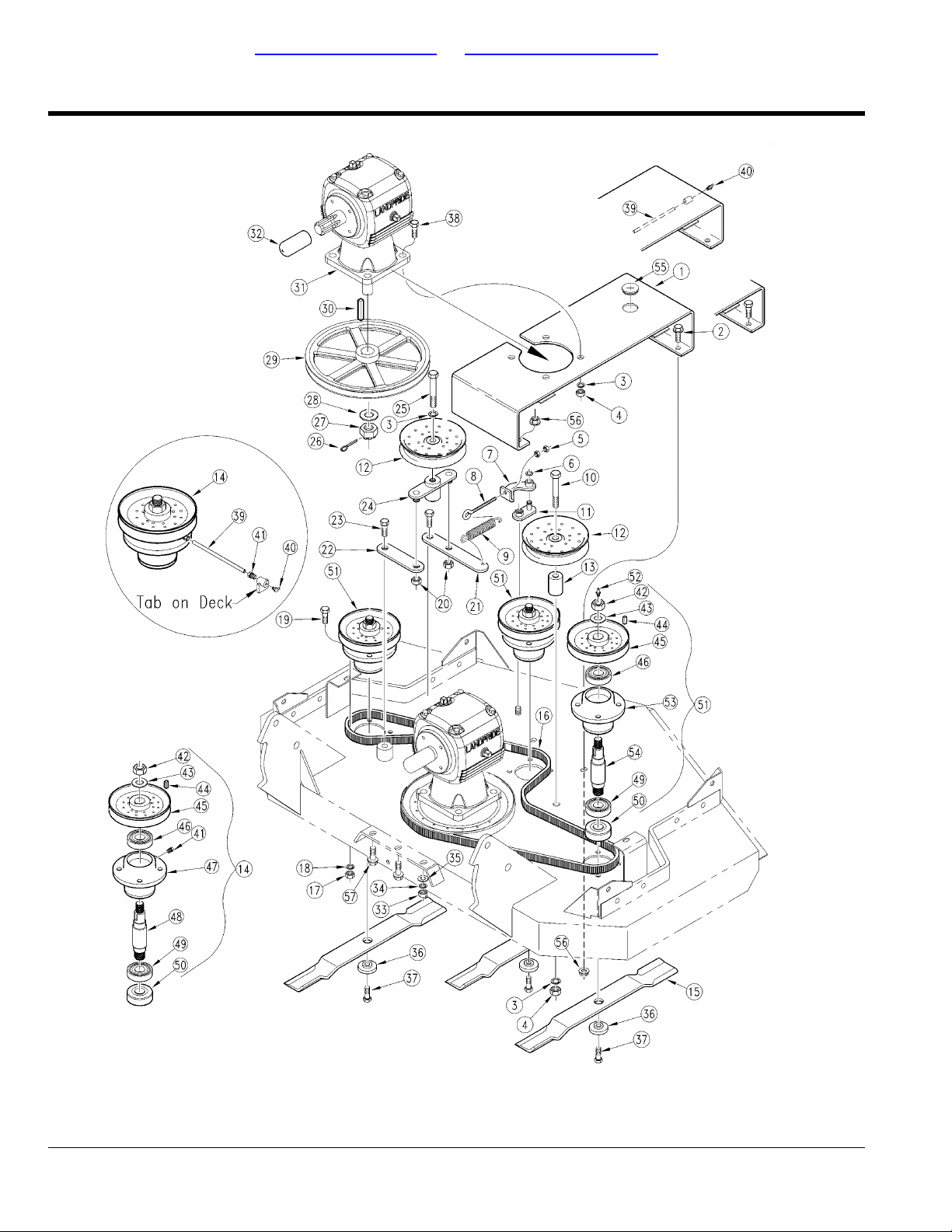

Belt Drive (S/N 212181+)
Applies to FDR1560
16484
40 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 41
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212181+)
Applies to FDR1560
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16484
HHCS 5/8-18X1 3/4 GR5802-246C1.
Rev. 2 not compat. w/Rev. 1FDR1560 GEARBOX CHANNEL WLDMNT315-407H2.
Rev. 1FDR1560 GEAR BOX CHANNEL WELD310-201H2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-18 PLT803-022C4.
(S/N 239291-)CW SPINDLE HUB ASSEMBLY 5IN.315-375S5.
HHCS 7/16-20X1 1/2 GR8802-229C6.
NUT HEX 3/8-16 PLT803-014C7.
SNAP RING EXT 7/16800-099C8.
SPRING EYE-BOLT BRACKET310-095H9.
OVER-CENTER LATCH-90310-094H10.
SP EYE 3/8-16X4802-567C11.
SPRING EXT BELT HANDLE807-068C12.
WASHER LOCK 7/16 PLT804-014C13.
NUT HEX 7/16-20 PLT803-115C14.
MWR BLD 1/4 X 20 29/32SD ML CW890-375C15.
MWR BLD 1/4 X 20 29/32SD HL CW890-171C15.
WASHER BLADE 2ODX.56THKX.51ID804-110C16.
V-BELT B136 138.9 E.L. KEVLAR816-116C18.
IDLER PULLEY SPACER-SHORT315-563D19.
FLAT IDLE PULLEY 6 1/4 O.D.808-073C20.
HHCS 5/8-11X2 3/4 GR5802-281C21.
NUT LOCK 5/8-18 NYLOK COLLAR P803-119C22.
40168 CW BELT TAKE-UP HANDLE315-248S23.
PIN COTTER 3/16 X 1 3/4 PLT805-017C24.
NUT M 24 X 28.2.2.0114425.
WASHER FLAT 1 SAE PLT804-029C26.
KEY 1/4" X 11/16" LONG310-331D28.
NUT HEX 5/8-18 PLT803-022C31.
WASHER LOCK SPRING 5/8 PLT804-022C32.
CW BELT TAKE-UP HANDLE315-103H33.
HHCS 5/8-18X2 1/2 GR5802-239C34.
DOUBLE DISK ARM PIVOT BUSHINGS817-028C35.
PTO CAT2 X 19 7/8 NO CLUTCH826-107C36.
NUT LOCK 3/4-16 NYLOC COLLAR803-114C39.
1/4 SQ. KEY X 7/8 LG172-242D40.
WASHER FLAT 3/4 HARD ASTMF436804-093C41.
B-GROOVE PULLEY 5 O.D.808-075C42.
BEARING 6206 W/ METAL SHIELD822-161C43.
BEARING 206822-006C47.
Standard Medium Lift Blades 3 per
Mower
Optional High Lift Blades 3 per
Mower
Optional Low Lift Blades 3 per MowerMWR BLD 5/16X20 29/32SD LL CW890-204C15.
Optional Mulch Blades 3 per MowerMWR BLD MULCH 1/4X20.91SD CW890-702C15.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)HFS 1/2-20X2 GR8802-695C17.
Rev. 1(S/N 329660-)HFS 1/2-20X1 1/4 GR5802-384C17.
Rev. 2(S/N 343620+)B-GROOVE PULLEY 11" CAST-IRON808-335C27.
Rev. 1(S/N 343619-)B-GROOVE DRIVE PULLEY 11 O.D.808-126C27.
(S/N 220346-)GEARBOX SHAFT PROTECTOR817-050C29.
Rev. 3(S/N 372831+)GBOX MOWER FDR16 1:2.8 REV.826-367C30.
Rev. 2 not compat. w/Rev. 1(S/N 341832 <-> S/N 372830)GBOX MOWER 50 HP 1:2.8 CW826-326C30.
Rev. 1(S/N 341831-)RPBY 826-326C826-204C30.
(S/N 239291-)TUBE NYLON 1/4OD X 062WL990-109R37.
(S/N 239291-)GREASE ZERK 1/8NPT 45-DEG800-193C38.
(S/N 239291-)FTG TUBE,CONNECTOR 1/8 MNPT800-157C44.
(S/N 239291-)BLADE HUB - MACH310-224D45.
(S/N 239291-)BLADE SPINDLE SHAFT310-361D46.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 41
Page 42
Land Pride Section 3: Drive
FDR15 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212181+) (continued)
Applies to FDR1560
RevisionCommentsPart DescriptionPart No.Ref.
BLADE HUB - 7/8310-300D48.
(S/N 239292+)CW TG SPINDLE HUB ASSY 5" PULL310-248S49.
(S/N 239292+)GREASE ZERK STRAIGHT 1/4-28800-001C50.
(S/N 239292+)BLADE HUB MACHINED TOP GREASE310-457D51.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)BLADE SPINDLE SHAFT CW TG310-630D52.
Rev. 1(S/N 239292 <-> 329660)RPBY 310-349S310-454D52.
(S/N 239292+)RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C53.
42 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 43
Section 3: Drive Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Belt Drive (S/N 212181+) (continued)
Applies to FDR1560
This Page Intentionally Left Blank
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 43
Page 44
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index

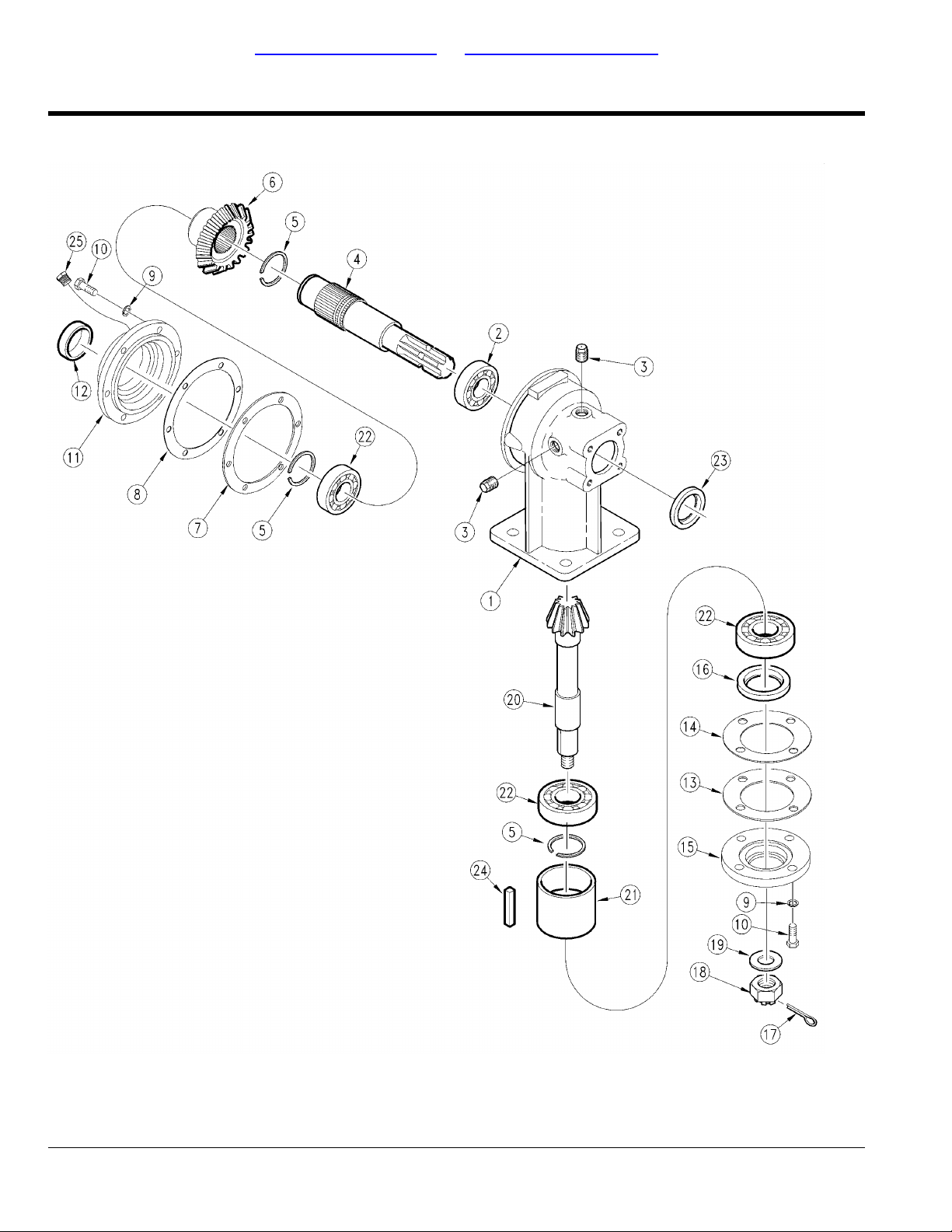

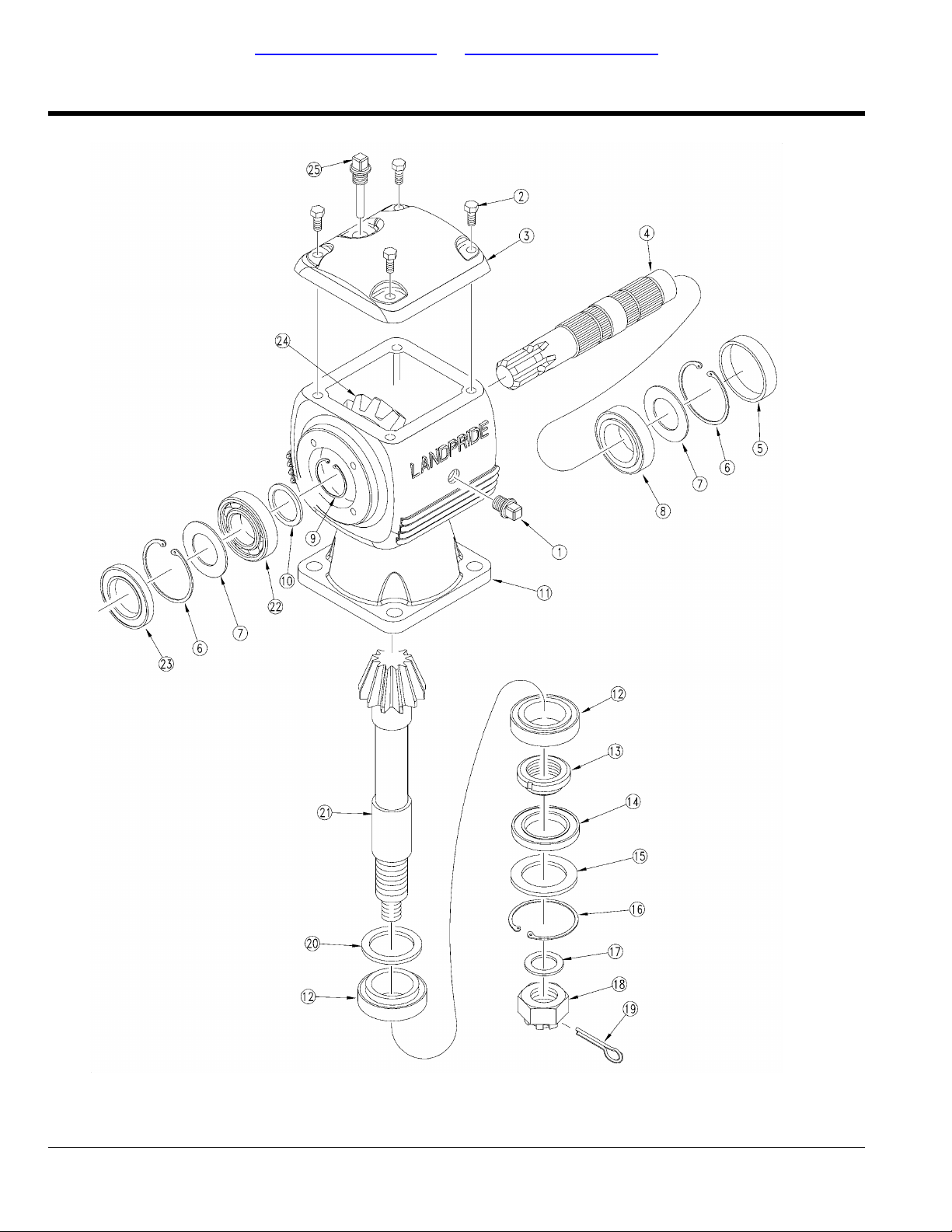

Gearbox (826-085C) IEG
Applies to FDR1548
13996
44 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 45
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-085C) IEG
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13996
RPBY 826-204C & 826-206C826-085C
ITG GEARBOX HOUSING18-0211.
Rev. 2BEARING BALL 6207822-166C2.
Rev 1; Use up stockRPBY 822-166C04-0042.
ITG 1/2"-14 PIPE PLUG09-0023.
ITG INPUT SHAFT02-0354.
ITG RETAINING RING21-0125.
ITG 34 TOOTH INPUT GEAR03-0436.
ITG INPUT CAP GASKET 0.25MM08-004A7.
ITG INPUT CAP GASKET 0.10MM08-004B8.
ITG M10 LOCKWASHER07-0019.
ITG M10 X 1.5 X 25 CAP SCREW06-01210.
ITG INPUT CAP20-00711.
ITG CAP PLUG09-00912.
ITG OUTPUT CAP GASKET 0.25MM08-005A13.
ITG OUTPUT CAP GASKET 0.10MM08-005B14.
ITG OUTPUT CAP20-00315.
ITG OUTPUT OIL SEAL05-00516.
PIN COTTER 3/16 X 1 3/4 PLT805-017C17.
ITG 1"-14 SLOTTED HEX NUT11-00718.
ITG BLADE HUB WASHER07-00519.
ITG 12 TOOTH OUTPUT PIN & SHFT03-04220.
ITG BEARING SPACER10-00221.
Rev. 3BALL BEARING 6208822-188C22.
Rev 2; Use up stockRPBY 822-188C05000722.
Rev 1; Use up stockRPBY 05000704-00322.
ITG INPUT OIL SEAL05-00223.
KEY 1/4" X 11/16" LONG310-331D24.
SP SAFETY VALVE 1/8MNPT811-320C25.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 45
Page 46
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index
Gearbox (826-085C) ITG
Applies to FDR1560, FDR1572
13996
46 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 47
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-085C) ITG
Applies to FDR1560, FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13996
RPBY 826-204C & 826-206C826-085C
ITG GEARBOX HOUSING18-0211.
Rev. 2BEARING BALL 6207822-166C2.
Rev 1; Use up stockRPBY 822-166C04-0042.
ITG 1/2"-14 PIPE PLUG09-0023.
ITG INPUT SHAFT02-0354.
ITG RETAINING RING21-0125.
ITG 34 TOOTH INPUT GEAR03-0436.
ITG INPUT CAP GASKET 0.25MM08-004A7.
ITG INPUT CAP GASKET 0.10MM08-004B8.
ITG M10 LOCKWASHER07-0019.
ITG M10 X 1.5 X 25 CAP SCREW06-01210.
ITG INPUT CAP20-00711.
ITG CAP PLUG09-00912.
ITG OUTPUT CAP GASKET 0.25MM08-005A13.
ITG OUTPUT CAP GASKET 0.10MM08-005B14.
ITG OUTPUT CAP20-00315.
ITG OUTPUT OIL SEAL05-00516.
PIN COTTER 3/16 X 1 3/4 PLT805-017C17.
ITG 1"-14 SLOTTED HEX NUT11-00718.
ITG BLADE HUB WASHER07-00519.
ITG 12 TOOTH OUTPUT PIN & SHFT03-04220.
ITG BEARING SPACER10-00221.
Rev. 3BALL BEARING 6208822-188C22.
Rev 2; Use up stockRPBY 822-188C05000722.
Rev 1; Use up stockRPBY 05000704-00322.
ITG INPUT OIL SEAL05-00223.
KEY 1/4" X 11/16" LONG310-331D24.
SP SAFETY VALVE 1/8MNPT811-320C25.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 47
Page 48
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index
Gearbox (826-204C)
Applies to FDR1560, FDR1572
16020
48 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 49
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-204C)
Applies to FDR1560, FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16020
RPBY 826-326C826-204C
OMNI SCREW-5/16"-18UNC X 7/8"1101921.
OMNI LOCKWASHR 5/16"SPLIT TYPE1300062.
OMNI CAP-INPUT0202243.
OMNI GASKET-INPUT 0.50MM0702494.
OMNI GASKET-INPUT 0.30MM0702485.
OMNI GASKET-INPUT 0.20MM0702476.
OMNI GASKET-INPUT 0.10MM0702467.
OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079.
OMNI RTNG. RING 38MM RC DSH-3820014010.
OMNI SHAFT-INPUT 1-3/8"-6 SPLN04033511.
OMNI RTNG. RING 38MM RC DSH-3820014112.
OMNI GEAR-INPUT 34T03046113.
OMNI SHIM INPUT 0.30MM09018114.
OMNI SHIM INPUT 0.20MM09018015.
OMNI SHIM INPUT 0.10MM09017916.
OMNI SCREW-1/4"-20 UNC X 3/4"11000917.
OMNI LOCKWASHR 1/4" SPLIT TYPE13002818.
OMNI INSPECTION COVER24028019.
OMNI HOUSING-RC-2501017520.
OMNI PLUG SQ.HD.1/2-14NPT W/DP14004721.
Rev. 2 not compat. w/Rev. 1(S/N 215411+)OMNI PIPE PLUG 1/2' SQ HEAD14000022.
Rev. 1(S/N 215410-)OMNI PLUG VENT 1/2-14 NPTF14003322.
OMNI PINION OUTPUT 12T03046023.
OMNI SHIM OUTPUT 0.10MM09018224.
OMNI SHIM OUTPUT 0.20MM09018325.
OMNI SHIM OUTPUT 0.30MM09018426.
Rev. 2BEARING BALL 6207822-166C27.
Rev 1; Use up stockRPBY 822-166C05000627.
OMNI RETAINING RING20000028.
OMNI SPACER OUTPUT09019029.
OMNI GASKET-OUTPUT 0.10MM07025030.
OMNI GASKET-OUTPUT 0.20MM07025131.
OMNI GASKET-OUTPUT 0.30MM07025232.
OMNI GASKET-OUTPUT 0.50MM07025333.
OMNI SEAL-OUTPUT CR1582206012834.
OMNI CAP-OUTPUT02022535.
OMNI NUT HEX SLOTTED, 1-14UNC12005036.
OMNI COTTER PIN 5 X 5010000137.
OMNI PLUG PIPE SQ HD1/8-27NPTF14001738.
OMNI SPACER INPUT09018939.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 49
Page 50
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index

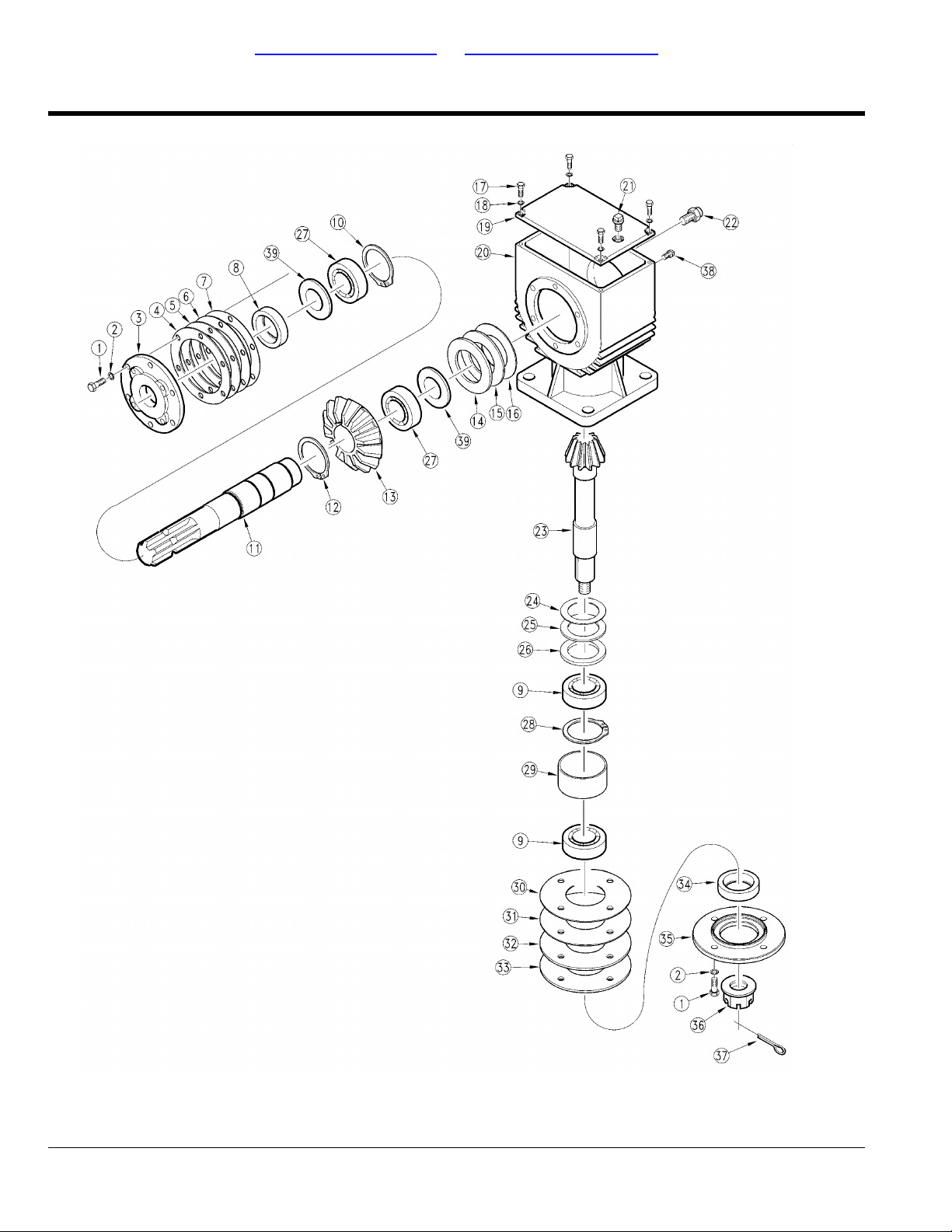

Gearbox (826-204C) OMNI
Applies to FDR1548
16020
50 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 51
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-204C) OMNI
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16020
RPBY 826-326C826-204C
OMNI SCREW-5/16"-18UNC X 7/8"1101921.
OMNI LOCKWASHR 5/16"SPLIT TYPE1300062.
OMNI CAP-INPUT0202243.
Quantity variesOMNI GASKET-INPUT 0.50MM0702494.
Quantity variesOMNI GASKET-INPUT 0.30MM0702485.
Quantity variesOMNI GASKET-INPUT 0.20MM0702476.
Quantity variesOMNI GASKET-INPUT 0.10MM0702467.
OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079.
OMNI RTNG. RING 38MM RC DSH-3820014010.
OMNI SHAFT-INPUT 1-3/8"-6 SPLN04033511.
OMNI RTNG. RING 38MM RC DSH-3820014112.
OMNI GEAR-INPUT 34T03046113.
OMNI SHIM INPUT 0.30MM09018114.
OMNI SHIM INPUT 0.20MM09018015.
OMNI SHIM INPUT 0.10MM09017916.
OMNI SCREW-1/4"-20 UNC X 3/4"11000917.
OMNI LOCKWASHR 1/4" SPLIT TYPE13002818.
OMNI INSPECTION COVER24028019.
OMNI HOUSING-RC-2501017520.
OMNI PLUG SQ.HD.1/2-14NPT W/DP14004721.
Rev. 2 not compat. w/Rev. 1(S/N 215411+)OMNI PIPE PLUG 1/2' SQ HEAD14000022.
Rev. 1(S/N 215410-)OMNI PLUG VENT 1/2-14 NPTF14003322.
OMNI PINION OUTPUT 12T03046023.
OMNI SHIM OUTPUT 0.10MM09018224.
OMNI SHIM OUTPUT 0.20MM09018325.
OMNI SHIM OUTPUT 0.30MM09018426.
Rev. 2BEARING BALL 6207822-166C27.
Rev 1; Use up stockRPBY 822-166C05000627.
OMNI RETAINING RING20000028.
OMNI SPACER OUTPUT09019029.
Quantity variesOMNI GASKET-OUTPUT 0.10MM07025030.
Quantity variesOMNI GASKET-OUTPUT 0.20MM07025131.
Quantity variesOMNI GASKET-OUTPUT 0.30MM07025232.
Quantity variesOMNI GASKET-OUTPUT 0.50MM07025333.
OMNI SEAL-OUTPUT CR1582206012834.
OMNI CAP-OUTPUT02022535.
OMNI NUT HEX SLOTTED, 1-14UNC12005036.
OMNI COTTER PIN 5 X 5010000137.
OMNI PLUG PIPE SQ HD1/8-27NPTF14001738.
OMNI SPACER INPUT09018939.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 51
Page 52
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index

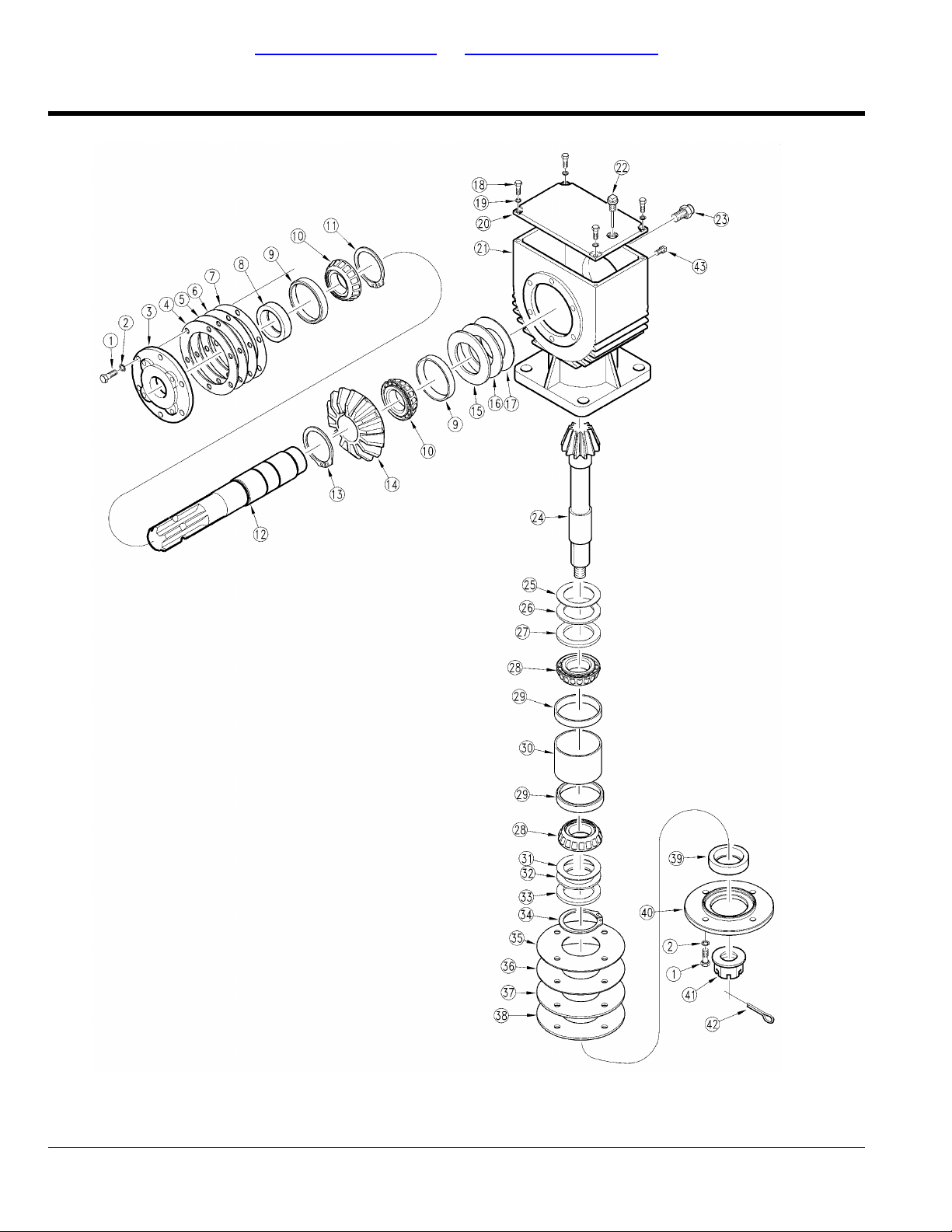

Gearbox (826-206C) OMNI
Applies to FDR1548
15934
52 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 53
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-206C) OMNI
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15934
RPBY 826-296C826-206C
OMNI SCREW-5/16"-18UNC X 7/8"1101921.
OMNI LOCKWASHR 5/16"SPLIT TYPE1300062.
OMNI CAP-INPUT0202243.
Quantity variesOMNI GASKET-INPUT 0.50MM0702494.
Quantity variesOMNI GASKET-INPUT 0.30MM0702485.
Quantity variesOMNI GASKET-INPUT 0.20MM0702476.
Quantity variesOMNI GASKET-INPUT 0.10MM0702467.
OMNI SEAL-INPUT CR139300601278.
OMNI BEARING CUP 302070501709.
OMNI BEARING CONE 3020705017210.
OMNI RTNG. RING 38MM RC DSH-3820014011.
OMNI SHAFT-INPUT 1-3/8"-6 SPLN04033512.
OMNI RTNG. RING 38MM RC DSH-3820014113.
OMNI GEAR INPUT, 34T03045714.
OMNI SHIM INPUT 0.30MM09018115.
OMNI SHIM INPUT 0.20MM09018016.
OMNI SHIM INPUT 0.10MM09017917.
OMNI SCREW-1/4"-20 UNC X 3/4"11000918.
OMNI LOCKWASHR 1/4" SPLIT TYPE13002819.
OMNI INSPECTION COVER24028020.
OMNI HOUSING-RC-2501017521.
OMNI PLUG SQ.HD.1/2-14NPT W/DP14004722.
Rev. 2 not compat. w/Rev. 1(S/N 215411+)OMNI PIPE PLUG 1/2' SQ HEAD14000023.
Rev. 1(S/N 215410-)OMNI PLUG VENT 1/2-14 NPTF14003323.
OMNI PINION-OUTPUT 12T03045624.
OMNI SHIM OUTPUT 0.10MM09018225.
OMNI SHIM OUTPUT 0.20MM09018326.
OMNI SHIM OUTPUT 0.30MM09018427.
OMNI BEARING CONE 3020805019728.
OMNI BEARING CUP 3020805019529.
OMNI SPACER OUTPUT09018530.
OMNI SHIM OUTPUT 0.10MM09018631.
OMNI SHIM OUTPUT 0.20MM09018732.
OMNI SHIM OUTPUT 0.30MM09018833.
OMNI RETAINING RING20000034.
Quantity variesOMNI GASKET-OUTPUT 0.10MM07025035.
Quantity variesOMNI GASKET-INPUT 0.50MM07025336.
Quantity variesOMNI GASKET-INPUT 0.30MM07025237.
Quantity variesOMNI GASKET-INPUT 0.20MM07025138.
OMNI SEAL-OUTPUT CR1582206012839.
OMNI CAP-OUTPUT02022540.
OMNI NUT HEX SLOTTED, 1-14UNC12005041.
OMNI COTTER PIN 5 X 5010000142.
OMNI PLUG PIPE SQ HD1/8-27NPTF14001743.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 53
Page 54
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index
Gearbox (826-294C) OMNI
Applies to FDR1548
18705
54 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 55
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-294C) OMNI
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18705
RPBY 826-326C826-294C
OMNI SCREW-5/16"-18UNC X 7/8"1101921.
OMNI LOCKWASHR 5/16"SPLIT TYPE1300062.
OMNI CAP-INPUT0202243.
OMNI GASKET-INPUT 0.50MM0702494.
OMNI GASKET-INPUT 0.30MM0702485.
OMNI GASKET-INPUT 0.20MM0702476.
OMNI GASKET-INPUT 0.10MM0702467.
OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079.
OMNI RTNG. RING 38MM RC DSH-3820014010.
OMNI SHAFT INPUT 1 3/8" - 6A04049111.
OMNI RTNG. RING 38MM RC DSH-3820014112.
OMNI GEAR-INPUT 34T03046113.
OMNI SHIM INPUT 0.30MM09018114.
OMNI SHIM INPUT 0.20MM09018015.
OMNI SHIM INPUT 0.10MM09017916.
OMNI SCREW-1/4"-20 UNC X 3/4"11000917.
OMNI LOCKWASHR 1/4" SPLIT TYPE13002818.
OMNI INSPECTION COVER24028019.
OMNI HOUSING RC-25 SERIES01025220.
OMNI PIPE PLUG 1/2' SQ HEAD14000021.
OMNI PLUG VENT 1/2-14 NPTF14003322.
OMNI PINION OUTPUT 12T03046023.
OMNI SHIM OUTPUT 0.10MM09018224.
OMNI SHIM OUTPUT 0.20MM09018325.
OMNI SHIM OUTPUT 0.30MM09018426.
Rev. 2BEARING BALL 6207822-166C27.
Rev 1; Use up stockRPBY 822-166C05000627.
OMNI RETAINING RING20000028.
OMNI SPACER OUTPUT09019029.
OMNI GASKET-OUTPUT 0.10MM07025030.
OMNI GASKET-OUTPUT 0.20MM07025131.
OMNI GASKET-OUTPUT 0.30MM07025232.
OMNI GASKET-OUTPUT 0.50MM07025333.
OMNI SEAL-OUTPUT CR1582206012834.
OMNI CAP-OUTPUT02022535.
OMNI NUT HEX SLOTTED, 1-14UNC12005036.
OMNI COTTER PIN 5 X 5010000137.
OMNI PLUG PIPE SQ HD1/8-27NPTF14001738.
OMNI SPACER INPUT09018939.
OMNI SPACER, INPUT09034140.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 55
Page 56
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index

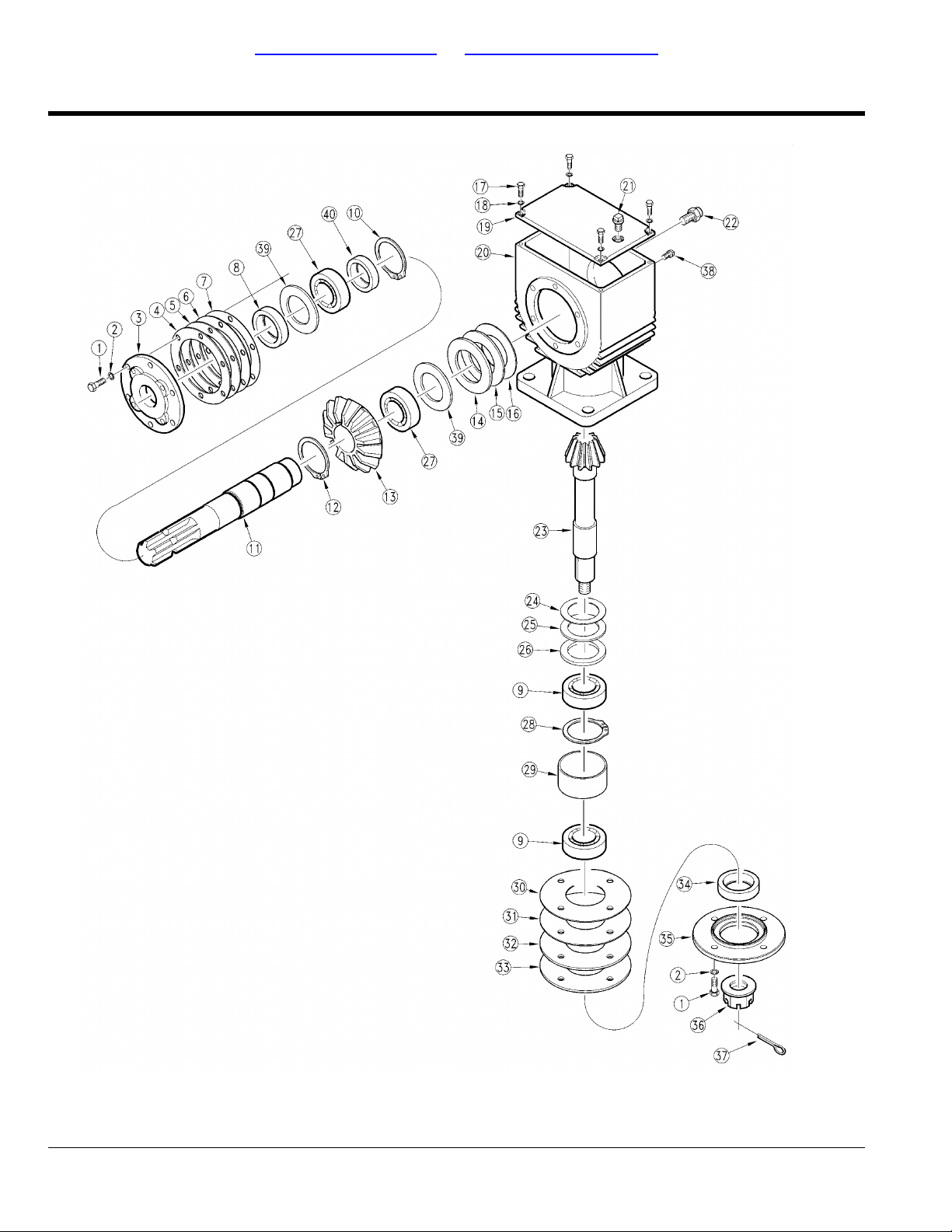

Gearbox (826-294C) OMNI
Applies to FDR1560, FDR1572
18705
56 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 57
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-294C) OMNI
Applies to FDR1560, FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18705
RPBY 826-326C826-294C
OMNI SCREW-5/16"-18UNC X 7/8"1101921.
OMNI LOCKWASHR 5/16"SPLIT TYPE1300062.
OMNI CAP-INPUT0202243.
OMNI GASKET-INPUT 0.50MM0702494.
OMNI GASKET-INPUT 0.30MM0702485.
OMNI GASKET-INPUT 0.20MM0702476.
OMNI GASKET-INPUT 0.10MM0702467.
OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079.
OMNI RTNG. RING 38MM RC DSH-3820014010.
OMNI SHAFT INPUT 1 3/8" - 6A04049111.
OMNI RTNG. RING 38MM RC DSH-3820014112.
OMNI GEAR-INPUT 34T03046113.
OMNI SHIM INPUT 0.30MM09018114.
OMNI SHIM INPUT 0.20MM09018015.
OMNI SHIM INPUT 0.10MM09017916.
OMNI SCREW-1/4"-20 UNC X 3/4"11000917.
OMNI LOCKWASHR 1/4" SPLIT TYPE13002818.
OMNI INSPECTION COVER24028019.
OMNI HOUSING RC-25 SERIES01025220.
OMNI PIPE PLUG 1/2' SQ HEAD14000021.
OMNI PLUG VENT 1/2-14 NPTF14003322.
OMNI PINION OUTPUT 12T03046023.
OMNI SHIM OUTPUT 0.10MM09018224.
OMNI SHIM OUTPUT 0.20MM09018325.
OMNI SHIM OUTPUT 0.30MM09018426.
Rev. 2BEARING BALL 6207822-166C27.
Rev 1; Use up stockRPBY 822-166C05000627.
OMNI RETAINING RING20000028.
OMNI SPACER OUTPUT09019029.
OMNI GASKET-OUTPUT 0.10MM07025030.
OMNI GASKET-OUTPUT 0.20MM07025131.
OMNI GASKET-OUTPUT 0.30MM07025232.
OMNI GASKET-OUTPUT 0.50MM07025333.
OMNI SEAL-OUTPUT CR1582206012834.
OMNI CAP-OUTPUT02022535.
OMNI NUT HEX SLOTTED, 1-14UNC12005036.
OMNI COTTER PIN 5 X 5010000137.
OMNI PLUG PIPE SQ HD1/8-27NPTF14001738.
OMNI SPACER INPUT09018939.
OMNI SPACER, INPUT09034140.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 57
Page 58
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index

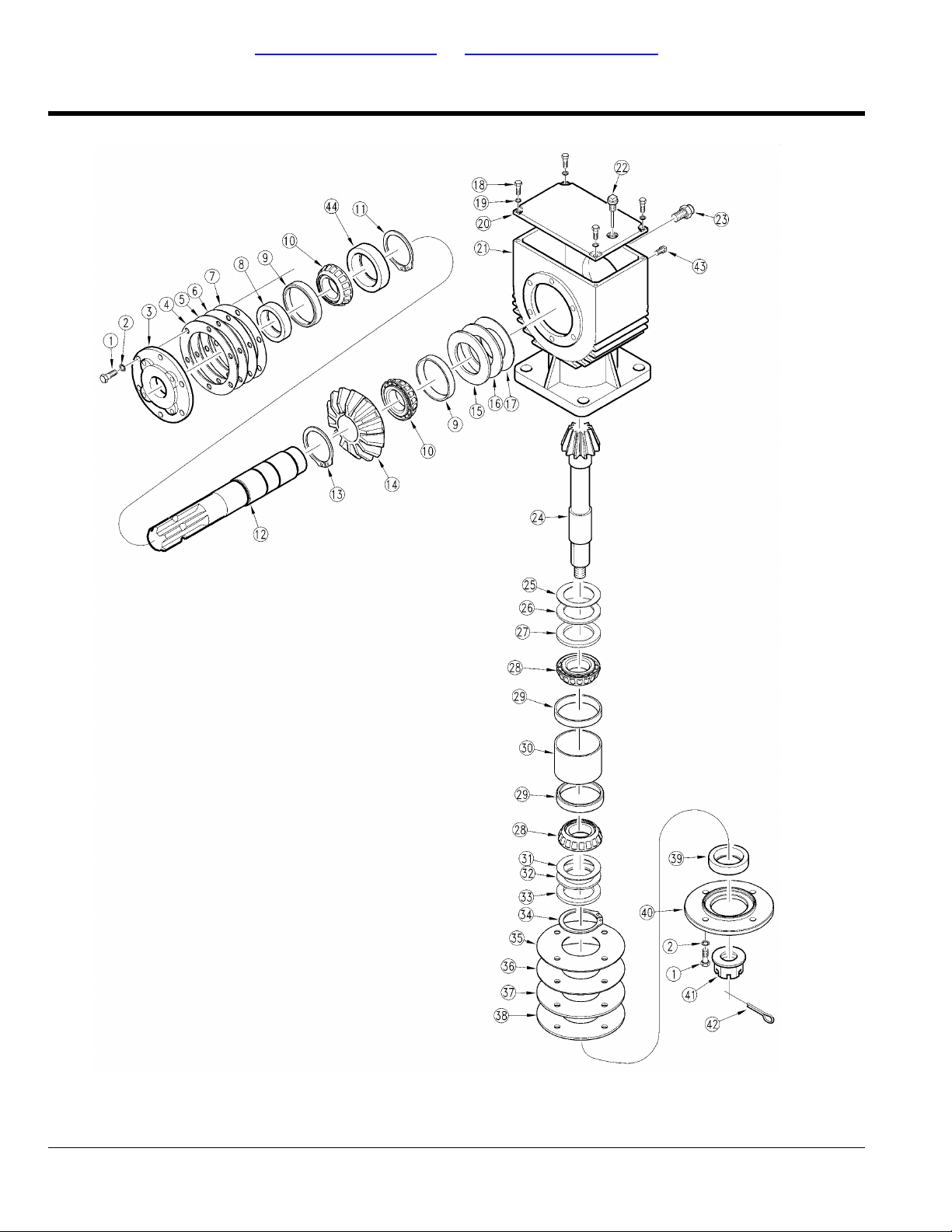

Gearbox (826-296C) OMNI
Applies to FDR1548
18706
58 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 59
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-296C) OMNI
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18706
RC-25 1:2.8 CW 90 BOX(RC25HR)826-296C
OMNI SCREW-5/16"-18UNC X 7/8"1101921.
OMNI LOCKWASHR 5/16"SPLIT TYPE1300062.
OMNI CAP-INPUT0202243.
OMNI GASKET-INPUT 0.50MM0702494.
OMNI GASKET-INPUT 0.30MM0702485.
OMNI GASKET-INPUT 0.20MM0702476.
OMNI GASKET-INPUT 0.10MM0702467.
OMNI SEAL-INPUT CR139300601278.
OMNI BEARING CUP 302070501709.
OMNI BEARING CONE 3020705017210.
OMNI RTNG. RING 38MM RC DSH-3820014011.
OMNI SHAFT INPUT 1 3/8" - 6A04049112.
OMNI RTNG. RING 38MM RC DSH-3820014113.
OMNI GEAR INPUT, 34T03045714.
OMNI SHIM INPUT 0.30MM09018115.
OMNI SHIM INPUT 0.20MM09018016.
OMNI SHIM INPUT 0.10MM09017917.
OMNI SCREW-1/4"-20 UNC X 3/4"11000918.
OMNI LOCKWASHR 1/4" SPLIT TYPE13002819.
OMNI INSPECTION COVER24028020.
OMNI HOUSING RC-25 SERIES01025221.
OMNI PLUG SQ.HD.1/2-14NPT W/DP14004722.
OMNI PIPE PLUG 1/2' SQ HEAD14000023.
OMNI PINION-OUTPUT 12T03045624.
OMNI SHIM OUTPUT 0.10MM09018225.
OMNI SHIM OUTPUT 0.20MM09018326.
OMNI SHIM OUTPUT 0.30MM09018427.
OMNI BEARING CONE 3020805019728.
OMNI BEARING CUP 3020805019529.
OMNI SPACER OUTPUT09018530.
OMNI SHIM OUTPUT 0.10MM09018631.
OMNI SHIM OUTPUT 0.20MM09018732.
OMNI SHIM OUTPUT 0.30MM09018833.
OMNI RETAINING RING20000034.
OMNI GASKET-OUTPUT 0.10MM07025035.
OMNI GASKET-OUTPUT 0.20MM07025136.
OMNI GASKET-OUTPUT 0.30MM07025237.
OMNI GASKET-OUTPUT 0.50MM07025338.
OMNI SEAL-OUTPUT CR1582206012839.
OMNI CAP-OUTPUT02022540.
OMNI NUT HEX SLOTTED, 1-14UNC12005041.
OMNI COTTER PIN 5 X 5010000142.
OMNI PLUG PIPE SQ HD1/8-27NPTF14001743.
OMNI SPACER, INPUT09034144.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 59
Page 60
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index
Gearbox (826-326C)
Applies to FDR1560, FDR1572
30000
60 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 61
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-326C)
Applies to FDR1560, FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30000
RPBY 826-367C826-326C
CO OIL PLUG 3/88.6.5.000061.
CO BOLT M8X22 HHB8.1.1.005012.
CO COVER0.195.1300.003.
CO INPUT SHAFT 1" 3/8 Z60.195.2000.004.
CO CAP 72 X 108.7.0.007445.
CO SNAP RING INT 72 UN174378.5.2.001316.
COMER SHIM KIT 71.7A.248.5007.
CO ROLLER BEARING 30207 CL-B8.0.9.000268.
CO SNAP RING 40 UNI 74368.5.1.006809.
CO SHIM 35.3 X 48 X 2.50.259.7525.0010.
CO HOUSING0.195.0300.0011.
CO ROLLER BEARING 32208 CL-B8.0.9.0010212.
CO NUT M40 X 1.50.278.7103.0013.
CO OIL SEAL 35 X 80 X 10 RTA358.7.3.0008114.
CO PROTECTIVE FLAT WASHER1.195.7100.0015.
CO SNAP RING SB 818.5.3.0095516.
CO FLAT WASHER 25 X 44 X 48.3.2.0040917.
NUT CASTLE M 24 X 28.2.2.0114418.
CO COTTER PIN B5 X 508.4.7.0051619.
CO SHIM 40.3 X 51.5 826-067CA244.50120.
CO PINION Z12 M4.70.195.5000.0021.
BEARING BALL 6207822-166C22.
CO OIL SEAL 35 X 72 X 108.7.3.0005523.
CO CROWN GEAR Z33 M4.70.195.6000.0024.
CO OIL LEVEL PLUG 3/8" GASU0.195.7101.0025.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 61
Page 62
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index
Gearbox (826-326C) Comer
Applies to FDR1548
30000
62 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 63
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-326C) Comer
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30000
RPBY 826-367C826-326C
CO OIL PLUG 3/88.6.5.000061.
CO BOLT M8X22 HHB8.1.1.005012.
CO COVER0.195.1300.003.
CO INPUT SHAFT 1" 3/8 Z60.195.2000.004.
CO CAP 72 X 108.7.0.007445.
CO SNAP RING INT 72 UN174378.5.2.001316.
COMER SHIM KIT 71.7A.248.5007.
CO ROLLER BEARING 30207 CL-B8.0.9.000268.
CO SNAP RING 40 UNI 74368.5.1.006809.
CO SHIM 35.3 X 48 X 2.50.259.7525.0010.
CO HOUSING0.195.0300.0011.
CO ROLLER BEARING 32208 CL-B8.0.9.0010212.
CO NUT M40 X 1.50.278.7103.0013.
CO OIL SEAL 35 X 80 X 10 RTA358.7.3.0008114.
CO PROTECTIVE FLAT WASHER1.195.7100.0015.
CO SNAP RING SB 818.5.3.0095516.
CO FLAT WASHER 25 X 44 X 48.3.2.0040917.
NUT CASTLE M 24 X 28.2.2.0114418.
CO COTTER PIN B5 X 508.4.7.0051619.
CO SHIM 40.3 X 51.5 826-067CA244.50120.
CO PINION Z12 M4.70.195.5000.0021.
BEARING BALL 6207822-166C22.
CO OIL SEAL 35 X 72 X 108.7.3.0005523.
CO CROWN GEAR Z33 M4.70.195.6000.0024.
CO OIL LEVEL PLUG 3/8" GASU0.195.7101.0025.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 63
Page 64
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index

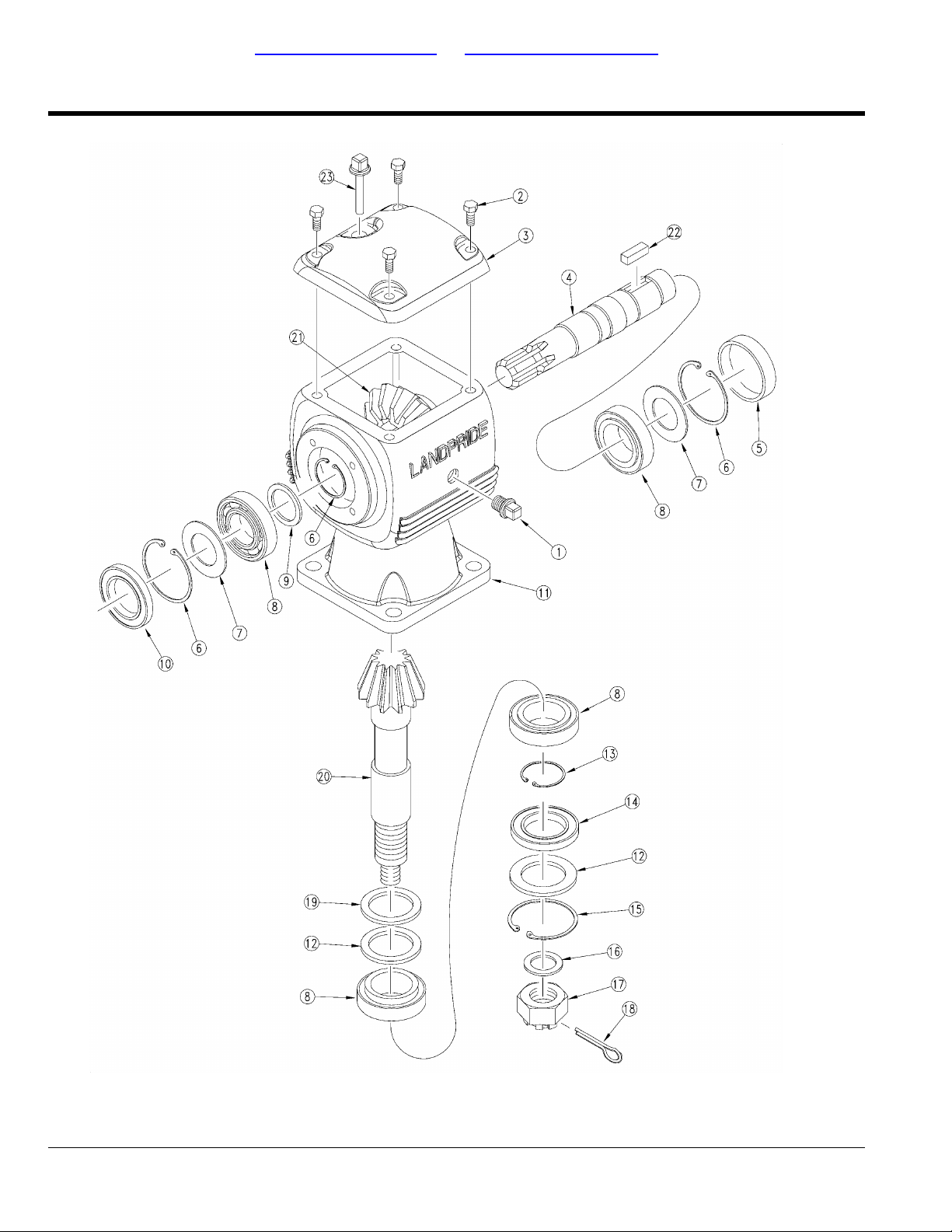

Gearbox (826-367C) Comer
Applies to FDR1548
20888
64 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 65
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-367C) Comer
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20888
GBOX MOWER FDR16 1:2.8 REV.826-367C
CO OIL PLUG 3/88.6.5.000061.
CO BOLT M8X18 HHB (8.8)8.1.1.013572.
CO COVER0.215.1300.003.
KEYED SHAFT, 1 3/8 Z60.141.2100.004.
CO CAP 72 X 108.7.0.007445.
CO SNAP RING INT 72 UN174378.5.2.001316.
COMER SHIM KIT 71.7A.248.5007.
BEARING BALL 6207822-166C8.
CO SHIM (60.3X71.7X1)0.248.7510.009.
CO OIL SEAL 35 X 72 X 108.7.3.0005510.
CO CASING0.215.0300.0011.
CO ADJUST SPACER KIT, 35.3 X48A.259.50012.
CO SNAP RING EXT 35 UN174358.5.1.0000513.
OIL SEAL, 35 X 72 X 12/108.7.1.0015214.
CO SNAP RING (SB73X74.8X2)8.5.3.0115415.
CO FLAT WASHER 25 X 44 X 48.3.2.0040916.
NUT CASTLE M 24 X 28.2.2.0114417.
CO COTTER PIN B5 X 508.4.7.0051618.
CO SHIM (35.3X48X1)0.259.7510.0019.
CO PINION Z12 M3.360.215.5000.0020.
CO GEAR CROWN Z34 M3.360.133.5000.0021.
CO PARALLEL KEY B 10 X 8 X 308.4.1.0099322.
COMER U0.215.7100.00 DIPSTICK826-489C23.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 65
Page 66
Land Pride Section 4: Gearboxes
FDR15 SERIES
Table of Contents Part Number Index
Gearbox (826-367C) Comer
Applies to FDR1560, FDR1572
20888
66 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 67
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Gearbox (826-367C) Comer
Applies to FDR1560, FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20888
GBOX MOWER FDR16 1:2.8 REV.826-367C
CO OIL PLUG 3/88.6.5.000061.
CO BOLT M8X18 HHB (8.8)8.1.1.013572.
CO COVER0.215.1300.003.
KEYED SHAFT, 1 3/8 Z60.141.2100.004.
CO CAP 72 X 108.7.0.007445.
CO SNAP RING INT 72 UN174378.5.2.001316.
COMER SHIM KIT 71.7A.248.5007.
BEARING BALL 6207822-166C8.
CO SHIM (60.3X71.7X1)0.248.7510.009.
CO OIL SEAL 35 X 72 X 108.7.3.0005510.
CO CASING0.215.0300.0011.
CO ADJUST SPACER KIT, 35.3 X48A.259.50012.
CO SNAP RING EXT 35 UN174358.5.1.0000513.
OIL SEAL, 35 X 72 X 12/108.7.1.0015214.
CO SNAP RING (SB73X74.8X2)8.5.3.0115415.
CO FLAT WASHER 25 X 44 X 48.3.2.0040916.
NUT CASTLE M 24 X 28.2.2.0114417.
CO COTTER PIN B5 X 508.4.7.0051618.
CO SHIM (35.3X48X1)0.259.7510.0019.
CO PINION Z12 M3.360.215.5000.0020.
CO GEAR CROWN Z34 M3.360.133.5000.0021.
CO PARALLEL KEY B 10 X 8 X 308.4.1.0099322.
COMER U0.215.7100.00 DIPSTICK826-489C23.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 67
Page 68
Land Pride Section 5: Drivelines
FDR15 SERIES
Table of Contents Part Number Index
Driveline (826-107C) Eurocardan (S/N 231582-)
Applies to FDR1548
15220
68 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 69
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Driveline (826-107C) Eurocardan (S/N 231582-)
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15220
DRIVELINE NO CLUTCH826-107C
EC TWIST COLLAR KIT (TRT. END)10042201.
EC YOKE ASSEMBLY (TRACT. END)10120102.
EC CROSS ASSEMBLY10020203.
EC OUTER TUBE YOKE17020274.
EC 8X55-DIN-1481 O/TUBE R/PIN63308555.
Rev. 2EC OUTER TUBE (1523085) 370 MM15230386.
Rev 1; Use up stockRPBY 152303815323166.
Rev. 2EC INNER TUBE15220387.
Rev 1; Use up stockRPBY 152203815323027.
EC INNER TUBE YOKE17020298.
EC TWIST COLLAR KIT (IMP. END)10042249.
EC YOKE ASSEMBLY (IMP. END)111201010.
Rev. 2EC TUBE BEARING178221011.
Rev 1; Use up stockEC TUBE BEARING178201611.
Rev. 2EC OUTER TUBE RIGID CONE188420112.
Rev 1; Use up stockRPBY 1884201188323012.
Rev. 2EC SOFT CONE188420313.
Rev 1; Use up stockRPBY 1884203188301313.
Rev. 2EC PIN FOR STOP ROTATION188421214.
Rev 1; Use up stockRPBY 1873030188234214.
DRIVELINE SHIELD SAFETY CHAIN04432115.
EC OUTER TUBE187303016.
Rev. 2EC INNER TUBE187203017.
Rev 1; Use up stockRPBY 1872030177232917.
Rev. 2EC SOFT LONG CONE188420518.
Rev 1; Use up stockRPBY 1884205188301418.
Rev. 2EC INNER TUBE RIGID CONE188420219.
Rev 1; Use up stockRPBY 1884202188323119.
Rev. 2EC TUBE BEARING IMP END178221120.
Rev 1; Use up stockEC TUBE BEARING178201620.
DECAL DANGER PTO DRIVELINE818-552C21.
DECAL DANGER GUARD MISS PTO818-540C22.
EC 08X60 1485DIN ROLL PIN633086023.
EC PULL COLLAR KIT100422524.
EC YOKE ASSEMBLY101401225.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 69
Page 70
Land Pride Section 5: Drivelines
FDR15 SERIES
Table of Contents Part Number Index

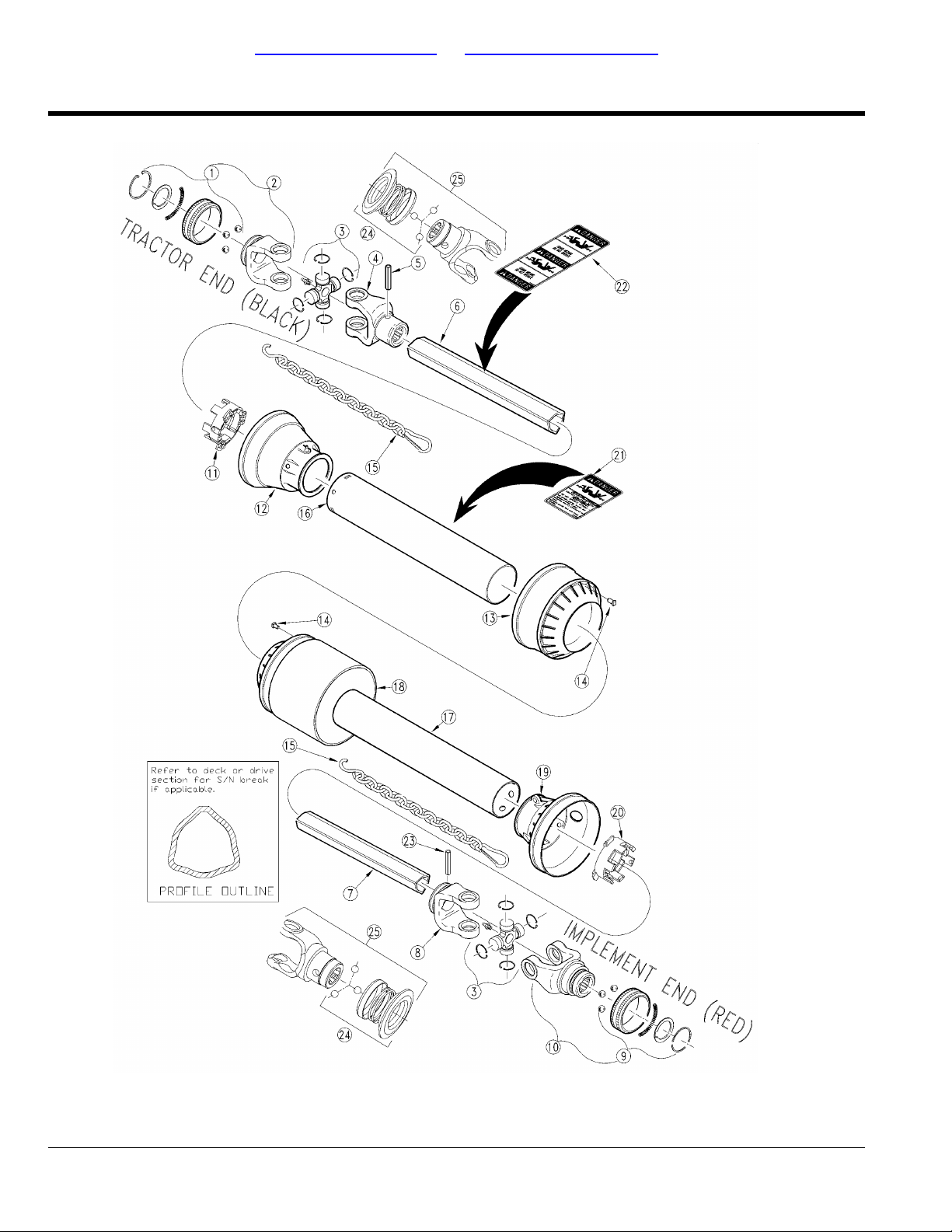

Driveline (826-107C) Eurocardan (S/N 231582-)
Applies to FDR1560
15220
70 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 71
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Driveline (826-107C) Eurocardan (S/N 231582-)
Applies to FDR1560
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15220
DRIVELINE NO CLUTCH826-107C
EC TWIST COLLAR KIT (TRT. END)10042201.
EC YOKE ASSEMBLY (TRACT. END)10120102.
EC CROSS ASSEMBLY10020203.
EC OUTER TUBE YOKE17020274.
EC 8X55-DIN-1481 O/TUBE R/PIN63308555.
Rev. 2EC OUTER TUBE (1523085) 370 MM15230386.
Rev 1; Use up stockRPBY 152303815323166.
Rev. 2EC INNER TUBE15220387.
Rev 1; Use up stockRPBY 152203815323027.
EC INNER TUBE YOKE17020298.
EC TWIST COLLAR KIT (IMP. END)10042249.
EC YOKE ASSEMBLY (IMP. END)111201010.
Rev. 2EC TUBE BEARING178221011.
Rev 1; Use up stockEC TUBE BEARING178201611.
Rev. 2EC OUTER TUBE RIGID CONE188420112.
Rev 1; Use up stockRPBY 1884201188323012.
Rev. 2EC SOFT CONE188420313.
Rev 1; Use up stockRPBY 1884203188301313.
Rev. 2EC PIN FOR STOP ROTATION188421214.
Rev 1; Use up stockRPBY 1873030188234214.
DRIVELINE SHIELD SAFETY CHAIN04432115.
EC OUTER TUBE187303016.
Rev. 2EC INNER TUBE187203017.
Rev 1; Use up stockRPBY 1872030177232917.
Rev. 2EC SOFT LONG CONE188420518.
Rev 1; Use up stockRPBY 1884205188301418.
Rev. 2EC INNER TUBE RIGID CONE188420219.
Rev 1; Use up stockRPBY 1884202188323119.
EC TUBE BEARING IMP END178221120.
DECAL DANGER PTO DRIVELINE818-552C21.
DECAL DANGER GUARD MISS PTO818-540C22.
EC 08X60 1485DIN ROLL PIN633086023.
EC PULL COLLAR KIT100422524.
EC YOKE ASSEMBLY101401225.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 71
Page 72
Land Pride Section 5: Drivelines
FDR15 SERIES
Table of Contents Part Number Index

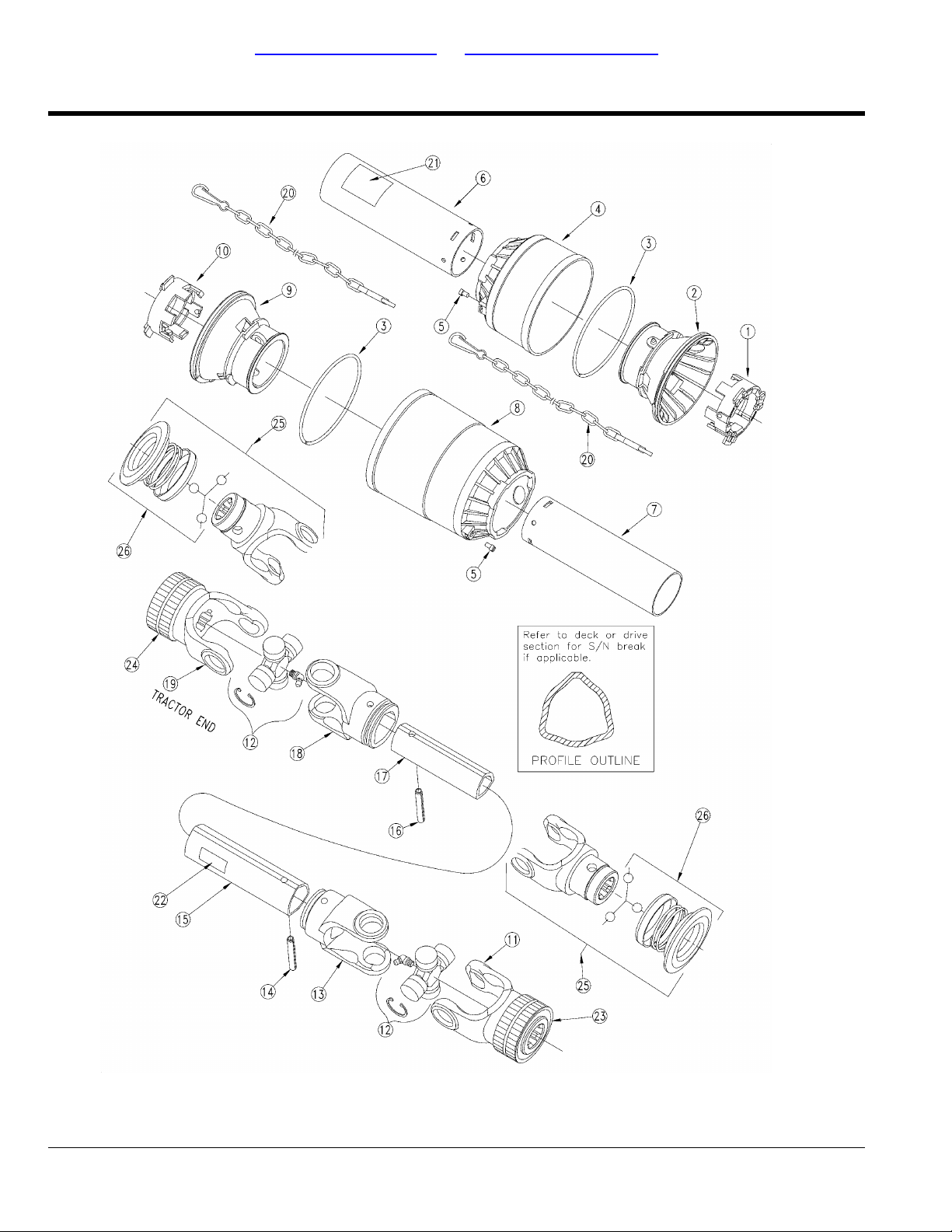

Driveline (826-107C) Eurocardan (S/N 231583+)
Applies to FDR1548
17257
72 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 73
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Driveline (826-107C) Eurocardan (S/N 231583+)
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17257
DRIVELINE NO CLUTCH826-107C
EC TUBE BEARING17842101.
EC OUTER TUBE RIGID CONE18842012.
EC STIFFENING RING12132333.
EC SOFT CONE18842034.
EC PIN STOP ROTATION17842125.
EC OUTER TUBE (1873050) 280MM18730286.
EC INNER TUBE (1872050) 280MM18720287.
EC SOFT LONG CONE18842058.
EC INNER TUBE RIGID CONE18842029.
EC TUBE BEARING178421110.
EC YOKE ASSEMBLY (TRACT. END)101301011.
EC CROSS ASSEMBLY100302012.
EC OUTER TUBE YOKE170302713.
EC 08X60 1485DIN ROLL PIN633086014.
EC OUTER TUBE (1524062) 360MM152403615.
EC 8X55-DIN-1481 O/TUBE R/PIN633085516.
EC INNER TUBE (1523038) 360MM152303617.
EC INNER TUBE YOKE170302918.
EC YOKE ASSEMBLY (IMP. END)111301019.
DRIVELINE SHIELD SAFETY CHAIN04432120.
DECAL DANGER PTO DRIVELINE818-552C21.
DECAL DANGER GUARD MISS PTO818-540C22.
EC TWIST COLLAR KIT (TRT. END)100422023.
EC TWIST COLLAR KIT (IMP. END)100422424.
EC YOKE ASSEMBLY101401225.
EC PULL COLLAR KIT100422526.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 73
Page 74
Land Pride Section 5: Drivelines
FDR15 SERIES
Table of Contents Part Number Index
Driveline (826-107C) Eurocardan (S/N 231583+)
Applies to FDR1560
17257
74 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 75
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Driveline (826-107C) Eurocardan (S/N 231583+)
Applies to FDR1560
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17257
DRIVELINE NO CLUTCH826-107C
EC TUBE BEARING17842101.
EC OUTER TUBE RIGID CONE18842012.
EC STIFFENING RING12132333.
EC SOFT CONE18842034.
EC PIN STOP ROTATION17842125.
EC OUTER TUBE (1873050) 280MM18730286.
EC INNER TUBE (1872050) 280MM18720287.
EC SOFT LONG CONE18842058.
EC INNER TUBE RIGID CONE18842029.
EC TUBE BEARING178421110.
EC YOKE ASSEMBLY (TRACT. END)101301011.
EC CROSS ASSEMBLY100302012.
EC OUTER TUBE YOKE170302713.
EC 08X60 1485DIN ROLL PIN633086014.
EC OUTER TUBE (1524062) 360MM152403615.
EC 8X55-DIN-1481 O/TUBE R/PIN633085516.
EC INNER TUBE (1523038) 360MM152303617.
EC INNER TUBE YOKE170302918.
EC YOKE ASSEMBLY (IMP. END)111301019.
DRIVELINE SHIELD SAFETY CHAIN04432120.
DECAL DANGER PTO DRIVELINE818-552C21.
DECAL DANGER GUARD MISS PTO818-540C22.
EC TWIST COLLAR KIT (TRT. END)100422023.
EC TWIST COLLAR KIT (IMP. END)100422424.
EC YOKE ASSEMBLY101401225.
EC PULL COLLAR KIT100422526.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 75
Page 76
Land Pride Section 5: Drivelines
FDR15 SERIES
Table of Contents Part Number Index
Driveline (826-140C) Eurocardan (S/N 231582-)
Applies to FDR1572
15220
76 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 77
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Driveline (826-140C) Eurocardan (S/N 231582-)
Applies to FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15220
DRIVELINE NO CLUTCH826-140C
EC TWIST COLLAR KIT (TRT. END)10042201.
EC YOKE ASSEMBLY (TRACT. END)10120102.
EC CROSS ASSEMBLY10020203.
EC OUTER TUBE YOKE17020274.
EC 8X55-DIN-1481 O/TUBE R/PIN63308555.
Rev. 2EC OUTER TUBE (1523085) 480 MM15230486.
Rev 1; Use up stockRPBY 152304815323186.
Rev. 2EC INNER TUBE15220487.
Rev 1; Use up stockRPBY 152204815323047.
EC INNER TUBE YOKE17020298.
EC TWIST COLLAR KIT (IMP. END)10042249.
EC YOKE ASSEMBLY (IMP. END)111201010.
Rev. 2EC TUBE BEARING178221011.
Rev 1; Use up stockEC TUBE BEARING178201611.
Rev. 2EC OUTER TUBE RIGID CONE188420112.
Rev 1; Use up stockRPBY 1884201188323012.
Rev. 2EC SOFT CONE188420313.
Rev 1; Use up stockRPBY 1884203188301313.
Rev. 2EC PIN FOR STOP ROTATION188421214.
Rev 1; Use up stockRPBY 1873030188234214.
DRIVELINE SHIELD SAFETY CHAIN04432115.
Rev. 2EC OUTER TUBE187304016.
Rev 1; Use up stockRPBY 1873040188234416.
Rev. 2EC INNER TUBE187204017.
Rev 1; Use up stockRPBY 1872040177233117.
Rev. 2EC SOFT LONG CONE188420518.
Rev 1; Use up stockRPBY 1884205188301418.
Rev. 2EC INNER TUBE RIGID CONE188420219.
Rev 1; Use up stockRPBY 1884202188323119.
Rev. 2EC TUBE BEARING IMP END178221120.
Rev 1; Use up stockEC TUBE BEARING178201620.
DECAL DANGER PTO DRIVELINE818-552C21.
DECAL DANGER GUARD MISS PTO818-540C22.
EC 08X60 1485DIN ROLL PIN633086023.
EC PULL COLLAR KIT100422524.
EC YOKE ASSEMBLY101401225.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 77
Page 78
Land Pride Section 5: Drivelines
FDR15 SERIES
Table of Contents Part Number Index
Driveline (826-140C) Eurocardan (S/N 231583+)
Applies to FDR1572
17257
78 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 79
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Driveline (826-140C) Eurocardan (S/N 231583+)
Applies to FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17257
DRIVELINE NO CLUTCH826-140C
EC TUBE BEARING17842101.
EC OUTER TUBE RIGID CONE18842012.
EC STIFFENING RING12132333.
EC SOFT CONE18842034.
EC PIN STOP ROTATION17842125.
EC OUTER TUBE (1873050) 380MM18730386.
EC INNER TUBE (1872050) 380MM18720387.
EC SOFT LONG CONE18842058.
EC INNER TUBE RIGID CONE18842029.
EC TUBE BEARING178421110.
EC YOKE ASSEMBLY (TRACT. END)101301011.
EC CROSS ASSEMBLY100302012.
EC OUTER TUBE YOKE170302713.
EC 08X60 1485DIN ROLL PIN633086014.
EC OUTER TUBE (1524062) 460MM152404615.
EC 8X55-DIN-1481 O/TUBE R/PIN633085516.
EC INNER TUBE (1523083) 460MM152304617.
EC INNER TUBE YOKE170302918.
EC YOKE ASSEMBLY (IMP. END)111301019.
DRIVELINE SHIELD SAFETY CHAIN04432120.
DECAL DANGER PTO DRIVELINE818-552C21.
DECAL DANGER GUARD MISS PTO818-540C22.
EC TWIST COLLAR KIT (TRT. END)100422023.
EC TWIST COLLAR KIT (IMP. END)100422424.
EC YOKE ASSEMBLY101401225.
EC PULL COLLAR KIT100422526.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 79
Page 80
Land Pride Section 6: Labels
FDR15 SERIES
Table of Contents Part Number Index

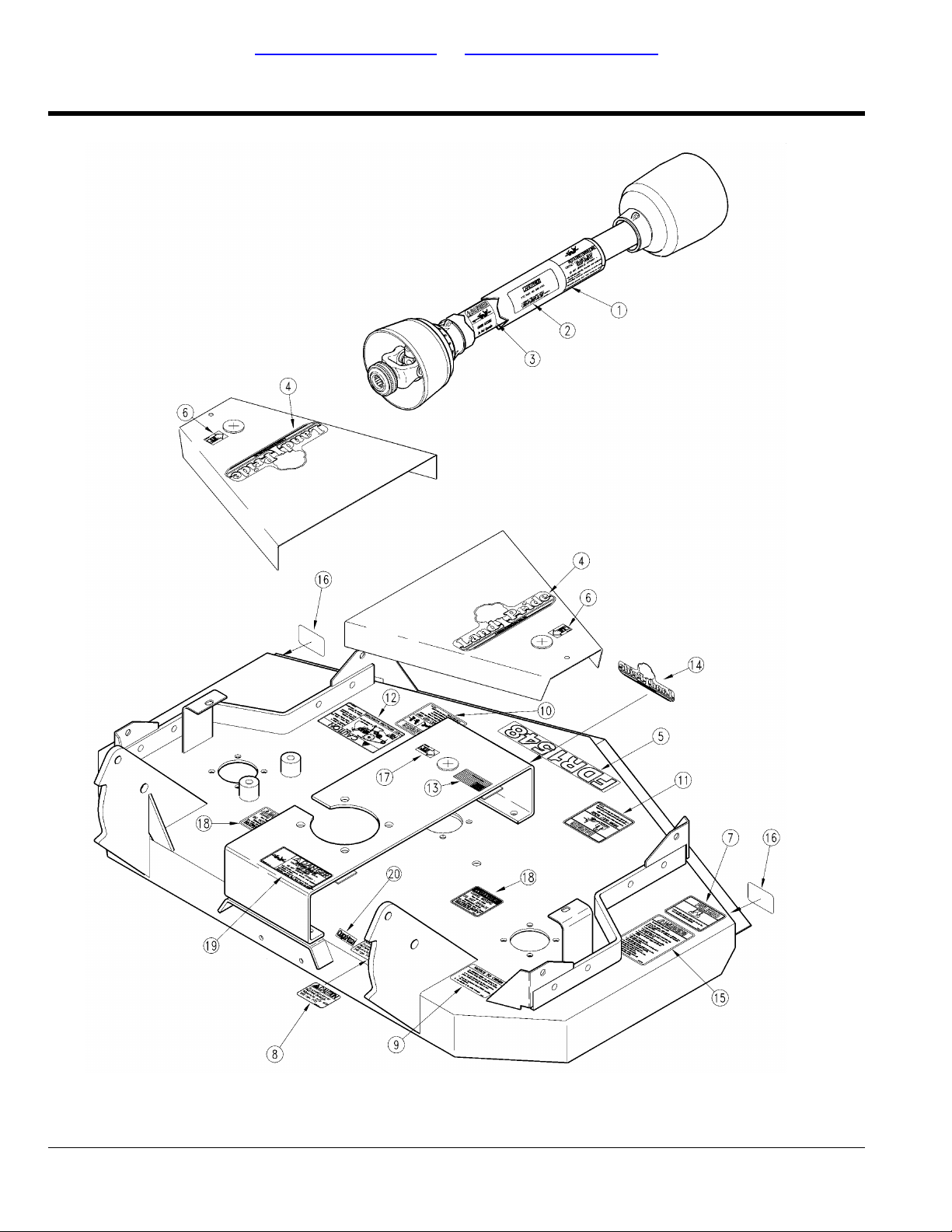

Label Placement
Applies to FDR1548
17593
80 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 81
Section 6: Labels Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Label Placement
Applies to FDR1548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17593
Includes items 1 through 16FDR1548 DECAL PACKAGE310-204A
FDR1548 SAFETY DECAL PACKAGE310-205A
DECAL DANGER PTO DRIVELINE818-552C1.
DECAL PTO 826-140C818-494C2.
DECAL DANGER GUARD MISS PTO818-540C3.
DECAL GREASE 25HRS BLACK/WHITE)818-298C6.
DECAL CAUTION 540 RPM818-130C8.
DECAL NOTICE TO OWNER-NO WARRA818-560C9.
DECAL DANGER ROTATE BLADE818-555C10.
DECAL DANGER THROWN OBJ CUTTER818-556C11.
DECAL CAUTION V-BELT INST 1548818-293C12.
DECAL FLAG818-190C13.
DECAL WARNING GEN SAFE MOWER818-558C15.
DECAL RED REFLECTOR818-230C16.
DECAL GREASE EVERY 25 HOURS818-138C17.
DECAL DANGER PD GUARD MISS SML818-543C18.
DECAL DANGER PTO DRIVELINE EN818-142C19.
DECAL QUICK HITCH SYSTEM838-517C20.
Includes items 1, 7. 10, 11, 15; two
of item 3
Rev. 2 not compat. w/Rev. 1(S/N 255042+)DECAL LP W/TREE 10" - 3 COLOR818-892C4.
Rev. 1(S/N 255041-)LP LOGO SMALL BUCKSKIN818-165C4.
Rev. 1; Rev. 2(S/N 255042+)DECAL FDR1548-BROWN818-908C5.
Rev. 1(S/N 255041-)DECAL FDR1548 -BLACK LP818-493C5.
(S/N 255041-)DECAL DANGER CANNOT READ ENG818-557C7.
Rev. 2 not compat. w/Rev. 1(S/N 255042+)DECAL LP W/TREE 6" - 2 COLOR818-896C14.
Rev. 1(S/N 255041-)LP LOGO SMALL GREEN818-164C14.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 81
Page 82
Land Pride Section 6: Labels
FDR15 SERIES
Table of Contents Part Number Index
Label Placement
Applies to FDR1560, FDR1572
17594
82 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 83
Section 6: Labels Land Pride
Table of Contents Part Number Index
FDR15 SERIES
Label Placement
Applies to FDR1560, FDR1572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17594
FDR1560 SAFETY DECAL PACKAGE310-207A
FDR1572 SAFETY DECAL PACKAGE310-209A
DECAL DANGER PTO DRIVELINE818-552C1.
DECAL PTO 826-140C818-494C2.
DECAL DANGER GUARD MISS PTO818-540C3.
DECAL GREASE EVERY 25 HOURS818-138C6.
DECAL WARNING GEN SAFE MOWER818-558C8.
DECAL NOTICE TO OWNER-WARRANTY818-560C9.
DECAL FLAG818-190C10.
DECAL CAUTION 540 RPM818-130C12.
DECAL DANGER ROTATE BLADE818-555C13.
DECAL DANGER THROWN OBJ CUTTER818-556C14.
DECAL VB INST CW FDR72/200/168818-514C15.
DECAL BELT INSTALL CW-60818-529C15.
DECAL RED REFLECTOR818-230C16.
DECAL GREASE 25HRS BLACK/WHITE)818-298C17.
DECAL DANGER PTO DRIVELINE EN818-142C19.
DECAL QUICK HITCH SYSTEM838-517C20.
Includes one of items 1, 7, 9, 13, 14,
and 15; two each of 3
Includes one of items 1, 9, 13, 14,
and 15; two each of 3
Includes items 1 through 17FDR1560 DECAL PACKAGE310-206A
Includes items 1 through 17FDR1572 DECAL PACKAGE310-208A
Rev. 2 not compat. w/Rev. 1(S/N 254725+)DECAL LP W/TREE 10" - 3 COLOR818-892C4.
Rev. 1(S/N 254724-)LP LOGO SMALL BUCKSKIN818-165C4.
Rev. 2 not compat. w/Rev. 1(S/N 254725+)DECAL LANDPRIDE 10" - BROWN818-897C5.
Rev. 1(S/N 254724-)LP LOGO SMALL GREEN818-164C5.
(S/N 254724-)DECAL DANGER CANNOT READ ENG818-557C7.
Rev. 2 not compat. w/Rev. 1(S/N 254725+)DECAL FDR1560-BROWN818-909C11.
Rev. 1(S/N 254725+)DECAL FDR1572-BROWN818-910C11.
Rev. 2 not compat. w/Rev. 1(S/N 254724-)DECAL FDR1572 -BLACK LP818-527C11.
Rev. 1(S/N 254724-)DECAL FDR1560 -BLACK LP818-530C11.
(S/N 254725+)DECAL DANGER PD GUARD MISS SML818-543C18.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 83
Page 84
Land Pride Section 2: Decks
FDR16 SERIES
Table of Contents Part Number Index

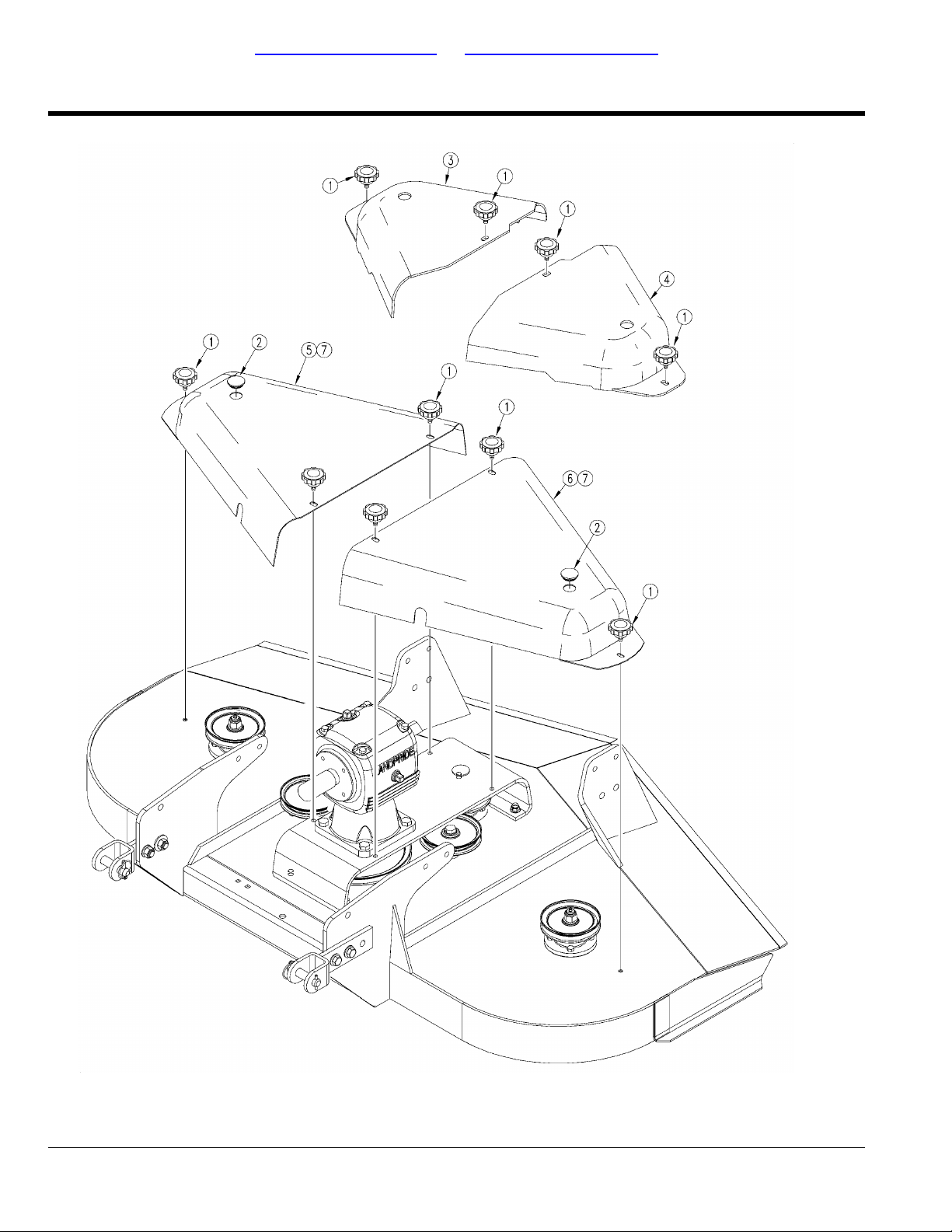

Belt Covers
Applies to FDR1648, FDR1660, FDR1672
20875
84 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 85
Section 2: Decks Land Pride
Table of Contents Part Number Index
FDR16 SERIES
Belt Covers
Applies to FDR1648, FDR1660, FDR1672
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20875
KNOB 3/8-16 MALE THD 2 3/8OD817-358C1.
RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C2.
PLASTIC BELT GUARD RH FDR1648817-514C3.
PLASTIC BELT GUARD LH FDR1648817-515C4.
PLASTIC BELT GUARD RH FDR1660817-491C5.
PLASTIC BELT GUARD LH FDR1660817-492C6.
PLASTIC BELT GUARD FDR1672817-512C7.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 85
Page 86
Land Pride Section 2: Decks
FDR16 SERIES
Table of Contents Part Number Index

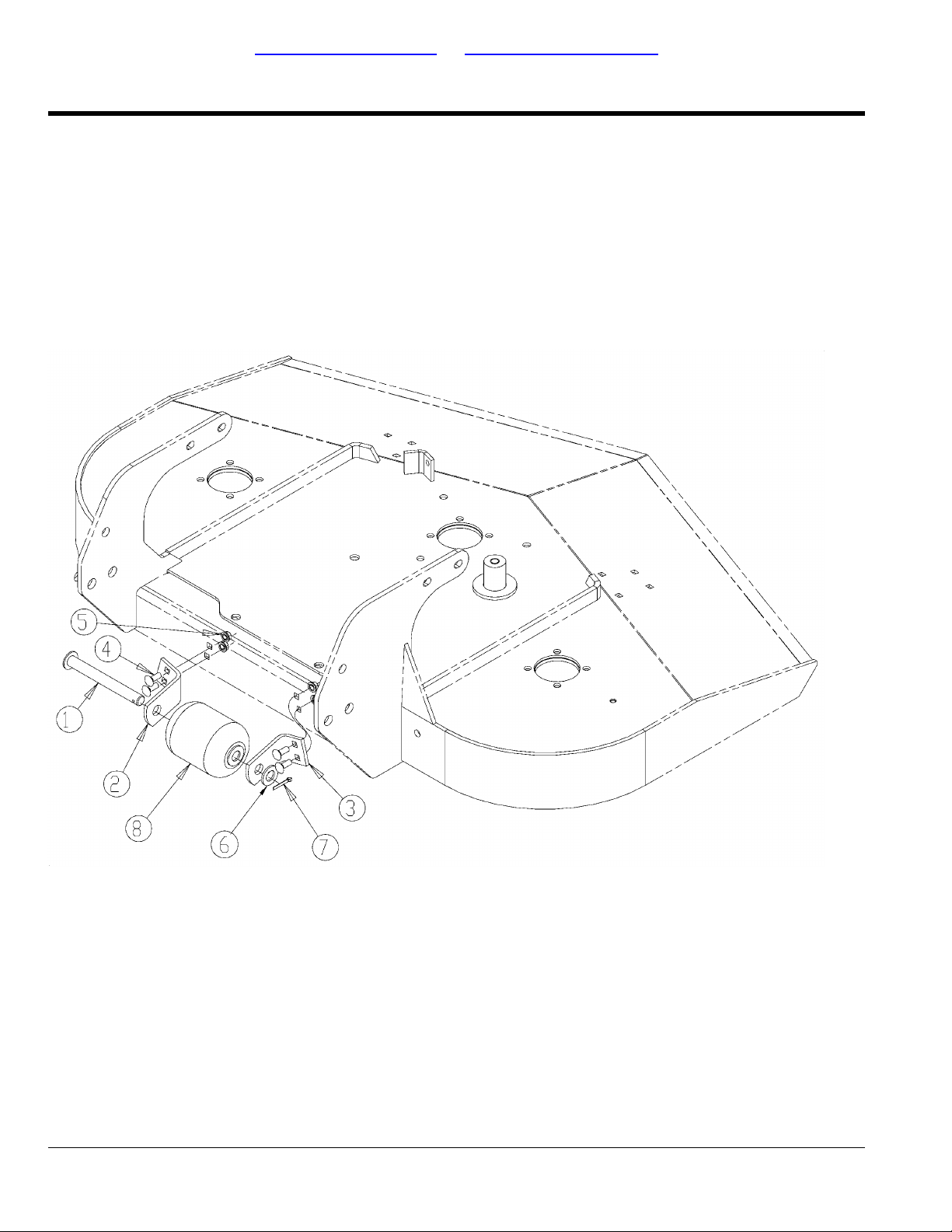

Front Roller
Applies to FDR1648, FDR1660, FDR1672
20874
86 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 87
Section 2: Decks Land Pride
Table of Contents Part Number Index
FDR16 SERIES
Front Roller
Applies to FDR1648, FDR1660, FDR1672
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20874
ASSY. FRONT ROLLER315-516S
WLDMT. ROLLER SHAFT315-515H1.
ROLLER BRACKET RH.315-880D2.
ROLLER BRACKET RH. GREEN315-880D812.
ROLLER BRACKET RH. ORANGE315-880D822.
ROLLER BRACKET RH. RED315-880D832.
ROLLER BRACKET RH. BLUE315-880D842.
ROLLER BRACKET LH.315-881D3.
ROLLER BRACKET LH. GREEN315-881D813.
ROLLER BRACKET LH. ORANGE315-881D823.
ROLLER BRACKET LH. RED315-881D833.
ROLLER BRACKET LH. BLUE315-881D843.
RHSNB 3/8-16X1 GR5802-015C4.
NUT HEX WHIZ 3/8-16 PLT803-198C5.
WASHER FLAT 5/8 SAE PLT804-021C6.
PIN COTTER 3/16 X 1 1/4 PLT805-016C7.
4 X 5 1/2 FRONT ROLLER817-082C8.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 87
Page 88
Land Pride Section 2: Decks
FDR16 SERIES
Table of Contents Part Number Index
Hitch
Applies to FDR1660, FDR1672
20873
88 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 89
Section 2: Decks Land Pride
Table of Contents Part Number Index
FDR16 SERIES
Hitch
Applies to FDR1660, FDR1672
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20873
S/N ______+HHCS 5/8-18X5 1/2 GR5802-242C1.
S/N ______-HHCS 5/8-18X5 GR5802-307C1.
FDR1660REAR BRACE310-522D2.
FDR1672; (Shown)REAR BRACE310-475D2.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C3.
S/N ______+HHCS 5/8-18X5 1/2 GR5312-610D4.
S/N ______-SPACER - TOP HITCH310-012D4.
S/N ______+PIVOTING UPPER HITCH312-609D5.
S/N ______-PIVOTING HITCH - UPPER312-085D5.
A-FRAME310-474D6.
WASHER LOCK SPRING 5/8 PLT804-022C7.
NUT HEX 5/8-18 PLT803-022C8.
PIN HAIR COTTER .120 PLT805-143C9.
PIN CLEVIS 3/4 X 3 1/2 PLT805-142C10.
Rev. 2S/N 438925+HHCS 5/8-11X2 GR5802-055C11.
Rev 1; Use up stockS/N 438924-HHCS 5/8-11X1 3/4 GR5802-053C11.
LOWER HITCH WELDMENT310-379H12.
LOWER HITCH WELDMENT GREEN310-379H8112.
LOWER HITCH WELDMENT ORANGE310-379H8212.
LOWER HITCH WELDMENT RED310-379H8312.
LOWER HITCH WELDMENT BLUE310-379H8412.
PIN LYNCH 5/16 X 1 3/4805-015C13.
LOWER HITCH PIN310-020S14.
FDR1660WELDMENT FDR1660310-359H15.
WELDMENT FDR1660 GREEN310-359H8115.
WELDMENT FDR1660 ORANGE310-359H8215.
WELDMENT FDR1660 RED310-359H8315.
WELDMENT FDR1660 BLUE310-359H8415.
FDR1672; (Shown)FDR1672 DECK WELDMENT310-369H15.
FDR1672 DECK WELDMENT GREEN310-369H8115.
FDR1672 DECK WELDMENT ORANGE310-369H8215.
FDR1672 DECK WELDMENT RED310-369H8315.
FDR1672 DECK WELDMENT BLUE310-369H8415.
HFS 5/8-11 X 1 3/4 GR5/8802-657C16.
DRIVELINE HOOK HANGER W/HRDWR800-320C17.
WASHER FLAT 5/8 SAE PLT804-021C18.
WASHER FLAT 5/8 USS PLT804-019C19.
NUT HEX TOP LOCK 5/8-11 PLT803-271C20.
S/N ______+HHCS 1/4-20X1 GR5802-005C21.
S/N ______+MANUAL STORAGE CONTAINER816-504C22.
S/N ______+WASHER FLAT 1/4 SAE PLT804-007C23.
S/N ______+NUT HEX NYLOCK 1/4-20803-255C24.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 89
Page 90
Land Pride Section 2: Decks
FDR16 SERIES
Table of Contents Part Number Index
Hitch
Applies to FDR1648
20881
90 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 91
Section 2: Decks Land Pride
Table of Contents Part Number Index
FDR16 SERIES
Hitch
Applies to FDR1648
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20881
S/N ______+HHCS 5/8-18X5 1/2 GR5802-242C1.
S/N ______-HHCS 5/8-18X5 GR5802-307C1.
REAR BRACE310-606D2.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C3.
S/N ______+SPACER TUBE 1 1/8 OD X 3 1/8312-610D4.
S/N ______-SPACER - TOP HITCH310-012D4.
S/N ______+PIVOTING UPPER HITCH312-609D5.
S/N ______-PIVOTING HITCH - UPPER312-085D5.
A-FRAME310-605D6.
WASHER LOCK SPRING 5/8 PLT804-022C7.
NUT HEX 5/8-18 PLT803-022C8.
PIN HAIR COTTER .120 PLT805-143C9.
PIN CLEVIS 3/4 X 3 1/2 PLT805-142C10.
Rev. 2S/N 438925+HHCS 5/8-11X2 GR5802-055C11.
Rev 1; Use up stockS/N 438924-HHCS 5/8-11X1 3/4 GR5802-053C11.
LOWER HITCH WELDMENT310-379H12.
LOWER HITCH WELDMENT GREEN310-379H8112.
LOWER HITCH WELDMENT ORANGE310-379H8212.
LOWER HITCH WELDMENT RED310-379H8312.
LOWER HITCH WELDMENT BLUE310-379H8412.
PIN LYNCH 5/16 X 1 3/4805-015C13.
LOWER HITCH PIN310-020S14.
FDR1648 DECK WELDMENT310-370H15.
FDR1648 DECK WELDMENT GREEN310-370H8115.
FDR1648 DECK WELDMENT ORANGE310-370H8215.
FDR1648 DECK WELDMENT RED310-370H8315.
FDR1648 DECK WELDMENT BLUE310-370H8415.
HFS 5/8-11 X 1 1/2 GR5802-657C16.
DRIVELINE HOOK HANGER W/HRDWR800-320C17.
WASHER FLAT 5/8 SAE PLT804-021C18.
WASHER FLAT 5/8 USS PLT804-019C19.
NUT HEX TOP LOCK 5/8-11 PLT803-271C20.
S/N ______+HHCS 1/4-20X1 GR5802-005C21.
S/N ______+MANUAL STORAGE CONTAINER816-504C22.
S/N ______+WASHER FLAT 1/4 SAE PLT804-007C23.
S/N ______+NUT HEX NYLOCK 1/4-20803-255C24.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 91
Page 92
Land Pride Section 3: Gauge Wheel
FDR16 SERIES
Table of Contents Part Number Index
Gauge Wheel Assembly
Applies to FDR1660, FDR1672
20877
92 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 93
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
FDR16 SERIES
Gauge Wheel Assembly
Applies to FDR1660, FDR1672
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20877
NUT HEX WHIZ 1/2-13 PLT803-037C1.
HFS 1/2-13 X 3 1/2 GR5/8802-658C2.
SPINDLE BUSHING817-048C3.
GREASE ZERK STRAIGHT 1/4-28800-001C4.
FDR1660ASSY GUAGE WHEEL ARM310-364S5.
ASSY GUAGE WHEEL ARM GREEN310-364S815.
ASSY GUAGE WHEEL ARM ORANGE310-364S825.
ASSY GUAGE WHEEL ARM RED310-364S835.
ASSY GUAGE WHEEL ARM BLUE310-364S845.
FDR1672; (Shown)FDR1672 GUAGE WHEEL ARM ASSY310-373S5.
FDR1672 GUAGE WHEEL ARM ASSY GREEN310-373S815.
310-373S825.
FDR1672 GUAGE WHEEL ARM ASSY
ORANGE
FDR1672 GUAGE WHEEL ARM ASSY RED310-373S835.
FDR1672 GUAGE WHEEL ARM ASSY BLUE310-373S845.
PIN LYNCH 1/4 X 1 3/4 PLT805-126C6.
SPACER 1/2827-001C7.
SPACER 1827-002C8.
HHCS 1/2-20X6 1/2 GR5802-350C9.
GAUGE WHEEL YOKE(5 1/8 INSIDE)310-149H10.
WASHER LOCK SPRING 1/2 PLT804-015C11.
NUT HEX 1/2-20 PLT803-018C12.
Air tire onlyGAUGE WHEEL SPACER - SHORT310-024D13.
Solid tire onlyGAUGE WHEEL SPACER(SOLID TIRE)310-329D13.
SPACER TUBE GA.WHL. 5 1/8 LG310-328D14.
ShownTIRE 4.10/3.50-4 TUBELESS AIR814-071C15.
TIRE 10X3.25 SOLID STRT RIB CR814-188C15.
Shown4X10 AIR TIRE & YOKE ASSY310-105S16.
3.25X10 SOLID TIRE/YOKE ASSY310-017S16.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 93
Page 94
Land Pride Section 3: Gauge Wheel
FDR16 SERIES
Table of Contents Part Number Index

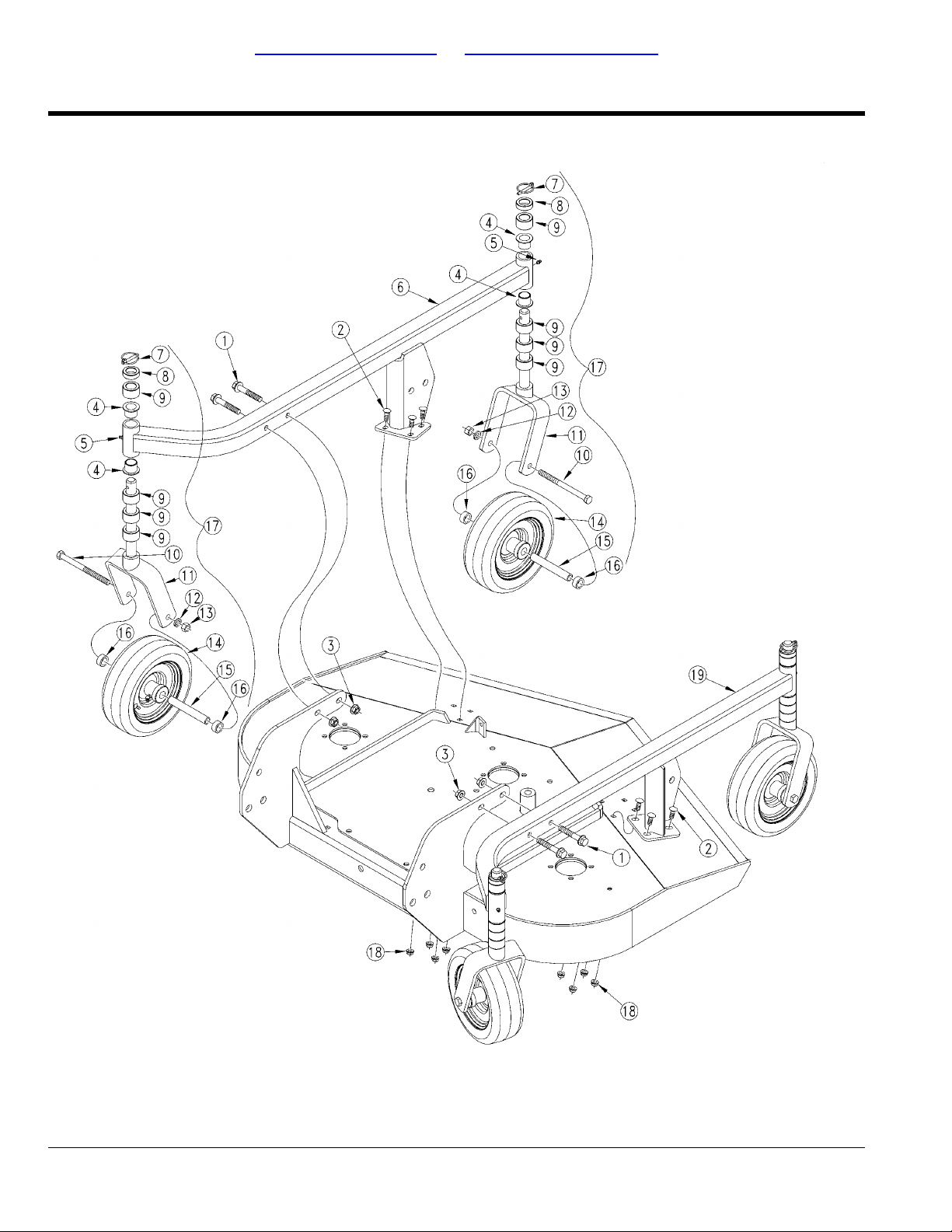

Gauge Wheel Assembly
Applies to FDR1648
20876
94 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 95
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
FDR16 SERIES
Gauge Wheel Assembly
Applies to FDR1648
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20876
HFS 1/2-13 X 3 1/2 GR5/8802-658C1.
RHSNB 3/8-16X1 GR5802-015C2.
NUT HEX WHIZ 1/2-13 PLT803-037C3.
SPINDLE BUSHING817-048C4.
GREASE ZERK STRAIGHT 1/4-28800-001C5.
Assy includes Ref. No's. 4 & 5ASSY. GAUGE WHEEL ARM RH.310-343S6.
ASSY. GAUGE WHEEL ARM RH. GREEN310-343S816.
ASSY. GAUGE WHEEL ARM RH. ORANGE310-343S826.
ASSY. GAUGE WHEEL ARM RH. RED310-343S836.
ASSY. GAUGE WHEEL ARM RH. BLUE310-343S846.
PIN LYNCH 1/4 X 1 3/4 PLT805-126C7.
SPACER 1/2827-001C8.
SPACER 1827-002C9.
HHCS 1/2-20X6 1/2 GR5802-350C10.
GAUGE WHEEL YOKE(5 1/8 INSIDE)310-149H11.
S/N 511276-WASHER LOCK SPRING 1/2 PLT804-015C12.
S/N 511277+NUT HEX FLG/LK 1/2-20 PLT.GR.803-308C13.
S/N 511277+NUT HEX 1/2-20 PLT803-018C13.
TIRE 4.10/3.50-4 TUBELESS AIR814-071C14.
TIRE 10X3.25 SOLID STRT RIB CR814-188C14.
SPACER TUBE GA.WHL. 5 1/8 LG310-328D15.
(air tire only)GAUGE WHEEL SPACER - SHORT310-024D16.
(solid tire only)GAUGE WHEEL SPACER(SOLID TIRE)310-329D16.
4X10 AIR TIRE & YOKE ASSY310-105S17.
NUT HEX WHIZ 3/8-16 PLT803-198C18.
Assy includes Ref. No's. 4 & 5ASSY. GAUGE WHEEL ARM LH.310-344S19.
ASSY. GAUGE WHEEL ARM LH. GREEN310-344S8119.
ASSY. GAUGE WHEEL ARM LH. ORANGE310-344S8219.
ASSY. GAUGE WHEEL ARM LH. RED310-344S8319.
ASSY. GAUGE WHEEL ARM LH. BLUE310-344S8419.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 95
Page 96
Land Pride Section 3: Gauge Wheel
FDR16 SERIES
Table of Contents Part Number Index
Gauge Wheel, Air (814-071C)
Applies to FDR1648, FDR1660, FDR1672
13629
96 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 97
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
FDR16 SERIES
Gauge Wheel, Air (814-071C)
Applies to FDR1648, FDR1660, FDR1672
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13629
Gauge Wheel Air Tire Assembly814-071C
TIRE 10 X 4 TUBELESS AIR814-071C1.
TILDEN BRG 3/4IDX1 3/8ODX3 1/453-1822.
RPBY 53-182 MRTN BRG3/4,3.25L95352NA2.
TILDEN RTNR 3/4IDX1 3/8OD53-1643.
RPBY 53-164BF-15063.
RPBY 53-164RT-34143.
BRG NEILSON 3/4ID1.34ODX15/16L953164.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 97
Page 98
Land Pride Section 3: Gauge Wheel
FDR16 SERIES
Table of Contents Part Number Index
Gauge Wheel, Solid Tire (814-188C)
Applies to FDR1648, FDR1660, FDR1672
17714
98 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Page 99
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
FDR16 SERIES
Gauge Wheel, Solid Tire (814-188C)
Applies to FDR1648, FDR1660, FDR1672
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17714
GAUGE WHEEL SOLID TIRE ASSEMBLY814-188C
HS BRG 3/4ID X 1.407OD X 5/8LG870401.
HS CGD RLR BRG.75IDX1.37X1.5LG874102.
TIRE 10X3.25 SOLID STRT RIB CR814-188C3.
11/06/07 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 99
Page 100
Land Pride Section 4: Gearbox & Drive
FDR16 SERIES
Table of Contents Part Number Index
Belt Drive
Applies to FDR1648, FDR1660, FDR1672
20879
100 FDR1548, FDR1560, FDR1572, FDR1648, FDR1660 & FDR1672 Rear Discharge Grooming Mower 310-066P 11/06/07
Loading...
