Page 1
1/29/04
2-Spindle Grooming Mower
FD2548
10817
310-156M
Operator’s Manual
Read the Operator’s manual entirely.
When you see this symbol, the
subsequent instructions and
!
warnings are serious - follow without
exception. Your life and the lives of
others depend on it!
© Copyright 2004 Printed
Cover photo may show optional
equipment not supplied with
standard unit.
0
1/29/04
Page 2
INTRODUCTION
1/29/04
This manual has been prepared to instruct you in the
safe and efficient operation of your 25 Series Grooming
Mower. Read and follow all instructions and safety precautions carefully.
The parts on your 25 Series Grooming Mower have
been specially designed and should only be replaced
with genuine Land Pride parts. Therefore, should your
Grooming Mower require replacement parts go to your
Land Pride Dealer.
!
The SAFETY ALERT SYMBOL indicates that
there is a potential hazard to personal safety involved
and extra safety precautions must be taken. When you
see this symbol on your machine or in your manual, be
alert and carefully read the message that follows it.
TABLE OF CONTENTS
Introduction .............................................................................. 1
Table Of Contents .................................................................... 1
Safety Rules ............................................................................. 2
Safety Decals ........................................................................... 3
Nut & Bolt Torquing Chart ....................................................... 4
Tractor Requirements .............................................................. 4
Gearbox Gear Lube ................................................................. 4
Assembly Instructions .............................................................. 4
Tractor Hook-Up ....................................................................... 5
Powershaft Installation ............................................................. 5
Floating & Front To Back Hitch Adjustments ............................ 5
Leveling The Mower
Three And Four Gauge Wheels ......................................... 6
Two Rear Gauge Wheels & Support Chains ..................... 6
Cutting Height Adjustment ....................................................... 7
Transporting ............................................................................. 7
Mowing Instructions & Adjustments ........................................ 7
Operating Instructions .............................................................. 8
Operating Check List ................................................................ 8
Specifications ........................................................................... 8
Maintenance ............................................................................. 9
Lubrication ................................................................................ 9
Storage ..................................................................................... 10
Options

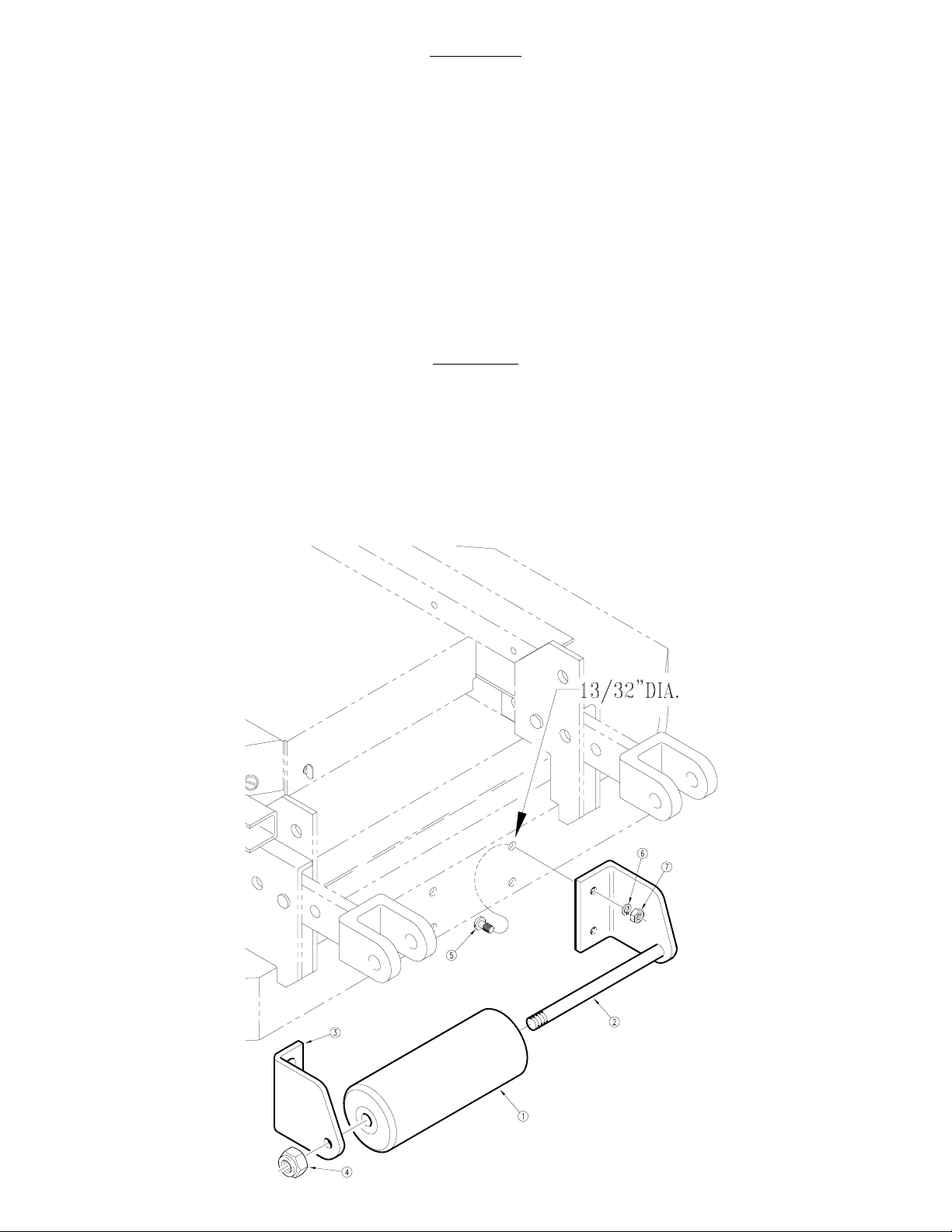

Anti-Scalping Roller Assembly Instructions ....................... 10
Chain Kit Assembly Instructions ........................................ 11
Trouble Shooting ...................................................................... 12
Warranty ................................................................................... 13
Record your model number and serial number in the
space providedbelow. Besure to bring this information
with you to your dealer when ordering parts or attachments for your Grooming Mower.
SERIAL NUMBER ____________________________
MODEL NUMBER ____________________________
DATE PURCHASED __________________________
PARTS DRAWINGS
48" Flat Deck Mower Deck ....................................................... 14

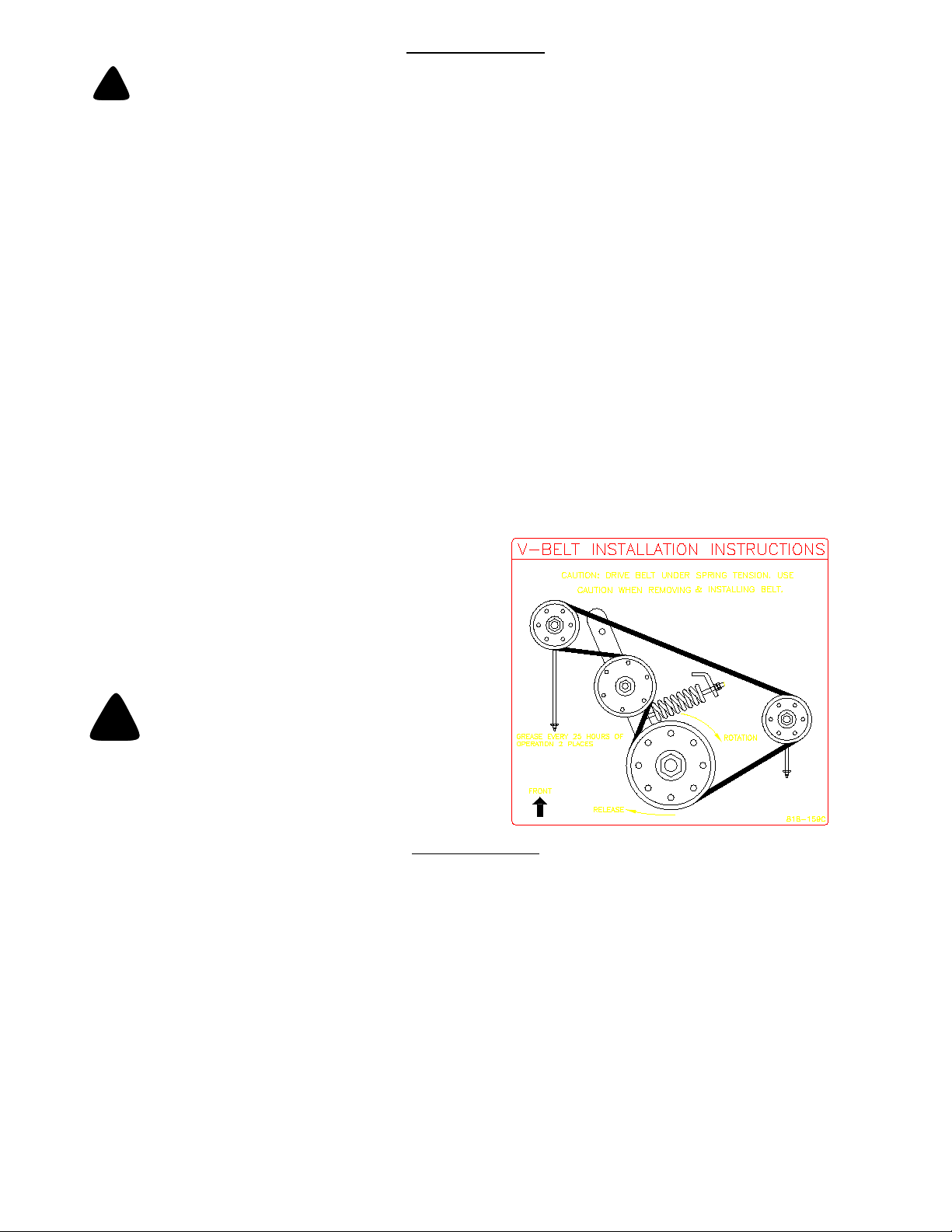

Flat Deck Mower Belt Drive ..................................................... 16
Comer Gearbox Assembly .......................................................18
IEG Gearbox Assembly............................................................. 20
Gauge Wheel Assembly ........................................................... 22
Power Take-Off ........................................................................24
Options
Front Anti-Scalping Roller .................................................. 25
Chain Kit ............................................................................ 26
Safety Decal Placement ........................................................... 27
Mower Decal Placement .......................................................... 28
1
310-156M
Effective
1/29/04
Page 3
1/29/04
SAFETY RULES
!
Most accidents are the result of negligence and carelessness, usually caused by failure of the
operator to followsimple but necessary safety precautions. The followingsafety precautions are
suggested to helpprevent such accidents. The safe operation of any machinery is a big concern
to consumers and manufacturers. Your 48" Grooming Mower has been designed with many
built-in safety features. However, no one should operate this machine before carefully reading
this Owner’s Manual.
1. DO NOT allow anyone to operate this machine who has not been properly trained in its safe
operation.
2. Keep all guards and shields in place and secure.
3. Always use proper PTO speed or machine damage may result. This mower is designed to
be used with a tractor having a 540 rear PTO.
4. DO NOT let children operate the mower.
5. NEVER allow passengers.
6. DO NOT allow anyone but the operator near the mower when operating.
!
7. Before performing maintenance or making adjustments on the mower, shut off the tractor,
disengage PTO, remove key from ignition, wait for all moving parts to stop and lock brakes
before dismounting tractor. Be sure mower is securely blocked on safe supporting stands
or set completely on the ground.
8. After striking an object, disengage PTO, shut off tractor and inspect for damage before continuing.
9. DO NOT operate mower too close to ditches. Be alert for holes and gullies. Travel slowly
over rough terrain.
10. Transport mower only in a raised position.
11. Stop engine before leaving tractor.
12. Becertain the tractoris in neutralor park positionand the PTO is disengaged before starting
engine.
13. Check periodically for loose hardware and tighten if necessary.
14. Keep hands, feet and clothing away from moving parts. Wearproper eye protection to prevent injury from flying objects.
15. Mower should be lowered to the ground before engaging PTO and be sure that no one is
near the machine. When traveling on public roads, use accessory lights and devices for adequate warning to operators of other vehicles. Comply with all Federal, State and Local
Laws.
16. Before mowing, clear the area of objects and debris that could become entangled in the
blades or thrown from the mower.
17. NEVER operate the mower while in raised transport position. Disengage the PTO when
raised for transport or backing up.
18. In order to maintain steering control, ballast may need to be added to tractor. To determine
the amount of ballast required refer to your tractor operator’s manual.
2
Page 4
1/29/04
SAFETY RULES (CON’T.)
! !
19. When used in certain sandy soil conditions, there can be severe erosive wearing of the
blade at the lift or wing area. This can cause pieces of the blade to separate and be discharged from the mower. These particles can cause injury or damage and may create the
blade to become unbalanced and dangerous to operate.
SAFETY DECALS
!
DANGER
ROTATING CUTTING BLADE
* Do not put hands or feet under or into any part of this mower
deck or discharge chute
818-143C
CAUTION
!
OPERATE ONLY WITH
540 RPM PTO
818-130C
!
1. AVOID BODILY INJURY
Objects may be thrown great distances by cutting blades
rotating under deck.
2. BEFORE WORKING ON MOWER:
Disengage power, shut off engine, and make sure blades
have stopped rotating.
DANGER
818-141C
ROTATING DRIVELINE
KEEP AWAY!
!
ROTATING CUTTING BLADE
*Do not put hands or feet under or into any part of this mower deck
or discharge chute
*OBJECTS MAY BE THROWN FROM MOWER
* Clear lawn of debris and objects
* Do Not mow with by standards in area
*DO NOT OPERATE MOWER WITHOUT DISCHARGE CHUTE
DANGER
818-140C
--IMPORTANT--
* Your Grooming Mower comes equipped with all safety decals in place.
* Always keep safety decals clean and legible.
* Replace all damaged or missing safety decals. To order new safety decals go to your
Land Pride Dealer and reference part numbers as shown on page 27.
* To install new safety decals:
A) Clean the area the decal is to be placed. (Refer to page 27.)
B) Peel backing from decal and press firmly onto surface.
3
Page 5
1/29/04
NUT & BOLT TORQUING CHART
This chart is based on torque requirements in foot pounds for grade 5 bolts.
BOLT DIAMETER MINIMUM TORQUE MAXIMUM TORQUE BOLT DIAMETER MINIMUM TORQUE MAXIMUM TORQUE
1/4" 9 11 3/4" 270 324
5/16" 17 20 7/8" 400 480
3/8" 35 42 1" 580 696
7/16" 54 64 1 1/8" 800 880
1/2" 80 96 1 1/4" 1120 1240
9/16" 110 132 1 3/8" 1460 1680
5/8" 150 180 1 1/2" 1940 2200
NOTE: Torque requirements listed above do not apply to self-locking nuts. For self-locking nuts increase torque
requirements listed above by 15%.
TRACTOR REQUIREMENTS
This mower is designed with a 3-Point category I
hitch. Horsepowerrating oftractor shouldnot exceed
26 PTO horse power.
NOTE: In order to maintain steering control, ballast may
have to be added to your tractor. To determine whether
or not to add ballast, refer to your tractor operator’s manual.
CAUTION! DO NOT OVER SPEED PTO OR MACHINE DAMAGE MAY RESULT.
!
THIS MOWER IS DESIGNED TO BE USED WITH A TRACTOR USING A 540 RPM REAR
PTO.
GEAR BOX GEAR LUBE
Before operating this unit, 80-90 EP Gear Lube must be added to the gearbox(s) as indicated in the maintenance
lubrication section (Page 9) of this manual. See your Land Pride Dealer for part number 821-012C Gear Lube.
ASSEMBLY INSTRUCTIONS
Your 25 Series Grooming Mower is shipped to you almost completely assembled. Remove the protective plastic
wrap from the mower deck. Using a safe lifting device, set the mower deck on a safe supporting stand. Remove
loose components - gauge wheels, gauge wheel arms and miscellaneous hardware from the top of deck. Carefully
follow the instructions below for final assembly.
UPPER HITCH ARMS -
Refer to the parts illustration on page 14:
1. Loosen 5/8" x 1 1/2" long bolts (#18) and swing up-
per hitch (#21) up to a vertical position. Remove 5/8" x
5" long bolt (#25) and install upper hitch brace (#22) upper pivoting hitch (#23) and hitch spacer (#24) with 5/8"
x 5" long bolt (#25)as shown in parts illustration. Refer
to Fig. 1 on page 5, for bolting location of upper hitch
brace (#22) and tighten hardware to listed torque
above.
GAUGE WHEEL ASSEMBLY - 2 FRONT GAUGE
WHEELS & 4 GAUGE WHEEL ASSEMBLY
Refer to the parts illustration on page 22:
onpage 7). Secure shaft towheel arm with 1/4" lock pin
(#5). Be sure all the spacers are arranged the same on
each wheel assembly. Tighten all hardware to listed
torque.
GAUGE WHEEL ASSEMBLY - 3 GAUGE WHEEL ASSEMBLY
Refer to the parts illustration on page 22:
1. Bolt the gauge wheel arms (#1) to the mounting
channels on the mower frame using 3/8" x 3" long bolt
(#13).
2. Rear Single Gauge Wheel: Bolt the gauge wheel
arm (#18) to the mounting channels of the mower frame
using 3/8" x 1 1/4" Long Bolts (#19).
1. Bolt the gauge wheel arms (#1)-front gauge wheel
(#17)-rear gauge wheel, to the mounting channels on
the mower frame using 3/8" x 3" long bolt (#13).
2. Insert the 1" diameter shaft of the gauge wheel yoke
(#6) into the bushings on the gauge wheel arm, noting
the amount of spacers added to top or bottom depending on cutting height (see "Cutting Height Adjustments"
3. Insert the 1" diameter shaft of the gauge wheel yoke
(#6) into the bushings on the gauge wheel arm, noting
the amount of spacers added to top or bottom depending on cutting height (see "Cutting Height Adjustments"
onpage 7). Secure shaft towheel arm with 1/4" lock pin
(#5). Be sure all the spacers are arranged the same on
each wheel assembly. Tighten all hardware to listed
torque.
4
Page 6
ASSEMBLY INSTRUCTIONS (CON’T.)
GRASS CHUTE ASSEMBLY -
Refer to the parts illustration on page 14:
1. Loosen upper pivot bolt (#9) and remove lower
thumb screw (#17).
2. Hinge chute down and install thumb screw and flat
TRACTOR HOOK-UP
1. Be certain that tractor draw bar will not interfere.
Move draw bar ahead or remove if required. Draw bar
shouldalso be checkedfor clearance whenunit is being
raised for the first time.
2. Align lower link arms of tractor to hitch clevises on
mower. Insert lower hitch pins into lower ball swivels
and attach lynch pins.
POWERSHAFT INSTALLATION
1/29/04
washer (#13) and (#17). When set at position desired,
tighten down upper pivot bolt and lock nut (#9) and
(#10). DO NOT tighten completely. Allow chute to
hinge. Lock down lower thumb screw with flat washer
(#13) and (#17).
DO NOT in any condition operate mower with chute
removed from this position.
3. Referring to fig. 1, attach tractor top link to upper
floating hitch on mower with pin supplied. Secure with
lock pin.
4. Adjust the tractor top link in or out to place the upper
hitch pin vertically above the lower hitch pins as shown
in fig. 1(below) to allow mower flotation.
1. Slide powershaft end with extended safety cone
over splined shaft of the gearbox and secure with attaching device.
2. Slidepowershaft over the tractor’s splinedPTO shaft
and secure with locking device of powershaft.
3. Powershaft should now be moved back and forth to
insure that it is secure on the PTO shaft of the tractor
and mower gearbox.
4. Should the powershaft require shortening:
CAUTION! TRACTOR PTO SHIELD AND ALL MOWER GUARDS MUST BE IN
!
The 3-point hitch system on this mower has been designed for front to back flotation when mowing on uneven terrain. The lower 3-point hitch blocks also are
adjustablefrom frontto back for additional fieldfloat and
tractor clearance. The lower hitch blocks have a large
pivot pin and a smaller locking pin, page 14 (#4) & (#5).
When operating a mower equipped with four gauge
wheels do not use lock pin (#4) unless desired for transport.
PLACE AT ALL TIMES DURING OPERATION!
FLOATING AND FRONT TO BACK HITCH ADJUSTMENTS
a. Hold the half-shafts next to each other in the
shortest working position and mark them.
b. Shorten inner and outer guard tubes equally.
c. Shorten inner and outer sliding profiles by the
same length as the guard tubes.
d. Proper overlap is a minimum of one-half the
length of each tube, with both tubes being of
equal length.
e. Round off all sharp edges and remove burrs.
Grease sliding profiles.
The mower can be operated with hitch blocks in either
position. Depending upon the use of front gauge
wheels, the lower hitch blocks can be used without the
locking pin. If mower is not equipped with front gauge
wheels and leveling chains are used, the locking pin
should be installed. The lower hitch blocks and top link
rear braces can be adjusted front to back as shown in
fig. 1.
10479
Fig. 1
5
Page 7
1/29/04
LEVELING THE MOWER
THREE AND FOUR GAUGE WHEELS
NOTE: Tractor and mower should be on level ground.
1. Set lower hitches and upper floating hitch, as shown
in fig. 1 on page 5.
2. Start tractor and raise mower, watching that tractor
draw bar (if not removed) does not interfere with mower.
3. Slowlylower the moweruntil gaugewheels touchthe
ground and the lower mower 3-point hitch bars are parallel to the ground in floating position. Set tractor 3point stop.
4. Set park brake and turn off tractor. Remove key
from ignition.
TWO REAR GAUGE WHEELS IN REAR AND SUPPORT CHAINS
FRONT TO REAR:
NOTE: Tractor and mower should be on level ground.
1. Set the lower hitches and upper floating hitch as
shown in fig. 1 on page 5.
2. Start tractor and raise mower, watching that tractor
draw bar (if not removed) does not interfere with mower.
3. Slowly lower mower until gauge wheels touch the
ground and with mower deck close to level.
4. Setpart brake and turnoff tractor. Remove key from
ignition.
5. Rotate mower blades parallel to direction of travel.
Measurecutting edge to ground clearance on eachside
of the mower.
6. Measure the clearance from the cutting edge to the
ground at front and rear of the blade. This measurement should be equal or have the blade at the front of
the mower not more than 1/2" lower than the blade at
the rear of the mower.
5. Adjust the tractor top link in or out to place the upper
hitchpin vertically above the lower hitch pin as shown in
fig. 1 on page 5, to allow mower flotation.
6. Rotate blades parallel to direction of travel.
7. Measure the clearance from the cutting edge to the
ground at front and rear of the blade. This measurement should be equal or have the blade at the front of
the mower not more than 1/2" lower than the blade at
the rear of the mower.
SIDE TO SIDE:
1. Set lower hitches and upper floating hitch at desired
setting as shown in fig. 1 on page 5.
2. Start tractor and raise mower, watching that tractor
draw bar (if not removed) does not interfere with mower.
3. Slowlylower the moweruntil gaugewheels touchthe
ground.
4. Set park brake and turn off tractor.
5. With discharge chute hinged out of the way, rotate
blade 90 degrees to direction of travel. If unequal, adjust one lower lift link of tractor 3-point hitch to level
mower.
6. Adjust lift chains to be tight by placing chains into
slots on lower chain brackets. Be sure to connect the
same link on both sides. Install chain connector. Secure excess chain links together with the two tie straps
included.
7. Use tractor 3-point top link to level the blade front to
back. Set tractor control when level.
8. Adjust lift chains to be tight by placing chains into
slots on lower chain brackets. Be sure to connect the
same link on both sides. Install plastic plugs. Secure
excess chain links together with the two tie straps included.
6
Page 8
CUTTING HEIGHT ADJUSTMENT
1/29/04
1. Usingthe tractor, raise the mower off the groundand
support under it with secure blocking so not to let the
mower drift down during maintenance.
2. Holding wheel and yoke assembly up, remove quicklock pin from top of gauge wheel spindle. Position full
length spacers and half spacer as required. Allspacers
on top of spindle tube allows for approximately 1" cut-
!
CAUTION! ENGAGE PARKING BRAKE, SHUT OFF TRACTOR, REMOVE KEY
ting height. Adjustments range from 1" to a maximum of
5 1/2" in 1/2" increments. Refer to "Leveling Mower" on
page 6.
NOTE: If equipped with only rear gage wheels, the
mower must be leveled front to rear each time this adjustment is made.
AND DISENGAGE PTO BEFORE MAKING ANY HEIGHT ADJUSTMENTS!
TRANSPORTING
IMPORTANT: Always disengage PTO before raising the mower to transport position.
1. When raising the mower to the transport position, be
surethat powershaft doesnot contact tractoror mower.
Adjust the tractor’s 3-point hitch lift height so that the
PTO shaft does not contact mower deck.
2. Be sure to reduce tractor ground speed when turning; and, leave enough clearance so the mower does
not contact obstacles such as buildings, trees or fences.
3. Select a safe ground travel speed when transporting
fromone area to another. When travelingon roadways,
transport in such a way that faster moving vehicles may
pass you safely.
4. When traveling over rough or hilly terrain, shift tractor to a lower gear.
!
CAUTION! WHEN TRAVELING ON PUBLIC ROADS, WHETHER AT NIGHT OR
DURING THE DAY, USE ACCESSORY LIGHTS AND DEVICES FOR ADEQUATE WARNING
TO OPERATORS OF OTHER VEHICLES. COMPLY WITH ALL FEDERAL, STATE, AND
LOCAL LAWS.
MOWING INSTRUCTIONS AND ADJUSTMENTS
1. Clear the area to be mowed of objects and debris
that might be picked up and thrown by the mower
blades.
2. Grass is best cut when it is dry. Mowing wet grass
cancause plugging resultingin grassclumps behindthe
mower.
3. Grass should be mowed frequently as shorter clippings deteriorate faster.
4. If mowing extremely tall grass, it is best to raise
5. cutting height and mow the area, then lower cutting
height and mow a second time at the desired height.
6. Thismower is equipped with an adjustable grass discharge chute. Adjustments can be made by loosening
the bolts on the front and rear of mower chute. With the
mower chute in the raised operating position, grass is
expelled away from the mower for a more even distribution of grass clippings. Lowering the mower chute will
decrease the distance the grass is discharged from the
mower.
!
CAUTION! WHEN MOWING IN SANDY SOIL AREAS, WEAR MAY OCCUR TO
YOUR MOWER BLADES CAUSED FROM SAND EROSION. FREQUENT INSPECTION
SHOULD BE MADE AND BLADES REPLACED IF DAMAGED.
7
Page 9
1/29/04
OPERATING INSTRUCTIONS
BEFORE beginning to mow, the following inspection should be performed:
1. Check oil level in gearbox. Refer to "Maintenance"
& "Lubrication" on page 9 of this manual.
2. Check that all plugs in gearbox have been replaced
and tightened properly.
3. Be sure all mower blades, bolts and nuts are tight.
4. Be certain all guards and shields are in place and secure.
5. Grease PTO shaft and all other grease fittings.
6. Clear the area to be mowed of rocks, branches and
other foreign objects.
7. Lower mower to ground. Set tractor throttle at approximately 1/4 open. Engage PTO to start blades rotating.
8. Operate with 540 rpm PTO tractor.
9. At first begin mowing at a slow forward speed and
shiftup untilthe desired speed is achieved- maintaining
540 PTO rpm.
10. Mower blades will cut better at a faster blade speed
than at reduced throttle.
11. Mowing should not be done in wet conditions as
grass will stick to blades and the under side of mower
deck.
12. After mowingthe first 50 feet, stop and check to see
that the mower is adjusted properly.
13. DO NOT make sharp turns or attempt to back up
while mower is on the ground.
14. DO NOT engage PTO with mower in the fullyraised
position. DO NOT engage PTO at full throttle.
OPERATING CHECK LIST
Proper servicing and adjustments is the key to the long
life of any machine. With careful and systematic inspection of the mower, you can avoid costly maintenance,
time and repair.
For Safety reasons, each maintenance opera-
!
tion must be performed with the tractor’s PTO disengaged, the mower lowered completely, tractor
engine shut off and ignition key removed.
SERVICE DAILY:
1. Grease the PTO u-joint.
2. Check that all bolts are tight.
SPECIFICATIONS
CUTTING WIDTH ....................................................48"
OVERALL WIDTH..............................................58 1/2"
HEIGHT ...................................................................36"
LENGTH (4 WHEEL) ...............................................56"
WEIGHT................................................................ 399#
CUTTING HEIGHT...........................................1"-5 1/2"
DECK MATERIAL..........................................10 Gauge
THICKNESS
BLADES - 2................................1/4" X 2 1/2" X 24 7/8"
BLADE OVERLAP ............................................... 1 1/2"
BLADE TIP SPEED ....................................15,745FPM
1/2" Increments
Heat Treated
Alloy Steel
LUBRICATE EVERY 50 HOURS OF OPERATION:
1. With the mower on level ground, check the oil level
in the gearbox by removing the plug in the side of the
box. The oil should reach the plug hole. Fill if necessary with SAE 90 oil and retighten both plugs. DO NOT
OVERFILL! Should your gearbox require service, take
it to your LAND PRIDE dealer.
IMPORTANT: Mower should be level when checking or adding oil to the gearbox!
BLADE SPINDLES........................................Greasable
HITCH....................................................Cat. 1 Floating
Clevis
GAUGE WHEELS:..........................................Castered
1 REAR 2 FRONT 10 1/4 x 3 1/4
Solid Tire
GAUGE WHEELS:..........................................Castered
2 REAR 2 FRONT 10 1/4 x 3 1/4
OPTIONAL Solid Tire
CASTER WHEEL...............................1" Diameter With
SPINDLE Greasable Bushing
DRIVE TRAIN ........................................540 RPM PTO
Gearbox
2.5:1 Ratio
Beveled Gears
Cast Iron Housing
Single V-Belt
GRASS CHUTE...............................Hinged-Adjustable
8
Page 10
MAINTENANCE
For SAFETY REASONS, each maintenance operation must be performed with the tractor’s PTO dis-
!
engaged, the Mower lowered completely to the ground or on safely supported blocking, tractor engine shut
off and ignition key removed.
Proper servicing and adjustments is the key to the long life of any machine. With careful and systematic inspection
of the Grooming Mower, you can avoid costly maintenance, time and repair.
1/29/04
BLADE SHARPENING -
1. Blades should be sharpened at each end to the
same angle as the original cutting edge.
NOTE: Care should be taken in order not to remove
any more material than necessary to sharpen blade.
2. Balance each blade after sharpening.
BLADE REPLACEMENT IMPORTANT: ALWAYS install blade with cutting edge
facing direction of rotor shaft rotation.
1. Remove cap screw and blade washer from blade to
be replaced. Remove blade.
2. Install blade washer into center hole on blade.
3. Replace cap screw and lock washer and tighten
bolts to proper torque. See "Nut & Bolt Torquing Chart"
on page 4.
IMPORTANT: Replace blades with genuine Land
Pride blades only.
V-BELT INSTALLATION -
1. Remove belt covers.
2. Move belt take-up handle in a clockwise direction to
relieve tension on belt.
3. With tension relieved from belt remove old belt from
pulleys.
4. Install new belt referring to the figure below (also refer to the decal on top of mower deck). Be sure belt is
positioned in all the pulley grooves. Release belt takeup handle to apply tension to new belt.
5. Reinstall all belt covers and secure in place with
hardware.
!
CAUTION! BELT DRIVE SYSTEM
UNDER SPRING TENSION; USE CARE TO
AVOID BODILY HARM!
LUBRICATION
SERVICE DAILY:
1. Grease the PTO u-joints.
2. Wheel support bushings.
3. Wheel bushing.
4. Bearing in blade spindle hubs.
NOTE: There is a small relief hole on each spindle hub
casting on the underside of the deck. The relief hole releases pressure from inside the spindle hub casting
when being greased. Spindle hubs should be greased
until grease purges from relief hole.
SERVICE EVERY 50 HOURS OF OPERATION:
1. With the mower on level ground, check the oil level
in the gearbox by removing the plug in the side of the
box. The oil should reach the plug hole. If oil level is
low, remove the top plug in the gearcase and fill with
SAE 90 oil until oil flows from side port of the gearbox.
Reinstall plugs and retighten. DO NOT OVERFILL!
Should your gearbox require service, take it to your
LAND PRIDE dealer.
IMPORTANT: Mower should be level when checking oil in gearbox!
2. Disconnect PTO shaft from the tractor and slide
apart. Clean and coat the inner tube of the PTO shaft
with a light film of grease and then reassemble.
9
Page 11
1/29/04
STORAGE
Atthe endof the working season orwhen the mower will
not be used for a long period, it is good practice to clean
off any dirt or grease that may have accumulated.
Check the blades for wear and replace if necessary.
See "Maintenance" on page 9.
Inspect the mower for loose, damaged or worn parts
and adjust or replace if needed.
Lubricate as noted in "Lubrication" on page 9.
OPTIONS
FRONT ANTI-SCALPING ROLLER
ASSEMBLY INSTRUCTIONS
Assemble item numbers 1 through 4 as shown in the illustration below. Position left hand and right hand
mount brackets on mower frame making sure the roller
is running parallel with bottom of the mower deck to 1"
below. Mark the four center points of mounting holes in
Repaint parts where paint is worn or scratched to prevent rust.
Remove mower drive belt from one pulley to release
drive belt tension.
Remove belt guards, thoroughly clean the top and bottom of the mower frame.
Store mower in a clean, dry place.
brackets. Remove assembly and drill holes 13/32" diameter. Mount assembly to frame making sure that the
pan head screws are installed as shown on illustration
(head side of screw to the inside of mower deck).
10
10818
Page 12
OPTIONS (CON’T.)
MOWER CHAIN KIT ASSEMBLY INSTRUCTIONS
1/29/04
Remove tractor 3-point hitch upper link pin (#1). Install
liftchains (#2) onoutside surface ofupper link mounting
plate on tractor. Reinstall link pin and keeper.
NOTE: Depending upon brand of tractor the link pin
may need to be replaced with a longer pin or a bolt. If a
pin is used its keeper must be a large enough size to
withstand side loads from the chain pull.
Attach the lower chain brackets (#3) and the tractor 3point hitch clevis (#4) to the mower lower links (#5).
Place lower chain brackets (#3) to the inside of the tractor lower 3-point links. The 5/8" diameter lock pin (#6)
should be installed when using the leveling chains.
NOTE: Refer to "Leveling The Mower" on page 6.
11
10823
Page 13
1/29/04
PROBLEM CAUSE SOLUTION
1. Discharge chute plugged Belt not installed correctly Check installation of belt
!
CAUTION! DO
NOT TRY TO CLEAN DISCHARGE CHUTE WHEN
MOWER IS RUNNING.
TROUBLE SHOOTING
Grass too wet Wait until grass dries
Grass too tall Raise cutting height of mower and
cut grass twice
RPM of tractor too low Mow at full throttle (540 PTO rpm)
Check PTO speed & tractor engine
BODILY HARM MAY OCCUR.
2. Belt slipping Plugged grooming mower Unplug and clean mower deck
3. Patches of uncut grass RPM of tractor too low Mow at full throttle (540 PTO rpm)
Ground speed too fast Shift transmission to a lower gear
Debris in sheaves Remove belt guard shields and
clean sheaves
Worn belt Replace belt
Check PTO speed & tractor engine
Ground speed too fast Shift transmission to a lower gear
Blade damaged or dull Sharpen & balance or replace blade
4. Excessive vibration Debris in sheaves or on mower Remove belt guard shield and clean
deck debris from belt area and sheaves
Drive belt damaged Replace drive belt
Sheaves damaged or out of Replace sheaves or align
alignment
Inadequate clearance between Remove belt guard shields & clean
belt guard shields & belt debris from belt area & sheaves
Mower in raised position & Readjust 3-point hitch to raise
mower running mower to maximum of 14 inches
5. Gearbox noisy Low lubricant level Check lubricant level
6. Blades scalping grass Cutting too low Raise cutting height by adjusting
wheels
Ridges in terrain Change mowing pattern
Fast turning speed Reduce speed on turns
7. Uneven cut Ground speed too fast Shift to a lower gear
Mower not level Level mower
Dull blades Sharpen blades & balance or replace
8. Tractor loaded down by mower RPM of engine too low Mow at full throttle (540 PTO rpm)
Ground speed too fast Shift to a lower gear
Debris wrapped around mower Clean mower
spindles
12
Page 14
WARRANTY
Land Pride warrants to the original purchaser of new Land
Pride Products, that they are free of defects in material and
workmanship. This warranty is applicable only for the normal
life expectancy of the unit or individual components for a
period of one year from date of original purchase if for
personal use; 90 days for commercial or rental purposes.
Warranty coverage is limited to replacing any part, at no
charge to the original purchaser, that in our judgment shows
evidence of a defect: provided that upon written request, any
such defective part is returned to Land Pride within (30) days
of failure.
1/29/04
This Warranty does not apply to any part or product which in
Land Pride’s judgment shall have been misused or damaged
by accident or lack of normal maintenance or care, or which
has been repaired or altered in a way which adversely affects
its performance or reliability, or which has been used for a
purpose for which the product is not designed.
Claims under this Warranty must be made to the dealer
which originally sold the product. Land Pride reserves the
right to make changes in materials or design of the product at
any time without notice.
This Warranty shall not be interpreted to render Land
Pride liable for damages of any kind, direct, consequential, or contingent, to property. Furthermore, Land Pride
shall not be liable for damages resulting from any cause
beyond its reasonable control. This Warranty does not
extend to any expense due to loss for labor, supplies,
rental machinery or for any other reason.
No other Warranty of any kind whatsoever, express or
implied, is made with respect to this sale; and all implied
warranties of merchantability and fitness for a particular
purpose which exceed the obligations set forth in this written
warranty are hereby disclaimed and excluded from this sale.
13
Page 15
1/29/04
FLAT DECK MOWER - DECK & COMPONENTS
14
10467
Page 16
FLAT DECK MOWER - DECK & COMPONENTS (CON’T.)
Ref. Part No. Description
1. 310-046H 48" Mower Deck
2. 310-071H Lower Hitch Lug
3. 310-020S Lower Hitch Pin
4. 805-141C Pin, Lock 5/8" x 2" Long {2 Wheel Units Only}
5. 805-140C Pin, Pivot 3/4" x 2" Long
6. 805-143C Pin, Hair Cotter 0.120
7. 805-015C Pin, Lock 5/16" x 1 3/4" Long
8. 310-072H Discharge Chute
9. 802-004C Bolt, Hex 1/4"-20 x 3/4" Long
10. 803-007C Nut, Lock 1/4"-20
11. 310-144D Cover, Belt - Right Hand
12. 802-241C Bolt, Wing 1/4"-20 x 3/4" Long
13. 804-007C Washer, Flat 1/4"
14. 800-006C Fastener, U-Type 1/4"-20
15. 816-072C Cap, Pin Belt Guard
16. 310-145C Guard, Belt - Left Hand
17. 801-041C Screw, Thumb 1/4"-20 x 1/2" Long
18. 802-207C Bolt, Hex 5/8"-18 x 1 1/2" Long
19. 804-022C Washer, Lock 5/8"
20. 803-022C Nut, Hex 5/8"-18
21. 310-147D Upper Hitch Bar
22. 310-146D Upper Hitch Brace
23. 310-015D Pivoting Upper Hitch
24. 310-012D Spacer, Top Hitch
25. 802-307C Bolt, Hex 5/8"-18 x 5" Long
26. 805-142C Pin, Clevis 3/4" x 3 1/2" Long
1/29/04
15
Page 17
1/29/04
FLAT DECK MOWER BELT DRIVE
16
18642
Page 18
FLAT DECK MOWER BELT DRIVE (CON’T.)
Ref. Part No. Description
1. 826-011C Gearbox - Comer
826-081C Gearbox - IEG
2. 802-207C Bolt 5/8"-18 x 1 1/2" Long
3. 804-022C Washer, Lock 5/8"
4. 803-022C Nut 5/8"-18
5. 817-050C Shaft Protector
6. 310-331D Key 1/4" x 11/16" Long
7. 310-041D Gear Box Spacer - Used Only With Comer Gearbox
8. 808-076C B-Groove Pulley 9 O.D.
9. Washer (Supplied With Gearbox)
10. Nut (Supplied With Gearbox)
11. Pin, Cotter (Supplied With Gearbox)
12. 802-239C Bolt, Hex 5/8"-18 x 2 1/2" Long
13. 808-073C Pulley, Flat Idler
14. 803-119C Nut, Collar Ny-Loc 5/8"-18
15. 818-028C Bushing, Pivot
16. 310-088H Handle, Belt Take-Up
17. 807-068C Extension Spring - Belt Drive
18. 802-233C Bolt, Eye 1/4"-20 x 2 3/4" Long
19. 803-144C Nut, Ny-Loc 3/4"-16
20. 890-163C Key, Woodruff 1/4" x 3/4" Long
21. 808-075C Pulley, B-Groove
22. 802-229C Bolt, Hex 7/16"-20 x 1 1/2" Long
23. 822-006C Bearing
24. 310-224D Hub, Spindle
25. 310-176D Grease Tube - Long
26. 800-075C Zerk 5/16"-24
27. 310-299D Shaft, Spindle
28. 310-300D Hub, Blade
29. 890-172C Blade, Mower
890-200C Sand Blade 5/16" x 24 1/2" {Optional}
30. 310-043D Washer, Blade
31. 804-015C Washer, Lock 1/2"
32. 802-326C Bolt, Hex 1/2"-20 x 1 1/4" Long
33. 804-014C Washer, Lock 7/16"
34. 803-115C Nut, Hex 7/16"-20
35. 310-042D Grease Tube - Short
36. 816-074C Belt, Mower
37. 803-006C Nut, Hex 1/4"-20
1/29/04
310-063S Gearbox Subassembly. Includes 1 Each Of Items 1, 5 Through 11; And, 4 Each Of Items 2
Through 4.
310-137S Blade Spindle Hub Assembly. Includes 1 Each Of Items 19 Through 21, 24, 26 Through 28,
& 35; And, 2 Each Of Item 23.
310-139S Blade Spindle Hub Assembly - Long. Includes 1 Each Of Items 19 Through 21, & 24
Through 28; And 2 Each Of Item 23.
310-087S Belt Take-Up Handle. Includes 1 Each Of Items 3, 4, 12, 13, & 16; And, 2 Each Of Item 15.
38. 819-069C Tag, Warning Do Not Operate Without Lube
17
Page 19
1/29/04
COMER GEARBOX
(PART NO. 826-011C)
18
10508
Page 20
COMER GEARBOX (CON’T.)
(PART NO. 826-011C)
Ref. Part No. Description
1. 0.141.0330.00 Casting - Machined
2. 8.4.1.00889 Key, parallel B 10 x 8 x 30
3. 8.0.1.00870 Bearing 6207
4. 8.7.0.00693 Cap
5. 0.141.2100.00 Shaft 1 3/8"
6. 0.141.5000.00 Gear
7. 0.141.7100.00 Spacer
8. 8.5.2.00131 Ring, Snap
9. 8.5.1.00005 Ring, Snap
10. 8.2.2.01144 Nut, Castle
11. 8.3.2.00409 Washer, Bolt
12. 8.5.3.00915 Ring, Snap
13. 8.7.1.00152 Double Lip Seal
14. 0.259.7500.00 Shim
15. 0.141.6001.00 Shaft, Pinion
16. 8.6.5.00006 Plug 3/8"
17. 8.0.1.00000 Bearing
18. 0.141.1300.00 Cover
19. 8.5.3.01057 Ring, Snap
20. 8.7.6.01058 O-Ring
21. 8.7.3.00028 Oil Seal
22. 805-017C Pin, Cotter 3/16" x 1 3/4" Long
23. 310-331D Key 1/4" X 11/16" Long
1/29/04
19
Page 21
1/29/04
IEG GEARBOX
(PART NO. 826-081C)
10891
20
Page 22
IEG GEARBOX (CON’T.)
(PART NO. 826-081C)
Ref. Part No. Description
1. 18-021 Housing
2. 04-004 Ball Bearing #207
3. 09-002 Plug, Pipe 1/2"-14
4. 02-035 Input Shaft
5. 21-012 Retaining Ring
6. 03-036 Input Gear 30 Tooth
7. 08-004A Gasket, Input Cap 0.25 mm
8. 08-004B Gasket, Input Cap 0.10 mm
9. 07-001 Washer, Lock #10
10. 06-012 Screw, Cap #10 x 1.5 x 25
11. 20-007 Input Cap
12. 09-009 Cap Plug
13. 08-005A Gasket, Output Cap 0.25 mm
14. 08-005B Gasket, Output Cap 0.10 mm
15. 20-003 Output Cap
16. 05-005 Output Oil Seal
17. 805-017C Pin, Cotter 3/16" x 1 3/4" Long
18. 11-007 Nut, Slotted Hex 1"-14
19. 07-005 Washer, Blade Hub
20. 03-037 Output Pinion & Shaft 12 Tooth
21. 10-002 Spacer, Bearing
22. 04-003 Ball Bearing #208
23. 05-002 Input Oil Seal
24. 310-331D Key 1/4" x 11/16" Long
25. 811-320C Valve, Relief 1/8"-27
1/29/04
21
Page 23
1/29/04
GAUGE WHEEL ASSEMBLY
22
18643
Page 24
GAUGE WHEEL ASSEMBLY (CON’T.)
Ref. Part No. Description
1. 310-014H Gauge Wheel Arm Weldment
2. 827-002C Spacer 1"
3. 817-048C Bushing, Spindle
4. 827-001C Spacer 1/2"
5. 805-065C Pin, Wire Retaining 1/4" x 1 3/4" Long
6. 310-149H Yoke, Gauge Wheel {Used On Mowers After Serial #59102}
310-003H Yoke, Gauge Wheel {Used On Mowers Before Serial #59101}
7. 802-350C Bolt, Hex 1/2"-20 x 6 1/2" Long {Used On Mowers After Serial #59102}
802-243C Bolt, Hex 1/2"-20 x 5 1/2" Long {Used On Mowers Before Serial #59101}
8. 804-015C Washer, Lock 1/2"
9. 803-018C Nut, Hex 1/2"-20
10. 814-057C Tire, Solid Wheel 3 1/4" x 10 1/4"
11. 310-328D Spacer Tube {Used On Mowers After Serial #59102}
310-025D Spacer Tube {Used On Mowers Before Serial #59101}
12. 310-329D Spacer Tube {Used On Mowers After Serial #59102}
310-024D Spacer Tube - Short {Used On Mowers Before Serial #59101}
13. 802-245C Bolt, Hex 3/8"-24 x 3" Long
14. 804-080C Gauge Wheel Arm Mounting Washer 1 1/2" OD x 13/32" ID
15. 804-013C Washer, Lock 3/8"
16. 803-146C Nut, Hex 3/8"-24
17. 310-080H Gauge Wheel Arm - Dual
18. 310-047H Gauge Wheel Arm - Single
19. 802-294C Bolt, Hex 3/8"-24 x 1 1/4" Long
20. 804-012C Washer, Flat 3/8"
21. 800-001C Zerk, Grease Straight
22. 800-100C Zerk, Staked
23. 890-189C Bushing 3/4" ID 1 3/8" OD x 1" Long
87010 Bushing 3/4" ID 1 1/8" OD x 5/8" Long
1/29/04
NOTE: Item #23 Will Require A Dimension Check Before Ordering.
310-017S Gauge Wheel & Yoke Subassembly. Includes 1 Each Of Items 4 Through 11; 2 Each Of
Item 12; And, 4 Each Of Item 2.
310-064S Gauge Wheel Arm Subassembly. Includes 1 Each Of Items 1 & 20; And, 2 Each Of Item 3.
310-078S Single Rear Gauge Wheel Arm Subassembly. Includes 1 Each Of Items 17 & 20; And, 2
Each Of Item 3.
310-083S Dual Rear Gauge Wheel Arm Subassembly. Includes 1 Each Of Items 16 & 20; And, 2 Each
Of Item 3.
23
Page 25
1/29/04
POWER TAKE-OFF
(PART NO. 826-012C)
Ref. Part No. Description
1. 380905 End Yoke
2. 381908 Quick Disconnect Yoke
3. 044439 Cross & Bearing Kit
4. 041065 Inboard Yoke
5. 020614 Spring Pin
6. 054484 Inner Profile
7. 377234 Shield Cone - 4 Rib
8. 087279 Bearing Ring
9. 387332 Outer Shield Tube With Cap
10. 387266 Inner Shield Tube With Cap
11. 377240 Shield Cone - 10 Rib
12. 054482 Outer Profile
13. 041068 Inboard Yoke
14. 365305 Screw
15. 044321 Safety Chain
16. 383334 Danger Decal - Steel
17. 383333 Danger Decal - Shield
24
Page 26
OPTIONS
FRONT ANTI-SCALPING ROLLER
(PART NO. 310-077S)
1/29/04
Ref. Part No. Description
1. 817-049C 4" x 10" Roller
2. 310-076H Left Hand Mount Bracket
3. 310-190D Right Hand Mount Bracket
4. 803-114C Nut, Lock 3/4"-16 Nylock Collar
5. 801-043C Screw, Pan Head 3/8"-16 x 1" Long
6. 804-013C Washer, Lock 3/8"
7. 803-014C Nut, Hex 3/8"-16
310-077S Front Roller Package. Includes 1 Each Of Items 1 Through 4; And, 4 Each Of Items 5
Through 7.
25
Page 27
1/29/04
OPTIONS
CHAIN KIT
(PART NO. 310-038S)
Ref. Part No. Description
1. 310-117D Chain Bracket - Lower
2. 310-032H Lift Chain
3. 817-057C Cap Plug
26
Page 28
DECAL PLACEMENT
ROTATING DRIVELINE
KEEP AWAY!
1/29/04
Ref. Part No. Description
310-086A FD/AT SAFETY DECAL PACKAGE Complete safety decal package
310-079A FD/AT2548 DECAL PACKAGE Complete decal package
1. 818-165C LP LOGO SMALL BUCKSKIN
2. 818-552C DECAL DANGER PTO DRIVELINE
3. 818-139C DECAL PTO FD/AT {826-012C}
4. 818-540C DECAL DANGER GUARD MISS PTO
5. 818-162C LP LOGO LARGE GREEN
6. 818-190C DECAL FLAG
7. 818-087C DECAL 48 LP - BLACK
8. 818-085C DECAL 25 SERIES LP - BLACK
9. 818-230C DECAL RED REFLECTOR
10. 818-560C DECAL NOTICE TO OWNER-NO WARRA
11. 818-557C DECAL DANGER CANNOT READ ENG
12. 818-558C DECAL WARNING GEN SAFE MOWER
13. 818-130C DECAL CAUTION 540 RPM
14. 818-142C DECAL DANGER PTO DRIVELINE EN
15. 818-159C DECAL 48 V-BELT INSTALLATION
16. 818-555C DECAL DANGER ROTATE BLADE
17. 818-556C DECAL DANGER THROWN OBJ CUTTER
18. 819-036C I.D. PLATE - LAND PRIDE (NOT REPLACEABLE)
19. 818-138C DECAL GREASE EVERY 25 HOURS
ROTATING DRIVELINE
KEEP AWAY!
27
10502
Page 29
1/29/04
NOTES
28
Page 30
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
