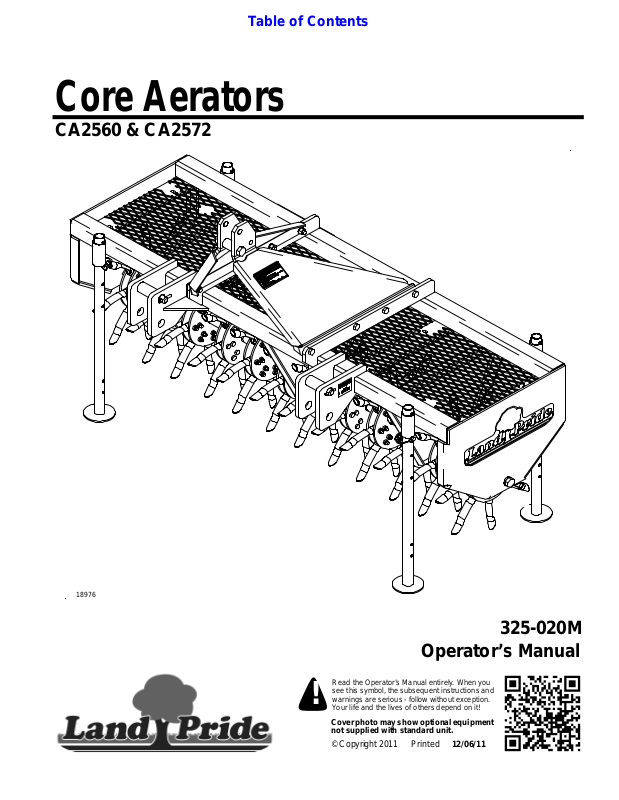

Core Aerators
CA2560 & CA2572
18976
Operator’s Manual
Read the Operator’sManual entirely.When you
see this symbol, the subsequent instructions and
warnings are serious - follow without exception.
!
Your life and the lives of others depend on it!
Coverphoto may show optional equipment
not supplied with standard unit.
© Copyright 2011 Printed
325-020M
12/06/11
Table of Contents
Table of Contents
Important Safety Information . . . . . . . . . . .1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look For The Safety Alert Symbol . . . . . . . . . . . . .1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . .5
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 5
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . 5
Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Further Assistance . . . . . . . . . . . . . . . . . . . . . .6
Section 1: Assembly and Set-Up . . . . . . . .7
General Description . . . . . . . . . . . . . . . . . . . . . . . . 7
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Unloading Instructions . . . . . . . . . . . . . . . . . . . . . . 7
Torque Requirements . . . . . . . . . . . . . . . . . . . . . .7
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . 7
Hitch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Optional Weight Tanks . . . . . . . . . . . . . . . . . . . . .8
Section 2: Adjustments . . . . . . . . . . . . . . .9
Parking Stands . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Storage Position Without Added Weight . . . . . .9
Storage Position With Added Weight . . . . . . . . 9
Working Position . . . . . . . . . . . . . . . . . . . . . . . . 9
Section 3: Operating Instructions . . . . . 10
Pre-Start Checklist . . . . . . . . . . . . . . . . . . . . . . . . 10
Operator Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Equipment Safety . . . . . . . . . . . . . . . . . . . . . . . .10
Tractor Hook-Up . . . . . . . . . . . . . . . . . . . . . . . . . 11
Quick Hitch Hook-Up . . . . . . . . . . . . . . . . . . . . . . 11
Leveling Adjustments . . . . . . . . . . . . . . . . . . . . . . 12
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Un-hooking Core Aerator . . . . . . . . . . . . . . . . . . . 12
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
General Operation Instructions . . . . . . . . . . . . . . 13
Section 4: Options . . . . . . . . . . . . . . . . . .14
Weight Tanks . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Section 5: Maintenance and Lubrication 15
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Cleaning the Spoons . . . . . . . . . . . . . . . . . . . .15
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Rotor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Section 6: Specifications & Capacities .16
Section 7: Features & Benefits . . . . . . . .17
Section 8: Troubleshooting . . . . . . . . . .18
Section 9: Torque Values Chart . . . . . . . .19
Section 10: Warranty . . . . . . . . . . . . . . . .21
© Copyright 2011 All rights Reserved
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparationof this manual,Land Pride assumesno responsibility forerrors oromissions. Neither isany liabilityassumedfor damagesresulting from theuse
oftheinformation contained herein. LandPridereservesthe right to reviseandimprove its productsasit sees fit. This publicationdescribes the state of this
product at the time of its publication, and may not reflect the product in the future.
All other brands and product names are trademarks or registered trademarks of their respective holders.
CA2560 & CA2572 Core Aerators 325-020M
Land Pride is a registered trademark.
Printed in the United States of America.
12/06/11
▲
Table of Contents
Important Safety Information
Important Safety Information
These are common practices that may or may not be applicable to the products described in
this manual.
Safety at All Times
Thoroughly read and understand
the instructions given in this
manual before operation. Refer to
the “Safety Label” section, read
all instructions noted on them.
Do not allow anyone to operate
this equipment who has not fully
read and comprehended this
manual and who has not been
properly trained in the safe
operation of the equipment.
▲ Operator should be familiar with
all functions of the unit.
▲ Operate implement from the
driver’s seat only.
▲ Make sure all guards and shields
are in place and secured before
operating implement.
▲ Do not leave tractor or implement
unattended with engine running.
▲ Dismounting from a moving
tractor could cause serious injury
or death.
▲ Do not allow anyone to stand
between tractor and implement
while backing up to implement.
▲ Keep hands, feet, and clothing
away from power-driven parts.
▲ Wear snug fitting clothing to avoid
entanglement with moving parts.
▲ Watch out for wires, trees, etc.,
when raising implement. Make
sure all persons are clear of
working area.
▲ Turning tractor too tight may
cause implement to ride up on
wheels. This could result in injury
or equipment damage.
▲ Do not carry passengers on
implement at any time.
Look For The Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control and accident prevention
!
Be Aware of
Signal Words
A Signal word designates a degree or
level of hazard seriousness. The
signal words are:
!
DANGER
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury. This
signal word is limited to the most
extreme situations, typically for
machine components that, for
functional purposes, cannot be
guarded.
For Your Protection
▲ Thoroughly read and understand
the “Safety Label” section, read all
instructions noted on them.
are dependent upon the awareness, concern,
prudence and proper training of personnel involvedin
the operation, transport, maintenance and storage of
equipment.
!
WARNING
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It may also
be used to alert against unsafe
practices.
!
CAUTION
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.
Shutdown and Storage
▲ Lower machine to ground, put
tractor in park, turn off engine, and
remove the key.
▲ Detach and store implements in a
area where children normally do
not play. Secure implement by
using blocks and supports.
OFF
12/06/11
Parts Manual QR Locator
The QR (Quick Reference) code on the front
cover and to the left will take you to the
Parts Manual for this equipment. Download
the appropriate App on your smart phone,
open the App, point your phone on the QR
code and take a picture.
REMO
VE
Dealer QR Locator
The QR code on the left will
link you to available dealers
for Land Pride products.
Refer to Parts Manual
QR Locator on this page for
detailed instructions.
CA2560 & CA2572 Core Aerators 325-020M
1
Table of Contents
Important Safety Information
These are common practices that may or may not be applicable to the products described in
this manual.
Use Safety
Lights and Devices
▲ Slow moving tractors, self-
propelled equipment, and towed
implements can create a hazard
whendriven on publicroads.They
are difficult to see, especially at
night.
▲ Flashing warning lights and turn
signals are recommended
whenever driving on public roads.
Transport
Machinery Safely
▲ Comply with state and local laws.
▲ Maximum transport speed for
implement is 20 mph. DO NOT
EXCEED.Never travel at a speed
which does not allow adequate
control of steering and stopping.
Some rough terrain require a
slower speed.
▲ Sudden braking can cause a
towed load to swerve and upset.
Reduce speed if towed load is not
equipped with brakes.
▲ Use the following maximum
speed - tow load weight ratios as
a guideline:
20 mph when weight is less
than or equal to the weight of
tractor.
10 mph when weight is double
the weight of tractor.
▲ IMPORTANT: Do not tow a load
that is more than double the
weight of tractor.
Use A Safety Chain
▲ A safety chain will help control
drawn machinery should it
separate from the tractor
drawbar.
▲ Use a chain with the strength
rating equal to or greater than
the gross weight of the towed
machinery.
▲ Attach the chain to the tractor
drawbar support or other
specified anchor location. Allow
only enough slack in the chain
to permit turning.
▲ Do not use safety chain for
towing.
Practice Safe Maintenance
▲ Understand procedure before doing
work. Use proper tools and
equipment, refer to Operator’s
Manual for additional information.
▲ Work in a clean dry area.
▲ Lower the implement to the ground,
put tractor in park, turn off engine,
and remove key before performing
maintenance.
▲ Allow implement to cool completely.
▲ Do not grease or oil implement
while it is in operation.
▲ Inspect all parts. Make sure parts
are in good condition & installed
properly.
▲ Remove buildup of grease, oil or
debris.
▲ Remove all tools and unused
parts from implement before
operation.
CA2560 & CA2572 Core Aerators 325-020M
2
12/06/11
Table of Contents
Important Safety Information
These are common practices that may or may not be applicable to the products described in
this manual.
Prepare for Emergencies
▲ Be prepared if a fire starts.
▲ Keep a first aid kit and fire
extinguisher handy.
▲ Keep emergency numbers for
doctor, ambulance, hospital and
fire department near phone.
911
Wear
Protective Equipment
▲ Wear protective clothing and
equipment appropriate for the job.
Avoid loose fitting clothing.
▲ Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
▲ Operating equipment safely
requires the full attention of the
operator. Avoid wearing radio
headphones while operating
machinery.
Keep Riders
Off Machinery
▲ Riders obstruct the operator’s
view they could be struck by
foreign objects or thrown from the
machine.
▲ Never allow children to operate
equipment.
Avoid High
Pressure Fluids Hazard
▲ Escaping fluidunder pressure can
penetrate the skin causing
serious injury.
▲ Avoid the hazard by relieving
pressure before disconnecting
hydrauliclines or performing work
on the system.
▲ Make sure all hydraulic fluid
connections are tight and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
▲ Use a piece of paper or
cardboard, NOT BODY PARTS, to
check for suspected leaks.
▲ Wear protective gloves and safety
glasses or goggles when working
with hydraulic systems.
▲ If an accident occurs, see a
doctor immediately. Any fluid
injected into the skin must be
treated within a few hours or
gangrene may result.
12/06/11
CA2560 & CA2572 Core Aerators 325-020M
3
Important Safety Information
Table of Contents
Safety Labels
Your Core Aerator comes equipped with all safety labels in
place. They were designed to help you safely operate your
implement. Read and follow their directions.
1. Keep all safety labels clean and legible.
2. Replace all damaged or missing labels. To order new
labels go to your nearest Land Pride dealer or visit our
dealer locator at landpride.com.
3. Some new equipment installed during repair require safety
labels to be affixed to the replaced component as specified
by Land Pride. When ordering new components make sure
the correct safety labels are included in the request. To
order new labels go to your Land Pride Dealer.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean the area the label is to be placed.
b. Spray soapy water on the surface where the label is to
be placed.
c. Peel backing from label. Press firmly onto the surface.
d. Squeeze out air bubbles with the edge of a credit card.
18976
818-719C
General Caution Decal
CA2560 & CA2572 Core Aerators 325-020M
4
12/06/11
Table of Contents
Introduction
Introduction
Land Pride welcomes you to the growing family of new
product owners.
This Core Aeratorhas been designed with care and built
by skilled workers using quality materials. Proper
assembly,maintenance,andsafeoperatingpractices will
help you get years of satisfactor y use from the Aerator.
Terminology
“Right” or “Left” as used in this manual is determined by
facingthe direction the machine will operate while in use
unless otherwise stated.
Definitions
Application
The Land Pride 25 Series Core Aerators are designed
for Category 1 - three-point hitch or Quick-Hitch System
mounting. The 25 Series Core Aerators are adapted for
attachment to tractors capable of properly lifting,
lowering, and transporting up to 1200 lbs. on the threepoint hitch. These Aerators come in 60" and 72" working
widths.
The 25 Series Core Aerators are designed to relievesoil
compaction and allow air circulation in grassy surfaces
such as lawns, soccer fields, football fields, baseball
fields, municipal parks, and golf course fairways.The 25
seriesAerators utilizereplaceablecasehardened closed
spoons mounted on weighted rotating discs. These
spoons pull cores up to 3" in length from the soil profile
every 7" of forward travel. The lateral gang spacing on
the CA256 is 5 1/2" and 6 1/2" on the CA2572. Pulled
cores are deposited on the surface for subsequent
drying, pulverization, or removal. In order to achieve
maximum penetration the CA2560 & CA2572 offer
optional poly water tanks that fit in the top mounted
weight trays. When filled with water these tanks provide
significantly increased down pressure on the spoons.
When your turf begins to sufferthe effectsof compaction
and wear, such as shallow root zones, thatch build-up,
worn pathways, rock hard ground, poor surface
percolation, or water stands, a Land Pride 25 Series
Core Aerator will help provide seasonal relief.
See “Specifications & Capacities” on page 16 and
“Features & Benefits” on page 17 for additional
information and performance enhancing options.
IMPORTANT: A special point of information related
to the following topic. Land Pride’s intention is this
information must be read & noted beforecontinuing.
NOTE: A special point of information that the
operator should be aware of before continuing.
Owner Assistance
The Warranty Registration card should be filled out by
the dealer at the time of purchase. This information is
necessary to provide you with quality customer service.
If customer service or repair parts are required contact a
LandPride Dealer.A dealer hastrainedpersonnel, repair
parts and equipment needed to service the implement.
The parts on your CA25 Ser ies Core Aerator have been
specially designed and should only be replaced with
genuine Land Pride parts. Therefore, should your
Aerator require replacement parts go to your Land Pride
Dealer.
Serial Number
Model No. _____________Serial No. _______________
For quick reference and prompt service, record model
number and ser ial number in the spaces provided above
and again on warranty page 19. Always provide model
numberand serial number when ordering parts and in all
correspondences with your Land Pr ide dealer. Refer to
Figure 1 for location of your serial number plate.
Using This Manual
•
This Operator’s Manual is designed to help familiarize
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
• The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
• To order a new Operator’s or Parts Manual contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge from our website at
www.landpride.com.
12/06/11
Serial Number Plate Location
Figure 1
CA2560 & CA2572 Core Aerators 325-020M
18976
5
Table of Contents
Introduction
Further Assistance
Yourdealer wants you to be satisfied with your new Core
Aerator.If for any reason youdo not understandany part
of this manual or are not satisfied with the service
received, the following actions are suggested:
1. Discuss the matter with your dealership ser vice
manager making sure he is aware of any problems
youmay haveand that he has had the oppor tunity to
assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.
3. For further assistance write to:
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpservicedept@landpride.com
CA2560 & CA2572 Core Aerators 325-020M
6
12/06/11
Loading...
