Page 1
Table of Contents Part Number Index
Core Aerators
CA2548, CA2560, CA2572
18984
325-020P
Parts Manual
Read the Operator's manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!
© Copyright 2009 Printed 01/20/09
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
AERATORS
Section 2: Frame............................................................6
Frame, Hitch and Rotor.......................................................6
Section 3: Rotors...........................................................8
Rotor Assembly...................................................................8
Section 4: Labels.........................................................10
Label Placement...............................................................10
Section 5: Options.......................................................12
Water Tanks.......................................................................12
Part Number Index.......................................................14
© Copyright 2009. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 CA2548, CA2560, CA2572 Core Aerators 325-020P 01/20/09
Land Pride is registered trademark.
Printed in the United States of America.
Page 3
Table of Contents Part Number Index
AERATORS
F
Frame, Hitch and Rotor..................................................6
L
Label Placement..........................................................10
R
Rotor Assembly..............................................................8
W
Water Tanks..................................................................12
Alphabetized Table of Contents
01/20/09 CA2548, CA2560, CA2572 Core Aerators 325-020P 3
Page 4
Table of Contents Part Number Index
4 CA2548, CA2560, CA2572 Core Aerators 325-020P 01/20/09
Page 5
Table of Contents Part Number Index
01/20/09 CA2548, CA2560, CA2572 Core Aerators 325-020P 5
Page 6
Land Pride Section 2: Frame
AERATORS
Table of Contents Part Number Index

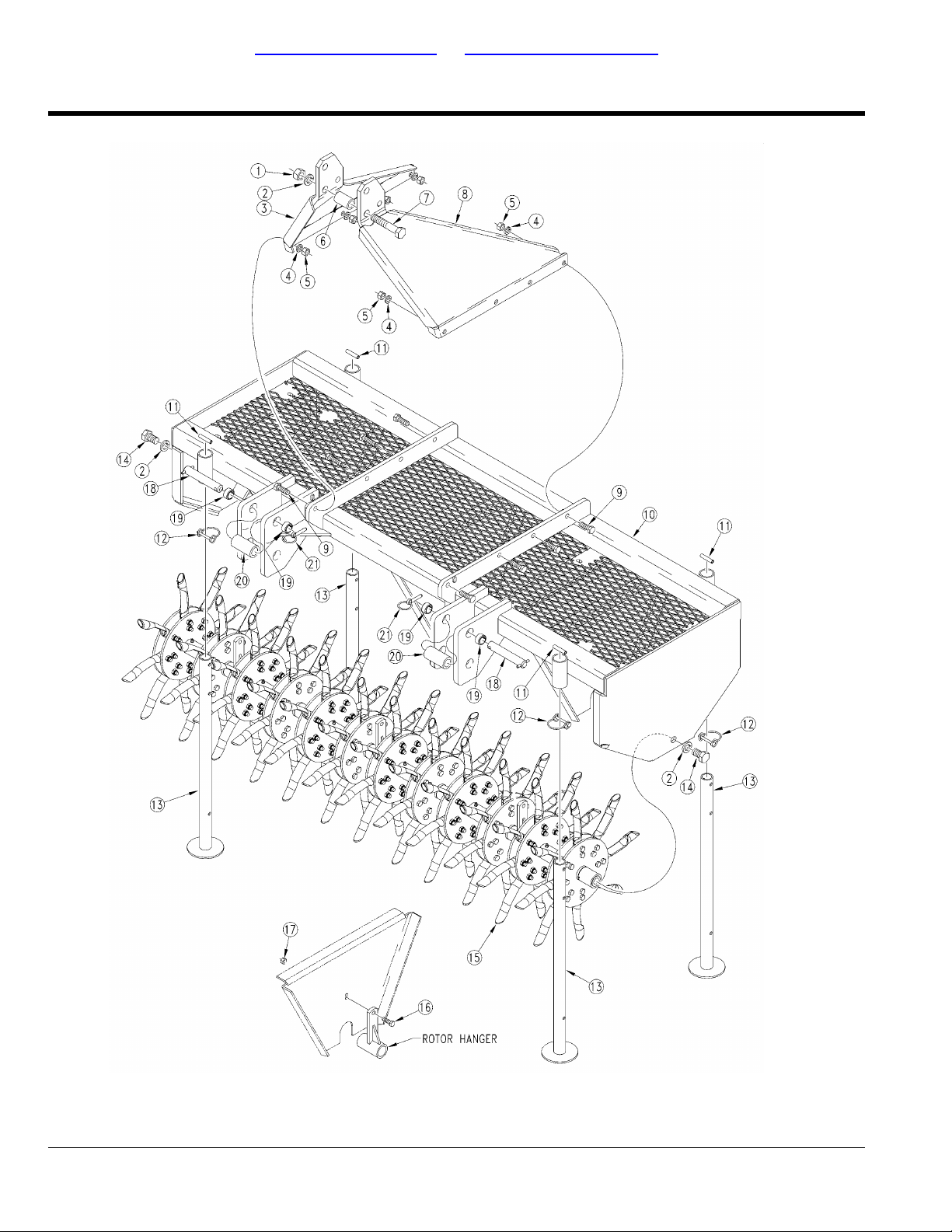

Frame, Hitch and Rotor
Applies to CA2548, CA2560, CA2572
19025
6 CA2548, CA2560, CA2572 Core Aerators 325-020P 01/20/09
Page 7
Section 2: Frame Land Pride
Table of Contents Part Number Index
AERATORS
Frame, Hitch and Rotor
Applies to CA2548, CA2560, CA2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19025
NUT HEX 3/4-10 PLT803-027C1.
WASHER LOCK SPRING 3/4 PLT804-023C2.
RH UPPER HITCH WELD325-008E3.
RH UPPER HITCH WELD ORANGE325-008E823.
WASHER LOCK SPRING 1/2 PLT804-015C4.
NUT HEX 1/2-13 PLT803-020C5.
SPACER 1 1/4OD X 25/32ID X 2LG308-400D6.
HHCS 3/4-10X4 GR5802-068C7.
LH UPPER HITCH WELD325-007E8.
LH UPPER HITCH WELD ORANGE325-007E828.
HHCS 1/2-13X1 1/2 GR5802-091C9.
48 AERATOR FRAME WELDMENT325-011H10.
48 AERATOR FRAME WMT ORANGE325-011H8210.
SHOWN60 AERATOR FRAME WELDMENT325-014H10.
60 AERATOR FRAME WMT ORANGE325-014H8210.
72 AERATOR FRAME WELDMENT325-004H10.
72 AERATOR FRAME WMT ORANGE325-004H8210.
PIN ROLL 3/8 X 1 3/4 LG PLT805-161C11.
PIN WIRE RETAINING 1/4 X 1 3/4805-065C12.
SUPPORT STAND WELDMENT RB35/25300-171H13.
SPRT STND LR&RB15/25/35 ORANGE300-171H8213.
HHCS 3/4-10X1 1/4 GR5802-573C14.
48 AERATOR ROTOR ASSY325-010K15.
SHOWN60 AERATOR ROTOR ASSY325-013K15.
72 AERATOR ROTOR ASSY325-003K15.
HHCS 3/8-16X1 1/4 GR5802-079C16.
NUT FLANGE LOCK 3/8-16 PLT803-209C17.
LOWER HITCH PIN 7/8 X 5 5/8303-017S18.
S/N ______-BUSHING 1 1/8 X 7/8 X 5/8890-144C19.
QH ADAPTOR TUBE325-017D20.
PIN LYNCH 5/16 X 1 3/4805-015C21.
01/20/09 CA2548, CA2560, CA2572 Core Aerators 325-020P 7
Page 8
Land Pride Section 3: Rotors
AERATORS
Table of Contents Part Number Index

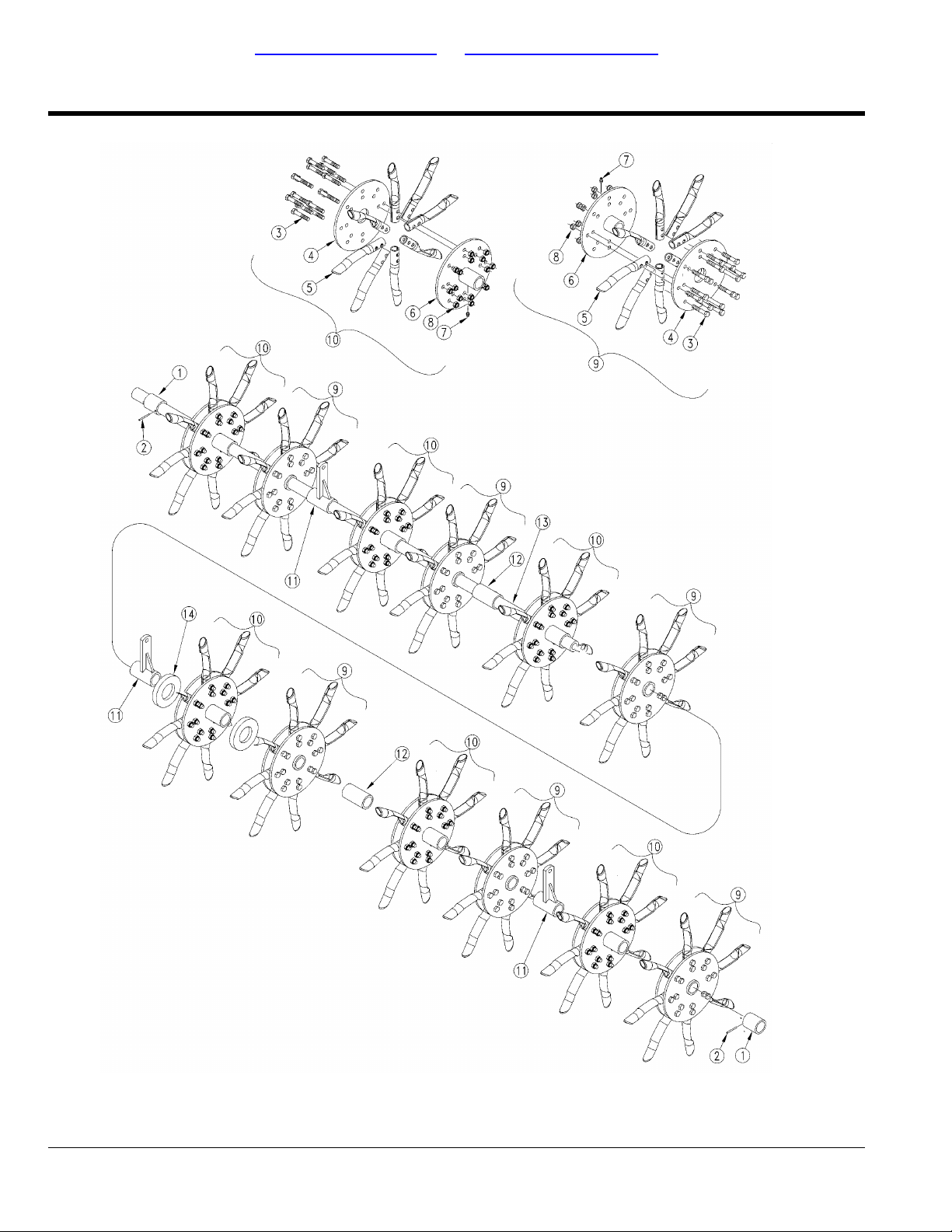

Rotor Assembly
Applies to CA2548, CA2560, CA2572
19026
8 CA2548, CA2560, CA2572 Core Aerators 325-020P 01/20/09
Page 9
Section 3: Rotors Land Pride
Table of Contents Part Number Index
AERATORS
Rotor Assembly
Applies to CA2548, CA2560, CA2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19026
SHANK MTG. SPACER SH.325-005D1.
PIN ROLL 1/8 X 1 1/4 LG. PLT805-136C2.
HHCS 3/8-24 X 2 GR5 PLT802-621C3.
SHANK MOUNT PLATE325-001D4.
3/4 HARDEN AERATOR SPOON820-231C5.
SINGLE HUB SHANK WELDMENT325-016H6.
GREASE ZERK 1/4-28 THD FORMING800-080C7.
NUT HEX NYLOCK 3/8-24 PLT803-305C8.
SINGLE HUB WHEEL SUB LH325-018S9.
SINGLE HUB WHEEL SUB RH325-017S10.
CA2560 (SHOWN)ROTOR HANGER BEARING 60325-015H11.
CA2548 & CA2572ROTOR HANGER BEARING325-006H11.
CA2560SHANK MTG. SPACER 60 SHORT325-029D12.
CA2548 & CA2572SHANK MTG. SPACER LG. 48-72325-028D12.
48 ROTOR SHAFT325-021D13.
SHOWN60 ROTOR SHAFT325-025D13.
72 ROTOR SHAFT325-006D13.
WASHER FLAT 1 1/4 SAE PLT804-039C14.
SN 338123+ 22 Ea CA2572, 16 Ea
CA2560 & 10 Ea CA2548
01/20/09 CA2548, CA2560, CA2572 Core Aerators 325-020P 9
Page 10
Land Pride Section 4: Labels
AERATORS
Table of Contents Part Number Index

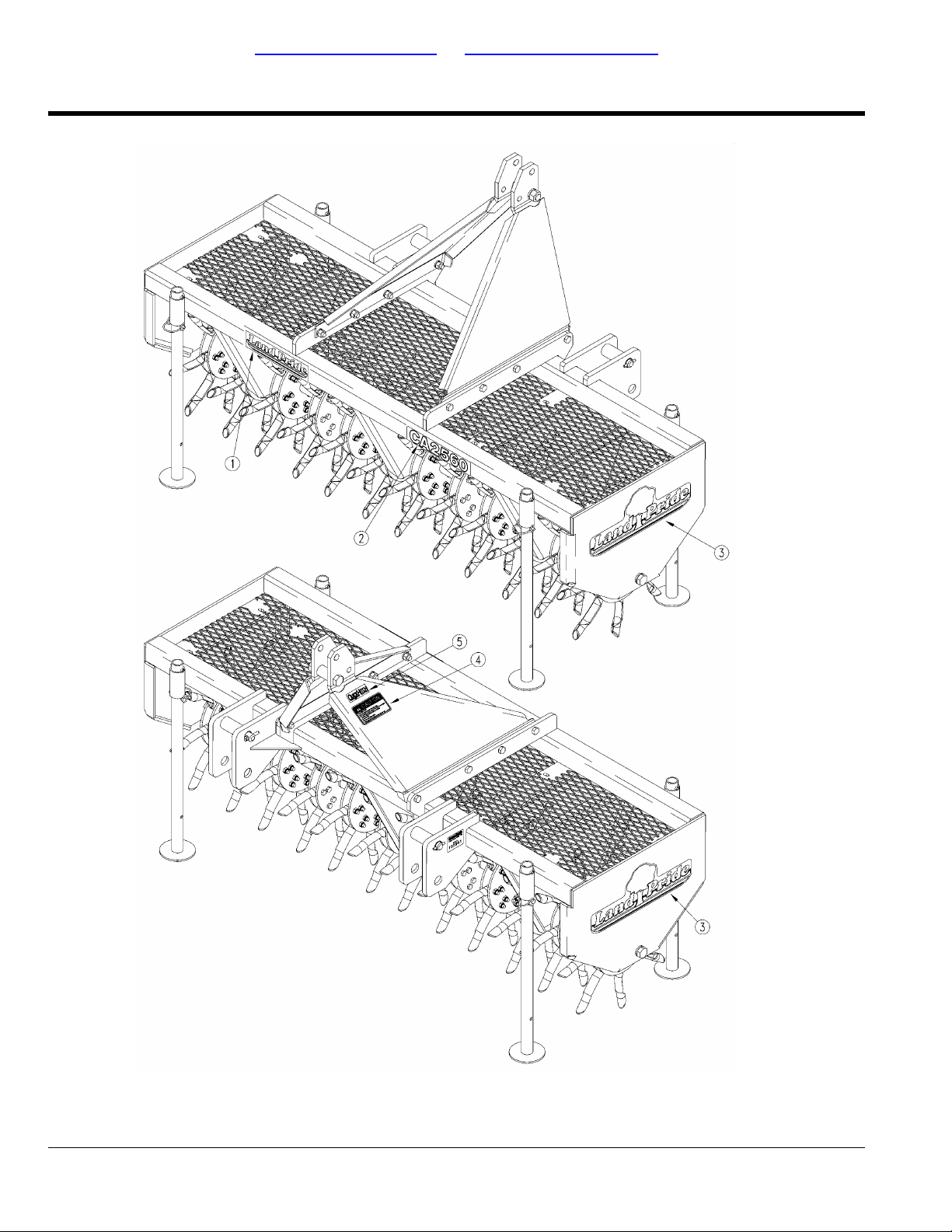

Label Placement
Applies to CA2548, CA2560, CA2572
19027
10 CA2548, CA2560, CA2572 Core Aerators 325-020P 01/20/09
Page 11
Section 4: Labels Land Pride
Table of Contents Part Number Index
AERATORS
Label Placement
Applies to CA2548, CA2560, CA2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg 19027
Beige UnitDECAL LANDPRIDE 10" - BROWN818-897C1.
Orange UnitDECAL LANDPRIDE 10" BROWN/GOLD848-159C1.
Beige UnitDECAL CA2548838-254C2.
Orange UnitDECAL CA2548-GOLD848-259C2.
Beige UnitDECAL CA2560838-255C2.
Orange UnitDECAL CA2560-GOLD848-191C2.
Beige UnitDECAL CA2572838-256C2.
Orange UnitDECAL CA2572-GOLD848-192C2.
Beige UnitDECAL LP W/TREE 16" - 2 COLOR818-893C3.
Orange UnitDECAL LP 16" W/TREE BROWN/GOLD838-964C3.
DECAL CAUTION GENERAL INSTR818-719C4.
DECAL QUICK HITCH SYSTEM838-517C5.
01/20/09 CA2548, CA2560, CA2572 Core Aerators 325-020P 11
Page 12
Land Pride Section 5: Options
AERATORS
Table of Contents Part Number Index

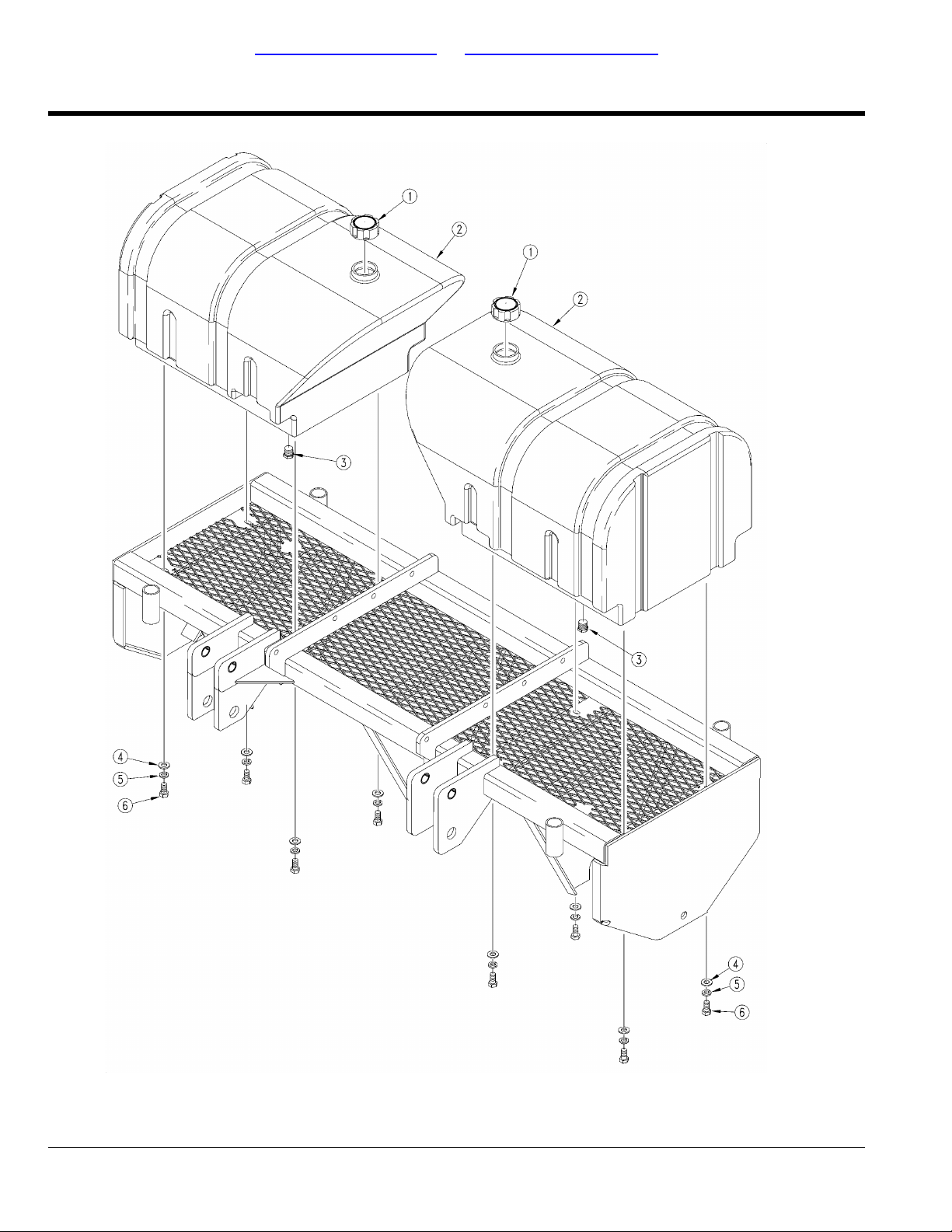

Water Tanks
Applies to CA2560, CA2572
19028
12 CA2548, CA2560, CA2572 Core Aerators 325-020P 01/20/09
Page 13
Section 5: Options Land Pride
Table of Contents Part Number Index
AERATORS
Water Tanks
Applies to CA2560, CA2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19028
CA/CR2560 WEIGHT TANK BUNDLE325-026A
CA/CR2572 WEIGHT TANK BUNDLE325-025A
KELCH H63500B TOP VENT CAP817-439C1.
SHOWNCA2560 WATER TANK817-435C2.
CA2572 WATER TANK817-434C2.
PLUG DRAIN 1/2-14 NPT817-440C3.
WASHER FLAT 3/8 USS PLT804-011C4.
WASHER LOCK SPRING 3/8 PLT804-013C5.
HHCS 3/8-16X1 GR5802-017C6.
01/20/09 CA2548, CA2560, CA2572 Core Aerators 325-020P 13
Page 14
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
7300-171H ...................
7300-171H82 ...............
7303-017S ...................
7308-400D ...................
9325-001D ...................
7325-003K ...................
7325-004H ...................
7325-004H82 ...............
9325-005D ...................
9325-006D ...................
9325-006H ...................
7325-007E ...................
7325-007E82 ...............
7325-008E ...................
7325-008E82 ...............
7325-010K ...................
7325-011H ...................
7325-011H82 ...............
7325-013K ...................
7325-014H ...................
7325-014H82 ...............
9325-015H ...................
9325-016H ...................
7325-017D ...................
9325-017S ...................
9325-018S ...................
9325-021D ...................
13325-025A ...................
9325-025D ...................
13325-026A ...................
9325-028D ...................
9325-029D ...................
9800-080C ...................
13802-017C ...................
7802-068C ...................
7802-079C ...................
7802-091C ...................
7802-573C ...................
9802-621C ...................
7803-020C ...................
7803-027C ...................
7803-209C ...................
9803-305C ...................
13804-011C ...................
13804-013C ...................
7804-015C ...................
7804-023C ...................
9804-039C ...................
7805-015C ...................
7805-065C ...................
9805-136C ...................
7805-161C ...................
13817-434C ...................
13817-435C ...................
13817-439C ...................
13817-440C ...................
11818-719C ...................
11818-893C ...................
11818-897C ...................
9820-231C ...................
11838-254C ...................
11838-255C ...................
11838-256C ...................
11838-517C ...................
11838-964C ...................
11848-159C ...................
11848-191C ...................
11848-192C ...................
11848-259C ...................
7890-144C ...................
11dwg 19027 .................
7dwg19025 ..................
9dwg19026 ..................
13dwg19028 ..................
14 CA2548, CA2560, CA2572 Core Aerators 325-020P 01/20/09
Page 15
Table of Contents Part Number Index
This Page Intentionally Left Blank
01/20/09 CA2548, CA2560, CA2572 Core Aerators 325-020P 15
