Page 1
Table of Contents Part Number Index
Core Aerators
CA0540, CA0548 & CA0556
27940
325-108P
Parts Manual
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2010 Printed 01/20/10
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
CA05 SERIES
Section 2: Frame & Hitch..............................................6
Frame & Hitch Components CA0540..................................6
Frame & Hitch Components CA0548 & 0556......................8
Section 3: Rotors.........................................................10
Rotor Assembly CA05.......................................................10
Section 4: Labels.........................................................12
Label Placement...............................................................12
Section 5: Options.......................................................14
Transport Axle Side Mount................................................14
Part Number Index.......................................................16
© Copyright 2010. All rights reserved.
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 CA0540, CA0548 & CA0556 Core Aerators 325-108P 01/20/10
Land Pride is registered trademark.
Printed in the United States of America.
Page 3
Table of Contents Part Number Index
CA05 SERIES
F
Frame & Hitch Components CA0540.............................6
Frame & Hitch Components CA0548 & 0556.................8
L
Label Placement..........................................................12
R
Rotor Assembly CA05..................................................10
T
Transport Axle Side Mount...........................................14
Alphabetized Table of Contents
01/20/10 CA0540, CA0548 & CA0556 Core Aerators 325-108P 3
Page 4
Table of Contents Part Number Index
4 CA0540, CA0548 & CA0556 Core Aerators 325-108P 01/20/10
Page 5
Table of Contents Part Number Index
01/20/10 CA0540, CA0548 & CA0556 Core Aerators 325-108P 5
Page 6
Land Pride Section 2: Frame & Hitch
CA05 SERIES
Table of Contents Part Number Index

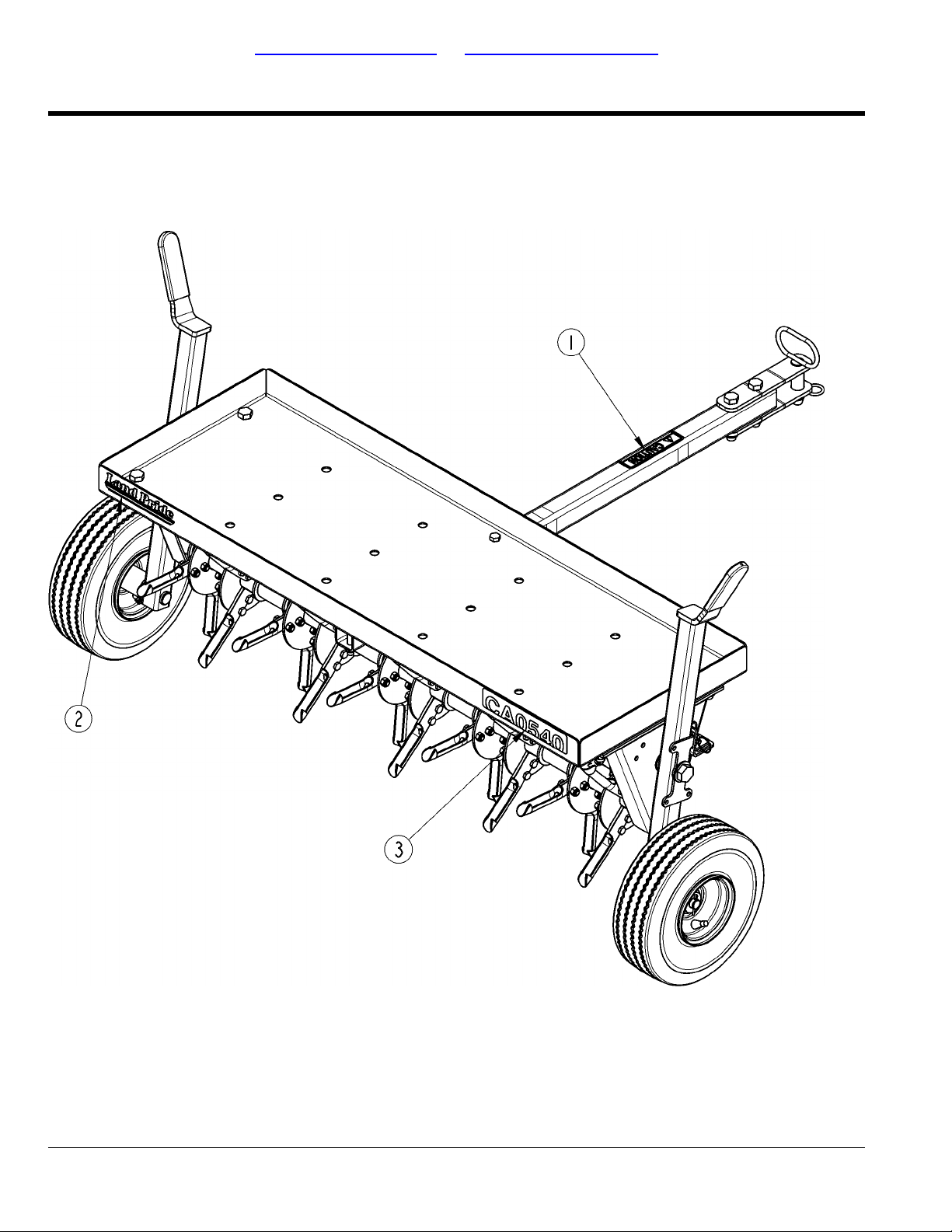

Frame & Hitch Components CA0540
Applies to CA0540
27933
6 CA0540, CA0548 & CA0556 Core Aerators 325-108P 01/20/10
Page 7
Section 2: Frame & Hitch Land Pride
Table of Contents Part Number Index
CA05 SERIES

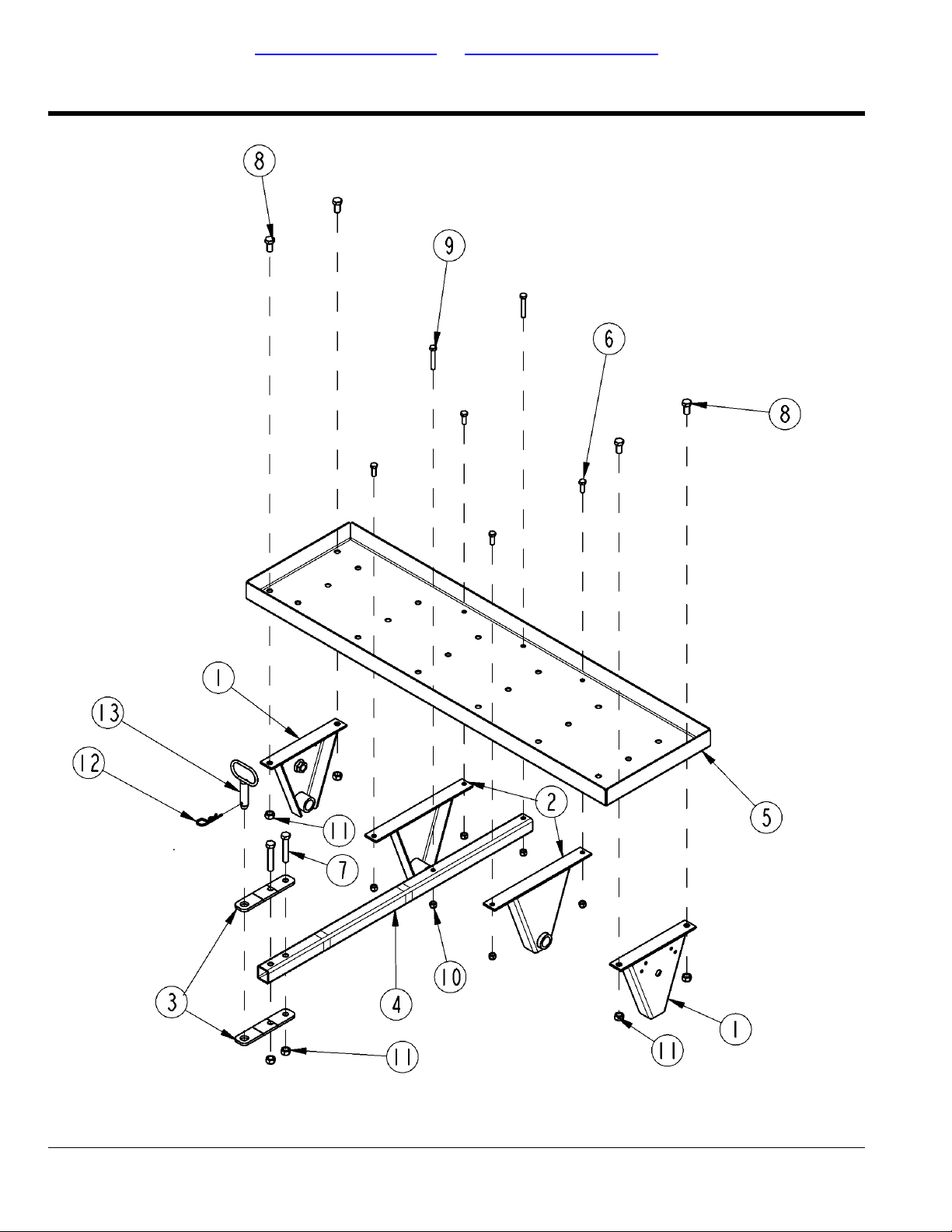

Frame & Hitch Components CA0540
Applies to CA0540
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27933
WMT, END PANEL325-097H1.
WMT, END PANEL325-097H1.
325-097H821.
WMT, END PANEL ORANGE325-097H821.
STRAP, HITCH TONGUE325-162D2.
STRAP, HITCH TONGUE ORANGE325-162D822.
TUBE, PULL HITCH325-166D3.
TUBE, PULL HITCH ORANGE325-166D823.
WEIGHT TRAY, CA0540325-238D4.
WEIGHT TRAY, CA0540 ORANGE325-238D824.
HHCS 1/2-13X2 3/4 GR5802-226C5.
HHCS 1/2-13X1 GR5802-258C6.
HHCS 3/8-16X2 1/4 GR5802-382C7.
NUT LOCK 3/8-16 NYLON INSERT803-078C8.
NUT HEX NYLOCK 1/2-13803-147C9.
PIN HAIR COTTER .148 WIRE805-032C10.
PIN 3/4OD X 2 7/32 USBL W/HNDL805-202C11.
01/20/10 CA0540, CA0548 & CA0556 Core Aerators 325-108P 7
Page 8
Land Pride Section 2: Frame & Hitch
CA05 SERIES
Table of Contents Part Number Index
Frame & Hitch Components CA0548 & 0556
Applies to CA0548, CA0556
27936
8 CA0540, CA0548 & CA0556 Core Aerators 325-108P 01/20/10
Page 9
Section 2: Frame & Hitch Land Pride
Table of Contents Part Number Index
CA05 SERIES
Frame & Hitch Components CA0548 & 0556
Applies to CA0548, CA0556
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27936
WMT, END PANEL325-097H1.
WMT, END PANEL ORANGE325-097H821.
WMT, CENTER SUPPORT325-107H2.
WMT, CENTER SUPPORT ORANGE325-107H822.
STRAP, HITCH TONGUE325-162D3.
STRAP, HITCH TONGUE ORANGE325-162D823.
TUBE, PULL HITCH325-166D4.
BENT TUBE, PULL HITCH ORANGE325-166D824.
WEIGHT TRAY, CA0548325-239D5.
WEIGHT TRAY, CA0548 ORANGE325-239D825.
WEIGHT TRAY, CA0556325-240D5.
WEIGHT TRAY, CA0556 ORANGE325-240d825.
HHCS 3/8-16X1 GR5802-017C6.
HHCS 1/2-13X2 3/4 GR5802-226C7.
HHCS 1/2-13X1 GR5802-258C8.
HHCS 3/8-16X2 1/4 GR5802-382C9.
NUT LOCK 3/8-16 NYLON INSERT803-078C10.
NUT HEX NYLOCK 1/2-13803-147C11.
PIN HAIR COTTER .148 WIRE805-032C12.
PIN 3/4OD X 2 7/32 USBL W/HNDL805-202C13.
01/20/10 CA0540, CA0548 & CA0556 Core Aerators 325-108P 9
Page 10
Land Pride Section 3: Rotors
CA05 SERIES
Table of Contents Part Number Index
Rotor Assembly CA05
Applies to CA0540, CA0548, CA0556
27937
10 CA0540, CA0548 & CA0556 Core Aerators 325-108P 01/20/10
Page 11
Section 3: Rotors Land Pride
Table of Contents Part Number Index
CA05 SERIES

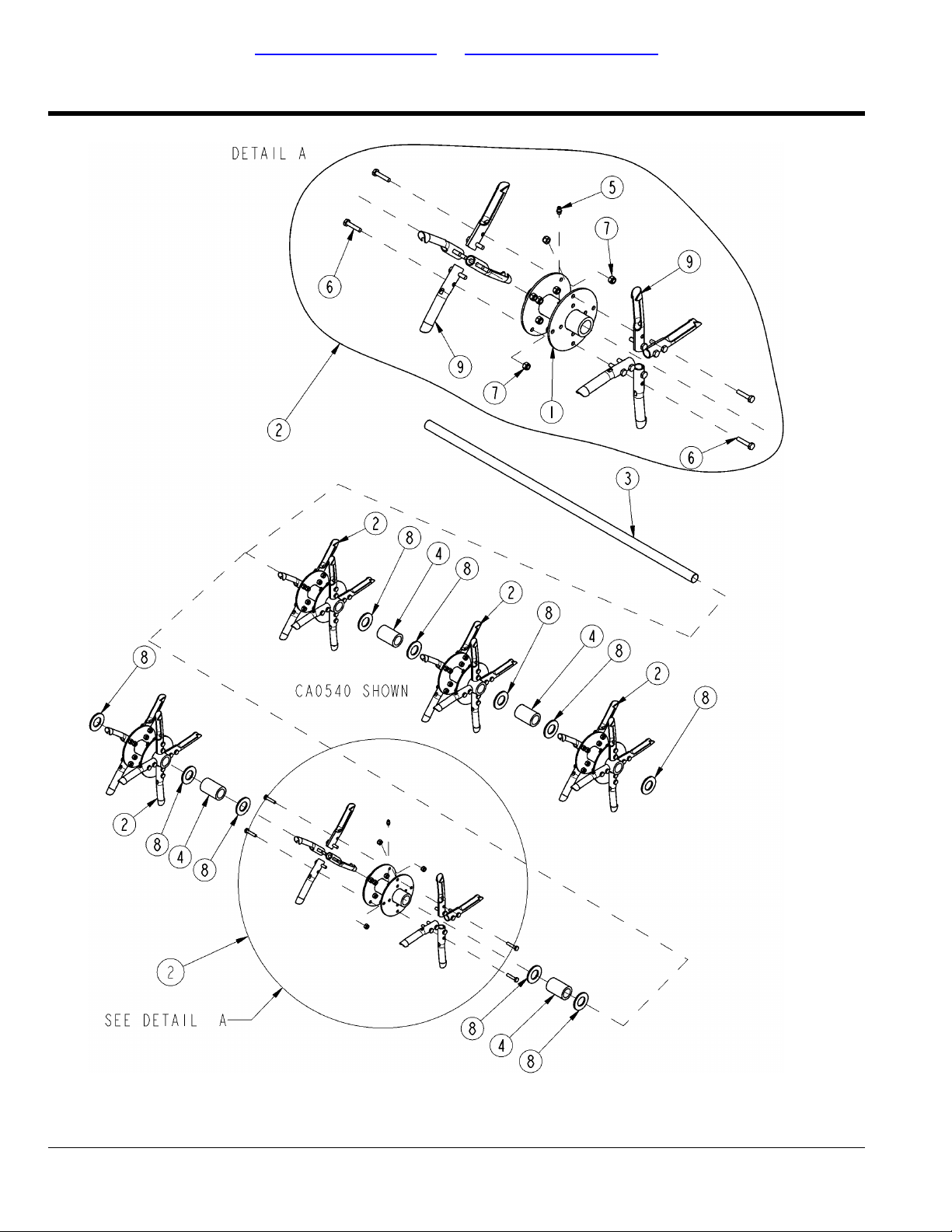

Rotor Assembly CA05
Applies to CA0540, CA0548, CA0556
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27937
WMT, ROTOR325-098H1.
ASY, ROTOR325-099S2.
SHAFT, 40 AERATOR ROTOR325-160D3.
SHAFT, 48 AERATOR ROTOR325-174D3.
SHAFT, 56 AERATOR ROTOR325-175D3.
PIPE SCH 80 1X2 5/16L BLACK325-161D4.
GREASE ZERK 1/4-28 THD FORMING800-080C5.
HHCS 1/4-20X1 1/2 GR5802-167C6.
NUT HEX NYLOCK 1/4-20803-255C7.
WASHER FLAT 1 SAE804-029C8.
1/2" HARDENED AERATOR SPOON820-420C9.
CA0540 40 Total,CA0548 48 Total
& CA0556 56 Total
01/20/10 CA0540, CA0548 & CA0556 Core Aerators 325-108P 11
Page 12
Land Pride Section 4: Labels
CA05 SERIES
Table of Contents Part Number Index
Label Placement
Applies to CA0540, CA0548, CA0556
27938
12 CA0540, CA0548 & CA0556 Core Aerators 325-108P 01/20/10
Page 13
Section 4: Labels Land Pride
Table of Contents Part Number Index
CA05 SERIES
Label Placement
Applies to CA0540, CA0548, CA0556
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27938
DECAL CAUTION GENERAL INSTR818-719C1.
Beige UnitDECAL LANDPRIDE 6" - BROWN838-936C2.
Orange UnitDECAL LANDPRIDE 6" BROWN/GOLD838-967C2.
Beige UnitDECAL CA0540-BROWN848-425C3.
Beige UnitDECAL CA0548-BROWN848-426C3.
Beige UnitDECAL CA0556-BROWN848-427C3.
Orange UnitDECAL CA0540-GOLD848-429C3.
Orange UnitDECAL CA0548-GOLD848-430C3.
Orange UnitDECAL CA0556-GOLD848-431C3.
01/20/10 CA0540, CA0548 & CA0556 Core Aerators 325-108P 13
Page 14
Land Pride Section 5: Options
CA05 SERIES
Table of Contents Part Number Index
Transport Axle Side Mount
Applies to CA0540, CA0548, CA0556
27972
14 CA0540, CA0548 & CA0556 Core Aerators 325-108P 01/20/10
Page 15
Section 5: Options Land Pride
Table of Contents Part Number Index
CA05 SERIES

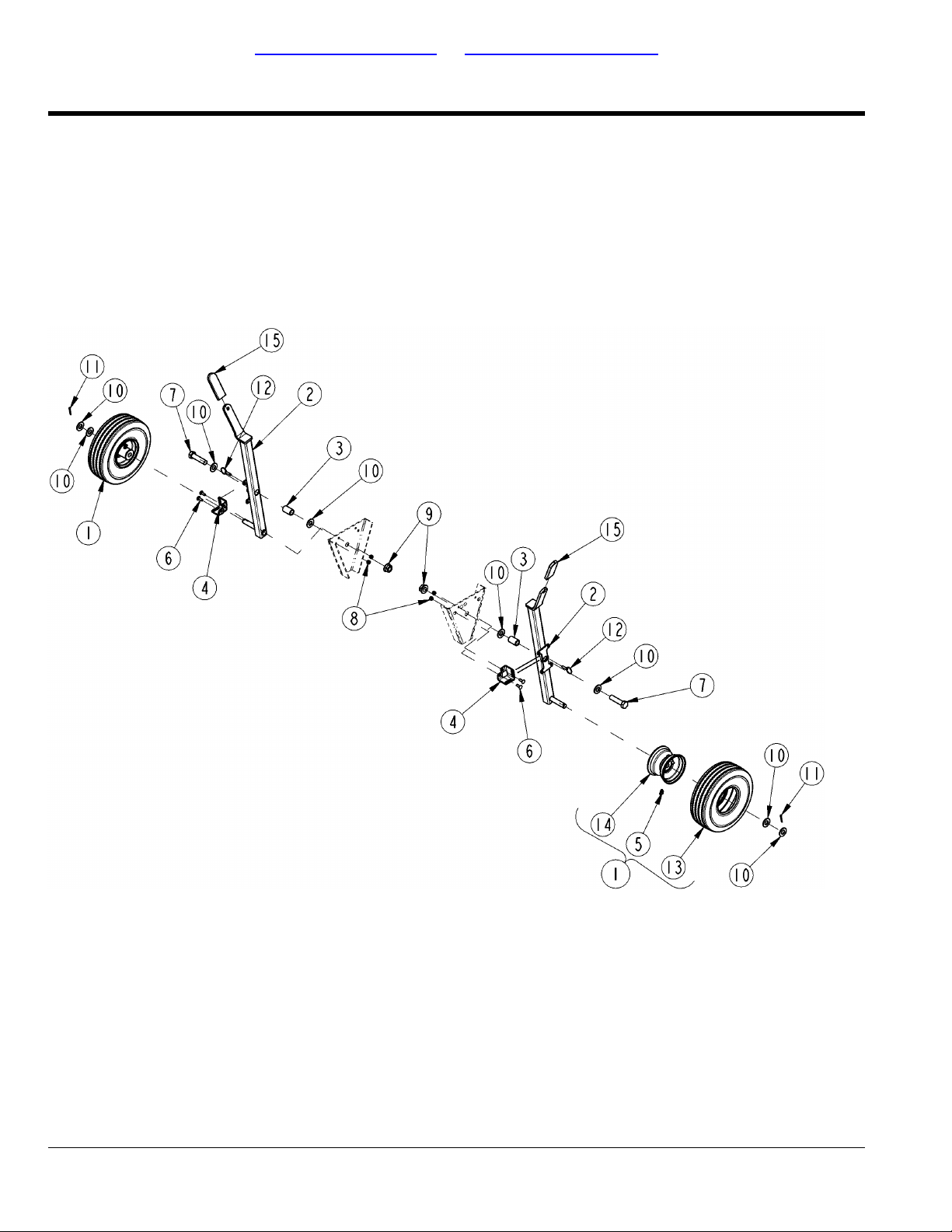

Transport Axle Side Mount
Applies to CA0540, CA0548, CA0556
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg27972
ASY, CA05 TRNSPRT WHEEL325-143A
*
TIRE/RIM ASY10X3 1/4-4SAWTOOTH325-103S1.
ARM WMT, TRNSPRT WHEEL325-142H2.
BSHG, TRNSPRT WHEEL PIVOT325-234D3.
LOCK BRKT, TRNSPRT WHEEL325-235D4.
ZERK 1/4-28 X 45 DEG SELF-TAP800-136C5.
RHSNB 1/4-20X3/4 GR5802-002C6.
HHCS 5/8-11X2 1/2 GR5802-058C7.
NUT HEX NYLOCK 1/4-20803-255C8.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C9.
WASHER FLAT 5/8 SAE PLT804-021C10.
PIN COTTER 1/8 X 1805-363C11.
PIN 1/4 X 1/2 COTTERLESS HITCH805-405C12.
TIRE, 10X3 1/4-4 2PLY SAWTOOTH814-375C13.
RIM, 4X2 1/2 W/GRAFOIL BSHG814-376C14.
GRIP HANDLE .84 ID X 4 LG817-246C15.
01/20/10 CA0540, CA0548 & CA0556 Core Aerators 325-108P 15
Page 16
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
7, 9325-097H ...................
7, 9325-097H82 ...............
11325-098H ...................
11325-099S ...................
15325-103S ...................
9325-107H ...................
9325-107H82 ...............
15325-142H ...................
15325-143A ...................
11325-160D ...................
11325-161D ...................
7, 9325-162D ...................
7, 9325-162D82 ...............
7, 9325-166D ...................
7, 9325-166D82 ...............
11325-174D ...................
11325-175D ...................
15325-234D ...................
15325-235D ...................
7325-238D ...................
7325-238D82 ...............
9325-239D ...................
9325-239D82 ...............
9325-240D ...................
9325-240d82 ...............
11800-080C ...................
15800-136C ...................
15802-002C ...................
9802-017C ...................
15802-058C ...................
11802-167C ...................
7, 9802-226C ...................
7, 9802-258C ...................
7, 9802-382C ...................
7, 9803-078C ...................
7, 9803-147C ...................
11, 15803-255C ...................
15803-263C ...................
15804-021C ...................
11804-029C ...................
7, 9805-032C ...................
7, 9805-202C ...................
15805-363C ...................
15805-405C ...................
15814-375C ...................
15814-376C ...................
15817-246C ...................
13818-719C ...................
11820-420C ...................
13838-936C ...................
13838-967C ...................
13848-425C ...................
13848-426C ...................
13848-427C ...................
13848-429C ...................
13848-430C ...................
13848-431C ...................
7dwg27933 ..................
9dwg27936 ..................
11dwg27937 ..................
13dwg27938 ..................
15dwg27972 ..................
16 CA0540, CA0548 & CA0556 Core Aerators 325-108P 01/20/10
Page 17
Table of Contents Part Number Index
This Page Intentionally Left Blank
01/20/10 CA0540, CA0548 & CA0556 Core Aerators 325-108P 17
Page 18
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
