Page 1
Table of Contents Part Number Index
Air Tunnel Grooming Mower
AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590
14326
310-002P
Parts Manual
Read the Operator's manual entirely.When you see this symbol, the subsequent instructions and warnings are serious - follow without exception.Your life and the lives of others depend on it!
© Copyright 2008 Printed 07/23/08
Cover photo may show optional equipment not supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................6
Using This Manual...............................................................6
Manual Replacement Information.......................................6
Manual Revisions................................................................6
Touch-up Paint....................................................................6
Hardware Legend................................................................7
Replacement Hardware......................................................7
Serial Numbers...................................................................7
Part Number Service Coding..............................................7
AT25 SERIES
Section 2: Decks............................................................8
Deck (S/N 59101-)..............................................................8
Deck (S/N 59102+)............................................................10
Deck (S/N 59102+)............................................................12
Front Roller........................................................................14
Gauge Wheel....................................................................16
Gauge Wheel Tire (814-071C)..........................................18
Guards..............................................................................20
Hitch..................................................................................22
Section 3: Drive...........................................................24
Belt Drive (S/N 212180-)...................................................24
Belt Drive (S/N 212181+)..................................................28
Left and Right Spindle Hub Assembly (S/N 212180-).......32
Spindle Hub Assembly (S/N 212180-)..............................34
Section 3: Gauge Wheel..............................................36
Gauge Wheel (814-271C).................................................36
Gauge Wheels..................................................................38
Section 4: Drive...........................................................40
Belt Drive...........................................................................40
Belt Take-Up......................................................................44
Section 4: Gearboxes..................................................46

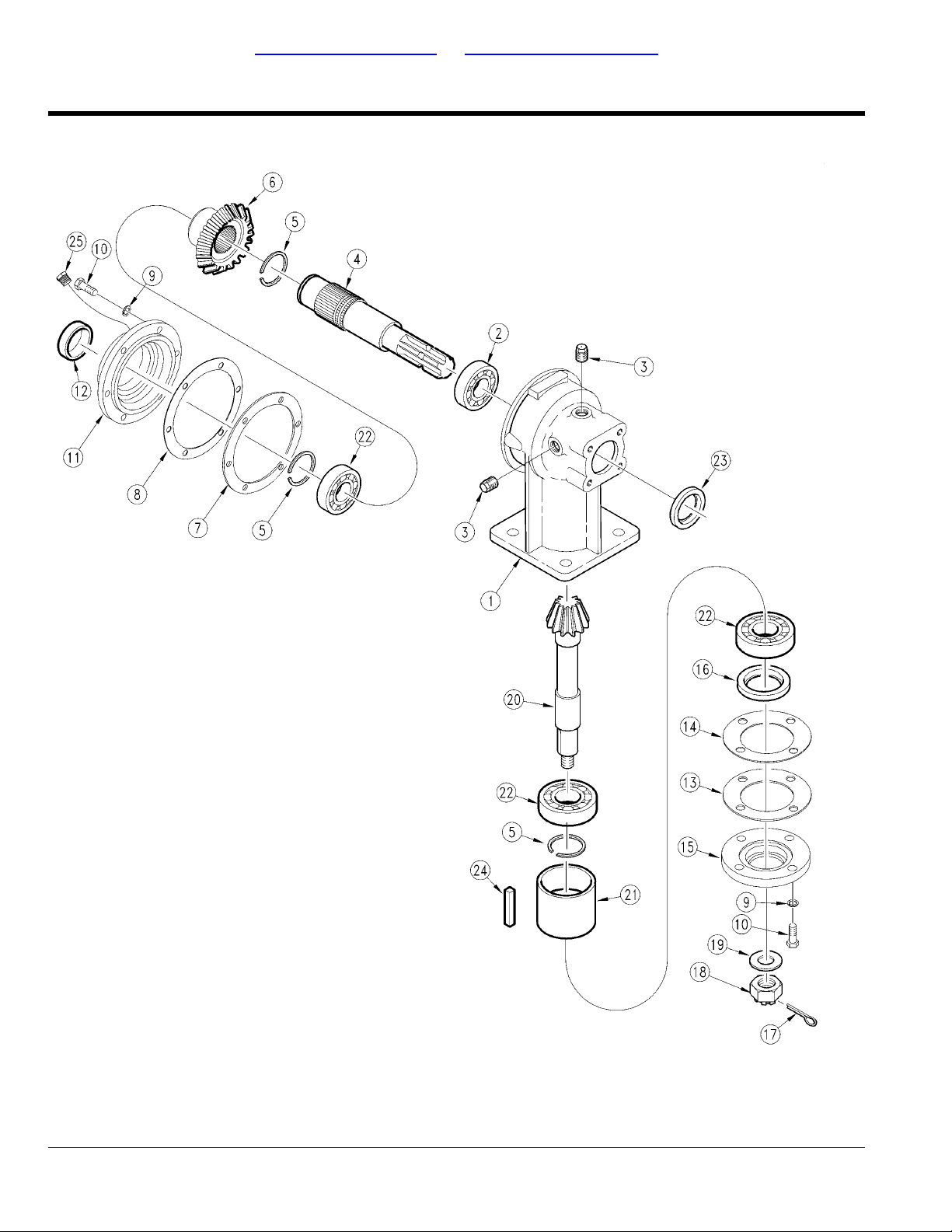

Gearbox (826-081C) (826-011C) Comer..........................46
Gearbox (826-081C) IEG..................................................48

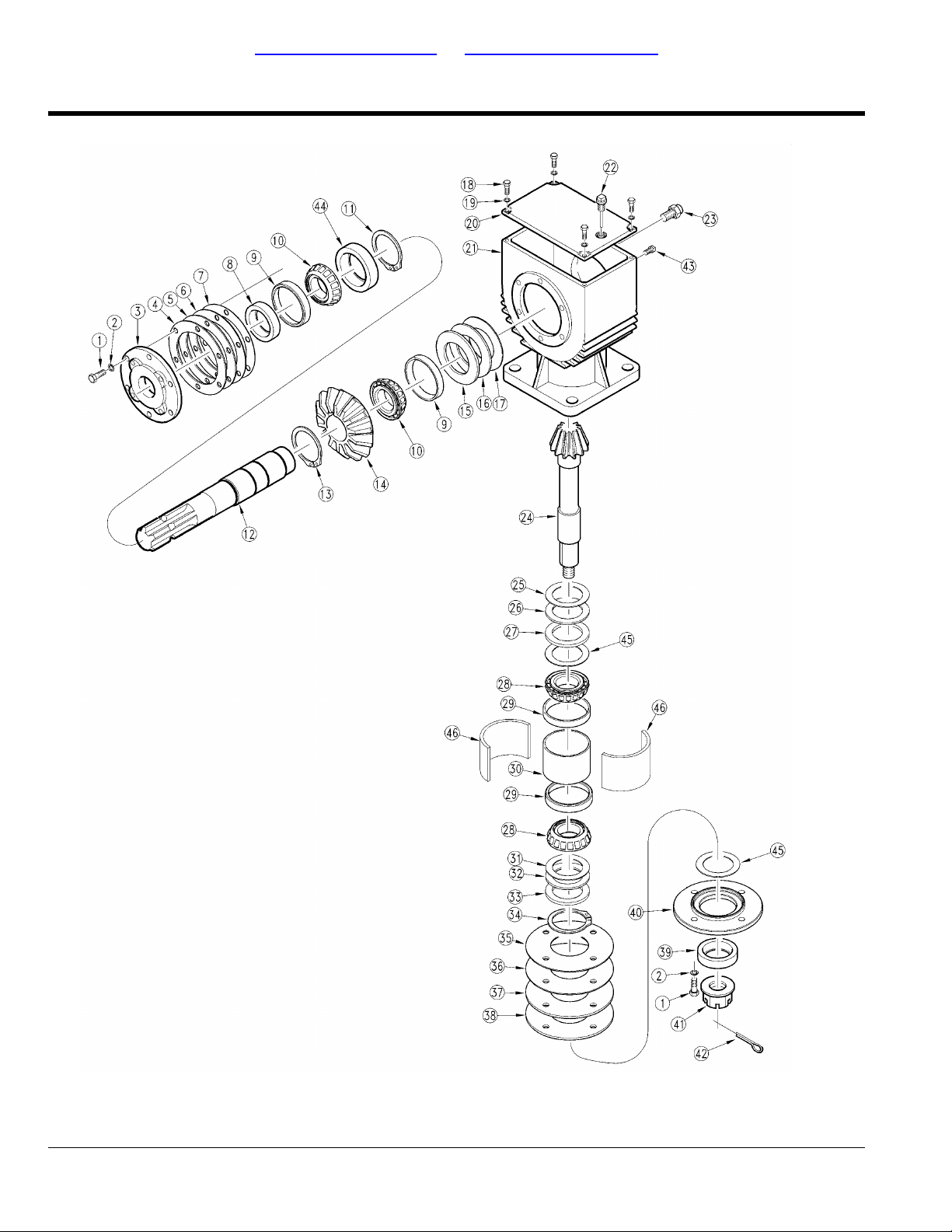

Gearbox (826-203C) OMNI...............................................50
Gearbox (826-293C) OMNI...............................................52
Gearbox (826-325C) Comer.............................................54
Section 5: Drivelines...................................................56
Driveline (826-012C) Eurocardan (S/N 199605-)..............56
Driveline (826-012C) Eurocardan (S/N 199606+).............58
Driveline (826-012C) Walterscheid....................................60
Driveline (826-064C) Eurocardan.....................................62
Driveline Heavy Duty (826-064C) Walterscheid................64
Section 5: Gearboxes..................................................66
Gearbox (826-296C) OMNI...............................................66
Gearbox (826-311C) AT2684) OMNI.................................68

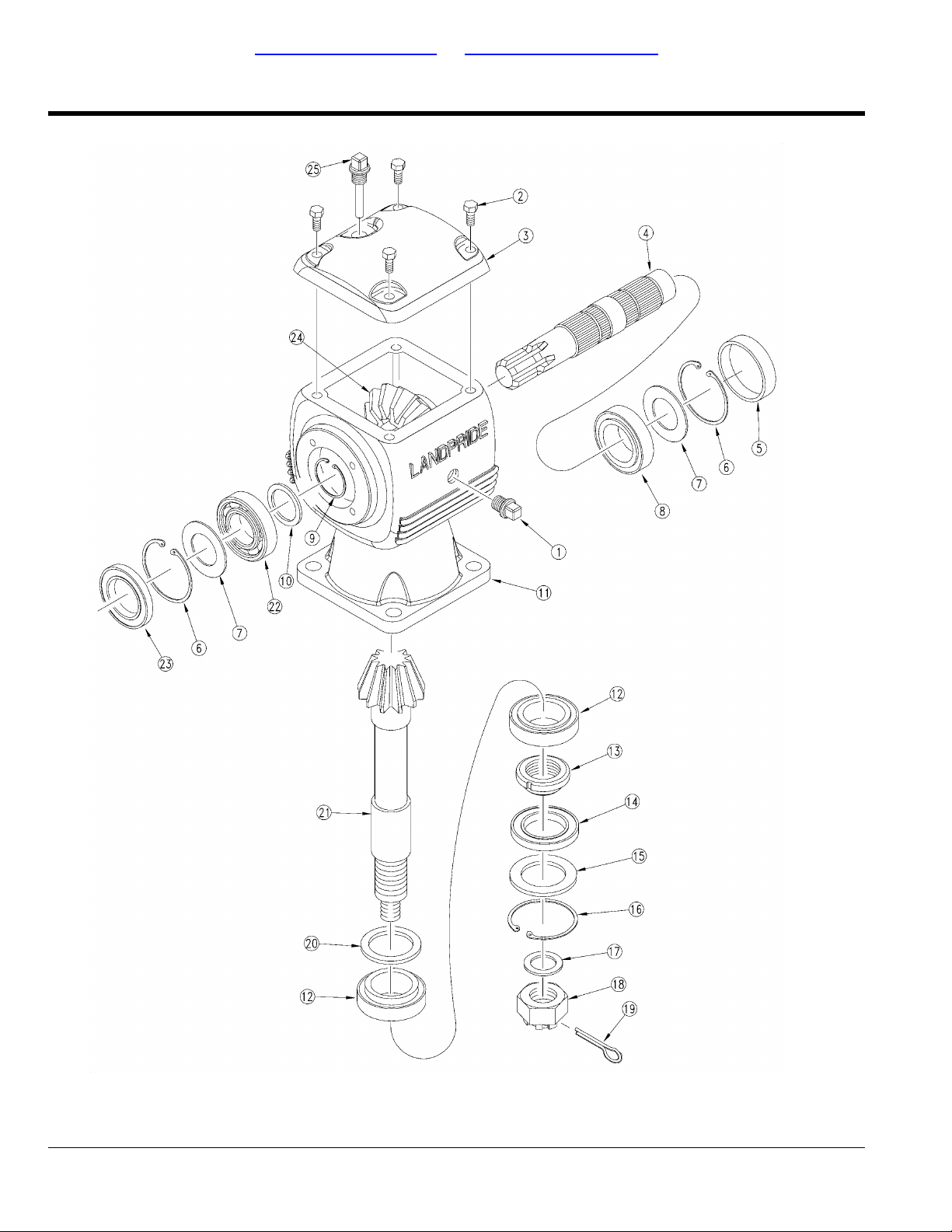

Gearbox (826-326C) Comer AT2660, AT2672 & AT2684...70
Section 6: Drivelines...................................................72

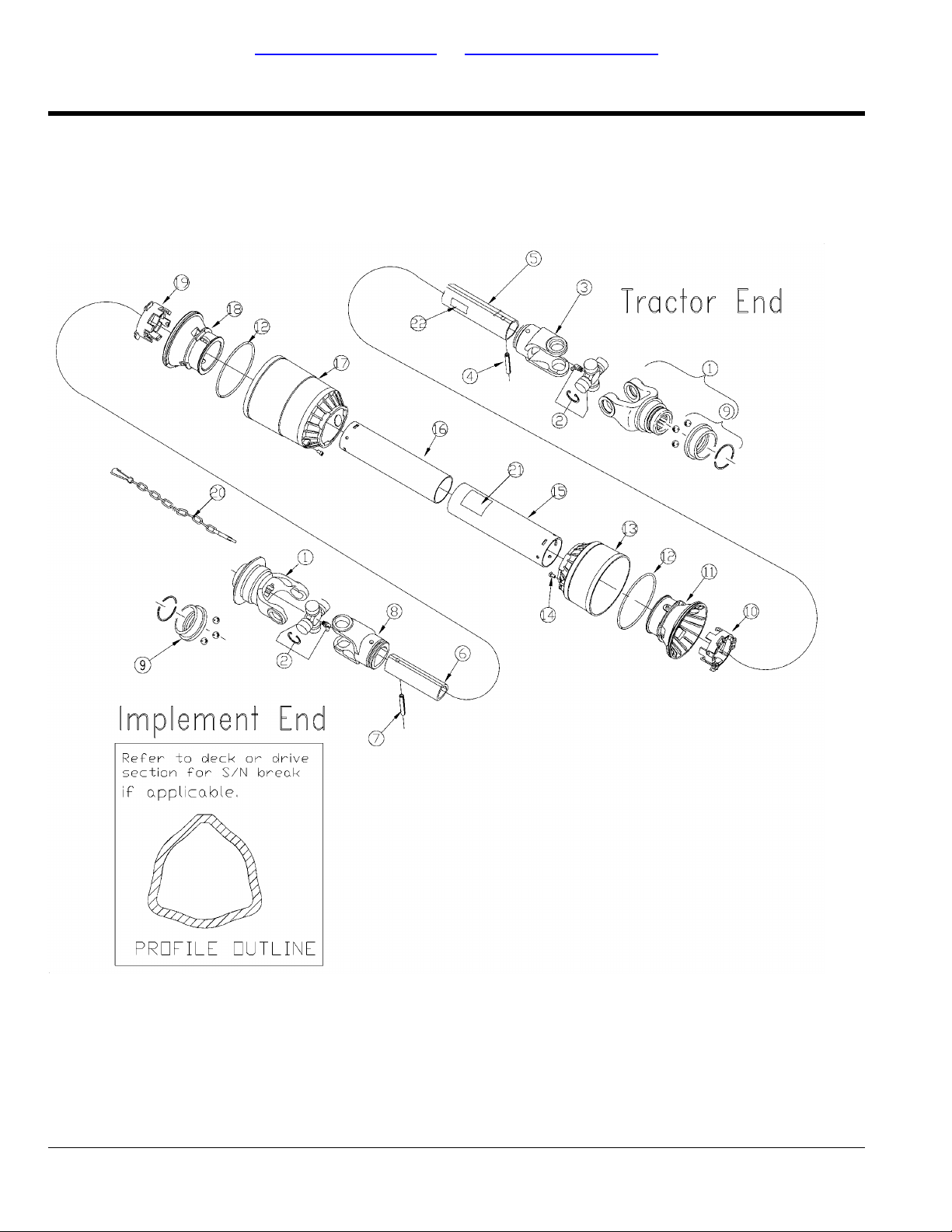

Driveline (826-297C) Eurocardan.....................................72
© Copyright 2008. All rights reserved. Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Land Pride is registered trademark.
Printed in the United States of America.
Section 6: Labels.........................................................74
Label Placement...............................................................74
Section 7: Labels.........................................................76
Label Placement AT26......................................................76
Section 7: Options.......................................................78

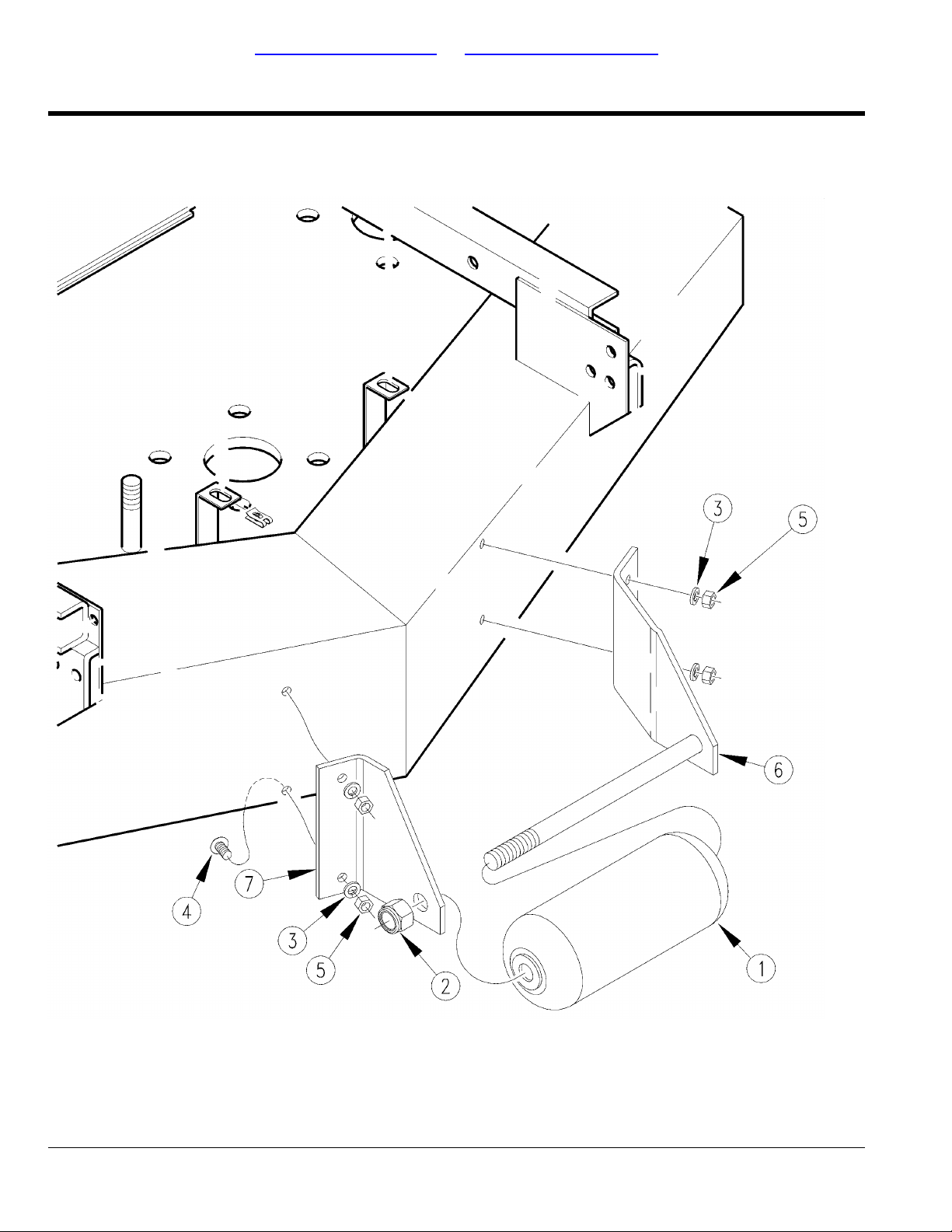

Front Anti-Scalping Roller.................................................78
AT26 SERIES
Section 2: Decks..........................................................80

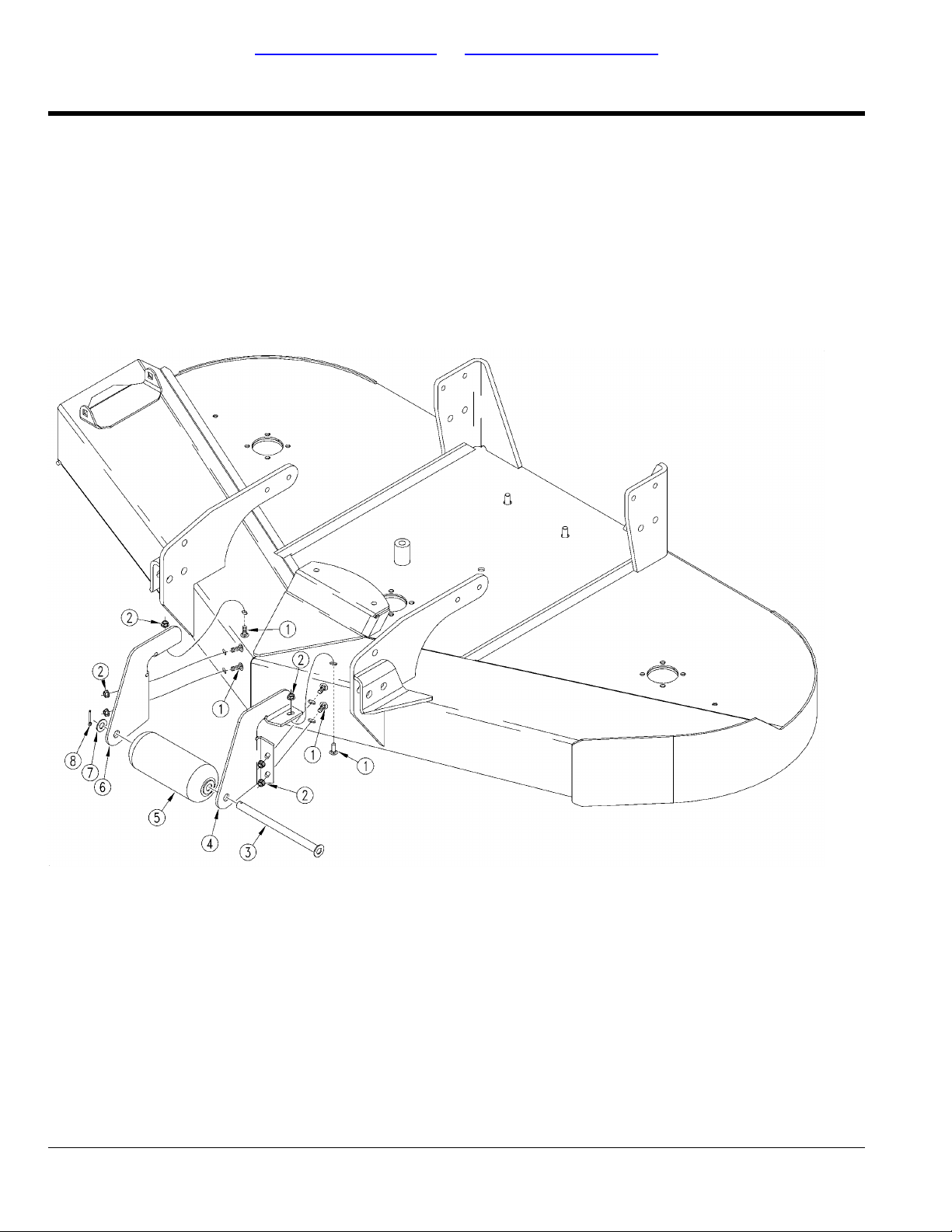

Front Roller........................................................................80
Guards..............................................................................82
Hitch..................................................................................84
Section 3: Gauge Wheel..............................................86
Gauge Wheel (814-071C).................................................86
Gauge Wheel (814-144C) & (814-191C)...........................88
Gauge Wheel (814-271C).................................................90

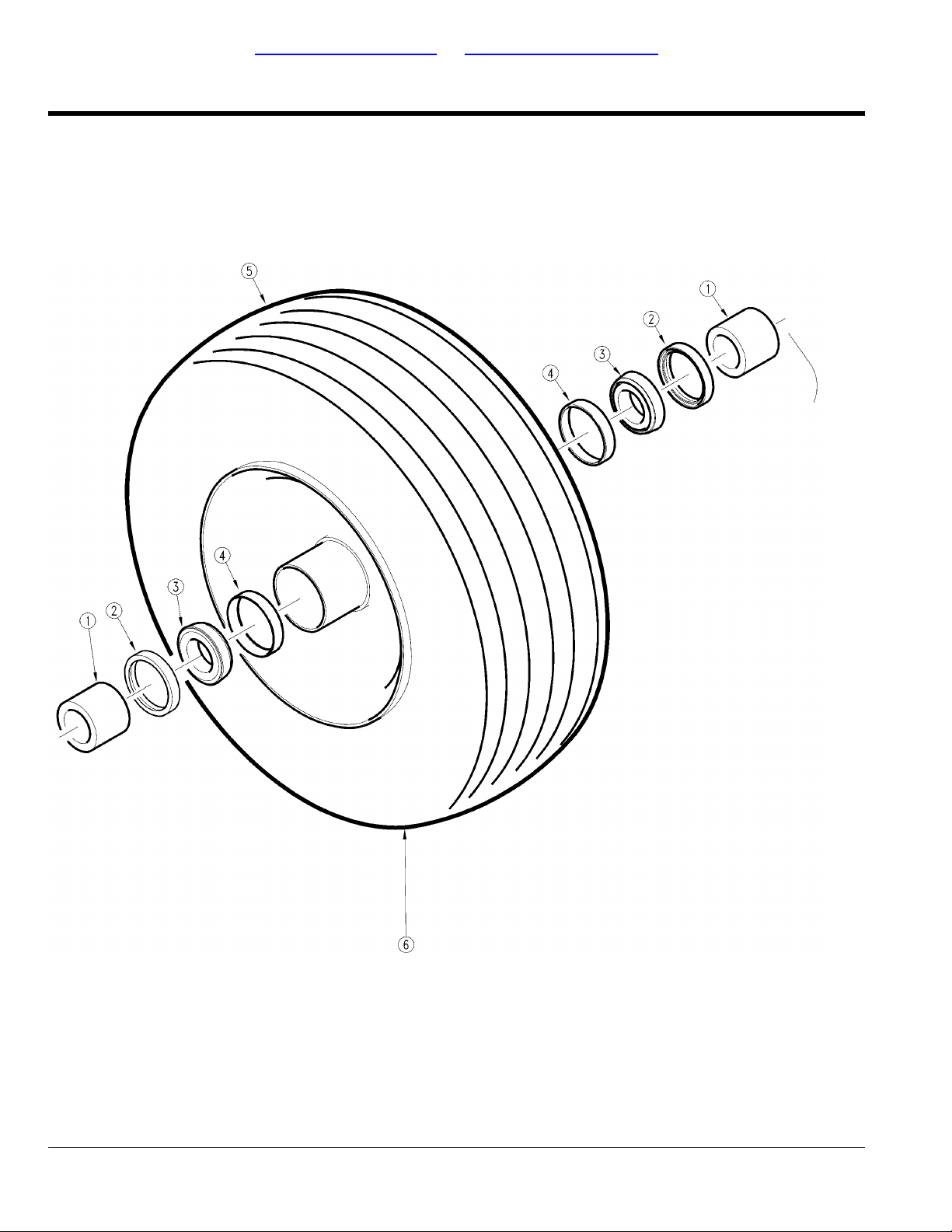

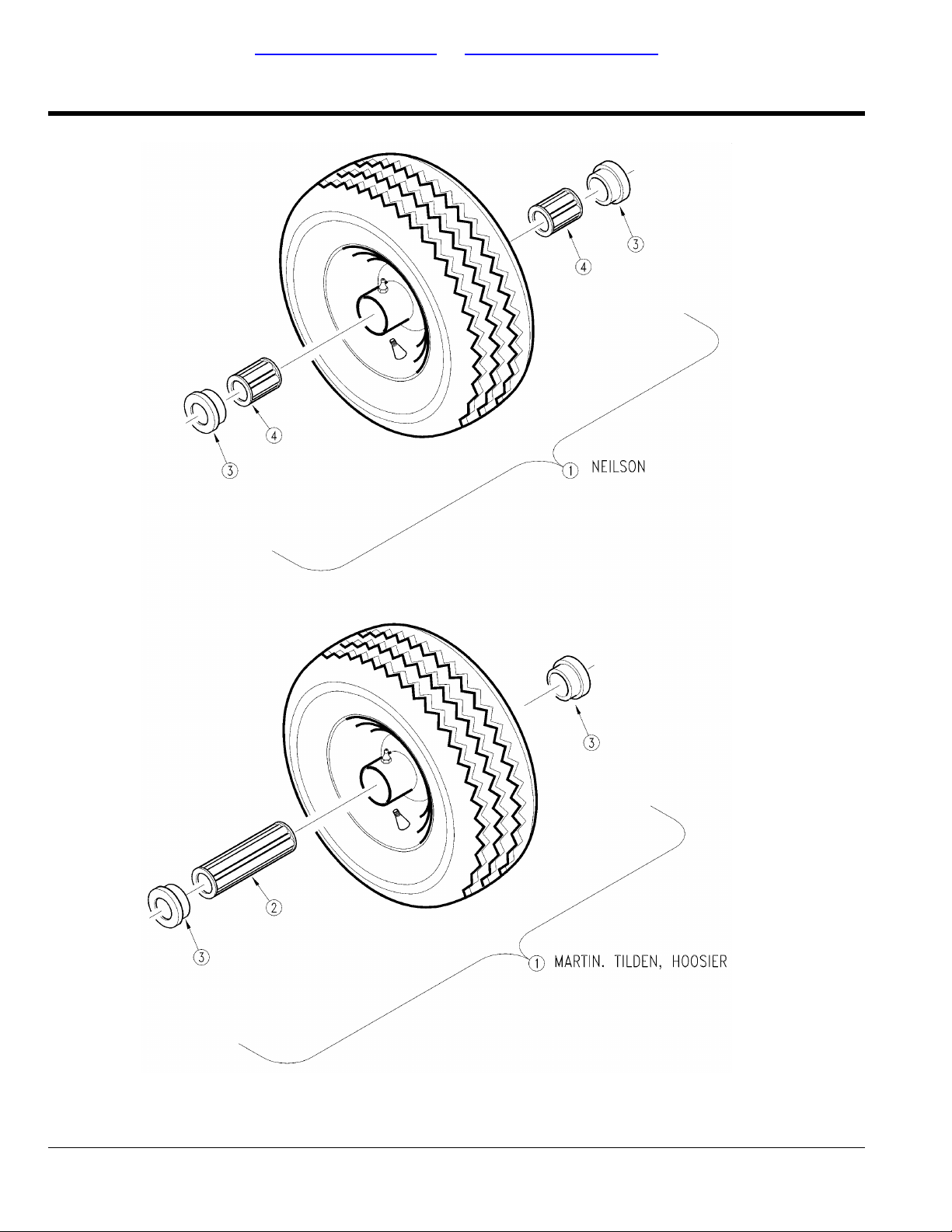

Gauge Wheel Tire (814-188C)..........................................92
Gauge Wheels..................................................................94
Section 4: Drive...........................................................96
Belt Drive...........................................................................96
Belt Take-Up....................................................................100
Section 5: Gearboxes................................................102
Gearbox (826-296C) OMNI.............................................102
Gearbox (826-311C) AT2684) OMNI...............................104
Gearbox (826-326C) Comer AT2660, AT2672 & AT2684.106
Section 6: Drivelines.................................................108

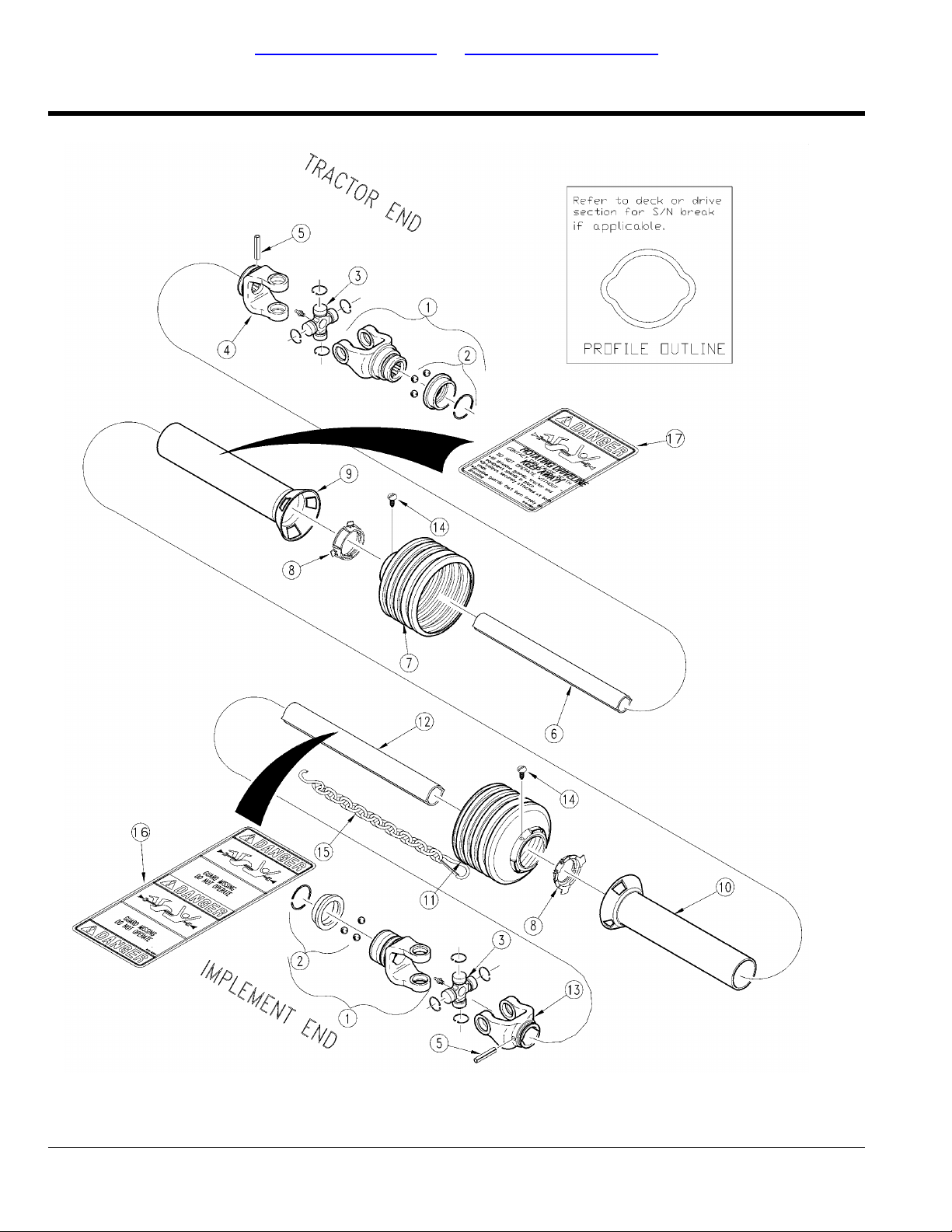

Driveline (826-064C) Eurocardan...................................108
Driveline (826-297C) EC (S/N 246675 to 426011)..........110
Driveline (826-297C) EC (S/N 426012+).........................112
Section 7: Labels.......................................................114
Label Placement AT26....................................................114
AT35 SERIES
Section 2: Decks........................................................116
Deck................................................................................116
Gauge Wheel..................................................................118
Gauge Wheel Tire (814-114C), (814-070C),(814-193C) &
(814-272C)................................................................120
Section 3: Drive.........................................................122
Belt Drive (S/N 209357-).................................................122
Belt Drive (S/N 209358+)................................................126
Center Blade Hub (S/N 212180-)....................................130
Right Hand and Left Hand Blade Hub (S/N 212180-).....132
Section 4: Gearboxes................................................134
Gearbox (826-055C) Comer...........................................134
Gearbox (826-206C) OMNI.............................................136
Gearbox (826-296C) OMNI.............................................138
Gearbox (826-326C) Comer...........................................140
2 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 3
Table of Contents Part Number Index
Section 5: Drivelines.............................................142
Driveline (826-057C) Walterscheid (Option)...............142
Driveline (826-080C) Walterscheid (S/N 209357- & S/N
236470+)..............................................................144
Driveline (826-195C) EC New Shields (S/N 209358 to
236469)................................................................146
Driveline (826-195C) EC Old Shields (S/N 209358 to
236469)................................................................148
Driveline Slip Clutch (317189) Walterscheid..............150
Section 6: Labels...................................................152
Label Placement........................................................152
Section 7: Options................................................154
Front Anti-Scalping Roller..........................................154
Part Number Index................................................156
Table of Contents (continued)
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 3
Page 4
Table of Contents Part Number Index
Alphabetized Table of Contents
AT25 SERIES
B
Belt Drive...........................................................................40
Belt Drive (S/N 212180-)...................................................24
Belt Drive (S/N 212181+)..................................................28
Belt Take-Up......................................................................44
D
Deck (S/N 59101-)..............................................................8
Deck (S/N 59102+)............................................................10
Deck (S/N 59102+)............................................................12
Driveline (826-012C) Eurocardan (S/N 199605-)..............56
Driveline (826-012C) Eurocardan (S/N 199606+).............58
Driveline (826-012C) Walterscheid....................................60
Driveline (826-064C) Eurocardan.....................................62
Driveline (826-297C) Eurocardan.....................................72
Driveline Heavy Duty (826-064C) Walterscheid................64
F
Front Anti-Scalping Roller.................................................78
Front Roller........................................................................14
G
Gauge Wheel....................................................................16
Gauge Wheel (814-271C).................................................36
Gauge Wheel Tire (814-071C)..........................................18
Gauge Wheels..................................................................38
Gearbox (826-081C) (826-011C) Comer..........................46
Gearbox (826-081C) IEG..................................................48
Gearbox (826-203C) OMNI...............................................50
Gearbox (826-293C) OMNI...............................................52
Gearbox (826-296C) OMNI...............................................66
Gearbox (826-311C) AT2684) OMNI.................................68
Gearbox (826-325C) Comer.............................................54
Gearbox (826-326C) Comer AT2660, AT2672 & AT2684...70
Guards..............................................................................20
H
Hitch..................................................................................22
L
Label Placement...............................................................74
Label Placement AT26......................................................76
Left and Right Spindle Hub Assembly (S/N 212180-).......32
S
Spindle Hub Assembly (S/N 212180-)..............................34
AT26 SERIES
B
Belt Drive...........................................................................96
Belt Take-Up....................................................................100
D
Driveline (826-064C) Eurocardan...................................108
Driveline (826-297C) EC (S/N 246675 to 426011)..........110
Driveline (826-297C) EC (S/N 426012+).........................112
F
Front Roller........................................................................80
G
Gauge Wheel (814-071C).................................................86
Gauge Wheel (814-144C) & (814-191C)...........................88
Gauge Wheel (814-271C).................................................90
Gauge Wheel Tire (814-188C)..........................................92
Gauge Wheels..................................................................94
Gearbox (826-296C) OMNI.............................................102
Gearbox (826-311C) AT2684) OMNI...............................104
Gearbox (826-326C) Comer AT2660, AT2672 & AT2684.106
Guards..............................................................................82
H
Hitch..................................................................................84
L
Label Placement AT26....................................................114
AT35 SERIES
B
Belt Drive (S/N 209357-).................................................122
Belt Drive (S/N 209358+)................................................126
C
Center Blade Hub (S/N 212180-)....................................130
D
Deck................................................................................116
Driveline (826-057C) Walterscheid (Option)....................142
Driveline (826-080C) Walterscheid (S/N 209357- & S/N
236470+)..................................................................144
Driveline (826-195C) EC New Shields (S/N 209358 to
236469).....................................................................146
Driveline (826-195C) EC Old Shields (S/N 209358 to
236469).....................................................................148
Driveline Slip Clutch (317189) Walterscheid...................150
F
Front Anti-Scalping Roller...............................................154
G
Gauge Wheel..................................................................118
Gauge Wheel Tire (814-114C), (814-070C),(814-193C) &
(814-272C)................................................................120
Gearbox (826-055C) Comer...........................................134
Gearbox (826-206C) OMNI.............................................136
Gearbox (826-296C) OMNI.............................................138
Gearbox (826-326C) Comer...........................................140
4 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 5
Table of Contents Part Number Index
Alphabetized Table of Contents (continued)
L
Label Placement........................................................152
R
Right Hand and Left Hand Blade Hub (S/N 212180-).132
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 5
Page 6
Table of Contents Part Number Index
6 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 7
Table of Contents Part Number Index
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 7
Page 8
Land Pride Section 2: Decks AT25 SERIES
Table of Contents Part Number Index
Deck (S/N 59101-)
Applies to AT2560, AT2572
10827
8 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 9
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT25 SERIES
Deck (S/N 59101-)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10827 60 WT MOWER FRAME310-067H1. 72 WT MOWER FRAME310-028H1. LOWER HITCH WELDMENT310-019H2.
OptionalLOWER HITCH WELDMENT 16 1/8310-212H2. LOWER HITCH PIN310-020S3. PIN CLEVIS 5/8 X 2 1/2 PLT805-141C4. PIN CLEVIS 3/4 X 2 1/2 PLT805-140C5. PIN HAIR COTTER .120 PLT805-143C6. PIN LYNCH 5/16 X 1 3/4805-015C7. UPPER HITCH310-068D8. UPPER HITCH BRACE310-067D9. PIVOTING HITCH - UPPER310-015D10. SPACER - TOP HITCH310-012D11. HHCS 5/8-18X5 1/2 GR5802-242C12. WASHER LOCK SPRING 5/8 PLT804-022C13. NUT HEX 5/8-18 PLT803-022C14. HHCS 5/8-18X1 3/4 GR5802-246C15. RH BELT GUARD310-105D16. LH BELT GUARD310-106D17. CENTER COVER 60 WT310-070H18. 72 WT CENTER BELT COVER310-042H18. BELT GUARD PIN CAP816-072C19. WASHER FLAT 1/4 SAE PLT804-007C20. WING 1/4-20X3/4802-241C21.
Rev. 21/4-20 X 1 U TYPE FASTENER800-013C22.
Rev 1; Use up stockRPBY 800-013C800-006C22. HHCS 1/4-20X3/4 GR5802-004C23. NUT LOCK 1/4-20 PLT803-007C24. PIN CLEVIS 3/4 X 3 1/2 PLT805-142C25. DISCHARGE CHUTE 60310-185D26. 72 WT DISCHARGE CHUTE310-123D26. SCREW THUMB 1/4-20 X 1/2 LG801-041C27. HHCS 1/4-20X1 1/4 GR5802-224C28.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 9
Page 10
Land Pride Section 2: Decks AT25 SERIES
Table of Contents Part Number Index
Deck (S/N 59102+)
Applies to AT2560
14161
10 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 11
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT25 SERIES
Deck (S/N 59102+)
Applies to AT2560
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg14161 60 WT MOWER FRAME310-067H1. LOWER HITCH WELDMENT310-019H2.
OptionalLOWER HITCH WELDMENT 16 1/8310-212H2. LOWER HITCH PIN310-020S3. PIN CLEVIS 3/4 X 2 1/2 PLT805-140C4. PIN HAIR COTTER .120 PLT805-143C5. PIN LYNCH 5/16 X 1 3/4805-015C6. UPPER HITCH310-068D7. UPPER HITCH BRACE310-067D8. PIVOTING HITCH - UPPER310-015D9. SPACER - TOP HITCH310-012D10. HHCS 5/8-18X5 1/2 GR5802-242C11. WASHER LOCK SPRING 5/8 PLT804-022C12. NUT HEX 5/8-18 PLT803-022C13. HHCS 5/8-18X1 3/4 GR5802-246C14.
Rev. 2 not compat. w/Rev. 1(S/N 239292+)AT2560 RH BELT COVER310-437D15. Rev. 1(S/N 239291-)AT2560 & 72 RH BELT GUARD310-315D15. Rev. 2 not compat. w/Rev. 1(S/N 239292+)AT2560 LH BELT COVER310-438D16. Rev. 1(S/N 239291-)AT2560 & 72 LH BELT GUARD310-316D16. Rev. 2 not compat. w/Rev. 1(S/N 239292+)AT2560 CENTER BELT COVER WLDMT310-241H17. Rev. 1(S/N 239291-)AT2560 & 72 CENTER BELT GUARD310-142H17. Rev. 2 not compat. w/Rev. 1(S/N 143133+)KNOB 3 PRONG 1/4-20 X 1/2 LG817-192C18. Rev. 1(S/N 59102<->143132)WING HEAD SCREW W/WEAR WASHER800-114C18. Rev. 2 not compat. w/Rev. 1(S/N 143133+)CLIP U-TYPE NUT 1/4-20 SLF-RET800-163C19.
Rev. 1(S/N 59102<->143132)CLIP, U-TYPE NUT800-115C19. WASHER FLAT 1/4 SAE PLT804-007C20. HHCS 1/4-20X3/4 GR5802-004C21. NUT LOCK 1/4-20 PLT803-007C22. PIN CLEVIS 3/4 X 3 1/2 PLT805-142C23. DISCHARGE CHUTE310-185D24. SCREW THUMB 1/4-20 X 1/2 LG801-041C25.
(S/N 59102<->143132)NYLON PUSH-ON RETAINER800-116C26. (S/N 239292+)RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C27. (S/N 317416+)DRIVELINE HOOK HANGER W/HRDWR800-320C28.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 11
Page 12
Land Pride Section 2: Decks AT25 SERIES
Table of Contents Part Number Index
Deck (S/N 59102+)
Applies to AT2572
14162
12 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 13
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT25 SERIES
Deck (S/N 59102+)
Applies to AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg14162 72 WT MOWER FRAME310-028H1. LOWER HITCH WELDMENT310-019H2.
OptionalLOWER HITCH WELDMENT 16 1/8310-212H2. LOWER HITCH PIN310-020S3. PIN CLEVIS 3/4 X 2 1/2 PLT805-140C4. PIN HAIR COTTER .120 PLT805-143C5. PIN LYNCH 5/16 X 1 3/4805-015C6. UPPER HITCH310-068D7. UPPER HITCH BRACE310-067D8. PIVOTING HITCH - UPPER310-015D9. SPACER - TOP HITCH310-012D10. HHCS 5/8-18X5 1/2 GR5802-242C11. WASHER LOCK SPRING 5/8 PLT804-022C12. NUT HEX 5/8-18 PLT803-022C13. HHCS 5/8-18X1 3/4 GR5802-246C14.
Rev. 2 not compat. w/Rev. 1(S/N 239292+)AT2572 RH BELT COVER310-442D15. Rev. 1(S/N 239291-)AT2560 & 72 RH BELT GUARD310-315D15. Rev. 2 not compat. w/Rev. 1(S/N 239292+)AT2572 LH BELT COVER310-443D16. Rev. 1(S/N 239291-)AT2560 & 72 LH BELT GUARD310-316D16. Rev. 2 not compat. w/Rev. 1(S/N 239292+)AT2572 CENTER BELT COVER WLDMT310-243H17. Rev. 1(S/N 239291-)AT2560 & 72 CENTER BELT GUARD310-142H17. Rev. 2 not compat. w/Rev. 1(S/N 143133+)KNOB 3 PRONG 1/4-20 X 1/2 LG817-192C18. Rev. 1(S/N 59102<->143132)WING HEAD SCREW W/WEAR WASHER800-114C18. Rev. 2 not compat. w/Rev. 1(S/N 143133+)CLIP U-TYPE NUT 1/4-20 SLF-RET800-163C19.
Rev. 1(S/N 59102<->143132)CLIP, U-TYPE NUT800-115C19. WASHER FLAT 1/4 SAE PLT804-007C20. HHCS 1/4-20X3/4 GR5802-004C21. NUT LOCK 1/4-20 PLT803-007C22. PIN CLEVIS 3/4 X 3 1/2 PLT805-142C23. 72 WT DISCHARGE CHUTE310-123D24. SCREW THUMB 1/4-20 X 1/2 LG801-041C25.
(S/N 72226+)LH BELT GUARD BRACKET310-332D26. (S/N 72226+)RH BELT GUARD BRACKET310-333D27. (S/N 72226+)HHCS 1/4-20X5/8 GR5802-078C28. (S/N 72226+)WASHER LOCK SPRING 1/4 PLT804-006C29. (S/N 59102<->143132)NYLON PUSH-ON RETAINER800-116C30. (S/N 239292+)RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C31. (S/N 317416+)DRIVELINE HOOK HANGER W/HRDWR800-320C32.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 13
Page 14
Land Pride Section 2: Decks AT25 SERIES
Table of Contents Part Number Index
Front Roller
Applies to AT2584
18882
14 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 15
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT25 SERIES
Front Roller
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18882 FRONT ROLLER AT2660-72-84310-317S RHSNB 3/8-16X1 GR5802-015C1. NUT HEX 3/4-10 PLT NYLOCK803-025C2. WLDMT. ROLLER SHAFT310-266H3. FRONT ROLLER BRACKET LH.310-551D4. 4 X 10 ROLLER WHEEL817-049C5. FRONT ROLLER BRACKET RH.310-550D6. WASHER FLAT 3/4 SAE PLT804-025C7. PIN COTTER 3/16 X 1 1/4 PLT805-016C8.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 15
Page 16
Land Pride Section 2: Decks AT25 SERIES
Table of Contents Part Number Index
Gauge Wheel
Applies to AT2560, AT2572
10606
16 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 17
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gauge Wheel
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10606 GAUGE WHEEL ARM WELDMENT310-014H1. SPINDLE BUSHING817-048C2. GREASE ZERK STRAIGHT 1/4-28800-001C3. GAUGE WHEEL ARM SUB310-064S4.
Rev. 2(S/N 264391+)PIN LYNCH 1/4 X 1 3/4 PLT805-126C5.
Rev 1; Use up stock(S/N 264390-)PIN WIRE RETAINING 1/4 X 1 3/4805-065C5. SPACER 1"827-002C6. SPACER 1/2"827-001C7.
Rev. 2 not compat. w/Rev. 1(S/N 159155+) MeasureGAUGE WHEEL YOKE(5 1/8 INSIDE)310-149H8.
Rev. 1(S/N 159154-) MeasureGAUGE WHEEL YOKE(4 1/4 INSIDE)310-003H8.
S/N 511276-NUT HEX 1/2-20 PLT803-018C9.
S/N 511276-WASHER LOCK SPRING 1/2 PLT804-015C10. GAUGE WHEEL SPACER - SHORT310-024D11. GAUGE WHEEL SPACER(SOLID TIRE)310-329D11.
Rev. 2 not compat. w/Rev. 1(S/N 159155+)SPACER TUBE GA.WHL. 5 1/8 LG310-328D12. Rev. 1(S/N 159154-)SPACER TUBE - GW TIRE310-025D12. Rev. 2 not compat. w/Rev. 1(S/N 159155+)HHCS 1/2-20X6 1/2 GR5802-350C13. Rev. 1(S/N 159154-)HHCS 1/2-20X5 1/2 GR5802-243C13. Rev. 2TIRE 10 X 4 TUBELESS AIR814-071C14. Rev 1; Use up stockRPBY 814-071C310-104V14. Rev. 3(S/N 260900+)TIRE 10X3.25 SOLID STRT RIB CR814-188C15. Rev 2; Use up stock(S/N 260899-)RPBY 814-188C814-146C15.
Rev 1; Use up stockSOLID TIRE WHEEL 10 1/4X3 1/4814-057C15. Dimensional check before orderingBUSHING 3/4 I.D. 1 3/8 X 1 LG890-189C16. Dimensional check before orderingHS BUSH 3/4"IDX1 1/8"ODX 5/8LG8701016. Fits 814-146C item #15 onlyHS BRG 3/4ID X 1.407OD X 5/8LG8704016.
ZERK STAKED800-100C17.
Solid tireGAUGE WHEEL & YOKE SUB310-017S18. Air Tire4X10 AIR TIRE & YOKE ASSY310-105S18.
Rev. 2 not compat. w/Rev. 1AT2560 & AT2572 (S/N 254752+)HHCS 1/2-13X3 1/4 GR5802-099C19.
Rev. 1AT2560 & AT2572 (S/N 254751-)HHCS 3/8-24X3 GR 5802-245C19.
Rev. 3 not compat. w/Rev. 2AT2560 & AT2572 (S/N 254752+)WASHER 1 1/2 OD X 17/32 ID PLT804-174C20.
Rev. 2AT2560 & AT2572 (S/N 254751-)WASHER 1 1/2 OD X 13/32 ID PLT804-080C20.
Rev 1; Use up stockRPBY 804-080C310-310D20.
Rev. 2 not compat. w/Rev. 1AT2560 & AT2572 (S/N 254752+)WASHER LOCK SPRING 1/2 PLT804-015C21.
Rev. 1AT2560 & AT2572 (S/N 254751-)WASHER LOCK SPRING 3/8 PLT804-013C21.
Rev. 2 not compat. w/Rev. 1AT2560 & AT2572 (S/N 254752+)NUT HEX 1/2-13 PLT803-020C22.
Rev. 1AT2560 & AT2572 (S/N 254751-)NUT HEX 3/8-24 PLT803-146C22.
HS CGD RLR BRG.75IDX1.37X1.5LG8741023.
S/N 511277+NUT HEX FLG/LK 1/2-20 PLT.GR.G802-308C24.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 17
Page 18
Land Pride Section 2: Decks AT25 SERIES
Table of Contents Part Number Index
Gauge Wheel Tire (814-071C)
Applies to AT2560, AT2572
13629
18 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 19
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gauge Wheel Tire (814-071C)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13629 TIRE 10 X 4 TUBELESS AIR814-071C1. TILDEN BRG 3/4IDX1 3/8ODX3 1/453-1822. TILDEN RTNR 3/4IDX1 3/8ODX1/4L53-1643. TILDEN BRG 3/4ID1.34ODX15/16L53-1894.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 19
Page 20
Land Pride Section 2: Decks AT25 SERIES
Table of Contents Part Number Index
Guards
Applies to AT2584
18883
20 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 21
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT25 SERIES
Guards
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18883 KNOB 3/8-16 MALE THD 2 3/8OD817-358C1. RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C2. PLASTIC BELT GUARD RH. AT2660817-428C3. PLASTIC BELT GUARD RH. AT2672817-436C3. PLASTIC BELT GUARD RH. AT2584817-408C3. PLASTIC BELT GUARD LH. AT2660817-429C4. PLASTIC BELT GUARD LH. AT2672817-437C4. PLASTIC BELT GUARD LH. AT2584817-409C4.
AT2660 & AT2672RUBBER DISCHARGE DEFLECTOR817-427C5. AT2684 (Shown)RUBBER DISCHARGE DEFLECTOR817-412C5.
RHSNB 3/8-16X3/4 GR5802-149C6.
AT2660 & AT2672TOP PLATE HINGE SUPPORT310-578D7. AT2684 (Shown)TOP PLATE HINGE SUPPORT310-563D7. AT2660 & AT2672HINGE SUPPORT310-579D8. AT2684 (Shown)HINGE SUPPORT310-562D8.
NUT HEX FLANGE LOCK 5/8-11803-263C9. NUT HEX WHIZ 3/8-16 PLT803-198C10.
AT2660 & AT2672RHSNB 5/8-11X7 1/2 PLT802-692C11. AT2684 (Shown)RHSNB 5/8-11X10 GR5 PLT802-688C11.
SPRING TORSION807-189C12.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 21
Page 22
Land Pride Section 2: Decks AT25 SERIES
Table of Contents Part Number Index
Hitch
Applies to AT2584
18881
22 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 23
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT25 SERIES
Hitch
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18881 HHCS 5/8-18X5 GR5802-307C1. A-FRAME310-474D2. PIVOTING HITCH - UPPER310-015D3.
AT2660REAR BRACE310-583D4. AT2672REAR BRACE310-597D4. AT2584 (Shown)REAR BRACE310-475D4.
NUT HEX FLANGE LOCK 5/8-11803-263C5. WASHER LOCK SPRING 5/8 PLT804-022C6. NUT HEX 5/8-18 PLT803-022C7. SPACER - TOP HITCH310-012D8. PIN HAIR COTTER .120 PLT805-143C9. PIN CLEVIS 3/4 X 3 1/2 PLT805-142C10. HFS 5/8-11 X 1 3/4 GR5/8802-657C11. WLDMT. AT2660310-321H12. WLDMT. AT2672310-329H12.
(Shown)WLDMT. AT2584310-290H12.
PIN CLEVIS 3/4 X 2 1/2 PLT805-140C13. LOWER HITCH PIN310-020S14. LOWER HITCH WELDMENT310-019H15.
OptionalLOWER HITCH WELDMENT 16 1/8310-212H15.
PIN LYNCH 5/16 X 1 3/4805-015C16.
(S/N 317416+)DRIVELINE HOOK HANGER W/HRDWR800-320C17. (S/N ______+)HHCS 1/4-20X1 GR5802-005C18. (S/N ______+)MANUAL STORAGE CONTAINER816-504C19. (S/N ______+)WASHER FLAT 1/4 SAE PLT804-007C20. (S/N ______+)NUT HEX NYLOCK 1/4-20803-255C21.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 23
Page 24
Land Pride Section 3: Drive AT25 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212180-)
Applies to AT2560, AT2572
11754
24 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 25
Section 3: Drive Land Pride
Table of Contents Part Number Index
AT25 SERIES
Belt Drive (S/N 212180-)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg11754 HHCS 5/8-18X4 GR5802-237C1.
(S/N 72225- AT2572)V-IDLER PULLEY 5 O.D.808-074C2. (S/N 72226+ AT2572)B-GROOVE IDLER PULLEY 6.25 OD808-128C2.
IDLER SPACER310-051D3.
(S/N 72225- AT2572)FLAT IDLE PULLEY 6 1/4 O.D.808-073C4. (S/N 72226+ AT2572)FLAT IDLER PULLEY 6 3/4 O.D.808-129C4.
Rev. 2 not compat. w/Rev. 1(S/N 72225- AT2572)CW SPDLE HUB ASSY 5"PULL 3"TB310-132S5.
Rev. 1(S/N 72226+ AT2572)CW SPDLE HUB ASSY 6"PULL 3"TB310-161S5. AT2560" mowerCW SPDLE HUB ASSY 5"PULL 4.5TB310-137S5.
HHCS 7/16-20X1 1/2 GR8802-229C6.
Rev. 2 not compat. w/Rev. 1AT2560 & AT2572 (S/N 72225- )CW SPDLE HUB ASSY 5PULL 7.4BTB310-138S7.
Rev. 1(S/N 72226+ AT2572)CW SPDLE HUB ASSY 6PULL 7.4BTB310-162S7. AT2560" MowerV-BELT B144 146.9 E.L. KEVLAR816-063C8. (S/N 72225- AT2572)V-BELT B158 160.9 E.L. KEVLAR816-064C8. (S/N 72226+ AT2572)V-BELT B173 175.9 E.L. KEVLAR816-141C8.
MWR BLD 1/4 X 20 29/32SD HL CW890-171C9.
MWR BLD 1/4 X 20 29/32SD ML CW890-375C9.
MWR BLD 5/16X20 29/32SD LL CW890-204C9.
MWR BLD MULCH 1/4X20.91SD CW890-702C9.
MWR BLD 1/4 X 25SD HL CW890-172C9.
MWR BLD 1/4 X 25SD ML CW890-318C9.
MWR BLD 5/16 X 25SD LL CW890-200C9.
MWR BLD MULCH 1/4X25SD CW890-698C9.
WASHER LOCK SPRING 5/8 PLT804-022C10. NUT HEX 5/8-18 PLT803-022C11.
SPRING EXT BELT HANDLE807-068C14. TAKE-UP HANDLE-NEW SPRING310-088H15. DOUBLE DISK ARM PIVOT BUSHINGS817-028C16. NUT LOCK 5/8-18 NYLOK COLLAR P803-119C17. PIN COTTER 3/16 X 1 3/4 PLT805-017C18. NUT M 24 X 28.2.2.0114419. FLAT WASHER 24 X 44 X 48.3.2.0040920.
KEY 1/4" X 11/16" LONG310-331D23. GEARBOX SHAFT PROTECTOR817-050C24.
HHCS 5/8-18X2 1/2 GR5802-239C27. NUT HEX 7/16-20 PLT803-115C28.
Standard High Lift Blades 3 per 60" mower
Optional Medium Lift Blades 3 per 60" mower
Optional Low Lift Blades 3 per 60" mower
Optional Mulch Blades 3 per 60" Mower
Standard High Lift Blades 3 per 72" mower
Optional Medium Lift Blades 3 per 72" mower
Optional Low Lift Blades 3 per 72" mower
Optional Mulch Blades 3 per 72" Mower
Rev. 2 not compat. w/Rev. 1(S/N 174815+)NUT HEX 3/8-16 PLT803-014C12.
Rev. 1(S/N 174814-)NUT HEX 1/4-20 PLT803-006C12.
Rev. 2 not compat. w/Rev. 1(S/N 174815+)SP EYE 3/8-16X4802-567C13.
Rev. 1(S/N 174814-)SP EYE 1/4-20X2 3/4802-233C13.
AT2560" mowerB-GROOVE PULLEY 10 O.D.808-077C21.
Rev. 2 not compat. w/Rev. 1(S/N 72226+ AT2572)B-GROOVE DRIVE PULLEY 11 O.D.808-126C21.
Rev. 1(S/N 72225- AT2572)B-GROOVE PULLEY 9 O.D.808-076C21. (S/N 204084-)GEAR BOX SPACER310-041D22.
Rev. 3 not compat. w/Rev. 2(S/N 204085+)REP BY 826-325C826-203C25.
Rev. 2(S/N 204084-)RPBY 826-203C826-081C25.
Rev 1; Use up stockRPBY 826-081C826-011C25. Used with 826-081CHHCS 5/8-18X1 3/4 GR5802-246C26. Used with 826-011CHHCS 5/8-18X1 1/2 GR5802-207C26.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 25
Page 26
Land Pride Section 3: Drive AT25 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212180-) (continued)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
WASHER LOCK 7/16 PLT804-014C29. PTO SHAFT 35HP X 34 W/EXT CONE826-012C30. PTO CAT. 3 X 34826-064C30.
Rev. 2Replaces 802-326C & 804-015C.HFS 1/2-20X1 1/4 GR5802-384C31. Rev 1; Use up stockReplaced by 802-384C.HHCS 1/2-20X1 1/4 GR5802-326C31. Rev 1; Use up stockReplaced by 802-384C.WASHER LOCK SPRING 1/2 PLT804-015C31. Rev. 2WASHER BLADE 2ODX.56THKX.51ID804-110C32. Rev 1; Use up stockRPBY 804-110C310-043D32.
26 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 27
Section 3: Drive Land Pride
Table of Contents Part Number Index
AT25 SERIES
Belt Drive (S/N 212180-) (continued)
Applies to AT2560, AT2572
This Page Intentionally Left Blank
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 27
Page 28
Land Pride Section 3: Drive AT25 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212181+)
Applies to AT2560, AT2572
16499
28 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 29
Section 3: Drive Land Pride
Table of Contents Part Number Index
AT25 SERIES
Belt Drive (S/N 212181+)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16499 HHCS 5/8-18X4 GR5802-237C1.
(S/N 72225- AT2572)V-IDLER PULLEY 5 O.D.808-074C2. (S/N 72226+ AT2572)B-GROOVE IDLER PULLEY 6.25 OD808-128C2.
IDLER SPACER310-051D3.
(S/N 72225- AT2572)FLAT IDLE PULLEY 6 1/4 O.D.808-073C4. (S/N 72226+ AT2572)FLAT IDLER PULLEY 6 3/4" O.D.808-129C4. (S/N 239291-) AT2560CW SPINDLE HUB ASSEMBLY 5"315-375S5. (S/N 239291-) AT2572CW SPINDLE HUB ASSEMBLY 6"315-378S5.
HHCS 7/16-20X1 1/2 GR8802-229C6.
AT2560V-BELT B144 146.9 E.L. KEVLAR816-063C7. AT2572V-BELT B173 175.9 E.L. KEVLAR816-141C7.
MWR BLD 1/4 X 20 29/32SD HL CW890-171C8.
MWR BLD 1/4 X 20 29/32SD ML CW890-375C8.
MWR BLD 5/16X20 29/32SD LL CW890-204C8.
MWR BLD MULCH 1/4X20.91SD CW890-702C8.
MWR BLD 1/4 X 25SD HL CW890-172C8.
MWR BLD 1/4 X 25SD ML CW890-318C8.
MWR BLD 5/16 X 25SD LL CW890-200C8.
MWR BLD MULCH 1/4X25SD CW890-698C8.
WASHER LOCK SPRING 5/8 PLT804-022C9. NUT HEX 5/8-18 PLT803-022C10. NUT HEX 3/8-16 PLT803-014C11. SP EYE 3/8-16X4802-567C12. SPRING EXT BELT HANDLE807-068C13. TAKE-UP HANDLE-NEW SPRING310-088H14. DOUBLE DISK ARM PIVOT BUSHINGS817-028C15. NUT LOCK 5/8-18 NYLOK COLLAR P803-119C16. PIN COTTER 3/16 X 1 3/4 PLT805-017C17. NUT M 24 X 28.2.2.0114418. FLAT WASHER 24 X 44 X 48.3.2.0040919.
GEAR BOX SPACER310-041D21. KEY 1/4" X 11/16" LONG310-331D22.
HHCS 5/8-18X1 1/2 GR5802-207C25. HHCS 5/8-18X2 1/2 GR5802-239C26. NUT HEX 7/16-20 PLT803-115C27. WASHER LOCK 7/16 PLT804-014C28. PTO SHAFT 35HP X 34 W/EXT CONE826-012C29. PTO CAT. 3 X 34826-064C29.
WASHER BLADE 2ODX.56THKX.51ID804-110C31.
Standard High Lift Blades 3 per 60" mower
Optional Medium Lift Blades 3 per 60" mower
Optional Low Lift Blades 3 per 60" mower
Optional Mulch Blades 3 per 60" Mower
Standard High Lift Blades 3 per 72" mower
Optional Medium Lift Blades 3 per 72" mower
Optional Low Lift Blades 3 per 72" mower
Optional Mulch Blades 3 per 72" Mower
Rev. 2(S/N 359859+) AT25 60" mowersB-GROOVE PULLEY 10" CAST-IRON808-334C20.
Rev. 1(S/N 359858-)B-GROOVE PULLEY 10 O.D.808-077C20.
Rev. 1(S/N 359858-)B-GROOVE PULLEY 9 O.D.808-076C20.
Rev. 2 not compat. w/Rev. 1(S/N NR +) AT2572 mowersB-GROOVE PULLEY 11" CAST-IRON808-335C20.
Rev. 1(S/N NR -)B-GROOVE DRIVE PULLEY 11 O.D.808-126C20.
(S/N 220346-)GEARBOX SHAFT PROTECTOR817-050C23.
Rev. 2 not compat. w/Rev. 1(S/N 335075+)GBOX MOWER 50 HP 1:2.5 CW826-325C24.
Rev. 1(S/N 335074-)RPBY 826-325C826-203C24.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)HFS 1/2-20X2 GR8802-695C30.
Rev. 1(S/N 329660-)HFS 1/2-20X1 1/4 GR5802-384C30.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 29
Page 30
Land Pride Section 3: Drive AT25 SERIES
Table of Contents Part Number Index
Belt Drive (S/N 212181+) (continued)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
(S/N 239291-)TUBE NYLON 1/4OD X 062WL990-109R32. (S/N 239291-)GREASE ZERK 1/8NPT 45-DEG800-193C33.
(S/N 239291-)FTG TUBE,CONNECTOR 1/8 MNPT800-157C34. NUT LOCK 3/4-16 NYLOC COLLAR803-114C35. 1/4 SQ. KEY X 7/8 LG172-242D36. WASHER FLAT 3/4 HARD ASTMF436804-093C37.
AT2560,B-GROOVE PULLEY 5 O.D.808-075C38.
AT2572B-GROOVE DRIVE PULLEY 6 O.D.808-127C38. BEARING 6206 W/ METAL SHIELD822-161C39.
(S/N 329661+)BLADE HUB - MACH310-224D40.
(S/N 239292 <-> 329660)REP BY 310-348S310-361D41. BEARING 206822-006C42. BLADE HUB - 7/8310-300D43.
(S/N 239292+)CW TG SPINDLE HUB ASSY 5" PULL310-248S44.
(S/N 239292+) AT2572CW TG SPINDLE HUB ASSY 6" PULL310-249S44.
(S/N 239292+)GREASE ZERK STRAIGHT 1/4-28800-001C45.
(S/N 239292+)BLADE HUB MACHINED TOP GREASE310-457D46.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)BLADE SPINDLE SHAFT CW TG310-630D47. Rev. 1(S/N 239292 <-> 329660)RPBY 310-349S310-454D47.
30 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 31
Section 3: Drive Land Pride
Table of Contents Part Number Index
AT25 SERIES
Belt Drive (S/N 212181+) (continued)
Applies to AT2560, AT2572
This Page Intentionally Left Blank
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 31
Page 32
Land Pride Section 3: Drive AT25 SERIES
Table of Contents Part Number Index
Left and Right Spindle Hub Assembly (S/N 212180-)
Applies to AT2560, AT2572
15045
32 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 33
Section 3: Drive Land Pride
Table of Contents Part Number Index
AT25 SERIES
Left and Right Spindle Hub Assembly (S/N 212180-)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15045
Rev. 2Replaces 802-326C & 804-015CHFS 1/2-20X1 1/4 GR5802-384C1. Rev 1; Use up stockReplaced by 802-384CHHCS 1/2-20X1 1/4 GR5802-326C1. Rev 1; Use up stockReplaced by 802-384CWASHER LOCK SPRING 1/2 PLT804-015C2. Rev. 2WASHER BLADE 2ODX.56THKX.51ID804-110C3. Rev 1; Use up stockRPBY 804-110C310-043D3. Rev. 2 not compat. w/Rev. 1(S/N 30988+)BLADE HUB310-300D4. Rev. 1(S/N 30987-)BLADE HUB, FD - 1 5/8310-033D4. Rev. 3 not compat. w/Rev. 2(S/N 107301+)BLADE SPINDLE SHAFT310-361D5. Rev. 2 not compat. w/Rev. 1(S/N 30988<->107300)RPBY 310-179A310-299D5. Rev. 1(S/N 30987-)BLADE SPINDLE310-032D5.
Includes 5; 7 and 13BLADE SPINDLE W/KEY 1/4SQ X7/8310-179A6.
Rev. 2 not compat. w/Rev. 1(S/N 107301+)1/4 SQ. KEY X 7/8 LG172-242D7. Rev. 1(S/N 107300-)KEY WOODRUFF 1/4 X 3/4 #806890-163C7.
B-GROOVE PULLEY 5 O.D.808-075C8.
BEARING 206822-006C9. NUT LOCK 3/4-16 NYLOC COLLAR803-114C10. ZERK 5/16-24 STRAIGHT #1711B800-075C11.
AT2560 mowers & (AT2572 S/N 72225-)
(S/N 72226+) AT2572B-GROOVE DRIVE PULLEY 6 O.D.808-127C8.
AT2560LUBE FITTING 4 1/2 EXTENSION310-042D12. AT2572LUBE FITTING 3" EXTENSION310-312D12.
Rev. 2(S/N 174548+)WASHER FLAT 3/4 HARD ASTMF436804-093C13. Rev 1; Use up stock(S/N 174547-)WASHER FLAT 3/4 SAE PLT804-025C13. Rev. 2 not compat. w/Rev. 1(S/N 30988+)BLADE HUB- MACH.-90310-224D14. Rev. 1(S/N 30987-)SPINDLE HUB - MACH310-036D14. Rev. 2BEARING 6206 W/ METAL SHIELD822-161C15. Rev 1; Use up stockBEARING 206822-006C15. Rev. 2 not compat. w/Rev. 1(S/N 72226+ AT2572)CW SPDLE HUB ASSY 6"PULL 3"TB310-161S16. Rev. 1(S/N 72225- AT2572)CW SPDLE HUB ASSY 5"PULL 3"TB310-132S16.
AT2560CW SPDLE HUB ASSY 5"PULL 4.5TB310-137S16.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 33
Page 34
Land Pride Section 3: Drive AT25 SERIES
Table of Contents Part Number Index
Spindle Hub Assembly (S/N 212180-)
Applies to AT2560, AT2572
15044
34 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 35
Section 3: Drive Land Pride
Table of Contents Part Number Index
AT25 SERIES
Spindle Hub Assembly (S/N 212180-)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15044
Rev. 2Replaces 802-326C & 804-015CHFS 1/2-20X1 1/4 GR5802-384C1. Rev 1; Use up stockReplaces by 802-384CHHCS 1/2-20X1 1/4 GR5802-326C1. Rev 1; Use up stockReplaces by 802-384CWASHER LOCK SPRING 1/2 PLT804-015C2. Rev. 2WASHER BLADE 2ODX.56THKX.51ID804-110C3. Rev 1; Use up stockRPBY 804-110C310-043D3. Rev. 2 not compat. w/Rev. 1(S/N 30988+)BLADE HUB310-300D4. Rev. 1(S/N 30987-)BLADE HUB, FD - 1 5/8310-033D4. Rev. 3 not compat. w/Rev. 2(S/N 107301 <-> 239292)BLADE SPINDLE SHAFT310-361D5. Rev. 2 not compat. w/Rev. 1(S/N 30988<->107300)RPBY 310-179A310-299D5. Rev. 1(S/N 30987-)BLADE SPINDLE310-032D5.
(S/N 107300 <-> 239292)BLADE SPINDLE W/KEY 1/4SQ X7/8310-179A6.
Rev. 2 not compat. w/Rev. 1(S/N 107301+)1/4 SQ. KEY X 7/8 LG172-242D7. Rev. 1(S/N 107300-)KEY WOODRUFF 1/4 X 3/4 #806890-163C7. Rev. 2 not compat. w/Rev. 1(S/N 30988 <-> 239292)BLADE HUB- MACH.-90310-224D8.
Rev. 1(S/N 30987-)SPINDLE HUB - MACH310-036D8. BEARING 206822-006C9. NUT LOCK 3/4-16 NYLOC COLLAR803-114C10. ZERK 5/16-24 STRAIGHT #1711B800-075C11.
AT2560 & AT257272 GREASE TUBE310-126D12. (S/N 59102+) AT2560 & AT2572NUT HEX PIPE JAM 1/8-27 NPSF803-184C13. AT2560 (S/N 72225- AT2572)B-GROOVE PULLEY 5 O.D.808-075C14. (S/N 72226+ ) AT2572B-GROOVE DRIVE PULLEY 6 O.D.808-127C14.
Rev. 2(S/N 174548+)WASHER FLAT 3/4 HARD ASTMF436804-093C15.
Rev 1; Use up stock(S/N 174547-)WASHER FLAT 3/4 SAE PLT804-025C15.
Rev. 2(S/N 174548+)BEARING 6206 W/ METAL SHIELD822-161C16.
Rev 1; Use up stock(S/N 174547-)BEARING 206822-006C16.
Rev. 2 not compat. w/Rev. 1AT2560 & (S/N 72225- AT2572)CW SPDLE HUB ASSY 5PULL 7.4BTB310-138S17.
Rev. 1(S/N 72226+) AT2572CW SPDLE HUB ASSY 6PULL 7.4BTB310-162S17.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 35
Page 36
Land Pride Section 3: Gauge Wheel AT25 SERIES
Table of Contents Part Number Index
Gauge Wheel (814-271C)
Applies to AT2584
22240
36 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 37
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gauge Wheel (814-271C)
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22240 MRTN HGH SPD SPCR3/4ID 1.125ODHSS-341. MRTN GREASE SEAL 1.125(1.78OD)GS-32. BEARING CONE #LM 11949822-045C3. BEARING CUP #LM 11910822-050C4.
Complete AssemblyTIRE 11X4.00-5 RIB SEMI-SOLID814-271C5.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 37
Page 38
Land Pride Section 3: Gauge Wheel AT25 SERIES
Table of Contents Part Number Index
Gauge Wheels
Applies to AT2584
18884
38 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 39
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gauge Wheels
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18884 PIN LYNCH 1/4 X 1 3/4 PLT805-126C1. SPACER 1/2827-001C2. SPACER 1827-002C3.
AT2684 (Shown)11' GW YOKE 5 1/8X5 1/8 INSIDE315-300H4.
AT2660 & AT2672GAUGE WHEEL YOKE(5 1/8 INSIDE)310-149H4. HHCS 3/4-10X7 GR5802-095C5. NUT HEX 3/4-10 PLT NYLOCK803-025C6.
AT268411 X 400-5 RIB TIRE W 3/4 BRGS814-144C7.
Rev. 2AT2684 S/N 467406+TIRE 11X4.00-5 RIB SEMI-SOLID814-271C7.
Rev. 1AT2684 S/N 467405-RPBY 814-271C814-191C7. AT2660 & AT2672TIRE 4.10/3.50-4 TUBELESS AIR814-071C7. AT2660 & AT2672TIRE 10X3.25 SOLID STRT RIB CR814-188C7. AT2684 S/N 467406+11X4 SEMISOLID TIRE W/YOKE SUB310-314S8. AT2684 S/N 467405-11X4.00 CASTER GW YOKE315-291S8. AT2660 & AT26724X10 AIR TIRE & YOKE ASSY310-105S8. AT2660 & AT26723.25X10 SOLID TIRE/YOKE ASSY310-017S8.
SPINDLE BUSHING817-048C9. GREASE ZERK STRAIGHT 1/4-28800-001C10.
AT2660WELDMENT GAUGE WHEEL ARM310-327H11. AT2672WELDMENT GAUGE WHEEL ARM310-355H11. AT2684 (Shown)WELDMENT GAUGE WHEEL ARM310-296H11. AT2660ASSY. GAUGE WHEEL ARM310-326S12. AT2672ASSY. GAUGE WHEEL ARM310-354S12.
ASSY. GAUGE WHEEL ARM310-295S12.
HFS 1/2-13 X 3 1/2 GR5/8802-658C13. NUT HEX WHIZ 1/2-13 PLT803-037C14.
GAUGE WHEEL SPACER - SHORT310-024D17. GAUGE WHEEL SPACER(SOLID TIRE)310-329D17. SPACER TUBE GA.WHL. 5 1/8 LG310-328D18. HHCS 1/2-20X6 1/2 GR5802-350C19. BUSHING 3/4 I.D. 1 3/8 X 1 LG890-189C20. HS BUSH 3/4IDX1 1/8ODX 5/8LG8701020. ZERK STAKED800-100C21. HS CGD RLR BRG.75IDX1.37X1.5LG8741022.
AT2684 (Shown) Includes items 9, 10 & 11
S/N 511277+NUT HEX FLG/LK 1/2-20 PLT.GR803-308C15. S/N 511276-NUT HEX 1/2-20 PLT803-018C15. S/N 511276-WASHER LOCK SPRING 1/2 PLT804-015C16.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 39
Page 40
Land Pride Section 4: Drive AT25 SERIES
Table of Contents Part Number Index
Belt Drive
Applies to AT2584
18886
40 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 41
Section 4: Drive Land Pride
Table of Contents Part Number Index
AT25 SERIES
Belt Drive
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18886 GBOX MOWER 50 HP 1:2.8 CW826-326C1.
HHCS 5/8-18X1 3/4 GR5802-246C2.
WASHER LOCK SPRING 5/8 PLT804-022C4. NUT HEX 5/8-18 PLT803-022C5.
OMNI NUT HEX SLOTTED, 1-14UNC1200507.
NUT HEX WHIZ 1/2-13 PLT803-037C9. GREASE ZERK STRAIGHT 1/4-28800-001C10. NUT LOCK 3/4-16 NYLOC COLLAR803-114C11. WASHER FLAT 3/4 HARD ASTMF436804-093C12.
BEARING 6206 W/ METAL SHIELD822-161C14. BLADE SPINDLE SHAFT CW TG310-630D15.
1/4 SQ. KEY X 7/8 LG172-242D16. BLADE HUB MACHINED TOP GREASE310-457D17. BEARING 206822-006C18.
HHCS 7/16-20X1 1/2 GR8802-229C20.
WASHER LOCK 7/16 PLT804-014C22. NUT HEX 7/16-20 PLT803-115C23. BLADE WASHER-90310-227D24.
AT2660, AT2672, AT2684 S/N 337567+
AT2684 (S/N 311165 <-> 337566-)REP BY 826-326C826-311C1. AT2684 (S/N 311164-)REP BY 826-326C826-296C1.
AT2660 S/N 499702+GEARBOX MOUNT ASSEMBLY310-414V3. AT2660 S/N 499701-WELDMENT GEARBOX MOUNT310-323H3. AT2672 S/N 499702+GEARBOX MOUNT ASSEMBLY310-415V3. AT2672 S/N 499701-WELDMENT GEARBOX MOUNT310-330H3. AT2684 S/N 499702+GEARBOX MOUNT ASSEMBLY310-413V3. AT2684 S/N 499701-WLDMT. GEARBOX MOUNT310-291H3.
Rev. 2 not compat. w/Rev. 1(S/N 344470+) AT2560 & AT2672B-GROOVE PULLEY 11" CAST-IRON808-335C6.
Rev. 1(S/N 344469-)B-GROOVE DRIVE PULLEY 11 O.D.808-126C6.
Rev. 2 not compat. w/Rev. 1(S/N 344470+) AT2684B-GROOVE PULLEY 9" CAST-IRON808-333C6.
Rev. 1(S/N 344469-)B-GROOVE PULLEY 9 O.D.808-076C6.
AT2660ASSY. GEARBOX MOUNT310-322S8. AT2672ASSY. GEARBOX MOUNT310-331S8. AT2684ASSY. GEARBOX MOUNT310-292S8.
AT2660B-GROOVE PULLEY 5 O.D.808-075C13. AT2672 & AT2684B-GROOVE DRIVE PULLEY 6 O.D.808-127C13.
AT2660, AT2672 & AT2684 S/N 329661+
AT2684 S/N 329660-BLADE SPINDLE SHAFT CW310-454D15.
AT2660CW TG SPINDLE HUB ASSY 5" PULL310-248S19. AT2672CW TG SPINDLE HUB ASSY 6" PULL310-249S19. AT2684CW TG SPINDLE HUB ASSY 6" PULL310-261S19.
AT2660V-BELT B103 106 E.L. KEVLAR816-308C21. AT2672V-BELT B136 138.9 E.L. KEVLAR816-116C21. AT2684V-BELT B150 153 E.L. KEVLAR816-338C21.
Rev. 2(S/N 319784+)NUT HEX FLG. LOCK 1/2-20 PLT.803-308C25.
Rev 1; Use up stock(S/N 319783-)NUT HEX 1/2-20 PLT803-018C25. (S/N 319783-)WASHER LOCK SPRING 1/2 PLT804-015C26. AT2684BLADE BAR RH. THRD 10.50 CTR.315-823D27. Standard high lift AT2660MWR BLD 1/4 X 20 29/32SD HL CW890-171C28. Optional medium lift AT2660MWR BLD 1/4 X 20 29/32SD ML CW890-375C28. Optional low lift AT2660MWR BLD 5/16X20 29/32SD LL CW890-204C28. Optional mulch AT2660MWR BLD MULCH 1/4X20.91SD CW890-702C28. Standard high lift AT2672MWR BLD 1/4 X 25SD HL CW890-172C28. Optional medium lift AT2672MWR BLD 1/4 X 25SD ML CW890-318C28. Optional low lift AT2672MWR BLD 5/16 X 25SD LL CW890-200C28. Optional mulch AT2672MWR BLD MULCH 1/4X25SD CW890-698C28. Optional high lift AT2684MWR BLD 5/16 X 29 SD HL CW890-684C28.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 41
Page 42
Land Pride Section 4: Drive AT25 SERIES
Table of Contents Part Number Index
Belt Drive (continued)
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
MWR BLD 5/16 X 29 SD ML CW890-675C28.
HHCS 1/2-20X1 3/4 GR5802-329C29.
WASHER BLADE 2ODX.56THKX.51ID804-110C31. NUT HEX FLANGE LOCK 5/8-11803-263C32. FLAT IDLER PULLEY 6 3/4 O.D.808-129C33. HHCS 5/8-11X4 1/4 GR5802-151C34. RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C35.
DRIVELINE CAT.4 SC 540RPM826-064C36.
KEY 1/4 X 11/16 LONG310-331D37. OMNI COTTER PIN 5 X 5010000138. HFSS 1/2-13X1 1/2 GR5802-203C39.
Standard medium lift AT2684 (Shown)
Optional low lift AT2684MWR BLD 5/16 X 29 SD LL CW890-685C28. Optional mulch AT2684MWR BLD MULCH 1/4X29SD CW890-706C28.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)HFS 1/2-20X2 GR8802-695C30. Rev. 1(S/N 329660-)HFS 1/2-20X1 1/4 GR5802-384C30.
AT2672 & AT2684DRIVELINE CAT.2 W/EXT. CONE826-297C36.
AT2600REP BY 826-064C826-012C36.
AT2660 & AT2672BLADE HUB - 7/8 (PLATED)310-300D40.
42 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 43
Section 4: Drive Land Pride
Table of Contents Part Number Index
AT25 SERIES
Belt Drive (continued)
Applies to AT2584
This Page Intentionally Left Blank
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 43
Page 44
Land Pride Section 4: Drive AT25 SERIES
Table of Contents Part Number Index
Belt Take-Up
Applies to AT2584
18885
44 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 45
Section 4: Drive Land Pride
Table of Contents Part Number Index
AT25 SERIES
Belt Take-Up
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18885 HFS 5/8-11 X 1 3/4 GR5/8802-657C1. FLAT IDLER PULLEY 6 3/4 O.D.808-129C2. WASHER FLAT 5/8 USS PLT804-019C3. SPACER BUSHING310-494D4. SPRING IDLER BRACKET310-493D5. NUT HEX FLANGE LOCK 5/8-11803-263C6. SPRING EXT BELT HANDLE807-068C7. CHAIN WELD 1/4 PROOF X 3 LINK890-641C8. EYE BOLT OPEN 3/8-16X3 1/2802-668C9. NUT HEX 3/8-16 PLT803-014C10. WASHER FLAT 5/8 SAE PLT804-021C11.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 45
Page 46
Land Pride Section 4: Gearboxes AT25 SERIES
Table of Contents Part Number Index
Gearbox (826-081C) (826-011C) Comer
Applies to AT2560, AT2572
10508
46 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 47
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gearbox (826-081C) (826-011C) Comer
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10508 RPBY 826-203C826-081C RPBY 826-203C826-011C BOX0.141.0330.001. KEY, 10 X 8 X 308.4.1.008892.
Rev. 2BEARING BALL 6207822-166C3.
Rev 1; Use up stockRPBY 822-166C8.0.1.008703.
LID,52 X 78.7.0.006934. KEYED SHAFT, 1 3/8" Z60.141.2100.005. RING BEVEL GEAR, Z34, M 3.360.141.5000.006. SPACER0.141.7100.007. CO SNAP RING INT 72 UN174378.5.2.001318. CO SNAP RING EXT 35 UN174358.5.1.000059. NUT M 24 X 28.2.2.0114410. FLAT WASHER 24 X 44 X 48.3.2.0040911. SPLIT RING, SB 728.5.3.0091512. OIL SEAL, 35 X 72 X 128.7.1.0015213.
Rev. 2CO ADJUSTMENT SPACER, 35.3 X48A.259.50014.
Rev 1; Use up stockRPBY A.259.5000.259.7500.0014.
PINION SHAFT, Z12 M 3.360.141.6001.0015. CO OIL PLUG 3/88.6.5.0000616. BEARING #60078.0.1.0000017. LID FLANGE0.141.1300.0018. CO SPLIT RING SB 1258.5.3.0105719. RING GASKET OR-44628.7.6.0105820.
Rev. 2OMNI SEAL-INPUT CR1393006012721.
Rev 1; Use up stockRPBY 0601278.7.3.0002821.
PIN COTTER 3/16 X 1 3/4 PLT805-017C22.
Rev. 2KEY 1/4" X 11/16" LONG310-331D23.
Rev 1; Use up stockDRIVE SPROCKET KEY123-004D23.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 47
Page 48
Land Pride Section 4: Gearboxes AT25 SERIES
Table of Contents Part Number Index
Gearbox (826-081C) IEG
Applies to AT2560, AT2572
13996
48 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 49
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gearbox (826-081C) IEG
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13996 RPBY 826-203C826-081C ITG GEARBOX HOUSING18-0211.
Rev. 2BEARING BALL 6207822-166C2.
Rev 1; Use up stockRPBY 822-166C04-0042.
ITG 1/2"-14 PIPE PLUG09-0023. ITG INPUT SHAFT02-0354. ITG RETAINING RING21-0125. ITG 30 TOOTH INPUT GEAR03-0366. ITG INPUT CAP GASKET 0.25MM08-004A7. ITG INPUT CAP GASKET 0.10MM08-004B8. ITG M10 LOCKWASHER07-0019. ITG M10 X 1.5 X 25 CAP SCREW06-01210. ITG INPUT CAP20-00711. ITG CAP PLUG09-00912. ITG OUTPUT CAP GASKET 0.25MM08-005A13. ITG OUTPUT CAP GASKET 0.10MM08-005B14. ITG OUTPUT CAP20-00315. ITG OUTPUT OIL SEAL05-00516. PIN COTTER 3/16 X 1 3/4 PLT805-017C17. ITG 1"-14 SLOTTED HEX NUT11-00718. ITG BLADE HUB WASHER07-00519. ITG 12 TOOTH OUTPUT PIN & SHFT03-03720. ITG BEARING SPACER10-00221.
Rev. 3BALL BEARING 6208822-188C22.
Rev 2; Use up stockRPBY 822-188C05000722.
Rev 1; Use up stockRPBY 05000704-00322.
ITG INPUT OIL SEAL05-00223. KEY 1/4" X 11/16" LONG310-331D24.
Rev. 2 not compat. w/Rev. 1(S/N 146786+)SP SAFETY VALVE 1/8MNPT811-320C25.
Rev. 1(S/N 146785-)ITG 1/2-14NPT PRES-RELIEF PLUG09-00825.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 49
Page 50
Land Pride Section 4: Gearboxes AT25 SERIES
Table of Contents Part Number Index
Gearbox (826-203C) OMNI
Applies to AT2560, AT2572
16020
50 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 51
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gearbox (826-203C) OMNI
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16020 RPBY 826-325C826-203C OMNI SCREW-5/16"-18UNC X 7/8"1101921. RPBY 804-009C1300062. OMNI CAP-INPUT0202243. OMNI GASKET-INPUT 0.10MM0702464. OMNI GASKET-INPUT 0.20MM0702475. OMNI GASKET-INPUT 0.30MM0702486. OMNI GASKET-INPUT 0.50MM0702497. OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079.
OMNI RTNG. RING 38MM RC DSH-3820014010. OMNI SHAFT-INPUT 1-3/8"-6 SPLN04033511. OMNI RTNG. RING 38MM RC DSH-3820014112. OMNI GEAR-INPUT 30T03045913. OMNI SHIM INPUT 0.10MM09017914. OMNI SHIM INPUT 0.20MM09018015. OMNI SHIM INPUT 0.30MM09018116. OMNI SCREW-1/4"-20 UNC X 3/4"11000917. OMNI LOCKWASHR 1/4" SPLIT TYPE13002818. OMNI INSPECTION COVER24028019. OMNI HOUSING-RC-2501017520. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004721.
Rev. 2 not compat. w/Rev. 1(S/N 215411+)OMNI PIPE PLUG 1/2' SQ HEAD14000022.
Rev. 1(S/N 215410-)OMNI PLUG VENT 1/2-14 NPTF14003322.
OMNI PINION OUTPUT 12T03045823. OMNI SHIM OUTPUT 0.10MM09018224. OMNI SHIM OUTPUT 0.20MM09018325. OMNI SHIM OUTPUT 0.30MM09018426.
Rev. 2BEARING BALL 6207822-166C27.
Rev 1; Use up stockRPBY 822-166C05000627.
OMNI RETAINING RING20000028. OMNI SPACER OUTPUT09019029. OMNI GASKET-OUTPUT 0.10MM07025030. OMNI GASKET-OUTPUT 0.20MM07025131. OMNI GASKET-OUTPUT 0.30MM07025232. OMNI GASKET-OUTPUT 0.50MM07025333. OMNI SEAL-OUTPUT CR1582206012834. OMNI CAP-OUTPUT02022535. OMNI NUT HEX SLOTTED, 1-14UNC12005036. OMNI COTTER PIN 5 X 5010000137. OMNI PLUG PIPE SQ HD1/8-27NPTF14001738. OMNI SPACER INPUT09018939.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 51
Page 52
Land Pride Section 4: Gearboxes AT25 SERIES
Table of Contents Part Number Index
Gearbox (826-293C) OMNI
Applies to AT2560, AT2572
18705
52 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 53
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gearbox (826-293C) OMNI
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18705 RPBY 826-325C826-293C OMNI SCREW-5/16"-18UNC X 7/8"1101921. WASHER LOCK SPRING 5/16 PLT804-009C2. OMNI CAP-INPUT0202243. OMNI GASKET-INPUT 0.10MM0702464. OMNI GASKET-INPUT 0.20MM0702475. OMNI GASKET-INPUT 0.30MM0702486. OMNI GASKET-INPUT 0.50MM0702497. OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079.
OMNI RTNG. RING 38MM RC DSH-3820014010. OMNI SHAFT INPUT 1 3/8" - 6A04049111. OMNI RTNG. RING 38MM RC DSH-3820014112. OMNI GEAR-INPUT 30T03045913. OMNI SHIM INPUT 0.10MM09017914. OMNI SHIM INPUT 0.20MM09018015. OMNI SHIM INPUT 0.30MM09018116. OMNI SCREW-1/4"-20 UNC X 3/4"11000917. OMNI LOCKWASHR 1/4" SPLIT TYPE13002818. OMNI INSPECTION COVER24028019. OMNI HOUSING RC-25 SERIES01025220. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004721. OMNI PLUG VENT 1/2-14 NPTF14003322. OMNI PINION OUTPUT 12T03045823. OMNI SHIM OUTPUT 0.10MM09018224. OMNI SHIM OUTPUT 0.20MM09018325. OMNI SHIM OUTPUT 0.30MM09018426.
Rev. 2BEARING BALL 6207822-166C27.
Rev 1; Use up stockRPBY 822-166C05000627.
OMNI RETAINING RING20000028. OMNI SPACER OUTPUT09019029. OMNI GASKET-OUTPUT 0.10MM07025030. OMNI GASKET-OUTPUT 0.20MM07025131. OMNI GASKET-OUTPUT 0.30MM07025232. OMNI GASKET-OUTPUT 0.50MM07025333. OMNI SEAL-OUTPUT CR1582206012834. OMNI CAP-OUTPUT02022535. OMNI NUT HEX SLOTTED, 1-14UNC12005036. OMNI COTTER PIN 5 X 5010000137. OMNI PLUG PIPE SQ HD1/8-27NPTF14001738. OMNI SPACER INPUT09018939. OMNI SPACER, INPUT09034140.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 53
Page 54
Land Pride Section 4: Gearboxes AT25 SERIES
Table of Contents Part Number Index
Gearbox (826-325C) Comer
Applies to AT2560, AT2572
19549
54 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 55
Section 4: Gearboxes Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gearbox (826-325C) Comer
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19549 GBOX MOWER 50 HP 1:2.5 CW826-325C CO OIL PLUG 3/88.6.5.000061. CO BOLT M8X22 HHB8.1.1.005012. CO COVER0.195.1300.003. CO INPUT SHAFT 1" 3/8 Z60.195.2000.004. CO CAP 72 X 108.7.0.007445. CO SNAP RING INT 72 UN174378.5.2.001316. COMER SHIM KIT 71.7A.248.75007. CO ROLLER BEARING 30207 CL-B8.0.9.000268. CO SNAP RING 40 UNI 74368.5.1.006809. CO SHIM 35.3 X 48 X 2.50.259.7525.0010. CO HOUSING0.195.0300.0011. CO ROLLER BEARING 32208 CL-B8.0.9.0010212. CO NUT M40 X 1.50.278.7103.0013. CO OIL SEAL 35 X 80 X 10 RTA358.7.3.0008114. CO PROTECTIVE FLAT WASHER1.195.7100.0015. CO SNAP RING SB 818.5.3.0095516. CO FLAT WASHER 25 X 44 X 48.3.2.0040917. NUT CASTLE M 24 X 28.2.2.0114418. CO COTTER PIN B5 X 508.4.7.0051619. CO SHIM 40.3 X 51.5 826-067CA244.50120. CO PINION Z12 M50.195.5001.0021. BEARING BALL 6207822-166C22. CO OIL SEAL 35 X 72 X 108.7.3.0005523. CO CROWN GEAR Z30 M50.195.6001.0024. CO OIL LEVEL PLUG 3/8" GASU0.195.7101.0025.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 55
Page 56
Land Pride Section 5: Drivelines AT25 SERIES
Table of Contents Part Number Index
Driveline (826-012C) Eurocardan (S/N 199605-)
Applies to AT2560, AT2572
22243
56 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 57
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
AT25 SERIES
Driveline (826-012C) Eurocardan (S/N 199605-)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22243 DRIVELINE WITH EXT. CONE826-012C EC TWIST COLLAR KIT (TRT. END)10042201. EC YOKE ASSEMBLY (TRACT. END)10120102. EC CROSS ASSEMBLY10020203. EC OUTER TUBE YOKE17020274. EC 8X55-DIN-1481 O/TUBE R/PIN63308555.
Rev. 2EC OUTER TUBE15230736.
Rev 1; Use up stockRPBY 152307315323226.
Rev. 2EC INNER TUBE15220737.
Rev 1; Use up stockRPBY 152207315323087.
EC INNER TUBE YOKE17020298. EC TWIST COLLAR KIT (IMP. END)10042249. EC YOKE ASSEMBLY (IMP. END)111201010.
Rev. 2EC TUBE BEARING178221011.
Rev 1; Use up stockEC TUBE BEARING178201611.
Rev. 2EC OUTER TUBE RIGID CONE188420112.
Rev 1; Use up stockRPBY 1884201188323012.
Rev. 2EC SOFT CONE188420313.
Rev 1; Use up stockRPBY 1884203188301313.
EC PIN STOP ROTATION178421214. DRIVELINE SHIELD SAFETY CHAIN04432115.
Rev. 2EC OUTER TUBE (1873077) 650 MM187306516.
Rev 1; Use up stockRPBY 1873065188234816.
Rev. 2EC INNER TUBE187206517.
Rev 1; Use up stockRPBY 1872065177233517.
Rev. 2EC SOFT LONG CONE188420518.
Rev 1; Use up stockRPBY 1884205188301418.
Rev. 2EC INNER TUBE RIGID CONE188420219.
Rev 1; Use up stockRPBY 1884202188323119.
Rev. 2EC TUBE BEARING IMP END178221120.
Rev 1; Use up stockEC TUBE BEARING178201620.
DECAL DANGER PTO DRIVELINE818-552C21. DECAL DANGER GUARD MISS PTO818-540C22. EC 08X60 1485DIN ROLL PIN633086023.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 57
Page 58
Land Pride Section 5: Drivelines AT25 SERIES
Table of Contents Part Number Index
Driveline (826-012C) Eurocardan (S/N 199606+)
Applies to AT2560, AT2572
22243
58 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 59
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
AT25 SERIES
Driveline (826-012C) Eurocardan (S/N 199606+)
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22243 DRIVELINE WITH EXT. CONE826-012C EC TWIST COLLAR KIT (TRT. END)10042201. EC YOKE ASSEMBLY (TRACT. END)10130102. EC CROSS ASSEMBLY10030203. EC OUTER TUBE YOKE17030274. EC 8X65-DIN-1481 O/TUBE R/PIN63308655. EC OUTER TUBE (1524085) 720MM15240726. EC INNER TUBE15230727. EC INNER TUBE YOKE17030298. EC TWIST COLLAR KIT (IMP. END)10042249. EC YOKE ASSEMBLY (TRACT. END)111301010. EC TUBE BEARING178421011. EC OUTER TUBE RIGID CONE188420112. EC SOFT CONE188420313. EC PIN STOP ROTATION178421214. DRIVELINE SHIELD SAFETY CHAIN04432115. EC OUTER TUBE (1873077) 640MM187306416. EC INNER TUBE (1872075) 640MM187206417. EC SOFT LONG CONE188420518. EC INNER TUBE RIGID CONE188420219. EC TUBE BEARING178421120. DECAL DANGER PTO DRIVELINE818-552C21. DECAL DANGER GUARD MISS PTO818-540C22. EC 08X60 1485DIN ROLL PIN633086023.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 59
Page 60
Land Pride Section 5: Drivelines AT25 SERIES
Table of Contents Part Number Index
Driveline (826-012C) Walterscheid
Applies to AT2560, AT2572
10824
60 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 61
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
AT25 SERIES
Driveline (826-012C) Walterscheid
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10824 DRIVELINE WITH EXT. CONE826-012C WS END YOKE3809051. WS QUICK DISCONNECT KIT3819082. WS CROSS & BRG KIT0444393. WS INBOARD YOKE0410654. WS SPRING PIN0206145. WS INNER PROFILE0544846. WS SHIELD CONE-4 RIB3772347. WS BEARING RING0872798. WS OUTER SHIELD TUBE3873329. WS INNER SHIELD TUBE38726610. WS SHIELD CONE-10RIB37724011. WS OUTER PROFILE05448212. WS INBOARD YOKE04106813. WS SCREW36530514. WS SAFETY CHAIN04432115. DECAL DANGER GUARD MISS PTO818-540C16. DECAL DANGER PTO DRIVELINE818-552C17.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 61
Page 62
Land Pride Section 5: Drivelines AT25 SERIES
Table of Contents Part Number Index
Driveline (826-064C) Eurocardan
Applies to AT2560, AT2572
22224
62 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 63
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
AT25 SERIES
Driveline (826-064C) Eurocardan
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22224 DRIVELINE CAT.4 SC 540RPM826-064C EC YOKE ASSEMBLY10140121. EC CROSS ASSEMBLY ( U JOINT)10040202. EC OUTER TUBE YOKE17040273. EC 08X60 1485DIN ROLL PIN63308604. EC OUTER TUBE (1524095) 720MM15240725. EC INNER TUBE (1525095) 720MM15250726. EC 8X55-DIN-1481 O/TUBE R/PIN63308557. EC INNER TUBE YOKE17040298. EC PULL COLLAR KIT10042259. EC TUBE BEARING178421010. EC OUTER TUBE RIGID CONE188420111. EC STIFFENING RING121323312. EC SOFT CONE188420313. EC PIN STOP ROTATION178421214. EC OUTER TUBE (1873087) 640MM187306415. EC INNER TUBE (1872087) 640MM187206416. EC SOFT LONG CONE188420517. EC INNER TUBE RIGID CONE188420218. EC TUBE BEARING178421119. DRIVELINE SHIELD SAFETY CHAIN04432120. REP BY 044321100606520. DECAL DANGER PTO DRIVELINE818-552C21. REP BY 818-552C114000121. DECAL DANGER GUARD MISS PTO818-540C22. REP BY 818-540C114000322.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 63
Page 64
Land Pride Section 5: Drivelines AT25 SERIES
Table of Contents Part Number Index
Driveline Heavy Duty (826-064C) Walterscheid
Applies to AT2560, AT2572
13457
64 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 65
Section 5: Drivelines Land Pride
Table of Contents Part Number Index
AT25 SERIES
Driveline Heavy Duty (826-064C) Walterscheid
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13457 PTO CAT. 3 X 34826-064C WS YOKE 1 3/8-6 SPL3809061. WS QUICK DISCONNECT KIT3819082. WS CROSS & BRG KIT0444443. WS INBOARD YOKE0415764. WS SPRING PIN0206165. WS INNER PROFILE 826-064C3648596. WS SHIELD CONE - 5 RIB3773357. WS BEARING RING - SC250872768. WS OUTER SHIELD TUBE OVL3828779. WS INNER SHIELD TUBE RND38287810. WS SHIELD CONE 10 RIB37734011. WS YOKE W/OTR PROFILE 826-064C38117812. WS SCREW36530513. WS SAFETY CHAIN04432114. DECAL DANGER GUARD MISS PTO818-540C15. DECAL DANGER PTO DRIVELINE818-552C16.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 65
Page 66
Land Pride Section 5: Gearboxes AT25 SERIES
Table of Contents Part Number Index
Gearbox (826-296C) OMNI
Applies to AT2584
18948
66 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 67
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gearbox (826-296C) OMNI
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18948 RC-25 1:2.8 CW 90 BOX(RC25HR)826-296C OMNI SCREW-5/16"-18UNC X 7/8"1101921. OMNI LOCKWASHR 5/16"SPLIT TYPE1300062. OMNI CAP-INPUT0202243. OMNI GASKET-INPUT 0.50MM0702494. OMNI GASKET-INPUT 0.30MM0702485. OMNI GASKET-INPUT 0.20MM0702476. OMNI GASKET-INPUT 0.10MM0702467. OMNI SEAL-INPUT CR139300601278. OMNI BEARING CUP 302070501709. OMNI BEARING CONE 3020705017210. OMNI RTNG. RING 38MM RC DSH-3820014011. OMNI SHAFT-INPUT 1-3/8"-6 SPLN04049112. OMNI RTNG. RING 38MM RC DSH-3820014113. OMNI GEAR INPUT, 34T03045714. OMNI SHIM INPUT 0.30MM09018115. OMNI SHIM INPUT 0.20MM09018016. OMNI SHIM INPUT 0.10MM09017917. OMNI SCREW-1/4"-20 UNC X 3/4"11000918. OMNI LOCKWASHR 1/4" SPLIT TYPE13002819. OMNI INSPECTION COVER24028020. OMNI HOUSING-RC-2501025221. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004722. OMNI PIPE PLUG 1/2' SQ HEAD14000023. OMNI PINION-OUTPUT 12T03045624. OMNI SHIM OUTPUT 0.10MM09018225. OMNI SHIM OUTPUT 0.20MM09018326. OMNI SHIM OUTPUT 0.30MM09018427. OMNI BEARING CONE 3020805019728. OMNI BEARING CUP 3020805019529. OMNI SPACER OUTPUT09018530. OMNI SHIM OUTPUT 0.10MM09018631. OMNI SHIM OUTPUT 0.20MM09018732. OMNI SHIM OUTPUT 0.30MM09018833. OMNI RETAINING RING20000034. OMNI GASKET-OUTPUT 0.10MM07025035. OMNI GASKET-OUTPUT 0.20MM07025136. OMNI GASKET-OUTPUT 0.30MM07025237. OMNI GASKET-OUTPUT 0.50MM07025338. OMNI SEAL-OUTPUT CR1582206012839. OMNI CAP-OUTPUT02022540. OMNI NUT HEX SLOTTED, 1-14UNC12005041. OMNI COTTER PIN 5 X 5010000142. OMNI PLUG PIPE SQ HD1/8-27NPTF14001743. OMNI SPACER, INPUT09034144.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 67
Page 68
Land Pride Section 5: Gearboxes AT25 SERIES
Table of Contents Part Number Index
Gearbox (826-311C) AT2684) OMNI
Applies to AT2584
19602
68 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 69
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gearbox (826-311C) AT2684) OMNI
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19602 RC-25 1:2.8 CW 90 BOX(RC25HR)826-311C OMNI SCREW-5/16"-18UNC X 7/8"1101921. OMNI LOCKWASHR 5/16"SPLIT TYPE1300062. OMNI CAP-INPUT0202243. OMNI GASKET-INPUT 0.50MM0702494. OMNI GASKET-INPUT 0.30MM0702485. OMNI GASKET-INPUT 0.20MM0702476. OMNI GASKET-INPUT 0.10MM0702467. OMNI SEAL-INPUT CR139300601278. OMNI BEARING CUP 302070501709. OMNI BEARING CONE 3020705017210. OMNI RTNG. RING 38MM RC DSH-3820014011. OMNI SHAFT INPUT 1 3/8" - 6A04049112. OMNI RTNG. RING 38MM RC DSH-3820014113. OMNI GEAR INPUT, 34T03045714. OMNI SHIM INPUT 0.30MM09018115. OMNI SHIM INPUT 0.20MM09018016. OMNI SHIM INPUT 0.10MM09017917. OMNI SCREW-1/4"-20 UNC X 3/4"11000918. OMNI LOCKWASHR 1/4" SPLIT TYPE13002819. OMNI INSPECTION COVER24028020. OMNI HOUSING RC-25 SERIES01025221. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004722. OMNI PIPE PLUG 1/2' SQ HEAD14000023. OMNI PINION-OUTPUT 12T03045624. OMNI SHIM OUTPUT 0.10MM09018225. OMNI SHIM OUTPUT 0.20MM09018326. OMNI SHIM OUTPUT 0.30MM09018427. OMNI BEARING CONE 3020805019728. OMNI BEARING CUP 3020805019529. OMNI OUTPUT SPACER 27mm310-580D30. OMNI SHIM OUTPUT 0.10MM09018631. OMNI SHIM OUTPUT 0.20MM09018732. OMNI SHIM OUTPUT 0.30MM09018833. OMNI RETAINING RING20000034. OMNI GASKET-OUTPUT 0.10MM07025035. OMNI GASKET-OUTPUT 0.20MM07025136. OMNI GASKET-OUTPUT 0.30MM07025237. OMNI GASKET-OUTPUT 0.50MM07025338. OMNI SEAL-OUTPUT CR1582206012839. OMNI CAP-OUTPUT02022540. OMNI NUT HEX SLOTTED, 1-14UNC12005041. OMNI COTTER PIN 5 X 5010000142. OMNI PLUG PIPE SQ HD1/8-27NPTF14001743. OMNI SPACER, INPUT09034144. OMNI OUTPUT SHAFT SHIM 2mm310-581D45. OMNI HOUSING TAKE-UP SPACER310-582D46.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 69
Page 70
Land Pride Section 5: Gearboxes AT25 SERIES
Table of Contents Part Number Index
Gearbox (826-326C) Comer AT2660, AT2672 & AT2684
Applies to AT2584
19549
70 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 71
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
AT25 SERIES
Gearbox (826-326C) Comer AT2660, AT2672 & AT2684
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19549 GBOX MOWER 50 HP 1:2.8 CW826-326C CO OIL PLUG 3/88.6.5.000061. CO BOLT M8X22 HHB8.1.1.005012. CO COVER0.195.1300.003. CO INPUT SHAFT 1" 3/8 Z60.195.2000.004. CO CAP 72 X 108.7.0.007445. CO SNAP RING INT 72 UN174378.5.2.001316. COMER SHIM KIT 71.7A.248.5007. CO ROLLER BEARING 30207 CL-B8.0.9.000268. CO SNAP RING 40 UNI 74368.5.1.006809. CO SHIM 35.3 X 48 X 2.50.259.7525.0010. CO HOUSING0.195.0300.0011. CO ROLLER BEARING 32208 CL-B8.0.9.0010212. CO NUT M40 X 1.50.278.7103.0013. CO OIL SEAL 35 X 80 X 10 RTA358.7.3.0008114. CO PROTECTIVE FLAT WASHER1.195.7100.0015. CO SNAP RING SB 818.5.3.0095516. CO FLAT WASHER 25 X 44 X 48.3.2.0040917. NUT CASTLE M 24 X 28.2.2.0114418. CO COTTER PIN B5 X 508.4.7.0051619. CO SHIM 40.3 X 51.5 826-067CA244.50120. CO PINION Z12 M4.70.195.5000.0021. BEARING BALL 6207822-166C22. CO OIL SEAL 35 X 72 X 108.7.3.0005523. CO CROWN GEAR Z33 M4.70.195.6000.0024. CO OIL LEVEL PLUG 3/8" GASU0.195.7101.0025.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 71
Page 72
Land Pride Section 6: Drivelines AT25 SERIES
Table of Contents Part Number Index
Driveline (826-297C) Eurocardan
Applies to AT2584
15220
72 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 73
Section 6: Drivelines Land Pride
Table of Contents Part Number Index
AT25 SERIES
Driveline (826-297C) Eurocardan
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15220 DRIVELINE CAT.2 W/EXT. CONE826-297C EC TWIST COLLAR KIT (TRT. END)10042201. EC YOKE ASSEMBLY (TRACT. END)10130102. EC CROSS ASSEMBLY10030203. EC OUTER TUBE YOKE17030274. EC 08X60 1485DIN ROLL PIN63308605. EC 850MM OUT. STOCK LENGTH TB.15240856. EC 850MM INNER STOCK LENGTH TB15230857. EC INNER TUBE YOKE17030298. EC TWIST COLLAR KIT (IMP. END)10042249. EC YOKE ASSEMBLY (TRACT. END)111301010. EC TUBE BEARING178421011. EC OUTER TUBE RIGID CONE188420112. EC SOFT CONE188420313. EC PIN STOP ROTATION178421214. DRIVELINE SHIELD SAFETY CHAIN04432115. EC 770MM OUTER STOCK SHEILD TB187307716. EC INNER TUBE SHEILD 770MM187207717. EC SOFT LONG CONE188420518. EC INNER TUBE RIGID CONE188420219. EC TUBE BEARING178421120. DECAL DANGER PTO DRIVELINE818-552C21. DECAL DANGER GUARD MISS PTO818-540C22. EC 8X55-DIN-1481 O/TUBE R/PIN633085523. EC PULL COLLAR KIT100422524. EC YOKE ASSEMBLY101401225.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 73
Page 74
Land Pride Section 6: Labels AT25 SERIES
Table of Contents Part Number Index
Label Placement
Applies to AT2560, AT2572
22053
74 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 75
Section 6: Labels Land Pride
Table of Contents Part Number Index
AT25 SERIES
Label Placement
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22053 FD/AT SAFETY DECAL PACKAGE310-086A FD/AT2560 DECAL PACKAGE310-074A FD/AT2572 DECAL PACKAGE310-075A DECAL DANGER ROTATE BLADE818-555C1. DECAL DANGER THROWN OBJ CUTTER818-556C2. DECAL GREASE EVERY 25 HOURS818-138C3. DECAL FLAG818-190C4.
(S/N 254707-)DECAL 60 LP - BLACK818-090C5. (S/N 254707-)DECAL 72 LP - BLACK818-092C5.
Rev. 2 not compat. w/Rev. 1(S/N 254708+)DECAL LANDPRIDE 13.25" - BROWN818-899C6.
Rev. 1(S/N 254707-)LP LOGO LARGE GREEN818-162C6. (S/N 254707-)DECAL 25 SERIES LP - BLACK818-085C7.
DECAL WARNING GEN SAFE MOWER818-558C8.
Rev. 2 not compat. w/Rev. 1(S/N 254708+)DECAL LP W/TREE 10" - 3 COLOR818-892C9.
Rev. 1(S/N 254707-)LP LOGO SMALL BUCKSKIN818-165C9.
DECAL DANGER PTO DRIVELINE818-552C10. DECAL PTO 826-064C818-249C11. DECAL PTO FD/AT {826-012C}818-139C11. DECAL DANGER GUARD MISS PTO818-540C12. DECAL CAUTION V-BELT INST 6072818-144C13. DECAL CAUTION 540 RPM818-130C14.
(S/N 254707-)DECAL DANGER CANNOT READ ENG818-557C15.
DECAL DANGER PTO DRIVELINE EN818-142C16. DECAL RED REFLECTOR818-230C17. DECAL NOTICE TO OWNER-NO WARRA818-560C18.
(S/N 254750-)DECAL AT LAND PRIDE BLACK818-728C19.
DECAL GREASE 25HRS BLACK/WHITE)818-298C20. DECAL DANGER PD GUARD MISS SML818-543C21.
(S/N 254751+)DECAL AT2560-BROWN818-916C22. (S/N 254751+)DECAL AT2572-BROWN818-917C22.
DECAL QUICK HITCH SYSTEM838-517C23.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 75
Page 76
Land Pride Section 7: Labels AT25 SERIES
Table of Contents Part Number Index
Label Placement AT26
Applies to AT2584
18887
76 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 77
Section 7: Labels Land Pride
Table of Contents Part Number Index
AT25 SERIES
Label Placement AT26
Applies to AT2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18887 AT2560 DECAL PACKAGE310-213A AT2572 DECAL PACKAGE310-214A AT2684 DECAL SHIPOUT BUNDLE310-318A DECAL NOTICE TO OWNER-NO WARRA818-560C1. DECAL WARNING GEN SAFE MOWER818-558C2. DECAL DANGER PD GUARD MISS SML818-543C3. DECAL CAUTION 540 RPM818-130C4. DECAL AT2660-BROWN838-300C5. DECAL AT2672-BROWN838-339C5. DECAL AT2684 - BROWN838-260C5. DECAL DANGER ROTATE BLADE818-555C6. DECAL V-BELT INST. AT2660838-277C7. DECAL V-BELT INSTALLATION838-262C7. DECAL V-BELT INST. AT2684838-262C7. DECAL DANGER THROWN OBJ CUTTER818-556C8. DECAL LP W/TREE 10" - 2 COLOR818-890C9. DECAL DANGER PTO DRIVELINE818-552C10. DECAL GREASE 25HRS BLACK/WHITE818-298C11. DECAL GREASE EVERY 25 HOURS818-138C12. DECAL FLAG818-190C13. DECAL RED REFLECTOR818-230C14. DECAL DRIVELINE 826-273C838-063C15. DECAL DANGER GUARD MISS PTO818-540C16.
Beneath grass chuteDECAL DANGER GUARD/BLADE HAZ.838-272C17.
DECAL LANDPRIDE 13.25" - BROWN818-899C18. DECAL DANGER PTO DRIVELINE EN818-142C19. DECAL QUICK HITCH SYSTEM838-517C20. DECAL 5 YEAR GEARBOX WARRANTY818-862C21.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 77
Page 78
Land Pride Section 7: Options AT25 SERIES
Table of Contents Part Number Index
Front Anti-Scalping Roller
Applies to AT2560, AT2572
22054
78 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 79
Section 7: Options Land Pride
Table of Contents Part Number Index
AT25 SERIES
Front Anti-Scalping Roller
Applies to AT2560, AT2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22054 FRONT ROLLER - 72 WIND TUNNEL310-050S 4 X 10 ROLLER WHEEL817-049C1. NUT LOCK 3/4-16 NYLOC COLLAR803-114C2. WASHER LOCK 7/16 PLT804-014C3. SCREW SLOTTED RD HD 3/8-16 X 1801-043C4. NUT HEX 3/8-16 PLT803-014C5. W.T. ROLLER BRKT. W/SHAFT310-055H6. RH ROLLER BRACKET 72 WT310-128D7.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 79
Page 80
Land Pride Section 2: Decks AT26 SERIES
Table of Contents Part Number Index
Front Roller
Applies to AT2660, AT2672, AT2684
18882
80 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 81
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT26 SERIES
Front Roller
Applies to AT2660, AT2672, AT2684
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18882 FRONT ROLLER AT2660-72-84310-317S RHSNB 3/8-16X1 GR5802-015C1. NUT HEX 3/4-10 PLT NYLOCK803-025C2. WLDMT. ROLLER SHAFT310-266H3. FRONT ROLLER BRACKET LH.310-551D4. 4 X 10 ROLLER WHEEL817-049C5. FRONT ROLLER BRACKET RH.310-550D6. WASHER FLAT 3/4 SAE PLT804-025C7. PIN COTTER 3/16 X 1 1/4 PLT805-016C8.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 81
Page 82
Land Pride Section 2: Decks AT26 SERIES
Table of Contents Part Number Index
Guards
Applies to AT2660, AT2672, AT2684
18883
82 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 83
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT26 SERIES
Guards
Applies to AT2660, AT2672, AT2684
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18883 KNOB 3/8-16 MALE THD 2 3/8OD817-358C1. RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C2. PLASTIC BELT GUARD RH. AT2660817-428C3. PLASTIC BELT GUARD RH. AT2672817-436C3. PLASTIC BELT GUARD RH. AT2584817-408C3. PLASTIC BELT GUARD LH. AT2660817-429C4. PLASTIC BELT GUARD LH. AT2672817-437C4. PLASTIC BELT GUARD LH. AT2584817-409C4.
AT2660 & AT2672RUBBER DISCHARGE DEFLECTOR817-427C5. AT2684 (Shown)RUBBER DISCHARGE DEFLECTOR817-412C5.
RHSNB 3/8-16X3/4 GR5802-149C6.
AT2660 & AT2672TOP PLATE HINGE SUPPORT310-578D7. AT2684 (Shown)TOP PLATE HINGE SUPPORT310-563D7. AT2660 & AT2672HINGE SUPPORT310-579D8. AT2684 (Shown)HINGE SUPPORT310-562D8.
NUT HEX FLANGE LOCK 5/8-11803-263C9. NUT HEX WHIZ 3/8-16 PLT803-198C10.
AT2660 & AT2672RHSNB 5/8-11X7 1/2 PLT802-692C11. AT2684 (Shown)RHSNB 5/8-11X10 GR5 PLT802-688C11.
SPRING TORSION807-189C12.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 83
Page 84
Land Pride Section 2: Decks AT26 SERIES
Table of Contents Part Number Index
Hitch
Applies to AT2660, AT2672, AT2684
18881
84 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 85
Section 2: Decks Land Pride
Table of Contents Part Number Index
AT26 SERIES
Hitch
Applies to AT2660, AT2672, AT2684
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18881 HHCS 5/8-18X5 GR5802-307C1. A-FRAME310-474D2. PIVOTING HITCH - UPPER310-015D3.
AT2660REAR BRACE310-583D4. AT2672REAR BRACE310-597D4. AT2584 (Shown)REAR BRACE310-475D4.
NUT HEX FLANGE LOCK 5/8-11803-263C5. WASHER LOCK SPRING 5/8 PLT804-022C6. NUT HEX 5/8-18 PLT803-022C7. SPACER - TOP HITCH310-012D8. PIN HAIR COTTER .120 PLT805-143C9. PIN CLEVIS 3/4 X 3 1/2 PLT805-142C10. HFS 5/8-11 X 1 3/4 GR5/8802-657C11. WLDMT. AT2660310-321H12. WLDMT. AT2672310-329H12.
(Shown)WLDMT. AT2584310-290H12.
PIN CLEVIS 3/4 X 2 1/2 PLT805-140C13. LOWER HITCH PIN310-020S14. LOWER HITCH WELDMENT310-019H15.
OptionalLOWER HITCH WELDMENT 16 1/8310-212H15.
PIN LYNCH 5/16 X 1 3/4805-015C16.
(S/N 317416+)DRIVELINE HOOK HANGER W/HRDWR800-320C17. (S/N ______+)HHCS 1/4-20X1 GR5802-005C18. (S/N ______+)MANUAL STORAGE CONTAINER816-504C19. (S/N ______+)WASHER FLAT 1/4 SAE PLT804-007C20. (S/N ______+)NUT HEX NYLOCK 1/4-20803-255C21.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 85
Page 86
Land Pride Section 3: Gauge Wheel AT26 SERIES
Table of Contents Part Number Index
Gauge Wheel (814-071C)
Applies to AT2660, AT2672
13629
86 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 87
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
AT26 SERIES
Gauge Wheel (814-071C)
Applies to AT2660, AT2672
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13629 TIRE 10 X 4 TUBELESS AIR814-071C1. TILDEN BRG 3/4IDX1 3/8ODX3 1/453-1822.
HoosierHS 3/4ID X 2 1/2LG ROLLER BRG874132.
RPBY 53-164BF-15063.
HoosierRPBY 53-164RT-34143.
TILDEN RTNR 3/4IDX1 3/8OD53-1643. BRG NEILSON 3/4ID1.34ODX15/16L953164.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 87
Page 88
Land Pride Section 3: Gauge Wheel AT26 SERIES
Table of Contents Part Number Index
Gauge Wheel (814-144C) & (814-191C)
Applies to AT2684
10499
88 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 89
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
AT26 SERIES
Gauge Wheel (814-144C) & (814-191C)
Applies to AT2684
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10499 MRTN HGH SPD SPCR3/4ID 1.125ODHSS-341. MRTN GREASE SEAL 1.125(1.78OD)GS-32. BEARING CONE #LM 11949822-045C3. BEARING CUP #LM 11910822-050C4.
Complete Assembly11 X 400-5 RIB TIRE W 3/4 BRGS814-144C5. Complete Assembly11X400-5 (LITE FOAM) RIB TIRE814-191C5. 814-144C OnlyTIRE MARTIN506-4R-I6.
Gauge Wheel814-144C6. Gauge Wheel814-191C6.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 89
Page 90
Land Pride Section 3: Gauge Wheel AT26 SERIES
Table of Contents Part Number Index
Gauge Wheel (814-271C)
Applies to AT2684
22240
90 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 91
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
AT26 SERIES
Gauge Wheel (814-271C)
Applies to AT2684
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22240 MRTN HGH SPD SPCR3/4ID 1.125ODHSS-341. MRTN GREASE SEAL 1.125(1.78OD)GS-32. BEARING CONE #LM 11949822-045C3. BEARING CUP #LM 11910822-050C4.
Complete AssemblyTIRE 11X4.00-5 RIB SEMI-SOLID814-271C5.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 91
Page 92
Land Pride Section 3: Gauge Wheel AT26 SERIES
Table of Contents Part Number Index
Gauge Wheel Tire (814-188C)
Applies to AT2660, AT2672
17714
92 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 93
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
AT26 SERIES
Gauge Wheel Tire (814-188C)
Applies to AT2660, AT2672
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17714 HS BRG 3/4ID X 1.407OD X 5/8LG870401. HS CGD RLR BRG.75IDX1.37X1.5LG874102. TIRE 10X3.25 SOLID STRT RIB CR814-188C3.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 93
Page 94
Land Pride Section 3: Gauge Wheel AT26 SERIES
Table of Contents Part Number Index
Gauge Wheels
Applies to AT2660, AT2672, AT2684
18884
94 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 95
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
AT26 SERIES
Gauge Wheels
Applies to AT2660, AT2672, AT2684
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18884 PIN LYNCH 1/4 X 1 3/4 PLT805-126C1. SPACER 1/2827-001C2. SPACER 1827-002C3.
AT2684 (Shown)11' GW YOKE 5 1/8X5 1/8 INSIDE315-300H4. AT2660 & AT2672GAUGE WHEEL YOKE(5 1/8 INSIDE)310-149H4.
HHCS 3/4-10X7 GR5802-095C5. NUT HEX 3/4-10 PLT NYLOCK803-025C6.
AT268411 X 400-5 RIB TIRE W 3/4 BRGS814-144C7.
Rev. 2AT2684 S/N 467406+TIRE 11X4.00-5 RIB SEMI-SOLID814-271C7.
Rev. 1AT2684 S/N 467405-RPBY 814-271C814-191C7. AT2660 & AT2672TIRE 4.10/3.50-4 TUBELESS AIR814-071C7. AT2660 & AT2672TIRE 10X3.25 SOLID STRT RIB CR814-188C7. AT2684 S/N 467406+11X4 SEMISOLID TIRE W/YOKE SUB310-314S8. AT2684 S/N 467405-11X4.00 CASTER GW YOKE315-291S8. AT2660 & AT26724X10 AIR TIRE & YOKE ASSY310-105S8. AT2660 & AT26723.25X10 SOLID TIRE/YOKE ASSY310-017S8.
SPINDLE BUSHING817-048C9. GREASE ZERK STRAIGHT 1/4-28800-001C10.
AT2660WELDMENT GAUGE WHEEL ARM310-327H11. AT2672WELDMENT GAUGE WHEEL ARM310-355H11. AT2684 (Shown)WELDMENT GAUGE WHEEL ARM310-296H11. AT2660ASSY. GAUGE WHEEL ARM310-326S12. AT2672ASSY. GAUGE WHEEL ARM310-354S12.
ASSY. GAUGE WHEEL ARM310-295S12.
HFS 1/2-13 X 3 1/2 GR5/8802-658C13. NUT HEX WHIZ 1/2-13 PLT803-037C14.
GAUGE WHEEL SPACER - SHORT310-024D17. GAUGE WHEEL SPACER(SOLID TIRE)310-329D17. SPACER TUBE GA.WHL. 5 1/8 LG310-328D18. HHCS 1/2-20X6 1/2 GR5802-350C19. BUSHING 3/4 I.D. 1 3/8 X 1 LG890-189C20. HS BUSH 3/4IDX1 1/8ODX 5/8LG8701020. ZERK STAKED800-100C21. HS CGD RLR BRG.75IDX1.37X1.5LG8741022.
AT2684 (Shown) Includes items 9, 10 & 11
S/N 511277+NUT HEX FLG/LK 1/2-20 PLT.GR803-308C15. S/N 511276-NUT HEX 1/2-20 PLT803-018C15. S/N 511276-WASHER LOCK SPRING 1/2 PLT804-015C16.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 95
Page 96
Land Pride Section 4: Drive AT26 SERIES
Table of Contents Part Number Index
Belt Drive
Applies to AT2660, AT2672, AT2684
18886
96 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 97
Section 4: Drive Land Pride
Table of Contents Part Number Index
AT26 SERIES
Belt Drive
Applies to AT2660, AT2672, AT2684
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18886 GBOX MOWER 50 HP 1:2.8 CW826-326C1.
HHCS 5/8-18X1 3/4 GR5802-246C2.
WASHER LOCK SPRING 5/8 PLT804-022C4. NUT HEX 5/8-18 PLT803-022C5.
OMNI NUT HEX SLOTTED, 1-14UNC1200507.
NUT HEX WHIZ 1/2-13 PLT803-037C9. GREASE ZERK STRAIGHT 1/4-28800-001C10. NUT LOCK 3/4-16 NYLOC COLLAR803-114C11. WASHER FLAT 3/4 HARD ASTMF436804-093C12.
BEARING 6206 W/ METAL SHIELD822-161C14. BLADE SPINDLE SHAFT CW TG310-630D15.
1/4 SQ. KEY X 7/8 LG172-242D16. BLADE HUB MACHINED TOP GREASE310-457D17. BEARING 206822-006C18.
HHCS 7/16-20X1 1/2 GR8802-229C20.
WASHER LOCK 7/16 PLT804-014C22. NUT HEX 7/16-20 PLT803-115C23. BLADE WASHER-90310-227D24.
AT2660, AT2672, AT2684 S/N 337567+
AT2684 (S/N 311165 <-> 337566-)REP BY 826-326C826-311C1. AT2684 (S/N 311164-)REP BY 826-326C826-296C1.
AT2660 S/N 499702+GEARBOX MOUNT ASSEMBLY310-414V3. AT2660 S/N 499701-WELDMENT GEARBOX MOUNT310-323H3. AT2672 S/N 499702+GEARBOX MOUNT ASSEMBLY310-415V3. AT2672 S/N 499701-WELDMENT GEARBOX MOUNT310-330H3. AT2684 S/N 499702+GEARBOX MOUNT ASSEMBLY310-413V3. AT2684 S/N 499701-WLDMT. GEARBOX MOUNT310-291H3.
Rev. 2 not compat. w/Rev. 1(S/N 344470+) AT2560 & AT2672B-GROOVE PULLEY 11" CAST-IRON808-335C6.
Rev. 1(S/N 344469-)B-GROOVE DRIVE PULLEY 11 O.D.808-126C6.
Rev. 2 not compat. w/Rev. 1(S/N 344470+) AT2684B-GROOVE PULLEY 9" CAST-IRON808-333C6.
Rev. 1(S/N 344469-)B-GROOVE PULLEY 9 O.D.808-076C6.
AT2660ASSY. GEARBOX MOUNT310-322S8. AT2672ASSY. GEARBOX MOUNT310-331S8. AT2684ASSY. GEARBOX MOUNT310-292S8.
AT2660B-GROOVE PULLEY 5 O.D.808-075C13. AT2672 & AT2684B-GROOVE DRIVE PULLEY 6 O.D.808-127C13.
AT2660, AT2672 & AT2684 S/N 329661+
AT2684 S/N 329660-BLADE SPINDLE SHAFT CW310-454D15.
AT2660CW TG SPINDLE HUB ASSY 5" PULL310-248S19. AT2672CW TG SPINDLE HUB ASSY 6" PULL310-249S19. AT2684CW TG SPINDLE HUB ASSY 6" PULL310-261S19.
AT2660V-BELT B103 106 E.L. KEVLAR816-308C21. AT2672V-BELT B136 138.9 E.L. KEVLAR816-116C21. AT2684V-BELT B150 153 E.L. KEVLAR816-338C21.
Rev. 2(S/N 319784+)NUT HEX FLG. LOCK 1/2-20 PLT.803-308C25.
Rev 1; Use up stock(S/N 319783-)NUT HEX 1/2-20 PLT803-018C25. (S/N 319783-)WASHER LOCK SPRING 1/2 PLT804-015C26. AT2684BLADE BAR RH. THRD 10.50 CTR.315-823D27. Standard high lift AT2660MWR BLD 1/4 X 20 29/32SD HL CW890-171C28. Optional medium lift AT2660MWR BLD 1/4 X 20 29/32SD ML CW890-375C28. Optional low lift AT2660MWR BLD 5/16X20 29/32SD LL CW890-204C28. Optional mulch AT2660MWR BLD MULCH 1/4X20.91SD CW890-702C28. Standard high lift AT2672MWR BLD 1/4 X 25SD HL CW890-172C28. Optional medium lift AT2672MWR BLD 1/4 X 25SD ML CW890-318C28. Optional low lift AT2672MWR BLD 5/16 X 25SD LL CW890-200C28. Optional mulch AT2672MWR BLD MULCH 1/4X25SD CW890-698C28. Optional high lift AT2684MWR BLD 5/16 X 29 SD HL CW890-684C28.
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 97
Page 98
Land Pride Section 4: Drive AT26 SERIES
Table of Contents Part Number Index
Belt Drive (continued)
Applies to AT2660, AT2672, AT2684
RevisionCommentsPart DescriptionPart No.Ref.
MWR BLD 5/16 X 29 SD ML CW890-675C28.
HHCS 1/2-20X1 3/4 GR5802-329C29.
WASHER BLADE 2ODX.56THKX.51ID804-110C31. NUT HEX FLANGE LOCK 5/8-11803-263C32. FLAT IDLER PULLEY 6 3/4 O.D.808-129C33. HHCS 5/8-11X4 1/4 GR5802-151C34. RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C35.
DRIVELINE CAT.4 SC 540RPM826-064C36.
KEY 1/4 X 11/16 LONG310-331D37. OMNI COTTER PIN 5 X 5010000138. HFSS 1/2-13X1 1/2 GR5802-203C39.
Standard medium lift AT2684 (Shown)
Optional low lift AT2684MWR BLD 5/16 X 29 SD LL CW890-685C28. Optional mulch AT2684MWR BLD MULCH 1/4X29SD CW890-706C28.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)HFS 1/2-20X2 GR8802-695C30. Rev. 1(S/N 329660-)HFS 1/2-20X1 1/4 GR5802-384C30.
AT2672 & AT2684DRIVELINE CAT.2 W/EXT. CONE826-297C36.
AT2600REP BY 826-064C826-012C36.
AT2660 & AT2672BLADE HUB - 7/8 (PLATED)310-300D40.
98 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Page 99
Section 4: Drive Land Pride
Table of Contents Part Number Index
AT26 SERIES
Belt Drive (continued)
Applies to AT2660, AT2672, AT2684
This Page Intentionally Left Blank
07/23/08 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 99
Page 100
Land Pride Section 4: Drive AT26 SERIES
Table of Contents Part Number Index
Belt Take-Up
Applies to AT2660, AT2672, AT2684
18885
100 AT2560, AT2572, (AT2584 See AT2684), AT2660, AT2672, AT2684 & AT3590 Air Tunnel Grooming Mower 310-002P 07/23/08
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
