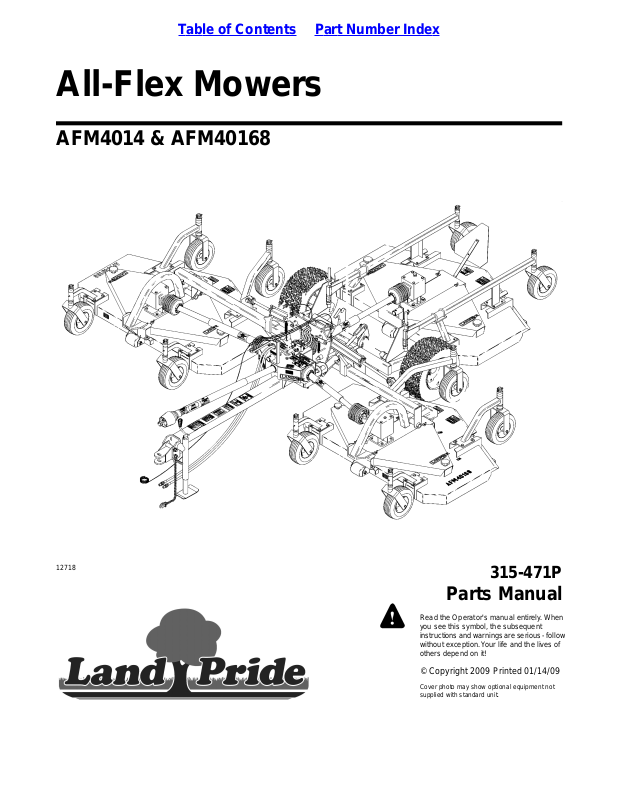

All-Flex Mowers
AFM4014 & AFM40168
12718
315-471P
Parts Manual
Read the Operator's manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!
© Copyright 2009 Printed 01/14/09
Cover photo may show optional equipment not
supplied with standard unit.
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Frame............................................................6
Center Deck Pivot...............................................................6
Frame..................................................................................8
Pull Latch Cord Lock-Up...................................................10
Right Hand and Left Hand Deck Pivot...............................12
Transport Frame Tire and Hub (814-100C; 815-052C).....14
Section 3: Drivelines...................................................16
Driveline Arrangement......................................................16
Driveline Center Deck (826-064C) Eurocardan................18
Driveline Center Deck (826-064C) Walterscheid...............20
Driveline Center Deck (826-371C) Eurocardan................22
Driveline Center Deck W/Clutch (826-111C)
Walterscheid...............................................................24
Driveline CV (826-143C) Walterscheid..............................26
Driveline CV W/ Clutch (826-370C) Eurocardan...............28
Driveline Left & Right Hand Deck (826-145C)
Eurocardan.................................................................30
Driveline Left & Right Hand Deck (826-145C)
Walterscheild..............................................................32
Driveline Left & Right Hand Deck (826-374C)
Eurocardan.................................................................34
Driveline Left & Right Hand Deck W/Clutch (826-144C)
Walterscheid...............................................................36
Driveline Slip Clutch (053314) Walterscheid.....................38
Driveline Slip Clutch (1466305) Eurocardan.....................40
Driveline Slip Clutch (1466607) Eurocardan.....................42
Section 4: Decks..........................................................44
Belt Drive Center and Right Hand Deck (S/N 212180-).....44
Belt Drive Center and Right Hand Deck (S/N 212181+)....46
Belt Drive Left Hand Deck (S/N 212180-).........................48
Belt Drive Left Hand Deck (S/N 212181+)........................50
Belt Take-Up Handle.........................................................52
Channel Center Deck........................................................54
Channel Left Hand Deck...................................................56
Channel Right Hand Deck.................................................58
Deck and Roller.................................................................60
Section 5: Gauge Wheels............................................62
Gauge Wheel Center Deck (S/N 231294-)........................62
Gauge Wheel Center Deck (S/N 231295+).......................64
Gauge Wheel Left & Right Hand (S/N 231294-)...............66
Gauge Wheel Left & Right Hand (S/N 231295+)..............68
Gauge Wheels 814-070C and 814-114C) (S/N 231294-)..72
Section 6: Gear Boxes.................................................74
Gearbox 4-Way Splitter (826-141C) (S/N 242926-)..........74
Gearbox 4-Way Splitter (826-097C) Comer (S/N 242927 to
272759).......................................................................76
Gearbox 4-Way Splitter (826-274C) OMNI (S/N
272760+)....................................................................78
Gearbox Center & Right Deck (826-122C) (S/N
211886-).....................................................................80
Gearbox Center & Right Deck (826-122C) Comer (S/N
211886-).....................................................................82
Gearbox Center & Right Deck (826-205C) OMNI (S/N 211887
to 368117)...................................................................84
Gearbox Center & Right Deck (826-295C) OMNI (S/N 211887
to 368117)...................................................................86
Gearbox Center & Right Deck (826-327C) Comer (S/N
368118 +)...................................................................88
Gearbox Left Deck (826-121C) Comer (S/N 211886-)......90
Gearbox Left Deck (826-121C) ITG (S/N 211886-)...........92
Gearbox Left Deck (826-206C) OMNI (S/N 211887 to
368117).......................................................................94
Gearbox Left Deck (826-326C) Comer (S/N 368118+).....96
Section 7: Hydraulics..................................................98
Hydraulic Arrangement.....................................................98
Hydraulic Cylinder (810-005C)........................................100
Hydraulic Cylinder (810-150C) Cross.............................102
Hydraulic Cylinder (810-150C) Midway...........................104
Hydraulic Cylinder (810-150C) Red Lion........................106
Hydraulic Cylinder (810-200C) Midway...........................108
Hydraulic Cylinder (810-200C) Red Lion........................110
Section 8: Labels.......................................................112
Label Placement.............................................................112
Safety Label Placement..................................................114
Part Number Index.....................................................116
© Copyright 2009. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Land Pride is registered trademark.
Printed in the United States of America.
Table of Contents Part Number Index
Alphabetized Table of Contents
B
Belt Drive Center and Right Hand Deck (S/N
212180-)................................................................44
Belt Drive Center and Right Hand Deck (S/N
212181+)................................................................46
Belt Drive Left Hand Deck (S/N 212180-)....................48
Belt Drive Left Hand Deck (S/N 212181+)...................50
Belt Take-Up Handle.....................................................52
C
Center Deck Pivot..........................................................6
Channel Center Deck...................................................54
Channel Left Hand Deck..............................................56
Channel Right Hand Deck............................................58
D
Deck and Roller............................................................60
Driveline Arrangement..................................................16
Driveline Center Deck (826-064C) Eurocardan............18
Driveline Center Deck (826-064C) Walterscheid..........20
Driveline Center Deck (826-371C) Eurocardan............22
Driveline Center Deck W/Clutch (826-111C)
Walterscheid..........................................................24
Driveline CV (826-143C) Walterscheid.........................26
Driveline CV W/ Clutch (826-370C) Eurocardan..........28
Driveline Left & Right Hand Deck (826-145C)
Eurocardan............................................................30
Driveline Left & Right Hand Deck (826-145C)
Walterscheild.........................................................32
Driveline Left & Right Hand Deck (826-374C)
Eurocardan............................................................34
Driveline Left & Right Hand Deck W/Clutch (826-144C)
Walterscheid..........................................................36
Driveline Slip Clutch (053314) Walterscheid................38
Driveline Slip Clutch (1466305) Eurocardan................40
Driveline Slip Clutch (1466607) Eurocardan................42
F
Frame.............................................................................8
Gearbox Center & Right Deck (826-205C) OMNI (S/N
211887 to 368117).................................................84
Gearbox Center & Right Deck (826-295C) OMNI (S/N
211887 to 368117).................................................86
Gearbox Center & Right Deck (826-327C) Comer (S/N
368118 +)...............................................................88
Gearbox Left Deck (826-121C) Comer (S/N 211886-)..90
Gearbox Left Deck (826-121C) ITG (S/N 211886-)......92
Gearbox Left Deck (826-206C) OMNI (S/N 211887 to
368117)..................................................................94
Gearbox Left Deck (826-326C) Comer (S/N
368118+)................................................................96
H
Hydraulic Arrangement.................................................98
Hydraulic Cylinder (810-005C)...................................100
Hydraulic Cylinder (810-150C) Cross.........................102
Hydraulic Cylinder (810-150C) Midway......................104
Hydraulic Cylinder (810-150C) Red Lion....................106
Hydraulic Cylinder (810-200C) Midway......................108
Hydraulic Cylinder (810-200C) Red Lion....................110
L
Label Placement........................................................112
P
Pull Latch Cord Lock-Up..............................................10
R
Right Hand and Left Hand Deck Pivot..........................12
S
Safety Label Placement.............................................114
T
Transport Frame Tire and Hub (814-100C;
815-052C)..............................................................14
G
Gauge Wheel Center Deck (S/N 231294-)...................62
Gauge Wheel Center Deck (S/N 231295+)..................64
Gauge Wheel Left & Right Hand (S/N 231294-)..........66
Gauge Wheel Left & Right Hand (S/N 231295+)..........68
Gauge Wheels 814-070C and 814-114C) (S/N
231294-)................................................................72
Gearbox 4-Way Splitter (826-141C) (S/N 242926-).....74
Gearbox 4-Way Splitter (826-097C) Comer (S/N 242927
to 272759)..............................................................76
Gearbox 4-Way Splitter (826-274C) OMNI (S/N
272760+)................................................................78
Gearbox Center & Right Deck (826-122C) (S/N
211886-)................................................................80
Gearbox Center & Right Deck (826-122C) Comer (S/N
211886-)................................................................82
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 3
Table of Contents Part Number Index
4 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Table of Contents Part Number Index
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 5
Land Pride Section 2: Frame
Table of Contents Part Number Index
Center Deck Pivot
Applies to AFM4014 and AFM40168
13550
6 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 2: Frame Land Pride
Table of Contents Part Number Index
Center Deck Pivot
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13550
Rev. 2 not compat. w/Rev. 1(S/N 242927+)AFM4014 & 16 REAR DECK PIVOT315-420H1.
Rev. 1(S/N 242926-)REAR DECK PIVOT TUBE 168/200315-179H1.
REAR DECK CYL LUG PIN315-487D2.
HHCS 1/4-20X2 GR5802-152C3.
REAR DECK CYL LUG WELD315-183H4.
GREASE ZERK STRAIGHT 1/4-28800-001C5.
HHCS 1/2-13X1 1/2 GR5802-091C6.
WASHER LOCK SPRING 1/2 PLT804-015C7.
PUSH, PIVOT TUBE HALF CLAMP175-061D8.
PIVOT TUBE WEAR PAD175-060D9.
Rev. 2 not compat. w/Rev. 1(S/N 234477+)CYL 2.5X8X1.12 ROD (TIE)1 PIN810-200C10.
Rev. 1 1(S/N 234476-)CYL 2X8X1.12 ROD SINGLE ACTING810-005C10.
PIVOT STOP SPRING807-026C11.
PIN CLEVIS 1 X 4 3/4 USABLE805-131C12.
FLIP LATCH WLDMNT RH315-186H13.
Rev. 2WASHER FLAT 1 SAE804-029C14.
Rev 1; Use up stockWASHER FLAT 1 USS PLT804-028C14.
NUT LOCK 1/4-20 PLT803-007C15.
GREASE ZERK 1/4-28 THD FORMING800-080C16.
PIN COTTER 3/16 X 1 3/4 PLT805-017C17.
WASHER FLAT 1/2 SAE PLT804-016C18.
PIN CLEVIS 1 X 2 3/4 USABLE LG805-004C19.
S/N 508304+PIN COTTER 3/16 X 1 3/4 PLT805-017C20.
S/N 508303-PIN, HAIR COTTER 3/16 WIRE DIA805-088C20.
PIN COTTER 5/32 X 1 1/4 LG805-045C21.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 7
Land Pride Section 2: Frame
Table of Contents Part Number Index
Frame
Applies to AFM4014 and AFM40168
13549
8 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 2: Frame Land Pride
Table of Contents Part Number Index
Frame
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13549
Rev. 3 not compat. w/Rev. 2(S/N 290606+)AFM4014/16 TRANSPORT FRAME315-450H1.
Rev. 2 not compat. w/Rev. 1(S/N 176350-29168-200 TRANSPORT FRAME315-285H1.
Rev. 1(S/N 176349-)FRAME WELDMENT AFM40168/200315-180H1.
SCREW JACK 2000#890-118C2.
PIN HITCH 3/4 X 4 3/8805-081C3.
HHCS 3/4-10X6 1/2802-360C4.
NUT HEX 3/4-10 PLT803-027C5.
WASHER LOCK SPRING 3/4 PLT804-023C6.
S/N 503871+WASHER, SAFETY CHAIN401-372D7.
S/N 503870-WASHER FLAT 3/4 USS PLT804-024C7.
SAFETY CHAIN 10000 LB890-182C8.
(S/N 176350+)FRONT HITCH LUG WELDMENT315-274H9.
(S/N 176349-)SWIVEL HITCH-FRONT AFM168/200315-197H9.
S/N 503871+HHCS 3/4-10X7 1/2 GR5802-280C10.
S/N 503870-HHCS 3/4-10X7 GR5802-095C10.
WASHER FLAT 1/2 SAE PLT804-016C11.
(S/N 176349-)FRONT P.T.O. MOUNT315-139H12.
(S/N 176349-)PIN COTTER 1/8 X 1 1/4 PLT805-109C13.
HHCS 1-8X5 1/2 GR5802-205C14.
WASHER FLAT 1 USS PLT804-028C15.
NUT HEX 1-8 NYLON INSERT PLT803-038C16.
NUT HEX NYLOCK 5/8-11 PLT803-148C17.
BALL SWIVEL MOUNT BOTTOM PLATE315-754D18.
BALL SWIVEL MOUNT PLATE315-369H19.
HITCH SPACER TUBE315-753D20.
HHCS 1-8X5 GR5802-235C21.
HHCS 5/8-11X4 GR5802-060C22.
WASHER FLAT 5/8 USS PLT804-019C23.
(S/N 290606+)AFM4014/16 BOLT-IN SPINDLE315-821D24.
(S/N 290606+)HHCS 1/2-13X3 1/4 GR5802-099C25.
(S/N 290606+)NUT LOCK 1/2-13 PLT803-019C26.
AFM4014/16 RH BOLTIN SPIN.315-454E27.
AFM4014/16 LH BOLTIN SPIN.315-455E28.
4014/16 BOLT-IN SPIN SHIPOUT315-460A29.
S/N 548516+HHCS 1/4-20X1/2 GR2802-283C30.
S/N 548516+MANUAL STORAGE CONTAINER816-504C31.
S/N 548516+WASHER LOCK SPRING 1/4 PLT804-006C32.
S/N 548516+WASHER FLAT 1/4 SAE PLT804-007C33.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 9
Land Pride Section 2: Frame
Table of Contents Part Number Index
Pull Latch Cord Lock-Up
Applies to AFM4014 and AFM40168
13552
10 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 2: Frame Land Pride
Table of Contents Part Number Index
Pull Latch Cord Lock-Up
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13552
CORD-PARACHUTE 3/16890-337C1.
5/32 I.D. OVAL SLEEVE890-589C2.
WELDED RING 1/4 X 2890-332C3.
40168/200 DECK PULL ROPE315-247S4.
NOTES:
When Installing Cord to Deck Latchs Be Sure to
Apply Tension to Cord For Poper Operation.
Right & Left Hand Deck 34" Long and
Center 44" Long. Frame to Tractor
156" Long.Total Length 23 Ft. Sold
only in 12" increments
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 11
Land Pride Section 2: Frame
Table of Contents Part Number Index
Right Hand and Left Hand Deck Pivot
Applies to AFM4014 and AFM40168
13817
12 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 2: Frame Land Pride
Table of Contents Part Number Index
Right Hand and Left Hand Deck Pivot
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13817
CYL 2.5X12X1.25 ROD (TIE ROD)810-150C1.
GREASE ZERK 1/4-28 THD FORMING800-080C2.
WING FLEX LUG AFM40168/200315-182H3.
BUSHING CYL 1 1/4 X 1 X 1 3/8890-278C4.
BUSHING CYL 1 1/4 X 1 X 1890-005C5.
Rev. 2 not compat. w/Rev. 1HHCS 5/16-18X2 GR5802-115C6.
Rev. 1HHCS 1/4-20X2 GR5802-152C6.
Rev. 2 not compat. w/Rev. 1NUT LOCK 5/16-18 PLT803-011C7.
Rev. 1NUT LOCK 1/4-20 PLT803-007C7.
40200 TOOLBAR PIVOT PIN315-565D8.
DECK FLEX PIVOT PIN315-564D9.
PIN CLEVIS 1 X 4 3/4 USABLE805-131C10.
PIVOT STOP SPRING807-026C11.
FLIP LATCH WLDMNT RH315-186H12.
FLIP LATCH WELDMENT LH315-198H12.
Rev. 2WASHER FLAT 1 SAE804-029C13.
Rev 1; Use up stockWASHER FLAT 1 USS PLT804-028C13.
PIN COTTER 3/16 X 1 3/4 PLT805-017C14.
40168 R.H.TOOLBAR WELD315-230H15.
40168 L.H.TOOLBAR WELD315-231H16.
ZERK 1/4-28 X 45 DEG SELF-TAP800-136C17.
HHCS 5/16-18X2 GR5802-115C18.
NUT LOCK 5/16-18 PLT803-011C19.
(S/N 176349-)HHCS 1/2-13X1 1/2 GR5802-091C20.
(S/N 176349-)40168 CORNER CARRIER MOUNT315-235H21.
(S/N 176349-)NUT HEX 1/2-13 PLT803-020C22.
(S/N 176349-)WASHER LOCK SPRING 1/2 PLT804-015C23.
(S/N 508304+)PIN COTTER 5/32 X 1 1/4 LG805-045C24.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 13
Land Pride Section 2: Frame
Table of Contents Part Number Index
Transport Frame Tire and Hub (814-100C; 815-052C)
Applies to AFM4014 and AFM40168
13589
14 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 2: Frame Land Pride
Table of Contents Part Number Index
Transport Frame Tire and Hub (814-100C; 815-052C)
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13589
Transport Frame Tire & Hub814-100C
Transport Frame Tire & Hub814-052C
TIRE & WHL ASSY 23 X 10.5-12814-100C1.
Turf MateCL TIRE 23X10.5-12 4P TM TL0511421-7102.
Turf ChiefCL TIRE 23X10.5-12 4P TRFCHIEF0511726007102.
Rev. 2(S/N 250500+)TILDEN RIM 12X8.50,8SPOKED BLK30-449S6B3.
Rev 1; Use up stock(S/N 250499-)CL RIM ASSY 5 BOLT-12 X 8 1/22L363-17702-013.
VALVE STEM TR412816-088C4.
NUT HEX SLOTTED 3/4-16803-053C5.
WASHER FLAT 3/4 SAE PLT804-025C6.
PIN COTTER 5/32 X 1 1/4 LG805-045C7.
HUB ASSY 5 BOLT 4 1/2" B.C.815-052C8.
TINE GAUGE WHEEL HUB SEAL816-014C9.
BEARING CONE 1822-030C10.
BEARING CUP L44610822-080C11.
NEILSON STUD 1/2-20UNFX1 13/16B0-4712.
NEILSON 5 BOLT HUBN/A13.
NUT LUG 1/2-20 X 60 DEG PLT803-159C14.
Rev. 2GREASE CAP #1505890-614C15.
Rev. 1GREASE CAP890-068C15.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 15
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline Arrangement
Applies to AFM4014 and AFM40168
22021
16 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Arrangement
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22021
Rev. 3 not compat. w/Rev. 2(S/N 287708+)HHCS 1/2-13X1 1/4 GR5 NYL802-689C1.
Rev. 2 not compat. w/Rev. 1(S/N 242927-287707)HHCS 1/2-13X1 1/4 GR5802-034C1.
Rev. 1(S/N 242926-)HHCS 1/2-13X1 GR5802-258C1.
WASHER LOCK SPRING 1/2 PLT804-015C2.
Rev. 3 not compat. w/Rev. 2(S/N 272760+)AFM14,16,22 SPLITTER BOX COVER315-448H3.
Rev. 2 not compat. w/Rev. 1(S/N 242927-272759)4-WAY BOX COVER-COMER315-336H3.
Rev. 1(S/N 242926-)SPLITTER BOX COVER AFM40200315-187H3.
PTO 2200 X 33.86 W/CLUTCH826-111C4.
PTO CAT. 3 X 34826-064C4.
PTO 2200 X 27.95 W/CLUTCH826-144C5.
PTO CAT. 3 X 27.95 W/O CLUTCH826-145C5.
HHCS 1/2-13X2 1/4 GR5802-038C6.
Rev. 3 not compat. w/Rev. 2(S/N 272760+)GBOX DIVIDER OMNI 250559 1:1826-274C7.
Rev. 2 not compat. w/Rev. 1(S/N 272759-)RPBY 315-447A826-097C7.
Rev. 14-WAY SPLITTER BOX 1:1 RATIO826-141C7.
PTO CV 2480 X 51.5 NO CLUTCH826-143C8.
OptionalPTO CV CAT.4 W/CLUTCH826-370C8.
(S/N 242927-272759)4-WAY COVER SPACER STUD315-736D9.
(S/N 242927-287707))WASHER FLAT 1/2 USS HARD PLT804-113C10.
(S/N 242927-272759)WASHER FLAT 1/2 SAE PLT804-016C11.
(S/N 242927-272759)NUT HEX 1/2-13 PLT803-020C12.
(S/N 272760+)HHCS 1/2-13X2 3/4 GR5802-226C13.
S/N 257343+PTO CV CAT.4 W/CLUTCH826-370C14.
S/N 257343+PTO CAT.2 X 35826-374C15.
S/N 257343+PTO CAT.2 X 41826-371C16.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 17
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline Center Deck (826-064C) Eurocardan
Applies to AFM4014 and AFM40168
14057
18 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Center Deck (826-064C) Eurocardan
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg14057
PTO CAT. 3 X 340826-064C
Rev. 2EC YOKE ASSEMBLY10140121.
Rev 1; Use up stockREP BY 101401210140101.
EC CROSS ASSEMBLY10040202.
EC 8X65-DIN-1481 O/TUBE R/PIN63308653.
EC OUTER TUBE YOKE17040274.
Rev. 2EC OUTER TUBE15240725.
Rev 1; Use up stockRPBY 152407215343225.
DECAL DANGER GUARD MISS PTO818-540C6.
Rev. 2EC TUBE BEARING17842107.
Rev 1; Use up stockRPBY 178421017830167.
Rev. 2EC OUTER TUBE RIGID CONE18842018.
Rev 1; Use up stockRPBY 188420118832308.
Rev. 2EC OUTER TUBE18730649.
Rev 1; Use up stockRPBY 187306418843489.
Rev. 2EC SOFT CONE188420310.
Rev 1; Use up stockRPBY 1884203188301310.
DECAL DANGER PTO DRIVELINE818-552C11.
Rev. 2EC INNER TUBE187206412.
Rev 1; Use up stockRPBY 1872064177433512.
EC INNER TUBE RIGID CONE188420213.
Rev. 2RPBY 1884202188323113.
Rev 1; Use up stockDRIVELINE SHIELD SAFETY CHAIN04432114.
Rev. 2EC INNER TUBE152507215.
Rev 1; Use up stockRPBY 1525072153430815.
EC INNER TUBE YOKE170402916.
Rev. 2EC YOKE ASSEMBLY101401217.
Rev. 1REP BY 1014012111401017.
EC SOFT LONG CONE188420518.
EC PULL COLLAR KIT100422519.
EC PULL COLLAR KIT100422520.
EC TWIST COLLAR KIT (TRT. END)100422021.
EC TWIST COLLAR KIT (IMP. END)100422422.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 19
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline Center Deck (826-064C) Walterscheid
Applies to AFM4014 and AFM40168
13813
20 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Center Deck (826-064C) Walterscheid
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13813
PTO CAT. 3 X 34826-064C
Rev. 2WS YOKE 1 3/8-6 SPL ASGE1968391.
Rev 1; Use up stockRPBY 1968393809061.
Rev. 2WS ASGE COLLAR KIT3904042.
Rev 1; Use up stockRPBY 3904043819082.
WS CROSS & BRG KIT0444443.
WS INBOARD YOKE0415764.
WS SPRING PIN0206165.
WS INNER PROFILE 826-064C3648596.
WS SHIELD CONE - 5 RIB3773357.
WS BEARING RING - SC250872768.
WS OUTER SHIELD TUBE OVL3828779.
WS INNER SHIELD TUBE RND38287810.
WS SHIELD CONE 10 RIB37734011.
WS YOKE W/OTR PROFILE 826-064C38117812.
WS SCREW36530513.
DRIVELINE SHIELD SAFETY CHAIN04432114.
DECAL DANGER GUARD MISS PTO818-540C15.
DECAL DANGER PTO DRIVELINE818-552C16.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 21
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline Center Deck (826-371C) Eurocardan
Applies to AFM4014 and AFM40168
22022
22 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Center Deck (826-371C) Eurocardan
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22022
PTO CAT.2 X 41826-371C
EC YOKE ASSEMBLY10141131.
EC CROSS ASSEMBLY ( U JOINT)10040202.
EC OUTER TUBE YOKE17040273.
EC 08X60 1485DIN ROLL PIN63308604.
EC INNER TUBE15249025.
EC INNER TUBE (1525095) 720MM15250726.
EC INNER TUBE YOKE17040297.
EC YOKE ASSEMBLY10141138.
EC 8X55-DIN-1481 O/TUBE R/PIN63308559.
EC TUBE BEARING178421010.
EC OUTER TUBE RIGID CONE188420111.
EC STIFFENING RING121323312.
EC SOFT CONE188420313.
EC PIN STOP ROTATION178421214.
EC OUTER TUBE SHIELD187390115.
EC INNER SHIELD TUBE187290116.
EC SOFT LONG CONE188420517.
EC INNER TUBE RIGID CONE188420218.
EC TUBE BEARING178421119.
DECAL DANGER PTO DRIVELINE818-552C20.
DECAL DANGER GUARD MISS PTO818-540C21.
DRIVELINE SHIELD SAFETY CHAIN04432122.
EC GREASE ZERK M6X1 STRAIGHT656000623.
EC PULL COLLAR REPLACEMENT KIT100422924.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 23
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline Center Deck W/Clutch (826-111C) Walterscheid
Applies to AFM4014 and AFM40168
13449
24 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Center Deck W/Clutch (826-111C) Walterscheid
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13449
PTO 2200 X 33.86 W/CLUTCH826-111C
Rev. 2WS ASGE YOKE 1 3/8-6 SPL.1968371.
Rev 1; Use up stockRPBY 1968373809051.
Rev. 2WS ASGE COLLAR KIT3904042.
Rev 1; Use up stockRPBY 3904043819082.
WALTSCHEID CROSS & BRG KIT0444393.
WS INBOARD YOKE0410654.
WS SPRING PIN0206145.
WS INNER PROFILE 826-111C0476806.
WS SHIELD CONE-4 RIB3772347.
WS BEARING RING0872798.
Rev. 2 not compat. w/Rev. 1(S/N 259230+)WS OUTER SHIELD OVL.3920529.
Rev. 1(S/N 259229+)RPBY 3920523873329.
Rev. 2 not compat. w/Rev. 1(S/N 259230+)WS INNER SHIELD RND.39205010.
Rev. 1(S/N 259229+)RPBY 39205038726610.
WS YOKE W/OTR PROFILE 826-111C39028911.
WS SCREW36530512.
DRIVELINE SHIELD SAFETY CHAIN04432113.
WS FRICTION CLUTCH05331414.
DECAL DANGER PTO DRIVELINE818-552C15.
DECAL DANGER GUARD MISS PTO818-540C16.
WS SHIELD CONE-10RIB37724017.
(S/N 259230+)WS ZERK38037118.
(S/N 259230+)WS SUPPORT BEARING35515419.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 25
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline CV (826-143C) Walterscheid
Applies to AFM4014 and AFM40168
13812
26 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline CV (826-143C) Walterscheid
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13812
PTO CV 2480 X 51.5 NO CLUTCH826-143C
WS YOKE 1 3/8-6 SPL3808821.
WS DOUBLE YOKE3657222.
WS GREASE ZERK0206723.
WS INBOARD YOKE3415864.
WS CROSS & BEARING KIT3422215.
WS SPRING PIN 10 X 200206176.
WS INNER PROFILE 1BGA3162017.
WS PROFILE & SLEEVE3832318.
WS INBOARD YOKE0195199.
WS YOKE 1 3/8-6 SPL AS38090710.
WS CROSS BEARING KIT31241011.
WS BEARING RING - SC2508727612.
WS OUTER SHIELD TUBE OVL39018613.
WS INNER SHIELD TUBE RND38595414.
WS CV CONE & BEARING ASSY38608315.
WS SHIELD CONE 3 RIB17275816.
WS SHIELD CONE 6 RIB37733617.
WS SCREW36530518.
DRIVELINE SHIELD SAFETY CHAIN04432119.
DECAL DANGER PTO DRIVELINE818-552C20.
DECAL DANGER GUARD MISS PTO818-540C21.
WS SUPPORT BEARING35515522.
WS ZERK38037123.
Rev. 2WS ASGE COLLAR KIT39040424.
Rev 1; Use up stockRPBY 39040438190824.
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 27
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline CV W/ Clutch (826-370C) Eurocardan
Applies to AFM4014 and AFM40168
22023
28 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline CV W/ Clutch (826-370C) Eurocardan
Applies to AFM4014 and AFM40168
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22023
PTO CV CAT.4 W/CLUTCH826-370C
Pull collar yokeEC PULL COLLAR YOKE 1.38-610068651.
Push-pin yokeRPBY 100686510068031.
EC GO6 CROSS ASSEMBLY10068302.
EC HOMOKINETIC JOINT10068313.
EC OUTER TUBE HOMOKINETIC YOKE10068274.
EC 10X80-DIN-1481 O/TUBE R/PIN63310805.
EC OUTER TUBE15489006.
EC INNER TUBE 960MM15460967.
EC 10X70 ROLL PIN63310708.
EC INNER TUBE YOKE17060299.
EC CROSS ASSEMBLY100602010.
EC Clutch w/pull collarEC CLUTCH BD4/6 1600Nm146660711.
RPBY 1466607146630511.
EC WIDE ANGLE PROTECTION919060112.
EC SOFT CONE188680213.
EC BEARING SOFT CONE178680114.
EC SELF THREADING SCREW628031315.
EC TUBE BEARING (OUTER TUBE)178671016.
EC STIFFENING RING121573317.
EC SHORT CONE188570218.
EC STOP RING121573519.
EC SAFETY SLEEVE188570920.
EC OUTER TUBE SHIELD187690221.
EC INNER TUBE SHIELD187790222.
EC TUBE BEARING (INNER TUBE)178671123.
DRIVELINE SHIELD SAFETY CHAIN04432124.
DECAL DANGER PTO DRIVELINE818-552C25.
DECAL DANGER GUARD MISS PTO818-540C26.
EC GREASE ZERK M6X1 STRAIGHT656000627.
EC PULL COLLAR KIT100422528.
EC PUSH-PIN KIT CV YOKES 1 3/8158103628.
EC Clutch w/clamp yoke (BC4
1600Nm)
01/14/09 AFM4014 & AFM40168 All-Flex Mowers 315-471P 29
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline Left & Right Hand Deck (826-145C) Eurocardan
Applies to AFM4014 and AFM40168
26855
30 AFM4014 & AFM40168 All-Flex Mowers 315-471P 01/14/09
Loading...
