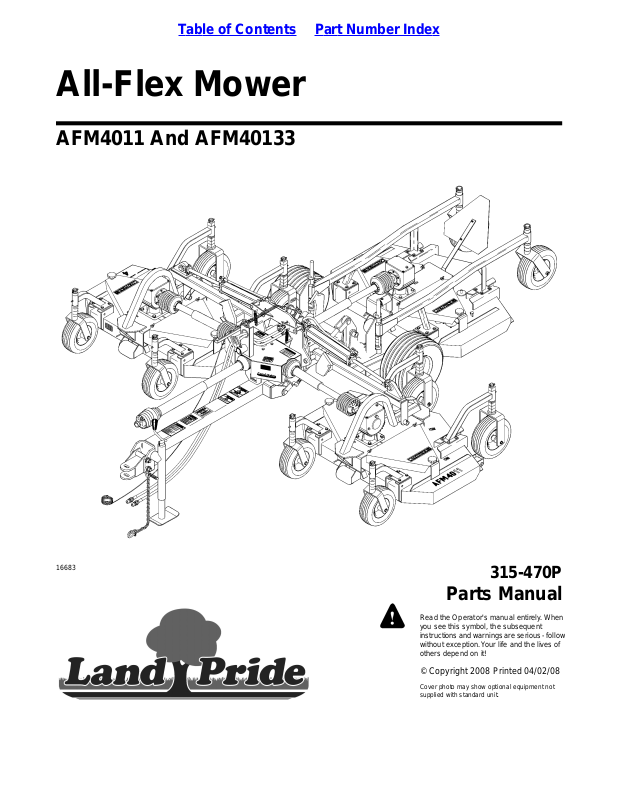

All-Flex Mower
AFM4011 And AFM40133
16683
315-470P
Parts Manual
Read the Operator's manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!
© Copyright 2008 Printed 04/02/08
Cover photo may show optional equipment not
supplied with standard unit.
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Frame............................................................6
Center Deck Pivot...............................................................6
Pull Latch Cord Lock-Up.....................................................8
Right Hand and Left Hand Deck Pivot...............................10
Transport Frame................................................................12
Transport Frame Tire and Hub..........................................14
Section 3: Drivelines...................................................16
Driveline Arrangement......................................................16
Driveline Center Deck (826-127C) Walterscheid...............18
Driveline CV (826-125C) Walterscheid..............................20
Driveline Left & Right Hand Deck Deck (826-126C)
Walterscheid...............................................................22
Friction Clutch (053313)....................................................24
Section 4: Decks..........................................................26
Belt Drive Center (S/N 239258+)......................................26
Belt Drive Center and Right Hand (S/N 212180-).............28
Belt Drive Center and Right Hand (S/N 212181 to
239257).......................................................................30
Belt Drive Left Hand Deck (S/N 212180-).........................32
Belt Drive Left Hand Deck (S/N 212181 to 239257).........34
Belt Drive Left Hand Deck (S/N 239258+)........................36
Belt Drive Right Hand (S/N 239258+)...............................38
Channel Center Deck........................................................40
Channel Left Hand Deck...................................................42
Channel Right Hand Deck.................................................44
Deck and Roller.................................................................46
Section 5: Gauge Wheels............................................48
Gauge Wheel Castered (176349-)....................................48
Gauge Wheel Castered (S/N 176350 to 225159-)............50
Gauge Wheel Center Deck (S/N 225159-)........................52
Gauge Wheel Center Deck (S/N 225160+).......................54
Gauge Wheel Left & Right Hand Deck (S/N 225159-)......56
Gauge Wheel Left & Right Hand Deck (S/N 225160+).....58
Gauge Wheel Non-Castered (S/N 176349-).....................60
Gauge Wheel Non-Castered (S/N 176350 to 225159)......62
Gauge Wheel Tire (814-071C) (814-117C).......................64
Gauge Wheel Tire (814-144C) (S/N 225159-) (814-172C)
(S/N 225160)..............................................................66
Section 6: Gearboxes..................................................68
Gearbox 4-Way Splitter (826-124C) Comer (S/N
125860-).....................................................................68
Gearbox 4-Way Splitter (826-097C) Comer (S/N 125861 to
272759).......................................................................70
Gearbox 4-Way Splitter (826-274C) OMNI (S/N
272760+)....................................................................72
Gearbox Center & Right Deck (826-123C) ITG (S/N
214221-).....................................................................74
Gearbox Center & Right Deck (826-205C) OMNI (S/N 214222
to 340848)...................................................................76
Gearbox Center & Right Deck (826-295C) OMNI (S/N 214222
to 340848)...................................................................78
Gearbox Center & Right Deck (826-327C) Comer Service
Only............................................................................80
Gearbox Left Deck (826-085C) IEG (S/N 214221-)..........82
Gearbox Left Deck (826-206C) OMNI (S/N 214222 to
340848).......................................................................84
Gearbox Left Deck (826-296C) OMNI (S/N 214222 to
340848).......................................................................86
Gearbox Left Deck (826-326C) Comer Service Only........88
Section 7: Hydraulics..................................................90
Folding Hydraulics.............................................................90
Hydraulic Cylinder (810-150C) Midway.............................92
Hydraulic Cylinder (810-150C) Red Lion..........................94
Section 8: Labels.........................................................96
Label Placement...............................................................96
Safety Label Placement....................................................98
Part Number Index.....................................................100
© Copyright 2008. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Land Pride is registered trademark.
Printed in the United States of America.
Table of Contents Part Number Index
Alphabetized Table of Contents
B
Belt Drive Center (S/N 239258+).................................26
Belt Drive Center and Right Hand (S/N 212180-)........28
Belt Drive Center and Right Hand (S/N 212181 to
239257)..................................................................30
Belt Drive Left Hand Deck (S/N 212180-)....................32
Belt Drive Left Hand Deck (S/N 212181 to 239257).....34
Belt Drive Left Hand Deck (S/N 239258+)...................36
Belt Drive Right Hand (S/N 239258+)..........................38
C
Center Deck Pivot..........................................................6
Channel Center Deck...................................................40
Channel Left Hand Deck..............................................42
Channel Right Hand Deck............................................44
D
Deck and Roller............................................................46
Driveline Arrangement..................................................16
Driveline Center Deck (826-127C) Walterscheid..........18
Driveline CV (826-125C) Walterscheid.........................20
Driveline Left & Right Hand Deck Deck (826-126C)
Walterscheid..........................................................22
F
Folding Hydraulics........................................................90
Friction Clutch (053313)...............................................24
Gearbox Left Deck (826-206C) OMNI (S/N 214222 to
340848)..................................................................84
Gearbox Left Deck (826-296C) OMNI (S/N 214222 to
340848)..................................................................86
Gearbox Left Deck (826-326C) Comer Service Only....88
H
Hydraulic Cylinder (810-150C) Midway........................92
Hydraulic Cylinder (810-150C) Red Lion......................94
L
Label Placement..........................................................96
P
Pull Latch Cord Lock-Up................................................8
R
Right Hand and Left Hand Deck Pivot..........................10
S
Safety Label Placement...............................................98
T
Transport Frame...........................................................12
Transport Frame Tire and Hub.....................................14
G
Gauge Wheel Castered (176349-)...............................48
Gauge Wheel Castered (S/N 176350 to 225159-).......50
Gauge Wheel Center Deck (S/N 225159-)...................52
Gauge Wheel Center Deck (S/N 225160+)..................54
Gauge Wheel Left & Right Hand Deck (S/N 225159-)..56
Gauge Wheel Left & Right Hand Deck (S/N
225160+)................................................................58
Gauge Wheel Non-Castered (S/N 176349-)................60
Gauge Wheel Non-Castered (S/N 176350 to 225159)..62
Gauge Wheel Tire (814-071C) (814-117C)..................64
Gauge Wheel Tire (814-144C) (S/N 225159-) (814-172C)
(S/N 225160).........................................................66
Gearbox 4-Way Splitter (826-124C) Comer (S/N
125860-)................................................................68
Gearbox 4-Way Splitter (826-097C) Comer (S/N 125861
to 272759)..............................................................70
Gearbox 4-Way Splitter (826-274C) OMNI (S/N
272760+)................................................................72
Gearbox Center & Right Deck (826-123C) ITG (S/N
214221-)................................................................74
Gearbox Center & Right Deck (826-205C) OMNI (S/N
214222 to 340848).................................................76
Gearbox Center & Right Deck (826-295C) OMNI (S/N
214222 to 340848).................................................78
Gearbox Center & Right Deck (826-327C) Comer Service
Only.......................................................................80
Gearbox Left Deck (826-085C) IEG (S/N 214221-).....82
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 3
Table of Contents Part Number Index
4 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Table of Contents Part Number Index
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 5
Land Pride Section 2: Frame
Table of Contents Part Number Index
Center Deck Pivot
Applies to AFM4011 and AFM40133
14474
6 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 2: Frame Land Pride
Table of Contents Part Number Index
Center Deck Pivot
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg14474
CYL 2X8X1.12 ROD SINGLE ACTING810-005C1.
GREASE ZERK 1/4-28 THD FORMING800-080C2.
PIVOT STOP SPRING807-026C3.
WASHER FLAT 3/4 SAE PLT804-025C4.
Rev. 2 not compat. w/Rev. 1(S/N 129748+)DECK LOCK-UP LATCH315-175H5.
Rev. 1(S/N 129747-)REAR LOCK-UP LATCH AFM133315-144H5.
PIN CLEVIS 3/4 X 3 3/4 USEABLE805-228C6.
REAR DECK PIVOT TUBE AFM133315-136H7.
NUT LOCK 1/4-20 PLT803-007C8.
REAR DECK CYL LUG PIN315-487D9.
HHCS 1/4-20X2 GR5802-152C10.
REAR DECK CYL LUG WELD315-183H11.
HHCS 1/2-13X1 1/2 GR5802-091C12.
WASHER LOCK SPRING 1/2 PLT804-015C13.
GREASE ZERK STRAIGHT 1/4-28800-001C14.
PUSH, PIVOT TUBE HALF CLAMP175-061D15.
PIVOT TUBE WEAR PAD175-060D16.
WASHER FLAT 1/2 SAE PLT804-016C17.
PIN COTTER 5/32 X 1 1/4 LG805-045C18.
PIN CLEVIS 1 X 2 3/4 USABLE LG805-004C19.
S/N ______+PIN ROLL 3/16X1 1/4 PLT805-023C20.
S/N ______-PIN, HAIR COTTER 3/16 WIRE DIA805-088C20.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 7
Land Pride Section 2: Frame
Table of Contents Part Number Index
Pull Latch Cord Lock-Up
Applies to AFM4011 and AFM40133
12691
8 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 2: Frame Land Pride
Table of Contents Part Number Index
Pull Latch Cord Lock-Up
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg12691
CORD-PARACHUTE 3/16 DIA.890-337C1.
5/32 I.D. OVAL SLEEVE890-589C2.
WELDED RING 1/4 X 2890-332C3.
DECK LATCH PULL ROPE ASSEMBLY315-166S4.
NOTE:
When Installing Cord to Deck Latchs Be Sure to
Apply Tension to Cord For Poper Operation.
Right hand 30" Long; Left hand 30"
Long and Center 30" Long. F r ame to
Tractor 120" Long.Total Length 18
Ft. Sold only in 12" increments
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 9
Land Pride Section 2: Frame
Table of Contents Part Number Index
Right Hand and Left Hand Deck Pivot
Applies to AFM4011 and AFM40133
12647
10 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 2: Frame Land Pride
Table of Contents Part Number Index
Right Hand and Left Hand Deck Pivot
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg12647
AFM133 L.H. DECK ASSY315-153A1.
AFM133 R.H. DECK ASSY315-155A2.
TOOLBAR PIN315-486D3.
HHCS 1/4-20X2 GR5802-152C4.
NUT LOCK 1/4-20 PLT803-007C5.
ZERK 1/4-28 X 45 DEG SELF-TAP800-136C6.
BUSHING 1 X 3/4 X 1890-331C7.
R.H.TOOLBAR AFM133315-134H8.
PIVOT STOP SPRING807-026C9.
(S/N 176350+)PIN CLEVIS 3/4 X 3 1/2 PLT805-142C10.
DECK LOCK-UP LATCH AFM133315-142H11.
GREASE ZERK 1/4-28 THD FORMING800-080C12.
BUSHING CYL 1 1/4 X 1 X 1890-005C13.
WING CYL FLEX LUG AFM133315-137H14.
CYL 2.5X12X1.25 ROD (TIE ROD)810-150C15.
L.H.TOOLBAR AFM133315-135H16.
WING CYLINDER LUG PIN315-485D17.
(S/N 176350+)WASHER FLAT 3/4 SAE PLT804-025C18.
(S/N 176350+)PIN COTTER 5/32 X 1 1/4 LG805-045C19.
(S/N 176349-)HHCS 3/4-10X3 3/4 GR5802-204C20.
(S/N 176349-)NUT LOCK 3/4-10 PLT803-026C21.
HHCS 1/4-20X1 3/4 GR5802-370C22.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 11
Land Pride Section 2: Frame
Table of Contents Part Number Index
Transport Frame
Applies to AFM4011 and AFM40133
13785
12 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 2: Frame Land Pride
Table of Contents Part Number Index
Transport Frame
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13785
(S/N 289110+)AFM4011 TRANSPORT FRAME315-449H1.
RPBY 315-445A315-147H3.
SCREW JACK 2000#890-118C4.
PIN COTTER 1/8 X 1 1/4 PLT805-109C5.
WASHER FLAT 1/2 SAE PLT804-016C6.
NUT HEX 3/4-10 PLT803-027C7.
WASHER LOCK SPRING 3/4 PLT804-023C8.
WASHER, SAFETY CHAIN401-372D9.
PIN HITCH 3/4 X 4 3/8805-081C12.
HHCS 3/4-10X7 GR5802-095C13.
HHCS 3/4-10X6 1/2802-360C14.
FRONT P.T.O. MOUNT315-139H15.
SAFETY CHAIN 10000 LB890-182C16.
HHCS 1-8X5 1/2 GR5802-205C23.
NUT HEX 1-8 NYLON INSERT PLT803-038C24.
BALL SWIVEL MOUNT BOTTOM PLATE315-754D25.
NUT HEX NYLOCK 5/8-11 PLT803-148C26.
BALL SWIVEL MOUNT PLATE315-369H27.
HITCH SPACER TUBE315-753D28.
HHCS 1-8X5 GR5802-235C29.
HHCS 5/8-11X4 GR5802-060C30.
WASHER FLAT 5/8 USS PLT804-019C31.
AFM4011 RH BOLTIN SPIN. ARM315-452E35.
AFM4011 LH BOLTIN SPIN. ARM315-453E36.
through 13.
When Ording New Chain Also Order
401-472D
(S/N 153376-)NUT HEX 1-8 PLT803-031C17.
(S/N 153376-)WASHER LOCK SPRING 1 PLT804-027C18.
(S/N 153376-)WASHER FLAT 1 USS PLT804-028C19.
(S/N 153376-)TRANSPORT HITCH LUG315-004H20.
(S/N 153376-)HHCS 1-8X7 GR5802-075C21.
(S/N 153376-)HHCS 1-8X6 1/2 GR5802-074C22.
(S/N 289110+)SPINDLE 1in315-768D32.
(S/N 289110+)HHCS 3/8-16X2 1/2 GR5802-114C33.
(S/N 289110+)NUT LOCK 3/8-16 PLT803-013C34.
(S/N 289108-)4011 BOLT-IN SPIN SHIPOUT315-459A37.
Rev. 3 not compat. w/Rev. 2;
Rev. 4
Rev. 2 not compat. w/Rev. 1(S/N 176350 Ö 289109)RPBY 315-458S 133 FRAME315-277H2.
Rev. 1For S/N 176349-order with items 6
Rev. 2(S/N 176350+)FRONT HITCH LUG WELDMENT315-274H10.
Rev 1; Use up stock(S/N 176349-)RPBY 315-274H315-197H11.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 13
Land Pride Section 2: Frame
Table of Contents Part Number Index
Transport Frame Tire and Hub
Applies to AFM4011 and AFM40133
12645
14 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 2: Frame Land Pride
Table of Contents Part Number Index
Transport Frame Tire and Hub
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg12645
Rev. 2CARLISLE TIRE 18 X 9.5-8 4PLY10-0971.
Rev 1; Use up stockRP BY 10-0975180811.
CARLISLE RIM FOR 18X9.5-8 TIRE4921072.
T1.VALVE MARTINTR-4123.
NUT LUG 1/2-20 X 60 DEG PLT803-159C4.
GREASE CAP #1505890-614C5.
PIN COTTER 5/32 X 1 1/4 LG805-045C6.
NUT HEX SLOTTED 3/4-16803-053C7.
WASHER FLAT 3/4 SAE PLT804-025C8.
BEARING CONE 1822-030C9.
BEARING CUP L44610822-080C10.
(S/N 216927+) With zerkHUB 4-BOLT W/ZERK COMPLETE815-104C11.
(S/N 216926-) Without zerkTINE GW HUB W/O ZERK COMPLETE815-001C11.
BHSNB 1/2-20X1 3/8 GR5802-125C12.
TINE GAUGE WHEEL HUB SEAL816-014C13.
(S/N 216927+)GREASE ZERK STRAIGHT 1/4-28800-001C14.
TIRE & WHL ASSY 18X9.50-8 4PLY814-118C15.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 15
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline Arrangement
Applies to AFM4011 and AFM40133
12653
16 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Arrangement
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg12653
HHCS M12X1.75X30 GR8.8802-458C1.
WASHER LOCK SPRING 1/2 PLT804-015C2.
Rev. 3 not compat. w/Rev. 2(S/N 272760+)GBOX DIVIDER OMNI 250559 1:1826-274C3.
Rev. 2 not compat. w/Rev. 1(S/N 125861 <-> 272759)RPBY 315-447A826-097C3.
Rev. 1(S/N 125860-)4-WAY SPLITTER BOX 1:1 RATIO826-124C3.
PTO CV 2380 X 41.73826-125C4.
PTO 2200 X 19.09 W/CLUTCH826-126C5.
SPLITTER BOX COVER AFM133315-145H6.
HHCS M12X1.75X50 GR8.8802-444C7.
PTO 2200 X 23.23 W/CLUTCH826-127C8.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 17
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline Center Deck (826-127C) Walterscheid
Applies to AFM4011 and AFM40133
12887
18 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Center Deck (826-127C) Walterscheid
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg12887
PTO 2200 X 23.23 W/CLUTCH826-127C
WS FRICTION CLUTCH0533131.
WALTSCHEID CROSS & BRG KIT0444392.
WS SPRING PIN0206143.
WS INBOARD YOKE0410654.
WS INNER PROFILE OV0487555.
WS OUTER PROFILE &3900026.
WS SHIELD CONE-4 RIB3772347.
WS SHIELD CONE-10RIB3772408.
Rev. 2 not compat. w/Rev. 1(S/N 259230+)WS OUTER SHIELD OVL.3920459.
Rev. 1(S/N 259229-)RPBY 3920453899659.
Rev. 2 not compat. w/Rev. 1(S/N 259230+)WS INNER SHIELD RND.39204610.
Rev. 1(S/N 259229-)RPBY 39204638448810.
WS BEARING RING08727911.
DRIVELINE SHIELD SAFETY CHAIN04432112.
WS SCREW36530513.
DECAL DANGER PTO DRIVELINE818-552C14.
DECAL DANGER GUARD MISS PTO818-540C15.
Rev. 2WS ASGE YOKE 1 3/8-6 SPL.19683716.
Rev 1; Use up stockRPBY 19683738090516.
Rev. 2WS ASGE COLLAR KIT39040417.
Rev 1; Use up stock(RPBY 390404)WS QCK DSCNCT KIT38190817.
DECAL PTO 826-127C818-450C18.
(S/N 259230+)WS ZERK38037119.
(S/N 259230+)WS SUPPORT BEARING35515420.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 19
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline CV (826-125C) Walterscheid
Applies to AFM4011 and AFM40133
12660
20 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline CV (826-125C) Walterscheid
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg12660
PTO CV 2380 X 41.73826-125C
WS YOKE 1 3/8-6 SPL AS3827101.
WS DOUBLE YOKE3845172.
WS GREASE ZERK0206723.
WS INBOARD YOKE3668624.
WS CROSS & BEARING KIT3827015.
WS SPRING PIN0206166.
WS INNER PROFILE3196247.
WS PROFILE & SLEEVE W.A.3889548.
WS INBORD YOKE0415779.
Rev. 2WS YOKE 1 3/8-6 SPL ASGE19683910.
Rev 1; Use up stockRPBY 19683938090610.
WS CROSS & BRG KIT04444411.
WS BEARING RING - SC2508727612.
WS OUTER SHIELD TUBE OVL.38996113.
WS INNER SHIELD TUBE ROUND38895714.
WS CV CONE & BEARING ASSY38616315.
WS SHIELD CONE 3 RIB17276216.
WS SHIELD CONE - 5 RIB37733517.
WS SCREW36530518.
DRIVELINE SHIELD SAFETY CHAIN04432119.
DECAL DANGER PTO DRIVELINE818-552C20.
DECAL DANGER GUARD MISS PTO818-540C21.
WS SUPPORT BEARING35515522.
WS ZERK38037123.
Rev. 2WS ASGE COLLAR KIT39040424.
Rev 1; Use up stock(RPBY 39040438190824.
DECAL PTO 826-125C818-448C25.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 21
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Driveline Left & Right Hand Deck Deck (826-126C) Walterscheid
Applies to AFM4011 and AFM40133
12661
22 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Left & Right Hand Deck Deck (826-126C) Walterscheid
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Image Reference: 12661dwg12661
PTO 2200 X 19.09 W/CLUTCH826-126C
WS FRICTION CLUTCH0533131.
WALTSCHEID CROSS & BRG KIT0444392.
WS SPRING PIN0206143.
WS INBOARD YOKE0410654.
WS INNER PROFILE OVAL1809095.
Rev. 2 not compat. w/Rev. 1(S/N 259230+)WS OUTER PROFILE 1L3920476.
Rev. 1(S/N 259229-)RPBY 3920473900016.
WS INBOARD YOKE0410687.
WS SHIELD CONE-4 RIB3772348.
WS SHIELD CONE-10RIB3772409.
Rev. 2 not compat. w/Rev. 1(S/N 259230+)WS OUTER SHIELD OVL.39204810.
Rev. 1(S/N 259229-)RPBY 39204838642410.
Rev. 2 not compat. w/Rev. 1(S/N 259230+)WS INNER SHIELD RND.39204911.
Rev. 1(S/N 259229-)RPBY 39204938536511.
WS BEARING RING08727912.
DRIVELINE SHIELD SAFETY CHAIN04432113.
WS SCREW36530514.
DECAL DANGER PTO DRIVELINE818-552C15.
DECAL DANGER GUARD MISS PTO818-540C16.
Rev. 2WS ASGE YOKE 1 3/8-6 SPL.19683717.
Rev 1; Use up stockRPBY 19683738090517.
Rev. 2WS ASGE COLLAR KIT39040418.
Rev 1; Use up stockRPBY 390438190818.
DECAL PTO 826-126C818-449C19.
(S/N 259230+)WS ZERK38037120.
(S/N 259230+)WS SUPPORT BEARING35515421.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 23
Land Pride Section 3: Drivelines
Table of Contents Part Number Index
Friction Clutch (053313)
Applies to AFM4011 and AFM40133
10600
24 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 3: Drivelines Land Pride
Table of Contents Part Number Index
Friction Clutch (053313)
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10600
WS FRICTION CLUTCH053313
WS SNAP RING3041491.
WS FLANGED RING3385312.
WS LOCK COLLAR0457903.
WS COMPRESSION SPRNG0457934.
WS BACK UP RING0478255.
WS BALL0206926.
WS HEX NUT M83819577.
WS BELLEVILLE SPRING0434878.
WS THRUST PLATE3814959.
WS FRICTION DISK16855610.
WS HUB 1 3/8-6 SPL05155111.
WS CLUTCH HOUSING04118012.
WS Q.D. FLG. KIT34195313.
Includes one each of items 1 through
5 and three of item 6.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 25
Land Pride Section 4: Decks
Table of Contents Part Number Index
Belt Drive Center (S/N 239258+)
Applies to AFM4011 and AFM40133
17278
26 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 4: Decks Land Pride
Table of Contents Part Number Index
Belt Drive Center (S/N 239258+)
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17278
Standard Medium LiftMWR BLD 1/4X16 7/8SD ML CCW890-326C1.
Optional High LiftMWR BLD 1/4X16 7/8SD HL CCW890-322C1.
Optional Low LiftMWR BLD 1/4X16 7/8SD LL CCW890-324C1.
Optional Mulch BladesMWR BLD MULCH 1/4X16 7/8SD CCW890-701C1.
NUT HEX 7/16-20 PLT803-115C2.
WASHER LOCK 7/16 PLT804-014C3.
NUT HEX 5/8-18 PLT803-022C4.
WASHER LOCK SPRING 5/8 PLT804-022C5.
V-BELT B93 95.75 E.L. KEVLAR816-142C6.
Includes items 25 through 34CCW TG SPNDL HUB ASSY 5" PULL310-251S7.
HHCS 7/16-20X1 1/2 GR8802-229C8.
IDLER SPACER310-051D9.
FLAT IDLE PULLEY 6 1/4 O.D.808-073C10.
HHCS 5/8-18X4 GR5802-237C11.
CEN-RH. IDLER TAKE-UP SUB315-143S12.
HHCS 5/8-11X1 1/2 GR5802-051C13.
NUT HEX 3/8-16 PLT803-014C14.
IDLER MOUNT BAR310-165H15.
SP EYE 3/8-16X4802-567C16.
SPRING EYE-BOLT BRACKET310-095H17.
SNAP RING EXT 7/16800-099C18.
OVER-CENTER LATCH-90310-094H19.
SPRING EXT BELT HANDLE807-068C20.
HHCS 5/8-11X1 1/2 GR5 NYL802-228C21.
NUT LOCK 5/8-11 PLT803-024C22.
IDLER LINK BAR LONG310-353D23.
IDLER LINK BAR SHORT310-354D24.
GREASE ZERK STRAIGHT 1/4-28800-001C25.
NUT HEX 3/4-16LH NYLOC COLLAR803-228C26.
1/4 SQ. KEY X 7/8 LG172-242D27.
WASHER FLAT 3/4 HARD ASTMF436804-093C28.
B-GROOVE PULLEY 5 O.D.808-075C29.
BEARING 6206 W/ METAL SHIELD822-161C30.
BLADE HUB MACHINED TOP GREASE310-457D31.
BEARING 206822-006C33.
BLADE HUB C.C.W.315-494D34.
WASHER BLADE 2ODX.56THKX.51ID804-110C36.
Includes one each of items 5; 10 &
13,15, 23, & 24 and two of item 22.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)BLADE SPINDLE SHAFT CCW TG310-631D32.
(S/N 329660-)RPBY 310-350S310-455D32.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)HFS 1/2-20X2 LH GR8802-696C35.
Rev. 1(S/N 329660-)HFS 1/2-20X1 1/4 LH GR5802-447C35.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 27
Land Pride Section 4: Decks
Table of Contents Part Number Index
Belt Drive Center and Right Hand (S/N 212180-)
Applies to AFM4011 and AFM40133
12829
28 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Section 4: Decks Land Pride
Table of Contents Part Number Index
Belt Drive Center and Right Hand (S/N 212180-)
Applies to AFM4011 and AFM40133
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg12829
Standard Medium LiftMWR BLD 1/4X16 7/8SD ML CCW890-326C1.
Optional High LiftMWR BLD 1/4X16 7/8SD HL CCW890-322C1.
Optional Low LiftMWR BLD 1/4X16 7/8SD LL CCW890-324C1.
Optional Mulch BladesMWR BLD MULCH 1/4X16.87SD CCW890-701C1.
NUT HEX 7/16-20 PLT803-115C2.
WASHER LOCK 7/16 PLT804-014C3.
NUT HEX 5/8-18 PLT803-022C4.
WASHER LOCK SPRING 5/8 PLT804-022C5.
V-BELT B93 95.75 E.L. KEVLAR816-142C6.
CCW SPDLE HUB ASSY 5"PULL 3"TB315-169S7.
HHCS 7/16-20X1 1/2 GR8802-229C8.
IDLER SPACER310-051D9.
FLAT IDLE PULLEY 6 1/4 O.D.808-073C10.
HHCS 5/8-18X4 GR5802-237C11.
CEN-RH. IDLER TAKE-UP SUB315-143S12.
HHCS 5/8-11X1 1/2 GR5802-051C13.
IDLER MOUNT BAR310-165H15.
SPRING EYE-BOLT BRACKET310-095H17.
SNAP RING EXT 7/16800-099C18.
OVER-CENTER LATCH-90310-094H19.
SPRING EXT BELT HANDLE807-068C20.
HHCS 5/8-11X1 1/2 GR5 NYL802-228C21.
NUT LOCK 5/8-11 PLT803-024C22.
IDLER LINK BAR LONG310-353D23.
IDLER LINK BAR SHORT310-354D24.
HFS 1/2-20X1 1/4 LH GR5802-447C26.
RPBY 804-110C310-043D27.
BLADE HUB C.C.W.315-494D28.
RPBY 310-352S315-493D29.
BEARING 206822-006C30.
BLADE HUB- MACH.-90310-224D31.
B-GROOVE PULLEY 5 O.D.808-075C32.
1/4 SQ. KEY X 7/8 LG172-242D33.
NUT HEX 3/4-16LH NYLOC COLLAR803-228C34.
ZERK 5/16-24 STRAIGHT #1711B800-075C35.
72 CENTER GREASE TUBE310-176D36.
LUBE FITTING 3" EXTENSION310-312D39.
Includes items 26 through 35, 37, 38
& 39
Includes one each of items 5, 10,
13,15, 23 & 24; and two of item 22
Rev. 2 not compat. w/Rev. 1(S/N 174815+)NUT HEX 3/8-16 PLT803-014C14.
Rev. 1(S/N 174814-)NUT HEX 1/4-20 PLT803-006C14.
Rev. 2 not compat. w/Rev. 1(S/N 174815+)SP EYE 3/8-16X4802-567C16.
Rev. 1(S/N 174814-)SP EYE 1/4-20X4 1/4-4 1/2802-443C16.
Includes items 26 through 38CCW SPDLE HUB ASSY 5PULL 9.8TB315-176S25.
Used with counter bored shaftHFS 1/2-20X2 LH GR8802-696C26.
Rev. 2WASHER FLAT 3/4 HARD ASTMF436804-093C37.
Rev 1; Use up stockWASHER FLAT 3/4 SAE PLT804-025C37.
Rev. 2BEARING 6206 W/ METAL SHIELD822-161C38.
Rev 1; Use up stockBEARING 206822-006C38.
04/02/08 AFM4011 And AFM40133 All-Flex Mower 315-470P 29
Land Pride Section 4: Decks
Table of Contents Part Number Index
Belt Drive Center and Right Hand (S/N 212181 to 239257)
Applies to AFM4011 and AFM40133
16511
30 AFM4011 And AFM40133 All-Flex Mower 315-470P 04/02/08
Loading...
