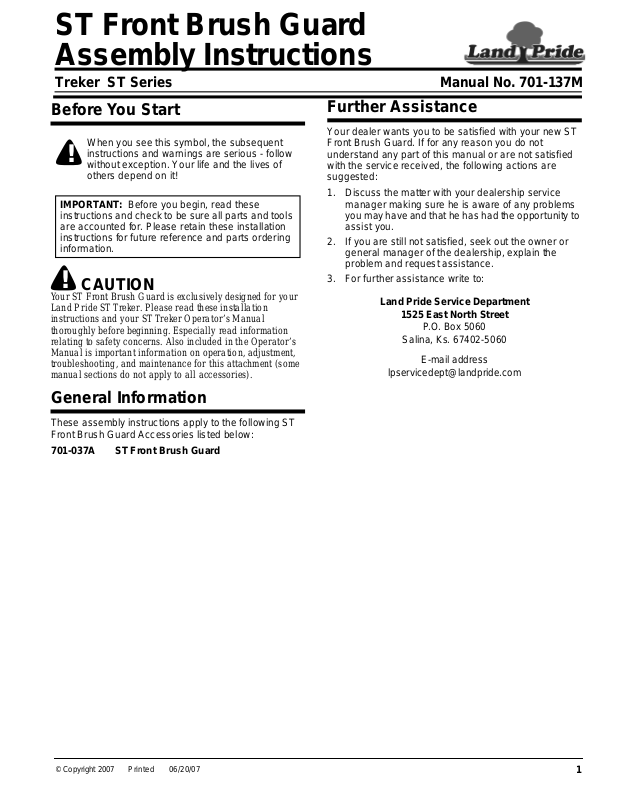

Land Pride 701-137M User Manual

ST Front Brush Guard
Assembl y Instructions

Treker ST Series

Before You Start

When you see this symbol, the subsequent
instructions and warnings are serious - follow

!

without exception. Your life and the lives of
others depend on it!

IMPORTANT: Before you begin, read these
instructions and check to be sure allparts and tools
are accounted for. Please retain these installation
instructions for future reference and parts ordering
information.

!

Your ST Front Brush Guard is exclusively designed for your
Land Pride ST Treker. Please read these installation
instructions and your ST Treker Operator’s Manual
thoroughly before beginning. Especially read information
relating to safety concerns. Also included in the Operator’s
Manual is important information on operation, adjustment,
troubleshooting, and maintenance for this attachment (some
manual sections do not apply to all accessories).

CAUTION

Manual No. 701-137M

Further Assistance

Your dealer wants you to be satisfied with your new ST
Front Brush Guard. If for any reason you do not
understand any part of this manual or are not satisfied
with the service received, the following actions are
suggested:

1. Discuss the matter with your dealership service
manager making sure he is aware of any problems
youmay have andthathe has had theopportunity to
assist you.

2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.

3. For further assistance wr ite to:

Land Pride Service Department

1525 East North Street

P.O. Box 5060

Salina, Ks. 67402-5060

E-mail address

[e-mail]

General Information

These assembly instructions apply to the following ST
Front Brush Guard Accessories listed below:

701-037A ST Front Brush Guard

© Copyright 2007 Printed

06/20/07

1

Assembly Instructions

Land Pride

Assembly Instructions

Adetailed listing ofpartsfor this accessorykit is provided
on page 3. Use the list as a checklist to inventory parts
received.Please contactyour localLand Pride dealerfor
any missing hardware.

ALL DIRECTIONS REFERRING TO THE RIGHT AND
LEFT ARE WHEN THE OPERATOR IS IN THE
MACHINE.

1. Looselyfasten two 5/16"x 1" Carriage Bolts (#2)and
two 5/16" Serrated Flange Hex Nuts (#4) in the two
outside bumper mount holes on the front of the
machine. See illustration A.

2. Slide the Brush Guard (#1) attaching brackets over
top of the heads of the two 5/16" x 1" Carriage Bolts
(#2) installed in step one. See illustration B.

Illustration A

3. Attach the bottom of the Brush Guard (#1) to the
bottom of the machine with two 5/16" x 1" Carriage
Bolts (#2) and two 5/16" Nylock Nuts (#3) provide
with this kit. See illustration C.

4. Make all necessary adjustments at this time. Fully
tighten all attaching hardware at this time.

Fully tighten all attaching hardware at this time.

Illustration B

Illustration C

Manual No. 701-137M 06/20/07

2

Illustration D

■
