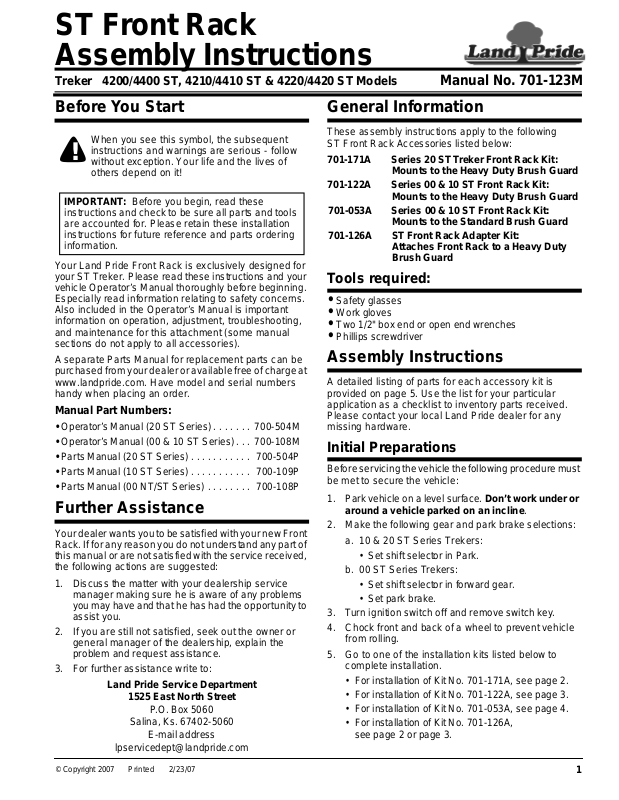

ST Front Rack
Assembl y Instructions
Treker 4200/4400 ST, 4210/4410 ST & 4220/4420 ST Models
Before You Start
When you see this symbol, the subsequent
instructions and warnings are serious - follow
!
without exception. Your life and the lives of
others depend on it!
IMPORTANT: Before you begin, read these
instructions and check to be sure all parts and tools
are accounted for. Please retain these installation
instructions for future reference and parts ordering
information.
Your Land Pride Front Rack is exclusively designed for
your ST Treker. Please read these instructions and your
vehicle Operator’s Manual thoroughly before beginning.
Especially read information relating to safety concerns.
Also included in the Operator’s Manual is important
information on operation, adjustment, troubleshooting,
and maintenance for this attachment (some manual
sections do not apply to all accessories).
A separate Parts Manual for replacement parts can be
purchasedfromyourdealer oravailable freeof charge at
www.landpride.com. Have model and serial numbers
handy when placing an order.
Manual Part Numbers:
• Operator’s Manual (20 ST Series) . . . . . . . 700-504M
• Operator’s Manual (00 & 10 ST Series). . . 700-108M
• Parts Manual (20 ST Series) . . . . . . . . . . . 700-504P
• Parts Manual (10 ST Series) . . . . . . . . . . . 700-109P
• Parts Manual (00 NT/ST Series) . . . . . . . . 700-108P
Further Assistance
Yourdealer wants you tobe satisfied withyour new Front
Rack.If for any reason you do not understand anypart of
thismanual or are not satisfied with the service received,
the following actions are suggested:
1. Discuss the matter with your dealership ser vice
manager making sure he is aware of any problems
youmay have and that he has had the opportunity to
assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.
3. For further assistance write to:
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpservicedept@landpride.com
General Information
These assembly instructions apply to the following
ST Front Rack Accessories listed below:
701-171A Series 20 ST Treker Front Rack Kit:
701-122A Series 00 & 10 ST Front Rack Kit:
701-053A Series 00 & 10 ST Front Rack Kit:
701-126A ST Front Rack Adapter Kit:
Tools required:
•
Safety glasses
• Workgloves
• Two1/2" box end or open end wrenches
• Phillipsscrewdriver
Assembly Instructions
A detailed listing of parts for each accessory kit is
provided on page 5. Use the list for your particular
application as a checklist to inventory parts received.
Please contact your local Land Pride dealer for any
missing hardware.
Initial Preparations
Beforeservicingthevehiclethefollowingproceduremust
be met to secure the vehicle:
1. Park vehicle on a level surface.Don’t work under or
around a vehicle parked on an incline.
2. Make the following gear and park brake selections:
a. 10 & 20 ST Series Trekers:
• Set shift selector in Park.
b. 00 ST Series Trekers:
• Set shift selector in forward gear.
• Set park brake.
3. Turn ignition switch off and remove switch key.
4. Chock front and back of a wheel to prevent vehicle
from rolling.
5. Go to one of the installation kits listed below to
complete installation.
• For installation of Kit No. 701-171A, see page 2.
• For installation of Kit No. 701-122A, see page 3.
• For installation of Kit No. 701-053A, see page 4.
• For installation of Kit No. 701-126A,
see page 2 or page 3.
Manual No. 701-123M
Mounts to the Heavy Duty Brush Guard
Mounts to the Heavy Duty Brush Guard
Mounts to the Standard Brush Guard
Attaches Front Rack to a Heavy Duty
Brush Guard
© Copyright 2007 Printed
2/23/07
1
Assembly Instructions
Land Pride
Front Rack Assembly To Heavy Duty Brush Guard
Series 20 ST Trekers
Assembly Instructions for
Kit No’s. 701-171A and 701-126A
Front Rack mounted to Heavy Duty Brush
Guard (Reference Series 20 ST Trekers)
Refer to Figure 1:
1. Remove plastic end caps (#6) from Heavy Duty
Brush Guard (#1).
2. Attach adapter bracket (#3) to Heavy Duty Brush
Guard with 5/16"-18 x 3/4" lg. GR5 hex bolts (#4A)
and 5/16" hex locknuts (#5). Do not tighten.
3. Remove only the top two accessor y bar mounting
screws (#4B). Do not remove screws (#4C). Pivot
front rack (#7) up at the front and attach rack top
mounting holes to the accessory bar top mounting
holes with existing mounting screws (#4B). Draw
mounting screws up snug. Do not tighten.
24818
Figure 1
4. Remove only the bottom two accessor y bar
mounting screws (#4C) and pivot front rack down.
Reinstall mounting screws (#4C) and draw up snug.
5. Insert two 5/16"-18 x 1-1/2 GR.5 Bolts (#4D) through
Front Rack (#7) and adapter bracket (#3). Secure
with 5/16" hex lock nuts (#5). Do not tighten.
6. Adjust the Front Rack (#7) to be level and centered
on the Treker.
7. Tighten all 5/16" hex head bolts (#4A, 4B, 4C & 4D)
to 17 ft-lbs. of torque.
8. Replace plastic end caps (#6).
Manual No. 701-123M 2/23/07
