Land Pride 4210 User Manual

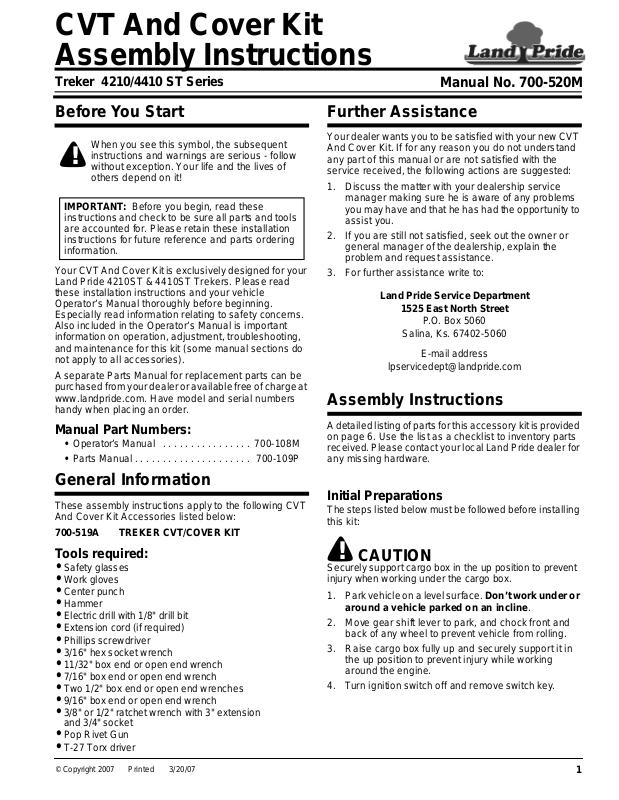

CVT And Cover Kit
Assembl y Instructions
Treker 4210/4410 ST Series
Before You Start
When you see this symbol, the subsequent
instructions and warnings are serious - follow
!
without exception. Your life and the lives of
others depend on it!
IMPORTANT: Before you begin, read these
instructions and checkto be sure all partsand tools
are accounted for. Please retain these installation
instructions for future reference and parts ordering
information.
Your CVT And Cover Kit is exclusively designed for your
Land Pride 4210ST & 4410ST Trekers. Please read
these installation instructions and your vehicle
Operator’s Manual thoroughly before beginning.
Especially read information relating to safety concerns.
Also included in the Operator’s Manual is important
information on operation, adjustment, troubleshooting,
and maintenance for this kit (some manual sections do
not apply to all accessories).
A separate Parts Manual for replacement parts can be
purchasedfromyourdealeror available freeof charge at
www.landpride.com. Have model and serial numbers
handy when placing an order.
Manual Part Numbers:
• Operator’sManual . . . . . . . . . . . . . . . . 700-108M
• Parts Manual . . . . . . . . . . . . . . . . . . . . . 700-109P
Manual No. 700-520M
Further Assistance
Your dealer wants you to be satisfied with your new CVT
And Cover Kit. If for any reason you do not understand
any part of this manual or are not satisfied with the
service received, the following actions are suggested:
1. Discuss the matter with your dealership service
manager making sure he is aware of any problems
youmay haveand that he has had the opportunity to
assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.
3. For further assistance wr ite to:
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpservicedept@landpride.com
Assembly Instructions
Adetailed listingof partsfor thisaccessory kitis provided
on page 6. Use the list as a checklist to inventory parts
received.Please contact your local Land Pride dealerfor
any missing hardware.
General Information
These assembly instructions apply to the following CVT
And Cover Kit Accessories listed below:
700-519A TREKER CVT/COVER KIT
Tools required:
• Safety glasses
• Work gloves
• Center punch
• Hammer
• Electric drill with 1/8" drill bit
• Extension cord (if required)
• Phillips screwdriver
• 3/16" hex socket wrench
• 11/32" box end or open end wrench
• 7/16" box end or open end wrench
• Two 1/2" box end or open end wrenches
• 9/16" box end or open end wrench
• 3/8" or 1/2" ratchet wrench with 3" extension
and 3/4" socket
• Pop Rivet Gun
• T-27 Torx driver
© Copyright 2007 Printed
3/20/07
Initial Preparations
The steps listed below must be followed before installing
this kit:
!
Securely support cargo box in the up position to prevent
injury when working under the cargo box.
1. Parkvehicleon a levelsurface.Don’t work under or
2. Move gear shift lever to park, and chock front and
3. Raise cargo box fully up and securely support it in
4. Turn ignition switch off and remove switch key.
CAUTION
around a vehicle parked on an incline.
back of any wheel to prevent vehicle from rolling.
the up position to prevent injury while working
around the engine.
1
Assembly Instructions
Land Pride
Left Side Panel Detachment
The fuse boxon the left side panel can interfere with
removingand assembling the CVT enclosure. Itis simpler
to detach the side panel from the frame than to detach the
fuse box.
Refer to Figure 1:
1. Remove five 1/4" hex flange lock nuts (#3) and 1/4"
Phillip head machine screws (#2). Allow the side
panel to hang from its wiring harness.
2. Lift side panel (#1) with fuse box and wiring harness
out of the waywhen removing and installing driveline
components that interfere.
Removal of Exhaust Heat Shield
Refer to Figure 2:
1. Remove existing #8 x 1/2" hex screws (#3) and
exhaust heat shield (#5). Save for reattachment.
Removal of Air Hoses & Outer Enclosure
The following removed components will not be reused in
assembly of the new CVT drive.
Refer to Figure 2:
1. Loosen hose clamp (#1A) and remove exhaust air
hose (#7).
2. Loosen hose clamp (#1B). Remove 1/4" Phillips
head self-tapping drive screws (#4), intake air hose
(#9) and snorkel (#8).
3. Removetwelve 1/4" x 3/4" Phillips head screws (#2)
and outer enclosure (#6).
22416
Side Panel Removal
Figure 1
CVT Venting Removal
Figure 2
Manual No. 700-520M 3/20/07
2
■
