Page 1
Table of Contents Part Number Index
Rear Discharge Grooming Mower
FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590
20658
310-069P
Parts Manual
Read the Operator's manual entirely.When you see this symbol, the subsequent instructions and warnings are serious - follow without exception.Your life and the lives of others depend on it!
© Copyright 2007 Printed 11/06/07
Cover photo may show optional equipment not supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
FDR25 SERIES
Section 2: Deck..............................................................6
Belt Covers..........................................................................6
Front Roller..........................................................................8
Front Roller........................................................................10
Hitch..................................................................................12
Hitch..................................................................................14
Section 3: Gauge Wheel..............................................16
Gauge Wheel....................................................................16

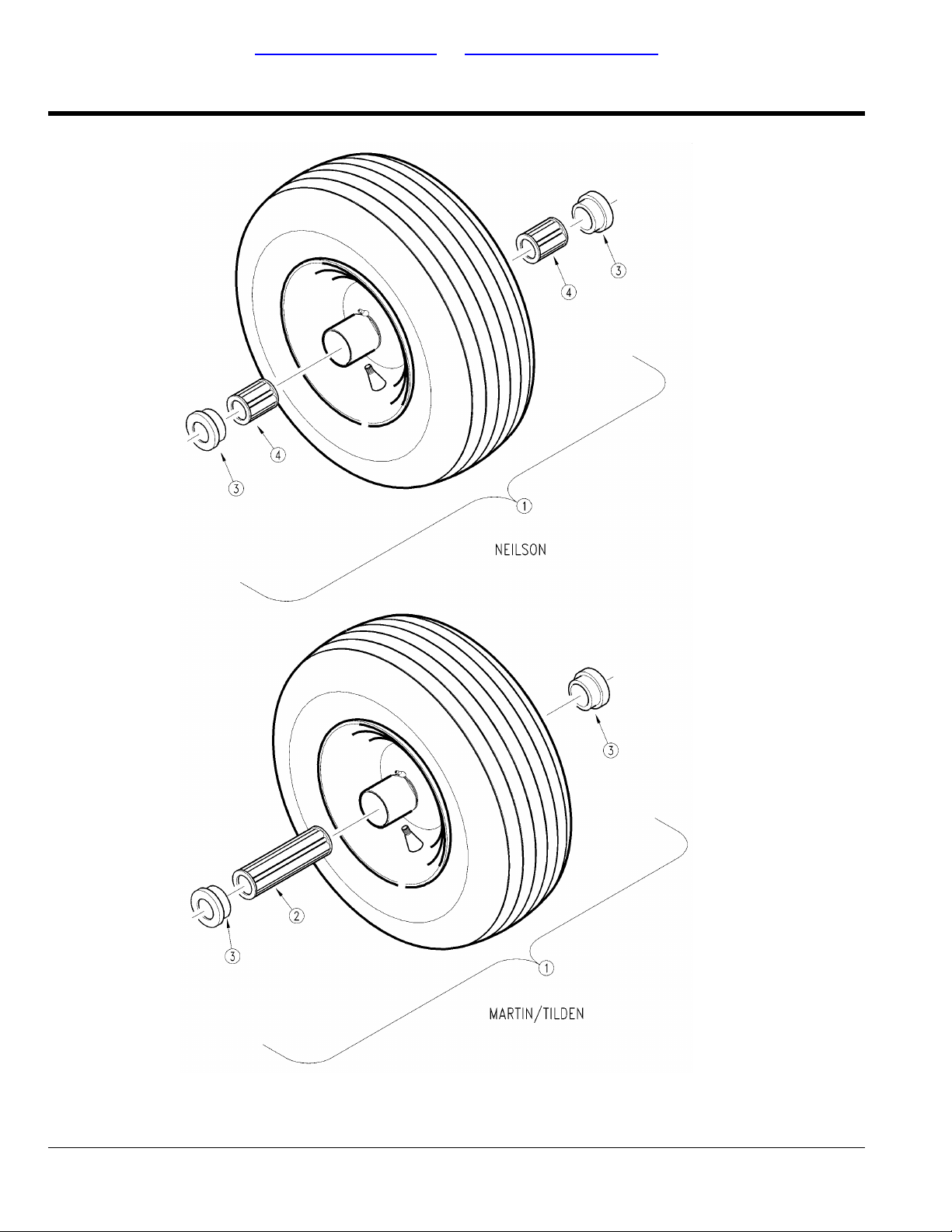

Gauge Wheel Tire (814-071C)..........................................18
Gauge Wheel Tire (814-144C, 814-191C & 814-271C).....20
Gauge Wheel Tire (814-146C) (814-188C).......................22
Gauge Wheels..................................................................24
Section 4: Drive...........................................................26
Belt Drive...........................................................................26

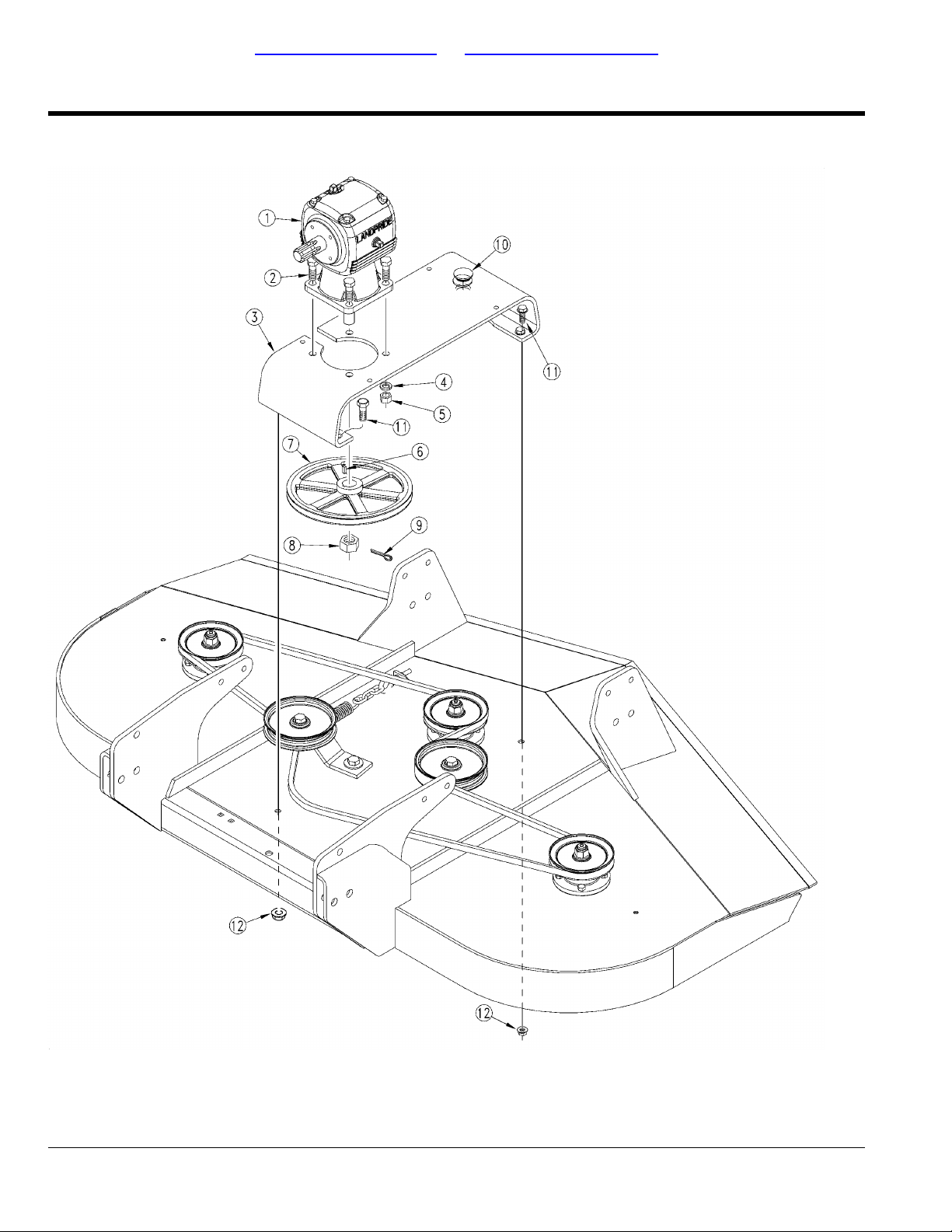

Belt Drive - Gearbox..........................................................30

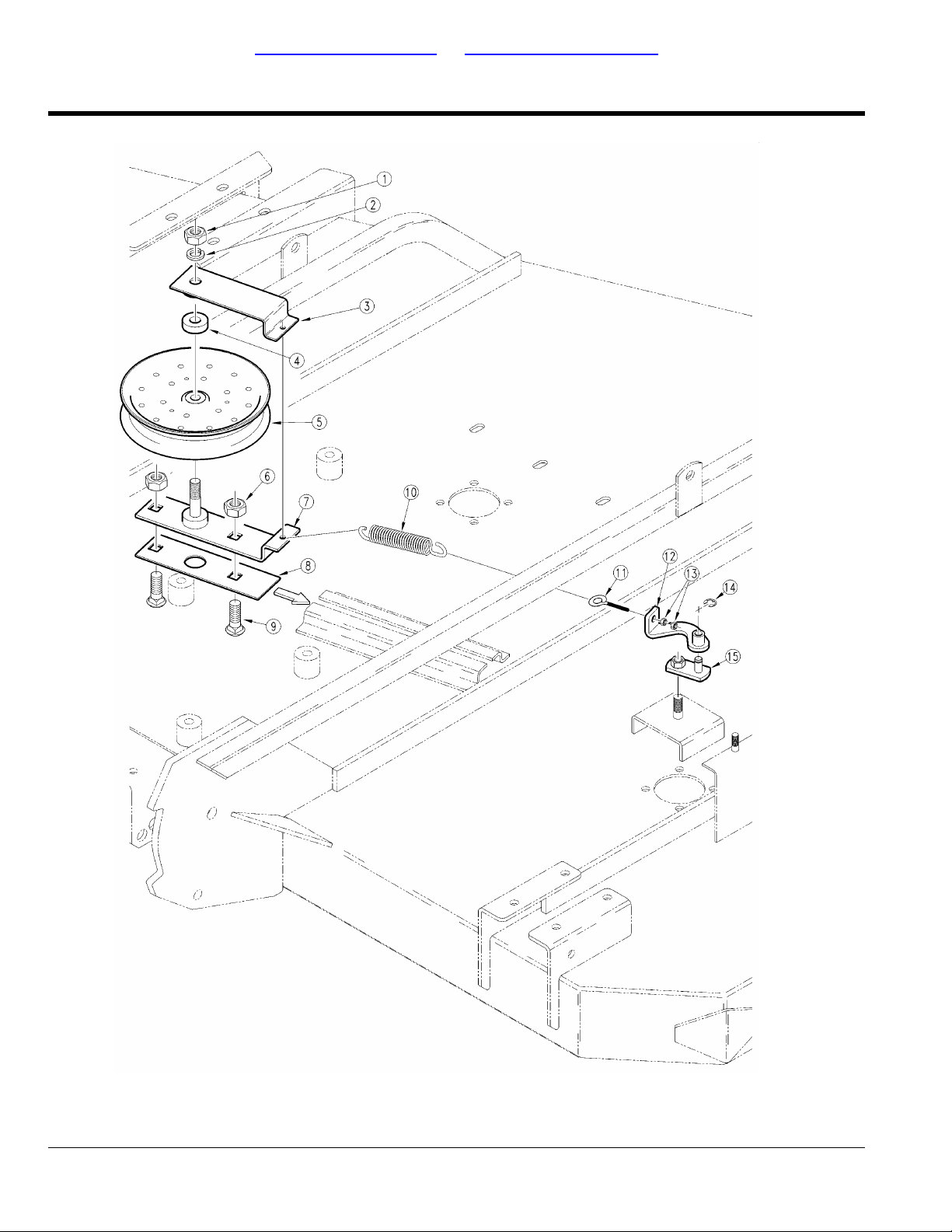

Belt Drive - Take-Up..........................................................32

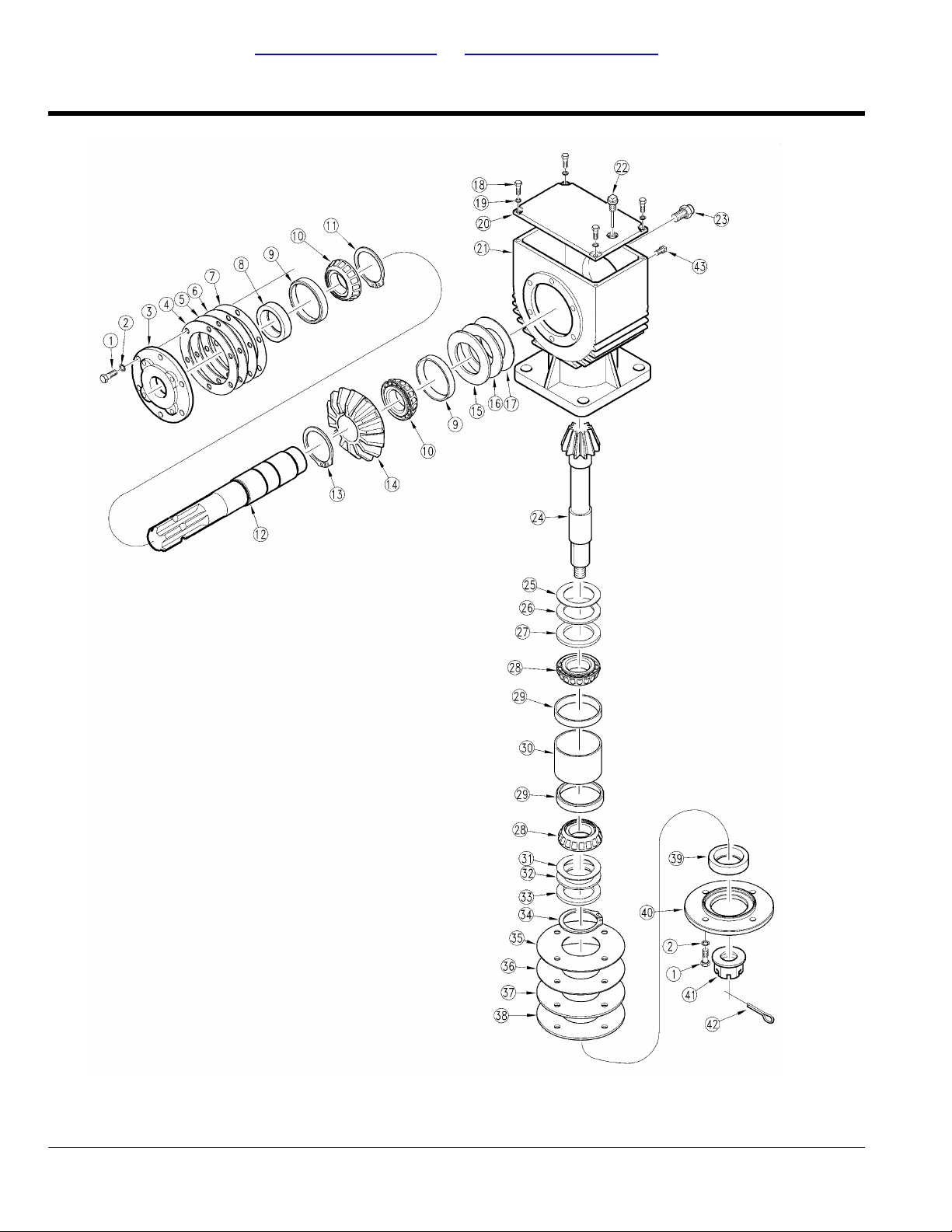

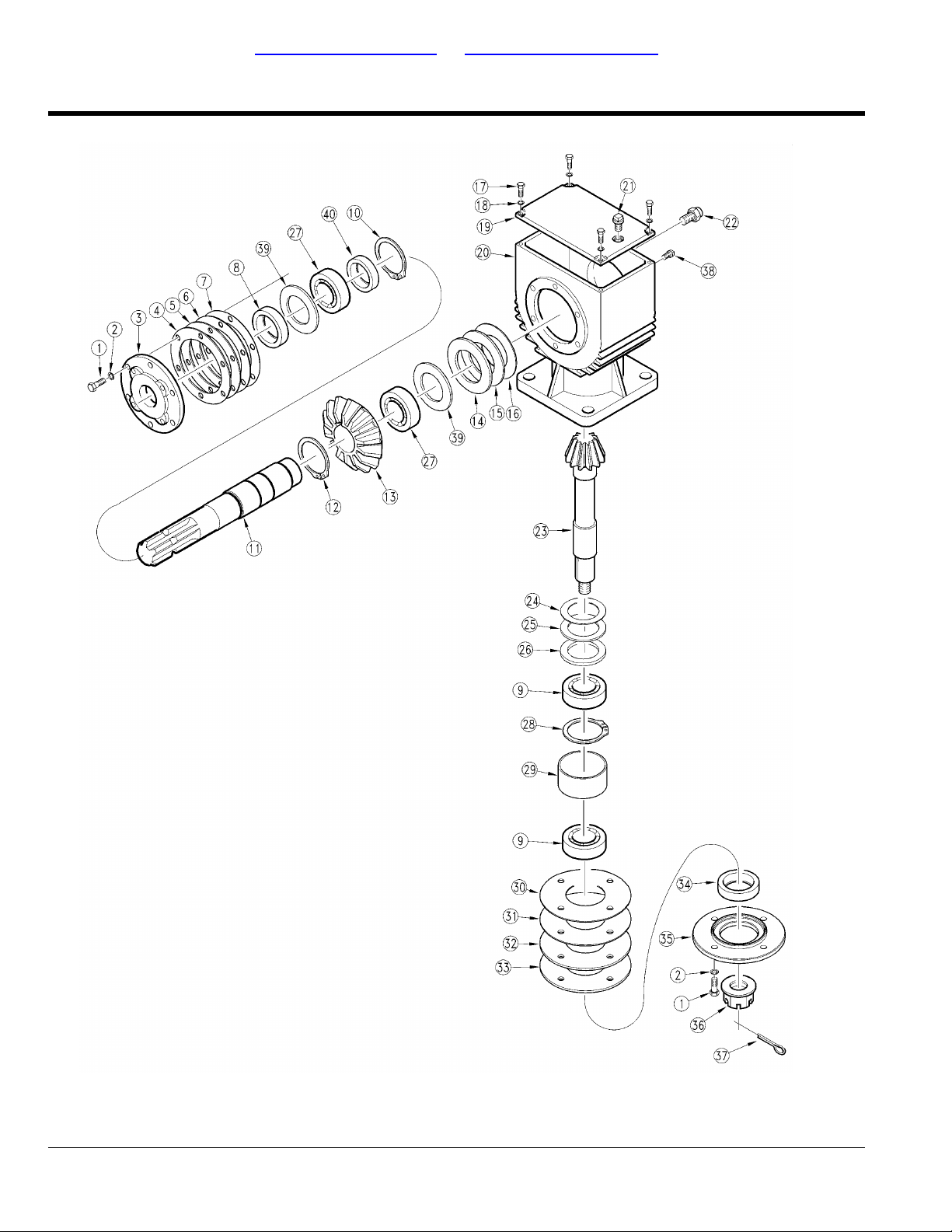

Section 5: Gearboxes..................................................34

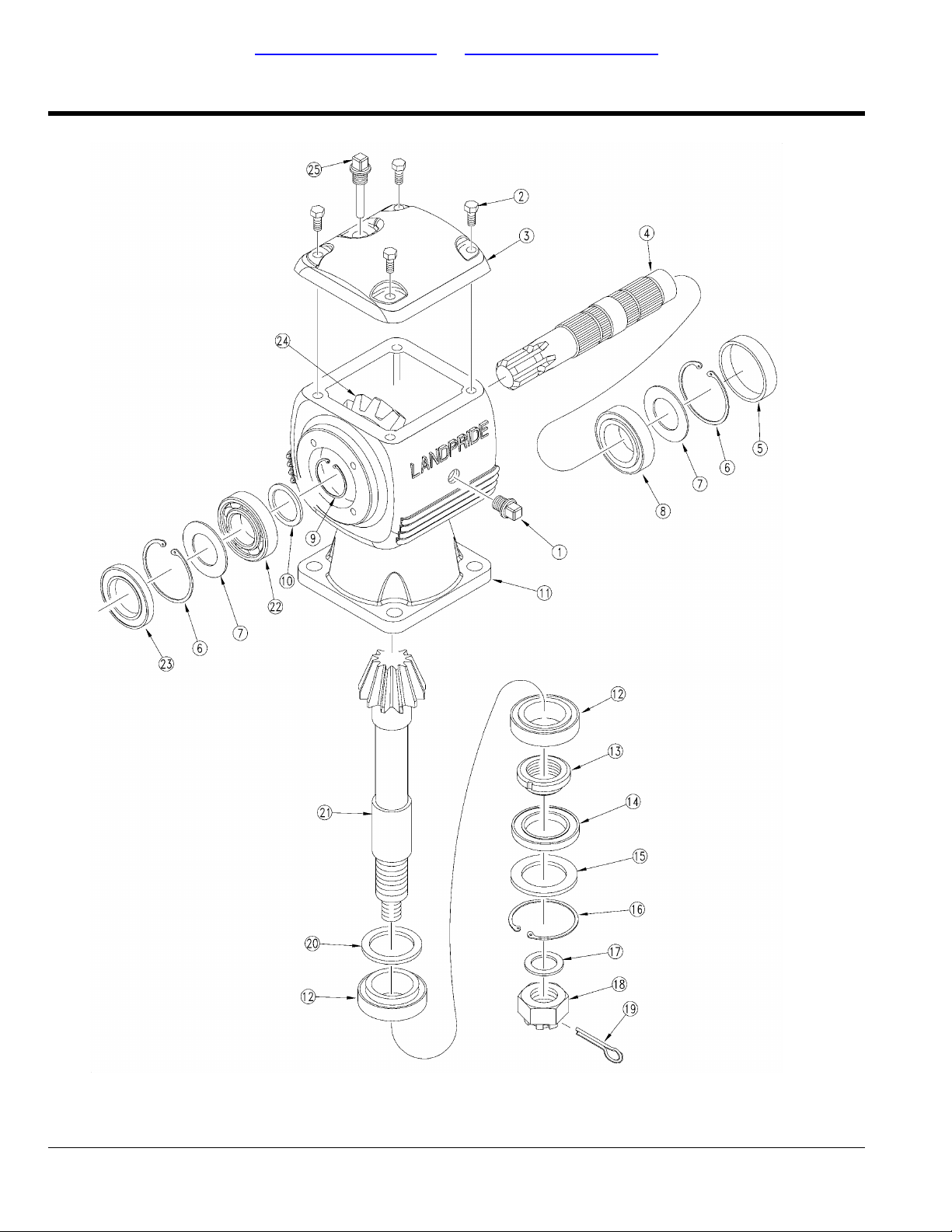

Gearbox (826-203C) OMNI...............................................34
Gearbox (826-204C) OMNI...............................................36
Gearbox (826-293C) OMNI...............................................38
Gearbox (826-294C) OMNI...............................................40
Gearbox (826-311C) OMNI...............................................42
Gearbox (826-326C) Comer.............................................44

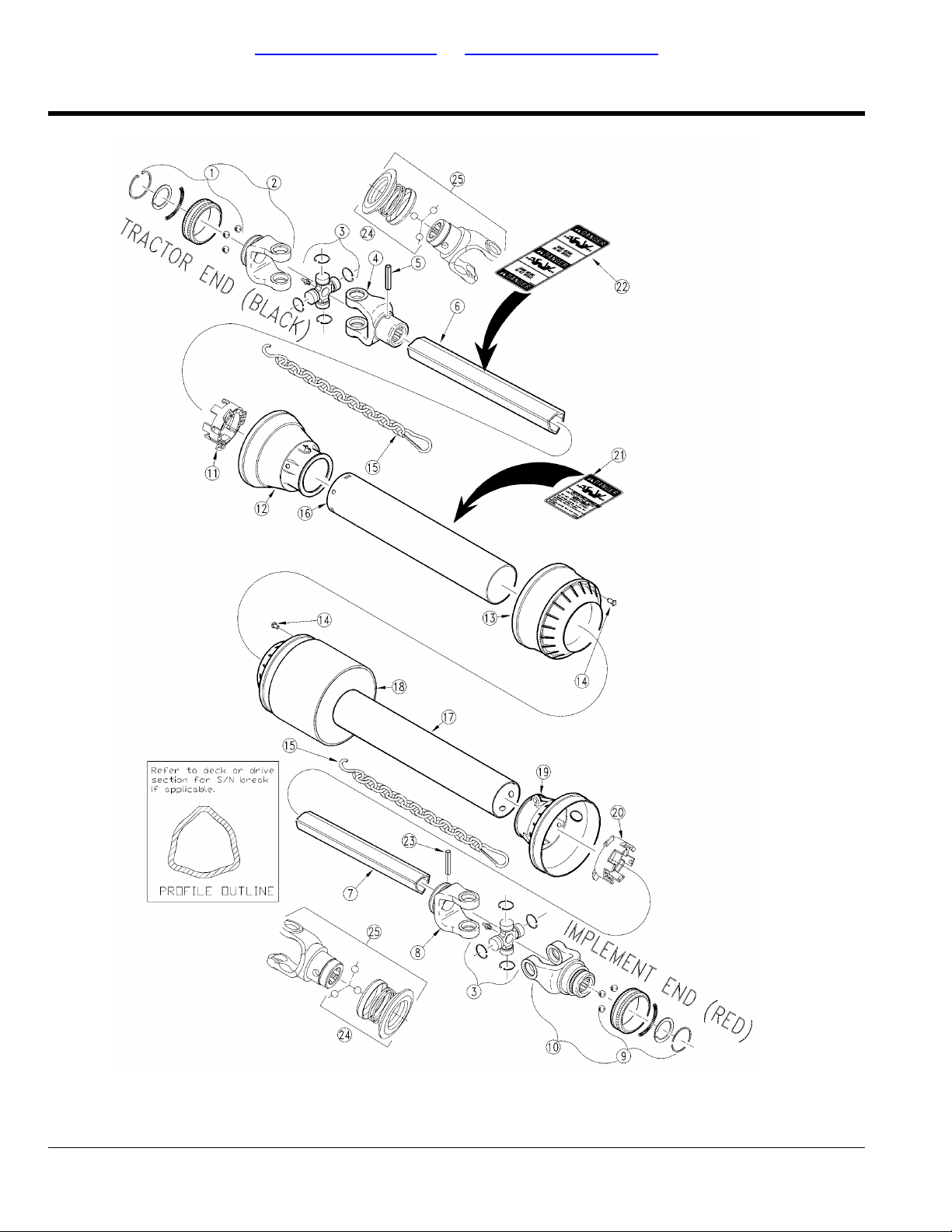

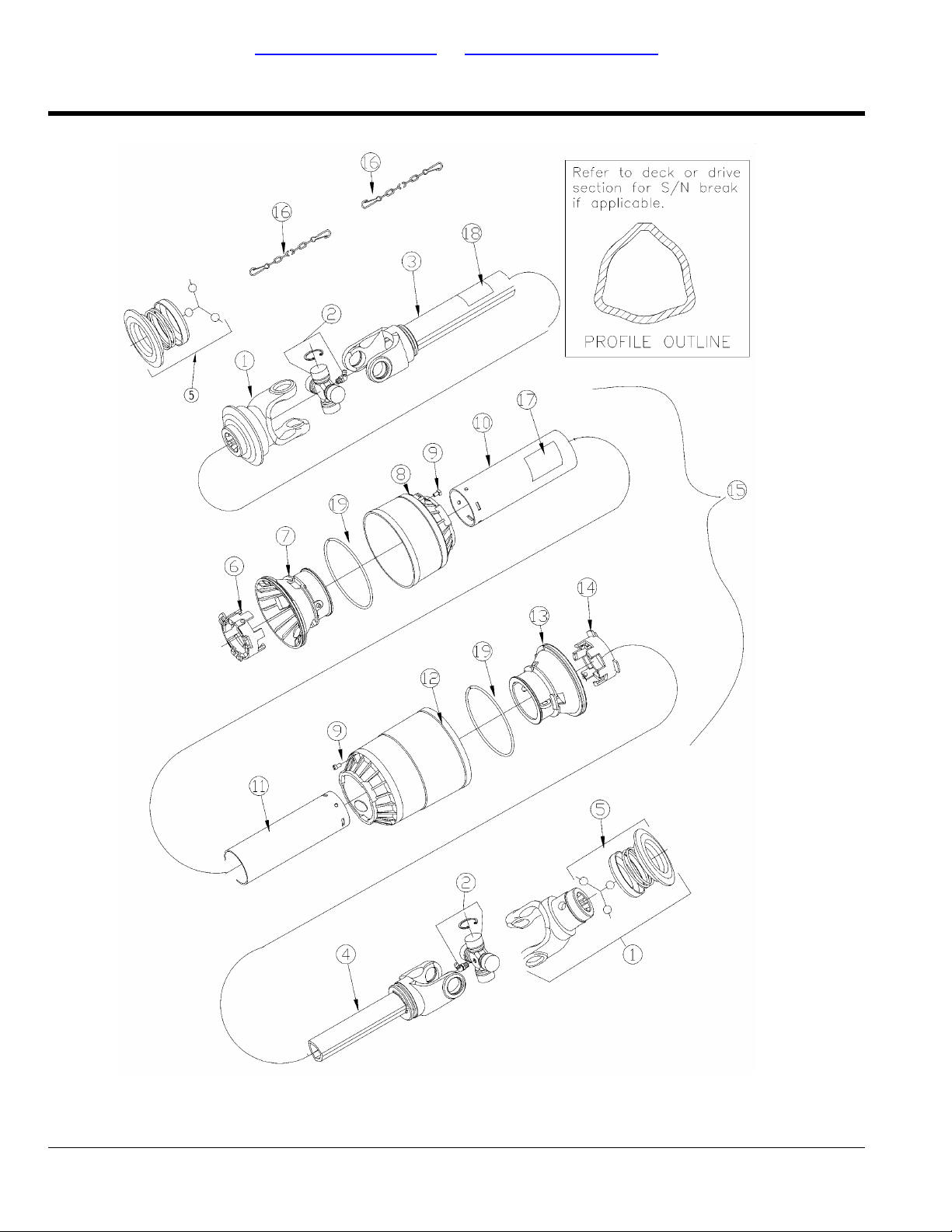

Section 6: Drivelines...................................................46

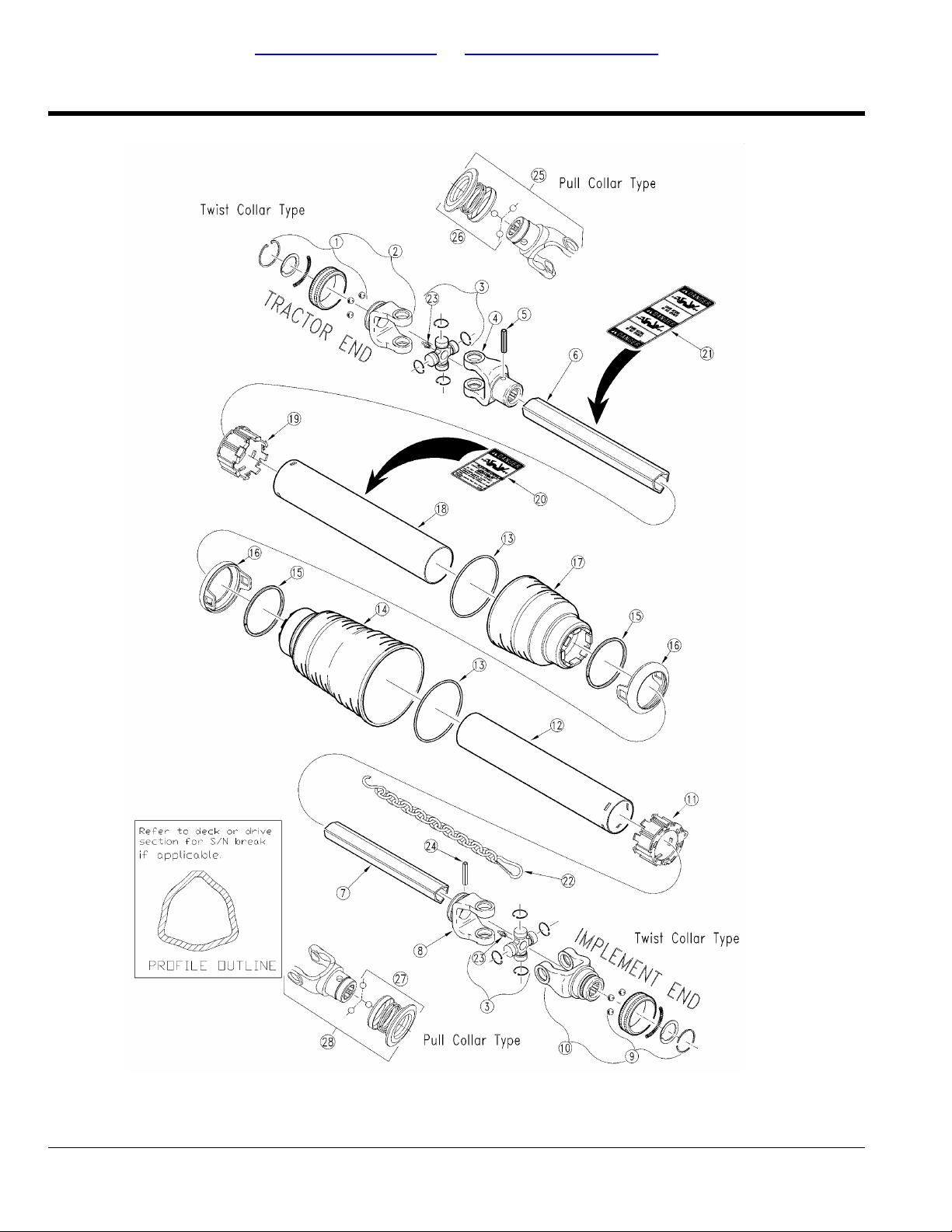

Driveline (826-273C) Eurocardan.....................................46
Driveline (826-410C) Eurocardan.....................................48
Section 7: Labels.........................................................50

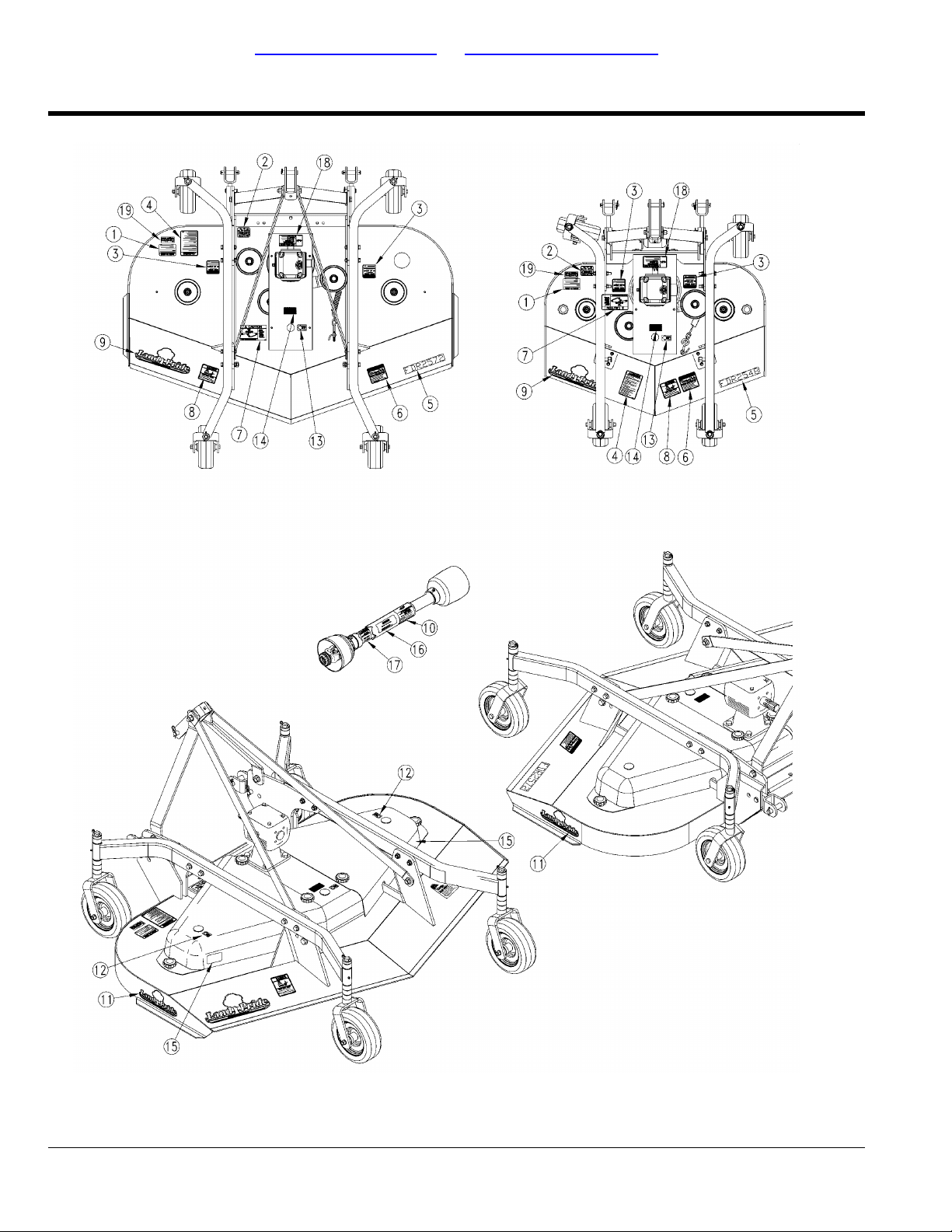

Label Placement...............................................................50
Section 4: Drives.........................................................60
Belt Drive...........................................................................60
Belt Drive - Takeup............................................................62
Section 5: Gearboxes..................................................64
Gearbox (826-206C) OMNI...............................................64
Gearbox (826-296C) OMNI...............................................66
Gearbox (826-326C) Comer.............................................68
Section 6: Drivelines...................................................70
Driveline (826-213C) Eurocardan.....................................70
Section 7: Labels.........................................................72
Label Placement...............................................................72
Section 8: Options.......................................................74
Anti-Scalping Front Roller.................................................74
Part Number Index.......................................................76
FDR35 SERIES
Section 2: Deck............................................................52
Belt Guard.........................................................................52
Hitch..................................................................................54
Section 3: Gauge Wheels............................................56
Gauge Wheel Tire.............................................................56
Gauge Wheels Front And Rear.........................................58
© Copyright 2007. All rights reserved. Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Land Pride is registered trademark.
Printed in the United States of America.
Page 3
Table of Contents Part Number Index
Alphabetized Table of Contents
FDR25 SERIES
B
Belt Covers.....................................................................6
Belt Drive......................................................................26
Belt Drive - Gearbox.....................................................30
Belt Drive - Take-Up.....................................................32
D
Driveline (826-273C) Eurocardan.................................46
Driveline (826-410C) Eurocardan.................................48
F
Front Roller.....................................................................8
Front Roller...................................................................10
G
Gauge Wheel...............................................................16
Gauge Wheel Tire (814-071C).....................................18
Gauge Wheel Tire (814-144C, 814-191C &
814-271C)..............................................................20
Gauge Wheel Tire (814-146C) (814-188C)..................22
Gauge Wheels..............................................................24
Gearbox (826-203C) OMNI..........................................34
Gearbox (826-204C) OMNI..........................................36
Gearbox (826-293C) OMNI..........................................38
Gearbox (826-294C) OMNI..........................................40
Gearbox (826-311C) OMNI..........................................42
Gearbox (826-326C) Comer.........................................44
H
Hitch.............................................................................54
L
Label Placement..........................................................72
H
Hitch.............................................................................12
Hitch.............................................................................14
L
Label Placement..........................................................50
FDR35 SERIES
A
Anti-Scalping Front Roller............................................74
B
Belt Drive......................................................................60
Belt Drive - Takeup.......................................................62
Belt Guard....................................................................52
D
Driveline (826-213C) Eurocardan.................................70
G
Gauge Wheel Tire........................................................56
Gauge Wheels Front And Rear....................................58
Gearbox (826-206C) OMNI..........................................64
Gearbox (826-296C) OMNI..........................................66
Gearbox (826-326C) Comer.........................................68
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 3
Page 4
Table of Contents Part Number Index
4 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 5
Table of Contents Part Number Index
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 5
Page 6
Land Pride Section 2: Deck FDR25 SERIES
Table of Contents Part Number Index
Belt Covers
Applies to FDR2548, FDR2560, FDR2572, FDR2584
17370
6 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 7
Section 2: Deck Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Belt Covers
Applies to FDR2548, FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17370 KNOB 3/8-16 MALE THD 2 3/8OD817-358C1. RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C2. PLASTIC BELT GUARD FDR2584817-371C3.
ShownPLASTIC BELT GUARD FDR2572817-357C3. PLASTIC BELT GUARD RH. FDR2560817-378C3. PLASTIC BELT GUARD LH. FDR2560817-379C4. PLASTIC BELT GUARD FDR2584817-371C4.
ShownPLASTIC BELT GUARD FDR2572817-357C4.
FDR2548PLASTIC BELT GUARD LH.817-442C5.
FDR2548PLASTIC BELT GUARD RH.817-441C6.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 7
Page 8
Land Pride Section 2: Deck FDR25 SERIES
Table of Contents Part Number Index
Front Roller
Applies to FDR2560, FDR2572, FDR2584
17713
8 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 9
Section 2: Deck Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Front Roller
Applies to FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17713 FRONT ROLLER ASSY310-254S WLDMT. ROLLER SHAFT310-266H1. FRONT ROLLER BRACKET RH.310-477D2. FRONT ROLLER BRK RH. ORANGE310-477D822. FRONT ROLLER BRACKET LH.310-478D3. FRONT ROLLER BRK LH. ORANGE310-478D823. RHSNB 3/8-16X1 GR5802-015C4. NUT HEX WHIZ 3/8-16 PLT803-198C5. WASHER FLAT 3/4 SAE PLT804-025C6. PIN COTTER 3/16 X 1 1/4 PLT805-016C7. 4 X 10 ROLLER WHEEL817-049C8.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 9
Page 10
Land Pride Section 2: Deck FDR25 SERIES
Table of Contents Part Number Index
Front Roller
Applies to FDR2548
20563
10 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 11
Section 2: Deck Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Front Roller
Applies to FDR2548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20563 ASSY. FRONT ROLLER315-516S WLDMT. ROLLER SHAFT315-515H1. ROLLER BRACKET RH.315-880D2. ROLLER BRACKET LH.315-881D3. RHSNB 3/8-16X1 GR5802-015C4. NUT HEX WHIZ 3/8-16 PLT803-198C5. WASHER FLAT 5/8 SAE PLT804-021C6. PIN COTTER 3/16 X 1 1/4 PLT805-016C7. 4 X 5 1/2 FRONT ROLLER817-082C8.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11
Page 12
Land Pride Section 2: Deck FDR25 SERIES
Table of Contents Part Number Index
Hitch
Applies to FDR2560, FDR2572, FDR2584
17470
12 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 13
Section 2: Deck Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Hitch
Applies to FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17470
(S/N ______+)HHCS 5/8-18X5 1/2 GR5802-242C1.
(S/N ______-)HHCS 5/8-18X5 GR5802-307C1.
FDR2560REAR BRACE310-522D2.
FDR2572 ShownREAR BRACE310-475D2.
FDR2584REAR BRACE310-496D2. NUT HEX FLANGE LOCK 5/8-11 PLT803-263C3.
(S/N ______+)SPACER TUBE 1 1/8 OD X 3 1/8312-610D4.
(S/N ______-)SPACER - TOP HITCH310-012D4.
(S/N ______+)PIVOTING UPPER HITCH312-609D5.
(S/N ______-)PIVOTING HITCH - UPPER312-085D5. A-FRAME310-474D6. WASHER LOCK SPRING 5/8 PLT804-022C7. NUT HEX 5/8-18 PLT803-022C8. PIN HAIR COTTER .120 PLT805-143C9. PIN CLEVIS 3/4 X 3 1/2 PLT805-142C10.
Changed to one pin (S/N 267694+)PIN CLEVIS 3/4 X 2 1/2 PLT805-140C11. LOWER HITCH WELDMENT310-019H12. PIN LYNCH 5/16 X 1 3/4805-015C13. LOWER HITCH PIN310-020S14. WELDMENT FDR2560310-274H15.
ShownWELDMENT FDR2572310-258H15. WELDMENT FDR2572 ORANGE310-258H8215. WELDMENT FDR2584310-267H15. WELDMENT FDR2584 ORANGE310-267H8215. HFS 5/8-11 X 1 1/2 GR5802-657C16.
(S/N 317416+)DRIVELINE HOOK HANGER W/HRDWR800-320C17.
(S/N ______+)HHCS 1/4-20X1 GR5802-005C18.
(S/N ______+)MANUAL STORAGE CONTAINER816-504C19.
(S/N ______+)WASHER FLAT 1/4 SAE PLT804-007C20.
(S/N ______+)NUT HEX NYLOCK 1/4-20803-255C21.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 13
Page 14
Land Pride Section 2: Deck FDR25 SERIES
Table of Contents Part Number Index
Hitch
Applies to FDR2548
19267
14 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 15
Section 2: Deck Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Hitch
Applies to FDR2548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19267
S/N ______+HHCS 5/8-18X5 1/2 GR5802-242C1.
S/N ______-HHCS 5/8-18X5 GR5802-307C1. REAR BRACE310-606D2. NUT HEX FLANGE LOCK 5/8-11 PLT803-263C3.
S/N ______+SPACER TUBE 1 1/8 OD X 3 1/8312-610D4.
S/N ______-SPACER - TOP HITCH310-012D4.
S/N ______+PIVOTING UPPER HITCH312-609D5.
S/N ______-PIVOTING HITCH - UPPER312-085D5. A-FRAME310-605D6. WASHER LOCK SPRING 5/8 PLT804-022C7. NUT HEX 5/8-18 PLT803-022C8. PIN HAIR COTTER .120 PLT805-143C9. PIN CLEVIS 3/4 X 3 1/2 PLT805-142C10. PIN CLEVIS 3/4 X 2 1/2 PLT805-140C11. LOWER HITCH WELDMENT310-019H12. PIN LYNCH 5/16 X 1 3/4805-015C13. LOWER HITCH PIN310-020S14. FDR2548 CW DECK WELDMENT310-309H15. HFS 5/8-11 X 1 1/2 GR5802-657C16. DRIVELINE HOOK HANGER W/HRDWR800-320C17.
S/N ______+HHCS 1/4-20X1 GR5802-005C18.
S/N ______+MANUAL STORAGE CONTAINER816-504C19.
S/N ______+WASHER FLAT 1/4 SAE PLT804-007C20.
S/N ______+NUT HEX NYLOCK 1/4-20803-255C21.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 15
Page 16
Land Pride Section 3: Gauge Wheel FDR25 SERIES
Table of Contents Part Number Index
Gauge Wheel
Applies to FDR2560, FDR2572, FDR2584
17367
16 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 17
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gauge Wheel
Applies to FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17367 NUT HEX WHIZ 1/2-13 PLT803-037C1. HFS 1/2-13 X 3 1/2 GR5802-658C2. SPINDLE BUSHING817-048C3. GREASE ZERK STRAIGHT 1/4-28800-001C4.
FDR2560ASSY. GAUGE WHEEL ARM310-277S5.
FDR2572 ShownASSY. GAUGE WHEEL ARM310-263S5. ASY. GAUGE WHEEL ARM ORANGE310-263S825.
Rev. 2 not compat. w/Rev. 1FDR2584 (S/N 276191+)ASSY. GAUGE WHEEL ARM310-293S5.
ASSY. GAUGE WHEEL ARM ORANGE310-293S825.
Rev. 1FDR2584 (S/N 276190-)ASSY. GAUGE WHEEL ARM310-269S5. PIN LYNCH 1/4 X 1 3/4 PLT805-126C6. SPACER 1/2827-001C7. SPACER 1827-002C8.
FDR2560 & FDR2572HHCS 1/2-20X6 1/2 GR5802-350C9. FDR2584HHCS 3/4-10X7 GR5802-095C9. FDR2560 & FDR2572 ShownGAUGE WHEEL YOKE(5 1/8 INSIDE)310-149H10.
GW YOKE(5 1/8 INSIDE) ORANGE310-149H8210.
FDR258411' GW YOKE 5 1/8X5 1/8 INSIDE315-300H10.
11' GW YOKE 5 1/8X5 1/8 INSIDE ORANGE315-300H8210.
S/N 511276-WASHER LOCK SPRING 1/2 PLT804-015C11. S/N 511277+NUT HEX FLG/LK 1/2-20 PLT.GR.G803-308C12. FDR2560 & FDR2572 S/N 511276-NUT HEX 1/2-20 PLT803-018C12. FDR2584NUT HEX 3/4-10 PLT NYLOCK803-025C12. FDR2560 & FDR2572 air tire onlyGAUGE WHEEL SPACER - SHORT310-024D13. FDR2560 & FDR2572 solid tire onlyGAUGE WHEEL SPACER(SOLID TIRE)310-329D13. FDR2560 & FDR2572SPACER TUBE GA.WHL. 5 1/8 LG310-328D14. FDR2560 & FDR2572 ShownTIRE 4.10/3.50-4 TUBELESS AIR814-071C15. FDR2584 (S/N 444454+)TIRE 11X4.00-5 RIB SEMI-SOLID814-271C15. FDR2584 (S/N 444453-)RPBY 814-271C814-191C15. FDR258411 X 400-5 RIB TIRE W 3/4 BRGS814-144C15.
Rev. 2FDR2560 & FDR2572 (S/N 260900+)TIRE 10X3.25 SOLID STRT RIB CR814-188C15.
Rev 1; Use up stockFDR2560 & FDR2572 (S/N 260899-)RPBY 814-188C814-146C15.
FDR2560 & FDR2572 Shown4X10 AIR TIRE & YOKE ASSY310-105S16. FDR2584 (S/N 444454+)11X4 SEMISOLID TIRE W/YOKE SUB310-314S16. FDR2584 (S/N 444453-)11X4.00 CASTER GW YOKE315-291S16. FDR2560 & FDR25723.25X10 SOLID TIRE/YOKE ASSY310-017S16.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 17
Page 18
Land Pride Section 3: Gauge Wheel FDR25 SERIES
Table of Contents Part Number Index
Gauge Wheel Tire (814-071C)
Applies to FDR2560, FDR2572
13629
18 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 19
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gauge Wheel Tire (814-071C)
Applies to FDR2560, FDR2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13629 TIRE 10 X 4 TUBELESS AIR814-071C1. TILDEN BRG 3/4IDX1 3/8ODX3 1/453-1822.
HoosierHS 3/4ID X 2 1/2LG ROLLER BRG874132. RPBY 53-182) MRTN BRG3/4,3.25L95352NA2. RPBY 53-164BF-15063.
HoosierHS BRG 3/4ID X 1.407OD X 5/8LG870403. RPBY 53-164RT-34143. RPBY BF-1506)TIL.RTNR3/4ID1/4L53-1643. BRG NEILSON 3/4ID1.34ODX15/16L953164.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 19
Page 20
Land Pride Section 3: Gauge Wheel FDR25 SERIES
Table of Contents Part Number Index
Gauge Wheel Tire (814-144C, 814-191C & 814-271C)
Applies to FDR2584
10499
20 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 21
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gauge Wheel Tire (814-144C, 814-191C & 814-271C)
Applies to FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10499 MRTN HGH SPD SPCR3/4ID 1.125ODHSS-341. MRTN GREASE SEAL 1.125(1.78OD)GS-32. BEARING CONE #LM 11949822-045C3. BEARING CUP #LM 11910822-050C4.
Complete Assembly11 X 400-5 RIB TIRE W 3/4 BRGS814-144C5.
Complete Assembly S/N 444454+TIRE 11X4.00-5 RIB SEMI-SOLID814-271C5.
Complete Assembly S/N 444453-RPBY 814-271C814-191C6.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 21
Page 22
Land Pride Section 3: Gauge Wheel FDR25 SERIES
Table of Contents Part Number Index
Gauge Wheel Tire (814-146C) (814-188C)
Applies to FDR2560, FDR2572
17714
22 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 23
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gauge Wheel Tire (814-146C) (814-188C)
Applies to FDR2560, FDR2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17714 HS BRG 3/4ID X 1.407OD X 5/8LG870401.
814-188C onlyHS CGD RLR BRG.75IDX1.37X1.5LG874102.
(S/N 260900+)TIRE 10X3.25 SOLID STRT RIB CR814-188C3.
(S/N 260899-)REP BY 814-188C814-146C3.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 23
Page 24
Land Pride Section 3: Gauge Wheel FDR25 SERIES
Table of Contents Part Number Index

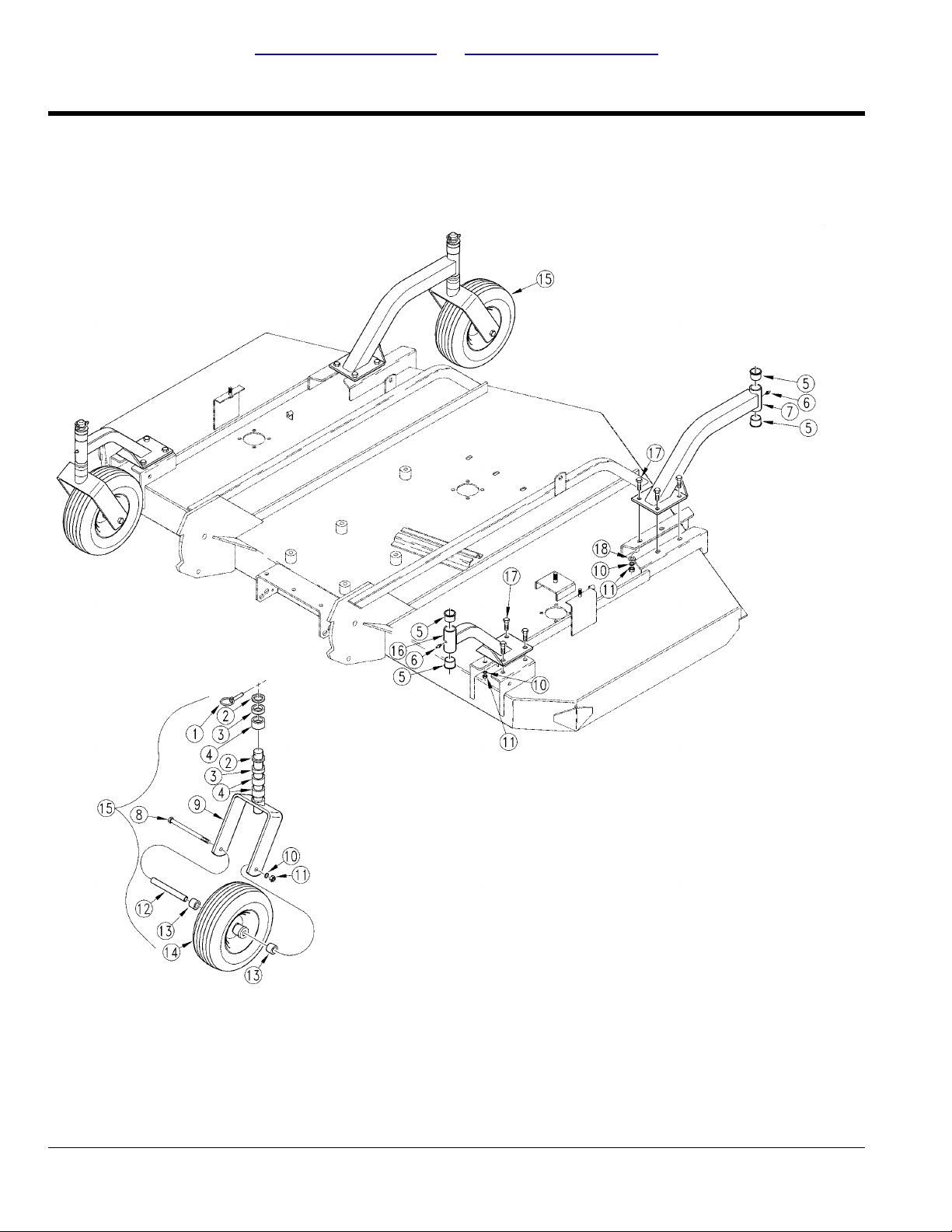

Gauge Wheels
Applies to FDR2548
19268
24 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 25
Section 3: Gauge Wheel Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gauge Wheels
Applies to FDR2548
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19268 HFS 1/2-13 X 3 GR5802-656C1. RHSNB 3/8-16X1 GR5802-015C2. NUT HEX WHIZ 1/2-13 PLT803-037C3. SPINDLE BUSHING817-048C4. GREASE ZERK STRAIGHT 1/4-28800-001C5.
(Includes Ref. No's. 4 & 5)ASSY. GAUGE WHEEL ARM RH.310-343S6. PIN LYNCH 1/4 X 1 3/4 PLT805-126C7. SPACER 1/2827-001C8. SPACER 1827-002C9. HHCS 1/2-20X6 1/2 GR5802-350C10. GAUGE WHEEL YOKE(5 1/8 INSIDE)310-149H11. WASHER LOCK SPRING 1/2 PLT804-015C12. NUT HEX 1/2-20 PLT803-018C13. TIRE 4.10/3.50-4 TUBELESS AIR814-071C14. TIRE 10X3.25 SOLID STRT RIB CR814-188C14. SPACER TUBE GA.WHL. 5 1/8 LG310-328D15.
air tire onlyGAUGE WHEEL SPACER - SHORT310-024D16.
solid tire onlyGAUGE WHEEL SPACER(SOLID TIRE)310-329D16. 4X10 AIR TIRE & YOKE ASSY310-105S17. NUT HEX WHIZ 3/8-16 PLT803-198C18.
(Includes Ref. No's. 4 & 5)ASSY. GAUGE WHEEL ARM LH.310-344S19.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 25
Page 26
Land Pride Section 4: Drive FDR25 SERIES
Table of Contents Part Number Index

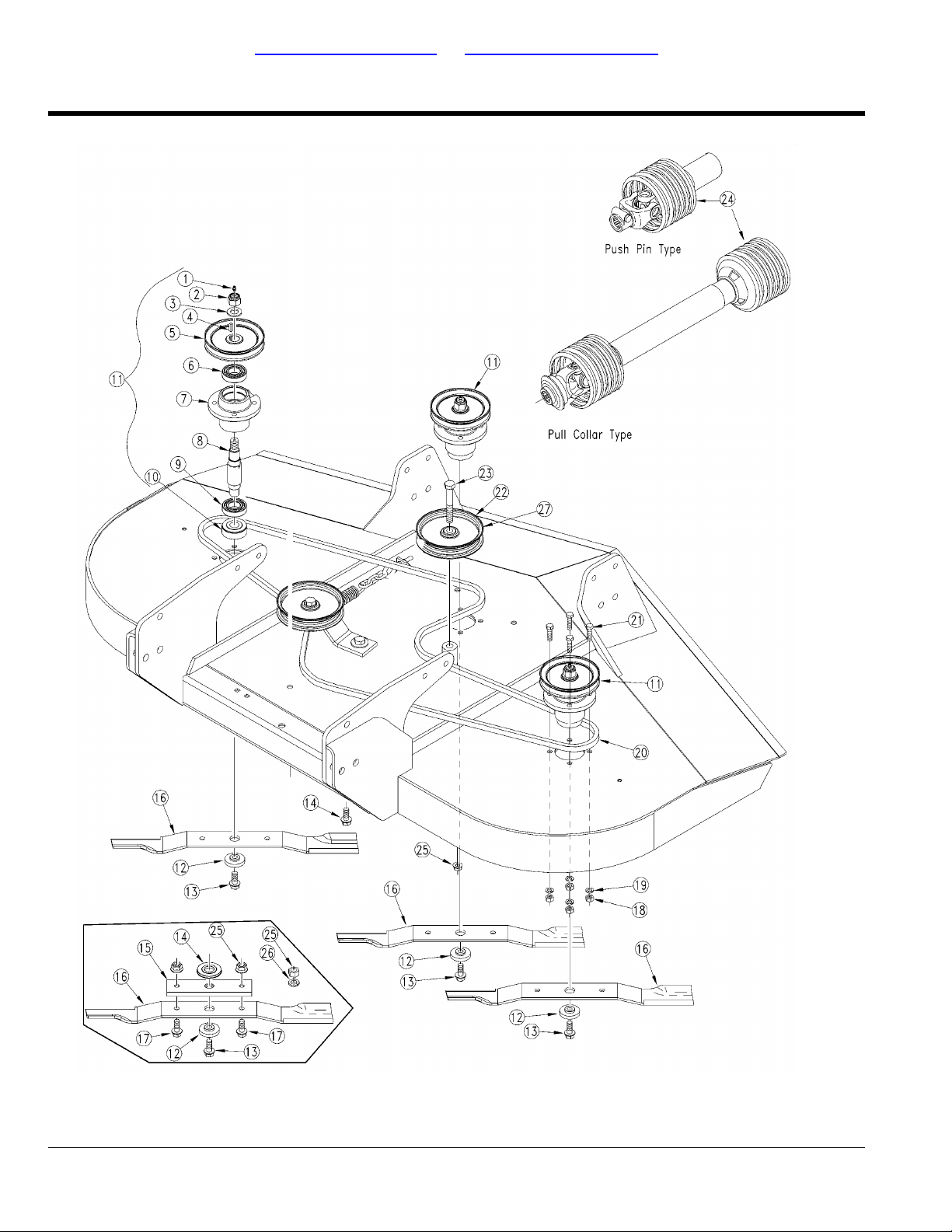

Belt Drive
Applies to FDR2548, FDR2560, FDR2572, FDR2584
17472
26 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 27
Section 4: Drive Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Belt Drive
Applies to FDR2548, FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17472 GREASE ZERK STRAIGHT 1/4-28800-001C1. NUT LOCK 3/4-16 NYLOC COLLAR803-114C2. WASHER FLAT 3/4 HARD ASTMF436804-093C3. 1/4 SQ. KEY X 7/8 LG172-242D4.
FDR2548 & FDR2560B-GROOVE PULLEY 5 O.D.808-075C5.
FDR2572 & FDR2584B-GROOVE DRIVE PULLEY 6 O.D.808-127C5. BEARING 6206 W/ METAL SHIELD822-161C6. BLADE HUB MACHINED TOP GREASE310-457D7.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)BLADE SPINDLE SHAFT CW TG310-630D8.
Rev. 1(S/N 329660-)RPBY 310-349S310-454D8. BEARING 206822-006C9. BLADE HUB - 7/8310-300D10.
FDR2548 & FDR2560CW TG SPINDLE HUB ASSY 5" PULL310-248S11. FDR2572 ShownCW TG SPINDLE HUB ASSY 6" PULL310-249S11.
CW TG SPINDLE HUB ASSY 6" PULL310-261S11.
WASHER BLADE 2ODX.56THKX.51ID804-110C12.
BLADE WASHER-90310-227D14.
MWR BLD 5/16 X 29 SD HL CW890-684C16.
MWR BLD 5/16 X 29 SD ML CW890-675C16.
MWR BLD 1/4 X 29 SD HL CW890-654C16.
MWR BLD 5/16 X 29 SD LL CW890-653C16.
NUT HEX 7/16-20 PLT803-115C18. WASHER LOCK 7/16 PLT804-014C19.
HHCS 7/16-20X1 1/2 GR8802-229C21. FLAT IDLER PULLEY 6 3/4 O.D.808-129C22. HHCS 5/8-11X4 1/4 GR5802-151C23.
FDR2584 Excludes #10 Because of Blade Bar #15
Rev. 2 not compat. w/Rev. 1(S/N 329661+)HFS 1/2-20X2 GR8802-695C13.
Rev. 1(S/N 329660-)HFS 1/2-20X1 1/4 GR5802-384C13.
Rev. 2FDR2584 (S/N 312927+)BLADE BAR RH.THRD 10.50 CTR.315-823D15.
Rev 1; Use up stockFDR2584 (S/N 312926-)4016 R.H. THREAD BLADE BAR315-752D15.
Optional high lift FDR2548MWR BLD 1/4X16 7/8SD HL CW890-219C16. Standard medium lift FDR2548MWR BLD 1/4X16 7/8SD ML CW890-325C16. Optional low lift FDR2548MWR BLD 1/4X16 7/8SD LL CW890-323C16. Optional mulch FDR2548MWR BLD MULCH 1/4X16.87SD CW890-700C16. Optional high lift FDR2560MWR BLD 1/4 X 20 29/32SD HL CW890-171C16. Standard medium lift FDR2560MWR BLD 1/4 X 20 29/32SD ML CW890-375C16. Optional low lift FDR2560MWR BLD 5/16X20 29/32SD LL CW890-204C16. Optional mulch FDR2560MWR BLD MULCH 1/4X20.91SD CW890-702C16. Optional high lift FDR2572MWR BLD 1/4 X 25SD HL CW890-172C16. Standard medium lift FDR2572MWR BLD 1/4 X 25SD ML CW890-318C16. Optional low lift FDR2572MWR BLD 5/16 X 25SD LL CW890-200C16. Optional mulch FDR2572MWR BLD MULCH 1/4X25SD CW890-698C16. Optional high lift FDR2584 (S/N
312927+)
Rev. 2Standard Medium lift FDR2584 (S/N
312927+)
Rev 1; Use up stockStandard High lift FDR2584 (S/N
312926-) Optional low lift FDR2584MWR BLD 5/16 X 29 SD LL CW890-685C16. Optional low lift FDR2584 (S/N
312926-) Optional mulch FDR2584MWR BLD MULCH 1/4X29SD CW890-706C16. FDR2584HHCS 1/2-20X1 3/4 GR5802-329C17.
FDR2548V-BELT B93 95.75 E.L. KEVLAR816-142C20. FDR2560V-BELT B103 106 E.L. KEVLAR816-308C20. FDR2572 ShownV-BELT B136 138.9 E.L. KEVLAR816-116C20.
Rev. 2FDR2584V-BELT B158 160.9 E.L. KEVLAR816-064C20.
Rev 1; Use up stockFDR2584RPBY 816-064C816-311C20.
Rev. 2DRIVELINE CAT.3 X 38 STANDARD826-410C24.
Rev. 1RPBY 826-410C826-273C24.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 27
Page 28
Land Pride Section 4: Drive FDR25 SERIES
Table of Contents Part Number Index
Belt Drive (continued)
Applies to FDR2548, FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 2(S/N 319784+)NUT HEX FLG. LOCK 1/2-20 PLT.803-308C25.
Rev 1; Use up stock(S/N 319783-)NUT HEX 1/2-20 PLT803-018C25. (S/N 319783-)WASHER LOCK SPRING 1/2 PLT804-015C26. FDR2572 (S/N 311049-)FLAT IDLER PULLEY 6 3/4 O.D.808-129C27.
28 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 29
Section 4: Drive Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Belt Drive (continued)
Applies to FDR2548, FDR2560, FDR2572, FDR2584
This Page Intentionally Left Blank
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 29
Page 30
Land Pride Section 4: Drive FDR25 SERIES
Table of Contents Part Number Index
Belt Drive - Gearbox
Applies to FDR2548, FDR2560, FDR2572, FDR2584
20212
30 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 31
Section 4: Drive Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Belt Drive - Gearbox
Applies to FDR2548, FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20212 GBOX MOWER 50 HP 1:2.8 CW826-326C1.
FDR2572 (S/N 335063+) FDR2584
(S/N 335176+) GB MOWER 50 HP 1:2.8 CW ORANGE826-326C821. REP BY 826-326C826-311C1.
FDR2584 (S/N 311187 <-> 335175) REP BY 826-326C826-294C1.
FDR2572 (S/N 273336 <-> 311164)
FDR2572 (S/N 311049-) RPBY 826-294C826-204C1.
(S/N 273335-)
HHCS 5/8-18X1 3/4 GR5802-246C2.
FDR2548 S/N 499702+GEARBOX MOUNT ASSEMBLY310-416V3.
FDR2548 S/N 499701-WELDMENT GEARBOX MOUNT310-341H3.
FDR2560 S/N 499702+GEARBOX MOUNT ASSEMBLY310-412V3.
FDR2560 S/N 499701-WLDMT. GEARBOX MOUNT310-276H3.
FDR2572 Shown S/N 499702+GEARBOX MOUNT ASSEMBLY310-410V3. GEARBOX MOUNT ASY ORANGE310-410V823.
FDR2572 Shown S/N 499701-WLDMT. GEARBOX MOUNT310-265H3.
FDR2584 S/N 499702+GEARBOX MOUNT ASSEMBLY310-411V3. GEARBOX MOUNT ASSEMBLY ORANGE310-411V823.
FDR2584 S/N 499701-WLDMT. GEARBOX MOUNT310-272H3. WASHER LOCK SPRING 5/8 PLT804-022C4. NUT HEX 5/8-18 PLT803-022C5. KEY 1/4 X 11/16 LONG310-331D6.
B-GROOVE PULLEY 11" CAST-IRON808-335C7.
(S/N 346244+) B-GROOVE DRIVE PULLEY 11 O.D.808-126C7.
(S/N 346243-) FDR2584 (S/N
311049-) OMNI NUT HEX SLOTTED, 1-14UNC1200508. OMNI COTTER PIN 5 X 501000019. RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C10.
S/N 454340+HFSS 1/2-13X1 1/4 GR8802-083C11.
S/N 454339-HFSS 1/2-13X1 1/2 GR5802-203C11. NUT HEX WHIZ 1/2-13 PLT803-037C12.
Rev. 4FDR2548 FDR2560 (S/N 346256+)
Rev 3; Use up stockFDR2572 (S/N 311165 <-> 335062)
Rev 2; Use up stockFDR2560 (S/N 271047 <-> 346255)
Rev 1; Use up stockFDR2560 (S/N 271046-) FDR2572
Rev 2; Use up stockFDR2584 (S/N 304129 <-> 311186)GBOX MOWER 50 HP 1:2.5 CW826-325C1. Rev 1; Use up stockFDR2584 (S/N 304128-)REP BY 826-325C826-203C1.
Rev. 3 not compat. w/Rev. 2FDR2584 (S/N 346502+)B-GROOVE PULLEY 9" CAST-IRON808-333C7. Rev. 2FDR2584 (S/N 311050 <-> 346501)B-GROOVE PULLEY 9 O.D.808-076C7. Rev. 2 not compat. w/Rev. 1FDR2560 (S/N 346256+) FDR2572
Rev 1; Use up stockFDR2560 (S/N 346255-) FDR2572
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 31
Page 32
Land Pride Section 4: Drive FDR25 SERIES
Table of Contents Part Number Index

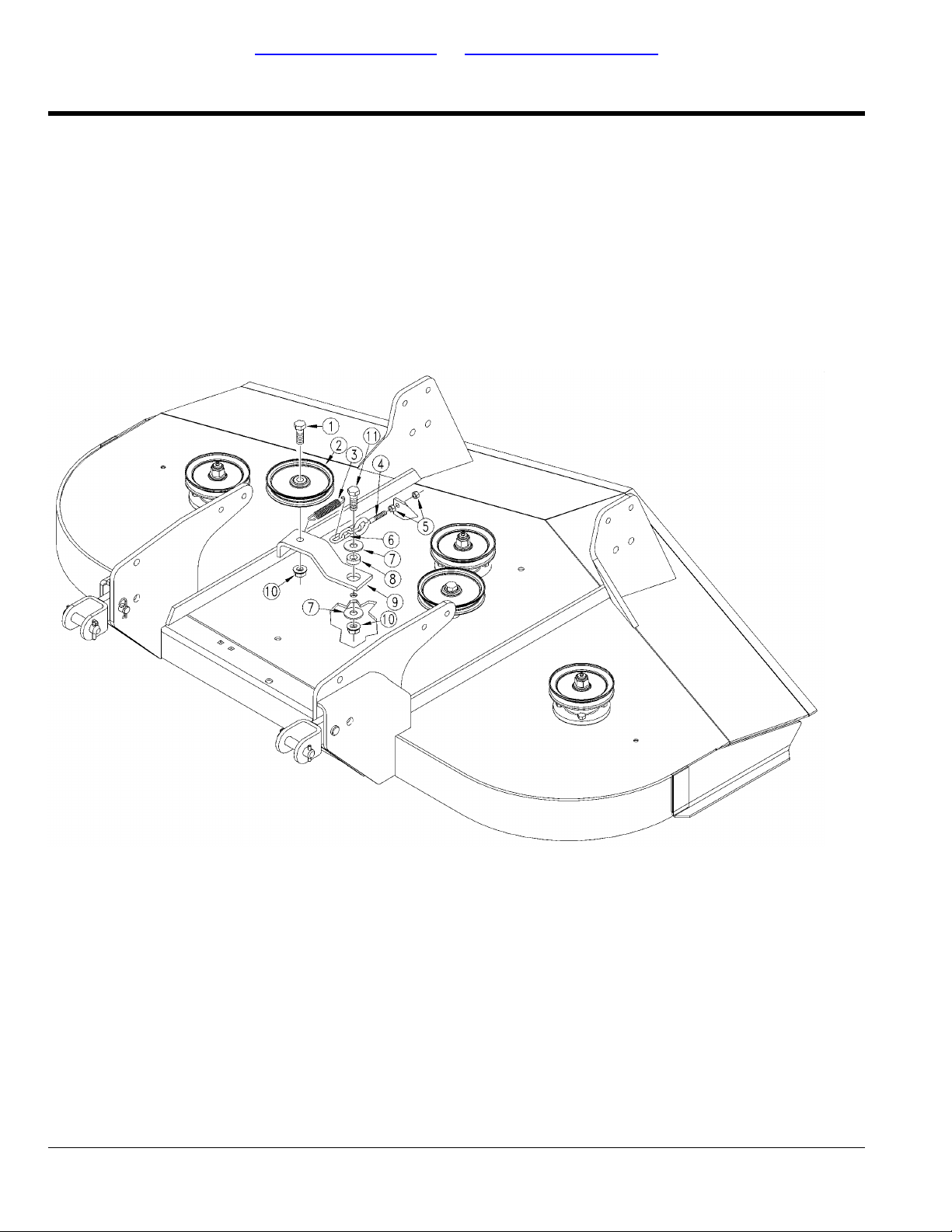

Belt Drive - Take-Up
Applies to FDR2548, FDR2560, FDR2572, FDR2584
17471
32 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 33
Section 4: Drive Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Belt Drive - Take-Up
Applies to FDR2548, FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17471 HHCS 5/8-11X1 3/4 GR5802-053C1. FLAT IDLER PULLEY 6 3/4 O.D.808-129C2. SPRING EXT BELT HANDLE807-068C3. EYE BOLT OPEN 3/8-16X3 1/2802-668C4. NUT HEX 3/8-16 PLT803-014C5. CHAIN WELD 1/4 PROOF X 3 LINK890-641C6. WASHER FLAT 5/8 USS PLT804-019C7. SPACER BUSHING310-494D8. SPRING IDLER BRACKET310-493D9. NUT HEX FLANGE LOCK 5/8-11 PLT803-263C10.
Rev. 2HHCS 5/8-11X1 1/2 GR5802-051C11. Rev 1; Use up stockHHCS 5/8-11X1 3/4 GR5802-053C11.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 33
Page 34
Land Pride Section 5: Gearboxes FDR25 SERIES
Table of Contents Part Number Index

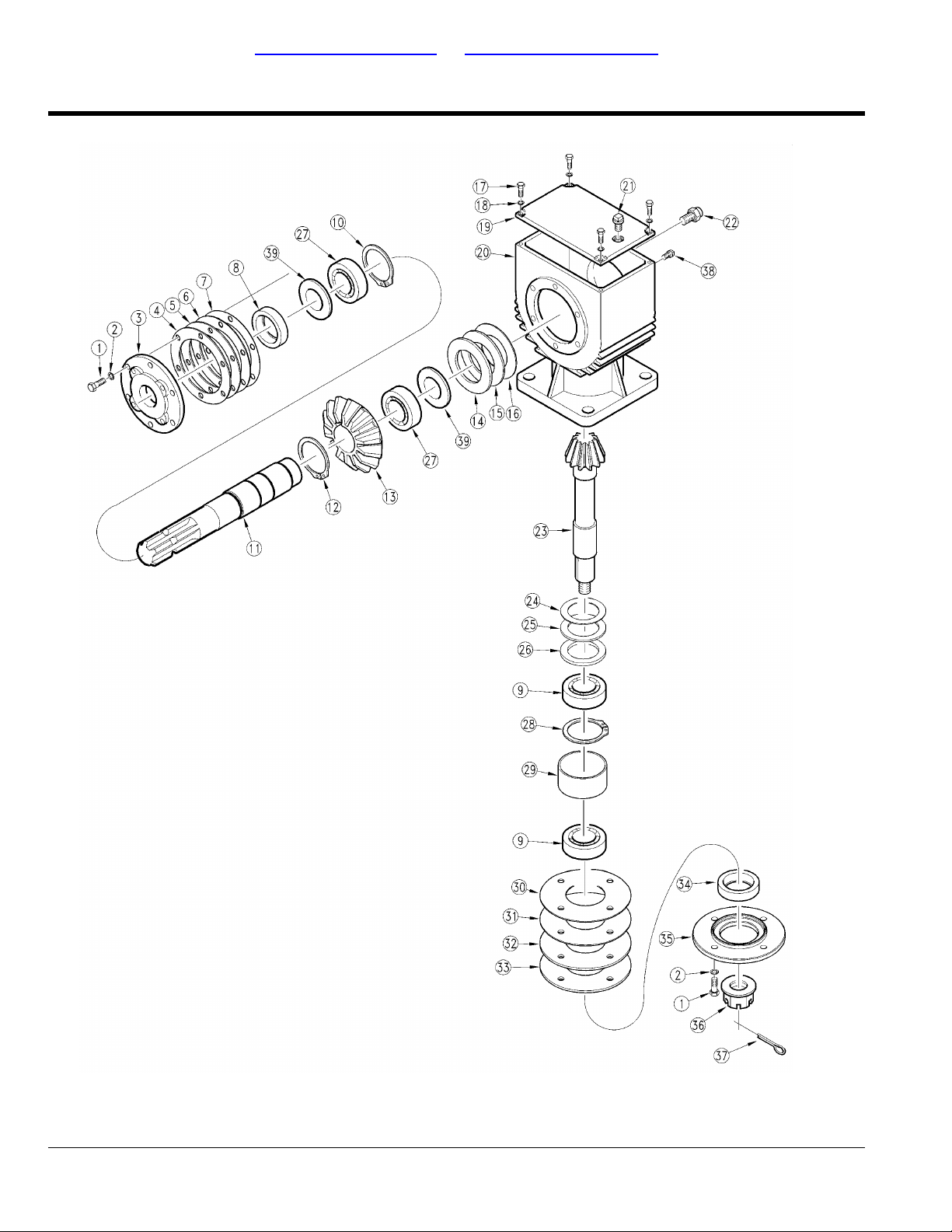

Gearbox (826-203C) OMNI
Applies to FDR2584
16020
34 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 35
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gearbox (826-203C) OMNI
Applies to FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16020 RPBY 826-325C826-203C OMNI SCREW-5/16"-18UNC X 7/8"1101921. OMNI 5/16" RPBY 804-009C1300062. OMNI CAP-INPUT0202243.
Quantity variesOMNI GASKET-INPUT 0.10MM0702464.
Quantity variesOMNI GASKET-INPUT 0.20MM0702475.
Quantity variesOMNI GASKET-INPUT 0.30MM0702486.
Quantity variesOMNI GASKET-INPUT 0.50MM0702497. OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079. OMNI RTNG. RING 38MM RC DSH-3820014010. OMNI SHAFT INPUT 1 3/8" - 6A04049111. OMNI RTNG. RING 38MM RC DSH-3820014112. OMNI GEAR-INPUT 30T03045913. OMNI SHIM INPUT 0.10MM09017914. OMNI SHIM INPUT 0.20MM09018015. OMNI SHIM INPUT 0.30MM09018116. OMNI SCREW-1/4"-20 UNC X 3/4"11000917. OMNI LOCKWASHR 1/4" SPLIT TYPE13002818. OMNI INSPECTION COVER24028019. OMNI HOUSING RC-25 SERIES01025220. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004721. OMNI PLUG VENT 1/2-14 NPTF14003322. OMNI PINION OUTPUT 12T03045823. OMNI SHIM OUTPUT 0.10MM09018224. OMNI SHIM OUTPUT 0.20MM09018325. OMNI SHIM OUTPUT 0.30MM09018426.
Rev. 2BEARING BALL 6207822-166C27.
Rev 1; Use up stockRPBY 822-166C05000627. OMNI RETAINING RING20000028. OMNI SPACER OUTPUT09019029.
Quantity variesOMNI GASKET-OUTPUT 0.10MM07025030. Quantity variesOMNI GASKET-OUTPUT 0.20MM07025131. Quantity variesOMNI GASKET-OUTPUT 0.30MM07025232.
Quantity variesOMNI GASKET-OUTPUT 0.50MM07025333. OMNI SEAL-OUTPUT CR1582206012834. OMNI CAP-OUTPUT02022535. OMNI NUT HEX SLOTTED, 1-14UNC12005036. OMNI COTTER PIN 5 X 5010000137. OMNI PLUG PIPE SQ HD1/8-27NPTF14001738. OMNI SPACER INPUT09018939.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 35
Page 36
Land Pride Section 5: Gearboxes FDR25 SERIES
Table of Contents Part Number Index
Gearbox (826-204C) OMNI
Applies to FDR2560, FDR2572
16020
36 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 37
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gearbox (826-204C) OMNI
Applies to FDR2560, FDR2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16020 RPBY 826-326C826-204C OMNI SCREW-5/16"-18UNC X 7/8"1101921. OMNI LOCKWASHR 5/16"SPLIT TYPE1300062. OMNI CAP-INPUT0202243.
Quantity variesOMNI GASKET-INPUT 0.50MM0702494.
Quantity variesOMNI GASKET-INPUT 0.30MM0702485.
Quantity variesOMNI GASKET-INPUT 0.20MM0702476.
Quantity variesOMNI GASKET-INPUT 0.10MM0702467. OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079. OMNI RTNG. RING 38MM RC DSH-3820014010. OMNI SHAFT-INPUT 1-3/8"-6 SPLN04033511. OMNI RTNG. RING 38MM RC DSH-3820014112. OMNI GEAR-INPUT 34T03046113. OMNI SHIM INPUT 0.30MM09018114. OMNI SHIM INPUT 0.20MM09018015. OMNI SHIM INPUT 0.10MM09017916. OMNI SCREW-1/4"-20 UNC X 3/4"11000917. OMNI LOCKWASHR 1/4" SPLIT TYPE13002818. OMNI INSPECTION COVER24028019. OMNI HOUSING-RC-2501017520. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004721.
Rev. 2 not compat. w/Rev. 1(S/N 215411+)OMNI PIPE PLUG 1/2' SQ HEAD14000022.
Rev. 1(S/N 215410-)OMNI PLUG VENT 1/2-14 NPTF14003322. OMNI PINION OUTPUT 12T03046023. OMNI SHIM OUTPUT 0.10MM09018224. OMNI SHIM OUTPUT 0.20MM09018325. OMNI SHIM OUTPUT 0.30MM09018426.
Rev. 2BEARING BALL 6207822-166C27.
Rev 1; Use up stockRPBY 822-166C05000627. OMNI RETAINING RING20000028. OMNI SPACER OUTPUT09019029.
Quantity variesOMNI GASKET-OUTPUT 0.10MM07025030. Quantity variesOMNI GASKET-OUTPUT 0.20MM07025131. Quantity variesOMNI GASKET-OUTPUT 0.30MM07025232.
Quantity variesOMNI GASKET-OUTPUT 0.50MM07025333. OMNI SEAL-OUTPUT CR1582206012834. OMNI CAP-OUTPUT02022535. OMNI NUT HEX SLOTTED, 1-14UNC12005036. OMNI COTTER PIN 5 X 5010000137. OMNI PLUG PIPE SQ HD1/8-27NPTF14001738. OMNI SPACER INPUT09018939.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 37
Page 38
Land Pride Section 5: Gearboxes FDR25 SERIES
Table of Contents Part Number Index
Gearbox (826-293C) OMNI
Applies to FDR2584
18705
38 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 39
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gearbox (826-293C) OMNI
Applies to FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18705 RC-25 1:2.5 CW 90 BOX(RC25LR)826-293C OMNI SCREW-5/16"-18UNC X 7/8"1101921. WASHER LOCK SPRING 5/16 PLT804-009C2. OMNI CAP-INPUT0202243. OMNI GASKET-INPUT 0.10MM0702464. OMNI GASKET-INPUT 0.20MM0702475. OMNI GASKET-INPUT 0.30MM0702486. OMNI GASKET-INPUT 0.50MM0702497. OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079. OMNI RTNG. RING 38MM RC DSH-3820014010. OMNI SHAFT INPUT 1 3/8" - 6A04049111. OMNI RTNG. RING 38MM RC DSH-3820014112. OMNI GEAR-INPUT 30T03045913. OMNI SHIM INPUT 0.10MM09017914. OMNI SHIM INPUT 0.20MM09018015. OMNI SHIM INPUT 0.30MM09018116. OMNI SCREW-1/4"-20 UNC X 3/4"11000917. OMNI LOCKWASHR 1/4" SPLIT TYPE13002818. OMNI INSPECTION COVER24028019. OMNI HOUSING RC-25 SERIES01025220. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004721. OMNI PIPE PLUG 1/2' SQ HEAD14000022. OMNI PINION OUTPUT 12T03045823. OMNI SHIM OUTPUT 0.10MM09018224. OMNI SHIM OUTPUT 0.20MM09018325. OMNI SHIM OUTPUT 0.30MM09018426.
Rev 2; Use up stockBEARING BALL 6207822-166C27.
Rev 1; Use up stockOMNI BALL BEARING 207K05000627. OMNI RETAINING RING20000028. OMNI SPACER OUTPUT09019029. OMNI GASKET-OUTPUT 0.10MM07025030. OMNI GASKET-OUTPUT 0.20MM07025131. OMNI GASKET-OUTPUT 0.30MM07025232. OMNI GASKET-OUTPUT 0.50MM07025333. OMNI SEAL-OUTPUT CR1582206012834. OMNI CAP-OUTPUT02022535. OMNI NUT HEX SLOTTED, 1-14UNC12005036. OMNI COTTER PIN 5 X 5010000137. OMNI PLUG PIPE SQ HD1/8-27NPTF14001738. OMNI SPACER INPUT09018939. OMNI SPACER, INPUT09034140.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 39
Page 40
Land Pride Section 5: Gearboxes FDR25 SERIES
Table of Contents Part Number Index
Gearbox (826-294C) OMNI
Applies to FDR2560, FDR2572
18705
40 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 41
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gearbox (826-294C) OMNI
Applies to FDR2560, FDR2572
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18705 RC-25 1:2.8 CW 90 BOX(RC25LR)826-294C OMNI SCREW-5/16"-18UNC X 7/8"1101921. OMNI LOCKWASHR 5/16"SPLIT TYPE1300062. OMNI CAP-INPUT0202243. OMNI GASKET-INPUT 0.50MM0702494. OMNI GASKET-INPUT 0.30MM0702485. OMNI GASKET-INPUT 0.20MM0702476. OMNI GASKET-INPUT 0.10MM0702467. OMNI SEAL-INPUT CR139300601278.
Rev. 2BALL BEARING 6208822-188C9.
Rev 1; Use up stockRPBY 822-188C0500079. OMNI RTNG. RING 38MM RC DSH-3820014010. OMNI SHAFT INPUT 1 3/8" - 6A04049111. OMNI RTNG. RING 38MM RC DSH-3820014112. OMNI GEAR-INPUT 34T03046113. OMNI SHIM INPUT 0.30MM09018114. OMNI SHIM INPUT 0.20MM09018015. OMNI SHIM INPUT 0.10MM09017916. OMNI SCREW-1/4"-20 UNC X 3/4"11000917. OMNI LOCKWASHR 1/4" SPLIT TYPE13002818. OMNI INSPECTION COVER24028019. OMNI HOUSING RC-25 SERIES01025220. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004721. OMNI PLUG VENT 1/2-14 NPTF14003322. OMNI PINION OUTPUT 12T03046023. OMNI SHIM OUTPUT 0.10MM09018224. OMNI SHIM OUTPUT 0.20MM09018325. OMNI SHIM OUTPUT 0.30MM09018426.
Rev. 2BEARING BALL 6207822-166C27.
Rev. 1OMNI BALL BEARING 207K05000627. OMNI RETAINING RING20000028. OMNI SPACER OUTPUT09019029. OMNI GASKET-OUTPUT 0.10MM07025030. OMNI GASKET-OUTPUT 0.20MM07025131. OMNI GASKET-OUTPUT 0.30MM07025232. OMNI GASKET-OUTPUT 0.50MM07025333. OMNI SEAL-OUTPUT CR1582206012834. OMNI CAP-OUTPUT02022535. OMNI NUT HEX SLOTTED, 1-14UNC12005036. OMNI COTTER PIN 5 X 5010000137. OMNI PLUG PIPE SQ HD1/8-27NPTF14001738. OMNI SPACER INPUT09018939. OMNI SPACER, INPUT09034140.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 41
Page 42
Land Pride Section 5: Gearboxes FDR25 SERIES
Table of Contents Part Number Index
Gearbox (826-311C) OMNI
Applies to FDR2572, FDR2584
19602
42 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 43
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gearbox (826-311C) OMNI
Applies to FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19602 RC-25 1:2.8 CW 90 BOX(RC25HR)826-311C OMNI SCREW-5/16"-18UNC X 7/8"1101921. OMNI LOCKWASHR 5/16"SPLIT TYPE1300062. OMNI CAP-INPUT0202243. OMNI GASKET-INPUT 0.50MM0702494. OMNI GASKET-INPUT 0.30MM0702485. OMNI GASKET-INPUT 0.20MM0702476. OMNI GASKET-INPUT 0.10MM0702467. OMNI SEAL-INPUT CR139300601278. OMNI BEARING CUP 302070501709. OMNI BEARING CONE 3020705017210. OMNI RTNG. RING 38MM RC DSH-3820014011. OMNI SHAFT INPUT 1 3/8" - 6A04049112. OMNI RTNG. RING 38MM RC DSH-3820014113. OMNI GEAR INPUT, 34T03045714. OMNI SHIM INPUT 0.30MM09018115. OMNI SHIM INPUT 0.20MM09018016. OMNI SHIM INPUT 0.10MM09017917. OMNI SCREW-1/4"-20 UNC X 3/4"11000918. OMNI LOCKWASHR 1/4" SPLIT TYPE13002819. OMNI INSPECTION COVER24028020. OMNI HOUSING RC-25 SERIES01025221. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004722. OMNI PIPE PLUG 1/2' SQ HEAD14000023. OMNI PINION-OUTPUT 12T03045624. OMNI SHIM OUTPUT 0.10MM09018225. OMNI SHIM OUTPUT 0.20MM09018326. OMNI SHIM OUTPUT 0.30MM09018427. OMNI BEARING CONE 3020805019728. OMNI BEARING CUP 3020805019529. OMNI OUTPUT SPACER 27mm310-580D30. OMNI SHIM OUTPUT 0.10MM09018631. OMNI SHIM OUTPUT 0.20MM09018732. OMNI SHIM OUTPUT 0.30MM09018833. OMNI RETAINING RING20000034. OMNI GASKET-OUTPUT 0.10MM07025035. OMNI GASKET-OUTPUT 0.20MM07025136. OMNI GASKET-OUTPUT 0.30MM07025237. OMNI GASKET-OUTPUT 0.50MM07025338. OMNI SEAL-OUTPUT CR1582206012839. OMNI CAP-OUTPUT02022540. OMNI NUT HEX SLOTTED, 1-14UNC12005041. OMNI COTTER PIN 5 X 5010000142. OMNI PLUG PIPE SQ HD1/8-27NPTF14001743. OMNI SPACER, INPUT09034144. OMNI OUTPUT SHAFT SHIM 2mm310-581D45. OMNI HOUSING TAKE-UP SPACER310-582D46.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 43
Page 44
Land Pride Section 5: Gearboxes FDR25 SERIES
Table of Contents Part Number Index
Gearbox (826-326C) Comer
Applies to FDR2548, FDR2560, FDR2572, FDR2584
30000
44 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 45
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Gearbox (826-326C) Comer
Applies to FDR2548, FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30000 GBOX MOWER 50 HP 1:2.8 CW826-326C CO OIL PLUG 3/88.6.5.000061. CO BOLT M8X22 HHB8.1.1.005012. CO COVER0.195.1300.003. CO INPUT SHAFT 1" 3/8 Z60.195.2000.004. CO CAP 72 X 108.7.0.007445. CO SNAP RING INT 72 UN174378.5.2.001316. COMER SHIM KIT 71.7A.248.5007. CO ROLLER BEARING 30207 CL-B8.0.9.000268. CO SNAP RING 40 UNI 74368.5.1.006809. CO SHIM 35.3 X 48 X 2.50.259.7525.0010. CO HOUSING0.195.0300.0011. CO ROLLER BEARING 32208 CL-B8.0.9.0010212. CO NUT M40 X 1.50.278.7103.0013. CO OIL SEAL 35 X 80 X 10 RTA358.7.3.0008114. CO PROTECTIVE FLAT WASHER1.195.7100.0015. CO SNAP RING SB 818.5.3.0095516. CO FLAT WASHER 25 X 44 X 48.3.2.0040917. NUT CASTLE M 24 X 28.2.2.0114418. CO COTTER PIN B5 X 508.4.7.0051619. CO SHIM 40.3 X 51.5 826-067CA244.50120. CO PINION Z12 M4.70.195.5000.0021. BEARING BALL 6207822-166C22. CO OIL SEAL 35 X 72 X 108.7.3.0005523. CO CROWN GEAR Z33 M4.70.195.6000.0024. CO OIL LEVEL PLUG 3/8" GASU0.195.7101.0025.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 45
Page 46
Land Pride Section 6: Drivelines FDR25 SERIES
Table of Contents Part Number Index
Driveline (826-273C) Eurocardan
Applies to FDR2548, FDR2560, FDR2572, FDR2584
15220
46 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 47
Section 6: Drivelines Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Driveline (826-273C) Eurocardan
Applies to FDR2548, FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15220 RPBY 826-410C826-273C EC TWIST COLLAR KIT (TRT. END)10042201. EC YOKE ASSEMBLY (TRACT. END)10130102. EC CROSS ASSEMBLY10030203. EC OUTER TUBE YOKE17030274. EC 08X60 1485DIN ROLL PIN63308605. EC OUTER TUBE (1524062) 610MM15240616. EC INNER TUBE (1523085) 610MM15230617. EC INNER TUBE YOKE17030298. EC TWIST COLLAR KIT (IMP. END)10042249. EC YOKE ASSEMBLY (IMP. END)111301010. EC TUBE BEARING178421011. EC OUTER TUBE RIGID CONE188420112. EC SOFT CONE188420313. EC PIN STOP ROTATION178421214. DRIVELINE SHIELD SAFETY CHAIN04432115. EC OUTER TUBE (1873077) 530MM187305316. EC INNER TUBE (1872075) 530MM187205317. EC SOFT LONG CONE188420518. EC INNER TUBE RIGID CONE188420219. EC TUBE BEARING178421120. DECAL DANGER PTO DRIVELINE818-552C21. DECAL DANGER GUARD MISS PTO818-540C22. EC 8X55-DIN-1481 O/TUBE R/PIN633085523. EC PULL COLLAR KIT100422524. EC YOKE ASSEMBLY101401225.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 47
Page 48
Land Pride Section 6: Drivelines FDR25 SERIES
Table of Contents Part Number Index
Driveline (826-410C) Eurocardan
Applies to FDR2548, FDR2560, FDR2572, FDR2584
21269
48 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 49
Section 6: Drivelines Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Driveline (826-410C) Eurocardan
Applies to FDR2548, FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg21269 DRIVELINE CAT.3 X 38 STANDARD826-410C * EC YOKE ASSEMBLY (TRACT. END)10140121. EC CROSS ASSEMBLY ( U JOINT)10040202. EC OUTSIDE TUBE WITH YOKE1944056N3. EC INSIDE TUBE WITH YOKE1954058N4. EC PULL COLLAR KIT10042255. EC TUBE BEARING17842106. EC OUTER TUBE RIGID CONE18842017. EC SOFT CONE18842038. EC PIN STOP ROTATION17842129. EC OUTER TUBE (1873077) 540MM187305410. EC INNER TUBE (1872087) 540MM187205411. EC SOFT LONG CONE188420512. EC INNER TUBE RIGID CONE188420213. EC TUBE BEARING178421114. REP BY 044321100606515. REP BY 818-552C114000116. REP BY 818-540C114000317. EC STIFFENING RING121323318.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 49
Page 50
Land Pride Section 7: Labels FDR25 SERIES
Table of Contents Part Number Index

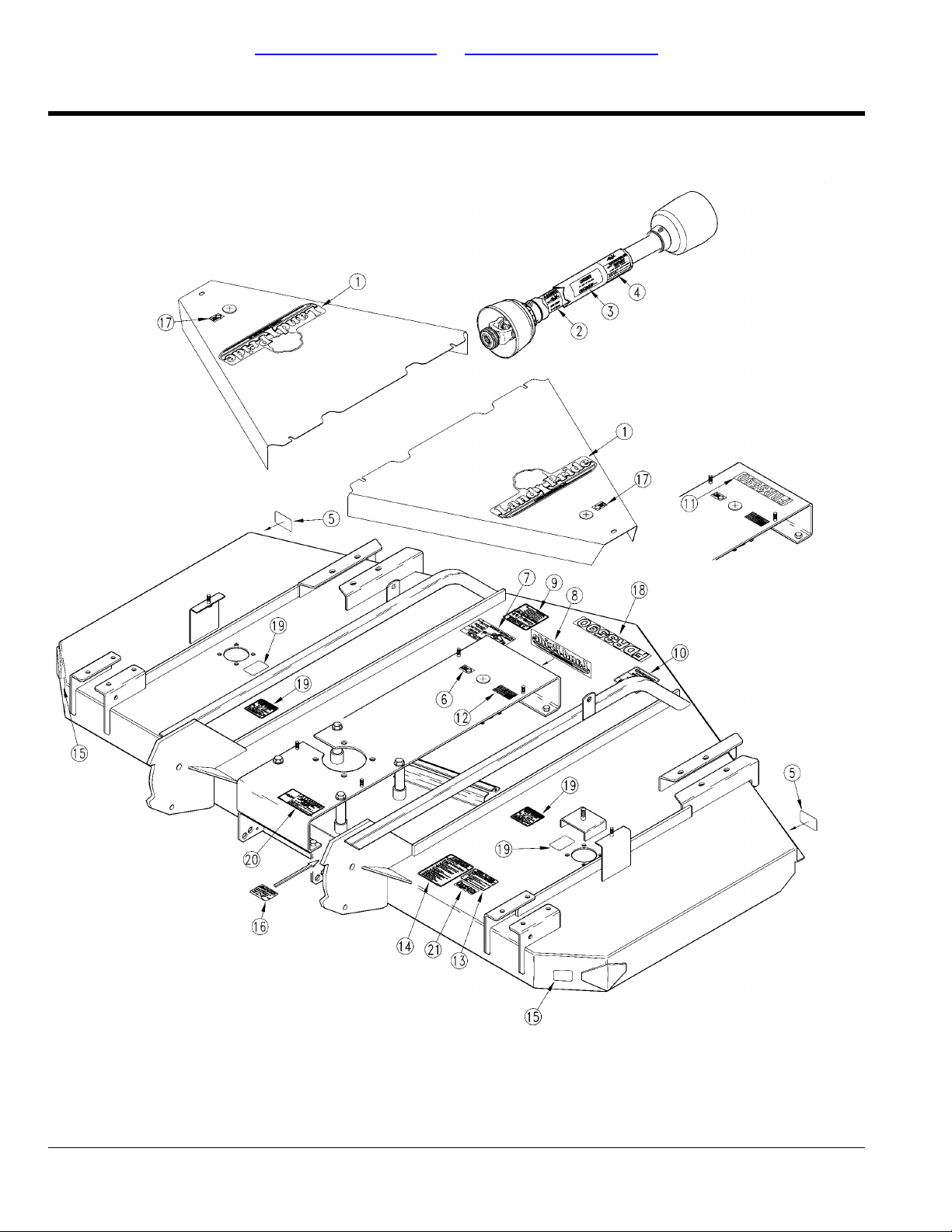

Label Placement
Applies to FDR2548, FDR2560, FDR2572, FDR2584
17473
50 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 51
Section 7: Labels Land Pride
Table of Contents Part Number Index
FDR25 SERIES
Label Placement
Applies to FDR2548, FDR2560, FDR2572, FDR2584
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17473 FDR2560 DECAL SHIPOUT BUNDLE310-304A FDR2572 DECAL SHIPOUT BUNDLE310-305A FDR2584 DECAL SHIPOUT BUNDLE310-306A FDR2548 DECAL SHIPOUT BUNDLE310-308A DECAL NOTICE TO OWNER-NO WARRA818-560C1. DECAL WARNING GEN SAFE MOWER818-558C2. DECAL DANGER PD GUARD MISS SML818-543C3. DECAL CAUTION 540 RPM818-130C4. DECAL FDR2548-BROWN838-302C5.
Beige UnitDECAL FDR2560 - BROWN818-904C5. Orange UnitDECAL FDR2572 - GOLD848-160C5. ShownDECAL FDR2572 - BROWN818-905C5. Beige UnitDECAL FDR2584 - BROWN818-906C5.
Orange UnitDECAL FDR2584-GOLD848-241C5. DECAL DANGER ROTATE BLADE818-555C6. DECAL FDR2584 V-BELT INST. CW838-116C7. DECAL FDR2560 V-BELT INST. CW838-270C7.
DECAL DANGER THROWN OBJ CUTTER818-556C8.
DECAL DANGER PTO DRIVELINE818-552C10.
DECAL GREASE 25HRS BLACK/WHITE818-298C12. DECAL GREASE EVERY 25 HOURS818-138C13. DECAL FLAG818-190C14. DECAL RED REFLECTOR818-230C15. DECAL DRIVELINE 826-273C838-063C16. DECAL DANGER GUARD MISS PTO818-540C17. DECAL DANGER PTO DRIVELINE818-142C18.
FDR2548, FDR2560 & FDR2572
Shown
Beige UnitDECAL LP W/TREE 13.25"-2 COLOR818-891C9.
Orange UnitDECAL LP 13" W/TREE BROWN/GOLD838-962C9.
Beige UnitDECAL LP W/TREE 10" - 2 COLOR818-890C11.
Orange UnitDECAL LP 10" W/TREE BROWN/GOLD838-963C11.
Not Used on FDR2548DECAL QUICK HITCH SYSTEM838-517C19.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 51
Page 52
Land Pride Section 2: Deck FDR35 SERIES
Table of Contents Part Number Index
Belt Guard
Applies to FDR3590
15930
52 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 53
Section 2: Deck Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Belt Guard
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15930 KNOB 3/8-16 FEMALE THD 2 3/8OD817-259C1.
Rev. 2 not compat. w/Rev. 1(S/N 239292+)FDR3590 RH & LH BELT COVER315-787D2. Rev. 1(S/N 239291-)4522 BELT COVER315-732D2. Rev. 2(S/N 332289+)KNOB 3/8-16 FEMALE THD 2 3/8OD817-259C3. Use up stock(S/N 332288-)NUT WING 3/8-16 PLT803-231C3. Rev. 2 not compat. w/Rev. 1(S/N 239292+)FDR3590 GEARBOX CHANNEL WLDMNT315-409H4.
FDR3590 GEARBOX CHANNEL ORANGE315-409H824.
Rev. 1(S/N 239291-)FDR3590 GEARBOX CHANNEL WELD310-222H4. (S/N 286329-)HHCS 1/2-13X1 1/2 GR5802-091C5. (S/N 286329-)WASHER FLAT 1/2 SAE PLT804-016C6. (S/N 286329-)WASHER LOCK SPRING 1/2 PLT804-015C7. (S/N 286329-)NUT HEX 1/2-13 PLT803-020C8.
GEAR BOX CHANNEL SPACER315-562D9. WASHER FLAT 5/8 SAE PLT804-021C10. WASHER LOCK SPRING 5/8 PLT804-022C11. HHCS 5/8-11X4 1/2 GR5802-100C12. VINYL SEAL 3/8 X 1/2/FT816-004C13.
(S/N 239292+)RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C14. (S/N 286330+)NUT HEX WHIZ 1/2-13 PLT803-037C15. (S/N 286330+)HFSS 1/2-13X1 1/2 GR5802-203C16.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 53
Page 54
Land Pride Section 2: Deck FDR35 SERIES
Table of Contents Part Number Index
Hitch
Applies to FDR3590
15929
54 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 55
Section 2: Deck Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Hitch
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15929
(S/N ______+)HHCS 5/8-18X5 1/2 GR5802-242C1. (S/N ______-)HHCS 5/8-18X5 GR5802-307C1.
FDR1572-60 UPPER HITCH BAR310-375D2. FDR UPPER HITCH BRACE310-425D3.
(S/N ______+)SPACER TUBE 1 1/8 OD X 3 1/8312-610D4. (S/N ______-)SPACER - TOP HITCH310-012D4. (S/N ______+)PIVOTING UPPER HITCH312-609D5. (S/N ______-)PIVOTING HITCH - UPPER312-085D5.
WASHER LOCK SPRING 5/8 PLT804-022C6. NUT HEX 5/8-18 PLT803-022C7. PIN HAIR COTTER .120 PLT805-143C8. PIN CLEVIS 3/4 X 3 1/2 PLT805-142C9. HHCS 5/8-18X1 3/4 GR5802-246C10. NUT LOCK 3/4-16 NYLOC COLLAR803-114C11. LOWER HITCH PIN310-020S12. LOWER HITCH LUG 1560310-125H13. PIN LYNCH 5/16 X 1 3/4805-015C14. HHCS 3/4-16X2 1/2 GR5802-321C15. HHCS 5/8-18X1 1/2 GR5802-207C16. FDR3590 MOWER DECK WELD310-221H17. FDR3590 MOWER DECK WLD ORANGE310-221H8217.
(S/N 317416+)DRIVELINE HOOK HANGER W/HRDWR800-320C18. (S/N ______+)HHCS 1/4-20X1 GR5802-005C19. (S/N ______+)MANUAL STORAGE CONTAINER816-504C20. (S/N ______+)WASHER FLAT 1/4 SAE PLT804-007C21. (S/N ______+)NUT HEX NYLOCK 1/4-20803-255C22.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 55
Page 56
Land Pride Section 3: Gauge Wheels FDR35 SERIES
Table of Contents Part Number Index
Gauge Wheel Tire
Applies to FDR3590
13631
56 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 57
Section 3: Gauge Wheels Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Gauge Wheel Tire
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg13631
Rev. 2Neilson/Martin/TildenTIRE 13X5.00-6 AIR TIREW/HOLES814-114C1.
Rev 1; Use up stockNeilson/MartinRPBY 814-114C814-070C1.
Rev. 2S/N 454239+TIRE 13X5.0-6SEMI-SOLID SMOOTH814-272C1.
Rev. 1S/N 454238-RPBY 814-272C814-193C1.
TILDEN BRG 1.38 OD X3.7LG.75ID53-1802. TILDEN RTNR 3/4IDX1 3/8OD53-1643. TILDEN BRG 3/4ID1.34ODX15/16L53-1894.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 57
Page 58
Land Pride Section 3: Gauge Wheels FDR35 SERIES
Table of Contents Part Number Index
Gauge Wheels Front And Rear
Applies to FDR3590
15931
58 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 59
Section 3: Gauge Wheels Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Gauge Wheels Front And Rear
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15931
Rev. 2 not compat. w/Rev. 1(S/N 264391+)PIN LYNCH 5/16 X 1 3/4805-015C1.
Rev. 1(S/N 264390-)PIN LYNCH 1/4 X 1 3/4 PLT805-126C1.
GW SPACER 1/4310-359D2. G.W. SPACER 1/2310-252D3. G.W. SPACER 1310-251D4. GAUGE WHEEL SFT PIVOT BUSHING890-202C5. GREASE ZERK STRAIGHT 1/4-28800-001C6. FDR3590 REAR G.W. MOUNT310-224H7. FDR3590 REAR G.W. MOUNT ORANGE310-224H827. HHCS 1/2-20X8 GR5802-305C8. 90 GAUGE WHEEL YOKE310-090H9. 90 GAUGE WHEEL YOKE ORANGE310-090H829. WASHER LOCK SPRING 1/2 PLT804-015C10. NUT HEX 1/2-20 PLT803-018C11. SPACER TUBE-LG. G.W.310-249D12. SPACER TUBE-SH. G.W.310-250D13.
Rev. 2TIRE 13X5.00-6 AIR TIREW/HOLES814-114C14.
Rev 1; Use up stockRPBY 814-114C814-070C14.
Rev. 2S/N 454239+TIRE 13X5.0-6SEMI-SOLID SMOOTH814-272C14.
Rev. 1S/N 454238-RPBY 814-272C814-193C14.
90 G W YOKE SUB ASSY310-100S15. FDR3590 FRONT G.W. MOUNT310-223H16. FDR3590 FRONT GW MOUNT ORANGE310-223H8216. HHCS 1/2-13X1 1/4 GR5802-091C17. WASHER FLAT 1/2 SAE PLT804-016C18.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 59
Page 60
Land Pride Section 4: Drives FDR35 SERIES
Table of Contents Part Number Index
Belt Drive
Applies to FDR3590
15933
60 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 61
Section 4: Drives Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Belt Drive
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15933 DRIVELINE CAT 4 W/O CLUTCH 33826-213C1. DECAL 826-213C DRIVELINE818-783C2. DRIVELINE 826-213CW/OCLUTCH 33310-230S3.
Rev. 2 not compat. w/Rev. 1(S/N 333517+)GBOX MOWER 50 HP 1:2.8 CW826-326C4.
Rev. 1RC-25 1:2.8 CW 90 BOX(RC25HR)826-206C4.
KEY 1/4 X 11/16 LONG310-331D5.
Rev. 2(S/N 346256+)C-GROOVE PULLEY 11" CAST-IRON808-337C6.
Rev. 1(S/N 346255-)C-GROOVE DRIVE PULLEY 11 OD808-231C6.
WASHER FLAT 1 SAE804-029C7. NUT HEX SLOTTED 1-14803-095C8. PIN COTTER 3/16 X 1 3/4 PLT805-017C9. AFM4522 CW GEAR BOX SUB315-341V10. HHCS 5/8-18X1 3/4 GR5802-246C11. WASHER LOCK SPRING 5/8 PLT804-022C12. NUT HEX 5/8-18 PLT803-022C13. NUT LOCK 3/4-16 NYLOC COLLAR803-114C14. 1/4 SQ. KEY X 7/8 LG172-242D15. WASHER FLAT 3/4 HARD ASTMF436804-093C16.
Rev. 2PULLEY SPINDLE 7 1/2808-268C17.
Rev 1; Use up stockRPBY 808-268C808-106C17. (S/N 239291-)FTG TUBE,CONNECTOR 1/8 MNPT800-157C18.
BEARING 6007 W/ METAL SHIELD822-162C19.
(S/N 239291-)BLADE HUB- MACH.-90310-224D20. (S/N 239291-)RPBY 310-353S310-225D21.
# 107 BEARING SINGLE SEAL822-096C22.
(S/N 239291-)FDR3590 BLADE HUB ASSY310-228S23.
HHCS 7/16-20X1 1/2 GR8802-229C24. HHCS 5/8-11X2 3/4 GR5802-281C25. WASHER LOCK SPRING 5/8 PLT804-022C26. PULLEY IDLER 9 OD808-107C27. V-BELT C195 199.2 E.L. KEVLAR816-101C28.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)HFS 1/2-20X2 1/2 GR8802-698C29.
Rev. 1(S/N 329660-)HHCS 1/2-20X2 GR5802-320C29.
MWR BLD 5/16X31 17/32SD ML CW890-533C30.
MWR BLD 5/16X31 17/32SD HL CW890-223C30.
FDR3590 BLADE MOUNT BAR310-225H31. BLADE WASHER-90310-227D32. NUT HEX 7/16-20 PLT803-115C33. WASHER LOCK 7/16 PLT804-014C34.
LOCK PIN STORAGE TUBE315-049D37. HHCS 1/2-20X1 3/4 GR5802-329C38.
WASHER LOCK SPRING 1/2 PLT804-015C40.
Standard Medium Lift Blades 3 per Mower
Optional High Lift Blades 3 per Mower
Optional Low Lift Blades 3 per MowerMWR BLD 5/16X31 17/32SD LL CW890-205C30. Optional mulch blades 3 per mowerMWR BLD MULCH 1/4X31.53SD C890-704C30.
(S/N 239291-)TUBE NYLON 1/4OD X 062WL990-109R35. (S/N 239291-)GREASE ZERK 1/8NPT 45-DEG800-193C36.
Rev. 2(S/N 319784+)NUT HEX FLG. LOCK 1/2-20 PLT.803-308C39.
Rev 1; Use up stock(S/N 319783-)NUT HEX 1/2-20 PLT803-018C39.
(S/N 239292+)CW TG SPNDL HUB ASSY 7.5" PULL310-250S41. (S/N 239292+)GREASE ZERK STRAIGHT 1/4-28800-001C42. (S/N 239292+)BLADE HUB MACHINED TOP GREASE310-457D43.
Rev. 2 not compat. w/Rev. 1(S/N 329661+)BLADE SPINDLE SHAFT CW HVY TG310-632D44.
Rev. 1(S/N 239292 <-> 329660)RPBY 310-351S310-456D44. (S/N 329660-)WASHER LOCK SPRING 1/2 PLT804-015C45.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 61
Page 62
Land Pride Section 4: Drives FDR35 SERIES
Table of Contents Part Number Index
Belt Drive - Takeup
Applies to FDR3590
15932
62 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 63
Section 4: Drives Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Belt Drive - Takeup
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15932 NUT HEX 5/8-18 PLT803-022C1. WASHER LOCK SPRING 5/8 PLT804-022C2. TOP IDLER PULLEY TAKE-UP310-248D3. IDLER PULLEY SPACER310-049D4. PULLEY IDLER 9 OD808-107C5. NUT LOCK 5/8-11 PLT803-024C6. TAKE-UP PULLEY MTG-90310-093H7. IDLER SLIDE SPACER310-256D8. RHSNB 5/8-11X1 1/4 GR5802-306C9. SPRING EXT 1 13/32 X 6 EXT807-050C10. SP EYE 3/8-16X4802-567C11. SPRING EYE-BOLT BRACKET310-095H12. NUT HEX 3/8-16 PLT803-014C13. SNAP RING EXT 7/16800-099C14. OVER-CENTER LATCH-90310-094H15.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 63
Page 64
Land Pride Section 5: Gearboxes FDR35 SERIES
Table of Contents Part Number Index
Gearbox (826-206C) OMNI
Applies to FDR3590
15934
64 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 65
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Gearbox (826-206C) OMNI
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15934 RPBY 826-296C826-206C OMNI SCREW-5/16"-18UNC X 7/8"1101921. OMNI LOCKWASHR 5/16"SPLIT TYPE1300062. OMNI CAP-INPUT0202243. OMNI GASKET-INPUT 0.50MM0702494. OMNI GASKET-INPUT 0.30MM0702485. OMNI GASKET-INPUT 0.20MM0702476. OMNI GASKET-INPUT 0.10MM0702467. OMNI SEAL-INPUT CR139300601278. OMNI BEARING CUP 302070501709. OMNI BEARING CONE 3020705017210. OMNI RTNG. RING 38MM RC DSH-3820014011. OMNI SHAFT-INPUT 1-3/8"-6 SPLN04033512. OMNI RTNG. RING 38MM RC DSH-3820014113. OMNI GEAR INPUT, 34T03045714. OMNI SHIM INPUT 0.30MM09018115. OMNI SHIM INPUT 0.20MM09018016. OMNI SHIM INPUT 0.10MM09017917. OMNI SCREW-1/4"-20 UNC X 3/4"11000918. OMNI LOCKWASHR 1/4" SPLIT TYPE13002819. OMNI INSPECTION COVER24028020. OMNI HOUSING-RC-2501017521. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004722.
Rev. 2 not compat. w/Rev. 1(S/N 215411+)OMNI PIPE PLUG 1/2' SQ HEAD14000023.
Rev. 1(S/N 215410-)OMNI PLUG VENT 1/2-14 NPTF14003323.
OMNI PINION-OUTPUT 12T03045624. OMNI SHIM OUTPUT 0.10MM09018225. OMNI SHIM OUTPUT 0.20MM09018326. OMNI SHIM OUTPUT 0.30MM09018427. OMNI BEARING CONE 3020805019728. OMNI BEARING CUP 3020805019529. OMNI SPACER OUTPUT09018530. OMNI SHIM OUTPUT 0.10MM09018631. OMNI SHIM OUTPUT 0.20MM09018732. OMNI SHIM OUTPUT 0.30MM09018833. OMNI RETAINING RING20000034. OMNI GASKET-OUTPUT 0.10MM07025035. OMNI GASKET-INPUT 0.50MM07025336. OMNI GASKET-INPUT 0.30MM07025237. OMNI GASKET-INPUT 0.20MM07025138. OMNI SEAL-OUTPUT CR1582206012839. OMNI CAP-OUTPUT02022540. OMNI NUT HEX SLOTTED, 1-14UNC12005041. OMNI COTTER PIN 5 X 5010000142. OMNI PLUG PIPE SQ HD1/8-27NPTF14001743.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 65
Page 66
Land Pride Section 5: Gearboxes FDR35 SERIES
Table of Contents Part Number Index
Gearbox (826-296C) OMNI
Applies to FDR3590
18706
66 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 67
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Gearbox (826-296C) OMNI
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg18706 RC-25 1:2.8 CW 90 BOX(RC25HR)826-296C OMNI SCREW-5/16"-18UNC X 7/8"1101921. OMNI LOCKWASHR 5/16"SPLIT TYPE1300062. OMNI CAP-INPUT0202243. OMNI GASKET-INPUT 0.50MM0702494. OMNI GASKET-INPUT 0.30MM0702485. OMNI GASKET-INPUT 0.20MM0702476. OMNI GASKET-INPUT 0.10MM0702467. OMNI SEAL-INPUT CR139300601278. OMNI BEARING CUP 302070501709. OMNI BEARING CONE 3020705017210. OMNI RTNG. RING 38MM RC DSH-3820014011. OMNI SHAFT INPUT 1 3/8" - 6A04049112. OMNI RTNG. RING 38MM RC DSH-3820014113. OMNI GEAR INPUT, 34T03045714. OMNI SHIM INPUT 0.30MM09018115. OMNI SHIM INPUT 0.20MM09018016. OMNI SHIM INPUT 0.10MM09017917. OMNI SCREW-1/4"-20 UNC X 3/4"11000918. OMNI LOCKWASHR 1/4" SPLIT TYPE13002819. OMNI INSPECTION COVER24028020. OMNI HOUSING RC-25 SERIES01025221. OMNI PLUG SQ.HD.1/2-14NPT W/DP14004722. OMNI PIPE PLUG 1/2' SQ HEAD14000023. OMNI PINION-OUTPUT 12T03045624. OMNI SHIM OUTPUT 0.10MM09018225. OMNI SHIM OUTPUT 0.20MM09018326. OMNI SHIM OUTPUT 0.30MM09018427. OMNI BEARING CONE 3020805019728. OMNI BEARING CUP 3020805019529. OMNI SPACER OUTPUT09018530. OMNI SHIM OUTPUT 0.10MM09018631. OMNI SHIM OUTPUT 0.20MM09018732. OMNI SHIM OUTPUT 0.30MM09018833. OMNI RETAINING RING20000034. OMNI GASKET-OUTPUT 0.10MM07025035. OMNI GASKET-OUTPUT 0.20MM07025136. OMNI GASKET-OUTPUT 0.30MM07025237. OMNI GASKET-OUTPUT 0.50MM07025338. OMNI SEAL-OUTPUT CR1582206012839. OMNI CAP-OUTPUT02022540. OMNI NUT HEX SLOTTED, 1-14UNC12005041. OMNI COTTER PIN 5 X 5010000142. OMNI PLUG PIPE SQ HD1/8-27NPTF14001743. OMNI SPACER, INPUT09034144.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 67
Page 68
Land Pride Section 5: Gearboxes FDR35 SERIES
Table of Contents Part Number Index
Gearbox (826-326C) Comer
Applies to FDR3590
30000
68 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 69
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Gearbox (826-326C) Comer
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30000 GBOX MOWER 50 HP 1:2.8 CW826-326C CO OIL PLUG 3/88.6.5.000061. CO BOLT M8X22 HHB8.1.1.005012. CO COVER0.195.1300.003. CO INPUT SHAFT 1" 3/8 Z60.195.2000.004. CO CAP 72 X 108.7.0.007445. CO SNAP RING INT 72 UN174378.5.2.001316. COMER SHIM KIT 71.7A.248.5007. CO ROLLER BEARING 30207 CL-B8.0.9.000268. CO SNAP RING 40 UNI 74368.5.1.006809. CO SHIM 35.3 X 48 X 2.50.259.7525.0010. CO HOUSING0.195.0300.0011. CO ROLLER BEARING 32208 CL-B8.0.9.0010212. CO NUT M40 X 1.50.278.7103.0013. CO OIL SEAL 35 X 80 X 10 RTA358.7.3.0008114. CO PROTECTIVE FLAT WASHER1.195.7100.0015. CO SNAP RING SB 818.5.3.0095516. CO FLAT WASHER 25 X 44 X 48.3.2.0040917. NUT CASTLE M 24 X 28.2.2.0114418. CO COTTER PIN B5 X 508.4.7.0051619. CO SHIM 40.3 X 51.5 826-067CA244.50120. CO PINION Z12 M4.70.195.5000.0021. BEARING BALL 6207822-166C22. CO OIL SEAL 35 X 72 X 108.7.3.0005523. CO CROWN GEAR Z33 M4.70.195.6000.0024. CO OIL LEVEL PLUG 3/8" GASU0.195.7101.0025.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 69
Page 70
Land Pride Section 6: Drivelines FDR35 SERIES
Table of Contents Part Number Index
Driveline (826-213C) Eurocardan
Applies to FDR3590
16074
70 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 71
Section 6: Drivelines Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Driveline (826-213C) Eurocardan
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16074 DRIVELINE CAT 4 W/O CLUTCH 33826-213C EC TWIST COLLAR KIT (TRT. END)10042201. EC YOKE ASSEMBLY (TRACT. END)10160102. EC CROSS ASSEMBLY10060203. EC OUTER TUBE YOKE17060274. EC 10X80-DIN-1481 O/TUBE R/PIN63310805. EC OUTER TUBE15280486. EC INNER TUBE15260487. EC INNER TUBE YOKE17060298. EC TWIST COLLAR KIT (IMP. END)10042249. EC YOKE ASSY 1 3/8-6(IMP. END)111601010. EC TUBE BEARING (INNER TUBE)178671111. EC INNER TUBE187703812. EC STIFFENING RING121573313. EC LONG CONE188570414. EC STOP RING121573515. EC SAFETY SLEEVE188570916. EC STANDARD CONE188570317. EC OUTER TUBE187603818. EC TUBE BEARING (OUTER TUBE)178671019. DECAL DANGER PTO DRIVELINE818-552C20. DECAL DANGER GUARD MISS PTO818-540C21. DRIVELINE SHIELD SAFETY CHAIN04432122. EC GREASE ZERK 8X1 45 DEG.656050823. EC 10X70 ROLL PIN633107024. YOKE ASSEMBLY PULL TYPE101601225. EC PULL COLLAR KIT100422526. EC PULL COLLAR KIT100422527. YOKE ASSEMBLY PULL TYPE101601228.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 71
Page 72
Land Pride Section 7: Labels FDR35 SERIES
Table of Contents Part Number Index
Label Placement
Applies to FDR3590
17597
72 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 73
Section 7: Labels Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Label Placement
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg17597
Rev. 2 not compat. w/Rev. 1(S/N 254751+) Beige UnitDECAL LP W/TREE 16" - 3 COLOR818-894C1. Orange UnitDECAL LP 16" W/TREE BROWN/GOLD838-964C1.
Rev. 1(S/N 254750-)LP LOGO SMALL BUCKSKIN818-165C1.
DECAL DANGER GUARD MISS PTO818-540C2. DECAL 826-213C DRIVELINE818-783C3. DECAL DANGER PTO DRIVELINE818-552C4. DECAL RED REFLECTOR818-230C5. DECAL GREASE EVERY 25 HOURS818-138C6. DECAL 90WT V-BELT INSTALLATION818-237C7.
Rev. 2 not compat. w/Rev. 1(S/N 254751+) Beige UnitDECAL LANDPRIDE 10" - BROWN818-897C8. Orange UnitDECAL LANDPRIDE 10" BROWN/GOLD848-159C8.
Rev. 1(S/N 254750-)LP LOGO SMALL GREEN818-164C8.
DECAL DANGER ROTATE BLADE818-555C9. DECAL DANGER THROWN OBJ CUTTER818-556C10.
(S/N 254750-)DECAL FDR3590-BROWN818-784C11.
DECAL FLAG818-190C12. DECAL WARNING GEN SAFE MOWER818-558C13. DECAL NOTICE TO OWNER-NO WARRA818-560C14. DECAL AMBER REFLECTOR818-229C15. DECAL CAUTION 540 RPM818-130C16. DECAL GREASE 25HRS BLACK/WHITE)818-298C17.
(S/N 254751+) Beige UnitDECAL FDR3590-BROWN818-911C18. Orange UnitDECAL FDR3590-GOLD848-240C18. (S/N 254751+)DECAL DANGER PD GUARD MISS SML818-543C19.
DECAL DANGER PTO DRIVELINE EN818-142C20. DECAL QUICK HITCH SYSTEM838-517C21.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 73
Page 74
Land Pride Section 8: Options FDR35 SERIES
Table of Contents Part Number Index

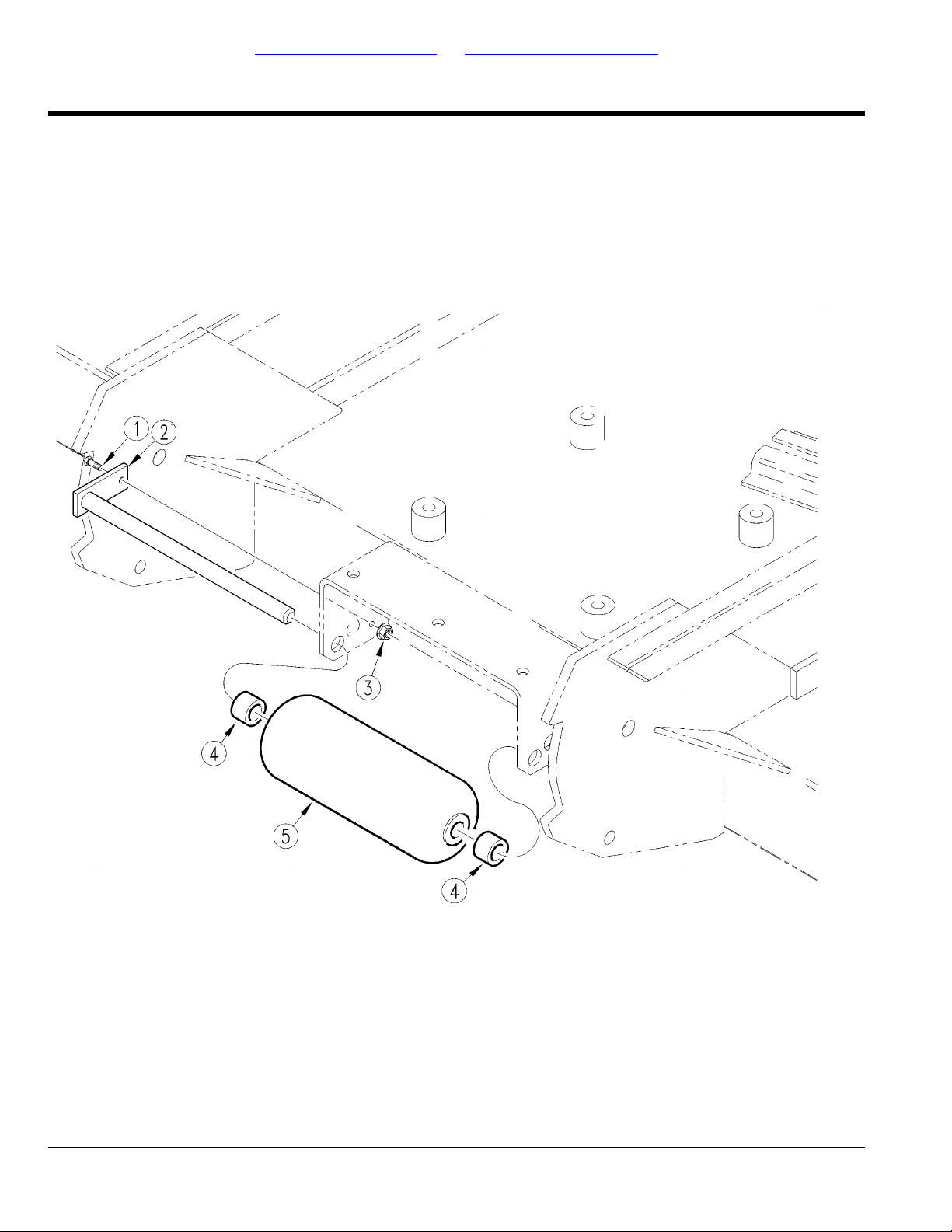

Anti-Scalping Front Roller
Applies to FDR3590
16570
74 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 75
Section 8: Options Land Pride
Table of Contents Part Number Index
FDR35 SERIES
Anti-Scalping Front Roller
Applies to FDR3590
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16570 FDR3590 FRONT ROLLER310-233A
Rev. 2 not compat. w/Rev. 1(S/N 220347+)HHCS 3/8-16X1 GR5802-017C1.
Rev. 1(S/N 220346-)HHCS 1/4-20X1 GR5802-005C1.
4522 FRONT ROLLER SHAFT315-313H2.
Rev. 2 not compat. w/Rev. 1(S/N 220347+)NUT LOCK 3/8-16 PLT803-013C3.
Rev. 1(S/N 220346-)WASHER LOCK SPRING 1/4 PLT804-006C3.
Rev. 1(S/N 220346-)NUT HEX 1/4-20 PLT803-006C3.
SPACER TUBE-SH. G.W.310-250D4. 4 X 10 ROLLER WHEEL817-049C5.
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 75
Page 76
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
020224 ......................
020225 ......................
060127 ......................
060128 ......................
070246 ......................
070247 ......................
070248 ......................
070249 ......................
070250 ......................
070251 ......................
070252 ......................
070253 ......................
090179 ......................
090180 ......................
090181 ......................
090182 ......................
090183 ......................
090184 ......................
100001 ......................
45, 690.195.0300.00 ...........
45, 690.195.1300.00 ...........
45, 690.195.2000.00 ...........
45, 690.195.5000.00 ...........
45, 690.195.6000.00 ...........
45, 690.259.7525.00 ...........
45, 690.278.7103.00 ...........
37, 65010175 ......................
35, 39, 41, 43, 67010252 ......................
35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67
43, 65, 67030456 ......................
43, 65, 67030457 ......................
35, 39030458 ......................
35, 39030459 ......................
37, 41030460 ......................
37, 41030461 ......................
37, 65040335 ......................
35, 39, 41, 43, 67040491 ......................
47, 71044321 ......................
35, 37, 39, 41050006 ......................
35, 37, 39, 41050007 ......................
43, 65, 67050170 ......................
43, 65, 67050172 ......................
43, 65, 67050195 ......................
43, 65, 67050197 ......................
35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67
65, 67090185 ......................
43, 65, 67090186 ......................
43, 65, 67090187 ......................
43, 65, 67090188 ......................
35, 37, 39, 41090189 ......................
35, 37, 39, 41090190 ......................
39, 41, 43, 67090341 ......................
45, 691.195.7100.00 ...........
31, 35, 37, 39, 41, 43, 65, 67
110009 ......................
110192 ......................
120050 ......................
130006 ......................
130028 ......................
140017 ......................
140047 ......................
200000 ......................
200140 ......................
200141 ......................
471003020 ....................
491004020 ....................
47, 711004220 ....................
47, 711004224 ....................
47, 49, 711004225 ....................
711006020 ....................
491006065 ....................
471013010 ....................
47, 491014012 ....................
711016010 ....................
711016012 ....................
35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67
471113010 ....................
711116010 ....................
491140001 ....................
491140003 ....................
31, 35, 37, 39, 41, 43, 65, 67
491213233 ....................
711215733 ....................
711215735 ....................
35, 37, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67
37, 39, 43, 65, 67140000 ......................
35, 37, 39, 41, 43, 65, 67
35, 37, 41, 65140033 ......................
35, 37, 39, 41, 43, 65, 67
471523061 ....................
471524061 ....................
711526048 ....................
711528048 ....................
471703027 ....................
471703029 ....................
711706027 ....................
711706029 ....................
27, 61172-242D ...................
47, 491784210 ....................
47, 491784211 ....................
47, 491784212 ....................
711786710 ....................
711786711 ....................
471872053 ....................
491872054 ....................
471873053 ....................
491873054 ....................
711876038 ....................
711877038 ....................
47, 491884201 ....................
47, 491884202 ....................
47, 491884203 ....................
47, 491884205 ....................
711885703 ....................
711885704 ....................
711885709 ....................
491944056N ..................
491954058N ..................
35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67 35, 37, 39, 41, 43, 65, 67
240280 ......................
35, 37, 39, 41, 43, 65, 67
13, 15, 55310-012D ...................
17310-017S ...................
13, 15310-019H ...................
13, 15, 55310-020S ...................
17, 25310-024D ...................
63310-049D ...................
59310-090H ...................
59310-090H82 ...............
63310-093H ...................
63310-094H ...................
63310-095H ...................
59310-100S ...................
17, 25310-105S ...................
55310-125H ...................
17, 25310-149H ...................
17310-149H82 ...............
55310-221H ...................
55310-221H82 ...............
53310-222H ...................
59310-223H ...................
59310-223H82 ...............
61310-224D ...................
59310-224H ...................
59310-224H82 ...............
61310-225D ...................
61310-225H ...................
27, 61310-227D ...................
61310-228S ...................
61310-230S ...................
75310-233A ...................
63310-248D ...................
27310-248S ...................
59310-249D ...................
27310-249S ...................
59, 75310-250D ...................
61310-250S ...................
59310-251D ...................
59310-252D ...................
9310-254S ...................
63310-256D ...................
13310-258H ...................
13310-258H82 ...............
27310-261S ...................
17310-263S ...................
17310-263S82 ...............
31310-265H ...................
9310-266H ...................
13310-267H ...................
13310-267H82 ...............
17310-269S ...................
31310-272H ...................
13310-274H ...................
31310-276H ...................
17310-277S ...................
17310-293S ...................
17310-293S82 ...............
27310-300D ...................
51310-304A ...................
51310-305A ...................
51310-306A ...................
51310-308A ...................
15310-309H ...................
17310-314S ...................
17, 25310-328D ...................
17, 25310-329D ...................
31, 61310-331D ...................
31310-341H ...................
25310-343S ...................
25310-344S ...................
59310-359D ...................
55310-375D ...................
31310-410V ...................
31310-410V82 ...............
31310-411V ...................
31310-411V82 ...............
31310-412V ...................
31310-416V ...................
55310-425D ...................
27310-454D ...................
61310-456D ...................
27, 61310-457D ...................
13310-474D ...................
13310-475D ...................
9310-477D ...................
9310-477D82 ...............
9310-478D ...................
9310-478D82 ...............
33310-493D ...................
33310-494D ...................
13310-496D ...................
13310-522D ...................
43310-580D ...................
43310-581D ...................
43310-582D ...................
15310-605D ...................
15310-606D ...................
27310-630D ...................
61310-632D ...................
13, 15, 55312-085D ...................
13, 15, 55312-609D ...................
13, 15, 55312-610D ...................
61315-049D ...................
17315-291S ...................
17315-300H ...................
17315-300H82 ...............
75315-313H ...................
61315-341V ...................
53315-409H ...................
53315-409H82 ...............
11315-515H ...................
11315-516S ...................
53315-562D ...................
53315-732D ...................
27315-752D ...................
53315-787D ...................
27315-823D ...................
11315-880D ...................
11315-881D ...................
19, 5753-164 .......................
5753-180 .......................
1953-182 .......................
5753-189 .......................
476330855 ....................
476330860 ....................
716331070 ....................
716331080 ....................
716560508 ....................
45, 698.0.9.00026 ...............
45, 698.0.9.00102 ...............
45, 698.1.1.00501 ...............
45, 698.2.2.01144 ...............
45, 698.3.2.00409 ...............
45, 698.4.7.00516 ...............
45, 698.5.1.00680 ...............
45, 698.5.2.00131 ...............
45, 698.5.3.00955 ...............
45, 698.6.5.00006 ...............
45, 698.7.0.00744 ...............
76 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 11/06/07
Page 77
Table of Contents Part Number Index
Part Number Index (continued)
803-022C ...................
804-015C ...................
804-022C ...................
PagePart Number
45, 698.7.3.00055 ...............
45, 698.7.3.00081 ...............
17, 25, 27, 59, 61800-001C ...................
63800-099C ...................
61800-157C ...................
61800-193C ...................
13, 15, 55800-320C ...................
13, 15, 55, 75802-005C ...................
9, 11, 25802-015C ...................
75802-017C ...................
33802-051C ...................
33802-053C ...................
31802-083C ...................
53, 59802-091C ...................
17802-095C ...................
53802-100C ...................
27802-151C ...................
31, 53802-203C ...................
55802-207C ...................
27, 61802-229C ...................
13, 15, 55802-242C ...................
31, 55, 61802-246C ...................
61802-281C ...................
59802-305C ...................
63802-306C ...................
13, 15, 55802-307C ...................
61802-320C ...................
55802-321C ...................
27, 61802-329C ...................
17, 25802-350C ...................
27802-384C ...................
63802-567C ...................
25802-656C ...................
13, 15802-657C ...................
17802-658C ...................
33802-668C ...................
27802-695C ...................
61802-698C ...................
75803-006C ...................
75803-013C ...................
33, 63803-014C ...................
17, 25, 28, 59, 61803-018C ...................
53803-020C ...................
13, 15, 31, 55, 61, 63
63803-024C ...................
17803-025C ...................
17, 25, 31, 53803-037C ...................
61803-095C ...................
27, 55, 61803-114C ...................
27, 61803-115C ...................
9, 11, 25803-198C ...................
53803-231C ...................
13, 15, 55803-255C ...................
13, 15, 33803-263C ...................
17, 28, 61803-308C ...................
75804-006C ...................
13, 15, 55804-007C ...................
39804-009C ...................
27, 61804-014C ...................
17, 25, 28, 53, 59, 61
53, 59804-016C ...................
33804-019C ...................
11, 53804-021C ...................
13, 15, 31, 53, 55, 61, 63
9804-025C ...................
61804-029C ...................
27, 61804-093C ...................
27804-110C ...................
PagePart Number
13, 15, 55, 59805-015C ...................
9, 11805-016C ...................
61805-017C ...................
17, 25, 59805-126C ...................
13, 15805-140C ...................
13, 15, 55805-142C ...................
13, 15, 55805-143C ...................
63807-050C ...................
33807-068C ...................
27808-075C ...................
31808-076C ...................
61808-106C ...................
61, 63808-107C ...................
31808-126C ...................
27808-127C ...................
27, 28, 33808-129C ...................
61808-231C ...................
61808-268C ...................
31808-333C ...................
31808-335C ...................
61808-337C ...................
57, 59814-070C ...................
17, 19, 25814-071C ...................
57, 59814-114C ...................
17, 21814-144C ...................
17, 23814-146C ...................
17, 23, 25814-188C ...................
17, 21814-191C ...................
57, 59814-193C ...................
17, 21814-271C ...................
57, 59814-272C ...................
53816-004C ...................
27816-064C ...................
61816-101C ...................
27816-116C ...................
27816-142C ...................
7, 31, 53816-298C ...................
27816-308C ...................
27816-311C ...................
13, 15, 55816-504C ...................
17, 25817-048C ...................
9, 75817-049C ...................
11817-082C ...................
53817-259C ...................
7817-357C ...................
7817-358C ...................
7817-371C ...................
7817-378C ...................
7817-379C ...................
7817-441C ...................
7817-442C ...................
51, 73818-130C ...................
51, 73818-138C ...................
51, 73818-142C ...................
73818-164C ...................
73818-165C ...................
51, 73818-190C ...................
73818-229C ...................
51, 73818-230C ...................
73818-237C ...................
51, 73818-298C ...................
47, 51, 71, 73818-540C ...................
51, 73818-543C ...................
47, 51, 71, 73818-552C ...................
51, 73818-555C ...................
51, 73818-556C ...................
51, 73818-558C ...................
51, 73818-560C ...................
61, 73818-783C ...................
73818-784C ...................
51818-890C ...................
822-166C ...................
PagePart Number
51818-891C ...................
73818-894C ...................
73818-897C ...................
51818-904C ...................
51818-905C ...................
51818-906C ...................
73818-911C ...................
27822-006C ...................
21822-045C ...................
21822-050C ...................
61822-096C ...................
27822-161C ...................
61822-162C ...................
35, 37, 39, 41, 45, 69
35, 37, 39, 41822-188C ...................
31, 35826-203C ...................
31, 37826-204C ...................
61, 65826-206C ...................
61, 71826-213C ...................
27, 47826-273C ...................
39826-293C ...................
31, 41826-294C ...................
67826-296C ...................
31, 43826-311C ...................
31826-325C ...................
31, 45, 61, 69826-326C ...................
31826-326C82 ...............
27, 49826-410C ...................
17, 25827-001C ...................
17, 25827-002C ...................
51838-063C ...................
51838-116C ...................
51838-270C ...................
51838-302C ...................
51, 73838-517C ...................
51838-962C ...................
51838-963C ...................
73838-964C ...................
73848-159C ...................
51848-160C ...................
73848-240C ...................
51848-241C ...................
19, 2387040 ........................
2387410 ........................
1987413 ........................
27890-171C ...................
27890-172C ...................
27890-200C ...................
59890-202C ...................
27890-204C ...................
61890-205C ...................
27890-219C ...................
61890-223C ...................
27890-318C ...................
27890-323C ...................
27890-325C ...................
27890-375C ...................
61890-533C ...................
33890-641C ...................
27890-653C ...................
27890-654C ...................
27890-675C ...................
27890-684C ...................
27890-685C ...................
27890-698C ...................
27890-700C ...................
27890-702C ...................
61890-704C ...................
27890-706C ...................
1995316 ........................
PagePart Number
1995352NA ...................
61990-109R ...................
45, 69A.248.500 ..................
45, 69A244.501 ...................
19BF-1506 .....................
21dwg10499 ..................
19dwg13629 ..................
57dwg13631 ..................
47dwg15220 ..................
55dwg15929 ..................
53dwg15930 ..................
59dwg15931 ..................
63dwg15932 ..................
61dwg15933 ..................
65dwg15934 ..................
35, 37dwg16020 ..................
71dwg16074 ..................
75dwg16570 ..................
17dwg17367 ..................
7dwg17370 ..................
13dwg17470 ..................
33dwg17471 ..................
27dwg17472 ..................
51dwg17473 ..................
73dwg17597 ..................
9dwg17713 ..................
23dwg17714 ..................
39, 41dwg18705 ..................
67dwg18706 ..................
15dwg19267 ..................
25dwg19268 ..................
43dwg19602 ..................
31dwg20212 ..................
11dwg20563 ..................
49dwg21269 ..................
45, 69dwg30000 ..................
21GS-3 ..........................
21HSS-34 ......................
19RT-3414 .....................
45, 69U0.195.7101.00 .........
11/06/07 FDR2548, FDR2560, FDR2572, FDR2584 & FDR3590 Rear Discharge Grooming Mower 310-069P 77
Page 78
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
