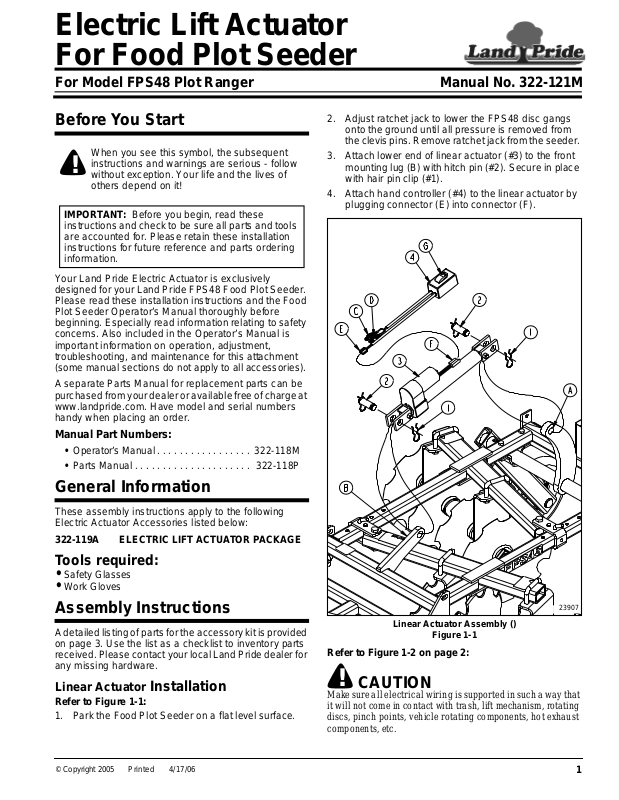

Land Pride 322-119A User Manual

Electric Lift Actuator
For Food Plot Seeder

For Model FPS48 Plot Ranger

Before You Start

When you see this symbol, the subsequent
instructions and warnings are serious - follow

!

without exception. Your life and the lives of
others depend on it!

IMPORTANT: Before you begin, read these
instructions and check to be sure all par ts and tools
are accounted for. Please retain these installation
instructions for future reference and parts ordering
information.

Your Land Pride Electric Actuator is exclusively
designed for your Land Pride FPS48 Food Plot Seeder.
Please read these installation instructions and the Food
Plot Seeder Operator’s Manual thoroughly before
beginning. Especially read information relating to safety
concerns. Also included in the Operator’s Manual is
important information on operation, adjustment,
troubleshooting, and maintenance for this attachment
(some manual sections do not apply to all accessories).

A separate Parts Manual for replacement parts can be
purchasedfromyourdealeroravailablefree of charge at
www.landpride.com. Have model and serial numbers
handy when placing an order.

Manual No. 322-121M

2. Adjust ratchet jack to lower the FPS48 disc gangs
onto the ground until all pressure is removed from
theclevis pins.Removeratchet jack fromthe seeder.

3. Attach lower end of linear actuator (#3) to the front
mounting lug (B) with hitch pin (#2). Secure in place
with hair pin clip (#1).

4. Attach hand controller (#4) to the linear actuator by
plugging connector (E) into connector (F).

Manual Part Numbers:

• Operator’sManual . . . . . . . . . . . . . . . . . 322-118M

• Parts Manual . . . . . . . . . . . . . . . . . . . . . 322-118P

General Information

These assembly instructions apply to the following
Electric Actuator Accessories listed below:

322-119A ELECTRIC LIFT ACTUATOR PACKAGE

Tools required:

•

Safety Glasses

• Work Gloves

Assembly Instructions

Adetailed listing of parts for the accessorykit is provided
on page 3. Use the list as a checklist to inventory parts
received.Please contact your local Land Pride dealer for
any missing hardware.

Linear Actuator Installation

Refer to Figure 1-1:

1. Park the Food Plot Seeder on a flat level surface.

23907

Linear Actuator Assembly ()

Figure 1-1

Refer to Figure 1-2 on page 2:

!

Make sure all electrical wiring is supported in such a way that
it will not come in contact with trash, lift mechanism, rotating
discs, pinch points, vehicle rotating components, hot exhaust
components, etc.

CAUTION

© Copyright 2005 Printed

4/17/06

1

Assembly Instructions

Land Pride

NOTE: Ties (#5) may be used to help secure the
electrical wiring. If they are used, attach them
loosely or out of material that can be removed to
allow removal of electrical components for dry
storage.

5. Wrap electrical wiring around one of the tie down
straps and along the hitch frame as shown in
Figure 1-2.

Refer to Figure 1-1 on page 1:

6. Attach white wire alligator clip (D) to the positive (+)
battery post.

7. Attach black wire alligator clip (C) to the negative (-)
battery post.

!

Extending and retracting the actuator creates pinch point
hazards. Keep fingers, hands and all extremities clear of all
moving parts when operating toggle switch (G).

CAUTION

8. Operate toggle switch (G) to move upper clevis end
of actuator until it aligns with the rear axle adjusting
lug hole (A).

9. Attach upper end of Linear Actuator (#3) to the rear
axle adjusting lug hole with hitch pin (#2) and secure
with hair pin clip (#1).

10. Operate the toggle switch at the control box to raise
and lower the disc gangs.

Unhooking the Electric Actuator

Refer to Figure 1-1 on page 1:

1. Unplug the connector at the actuator.

2. Disconnect the black wire alligator clip from the
negative (-) battery post.

3. Disconnect the white wire alligator clip from the
positive (+) battery post.

4. Unhitch Electr ic Actuator from vehicle.

IMPORTANT: Protect actuator controller from
moisture by storing it in a dry location.

Wrap Electrical
Wiring As shown

Tie Down Straps

5

23916

Electric Actuator Assembly

Figure 1-2

Manual No. 322-121M 4/17/06
