Page 1
Table of Contents Part Number Index
Primary Seeders
PSN2096
20583
313-306P
Parts Manual
Read the Operator's manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!
© Copyright 2008 Printed 09/11/08
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
PSN 20 SERIES
Section 2: Frame & Front Roller...................................6
Front Roller And Lower Hitch..............................................6
Rear Roller..........................................................................8
Track Removers................................................................10
Section 3: Seed Box....................................................12
Box Assembly S/N 378042-..............................................12
Box Assembly S/N 378043 to 573763...............................14
Box Assembly S/N 573764+.............................................16

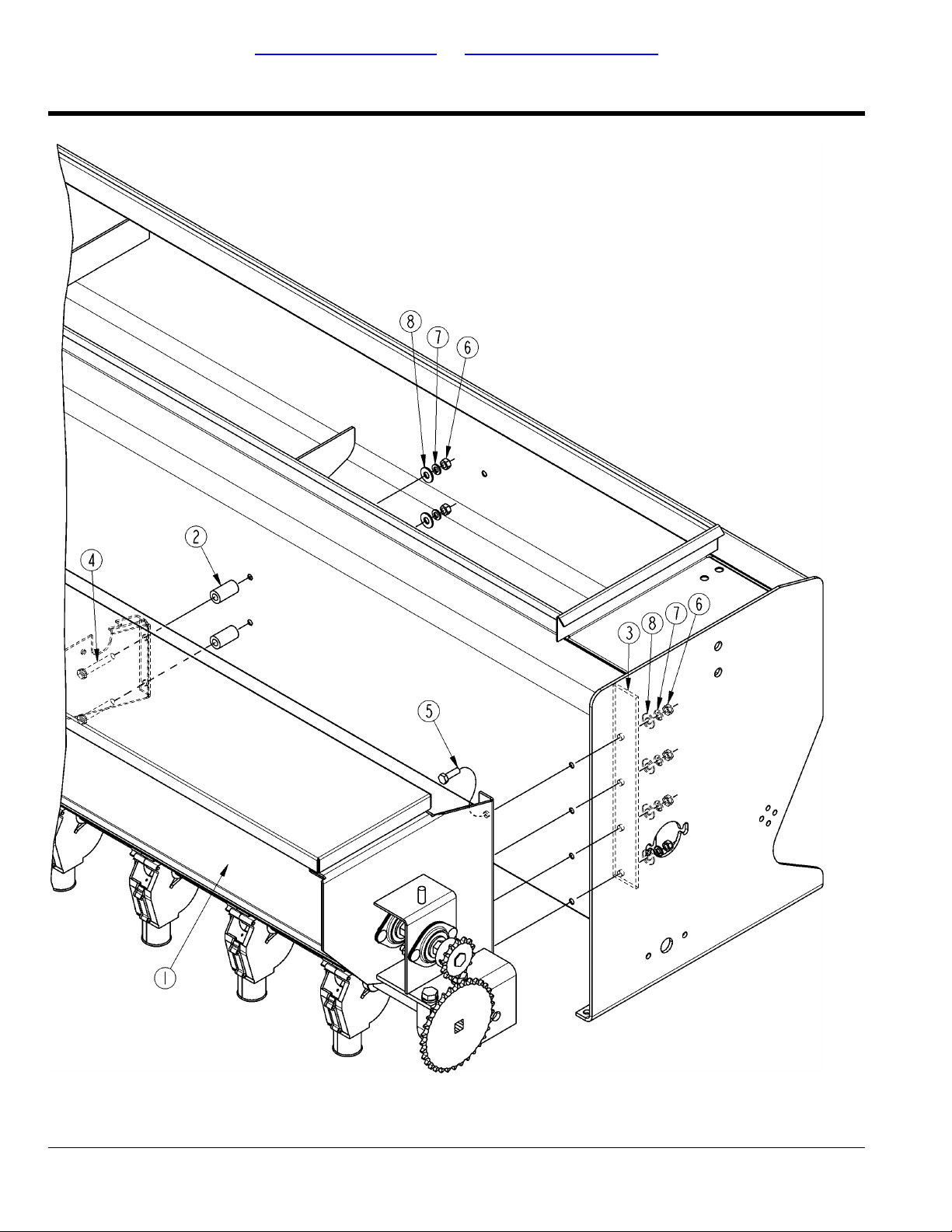

Box To Frame And SMV Assembly....................................18

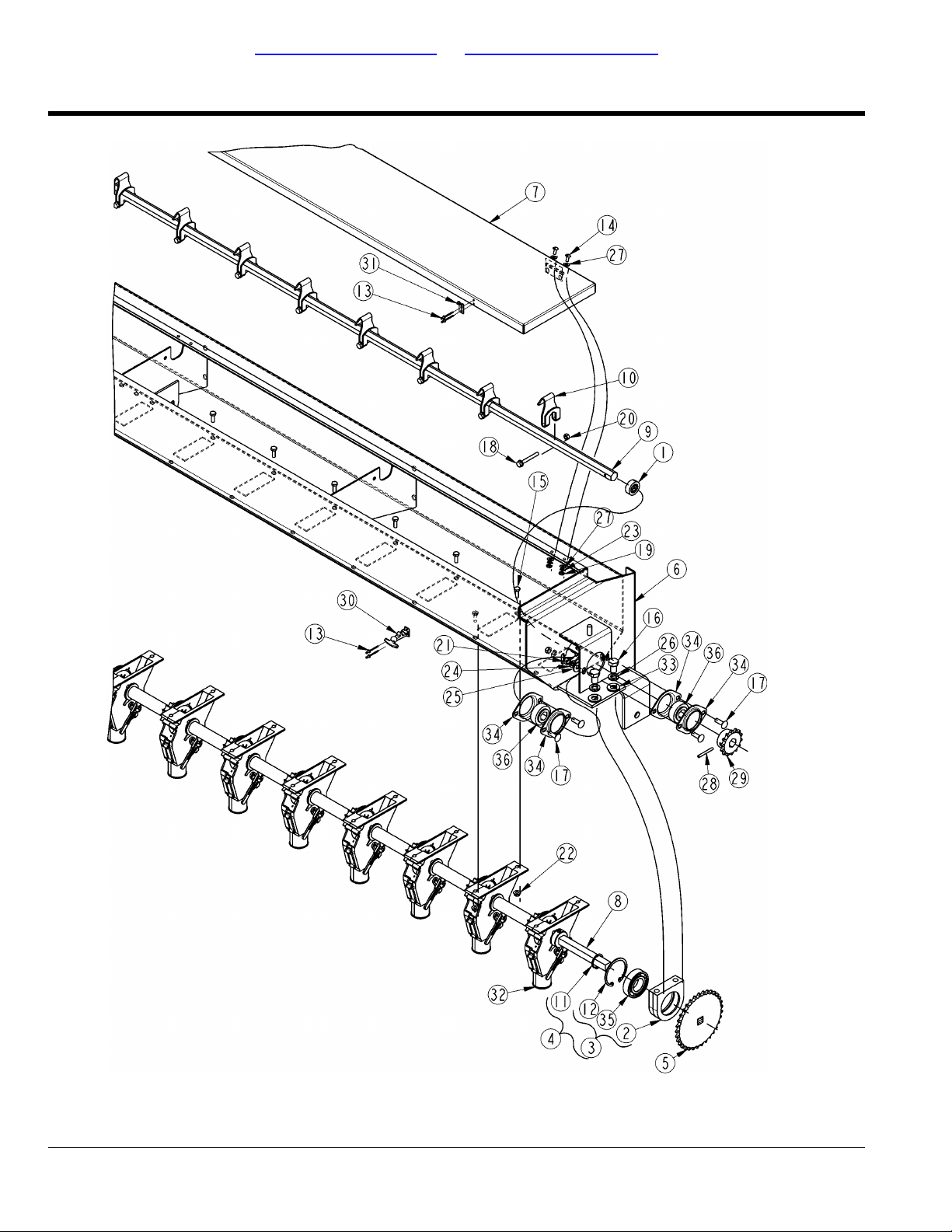

Seed Cup Assembly S/N 378042-....................................20
Seed Cup Assembly S/N 378043+....................................22
Section 4: Drive...........................................................24

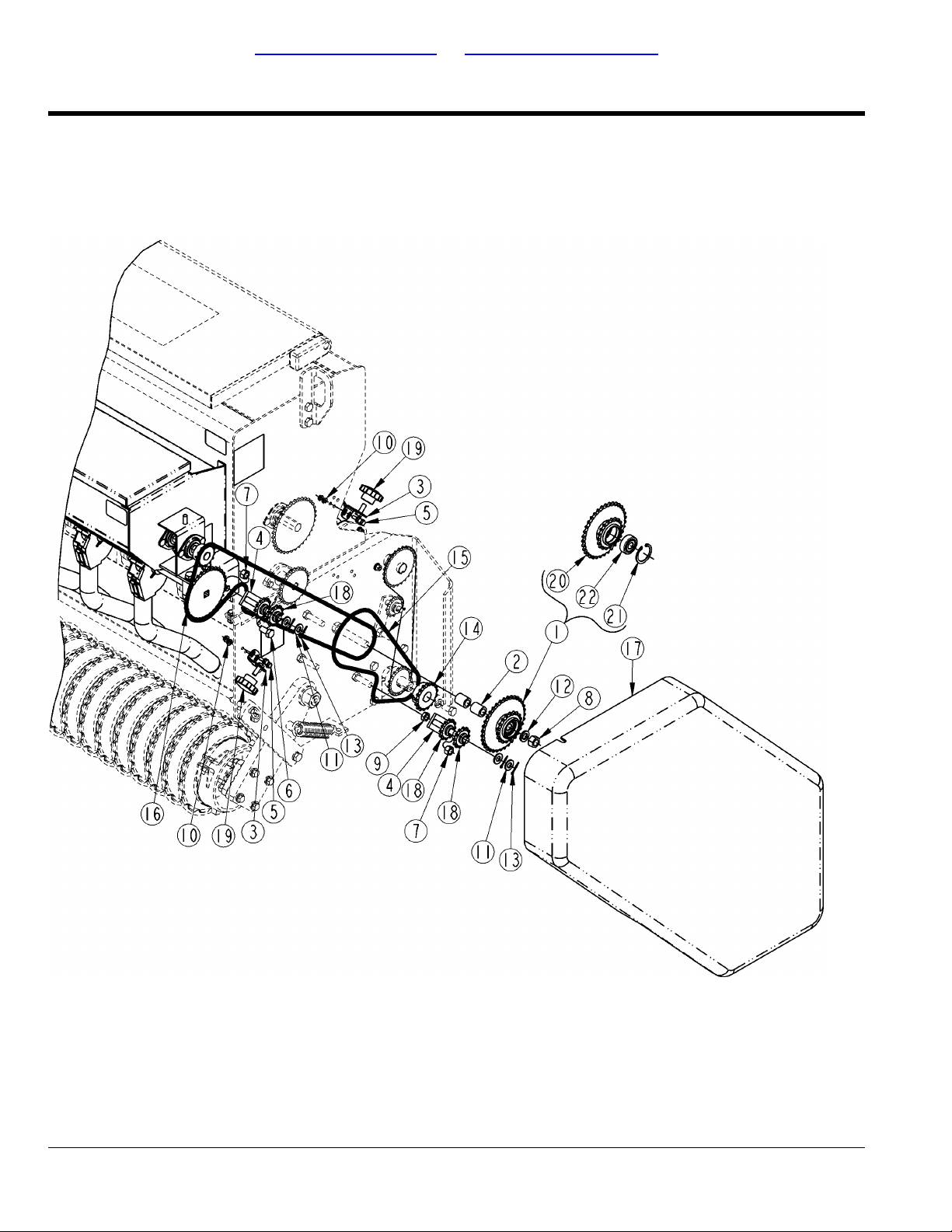

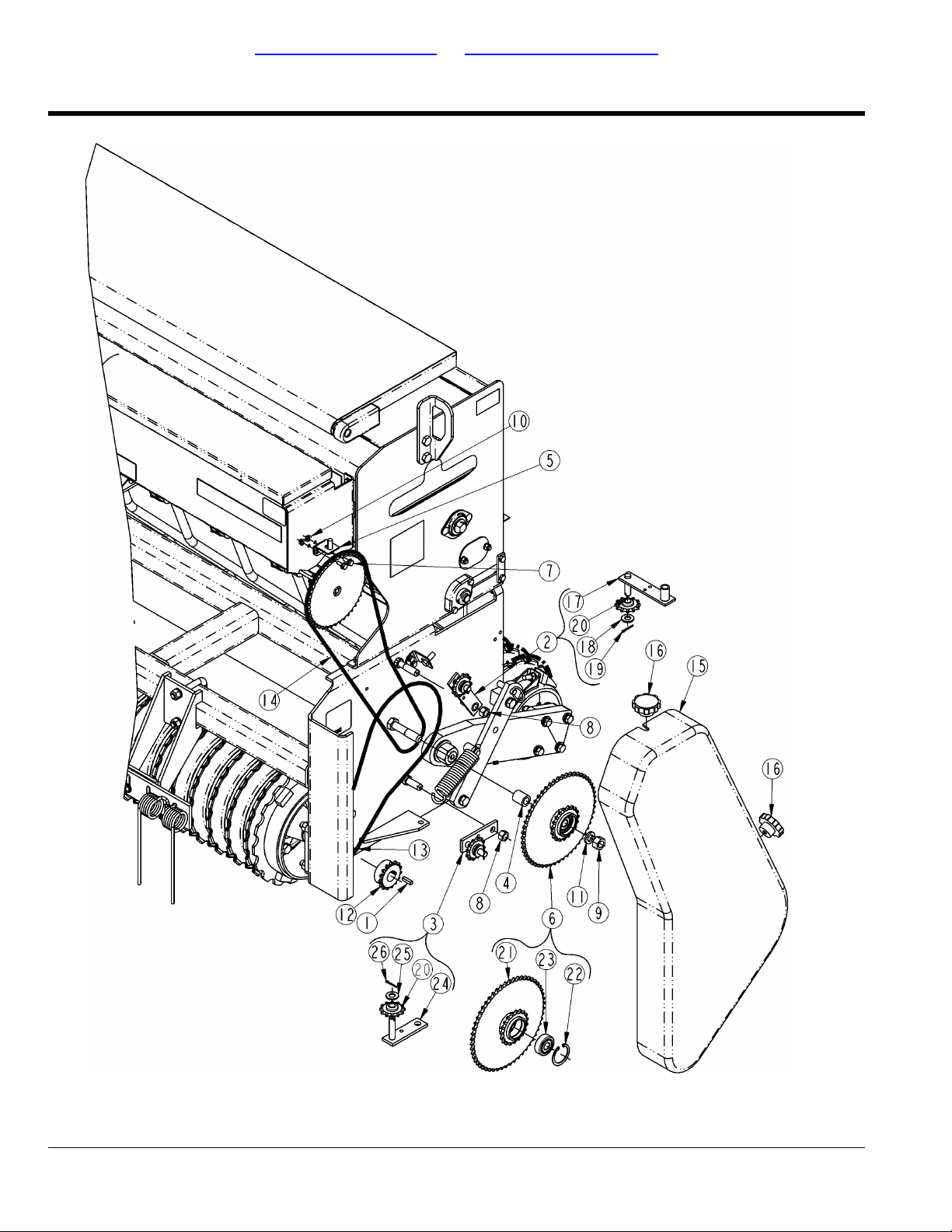

Drive Chains And Chain Cover Assembly.........................24

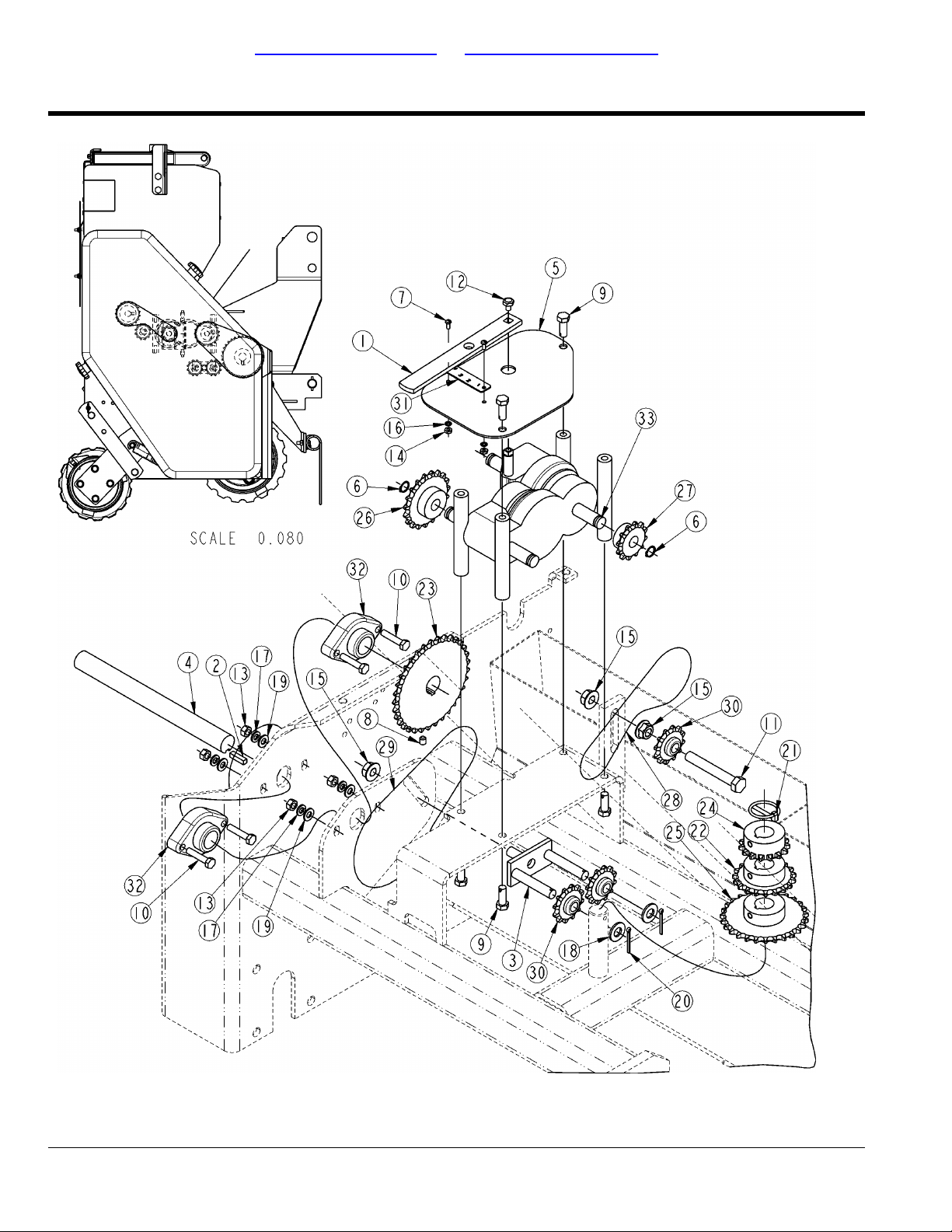

Gearbox (890-282C).........................................................26
Gearbox And Drive Assembly...........................................28

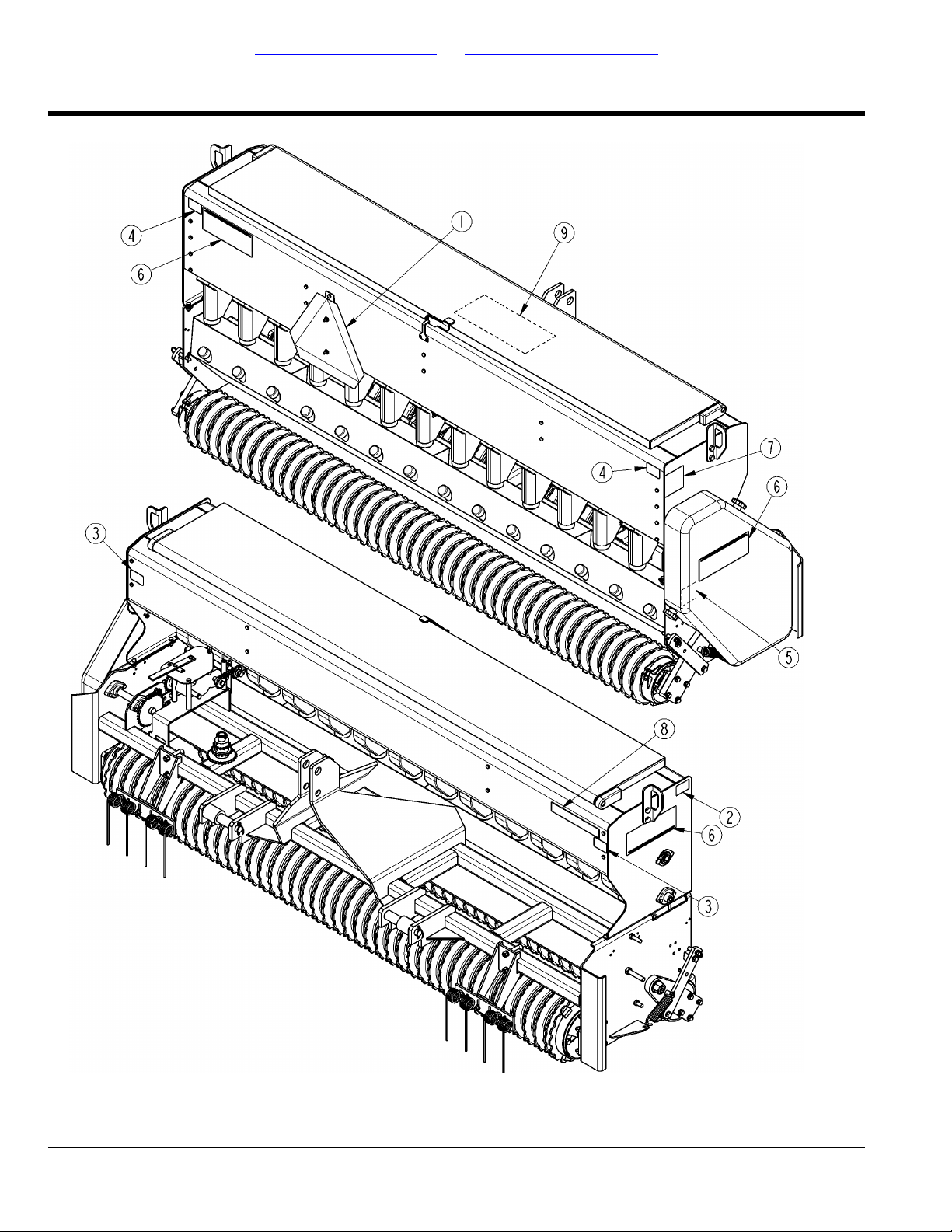

Section 5: Labels.........................................................30

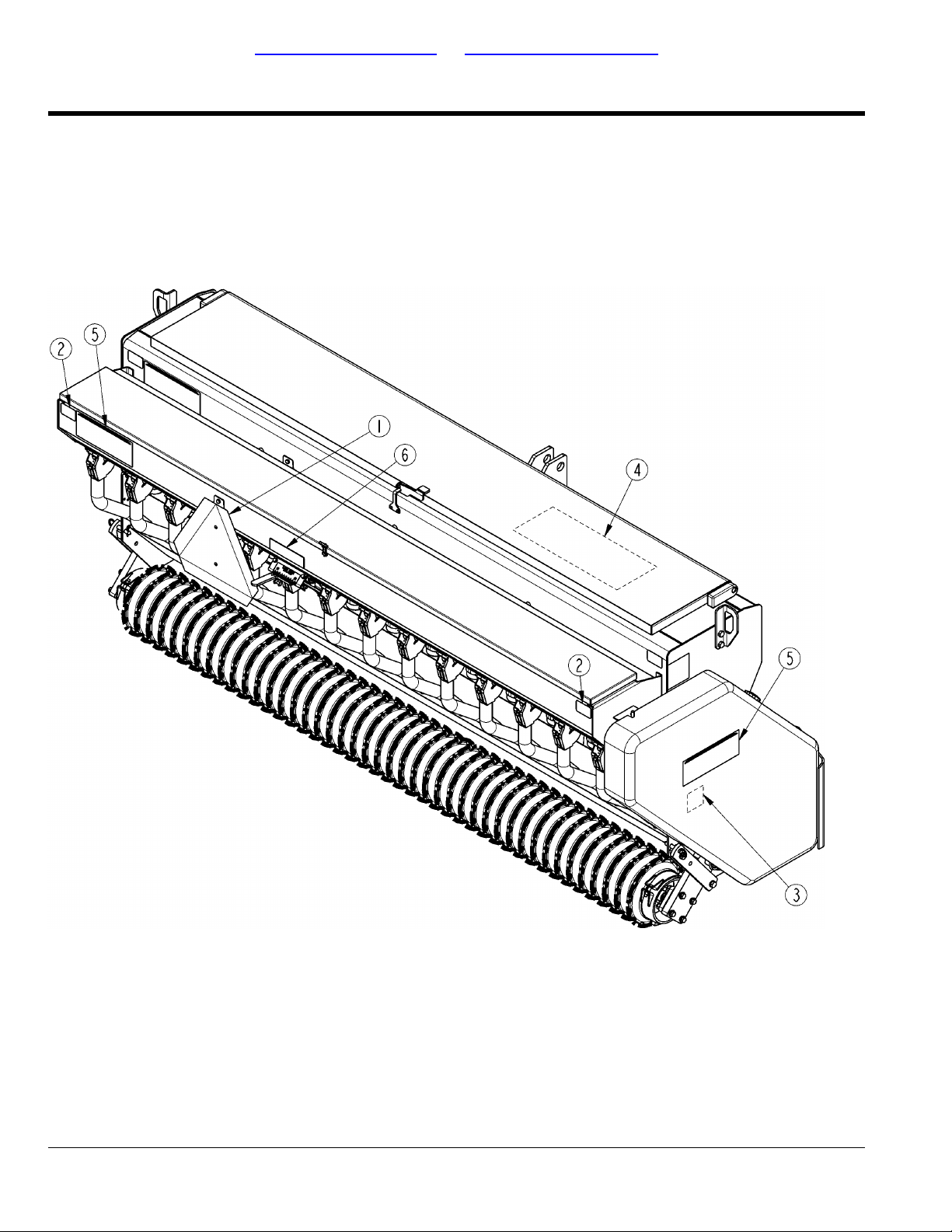

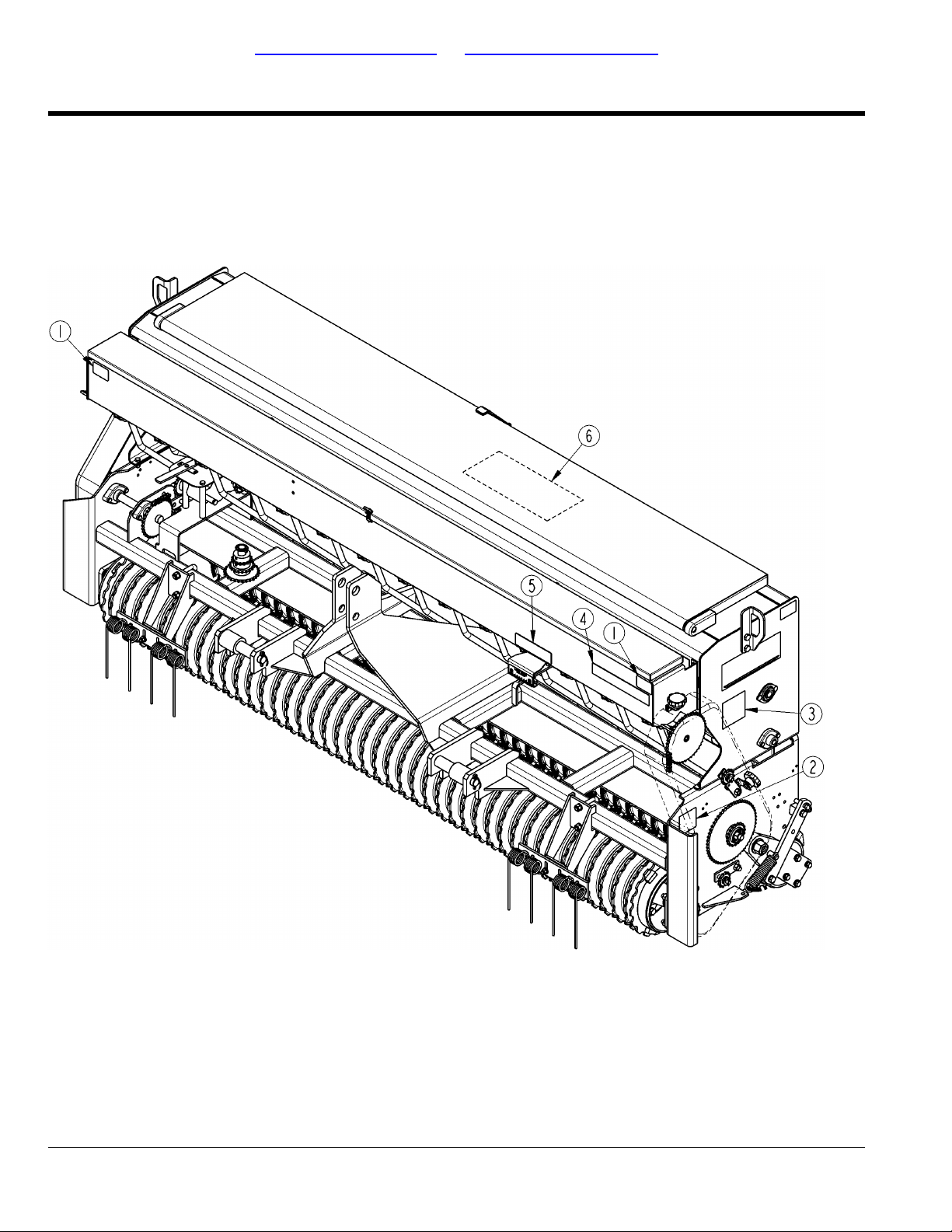

Label Placement (Part 1)..................................................30
Section 6: Optional Boxes..........................................32
Small Grass Seed - Seed Rate Handle.............................32
Small Grass Seed Box Assembly......................................34
Small Grass Seed Box To Main Box Assembly.................36

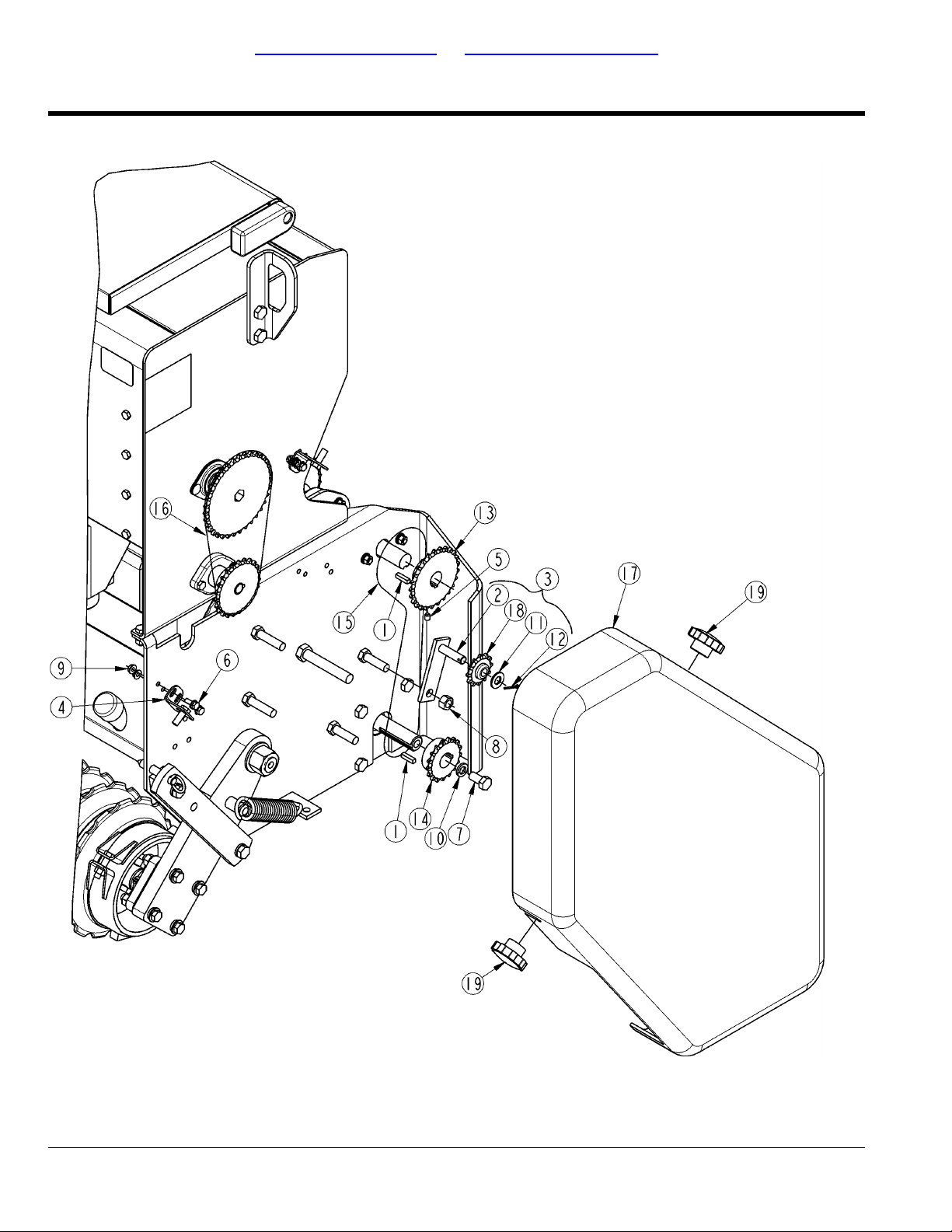

Small Grass Seed Drive....................................................38
Small Grass Seed Label Placement.................................40
Standard Seed Box And Seed Cup Assembly..................42
Standard Seed Box Assembly...........................................44
Standard Seed Box Drive..................................................46
Standard Seed Box Seed Rate Adjusment Handle...........48
Standard Seed Box To Main Box Assembly......................50
Standard Seed Label Placement......................................52
Section 7: Pull Package..............................................54
Hydraulic Arrangement.....................................................54
Hydraulic Cylinder 810-001C............................................56
Label Placement (Part 2)..................................................58

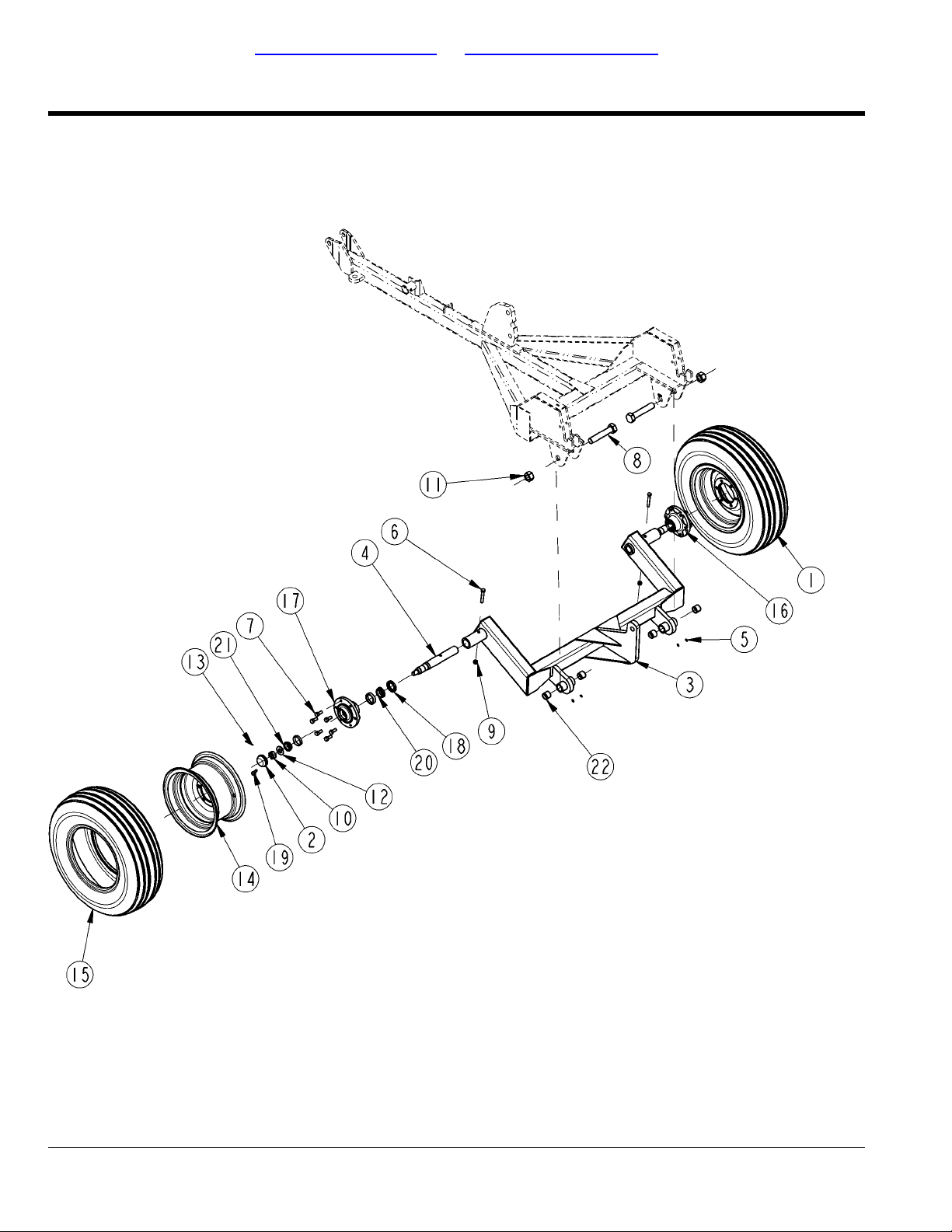

Transpor t Axle...................................................................60

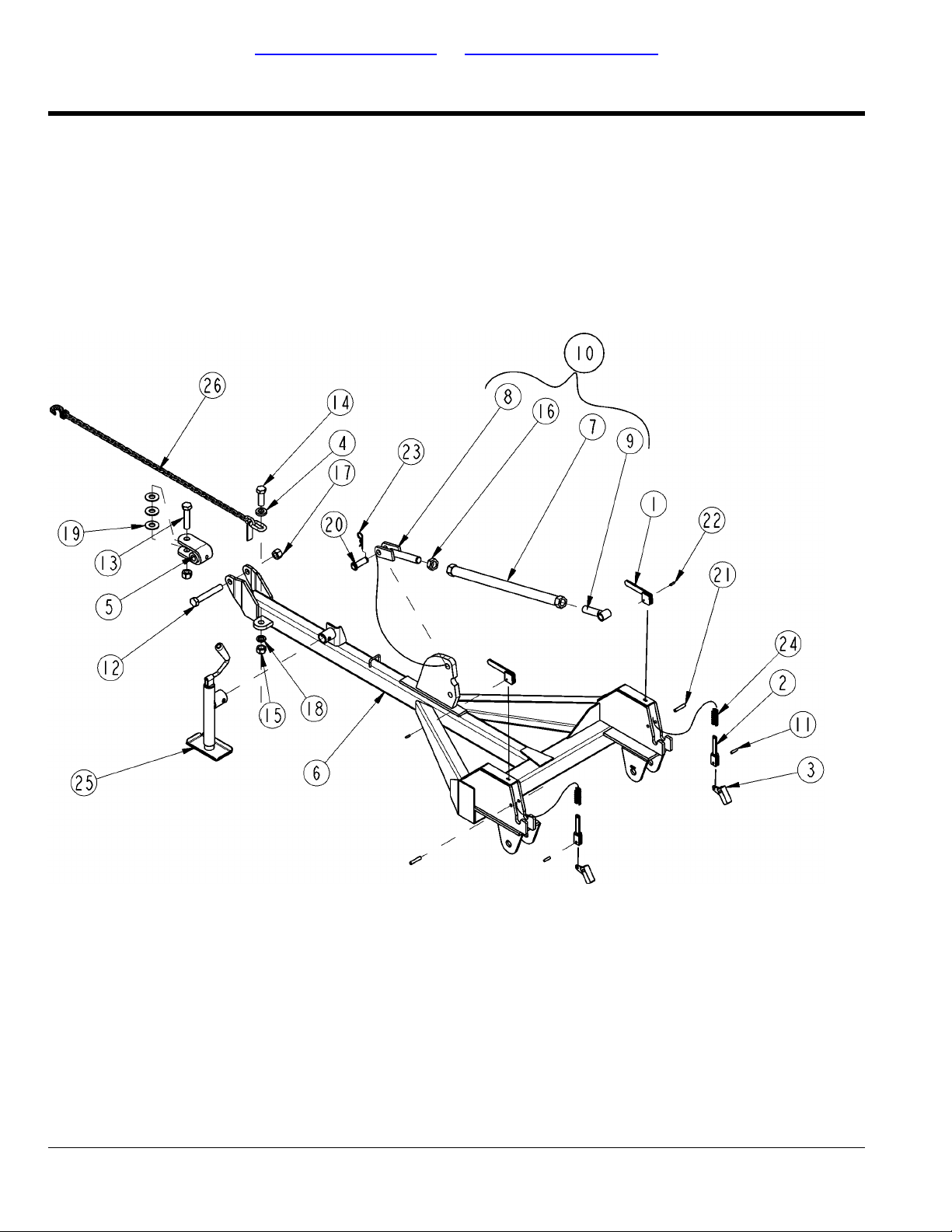

Transpor t Frame................................................................62
Part Number Index.......................................................64
© Copyright 2008. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 PSN2096 Primary Seeders 313-306P 09/11/08
Land Pride is registered trademark.
Printed in the United States of America.
Page 3
Table of Contents Part Number Index
PSN 20 SERIES
B
Box Assembly S/N 378042-.........................................12
Box Assembly S/N 378043 to 573763..........................14
Box Assembly S/N 573764+.........................................16
Box To Frame And SMV Assembly...............................18
D
Drive Chains And Chain Cover Assembly....................24
F
Front Roller And Lower Hitch.........................................6
G

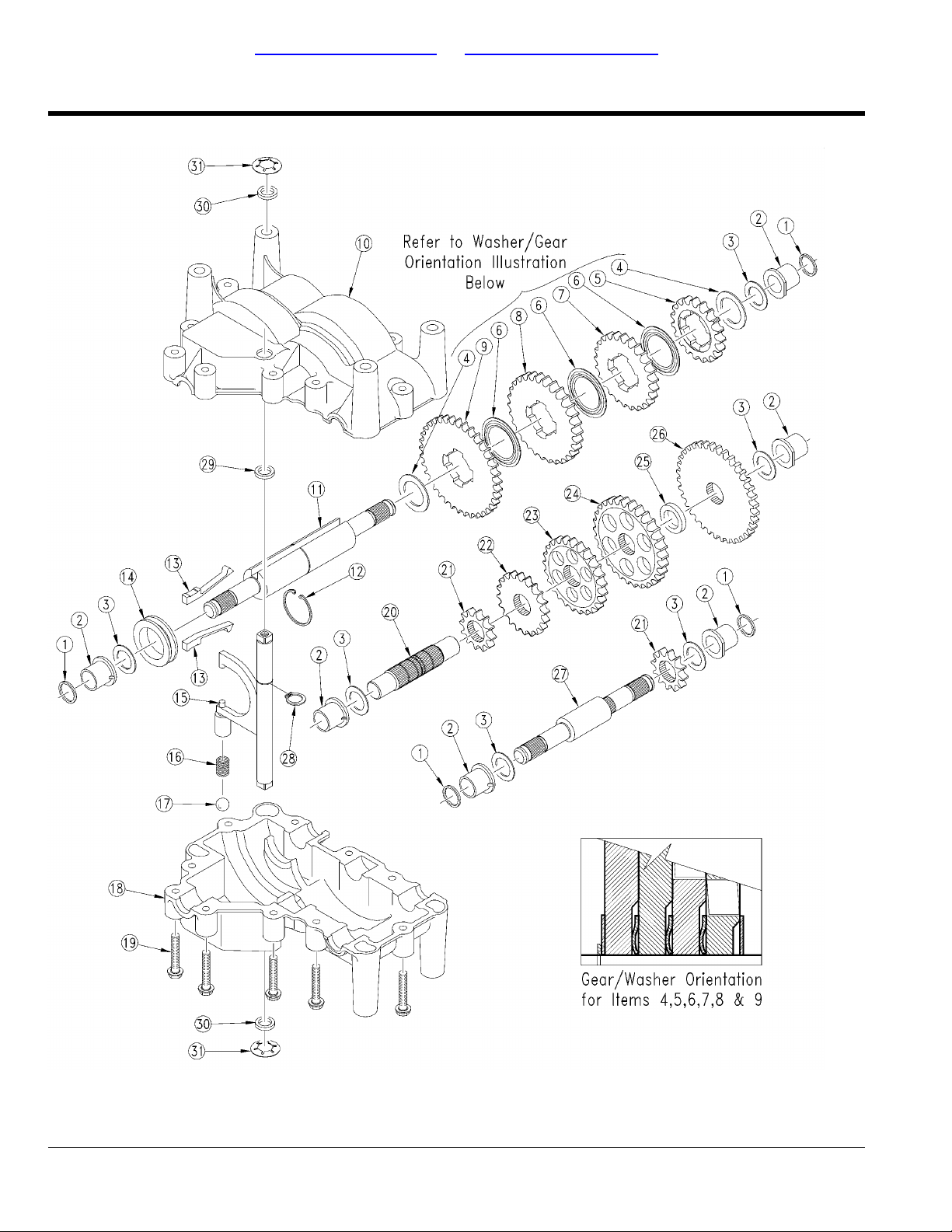

Gearbox (890-282C)....................................................26
Gearbox And Drive Assembly......................................28
H

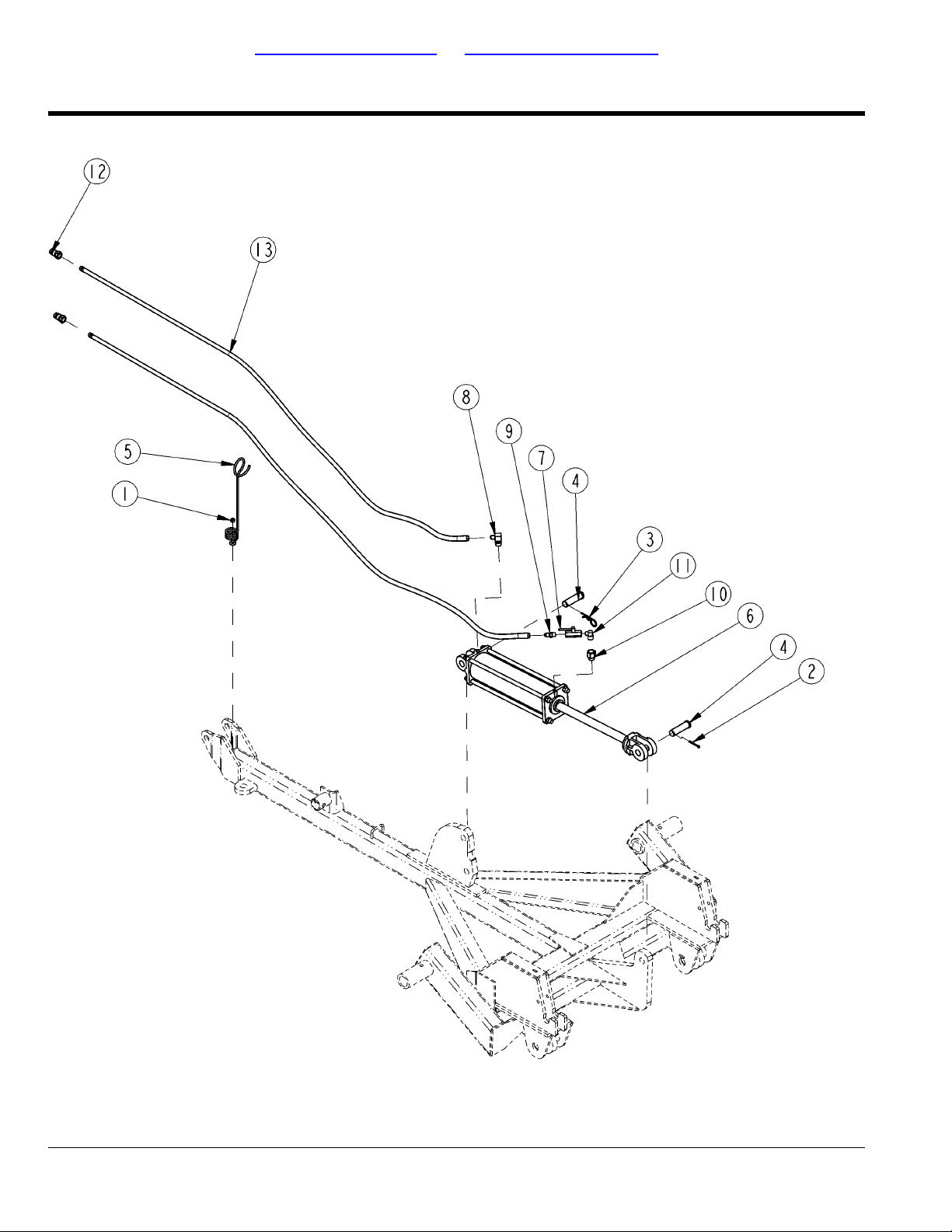

Hydraulic Arrangement.................................................54

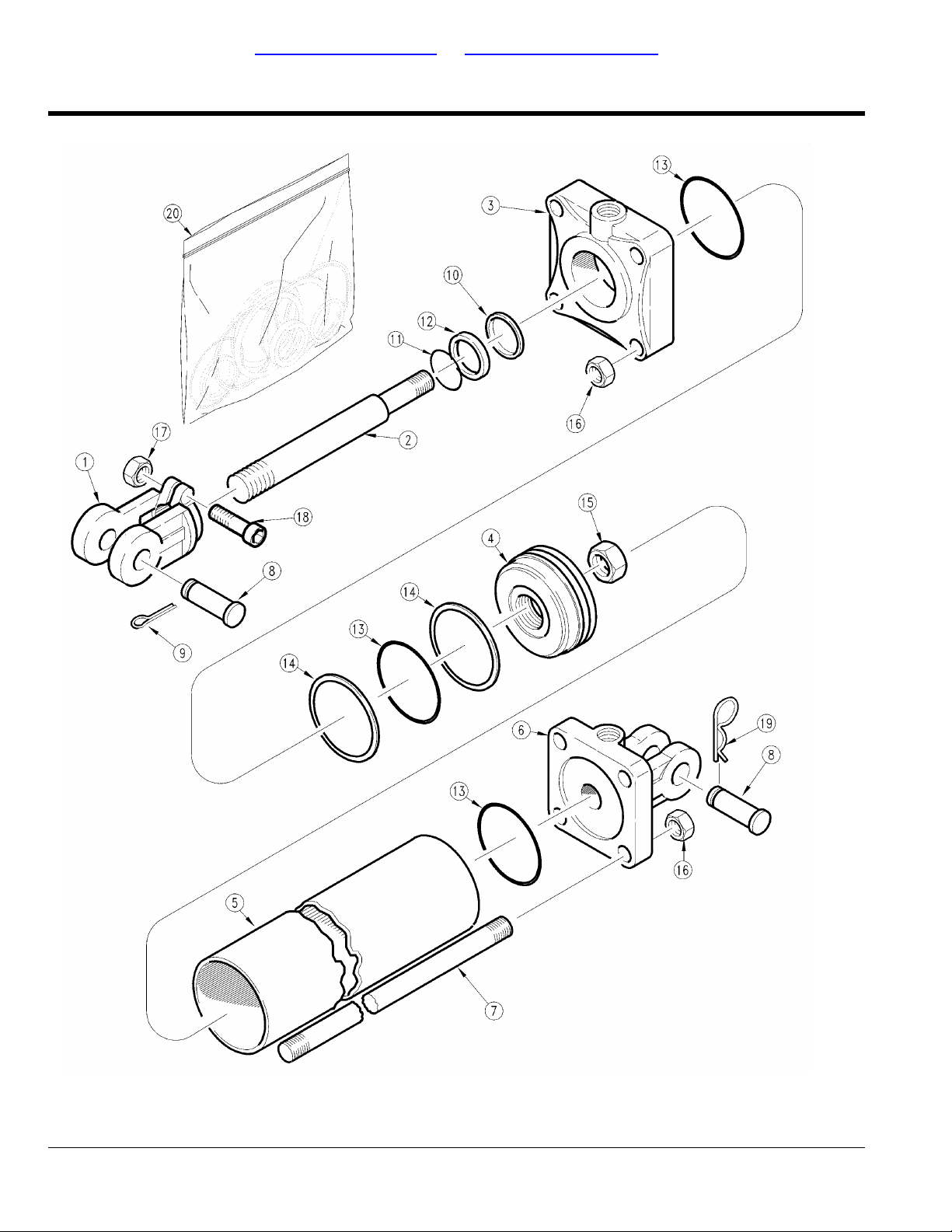

Hydraulic Cylinder 810-001C.......................................56
Alphabetized Table of Contents
L
Label Placement (Part 1).............................................30
Label Placement (Part 2).............................................58
R
Rear Roller.....................................................................8
S
Seed Cup Assembly S/N 378042-................................20
Seed Cup Assembly S/N 378043+...............................22
Small Grass Seed - Seed Rate Handle........................32
Small Grass Seed Box Assembly.................................34
Small Grass Seed Box To Main Box Assembly............36
Small Grass Seed Drive...............................................38
Small Grass Seed Label Placement.............................40
Standard Seed Box And Seed Cup Assembly.............42
Standard Seed Box Assembly......................................44
Standard Seed Box Drive.............................................46
Standard Seed Box Seed Rate Adjusment Handle......48
Standard Seed Box To Main Box Assembly.................50
Standard Seed Label Placement.................................52
T
Track Removers............................................................10

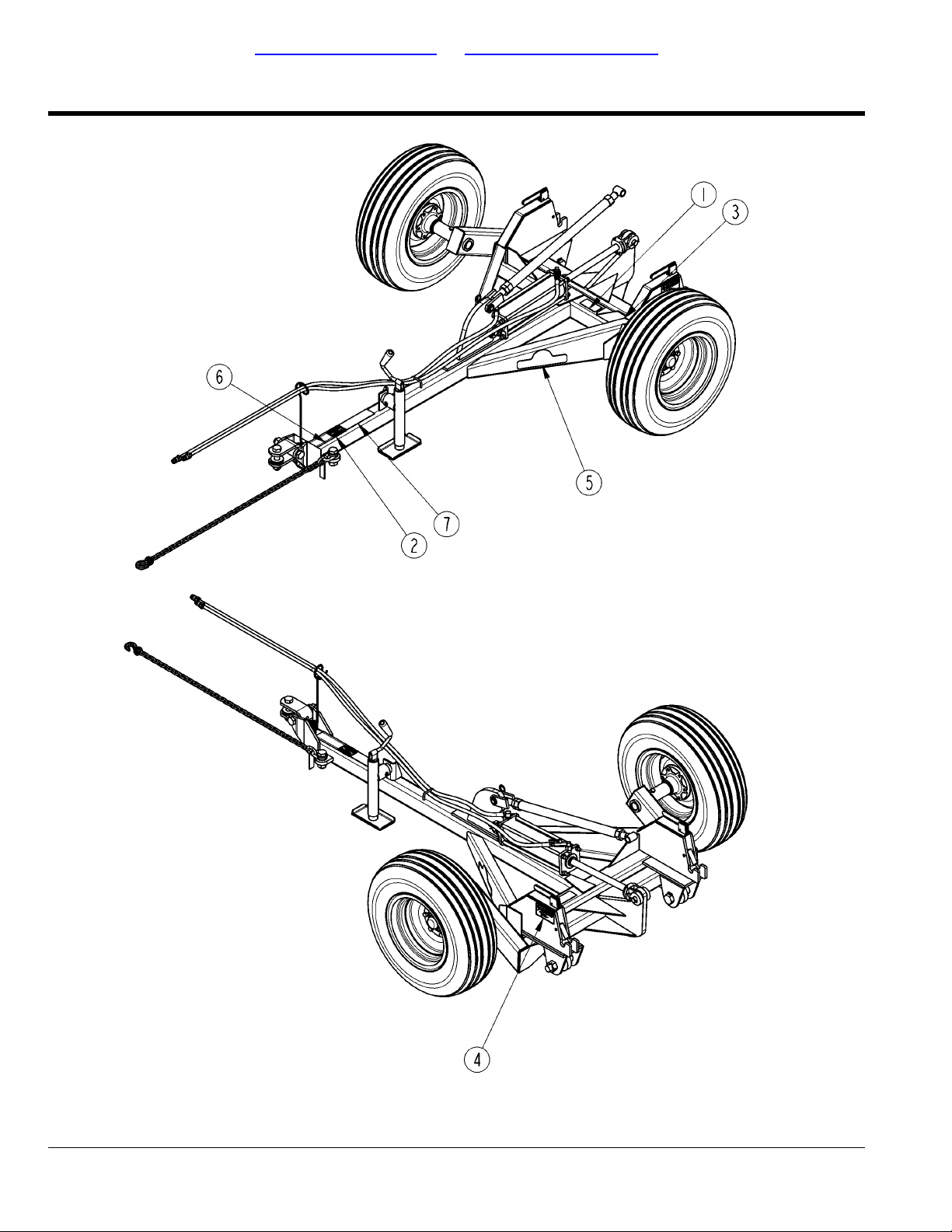

Transport Axle..............................................................60
Transpor t Frame...........................................................62
09/11/08 PSN2096 Primary Seeders 313-306P 3
Page 4
Table of Contents Part Number Index
4 PSN2096 Primary Seeders 313-306P 09/11/08
Page 5
Table of Contents Part Number Index
09/11/08 PSN2096 Primary Seeders 313-306P 5
Page 6
Land Pride Section 2: Frame & Front Roller
PSN 20 SERIES
Table of Contents Part Number Index
Front Roller And Lower Hitch
Applies to PSN2096
20618
6 PSN2096 Primary Seeders 313-306P 09/11/08
Page 7
Section 2: Frame & Front Roller Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Front Roller And Lower Hitch
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20618
KEY 1/4 X 1123-004D1.
PIN 1 1/8 OD X 7 1/8 USABLE300-202S2.
CAT III BUSHING300-429D3.
TUBE RD 2 1/4ODX1 5/32IDX2 5/8300-431D4.
12 ROLLER SPACER 1/4308-360D5.
FRONT ROLLER CLAMP313-006H6.
FRONT ROLLER HUB313-018D7.
DRIVE SHAFT PS25120313-168D8.
PSN2096 FRAME WELDMENT313-243H9.
PS2096 FRONT ROLLER WELD313-253H10.
PS2096 FRONT ROLLER ASSY313-254S11.
PSN20 DRIVE SHAFT ROLLER313-556D12.
S/N 543519+HHCS 1/4-20X1 GR5802-005C13.
HHCS 1/2-13X3 GR5802-039C14.
HHCS 1/2-13X1 3/4 GR5802-082C15.
HHCS 1/2-13X1 1/2 GR5802-091C16.
HHCS 3/8-16X2 GR5802-143C17.
HHCS 1/2-20X1 GR5802-240C18.
NUT HEX 3/8-16 PLT803-014C19.
NUT LOCK 1/2-13 PLT803-019C20.
NUT HEX 1/2-13 PLT803-020C21.
S/N 543519+NUT HEX NYLOCK 1/4-20803-255C22.
WASHER LOCK SPRING 3/8 PLT804-013C23.
WASHER LOCK SPRING 1/2 PLT804-015C24.
S/N 543519+WASHER FLAT 1/4 USS PLT804-075C25.
PIN LINCH 5/16 X 1 3/4805-015C26.
SPKT 40B17 X 1 BORE W/KW & SS808-159C27.
ROLLER WHEEL 12812-056C28.
S/N 543519+MANUAL STORAGE CONTAINER816-504C29.
BRG FLG 1.50ID 4BLT LOCK822-004C30.
Not Standard EquipmentACREMETER PS/PSN2096 1640 REV890-789C31.
09/11/08 PSN2096 Primary Seeders 313-306P 7
Page 8
Land Pride Section 2: Frame & Front Roller
PSN 20 SERIES
Table of Contents Part Number Index
Rear Roller
Applies to PSN2096
20619
8 PSN2096 Primary Seeders 313-306P 09/11/08
Page 9
Section 2: Frame & Front Roller Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Rear Roller
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20619
REAR ROLLER CLAMP313-014H1.
PIVOT ARM SIDE BAR313-015D2.
REAR ROLLER SHAFT313-035D3.
Rev. 2 not compat. w/Rev. 1S/N 397232+REAR ROLLER ARM WDMT PS25120313-039H4.
Rev. 1S/N 397231-PIVOT ARM REAR ROLLER313-009H4.
ROLLER BRG SPACER TUBE313-050D5.
REAR ROLLER LOCK PIN ASSY313-063S6.
PSN2096 FRAME WELDMENT313-243H7.
PS2096 REAR ROLLER WELD313-256H8.
GREASE ZERK 1/4-28 X 45-DEG LG800-316C9.
HHCS 1/2-13X1 1/4 GR5802-034C10.
HHCS 1/2-13X2 1/4 GR5802-038C11.
HHCS 3/8-16X2 GR5802-143C12.
HHCS 7/16-14X2 3/4 GR5802-315C13.
NUT HEX 3/8-16 PLT803-014C14.
NUT HEX 7/16-14 PLT803-015C15.
NUT LOCK 1/2-13 PLT803-019C16.
NUT HEX 1-8 NYLON INSERT PLT803-038C17.
WASHER LOCK SPRING 3/8 PLT804-013C18.
WASHER LOCK 7/16 PLT804-014C19.
WASHER LOCK SPRING 1/2 PLT804-015C20.
WASHER FLAT 1 SAE804-029C21.
WASHER FLAT 7/16 SAE PLT804-041C22.
PIN HAIR COTTER .094805-010C23.
SPRING EXT 1 13/32 X 6 EXT807-050C24.
9 1/2 O.D. NOTCHED ROLLER812-133C25.
BEARING 1 BORE X 4 BOLT822-085C26.
PS2096 REAR ROLLER ASSY313-255S27.
09/11/08 PSN2096 Primary Seeders 313-306P 9
Page 10
Land Pride Section 2: Frame & Front Roller
PSN 20 SERIES
Table of Contents Part Number Index
Track Removers
Applies to PSN2096
20637
10 PSN2096 Primary Seeders 313-306P 09/11/08
Page 11
Section 2: Frame & Front Roller Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Track Removers
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20637
TRACK REMOVER BUNDLE313-028A
TINE RETAINER WASHER308-180D1.
FRAME MTG TRACK REMOVER313-027H2.
TINE MOUNTING PLATE313-060D3.
HHCS 3/8-16X1 1/2 GR5802-022C4.
RHSNB 3/8-16X1 1/4 GR5802-155C5.
NUT HEX 3/8-16 PLT803-014C6.
NUT HEX 1/2-13 PLT803-020C7.
WASHER FLAT 3/8 SAE PLT804-012C8.
WASHER LOCK SPRING 3/8 PLT804-013C9.
WASHER LOCK SPRING 1/2 PLT804-015C10.
U-BOLT 1/2-13 X 2 1/2 X 3 1/2806-010C11.
DOUBLE TORSION SPRING807-044C12.
09/11/08 PSN2096 Primary Seeders 313-306P 11
Page 12
Land Pride Section 3: Seed Box
PSN 20 SERIES
Table of Contents Part Number Index

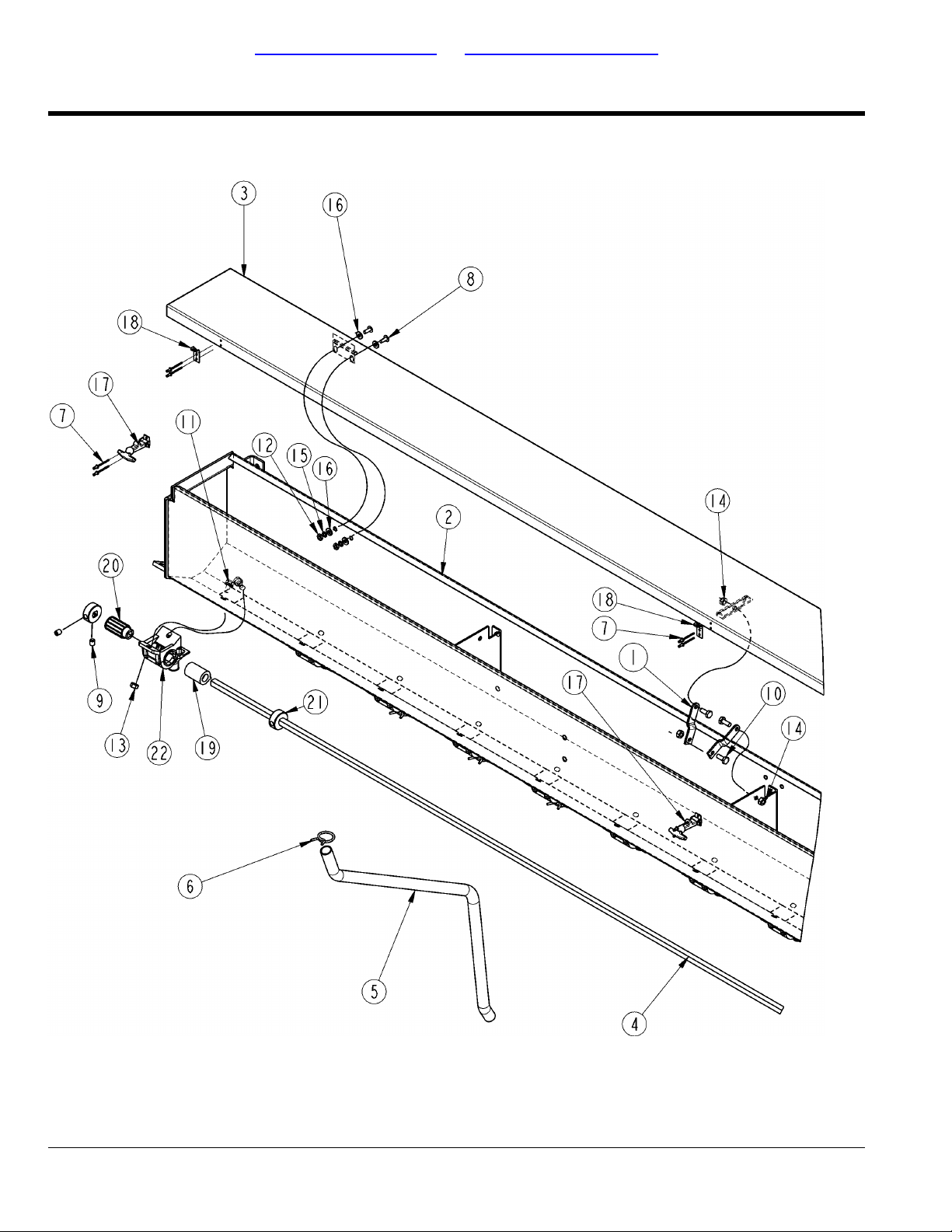

Box Assembly S/N 378042-
Applies to PSN2096
20620
12 PSN2096 Primary Seeders 313-306P 09/11/08
Page 13
Section 3: Seed Box Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Box Assembly S/N 378042-
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20620
LOCK COLLAR 3/4 HEX BORE118-494D1.
LID LATCH - LOWER ARM179-021D2.
LID LATCH - UPPER ARM179-022D3.
GRASS SEED METER WHEEL COVER202-055D4.
NG ADGITATOR PADDLE202-185D5.
OVERSEEDER/PRIMARY SLING BRKT308-193D6.
OS48/72 LID LATCH - HANDLE308-394D7.
PSN2096 NATIVE GRASS BOX WELD313-279H8.
PSN2096 NG BOX LID WELD313-280H9.
NG LID LATCH STRIKE313-475D10.
PSN2096 AGITATOR SHAFT313-487D11.
SCREW RD HD SLT 10-24X1/2 PLT801-003C12.
SCREW RD HD 10-24 X 3/4 PLT801-021C13.
SCREW 5/16-18X82DEG CNTSKX1P801-024C14.
SCREW SET 5/16-18 SKT KP X 3/8801-035C15.
HHCS 5/16-18X3/4 GR5802-007C16.
HHCS 1/2-13X1 GR5802-258C17.
RHSNB 5/16-18X1 GR5802-282C18.
HFSS 1/4-20X2 GR5802-448C19.
NUT HEX 10-24 PLT803-001C20.
NUT HEX 5/16-18 PLT803-008C21.
NUT LOCK 5/16-18 PLT803-011C22.
NUT HEX 1/2-13 PLT803-020C23.
NUT HEX NYLOCK 5/16-18 PLT803-084C24.
NUT HEX NYLOCK 1/4-20803-255C25.
WASHER INTERNAL STAR #10 PLT804-004C26.
WASHER LOCK SPRING 5/16 PLT804-009C27.
WASHER FLAT 5/16 USS PLT804-010C28.
WASHER LOCK SPRING 1/2 PLT804-015C29.
WASHER FLAT 5/16 SAE PLT804-036C30.
WASHER WAVE SPRING 5/16804-056C31.
SPKT 40B35 X 3/4 HEX BORE W/SS808-185C32.
GASKET GRASS SEED METER WHEEL816-051C33.
LID LATCH GRIP817-033C34.
PLASTIC LID HINGE817-443C35.
FLANGETTE 47 MST822-041C36.
BEARING 3/4HEX B 47MM SPHER OD822-128C37.
09/11/08 PSN2096 Primary Seeders 313-306P 13
Page 14
Land Pride Section 3: Seed Box
PSN 20 SERIES
Table of Contents Part Number Index
Box Assembly S/N 378043 to 573763
Applies to PSN2096
21293
14 PSN2096 Primary Seeders 313-306P 09/11/08
Page 15
Section 3: Seed Box Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Box Assembly S/N 378043 to 573763
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg21293
LOCK COLLAR 3/4 HEX BORE118-494D1.
LID LATCH - LOWER ARM179-021D2.
LID LATCH - UPPER ARM179-022D3.
NG ADGITATOR PADDLE202-185D4.
NG BOX BEARING COVER202-192D5.
OVERSEEDER/PRIMARY SLING BRKT308-193D6.
OS48/72 LID LATCH - HANDLE308-394D7.
PSN2096 NG BOX LID WELD313-280H8.
PSN/PS2096 SEED BOX BOLTON313-341H9.
NG LID LATCH STRIKE313-475D10.
PSN2096 AGITATOR SHAFT313-487D11.
PS20 BOX END PLT COVER313-643D12.
SCREW RD HD 10-24 X 3/4 PLT801-021C13.
SCREW 5/16-18X82DEG CNTSKX1P801-024C14.
SCREW SET 5/16-18 SKT KP X 3/8801-035C15.
HHCS 5/16-18X3/4 GR5802-007C16.
HHCS 5/16-18X1 1/4 GR5802-010C17.
RHSNB 5/16-18X3/4 GR5802-092C18.
HHCS 1/2-13X1 GR5802-258C19.
RHSNB 5/16-18X1 GR5802-282C20.
HFSS 1/4-20X2 GR5802-448C21.
NUT HEX 10-24 PLT803-001C22.
NUT HEX 5/16-18 PLT803-008C23.
NUT LOCK 5/16-18 PLT803-011C24.
NUT HEX 1/2-13 PLT803-020C25.
NUT HEX NYLOCK 5/16-18 PLT803-084C26.
NUT HEX NYLOCK 1/4-20803-255C27.
WASHER INTERNAL STAR #10 PLT804-004C28.
WASHER LOCK SPRING 5/16 PLT804-009C29.
WASHER LOCK SPRING 1/2 PLT804-015C30.
WASHER FLAT 5/16 SAE PLT804-036C31.
WASHER WAVE SPRING 5/16804-056C32.
SPKT 40B35 X 3/4 HEX BORE W/SS808-185C33.
LID LATCH GRIP817-033C34.
PLASTIC LID HINGE817-443C35.
FLANGETTE 47 MST822-041C36.
BEARING 3/4HEX B 47MM SPHER OD822-128C37.
09/11/08 PSN2096 Primary Seeders 313-306P 15
Page 16
Land Pride Section 3: Seed Box
PSN 20 SERIES
Table of Contents Part Number Index
Box Assembly S/N 573764+
Applies to PSN2096
25986
16 PSN2096 Primary Seeders 313-306P 09/11/08
Page 17
Section 3: Seed Box Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Box Assembly S/N 573764+
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg25986
LOCK COLLAR 3/4 HEX BORE118-494D1.
NG ADGITATOR PADDLE202-185D2.
NG BOX BRG COVER202-192D3.
OS/PS SLING BKT308-193D4.
LID LATCH - LOWER ARM308-392D5.
LID LATCH - UPPER ARM308-393D6.
LID LATCH - HANDLE308-394D7.
LID WELDMENT, 96"313-019H8.
PS LID HINGE ASSEMBLY RH313-024S9.
PS LID HINGE ASSEMBLY LH313-104S10.
LID HINGE PIVOT313-186D11.
PS(N)2096 SEEDBX BOLTON313-341H12.
NG LID LATCH STRIKE313-475D13.
PSN2096 AGITATOR SHAFT313-487D14.
PS20 BOX END PLT COVER313-643D15.
PSN2096 LID HINGE RH313-672D16.
PSN2096 LID HINGE LH313-673D17.
SCREW RD HD 10-24 X 3/4 PLT801-021C18.
SCREW 5/16-18X82DEG CNTSKX1P801-024C19.
SCREW SET 5/16-18 SKT KP X 3/8801-035C20.
HHCS 5/16-18X3/4 GR5802-007C21.
RHSNB 5/16-18X3/4 GR5802-092C22.
HHCS 1/2-13X1 GR5802-258C23.
RHSNB 5/16-18X1 GR5802-282C24.
RHSNB 3/8-16X2 GR5802-411C25.
HFSS 1/4-20X2 GR5802-448C26.
NUT HEX 10-24 PLT803-001C27.
NUT HEX 5/16-18 PLT803-008C28.
NUT HEX 1/2-13 PLT803-020C29.
NUT HEX NYLOCK 5/16-18 PLT803-084C30.
NUT HEX FLG TP LK 5/16-18ZNYCR803-177C31.
NUT FLANGE LOCK 3/8-16 PLT803-209C32.
NUT HEX NYLOCK 1/4-20803-255C33.
WASHER INTERNAL STAR #10 PLT804-004C34.
WASHER LOCK SPRING 5/16 PLT804-009C35.
WASHER LOCK SPRING 1/2 PLT804-015C36.
WASHER FLAT 5/16 SAE PLT804-036C37.
WASHER WAVE SPRING 5/16804-056C38.
SPKT 40B35 X 3/4 HEX BORE W/SS808-185C39.
LID LATCH GRIP817-033C40.
FLANGETTE 47 MST822-041C41.
BRG INS 3/4HEXX1.85OD SPH822-128C42.
09/11/08 PSN2096 Primary Seeders 313-306P 17
Page 18
Land Pride Section 3: Seed Box
PSN 20 SERIES
Table of Contents Part Number Index
Box To Frame And SMV Assembly
Applies to PSN2096
20624
18 PSN2096 Primary Seeders 313-306P 09/11/08
Page 19
Section 3: Seed Box Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Box To Frame And SMV Assembly
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20624
S/N 378043+SGS MOUNT SPACER313-269D1.
SCREW RD HD 1/4-20 X 5/8801-018C2.
Rev. 2 not compat. w/Rev. 1S/N 378043+HHCS 5/16-18X1 3/4 GR5802-013C3.
Rev. 1S/N 378042-HHCS 5/16-18X3/4 GR5802-007C3.
HHCS 3/8-16X1 GR5802-017C4.
HHCS 5/16-18X1/2 GR5802-630C5.
NUT HEX 1/4-20 PLT803-006C6.
NUT HEX 5/16-18 PLT803-008C7.
NUT HEX 3/8-16 PLT803-014C8.
WASHER LOCK SPRING 1/4 PLT804-006C9.
WASHER LOCK SPRING 5/16 PLT804-009C10.
WASHER LOCK SPRING 3/8 PLT804-013C11.
CAP PLUG 1 1/2 O.D.TUBE817-457C12.
CAP PLUG .44ID X 1.5LG817-505C13.
CAP PLUG .56ID X 1.5 LG817-506C14.
DECAL SLOW MOVING-GALV. BACKED818-055C15.
SMV MOUNTING BLADE890-153C16.
09/11/08 PSN2096 Primary Seeders 313-306P 19
Page 20
Land Pride Section 3: Seed Box
PSN 20 SERIES
Table of Contents Part Number Index
Seed Cup Assembly S/N 378042-
Applies to PSN2096
20621
20 PSN2096 Primary Seeders 313-306P 09/11/08
Page 21
Section 3: Seed Box Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Seed Cup Assembly S/N 378042-
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20621
3/16 X 1 KEY168-127D1.
GRASS METER SPROCKET202-007D2.
PS2096 NG CUP SHAFT313-479D3.
PSN20 NG CEN BRG HANGER313-526D4.
SCREW SET SQ HD 3/8-16 X 1/2 P801-022C5.
SCREW SET 5/16-18 SKT KP X 3/8801-035C6.
HHCS 1/4-20X3/4 GR5802-004C7.
HHCS 5/16-18X1 1/4 GR5802-010C8.
HHCS 5/16-18X1 GR5802-159C9.
NUT HEX 1/4-20 PLT803-006C10.
NUT HEX 5/16-18 PLT803-008C11.
NUT HEX WHIZ 1/4-20 PLT803-194C12.
WASHER LOCK SPRING 1/4 PLT804-006C13.
WASHER LOCK SPRING 5/16 PLT804-009C14.
WASHER FLAT 5/16 USS PLT804-010C15.
SPKT 40B19 X 3/4 B W/ KW & SS808-069C16.
SPKT 40B23 3/4B W/KW & SS808-281C17.
CASTING GRASS SEED FEEDER CUP812-054C18.
BEARING PILLOW BLK PB 3/4W/HSG822-057C19.
BEARING CAST 3/4 - 2 BOLT822-071C20.
09/11/08 PSN2096 Primary Seeders 313-306P 21
Page 22
Land Pride Section 3: Seed Box
PSN 20 SERIES
Table of Contents Part Number Index
Seed Cup Assembly S/N 378043+
Applies to PSN2096
21294
22 PSN2096 Primary Seeders 313-306P 09/11/08
Page 23
Section 3: Seed Box Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Seed Cup Assembly S/N 378043+
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg21294
3/16 X 1 KEY168-127D1.
GRASS METER SPROCKET202-007D2.
GRASS SEED METER WHEEL COVER202-055D3.
PSN2096 BOLTON TRAY WELD313-340H4.
PS2096 NG CUP SHAFT313-479D5.
ENDPLATE TIE BAR313-646D6.
SCREW HEX SLT10-16X1/2P.THD CT801-002C7.
SCREW SET SQ HD 3/8-16 X 1/2 P801-022C8.
SCREW SET 5/16-18 SKT KP X 3/8801-035C9.
HHCS 5/16-18X3/4 GR5802-007C10.
HHCS 5/16-18X1 1/4 GR5802-010C11.
HFSS 1/4-20X1/2 GR5802-148C12.
HFSS 1/4-20X3/4 GR5802-257C13.
HHCS 5/16-18X5/8802-705C14.
NUT HEX 5/16-18 PLT803-008C15.
NUT HEX WHIZ 1/4-20 PLT803-194C16.
WASHER LOCK SPRING 5/16 PLT804-009C17.
WASHER FLAT 5/16 USS PLT804-010C18.
SPKT 40B19 X 3/4 B W/ KW & SS808-069C19.
SPKT 40B23 3/4B W/KW & SS808-281C20.
CASTING GRASS SEED FEEDER CUP812-054C21.
GASKET GRASS SEED METER WHEEL816-051C22.
BEARING PILLOW BLK PB 3/4W/HSG822-057C23.
BEARING CAST 3/4 - 2 BOLT822-071C24.
09/11/08 PSN2096 Primary Seeders 313-306P 23
Page 24
Land Pride Section 4: Drive
PSN 20 SERIES
Table of Contents Part Number Index
Drive Chains And Chain Cover Assembly
Applies to PSN2096
20623
24 PSN2096 Primary Seeders 313-306P 09/11/08
Page 25
Section 4: Drive Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Drive Chains And Chain Cover Assembly
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20623
KEY 1/4 X 1123-004D1.
LOWER IDLER ARM313-015H2.
LOWER IDLER ARM SUB313-021S3.
PS25120 CHAIN GUARD MTG.-LG.313-182H4.
SCREW SET 5/16-18 SKT KP X 3/8801-035C5.
HFSS 1/4-20X5/8 GR5802-196C6.
HHCS 1/2-20X1 GR5802-240C7.
NUT LOCK 1/2-13 PLT803-019C8.
NUT HEX WHIZ 1/4-20 PLT803-194C9.
WASHER LOCK SPRING 1/2 PLT804-015C10.
WASHER FLAT 1/2 SAE PLT804-016C11.
PIN COTTER 7/64 X 1 LONG805-064C12.
SPKT 40B25 X 1 B W/KW & SS808-038C13.
SPKT 40B17 X 1 BORE W/KW & SS808-159C14.
CHAIN RL #40 X 74 PITCH W/CON809-148C15.
CHAIN #40 57 PITCH W/CON809-215C16.
PSN20 OUTER DRIVE COVER816-370C17.
NO. 40 12T IDLER SPKT.817-025C18.
KNOB 3/8-16 FEMALE THD 2 3/8 OD817-259C19.
09/11/08 PSN2096 Primary Seeders 313-306P 25
Page 26
Land Pride Section 4: Drive
PSN 20 SERIES
Table of Contents Part Number Index
Gearbox (890-282C)
Applies to PSN2096
12056
26 PSN2096 Primary Seeders 313-306P 09/11/08
Page 27
Section 4: Drive Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Gearbox (890-282C)
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg12056
P/T RING SQUARE CUT788051A1.
P/T BUSHING FLANGED780105A2.
P/T WASHER7800723.
P/T WASHER7800904.
P/T SPUR GEAR 19T7782735.
P/T WASHER7801086.
P/T SPUR GEAR 25T778123A7.
P/T SPUR GEAR 30T778124A8.
P/T SPUR GEAR 37T778146A9.
P/T CASE CASTING 910077011910.
P/T SHIFTER & OUTPUT SHAFT77637011.
P/T RETAINING RING INVERTED788078A12.
P/T SHIFT KEY79215913.
P/T SHIFT COLLAR78437114.
P/T SHIFT ROD & FORK ASSY78431215.
P/T SPRING79214216.
P/T BALL 3/8 DIA79213917.
P/T COVER CASTING 9100 4 SPD77213118.
P/T HHCS THD FORMING792073A19.
P/T OUTPUT SHAFT77639720.
P/T SPUR GEAR 12T77821121.
P/T SPUR GEAR 20T778126A22.
P/T SPUR GEAR 25T778127A23.
P/T SPUR GEAR 31T77816324.
P/T SPACER78608825.
P/T SPUR GEAR 36T77831926.
P/T INPUT SHAFT77636827.
P/T RETAINING RING79201728.
P/T WASHER78009529.
P/T RING SQUARE CUT78806930.
P/T PUSHNUT 1/279214531.
Not shown.P/T GREASE TUBE 32 OZ788067B31.
Not shown.P/T ANAEROBIC SEALANT51033431.
09/11/08 PSN2096 Primary Seeders 313-306P 27
Page 28
Land Pride Section 4: Drive
PSN 20 SERIES
Table of Contents Part Number Index
Gearbox And Drive Assembly
Applies to PSN2096
20622
28 PSN2096 Primary Seeders 313-306P 09/11/08
Page 29
Section 4: Drive Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Gearbox And Drive Assembly
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20622
GEARBOX SHIFT HANDLE120-237D1.
KEY 1/4 X 1123-004D2.
PSN20 IDLER PIVOT313-310H3.
PSN20 GEARBOX JACKSHAFT313-554D4.
PSN20 SHIFTER MTG PLT.313-557D5.
SNAP RING EXT F/PEERLESS G.B.800-141C6.
SCREW RD HD 8-32 X 3/8 BRASS801-001C7.
SCREW SET 5/16-18 SKT KP X 3/8801-035C8.
SCR SELF TAPPING 3/8X1801-076C9.
HHCS 5/16-18X1 1/2 GR5802-012C10.
HHCS 1/2-13X3 1/2 GR5802-041C11.
HHCS 1/4-28X3/8 GR5802-300C12.
NUT HEX 5/16-18 PLT803-008C13.
NUT HEX 8-32 BRASS803-035C14.
NUT HEX WHIZ 1/2-13 PLT803-037C15.
WASHER INTERNAL STAR #8 BRASS804-002C16.
WASHER LOCK SPRING 5/16 PLT804-009C17.
WASHER FLAT 1/2 SAE PLT804-016C18.
WASHER FLAT 5/16 SAE PLT804-036C19.
PIN COTTER 1/8 X 1 1/4 PLT805-109C20.
PIN LYNCH 3/16 X 1 9/16 LONG805-240C21.
SPKT 40B19808-054C22.
SPKT 40B33808-055C23.
SPKT 40B15 X 1 B W/KW & SS808-062C24.
SPKT 40B27 X 1 B W/KW & SS808-063C25.
SPKT 40C19 X 36T SPLINE BORE808-157C26.
SPKT 40B12 X 36T SPLINE BORE808-160C27.
CHAIN #40 40 PITCH W/CON809-218C28.
CHAIN #40 50 PITCH W/CON809-219C29.
NO. 40 12T IDLER SPKT.817-025C30.
DRIVE TYPE PLATE, 4 3 2 1819-059C31.
BEARING 2 BOLT CAM LOCK 1 BORE822-073C32.
GEAR BOX890-282C33.
09/11/08 PSN2096 Primary Seeders 313-306P 29
Page 30
Land Pride Section 5: Labels
PSN 20 SERIES
Table of Contents Part Number Index
Label Placement (Part 1)
Applies to PSN2096
20625
30 PSN2096 Primary Seeders 313-306P 09/11/08
Page 31
Section 5: Labels Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Label Placement (Part 1)
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20625
PSN2096 DECAL PACKAGE313-336A
DECAL SLOW MOVING-GALV. BACKED818-055C1.
DECAL FLAG818-190C2.
DECAL AMBER REFLECTOR818-229C3.
DECAL RED REFLECTOR818-230C4.
DECAL DANGER PD GUARD MISS SML818-543C5.
DECAL LP W/TREE 10" - 2 COLOR818-890C6.
DECAL DANGER MOVING PARTS838-111C7.
DECAL PSN2096-BROWN838-301C8.
DECAL PSN20 NATIVE GRASS CHART838-370C9.
09/11/08 PSN2096 Primary Seeders 313-306P 31
Page 32
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index

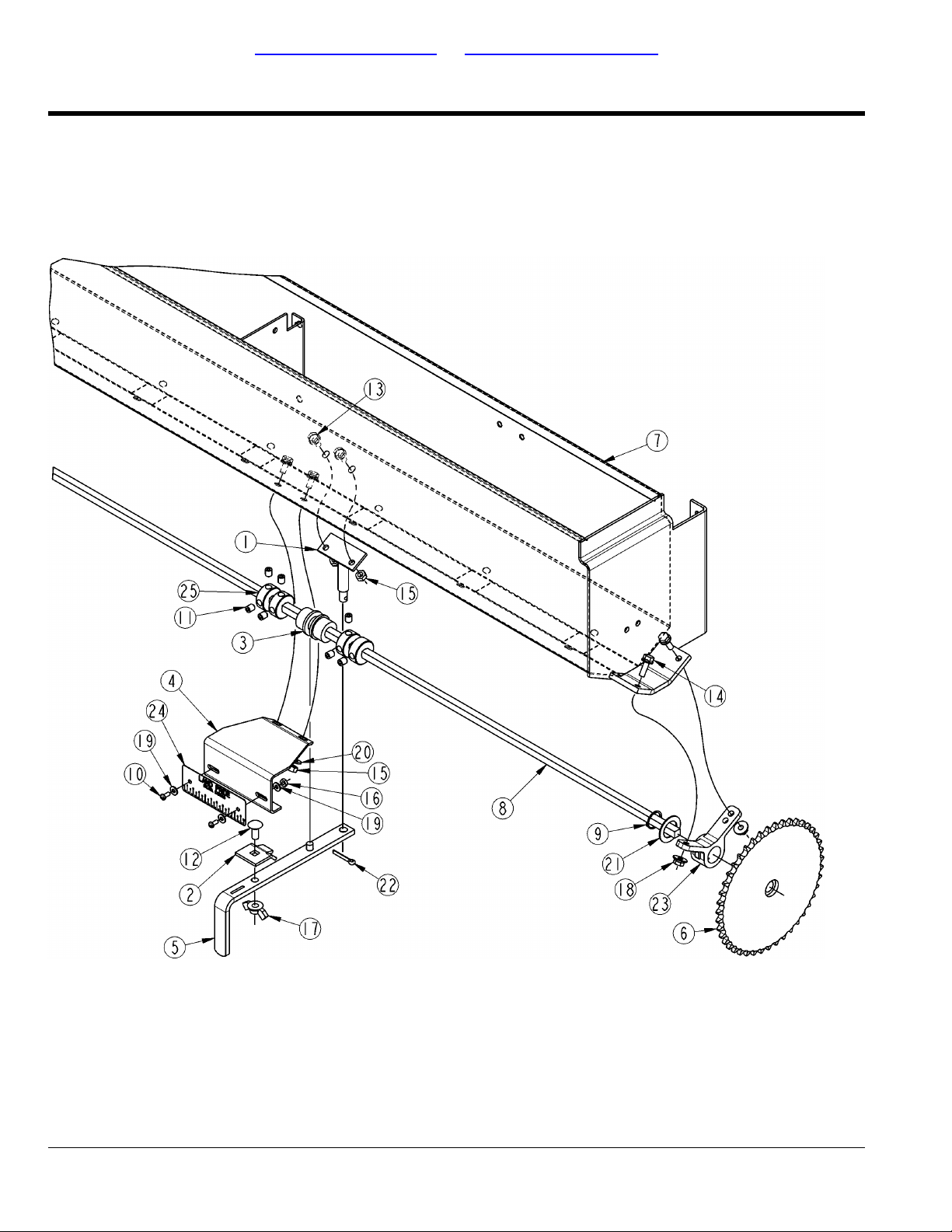

Small Grass Seed - Seed Rate Handle
Applies to PSN2096
20638
32 PSN2096 Primary Seeders 313-306P 09/11/08
Page 33
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Small Grass Seed - Seed Rate Handle
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20638
ADJUSTMENT HANDLE PIVOT123-050H1.
LOCK TAB123-113D2.
SEED ADJUSTMENT SPOOL123-116D3.
GAUGE MOUNTING BRACKET123-410D4.
REAR SEED RATE ADJ HANDLE WLD123-476H5.
SSB BOX DRIVE SPROCKET 43T308-230H6.
PS2096 SGS BOX WELD313-284H7.
PS2096 SGS CUP SHAFT313-506D8.
SNAP RING .875800-028C9.
SCREW RD HD 8-32 X 3/8 BRASS801-001C10.
SCREW SET 5/16-18 SKT KP X 3/8801-035C11.
RHSNB 5/16-18X3/4 GR5802-092C12.
HFSS 1/4-20X1/2 GR5802-148C13.
HFSS 1/4-20X3/4 GR5802-257C14.
NUT HEX 1/4-20 PLT803-006C15.
NUT HEX 8-32 BRASS803-035C16.
NUT WING 5/16-18803-058C17.
NUT HEX LOCK 1/4-20 FLG803-088C18.
WASHER FLAT #8 BRASS804-003C19.
WASHER FLAT 1/4 SAE PLT804-007C20.
WASHER MACH 1.38 X .876 X .048804-044C21.
PIN COTTER 5/32 X 1 PLT805-019C22.
DRIVE SPROCKET HANGER BEARING817-026C23.
NAME PLATE ADJ. GUIDE SHORT819-086C24.
3/8 SHAFT LOCKING COLLAR890-349C25.
09/11/08 PSN2096 Primary Seeders 313-306P 33
Page 34
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index

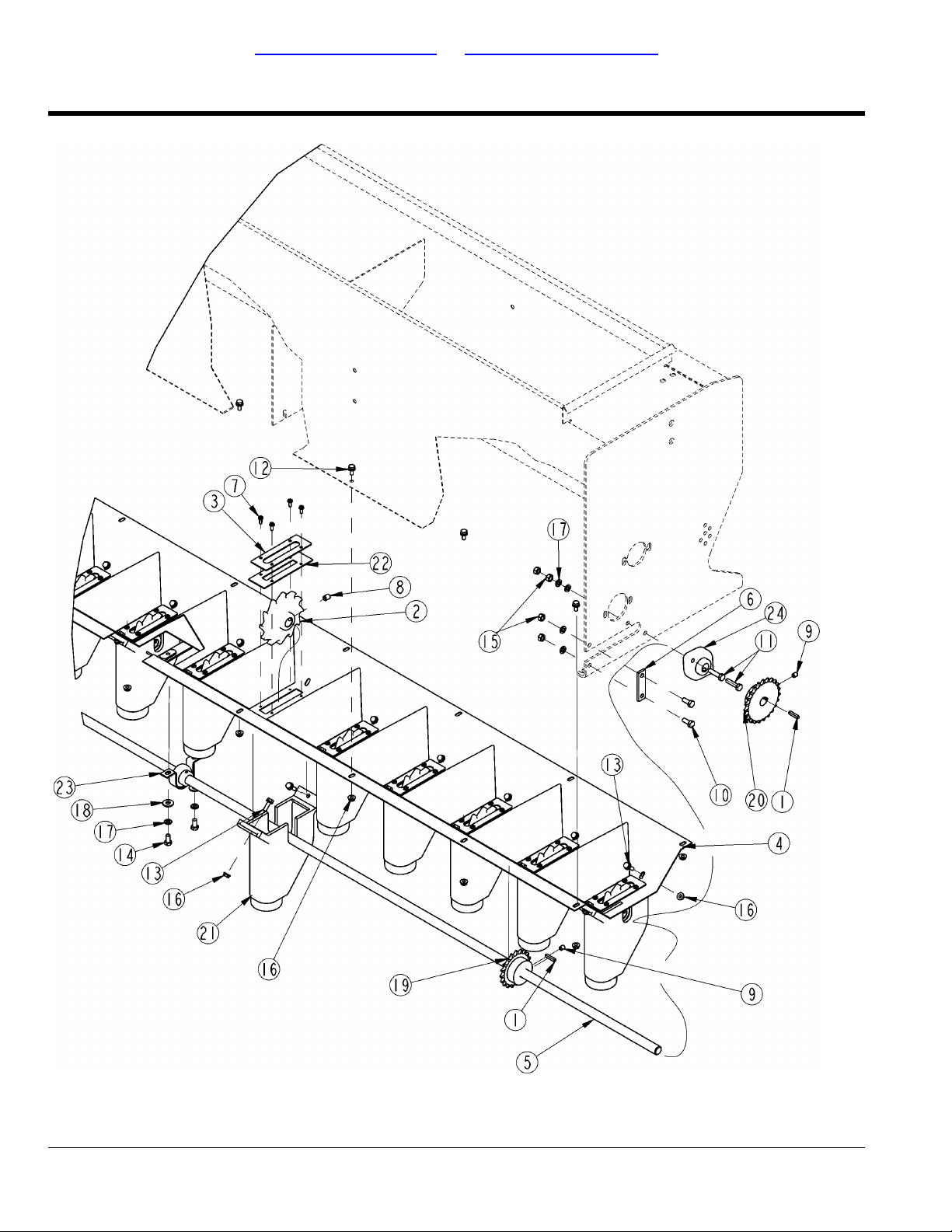

Small Grass Seed Box Assembly
Applies to PSN2096
20626
34 PSN2096 Primary Seeders 313-306P 09/11/08
Page 35
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Small Grass Seed Box Assembly
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20626
10' EWNT SGS LID LATCH123-356D1.
PS2096 SGS BOX WELD313-284H2.
PS2096 SGS LID WELDMENT313-285H3.
PS2096 SGS CUP SHAFT313-506D4.
PS20 SEED DROP HOSE313-631D5.
CLAMP HOSE GRASS SEED800-029C6.
RIVET POP 1/8 .125 AD42BSLF800-101C7.
SCREW RD HD SLT 10-24X1/2 PLT801-003C8.
SCREW SET 5/16-18 SKT KP X 3/8801-035C9.
HHCS 1/4-20X5/8 GR5802-078C10.
HFSS 1/4-20X1/2 GR5802-148C11.
NUT HEX 10-24 PLT803-001C12.
NUT HEX 1/4-20 PLT803-006C13.
NUT LOCK 1/4-20 PLT803-007C14.
WASHER INTERNAL STAR #10 PLT804-004C15.
WASHER FLAT #10 SAE PLT804-046C16.
RUBBER LATCH 37-11-065-10816-112C17.
LATCH KEEPER 37-15-061-17816-113C18.
GRASS SEEDER SLEEVE817-009C19.
GRASS SEEDER SPROCKET817-010C20.
3/8 SHAFT LOCKING COLLAR890-349C21.
SML SEED FEEDER CUP ASSY817-504C22.
09/11/08 PSN2096 Primary Seeders 313-306P 35
Page 36
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index

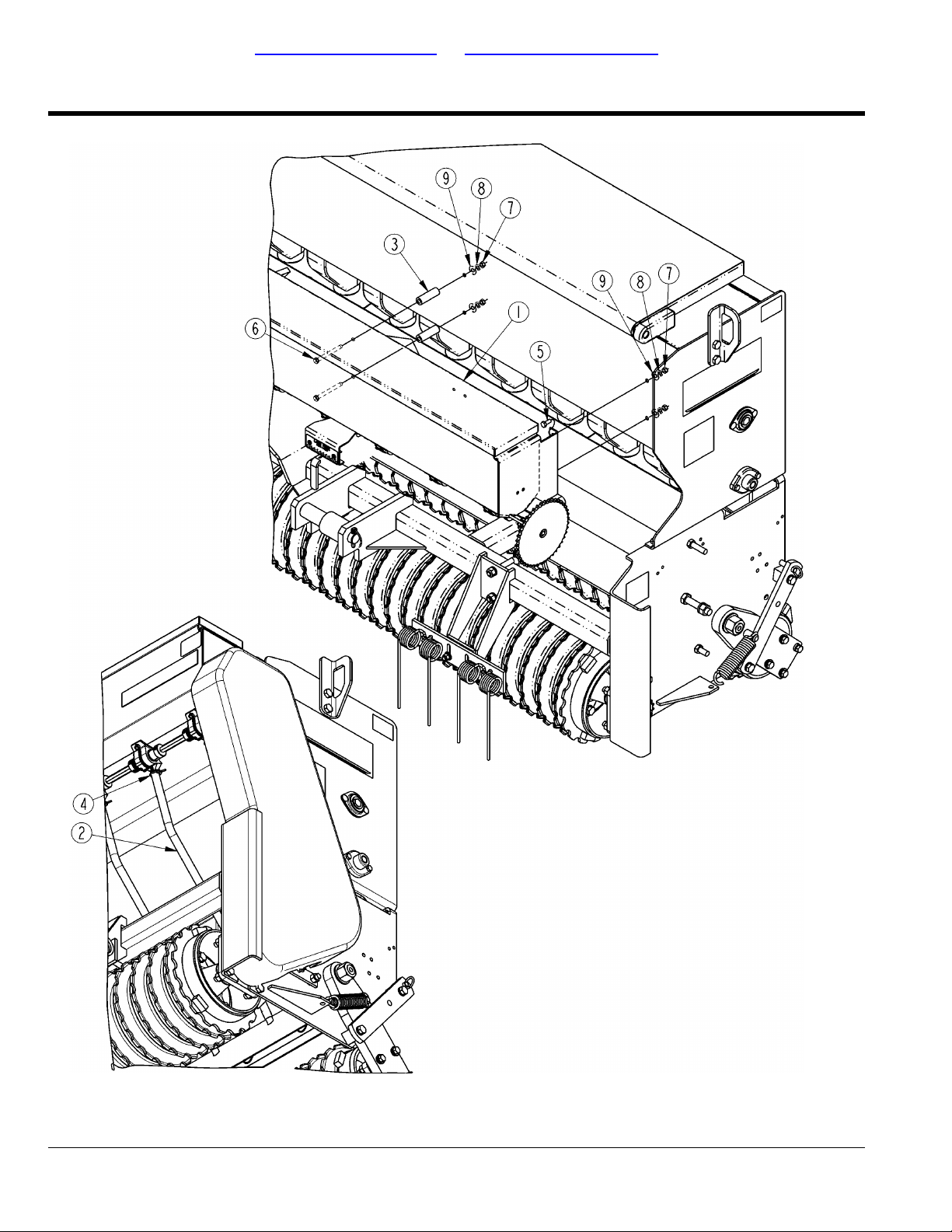

Small Grass Seed Box To Main Box Assembly
Applies to PSN2096
20632
36 PSN2096 Primary Seeders 313-306P 09/11/08
Page 37
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Small Grass Seed Box To Main Box Assembly
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20632
PSN2096 SGS BOX SUB313-286L1.
PS20 SMALL SEED DROP HOSE313-525D2.
SMALL SEED BOX MTG SPACER313-536D3.
CLAMP HOSE GRASS SEED800-029C4.
HHCS 5/16-18X3/4 GR5802-007C5.
HHCS 5/16-18X3 1/4 GR5802-390C6.
NUT HEX 5/16-18 PLT803-008C7.
WASHER LOCK SPRING 5/16 PLT804-009C8.
WASHER FLAT 5/16 USS PLT804-010C9.
09/11/08 PSN2096 Primary Seeders 313-306P 37
Page 38
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index
Small Grass Seed Drive
Applies to PSN2096
20633
38 PSN2096 Primary Seeders 313-306P 09/11/08
Page 39
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Small Grass Seed Drive
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20633
KEY 1/4 X 1123-004D1.
LOWER CHAIN TENSIONER ASSY308-128S2.
LOWER IDLER ARM SUB313-021S3.
SPEED CHANGE SPACER313-029D4.
PS25120 CHAIN GUARD MTG.-LG.313-182H5.
REDUCTION SPROCKET ASSY313-317K6.
HFSS 1/4-20X5/8 GR5802-196C7.
NUT HEX 1/2-13 PLT803-020C8.
NUT HEX 5/8-11 PLT803-021C9.
NUT HEX WHIZ 1/4-20 PLT803-194C10.
WASHER LOCK SPRING 5/8 PLT804-022C11.
SPKT 40B15 X 1 B W/KW & SS808-062C12.
CHAIN #40 82 PITCH W/CON809-223C13.
CHAIN #40 118 PITCH W/CON809-224C14.
PSN SGS DRIVE COVER816-374C15.
KNOB 3/8-16 FEMALE THD 2 3/8OD817-259C16.
DRIVE IDLER ARM308-107H17.
WASHER FLAT 1/2 SAE PLT804-016C18.
PIN COTTER 7/64 X 1 LONG805-064C19.
NO. 40 12T IDLER SPKT.817-025C20.
REDUCTION SPROCKET WELD313-318H21.
SNAP RING INT 1.812800-070C22.
BEARING 204 DOUBLE SEAL DD822-067C23.
LOWER IDLER ARM313-015H24.
WASHER FLAT 1/2 SAE PLT804-016C25.
PIN COTTER 7/64 X 1 LONG805-064C26.
09/11/08 PSN2096 Primary Seeders 313-306P 39
Page 40
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index
Small Grass Seed Label Placement
Applies to PSN2096
20630
40 PSN2096 Primary Seeders 313-306P 09/11/08
Page 41
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Small Grass Seed Label Placement
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20630
PSN2096 SGS DECAL PACKAGE313-337A
DECAL AMBER REFLECTOR818-229C1.
DECAL DANGER PD GUARD MISS SML818-543C2.
DECAL DANGER MOVING PARTS838-111C3.
DECAL PSN2096-BROWN838-301C4.
DECAL DISENGAGE DRIVE838-340C5.
DECAL PS20 SMALL SEED CHART838-372C6.
09/11/08 PSN2096 Primary Seeders 313-306P 41
Page 42
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index

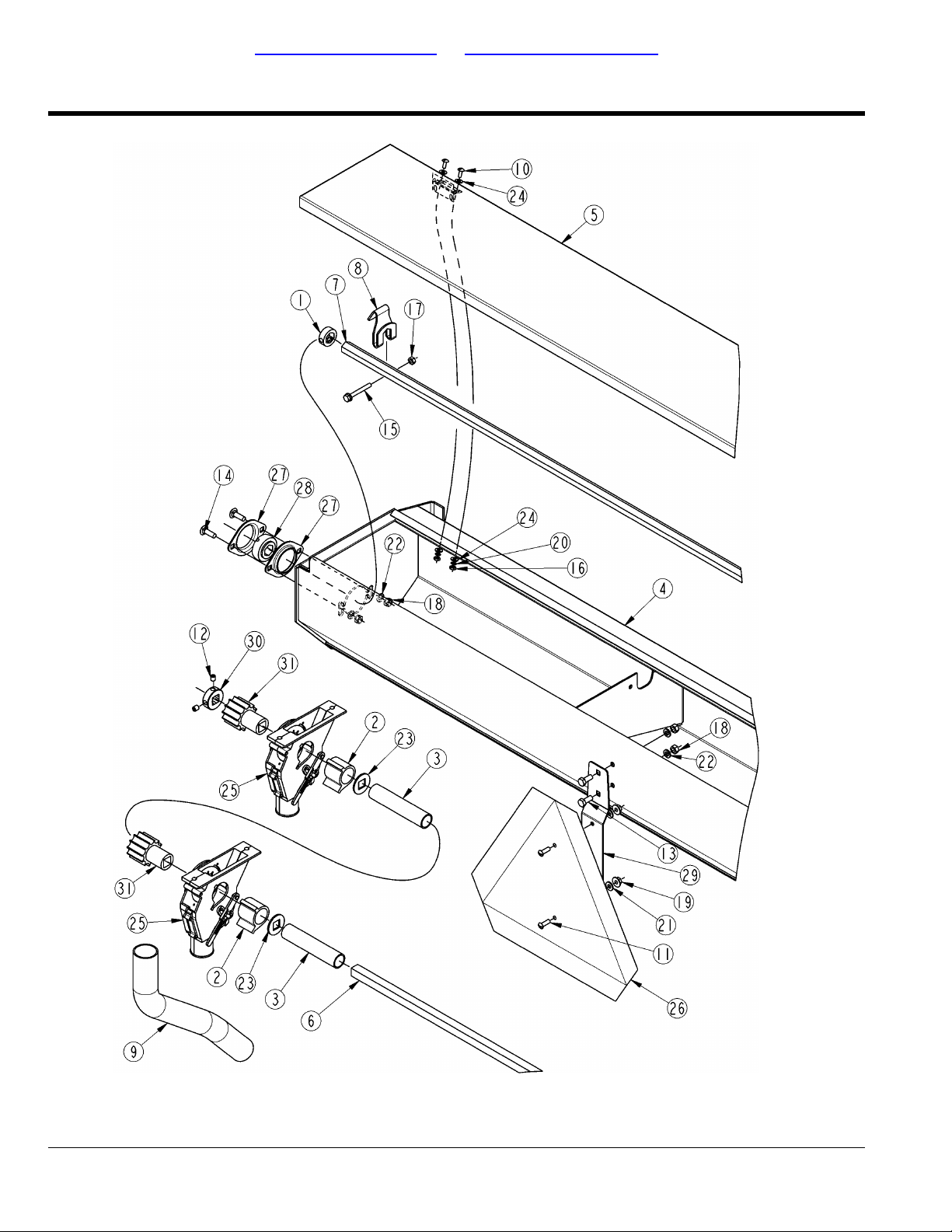

Standard Seed Box And Seed Cup Assembly
Applies to PSN2096
20629
42 PSN2096 Primary Seeders 313-306P 09/11/08
Page 43
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Standard Seed Box And Seed Cup Assembly
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20629
LOCK COLLAR 3/4 HEX BORE118-494D1.
CUP SLEEVE308-022D2.
SPACER TUBE 4.991308-253D3.
PS2096 STD SEED BOX WELD313-287H4.
PS2096 STD SEED BOX LID WELD313-289H5.
PS2096 STD SEED CUP SHAFT313-498D6.
PS2096 HEX AGIATOR STD SEED313-521D7.
PS20 STD SEED AGIATOR PADDLE313-522D8.
PS20 STD SEED HOSE313-535D9.
SCREW RD HD SLT 10-24X1/2 PLT801-003C10.
SCREW RD HD 1/4-20 X 5/8801-018C11.
SCREW SET 5/16-18 SKT KP X 3/8801-035C12.
HHCS 5/16-18X3/4 GR5802-007C13.
RHSNB 5/16-18X1 GR5802-282C14.
HFSS 1/4-20X2 GR5802-448C15.
NUT HEX 10-24 PLT803-001C16.
NUT LOCK 1/4-20 PLT803-007C17.
NUT HEX 5/16-18 PLT803-008C18.
NUT HEX LOCK 1/4-20 FLG803-088C19.
WASHER INTERNAL STAR #10 PLT804-004C20.
WASHER FLAT 1/4 SAE PLT804-007C21.
WASHER LOCK SPRING 5/16 PLT804-009C22.
WASHER RETAINING804-031C23.
WASHER FLAT #10 SAE PLT804-046C24.
SEED CUP ASSEMBLY-1 1/4817-094C25.
DECAL SLOW MOVING-GALV. BACKED818-055C26.
FLANGETTE 47 MST822-041C27.
BEARING 3/4HEX B 47MM SPHER OD822-128C28.
SMV MOUNTING BLADE890-153C29.
5/8 SHAFT LOCKING COLLAR890-350C30.
SPROCKET SHORT POWDERED METAL890-595C31.
09/11/08 PSN2096 Primary Seeders 313-306P 43
Page 44
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index
Standard Seed Box Assembly
Applies to PSN2096
20627
44 PSN2096 Primary Seeders 313-306P 09/11/08
Page 45
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Standard Seed Box Assembly
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20627
LOCK COLLAR 3/4 HEX BORE118-494D1.
CUP DRIVE BRG. HOUSING176-006D2.
CUP DRIVE BRG HOUSING ASSY176-031V3.
33 T DRIVE SPROCKET ASSEMBLY308-036S4.
SPKT 40A33 X .630 SQ BORE808-247C5.
PS2096 STD SEED BOX WMT313-287H6.
STD SEED BOX LID WMT313-289H7.
PS2096 STD SEED CUP SHAFT313-498D8.
PS2096 HEX AGIATOR STD SEED313-521D9.
PS20 STD SEED AGIATOR PADDLE313-522D10.
SNAP RING EXT BASIC 1.880800-004C11.
RING FC HOUSING800-005C12.
RIVET POP 1/8 .125 AD42BSLF800-101C13.
SCREW RD HD SLT 10-24X1/2 PLT801-003C14.
HHCS 1/4-20X3/4 GR5802-004C15.
HHCS 1/2-13X3/4 GR5802-032C16.
RHSNB 5/16-18X1 GR5802-282C17.
HFSS 1/4-20X2 GR5802-448C18.
NUT HEX 10-24 PLT803-001C19.
NUT LOCK 1/4-20 PLT803-007C20.
NUT HEX 5/16-18 PLT803-008C21.
NUT HEX WHIZ 1/4-20 PLT803-194C22.
WASHER INTERNAL STAR #10 PLT804-004C23.
WASHER LOCK SPRING 5/16 PLT804-009C24.
WASHER FLAT 5/16 USS PLT804-010C25.
WASHER LOCK SPRING 1/2 PLT804-015C26.
WASHER FLAT #10 SAE PLT804-046C27.
PIN ROLL 3/16 X 1 3/4 PLT.805-076C28.
SPKT 40B14 X 3/4 HEX BORE808-167C29.
RUBBER LATCH 37-11-065-10816-112C30.
LATCH KEEPER 37-15-061-17816-113C31.
SEED CUP ASSEMBLY-1 1/4817-094C32.
WASHER FLAT 1/2 SAE PLT804-016C33.
FLANGETTE 47 MST822-041C34.
BRG BALL 1.18IDX2.44OD 206PP822-059C35.
BRG INS 3/4HEXX1.85OD SPH822-128C36.
09/11/08 PSN2096 Primary Seeders 313-306P 45
Page 46
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index
Standard Seed Box Drive
Applies to PSN2096
20635
46 PSN2096 Primary Seeders 313-306P 09/11/08
Page 47
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Standard Seed Box Drive
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20635
SPEED CHG SPROCKET ASSEMBLY308-041K1.
SPEED CHANGE SPACER313-029D2.
PS25120 CHAIN GUARD MTG.-LG.313-182H3.
STDSEED IDLER PIVOT313-313H4.
HFSS 1/4-20X5/8 GR5802-196C5.
HHCS 1/2-13X1 GR5802-258C6.
NUT LOCK 1/2-13 PLT803-019C7.
NUT HEX 5/8-11 PLT803-021C8.
NUT HEX JAM 1/2-13 PLT803-036C9.
NUT HEX WHIZ 1/4-20 PLT803-194C10.
WASHER FLAT 1/2 SAE PLT804-016C11.
WASHER LOCK SPRING 5/8 PLT804-022C12.
PIN COTTER 7/64 X 1 LONG805-064C13.
SPKT 40B17 X 1 BORE W/KW & SS808-159C14.
RL. CHAIN #40 X 72 PITCHES809-094C15.
CHAIN #40 150 PITCH W/CON809-222C16.
PSN20 STDSEED GUARD816-373C17.
NO. 40 12T IDLER SPKT.817-025C18.
KNOB 3/8-16 FEMALE THD 2 3/8OD817-259C19.
OVERSEEDER SPEED CHANGE SPRKT308-024H20.
SNAP RING INT 1.812800-070C21.
BEARING 204 DOUBLE SEAL DD822-067C22.
09/11/08 PSN2096 Primary Seeders 313-306P 47
Page 48
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index

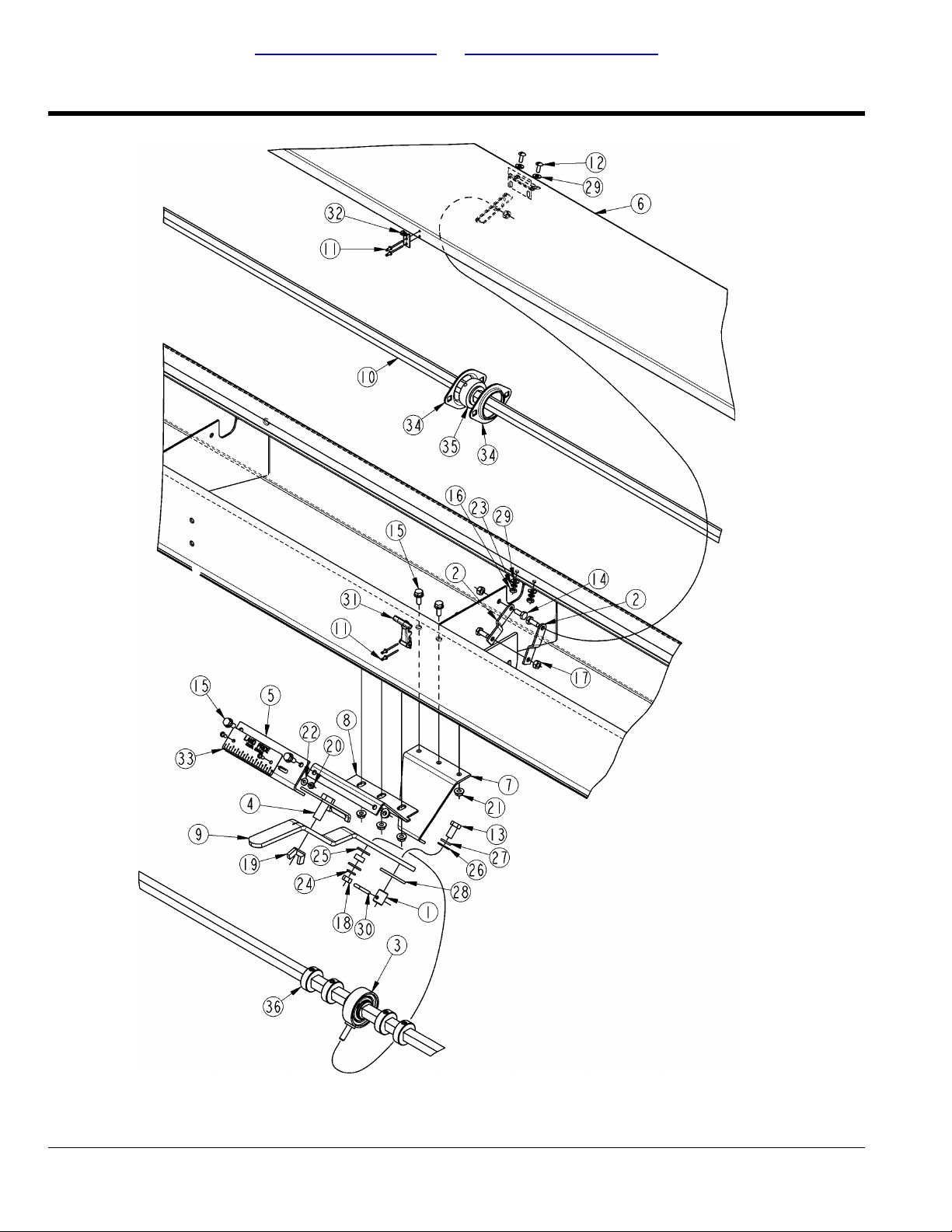

Standard Seed Box Seed Rate Adjusment Handle
Applies to PSN2096
20628
48 PSN2096 Primary Seeders 313-306P 09/11/08
Page 49
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Standard Seed Box Seed Rate Adjusment Handle
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20628
ADJUSTMENT HANDLE PIVOT109-069D1.
10' EWNT SGS LID LATCH123-356D2.
COLAR ADJUSTMENT ASY308-004S3.
OS ADJ LOCK PLATE ASSY 1 1/2 W308-334H4.
SEED GAUGE PLT. MTG313-056D5.
PS2096 STD SEED BOX LID WELD313-289H6.
PS20 NG PIVOT MTG-ADJ HANDLE313-499D7.
PS20 NG GAUGE MTG PLATE313-500D8.
PS20 STD SEED ADJ HANDLE313-501D9.
PS2096 HEX AGIATOR STD SEED313-521D10.
RIVET POP 1/8 .125 AD42BSLF800-101C11.
SCREW RD HD SLT 10-24X1/2 PLT801-003C12.
HHCS 3/8-16X3/4 GR5802-014C13.
HHCS 1/4-20X5/8 GR5802-078C14.
HFSS 1/4-20X5/8 GR5802-196C15.
NUT HEX 10-24 PLT803-001C16.
NUT LOCK 1/4-20 PLT803-007C17.
NUT HEX 5/16-18 PLT803-008C18.
NUT WING 1/2-13 PLT803-016C19.
NUT HEX 8-32 BRASS803-035C20.
NUT HEX WHIZ 1/4-20 PLT803-194C21.
WASHER FLAT #8 BRASS804-003C22.
WASHER INTERNAL STAR #10 PLT804-004C23.
WASHER LOCK SPRING 5/16 PLT804-009C24.
WASHER FLAT 5/16 USS PLT804-010C25.
WASHER FLAT 3/8 SAE PLT804-012C26.
WASHER LOCK SPRING 3/8 PLT804-013C27.
WASHER FLAT 5/8 USS PLT804-019C28.
WASHER FLAT #10 SAE PLT804-046C29.
PIN COTTER 3/16 X 1 1/4 PLT805-016C30.
RUBBER LATCH 37-11-065-10816-112C31.
LATCH KEEPER 37-15-061-17816-113C32.
NAME PLATE ADJ. GUIDE SHORT819-086C33.
FLANGETTE 47 MST822-041C34.
BEARING 3/4 HEX B 47MM SPHER OD822-128C35.
5/8 SHAFT LOCKING COLLAR890-350C36.
09/11/08 PSN2096 Primary Seeders 313-306P 49
Page 50
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index
Standard Seed Box To Main Box Assembly
Applies to PSN2096
20634
50 PSN2096 Primary Seeders 313-306P 09/11/08
Page 51
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Standard Seed Box To Main Box Assembly
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20634
PS2096 STD SEED BOX SUB313-288L1.
STD SEED BOX MTG SPACER313-537D2.
STDSEED MOUNT BAR313-566D3.
HHCS 5/16-18X2 1/4 GR5802-138C4.
HHCS 5/16-18X1 GR5802-159C5.
NUT HEX 5/16-18 PLT803-008C6.
WASHER LOCK SPRING 5/16 PLT804-009C7.
WASHER FLAT 5/16 USS PLT804-010C8.
09/11/08 PSN2096 Primary Seeders 313-306P 51
Page 52
Land Pride Section 6: Optional Boxes
PSN 20 SERIES
Table of Contents Part Number Index
Standard Seed Label Placement
Applies to PSN2096
20631
52 PSN2096 Primary Seeders 313-306P 09/11/08
Page 53
Section 6: Optional Boxes Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Standard Seed Label Placement
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20631
PSN2096 STDSEED DECAL PACKAGE313-338A
DECAL SLOW MOVING-GALV. BACKED818-055C1.
DECAL RED REFLECTOR818-230C2.
DECAL DANGER PD GUARD MISS SML818-543C3.
DECAL OS/PS1572 SEED RATE818-869C4.
DECAL LP W/TREE 10" - 2 COLOR818-890C5.
DECAL DISENGAGE DRIVE838-340C6.
09/11/08 PSN2096 Primary Seeders 313-306P 53
Page 54
Land Pride Section 7: Pull Package
PSN 20 SERIES
Table of Contents Part Number Index
Hydraulic Arrangement
Applies to PSN2096
21447
54 PSN2096 Primary Seeders 313-306P 09/11/08
Page 55
Section 7: Pull Package Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Hydraulic Arrangement
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg21447
NUT HEX 3/8-16 PLT803-014C1.
PIN COTTER 3/16 X 1 3/4 PLT805-017C2.
PIN, HAIR COTTER 3/16 WIRE DIA805-088C3.
PIN CLEVIS 1 X 3 1/8 GR5 PLT805-159C4.
SPRING HOSE LOOP807-023C5.
CYL 4X14X1.25 ROD (TIE)NO PINS810-001C6.
VALVE BALL 3/8 NPT 90 DEGREES810-076C7.
EL 9/16 MJIC 1/2MNPT811-134C8.
AD 9/16MJIC 3/8MNPT811-151C9.
ORAD 3/32 1/2FNPT 1/2MNPT811-161C10.
EL 3/8MNPT 1/2MNPT811-213C11.
CP 3/4FORB MALE QD811-394C12.
HH3/8R2 096 9/16FJIC 3/4MORB811-789C13.
09/11/08 PSN2096 Primary Seeders 313-306P 55
Page 56
Land Pride Section 7: Pull Package
PSN 20 SERIES
Table of Contents Part Number Index
Hydraulic Cylinder 810-001C
Applies to PSN2096
21451
56 PSN2096 Primary Seeders 313-306P 09/11/08
Page 57
Section 7: Pull Package Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Hydraulic Cylinder 810-001C
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg21451
CYL 4X14X1.25 ROD (TIE)NO PINS810-001C
*
MW CLEVIS, STD DUTY W/BUSHINGS1M60161.
MW ROD 1-1/4 DIA X 14 STROKE2M64742.
MW HEAD3R57083.
MW PISTON4M61084.
MW TUBE 4 X 14 CYLINDER5M61225.
BASE MIDWAY6R51406.
MW TIE ROD 4 X 14 CYLINDER7M63227.
Not Included W/ CylinderPIN CLEVIS 1 X 3 1/8 GR5 PLT805-159C8.
Not Included W/ CylinderPIN COTTER 3/16 X 1 3/4 PLT805-017C9.
Included with CylinderMW WIPERN/A10.
Included with CylinderMIDWAY O-RINGN/A11.
Included with CylinderMIDWAY BACKUP RINGN/A12.
Included with CylinderMW O-RING TUBEN/A13.
Included with CylinderMW BACK UP TUBEN/A14.
MW PISTON NUT 1-142A002415.
MW TIE ROD NUT2A001816.
MW NUT CLEVIS & TIE ROD2A001217.
HHCS 3/8-16X1 3/4 GR5802-023C18.
Not Included W/ CylinderPIN, HAIR COTTER 3/16 WIRE DIA805-088C19.
CYL SEAL KIT 4 X 14 MW 5A6102810-013C20.
09/11/08 PSN2096 Primary Seeders 313-306P 57
Page 58
Land Pride Section 7: Pull Package
PSN 20 SERIES
Table of Contents Part Number Index
Label Placement (Part 2)
Applies to PSN2096
21450
58 PSN2096 Primary Seeders 313-306P 09/11/08
Page 59
Section 7: Pull Package Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Label Placement (Part 2)
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg21450
DECAL CAUTION CYLINDER LOCK PS818-336C1.
DECAL WARNING 20 MPH TRANS SML818-337C2.
DECAL DANGER CRUSHING TWO IMP818-714C3.
DECAL CAUTION PINCH POINT HAZ.818-866C4.
DECAL LP W/TREE 10" - 3 COLOR818-892C5.
DECAL WARNING HYD PRESS LONG838-094C6.
DECAL NEGATIVE TONGUE WEIGHT838-386C7.
09/11/08 PSN2096 Primary Seeders 313-306P 59
Page 60
Land Pride Section 7: Pull Package
PSN 20 SERIES
Table of Contents Part Number Index
Transport Axle
Applies to PSN2096
21444
60 PSN2096 Primary Seeders 313-306P 09/11/08
Page 61
Section 7: Pull Package Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Transport Axle
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg21444
TIRE/WHEEL ASSY 9.5LX15 12 PLY102-006K1.
HUB GREASE CAP200-001D2.
PULL HITCH AXLE WELDMENT313-335H3.
AXLE SPINDLE SHAFT313-610D4.
GREASE ZERK 1/4-28 THD FORMING800-080C5.
HHCS 1/2-13X3 1/4 GR5802-099C6.
BOLT WHEEL 1/2-20X1 90-DEG802-104C7.
HHCS 1 1/4-7X 6 1/2 GR5 PLT802-717C8.
NUT LOCK 1/2-13 PLT803-019C9.
NUT HEX SLOTTED 7/8-14 PLT803-029C10.
NUT HEX 1 1/4-7 NYLON INSERT803-081C11.
WASHER SPINDLE - 7/8804-055C12.
PIN COTTER 5/32 X 1 3/4 LG805-246C13.
WHEEL 8 X 15 X 6 BOLT814-008C14.
TIRE 9.5L X 15-12 PLY-TUBELESS814-009C15.
HUB 6 BOLT 4 5/8 PILOT 3600 LB815-077C16.
HUB 6 BOLT 4 5/8 PILOT W/ CUPS815-082C17.
SEAL 2.56X1.625X.438 CR16289816-011C18.
VALVE STEM TR415X.625X1 1/4 LG816-035C19.
BEARING CONE LM-29749822-018C20.
BEARING CONE LM-67048822-021C21.
BUSH1 1/2ODX1 1/4IDX1 1/4LG GG890-340C22.
09/11/08 PSN2096 Primary Seeders 313-306P 61
Page 62
Land Pride Section 7: Pull Package
PSN 20 SERIES
Table of Contents Part Number Index
Transport Frame
Applies to PSN2096
21433
62 PSN2096 Primary Seeders 313-306P 09/11/08
Page 63
Section 7: Pull Package Land Pride
Table of Contents Part Number Index
PSN 20 SERIES
Transport Frame
Applies to PSN2096
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg21433
LOCK HANDLE WELDMENT124-016H1.
SPRING LEVER WELDMENT124-017H2.
PIN LOCK WELDMENT124-018H3.
PULL HITCH SAFETY CHAIN WASHER124-116D4.
CLEVIS WELDMENT312-421H5.
PULL HITCH FRAME WELD313-320H6.
CONNECTING TUBE ASSY313-325H7.
ADJUST CLEVIS WELD313-326H8.
UPPER CONNECT TUBE WELD313-327H9.
UPPER ADJUSTABLE LINK313-328K10.
PIN LOCK PIVOT313-629D11.
HHCS 1-8X6 1/2 GR5802-074C12.
HHCS 1-8X4 1/2 GR5802-098C13.
HHCS 1-8X4 GR5 FTHD802-181C14.
NUT HEX 1-8 PLT803-031C15.
NUT HEX JAM 1 1/4-7 PLT803-032C16.
NUT HEX 1-8 NYLON INSERT PLT803-038C17.
WASHER LOCK SPRING 1 PLT804-027C18.
WASHER FLAT 1 USS PLT804-028C19.
PIN CLEVIS 1 X 2 3/4 USABLE LG805-004C20.
PIN SPIROL 1/2X2 1/2 PLAIN805-037C21.
PIN ROLL 1/4 X 1 PLATED805-044C22.
PIN, HAIR COTTER 3/16 WIRE DIA805-088C23.
SPRING LEVER807-007C24.
SCREW JACK 2000# 14-24 TOP-WND890-118C25.
SAFETY CHAIN 10000 LB890-182C26.
09/11/08 PSN2096 Primary Seeders 313-306P 63
Page 64
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
61102-006K ...................
49109-069D ...................
13, 15, 17, 43, 45118-494D ...................
29120-237D ...................
7, 25, 29, 39123-004D ...................
33123-050H ...................
33123-113D ...................
33123-116D ...................
35, 49123-356D ...................
33123-410D ...................
33123-476H ...................
63124-016H ...................
63124-017H ...................
63124-018H ...................
63124-116D ...................
21, 23168-127D ...................
45176-006D ...................
45176-031V ...................
13, 15179-021D ...................
13, 15179-022D ...................
571M6016 .....................
61200-001D ...................
21, 23202-007D ...................
13, 23202-055D ...................
13, 15, 17202-185D ...................
15, 17202-192D ...................
572A0012 ......................
572A0018 ......................
572A0024 ......................
572M6474 .....................
7300-202S ...................
7300-429D ...................
7300-431D ...................
49308-004S ...................
43308-022D ...................
47308-024H ...................
45308-036S ...................
47308-041K ...................
39308-107H ...................
39308-128S ...................
11308-180D ...................
13, 15, 17308-193D ...................
33308-230H ...................
43308-253D ...................
49308-334H ...................
7308-360D ...................
17308-392D ...................
17308-393D ...................
13, 15, 17308-394D ...................
63312-421H ...................
7313-006H ...................
9313-009H ...................
9313-014H ...................
9313-015D ...................
25, 39313-015H ...................
7313-018D ...................
17313-019H ...................
25, 39313-021S ...................
17313-024S ...................
11313-027H ...................
11313-028A ...................
39, 47313-029D ...................
9313-035D ...................
9313-039H ...................
9313-050D ...................
49313-056D ...................
11313-060D ...................
9313-063S ...................
17313-104S ...................
7313-168D ...................
25, 39, 47313-182H ...................
17313-186D ...................
7, 9313-243H ...................
7313-253H ...................
7313-254S ...................
9313-255S ...................
9313-256H ...................
19313-269D ...................
13313-279H ...................
13, 15313-280H ...................
33, 35313-284H ...................
35313-285H ...................
37313-286L ...................
43, 45313-287H ...................
51313-288L ...................
43, 45, 49313-289H ...................
29313-310H ...................
47313-313H ...................
39313-317K ...................
39313-318H ...................
63313-320H ...................
63313-325H ...................
63313-326H ...................
63313-327H ...................
63313-328K ...................
61313-335H ...................
31313-336A ...................
41313-337A ...................
53313-338A ...................
23313-340H ...................
15, 17313-341H ...................
13, 15, 17313-475D ...................
21, 23313-479D ...................
13, 15, 17313-487D ...................
43, 45313-498D ...................
49313-499D ...................
49313-500D ...................
49313-501D ...................
33, 35313-506D ...................
43, 45, 49313-521D ...................
43, 45313-522D ...................
37313-525D ...................
21313-526D ...................
43313-535D ...................
37313-536D ...................
51313-537D ...................
29313-554D ...................
7313-556D ...................
29313-557D ...................
51313-566D ...................
61313-610D ...................
63313-629D ...................
35313-631D ...................
15, 17313-643D ...................
23313-646D ...................
17313-672D ...................
17313-673D ...................
573R5708 ......................
574M6108 .....................
27510334 ......................
575M6122 .....................
576R5140 ......................
27770119 ......................
27772131 ......................
27776368 ......................
27776370 ......................
27776397 ......................
27778123A ....................
27778124A ....................
27778126A ....................
801-035C ...................
802-007C ...................
27778127A ....................
27778146A ....................
27778163 ......................
27778211 ......................
27778273 ......................
27778319 ......................
27780072 ......................
27780090 ......................
27780095 ......................
27780105A ....................
27780108 ......................
27784312 ......................
27784371 ......................
27786088 ......................
27788051A ....................
27788067B ....................
27788069 ......................
27788078A ....................
27792017 ......................
27792073A ....................
27792139 ......................
27792142 ......................
27792145 ......................
27792159 ......................
577M6322 .....................
45800-004C ...................
45800-005C ...................
33800-028C ...................
35, 37800-029C ...................
39, 47800-070C ...................
61800-080C ...................
35, 45, 49800-101C ...................
29800-141C ...................
9800-316C ...................
29, 33801-001C ...................
23801-002C ...................
13, 35, 43, 45, 49801-003C ...................
19, 43801-018C ...................
13, 15, 17801-021C ...................
21, 23801-022C ...................
13, 15, 17801-024C ...................
13, 15, 17, 21,
23, 25, 29, 33,
35, 43
29801-076C ...................
21, 45802-004C ...................
7802-005C ...................
13, 15, 17, 19,
23, 37, 43
15, 21, 23802-010C ...................
29802-012C ...................
19802-013C ...................
49802-014C ...................
19802-017C ...................
11802-022C ...................
57802-023C ...................
45802-032C ...................
9802-034C ...................
9802-038C ...................
7802-039C ...................
29802-041C ...................
63802-074C ...................
35, 49802-078C ...................
7802-082C ...................
7802-091C ...................
15, 17, 33802-092C ...................
63802-098C ...................
61802-099C ...................
61802-104C ...................
51802-138C ...................
803-001C ...................
803-008C ...................
803-020C ...................
803-194C ...................
804-004C ...................
804-009C ...................
804-010C ...................
804-015C ...................
7, 9802-143C ...................
23, 33, 35802-148C ...................
11802-155C ...................
21, 51802-159C ...................
63802-181C ...................
25, 39, 47, 49802-196C ...................
7, 25802-240C ...................
23, 33802-257C ...................
13, 15, 17, 47802-258C ...................
13, 15, 17, 43, 45802-282C ...................
29802-300C ...................
9802-315C ...................
37802-390C ...................
17802-411C ...................
13, 15, 17, 43, 45802-448C ...................
19802-630C ...................
23802-705C ...................
61802-717C ...................
13, 15, 17, 35,
43, 45, 49
19, 21, 33, 35803-006C ...................
35, 43, 45, 49803-007C ...................
13, 15, 17, 19,
21, 23, 29, 37,
43, 45, 49, 51
13, 15803-011C ...................
7, 9, 11, 19, 55803-014C ...................
9803-015C ...................
49803-016C ...................
7, 9, 25, 47, 61803-019C ...................
7, 11, 13, 15, 17,
39
39, 47803-021C ...................
61803-029C ...................
63803-031C ...................
63803-032C ...................
29, 33, 49803-035C ...................
47803-036C ...................
29803-037C ...................
9, 63803-038C ...................
33803-058C ...................
61803-081C ...................
13, 15, 17803-084C ...................
33, 43803-088C ...................
17803-177C ...................
21, 23, 25, 39,
45, 47, 49
17803-209C ...................
7, 13, 15, 17803-255C ...................
29804-002C ...................
33, 49804-003C ...................
13, 15, 17, 35,
43, 45, 49
19, 21804-006C ...................
33, 43804-007C ...................
13, 15, 17, 19,
21, 23, 29, 37,
43, 45, 49, 51
13, 21, 23, 37,
45, 49, 51
11, 49804-012C ...................
7, 9, 11, 19, 49804-013C ...................
9804-014C ...................
7, 9, 11, 13, 15,
17, 25, 45
25, 29, 39, 45, 47804-016C ...................
49804-019C ...................
39, 47804-022C ...................
63804-027C ...................
63804-028C ...................
64 PSN2096 Primary Seeders 313-306P 09/11/08
Page 65
Table of Contents Part Number Index
Part Number Index (continued)
PagePart Number
9804-029C ...................
43804-031C ...................
13, 15, 17, 29804-036C ...................
9804-041C ...................
33804-044C ...................
35, 43, 45, 49804-046C ...................
61804-055C ...................
13, 15, 17804-056C ...................
7804-075C ...................
63805-004C ...................
9805-010C ...................
7805-015C ...................
49805-016C ...................
55, 57805-017C ...................
33805-019C ...................
63805-037C ...................
63805-044C ...................
25, 39, 47805-064C ...................
45805-076C ...................
55, 57, 63805-088C ...................
29805-109C ...................
55, 57805-159C ...................
29805-240C ...................
61805-246C ...................
11806-010C ...................
63807-007C ...................
55807-023C ...................
11807-044C ...................
9807-050C ...................
25808-038C ...................
29808-054C ...................
29808-055C ...................
29, 39808-062C ...................
29808-063C ...................
21, 23808-069C ...................
29808-157C ...................
7, 25, 47808-159C ...................
29808-160C ...................
45808-167C ...................
13, 15, 17808-185C ...................
45808-247C ...................
21, 23808-281C ...................
47809-094C ...................
25809-148C ...................
25809-215C ...................
29809-218C ...................
29809-219C ...................
47809-222C ...................
39809-223C ...................
39809-224C ...................
55, 57810-001C ...................
57810-013C ...................
55810-076C ...................
55811-134C ...................
55811-151C ...................
55811-161C ...................
55811-213C ...................
55811-394C ...................
55811-789C ...................
21, 23812-054C ...................
7812-056C ...................
9812-133C ...................
61814-008C ...................
61814-009C ...................
61815-077C ...................
61815-082C ...................
61816-011C ...................
61816-035C ...................
13, 23816-051C ...................
35, 45, 49816-112C ...................
35, 45, 49816-113C ...................
822-041C ...................
822-128C ...................
PagePart Number
25816-370C ...................
47816-373C ...................
39816-374C ...................
7816-504C ...................
35817-009C ...................
35817-010C ...................
25, 29, 39, 47817-025C ...................
33817-026C ...................
13, 15, 17817-033C ...................
43, 45817-094C ...................
25, 39, 47817-259C ...................
13, 15817-443C ...................
19817-457C ...................
35817-504C ...................
19817-505C ...................
19817-506C ...................
19, 31, 43, 53818-055C ...................
31818-190C ...................
31, 41818-229C ...................
31, 53818-230C ...................
59818-336C ...................
59818-337C ...................
31, 41, 53818-543C ...................
59818-714C ...................
59818-866C ...................
53818-869C ...................
31, 53818-890C ...................
59818-892C ...................
29819-059C ...................
33, 49819-086C ...................
7822-004C ...................
61822-018C ...................
61822-021C ...................
13, 15, 17, 43,
45, 49
21, 23822-057C ...................
45822-059C ...................
39, 47822-067C ...................
21, 23822-071C ...................
29822-073C ...................
9822-085C ...................
13, 15, 17, 43,
45, 49
59838-094C ...................
31, 41838-111C ...................
31, 41838-301C ...................
41, 53838-340C ...................
31838-370C ...................
41838-372C ...................
59838-386C ...................
63890-118C ...................
19, 43890-153C ...................
63890-182C ...................
29890-282C ...................
61890-340C ...................
33, 35890-349C ...................
43, 49890-350C ...................
43890-595C ...................
7890-789C ...................
27dwg12056 ..................
7dwg20618 ..................
9dwg20619 ..................
13dwg20620 ..................
21dwg20621 ..................
29dwg20622 ..................
25dwg20623 ..................
19dwg20624 ..................
31dwg20625 ..................
35dwg20626 ..................
45dwg20627 ..................
49dwg20628 ..................
PagePart Number
43dwg20629 ..................
41dwg20630 ..................
53dwg20631 ..................
37dwg20632 ..................
39dwg20633 ..................
51dwg20634 ..................
47dwg20635 ..................
11dwg20637 ..................
33dwg20638 ..................
15dwg21293 ..................
23dwg21294 ..................
63dwg21433 ..................
61dwg21444 ..................
55dwg21447 ..................
59dwg21450 ..................
57dwg21451 ..................
17dwg25986 ..................
57N/A ............................
09/11/08 PSN2096 Primary Seeders 313-306P 65
Page 66
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
