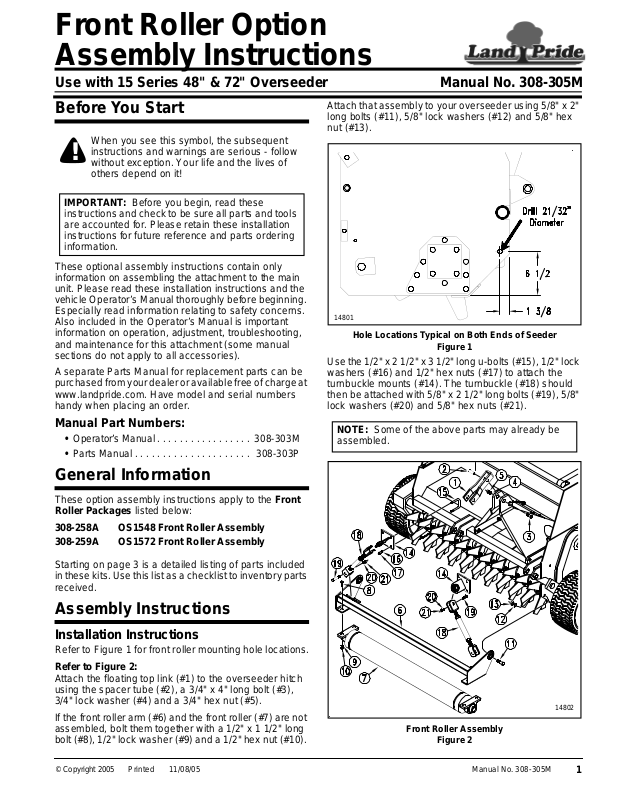

Front Roller Option
Assembl y Instructions

Use with 15 Series 48" & 72" Overseeder

Before You Start

When you see this symbol, the subsequent
instructions and warnings are serious - follow

!

without exception. Your life and the lives of
others depend on it!

IMPORTANT: Before you begin, read these
instructions and check to be sure all parts and tools
are accounted for. Please retain these installation
instructions for future reference and parts ordering
information.

These optional assembly instructions contain only
information on assembling the attachment to the main
unit. Please read these installation instructions and the
vehicle Operator’s Manual thoroughly before beginning.
Especially read information relating to safety concerns.
Also included in the Operator’s Manual is important
information on operation, adjustment, troubleshooting,
and maintenance for this attachment (some manual
sections do not apply to all accessories).

A separate Parts Manual for replacement parts can be
purchasedfromyourdealer oravailable freeof chargeat
www.landpride.com. Have model and serial numbers
handy when placing an order.

Manual No. 308-305M

Attach that assembly to your overseeder using 5/8" x 2"
long bolts (#11), 5/8" lock washers (#12) and 5/8" hex
nut (#13).

14801

Hole Locations Typical on Both Ends of Seeder

Figure 1

Use the1/2" x 2 1/2" x 3 1/2"long u-bolts (#15), 1/2"lock
washers (#16) and 1/2" hex nuts (#17) to attach the
turnbuckle mounts (#14). The turnbuckle (#18) should
then be attached with 5/8" x 2 1/2" long bolts (#19), 5/8"
lock washers (#20) and 5/8" hex nuts (#21).

Manual Part Numbers:

• Operator’sManual . . . . . . . . . . . . . . . . . 308-303M

• Parts Manual . . . . . . . . . . . . . . . . . . . . . 308-303P

General Information

These option assembly instructions apply to the Front
Roller Packages listed below:

308-258A OS1548 Front Roller Assembly
308-259A OS1572 Front Roller Assembly

Starting on page 3 is a detailed listing of parts included
in these kits. Usethis listas a checklistto inventoryparts
received.

Assembly Instructions

Installation Instructions

Refer to Figure 1 for front roller mounting hole locations.

Refer to Figure 2:

Attach the floating top link (#1) to the overseeder hitch
using the spacer tube (#2), a 3/4" x 4" long bolt (#3),
3/4" lock washer (#4) and a 3/4" hex nut (#5).

If the front roller arm (#6) and the front roller (#7) are not
assembled, bolt them together with a 1/2" x 1 1/2" long
bolt (#8), 1/2" lock washer (#9) and a 1/2" hex nut (#10).

NOTE: Some of the above parts may already be
assembled.

14802

Front Roller Assembly

Figure 2

© Copyright 2005 Printed

11/08/05

Manual No. 308-305M

1

Assembly Instructions

Refer to Figure 3:

Turnbuckle Mount should be Spaced 7 11/16" from inside edge
of end plates as shown.

NOTE: Although a 48" model Overseeder is shown,

dimensions will remain the same on a 72" model

.

Land Pride

12883

Turnbuckle Locations Typical on Both Ends of Seeder

Figure 3

Manual No. 308-305M 11/08/05

2

■
