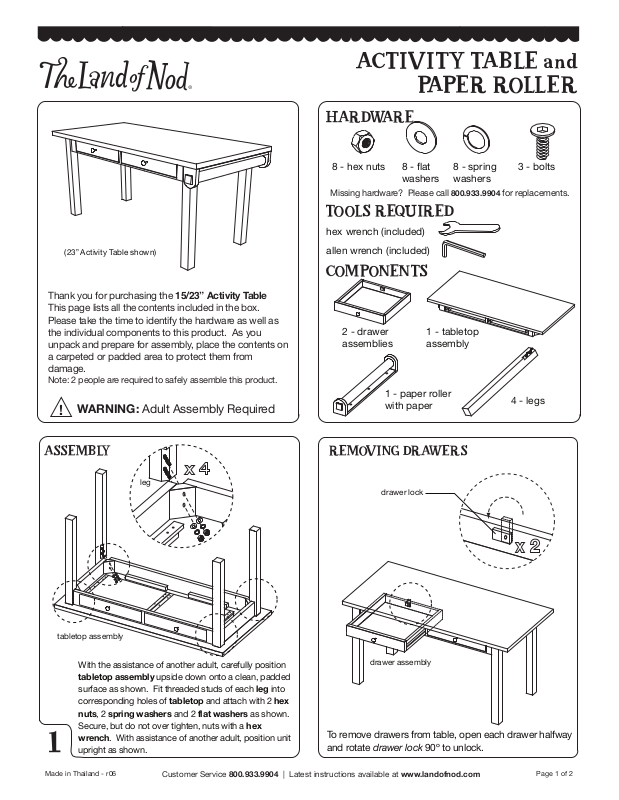

Page 1
ACTIVITY TABLE and
HARDWARE
PAPER ROLLER
8 - hex nuts 8 - flat
washers
Missing hardware? Please call 800.933.9904 for replacements.
8 - spring
washers
TOOLS REQU IRED
hex wrench (included)
(23” Activity Table shown)
allen wrench (included)
COMPONENTS
Thank you for purchasing the 15/23” Activity Table
This page
Please take the time to identify the hardware as well as
the individual components
unpack and prepare for assembly, place the contents on
a carpeted or padded area to protect them from
damage.
Note: 2 people are required to safely assemble this product.
!
ASSEMBLY REMOVING DRAWERS
lists all the contents included in the box.
to this product. As you
WARNING: Adult Assembly Required
2 - drawer
assemblies
1 - tabletop
assembly
1 - paper roller
with paper
3 - bolts
4 - legs
leg
drawer lock
tabletop assembly
With the assistance of another adult, carefully position
tabletop assembly upside down onto a clean, padded
surface as shown. Fit threaded studs of each leg into
corresponding holes of tabletop and attach with 2 hex
nuts, 2 spring washers and 2 flat washers as shown.
Secure, but do not over tighten, nuts with a hex
wrench. With assistance of another adult, position unit
1
Made in Thailand - r06 Page 1 of 2
upright as shown.
Customer Service 800.933.9904 | Latest instructions available at www.landofnod.com
To remove drawers from table, open each drawer halfway
and rotate drawer lock 90º to unlock.
drawer assembly
Page 2
NOTE: Paper ships on
roller and must be
removed for assembly
A
knob
B
rod
C
paper
ACTIVITY TABLE and
PAPER ROLLER
Activity Table
paper roller
paper roller
A) Unscrew knobs from paper roller. Turn
counter-clockwise to remove.
B) Pull-out rod from paper roller.
C) Remove paper from paper roller. Set paper
aside until further instructions.
2
rod
paper
3
Attach paper roller to Activity table with 3 bolts
as shown. Secure, but do not over tighten, bolts
with an allen wrench.
knob
Attach 2 knobs to paper roller. Turn each knob
4
Insert paper between roller sides and insert
rod as shown.
5
clockwise to secure.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners. Do not use furniture wax or polish as the
unit is finished with a protective clear lacquer.
Made in Thailand - r06 Page 2 of 2
Customer Service 800.933.9904 | Latest instructions available at www.landofnod.com
