Page 1
V 05/2018

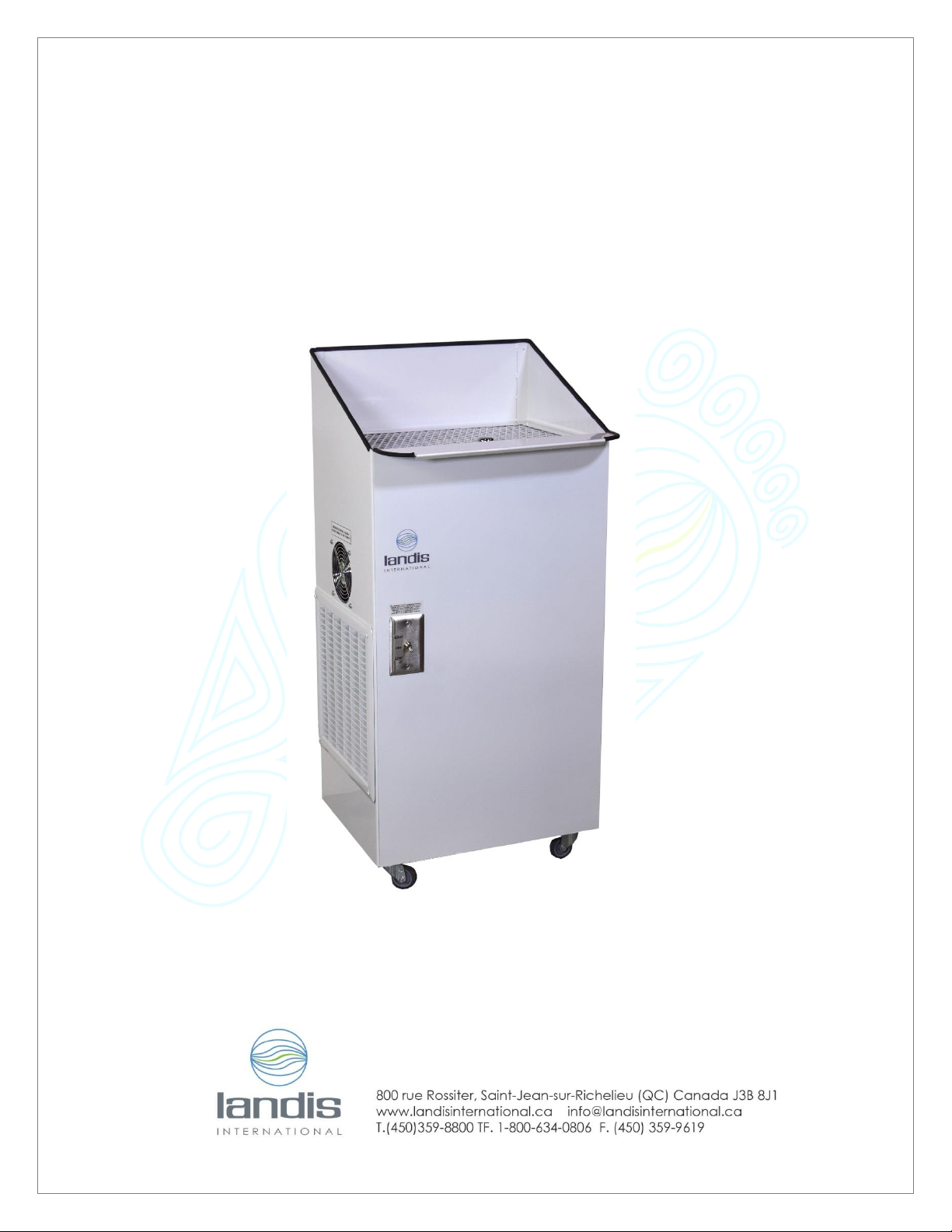

Landis Fume Buster
Space Saver
(SKU: FB19)
Operator Manual
Manufactured by
Page 2
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 2
INTRODUCTION
BEFORE USING THE LANDIS FUME BUSTER, BE AWARE OF THE
FOLLOWING SAFETY RULES:
WARNING: For your own safety, read operating instructions manual before
operating tool.
BE AWARE BEFORE INSTALLATION
•
Do not operate any fan with a damaged cord or plug. Discard fan or return to
authorized service facility for examination and/or repair.
•
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furnitures or appliances. Arrange cord
away from traffic area and where it will not be tripped over.
•
This machine is not designed to filter metalic, non metalic dust, paint or dyes, only
air.
WARNING: All electrical work must be performed by a qualified electrician
and must conform to all state and local ordinances.
BE PREPARED FOR JOB
•
Wear proper apparel. Do not wear loose clothing, gloves, neckties, ring, bracelets or
other jewelry which may get caught in moving parts of machine.
•
Wear protective hair covering to contain long hair.
•
Wear safety shoes with non-slip soles.
•
Wear safety glasses. Everyday glasses have only impact resistant lenses. They are
NOT safety glasses.
•
Wear face mask or dust mask if operation is dusty.
•
Be alert and think clearly. Never operate power tools when tired, intoxicated or with
medication that cause drowsiness.
The Landis Space Saver Fume Buster is a compact, durable machine designed to remove toxic airborn
chemicals and odors from your work environment. It will deliver efficient, dependable service when used
correctly and with care. As with any pieces of specialized equipment, for best performance the
manufacturer’s instructions must be followed.
Page 3
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 3
PREPARE WORK AREA FOR JOB
•
Keep work area clean. Cluttered work areas and work benches invite
accidents.
•
Do not use power tools in dangerous environments. Do not use power
tools in damp or wet locations. Do not expose power tools to rain.
•
Work area should be properly lighted.
•
Proper electrical plug should be plugged directly into properly grounded,
three-prong receptacle.
•
Keep visitors at safe distance from work area.
•
Keep children out of the workplace. Make workshop childproof.
TOOL SHOULD BE MAINTAINED
•
Always unplug tool prior to inspection.
•
Consult manual for specific maintaining and adjusting procedures.
•
Keep tool clean for safest operation.
•
Remove adjusting tools. Form habit of checking to see that adjusting tools
are removed before turning machine on.
•
Keep all parts in working order. Check to determine that the guard or other
parts will operate properly and perform their intended function.
•
Check for damaged parts. Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting and any other condition that
may affect a tool’s operation.
•
A guard or other part that is damaged should be properly repaired or
replaced. Do not perform makeshift repairs. (Use the parts list to order
replacement parts.)
•
Do not move the fume buster by pulling the power cord.
Page 4
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 4
DESCRIPTION
The Landis Fume Buster is specifically designed to remove toxic air born
chemicals and odors from your work environment. Two configurations are
available: vented or filtered with activated charcoal.
UNPACKING
Check for shipping damage. If damage has occurred, a claim must be filed with
the carrier immediately. Check for completeness. Immediately report missing
parts to dealer.
SPECIFICATIONS
Horsepower 0.75
Voltage 115
Amperes 3.8
Hertz 60
Phase Single
RPM 1625/1175
OPERATING THE LANDIS FUME BUSTER
WARNING: Eye protection should always be worn by the operator and
others in the work area.
INSTALLATION
The Landis Fume Buster should be located on a flat, firm surface, in area free of
obstructions that could interfere with the safe operation of the equipment. The left
side of the machine should be 100 mm (4’’) distance from the wall.
Page 5
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 5
START-UP INSTRUCTIONS
Before starting the Fume Buster, remove the charcoal filter, look inside the
machine and remove all packaging around the black charcoal filter. Do not forget
to take out the wooden piece. Put back the filter in place, throw away the plastic
bag.
You can now safely start up the Fume Buster
The switch controls the two speed setting (High and Low). Use the High speed
when working on the machine. The Low speed could be used to filter the air in
the room.
REPLACEMENT OF CHARCOAL FILTERS
WARNING:
•
Disconnect the Fume Buster before servicing or changing filter
•
When installing the new prefilter make sure that the arrows on the
side are going down, floor direction.

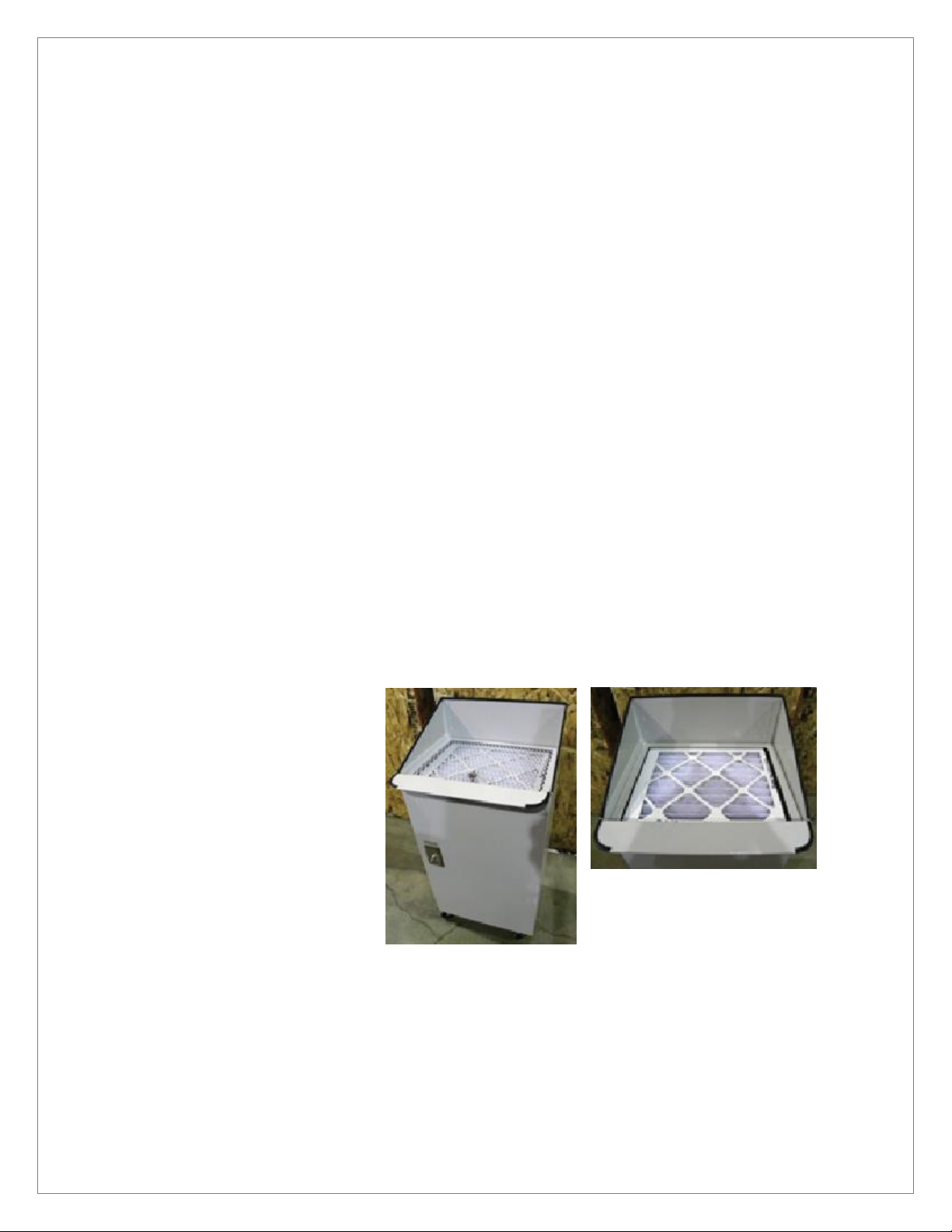

1. Take off the grill.
2. Take out the prefilters.
Note:
•
To avoid a fast contamination of the charcoal, you should change the
prefilters each month.
Page 6
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 6
REPLACEMENT OF CHARCOAL
WARNING: When pouring the new charcoal inside the filter be sure to
shake the housing throroughly in order to compact the charcoal. The
housing must be filled completely for maximum effiency.

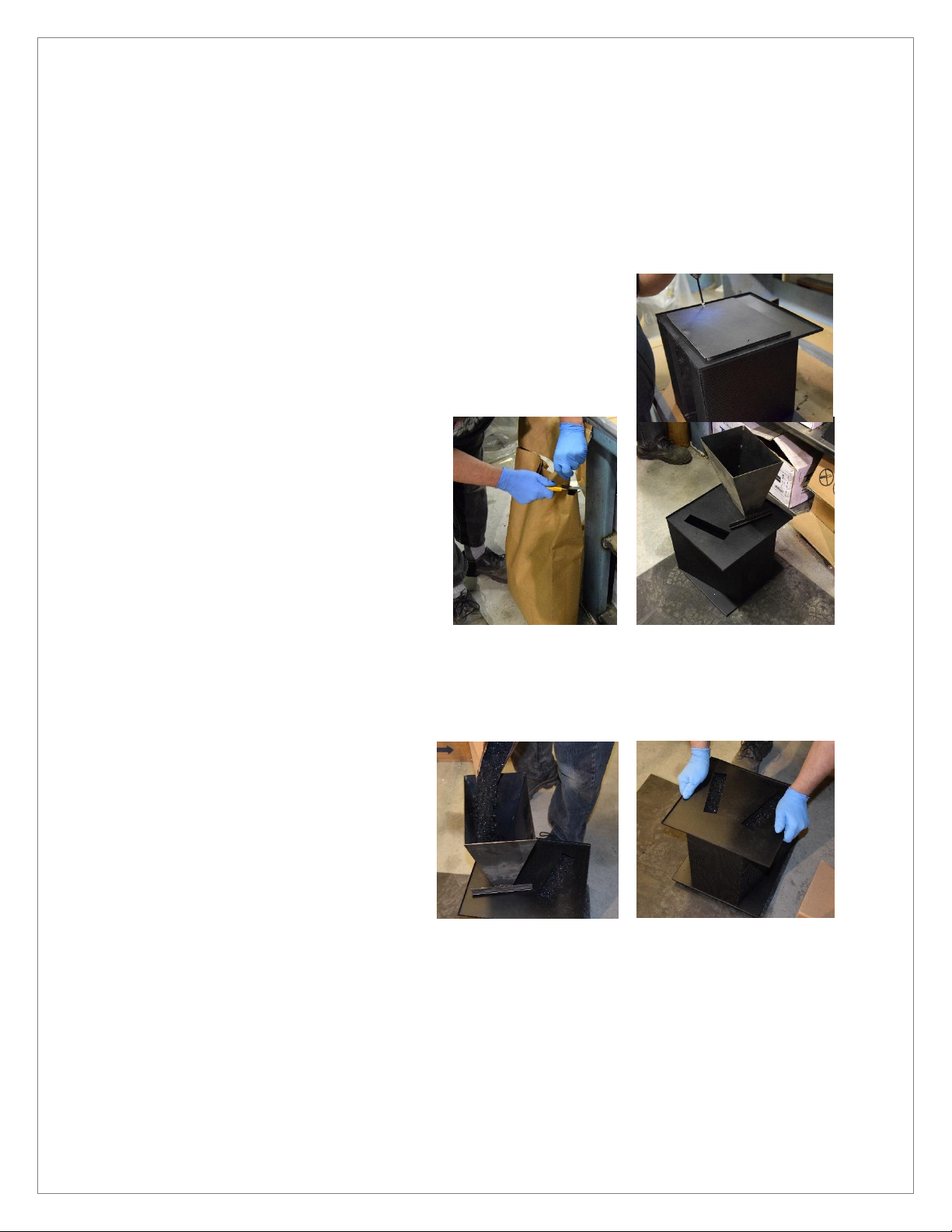

1. The charcoal is inside the black metal canister.
Tilt the canister to the left. Pull it out.
2. To replace the charcoal inside the black metal
container, you must open the door located on the side
of the filter. There are two screws retaining this door.
Remove the black door and the
old charchoal.
3. Open the charchoal bag (SKU:
CNS188) and install the funnel
on one of the two openings
(SKU: ENTFB01). Wear gloves
to avoid getting dirty.
Note:
The charcoal comes in a bag of 25 lbs (CNS188). You need 12.5 lbs for 1 metal
canister. Close the bag tightly for the next fill.

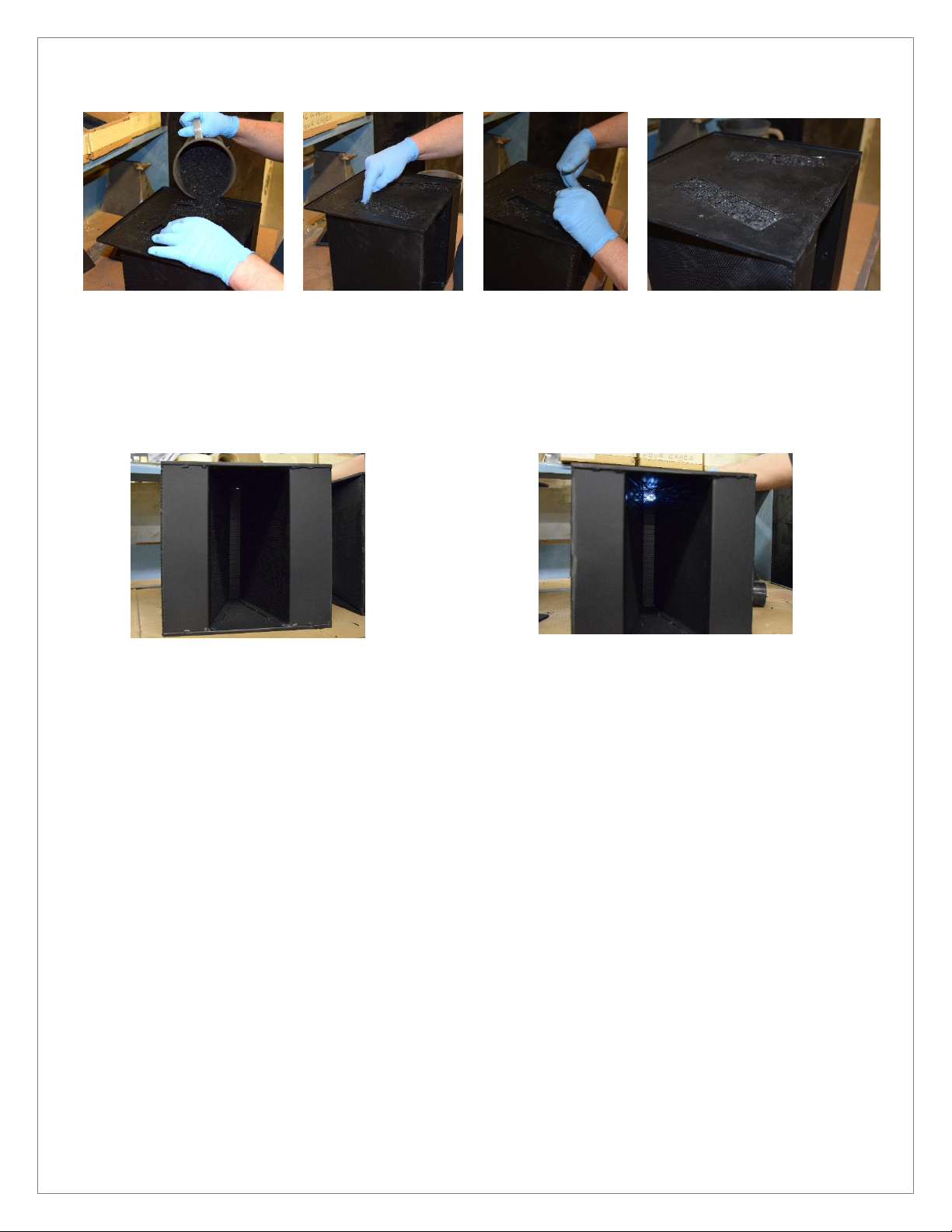

1. Fill out the canister with the
new charchoal. Shake the
canister to spread the
charchoal everywhere.
2. It is very important to fill completely the canister up to the edge. You can use
yours fingers to push the charchoal each sides of the openings. Replace the
black door with the two screws.
Page 7
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 7
Note:
You are sure that the charcoal is well packed inside the filter when you can’t see
the light passing throught the metal container.
Correct
Not correct
Page 8
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 8
GROUNDING INSTRUCTIONS
WARNING: Improper connection of equipement grounding conductor can
result in the risk of electrical shock. Equipment should be grounded while
in use to protect operator from electrical shock.
•
Check with a qualifed electrician if grounding instruction are not
understood or if in doubt as to whether the tool is properly grounded.
•
This grinder is equiped with an approved 3-conductor cord rated at 115V
and a 3-prong, grounding type plug (see figure 1) for your protection
against shock hazards.

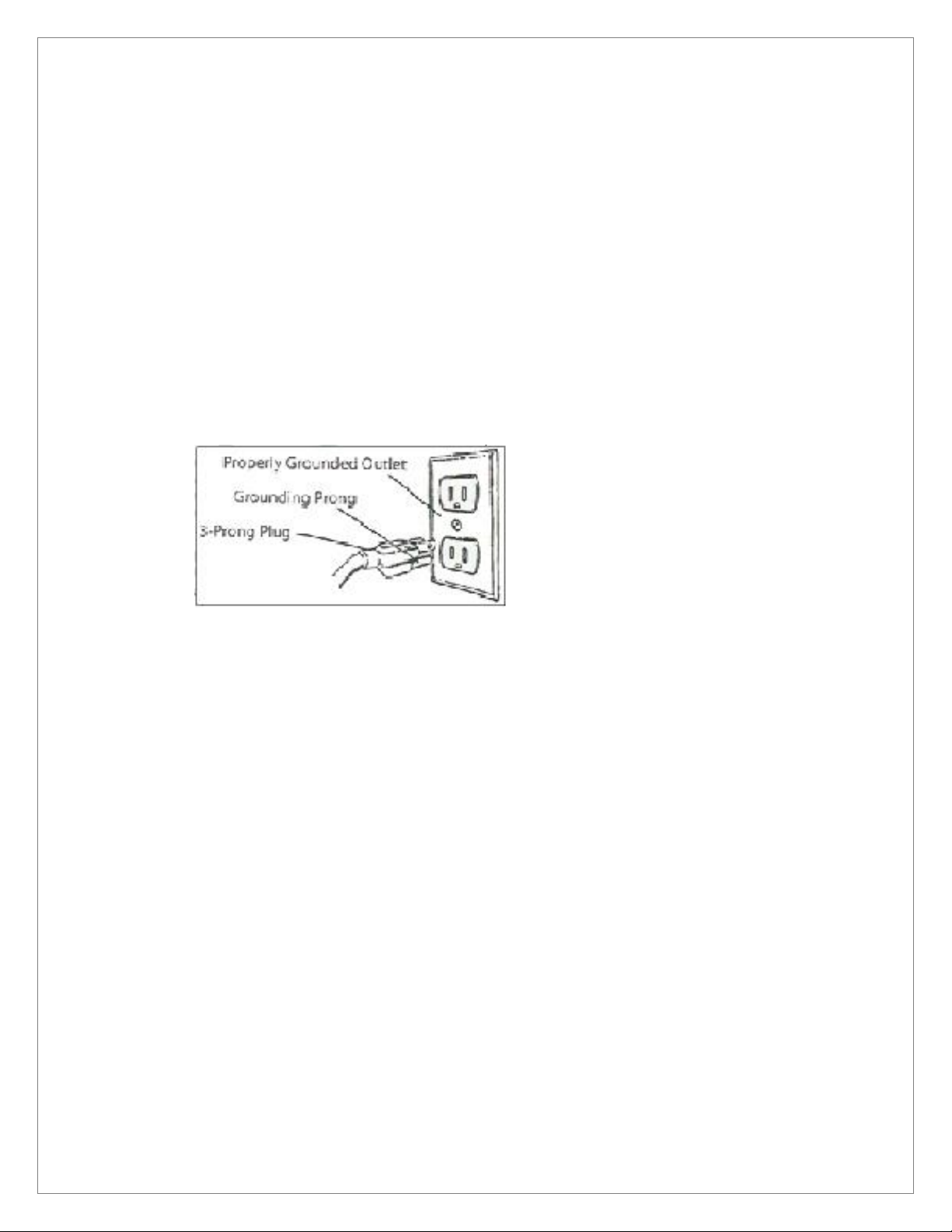

Figure 1 - 3-Prong Receptacle
•
Grounding plug should be plugged directly into a properly installed and
grounded 3-prong grounding-type receptacle (see figure 1).
•
Do not remove or alter grounding prong in any manner. In the event of a
malfunction or breakdown, grounding provides a path of least resistance
for electrical shock.
WARNING: Do not permit fingers to touch the terminals of plug when
installing or removing from outlet.
•
Plug must be plugged into matching outlet that is properly installed and
grounded in accordance with all local codes and ordinances. Do not
modify plug provided. If it will not fit in outlet, have proper outlet installed
by a qualified electrician.
•
Inspect tool cords periodically, and, if damaged, have repaired by an
authorized service facility.
Page 9
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 9
•
Green (or green and yellow) conductor in cord is the grounding wire. If
repair or replacement of the electric cord or plug is necessary, do not
connect the green (or green and yellow) wire to a live terminal.
•
Where a 2-prong wall receptacle is encountered, it must be replaced with
a properly grounded 3-prong receptacle installed in accordance with
National Electric Code and local codes and ordinances.
WARNING: This work should be performed by a qualified electrician.

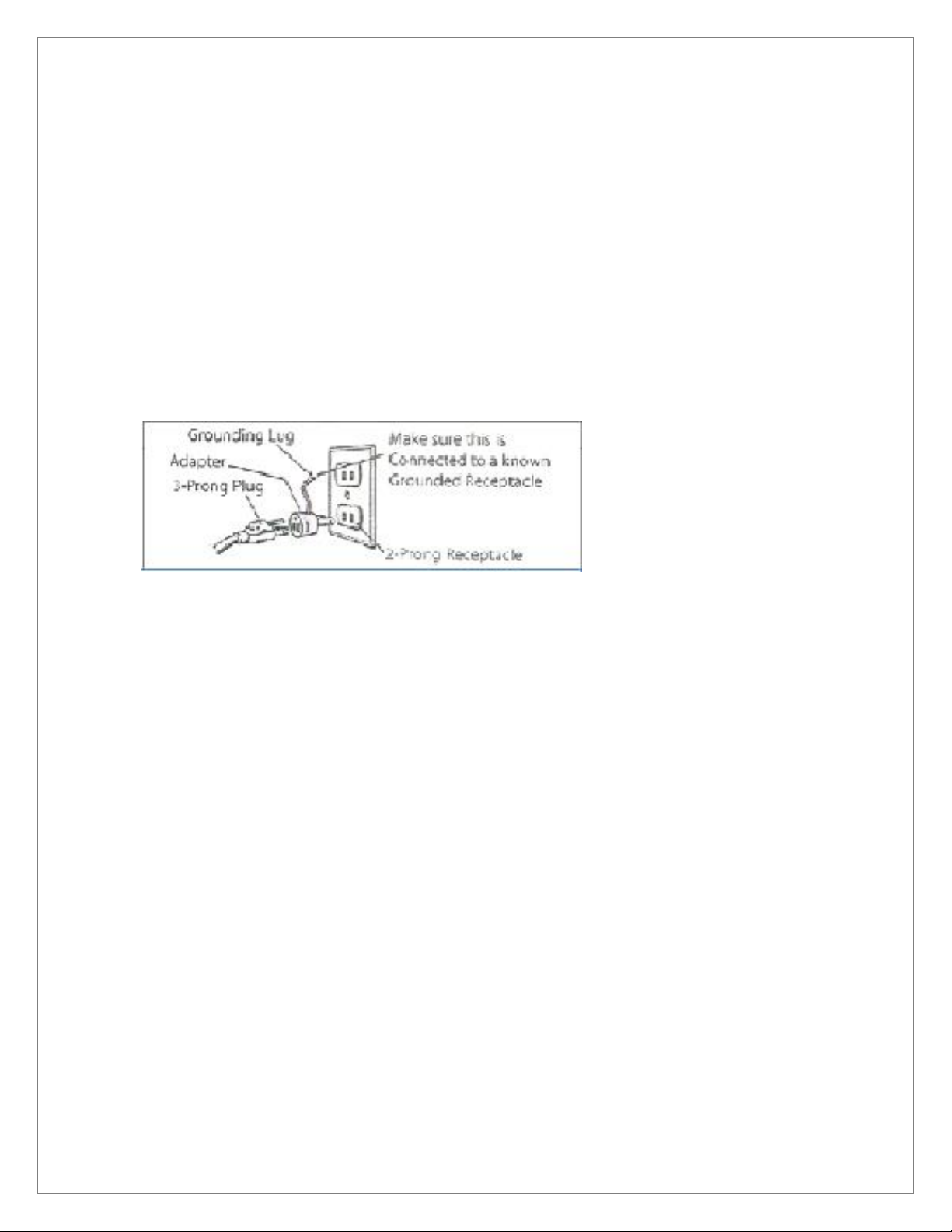

A temporary 3-prong to 2-prong grounding adapter (see figure 2) is available for
connecting plugs to a two pole outlet if it is properly grounded.
Figure 2 - 2-Prong receptacle
•
A temporary 3-prong to 2-prong grounding adapter (see figure 2) is
available for connecting plugs to a two pole outlet if it is properly
grounded.
•
Do not use a 3-prong to 2-prong grounding adapter unless permitted by
local and national codes and ordinances.
(A 3-prong to 2-prong grounding adapter is not permitted in Canada.) Where
permitted, the rigid green tab or terminal on the side of the adapter must be
securely connected to a permanent electrical ground such as a properly
grounded water pipe, a properly grounded outlet box or a properly grounded wire
system.
•
Many cover plate screws, water pipe and outlet boxes are not properly
grounded. To ensure proper ground, grounding means must be tested by
a qualified electrician.
Page 10
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 10
EXTENSION CORDS
•
The use of any extension cord will cause some drop in voltage and loss of
power.
•
Wires of the extension cord must be of sufficient size to carry the current
and maintain adequate voltage.
•
Running the unit on voltage which are not within ±10% of the specified
voltage may cause overheating and motor burn-out.
•
Use the table to determine the minimum wire size (A.W.G.) extension cord.
•
Use only 3-wire extension cords having 3-prong grounding type plugs and
3-pole receptacles which accept the tool plug.
•
If the extension cord is worn, cut or damaged in any way, replace it
immediately.
EXTENSION CORDS LENGHT
Wire Size A.W.G.
Up to 25 ft. (8 m) 16
Note:
Using extension cords over 25 ft. (8 m) long is not recommended.
ELECTRICAL CONNECTIONS
WARNING:
The machine electrical connections must be performed by a qualified
electrician. Make sure the machine is off and disconnected from power source
while motor is mounted, connected, reconnected or anytime wiring is inspected.
WARNING:
If the electrical cord, plug or wiring should become frayed or
damaged, replace it at once. Do not attempt to operate the machine with faulty
wiring as it could result in severe injury or death.
MAINTENANCE
A properly maintained machine will give you years of satisfactory service, where
as an abused machine will not. We strongly recommend that you observe the
following procedures for your own benefit and safety.
WARNING: Eye protection should always be worn by the operator and
others in the work area when servicing the machine.
Page 11
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 11
Weekly maintenance
•
Clean your Landis Fume Buster weekly.
•
Look at your prefilters, it should be replaced according to the usage and
the environment of your working area.
WARNING: Clogged prefilters will reduce the efficiency of your charcoal
filters
Monthly maintenance
•
Clean your Landis Fume Buster weekly.
•
Look at your prefilters, it should be replaced according to the usage and
the environment of your working area.
•
Shake the charcoal filters thoroughly this will help to extend the efficiency
of the charcoal.
LUBRICATION
Your Landis Fume Buster is equipped with sealed bearings throughout, which
should be replaced if they ever wear out.
Other parts should not required any lubrication, only cleaning the parts is
required.
Lubrication will only attract dust and would be more harmful than helpful.
MOTOR STOPS WITH SWITCH ON
1. Too many machines operating on same electrical circuit where the Fume
Buster is connected. Check circuit breaker or fuse box.
2. Electric switch is broken. Change the switch.
Page 12
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 12
TROUBLESHOOTING
SYMPTOM
POSSIBLE CAUSE(S)
CORRECTIVE ACTION
Fume Buster won’t start
1. Blown line fuse or tripped
circuit breaker.
2. Low line voltage.
3. Defective switch.
4. Defective blown capacitor.
1. If fuse is blown, replace
with fuse of proper size. If
breaker tripped, reset it.
2. Check power supply for
voltage and correct as
needed.
3. Replace switch.
4. Replace capacitor.
Excessive vibration
1. Dust or particles clogged on
the fan.
1. Clean the fan
Motor overheating
1. Motor not turning freely
(without power).
2. The machine is too close to
the wall
1. Clean fan.
2. Install the machine
100mm/4’’ distance from
the wall.
Fuses are being blown or
circuit breakers are being
tripped
1. Overloading due to binding
of the fan.
2. Defective plug.
3. Defective cord.
4. Defective switch.
5. Motor wired for different line
voltage.
1. Clean the fan or motor
shaft is jammed (replace
bearing).
2. Replace plug
3. Replace cord
4. Replace switch
5. Rewire motor as per wiring
diagram
Loss of filtration
1. Prefilter is clogged.
2. Blower fan may be loose on
motor.
3. Charcoal filter is
contaminated.
1. Change prefilter.
2. Tight the screws.
3. Change the charcoal.
Bad odor
1. Charcoal filtered is
contaminated
1. It is time to change the
charcoal for new one.
Page 13
Operator Manual Landis Fume Buster Space Saver (SKU: FB19)
Landis International - 13

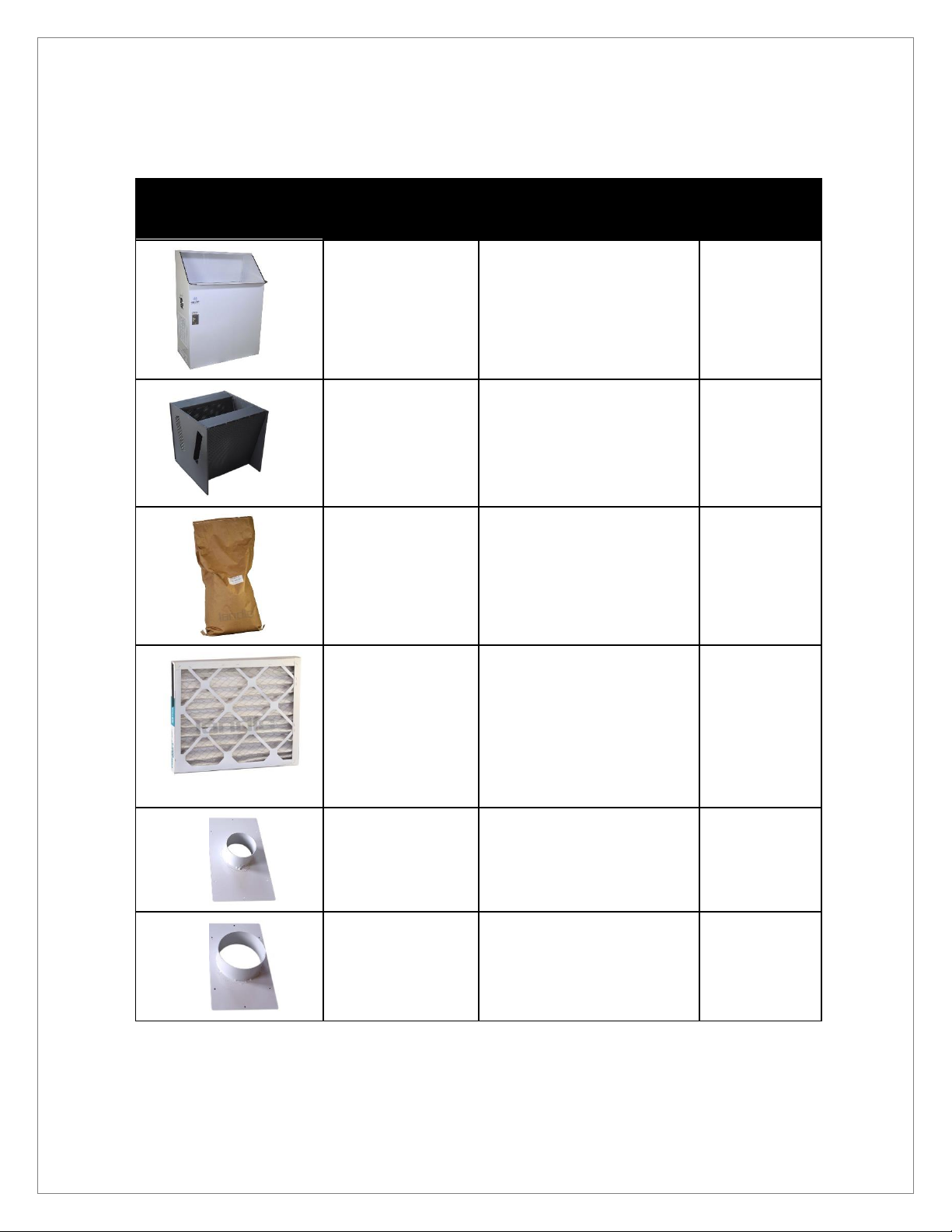

Accessories for Landis Fume Buster Space Saver
PART
NUMBER
DESCRPTION
QTE
REQUIRED
FB19
Fume Buster 19’’
Space Saver
1
CHC
Charcoal filter
1
CNS188
Replacement charcoal Bag of 25 pounds
1
Prefilter
1
FB19V4
4’’ Conversion vented kit
Optional
FB19V6
6’’ Conversion vented kit
Optional
Loading...
