Landa SLT, SLX, SLT5-30824E, SLT8-30824E, SLT6-32824E Operator's Manual

SLT/SLX

DIESEL ENGINE

OPERATOR’S MANUAL



SLT5-30824E 1.110-519.0  SLT6-32824E 1.110-521.0



SLT8-30824E 1.110-523.0  SLX10-25824E 1.110-526.0

For technical assistance or the dealer nearest you,

consult our web page at www.landa.com

8.914-003.0

CONTENTS

Introduction & General Safety Information 3-5

Component Identiﬁcation 6

Assembly Instructions 7

Operating Instructions 8

Detergents & General Washing Techniques 9

Shutting Down & Clean-Up 10

Storage 10

Troubleshooting 11-13

Maintenance, Service, & Schedule 14-17

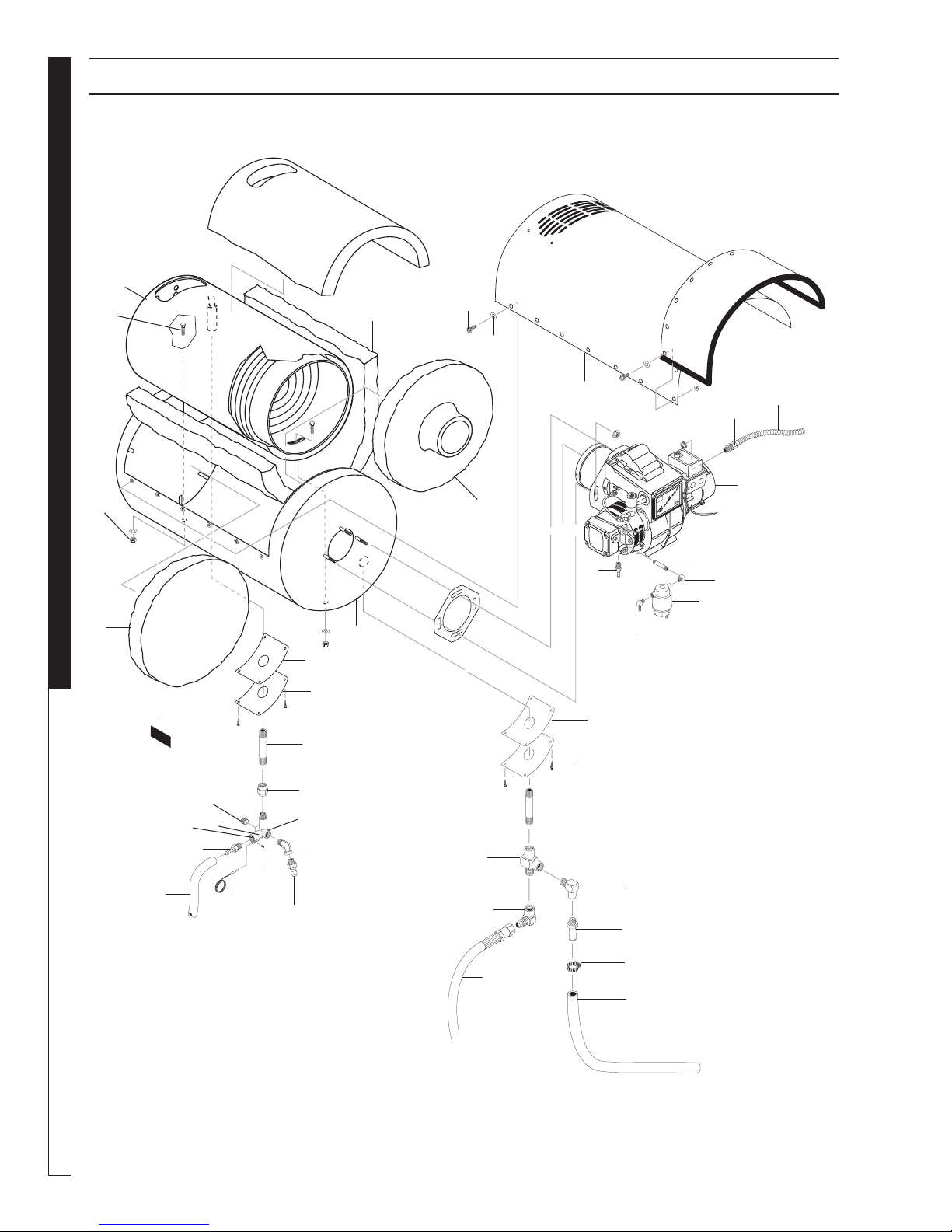

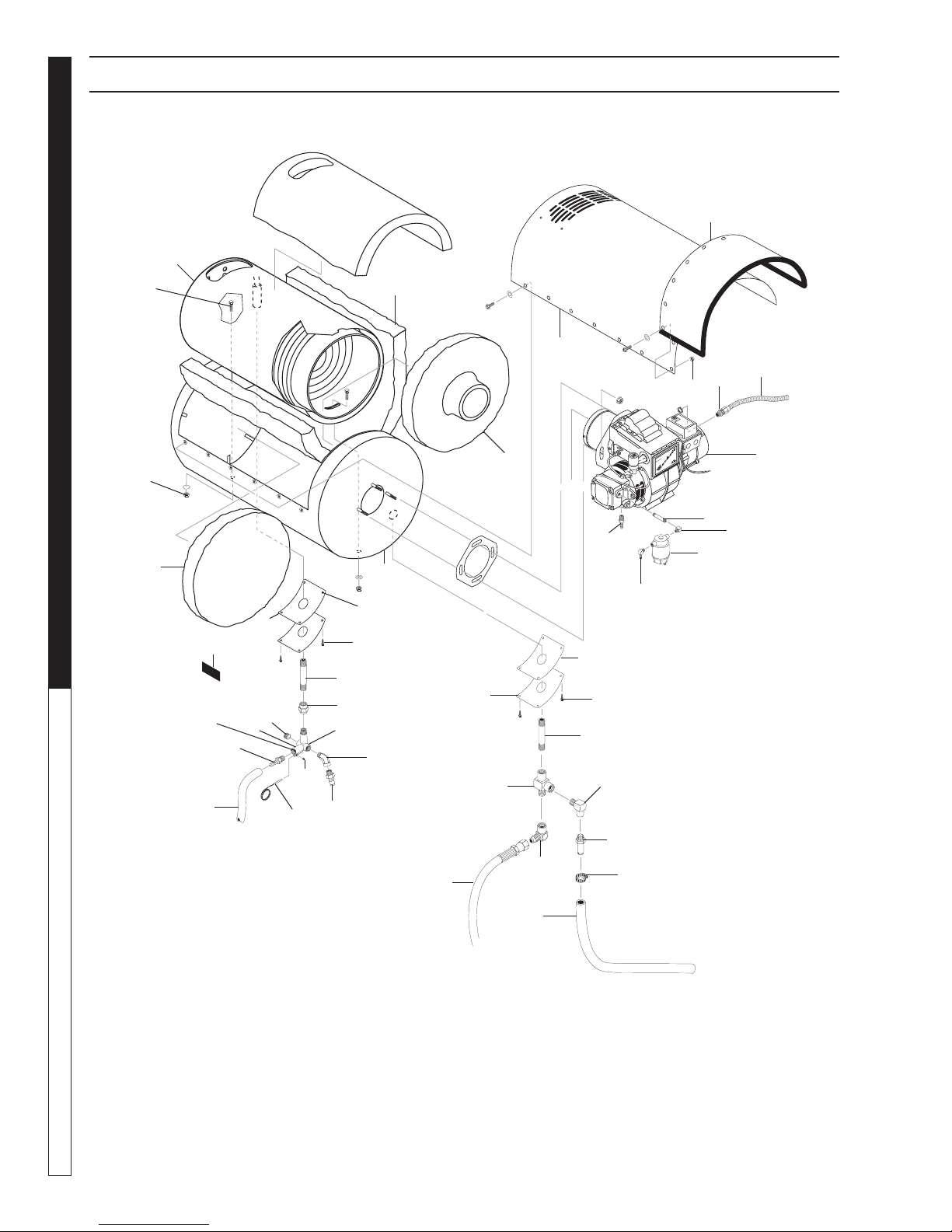

SLT Burner Assembly & Parts List 18-19

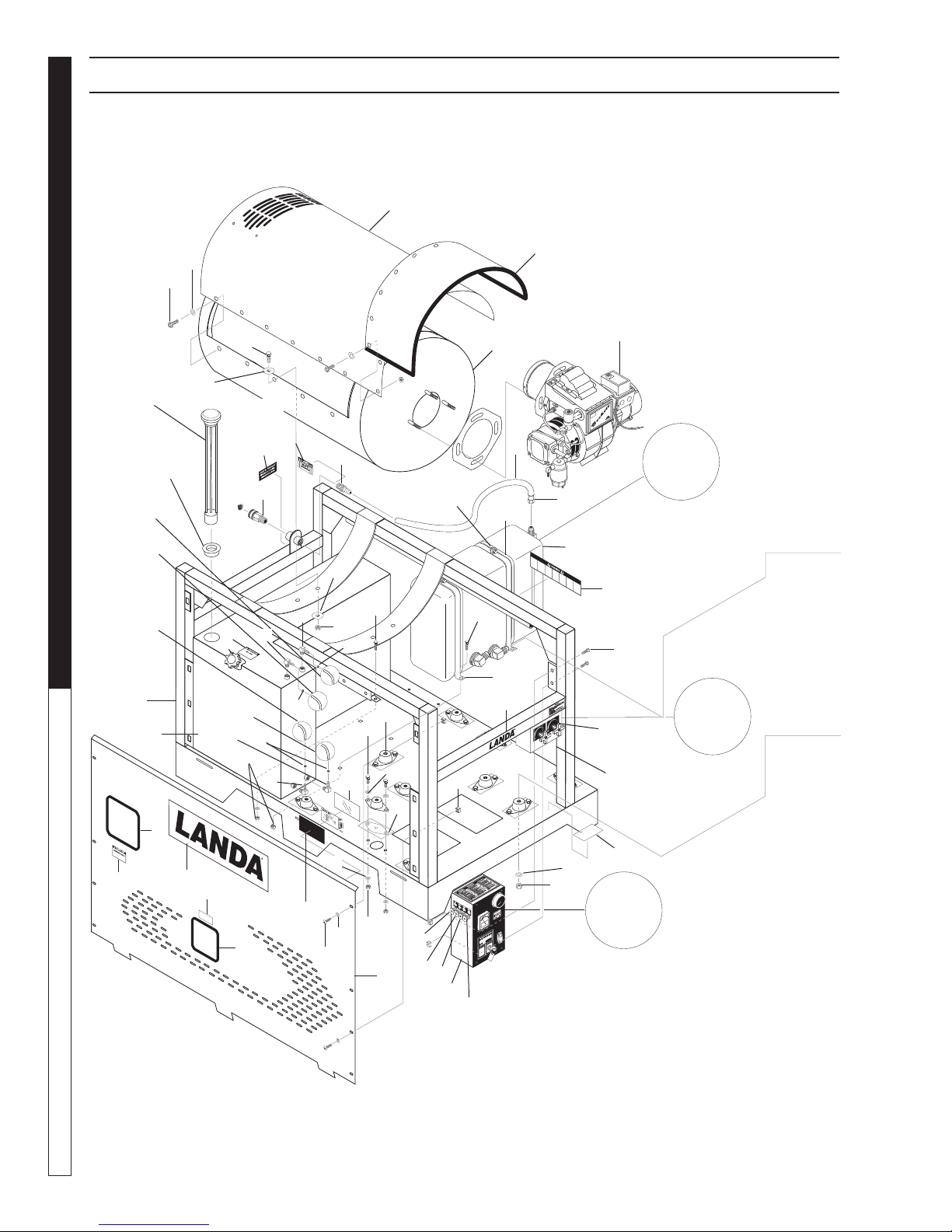

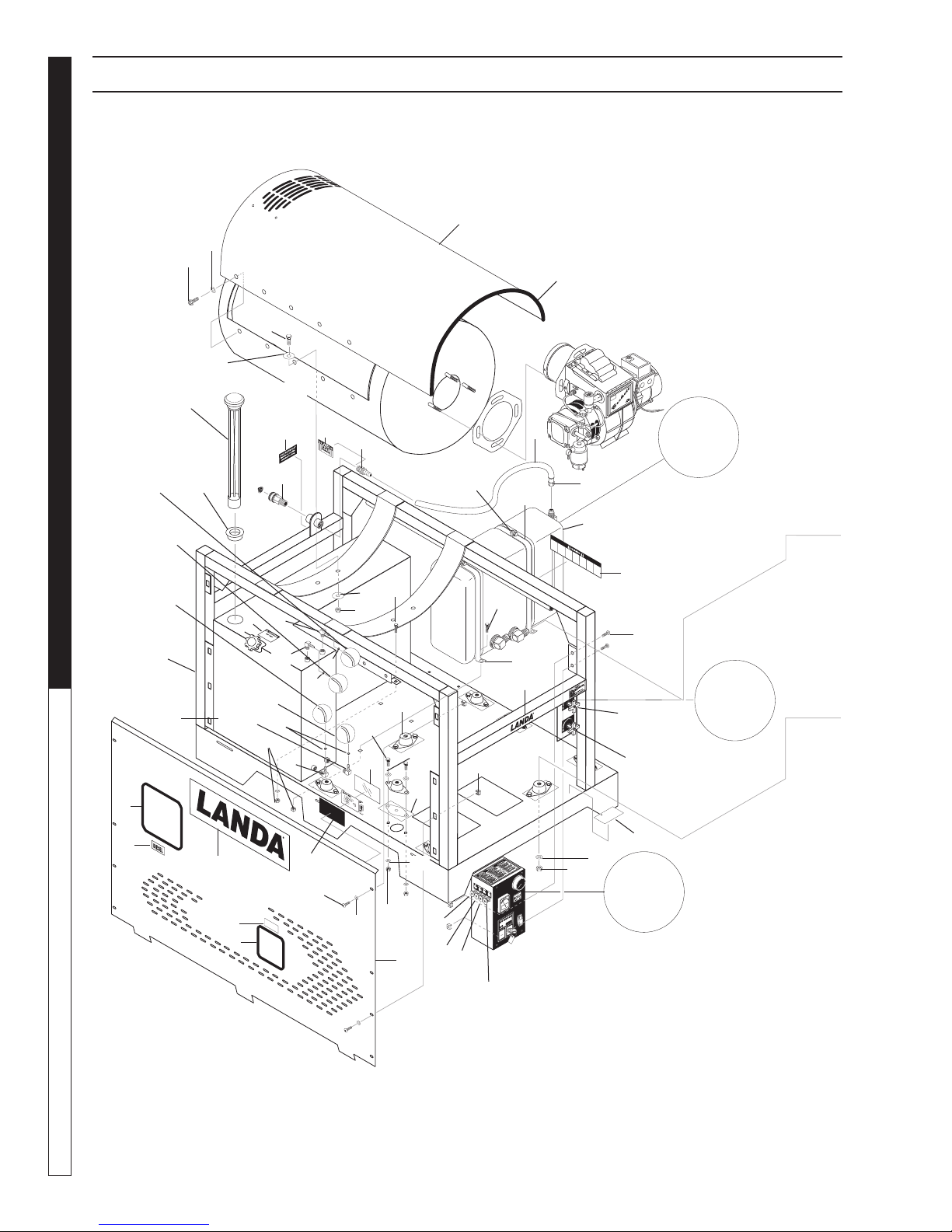

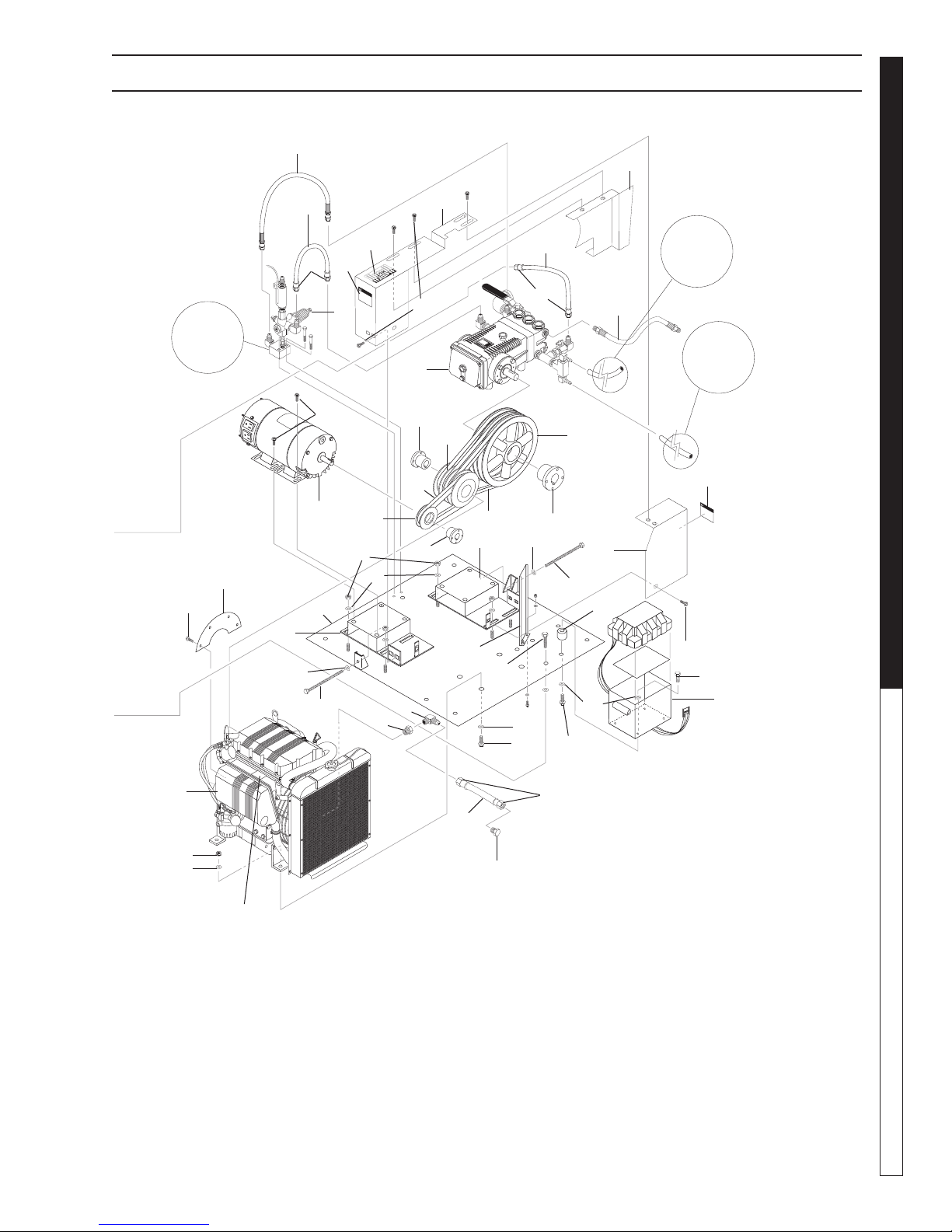

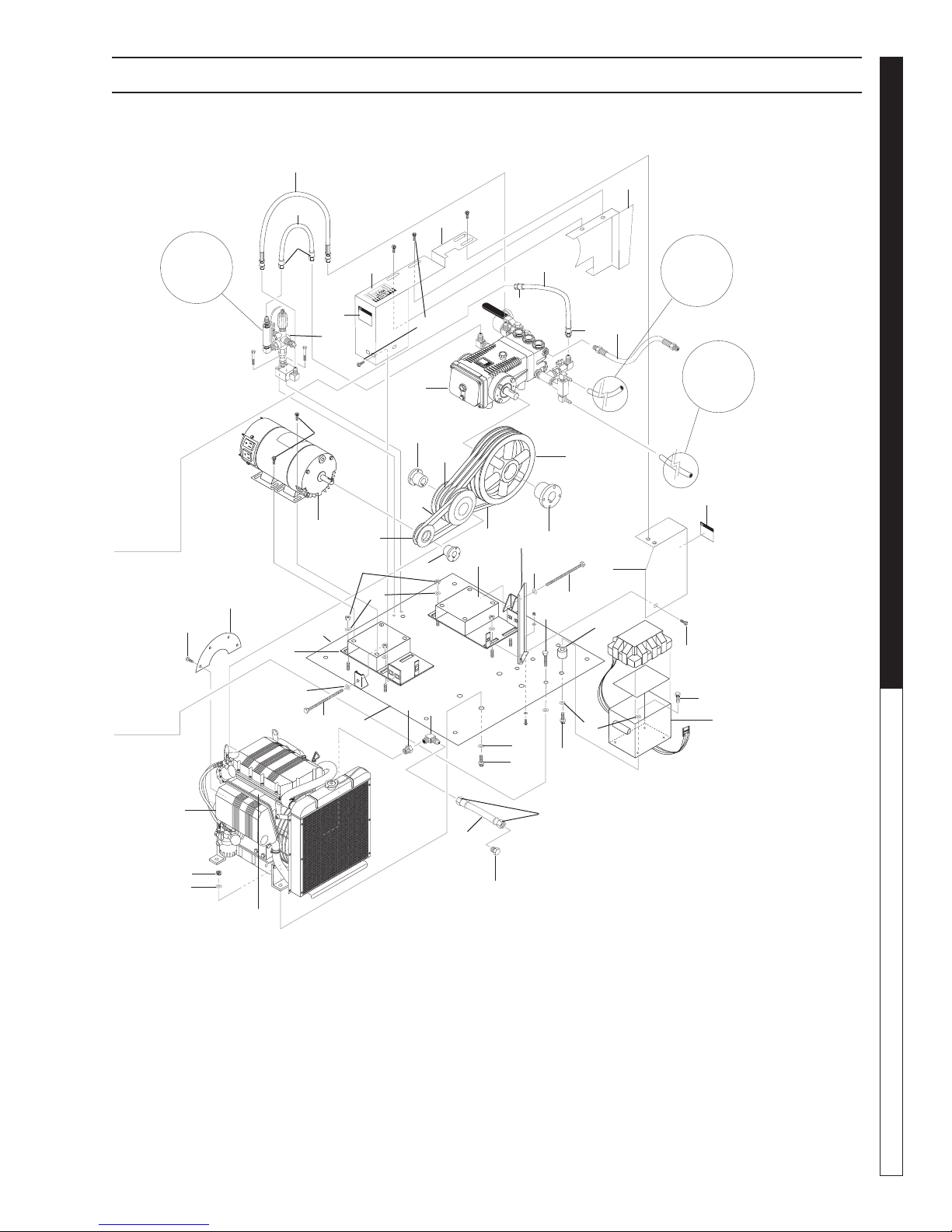

SLT Exploded Views & Parts List 20-23

SLX Exploded Views & Parts List 24-27

SLX Burner Assembly & Parts List 28-29

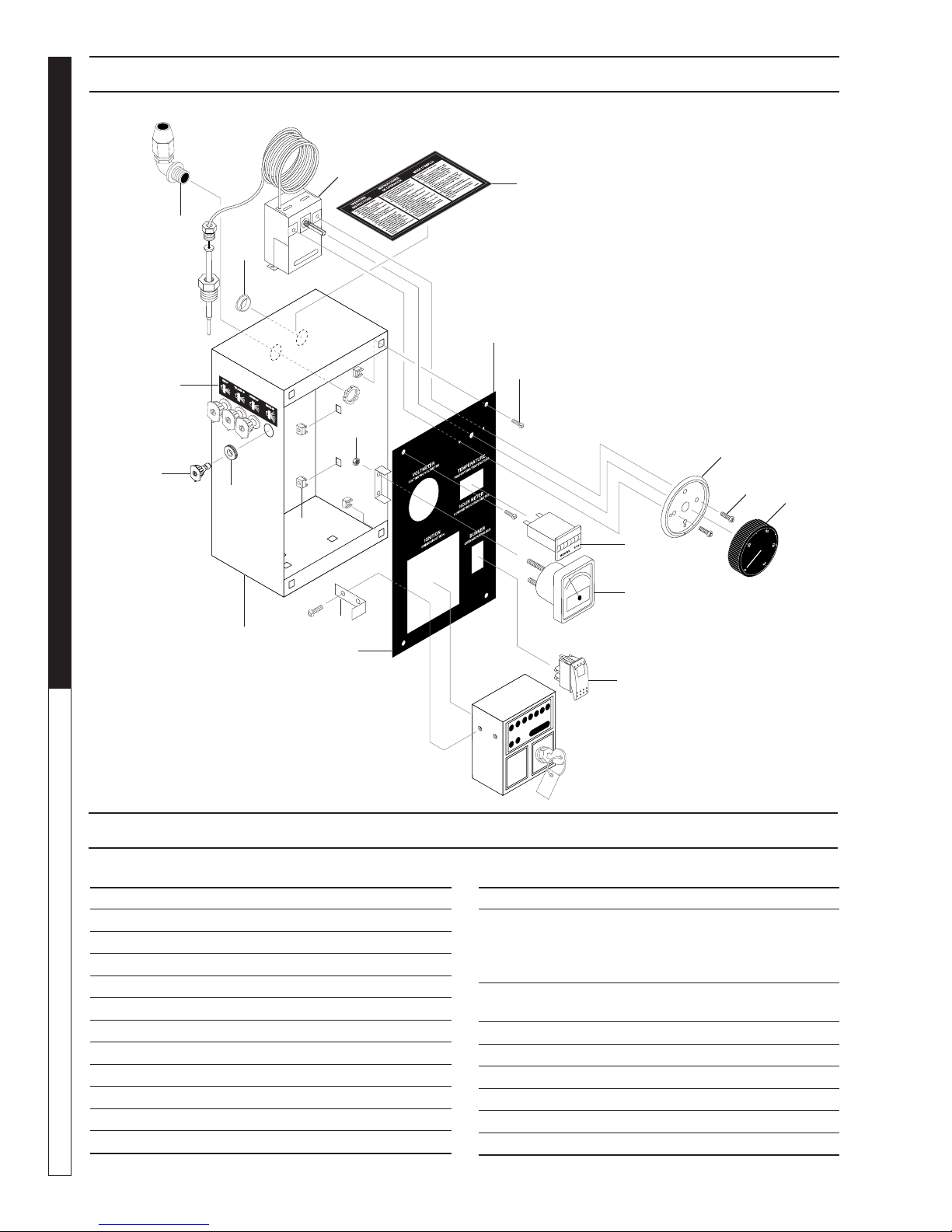

Control Panel Exploded View & Parts List 30-31

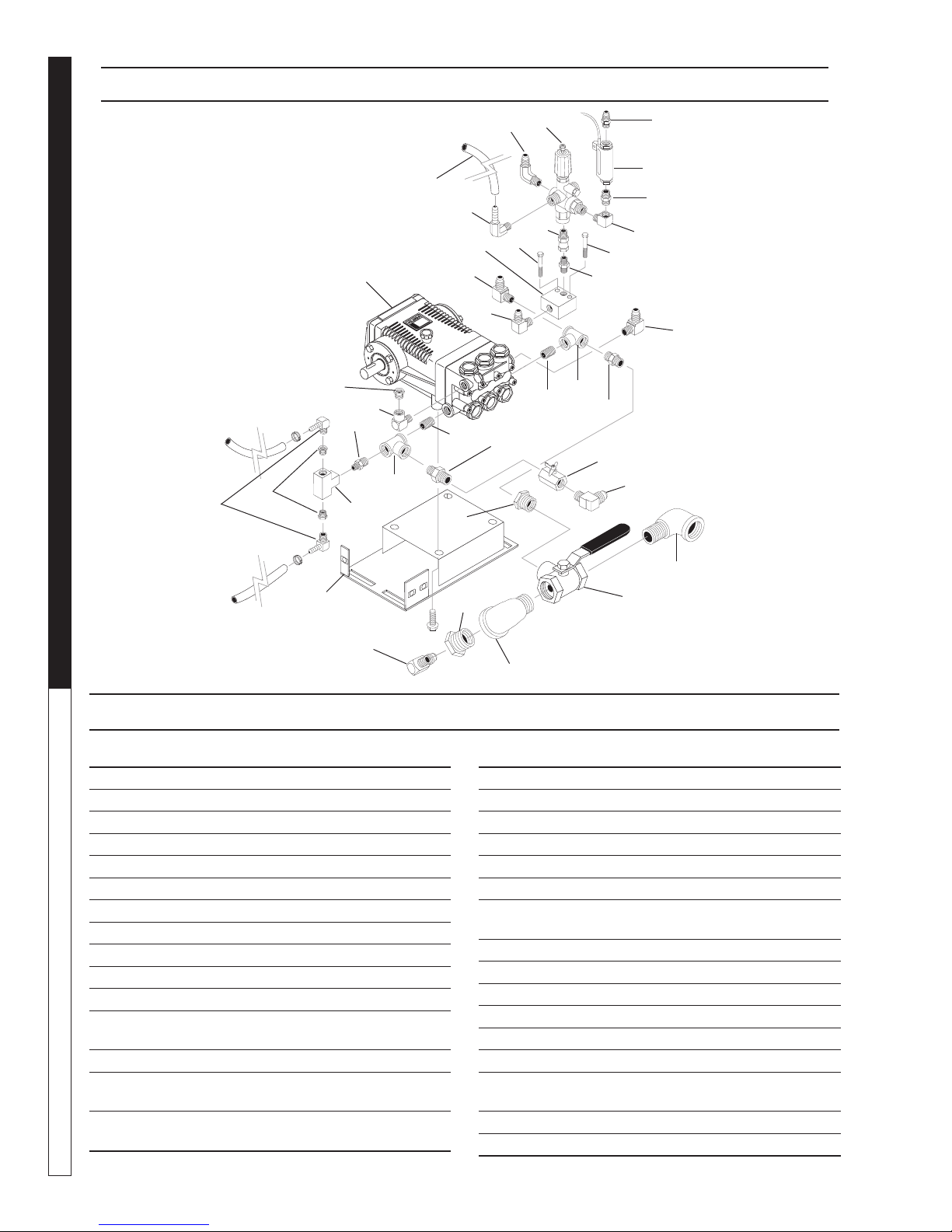

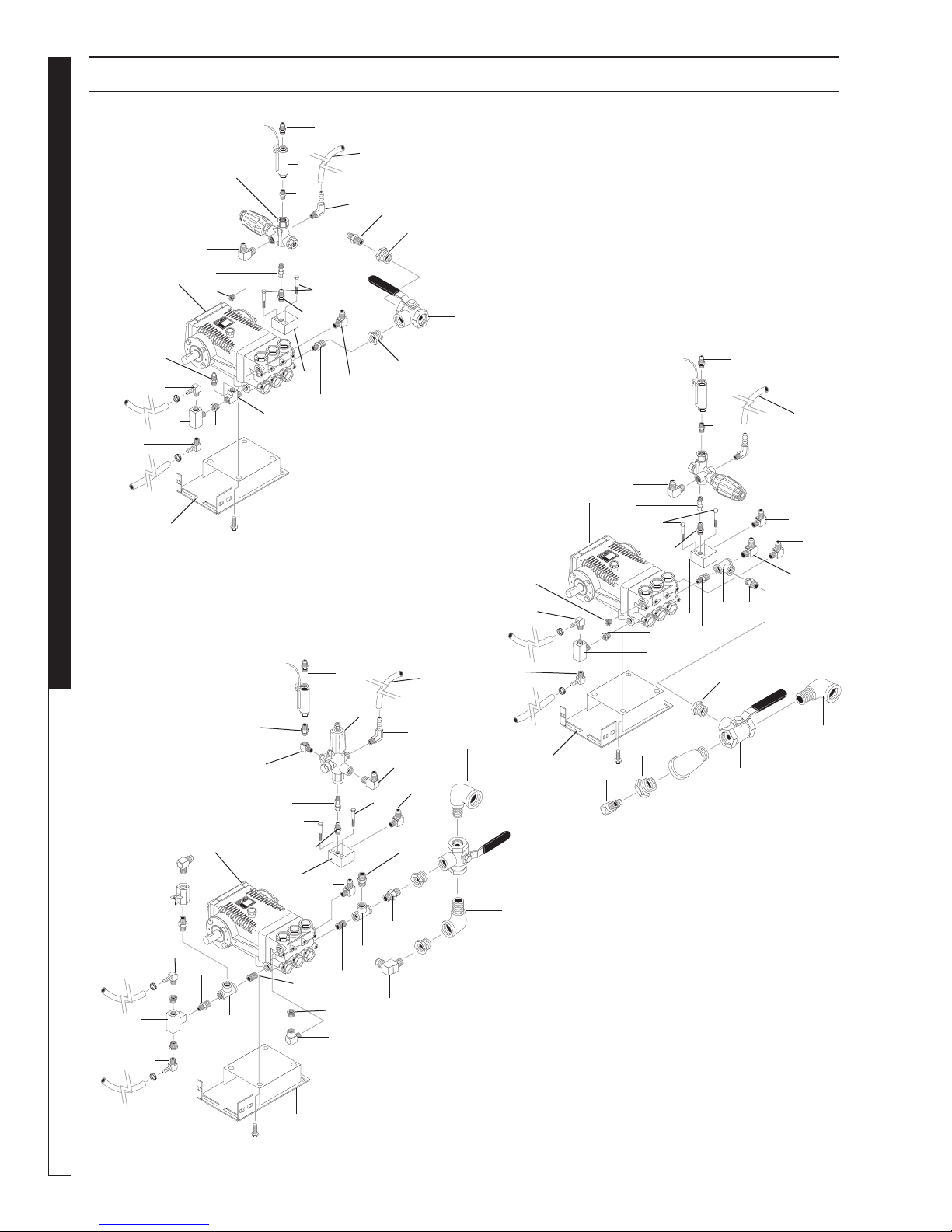

5,6,8 GPM Pump Assemblies & Parts List 32-33

10 GPM Pump Assembly & Parts List 34

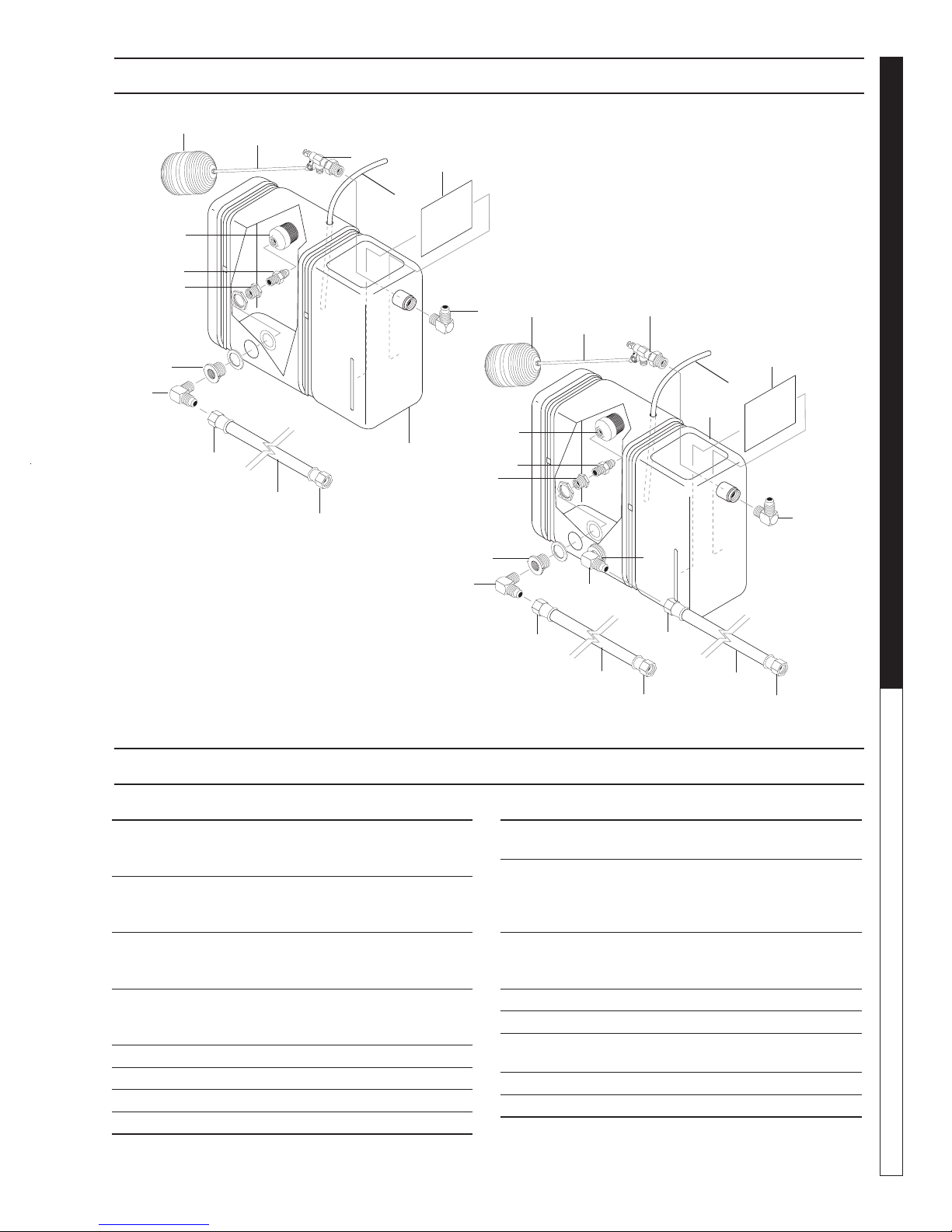

Float Tank Exploded View & Parts List 35

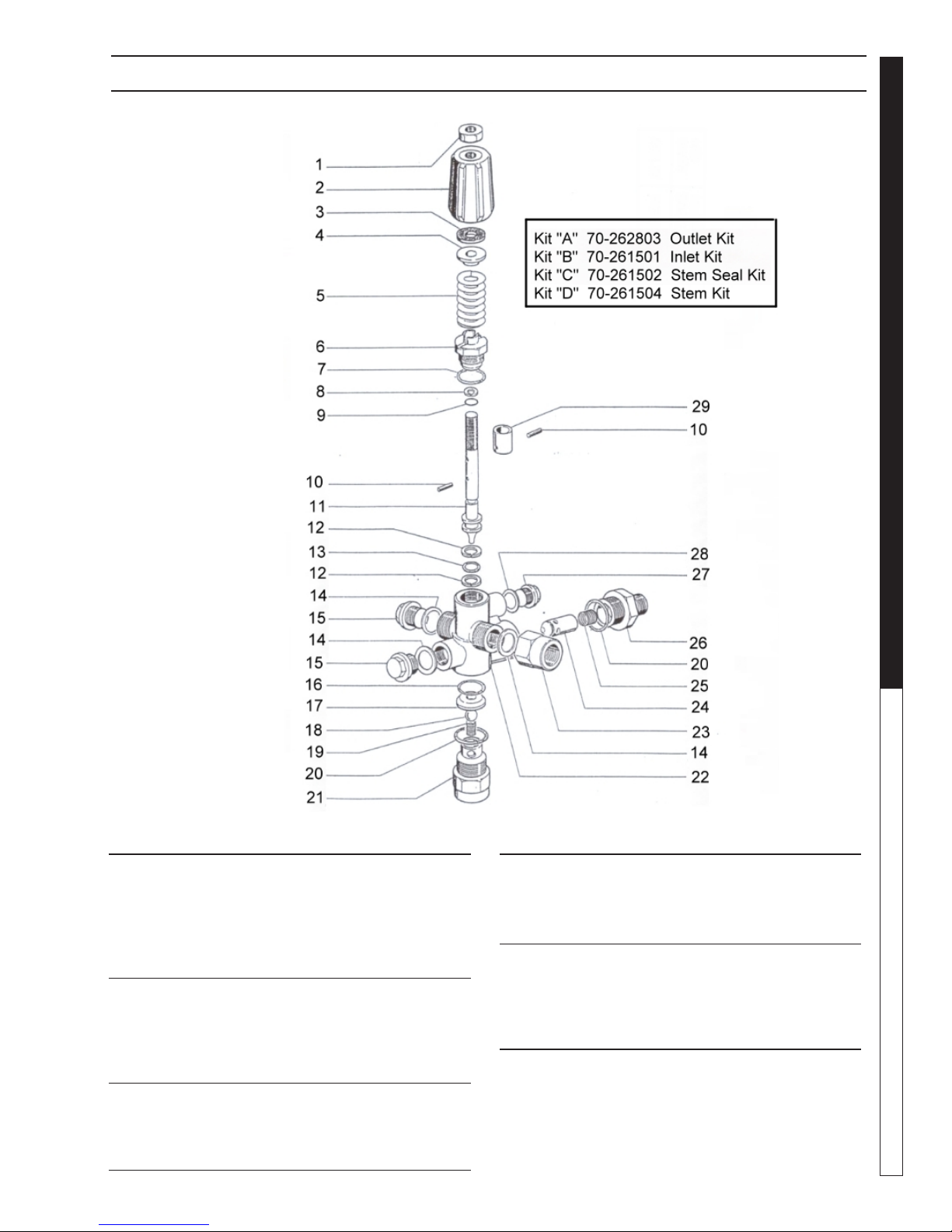

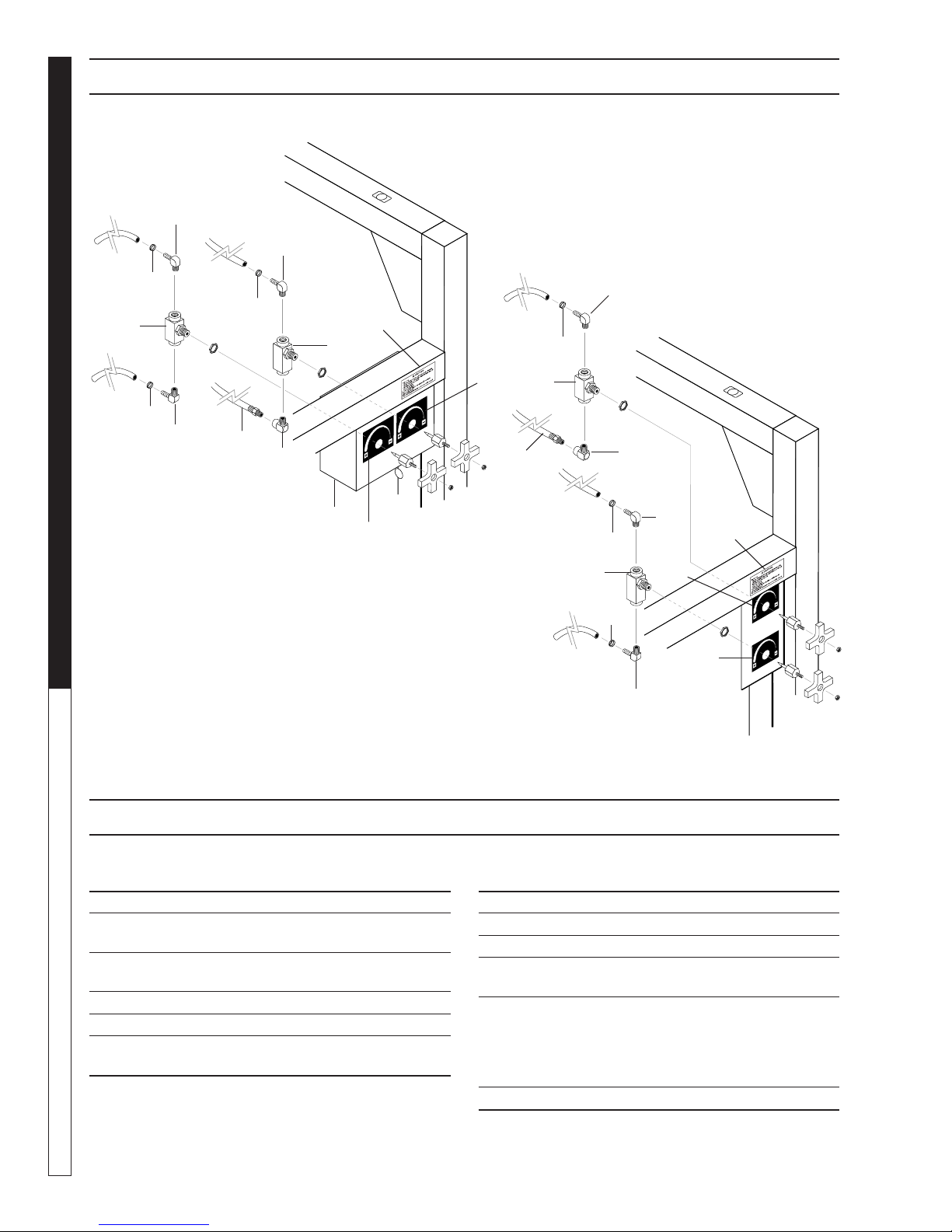

Valve Assemblies & Parts List 36

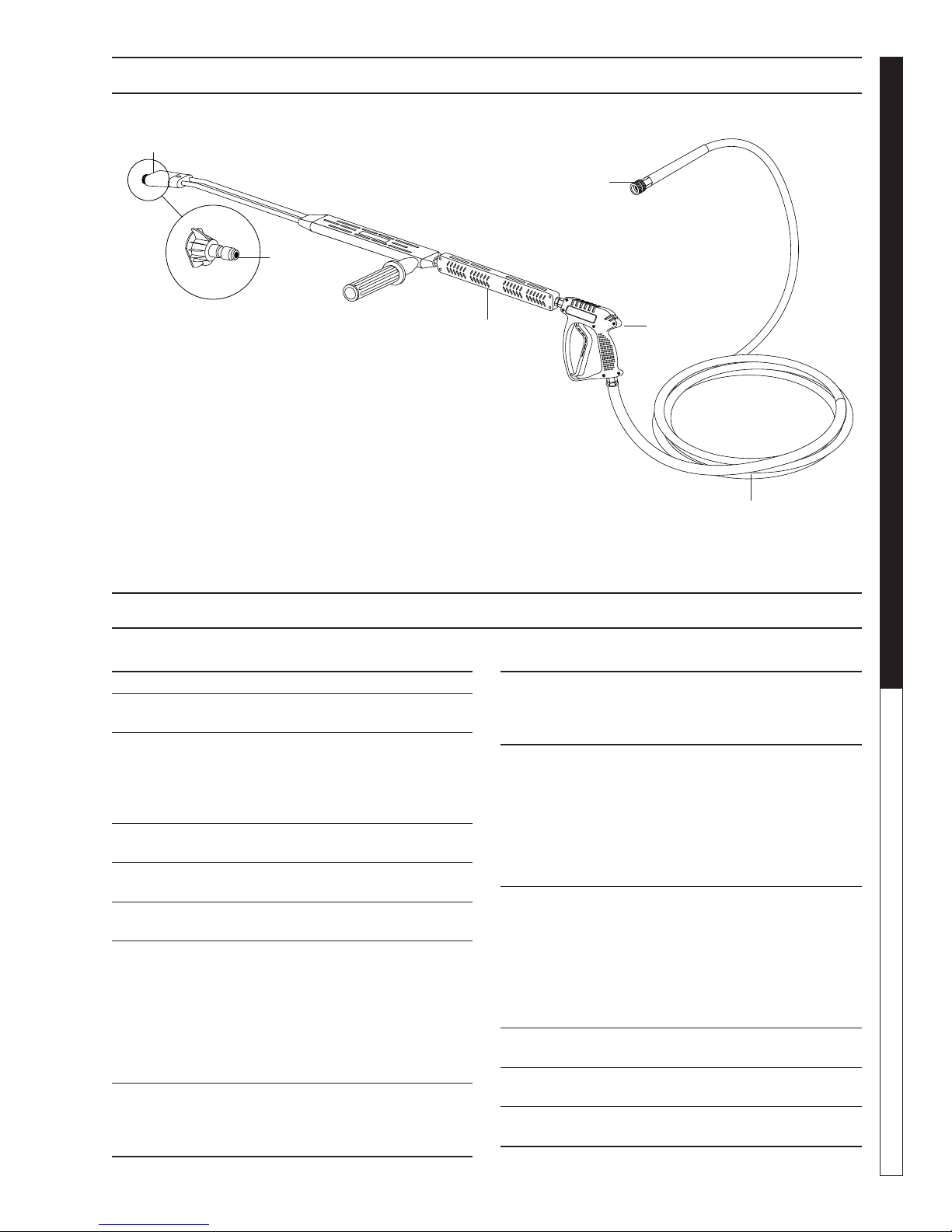

Hose & Spray Gun Assembly & Parts List 37

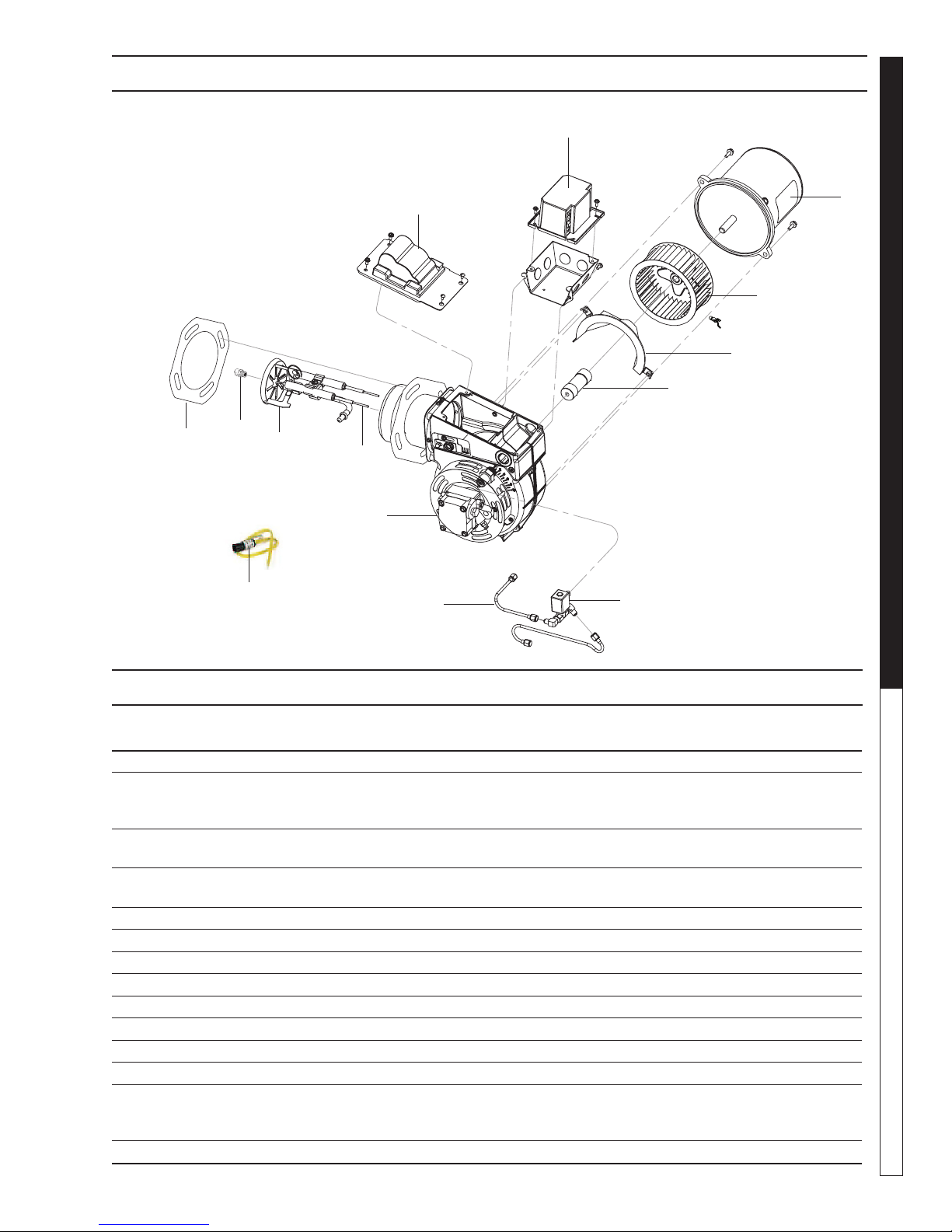

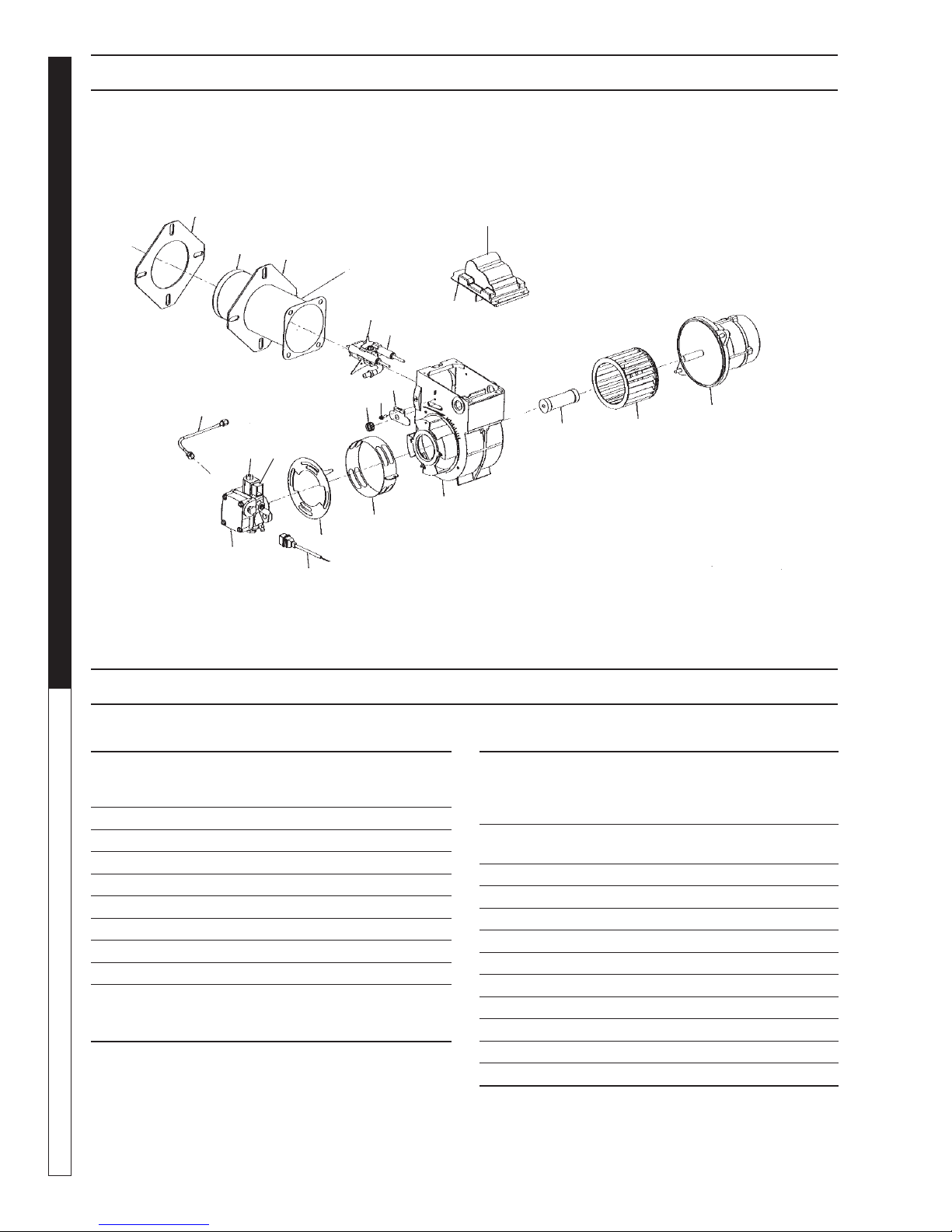

Burner Assemblies, Exploded Views and Parts Lists 38-39

Parts Speciﬁcations 40-41

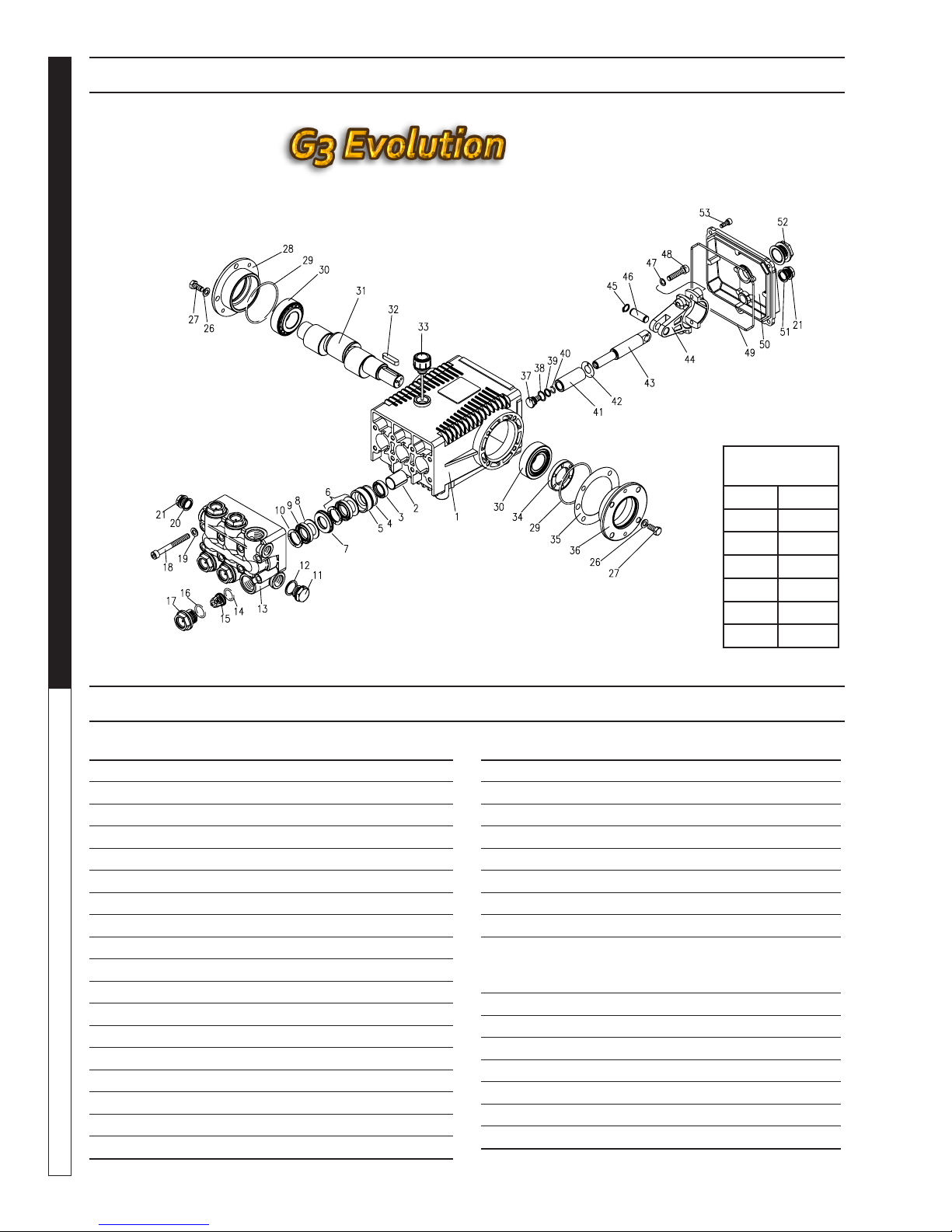

LT.1 Pump Exploded View and Parts List 42-43

LX.1 Pump Exploded View and Parts List 44-45

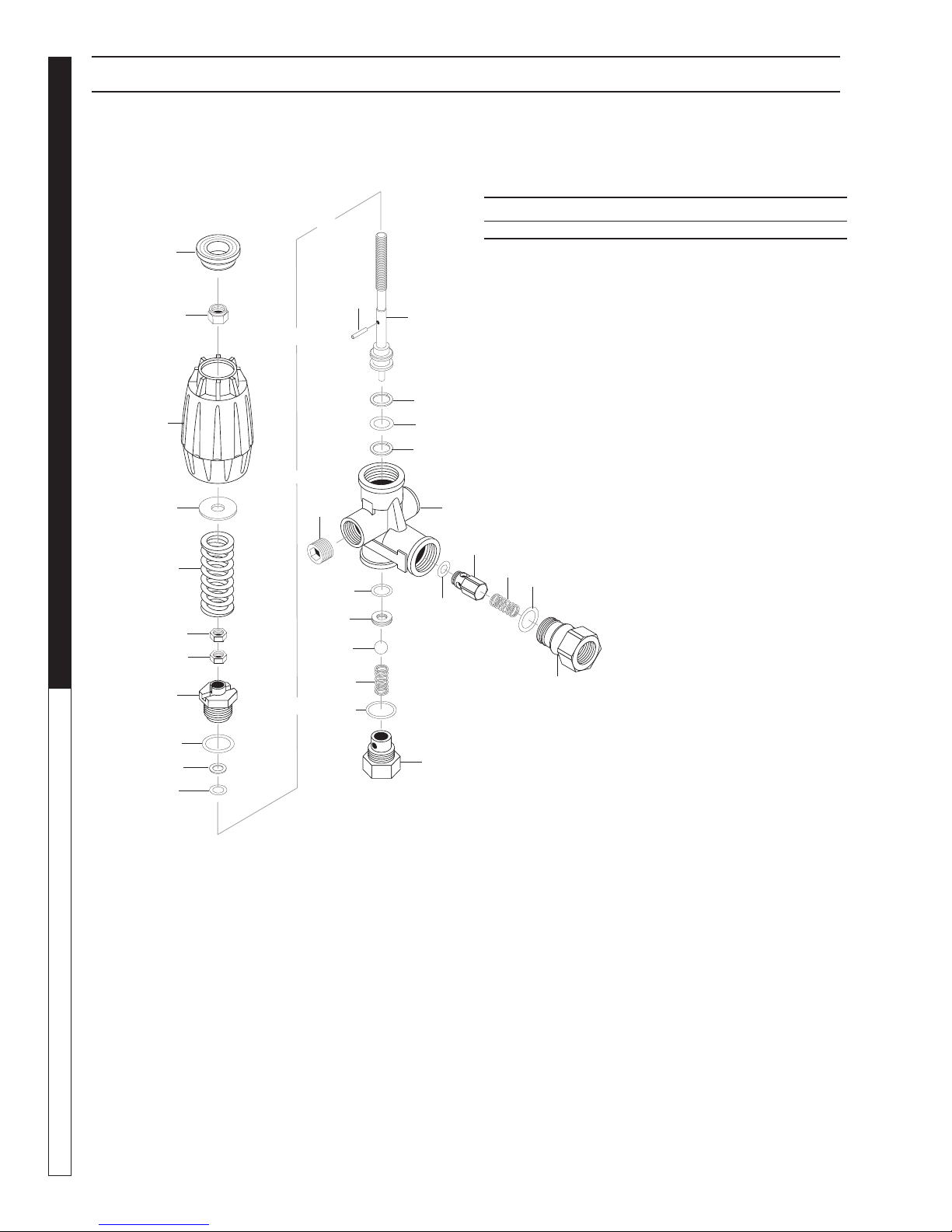

VRT 3 Unloader Exploded View and Parts LIst 46

VBXL Unloader Exploded View and Parts List 47

Warranty

Model Number ______________________________

Serial Number ______________________________

Date of Purchase ____________________________

The model and serial numbers will be found on a decal attached to the pressure washer. You should record both serial number and date of purchase and keep in a safe place for future reference.

2

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

INTRODUCTION & IMPORTANT SAFETY INFORMATION

WARNING

OPERATE ONLY WHERE OPEN FLAME OR TORCH

WARNING

PRESSURE WASHER

Thank you for purchasing this Pressure Washer.

We reserve the right to make changes at any time without incurring any obligation.

Owner/User Responsibility:

The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings before using this pressure washer. Warning information should be emphasized and understood. If the operator is not ﬂuent in English, the manufacturer’s instructions and warnings shall be read to and discussed with the operator in the operator’s native language by the purchaser/owner, making sure that the operator comprehends its contents.

Owner and/or user must study and maintain for future reference the manufacturers’ instructions.

The operator must know how to stop the machine quickly and understand the operation of all controls. Never permit anyone to operate the engine without proper instructions.

This manual should be considered a permanent part of the machine and should remain with it if machine is resold.

When ordering parts, please specify model and serial number. Use only identical replacement parts.

This machine is to be used only by trained operators.

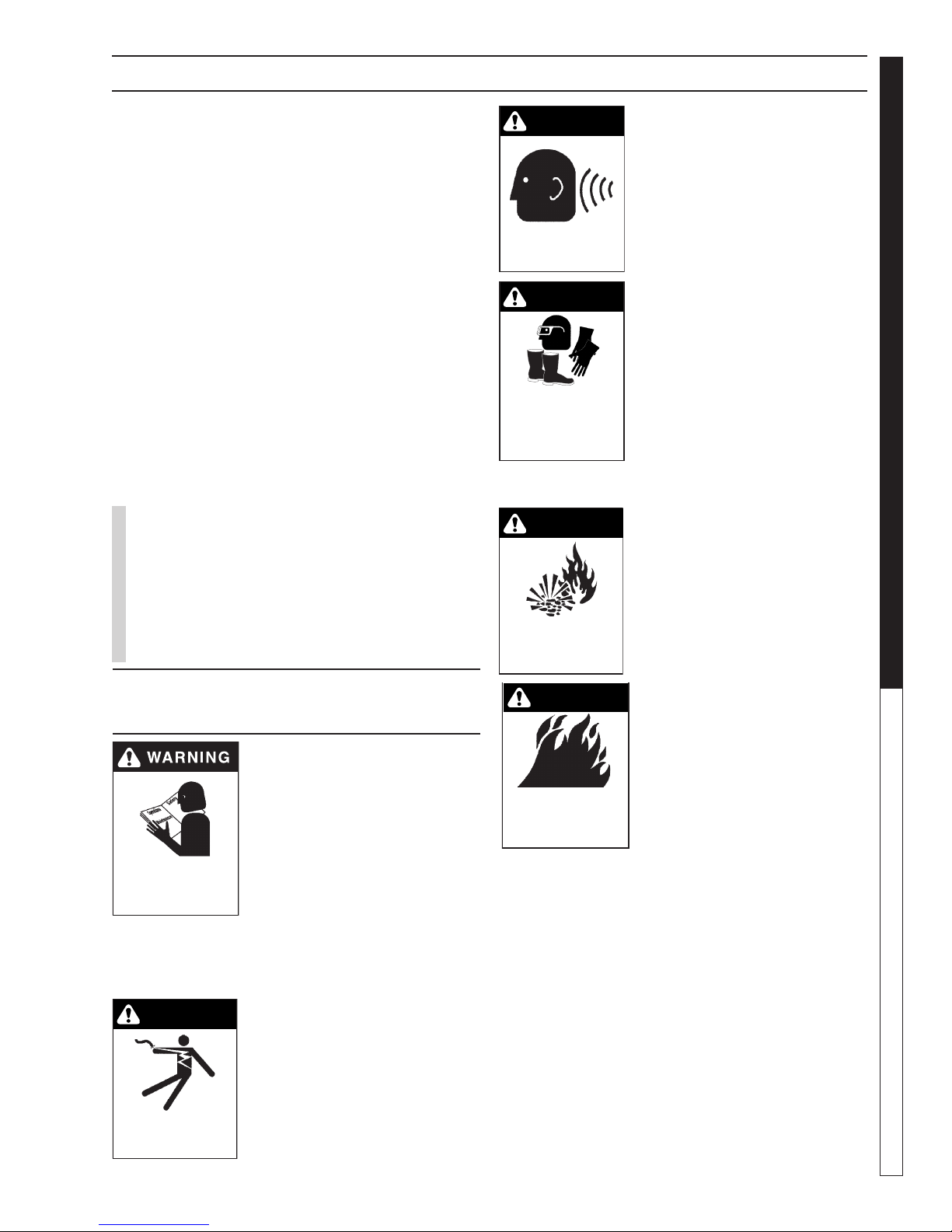

WARNING: This machine exceeds 85 db appropriate ear protection must be worn.

EAR PROTECTION

MUST BE WORN

WARNING: High pressure spray can cause paint chips or other particles to become airborne and ﬂy at high speeds. To avoid personal injury, eye, hand and

USE PROTECTIVE

EYE WEAR

AND CLOTHING

WHEN OPERATING

THIS EQUIPMENT.

foot safety devices must be worn.

5. Eye , hand, and foot protection must be worn when u s i n g t h i s eq u i p m e n t .

6. Keep operating area clear of all persons.

WARNING: Flammable liquids can create fumes which can ignite, causing property damage or severe injury.

WARNING: Risk of explosion

RISK OF EXPLOSION:

IS PERMITTED

— Operate only where open ﬂame or torch is permitted.

OPERATOR’S MANUAL

IMPORTANT SAFETY

INFORMATION

WARNING: To reduce the risk of injury, read operating instructions carefully before using.

1. Rea d the owner's manual thoroughly. Failure to follow instructions could cause mal-

READ OPERATOR’S

MANUAL THOROUGHLY

PRIOR TO USE.

and bleed pressure quickly. Be thoroughly familiar with the controls.

3. Stay alert — watch what you are doing.

KEEP WATER

SPRAY AWAY FROM

ELECTRICAL WIRING.

function of the machine and result in death, serious bodily injury and/or property damage.

2. Know how to stop the machine

WARNING: Keep wand, hose, and water spray away from electric wiring or fatal electric shock may result.

4. All installations must comply with local codes. Contact your electrician, plumber, utility company or the selling distributor for speciﬁc details.

RISK OF FIRE. DO NOT ADD FUEL WHEN OPERATING

MACHINE.

WARNING: Risk of ﬁre — Do not

7. Allow engine to cool for 1-2 minutes before refueling. If any fuel is spilled, make sure the area is dry before testing the spark plug or starting the engine. (Fire and/or explosion may occur if this is not done.)

Gasoline engines on mobile or portable equipment

shall be refueled:

a. outdoors;

b. with the engine on the equipment stopped;

c. with no source of ignition within 10 feet of

the dispensing point; and

d. with an allowance made for expansion of the

fuel should the equipment be exposed to a higher ambient temperature.

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

WARNING: Risk of ﬁre — Do not add fuel when the product is operating or still hot.

WARNING: Do not use gasoline crankcase draining or oil containing gasoline, solvents or alcohol. Doing so will result in ﬁre and/or explosion.

Spray ﬂammable liquids.

3

WARNING

IMPORTANT SAFETY INFORMATION

WARNING

HOT DISCHARGE FLUID:

WARNING

In an overﬁlling situation, additional precautions are

necessary to ensure that the situation is handled in a safe manner.

WARNING: Risk of injury. Disconnect battery ground terminal before servicing.

8. When in use , do not place machine near ﬂammable objects as the engine is hot.

9. Oil burning appliances shall be installed only in

PRESSURE WASHER

locations where combustible dusts and ﬂammable gases or vapors are not present. Do not store or use gasoline near this machine.

10. Use No. 1 or No. 2 heating oil (ASTM D306) only. NEVER use gasoline in your fuel oil tank. Gasoline is more combustible than fuel oil and could result in a serious explosion. NEVER use crankcase or waste oil in your burner. Fuel unit malfunction could

OPERATOR’S MANUAL

result from contamination.

11. Do not confuse gasoline and fuel oil tanks. Keep proper fuel in proper tank.

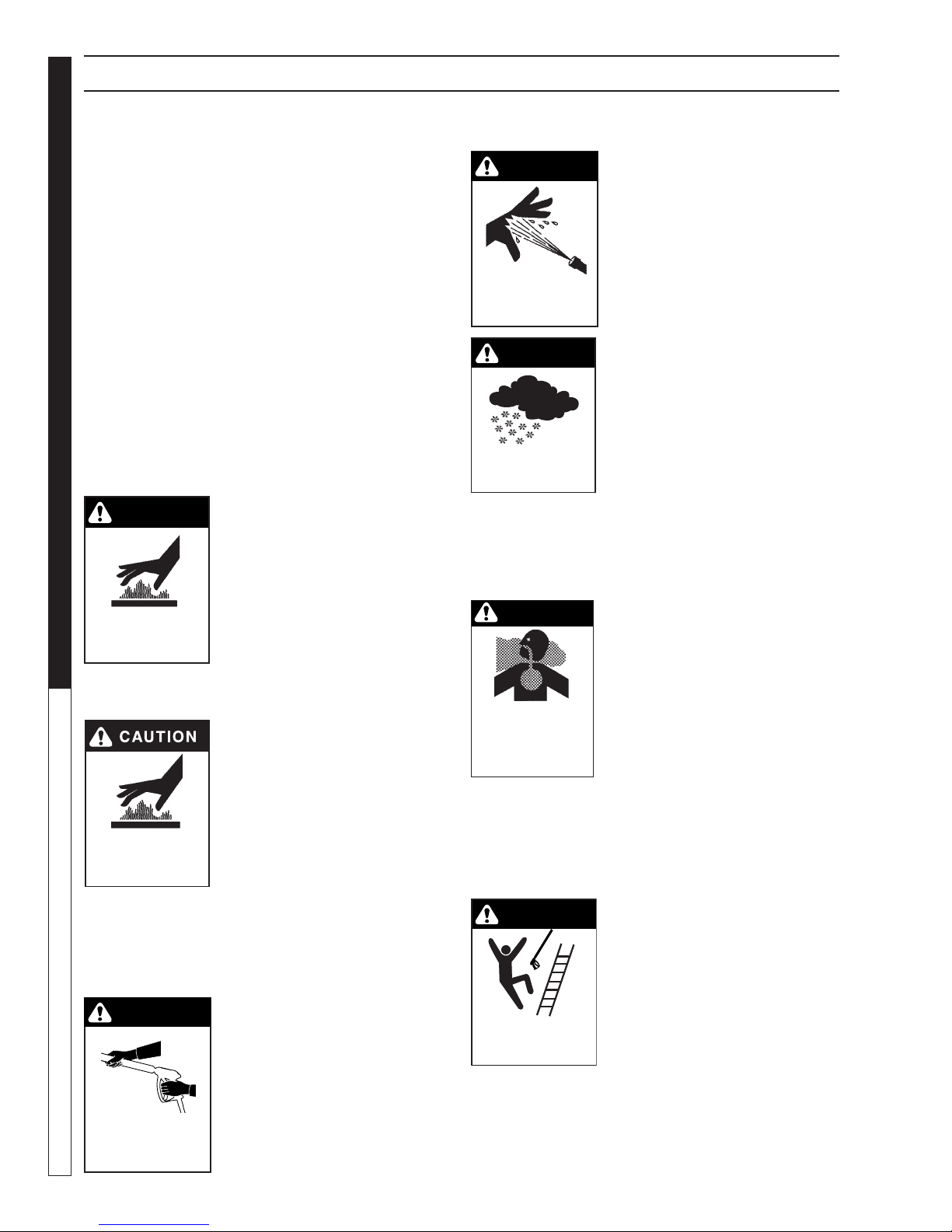

RISK OF INJURY.

HOT SURFACES

CAN CAUSE BURNS

12. Transport/Repair with fuel tank EMPTY or with fuel shut-off valve OFF.

DO NOT TOUCH OR

DIRECT DISCHARGE

STREAM AT PERSONS.

13. To reduce the risk of injury, close supervision is necessary when a machine is used near children. Do not allow children to operate the pressure washer. This machine must be attended during

operation.

TRIGGER GUN KICKS

BACK - HOLD WITH

4

BOTH HANDS

WARNING: Risk of injury. Hot surfaces can cause burns. Use only designated gripping areas of spray gun and wand. Do not place hands or feet on non-insula ted ar eas of the pressure washer.

CAUTION: Hot discharge ﬂuid. Do not touch or direct discharge stream at persons.

WARNING: This machine produces hot water and must have insulated components attached to protect the operator.

WARNING: Grip cleaning wand securely with both hands before starting. Failure to do this could result in injury from a whipping wand.

14. Never make adjustments on machine while in operation.

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

15. Be certain all quick coupler ﬁttings are secured before using pressure washer.

WARNING: High pressure developed by these machines will cause personal injury or equipment damage. Keep clear of nozzle. Use caution when operating. Do not direct discharge

RISK OF INJECTION OR SEVERE INJURY TO PERSONS. KEEP CLEAR OF NOZZLE.

stream at people, or severe injury or death will result.

WARNING: Protect machine from freezing.

16. To keep machine in best operating conditions, it is important you protect machine from freezing. Failure to protect

PROTECT FROM

FREEZING

m a c h i n e f r o m fr e e z i n g could cause malfunction of the

machine and result in death, serious bodily injury, and/or property damage. Follow storage instructions speciﬁed in this manual.

17. Inlet water must be clean fresh water and no hotter then 90°F.

WARNING: Risk of asphyxiation. Use this product only in a well ventilated area.

18. A voi d install ing machine s in small areas or near ex-

RISK OF

ASPHYXIATION. USE

THIS PRODUCT ONLY

IN A WELL

VENTILATED AREA.

haust fans. Adequate oxyge n is needed fo r combustion or dangerous carbo n monoxid e will resu lt.

19. Manufacturer will not be liable for any changes made to our standard machines or any components not purchased from us.

20. The best insurance against an accident is precaution and knowledge of the machine.

WARNING: Be extremely careful when using a ladder, scaffolding or any other relatively unstable locatio n. The clea ning area should have adequate slopes and drainage to reduce the pos-

RISK OF INJURY

FROM FALLS WHEN

USING LADDER.

sibility of a fall due to slippery surfaces.

IMPORTANT SAFETY INFORMATION

21. Do not allow acids, caustic or abrasive ﬂuids to pass through the pump.

22. Never run pump dry or leave spray gun closed longer than 1-2 minutes.

23. Machines with shut-off spray gun should not be operated with the spray gun in the off position for extensive periods of time as this may cause damage to the pump.

24. Protect discharge hose from vehicle trafﬁc and sharp objects. Inspect condition of high pressure hose before using or bodily injury may result.

25. Before disconnecting discharge hose from water outlet, turn burner off and open spray gun to allow water to cool below 100° before stopping the machine. Then open the spray gun to relieve pressure. Failure to properly cool down or maintain the heating coil may result in a steam explosion.

26. Do not overreach or stand on unstable support. Keep good footing and balance at all times.

27. Do not operate this machine when fatigued or under the inﬂuence of alcohol, prescription medications, or drugs.

28. In oil burning models, use only kerosene, No. 1 home heating fuel, or diesel. If diesel is used, add a soot remover to every tankful.

Follow the maintenance instructions speciﬁed in the manual.

PRESSURE WASHER

OPERATOR’S MANUAL

5

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

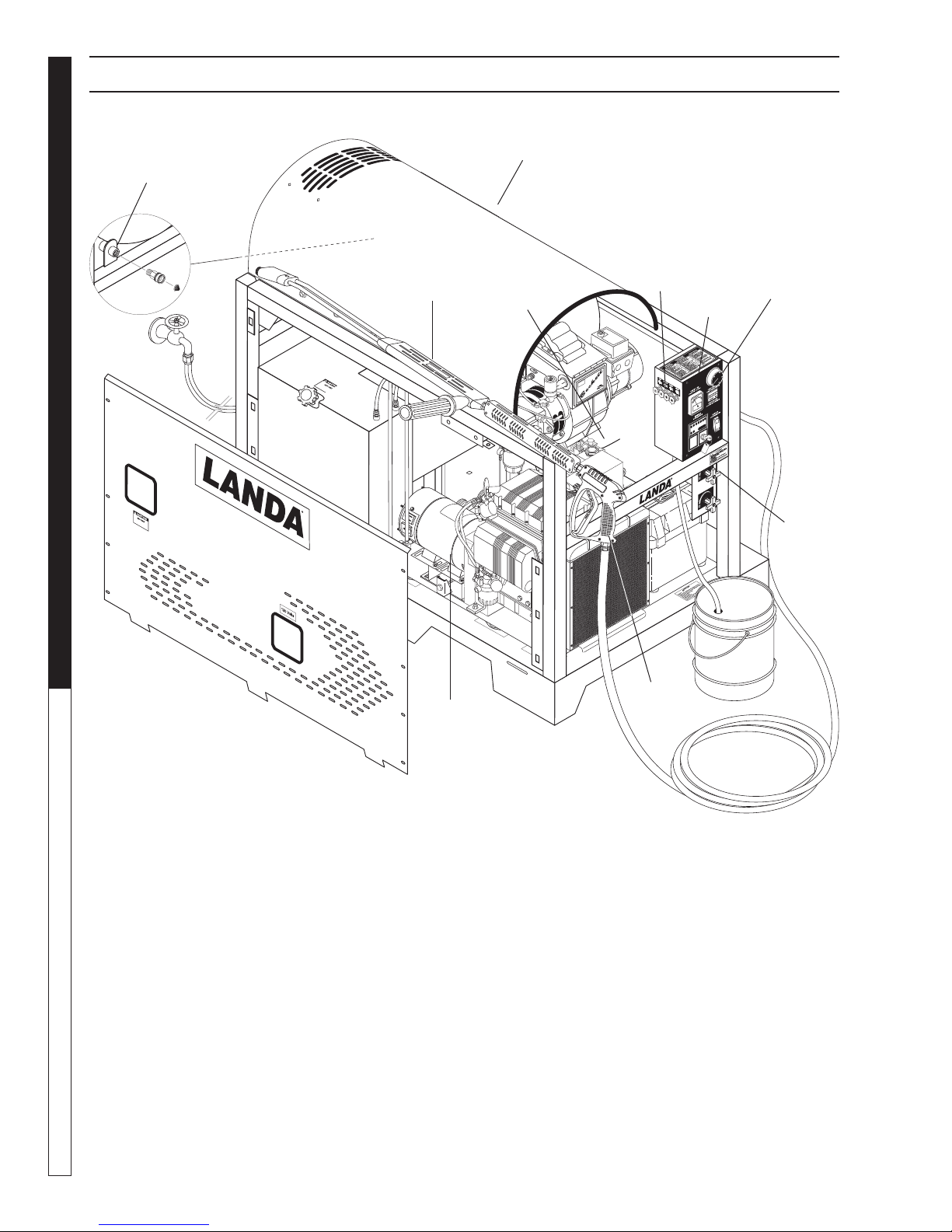

COMPONENT IDENTIFICATION

Rupture Disk

Water Inlet



High

PRESSURE WASHER

Wand

Pump

Unloader

Pressure

Nozzles

Volt

Meter

Thermostat

OPERATOR’S MANUAL

Generator



Pump

Detergent

Valve

Spray

Gun

High

Pressure

Hose

Pump — Delivers a speciﬁc gpm to the high pressure

nozzle which develops pressure.

Spray Gun — Controls the application of water and detergent onto cleaning surface with trigger device. Includes safety latch.

Detergent Valve — Allows you to siphon and mix detergents.

Wand — Must be connected to the spray gun.

High Pressure Hose — Connect one end to water

pump high pressure discharge nipple and the other end to spray gun.

6

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

Rupture Disk — Secondary pressure release in the unlikely event the unloader valve fails.

Unloader Valve — Safety device which, when the spray gun closes, prevents over pressurization.

Generator — Provides 110V power to the burner assembly.

NOTE: If trigger on spray gun is released for more than 2 minutes, water will leak from the pump protector. Warm water will discharge from pump protector onto ﬂoor. This system prevents internal pump damage.

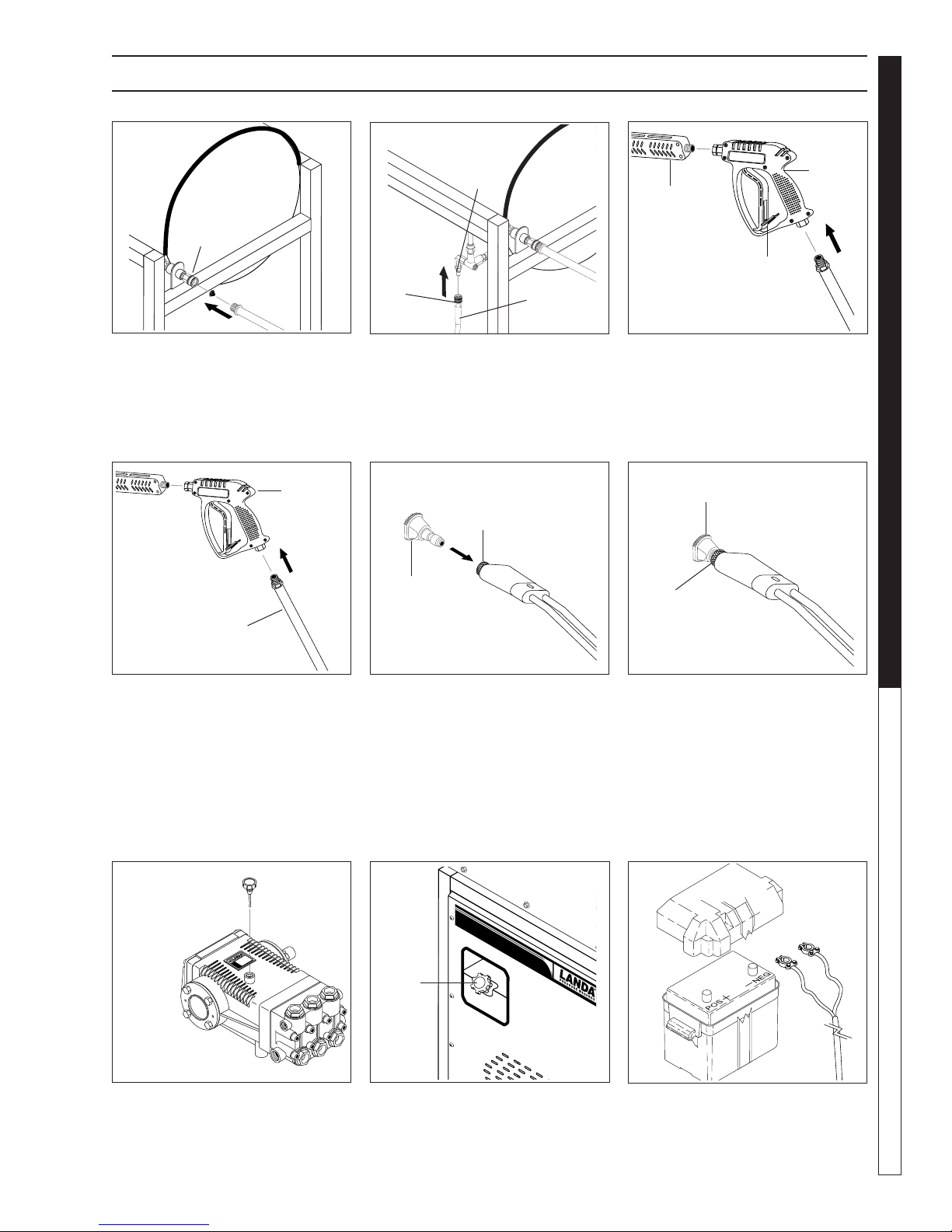

ASSEMBLY INSTRUCTIONS

PRESSURE WASHER

Water

Inlet

Garden

Hose

STEP 1: Attach a 5/8" water supply

hose to inlet connector. Minimum ﬂow should be 10 GPM depending on model of machine.

Spray Gun

High

Pressure

Hose

Discharge

Nipple

Collar

High

Pressure

Hose

89140030-5

STEP 2: Attach high pressure hose to discharge nipple using quick coupler. Lock coupler securely by pulling back coupler collar, inserting onto discharge nipple and pushing collar forward until secure.

Coupler

Collar

Pressure

Nozzle

Trigger

Gun

Wand

Safety Latch

STEP 3: Attach variable pressure

control wand to spray gun using teﬂon tape on threads to prevent leakage.

Pressure

Nozzle

Coupler

Collar

OPERATOR’S MANUAL

STEP 4: Attach the high pressure

hose to the spray gun using teﬂon tape on hose threads.

Dipstick

STEP 7: Check oil level by using

supplied dip-stick. Use SAE 30W non-detergent only.

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

STEP 5:

Before installing nozzle, turn on water supply and run machine allowing water to ﬂush through the system until clear. Pull the springloaded collar of the wand coupler collar back to insert your choice of pressure nozzle. CAUTION: Never replace

nozzles without engaging the safety latch on the spray gun trigger.

Oil

Tank

STEP 8: Fill fuel oil tank. Do not

confuse gasoline and fuel oil tanks. Keep proper fuel in proper tank.

STEP 6: Release the coupler collar and push the nozzle until the collar clicks. Pull the nozzle to make sure it is seated properly.

STEP 9: Install proper battery making sure that the red cable is attached to the positive terminal. Use a 12V group 24 style battery.

7

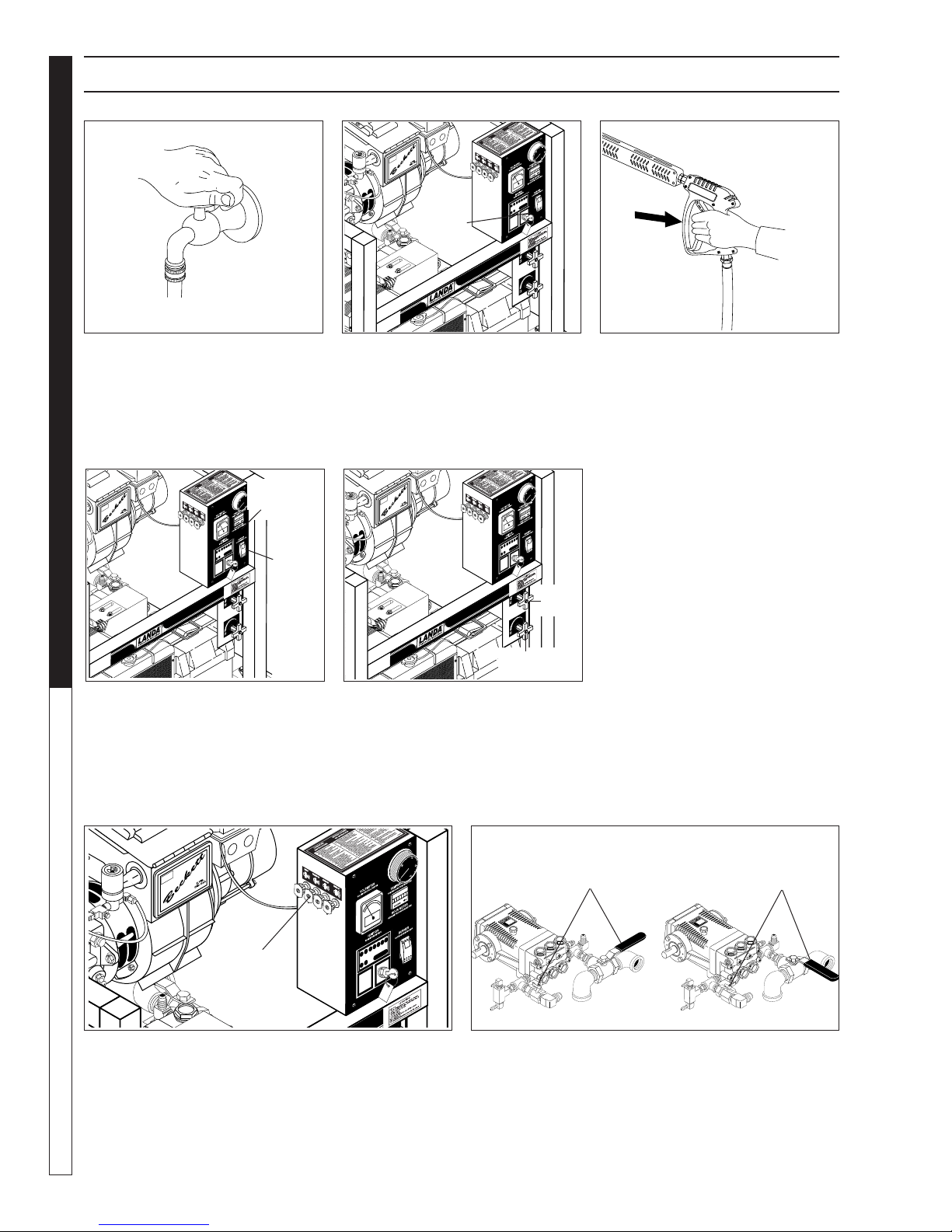

OPERATING INSTRUCTIONS

Engine

Key

Switch

PRESSURE WASHER

STEP 1: Read engine warning and operating instructions prior to turning on the water. Check for water leaks; tighten as needed.

OPERATOR’S MANUAL

Thermostat

Adjust Knob

Burner Switch

STEP 4: For hot water, turn the

thermostat knob to 210° then push the burner switch to ON when a steady stream of water ﬂows out of the spray gun. Burner will now light automatically. NOTE: Do not start machine with burner switch on.

STEP 2: Read engine manual provided. The keyed ignition is located on the control panel. Simply turn key to ﬁrst position. Glow plug light will illuminate. When light goes out, turn key to start (second) position.

Detergent

Valve

ST EP 5: For st eam, open the

steam valve counterclockwise. This lowers the pressure and raises the temperature.

Steam

Valve

Diagram 1

Valve

Handles

STEP 3: With the spray nozzle

pointed away from you or anybody else, press the trigger on the spray gun to obtain pressurized cold water spray.

Diagram 2

Valve

Handles

Nozzles

STEP 6: The four color-coded quick connect nozzles

provide a wide array of spray widths from 0° to 45° and are easily accessible when placed in the convenient rubber nozzle holder, which is provided on the front of the machine. NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle. To scour the surface,

8

select the yellow 15° or red 0° nozzle.

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

STEP 7: Position valve handles as shown in diagram 1 for ﬂoat tank operation and as shown in diagram 2 for external water tank operation.

WARNING

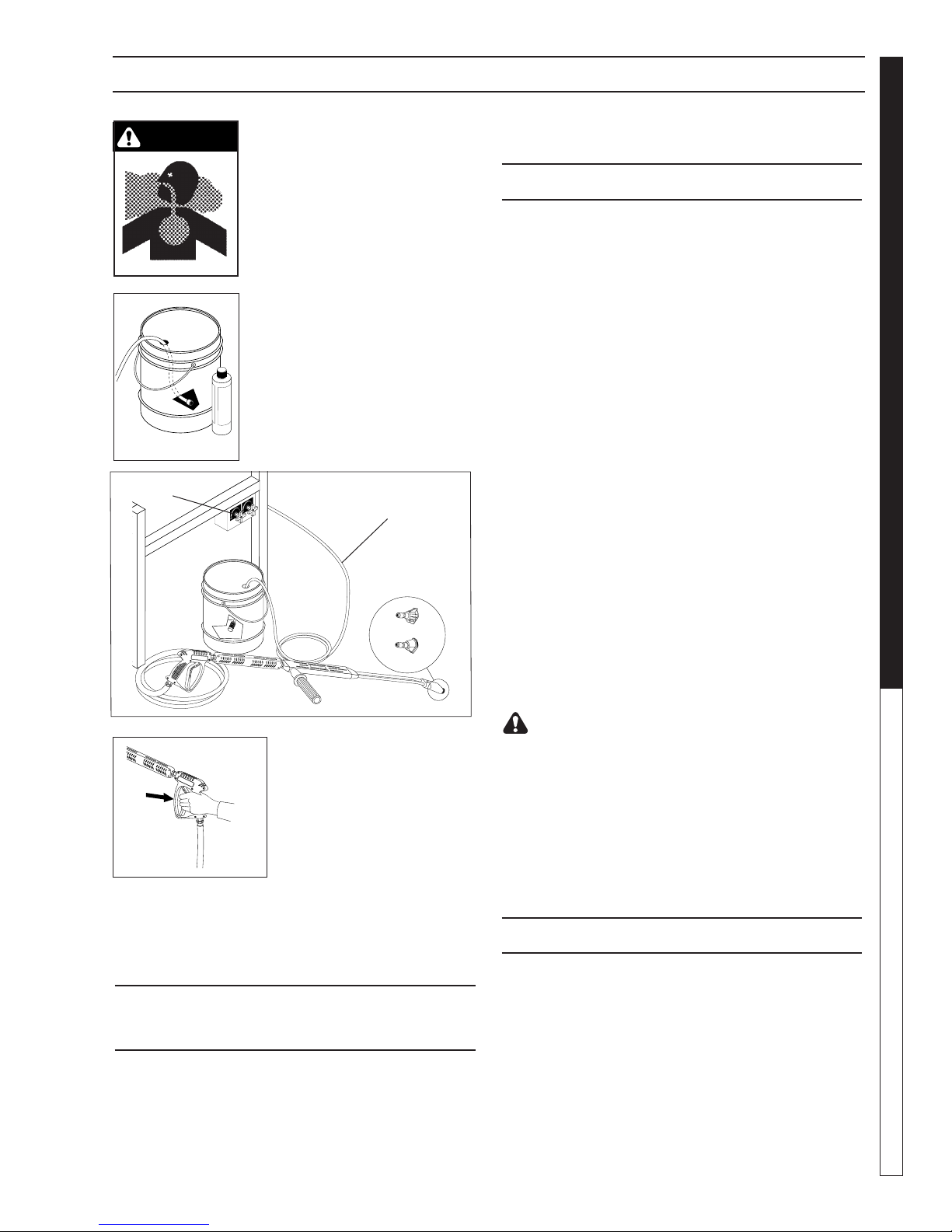

DETERGENTS & GENERAL WASHING TECHNIQUES

PRESSURE WASHER

WARNING: Some detergents may be harmful if inhaled or ingested, causing severe nausea, fainting or poisoning. The harmful elements may cause property damage or severe injury.

STEP 1: Use detergent designed speciﬁcally for pressure washers. Household detergents could damage the pump. Prepare detergent solution as required by the manufacturer. Fill a container with pressure washer detergent. Place the ﬁlter end of detergent suction tube into the detergent container.

Detergent Valve

Detergent Tube

STEP 2: With the engine run-

ning, pull trigger to operate machine. Liquid detergent is drawn into the machine and mixed with water. Apply detergent to work area. Do not allow detergent to dry on surface.

IMPORTANT: You must ﬂush the detergent after each use by placing the suction tube into a bucket of clean water, open detergent valves then run the pressure washer for 1-2 minutes.

THERMAL PUMP

PROTECTION

If you run your pressure washer for 3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach high temperatures. When the water reaches this temperature, the pump protector engages and cools the pump by discharging the warm

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

water onto the ground. This thermal device prevents internal damage to the pump.

CLEANING TIPS

Pre-rinse cleaning surface with fresh water. Place detergent suction tube directly into cleaning solution and apply to surface at low pressure (for best results, limit your work area to sections approximately 6 feet square and always apply detergent from bottom to top). Allow detergent to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. If surface appears to be drying, simply wet down surface with fresh water. If needed, use brush to remove stubborn dirt. Rinse at high pressure from top to bottom in an even sweeping motion keeping the spray nozzle approximately 1 foot from cleaning surface. Use overlapping strokes as you clean and rinse any surface. For best surface cleaning action spray at a slight angle.

Recommendations:

• Before cleaning any surface, an inconspicuous area should be cleaned to test spray pattern and distance for maximum cleaning results.

• If painted surfaces are peeling or chipping, use extreme caution as pressure washer may remove the loose paint from the surface.

• Keep the spray nozzle a safe distance from the surface you plan to clean. High pressure wash a small area, then check the surface for damage. If no damage is found, continue to pressure washing.

CAUTION - Never use:

• Bleach, chlorine products and other corrosive chemicals

• Liquids containing solvents (i.e., paint thinner, gasoline, oils)

• Tri-sodium phosphate products

• Ammonia products

• Acid-based products

These chemicals will harm the machine and will damage the surface being cleaned.

RINSING

It will take a few seconds for the detergent to clear. Apply safety latch to spray gun and close detergent valve. Select and install the desired high pressure nozzle.

OPERATOR’S MANUAL

9

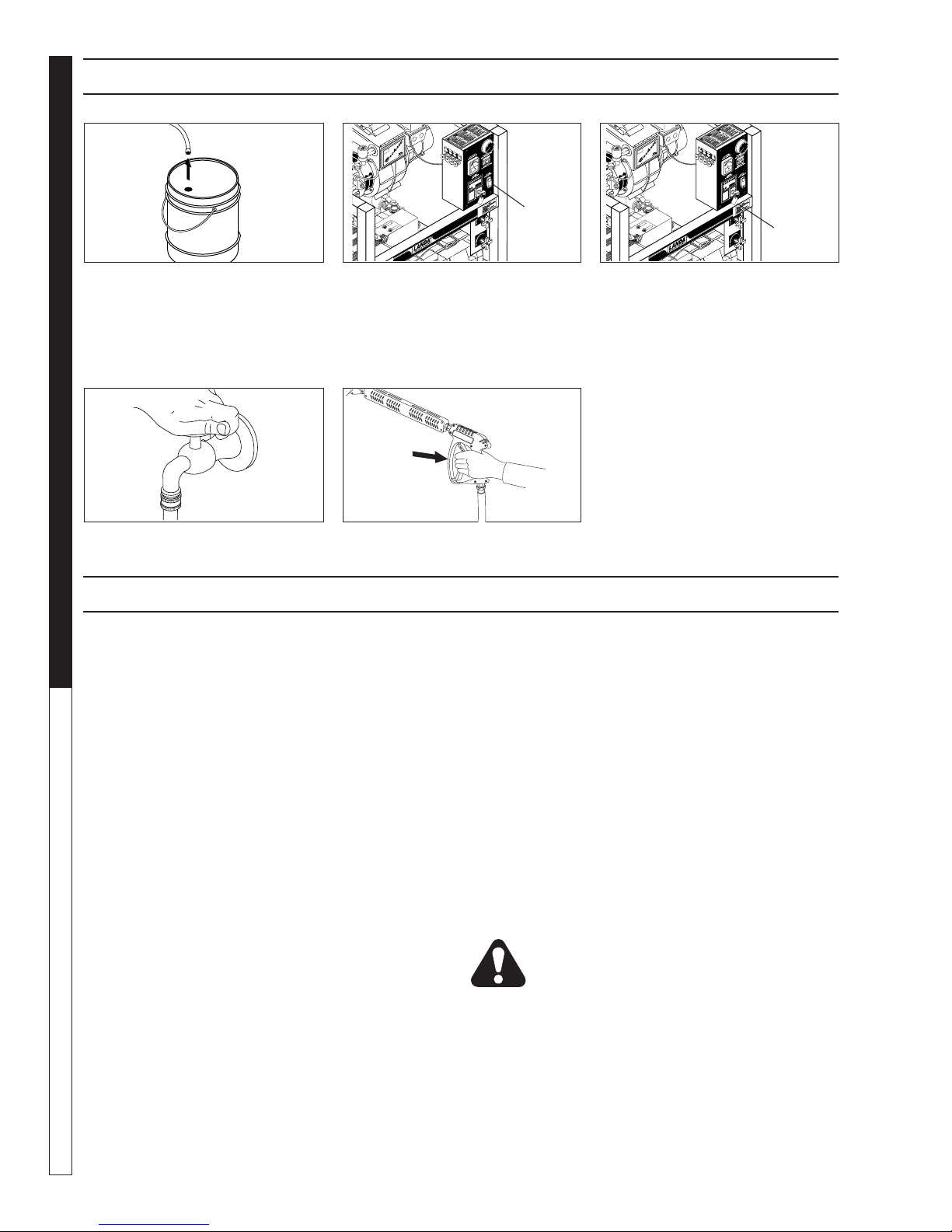

SHUTTING DOWN AND CLEAN-UP

PRESSURE WASHER

STEP 1: Remove detergent suction tube from container and insert into one gallon of fresh water. Open detergent valve, pull trigger on spray gun and siphon water for one minute.

OPERATOR’S MANUAL

STEP 4: Turn off water supply.

Burner Switch

STEP 2: Turn burner switch off and

continue spraying, allowing the water to cool to below 100°.

STEP 5: Squeeze trigger on spray gun to relieve remaining pressure.

Engine

Key

Switch

STEP 3: Turn engine key switch

off.

CAUTION: Always store your pressure washer in a location where the temperature will not fall below 32°F (0°C). The pump in this machine is susceptible to permanent damage if frozen. FREEZE DAMAGE IS NOT COVERED BY WARRANTY.

1. Stop the pressure washer, squeeze spray gun trigger to release pressure.

2. Detach water supply hose and high pressure hose.

3. Turn on the machine for a few seconds, until remaining water exits. Turn engine off immediately.

4. Drain the fuel and oil from the engine.

5. Do not allow high pressure hose to become kinked.

6. Store the machine and accessories in a room which does not reach freezing temperatures.

CAUTION: Failure to follow the above directions will result in damage to your pressure washer.

When the pressure washer is not being operated or is being stored for more than one month, follow these instructions:

1. Replenish engine oil to upper level.

2. Drain diesel from fuel tank, fuel line, fuel valve and carburetor.

3. Pour about one teaspoon of engine oil through the

10

spark plug hole, pull the starter grip several times

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

STORAGE

and replace the plug. Then pull the starter grip slowly

until you feel increased pressure which indicates

the piston is on its compression stroke and leave it in that position. This closes both the intake and exhaust valves to prevent rusting of cylinder.

4. Cover the pressure washer and store in a clean, dry place that is well ventilated away from open ﬂame or sparks. NOTE: The use of a fuel additive, such as STA-BIL®, or an equivalent, will minimize the formulation of fuel deposits during shortage. Such additives may be added to the gasoline in the fuel tank of the engine, or to the gasoline in a storage container.

After Extended Storage

CAUTION: Prior to restarting, thaw out any possible ice from pressure washer hoses, spray gun or wand.

Engine Maintenance

During the winter months, rare atmospheric conditions may develop which will cause an icing condition in the carburetor. If this develops, the engine may run rough, lose power and may stall. This temporary condition can be overcome by deﬂecting some of the hot air from the engine over the carburetor area. NOTE: Refer to the engine manufacturer's manual for service and maintenance of the engine.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

LOW OPERATING PRESSURE

BURNER WILL NOT LIGHT

(Continued on next page)

Faulty pressure gauge Install new gauge.

Insufﬁcient water supply Use larger supply hose; clean ﬁlter at water inlet.

Old, worn or incorrect spray nozzle

Belt slippage Tighten or replace; use correct belt.

Plumbing or hose leak Check plumbing system for leaks. Retape leaks

Faulty or misadjusted unloader valve

Worn packing in pump Install new packing kit.

Fouled or dirty inlet or discharge valves in pump

Worn inlet or discharge valves Replace with valve kit.

Leaking pressure control valve Rebuild or replace as needed.

Slow engine RPM Set engine speed at proper speciﬁcations.

Gasoline Engine Altitude The gasoline engine is preset for operation at

Pump sucking air Check water supply and possibility of

Valves sticking Check and clean or replace if necessary.

Unloader valve seat faulty Check and replace if necessary.

Little or no fuel Fill tank with fuel.

Improper fuel or water in fuel Drain fuel tank and ﬁll with proper fuel.

Clogged fuel line Clean or replace.

Plugged fuel ﬁlter Replace as needed.

Misadjusted burner air bands Replace air bands for clean burn.

Little or no fuel pressure from fuel pump

Faulty burner transformer Test transformer for proper arc between contacts.

Disconnected or short in electrical wiring

Flex coupling slipping on fuel pump shaft or burner motor shaft

On-Off switch defective Check for electrical current reaching burner

Heavy sooting on coil and burner can cause interruption of air ﬂow and shorting of electrodes

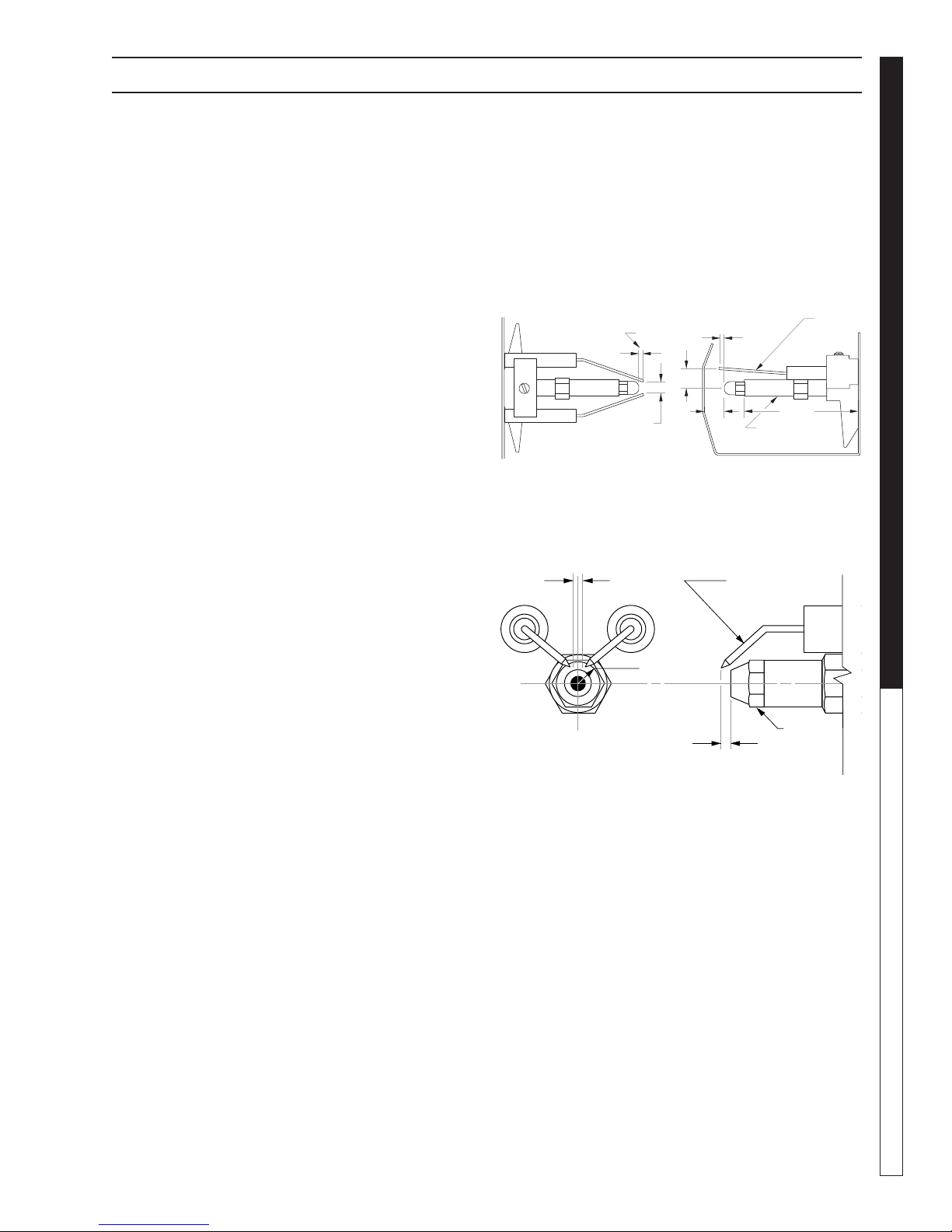

Improper electrode setting Check and reset according to diagram in

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

Match nozzle number to machine and/or replace with new nozzle.

with teﬂon tape.

Adjust unloader for proper pressure. Install repair kit when needed.

Clean inlet and discharge valves.

altitudes below 1000 feet above sea level. If operated at higher altitudes, it may be necessary to install a high altitude main jet in the carburetor. Contact your local authorized engine sales and service center for details.

air seepage.

Increase fuel pressure to speciﬁcations and/or replace fuel pump. Test with pressure gauge.

Replace as needed.

All wire contacts should be clean and tight. No breaks in wires.

Replace if needed.

assembly with burner switch on.

Clean as required.

Operator’s Manual

PRESSURE WASHER Troubleshooting Guide

11

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

BURNER WILL NOT LIGHT

(continued from previous page)

FLUCTUATING PRESSURE

PRESSURE WASHER Troubleshooting Guide

MACHINE SMOKES

LOW WATER TEMPERATURE

WATER TEMPERATURE TOO HIGH

12

Fuel reaching combustion chamber Check fuel pump for proper ﬂow. Check

Clogged burner nozzle Clean as required.

Thermostat faulty or slow engine speed Increase engine RPM to increase voltage.

Flow switch malfunction Remove, test for continuity and

Flow solenoid malfunction Replace if needed.

Valves worn Check and replace if necessary.

Blockage in valve Check and replace if necessary.

Pump sucking air Check water supply and air

Worn piston packing Check and replace if necessary.

Gasoline Engine Altitude The gasoline engine is preset for operation at

Improper fuel or water in fuel Drain tank and replace contaminated fuel.

Improper air adjustment Readjust air bands on burner asssembly.

Low fuel pressure Adjust fuel pump pressure to speciﬁcations.

Plugged or dirty burner nozzle Replace nozzle.

Faulty burner nozzle spray pattern Replace nozzle.

Heavy accumulation of soot on coils and burner assembly

Obstruction in smoke stack Check for insulation blockage or other foreign

Low engine RPM Increase RPM.

Improper fuel or water in fuel Replace with clean and proper fuel.

Low fuel pressure Increase fuel pressure.

Weak fuel pump Check fuel pump pressure.

Fuel ﬁlter partially clogged Replace as needed.

Soot build-up on coils not allowing heat transfer

Improper burner nozzle See speciﬁcations.

Incoming water to machine warm or hot Lower incoming water temperature.

Fuel pump pressure too high See speciﬁcations for proper fuel pressure.

Fuel pump defective Replace fuel pump.

Detergent line sucking air Tighten all clamps. Check detergent lines for

Defective temperature switch Replace.

Incorrect fuel nozzle size See speciﬁcations for proper fuel pressure.

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

solenoid ﬂow switch on machines with spray gun control, for proper on-off fuel ﬂow control.

replace as needed

seepage at joints in suction line.

altitudes below 1000 feet above sea level. If operated at higher altitudes, it may be necessary to install a high altitude main jet in the carburetor. Contact your local authorized engine sales and service center for details.

Remove coils and burner assembly, clean thoroughly.

objects.

Replace pump if needed.

Clean coils.

holes.

.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

WATER TEMPERATURE TOO HIGH

PUMP NOISY

PRESENCE OF WATER IN OIL

WATER DRIPPING FROM UNDER PUMP

OIL DRIPPING

EXCESSIVE VIBRATION IN DELIVERY LINE

DETERGENT NOT DRAWING

BURNER MOTOR WILL NOT RUN

RELIEF VALVE/ RUPTURE DISK LEAKS WATER

Insufﬁcient water supplied Check water GPM to machine.

Restrict water ﬂow Check nozzle for obstruction, proper size

Air in suction line Check water supply and

connections on suction line.

Broken or weak inlet or discharge valve springs

Excessive matter in valves Check and clean if necessary.

Worn bearings Check and replace if necessary.

Oil seal worn Check and replace if necessary.

High humidity in air Check and change oil twice as often.

Piston packing worn Check and replace if necessary.

O-Ring plunger retainer worn Check and replace if necessary.

Cracked piston Check and replace if necessary.

Pump protector Lower water supply pressure. Do not run with

Oil seal worn Check and replace if necessary.

Irregular functioning of the valves Check and replace if necessary.

Air leak Tighten all clamps. Check

Restrictor in ﬂoat tank is missing Replace restrictor. Check for

Filter screen on detergent suction hose plugged

Dried up detergent plugging metering valve

High viscosity of detergent Dilute detergent to speciﬁcations.

Hole in detergent line(s) Repair hole.

Low detergent level Add detergent, if needed.

Fuel pump seized Replace fuel pump.

Burner fan loose or misaligned Position correctly, tighten set screw.

Defective control switch Replace switch

Loose wire Check and replace or tighten wiring.

Defective burner motor Replace motor.

Excessive pressure, thermal expansion

Check and replace if necessary.

spray gun closed longer than 5 minutes.

detergent lines for holes.

proper oriﬁce in restrictor.

Clean or replace.

Disassemble and clean thoroughly.

Replace or repair

PRESSURE WASHER Troubleshooting Guide

13

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

MAINTENANCE & SERVICE

PREVENTATIVE

MAINTENANCE

Check to see that water pump is properly lubricated.

• Follow winterizing instructions to prevent freeze

PRESSURE WASHER

OPERATOR’S MANUAL

14

damage to pump and coils.

• Always neutralize and ﬂush detergent from system after use.

• If water is known to be high in mineral content, use a water softener on your water system, or de-scale as needed.

• Do not allow acidic, caustic or abrasive ﬂuids to be pumped through system.

•

Always use high grade quality cleaning products.

•

Never run pump dry for extended periods of time.

• Use clean diesel fuel. Clean or replace fuel ﬁlter every 100 hours of operation. Avoid water contaminated fuel as it will damage the fuel pump.

• If machine is operated with smoky or eye burning exhaust, coils soot up and prevent water from reaching maximum operating temperature. (See section on Burner Adjustments.)

• Never allow water to be sprayed on or near the engine or burner assembly or any electrical component.

• Periodically delime coils per instructions.

• Check to see that engine is properly lubricated.

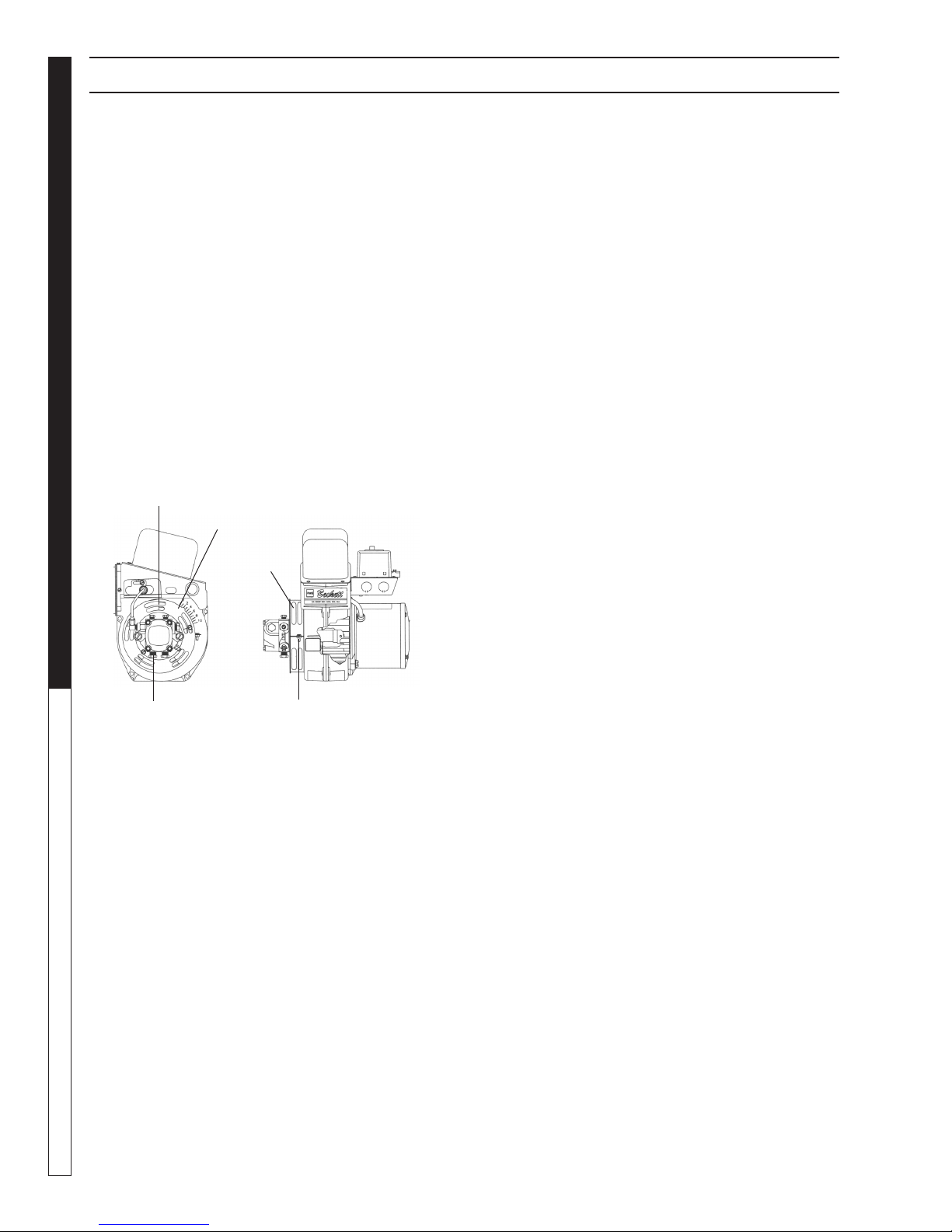

It is advisable, periodically, to visually inspect the burner. Check air inlet to make sure it is not clogged or blocked. Wipe off any oil spills and keep this equipment clean and dry.

The ﬂow of combustion and ventilating air to the burner must not be blocked or obstructed in any manner.

The area around the Landa washer should be kept clean and free of combustible materials, gasoline and other ﬂammable vapors and liquids.

Unloader Valves

Unloader valves are preset and tested at the factory before shipping. Tampering with the factory setting may cause personal injury and/or property damage, and will void the manufacturer's warranty.

Winterizing Procedure

Damage due to freezing is not covered by warranty. Adhere to the following cold weather procedures whenever the washer must be stored or operated outdoors under freezing conditions.

During winter months, when temperatures drop below 32°F, protecting your machine against freezing

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

is necessary. Store the machine in a heated room. If this is not possible then mix a 50/50 solution of antifreeze and water in the ﬂoat tank. Turn the engine on to siphon the antifreeze mixture through the machine. If compressed air is available, an air ﬁtting can be screwed into the ﬂoat tank by removing the ﬂoat tank strainer and ﬁtting. Inject the compressed air. Water will be blown out of the machine when the trigger on the spray gun is opened.

High Limit Hot Water Thermostat

For safety, each machine is equipped with a temperature sensitive high limit control switch. In the event that the water should exceed its operating temperature, the high limit control will turn the burner off until the water cools then automatically reset itself. The thermostat sensor is located on the discharge side of the heating coil. The thermostat control dial is located on the control panel.

Pumps

Use only SAE 30 weight non-detergent oil. Change oil after ﬁrst 50 hours of use. Thereafter, change oil every three months or at 500 hour intervals. Oil level should be checked through use of dipstick found on top of pump, or the red dot visible through the oil gauge window. Oil should be maintained at that level.

Cleaning of Coils

In alkaline water areas, lime deposits can accumulate rapidly inside the heating coil. This growth is increased by the extreme heat build up in the coil. The best prevention for liming conditions is to use high quality cleaning chemicals. In areas where alkaline water is an extreme problem, periodic use of Landa Deliming Powder (Landa Part #9-028008) will remove lime and other deposits before coil becomes plugged.

Deliming Coils

Periodic ﬂushing of coils or optional ﬂoat tank is recommended.

Step 1 Fill a container with 4 gallons of water, then

add 1 lb. of deliming powder. Mix thoroughly. Pour mixture into ﬂoat tank.

Step 2 Remove wand assembly from spray gun

and put spray gun into ﬂoat tank. Secure the trigger on the spray gun into the open position.

Step 3 Turn engine on, allowing solution to be

pumped through coils back into the ﬂoat tank. The solution should be allowed to circulate 2-4 hours or until the color changes.

Step 4 After circulating solution, ﬂush the entire sys-

tem with fresh water. Clean out ﬂoat tank and then reinstall wand assembly to spray gun.

MAINTENANCE & SERVICE

PRESSURE WASHER

Removal of Soot and Heating Coil

In the heating process, fuel residue in the form of soot deposits may develop on the heating coil pipe and block air ﬂow which will affect burner combustion. When soot has been detected on visual observation, the soot on the coil must be washed off after following the coil removal steps (See Coil Removal page 16).

Pressure Relief Valve

Each machine is equipped with a relief valve to relieve pressure in the system when higher than normal operating pressures are encountered or if the unloader valve should fail. Unusually high pressures come from an object plugging the spray nozzle. If operating pressure is found to be normal and the relief valve continues to leak, repair or replace valve. CAUTION: This valve

must be opened each year to check operation.

Rupture Disk

If pressure from pump or thermal expansion should exceed safe limits, the rupture disk will burst, allowing high pressure to be discharged through hose to ground. The ruptured disk needs to be inspected once or twice a year for any obstructions.

Fuel

Use clean fuel oil/diesel that is not contaminated with water and debris. Replace fuel ﬁlter and drain tank every 100 hours of operation.

Use No. 1 or No. 2 heating oil (ASTM D306) only. NEVER use gasoline in your burner fuel tank. Gasoline is more combustible than fuel oil and could result in a serious explosion. NEVER use crankcase or waste oil in your burner. Fuel unit malfunction could result from contamination.

Fuel Pressure Adjustment

To control water temperature, adjust fuel pressure by turning the regulating pressure adjusting screw clockwise to increase, counterclockwise to decrease. Do not exceed 200 psi. NOTE: When changing fuel pump, a bypass plug must be installed in return port or fuel pump will not prime.

ELECTRODE SETTING: WAYNE

Electrodes

Gap

1/8"

3/8"

3/16"

Top View

Periodically check wiring connections. If necessary to adjust

electrodes use diagram.

1/2"

1/8"

2-7/8"

Nozzle

Adapter

Side View

ELECTRODE SETTING: BECKETT

5/32" Gap

7/16"

1/16"

Electrode

Nozzle

OPERATOR’S MANUAL

Fuel Control System

This machine utilizes a fuel solenoid valve located on the fuel pump to control the ﬂow of fuel to the combustion chamber. The solenoid, which is normally closed, is activated by a ﬂow switch when water ﬂows through it. When the operator releases the trigger on the spray gun, the ﬂow of water through the ﬂow switch stops, turning off the electrical current to the fuel solenoid.

The solenoid then closes, shutting off the supply of fuel to the combustion chamber. Controlling the ﬂow of fuel in this way gives an instantaneous burn-or-noburn situation, thereby eliminating high and low water temperatures, and combustion smoke normally associated with machines incorporating a spray gun.

CAUTION: Periodic inspection, to insure that the fuel solenoid valve functions properly, is recommended. This can be done by operating the machine and checking to see that the burner is not ﬁring when the spray gun is in the off position.

15

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

MAINTENANCE & SERVICE

Burner Nozzle

Keep the tip free of surface deposits by wiping it with a clean, solvent-saturated cloth, being careful not to plug or enlarge the nozzle. For maximum efﬁciency, replace the nozzle each season.

Air Adjustment

PRESSURE WASHER

The oil burner on this machine is preset for operation at altitudes below 1000 feet. If operated at higher altitudes, it may be necessary to adjust the air band setting. Adjust air band for #1 or # 2 smoke spot on the Bacharach scale. A one-time initial correction for your location will pay off in economy, performance, and extended service life. If a smoky or eye-burning exhaust is being emitted from the stack, two things should be checked. First, check the fuel to be certain

OPERATOR’S MANUAL

that kerosene or No. 1 home heating fuel is being used. Next, check the air adjustment on the burner.

AIR SHUTTER

LOCKING SCREW

AIR SHUTTER

AIR BAND

Coil Removal

Coil removal, because of freeze breakage or to clean soot from it, can be done quickly and easily.

1. Dis c onnect ho se from pump to inlet sid e of the coil.

2. Carefully disconnect the thermostat sensor making sure you do not crimp the capillary tube.

3. Remove burner assembly from combustion chamber.

4. Remove the 3-3/8" bolts from each side of coil and tank assembly (these bolts are used to fasten tank to chassis).

5. Remove ﬁttings connected to the 1/2" pipe nipples from inlet and discharge sides of coil.

6. Remove top tank wrap, bend back insulation tabs and fold back blanket.

7. R e m o v e bo l t s t h a t h o l d d o w n c o i l to bottom wrap.

8. Remove coil.

9. Replace or repair the coil and any insulation found to be broken or torn.

10. Remove insulation retainer plates.

AIR SHUTTER

LOCKING SCREW

AIR BAND

LOCKING SCREW

Adjustment

To adjust: start machine and turn burner ON. Loosen

two locking screws found in the air shutter openings (refer to illustration) and close air shutter until black smoke appears from burner exhaust vent. Note air band position. Next, slowly open the air shutter until white smoke just starts to appear. Turn air shutter halfway back to the black smoke position previously noted. Tighten locking screws.

If the desired position cannot be obtained using only the air shutter, lock the air shutter in as close a position as can be obtained, then repeat the above procedure on the air band setting.

Coil Reinstallation

Reinstall new or cleaned coil reversing Steps 9 through 1.

16

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

MAINTENANCE

This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform maintenance more often under severe conditions.

MAINTENANCE SCHEDULE

PRESSURE WASHER

Inspect Daily

Engine Oil

Air Cleaner

Battery Level Check monthly

Engine Fuel Filter 500 hours or 6 months

Spark Plug Maintenance 500 hours or 6 months

Clean Fuel Tank(s) Annually

Replace Fuel Lines Annually

Pump Oil (Non-detergent 10/40W)

Clean Burner Filter Monthly (More often if fuel quality is poor)

Remove Burner Soot Annually

Burner Adjustment/Cleaning Annually

Replace Burner Nozzle Annually

Change Every 25 hours

Filter Every 50 hours

Inspect Every 50 hours or monthly

Clean Every 3 months

Inspect Oil level daily

Change After ﬁrst 50 hours, then every 500 hours or annually

OPERATOR’S MANUAL

Descale Coil Annually (More often if required)

Replace High Pressure Nozzle Every 6 months

Replace Quick Connects Annually

Clean Water Screen/Filter Weekly

Replace HP Hose Annually

OIL CHANGE RECORD

DATE OIL

CHANGED

MONTH/DAY/YEAR

ESTIMATED OPERATING

HOURS SINCE LAST

OIL CHANGE

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

DATE OIL

CHANGED

MONTH/DAY/YEAR

ESTIMATED OPERATING

HOURS SINCE LAST

OIL CHANGE

17

HOT WATER OUTLET

SALIDA DELAGUA CALIENTE

SORTIE D'EAU CHAU

DE

89140030-1

EXPLODED VIEW - BURNER ASSEMBLY - SLT

PRESSURE WASHER

18

40

14

29

30

20

26

25

OPERATOR’S MANUAL

6

41

13

17

19

16

36

28

11

37

8

38

7

10

23

22

21

24

39

15

31

12

3

5

4

2

1

19

16

32

9

33

18

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

27

34

35

From

Unloader

SLT BURNER ASSEMBLY PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

1 8.706-958.0 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 1

2 8.709-158.0 Filter, Fuel/H20 Separator 1

3 8.706-941.0 Hose Barb, 1/4" Barb x 1/4" ML Pipe 1

4 8.706-827.0 Elbow, 1/4" Street 1

5 9.803-264.0 Nipple,

6 8.717-102.0 Burner, CF800, 120V, 4.5 Nozzle, 140 PSI (8-30824E) 1

8.717-378.0  Nozzle, 3.25, 80°B, (6-32824E) 1

8.750-777.0 Burner, Oil, 115V Cap (5-30824E) 1

8.717-366.0  Nozzle 2.50, 90° B, (5-30824E) 1

7 9.802-014.0 Nipple, 1/2" x 3", Galvanized,SCH80 2

8 8.725-944.0 Disk, Rupture 8000# 1

9 9.802-043.0 Elbow, 1/2" JIC x 1/2" Female, 90° 1

10 8.706-141.0 Coupling, 1/2" Hex Pipe 1

11 8.706-248.0 Plug, 3/8" Allen Counter Sunk 1

12 8.717-474.0 Insulation, Tank Head 24" w/Hole 1

13 8.717-475.0 Insulation, Tank Head 24" 1

14 8.717-476.0 Insulation, 1 Cut Blanket 1

15 9.802-171.0 Nipple, 3/8" x 3/8", NPT ST Male 1

1/4" x 3, Black Pipe

1

ITEM PART NO. DESCRIPTION QTY

16 8.912-220.0 Insulation Retainer Plate 2

17 8.912-449.0 Wrap, Bottom, 24" 1

18 8.912-736.0 Assembly, Coil SLT Skid 1

19 8.933-009.0 Gasket, Burner Plate 2

20 8.912-467.0 Top Wrap 1

21 9.196-012.0 Screw, 10-24 x 1/4" 1

22 9.802-041.0 Elbow, 3/8" Street 45° 1

23 9.149-003.0 Manifold Coil Outlet Discharge 1

24 4-02110000 Hose, Push-On 1 ft.

25 8.716-547.0 Connector, Conduit 1

26 8.716-011.0 Conduit 19"

27 8.918-424.0 Hose, 3/8" x 25" 2 Wire, Pressure Loop (5-3000, 6-3200) 1

8.918-225.0 Hose, 1/2" x 28" 2 Wire (8-3000) 1

28 9.802-047.0 Adapter, 1/2" x 1/2" 1

29 9.803-541.0 Screw, 5/16"-18 x 1/2" CS SOC, BN, NC, ZN 10

30 9.802-776.0 Washer, 5/16" Flat 10

31 8.706-236.0 Tee, 1/2" Street 1

32 8.706-171.0 Elbow, 1/2" Pipe x 3/8" 1

33 8.707-376.0 Valve, Safety Relief, 4500 PSI 1

34 9.802-202.0 Clamp, Screw 1

35 9.802-262.0 Hose, 7/8" Push-On 4 ft.

36 9.800-021.0 Label, Hot Water Outlet 1

37 9.184-030.0 Spacer, Rupture Disc 1

38 8.707-019.0 Push-On, 1/2" Barb x 3/8" MPT 1

39 8.750-095.0 Thermostat, 120C/240°F 1

40 9.802-768.0 Screw, 3/8 x 11/4 2

41 9.802-781.0 Nut, 3/8" NC 2

OPERATOR’S MANUAL

19

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

PRESSURE WASHER

IGNITION

IGNICION/IGNITTION

TEMPERATURE

TEMPERTURA/TEMPERATURE

HOUR METER

HOROMETRO/CHRONOMETRE

BURNER

QUEMADOR/BRULEUR

VOLTMETER

VOLTIMETRO/VOLTMETRE

GREEN 25°

YELLOW 15°

RED 0°

WHITE 40°

0

165

130

95

235

120 Volts

CHAUD!

+

–

+

–

CAUTION

Never Use

:

• Bleach, chlorine products and other corrosive chemicals

• Liquids containing solvents (i.e. paint thinner,gasoline,oil)

• Tri-sodium phosphate products

• Ammonia products

• Acid-based products These chemicals will harm the unit and will damage the

surface being cleaned.

Use manufacturer's detergents as recomm

ended in manual

89140030-3

OPERATOR’S MANUAL

97 - Return

from Burner

12 - Return

from Engine

89

83

97

84

92

49

Reversed

Views of

Labels

87

5

EXPLODED VIEW - SLT

25

1

69

86

52,57,80

13

26

For Detail See Float

Tank Illus.

7

11

40 - Inlet

to Engine

23

1

81

22

2

20 - Inlet

to Burner

67

85

1

81

49

92

4

93

49

61

6

42

60

68

60

4

56

26

74

For Detail

See Valve

9

Assembly

Illus.

50

4

79

54

59

8

53

95

57

82

78

96

55

24

54

14

15

52

16

17

For

Detail See

Control

Panel

Illus.

20

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

HIGH PRESSURE PUMPS

®

E X P

O S E D

P U

L L E

Y S A

N D

B E L T

S C A N

C A

U S

E I N

J U R Y

PRECAUCION/AVERTISSEMENT

W

A R

N IN

G

E X

P O S

E D P

U L L

E Y S

A N D

B E L

T S C

A N

C A U

S E IN

J U R

Y

PRECAUCION/A

VERTISSEMENT

W

A

R N

IN

G

CHAUD!

27

PRESSURE WASHER

EXPLODED VIEW - SLT

47

For

Detail See

Pump

Pg. 32

21

90

28

44

To

69

76

7

31

49

13

7

75

Bottom

of Steam

Valve

OPERATOR’S MANUAL

To

Bottom of

30

49

37

34

33

38

41

45

52

32

51

35

48

39

36

73

43

71

77

Chemical

Injector

76

46

49

18

3

73

72

63

62

91

88

57 58

57

18

29, 94

52 57

70

64

65

66

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

21

SLT EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.802-071.0

2 9.802-082.0 Cap, Fuel 1

3 8.706-600.0 Battery Box, Large 1

4 8.706-955.0 Hose Barb, 1/4" Barb x 1/8" ML Pipe, 90° 3

5 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF

PRESSURE WASHER

w/Strainer 1

6 9.800-035.0 Label, Warning Pictorial 1

7 9.802-152.0 Swivel, 3/4" SAE Female, Push-On 7

8 8.902-427.0

9 8.902-430.0 Valve Assy, Steam 1

10 8.709-069.0  Clamp, Screw #4 6

11 Please See Float Tank Assembly, SLT Skid

OPERATOR’S MANUAL

12 9.802-255.0  Hose, 3/16" Push-On, Fuel Line 62"

13 4-02120000 Hose, 3/4" Push-On 102"

14 Nozzle, See Speciﬁcations Pages

15 Nozzle, See Speciﬁcations Pages

16 Nozzle, See Speciﬁcations Pages

17 Nozzle, See Speciﬁcations Pages

18 8.718-618.0 Bolt, 5/16" x 3/4" 8

19 4-02100000 Hose, 1/4" Push-On Fuel Line 62"

20 4-02100000 Hose, 1/4" Push-On, Fuel Line 74"

21 8.915-771.0 Fly Wheel Cover 1

22 8.912-485.0 Assy, Fuel Tank, Mild Steel 1

23 8.912-459.0 Assembly, Diesel Frame 1

24 8.912-466.0 Panel, Diesel Cover 1

25 8.912-467.0 Wrap, Top, SS, SLT 1

26 8.912-472.0 Strap, Float Tank 4

27 8.918-426.0 Hose, 3/8" x 32", 2 Wire (5-3000, 6-3200) 1

8.918-227.0 Hose, 1/2" x 36", 2 Wire, Pressure Loop (8-3000) 1

28 4-02110000 Hose, 1/2" Push-On (5-3000, 6-3200) 36" 4-02120000 Hose, 3/4" Push-On (8-3000) 24"

29 Engine, See Speciﬁcations Pages

30 8.905-023.0 Pump Assy, SLT8-3 Diesel 1

31 8.905-433.0 Unloader, Assembly, SLX 1

32 Pulley, See Speciﬁcations Pages

33 Pulley, See Speciﬁcations Pages

34 Pulley, See Speciﬁcations Pages

35 Bushing, See Speciﬁcations Pages

36 Bushing, See Speciﬁcations Pages

22

Trim, 750 B2 X 1/16", Black

Valve Assy, Detergent, Skid

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

4 ft.

1

ITEM PART NO. DESCRIPTION QTY

37 Bushing, See Speciﬁcations Pages

38 Belt, See Speciﬁcations Pages

39 Belt, See Speciﬁcations Pages

40 4-02100000 Hose, 1/4" Push-On, Fuel Line 74"

41 8.716-610.0 Generator, 2FSM2PC-1/A, Winco 1

42 8.706-962.0 Hose Barb, 3/16" x 1/8" MPT, 90° 1

43 8.912-457.0 Assy, Belt Guard, Pump End (5-300) 1

8.912-462.0 Assy, 8-3 Diesel Pump Belt

Guard (6-3200, 8-3000, 10-2500) 1

44 8.912-471.0 Assy, Diesel Belt Guard, Generator (5-300) 1

8.912-489.0 Guard, Diesel, 8-3 Generator

(6-3200, 8-3000, 10-2500) 1

45 8.912-488.0 Assy, Diesel Power Platform (5-3000) 1

8.912-476.0 Assy, Diesel Power Platform

(6-3200, 8-3000) 1

46 8.912-474.0 Assy, Diesel Gen. Slide 1

47 8.912-458.0 Assy, Diesel Middle Belt Guard (5-300) 1

8.912-463.0 Assy, Diesel 8-3 Mid-Belt Guard

(6-3200, 8-3000, 10-2500) 1

48 8.912-473.0 Assy, Diesel Pump Plate (5-300) 1

8.912-508.0 Assy, 8-3 Diesel Pump Rail

(6-3200, 8-3000, 10-2500) 1

49 9.802-767.0 Screw, 3/8" x 3/4" HH NC, Whiz 14

50 9.802-781.0 Nut, 3/8" Flange, Whiz-Loc 8

51 9.802-099.0 Washer, Snubbing 9

52 8.725-395.0 Nut, 3/8" ESNA, NC 24

53 8.912-271.0 Spacer, Vibration Isolator 8

54 8.718-980.0 Washer, 5/16” Flat, SAE 36

55 9.802-776.0 Nut, 5/16" ESNA, NC 18

56 90-1007 Bolt, 5/16" x 1", NC HH 18

57 8.725-394.0 Washer, 3/8" SAE, Flat 34

58 9.802-727.0 Bolt, 3/8" x 1-3/4" Tap 4

59 9.802-794.0 Nut, Cage, 1/4" x 12 Gauge 8

60 6.390-126.0 Clamp, Hose, .46-, .54 ST 6

61 9.802-754.0 Screw, 1/4" x 1/2", HH NC, Whiz Loc 4

62 8.706-986.0 Adapter, 3/8" x 1/4" 1

63 9.802-039.0 Elbow, 1/2" JIC, 3/8", 90° 1

64 9.802-151.0 Swivel, 1/2" JIC Fem, Push-On 2

65 4-02110000 Hose, 1/2" Push-On 9"

SLT EXPLODED VIEW PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

66 9.802-126.0 Plug, 1/2" JIC, Flare 1

67 8.900-802.0 Label, Landa/Stripe 1

68 8.706-505.0 Isolator, Vibration Mount, 150 Lb. 8

69 9.800-006.0 Label, “Hot/Caliente” 3

70 8.900-282.0 Label, RPM Factory Set 1

71 9.803-845.0 Bolt, 1/2" x 5", NC HH Tap 1

72 9.802-740.0 Bolt, 1/2" x 3-1/2", NC 1

73 9.802-800.0 Washer, 1/2" Flat 2

74 8.900-814.0 Label, Landa 1

75 8.918-419.0 Hose, 1/4" x 36", 2 Wire, Pressure Loop 1

76 8.932-965.0 Label, Warning-Exposed Pulleys 2

77 9.803-532.0 Isolator, Skid 4

78 90-1995 Screw, 1/4" x 1/2" BH SOC CS 8

79 9.800-034.0 Label, Clear Lexan, 2-1/4" x 4-1/2" 1

80 9.802-727.0 Bolt, 3/8" x 1-3/4" Tap 2

81 8.932-960.0 Label, Diesel 2

82 8.932-968.0 Label, Intended for Outdoor Use 1

ITEM PART NO. DESCRIPTION QTY

83 9.803-541.0 Screw, 5/16"-18 x 1/2" CS SOC, BN, NC, ZN 10

84 90-7001 Washer, 5/16” Flat 10

85 9.800-022.0 Label, 120V 1

86 8.707-020.0 Barb, 1/2" MPT x 3/4" Barb 1

87 9.800-020.0 Label, Cold Water Inlet 1

88 9.802-730.0 Bolt, 3/8" x 2-1/2" 8

89 8.750-574.0 Gauge, Fuel Level 19" 1

90 9.802-767.0 Screw, 3/8 x 3/4 Whiz 4

91 8.912-333.0 Heat Shield 1

92 9.802-811.0 Washer, 3/8” Fender 8

93 9.802-781.0 Nut, 3/8” Whiz 4

94 8.717-940.0  Deﬂector, Exhaust (5-3000) 1

95 9.800-049.0 Label, Manufacturer's Cleaning Solution 1

96 8.718-978.0 Washer, Split Ring Lock 8

97 9.803-604.0 Sleeve, Fuel Gauge 1

 Not Shown

OPERATOR’S MANUAL

23

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

EXPLODED VIEW - SLX

IGNITION

IGNICION/IGNITTION

TEMPERATURE

TEMPERTURA/TEMPERATURE

HOUR METER

HOROMETRO/CHRONOMETRE

BURNER

QUEMADOR/BRULEUR

VOLTMETER

VOLTIMETRO/VOLTMETRE

GREEN 25°

YELLOW 15°

RED 0°

WHITE 40°

0

165

130

95

235

120 Volts

CHAUD!

CAUTION

Never Use

:

• Bleach, chlorine products and other corrosive chemicals

• Liquids containing solvents (i.e. paint thinner,gasoline,oil)

• Tri-sodium phosphate products

• Ammonia products

• Acid-based products These chemicals will harm the unit and will damage the

surface being cleaned. Use manufacturer's detergents as recommended in manual

89140030-4

25

PRESSURE WASHER

OPERATOR’S MANUAL

93 - Return

from Burner

12 - Return

from Engine

96 - Inlet

to Engine

81

23

89

22

98

1

83

84

94

93 - Inlet

to Burner

67

85

49

Reversed

Views of

Labels

81

2

4

50

1

60

87

97

1

20

For Detail See Float

69

86

18

13

Tank Illus.

5

52,57,80

7

26

11

94

6

4

49

31

60

49

61

26

60

68

56

4

79

54

59

74

9

8

For Detail See Valve Assembly

Illus.

53

95

For

Detail See

Control

Panel

Illus.

82

78

54

90

55

24

14

15

16

19

57

52

17

24

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

HIGH PRESSURE PUMPS

®

E X P

O S E D

P U

L L E

Y S A

N D

B E L T

S C A N

C A

U S

E I N

J U R Y

PRECAUCION/AVERTISSEMENT

W

A R

N IN

G

E X

P O S

E D P

U L L

E Y S

A N D

B E L

T S C

A N

C A U

S E IN

J U R

Y

PRECAUCION/A

VERTISSEMENT

W

A

R N

IN

G

CHAUD!

27

PRESSURE WASHER

EXPLODED VIEW - SLX

47

For

Detail See

Pump

Pg. 34

92

91

28

7

69

76

72

49

44

To

13

Bottom

of Steam

Valve

OPERATOR’S MANUAL

7

75

7

To

Bottom of

30

49

37

34

33

38

41

52

32

35

51

45

46

48

39

40

73

88

36

43

71

77

Detergent

Injector

76

49

29

52 57

70

73

71

21

62

63

65

66

58

57

64

95

57

42

3

25

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

SLX EXPLODED VIEW - PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.802-071.0 Trim, 750 B2 X 1/16", Black 4 ft.

2 9.802-082.0 Cap, 18 Fuel 1

3 8.706-600.0 Battery Box, Large 1

4 8.706-955.0 Hose Barb, 1/4" Barb x 1/8" MLPipe, 90° 3

PRESSURE WASHER

5 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF w/Strainer 1

6 9.800-035.0 Label, Warning Pictorial 1

7 9.802-152.0 Swivel, 3/4" SAE Female, Push-On 7

8 8.902-427.0 Valve Assy, Detergent, Skid 1

9 8.902-430.0 Valve Assy, Steam 1

10 8.709-069.0  Clamp, Screw #4 6

OPERATOR’S MANUAL

11 8.903-580.0 Float Tank Assy, SLT Skid 1

12 9.802-255.0  Hose, 3/16" x 55" Push-On, Fuel Line 1

13 4-02120000 Hose, 3/4" Push-On 102"

14 Nozzle, Please See Speciﬁcations Pages

15 Nozzle, Please See Speciﬁcations Pages

16 Nozzle, Please See Speciﬁcations Pages

17 Nozzle, Please See Speciﬁcations Pages

18 8.906-164.0 Coil Assy, SLX 1

19 8.906-444.0 Assy, Control Box, SLT/SLX Diesel 1

20 8.906-733.0 Burner Assy, SLT (8-10GPM) 1

21 8.912-476.0 Platform Assy, Diesel 1

22 8.912-481.0 Assy, Fuel Tank, Mild Steel 1

23 8.911-233.0 Assembly, Diesel Frame 1

24 8.912-482.0 Panel, Diesel Cover 1

25 8.911-236.0 Wrap, Top, SS 1

26 8.912-472.0 Strap, Float Tank 4

27 8.918-227.0 Hose, 1/2" x 35", 2 Wire, Pressure Loop 1

28 4-02120000 Hose, 3/4" Push-On 2 ft.

29 9.802-327.0 Engine, Lombardini/24 HP 1

30 8.905-026.0 Pump Assy, 10-2 1

31 9.802-781.0 Nut, 3/8" Whiz 4

32 Pulley, See Speciﬁcations Pages

33 Pulley, See Speciﬁcations Pages

34 Pulley, See Speciﬁcations Pages

35 Bushing, See Speciﬁcations Pages

36 Bushing, See Speciﬁcations Pages

37 Bushing, See Speciﬁcations Pages

38 Belt, See Speciﬁcations Pages

39 Belt, See Speciﬁcations Pages

26

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

ITEM PART NO. DESCRIPTION QTY

40 8.912-333.0 Heat Shield 1

41 8.716-610.0 Generator, 2FSM2PC-1/A, Winco 1

42 8.718-618.0 Bolt, 5/16" x 3/4" 4

43 8.912-462.0 Assy, 8-3 Diesel Pump Belt Guard 1

44 8.912.489.0 Guard, Diesel, 8-3 Generator 1

45 8.912-476.0 Assy, Diesel Power Platform, Mild Steel 1

46 8.912-474.0 Assy, Diesel Gen. Slide 1

47 8.912-463.0 Assy, Diesel 8-3 Mid Belt Guard 1

48 8.912-508.0 Rail, Pump, 8-3 Diesel 1

49 9.802-767.0 Screw, 3/8" x 3/4" HH NC, Whiz 14

50 9.802-781.0 Nut, 3/8" Flange, Whiz-Loc 8

51 9.802-099.0 Washer, Snubbing 9

52 8.725-395.0 Nut, 3/8" ESNA, NC 24

53 8.912-271.0 Spacer, Vibration Isolator 8

54 8.718-980.0 Washer, 5/16" Flat, SAE 36

55 9.802-776.0 Nut, 5/16" ESNA, NC 18

56 90-1007 Bolt, 5/16" x 1", NC HH 18

57 8.725-394.0 Washer, 3/8" SAE, Flat 34

58 9.802-725.0 Bolt, 3/8" x 1-1/2", HH NC GRD 8 4

59 9.802-794.0 Nut, Cage, 1/4" x 12 Gauge 8

60 6.390-126.0 Clamp, Hose, .46-, .54 ST 6

61 9.802-754.0 Screw, 1/4" x 1/2", HH NC, Whiz Loc 4

62 9.802-155.0 Adapter, M18-1.5 x 3/8 Fem NPT 1

63 9.802-039.0 Elbow, 1/2" JIC, 3/8", 90° 1

64 9.802-151.0 Swivel, 1/2" JIC Fem, Push-On 2

65 4-02110000 Hose, 1/2" Push-On 9"

66 9.802-126.0 Plug, 1/2" JIC, Flare 1

67 8.900-802.0 Label, Landa/Stripe 1

68 8.706-505.0 Isolator, Vibration Mount, 150 Lb. 8

69 9.800-006.0 Label, “Hot/Caliente” 3

70 8.900-282.0 Label, RPM Factory Set 1

71 9.803-845.0 Bolt, 1/2" x 5", NC HH Tap 2

72 8.905-433.0 Unloader, Assy, SLX 1

73 9.802-800.0 Washer, 1/2" Flat 2

74 8.900-814.0 Label, Landa 1

75 8.818-419.0 Hose, 1/4" x 36", 2 Wire, Pressure Loop 1

SLX EXPLODED VIEW - PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

76 8.932-965.0 Label, Warning Exposed Pulleys 2

77 9.803-532.0 Isolator, Skid 4

78 9.804-003.0 Screw, 1/4" x 3/4" BH SOC CS 8

79 9.800-034.0 Label, Clear Lexan, 2-1/4" x 4-1/2" 1

80 9.802-727.0 Bolt, 3/8" x 1-3/4" Tap 2

81 10-020110 Label, Use Only Kerosene 2

82 8.932-968.0 Label, Intended for Outdoor Use 1

83 9.803-541.0 Screw, 5/16"-18 x1/2" CS SOC, BN, NC, ZN 10

84 90-7001 Washer, 5/16" Flat 10

85 9.800-022.0 Label, 120V 1

86 8.707-020.0 Barb, 1/2" MPT x 3/4" Barb 1

ITEM PART NO. DESCRIPTION QTY

87 9.800-020.0 Label, Cold Water Inlet 1

88 9.802-730.0 Bolt, 3/8" x 2-1/2" 8

89 8.750-574.0 Gauges, Fuel Level 19" 1

90 8.718-978.0 Washer, Split Ring, Lock 8

91 8.915-771.0 Fly Wheel Cover 2

92 9.802-767.0 Screw, 3/8 x 3/4 Whiz 1

93 4-02100000 Hose, 1/4" x 76" Push-On, Fuel Line 2

94 9.802-811.0 Washer, 3/8" Fender 8

95 9.800-049.0 Label, Manufacturer's Cleaning Solution 1

96 4-0210000 Fuel Line, 1/4" 54"

97 8.706-962.0 Hose Barb, 3/16" 1/8" MPT, 90° 1

 Not Shown

OPERATOR’S MANUAL

27

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

EXPLODED VIEW - SLX BURNER ASSEMBLY

HOT WATER OUTLET

SALIDA DELAGUA CALIENTE

SORTIE D'EAU CHAUDE

89140030-2

37

41

18

14

PRESSURE WASHER

20

35

25

36

OPERATOR’S MANUAL

6

4

42

13

24

38

33

23

8

19

16

40

21

11

39

10

12

5

3

2

15

1

17

34

19

7

17

34

7

22

28

29

30

9

27

31

28

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

32

From

Unloader

SLX BURNER ASSEMBLY PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

1 8.706-958.0 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 1

2 8.709-158.0 Filter, Fuel/H20 Separator 1

3 8.706-941.0 Hose Barb, 1/4" Barb x 1/4" ML Pipe 1

4 8.706-827.0 Elbow, 1/4" Street 1

5 9.803-264.0 Nipple,

6 8.717-102.0 Burner, CF800, 120V, 4.5 Nozzle, 160 PSI 1

7 9.802-014.0 Nipple, 1/2" x 3", Galvanized, SCH80 2

8 8.725-944.0 Disk, Rupture 8000# 1

9 9.802-043.0 Elbow, 1/2" JIC x 1/2" Female, 90° 1

10 8.706-294.0 Coupling, 1/2" Hex Pipe 1

11 9.802-171.0 Nipple, 3/8" x 3/8" NPT ST Male 1

12 8.717-477.0 Insulation, Tank Head 30" w/Hole 1

13 8.717-478.0 Insulation, Tank Head 30" 1

14 8.717-479.0 Insulation, 1 Cut Blanket 1

15 8.911-234.0 Wrap, Bottom Assy. 1

1/4" x 3, Black Pipe

1

ITEM PART NO. DESCRIPTION QTY

16 8.706-248 Plug, 3/8" Allen Counter Sunk 1

17 8.912-220.0 OF/VOF Insulation Retainer Plate 2

18 8.912-250.0 Coil, SLX Large SCH 80 1

19 8.933-009.0 Gasket, Burner Plate 2

20 8.911-236.0 Top Wrap, 16 Ga, 304 S.S., #4 Brush 1

21 9.196-012.0 Screw, 10-24 x 1/4" 1

22 9.802-041.0 Elbow, 3/8" Street 45° 1

23 8.707-019.0 Hose Barb, 1/2" x 3/8” MPT Push-On 1

24 4-02110000 Hose, 1/2" Push-On 1.66 ft.

25 8.716-547.0 Connector, 1/2" L/T Straight 1

26 8.716-011.0 Conduit, Flexo, 1/2" Black 27"

27 8.918-227.0 Hose, 1/2" x 36", 2 Wire 1

28 8.706-236.0 Tee, 1/2" Street 1

29 8.706-171.0 Elbow, 1/2" Pipe x 3/8" 1

30 8.707-376.0 Valve, Safety Relief, 4500 PSI 1

31 9.803-559.0 Clamp, Screw 1

32 4-02120000 Hose, 3/4" Push-On 4 ft.

33 9.800-021.0 Label, Hot Water Outlet 1

34 9.802-797.0 Screw, #10 x 1/2"Hex Head, Tek 8

35 9.802-448.0 Conduit, Tight Flex 11"

36 9.802-778.0 Nut, 5/16" Whiz Loc 9

37 8.911-237.0 Extension, 16 Ga

38 9.184-030.0 Spacer, Rupture Disc 1

39 9.149-003.0 Manifold Coil Out Discharge 1

40 8.750-095.0 Thermostat 1

41 9.802-768.0 Screw, 3/8 x 11/4 1

42 9.802-781.0 Nut, 3/8" NC 2

Top Wrap,

1

OPERATOR’S MANUAL

29

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

EXPLODED VIEW - CONTROL PANEL

2

18

7

9

PRESSURE WASHER

13

12

6

OPERATOR’S MANUAL

22

10

11

5

17

23

16

CONTROL PANEL PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 8.712-159.0 Voltmeter, 120VAC 1

2 9.803-895.0 Thermostat, 240° 1

3 9.802-451.0 Burner Switch 1

4 9.802-283.0 Hour Meter 1

5 8.912-484.0 Box, Electric, Diesel 1

6 8.900-266.0 Label, Nozzle 1

7 9.802-517.0 Connector, 1/2" L/T, 90° 1

8 9.802-435.0  Cord, Molded Royal 1

9 8.706-755.0 Bushing, .875" P/N 2119 1

10 9.802-064.0 Grommet, Rubber Nozzle 4

11 9.802-793.0 Cage, Nut, 1/4” 10

12 90-1995 Screw, Allen Head, Black 6

30

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

20

21

19

4

1

3

ITEM PART NO. DESCRIPTION QTY

13 8.940-052.0 Label, Control Box 1

14 9.800-040.0  Label, Ground 1

9.802-762.0  Screw, 10/32" x 11/4

R H SL,Black 1

9.802-695.0  Nut, 10/32" Keps 1

15 9.802-447.0  Conduit, 1/4" Corrugated Tubing 5.5 ft.

16 8.912-483.0 Cover, E-Box, Diesel 1

17 8.718-852.0 Nut, 6/32" Hex 2

18 10-08068 Label, Operation Instr. 1

19 8.750-097.0 Knob, Thermostat 240°F 1

20 8.712-190.0 Bezel, Thermostat 1

21 9.196-012.0 Screw, 10-24 x 1/4" 1

CONTROL PANEL PARTS LIST

ITEM PART NO. DESCRIPTION QTY

22 8.712-353.0 Nozzle, SAQCMEG, 0005, Red (SLT 5-30824E) 1

8.712-354.0 Nozzle, SAQCMEG, 1505, Yellow (SLT 5-30824E) 1

8.712-355.0 Nozzle, SAQCMEG, 2505, Green (SLT 5-30824E) 1

8.712-356.0 Nozzle, SAQCMEG, 4005, White (SLT 5-30824E) 1

8.712-369.0 Nozzle, SAQCMEG, 0007, Red (SLT 6-32824E) 1

8.712-370.0 Nozzle, SAQCMEG, 1507, Yellow (SLT 6-32824E) 1

8.712-371.0 Nozzle, SAQCMEG, 2507, Green (SLT 6-32824E) 1

8.712-372.0 Nozzle, SAQCMEG, 4007, White (SLT 6-32824E) 1

8.712-378.0 Nozzle, SAQCMEG, 0009, Red (SLT 8-30824E) 1

8.712-379.0 Nozzle, SAQCMEG, 1509, Yellow (SLT 8-30824E) 1

8.712-380.0 Nozzle, SAQCMEG, 2509, Green (SLT 8-30824E) 1

8.712-381.0 Nozzle, SAQCMEG, 4009, White (SLT 8-30824E) 1

8.712-382.0 Nozzle, SAQCMEG, 0012, Red (SLT 10-25824E) 1

8.712-383.0 Nozzle, SAQCMEG, 1512, Yellow (SLT 10-25824E) 1

8.712-384.0 Nozzle, SAQCMEG, 1525, Green (SLT 10-25824E) 1

8.712-385.0 Nozzle, SAQCMEG, 4012, White (SLT 10-25824E) 1

23 8.912-339.0 Bracket, Control, Retainer 2

 Not Shown

PRESSURE WASHER

OPERATOR’S MANUAL

31

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

EXPLODED VIEW - 5, 6, 8 GPM PUMP ASSEMBLIES

SLT 5-3000

PRESSURE WASHER

OPERATOR’S MANUAL

14

17

18

19

23

25

32

8

6

8

27

7

13

15

22

20

21

31

35

16

29

5

10

15

14

35

16

11

12

24

5

11

2

SLT 6-3200

23

25

13

17

18

19

22

20

SLT 8-3000

3

28

33

8

7

6

8

7

6

14

13

17

36

15

19

34

23

2

1

21

20

12

26

22

1

26

25

30

35

16

18

11

29

5

4

3

9

5

8

5

27

10

9

3

89140030-6

21

1

4

2

5

9

10

9

27

32

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

5, 6, 8 GPM PUMP ASSEMBLY PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

1 8.706-846.0 Tee, 3/4" Female Pipe, Brass (5-3000, 6-3200 GPM) (8-3000 GPM) 2

2 8.706-881.0 Nipple,

3 9.803-557.0 Elbow, 3/4" SAE x 3/4", 90° (5-3000, 6-3200 GPM) 1 (8-3000 GPM) 2

4 8.706-800.0 Nipple, 3/4" Hex 1

5 8.706-929.0 Bushing, 1" x 3/4" 2

6 8.706-854.0 Tee, 1/4" Branch Male (5-3000, 6-3200 GPM) 1

8.706-844.0 Tee, 1/2" Female, Pipe (8-3000 GPM) 1

7 8.706-915.0 Bushing, 1/2" x 1/4" Brass (5-3000, 6-3200 GPM) 1 (8-3000 PGM) 2

8 8.706-958.0 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 2

9 8.706-833.0 Elbow, 1" Street Brass 2

10 8.707-230.0 Valve, 1", 3-Way Brass 1

11 9.802-039.0 Elbow, 1/2" x 3/8", 90° (5-3000, 6-3200 GPM) 1

9.802-040.0 Elbow, 1/2" JIC, 1/2" 90° (8-3000 GPM) 2

12 9.802-039.0 Elbow, 1/2" x 3/8", 90° (5-3000, 6-3200 GPM) 1

9.802-040.0 Elbow, 1/2" JIC x 1/2" MPT (8-3000 GPM) 1

13 8.933-006.0 Switch, Flow MV60, Yellow 1

14 9.802-036.0 Nipple, 1/2" JIC, 3/8" Pipe 1

15 8.705-974.0 Nipple, 3/8" Hex Steel (5-3000, 6-3200 GPM) 1

8.706-171.0 Elbow, 1/2" MPT x 3/8" 90° Street, Steel (8-3000 GPM) 1

16 9.802-143.0 Hose Barb, 1/4" Barb x 1/4" MPT 90° 1

17 8.750-299.0 Unloader, VRT 3, 8 GPM@ 4500 PSI (5-3000, 6-3200 GPM) 1

8.712-708.0 Unloader, Valve (Giant 22913) 3000 PSI (8-3000 GPM) 1

18 9.802-129.0 Elbow, 1/2" JIC x 3/8", 90° (5-3000, 6-3200 GPM) 1

9.802-132.0 Elbow, 3/4" JIC x 1/2", 90° (8-3000 GPM) 1

3/4" Pipex1/2" Pipe

1

ITEM PART NO. DESCRIPTION QTY

19 9.802-048.0 Swivel, 1/2" JIC Female, 3/8" Male (5-3000, 6-3200 GPM) 1

8.706-315.0 Swivel, 1/2" JIC, 1/2" Male (8-3000 GPM) 1

20 9.802-036.0 Nipple, 1/2" JIC x 3/8" Pipe (5-3000, 6-3200 GPM) 1

9.802-038.0 Nipple, 1/2" JIC, 1/2" Pipe (8-3000 GPM) 1

21 9.802-870.0 Block, Unloader, 3/8" x 3/8"

1.25 Steel (5-3000, 6-3200 GPM) 1

9.802-869.0 Block, Unloader, 1/2" x 1/2"

1.75" Steel 1

22 9.802-728.0 Bolt, 3/8" x 2", NC HH (5,6 GPM) 2

9.802-730.0 Bolt, 3/8" x 2 1/2", GR5 Zinc (8 GPM) 1

23 Pump, Please See Speciﬁcation's Page

24 8.706-890.0 Elbow, 1/2" JIC x 3/4", 90° (5-3000, 6-3200 GPM) 1

25 8.706-297.0 Bushing, 3/8" x 1/4" (5-3000, 6-3200 GPM) 1

8.706-282.0 Bushing, 1/2" x 1/4" (8-3000 GPM) 1

26 8.706-799.0 Nipple, 3/4" Close (8-3000 GPM) 2

27 8.912-473.0 Pump Rail (5-3000) 1

8.912-508.0 Rail, Pump

28 8.707-224.0 Valve, 3/4" Ball, SMC, Brass (8-3000 GPM) 1

29 8.706-899.0 Nipple, 3/4" JIC 1

30 8.706-208.0 Elbow, 1/2" Street (8-3000 GPM) 1

31 8.706-860.0 Tee, 1/2" Street 1

32 9.802-128.0 Nipple, 1/2" JIC x 1/2" MPT 1

33 8.706-800.0 Nipple, Hex 3/4" 1

34 9.802-734.0 Bolt, 3/8-16 x 4 1/2, HEX G5 Zinc (8 GPM) 1

35 9.802-254.0 Hose, 1/4" Push-on 6

36 8.705-974.0 Nipple, 3/8" Hex Steel 1

(6-3200, 8-3000)

1

OPERATOR’S MANUAL

33

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

EXPLODED VIEW - 10 GPM PUMP ASSEMBLY

89140030-7

14

25

30

15

26

29

22

PRESSURE WASHER

OPERATOR’S MANUAL

12

9

16

13

28

7

1

8

4

24

2

5

6

21

1

5

27

17

18

31

20

23

10

4

11

19

10 GPM PUMP/UNLOADER ASSEMBLY PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 8.706-846.0 Tee, 3/4" Female Pipe 2

2 8.706-799.0 Nipple, 3/4" Close 2

3 8.707-230.0 Valve, 1" Brass, 3-Way 1

4 9.803-557.0 Elbow, 3/4" SAE x 3/4", 90° 3

5 8.706-800.0 Nipple, 3/4" Hex 2

6 8.706-929.0 Bushing, 1" x 3/4" Barstock 2

7 8.706-881.0 Nipple,

8 8.706-844.0 Tee, 1/2" Female, Pipe 1

9 8.706-915.0 Bushing, 1/2" x 1/4" Brass 2

10 9.802-040.0 Elbow, 1/2" JIC, 1/2" Pipe 1

11 8.706-833.0 Elbow, 1" Street, Brass 2

12 8.706-958.0 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 2

13 8.904-891.0 Pump, Landa LX1025/L 1

14 8.712-708.0 Unloader, Valve (Giant 22913) 3000 PSI (8 GPM) 1

15 9.802-143.0 Hose Barb, 1/4" Barb x 1/4" MPT, 90° 1

34

3/4" Pipe x 1/2" Pipe

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

6

4

11

3

ITEM PART NO. DESCRIPTION QTY

16 8.706-282.0 Bushing, 1/2" x 1/4" 1

17 9.802-036.0 Nipple, 1/2" JIC, 3/8" Pipe 1

18 8.933-006.0 Switch, Flow MV60, Yellow 1

19 8.912-508.0 Rail, Pump 1

20 9.706-171.0 Elbow, 1/2" x 3/8" Street 90° 1

21 9.802-038.0 Nipple, 1/2" JIC, 1/2" Pipe 1

1

22 9.802-869.0 Block, Unloader, 1/2 x 1/2 x 1.75" Steel 1

23 9.802-730.0 Bolt, 3/8" x 2 1/2" GR5 Zinc 1

24 9.802-040.0 Elbow, 1/2" JIC, 1/2", 90° 1

25 9.802-132.0 Elbow, 3/4" JIC x 1/2", 90° 1

26 8.706-315.0 Swivel, 1/2" JIC x 1/2" Male 1

27 8.707-224.0 Valve, 3/4” Ball, SMC, Brass1

28 8.706-208.0 Elbow, 1/2" Street

29 9.802-734.0 Bolt, 3/8-16 x 4 1/2 HEX G5 Zinc 1

30 9.802-254.0 Hose, 1/4" Push-on 6

31 8.705-974.0 Nipple, 3/8" Hex Steel 1

89140030-8

EXPLODED VIEW - FLOAT TANK

PRESSURE WASHER

6

1

2

14

4

3

11

5

10

11

SLT 5,6 GPM

7

15

16

8

SLT 8-3 GPM

6

3

1

2

14

4

3

5

3

7

4

SLX 10 GPM

15

16

8

3

OPERATOR’S MANUAL

FLOAT TANK PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 8.707-061.0 Strainer, 1/2" Basket (5-3000, 6-3200 GPM) 1 (8-3000, 10-2500 GPM) 2

2 9.802-128.0 Nipple, 1/2" JIC x 1/2" MPT Pipe (8-3000, 10-2500 GPM) 2

3 9.803-557.0 Elbow, 3/4" SAE x 3/4", 90°,

(8-3000,10-2500 GPM) 3

4 9.802-052.0 Bulkhead, 3/4" Polypro (5-3000, 6-3200 GPM) 1 (8-3000, 10-2500 GPM) 2

5 8.707-025.0 Stem, 10" Float 1

6 8.706-512.0 Ball, Float, Black Plastic 1

7 8.749-329.0 Valve, 3/4", Float 1

8 8.706-643.0 Tank, Float 1

(5-3000, 6-3200 GPM)

Brass 5-3000, 6-3200 GPM)

1

2

11

12

11

13

ITEM PART NO. DESCRIPTION QTY

9 8.706-899.0 Nipple, 3/4" JIC x 3/4" Pipe (10-2500 GPM) 2

10 4-02120000 Hose, 3/4" Push-On (5-3000) 13" 4-02120000 Hose, 3/4" Push-On (6-3200) 17"

11 9.802-152.0 Swivel, 3/4" SAE Female (5-3000, 6-3200 GPM) 2 (8-3000, 10-2500 GPM) 4

12 4-02120000 Hose, 3/4" Push-On 24"

13 4-02120000 Hose, 3/4" Push-On 17"

14 8.706-925.0 Bushing, 3/4" x 1/2" Pipe 1 (8-3000, 10-2500 GPM) 2

15 8.706-640.0 Bafﬂe, Plastic Float Tank 1

16 9.802-254.0 Hose, 1/4" Push-on 30"

35

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

SLX 10 GPM

PRESSURE WASHER

4

EXPLODED VIEW - VALVE ASSEMBLY

6

7

12

3

7

6

SLT 5,6 GPM

SLT 8-3 GPM

1

7

OPERATOR’S MANUAL

6

10

5

11

2

10

3

5

6

7

4

7

6

12

1

2

VALVE ASSEMBLY PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.800-029.0 Label, VHP Steam Valve 1

2 8.900-825.0 Label, Detergent Control Valve 1

3 9.802-187.0 Valve Flow Control w/Metering 1

4 8.707-317.0 Valve, Flow Control 1

5 8.706-200.0 Elbow, 1/4" Street 1

6 2-1089 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 3

36

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

ITEM PART NO. DESCRIPTION QTY

7 8.706-958.0 Clamp, Hose, .46 - .54 ST 3

8 4-02100000 Hose, 1/4" x 34" Push-On 2

9 4-02080000 Tube, Clear Vinyl 6 ft.

10 8.918-419.0 Hose, 1/4" x 36" Pressure Loop 1

11 8.911-724.0 Box, Valve, SLT/SLX Diesel 1

9.802-759.0  Screw, 10/32" x 1/2"

BHSOC 3

9.802-695.0  Nut, 10/32" Keps 3

12 9.800-049.0 Solutions Label 1

 Not Shown

6, 7

PRESSURE WASHER

EXPLODED VIEW - SPRAY GUN ASSEMBLY

1

5

OPERATOR’S MANUAL

High Pressure

SPRAY GUN ASSEMBLY PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.802-166.0 Coupler, 3/8" Female 1

9.802-100.0  Quick Coupler O-Ring, 3/8" Replacement Only 1

2 8.739-072.0 Hose, 3/8" x 50' 2-Wire, Tuff-Skin (SLT5) 1

8.739-401.0 Hose, 1/2" x 50', 2 Wire, Tuff Flex, (SLT6,SLT8, SLT10) 1

3 8.751-234.0 Gun, Landa, L1050, 5000 PSI, 10.4 GPM 1

4 8.711-308.0 Wand, SS, VP (AL344) w/Coupler & Soap Nozzle 1

83-SSVPKIT  Repair Kit AR, Stainless Seat 1

5 8.712-357.0 Nozzle, SAQ MEG 0005.5, Red (5-3000) 1

8.712-358.0 Nozzle, SAQ MEG 1505.5, Yellow (5-3000) 1

8.712-359.0 Nozzle, SAQ MEG 2505.5, Green (5-3000) 1

8.712-360.0 Nozzle, SAQ MEG 4005.5, White (5-3000) 1

8.712-365.0 Nozzle, SAQ MEG 0006.5, Red (6-3200) 1

8.712-366.0 Nozzle, SAQ MEG 1506.5, Yellow (6-3200) 1

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

4

3

2

ITEM PART NO. DESCRIPTION QTY

5 8.712-367.0 Nozzle, SAQ MEG 2506.5, Green (6-3200) 1

8.712-368.0 Nozzle, SAQ MEG 4006.5, White (6-3200) 1

5 8.712-378.0 Nozzle, SAQ MEG 0009, Red (8-3000) 1

8.712-379.0 Nozzle, SAQ MEG 1509, Yellow (8-3000) 1

8.712-380.0 Nozzle, SAQ MEG 2509, Green (8-3000) 1

8.712-381.0 Nozzle, SAQ MEG 4009, White (8-3000) 1

8.712-382.0 Nozzle, SAQ MEG 0012, Red (10-2500) 1

8.712-383.0 Nozzle, SAQ MEG 1512, Yellow (10-2500) 1

8.712-384.0 Nozzle, SAQ MEG 2512, Green (10-2500) 1

8.712-385.0 Nozzle, SAQ MEG 4012, White (10-2500) 1

6 9.802-286.0  Brass Soap Nozzle Only, 1/8" 1

7 9.802-164.0  Quick Coupler, 1/4" Female 1

9.802-096.0  Quick Coupler O-Ring 1/4" Replacement Only 1

 Not Shown

37

BURNER ASSEMBLY EXPLODED VIEW

9.804-053.0 (7-00010) SM 230V

9.802-556.0 (7-00011) SM 120V SLT5

19

20

PRESSURE WASHER

21

17

18

16

22

13

14

7

OPERATOR’S MANUAL

4

2

6

1

5

3

15

11

12

9

8

10

BURNER ASSEMBLY EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 7-21844U Fuel Pump w/120V Solenoid 1 7-51843U Strainer Kit w/Gasket 1

2 7-21755U Solenoid Coil, 120V 1

3 9.802-643.0 Cordset 1

4 7-21877U Fuel Solenoid Stem 1

5 7-3215 Air Shutter 1

6 7-5151503 Air Band 1

7 9.802-657.0 Spline Nut 1

8 7-2383 Blower Wheel 1

9 7-2433 Fan Coupling 1

10 9.803-056.0 Motor, 120V, Cap Start (7-00011)

9.804-054.0 Motor, 230V (7-00010) 1

ITEM PART NO. DESCRIPTION QTY

11 7-51824 Ignitor Assy Complete, 120V (7-00011) 1 7-21176U Transformer, 230V (7-00010) 1

12 9.802-665.0 Ignitor Only, 120V (7-00011) 1

13 7-3493 Escutcheon Plate 1

14 7-4292 Escutcheon Plate Screw 1

15 8.717-964.0 Burner Housing 1

16 8.718-217.0 Gun Assembly Complete 1

17 9.802-652.0 Welded Insertion or Flange 1

18 7-SM30VMPW Air Tube Combination 1

19 9.802-651.0 Burner Gasket 2

20 9.802-634.0 Air Cone F22 1

21 7-5394 Connector Tube Assy, 8” 1

22 9.802-669.0 Electrode with Contact PR 1

38

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

CF800 BURNER ASSEMBLY EXPLODED VIEW

PRESSURE WASHER

8.717-013.0 (7-00001)

8.717-024.0 (7-00002)

8.717-075.0 (7-00008)

8.717-102.0 (7-00050) SLT6, SLT8, SLX10

13

2

1

11

3

10

9

4

OPERATOR’S MANUAL

8

14

7

12

5

6

BURNER ASSEMBLY EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 8.718-216.0 Nozzle Line Assy (ATC CF60KHS) Includes Air Tube, Head, Nozzle Gun Assy. 1

2 8.717-367.0 Nozzle, 4.5 80B (7-00001, 7-00050) (SLT8, SLX10) 1

8.700-951.0 Nozzle, 3.5 80B (7-00002, 7-00008) 1

8.717-378.0 Nozzle, 3.25 80B (SLT6) 1

3 8.717-834.0 Fuel Pump, B2TA-8245 (7-00001) 1

8.717-832.0 Fuel Pump, B2YA-8916 (7-00002, 7-00008, 7-00050) 1

4 8.701-088.0 Motor, 1/3 HP 120V (21341) (7-00001, 7-00002, 7-00050) 1

8.750-082.0 Motor, 1/3 HP 240V (21654) (7-00008) 1

5 9.802-667.0 Fuel Line, 8" 1

6 8.717-844.0 Valve, Fuel 120V 1

7 9.803-058.0 Coupling 1

8 8.717-835.0 Blower Wheel, 6-5/16 x 2-3/8 1

9 8.717-719.0 Primary Control, R8184G1294 1

10 9.803-060.0 Ignitor 1

11 8.723-939.0 Electrodes 1

12 9.802-676.0 CAD Cell Photoelectric 1

13 8.750-084.0 Gasket, Flange (31628) (7-00001) 1

8.750-083.0 Gasket, Flange (31637) (7-00002, 7-00008) 1

9.802-653.0 Gasket, Flange (31802) (7-00050) 1

14 8.750-085.0 Air Guide (178) 1

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

39

PARTS SPECIFICATIONS

PUMP ENGINE

Hi-Pres Pump Pump Pump Pulley Bushing Pump Belt Engine Pulley Engine Bushing Generator Pulley Generator Bushing Generator Belt

MODEL PSI Nozzle Model # Part # Pulley Part # Bushing Part # Belt(Qty) Part# Engine Engine Part # Model Pulley Part # Bushing Part # Pulley Part# Bushing Part # Belt(Qty) Part #

SLT5-30824E 3000 5.5 LT-4035\L 8.904-870.0 2BK90 5-40509001 25MM 9.802-403.0 BX38(2)

SLT6-32824E 3200 6.5 LT-6035\L 8.904-883.0 3BK80H 8.715-618.0 25MM 9.802-403.0 BX36(3)

SLT8-30824E 3000 9 LX-8030\L 8.904-889.0 3BK80H 8.715-618.0 25MM 9.802-403.0 BX36(3)

SLX10-25824E 2500 12 LX-1025\L 8.904-891.0 3BK80H 8.715-618.0 25MM 9.802-403.0 BX36(3)

PRESSURE WASHER Speciﬁcations

9.802-417.0

8.715-697.0

Lom/KDW1003 (1028cc)

Lom/KDW702 (686 cc)

9.802-326.0 SLT5-30824E 3TB34 9.802-392.0 P2x1-1/2 9.802-406.0 BK34 9.802-378.0 5/8" 9.802-397.0 BX22(1) 9.802-412.0

9.802-327.0 SLT6-32824E 4B36 8.715-603.0 SDx1-1/2 8.715-659.0 BK34 9.802-378.0 5/8" 9.802-397.0 BX22(1) 9.802-412.0

9.802-327.0 SLT8-30824E 4TB34 8.715-623.0 SDx1-1/2 8.715-659.0 BK32 9.802-377.0 5/8" 9.802-397.0 BX22(1) 9.802-412.0

9.802-327.0 SLX10-25824E 4B36 8.715-603.0 SDx1-1/2 8.715-659.0 BK34 9.802-378.0 5/8" 9.802-397.0 BX22(1) 9.802-412.0

40

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

PARTS SPECIFICATIONS

PRESSURE WASHER Speciﬁcations

ENGINE

GENERATOR

41

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

8.904-869.0 LT4035.1 Right

8.904-870.0 LT4035.1 Left

8.904-871.0 LT4040.1 Right

8.904-872.0 LT4040.1 Left

8.904-874.0 LT5030.1 Right

8.904-879.0 LT5030.1 Left

8.904-881.0 LT6035.1 Right

8.904-883.0 LT6035.1 Left

PRESSURE WASHER

OPERATOR’S MANUAL

LT.1 SERIES PUMP EXPLODED VIEW

TORQUE

SPECS

Item # Ft.-Lbs.

17 75

18 45

27 18

37 10

48 30

53 7.6

LT.1 SERIES PUMP EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.803-163.0 Crankcase 1

2 9.803-195.0 Plunger Guide 3

3* See Kit Plunger Oil Seal 3

4* See Kit O-Ring Ø1.78 x 31. 47 3

5* See Kit "Pressure Ring, Brass 3

6* See Kit "U" Seal Low Pressure 3

7* See Kit Intermediate Ring, Brass 3

8* See Kit

9 * See Kit

10* See Kit Support Ring 3

11 9.802-926.0 Brass Plug, 1/2" 1

12 9.803-199.0 Copper Washer 1/2" 1

13 9.802-933.0 Manifold Head 1

14* See Kit O-Ring Ø2.62 x 17.13 6

15* See Kit Valve Assembly 6

16* See Kit O-Ring Ø2.62 x 20.29 6

17 9.802-928.0 Valve Plug 6

18 9.802-943.0 Manifold Stud Bolt 8

42

Support Ring, Teﬂon Bronze 3

"U" Seal High Pressure

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

3

ITEM PART NO. DESCRIPTION QTY

19 9.802-890.0 Washer 8

20 9.803-198.0 Copper Washer 3/8" 1

21 9.802-925.0 Brass Plug 3/8"

26 9.802-884.0 Washer 8

27 9.802-944.0 Hexagonal Screw

28 9.803-182.0 Closed Bearing Housing

29 9.803-186.0 O-Ring Ø2.62 x 71.12 2

30 9.803-160.0 Roller Bearing, Tapered 2

31 9.803-148.0 Crankshaft (GT4040.1,

5030.1, 6035.1) 1

9.803-149.0 Crankshaft (GT 4035.1)

32 9.803-167.0 Crankshaft Key 1

33 9.802-923.0 Oil Dip Stick 1

34 9.803-139.0 Crankshaft Seal 1

35 9.803-177.0 Shim 2

36 9.803-181.0 Bearing Housing 1

37* See Kit Plunger Bolt 3

38* See Kit Copper Spacer 3

1

8

1

LT.1 SERIES PUMP PARTS LIST (CONT)

ITEM PART NO. DESCRIPTION QTY

39* See Kit O-Ring Ø1.78 x10.82 3

40* See Kit Teﬂon Ring 3

41* See Kit Plunger 3

42* See Kit Copper Spacer 3

43 9.803-143.0 Plunger Rod 3

44 9.803-157.0 Connecting Rod 3

45 9.802-912.0 Snap Ring 6

46 9.802-915.0 Connecting Rod Pin 3

47 9.802-889.0 Spring Washer 6

48 9.802-937.0 Connecting Rod Screw 6

49 9.803-194.0 O-Ring Ø2.62 x 152.07 1

50 9.803-166.0 Crankcase Cover 1

51 9.803-197.0 Gasket, G3/8 1

52 9.803-202.0 Sight Glass G3/4 1

53 9.802-939.0 Cover Screw 5

* Part available in kit (See below)

PRESSURE WASHER

OPERATOR’S MANUAL

REPAIR KIT NUMBER

KIT DESCRIPTION

ITEM NUMBERS INCLUDED

NUMBER OF CYLINDERS KIT WILL SERVICE

REPAIR KIT NUMBER

KIT DESCRIPTION

ITEM NUMBERS INCLUDED

NUMBER OF CYLINDERS KIT WILL SERVICE

8.916-488.0 8.916-487.0 8.916-322.0 8.916-323.0 9.802-607.0 9.802-611.0

Plunger "U" Seal

20mm

LT-4040.1,

LT-6035.1 LT-4035.1

4, 6, 8, 9, 10

3 3 1 1 1 1

9.802-603.0 9.802-606.0

Complete Valve

(all pumps)

14, 15, 16 3

6 3

Plunger

"U" Seal

22mm

LT-5030.1

4, 6, 8,

9, 10

Plunger Oil Seals

(all pumps)

"U" Seal Packing Assy

20mm LT-4040.1 LT-6035.1 LT-4035.1

4, 5, 6, 7, 8, 9,10

"U" Seal

Packing Assy

22mm

LT-5030.1

4, 5, 6, 7, 8,

9,10

Plunger

20mm LT-4040.1 LT-6035.1 LT-4035.1

37, 38, 39,

40, 41, 42

Plunger

22mm

LT-5030.1

37, 38, 39,

40, 41, 42

43

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

8.904-888.0 LX 8030R.1

8.904-889.0 LX 8030L.1

8.904-892.0 LX 1025R.1

8.904-891.0 LX 1025L.1

PRESSURE WASHER

OPERATOR’S MANUAL

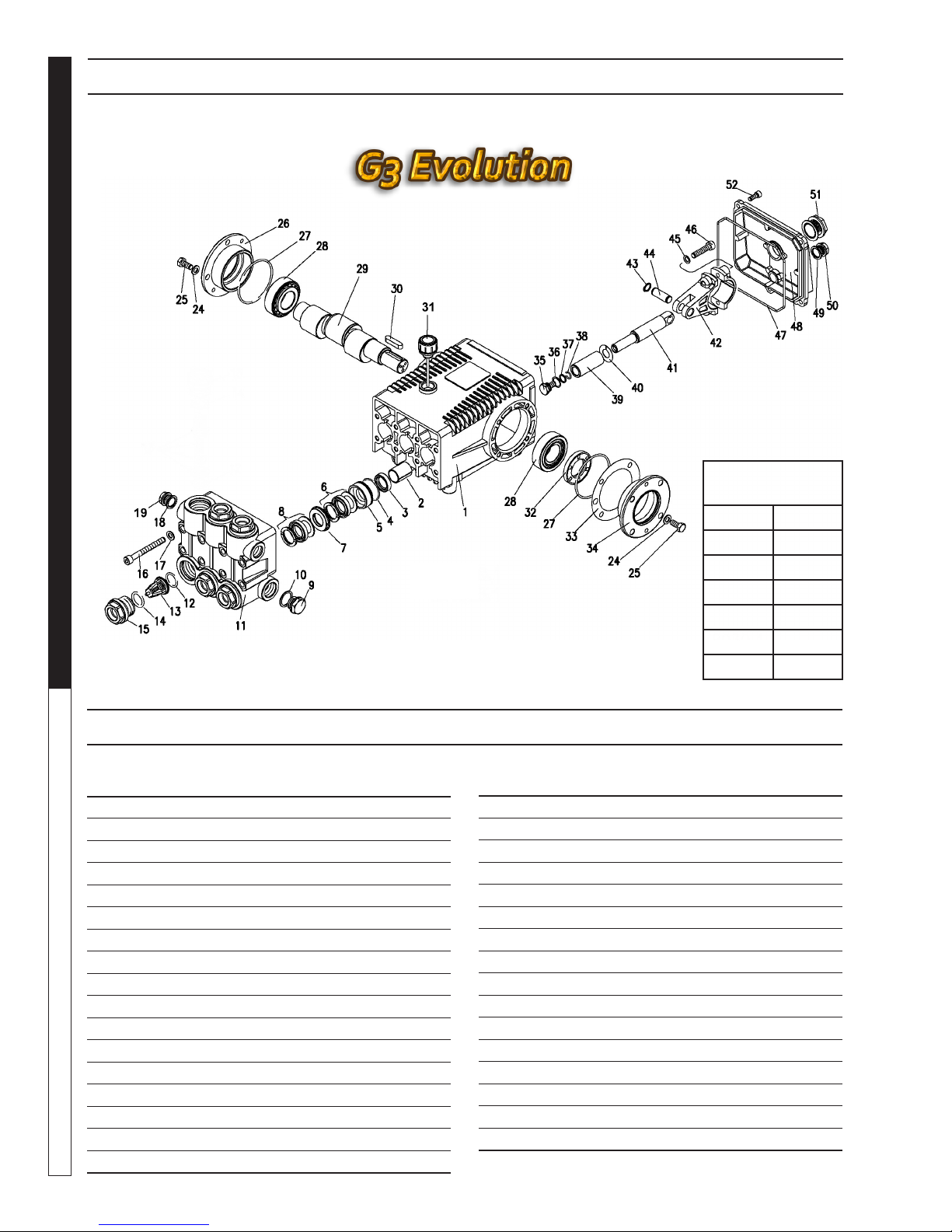

LX.1 SERIES PUMP EXPLODED VIEW

TORQUE SPECS

ITEM # FT. LBS.

15 95

16 60

25 8

35 10

46 30

52 7.6

LX.1 SERIES PUMP EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.803-163.0 Crankcase 1

2 9.803-195.0 Plunger Guide 3

3* See Kit Plunger Oil Seal 3

4* See Kit O-Ring Ø1.78 x 37.82 3

5* See Kit Pressure Ring, 25mm 3

6* See Kit U-Seal, 25mm 3

7* See Kit Intermediate Ring 25mm 6

8* See Kit U-Seal, 25mm 3

9 9.803-285.0 Brass Plug, 3/4 1

10 9.803-286.0 Copper Washer 3/4 1

11 9.802-935.0 Manifold Housing 1

12* 9.803-291.0 O-Ring Ø2.62 x 23.47 6

13* See Kit Valve Assembly 6

14* 9.803-287.0 O-Ring Ø3.53 x 25.80 6

15 9.802-930.0 Valve Plug 6

16 9.802-942.0 Manifold Stud Bolt 8

17 9.802-890.0 Lock Washer 8

44

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

ITEM PART NO. DESCRIPTION QTY

18 9.803-199.0 Copper Washer 1/2 1

19 9.802-926.0 Brass Plug 1/2 1

24 9.802-884.0 Washer 8

25 9.802-944.0 Flange Screw 8

26 9.803-182.0 Closed Bearing Housing 1

27 9.803-186.0 O-Ring Ø2.62 x 71.12 2

28 9.803-160.0 Roller Bearing 2

29 9.803-288.0 Crankshaft (LX 8030) 1

9.803-289.0 Crankshaft (LX 1025) 1

30 9.803-167.0 Crankshaft Key 1

31 9.802-923.0 Oil Dip Stick 1

32 9.803-139.0 Crankshaft Seal 1

33 9.803-177.0 Shim 2

34 9.803-181.0 Bearing Housing 1

35* See Kit Plunger Bolt 3

36* See Kit Copper Spacer 3

LX.1 SERIES PUMP EXPLODED VIEW PARTS LIST (CONT.)

ITEM PART NO. DESCRIPTION QTY

37* See Kit O-Ring Ø1.78x10.82 3

38* See Kit Teﬂon Ring 3

39* See Kit Plunger 25mm 3

40* See Kit Copper Spacer 3

41 9.803-143.0 Plunger Rod 3

42 9.803-157.0 Connecting Rod 3

43 9.802-912.0 Snap Ring 6

44 9.802-915.0 Connecting Rod Pin 3

45 9.802-889.0 Spring Washer 6

46 9.802-937.0 Connecting Rod Screw 6

47 9.803-194.0 O-Ring Ø2.62 x 152.07 1

48 9.803-166.0 Crankcase Cover 1

49 9.803-197.0 Gasket, G3/8 1

50 9.802-925.0 Brass Plug 3/8 1

51 9.803-202.0 Sight Glass G3/4 1

52 9.802-939.0 Cover Screw 5

* Available in kit (See below)

PRESSURE WASHER

OPERATOR’S MANUAL

KIT NUMBERS 8.725-364.0 8.725-365.0 9.802-614.0 9.802-608.0 9.802-606.0

KIT DESCRIPTION

ITEMS NUMBERS INCLUDED

NUMBER OF CYLINDERS KIT WILL SERVICE

Plunger Seal

25 mm

4, 6, 8 4, 5, 6, 7, 8

3 1 1 6 3

Seal Packing

25mm

Plunger

25mm

35, 36, 37,

38, 39, 40

Complete

Valve

Plunger Oil

Seals

12, 13, 14 3

45

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

VRT3 UNLOADER EXPLODED VIEW AND PARTS LIST

8.750-297.0, 8 GPM, 2320 PSI

8.750-298.0, 8 GPM, 3630 PSI

8.750-299.0, 8 GPM, 4500 PSI

PRESSURE WASHER

OPERATOR’S MANUAL

20

19

18

14

ITEM PART NO. DESCRIPTION QTY

25 8.750-712.0 Outlet Fitting 1 18 8.750-713.0 Knob, Unloader 1

8.750-709.0 Repair Kit, VRT3, 2320/3630 PSI

8.750-710.0 Repair Kit, VRT3, 4500 PSI

(Kit Items: 1, 4, 8-12, 16, 21-22)

8

9

10

9

17

13

16

12

11

26

2

15

6

3

4

5

6

1

22

23

24

21

25

7

Unloader Adjustment Procedures

1. Remove lock nut (Item 19).

2. Remove adjustment knob (Item 18).

3. Loosen the two (2) nuts (Item 15), move them upward on stem (Item 8) until you see 4 or more threads below the nut.

4. Re-attach adjusting knob (Item 18).

5. Start machine. Open the trigger of the spray gun. Increase pressure by turning adjustment knob (Item 18) clockwise until pressure is at the desired operating pressure.

6. Remove the adjustment knob (Item 18), tighten the lower nut (Item 15) tightly against the upper nut (Item 15). Reattach adjustment knob (Item 18) and screw down until contact is made with the nuts (Items 15). Screw down lock nut (Item 19) onto the stem (Item 8) until the threads cut into the nylon insert of the lock nut (Item 19).

*If adjustment knob (Item 18) DOES NOT make contact with upper nut (Items 15), remove adjusting knob (Item 18), re-adjust (raise) nuts (Items 15) on stem (Item 8) and re-attach adjustment knob (Item 18), then repeat step #6.

**If adjustment knob (Item 18) DOES make contact with upper nut; release the trigger of the spray gun and watch the pressure gauge for the pressure increase (“spike”). This “spike” SHOULD NOT exceed 500 psi above the operating pressure. If “spike” pressure exceeds the 500 psi limit, remove the adjusting knob (Item 18) and re-adjust (lower) the nuts (Items 15) on

the stem (Item 8). Re-attach the adjusting knob (Item 18), then repeat step #6.

46

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

VBXL UNLOADER EXPLODED VIEW AND PARTS LIST

PRESSURE WASHER

OPERATOR’S MANUAL

ITEM# PART # DESCRIPTION KIT QTY

1 8.717-192.0 Nut, Locking 1 2 8.717-269.0 Handle, Red 1 3 70-140021 Space, Anti-friction D 1 4 70-120204 Plate D 1 5 70-090024 Spring D 1 6 8.717-403.0 Stem Nut D 1 7 9.803-191.0 O-Ring, Nut C 1

8 8.717-077.0 O-Ring, Teﬂon 106 C 1 9 70-060120 O-Ring, Stem C 1 10 70-150505 Pin C 2 11 70-120606 Stem D 1 12 8.717-078.0 O-Ring, Teﬂon 115 C 2 13 70-060121 O-Ring, Stem C 1

14 9.803-198.0 Washer, Copper, 3/8" 3 15 9.802-925.0 Plug, 3/8" 2 16 9.803-948.0 O-Ring, Seat B 1 17 8.932-703.0 Seat B 1 18 70-150400 Ball, 7/16" B 1

ITEM# PART # DESCRIPTION KIT QTY

19 70-090011 Spring, Ball B 1 20 70-060118 O-Ring, Relief A,B 2 21 8.717-405.0 Relief, 1/2" 1 22 70-020439 Body 1 23 70-140729 Connector 1

24 70-110208 Poppet A 1 25 8.933-017.0 Spring, Poppet A 1 26 70-140728 Discharge Port, 1/2" 1 27 9.803-951.0 Plug, 1/4" 1 28 9.803-950.0 Washer, Copper, 1/4" 1 29 70-080300 Spacer, Red 1

47

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

PRESSURE WASHER

OPERATOR’S MANUAL

48

Landa SLT/SLX Diesel • 8.914-003.0 • Rev. 12/11

LANDA LIMITED NEW PRODUCT WARRANTY

shown below, is calculated from the date of the original purchase, and applies to the original components only. Any parts

and wobble plate pumps have a one year warranty. Heating coils have a ﬁve year warranty from date of original machine

LANDA attempts to assure that its products meet national codes, it cannot be responsible for how the customer chooses

PRESSURE WASHERS

WHAT THIS WARRANTY COVERS

All LANDA pressure washers are warranted by LANDA to the original purchaser to be free from defects in materials and workmanship under normal use, for the periods speciﬁed below. This Limited Warranty is subject to the exclusions

replaced under this warranty will assume the remainder of the part’s warranty period.

SEVEN YEAR PARTS AND ONE YEAR LABOR WARRANTY:

Components manufactured by LANDA, such as frames, handles, top and bottom wraps, ﬂoat tanks, fuel tanks, belt guards, and internal components on the oil-end of Landa manufactured pumps. General, AR, Liberty, Comet and swash

purchase. ONE YEAR PARTS AND ONE YEAR LABOR WARRANTY: All other components, excluding normal wear items as described below, will be warranted for one year on parts and

labor. Parts and labor warranty on these parts will be for one year regardless of the duration of the original component manufacturer’s part warranty.

WARRANTY PROVIDED BY OTHER MANUFACTURERS:

Motors, generators, and engines, which are warranted by their respective manufacturers, are serviced through these manufacturers’ local authorized service centers. LANDA is not authorized and has no responsibility to provide warranty service for such components.

WHAT THIS WARRANTY DOES NOT COVER

This warranty does not cover the following items:

1. Normal wear items, such as nozzles, spray guns, discharge hoses, wands, quick couplers, seals, ﬁlters, gaskets, O-rings, packings, pistons, pump valve assemblies, strainers, belts, brushes, rupture disks, fuses, pump protectors.

2. Damage or malfunctions resulting from accidents, abuse, modiﬁcations, alterations, incorrect installation, improper servicing, failure to follow manufacturer’s maintenance instructions, or use of the equipment beyond its stated usage speciﬁcations as contained in the operator’s manual.

3. Damage due to freezing, chemical deterioration, scale build up, rust, corrosion, or thermal expansion.

4. Damage to components from ﬂuctuations in electrical or water supply.

5. Normal maintenance service, including adjustments, fuel system cleaning, and clearing of obstructions.

6. Transportation to service center, ﬁeld labor charges, or freight damage.

WHAT YOU MUST DO TO OBTAIN WARRANTY SERVICE

While not required for warranty service, we request that you register your LANDA pressure washer by returning the completed registration card. In order to obtain warranty service on items warranted by LANDA, you must return the product to your Authorized LANDA Dealer, freight prepaid, with proof of purchase, within the applicable warranty period. If the product is permanently installed, you must notify your Authorized LANDA Dealer of the defect. Your Authorized LANDA Dealer will ﬁle a claim with Landa, who must subsequently verify the defect. In most cases, the part must be returned to LANDA freight prepaid with the claim. For warranty service on components warranted by other manufacturer’s, your Authorized LANDA Dealer can help you obtain warranty service through these manufacturers’ local authorized service centers.

LIMITATION OF LIABILITY

LANDA’S liability for special, incidental, or consequential damages is expressly disclaimed. In no event shall LANDA’S liability exceed the purchase price of the product in question. LANDA makes every effort to ensure that all illustrations and speciﬁcations are correct, however, these do not imply a warranty that the product is merchantable or ﬁt for a particular purpose, or that the product will actually conform to the illustrations and speciﬁcations. Our obligation under this warranty is expressly limited at our option to the replacement or repair at a service facility or factory designated by us, of such part or parts as inspection shall disclose to have been defective. THE WARRANTY CONTAINED HEREIN

IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. LANDA does not authorize any other party, including authorized LANDA Dealers, to

make any representation or promise on behalf of LANDA, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of LANDA products conforms to local codes. While

PRESSURE WASHER WARRANTY

to use or install the product. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This war-

ranty gives you speciﬁc legal rights and you may also have other rights which vary from state to state.

LANDA

www.landa.com

Form #8.914-003.0 • Revised 12/11 • Printed in U.S.A.
