Landa SLT6-30224E, SLT8-30324E, SLX10-25324E, SLT5-30224E 1.110-518.0, SLT6-32324E 1.110-520.0 Operator's Manual

SLT/SLX

GASOLINE ENGINE

OPERATOR’S MANUAL



SLT6-30224E 1.110-520.0  SLX10-25324E 1.110-525.0



SLT8-30324E 1.110-522.0

CAUTION

Never Use:

Bleach, chlorine products and other corrosive chemicals

·

Liquids containing solvents (i.e. paint thinner, gasoline, oil)

·

Tri-sodium phosphate products

·

Ammonia products

·

Acid-based products

·

These chemicals will harm the unit and will damage the

surface being cleaned. Use manufacturer’s detergents as recommended in manual.

89140020-1

For technical assistance or the dealer nearest you,

consult our web page at www.landa.com

8.914-002.0

Model Number ______________________________

Serial Number ______________________________

Date of Purchase ____________________________

The model and serial numbers will be found on a decal attached to the pressure washer. You should record both serial number and

date of purchase and keep in a safe place for future reference.

Introduction & General Safety Information 4-6

Component Identiﬁcation 7

Assembly Instructions 8

Operating Instructions 9-10

Detergents & General Washing Techniques 11

Shut Down & Clean-Up, Storage 12

Maintenance and Service 13-15

Troubleshooting 16-18

Preventative Maintenance & Oil Change Record 19

Exploded View, SLT Burner Assembly & Parts List 20-21

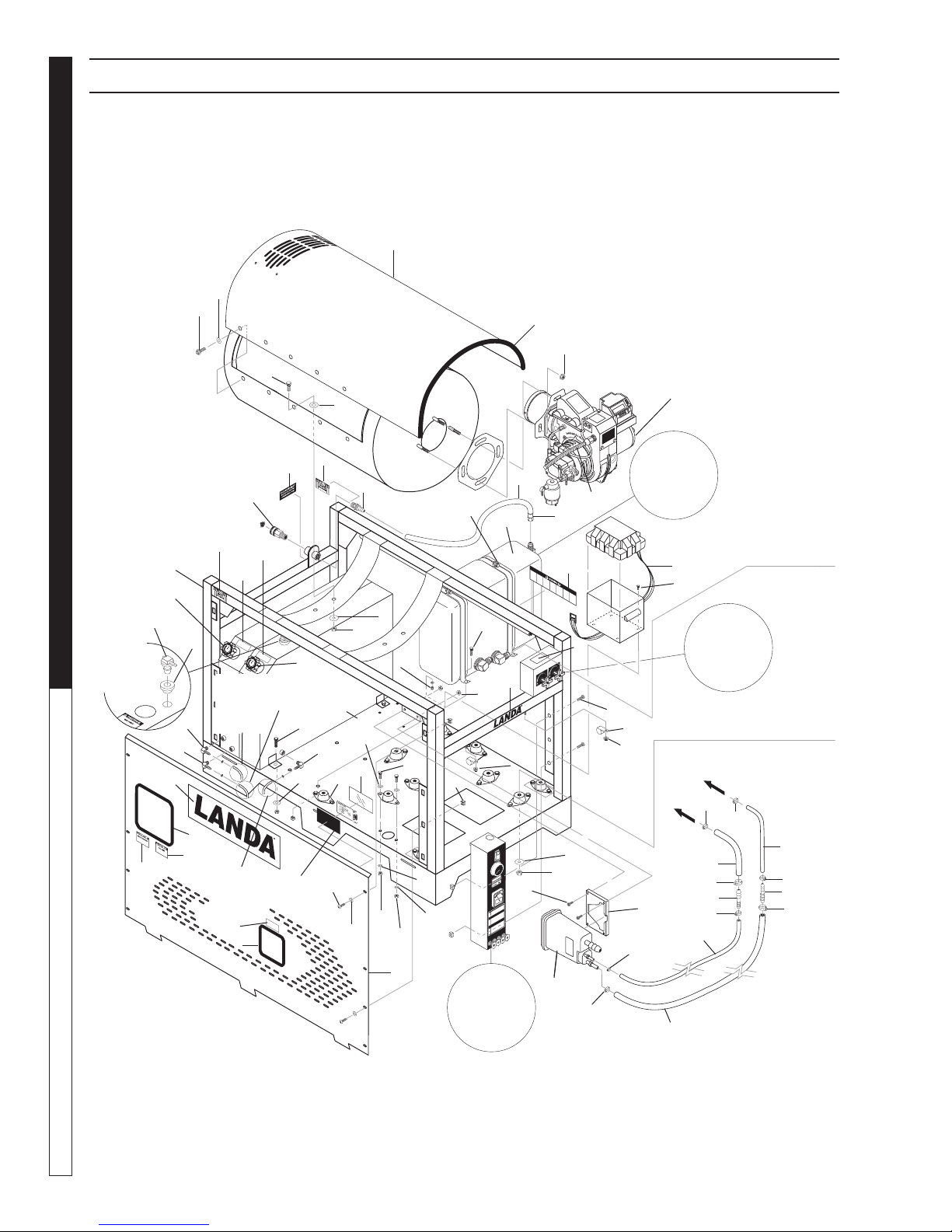

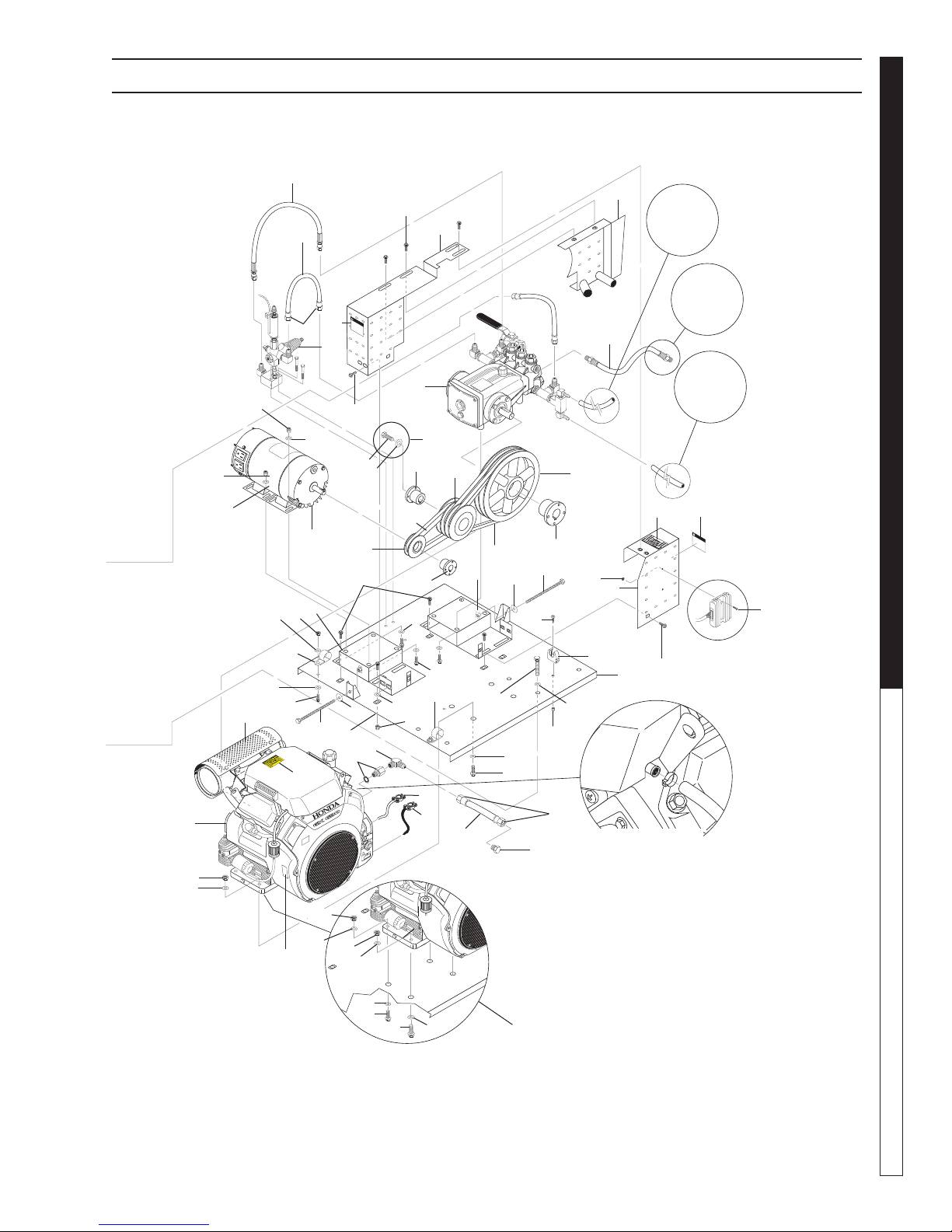

Exploded Views, SLT 22-23

Exploded View, SLT, Parts List 24-25

Exploded Views, SLX 26-27

Exploded View, SLX, Parts List 28-29

Exploded View, SLX Burner Assembly & Parts List 30-31

CONTENTS

Pump Assemblies, Exploded View & Parts List, 5, 6, 8 GPM Models 32-33

Pump Assembly, 10 GPM Models & Parts List 34

Valve Assembly, Exploded View and Parts List 35

Control Panel, Exploded View & Parts List 36-37

Hose and Spray Gun Assembly and Parts List 38

Float Tank Assembly & Parts list 39

Burner Assembly, Exploded View 40

CF 800 Burner Assembly, Exploded View 41

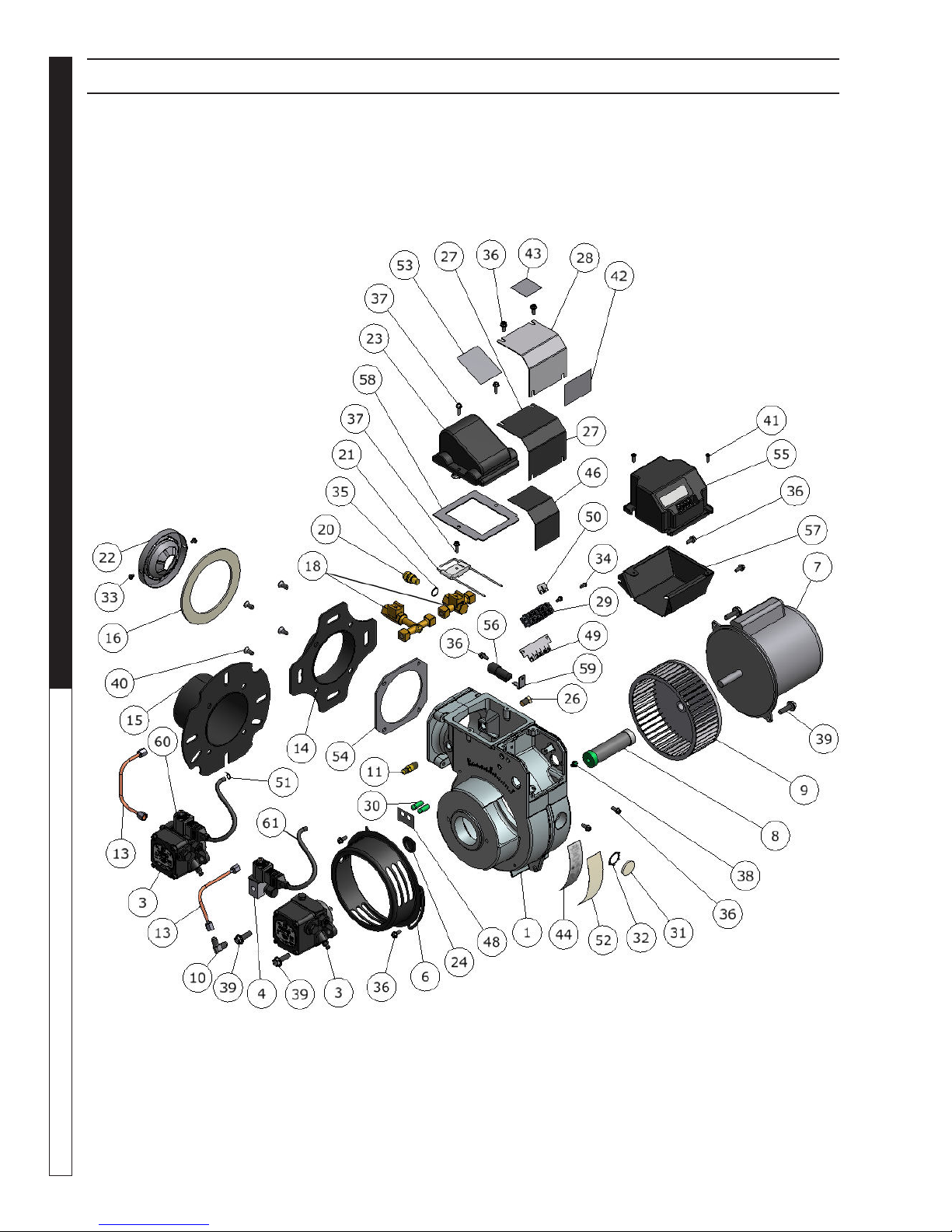

Sureﬁre Burner Assembly, Exploded View and Parts List 42-43

Speciﬁcations 44-45

LT.1 Pump Exploded View and Parts List 46-47

LX.2 Pump Exploded View and Parts List 48-49

VRT 3 Unloader Exploded View and Parts List 50

Warranty

3

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

INTRODUCTION & IMPORTANT SAFETY INFORMATION

WARNING

OPEN FLAME OR TORCH

WARNING

Thank you for purchasing this Pressure Washer.

We reserve the right to make changes at any time without incurring any obligation.

Owner/User Responsibility:

The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings before using this pressure washer. Warning information should be emphasized and understood. If the operator

PRESSURE WASHER

is not ﬂuent in English, the manufacturer’s instructions and warnings shall be read to and discussed with the operator in the operator’s native language by the purchaser/owner, making sure that the operator comprehends its contents.

Owner and/or user must study and maintain for future reference the manufacturers’ instructions.

The operator must know how to stop the machine

OPERATOR’S MANUAL

quickly and understand the operation of all controls. Never permit anyone to operate the engine without proper instructions.

This manual should be considered a permanent

part of the machine and should remain with it if machine is resold.

When ordering parts, please specify model and serial number. Use only identical replacement parts.

This machine is to be used only by trained operators.

IMPORTANT SAFETY

INFORMATION

WARNING: To reduce the risk of

injury, read operating instructions carefully before using.

1. Read the owner's manual thoroughly. Failure to follow instructions could cause mal-

READ OPERATOR’S

MANUAL THOROUGHLY

PRIOR TO USE.

2. Know how to stop the machine and bleed pressure quickly. Be thoroughly familiar with the controls.

3. Stay alert — watch what you are doing.

KEEP WATER

SPRAY AWAY FROM

ELECTRICAL WIRING.

4

function of the machine and result in death, serious bodily injury and/or property damage.

WARNING: Keep wand, hose, and

water spray away from electric wiring or fatal electric shock may result.

4. All installations must comply with local codes. Contact your electrician, plumber, utility company or the selling distributor for speciﬁc details.

EAR PROTECTION

MUST BE WORN

USE PROTECTIVE

EYE WEAR

AND CLOTHING

WHEN OPERATING

THIS EQUIPMENT.

6. Keep operating area clear of all persons.

RISK OF EXPLOSION:

OPERATE ONLY WHERE

IS PERMITTED

RISK OF FIRE. DO NOT ADD FUEL WHEN OPERATING

MACHINE.

WARNING: Risk of ﬁre — Do not

7. Allow engine to cool for 1-2 minutes before refueling. If any fuel is spilled, make sure the area is dry before testing the spark plug or starting the engine. (Fire and/or explosion may occur if this is not done.)

Gasoline engines on mobile or portable equipment

shall be refueled:

a. outdoors;

b. with the engine on the equipment stopped;

c. with no source of ignition within 10 feet of

the dispensing point; and

d. with an allowance made for expansion of the

fuel should the equipment be exposed to a higher ambient temperature.

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

WARNING: This machine exceeds

85 db appropriate ear protection must be worn.

WARNING: High pressure spray

can cause paint chips or other particles to become airborne and ﬂy at high speeds. To avoid personal injury, eye, hand and foot safety devices must be worn.

5. Eye, hand, and foot protection must be worn when using this equipment.

WARNING: Flammable liquids can create fumes which can ignite, causing property damage or severe injury.

WARNING: Risk of explosion — Operate only where open ﬂame or torch is permitted.

WARNING: Risk of ﬁre — Do not

add fuel when the product is operating or still hot.

WARNING: Do not use gasoline crankcase draining or oil containing gasoline, solvents or alcohol. Doing so will result in ﬁre and/or explosion.

Spray ﬂammable liquids.

WARNING

IMPORTANT SAFETY INFORMATION

WARNING

PRESSURE WASHER

In an overﬁlling situation, additional precautions are

necessary to ensure that the situation is handled in a safe manner.

WARNING: Risk of injury. Disconnect battery ground terminal before servicing.

8. When in use , do not place machine near ﬂammable objects as the engine is hot.

9. Oil burning appliances shall be installed only in locations where combustible dusts and ﬂammable gases or vapors are not present. Do not store or use gasoline near this machine.

10. Use No. 1 or No. 2 heating oil (ASTM D306) only. NEVER use gasoline in your fuel oil tank. Gasoline is more combustible than fuel oil and could result in a serious explosion. NEVER use crankcase or waste oil in your burner. Fuel unit malfunction could result from contamination.

11. Do not confuse gasoline and fuel oil tanks. Keep proper fuel in proper tank.

WARNING: Risk of injury. Hot surfaces can cause burns. Use only designated gripping areas of spray gun and wand. Do not place hands or feet on non-insulated areas of the pressure

RISK OF INJURY.

HOT SURFACES

CAN CAUSE BURNS

washer.

12. Transport/Repair with fuel tank EMPTY or with fuel shut-off valve OFF.

CAUTION: Hot discharge ﬂuid. Do not touch or direct discharge stream at persons.

WARNING: This machine produces hot water and must have

HOT DISCHARGE FLUID:

DO NOT TOUCH OR

DIRECT DISCHARGE

STREAM AT PERSONS.

insulated components attached to protect the operator.

13. To reduce the risk of injury, close supervision is necessary when a machine is used near children. Do not allow children to operate the pressure washer. This machine must be attended during

operation.

WARNING: Grip cleaning wand

securely with both hands before starting. Failure to do this could result in injury from a whipping wand.

14. Never make adjustments on

TRIGGER GUN KICKS

BACK - HOLD WITH

BOTH HANDS

machine while in operation.

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

15. Be certain all quick coupler ﬁttings are secured before using pressure washer.

WARNING: High pressure devel-

oped by these machines will cause personal injury or equipment damage. Keep clear of nozzle. Use caution when operating. Do not direct discharge

RISK OF INJECTION OR SEVERE INJURY TO PERSONS. KEEP CLEAR OF NOZZLE.

stream at people, or severe injury or death will result.

WARNING: Protect machine from

freezing.

16. To keep machine in best operating conditions, it is important you protect machine from freezing. Failure to protect

PROTECT FROM

FREEZING

machine from freezing could cause malfunction of the

machine and result in death, serious bodily injury, and/or property damage. Follow storage instructions speciﬁed in this manual.

17. Inlet water must be clean fresh water and no hotter then 90°F.

WARNING: Risk of asphyxiation.

Use this product only in a well ventilated area.

18. Avoid installing machines in small areas or near ex-

RISK OF

ASPHYXIATION. USE

THIS PRODUCT ONLY

IN A WELL

VENTILATED AREA.

haust fans. Adequate oxygen is needed for combustion or dangerous carbon monoxide will result.

19. Manufacturer will not be liable for any changes made to our standard machines or any components not purchased from us.

20. The best insurance against an accident is precaution and knowledge of the machine.

WARNING: Be extremely careful

when using a ladder, scaffolding or any other relatively unstable location. The cleaning area should have adequate slopes and drainage to reduce the pos-

RISK OF INJURY FROM

FALLS WHEN USING

LADDER.

sibility of a fall due to slippery surfaces.

OPERATOR’S MANUAL

5

IMPORTANT SAFETY INFORMATION

21. Do not allow acids, caustic or abrasive ﬂuids to pass through the pump.

22. Never run pump dry or leave spray gun closed longer than 1-2 minutes.

23. Machines with shut-off spray gun should not be operated with the spray gun in the off position for extensive periods of time as this may cause damage to the pump.

PRESSURE WASHER

24. Protect discharge hose from vehicle trafﬁc and sharp objects. Inspect condition of high pressure hose before using or bodily injury may result.

25. Before disconnecting discharge hose from water outlet, turn burner off and open spray gun to allow water to cool below 100° before stopping the machine. Then open the spray gun to relieve pressure. Failure to properly cool down or maintain the

OPERATOR’S MANUAL

heating coil may result in a steam explosion.

26. Do not overreach or stand on unstable support. Keep good footing and balance at all times.

27. Do not operate this machine when fatigued or under the inﬂuence of alcohol, prescription medications, or drugs.

28. In oil burning models, use only kerosene, No. 1 home heating fuel, or diesel. If diesel is used, add a soot remover to every tankful.

Follow the maintenance instructions speciﬁed in the manual.

6

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

Water

Inlet

COMPONENT IDENTIFICATION

Rupture

Disk

Unloader

Valve

Pump

Wand

Detergent

Valve

) , oil e

e chemicals r, gasolin

UTION

paint thinne . e

CA

s

ents (i.

ine products and other corrosiv r

:

ver Use

.

e N

Bleach, chlo

·

Liquids containing solv

s detergents as recommended in manual. í

i-sodium phosphate product

·

Tr

·

Ammonia products

·

facturer

Acid-based products

·

ace being cleaned

f These chemicals will harm the unit and will damage the sur

Use manu

PRESSURE WASHER

OPERATOR’S MANUAL

Steam

Valve

Burner Switch

Thermostat

Volt

Meter

89140020-7

Generator

Pump — Delivers a speciﬁc gpm to the high pressure

nozzle which develops pressure (not shown).

Spray Gun — Controls the application of water and detergent onto cleaning surface with trigger device. Includes safety latch.

Detergent Valve — Allows you to siphon and mix detergents.

Wand — Must be connected to the spray gun.

High Pressure Hose — Connect one end to water

pump high pressure discharge nipple and the other end to spray gun.

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

High

Pressure

Nozzles

Oil Drain

High

Pressure

Carbon

Canister

Spray

Gun

Hose

Rupture Disk — Secondary pressure release in the

unlikely event the unloader valve fails.

Unloader Valve — Safety device which, when the spray gun closes, prevents over pressurization.

Generator — Provides 110V power to the burner assembly.

NOTE: If trigger on spray gun is released for more than 2 minutes, water will leak from the pump protector. Warm water will discharge from pump protector onto ﬂoor. This system prevents internal pump damage.

7

89140020-21

ASSEMBLY INSTRUCTIONS

89140020-17

89140020-18

89140020-20

89140020-8

89140020-19

Water

Inlet

PRESSURE WASHER

Garden

Hose

STEP 1: Attach a 5/8" water supply

hose to inlet connector. Minimum ﬂow should be 10 GPM depending on model of machine.

OPERATOR’S MANUAL

Spray Gun

High

Pressure

Hose

Discharge

Nipple

High

Pressure

Hose

Collar

89140020-2

STEP 2: Attach high pressure hose to discharge nipple using quick coupler. Lock coupler securely by pulling back coupler collar, inserting onto discharge nipple and pushing collar forward until secure.

High

Pressure

Nozzle

Trigger

Gun

Wand

Safety

Latch

High Pressure

Hose

STEP 3: Attach variable pressure

control wand to spray gun using teﬂon tape on threads to prevent leakage.

High

Pressure

Nozzle

Wand

Collar

STEP 4: Attach the high pressure

hose to the spray gun using teﬂon tape on hose threads.

Dipstick

STEP 7: Check oil level by using

supplied dip-stick. Use SAE20/40W non-detergent only.

8

STEP 5:

Before installing nozzle, turn on water supply and run machine allowing water to ﬂush through the system until clear. Pull the spring-loaded collar of the wand coupler collar back to insert your choice of pressure nozzle.

Caution: Never replace nozzles without engaging the safety latch on the spray gun trigger.

Fuel

Oil

Tank

Gasoline

Tank

STEP 8: Fill gasoline tank and

check engine oil level. Fill fuel oil tank. Do not confuse gasoline and fuel oil tanks. Keep proper fuel in proper tank.

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

STEP 6: Release the coupler collar and push the nozzle until the collar clicks. Pull the nozzle to make sure it is seated properly.

Red

Cable

89140020-23

STEP 9: Install proper battery making sure that the red cable is attached to the positive terminal. Use a 12V group 24 style battery.

OPERATING INSTRUCTIONS

89140020-25

89140020-26

89140020-27

STEP 1: Read engine warning and operating instructions prior to turning on the water. Check for water leaks; tighten as needed.

Choke

Keyhole

Burner Switch

STEP 2: Read engine manual pro-

vided and pull choke. Pull spray gun trigger to relieve pressure. Then turn the engine switch to the START position and hold it there until the engine starts. NOTE: Do not engage the electric starter for more than ﬁve (5) seconds at a time. If the engine fails to start, release the switch, pull spray gun trigger and wait ten seconds before operating the starter again. When the engine starts, allow the engine switch to return to the ON position. Push the choke in.

CAUTION

Never Use:

Bleach, chlorine products and other corrosive chemicals

·

Liquids containing solvents (i.e. paint thinner, gasoline, oil)

·

Tri-sodium phosphate products

·

Ammonia products

·

Acid-based products

·

These chemicals will harm the unit and will damage the

surface being cleaned. Use manufacturer’s detergents as recommended in manual.

Steam Valve

PRESSURE WASHER

OPERATOR’S MANUAL

STEP 3: With the spray nozzle pointed away from you or anybody else, press the trigger on the spray gun to obtain pressurized cold water spray.

Thermostat

Knob

89140020-9

STEP 4: For hot water, turn the thermostat knob to 210° then push the burner switch to ON when a steady stream of water ﬂows out of the spray gun. Burner will now light automatically. NOTE: Do not start machine with burner switch on.

Detergent

Valve

89140020-24

STEP 6: For steam, open the steam valve counterclockwise. This lowers the pressure and raises the temperature.

9

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

OPERATING INSTRUCTIONS CONTINUED

89140020-29

Diagram 1 Diagram 2

Nozzles

PRESSURE WASHER

89140020-28

STEP 7: The four color-coded quick connect nozzles provide a wide array of spray widths from 0° to 45° and are easily accessible when

OPERATOR’S MANUAL

placed in the convenient rubber nozzle holder, which is provided on the front of the machine.

NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle. To scour the surface, select the yellow 15° or red 0° nozzle.

Valve

Handles

Valve

Handles

STEP 8: Position valve handles as shown in diagram 1 for ﬂoat tank

operation and as shown in diagram 2 for external water tank operation.

10

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

WARNING

DETERGENTS AND GENERAL WASHING TECHNIQUES

PRESSURE WASHER

WARNING: Some detergents may be harmful if inhaled or ingested, causing severe nausea, fainting or poisoning. The harmful elements may cause property damage or severe injury.

STEP 1: Use detergent designed speciﬁcally for pressure washers. Household detergents could damage the pump. Prepare detergent solution as required by the manufacturer. Fill a container with pressure washer detergent. Place the ﬁlter end of detergent suction

89140020-30

tube into the detergent container. Turn detergent valve counterclockwise to open.

e chemicals v ner, gasoline, oil)

ge the . paint thin e

CAUTION

s ct ents (i. v

ine products and other corrosi r

ver Use:

.

e N

Bleach, chlo

·

Liquids containing sol

s detergents as recommended in manual.

’

i-sodium phosphate produ

·

Tr

·

Ammonia products

acturer

·

Acid-based products

·

nuf

face being cleaned These chemicals will harm the unit and will dama sur

Detergent

Valve

Use ma

Detergent

Tube

89140020-31

STEP 2: With the engine running, pull trigger to operate machine. Liquid detergent is drawn into the machine and mixed with water. Apply detergent to work area. Do

89140020-32

not allow detergent to dry on surface.

IMPORTANT: You must ﬂush the detergent after each use by placing the suction tube into a bucket of clean water, open detergent valves then run the pressure washer for 1-2 minutes. Then turn detergent valve clockwise to close, to prevent air from entering pump.

THERMAL PUMP

PROTECTION

If you run your pressure washer for 3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach high temperatures. When the

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

water reaches this temperature, the pump protector engages and cools the pump by discharging the warm water onto the ground. This thermal device prevents internal damage to the pump.

CLEANING TIPS

Pre-rinse cleaning surface with fresh water. Place detergent suction tube directly into cleaning solution and apply to surface at low pressure (for best results, limit your work area to sections approximately 6 feet square and always apply detergent from bottom to top). Allow detergent to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. If surface appears to be drying, simply wet down surface with fresh water. If needed, use brush to remove stubborn dirt. Rinse at high pressure from top to bottom in an even sweeping motion keeping the spray nozzle approximately 1 foot from cleaning surface. Use overlapping strokes as you clean and rinse any surface. For best surface cleaning action spray at a slight angle.

Recommendations:

 • Before cleaning any surface, an inconspicuous

area should be cleaned to test spray pattern and distance for maximum cleaning results.

 • If painted surfaces are peeling or chipping,

use extreme caution as pressure washer may remove the loose paint from the surface.

 • Keepthespray nozzle a safe distance from

the surface you plan to clean. High pressure wash a small area, then check the surface for damage. If no damage is found, continue to pressure washing.

CAUTION - Never use:

 • Bleach,chlorineproductsand othercorrosive

chemicals

 • Liquidscontainingsolvents(i.e.,paintthinner,

gasoline, oils)

 • Tri-sodiumphosphateproducts  • Ammoniaproducts  • Acid-basedproducts

These chemicals will harm the machine and will damage the surface being cleaned.

RINSING

It will take a few seconds for the detergent to clear. Apply safety latch to spray gun and close detergent valve. Select and install the desired high pressure nozzle.

OPERATOR’S MANUAL

11

SHUTTING DOWN AND CLEAN-UP

89140020-33

89140020-10

89140020-11

Burner

Switch

Engine Key

PRESSURE WASHER

STEP 1: Remove detergent suction tube from container and insert into one gallon of fresh water. Open de-

STEP 2: Turn burner switch off and continue spraying, allowing the wa-

ter to cool to below 100°. tergent valve, pull spray gun trigger and siphon water for one minute.

OPERATOR’S MANUAL

89140020-34

STEP 4: Turn off water supply.

89140020-35

STEP 5: Squeeze trigger on spray

gun to relieve remaining pressure.

CAUTION: Always store your pressure washer in a location where the temperature will not fall below 32°F (0°C). The pump in this machine is susceptible to permanent damage if frozen. FREEZE DAMAGE IS NOT COVERED BY WARRANTY.

1. Stop the pressure washer, squeeze spray gun trig-

ger to release pressure.

2. Detach water supply hose and high pressure hose.

3. Turn on the machine for a few seconds, until re-

maining water exits. Turn engine off immediately.

4. Drain the gas and oil from the engine.

5. Do not allow high pressure hose to become

kinked.

6. Store the machine and accessories in a room which

does not reach freezing temperatures.

CAUTION: Failure to follow the above directions will result in damage to your pressure washer.

When the pressure washer is not being operated or is being stored for more than one month, follow these instructions:

1. Replenish engine oil to upper level.

2. Drain gasoline from fuel tank, fuel line, fuel valve

and carburetor.

3. Pour about one teaspoon of engine oil through

12

the spark plug hole, pull the starter grip several

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

STEP 3: Turn engine key switch off.

STORAGE

times and replace the plug. Then pull the starter grip slowly until you feel increased pressure which indicates the piston is on its compression stroke and leave it in that position. This closes both the intake and exhaust valves to prevent rusting of cylinder.

4. Cover the pressure washer and store in a clean, dry place that is well ventilated away from open ﬂame or sparks. NOTE: The use of a fuel additive, such as STA-BIL®, or an equivalent, will minimize the formulation of fuel deposits during storage. Such additives may be added to the gasoline in the fuel tank of the engine, or to the gasoline in a storage container.

After Extended Storage

CAUTION: Prior to restarting, thaw out any possible ice from pressure washer hoses, spray gun or wand.

Engine Maintenance

During the winter months, rare atmospheric conditions may develop which will cause an icing condition in the carburetor. If this develops, the engine may run rough, lose power and may stall. This temporary condition can be overcome by deﬂecting some of the hot air from the engine over the carburetor area. NOTE: Refer to the engine manufacturer's manual for service and maintenance of the engine.

MAINTENANCE & SERVICE

PREVENTATIVE

MAINTENANCE

 •Check to see that water pump is properly

lubricated.

 •Followwinterizinginstructionsto preventfreeze

damage to pump and coils.

 •Alwaysneutralizeandushdetergentfromsystem

after use.

 •Ifwaterisknowntobehighinmineralcontent,use

a water softener on your water system, or de-scale as needed.

 •Donotallowacidic,causticorabrasiveuidsto

be pumped through system.

 •Always use high grade quality cleaning

products.

 •Neverrunpumpdryforextendedperiodsoftime.

 •Usecleanfuel-kerosene,No.1fueloil,ordiesel.

Clean or replace fuel ﬁlter every 100 hours of operation. Avoid water contaminated fuel as it will damage the fuel pump.

 •Ifmachineisoperatedwithsmokyoreyeburning

exhaust, coils soot up and prevent water from reaching maximum operating temperature. (See section on Burner Adjustments.)

 •Never allow water to be sprayedon or near

the engine or burner assembly or any electrical component.

 •Periodicallydelimecoilsperinstructions.

 •Checktoseethatengineisproperlylubricated.

It is advisable, periodically, to visually inspect the burner. Check air inlet to make sure it is not clogged or blocked. Wipe off any oil spills and keep this equipment clean and dry.

The ﬂow of combustion and ventilating air to the burner must not be blocked or obstructed in any manner.

The area around the Landa washer should be kept clean and free of combustible materials, gasoline and other ﬂammable vapors and liquids.

Unloader Valves

Unloader valves are preset and tested at the factory before shipping. Tampering with factory setting may cause personal injury and/or property damage, and will void the manufacturer's warranty.

Winterizing Procedure

Damage due to freezing is not covered by warranty. Adhere to the following cold weather procedures whenever the washer must be stored or operated outdoors under freezing conditions.

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

During winter months, when temperatures drop below 32°F, protecting your machine against freezing is necessary. Store the machine in a heated room. If this is not possible then mix a 50/50 solution of antifreeze and water in the ﬂoat tank. Turn the engine on to siphon the antifreeze mixture through the machine. If compressed air is available, an air ﬁtting can be screwed into the ﬂoat tank by removing the ﬂoat tank strainer and ﬁtting. Inject the compressed air. Water will be blown out of the machine when the trigger on the spray gun is opened.

High Limit Hot Water Thermostat

For safety, each machine is equipped with a temperature sensitive high limit control switch. In the event that the water should exceed its operating temperature, the high limit control will turn the burner off until the water cools then automatically reset itself. The thermostat sensor is located on the discharge side of the heating coil. The thermostat control dial is located on the control panel.

Pumps

Use only SAE 20/40 weight non-detergent oil. Change oil after ﬁrst 50 hours of use. Thereafter, change oil every three months or at 500 hour intervals. Oil level should be checked through use of dipstick found on top of pump, or the red dot visible through the oil gauge window. Oil should be maintained at that level.

Cleaning of Coils

In alkaline water areas, lime deposits can accumulate rapidly inside the heating coil. This growth is increased by the extreme heat build up in the coil. The best prevention for liming conditions is to use high quality cleaning chemicals. In areas where alkaline water is an extreme problem, periodic use of Landa Deliming Powder (Landa Part #9-028008) will remove lime and other deposits before coil becomes plugged.

Deliming Coils

Periodic ﬂushing of coils or optional ﬂoat tank is recommended.

Step 1 Fill a container with 4 gallons of water, then

add 1 lb. of deliming powder. Mix thoroughly. Pour mixture into ﬂoat tank.

Step 2 Remove wand assembly from spray gun

and put spray gun into ﬂoat tank. Secure the trigger on the spray gun into the open position.

Step 3 Turn engine on, allowing solution to be

pumped through coils back into the ﬂoat tank. The solution should be allowed to circulate 2-4 hours or until the color changes.

PRESSURE WASHER

OPERATOR’S MANUAL

13

MAINTENANCE & SERVICE

Step 4 After circulating solution, ﬂush the entire

system with fresh water. Clean out ﬂoat tank and then reinstall wand assembly to spray gun.

Removal of Soot and Heating Coil

In the heating process, fuel residue in the form of soot deposits may develop on the heating coil pipe and block air ﬂow which will affect burner combustion.

PRESSURE WASHER

When soot has been detected on visual observation, the soot on the coil must be washed off after following the coil removal steps (See Coil Removal–page 16).

Pressure Relief Valve

Each machine is equipped with a relief valve to relieve pressure in the system when higher than normal operating pressures are encountered or if the unloader

OPERATOR’S MANUAL

valve should fail. Unusually high pressures come from an object plugging the spray nozzle. If operating pressure is found to be normal and the relief valve continues to leak, repair or replace valve. CAUTION:

This valve must be opened each year to check operation.

Rupture Disk

If pressure from pump or thermal expansion should exceed safe limits, the rupture disk will burst, allowing high pressure to be discharged through hose to ground. The ruptured disk needs to be inspected once or twice a year for any obstructions.

Fuel

Use clean fuel oil that is not contaminated with water and debris. Replace fuel ﬁlter and drain tank every 100 hours of operation.

Use No. 1 or No. 2 heating oil (ASTM D306) only. NEVER use gasoline in your burner fuel tank. Gasoline is more combustible than fuel oil and could result in a serious explosion. NEVER use crankcase or waste oil in your burner. Fuel unit malfunction could result from contamination.

Fuel Control System

This machine utilizes a fuel solenoid valve located on the fuel pump to control the ﬂow of fuel to the combustion chamber. The solenoid, which is normally closed, is activated by a ﬂow switch when water ﬂows through it. When the operator releases the trigger on the spray gun, the ﬂow of water through the ﬂow switch stops, turning off the electrical current to the fuel solenoid.

The solenoid then closes, shutting off the supply of fuel to the combustion chamber. Controlling the ﬂow of fuel in this way gives an instantaneous burn-orno-burn situation, thereby eliminating high and low

14

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

water temperatures, and combustion smoke normally associated with machines incorporating a spray gun.

CAUTION: Periodic inspection, to insure that the fuel solenoid valve functions properly, is recommended. This can be done by operating the machine and checking to see that the burner is not ﬁring when the spray gun is in the off position.

Fuel Pressure Adjustment

To control water temperature, adjust fuel pressure by turning the regulating pressure adjusting screw clockwise to increase, counterclockwise to decrease. Do not exceed 200 psi. NOTE: When changing fuel pump, a bypass plug must be installed in return port or fuel pump will not prime.

5/32" Gap

7/16"

1/16"

Electrode

Nozzle

Burner Nozzle

Keep the tip free of surface deposits by wiping it with a clean, solvent-saturated cloth, being careful not to plug or enlarge the nozzle. For maximum efﬁciency, replace the nozzle each season.

Burner Air Adjustment:

The oil burner on this machine is preset for operation at altitudes below 1000 feet. If operated at higher altitudes, it may be necessary to adjust the air band setting. Adjust air band for a #1 or #2 smoke spot on the Bacharach scale. If a smoky or eye-burning exhaust is being emitted from the stack, two things should be checked. First, check the fuel to be certain that kerosene or No.1 home heating fuel is being used. Next, check the air adjustment on the burner. An oily, smoky ﬁre indicates a lack of air and the air band should be moved to allow the air to ﬂow through the burner. Sharp eye-burning fumes indicate too much air ﬂowing through the combustion chamber. The air band should be readjusted to allow less air to ﬂow through the burner.

CAUTION: If white smoke appears from burner exhaust vent during start-up or operation, discontinue use and readjust air bands.

NOTE: If a ﬂue is installed, have a professional serviceman adjust your burner for a #1 or #2 smoke spot on the Bacharach scale.

MAINTENANCE & SERVICE

PRESSURE WASHER

For additional burner component information, see Burner Assembly Exploded View page. It is recommended that the oil burner be serviced yearly or as

needed. Contact your local service center.

Beckett Burner Air Adjustment:

Air Shutter

Locking Screw

Air Shutter

Air Band

Air Shutter

Locking Screw

To adjust, start the machine and turn burner ON.

Loosen two locking screws found in the air shutter openings (see illustration) and close air shutter until black smoke appears from burner exhaust vent. Note air band position. Next, slowly open the air shutter until white smoke just starts to appear. Turn air shutter halfway back to the black smoke position previously noted. Tighten locking screws.

If the desired position cannot be obtained using only the air shutter, lock the air shutter in as close a position as can be obtained, then repeat the above procedure on the air band setting.

Air Band Locking

Screw

Coil Removal

Coil removal, because of freeze breakage or to clean soot from it, can be done quickly and easily.

1. Disconnect hose from pump to inlet side of the coil.

2. Carefully disconnect the thermostat sensor making sure you do not crimp the capillary tube.

3. Remove burner assembly from combustion chamber.

4. Remove the 3-3/8" bolts from each side of coil and tank assembly (these bolts are used to fasten tank to chassis).

5. Remove ﬁttings connected to the 1/2" pipe nipples from inlet and discharge sides of coil.

6. Remove top tank wrap, bend back insulation tabs and fold back blanket.

7. Remove bolts that hold down coil to bottom wrap.

8. Remove coil.

9. Replace or repair the coil and any insulation found to be broken or torn.

10. Remove insulation retainer plates.

Coil Reinstallation

Reinstall new or cleaned coil reversing Steps 9 through 1.

OPERATOR’S MANUAL

LANDA Sureﬁre Burner Air Adjustment:

Reference Numbers

Air Band

Air Band Locking Screws

To adjust, start machine and turn burner ON. Loosen two locking screws found on the air band and close air band until black smoke appears from burner exhaust vent. Note air band position. Next, slowly open the air band until white smoke just starts to appear. Turn air band halfway back to the previously noted position. Tighten locking screws.

15

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

LOW OPERATING PRESSURE

PRESSURE WASHER Troubleshooting Guide

BURNER WILL NOT LIGHT

(Continued on next page)

16

Faulty pressure gauge Install new gauge.

Insufﬁcient water supply Use larger supply hose; clean ﬁlter at water

Old, worn or incorrect spray nozzle Match nozzle number to machine and/or

Belt slippage Tighten or replace; use correct belt.

Plumbing or hose leak Check plumbing system for leaks. Retape

Faulty or misadjusted unloader valve

Worn packing in pump Install new packing kit.

Fouled or dirty inlet or discharge valves in pump

Worn inlet or discharge valves Replace with valve kit.

Leaking pressure control valve Rebuild or replace as needed.

Slow engine RPM Set engine speed at proper speciﬁcations.

Pump sucking air Check water supply and possibility of air

Gasoline engine altitude The gasoline engine is preset for operation

Valves sticking Check and clean or replace if necessary.

Unloader valve seat faulty Check and replace if necessary.

Little or no fuel Fill tank with fuel.

Improper fuel or water in fuel Drain fuel tank and ﬁll with proper fuel.

Clogged fuel line Clean or replace.

Plugged fuel ﬁlter Replace as needed.

Misadjusted burner air bands Replace air bands for clean burn.

Little or no fuel pressure from fuel pump

Faulty burner transformer Test transformer for proper arc between

Disconnected or short in electrical wiring

Flex coupling slipping on fuel pump shaft or burner motor shaft

On-Off switch defective Check for electrical current reaching burner

Heavy sooting on coil and burner can cause interruption of air ﬂow and shorting of electrodes

Improper electrode setting Check and reset according to diagram in

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

inlet.

replace with new nozzle.

leaks with teﬂon tape.

Adjust unloader for proper pressure. Install repair kit when needed.

Clean inlet and discharge valves.

seepage.

at altitudes below 1000 feet above sea level. If operated at higher altitudes, it may be necessary to install a high altitude main jet in the carburetor. Contact your local authorized engine sales and service center for details.

Increase fuel pressure to speciﬁcations and/or replace fuel pump. Test with pressure gauge.

contacts. Replace as needed.

All wire contacts should be clean and tight. No breaks in wires.

Replace if needed.

assembly with burner switch on.

Clean as required.

Operator’s Manual

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

BURNER WILL NOT LIGHT

(continued from previous page)

FLUCTUATING PRESSURE

MACHINE SMOKES

LOW WATER TEMPERATURE

Fuel reaching combustion chamber Check fuel pump for proper ﬂow. Check solenoid

ﬂow switch on machines with spray gun control, for proper on-off fuel ﬂow control.

Clogged burner nozzle Clean as required.

Thermostat faulty or slow engine speed

Flow switch malfunction Remove, test for continuity and replace as

Flow solenoid malfunction Replace if needed.

Valves worn Check and replace if necessary.

Blockage in valve Check and replace if necessary.

Pump sucking air Check water supply and air

Worn piston packing Check and replace if necessary.

Gasoline engine altitude The gasoline engine is preset for operation

Improper fuel or water in fuel Drain tank and replace contaminated fuel.

Improper air adjustment Readjust air bands on burner assembly.

Low fuel pressure Adjust fuel pump pressure to speciﬁcations.

Plugged or dirty burner nozzle Replace nozzle.

Faulty burner nozzle spray pattern Replace nozzle.

Heavy accumulation of soot on coils and burner assembly

Obstruction in smoke stack Check for insulation blockage or other foreign

Low engine RPM Increase RPM.

Improper fuel or water in fuel Replace with clean and proper fuel.

Low fuel pressure Increase fuel pressure.

Weak fuel pump Check fuel pump pressure. Replace pump if

Fuel ﬁlter partially clogged Replace as needed.

Soot build-up on coils not allowing heat transfer

Improper burner nozzle See speciﬁcations.

Increase engine RPM to increase voltage.

needed.

seepage at joints in suction line.

at altitudes below 1000 feet above sea level. If operated at higher altitudes, it may be necessary to install a high altitude main jet in the carburetor. Contact your local authorized engine sales and service center for details.

Remove coils and burner assembly, clean thoroughly.

objects.

needed.

Clean coils.

PRESSURE WASHER Troubleshooting Guide

17

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

PUMP NOISY

PRESENCE OF WATER IN OIL

WATER DRIPPING FROM UNDER PUMP

OIL DRIPPING

EXCESSIVE VIBRATION IN DELIVERY LINE

PRESSURE WASHER Troubleshooting Guide

DETERGENT NOT DRAWING

BURNER MOTOR WILL NOT RUN

RELIEF VALVE/ RUPTURE DISK LEAKS WATER

Air in suction line Check water supply and connections on suction

line.

Broken or weak inlet or discharge valve springs

Excessive matter in valves Check and clean if necessary.

Worn bearings Check and replace if necessary.

Oil seal worn Check and replace if necessary.

High humidity in air Check and change oil twice as often.

Piston packing worn Check and replace if necessary.

O-Ring plunger retainer worn Check and replace if necessary.

Cracked piston Check and replace if necessary.

Pump protector Lower water supply pressure. Do not run with

Oil seal worn Check and replace if necessary.

Irregular functioning of the valves Check and replace if necessary.

Air leak Tighten all clamps. Check detergent lines for

Restrictor in ﬂoat tank is missing Replace restrictor. Check for proper oriﬁce in

Filter screen on detergent suction hose plugged

Dried up detergent plugging metering valve

High viscosity of detergent Dilute detergent to speciﬁcations.

Hole in detergent line(s) Repair hole.

Low detergent level Add detergent, if needed.

Fuel pump seized Replace fuel pump.

Burner fan loose or misaligned Position correctly, tighten set screw.

Defective control switch Replace switch.

Loose wire Check and replace or tighten wiring.

Defective burner motor Replace motor.

Excessive pressure, thermal expansion

Check and replace if necessary.

spray gun closed longer than 5 minutes.

holes.

restrictor.

Clean or replace.

Disassemble and clean thoroughly.

Replace or repair

18

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

PREVENTATIVE MAINTENANCE

This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform maintenance more often under severe conditions.

MAINTENANCE SCHEDULE

Inspect Daily

Engine Oil

Change Every 25 hours

Filter Every 50 hours

PRESSURE WASHER

OPERATOR’S MANUAL

Air Cleaner

Inspect Every 50 hours or monthly

Clean Every 3 months

Battery Level Check monthly

Engine Fuel Filter 500 hours or 6 months

Spark Plug Maintenance 500 hours or 6 months

Clean Fuel Tank(s) Annually

Replace Fuel Lines Annually

Pump Oil

Inspect Oil level daily (Non-detergent 10/40W)

Change After ﬁrst 50 hours, then every 500 hours or annually

Clean Burner Filter Monthly (More often if fuel quality is poor)

Remove Burner Soot Annually

Burner Adjustment/Cleaning Annually

Replace Burner Nozzle Annually

Descale Coil Annually (More often if required)

Replace High Pressure Nozzle Every 6 months

Replace Quick Connects Annually

Clean Water Screen/Filter Weekly

Replace HP Hose Annually

DATE OIL CHANGED

MONTH/DAY/YEAR

ESTIMATED OPERATING

HOURS SINCE LAST

OIL CHANGE RECORD

DATE OIL CHANGED

MONTH/DAY/YEAR

OIL CHANGE

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

ESTIMATED OPERATING

HOURS SINCE LAST

OIL CHANGE

19

PRESSURE WASHER

34

EXPLODED VIEW - COIL/BURNER ASSEMBLY - SLT

18

14

29

34

30

20

OPERATOR’S MANUAL

6

25

33

13

24

31

HOT WATER OUTLET

SALIDA DELAGUA

SORTIE D'EAU CHAU

CALIENTE

21

12

26

3

4

5

1

17

37

2

19

38

16

37

19

DE

35

36

23

10

7

16

32

8

7

15

9

22

28

11

27

20

89140020-3

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

SLT COIL/BURNER ASSEMBLY PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

1 8.706-958.0 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 1

2 8.709-158.0 Filter, Fuel/H20 Separator 1

3 8.706-941.0 Hose Barb, 1/4" Barb x 1/4" ML Pipe 1

4 8.706-827.0 Elbow, 1/4" Street 1

5 8.752-113.0

6 8.717-102.0 Burner, CF800, 120V, 4.5 Nozzle, 140 PSI (8-30324E) 1

8.717-378.0  Nozzle, 3.25, 80B, (6-32324E) 1

8.750-777.0 Burner, Oil, 115V Cap (5-30224E) 1

8.717-366.0  Nozzle, 2.50, 90° B, (5-30224E) 1

7 9.802-014.0 Nipple, 1/2" x 3", Galvanized,SCH80 2

8 9.149-003.0 Manifold Coil Outlet Discharge 1

9 9.802-043.0 Elbow, 1/2" JIC x 1/2" Female,90° 1

10 8.706-141.0 Coupling, 1/2" Hex Pipe 1

11 9.802-171.0 Nipple, 3/8" x 3/8" NPT ST Male 1

12 8.717-474.0 Insulation, Tank Head 24" w/Hole 1

13 8.717-475.0 Insulation, Tank Head 24" 1

14 8.717-476.0 Insulation, 1 Cut Blanket 1

15 9.802-041.0 Elbow, 3/8" Street 45° 1

Adapter, 1/4"

1

ITEM PART NO. DESCRIPTION QTY

16 8.912-220.0 Insulation Retainer Plate 2

17 8.912-449.0 Wrap, Bottom, 24" 1

18 8.912-736.0 Assembly, Coil SLT Skid 1

19 8.933-009.0 Gasket, Burner Plate 2

20 8.912-467.0 Top Wrap 1

21 9.184-030.0 Spacer, Rupture disk 1

22 9.196-012.0 Screw, 10-24 x 1/4" 1

23 8.707-019.0 Hose Barb, 1/2" x 3/8" MPT Push-On 1

24 9.802-259.0 Hose, 1/2” Push-On 1.66 ft.

25 8.716-547.0 Connector, 1/2" Straight 2

26 9.802-448.0 Conduit, Tight Flex 18"

27 8.918-210.0 Hose, 3/8" x 16" 2 Wire, Pressure Loop 1

28 8.750-095.0 Thermostat, 120C/240F 1

29 9.803-541.0 Screw, 5/16"-18 x 1/2" CS SOC,BN, NC, ZN 10

30 8.718-980.0 Washer, 5/16" Flat 10

31 9.800-021.0 Label, Hot Water Outlet 1

32 9.802-797.0 Screw, SS #10 x 1/2" Hex 8

33 9.802-781.0 Nut, 3/8" NC 2

34 9.802-768.0 Screw, 3/8 x 11/4 2

35 8.706-248.0 Plug, 3/8" Allen Counter Sunk 1

36 8.725-944.0 Disk, Rupture 8000# 1

37 8.752-114.0 Nipple, 1/4" 1

 Not Shown

OPERATOR’S MANUAL

21

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

PRESSURE WASHER

OPERATOR’S MANUAL

Tank

Valve

Vapor

Assembly

81

110

23

2

67

111

4

54

83

Reversed

Views of

69

1

82

21

Labels

5

123

122

CHAUD!

12

Return

From

Burner

13 - Fuel

Line to Engine

85

1

87

109

12 - To

Burner

49

50

92

120 Volts

89140020-16

EXPLODED VIEW - SLT

25

1

50

20

69

26

49

89

115

114

165

130

235

95

0

OPERATING INSTRUCTIONS

INSTRUCCIONES DE OPERACION

MODE D'EMPLOI

19 - For

Control

13

115

116

+

–

113

7

88

–

52

86

CHAUD!

52,57,80

20

50

55

22 54

4

91

68

78

17

55

56

59

54

55

24

Detail See

Panel Illus.

51

18

118

98

61

SLT 6-32324E SLT 8-30324E

53

11 - For Detail See Float Tank

Illus.

3

14

114

115

To Engine

112

117

121

120

8, 9 For Detail See Valve

Assembly

Illus.

To Tank Valve

Vapor Assembly

118

117

120

118

119 117

121

117 119

118

22

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

EXPOSED PULLEYS AND BELTS CAN CAUSE INJURY

PRECAUCION/AVERTISSEMENT

WARNING

EXPOSED PULLEYS AND BELTS CAN CAUSE INJURY

PRECAUCION/AVERTISSEMENT

WARNING

89140020-12

HIGH PRESSURE PUMPS

®

EXPLODED VIEW - SLT

PRESSURE WASHER

52

57

52

54

27

55

28

74

41

46

57

76

31

49

100

32

49

99

49

47

44

To

Top of

Steam

Valve

To

Bottom

OPERATOR’S MANUAL

of Steam

Valve

75

To

30

Top of

Detergent

Injector

8-30324E

Only

37

34

38

39

48

35

57

73

15

71

36

33

76

69

6

43

108

29

94

93

79

54

42

70

95

69

103

72

105

21

106

62

104

73

103 101

63

102

57

52

96

97

60

95

104

65

77

16

94 58

66

SLT 8-30324E

64

90

57

Vapor Purge

Line Connection

45

49

Honda

Only

23

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

SLT EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.802-071.0 Trim, 750 B2 X 1/16", Blk 9.5 ft.

2 8.751-058.0 Cap, Diesel Fuel w/Gauge 1

3 8.706-652.0 Battery Box, Small 1

4 8.706-955.0 Hose Barb, 1/4" Barb x 1/8" ML Pipe, 90° 3

5 9.802-146.0 Swivel, 1/2" MP x 3/4” GHF w/Strainer 1

PRESSURE WASHER

6 9.802-695.0 Nut, 10/32 Keps 2

7 9.802-152.0 Swivel, 3/4" SAE Female, Push-On 1

8 8.902-427.0 Valve Assy, Detergent, Skid 1

9 8.902-430.0 Valve Assy, Steam 1

10 6.390-126.0  Clamp, Hose 8

11 8.903-580.0 Float Tank Assy, SLT Skid (8-30324E) 1

OPERATOR’S MANUAL

8.903-592.0 Float Tank Assy, SLT Skid (5-30224E, 6-32324E) 1

12 4-02100000 Hose, 1/4" x 92" Push-On, Fuel Line 2

13 4-02100000 Hose, 1/4" x 72" Push-On, Fuel Line 1

14 9.803-541.0 Screw, 5/16 x 1/2 2

15 9.802-764.0 Screw, 10/32" x 3/4", Hex 1

16 9.802-695.0 Nut, 10/32" Keps 1

17 8.718-978.0 Washer,

18 9.800-049.0 Label, Manufacturer's Cleaning Solution 1

19 — Assy, Control Box, SLT/SLX 1

20 9.802-811.0 Washer, 3/8" x 1-1/2" Fender 8

21 9.802-768.0 Screw, 3/8" x 1-1/4" Whiz 4

22 8.920-476.0 WLMT, SLT Fuel Tank 1

23 8.912-452.0 Assy, Gas Frame 1

24 8.912-453.0 Panel, Cover, 16 Gauge, MS 1

25 8.912-467.0 Wrap, Top, 16 Gauge SS, #4 Brushed, SLT 1

26 8.912-472.0 Strap, Float Tank, 14 Gauge, MS, SLT/SLX 4

27 8.918-225.0 Hose, 1/2" x 28", 2 Wire, Pressure Loop 1

28 9.802-259.0 Hose, 1/2" Push-On (5-30224E, 6-32324E) 18"

9.802-261.0 Hose, 3/4" Push-On (8-30324E) 24"

29 Engine, See Speciﬁcation Pages

30 8.905-022.0 Pump Assy. (8-30324E) 1

8.905-010.0 Pump Assy. (5-30224E, 6-32324E 1

31 8.905-422.0 Unloader Assy. (5-30224E, 6-32324E) 1

8.905-433.0 Unloader Assy. (8-30324E) 1

32 Generator Pulley, See Speciﬁcation Pages

24

1/4" Split Ring Lock

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

8

ITEM PART NO. DESCRIPTION QTY

33 Pump Pulley, See Speciﬁcation Pages

34 Engine Pulley, See Speciﬁcation Pages

35 Generator Bushing, See Speciﬁcation Pages

36 Pump Bushing, See Speciﬁcation Pages

37 Engine Bushing, See Speciﬁcation Pages

38 Generator Belt, See Speciﬁcation Pages

39 Belts, See Speciﬁcation Pages

40 8.716-011.0  Conduit, Flexo 6 ft.

41 8.716-610.0 Generator, 2FSM2PC-1/A, Winco 1

42 8.718-618.0 Bolt, 5/16" x 3/4" 2

43 8.912-457.0 Assy, Belt Guard, Pump 1

44 8.912-468.0 Assy, Gas Belt Guard, Gen. 1

45 8.912-460.0 Assy, Gas Power Platform, (5-3000, 6-3200) 1

8.915-014.0 Assy, Gas Power Platform (8-30324E) 1

46 8.912-465.0 Assy, Gas Generator Slide, Mild Steel 1

47 8.912-456.0 Belt Guard, Right, Middle 1

48 8.912-461.0 Assy, Gas Pump, Plate 1

49 9.802-767.0 Screw, 3/8" x 3/4" HH NC, Whiz 27

50 9.802-781.0 Nut, 3/8" Flange, Whiz-Loc 11

51 9.802-099.0 Washer, Snubbing 10

52 8.725-395.0 Nut, 3/8" ESNA, NC 22

53 8.717-102.0 Burner, CF800

4.5 Nozzle 1

8.920-650.0 Burner, Sureﬁre

3.25 Nozzle (6-3000) 1

4.00 Nozzle (8-3000) 1

54 8.718-980.0 Washer, 5/16" Flat, SAE 67

55 9.802-776.0 Nut, 5/16" ESNA, NC 24

56 9.802-710.0 Bolt, 5/16" x 1", NC HH 20

57 8.725-394.0 Washer, 3/8" SAE, Flat 28

58 9.802-728.0 Bolt, 3/8" x 2", NC HH (6-32324E) 4

9.802-716.0 Bolt, 5/16" x 2", NC, HH (5-30224E) 4

59 9.802-794.0 Nut, Cage, 1/4" x 12 Gauge 8

60 9.802-720.0 Bolt, 3/8" x 1" NC, HH 4

61 9.802-754.0 Screw, 1/4" x 1/2" 4

62 8.750-737.0 Adapter, Honda, M20-1.50 x 3/8" FPT 1

63 9.802-039.0 Elbow, 1/2" JIC, 3/8", 90 1

64 9.802-151.0 Swivel, 1/2" JIC Fem, Push-On 2

65 9.802-259.0 Hose, 1/2" Push-On 9"

66 9.802-126.0 Plug, 1/2" JIC, Flare 1

67 8.900-802.0 Label, Landa Stripe 1

SLT EXPLODED VIEW PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

68 9.802-057.0 Isolator, Vibration Mount, 100 Lb. 10

69 9.800-006.0 Label, “Hot/Caliente” 4

70 8.900-282.0 Label, RPM Factory Set 1

71 9.803-845.0 Bolt, 1/2" x 5", NC HH Tap 1

72 9.802-740.0 Bolt, 1/2" x 3-1/2", NC 1

73 9.802-800.0 Washer, 1/2" Flat 2

74 9.802-151.0 Swivel, 1/2" JIC Fem., Push-On (5-30224E, 6-32324E) 2

9.802-152.0 Swivel, 3/4" Push-On, Female (8-30324E) 2

75 8.918-183.0 Hose, 1/4" x 28", 2 Wire, Pressure Loop 1

76 8.932-965.0 Label, Warning-Exposed Pulleys 2

77 9.802-730.0 Bolt, 3/8" x 2-1/2" GR5 Zinc 10

78 9.804-003.0 Screw, 1/4" x 3/4" BH SOC 8

79 8.750-498.0 Mufﬂer, Honda, GX630/GX660, Left (6-32324E, 8-30324E) 1

8.739-597.0 Bolt, Flange, M8 x 20 (6-32324E, 8-30324 E) 2

9.803-631.0 Mufﬂer, Briggs Exhaust (5-30224E) 1

9.802-867.0 Guard, Mufﬂer, 16 HP Vanguard (5-30224E) 1

9.802-868.0 Brace, Bracket, Vanguard Mufﬂer (5-30224E) 2

9.803-011.0 Shield, Heat, 16 HP Vanguard (5-30224E) 1

9.802-754.0 Screw, 1/2" x 1/4" HH, NC, Whiz (5-30224E) 5

9.802-775.0 Nut, 1/4" Flange (5-30224E) 3

9.802-794.0 Nut, 1/4" x 12 Gauge Cage (5-30224E) 2

9.802-830.0 Screw, 1/4"-20 x 1/2" Hex (5-30224E) 4

80 9.802-727.0 Bolt, 3/8" x 1-3/4" Tap 2

81 9.800-002.0 Label, Use Only Kerosene 1

82 9.800-001.0

83 9.803-541.0 Screw, 5/16"-18 x1/2" CS SOC,BN, NC, ZN 10

84 9.802-261.0 Hose, 3/4" Push-On 20"

85 9.800-022.0 Label, 120V 1

86 8.707-020.0 Barb, 1/2" MPT x 3/4" Barb 1

87 9.800-020.0 Label, Cold Water Inlet 1

88 9.800-036.0 Label, Warning Pictorial 1

89 8.900-300.0 Label, Landa 1

90 9.802-203.0 Clamp, 1/2" RO-Clip 1

91 9.800-034.0 Label, Clear Lexan, 2-1/4" x 4-1/2" 1

92 8.932-968.0 Label, For Outdoor Use 1

Label, Tank For Gas Only

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

1

ITEM PART NO. DESCRIPTION QTY

93 9.802-776.0 Nut, 5/16" ESNA, NC (5-30224E) 4

8.725-395.0 Nut, 3/8" ESNA, NC (6-32324E) 4

94 8.718-980.0 Washer, 5/16" Flat, SAE (5-30224E) 8

8.725-394.0 Washer, 3/8" Flat, SAE (6-32324E) 8

95 9.802-206.0 Clamp, Hose 2

96 9.803-836.0 Wire, Red, 6 Gauge 4 ft.

97 9.803-837.0 Wire, Black, 6 Gauge 4 ft.

98 9.802-448.0 Conduit, WTR. Tight, Flex 1/2 100'/BOX 1.9 Ft.

99 8.718-988.0 Washer 7/16, USS, Flat 1

100 8.731-276.0 Tap Bolt, 7/16 - 20 x 1-1/2 1

101 9.802-728.0 Threaded Bolt 3/8" x 2" (8-30324E) 2

102 8.725-320.0 7/16 - 14 x 2 Hex Tap Bolt ZC (8-30324E) 2

103 9.802-807.0 Washer 3/8" SAE Flat (8-30324E) 4

104 9.802-809.0 1/2" SAE Flat Washer ZC (8-30324E) 4

105 9.802-779.0 Nut, 3/8" ESNA, NC (8-30324E) 2

106 8.725-319.0 Nut, 7/16 - 14 Nyl ZC (8-30324E) 2

107 8.800-049.0 Label, Manufacturer's Cleaning Solutions 1

108 9.802-764.0 Screw, 10/32 x 3/4" 2

109 8.750-674.0 Cap, Ratchet, No Vent 1

110 8.751-059.0 Vent, Remote Assembly 1

111 8.751-215.0 Grommet, Remote Vent 1

112 8.920-497.0 Bracket, 1.2L Canister 1

113 8.751-381.0 Carbon Canister, 1.2L 1

114 9.802-207.0 Clamp, Wire/Tube

0.687 Dia 2

115 9.802-775.0 Nut, 1/4" Flange, ZN 4

116 9.802-752.0 Screw, 1/4" x 1-1/4" 2

117 8.753-066.0 Clamp, 1 Ear (#7) 4

118 8.753-065. 0 Clamp, 1 Ear (#10) 4

119 8.753-270.0 Reducer, Connector 3/8" x 1/4" (6032324E), (8-30324E) 2 (5-30224E) 1

8.753-269.0 Reducer, Connector 1/4 x 3/16" (5-30224E) 1

120 8.711-785.0 Hose, 3/8" Push-On 3 ft

121 9.802-254.0 Hose, 1/4" Push-On 7 ft

122 8.932-960.0 Label, Diesel 1

123 8.916-274.0 Label, Gas 1

 Not Shown

OPERATOR’S MANUAL

25

+

–

+

–

120 Volts

0

165

130

95

235

OPERATING INSTRUCTIONS

INSTRUCCIONES DE OPERACION

MODE D'EMPLOI

CHAUD!

89140020-5

To Engine

To Tank Valve

Vapor Assembly

EXPLODED VIEW - SLX

22

1

PRESSURE WASHER

OPERATOR’S MANUAL

Tank

Valve

Vapor

Assembly

70

97

73

99

58

110

21

4

78

1

44

97

3

109

71

13 - Fuel

Line To Burner

99

Reversed

23

12 -

Return

From

Burner

Views of

Labels

70

71

12 - Fuel

Line To Engine

42

68

82

95

44

73

18, 20 -

For Detail

See Coil/

Burner

Illus

68

72

102

56

114

11 - For Detail See Float Tank

Illus.

14

44

See Valve

Assembly

Illus. for

117

108

112

116

107

113

2

8,9 -

Detail

111

118

81

118

114

84

83

7

58

5

55

96

52,53,54

85

68

42

98

25

106

115

67

44

68

4

65

69

116

86

112

116

88

63

118

89

54

119

19 - For

Detail See

Control

Panel

Illus.

45

43

44

43

66

51

1

24

26

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

89140020-13

HIGH PRESSURE

PUMPS

®

EXPLODED VIEW - SLX

PRESSURE WASHER

30 - See

Unloader

Illus. For

Detail

29 - For

Detail See

Pump

Assy.

40

39

53

44

43

91

90

26

54

44

27

50

42

47

To Float Tank

To

Bottom

79

of Steam

Valve

To

Top of

OPERATOR’S MANUAL

77

7

Steam

Valve

42

To

Top of

Detergent

Valve

58

77

46

100

42

53

75

42

74

103

53

39

31

104

74

10-25324E

38

33

36

32

35

37

101

44

54

42

34

74

76

15

42

59

53

80

87

17

48

16

57

58

28

54

53

17

64

92

60

41

53

64

105

6

93

61

62

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

Vapor Purge

Line Connection

27

SLX EXPLODED VIEW - PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.802-071.0 Trim, 750 B2 x 1/16", Black 11.25 ft.

2 8.706-600.0 Battery Box, Large 1

3 9.802-089.0 Cap, Fuel 1

4 8.706-955.0 Hose Barb, 1/4" Barb x 1/8" ML Pipe, 90° 3

PRESSURE WASHER

5 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF w/Strainer 1

6 9.802-151.0 Swivel, 1/2" JIC Female, Push-On 2

7 9.802-152.0 Swivel, 3/4" SAE Female, Push-On 4

8 8.902-427.0

9 8.902-430.0 Valve Assy, Steam 1

10 6.390-126.0  Clamp, Hose 8

OPERATOR’S MANUAL

11 8.903-591.0 Float Tank Assy, SLT Skid 1

12 9.802-254.0 Hose, 1/4" x 92", Fuel Line 2

13 9.802-254.0 Hose, 1/4" x 72" Fuel Line 1

14 9.803-541.0 Screw, 5/16 x 1/2 2

15 9.802-764.0 Screw, 10/32" x 3/4" Hex 1

16 9.802-695.0 Nut, 10/32" Keps 1

17 8.725-319.0 Nut, 7/16 Nyloc (10-25324E) 2

18 — Coil Assy, SLT 1

19 — Assy, Control Box, SLT/SLX 1

20 — Burner Assy, SLT (8-10GPM) 1

21 8.911-233.0 Assy, Frame, Mild Steel 1

22 8.911-236.0 Wrap, Top, 16 Gauge 340SS, #4 Brush 1

23 8.920-470.0 Assy, Fuel Tank 1

24 8.912-451.0 Panel, Gas Cover, 16 Gauge, MS, SLT 1

25 8.912-472.0 Strap, Float Tank, 14 Gauge, MS, SLT/SLX 4

26 8.918-225.0 Hose, 1/2 x 28", 2 Wire, Pressure Loop 1

27 9.802-261.0 Hose, 3/4" Push-On 18"

28 Engine, See Speciﬁcation Pages

29 8.905-026.0 Pump Assy, SLT10-2 1

30 8.905-433.0 Unloader, Assembly, SLX 1

31 Generator Pulley, See Speciﬁcation Pages

32 Pump Pulley, See Speciﬁcation Pages

33 Engine Pulley, See Speciﬁcation Pages

34 Generator Bushing, See Speciﬁcation Pages

35 Pump Bushing, See Speciﬁcation Pages

36 Engine Bushing, See Speciﬁcation Pages

37 Generator Belt, See Speciﬁcation Pages

38 Belts, See Speciﬁcation Pages

28

Valve Assy, Detergent, Skid

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

ITEM PART NO. DESCRIPTION QTY

39 9.802-720.0 Bolt, 3/8" x 1" NC HH 4

40 8.716-610.0 Generator, 2FSM2PC-1/A, Winco 4

41 9.802-728.0 Bolt, 3/8" x 2", NC, HH (10-25324E) 2

42 9.802-767.0 Screw, 3/8" x 3/4", HH, NC, Whiz 27

43 9.802-776.0 Nut, 5/16" ESNA, NC 24

44 8.718-980.0 Washer, 5/16" Flat, SAE 67

45 9.802-813.0 Washer, 5/16" Lock, Split 2

46 8.912-457.0 Assy, Belt Guard, Pump 1

1

47 8.912-468.0 Assy, Gas Belt Guard, Mild Steel, Left 1

48 8.915-014.0 Assy, Gas Power Platform (10-25324E) 1

49 8.912-465.0 Assy, Gas Generator Slide, Mild Steel 1

50 8.912-456.0 Belt Guard, Middle 1

51 8.718-978.0 Washer, 1/4" Split Ring Lock 8

52 9.802-727.0 Bolt, 3/8" x 1-3/4" Tap 2

53 8.725-394.0 Washer, 3/8" SAE, Flat 32

54 8.725-395.0 Nut, 3/8" ESNA, NC 24

55 9.802-261.0 Hose, 3/4" Push-On 10"

56 9.802-754.0 Screw, 1/4" x 1/2" HH NC, Whiz Loc 4

57 8.750-498.0 Mufﬂer, Honda, GX630/GX660, Left 1

8.739-597.0  Bolt, Flange, M8 x 20 2

58 9.800-006.0 Label, “Hot/Caliente” 4

59 8.750-737.0 Adapter, Honda, M20-1.5 x 3/8" FPT 1

60 9.802-039.0 Elbow, 1/2" JIC, 3/8", 90° 1

61 9.802-259.0 Hose, 1/2" Push-On 9"

62 9.802-126.0 Plug, 1/2" JIC, Flare 1

63 9.802-099.0 Washer, Snubbing 10

64 9.802-809.0 Washer 1/2 Flat (10-25324E) 4

65 9.802-710.0 Bolt, 5/16" x 1", NC HH 20

66 9.804-003.0 Screw, 1/4" x 3/4" BH SOC CS 8

67 9.802-057.0 Isolator, Vibration Mount 10

68 9.802-781.0 Nut, 3/8" Flange, Whiz Loc, NC 11

69 9.802-794.0 Nut Cage, 1/4" x 12 Gauge 8

70 9.800-002.0 Label, Use Kerosene Only 2

SLX EXPLODED VIEW - PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

71 9.800-001.0 Label, This Tank For Gas Only 2

72 9.802-778.0 Nut, Whiz Loc

73 9.803-541.0 Screw, 5/16"-18 x1/2", CS SOC BH NC ZN 21

74 9.802-800.0 Washer, 1/2" Flat 3

75 9.802-740.0 Bolt, 1/2" x 3-1/2" NC 1

76 9.803-845.0 Bolt, 1/2" x 5" NC HH Tap 1

77 8.932-965.0 Label, Warning -Exposed Pulleys 2

78 8.900-802.0 Label, Landa Stripe 1

79 8.918-182.0 Hose, 1/4" x 26", 2-Wire, Pressure Loop 1

80 9.802-730.0 Bolt, 3/8" x 2-1/2" GR 5 Zinc 10

81 9.802-254.0 Hose, 1/4" Push-On 13ft

82 9.800-022.0 Label, 120V 1

83 9.802-132.0 Elbow, 3/4" JIC x 1/2", 90° 1

84 9.800-020.0 Label, Cold Water Inlet 1

85 9.800-035.0 Label, Warning Pictorial 1

86 8.900-300.0 Label, Landa 1

87 9.802-203.0 Clamp, 1/2" RO-Clip 1

88 9.800-034.0 Label, Clear Lexan, 2-1/4" x 4-1/2" 1

89 8.932-968.0 Label, Intended for Outdoor Use 1

90 8.718-618.0 Bolt, 5/16" x 3/4" NC GRCS 2

91 9.802-206.0 Clamp, Hose 2

92 9.803-836.0 Wire, 6 Gauge, Red 5 ft.

93 9.803-837.0 Wire, 6 Gauge, Black 5 ft.

94 9.803-838.0 Connector, Battery Post 2

95 9.802-768.0 Screw, 3/8" x 1-1/4" Whiz 4

96 9.802-811.0 Washer, 3/8" x 1-1/2" Fender 8

97 8.750-574.0 Gauge, Fuel Level 2

98 9.800-049.0 Label, Manufacturer's Cleaning Solutions 1

99 9.803-604.0 Sleeve, Fuel Gauge 2

100 9.802-764.0 Screw, 10/32 x 3/4 2

101 9.802-695.0 Nut, 10/32 Keps 2

5/16" Flange,

9

ITEM PART NO. DESCRIPTION QTY

102 9.800-049.0 Label, Manufacturer's Cleaning Solutions 1

103 8.731-276.0 Tap Bolt, 7/16 - 20 x 1-1/2 (10-25324E) 1

104 8.718-988.0 Washer, 7/16 USS, Flat (10-25324E) 1

105 8.725-320.0 Bolt, 7/16 x 2" (10-25324E) 2

106 8.750-674.0 Cap, Rachet 225, Non-Vent Unleaded, Carb 1

107 8.920-505.0 WLMT, 2.1 Canister 1

108 8.751-382.0 Carbon Canister 1

109 8.751-215.0 Grommet, Remote Vent 1

110 8.751-059.0 Vent, Remote Assembly 1

111 8.753-270.0 Reducer Connector 3/8" x 1/4" 1

112 9.802-207.0 Clamp, Wire/Tube

0.687 Dia 4

113 9.711-785.0 Hose, 3/8" Push-On 1ft

114 8.753-065.0 Clamp, 1 Ear

15.7mm - 18.6mm, (#10) 2

115 9.802-778.0 Nut, 5/16" Whiz Lock 4

116 9.802-775.0 Nut, 1/4" Flange, ZN 3

117 9.802-752.0 Screw, 1/4" x 1-1/4" Whiz Loc, Flange 1

118 8.753-066.0 Clamp, 1 Ear

12.6mm - 14.5mm, (#7) 4

119 9.802-254.0 Hose, 1/4" Push-On 13ft

 Not Shown

OPERATOR’S MANUAL

29

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

35

PRESSURE WASHER

OPERATOR’S MANUAL

EXPLODED VIEW - COIL/BURNER ASSEMBLY - SLX

18

14

32

20

13

12

15

26

25

3

4

28

1

5

2

6

24

33

HOT WATER OUTLET

SALIDA DELAGUA CALIENTE

SORTIE D'EAU CHAUDE

23

22

21

30

19

31

16

11

10

17

34

19

7

17

34

7

8

29

9

27

89140020-4

30

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

SLX COIL/BURNER ASSEMBLY PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

1 8.706-958.0 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 1

2 8.709-158.0 Filter, Fuel/H20 Separator 1

3 8.706-941.0 Hose Barb, 1/4" Barb x 1/4" ML Pipe 1

4 8.706-827.0 Elbow, 1/4" Street 1

5 5 8.752-113.0

6 8.717-102.0 Burner, CF800, 120V, 4.5 Nozzle, 160 PSI 1

8.920-960.0 Burner, Sureﬁre 1

7 9.802-014.0 Nipple, 1/2" x 3", Galvanized, SCH80 2

8 9.149-003.0 Manifold Coil Outlet Discharge 1

9 9.802-043.0 Elbow, 1/2" JIC x 1/2" Female, 90° 1

10 8.706-141.0 Coupling, 1/2" Hex Pipe 1

11 9.802-171.0 Nipple, 3/8" x 3/8" NPT ST Male 1

12 8.717-477.0 Insulation, Tank Head 30" w/Hole 1

13 8.717-478.0 Insulation, Tank Head 30" 1

14 8.717-479.0 Insulation, 1 Cut Blanket 1

15 8.911-234.0 Wrap, Bottom Assy. 1

Adapter, 1/4"

1

ITEM PART NO. DESCRIPTION QTY

16 9.196-012.0 Screw, 10-24 x 1/4" 1

17 8.912-220.0 OF/VOF Insulation Retainer Plate 2

18 8.912-250.0 Coil, SLX Large SCH 80 1

19 8.933-009.0 Gasket, Burner Plate 2

20 8.911-236.0 Top Wrap, 16 Ga, 304 S.S., #4 Brush 1

21 8.725-944.0 Disk, Rupture 8000# 1

22 8.706-248.0 Plug, 3/8" Allen Counter Sunk 1

23 8.707-019.0 Hose Barb, 1/2" x 3/8" MPT Push-On 1

24 9.802-259.0 Hose, 1/2" Push-On 1.66 ft.

25 8.716-547.0 Connector, 1/2" L/T Straight 2

26 9.802-448.0 Conduit, Flexo, 1/2" Black 2 ft.

27 8.918-225.0 Hose, 1/2" x 28", 2 Wire 1

28 8.752-114.0

29 9.802-041.0 Elbow, 3/8" Street 45° 1

30 9.184-030.0 Spacer, Rupture Disc 1

31 8.750-095.0 Thermostat,120C/240F 1

32 9.802-768.0 Screw, 3/8" x 11/4" 1

33 9.800-021.0 Label, Hot Water Outlet 1

34 9.802-797.0 Screw, #10 x 1/2" Hex Head,Tek 8

35 9.802-781.0 Nut, 3/8" NC 2

Nipple, 1/4"

1

OPERATOR’S MANUAL

31

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

EXPLODED VIEW - 5, 6, 8 GPM PUMP/UNLOADER ASSEMBLIES

PRESSURE WASHER

OPERATOR’S MANUAL

SLT 5,6 GPM

23

8

27

14

30

16

11

24

4

9

10

21

25

13

15

1

2

5

9

17

18

19

22

20

7

6

5

3

32

SLT 8 GPM

14

13

31

15

23

8

1

2

6

7

27

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

12

8

19

29

26

20

21

26

28

5

3

17

30

18

1

25

3

16

11

22

4

5

9

10

11

3

89140020-6

9

5, 6, 8 GPM PUMP/UNLOADER ASSEMBLY PARTS LIST

PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

1 8.706-846.0 Tee, 3/4" Female Pipe, Brass (5,6 GPM) 1 (8 GPM) 2

2 8.706-881.0 Nipple,

3 9.803-557.0 Elbow, 3/4" SAE x 3/4", 90° (5, 6 GPM) 1 (8 GPM) 3

4 8.706-800.0 Nipple, 3/4" Hex 1

5 8.706-929.0 Bushing, 1" x 3/4" 2

6 8.706-854.0 Tee, 1/4" Branch Male (8 GPM) 1

8.706-844.0 Tee, 1/2" Female, Pipe (5,6 GPM) 1

7 8.706-915.0 Bushing, 1/2" x 1/4" Brass (5, 6 GPM) 1 (8 GPM) 2

8 8.706-958.0 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 2

9 8.706-833.0 Elbow, 1” Street Brass 2

10 8.707-230.0 Valve, 1", 3-Way Brass 1

11 9.802-040.0 Elbow, 1/2" JIC, 1/2", 90° (8 GPM) 2

9.802-039.0 Elbow, 1/2 JIC x 3/8", 90° (5,6 GPM) 2

12 8.706-800.0 Nipple, 3/4" Hex, Brass (8 GPM) 1

13 8.933-006.0 Switch, Flow MV60, Yellow 1

14 9.802-036.0 Nipple, 1/2" JIC, 3/8" Pipe 1

15 8.705-974.0 Nipple, 3/8" Hex Steel (P/N TF5405-8) (5, 6 GPM) 1

8.706-171.0 Elbow, 1/2" MPT x 3/8" FPT 90° Street, Steel (8 GPM) 1

16 8.706-955.0 Hose Barb, 1/4" Barb x 1/8" MPT, 90° 1

17 8.750-299.0 Unloader, VRT 3, 8 GPM@ 4500 PSI 1

8.712-708.0 Unloader, Valve (Giant 22913) 3000 PSI (8 GPM) 1

3/4" Pipe x 1/2" Pipe

1

ITEM PART NO. DESCRIPTION QTY

18 9.802-129.0 Elbow, 1/2" JIC x 3/8", 90° (5, 6 GPM) 1

8.752-090.0 Elbow, Tapped, 3/4" x 1/2" 1 (8 GPM)

19 9.802-048.0 Swivel, 1/2" JIC Female, 3/8" Male (5, 6 GPM) 1

8.706-315.0 Swivel, 1/2" JIC, 1/2" Male (8 GPM) 1

20 9.802-038.0 Nipple, 1/2" JIC, 1/2" Pipe (8 GPM) 1

9.802-036.0 Nipple, 1/2" JIC x 3/8" Pipe (5, 6 GPM) 1

21 9.802-870.0 Block, Unloader, 3/8" x 3/8"

1.25 Steel (5,6 GPM) 1

9.802-869.0 Block, Unloader, 1/2" x 1/2"

1.75" Steel 1

22 9.802-728.0 Bolt, 3/8" x 2", NC HH 2

9.802-730.0

23 8.904-883.0 Pump, Landa LT6035/L6 @ 3500, 1540 RPM (5,6 GPM) 1

8.904-889.0 Pump, Landa LX8030/L, 8@3000, 1460 RPM (8 GPM) 1

24 8.706-890.0 Elbow, 1/2" JIC x 3/4" Pipe, 90° (5, 6 GPM) 1

25 8.706-282.0 Bushing, 1/2" x 1/4" (8 GPM) 1

8.706-297.0 Bushing, 3/8" x 1/4" (5, 6 GPM) 1

26 8.706-799.0 Nipple, 3/4" Close (8 GPM) 2

27 8.912-461.0 Pump Rail 1

28 8.707-224.0 Valve, 3/4" Ball, SMC, Brass (8 GPM) 1

29 9.802-734.0 Bolt, 3/8-16 x4 1/2 HEX G-5 ZINC (8 GPM) 1

30 9.802-254.0 Hose, 1/4" Push-on 6

31 8.705-974.0 Nipple, 3/8" Hex, Steel 1

(5,6 GPM) Bolt, 3/8" x 2 1/2", GR5 Zinc (8 GPM) 1

OPERATOR’S MANUAL

33

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

89140020-14

EXPLODED VIEW - 10 GPM PUMP/UNLOADER ASSEMBLY

17

PRESSURE WASHER

OPERATOR’S MANUAL

30

25

13

12

16

1

7

9

12

8

15

29

2

28

22

14

26

21

1

2

27

6

23

18

31

20

24

4

10

5

4

11

19

10 GPM PUMP/UNLOADER ASSEMBLY PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 8.706-846.0 Tee, 3/4" Female Pipe 2

2 8.706-799.0 Nipple, 3/4" Close 2

3 8.707-230.0 Valve, 1" Brass, 3-Way 1

4 9.803-557.0 Elbow, 3/4" SAE x 3/4", 90° 3

5 8.706-800.0 Nipple, 3/4" Hex 1

6 8.706-929.0 Bushing, 1" x 3/4" Barstock 2

7 8.706-881.0 Nipple,

8 8.706-844.0 Tee, 1/2" Female, Pipe 1

9 8.706-915.0 Bushing,

10 9.802-038.0 Nipple,

11 8.706-833.0 Elbow, 1" Street, Brass 2

12 8.706-958.0 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 2

13 8.920-592.0 Pump, Landa LX1036/L 1

14 8.712-708.0 Unloader, (Giant 22913) Valve 1

15 8.706-955.0 Hose Barb, 1/4" Barb x 1/8" MPT, 90° 1

34

3/4" Pipe x 1/2" Pipe

1/2" x 1/4" Brass

1/2" JIC, 1/2" Pipe

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

4

2

1

6

3

11

ITEM PART NO. DESCRIPTION QTY

16 8.706-282.0 Bushing, 1/2" x 1/4" 1

17 9.802-036.0 Nipple, 1/2" JIC, 3/8" Pipe 1

18 8.933-006.0 Switch, Flow MV60, Yellow 1

19 8.912-461.0 Pump Rail 1

20 8.706-171.0 Elbow, 1/2" x 3/8" 90° 1

21 9.802-038.0 Nipple, 1/2" JIC, 1/2" Pipe 1

1

22 9.802-869.0 Block, Unloader, 1/2" x 1/2" 1

23 9.802-730.0 Bolt, 3/8" x 2 1/2” GR5 Zinc 1

24 9.802-040.0 Elbow, 1/2" JIC, 1/2", 90° 1

25 8.752-090.0 Elbow, Tapped, 3/4" x 1/2" 1

26 8.706-315.0 Swivel, 1/2" JIC x 1/2" Male 1

27 8.707-224.0 Valve, 3/4" Ball, SMC, Brass1

28 8.706-800.0 Nipple, 3/4” Hex, Brass 1

29 9.802-734.0 Bolt, 3/8-16 x 4 1/2 1

30 9.802-254.0 Hose, 1/4" Push-on 6

31 8.705-974.0 Nipple, 3/8" Hex Steel 1

Nev

e

r U

s

e

:

·

B

le

ac

h

, c

h

lo

rin

e

p

ro

d

u

cts a

n

d

o

th

e

r c

o

rro

s

i

ve

c

h

em

ic

a

l

s

·

L

iq

u

id

s

c

o

n

ta

in

g

s

o

l

ve

n

ts

(i.

e. p

a

in

t th

in

n

e

r, g

a

s

o

lin

e

, o

il

)

·

Tri-s

o

d

iu

m

p

h

o

s

p

h

a

te

p

ro

d

u

ct

s

·

A

m

o

n

ia

p

ro

d

u

c

ts

·

A

c

id

-b

a

s

e

d

p

ro

d

u

c

ts

T

h

e

s

e

ch

e

m

ic

a

ls

w

ill h

a

r

m

th

e

u

n

it a

n

d

w

ill d

a

m

a

g

e

th

e

s

u

r

fa

c

e

b

e

in

g

cle

a

n

e

d

.

U

s

e

m

a

n

uf

a

ctu

re

r

’

s

d

e

te

rg

e

n

ts

a

s

re

c

o

m

e

n

d

e

d

in

m

a

n

u

a

l

.

CAUTION

EXPLODED VIEW - VALVE ASSEMBLY

6

PRESSURE WASHER

8

6

7

8

9

4

12

7

OPERATOR’S MANUAL

12

3

13

1

6

10

2

11

5

11

14

VALVE ASSEMBLY PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.800-029.0 Label, VHP Steam Valve 1

2 8.900-825.0 Label, Detergent Control Valve 1

3 9.802-187.0 Valve, Flow Control, w/Metering 1

4 8.707-317.0 Valve, Flow Control 1

5 8.706-200.0 Elbow, 1/4" Street x 3/8", Steel 1

6 8.706-958.0 Hose Barb, 1/4" Barb x 1/4" Pipe, 90° 3

7 6.390-126.0 Clamp, Hose, .46 -, .54 ST 3

8 9.802-254.0 Hose, 1/4" x 34" Push-On (8-30324E) 2

9.802-254.0 Hose, 1/4" x 26" Push-On (10-25324E) 2

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

ITEM PART NO. DESCRIPTION QTY

9 9.802-251.0 Tube, Clear Vinyl 6 ft.

10 8.918-183.0 Hose, 1/4" x 28" Pressure Loop (5-30224E, 6-32324E, 8-30324E) 1

8.918-182.0 Hose, 1/4" x 26" Pressure Loop (10-25324E,) 1

11 9.802-810.0 Washer, 5/8" Flat 2

12 8.719-011.0 Washer, 5/8" Star 2

13 9.800-049.0 Label, Manuf. Cleaning Sol. 1

14 8.911-724.0 Box, Valve ( SLX 10-25324E Only) 1

9.802-759.0  Screw, 10-32" X 1/2" 3

9.802-695.0  Nuts, Keps10-32" 3

 Not Shown

35

EXPLODED VIEW - CONTROL PANEL

9

7

PRESSURE WASHER

OPERATOR’S MANUAL

20

12

18

10

SLX 10-20324E

17

13

16

8

2

6

5

11

10

3

20

22

21

4

23

1

CONTROL PANEL PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 8.712-159.0 Voltmeter, 120VAC 1

2 8.750-095.0 Thermostat, 240° 1

3 9.802-451.0 Burner Switch 1

4 9.802-283.0 Hour Meter 1

5 8.912-454.0 Box, Electric, 16 Gauge MS, SLT 1

6 8.900-307.0 Label, Electric Box 1

7 9.802-517.0 Connector, 1/2" L/T, 90° 1

8 9.802-515.0 Strain Relief, Strt, LQ Tite 1

9 8.706-755.0 Bushing, .875" P/N 2119 1

10 9.802-064.0 Grommet, Rubber Nozzle 1

11 9.802-793.0 Cage, Nut, 1/4" 10

12 9.802-765.0 Screw, Allen Head, Black 6

13 9.802-525.0 Locknut, 1/2" 1

36

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

ITEM PART NO. DESCRIPTION QTY

14 9.800-040.0  Label, Ground 1

9.802-762.0  Screw, 10/32" x 11/4 R H SL, Black 1

9.802-695.0  Nut, 10/32" Keps 1

15 9.802-447.0  Conduit, 1/4" Corrugated Tubing 5.5 ft.

16 8.912-455.0 Cover, E-Box, 16 Gauge 1

17 8.718-852.0 Nut, 6/32" Hex 2

18 9.802-204.0 Clamp, Hose 2

19 8.752-150.0  Cord, Molded 1

20 8.712-361.0 Nozzle, SAQCMEG, 0006, Red (SLT 5-30224E) 1

8.712-362.0 Nozzle, SAQCMEG, 1506, Yellow (SLT 5-30224E) 1

8.712-363.0 Nozzle, SAQCMEG, 2506, Green (SLT 5-30224E) 1

8.712-364.0 Nozzle, SAQCMEG, 4006, White (SLT 5-30224E) 1

CONTROL PANEL PARTS LIST

ITEM PART NO. DESCRIPTION QTY

20 8.712-365.0 Nozzle, SAQCMEG, 0006.5, Red (SLT 6-32324E) 1

8.712-366.0 Nozzle, SAQCMEG, 1506.5, Yellow (SLT 6-32324E) 1

8.712-367.0 Nozzle, SAQCMEG, 2506.5, Green (SLT 6-32324E) 1

8.712-368.0 Nozzle, SAQCMEG, 4006.5, White (SLT 6-32324E) 1

8.712-378.0 Nozzle, SAQCMEG, 0009, Red (SLT 8-30324E) 1

8.712-379.0 Nozzle, SAQCMEG, 1509, Yellow (SLT 8-30324E) 1

8.712-380.0 Nozzle, SAQCMEG, 2509, Green (SLT 8-30324E) 1

8.712-381.0 Nozzle, SAQCMEG, 4009, White (SLT 8-30324E) 1

8.712-382.0 Nozzle,SAQCMEG, 0012, Red (SLX 10-25324E) 1

8.712-383.0 Nozzle, SAQCMEG, 1512, Yellow (SLX 10-25324E) 1

8.712-384.0 Nozzle, SAQCMEG, 1525, Green (SLX 10-25324E) 1

8.712-385.0 Nozzle, SAQCMEG, 4012, White (SLX 10-25324E) 1

21 8.750.097.0 Knob, Thermostat 1

22 8.712-190.0 Bezel, Thermostat 1

23 9.196-012.0 Screw, 10-24 x 1/4" 2

 Not Shown

PRESSURE WASHER

OPERATOR’S MANUAL

37

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

PRESSURE WASHER

89140020-36

EXPLODED VIEW - SPRAY GUN ASSEMBLY

1

High Pressure

OPERATOR’S MANUAL

SPRAY GUN ASSEMBLY PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.802-166.0 Coupler, 3/8" Female 1

9.802-100.0  Quick Coupler O-Ring, 3/8" Replacement Only 1

2 8.739-072.0 Hose, 3/8" x 50' 2-Wire, Tuff-Skin (5-30224E) 1

8.739-401.0 Hose, 1/2" x 50 ft., 2 Wire, Tuff Flex, (All Models Except 5-30224E) 1

3 8.751-234.0 Gun, Landa, L1050, 5000 PSI, 10.4 GPM 1

4 8.711-308.0 Wand, SS, VP (AL 344) w/Coupler & Soap Nozzle 1

83-SSVPKIT  Repair Kit AR, Stainless Seat 1

 Not Shown

4

3

2

38

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

EXPLODED VIEW - FLOAT TANK AND PARTS LIST

PRESSURE WASHER

5

6

1

2

4

3

12

10

11

13

7

16

14

6

5

SLT 5,6 GPM

15

3

8

7

16

6

5

7

16

SLT 8-3 GPM

15

OPERATOR’S MANUAL

1

2

14

4

3

15

3

11

4

10

11

10

3

8

14

1

2

1

11

SLX 10 GPM

9

4

ITEM PART NO. DESCRIPTION QTY

1 8.707-061.0 Strainer, 1/2" Basket (5, 6 GPM) 1 (8, 10 GPM) 2

2 9.802-128.0 Nipple, 1/2" JIC x 1/2" MPT Pipe (5, 6 GPM) 1 (8, 10 GPM) 2

3 9.803-557.0 Elbow, 3/4" SAE x 3/4", 90°, Brass (10 GPM) 1 (5, 6 GPM) 2 (8 GPM) 3

4 9.802-052.0 Bulkhead, 3/4" Polypro (5, 6 GPM) 1 (8, 10 GPM) 2

5 8.707-025.0 Stem, 10" Float 1

6 8.706-512.0 Ball, Float, Black Plastic 1

7 8.749-329.0 Valve, 3/4", Float 1

8 8.706-643.0 Tank, Float, 7-34" x 20-3/4" x 15" 1

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

3

8

89140020-15

ITEM PART NO. DESCRIPTION QTY

9 8.706-899.0 Nipple, 3/4" JIC x 3/4" Pipe (10 GPM) 2

10 9.802-261.0 Hose, 3/4" Push-On, 30" (5, 6 GPM) 1 (8 GPM) 2

11 9.802-152.0 Swivel, 3/4" SAE Fem (5, 6 GPM) 2 (8 GPM) 4

12 9.802-261.0 Hose, 3/4" Push-On (10 GPM) 17.25"

13 9.802-261.0 Hose, 3/4" Push-On (10 GPM) 10"

14 8.706-925.0 Bushing, 3/4" x 1/2" Pipe (5, 6 GPM) 1 (8, 10 GPM) 2

15 8.706-640.0 Bafﬂe, Plastic Float Tank 1

16 9.802-254.0 Hose, 1/4" Push-on 30"

39

BURNER ASSEMBLY EXPLODED VIEW

9.804-053.0 (7-00010) SM 230V

8.906-734.0 (7-00011) SM 120V SLT5

PRESSURE WASHER

OPERATOR’S MANUAL

19

21

12

20

1

17

18

15

11

9

8

10

16

22

13

14

7

4

2

6

5

3

BURNER ASSEMBLY EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 7-21844U Fuel Pump w/120V Solenoid 1 7-51843U Strainer Kit w/Gasket 1

2 7-21755U Solenoid Coil, 120V 1

3 9.802-643.0 Cordset 1

4 7-21877U Fuel Solenoid Stem 1

5 7-3215 Air Shutter 1

6 7-5151503 Air Band 1

7 9.802-657.0 Spline Nut 1

8 7-2383 Blower Wheel 1

9 7-2433 Fan Coupling 1

10 9.803-056.0 Motor, 120V, Cap Start (7-00011)

9.804-054.0 Motor, 230V (7-00010) 1

ITEM PART NO. DESCRIPTION QTY

11 7-51824 Ignitor Assy Complete, 120V (7-00011) 1 7-21176U Transformer, 230V (7-00010) 1

12 9.802-665.0 Ignitor Only, 120V (7-00011) 1

13 7-3493 Escutcheon Plate 1

14 7-4292 Escutcheon Plate Screw 1

15 8.717-964.0 Burner Housing 1

16 8.718-217.0 Gun Assembly Complete 1

17 9.802-652.0 Welded Insertion or Flange 1

18 7-SM30VMPW Air Tube Combination 1

19 9.802-651.0 Burner Gasket 2

20 9.802-634.0 Air Cone F22 1

21 7-5394 Connector Tube Assy, 8” 1

22 9.802-669.0 Electrode with Contact PR 1

40

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

CF800 BURNER ASSEMBLY EXPLODED VIEW

PRESSURE WASHER

8.717-013.0 (7-00001)

8.717-024.0 (7-00002)

8.717-075.0 (7-00008)

8.717-102.0 (7-00050) SLT6, SLT8, SLX10

13

2

1

11

3

10

9

4

8

14

7

OPERATOR’S MANUAL

12

5

6

BURNER ASSEMBLY EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 8.718-216.0 Nozzle Line Assy (ATC CF60KHS) Includes Air Tube, Head, Nozzle Gun Assy. 1

2 8.717-367.0 Nozzle, 4.5 80B (7-00001, 7-00050) (SLT8, SLX10) 1

8.700-951.0 Nozzle, 3.5 80B (7-00002, 7-00008) 1

8.717-378.0 Nozzle, 3.25 80B (SLT6) 1

3 8.717-834.0 Fuel Pump, B2TA-8245 (7-00001) 1

8.717-832.0 Fuel Pump, B2YA-8916 (7-00002, 7-00008, 7-00050) 1

4 8.701-088.0 Motor, 1/3 HP 120V (21341) (7-00001, 7-00002, 7-00050) 1

8.750-082.0 Motor, 1/3 HP 240V (21654) (7-00008) 1

5 9.802-667.0 Fuel Line, 8" 1

6 8.717-844.0 Valve, Fuel 120V 1

7 9.803-058.0 Coupling 1

8 8.717-835.0 Blower Wheel, 6-5/16 x 2-3/8 1

9 8.717-719.0 Primary Control, R8184G1294 1

10 9.803-060.0 Ignitor 1

11 8.723-939.0 Electrodes 1

12 9.802-676.0 CAD Cell Photoelectric 1

13 8.750-084.0 Gasket, Flange (31628) (7-00001) 1

8.750-083.0 Gasket, Flange (31637) (7-00002, 7-00008) 1

9.802-653.0 Gasket, Flange (31802) (7-00050) 1

14 8.750-085.0 Air Guide (178) 1

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

41

SUREFIRE BURNER “M/L” REPLACEMENT PARTS

For best performance specify genuine KNA replacement parts

8.920-960.0

PRESSURE WASHER

OPERATOR’S MANUAL

42

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

SUREFIRE BURNER “M/L” REPLACEMENT PARTS

For best performance specify genuine KNA replacement parts

PRESSURE WASHER

OPERATOR’S MANUAL

1 8.752-865.0 BURNER HOUSING ASSEMBLY-M/L 1 30 8.753-258.0 LIGHT, INDICATOR, AMBER 125V 1

3 8.700-758.0 FUEL PUMP, SUNTEC A2VA-3106 12-24V SOL 1 30 8.753-259.0 LIGHT, INDICATOR, BLUE 250V 1

3 8.700-759.0 FUEL PUMP, SUNTEC A2VA-3106 120V SOL 1 31 8.750-784.0 SITE GLASS 1

3 8.700-760.0 FUEL PUMP, SUNTEC A2VA-3106 230V SOL 1 32 8.750-785.0 RING, PUSH ON INTERNAL 1

3 8.752-923.0 FUEL PUMP, SUNTEC A2YA-7916 1 33 8.733-001.0 SCREW, 8 x 1/4" HI LOW THREAD CUT 2

4 8.752-924.0 SOLENOID VALVE, SUNTEC R642NL, 115V 1 34 8.718-762.0 SCREW, 8-32 X 1/2", M PH RDH PL 4

4 8.752-925.0 SOLENOID VALVE, SUNTEC R753NL, 220V 1 35 8.752-137.0 WASHER, FUEL NOZZLE, COPPER 1

4 8.753-030.0 SOLENOID VALVE, SUNTEC R261NL, 12/24V 1 36 8.718-810.0 SCREW, 10/32 X 1/2" WHIZ LOC FLANGE 9

6 8.752-919.0 AIR BAND M/L 1 37 8.750-770.0 SCREW, 10/32 x 5/8", WHIZ LOC FLANGE 3

7 8.752-930.0 MOTOR, 1/4 HP 115V W/CAP NIDEC 1 38 8.750-816.0 SCREW, 10/32 X 1/4" GROUNDING 1

7 8.752-931.0 MOTOR, 1/4 HP 230V W/CAP NIDEC 1 39 9.802-756.0 SCREW, 5/16" x 1", WHIZ LOC FLANGE 4

Item # Part # Description Qty Item # Part # Description Qty

7 8.752-933.0 MOTOR, 1/5 HP 13.5VDC AMETEK N1CPM-156 1 40 8.750-771.0 SCREW, 1/4-20 X 1/2", PHIL FHMS 4

7 8.752-932.0 MOTOR, 1/7 HP 115V EMERSON K41 1 41 9.802-750.0 SCREW, 8-32 X 1/2 M TPG PH PNH, BLACK 1

7 8.753-054.0 MOTOR, 1/7 HP 230V EMERSON K41 1 42 - LABEL, BRAND NAME 1

8 8.753-061.0 COUPLING, FLEX, 1/2" x 5/16" x 3-7/8" L 1 43 9.801-268.0 LABEL, DISCONNECT POWER SUPPLY 1

8 8.753-062.0 COUPLING, FLEX, 5/16" x 5/16" x 3-7/8" L 1 44 - LABEL, SERIAL PLATE 1

9 8.752-928.0 FAN, 6.25 x 4.25 x .50 BORE 1 46 9.807-339.0 LABEL, WIRING DIAGRAM, BURNER 115V-115V 1

9 8.752-929.0 FAN, 6.25 x 4.25 x .313 BORE 1 46 9.807-340.0 LABEL, WIRING DIAGRAM, BURNER 230V-230V 1

10 8.752-920.0 ELBOW, 37 DEG FLARE X 1/8" NPT 90 DEG 1 46 9.807-341.0 LABEL, WIRING DIAGRAM, BURNER 230V-115V 1

11 8.750-547.0 CONNECTOR, 37 DEG FLARE X 1/8" NPT, LONG 1 46 9.807-342.0 LABEL, WIRING DIAGRAM, BURNER 115V-24V 1

13 8.752-934.0 FUEL LINE ASSEMBLY, M 1 46 9.807-343.0 LABEL, WIRING DIAGRAM, BURNER 230V-24V 1

13 8.753-055.0 FUEL LINE ASSEMBLY, L 1 46 9.807-344.0 LABEL, WIRING DIAGRAM, BURNER 12VDC 1

14 8.752-034.0 FLANGE 1" TUBE ASSY, BURNER 1 46 9.807-551.0 LABEL, WIRING, BURNER 115V PRIMARY 1`

15 8.752-035.0 FLANGE 3" TUBE ASSY, BURNER 1 46 9.807-552.0 LABEL, WIRING, BURNER 230V PRIMARY 1

16 8.750-539.0 GASKET, FLANGE 1 48 9.801-273.0 LABEL, BURNER LIGHTS 1

18 8.750-526.0 GUN, ELECTRODE / NOZZLE, 3" 1 49 8.919-105.0 PLATE, TERMINAL BLOCK NUMBERS 1

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

19 8.750-525.0 GUN, ELECTRODE / NOZZLE, 1" 1 50 8.716-451.0 TERMINAL, JUMPER SPADE 1

20 Varies FUEL NOZZLE 1 51 9.802-510.0 CABLE, TIE, 4" BLACK 4

21 8.750-778.0 ELECTRODE, IGNITION AC 1 52 9.807-348.0 LABEL, CLEAR MYLAR, 1.125 x 4.50 1

21 8.751-342.0 ELECTRODE, IGNITION DC 1 53 9.807-345.0 LABEL, IGNITER 120V 1

22 8.750-781.0 CONE, AIR F22 1 53 9.807-346.0 LABEL, IGNITER 230V 1

22 8.752-935.0 CONE, AIR F310 1 53 9.807-347.0 LABEL, IGNITER 12VDC 1

23 8.919-114.0 IGNITOR, BURNER 120V 1 54 8.751-354.0 GASKET, BURNER TUBE 1

23 8.919-115.0 IGNITOR, BURNER 230V 1 55 8.753-100.0 PRIMARY CONTROL, HONEYWELL R7284U 1

23 8.919-116.0 IGNITOR, BURNER 12VDC 1 56 8.753-101.0 CAD CELL FLAME DETECTOR, C554A 1

24 8.706-745.0 PLUG, HOLE 0.812 PLASTIC 1 57 8.920-656.0 JUNCTION BOX, KNA BURNER ML 1

26 8.751-134.0 PLUG, 1/8" NPT X HEX SHOULDER 1 58 8.753-036.0 GASKET, IGNITER 1

27 8.752-922.0 GASKET, JUNCTION BOX ML 1 59 8.921-214.0 BRACKET, FLAME SENSOR 1

28 8.920-654.0 COVER, JUNCTION BOX ML 1 60 9.802-640.0 COIL, OIL VALVE 120V, W/O CORDSET 1

29 8.750-116.0 BLOCK, TERMINAL, 5 POLE 1 60 9.802-641.0 COIL, OIL VALVE 230V W/O CORDSET 1

30 8.750-817.0 LIGHT, INDICATOR, GREEN 14V 1 60 8.700-794.0 COIL, OIL VLAVE 12/24V W/O CORDSET 1

30 8.753-257.0 LIGHT, INDICATOR, CLEAR 28V 1 61 9.804-072.0 CONDUIT, WIRE COVER 1

43

PARTS SPECIFICATIONS

PUMP ENGINE

Hi-Pres Pump Pump Pump Pump Pulley Bushing Engine Engine Pulley Engine Bushing Generator Pulley Generator Bushing Belt Generator Belt

MODEL PSI Nozzle Type Model # Part # Pulley Part # Bushing Part # Engine Part # Model Pulley Part # Bushing Part # Pulley Part# Bushing Part # Belt(Qty) Part # Belt(Qty) Part #

SLT5-30224E 3000 6 Landa LT-6035\L 8.904-883.0 2BK90H 8.715-593.0 25MM 9.802-403.0 Vanguard

SLT6-32324E 3200 6.5 Landa LT-6035\L 8.904-883.0 2BK80H 8.715-592.0 25MM 9.802-403.0

SLT8-30324E 3000 9 Landa LX-9536\L 8.920-590.0 3BK80H 8.715-618.0 25MM 9.802-403.0

SLX10-25324E 2500 12 Landa LX-1036\L 8.920-592.0 3BK80H 8.715-618.0 25MM 9.802-403.0

Honda/GX630(688CC)

Honda/GX660(688CC)

PRESSURE WASHER Speciﬁcations

(479CC)

9.802-325.0 SLT5-30224E 3TB34 9.802-392.0

8.752-149.0 SLT6-32324E 3TB36 9.802-393.0

8.752-148.0 SLT8-30324E 4B34

8.752-148.0 SLX10-25324E 4B36

44

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

PARTS SPECIFICATIONS

PRESSURE WASHER Speciﬁcations

ENGINE

P2 x 1

9.802-404.0 BK34H 9.802-378.0 H X 5/8”

P2 x 1

9.802-404.0 BK34H 9.802-378.0 H X 5/8”

8.715-623.0 SD x 1-1/8 8.715-660.0

8.715-603.0 SD x 1-1/8 8.715-660.0

GENERATOR

BK34H 9.802-378.0 H X 5/8”

9.802-397.0

BX35(2) 9.802-415.0 BX22(1) 9.802-412.0

BX34(3) 8.715-695.0 BX22(1) 9.802-412.0

45

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

PRESSURE WASHER

5

7

12

HAWK

XLT3020S XLT3816S XLT1830 XLT2230 XLT2530 XLT2520 XLT2730 XLT3025 XLT3020 XLT3325 XLT3517 XLT4017 XLT4014 XLT4317 XLT5015 XLT5415

23

24

25

26

27

28

29

30

27

31

26

32

33

24

23

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

2

3

4

6

8

9

10

13

14

15

16

17

18

19

20

21

22

13

14

11

1

OPERATOR’S MANUAL

LX.2 PUMP SERIES EXPLODED VIEW

TORQUE SPECS

ITEM # FT. LBS.

14 95

15 45

23 18

34 10

42 30

48 8

LX.2 PUMP SERIES EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 8.752-825.0 Crankcase 1

2*

3*

4*

5*

6*

7*

8* 9.803-285.0 Brass Plug, G3/4 1

9 9.803-286.0 Copper Washer 3/4 1

10 8.752-831.0 Manifold Housing

11 8.752-836.0 O-Ring Ø2.62 x 21.89 6

12*

13 9.803-287.0 O-Ring Ø3.53 x 25.80-134 6

14 8.752-855.0 Valve Plug 6

15 8.752-833.0 Manifold Stud Bolt 8

16 9.802-890.0 Lock Washer 8

17 9.803-199.0 Copper Washer 1/2 1

46

See Kit Below

Plunger Oil Seal 3

O-Ring Ø1.78 x 37.82 3

Pressure Ring 3

U-Seal, 25mm 3

Intermediate Ring 3

U-Seal 3

Valve Assembly 6

ITEM PART NO. DESCRIPTION QTY

18 9.802-926.0 Brass Plug 1/2 1

19

20

21

22

23 8.752-830.0 Hex Screw 8

24 9.802-884.0 Washer 8

25 9.803-182.0 Closed Bearing Housing 1

26 9.803-186.0 O-Ring Ø2.62 x 71.12 2

Ø22/Ø20/

1

27 9.803-160.0 Roller Bearing 2

28 8.752-829.0 Crankshaft Ø25 (9536) 1

28 8.752-827.0 Crankshaft Ø25 (1036) 1

29 9.803-293.0 Crankshaft Key 1

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

30 8.752-834.0 Oil Dip Stick 1

31 9.803-139.0 Crankshaft Seal 1

32 9.803-177.0 Shim 2

See Kit Below Valve Seat 6

See Kit Below Valve Plate 6

See Kit Below Valve Spring 6

See Kit Below Valve Cage 6

LX.2 PUMP SERIES EXPLODED VIEW PARTS LIST (CONT)

ITEM PART NO. DESCRIPTION QTY

33 9.803-181.0 Bearing Housing 1

34* 8.752-841.0 Plunger Bolt 3

35* 8.752-820.0 Bonded Seal 3

36* 8.752-847.0 Plunger, 22mm

37* 8.752-823.0 Copper Spacer 3

38* 8.752-842.0 Plunger Rod 3

39* 8.752-822.0 Connecting Rod Pin 3

40 9.803-157.0 Connecting Rod 3

41* 9.802-889.0 Spring Washer 6

42* 9.802-937.0 Connecting Rod Screw 6

43 9.803-194.0 O-Ring Ø2.62 x 152.07 1

44 8.752-826.0 Crankcase Cover 1

45 9.803-906.0 O-Ring Ø1.78 x 14.00 1

46 8.707-262.0 Brass Plug G3/8 1

47 9.803-202.0 Sight Glass G3/4 1

48 8.752-824.0 Cover Screw 5

* Part available in kit (See below)

3

PRESSURE WASHER

OPERATOR’S MANUAL

KIT NUMBERS 8.752-844.0 8.752-850.0 8.752-839.0 8.753-349.0 8.752-835.0

KIT DESCRIPTION

ITEMS NUMBERS INCLUDED

Plunger Seals

22 mm

3, 5, 7 3, 4, 5, 6, 7, 34, 35, 36, 37 11, 12, 13 2

Seal Packing

22mm

Plunger

22mm

Complete

Valve

Plunger

Oil Seals

NUMBER OF CYLINDERS KIT

3 1 1 6 3

WILL SERVICE

47

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

8.904-888.0 LX 8030R.1

8.904-889.0 LX 8030L.1

8.904-892.0 LX 1025R.1

8.904-891.0 LX 1025L.1

PRESSURE WASHER

OPERATOR’S MANUAL

LX.1 SERIES PUMP EXPLODED VIEW

TORQUE SPECS

ITEM # FT. LBS.

15 95

16 60

25 8

35 10

46 30

52 7.6

LX.1 SERIES PUMP EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.803-163.0 Crankcase 1

2 9.803-195.0 Plunger Guide 3

3*

4*

5*

6*

7*

8*

9 9.803-285.0 Brass Plug, 3/4 1

10 9.803-286.0 Copper Washer 3/4 1

11 9.802-935.0 Manifold Housing 1

12* 9.803-291.0 O-Ring Ø2.62 x 23.47 6

13*

14* 9.803-287.0 O-Ring Ø3.53 x 25.80 6

15 9.802-930.0 Valve Plug 6

16 9.802-942.0 Manifold Stud Bolt 8

17 9.802-890.0 Lock Washer 8

See Kit Below

Plunger Oil Seal 3

O-Ring Ø1.78 x 37.82 3

Pressure Ring, 25mm 3

U-Seal, 25mm 3

Intermediate Ring 25mm 6

U-Seal, 25mm 3

Valve Assembly 6

ITEM PART NO. DESCRIPTION QTY

18 9.803-199.0 Copper Washer 1/2 1

19 9.802-926.0 Brass Plug 1/2 1

24 9.802-884.0 Washer 8

25 9.802-944.0 Flange Screw 8

26 9.803-182.0 Closed Bearing Housing 1

27 9.803-186.0 O-Ring Ø2.62 x 71.12 2

28 9.803-160.0 Roller Bearing 2

29 9.803-288.0 Crankshaft (LX 8030) 1

9.803-289.0 Crankshaft (LX 1025) 1

30 9.803-167.0 Crankshaft Key 1

31 9.802-923.0 Oil Dip Stick 1

32 9.803-139.0 Crankshaft Seal 1

33 9.803-177.0 Shim 2

34 9.803-181.0 Bearing Housing 1

35*

36*

See Kit Below

Plunger Bolt 3

Copper Spacer 3

48

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

LX.1 SERIES PUMP EXPLODED VIEW PARTS LIST (CONT.)

ITEM PART NO. DESCRIPTION QTY

37*

38*

39*

40*

41 9.803-143.0 Plunger Rod 3

42 9.803-157.0 Connecting Rod 3

43 9.802-912.0 Snap Ring 6

44 9.802-915.0 Connecting Rod Pin 3

45 9.802-889.0 Spring Washer 6

46 9.802-937.0 Connecting Rod Screw 6

47 9.803-194.0 O-Ring Ø2.62 x 152.07 1

48 9.803-166.0 Crankcase Cover 1

49 9.803-197.0 Gasket, G3/8 1

50 9.802-925.0 Brass Plug 3/8 1

51 9.803-202.0 Sight Glass G3/4 1

52 9.802-939.0 Cover Screw 5

See Kit Below

O-Ring Ø1.78x10.82 3

Teﬂon Ring 3

Plunger 25mm 3

Copper Spacer 3

PRESSURE WASHER

OPERATOR’S MANUAL

KIT NUMBERS 8.725-364.0 8.725-365.0 9.802-614.0 9.802-608.0 9.802-606.0

KIT DESCRIPTION

ITEMS NUMBERS INCLUDED

Plunger Seal

25 mm

4, 6, 8 4, 5, 6, 7, 8

Seal Packing

25mm

Plunger

25mm Complete Valve

35, 36, 37,

38, 39, 40

12, 13, 14 3

Plunger Oil

Seals

NUMBER OF CYLINDERS KIT

3 1 1 6 3

WILL SERVICE

49

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

VRT3 UNLOADER EXPLODED VIEW AND PARTS LIST

8.750-297.0, 8 GPM, 2320 PSI

8.750-298.0, 8 GPM, 3630 PSI

8.750-299.0, 8 GPM, 4500 PSI

20

PRESSURE WASHER

19

18

OPERATOR’S MANUAL

14

ITEM PART NO. DESCRIPTION QTY

25 8.750-713.0 Outlet Fitting 1 18 8.750-712.0 Knob, Unloader 1

8.750-709.0 Repair Kit, VRT3, 2320/3630 PSI

8.750-710.0 Repair Kit, VRT3, 4500 PSI

(Kit Items: 3, 4, 6, 9-12, 21, 24)

8

9

10

9

17

13

16

12

11

26

3

15

6

4

5

6

1

22

23

24

21

25

7

2

Unloader Adjustment Procedures

1. Remove lock nut (Item 19).

2. Remove adjustment knob (Item 18).

3. Loosen the two (2) nuts (Item 15), move them upward on stem (Item 8) until you see 4 or more threads below the nut.

4. Re-attach adjusting knob (Item 18).

5. Start machine. Open the trigger of the spray gun. Increase pressure by turning adjustment knob (Item 18) clockwise until pressure is at the desired operating pressure.

6. Remove the adjustment knob (Item 18), tighten the lower nut (Item 15) tightly against the upper nut (Item 15). Re-attach adjustment knob (Item 18) and screw down until contact is made with the nuts (Items 15). Screw down lock nut (Item 19) onto the stem (Item 8) until the threads cut into the nylon insert of the lock nut (Item 19).

*If adjustment knob (Item 18) DOES NOT make contact with upper nut (Items 15), remove adjusting knob (Item 18), re-adjust (raise) nuts (Items 15) on stem (Item 8) and re-attach adjustment knob (Item 18), then repeat step #6.

**If adjustment knob (Item 18) DOES make contact with upper nut; release the trigger of the spray gun and watch the pressure gauge for the pressure increase (“spike”). This “spike” SHOULD NOT exceed 500 psi above the operating pressure. If “spike” pressure exceeds the 500 psi limit, remove the adjusting knob (Item 18) and re-adjust (lower) the nuts (Items 15)

on the stem (Item 8). Re-attach the adjusting knob (Item 18), then repeat step #6.

50

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

LANDA LIMITED NEW PRODUCT WARRANTY

PRESSURE WASHERS

WHAT THIS WARRANTY COVERS

All LANDA pressure washers are warranted by LANDA to the original purchaser to be free from defects in materials and workmanship under normal use, for the periods speciﬁed below. This Limited Warranty is subject to the exclusions shown below, is calculated from the date of the original purchase, and applies to the original components only. Any parts replaced under this warranty will assume the remainder of the part’s warranty period.

SEVEN YEAR PARTS AND ONE YEAR LABOR WARRANTY:

Components manufactured by LANDA, such as frames, handles, top and bottom wraps, ﬂoat tanks, fuel tanks, belt guards, and internal components on the oil-end of Landa manufactured pumps. General, AR, Liberty, Comet and swash and wobble plate pumps have a one year warranty. Heating coils have a ﬁve year warranty from date of original machine purchase.

ONE YEAR PARTS AND ONE YEAR LABOR WARRANTY: All other components, excluding normal wear items as described below, will be warranted for one year on parts and

labor. Parts and labor warranty on these parts will be for one year regardless of the duration of the original component manufacturer’s part warranty.

WARRANTY PROVIDED BY OTHER MANUFACTURERS:

Motors, generators, and engines, which are warranted by their respective manufacturers, are serviced through these manufacturers’ local authorized service centers. LANDA is not authorized and has no responsibility to provide warranty service for such components.

WHAT THIS WARRANTY DOES NOT COVER

This warranty does not cover the following items:

1. Normal wear items, such as nozzles, spray guns, discharge hoses, wands, quick couplers, seals, ﬁlters, gaskets, O-rings, packings, pistons, pump valve assemblies, strainers, belts, brushes, rupture disks, fuses, pump protectors.

2. Damage or malfunctions resulting from accidents, abuse, modiﬁcations, alterations, incorrect installation, improper servicing, failure to follow manufacturer’s maintenance instructions, or use of the equipment beyond its stated usage speciﬁcations as contained in the operator’s manual.

3. Damage due to freezing, chemical deterioration, scale build up, rust, corrosion, or thermal expansion.

4. Damage to components from ﬂuctuations in electrical or water supply.

5. Normal maintenance service, including adjustments, fuel system cleaning, and clearing of obstructions.

6. Transportation to service center, ﬁeld labor charges, or freight damage.

WHAT YOU MUST DO TO OBTAIN WARRANTY SERVICE

While not required for warranty service, we request that you register your LANDA pressure washer by returning the completed registration card. In order to obtain warranty service on items warranted by LANDA, you must return the product to your Authorized LANDA Dealer, freight prepaid, with proof of purchase, within the applicable warranty period. If the product is permanently installed, you must notify your Authorized LANDA Dealer of the defect. Your Authorized LANDA Dealer will ﬁle a claim with Landa, who must subsequently verify the defect. In most cases, the part must be returned to LANDA freight prepaid with the claim. For warranty service on components warranted by other manufacturer’s, your Authorized LANDA Dealer can help you obtain warranty service through these manufacturers’ local authorized service centers.

LIMITATION OF LIABILITY

LANDA’S liability for special, incidental, or consequential damages is expressly disclaimed. In no event shall LANDA’S liability exceed the purchase price of the product in question. LANDA makes every effort to ensure that all illustrations and speciﬁcations are correct, however, these do not imply a warranty that the product is merchantable or ﬁt for a particular purpose, or that the product will actually conform to the illustrations and speciﬁcations. Our obligation under this warranty is expressly limited at our option to the replacement or repair at a service facility or factory designated by us, of such part or parts as inspection shall disclose to have been defective. THE WARRANTY CONTAINED HEREIN

IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. LANDA does not authorize any other party, including authorized LANDA Dealers, to

make any representation or promise on behalf of LANDA, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of LANDA products conforms to local codes. While LANDA attempts to assure that its products meet national codes, it cannot be responsible for how the customer chooses to use or install the product. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you speciﬁc legal rights and you may also have other rights which vary from state to state.

LANDA

www.landa.com

Landa SLT/SLX • Gas 8.914-002.0 • Rev. 4/13

Form # 8.914-002.0 • Revised 4/13 • Printed in U.S.A. by Landa

Landa SLT6-30224E, SLT8-30324E, SLX10-25324E, SLT5-30224E 1.110-518.0, SLT6-32324E 1.110-520.0 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
