Lanco 315LT81 Users Manual

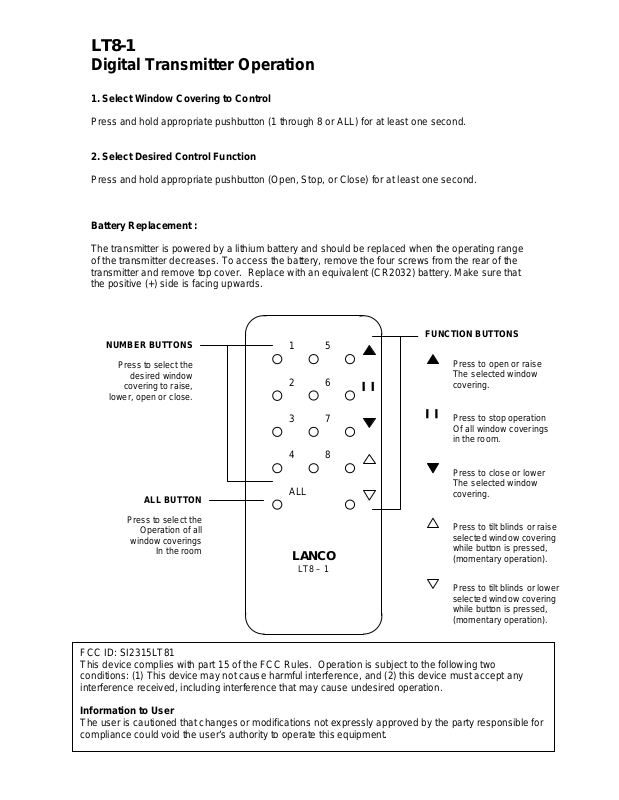

LT8-1

A

Digital Transmitter Operation

1. Select Window Covering to Control

Press and hold appropriate pushbutton (1 through 8 or ALL) for at least one second.

2. Select Desired Control Function

Press and hold appropriate pushbutton (Open, Stop, or Close) for at least one second.

Battery Replacement :

The transmitter is powered by a lithium battery and should be replaced when the operating range
of the transmitter decreases. To access the battery, remove the four screws from the rear of the
transmitter and remove top cover. Replace with an equivalent (CR2032) battery. Make sure that
the positive (+) side is facing upwards.

NUMBER BUTTONS

Press to select the

desired window

covering to raise,

lower, open or close.

1

2

5

6

FUNCTION BUTTONS

Press to open or raise
The selected window
covering.

Press to stop operation
Of all window coverings

Press to close or lower
The selected window
covering.

Press to tilt blinds or raise
selected
while button is pressed,
(momentary operation).

Press to tilt blinds or lower
selected
while button is pressed,
(momentary operation).

window covering

window covering

ALL BUTTON

Press to select the

Operation of all

window coverings

In the room

3

4

LANCO

7

8

LL

LT8 – 1

FCC ID: SI2315LT81
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

Information to User

The user is cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
