Lamptron FC9 operation manual

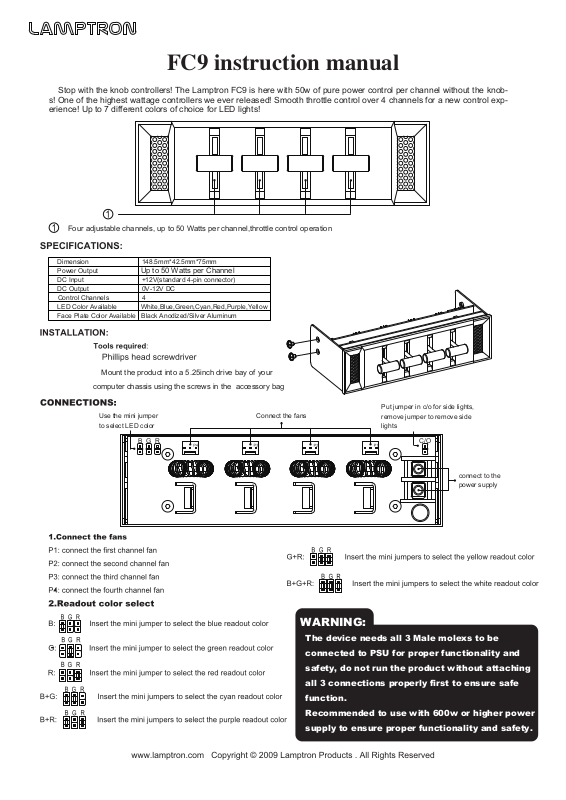

FC9 instruction manual
Stop with the knob controllers! The Lamptron FC9 is here with 50w of pure power control per channel without the knobs! One of the highest wattage controllers we ever released! Smooth throttle control over 4 channels for a new control experience! Up to 7 different colors of choice for LED lights!
Four adjustable channels, up to 50 Watts per channel,throttle control operation
Dimension 148.5mm*42.5mm*75mm
Power Output
DC Input +12V(standard 4-pin connector)
DC Output 0V-12V DC
Control Channels 4
LED Color Available White,Blue,Green,Cyan,Red,Purple,Yellow
Face Plate Color Available Black Anodized/Silver Aluminum
Mount the product into a 5.25inch drive bay of your
computer chassis using the screws in the accessory bag
Use the mini jumper
to select LED color
Up to 50 Watts per Channel
G
B
R
Connect the fans
Put jumper in c/o for side lights,
remove jumper to remove side
lights
C/O
connect to the
power supply
WARNING:
The device needs all 3 Male molexs to be
connected to PSU for proper functionality and
safety, do not run the product without attaching
all 3 connections properly first to ensure safe
function.
Recommended to use with 600w or higher power
supply to ensure proper functionality and safety.
color
