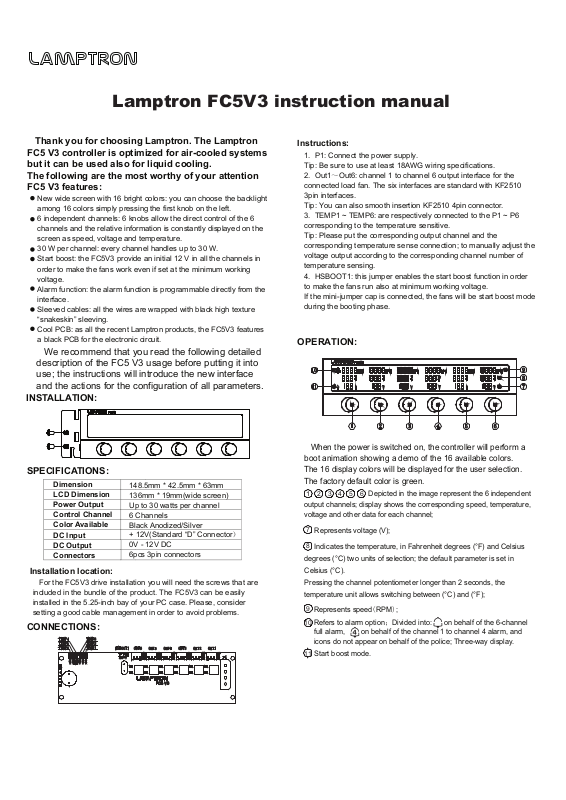

Lamptron FC5V3 instruction manual
Thank you for choosing Lamptron. The Lamptron
FC5 V3 controller is optimized for air-cooled systems
but it can be used also for liquid cooling.
The following are the most worthy of your attention
FC5 V3 features:
New wide screen with 16 bright colors: you can choose the backlight
among 16 colors simply pressing the first knob on the left.
6 independent channels: 6 knobs allow the direct control of the 6
channels and the relative information is constantly displayed on the
screen as speed, voltage and temperature.
30 W per channel: every channel handles up to 30 W.
Start boost: the FC5V3 provide an initial 12 V in all the channels in
order to make the fans work even if set at the minimum working
voltage.
Alarm function: the alarm function is programmable directly from the
interface.
Sleeved cables: all the wires are wrapped with black high texture
“snakeskin” sleeving.
Cool PCB: as all the recent Lamptron products, the FC5V3 features
a black PCB for the electronic circuit.
We recommend that you read the following detailed
description of the FC5 V3 usage before putting it into
use; the instructions will introduce the new interface
and the actions for the configuration of all parameters.
INSTALLATION:
Instructions:
1. P1: Connect the power supply.
Tip: Be sure to use at least 18AWG wiring specifications.
2. Out1~Out6: channel 1 to channel 6 output interface for the
connected load fan. The six interfaces are standard with KF2510
3pin interfaces.
Tip: You can also smooth insertion KF2510 4pin connector.
3. TEMP1 ~ TEMP6: are respectively connected to the P1 ~ P6
corresponding to the temperature sensitive.
Tip: Please put the corresponding output channel and the
corresponding temperature sense connection; to manually adjust the
voltage output according to the corresponding channel number of
temperature sensing.
4. HSBOOT1: this jumper enables the start boost function in order
to make the fans run also at minimum working voltage.
If the mini-jumper cap is connected, the fans will be start boost mode
during the booting phase.
OPERATION:
10
9
8
711
SPECIFICATIONS:
Dimension
LCD Dimension
Power Output
Control Channel
Color Available
DC Input
DC Output
Connectors
148.5mm * 42.5mm * 63mm
136mm * 19mm(wide screen)
Up to 30 watts per channel
6 Channels
Black Anodized/Silver
+ 12V(Standard “D” Connector)
0V - 12V DC
6pcs 3pin connectors
Installation location:
For the FC5V3 drive installation you will need the screws that are
included in the bundle of the product. The FC5V3 can be easily
installed in the 5.25-inch bay of your PC case. Please, consider
setting a good cable management in order to avoid problems.
CONNECTIONS:
TEMP3
TEMP4
TEMP2
TEMP5
TEMP1
TEMP6
TEMP5
TEMP6
TEMP4
TEMP3
TEMP2
TEMP1
HSBOOT1
HSBOOT1
OUT6
OUT5
FC5 V3 FC5 V3
OUT4
OUT3
OUT2
OUT1
OUT1
OUT2OUT3OUT4OUT5OUT6
P1P1
1
2 3 4 5 6
When the power is switched on, the controller will perform a
boot animation showing a demo of the 16 available colors.
The 16 display colors will be displayed for the user selection.
The factory default color is green.
1
Depicted in the image represent the 6 independent
output channels; display shows the corresponding speed, temperature,
voltage and other data for each channel;
7
Represents voltage (V);
8
Indicates the temperature, in Fahrenheit degrees (°F) and Celsius
degrees (°C) two units of selection; the default parameter is set in
Celsius (°C).
Pressing the channel potentiometer longer than 2 seconds, the
temperature unit allows switching between (°C) and (°F);
9
10
11
4 5 6
2 3
Represents speed(RPM);
Refers to alarm option;Divided into: on behalf of the 6-channel
full alarm, on behalf of the channel 1 to channel 4 alarm, and
icons do not appear on behalf of the police; Three-way display.
Start boost mode.
