User Instructions

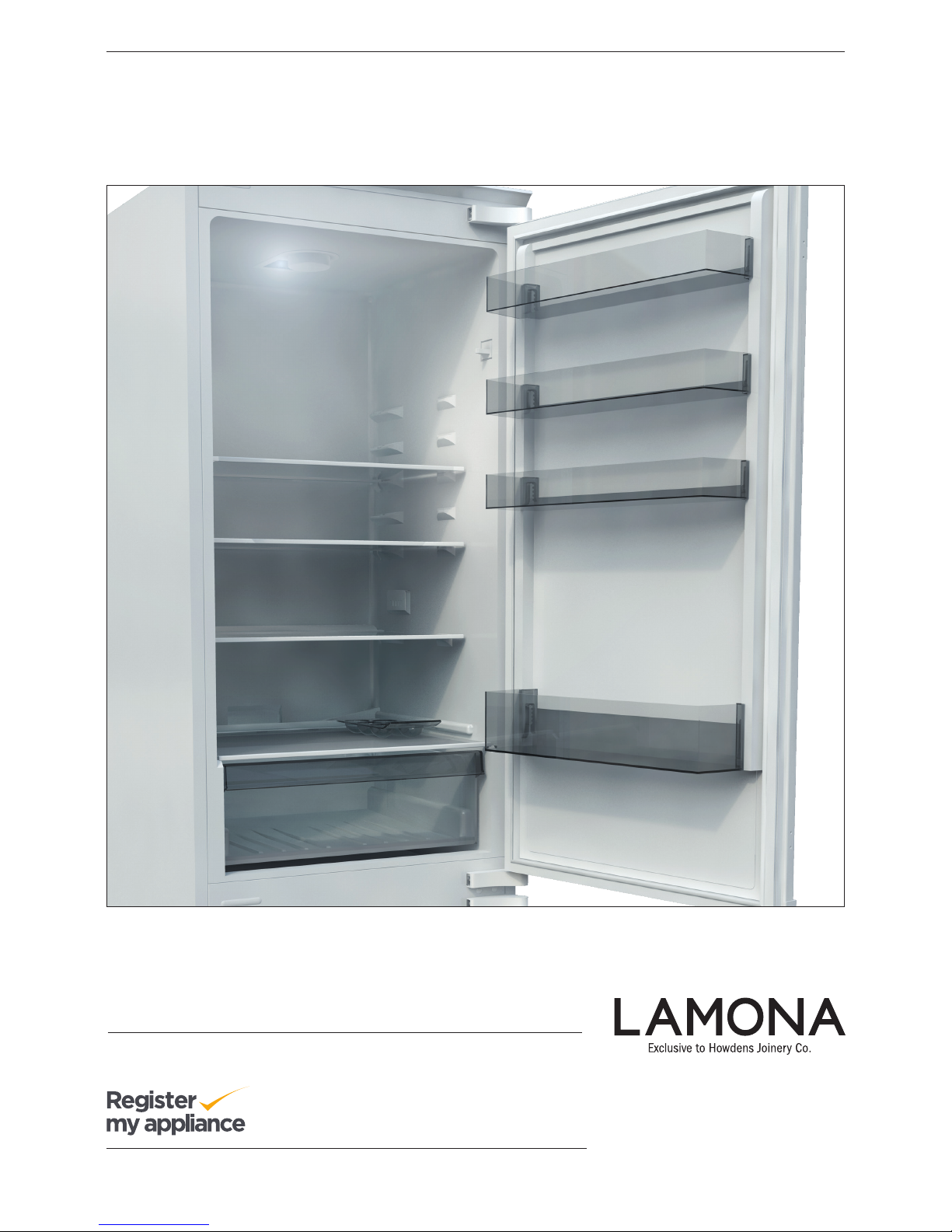

70:30 Integrated Fridge Freezer
LAM6300
Page 2
2
www .howdens.com
Register your Lamona appliance purchased
from Howdens Joinery to allow us to easily
contact you in the event of important product
updates at:
www .howdens.com/appliance-registration
Page 3
3
www .howdens.com
Copyright © 2017 Howden Joinery Ltd. All rights reserved.
Dear Customer
Congratulations on your choice of energy efcient fridge freezer.
• Please read these instructions before use to ensure safe and economical
operation of the fridge freezer.
• Please keep these instructions in a safe place for your future reference.
• If you have any questions, or if you are not sure about any information contained
in this booklet please contact us - details at the end of the User Instructions.
This appliance is intended to be used in household and similar domestic
applications, see guarantee page for denition of domestic use*.
Welcome
Product information correct at the time of publication in November 2017.
The company has a policy of continuous product development and reserves the right to change
any products and specications given in this manual. Subject to the Terms and Conditions of
Trading, a copy of the Howdens Joinery Terms and Conditions is available upon request.
Warning for hazardous
situations with regard to
life and property.
Warning for
electric shock.
Warning for
risk of re.
Throughout this manual the
following symbols are used.
Page 4
4
www .howdens.com
Contents
Register my appliance p.2
Welcome p.3
Fridge freezer overview p.5
Warning and Safety information
Correct usage p.6
Safety with children p.6
Warning - general p.7
Compliance with RoHS Directive p.7
Cooling circuit p.7
Compliance with WEEE Directive and
Disposal of the Waste Product p.7
Energy saving tips p.7
Packaging information p.7
Cleaning and care p.8
Disposing of the old appliance p.8
Electrical connection p.8
1 - Installation
Before operating the fridge freezer p.8
Installation instructions p.9
Replacing the interior light p.9
2 - Using the fridge freezer
Temperature control adjustment p.9
Cold zones p.9
Loading p.10
Storing frozen food p.10
Freezing fresh food p.11
Making ice cubes p.11
Defrosting fridge compartment p.11
Defrosting freezer compartment p.12
Fridge shelf removal/adjustment p.12
Salad crisper removal p.13
Door shelf removal/adjustment p.13
Freezer drawer removal p.13
Freezer glass separator shelf removal p.13
3 - Cleaning and care
Cleaning agents p.14
Prepare the fridge freezer for cleaning p.15
Fridge shelf removal p.15
Cleaning p.15
Fridge interior p.15
Fridge ttings and freezer drawers p.15
Defrost collection channel p.15
Cleaning the door seals p.16
Cleaning the ventilation void p.16
After cleaning p.16
4 - Problem solving p.16
5 - Recommendations p.17
6 - Guarantee p.18
7 - Product che p.19
Page 5
5
www .howdens.com
1. Temperature control and interior light
2. Adjustable shelf
3. Defrosted water collection channel
4. Salad crisper
5. Frozen food storage drawer
6. Glass separator shelf
7. Door shelf
8. Egg tray
9. Bottle shelf
1
7
8
9
2
3
4
5
6
Fridge freezer overview
Page 6
6
www .howdens.com
Warning and Safety information
Please read these instructions. The manufacturer is
not responsible if an incorrect installation and use
causes injuries and/or damage. Always keep the
instructions with the fridge freezer for future reference.
Correct usage
Your LAMONA product is designed to be built-in and
for domestic household use only, (see guarantee page
for denition)
This fridge freezer must only be used for its intended
purpose ie: the storing and freezing of edible
foodstuffs.
The appliance is not suitable for storing and keeping
cool: medicines, blood plasma or laboratory
preparations. Used for such a purpose can cause
deterioration of the items stored.
The appliance is designed for use within a certain
climate range. Installing it in a room with too low an
ambient temperature, eg. a garage, may lead to the
appliance switching off for long periods so that it
cannot maintain the required temperature.
WARNING: Do not damage the refrigerant
circuit.
Do not store explosive materials in the appliance or
any products containing propellants, eg. spray cans,
Electrical components could cause ammable vapours
to ignite. Danger of re and explosion.
WARNING: Do not cover or block air vents as this will
impair the efciency of the appliance and increase the
electricity consumption.
Do not operate any electrical equipment, eg. an
electric ice cream maker, inside the appliance.
Do not store cans or bottles containing carbonated
drinks or liquids that could freeze in the freezer.
When cooling drinks quickly in the freezer, make sure
bottles are not left in for more than an hour, otherwise
they could burst causing injury or damage to the
appliance.
Do not handle frozen food or the metal parts of the
appliance with wet hands. Your hands may freeze to
the frozen food or to the metal. Danger of frost burns.
Do not take ice cubes out with your bare hands and
never place ice cubes or ice lollies in your mouth
straight from the freezer. Danger of frost burns to the
lips or tongue.
If freezing to a frozen surface occurs:
• Do not tear away!
- Use cold water to release
• First Aid, (if necessary).
- Hold affected area under cold running water.
Do not refreeze partially or fully defrosted food.
Consume defrosted food as soon as possible as it will
lose its nutritional value and spoil if left for too long.
Defrosted food may only be re-frozen after it has been
cooked.
Follow the manufacturer’s ‘Use By’ dates and storage
instructions given on food packaging to avoid the risk
of food poisoning.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
and instruction concerning the correct use of the
appliance (as per this manual), by a person responsible
for their safety.
To avoid a hazard due to instability of the appliance,
it must be xed in accordance with the installation
instructions.
Installation, maintenance and repairs must only be
carried out by a suitably qualied person.
Whilst the appliance is under warranty, repairs must
only be made by a LAMONA authorised service
technician. Failure to do this will invalidate the warranty.
Safety with children
• Children under 8 years of age must be kept away
from the appliance unless they are constantly
supervised.
• Children 8 years and older may only use the
appliance unsupervised if they have been shown
how to use it in a safe way and recognise and
understand the consequences of incorrect
operation.
• Children must not be allowed to clean or maintain
the appliance unsupervised.
Page 7
7
www .howdens.com
• Please supervise children in the vicinity of the
appliance and do not let them play with the
appliance.
• Danger of suffocation! Whilst playing, children could
become entangled in packaging (such as plastic
wrapping) or pull it over their head and suffocate.
Keep packaging material away from children.
Warning - general
• Do not use any sharp objects inside the product,
eg. to defrost.
• Do not use a damaged appliance, it could be
dangerous.
• Ensure the mains plug remains accessible.
• The appliance must not be used in a non-stationary
location, eg. on a ship.
Compliance with RoHS Directive
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specied in the
Directive.
Cooling circuit
The cooling circuit is factory tested for leaks. This
appliance complies with statutory safety requirements
and the appropriate EU guidelines.
This appliance contains the coolant Isobutane (R600a),
a natural gas which is environmentally friendly.
Although ammable, it does not damage the ozone
layer and does not increase the greenhouse effect.
The use of this coolant has led to a slight increase
in the noise level of the appliance. Additionally you
might be able to hear the coolant owing through the
system. This does not have any adverse effects on the
performance of the appliance.
WARNING: If cooling circuit is damaged;
• Leaking coolant can damage the eyes
• Avoid naked ames or anything that creates a spark.
• Disconnect the appliance from the mains electricity
supply if damage is caused to the cooling system.
• Ventilate the room.
• The more coolant there is in an appliance the larger
the room it should be installed in. In the event of a
leakage, if the appliance is in a small room, there is
danger of a combustible gas build up. The amount
of coolant is stated on the data plate inside the
appliance. For every 11g of coolant at least 1m3 of
room space is required.
Compliance with WEEE Directive and
Disposal of the Waste Product
This product complies with EU WEEE
Directive (2012/19/EU). This product bears
classication symbol for waste electrical and
electronic equipment (WEEE). This product
has been manufactured with high quality
parts and materials which can be reused and are
suitable for recycling. Do not dispose of the waste
product with normal domestic and other wastes at the
end of its service life. Take it to the collection centre for
the recycling of electrical and electronic equipment.
Please consult your local authorities to learn about
these collection centres.
This appliance complies with all relevant
EU Directives
Energy saving tips
• Well ventilated, lower ambient temperatures are
ideal conditions for energy saving. In very low
ambient temperatures (Never less than 5°C) the
internal temperatures should be checked with
a thermometer and the control dial adjusted as
necessary. (Towards MIN.)
• Ensure the time between buying chilled/frozen
food and placing them in the appliance is kept to a
minimum, particularly in summer. We recommend
you use a cool bag to carry frozen food.
• Do not leave the door(s) of the appliance open
longer than is necessary and ensure they are closed
properly after each opening.
• Defrost frozen food in the fridge compartment, so
that the frozen food acts to assist cooling the fridge.
Package information
Danger of suffocation keep packaging material away
from children.
Page 8
8
www .howdens.com
Cleaning and care
• Do not use any oils or grease on the door seals, as
this will cause the seals to deteriorate and become
porous.
• Do not use steam cleaning equipment to clean or
defrost the appliance. Steam could reach electrical
components and cause a short circuit.
• Do not place electric heaters or candles in the
appliance to defrost it. These will damage the plastic
parts of the fridge freezer.
• Do not use defrosting sprays or de-icers, as they
could contain substances which could damage the
plastic parts or might cause a build-up of gases and
pose a danger to health.
Disposing of the old appliance
Please dispose of the old appliance without harming
the environment.
• Remove the electric plug.
• If there are locks on the door, make them
inoperable. In this way you will prevent children from
accidentally locking themselves in and endangering
lives.
• Please contact the local council about the disposal
or waste collection.
• Be careful not to damage any part of the coolant
system whilst awaiting disposal, eg.
- puncturing the coolant channels in the condenser.
- bending any pipework.
• Splashes of coolant can damage the eyes.
• The oil in the compressor can be fatal if swallowed
or inhaled.
Electrical connection
• The appliance is supplied with a power cable and
moulded plug ready for connection to a 230v AC 50
Hz supply.
• The fuse rating should be 13 A.
• This appliance must be earthed.
• This appliance must be connected to a suitable
switched socket which is always easily accessible.
• The electrical connection must comply with
current local and national safety regulations
(BS 7671 in the UK).
• The plug and mains cable must not come into
contact with the back of the appliance. Vibrations
can damage them; which could result in a short
circuit.
• Do not connect the appliance to the mains electricity
by an extension lead or multi-adapter.
• The appliance must not be used with energysaving plug devices. The appliance will not function
correctly and may overheat.
• If the mains cable or plug needs to be replaced this
must be done by a suitably qualied person.
1 - Installation
Please remember that the manufacturer shall not
be held liable if the information given in this manual is
not observed.
Before operating the fridge freezer
• Remove all packaging material from the inside of the
appliance.
• Clean the interior and the accessories as
recommended, see cleaning and care section.
• You may hear various noises coming from the
cooling system and when the compressor starts.
This is normal.
• Set the temperature control to between 0 and 5
(initially @ 2.5).
• Front edges of the fridge freezer may feel warm, this
is quite normal. (Designed to avoid condensation.)
• Do not load the appliance immediately after
switching on. Wait a couple of hours until the correct
storage temperature is reached. We recommend
that you check the temperature with an accurate
thermometer.
WARNING: Turning the temperature control to ‘0’
switches the fridge freezer OFF.
Page 9
9
www .howdens.com
FRESH ZONE
MEAT / FISH
Installation instructions
• The room where the appliance is installed must not
be smaller than 10 cubic metres.
• See detailed ‘Installation Instructions’, including
reversing door opening direction.
• This appliance has been designed to operate in
ambient temperatures up to 38°C (100°F) and
is equipped with Freezer Guard technology which
ensures that even if the ambient temperature falls
to -1 5°C, frozen food in the freezer does not thaw. If
the ambient temperature is below 0°C, the food in
the fridge compartment will freeze. We recommend
you don’t use the fridge compartment in such low
ambient conditions. You can continue using the
freezer compartment as usual.
• Do not place the appliance in direct sunlight as this
may cause the appliance to work less efciently.
Replacing the interior light
The LED lamp is not replaceable by the user.
If a failure occurs please call LAMONA Service Line.
The light is intended only to illuminate the fridge
section to assist safe food handling.
2 - Using the fridge freezer
Temperature control and adjustment
The interior temperature of the fridge freezer changes
for the following reasons:
• Seasonal temperature.
• Frequent opening of the doors and leaving the door
open for long periods.
• Hot food placed in the fridge without cooling to room
temperature rst.
• The location of the fridge freezer in the room, eg. in
direct sunlight.
• You can adjust the interior temperature by using the
control. The control is numbered from 0 - OFF to 5
5 being the coldest setting. (normally @ 2.5)
WARNING: Turning the temperature control to ‘0’
switches the fridge freezer OFF.
Cold zones;
• Due to natural air circulation there are different
temperature zones in the fridge section.
• Cold, heavy air falls to the lower sections of the
appliance.
• The coldest area in the fridge is directly above the
fruit and vegetable drawer and at the back of the
appliance. (Food must not touch the back of the
fridge section as it may freeze to the back wall.)
• The warmest area is at the top, in the frontal area
and in the door sections. Use these areas for
storing butter, cheese etc.
Page 10
10
www .howdens.com
Loading;
• Allow air to circulate efciently, do not pack food
too closely together in the fridge section.
The normal storage temperature of the fridge should
be no higher than +5°C (+4 1° F ) - centre shelf.
The normal storage temperature of the freezer should
be -1 8°C (0°F).
We recommend that you check the temperature
with an accurate thermometer to ensure that the
storage compartments are kept to the recommended
temperature.
We recommend that food is always covered and not to
store open containers or foodstuffs.
Please remember; each time the door is opened cold
air escapes and the internal temperature rises.
Therefore never leave the door open and always close
it immediately after food is put in or removed.
If ice builds up on the fridge rear wall and doesn’t
appear to defrost as normal: Turn the dial to 1 for a
short period of time until the ice melts. Then return
control setting back to normal.
Storing frozen food
Pre-packed commercially frozen food should be stored
in accordance with the frozen food manufacturer’s
instructions for a
frozen food storage
compartment.
If there is a power failure do not open the freezer door.
Frozen food should not be affected if the failure lasts
for less than 13 hours. If the failure is longer, then the
food should be checked and either eaten immediately
or cooked then re-frozen.
The freezer packs will help maintain the cold
temperature in the freezer.
If the freezer packs are damaged they should be safely
disposed of. (The liquid is not suitable for drinking.)
Page 11
11
www .howdens.com
Freezing fresh food
Please observe the following instructions to obtain the
best results.
Do not freeze very large quantities at any one time. The
quality of the food is best preserved when frozen to the
core as quickly as possible.
Do not place warm food into the freezer. The fridge
section may over cool.
If freezing large quantities of fresh food turn the
temperature control to a higher setting for a few hours
and then return to normal setting. (Up to 0.5 kg of
food can be frozen without changing the temperature
control setting.)
You may place fresh food to be frozen in any part of the
freezer.
Making ice cubes
• Fill the ice cube tray 3/4 full with water and place in
the bottom of one of the freezer drawers or on the
freezer tray.
• If necessary, use a blunt instrument, eg. a spoon
handle to remove the ice tray from the freezer if it is
stuck.
• Ice cubes can be removed easily by twisting the tray
gently or by holding it under cold running water.
Suggestion: Place ice cubes into a freezer bag for long
term storage.
Defrosting fridge compartment
The fridge compartment defrosts automatically.
The defrost water runs to the drain tube via the
collection channel at the back of the fridge, see image.
During defrosting water droplets form at the back of
the fridge where the concealed evaporator is located.
Some droplets may remain on the liner and refreeze
when defrosting is completed. Do not use pointed
or sharp edged objects such as knives, forks etc. to
remove the droplets which have frozen.
If at any time the defrosted water does not drain
from the collection channel, check to see if the drain
channel has an obstruction. The drain tube can
be cleared by pushing the special plastic plunger,
provided, down the drain tube, see image. If there is
an ice build up, lower the temperature control to 1 for
a few hours until the ice melts, then return control to
normal setting.
Page 12
12
www .howdens.com
1
2
Defrosting freezer compartment
Keeping the freezer section comfortably full saves
energy and helps delay ice build-up.
The freezer compartment does not defrost
automatically.
Defrost twice a year or when a frost layer of 7 mm
(1/4”) has formed.
The freezer has a special collection well below the
bottom freezer drawer that collects the defrost water.
• To start defrosting, switch off the fridge freezer at
the mains socket and pull out the plug.
• Remove all food and wrap in several layers of
newspaper and store in a cool place eg. fridge or
larder.
• Remove the freezer drawers and glass shelf
separators, see drawer and glass shelf removal.
Caution: Glass, handle carefully.
• Carefully place containers of warm water in the
freezer to speed up the defrosting process.
• Sponge out any defrost water that collects in the
collection well or place a folded towel in the base to
soak up the defrost water..
Do not allow the defrost water to over spill onto the
oor surface.
Fridge shelf removal/adjustment
The shelves can be adjusted according to food storage
requirements.
Only remove/adjust the shelves when they are empty.
• Lift the front edge of the shelf and pull forwards.
• Insert shelf at the desired height.
The raised edge on the protective strip at the back
must face upwards to prevent food touching the back
of the fridge and freezing to it.
Page 13
13
www .howdens.com
1
1
2
1
2
1
2
1
2
Salad crisper removal
The salad crisper can be removed for cleaning.
• Open the drawer to it’s maximum, lift upwards and
remove.
Door shelf removal/adjustment
Only remove the door/bottle shelves when they are
empty.
• Gently push the door shelf upwards from
underneath.
• Replace the shelf at the required height. Ensure that
it is securely xed.
Do not let large / heavy bottles drop into the door
shelf.
Freezer drawer removal
To remove a freezer drawer.
• Pull forwards as far as possible.
• Lift the front edge upwards, and remove completely.
Caution: Drawer may be heavy.
Freezer glass separator shelf removal
The glass shelves and baskets may be removed to
allow storage of larger items.
Caution: Glass, handle carefully.
• Remove the freezer drawer(s).
• Lift the front edge of the glass separator shelf and
remove.
Page 14
14
www .howdens.com
3 - Cleaning and care
We recommend that you switch off the fridge
freezer at the mains socket and remove the plug from
the mains socket before any cleaning or maintenance.
Do not let any water penetrate any part of the
appliance electrics or lighting.
Cleaning water must not drain into the defrost
drain hole.
If the fridge freezer is not going to be used for a
long period of time switch it off, remove all food, clean
and leave the door ajar.
The data plate located inside the fridge freezer
must not be removed. It contains information which
is required if you need to call a service engineer.
Cleaning agents
We recommend using a clean cloth or sponge and
lukewarm water with a small amount of washing-up
liquid added to clean the surfaces.
All cleaning agents used inside the appliance must be
food safe.
To avoid damage to surfaces of the fridge freezer,
do not use the following:
– Cleaning agents containing soda, ammonia,
acids or chlorides.
– Cleaning agents containing de-scaling agents.
– Abrasive cleaning agents, eg. powder or
cream cleaners.
– Solvent based cleaning agents.
– Stainless steel cleaning agents.
– Dishwasher cleaning agents.
– Oven sprays.
– Glass cleaning sprays.
– Hard, abrasive sponges and brushes, eg. scourers.
– Melamine eraser blocks.
– Sharp metal scrapers.
Page 15
15
www .howdens.com
Prepare the fridge freezer for cleaning
Switch off the fridge freezer at the mains socket
and remove the plug.
If the interior light is still on when you open the fridge
door the appliance is still connected to the mains
electric.
• Remove any food and store in a cool place.
• Remove the glass shelves and door shelves.
• Remove the freezer drawers.
WARNING: Fridge glass shelves;
• Remove and place the glass shelves on a worktop
that is covered with a towel.
• Remove the front trims only from the glass shelves
and clean. Do not use abrasive pads, scourers.
• After cleaning, replace the front trims.
Cleaning
Clean the fridge interior monthly.
Clean the freezer compartment annually.
Remove any spillages immediately to prevent them
from drying onto the surfaces.
Fridge interior;
• Clean the interior with a clean cloth or sponge and
lukewarm water with a small amount of washing-up
liquid added.
• After cleaning, wipe over and dry using a soft cloth.
• Leave the doors open to air the fridge and prevent
any odour build up.
Fridge ttings and freezer drawers;
Do not use a dishwasher to clean.
• Clean the fridge ttings and freezer drawers with a
clean cloth or sponge and lukewarm water with a
small amount of washing-up liquid added.
• After cleaning, wipe over and dry using a soft cloth.
Defrost collection channel;
• Clean the defrost collection channel and drain
hole frequently. Use the special plastic plunger
provided to clear any blockages.
Page 16
16
www .howdens.com
Cleaning the door seals
Do not use any oils or grease on the door seals, as this
will cause the seals to deteriorate and become porous.
• The door seal should be cleaned regularly using a
mild detergent and clean cloth. Wipe dry using a
clean cloth.
• The door seals cannot be removed.
Cleaning the ventilation void
A build-up of dust within the ventilation void will
increase the energy consumption of the fridge freezer.
• The ventilation void should be cleaned regularly
using a soft brush and vacuum cleaner.
After cleaning
• Replace all the shelves and accessories.
• Reconnect to the mains socket and switch on.
• Place the food in the fridge section and close the
door.
• Once the freezer temperature has returned to the
required temperature, below 0°C, place the food
back in the freezer drawers.
4 - Problem solving
If the appliance does not operate when switched on,
check that:
• The plug is inserted properly into the mains socket
and that the power supply is on. (To check the power
supply to the mains socket, plug in another electrical
appliance).
• The fuse has blown/circuit breaker has tripped/main
distribution switch has been turned off.
• The temperature control has been set correctly.
• New plug is wired correctly if you have changed the
tted moulded plug.
• Too much ice developing:
– Door not closed properly or open for long period
of time.
– Freezer drawers are too full.
– Warm food being placed in fridge freezer.
• Vibration noise:
– Bottles/jars in fridge making contact with each
other or touching the walls of fridge freezer.
• Water at bottom of fridge
– Rear collection channel overowing due to
blockage by item.
• Water on shelf:
– Stored item touching rear wall.
If the appliance is still not operating after the checks,
then call LAMONA Service Line.
Please ensure that the checks have been made as a
charge may be made if no fault is found.
Page 17
17
www .howdens.com
5 - Recommendations
Do - Clean the fridge freezer regularly,
see cleaning and care.
Do - Store raw meat and poultry below cooked food
and dairy products.
Do - Take off any unusable leaves from vegetables and
wipe off any soil.
Do - Leave lettuce, cabbage, parsley and cauliower on
the stem.
Do - Wrap cheese rstly in greaseproof paper and
then in a polythene bag excluding as much air as
possible. For best results take out of the fridge
compartment an hour before eating.
Do - Wrap raw meat and poultry loosely in polythene or
aluminium foil. This prevents drying.
Do - Wrap sh and offal in polythene bags.
Do - Wrap foods which have a strong odour or can dry
out in polythene bags, aluminium foil or place in an
airtight container.
Do - Wrap bread well to keep fresh.
Do - Chill white wine, beer, larger, and mineral water
before serving.
Do - Check the contents of the freezer.
Do - Keep food for as short a time as possible and
adhere to ‘Best Before’, ‘Use By’, dates.
Do - Store commercially frozen food in accordance with
the instructions given on the packets.
Do - Always choose high quality fresh food and be sure
it is thoroughly clean before freezing it.
Do - Prepare fresh food for freezing in small portions to
ensure rapid freezing.
Do - Wrap all food in aluminium foil or freezer quality
polythene bags and make sure any air is expelled.
Do - Wrap frozen food when you buy it and put it in to
the freezer as soon as possible.
Do - Defrost food in the fridge compartment.
Don’t - Store bananas in the fridge compartment.
Don’t - Store melon in the fridge. It can be chilled for
short periods as long as it is wrapped to avoid it
avouring other foods.
Don’t - Store poisonous or any dangerous substances
in the fridge freezer. It has been designed for the
storage of edible foodstuffs only.
Don’t - Consume food which has been stored for an
excessive time in the fridge.
Don’t - Store cooked and fresh food together in the
same container. They should be packaged and
stored separately.
Don’t - Let defrosted food or food juices drip onto other
food.
Don’t - Leave the door open for long periods as this will
make the appliance more costly to run and cause
excessive ice build-up.
Don’t - Put hot food into the appliance. Let it cool down
rst.
Don’t - Store liquid lled bottles or sealed cans
containing carbonated liquids into the freezer as
they will burst.
Don’t - Exceed the maximum freezing loads when
freezing fresh food.
Don’t - Give children ice-cream and water ices direct
from the freezer. The low temperatures may cause
‘freezer burns’ on lips.
Don’t - Try to keep frozen food which has thawed, it
should be eaten within 24 hours or cooked and
refrozen.
Don’t - Remove items from the freezer with wet hands.
Don’t - Close the freezer door before closing the freezer
drawers.
Don’t - Leave frozen food at room temperature to thaw;
the best way to defrost is to put it in the fridge to
thaw slowly. Make sure to avoid defrosting food or
food juices dripping onto other food.
Page 18
18
www .howdens.com
YOUR GUARANTEE
Product Guarantee Details (UK only)
Your appliance has the benet of a comprehensive manufacturer’s guarantee
which covers the cost of breakdown repairs. (Details of which are shown on your
Proof of Purchase Document).
• Any claim during the period of the guarantee MUST BE ACCOMPANIED BY
THE PROOF OF PURCHASE.
• The product must be correctly installed and operated in accordance with the
manufacturer’s instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alterations which
are likely to affect the product.
• The guarantee is invalid if the product is tampered with, or repaired by any
unauthorised person.
(The guarantee in no way affects your statutory or legal right)
What to do if you need to report a problem.
Please ensure you have ready:
• The product’s model and serial numbers.
• Howdens Proof of Purchase Document.
• Your full contact details.
Call the Depot number on your Proof of Purchase Document
supplied with the product/kitchen.
or
Call the LAMONA Service Line on 0344 460 0006
* Product installed within a domestic kitchen or a non-domestic kitchen
where 8 or fewer people are using the appliance.
Where to nd the model
and serial number on
the appliance.
On the left-hand, inside
surface of the fridge.
6 - Guarantee
Page 19
19
www .howdens.com
Because we continually strive to improve our products,
we may change our specications and designs without
prior notice.
Note for Testing Institutes
The necessary information for performance testing will
be provided upon request. The request can be done by
e-mail through:
fridge [email protected]
Please do not forget to write the model code, stock
code and serial number information of the appliance
besides your contact information in the e-mail.
The model code, stock code and serial number
information can be found on the left-hand, inside
surface of the fridge.
PRODUCT FICHE
For electrical household fridge freezers, (complying Commission Delegated Regulation (EU) No 1059/2010).
Brand ........................................................................................ LAMONA
Model ........................................................................................ LAM6300
Total gross volume .................................................................. 269 Litres
Fridge compartment net volume ........................................... 193 Litres
Freezer compartment net volume ......................................... 78 Litres
Frost free .................................................................................. No
Freezing capacity (24 hours) .................................................. 4 kg
Climate class ........................................................................... SN-ST
Noise ......................................................................................... 38 dbA
Installation................................................................................ Built in
Voltage ...................................................................................... 220 - 240 V
Frequency ................................................................................. 50 Hz
Wattage .................................................................................... 120 W
Current ...................................................................................... 0.5 A
Refrigerant type ....................................................................... R600a
Refrigerant charge ................................................................... 64 g
7 - Product che
Page 20
MAKING SPACE MORE VALUABLE
711110AB
Howden Joinery Ltd, Thorpe Road, Howden, East Yorkshire, DN14 7PA.
Product information correct at the time of publication in
November 2017. The company has a policy of continuous product
development and reserves the right to change any products and
specications given in this manual. Subject to the Terms and
Conditions of Trading, a copy of the Howdens Joinery Terms and
Conditions is available upon request.
Product serial number
Loading...
