LAMINA Bright Lights, Bright Ideas User Manual
laminaceramics.com
To see how you can realize all these design benefits, to request a sample, or to speak with an engineer
about your design, contact Lamina at 800.808.5822 or 609.265.1401 or visit www.laminaceramics.com.
Bright Lights. Bright Ideas.
TM
•HIGH LUMINOUS FLUX IN SMALL FOOTPRINT
•SUPERIOR THERMAL PERFORMANCE FOR IMPROVED RELIABILITY
•LONG
LIFE AND
HIGH LUMEN MAINTENANCE
•N
O MERCURY OR LEAD
•CUSTOM SIZES AND SHAPES AVAILABLE
As the market leader in the development and manufacture of super-bright LED
arrays, Lamina brings solid state lighting to applications which until now were
only possible with traditional lighting sources.
Lamina’s LED arrays are manufactured by combining high brightness LEDs from
industry-leading LED manufacturers with Lamina's proprietary packaging tech-
nology, multilayer Low Temperature Co-Fired Ceramic on Metal (LTCC-M). LTCC-M
is a breakthrough in thermal performance for LED packaging technology, a key
factor in determining LED life and reliability. Unmatched thermal performance
coupled with package interconnectivity allows Lamina to densely cluster multiple
LEDs to achieve exceptionally high luminous intensity in very small footprints.
Lamina’s arrays are available in white, RGB and monochrome, from 1W to
100W, and also are available in custom packages.
Lamina BL-3000 white LED arrays are configured with 39 cavities, each populat-
ed with multiple LEDs. Multiple LED die in each cavity, a unique feature made
possible with Lamina’s packaging techology, assure Lamina light engines deliver
optimal color uniformity. Terminals are supplied with a solderable surface finish
to enable users to connect arrays to driver circuitry or other arrays in a series or
parallel circuit. The BL-3000 Series is the most powerful LED array on the mar-
ket.
Brilliant Light!
BL-3000SERIES
GENERAL ILLUMINATION
ARCHITECTURAL LIGHTING
•DECORATIVE AND ACCENT
•W
ALLWASHERS
LCD BACKLIGHT
•COMPUTER DISPLAYS
•HEADS UP DISPLAYS
S
IGNALS &S
IGNAGE
•A
IRFIELD TAXIWAY
•TRAFFIC
•SECURITY
•BEACONS
TASK LIGHTING
MACHINE VISION
AUTOMOTIVE
•FORWARD LIGHTING
Lamina Light Engines

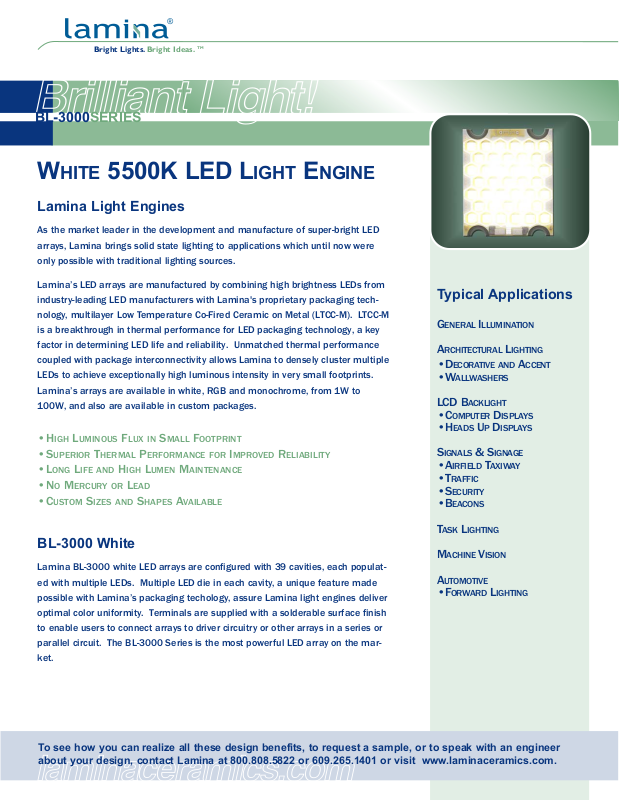

BL-3000 White
WHITE
5500K LED LIGHT ENGINE
Typical Applications
laminaceramics.com
To see how you can realize all these design benefits, to request a sample, or to speak with an engineer
about your design, contact Lamina at 800.808.5822 or 609.265.1401 or visit www.laminaceramics.com.
Bright Lights. Bright Ideas.
TM
Lamina
1.050 [26.67]
1.250 [31.75]
0.700 [17.78]
0.090 [2.29] MAX
4X MOUNTING HOLE
FOR 6-32 SCREW

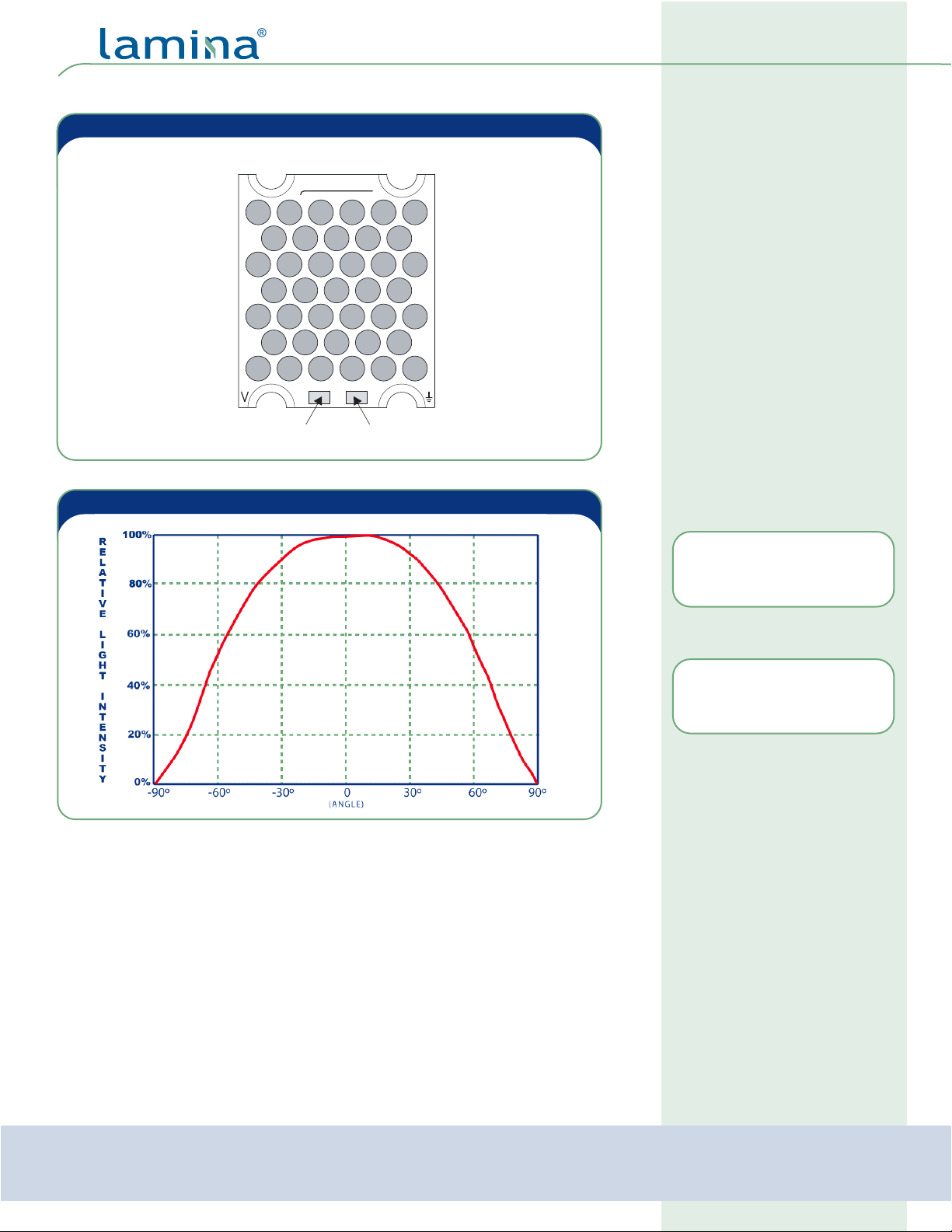

Mechanical Specifications
ATTACHMENT
RECOMMENDATIONS
Lamina’s BL-3000 Series is
configured with solder pads
compatible with Sn63 or Sn62
solder. As with many electrical
devices, non-acid RMA type solder flux should be used to prepare the solder pads before
application of solder. If wire
attachment is performed with a
soldering iron, care must be
taken to minimize heat transfer
to the die and minimize leaching of the solderable pads.
ASSEMBLY
RECOMMENDATIONS
Lamina's BL Series Light
Engines, are designed for
attachment to heatsinks with
conductive epoxy or screw
down for flange mount devices
with thermal grease in the
joint.
For attachment using screws, a
6-32 UNC fillister head slotted
machine screw, 18-8 SS is recommended. Maximum torque
is 4 inch pounds (45 newton
centimeter). Required flatness
of surface light engine is
mounted to is 0.001 inch/inch.

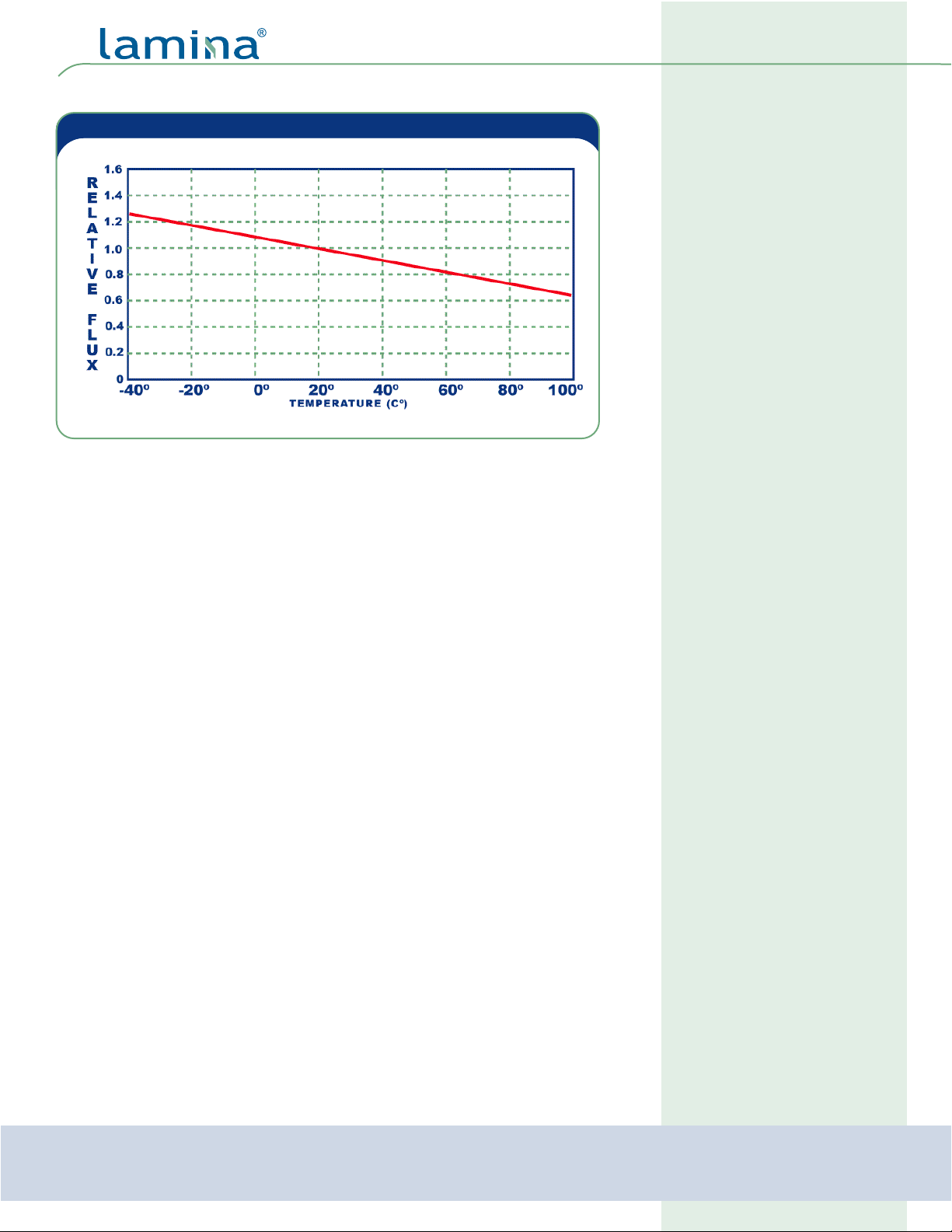

Technical Data
Part # BL-332D0--00133
Symbol Min Typical Max Unit
Color Temperature ** CCT 4000 5500 10,000
ºK
Voltage* V
F
-11.3- V
Test Current I
F
- 2.3 - A
Power* P - 26 - W
Luminous Flux* Φ
V
406 567 - lm
Thermal Resistance T
R
- 0.66 -
ºC
/W
*Note 1. Optical and Electrical specifications are given for the specified drive
current at a 25
ºC junction temperature.
**Note 2. Typical CRI is 78.
