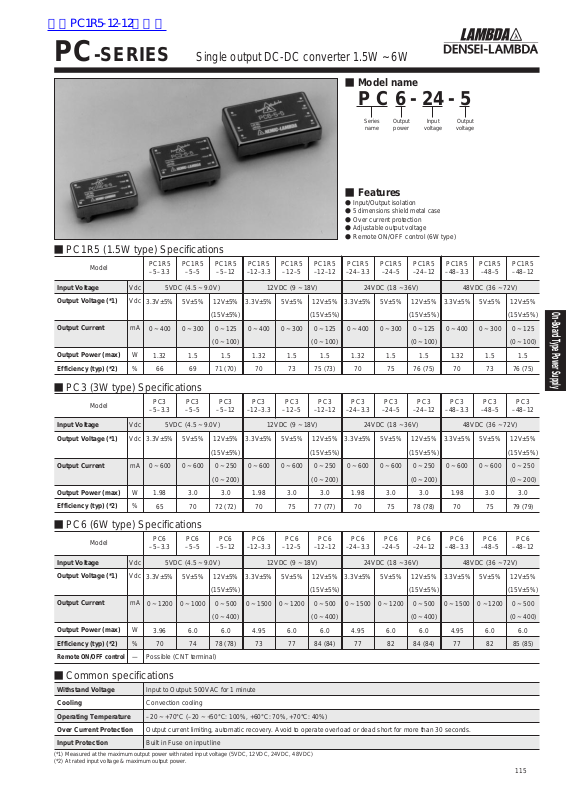

Page 1

On-Board Type Power Supply

115

PC-SERIES

Single output DC-DC converter 1.5W ~ 6W

䡵 Model name

P C 6 - 24 - 5

䡵 Features

䢇 Input/Output isolation 䢇

5 dimensions shield metal case

䢇 Over current protection 䢇

Adjustable output voltage

䢇 Remote ON/OFF control (6W type)

Series

name

Output

power

Input

voltage

Output voltage

Vdc Vdc

W %

3.3V±5%

0 ~ 400

1.32 66

5V±5%

0 ~ 300

1.5 69

12V±5%

(15V±5%)

0 ~ 125

(0 ~ 100)

1.5

71 (70)

3.3V±5%

0 ~ 400

1.32 70

5V±5%

0 ~ 300

1.5 73

12V±5%

(15V±5%)

0 ~ 125

(0 ~ 100)

1.5

75 (73)

3.3V±5%

0 ~ 400

1.32 70

5V±5%

0 ~ 300

1.5 75

12V±5%

(15V±5%)

0 ~ 125

(0 ~ 100)

1.5

76 (75)

3.3V±5%

0 ~ 400

1.32 70

5V±5%

0 ~ 300

1.5 73

12V±5%

(15V±5%)

0 ~ 125

(0 ~ 100)

1.5

76 (75)

Input Voltage Output Voltage (*1)

Output Current

Output Power (max) Efficiency (typ) (*2)

Model

PC1R5

–5–3.3

PC1R5

–5–5

PC1R5

–5–12

PC1R5

–12–3.3

PC1R5

–12–5

PC1R5 –12–12

PC1R5

–24–3.3

PC1R5

–24–5

PC1R5 –24–12

PC1R5

–48–3.3

PC1R5

–48–5

PC1R5 –48–12

䡵 PC1R5 (1.5W type) Specifications

5VDC (4.5 ~ 9.0V) 12VDC (9 ~ 18V) 24VDC (18 ~ 36V) 48VDC (36 ~ 72V)

Vdc Vdc

W %

3.3V±5%

0 ~ 600

1.98 65

5V±5%

0 ~ 600

3.0 70

12V±5%

(15V±5%)

0 ~ 250

(0 ~ 200)

3.0

72 (72)

3.3V±5%

0 ~ 600

1.98 70

5V±5%

0 ~ 600

3.0 75

12V±5%

(15V±5%)

0 ~ 250

(0 ~ 200)

3.0

77 (77)

3.3V±5%

0 ~ 600

1.98 70

5V±5%

0 ~ 600

3.0 75

12V±5%

(15V±5%)

0 ~ 250

(0 ~ 200)

3.0

78 (78)

3.3V±5%

0 ~ 600

1.98 70

5V±5%

0 ~ 600

3.0 75

12V±5%

(15V±5%)

0 ~ 250

(0 ~ 200)

3.0

79 (79)

Input Voltage Output Voltage (*1)

Output Current

Output Power (max) Efficiency (typ) (*2)

Model

PC3

–5–3.3

PC3

–5–5

PC3

–5–12

PC3

–12–3.3

PC3

–12–5

PC3

–12–12

PC3

–24–3.3

PC3

–24–5

PC3

–24–12

PC3

–48–3.3

PC3

–48–5

PC3

–48–12

䡵 PC3 (3W type) Specifications

5VDC (4.5 ~ 9.0V) 12VDC (9 ~ 18V) 24VDC (18 ~ 36V) 48VDC (36 ~ 72V)

Vdc Vdc

W % —

3.3V±5%

0 ~ 1200

3.96 70

5V±5%

0 ~ 1000

6.0 74

12V±5%

(15V±5%)

0 ~ 500

(0 ~ 400)

6.0

78 (78)

3.3V±5%

0 ~ 1500

4.95 73

5V±5%

0 ~ 1200

6.0 77

12V±5%

(15V±5%)

0 ~ 500

(0 ~ 400)

6.0

84 (84)

3.3V±5%

0 ~ 1500

4.95 77

5V±5%

0 ~ 1200

6.0 82

12V±5%

(15V±5%)

0 ~ 500

(0 ~ 400)

6.0

84 (84)

3.3V±5%

0 ~ 1500

4.95 77

5V±5%

0 ~ 1200

6.0 82

12V±5%

(15V±5%)

0 ~ 500

(0 ~ 400)

6.0

85 (85)

Input Voltage Output Voltage (*1)

Output Current

Output Power (max) Efficiency (typ) (*2) Remote ON/OFF control

Withstand Voltage Cooling Operating Temperature Over Current Protection Input Protection

Input to Output: 500VAC for 1 minute Convection cooling –20 ~ +70°C (–20 ~ +50°C: 100%, +60°C: 70%, +70°C: 40%) Output current limiting, automatic recovery. Avoid to operate overload or dead short for more than 30 seconds. Built in Fuse on input line

Model

PC6

–5–3.3

PC6

–5–5

PC6

–5–12

PC6

–12–3.3

PC6

–12–5

PC6

–12–12

PC6

–24–3.3

PC6

–24–5

PC6

–24–12

PC6

–48–3.3

PC6

–48–5

PC6

–48–12

䡵 PC6 (6W type) Specifications

䡵 Common specifications

5VDC (4.5 ~ 9.0V) 12VDC (9 ~ 18V) 24VDC (18 ~ 36V) 48VDC (36 ~ 72V)

Possible (CNT terminal)

(*1) Measured at the maximum output power with rated input voltage (5VDC, 12VDC, 24VDC, 48VDC) (*2) At rated input voltage & maximum output power.

查询PC1R5-12-12供应商

Page 2

On-Board Type Power Supply

116

Type 3.3V type 5V type 12V type Output voltage 3.67V 6V 15V

PC-SERIES

䡵 Terminal connection

䡵 Outline drawing

• PC1R5 (1.5W type)

• PC6 (6W type)

• PC3 (3W type)

[PC1R5 (1.5W type) / PC3 (3W type)]

Output voltage can be adjustable by TRM terminal. Output power must be within the rating, when increasing the output voltage.

TRM terminal: Open *2 TRM terminal & –Vout terminal: Short

Type 3.3V type 5V type 12V type Output voltage 3.3V 5V 12V

Type 3.3V type 5V type 12V type Output voltage 3.67V 6V 15V

CNT terminal Output CNT -

Vin:Short or 0 ~ 0.4V ON

CNT -

Vin: Open or 2V ~ Vin OFF

[PC6 (6W type)]

*1 TRM terminal: Open *2 TRM terminal & –Vout terminal: Short

*3 CNT terminal: Remote ON/OFF control

Type 3.3V type 5V type 12V type Output voltage 3.3V 5V 12V

* Output voltage: Refer to TRM terminal connection

(Unit: mm) Dimension tolerance not designated is ±0.3.

Page 3

On-Board Type Power Supply

117

PCD-SERIES

Dual output DC-DC converter 1.5W ~ 6W

䡵 Model name

PCD 6 - 24 - 1212

䡵 Features

䢇 Input/Output isolation 䢇

5 dimensions shield metal case

䢇 Over current protection 䢇

Adjustable output voltage

䢇 Remote ON/OFF control (6W type)

Series

name

Output

power

Input

voltage

Output

voltage

䡵 PCD1R5 (1.5W type) Specifications

Model

Input Voltage Output Voltage (*1) Output Current Output Power (max) Efficiency (typ) (*2)

Vdc Vdc

W %

PCD1R5–5–1212

5VDC (4.5 ~ 9.0V)

±12V±5% ±15V±5%

0 ~ ±60 0 ~ ±50

1.44 1.5 69 67

PCD1R5–12–1212

12VDC (9 ~ 18V)

±12V±5% ±15V±5%

0 ~ ±60 0 ~ ±50

1.44 1.5 73 73

PCD1R5–24–1212

24VDC (18 ~ 36V)

±12V±5% ±15V±5%

0 ~ ±60 0 ~ ±50

1.44 1.5 75 75

PCD1R5–48–1212

48VDC (36 ~ 72V)

±12V±5% ±15V±5%

0 ~ ±60 0 ~ ±50

1.44 1.5 75 75

䡵 PCD3 (3W type) Specifications

Model

Input Voltage Output Voltage (*1) Output Current Output Power (max) Efficiency (typ) (*2)

Vdc Vdc

W %

PCD3–5–1212

5VDC (4.5 ~ 9.0V)

±12V±5% ±15V±5%

0 ~ ±125 0 ~ ±100

3.0 3.0 72 72

PCD3–12–1212

12VDC (9 ~ 18V)

±12V±5% ±15V±5%

0 ~ ±125 0 ~ ±100

3.0 3.0 77 77

PCD3–24–1212

24VDC (18 ~ 36V)

±12V±5% ±15V±5%

0 ~ ±125 0 ~ ±100

3.0 3.0 78 78

PCD3–48–1212

48VDC (36 ~ 72V)

±12V±5% ±15V±5%

0 ~ ±125 0 ~ ±100

3.0 3.0 78 77

䡵 PCD6 (6W type) Specifications

Model

Input Voltage Output Voltage (*1) Output Current Output Power (max) Efficiency (typ) (*2)

Vdc Vdc

W %

PCD6–5–1212

5VDC (4.5 ~ 9.0V)

±12V±5% ±15V±5%

0 ~ ±250 0 ~ ±200

6.0 6.0 75 75

PCD6–12–1212

12VDC (9 ~ 18V)

±12V±5% ±15V±5%

0 ~ ±250 0 ~ ±200

6.0 6.0 82 82

PCD6–24–1212

24VDC (18 ~ 36V)

±12V±5% ±15V±5%

0 ~ ±250 0 ~ ±200

6.0 6.0 84 84

PCD6–48–1212

48VDC (36 ~ 72V)

±12V±5% ±15V±5%

0 ~ ±250 0 ~ ±200

6.0 6.0 82 82

Withstand Voltage Cooling Operating Temperature Over Current Protection Input Protection

Input to Output: 500VAC for 1 minute Convection cooling –20 ~ +70°C (–20 ~ +50°C: 100%, +60°C: 70%: 40%) Output current limiting, automatic recovery. Avoid to operate overload or dead short for more than 30 seconds. Built in fuse on input line

䡵 Common specifications

(*1) Output voltage accuracy includes line and load regulation and temperature drift. (*2) At rated input voltage & maximum output power.

Page 4

On-Board Type Power Supply

118

PCD-SERIES

䡵 Terminal connection

䡵 Outline drawing

• PCD1R5 (1.5W type)

• PCD6 (6W type)

• PCD3 (3W type)

[PCD1R5 (1.5W type) / PCD3 (3W type)]

Output voltage can be adjusted by TRM terminals. Output power must be within the rating, when increasing the output voltage.

TRM terminal: Open Output: ±12V

*2 TRM terminal & –Vout terminal: Short

Output: ±15V

CNT terminal Output CNT-

Vin: Short or 0 ~ 0.4V ON

CNT-

Vin: Open or 2V ~ Vin OFF

[PCD6 (6W type)]

*1 TRM terminal: Open

Output: ±12V

*2 TRM terminal & –Vout terminal: Short

Output: ±15V

CNT terminal: Remote ON/OFF control

* Output voltage: Refer to TRM terminal connection

(Unit: mm) Dimension tolerance not designated is ±0.3.
