lamber M115 Instruction Manual

DISHWASHERS
WITH PULL-THROUGH RACK

INSTRUCTIONS

MANUAL

M115

R06/2012

DECLARATION OF CONFORMITY

The following :

LAMBER snc di Affaba F. e C. – Via Italia 6 – 26855 Lodi Vecchio (LO) ITALY

Declare under our responsibility that:
Apparatus:

DISHWASHER WITH PULL THROUGH RACK

Trademark: LAMBER
Manufacturer : LAMBER

mod. M115 / M115-AS

matr……………..

for which this declaration refers to the conformity of the following standards:


 Safety of household and electrical appliances - General requirements EN60335-1(2002) + A1/A11(2004), A12 (2006) + A2 (2006)

+ + A13 (2008) + A14 (2010) + A15 (2011)


 Safety of household and electrical appliances - Part 2^ Particular requirements for commercial electric dishwashing machines

EN60335-2-58 (2005) + A1 (2008) + A11 (2010).


 Household and similar electrical appliances – Electromagnetic fields – Measurement methods for electromagnetic fields of

household appliances and similar apparatus with regard to human exposure EN 62233:(2008)


 Limits and methods of measurement of radio disturbance characteristics of electrical motor-operated and thermal appliances for

households and similar purposes, electric tools and similar electric apparatus - EN 55014-1–1(2006) + A1 (2009)


 Limits for harmonic current emissions (equipment input current



16 A per phase) - EN 61000-3-2(2006) or >16A and  75A + A2

(2005) EN 61000-3-12(2005)


 Limitation of voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current



16 A. EN 61000-3-

3(2008) o >16A e  75A EN 61000-3-11(2000)


 Immunity requirements for household appliances, tools and similar apparatus. Product family standard EN 55014-2(1997) +

A1(2001) + A2 (2008)


 Safety of machinery Basic concepts, general principles for design - Basic terminology, methodology-ISO 12100-1 (2009).

 Safety of machinery - Basic concepts, general principles for design - Technical principles-ISO 12100-2 (2009).

on the basis of what is foreseen by the Directives:

2004/108/CE, 2006/42/CE.

2004/108/EC, 2006/42/EC.

We decline any responsability for injuries or damage derived from machine misuse, abuse by others or improper machine maintenance or repairs.

(date) li 01/01/2013

The administrator

technical file case manager : Ing Roberto Affaba

address : via italia 6 – 26855 – Lodi Vecchio (LO) Italy

4

WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT DIRECTIVE (WEEE,RAEE in Italy) 2002/96/EC AND
SUBSEQUENT 2003/108/EC

The marking shown below indicates that the product cannot be disposed of as part of normal household waste.
Electrical and Electronic Equipment (EEE) can contain materials harmful to health and the environment, and therefore
is subject to separate waste collection: it must be disposed of at appropriate waste collection points or returned to the
distributor against purchase of new equipment of similar type or having the same functions.
The directive mentioned above, to which make reference for further details, provides for punitive actions in case of
illegal disposal of such waste.

LAMBER, manufacturer of this equipment, is enrolled in the Italian WEEE Register – the Register of Producers of
Electrical and Electronic Equipment- from the 18

th

/02/2008 with the number IT08020000000617.

5

WASHING
RINSING

MODEL

MODEL

M115
left-right

M115
right-left

6

TECHNICAL DATA AND DESCRIPTION

The table reported at page 5 shows the basic models of conveyor dishwashers and
identifies the single washing areas to which additional modules can be added to improve
their performance.

ACCESSORIES

COLD PRE-WASHING
STEAM CONDENSER - CVM

fan

kW

DRYING – AS

fan

kW Heat element kW

ADDITIONAL RINSING - RIS
HEAT RECOVERER – RC-CVM

fan

kW

AUTOTIMER
SPLASH SHIELD (PMC-PMA-PMA/R)
BOOSTER PUMP

Motor

kW

TECHNICAL SPECIFICATIONS

Model:

version Left-Right Right-Left

1

st

speed

baskets/hour

2nd speed

baskets/hour

ELECTRIC POWER

kW

ELECTRICAL INPUT

A

ELECTRIC CABLE

mm

2

CIRCUIT BREAKER

A

lcc ELECTRIC INPUT

6 kA

VOLTAGE

PRE-WASHING

TANK ELEMENTS

kW

ELECTRIC PUMP

kW

FIRST WASHING

TANK ELEMENTS

kW

ELECTRIC PUMP

kW

SECOND WASHING

TANK ELEMENTS

kW

ELECTRIC PUMP

kW

THIRD WASHING

TANK ELEMENTS

kW

ELECTRIC PUMP

kW

PRE-RINSING

TANK ELEMENTS

kW

ELECTRIC PUMP

kW

RINSING

BOILER ELEMENT

kW

BOILER ELEMENT

kW

GEARED MOTOR

kW

7

DESCRIPTION

CHARACTERISTICS

* Body and tank in stainless steel construction 18/10 AISI 304,
* Tunnel composition:

- 1 Wash - wash arms : 3 upper + 2 lower

- 1 Rinse - rinse arms : 1 upper + 1 lower

* Completely automatic,
* Upper and lower fixed washing ( 55÷60 °C )

* Upper and lower fixed rinsing ( 85-90 °C )
* Washing and rinsing arms in stainless steel constructions, easy disassembly

and interchangeable,
* Double skin with thermic and acoustic insulation ;
* Slanted tank with rounded edges,
* Stainless steel autodraining washing pump,
* Counterbalanced door
* Front panel composition ::

- Main ON/OFF switch;

- Start pushbutton

- Stop pushbutton

- Emergency pushbutton

- Machine ON indicator

- Machine ready indicator

- Overload cutout indicator

* Frontal maintenance
* Automatic tank loading
* Rinse economizer
* Tank and pump filters
* Insulated Boiler

SAFETY

* Feet adjustable and strong
* Pressure-switch protection for Heating elements
* Thermic protection for washing pump
* Automatic stopping of pull-through in case of foreign bodies

* Low voltage control circuit (24V) for greater safety

during work operation
* Dishes (Stop with End Micro-switch on the exit table)
* Door opening safety device

8

Contents

General norms page 09
Introduction and safety norms page 10
Unpacking and delivery checks page 12

1 – INSTRUCTIONS FOR THE USER page 13

First section - For the user – Operation before washing page 14
Switch-on and use of the dishwashing machine mod. M115 page 16
Washing of dishes – During washing operations page 18
After washing operations page 20
Helpful suggestions - Achievements page 21
Safety devices page 21
Washing flow control system page 23
Useful hints of stainless steel maintenance page 24

2 – INSTRUCTIONS FOR THE INSTALLER page 25

Installation page 26
Second section - For the installer - Disposal page 27
Positioning – Electrical connection page 29
Water connections page 30
Water draining - Steam feeding – page 31
Steam exhaust – Vapours suction – Testing - Working temperatures page 32
Torque limiter page 33
Steam condenser - Autotimer page 34
Possible drawbacks – causes - remedies page 35
Table connection scheme page 41
Wiring diagram page 42

9

INSTRUCTIONS MANUAL DISHWASHING MACHINE

M115

The automatic-rack conveyor dishwashing machines of the M115 series are designed to
wash any kinds of dishes .

The modular system and the various optionals available allow the make-up of
dishwashing machines with the most appropriate features in order to meet your
production,space saving and energy-saving requirements.

GENERAL NORMS ENGLISH

Tank You for purchasing our Dishwashing Machine.

Perfect washing-up results as far as hygiene concerns and a correct operation of the
dishwashing machine can be assured only in case the instructions reported in the present
manual are carefully followed.

We hope the information reported in the present manual will be helpful to You.
They are based on data and our best updated knowledge.
Carefully read the Instructions reported in the manual, recommendations and suggestions
included. Carefully read the terms of sale too, the ones limiting warranty included.

10

INTRODUCTION
AND SAFETY NORMS

INTRODUCTION

This equipment is destined only to the use it has been conceived for: tableware washing
such as dishes, glasses, cups, cutlery, trays, etc. Using it to wash machine components or
objects whose dimensions are superior to the machine working passage is improper and
therefore dangerous.

- The noise of the machine running empty, measured at the working positions (fig. 1) and at 1.6m
from the floor, is the following:

position 1 position 2 position 3

Leq A Level equivalent
of sound pressure dB(A)

70 68 70

The level of peak sound pressure Lpc is not declared as it is much inferior to 130dB(C):

PRELIMINARY OBSERVATION

Carefully read the instructions reported in the present user manual, as it gives important
indications about safety of installation, operation and maintenance:

- carefully keep the present manual for further consultations;

- the illustrations and drawings showing the machine are intended for general reference only

and are not necessarily accurate in every particular;

- the dimensions and characteristics of the machine, given in this Manual, are not to be considered

binding and may be changed without prior notice;

- having removed the packing material, check that all the equipment is present. If there is any

doubt, do not use it and contact qualified personnel. The packing elements (plastic bags,
nails, etc.) should be kept away from children, because they are dangerous.

11

GENERAL SAFETY REGULATIONS

THIS SAFETY CODE HAS BEEN COMPILED IN YOUR INTEREST. Strict adherence to
these rules will reduce the risks of injury both to yourself and to others;

Personnel working with this machine must adhere strictly to all statutory safety regulations as well
as the specific rules listed below. Failure to do so may result in personal inyury and damage to
the machine;

- DO NOT attempt to move, install, set-up or operate this machine until you have read and

fully understood this Manual. If doubt persists, ask your supervisor;

- never leave tools, parts or other loose material on or in the machine;

- Before switching the equipment the equipment on, make sure that the model plate data

conforms to that of the electrical and water distribution network;

- remember that even with the mains isolator in the “OFF” position, the incoming cables are

still live;

- BEFORE starting machine o cycle, after any maintenance or repair work, make sure all

protective are correctly installed;

- be vigilant at all times, remember that your safety and that of your fellow workers depend

on you;

- when moving or lifting the machine, care must be taken to comply with all the relevant

regulations governing such operations;

- installation should be carried out by qualified personnel according to the manufacturer's

instructions.

- this equipment should be destined to the use which it has been conceived for. Any other

application should be considered improper and consequently dangerous;

- the equipment should only be used by personnel trained for its use;

SPECIAL SAFETY REGULATIONS

- adjustement and repairs must be carried out only by personnel qualified. Repair carried out

by unskilled personnel may be dangerous;

- perfect washing-up results as far as hygiene concerns and a correct operation of the

washing machine can be assured only in case the instructions reported in the present
handbook are carefully followed;

- the machine must be only used by authorized personnel which must comply with sanitary

measures;

- do not leave the machine in environment with temperatures inferior to 0°C;

- the machine protection degree is IP55 for Control board and IP32 for machine, therefore it

should not be washed with direct high pressure jets of water;

- If the power cable is defective, it must be replaced by your manufacturer or by a

technical assistance service or by a qualified technician in order to avoid risks.

12

UNPACKING AND DELIVERY CHECKS

When the case with the machine has been received, unpack it as follows:

- Remove the upper cover and the wooden case side walls, take care not to damage

the machine,

- Remove possible accessories boxes,

- Remove the protecting cellophane,

- Make sure that the machine has not been damaged during transport,

- Make sure that all covers and panels have been correctly fixed and that no loosen

part is present,

- Visually inspect that all electrical components are integral.

TRANSPORT AND INSTALLATION

- To lift and transport the machine, insert the truck forks under the frame connected to

the points indicated by the yellow adhesives applied on the machine front side (see
draw below).

disforchem115

draw “A”*

- Before plugging the machine, make sure that the supply voltage of the domestic

wiring system and the water supply from water connection corresponds to the ones
reported on the rating plate

- Installation should be carried out by qualified personnel according to the

manufacturer's indications

During instalation, it is recommended to level the machine in order to ensure a correct
operation.

INSTRUCTIONS FOR THE USER

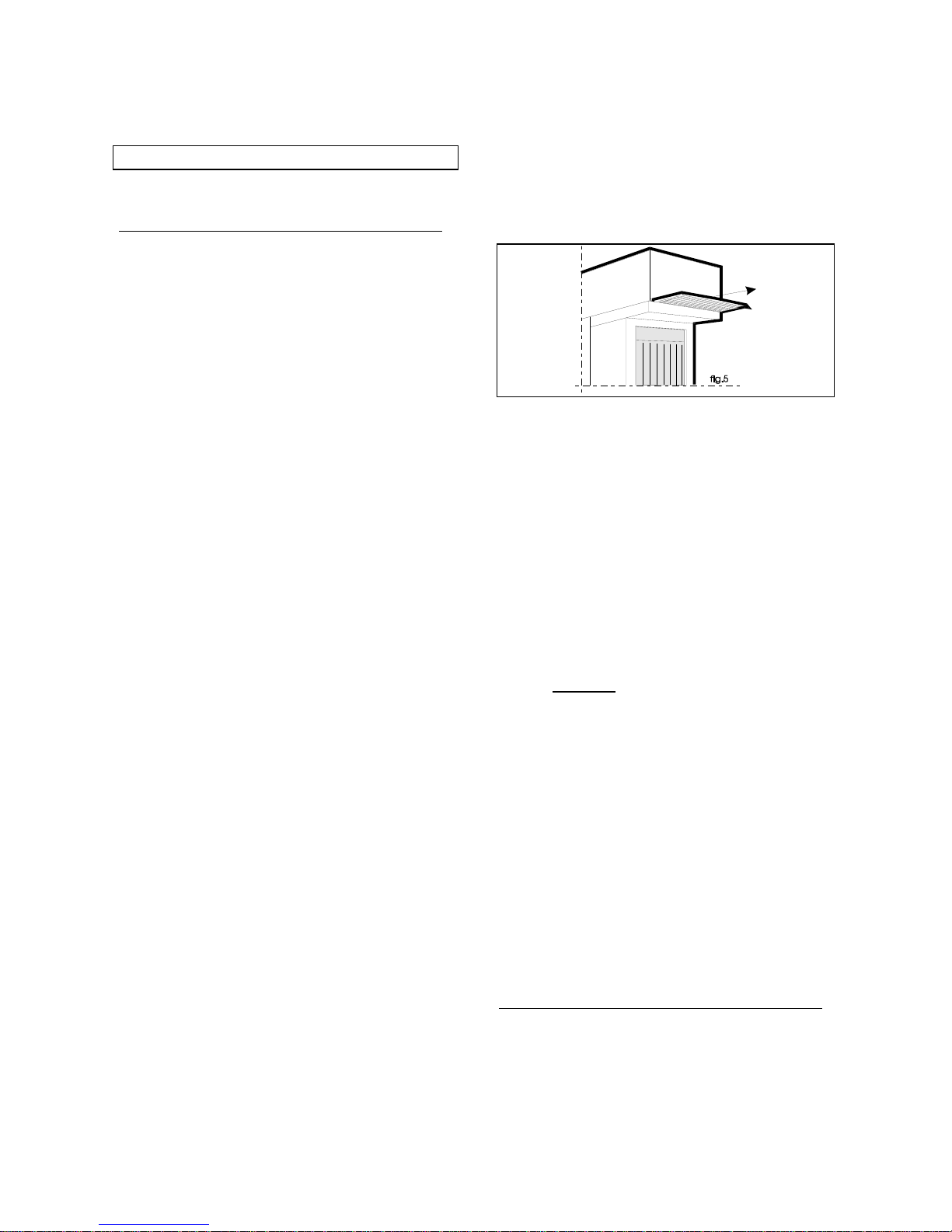

14

M115

First Section - FOR THE USER

OPERATION BEFORE WORKING

BEFORE STARTING THE WORKING OPERATION BE SURE THAT:

- the wall-mounted on/off switch is switched on;

- the water and steam* cocks are open;

- water and steam (*) are present in the system;

- the filters are in their housings

- curtains are correctly positioned;

- the inspection doors are closed;

- the dimensions of the dishes to be washed do not exceed the washing working

dimensions;

- Check that the detergent and rinse aid containers are not empty.

- Switch the machine on . Go to the page dealing with the model selected .
(*) for steam machines only

DETERGENTS

In case the machine is not provided with an automatic dispenser, pour the detergent
directly into the washing tank and uniformly distribute it on the filters in the doses indicated
by the supplier.

N.B.: If you make use of chlorinated sanitizers, it is always advisable to employ an
automatic dispenser with feeler for the measurement of the detergent concentration,
because brownish spots can form on the surfaces due to chlorine reactions when pouring
the detergent directly into the tank.
In any case the product shall be introduced near the pump suction pipe in the tank and at
least 15 cm far from the bottom in order to avoid corrosion.

Choice of the suitable cleansing agent is an essential condition if you want to obtain
extremely good washing results as concerns hygienic results. It is then important to
consider some points. First of all only highly alkaline and chlorine-active antifoam
products, especially made for industrial dish-washing machines, must be used and they
must be produced by well known reliable Firms.

Mean concentration of the cleansing agents in powder must be 1,5÷2,5 g/lt. Mean
concentration of liquid cleansing agents nust be 2÷4 g/lt.

In order to avoid scales and corrosions, put cleansing agent above water level on the
nearest area of the sucking pump filter, in this way it will immediately dilute and will not
deposit on the tank bottom.

15

DESCALING

When hard water is used you can find, inside the machine and also on objects,
calcareous sediments which must be removed both for hygienic and operating reasons
by a descaling operation.
Operating process and frequency of this intervention are suggested by your cleansing
agent supplier who has suitable products, generally containing phosphoric acid.
In order to avoid damage to the machine do not increase the quantities and once
operations end rinse abundantly.

HYGIENE

At last each 30 days it would be useful to do this operation which guarantees the
complete hygienic conditions of the machine. We suggest to contact your cleansing agent
supplier who will give you quantity and name of the most suitable product you can use
and that, generally, is an active chloride powder (100÷200 ppm).
In order to avoid damage to the machine do not increase the quantities and once
operations end, rinse abundantly.

16

SWITCH-ON AND USE OF THE DISHWASHING MACHINE

MOD. M115

H

G

D

I

P

M

LEGEND

M – Overload cut-out indicator
G - Machine ready indicator
D – Machine on indicator
I - Stop pushbutton
H – Start pushbutton
P – Switch ON/off

BEFORE STARTING THE WORKING OPERATIONS

MAKE SURE THAT

:

- the cock is open and the water doesn’t
lack,

- the filters are in
their housings;

- rinse aid and washing detergent pumps’
containers are filled.

- the machine’s door is CLOSED.
T

HEN PROCEED:

1) Put the wall switch in position ‘’ON’’.
The displays of the washing and rinsing
temperatures will light on.
Then press the on/off switch "P" to start up
the machine.
The lamp "G" will start flashing and the
tanks’ filling will automatically start. Lamp
"G" lighted on indicates that the
appropriate level has been reached in the
tank and the heating element starts
working.

2) Wait until the washing temperature is
between 55° and 60° C and the rinsing one
is between 80° to 85° C. Check the
temperature looking at the thermometers
on the front panel .

3) Then press the start button “H”.
The washing will start and the racks will
move. Rinsing is operated automatically in
correspondence with the passing through
of the dishes.

4) At this point the machine is ready to
wash the dishes (see page 18) .

5) If it’s required to stop the washing
operations, press the button ”I” to stop the
washing pump and the rack moving.

17

To switch off completely the machine,
press the switch "P" into position "Off"
and turn the wall switch in position OFF.

If lamp M lights on, that indicates possible
anomalies at the motors.

The red mushroom-shaped emergency
pushbutton "P" has to be used in case of
anomaly. Once the trouble has been
removed, it is possible to restart the
machine only after the pushbutton has
been rotated and released.

The machine is equipped with a valve for
the automatic drain.

At the end of the washing operations:

-press button “I” (STOP),

-check that the switch ‘P’ is in position ON,

-open the machine’s door,

-keep pressed button ‘H’ for 3 seconds until
the lighting up of lamp ‘G’, that will fast and
intermittently flash. At this moment the
automatic drain will start,

-the drain will automatically stop after 2
minutes,

-switch off the machine and close the door.
N.B. The door can be closed also after the

starting of the tank drain.

18

WASHING OF DISHES

1) Fisrt of all, remove any food residues

and any oily masses .

2) Knives , forks and spoons should be
previously softened; the same applies to
dishes, should they be washed a long time
after their use .

3) Arrange the dishes as shown in the
figures (page 22) .

4) Push the rack toward the inlet of the
machine. The feeding system will make it
step up automatically . (N.B. Insert the
shelves so that dishes are faced to the inlet
and trays are parallel to the machine).

5) There is a limit switch on the output­table which can stop the machine.
If the operator can not remove the baskets
from the output-table in time and the
baskets accumulate there, the machine will
stop its conveyor and the rinsing system.
In order to restart the normal working it is
sufficient to remove the baskets from the
output-table.

DURING WASHING OPERATIONS

1) Check that the water temperatures are

in accordance with the specified values .

2) Monitor the levels of the detergent and
the rinse agent liquid in the respective
containers .

3) Remove the filters periodically and
remove any residues therefrom; it is
suggested to buy another spare filter in
order not to have to stop the machine for
an extented period of time .

4)

Avoid dipping your naked hands int o the

soapy hot water present in the tanks. This
can cause burns and skin irritations.

In this case, immediately rinse them with
plenty of water.

5) When the machine is working, do not
open the inspection doors too quickly.

6) In case the conveyor belt is stopped by
the safety device (limit switch), stop the
machine by means of the red emergency
mushroom pushbutton located near the
operator before removing the obstacle
causing the trouble.

7) Deactivate the equipment in case of
fault or malfunction. For repairs, only
address to a technical assistance center
authorised by the manufacturer and
impose the use of original spare parts.

The non-observance of the above could
compromise the safety of the appliance
and of the operators.

For possible troubles occurring during the
working cycles, see the relevant chapter.

19

BASKETS

cestelli-m115-GB/cdr

PP12/18

G8

CVA (option)

TAKE CARE !
BASKETS WITH DISHES
OR TR AY S MU S T BE PU T
INTO THE WASHING
TUNNEL AS SHOWN
IN THE PICTURE.

M115

CB

20

AFTER WASHING OPERATIONS

PRECAUTION AND CLEANING
INSTRUCTIONS

1 – high temperatures can be reached

inside the machine (90°C). Affter
power supply has been removed, wait
until the machine has reached the
room temperature, before working on
it;

- never leave tools, parts or other loose
material on or in the machine;

- BEFORE starting machine or cycle,
after any maintenance or repair work,
make sure all protective are correctly
installed;

2 - Take off the machine by means the
disconnecting switch located on the
control panel.

3

- IMPORTANT: Before carrying-out the

cleaning and maintenance operations,
disconnect the equipment from the
mains voltage through the wall­mounted on/off switch and close the
water and steam* supply cocks;

4

- Lift the inspection doors making sure

that they are firmly linked to the
apposite support.

.

5

- Wash the inside of the machine with

a water jet. When everything is
clean and water is completely
drained, take out and clean carefully
the flat filters and that of the pre­wash (if any) and wash them
carefully every day (don't beat them
against the floor or others) .

6 – When the tanks are empty remove

and wash the slide filters and the
suction pump filters .

7 – Remove and wash the splash-guard

curtains.

8 - For machines with steam

condensation only, remove the
steam aspiration filter (fig.5) end
clean it.

9 - Check that the washing nozzles are

not clogged. If necessary,
disassemble the nozzles and pay
attention to assemble them again in
the right position (twice a week).

10 - Remove the rinsing arms by rotating

them counter-clockwise and check
that the nozzles are not clogged: if
otherwise, clean them using a
needle (every week).

11 - Replace the filters taking care that:

Curtains

shall have their shortest
side turned towards the basket inlet
(see the blue signalling marks
located on the doors)

12 - Clean the outside part of the

machine using a wet sponge .Don't
use water jets that, beside being
dangerous, could also damage the
electrical parts.

Don't use detersive, abrasives, steel-wools
or steel-brushes.

14 – In order to avoid the formation of

nasty smells, let the doors open
making sure that they are firmly
linked to the apposite supports.

* for steam machines only

21

Machine prolonged stop

In case the machine is not used for some
weeks it is advisable to carry out an
accurate cleaning of all components inside
to avoid the formation of unpleasant
smells.

In case of a very long standstill, it is
advisable to oil the stainless steel surfaces
with white mineral oil.

HELPFUL SUGGESTIONS

MAINTENANCE

IMPORTANT: Before carrying out cleaning
and maintenance operations disconnect
the machine from the power supply source
by means of the wall-mounted switch or by
means of the disconnecting switch located
on the control panel.

WARNING! - Do not disconnect the switch
when the machine is on!

Check and frequently clean the nozzles.
The frequency at which such operation
shall be carried out will be suggested by
the quantity of residues and scales and by
the unsatisfying washing results.

To clean the machine outside and inside,
never make use of corrosive products such
as sodium hypochlorite (bleach) and
hydrochloric acid (muriatic acid), acids in
general, wire wool and steel brushes.

To avoid compromising the correct
operation and to keep the appliance in
optimal hygienic conditions, it is advisable
to carry out periodical sanifications and
scale removing operations.

ACHIEVEMENTS

Any deficiency in the washing process is
apparent when dirty residuals are visible.
Any halos might be caused by an
insufficuent rinsing: in this case, check that
the rinsing jets are clean and there is a
sufficient pressure in the water distribution
network (2÷4 bar) ;
In the case that residuals are present,
check that:

• the washing jets are clean

• pre-washing temperatur is 40 °C
maximum;

• washing temperature is from 55 to 60 °C,

• rinsing temperature is from 80 to 85 °C,

• there is detergent in the right
concentration;

• the filters are clean;

• washing water is not dirty;

• the positions of the objects in the rack
are correct.

SAFETY DEVICES

The dishwashers are equipped with a
number of devices in order to ensure the
safety of the operator and of the appliance
itself.

LIMIT MICROSWITCH

If dishes reach the end of the unloading
area, before the operator has managed to
unload the basket, the limit switch stops
the drawbar motion and therefore the
baskets.

DOOR MICROSWITCHES

Each inspection door is provided with two
safety microswitches forming two
redundant chains (safety level 2).
If one of the doors is opened accidentally,
the pumps, the conveyor belt gearmotor
and the rinsing area solenoid valve stop
working.

22

This way all washing operations are
stopped preventing dangerous jets of hot
water from spurting out.
Operation is restored only when the door
are closed again and the start button “H”
pressed.

EMERGENCY STOP PUSHBUTTON

The machine is equipped with a red
mushroom-shaped pushbutton on yellow
field, which, if pressed, stops all motors.
Once the trouble has been removed, it is
possible to restart the machine only after
the pushbutton has been rotated and
released. Subsequently press the start
button “H” again.

TORQUE LIMITER

The drawbar forward feeding system is
provided with a mechanical friction torque
limiter located in the drawbar system.
Each time something interposes between
the basket and the machine or the central
drawbar is overloaded, the bar motion
lowers rapidly to zero.
In this case it is necessary to switch the
machine off by means of stop or
emergency pushbuttons, remove the
obstacle and press the start button again.
To calibrate this kind of device, see the
relevant chapter included in the second
part of the manual dedicated to the
installer.

MOTOR PROTECTION DEVICES

Each motor is protected against short­circuits and current overload by automatic
magneto-thermal relays.
Lamp "M" switching on signalizes the
intervention of any of these relays.
In this case, the machine should be
switched off and qualified personnel should
be asked for repair.

ELEMENTS PROTECTION

Each element is protected against short
circuit by automatic breakers.
Tank elements are protected against dry
running by minimum level pressure switch.
Boiler and dryer elements by thermostats
with manual reset.
In case of troubles, ask for the intervention
of qualified and authorized personnel (see
the paragraph dedicated to the user).

RESIDUAL RISKS

Although the appliance is equipped with the
above-mentioned safety devices, danger of
burns to upper limbs persists.

As already mentioned in the paragraph
“DURING WASHING OPERATIONS”,
avoid dipping your naked hands into soapy
hot water of the tanks. This can cause
burns and skin irritations.
In this case, immediately rinse them with
plenty of water.Anyway consult the product
card of the detergent employed.

23

WASHING FLOW CONTROL SYSTEM

pos. “1”

pos. “2”

Highest power (position 1) Lowest power (position 2)

The flow control system is a device that allows You to act on the intensit y of t he washing

power.
This can be useful by washing glasses, when it is necessary to reduce the washing jet
power.

This device is placed into the pre-washing and washing areas of the rack conveyor
dishwashing machines, by the lower washing arms group.

In order to act on the control system You have to rotate the lever “A” by hand anticlockwise
to rise the washing jet power and clockwise to reduce it.

If You turn it thoroughly leftwards, You get the highest power

(pos.1).

If You turn it thoroughly rightwards, You get the lowest power

(pos.2).

USEFUL HINTS OF STAINLESS STEEL MAINTENANCE

Stainless steel is so called because it is not affected by oxidation,this is due to a thin molecular
layer of oxide on the surface which protects againts further oxidation. There are, howevwr,
substances which can modify or destroy this layer,giving rise to corrosion:besides preventing the
protective film of oxide from reforming,these substances corrode the stainless steel itself and can
cause irreparable damage. It is therefore necessary to prevent this by choosing correct cleaning
products and by complying with the following simple recommendations:never forget that when

using these appliances,the first and fundamental rule is to guarantee that the cleaning
products are both non-toxic and hygienic.

Before using any detergent to clean either the stainless steel or the immediate and sorrounding
floor area, always ask your supplier for the most suitable product which does not cause corrosion
on the steel itself; the onset of rust is most commonly caused by the use of unsuitable cleaning
materials (strongly acid chlorate based detergents) or on inadequate maintenance.

Our appliances are made of stainless steel AISI 304 (18-10 type) for exterior panelling,upper
tops,tanks etc.
Comply with the following instructions when cleaning and servicing parts in stainless steel.

Ordinary daily maintenance

Carefully and frequently clean the surfaces using a damp cloth; use soap and water or normal
detergents,so long as these do not contain abrasives or chlorine based substances such as
sodium hypochlorite (bleech),hydrochloric acid or other such solutions:These products quickly and
irreparably corrode stainless steel. When cleaning floors underneath or near the appliances, never
use the above mentioned products as vapours or splashes could subject the steel to similar
destructive effects.
Only ever rub in the direction of the satining, then thoroughly rinse with clean water and carefully
dry.

Rust : water supply pipes, inevitably convey particles of rust dissolved in the water especially in
new installation plants or when taps are opened after a period of inactivity. These iron deposits
must not be allowed to remain on the stainless steel since they produce rust by contamination.
Use suitable products to remove any rust marks,from companies which produce detergents for
industrial use. After application, thoroughly rinse with clean water, neutralizing the action of the
product with an alkaline detergent normally used to clean such appliances or with another specific
product.

DO NOT USE METAL MATS TO CLEAN THE STAINLESS STEEL

INSTRUCTIONS FOR THE

INSTALLER

The following instructions are addressed to a qualified personnel, the only one

authorised to carry-out checks and repair, if any.

The Manufacturer declines any responsibility in the case of interventions

made by a non qualified personnel.

26

M115

Second Section - FOR THE INSTALLER

The following instructions are addressed to qualified personnel who is the only one
authorized to carry out the inspections and the necessary repairs.

The machine should be installed in “Normal” environment, that is to say, indoors, free of
dust, explosion-proof and adequately lit and well aired.

Before installing the machine, it is necessary to arrange the electric and water
connections.
See the reported wiring diagram (supplied by the manufacturer) of the selected model as
far as the dimensions of pipes, cables and wall-mounted switch are concerned.

In order to prevent damages caused by the escape of vapours from the equipment, make
sure that adjacent materials do not deteriorate in their presence.

The Manufacturer cannot assume any responsibility for any damage to persons or
property deriving from the non-observance of the above specified norms.

DETERGENTS

The machine should also be equipped with a detergent and brightener dispenser, which
shall be supplied by the manufacturer of these products.

N.B.: If you use chlorinated sanitizers, it is always advisable to employ an automatic
dispenser provided with feeler for the measurement of the detergent concentration,
because brownish spots can form on the surfaces due to chlorine reactions when pouring
the detergent directly into the tank. The feeler

for the measurement of concentration must

be placed on the front side of the tank through the hole “A”

preset for such operation (see

drawing on page 26).
In any case the LIQUID DETERGENT shall be introduced through the preset hole “B”

on

the front side of the washing tank.
Choice of the suitable cleansing agent is an essential condition if you want to obtain

extremely good washing results as concerns hygienic results.
It is then important to consider some points.
First of all only highly alkaline and chlorine-active antifoam products, especially made for
industrial dish-washing machines, must be used and they must be produced by well
known reliable Firms. We provide a short list just as an indication: Ecolab-Soilax; Henkel;
Lever; Diversey; Relativ.

The average concentration of liquid detergents must be 2÷4g/lter. In any case it is
essential that the producer of the detergent rules the dosage properly according to the
features of the installation.

28

As regards the introduction of the liquid rinse aid product, use the passage “C” ,
placed near the water inlet group.
This coupling will allow an appropriate introduction of the liquid rinse aid product.
In order to do this use a fitting with non-return valve.

02 00196

02 01455

For the electrical connection of these dosing pumps join the auxiliary contacts of the
contactors MT5 (detergent pump) and MT4 (rinse aid pump) into the lower electric box
(standard M115 model) or the blue terminals into the upper electric box (M115 with
drying tunnel), marked by special tags.

Note: In order to let cables pass, please use the labelled wire clamp behind the electrical
control box.

DISPOSAL

At the end of its life, the machine shall be disposed according to the local laws in force by
specialized and acknowledged companies in this field. Its components shall be
distinguished as follows:

- metallic components: body, plans, frames, filters;

- electric components: motors, remote control switch, microswitches, wiring;

- plastic components: baskets, connections;

- rubber components: hoses, sleeves.

29

POSITIONING

During installation, carry out a good levelling
of the machine in order to make it correctly
work (doors, basket forward feeding).
In order to do so use the adjustable feet.

After removing front panels, position the
machine over the connections. Assemble the
inlet and outlet shelves for basket loading and
unloading. The limit switch FC1 is located on
the outlet shelf or on the machine delivery if
the shelf is not provided for. The limit switch
shall be connected to the outlet shelf.

The machine shall also be equipped with
detergent and brightener dispenser, which
shall be supplied by the manufacturer of these
products.

ELECTRICAL CONNECTION
Before connecting the machine,

check to make sure the voltage
outlet of the mains is the same as
the voltage specified on the data
plate of the machine.

It is also necessary to check that the
counter, the mains and the intake are
adequately dimensioned to withstand the
required maximum load.

A main switch must be installed between
the mains and the machine. This safety
measure also requires that the minimum
distance between the switch contacts is at
least 3 mm and the disconnection on all
poles according to EN 60204 (VDE 113).

The mains must be wired to be able to
handle the current drawn by the
machine.The system must also be
provided with a proper ground lead in
accordance with the existings norms. The
electric cable must be of the following
type H07RN-F.

For a correct selection of the cable rated
cross-section refer to the data reported on
the product data plate.
The cable cross-section shall not be
inferior to the one indicated in the
“Technical data and description” reported
in the first page of the present manual.
The cable shall be connected to the
terminal L1-L2-L3 and to the adjacent
yellow-green terminal,on the electric box,
it shall be made passed and stopped by
means of the apposite cable grip.

It is necessary to connect the equipment
to an effective ground installation, as
specified by the electrical safety
regulations in force.
Chack that this basic requirement is
complied with and, in case of doubt, ask
for a careful check of the installation by a
qualified personal.
In addition, the equipment shall be part of
an equipotential system, the effectiveness
of which should be checked according to
the regulations in force.
The connection should be made at the
screw marked by the respective label

located on the equipment lower side (

).
It is recommended to make the electric
line be checked by your own designer.

THE MACHINE SHALL BE
CONNECTED WITH AN EFFECTIVE
GROUND CLAMP.

The manufacturer declines any
responsibility for any damages
caused by lack of an effective
ground installation.

30

WATER CONNECTIONS

Carefully comply with any national or
regional regulations in force.

Hot water supply

Arrange a gate valve in an easily
accessible place, with a tap having a
3/4"gas thread spout at its end and connect
to the water inlet valve (fig.1)

- temperatur between 55° and 60°C,

- Dynamic Pressure 2÷4 bar (200÷400

kPa),

- Hardness between 7,2 and 12,5 °F
N.B.: Each machine is equipped with a

pressure reducer. In order to obtain an
excellent rinsing, it shall be calibrated
according to the data reported on the plate
located in connection with the reducer
itself.

N.B.: Each machine is equipped with a
pressure reducer

near the water inlet
valves.
In order to obtain an optimum rinse it is
necessary to adjust it from 0,6 to 1 bar
according to inlet water pressure and
temperature.

(remember that the required dynamic
pressure must be 2÷4 bar (200÷400kPa)
and that inlet water temperature must be
55÷60°C for standard machines).

If a variation of rinse pressure is required
while installing, proceed as follows:
1: make the machine work and check that
the rinse is activated

;
2: Take away the upper protection plug on
the reduction gear and turn the proper
adjusting screw anti-clockwise in order to
decrease pressure or clockwise in order to
increase it or to restore the optimum
working conditions (see picture 1A).

PIC.1A- PRESSURE REDUCER

Cold water supply

This connection is required only for
machine with steam condenser .
Water shall be supplied at a temperature
ranging from 10÷15°C and at a dynamic
pressure of 2÷4 bar (200÷400 kPa).

31

WATER DRAINING

Reachable from the machine front side
after opening the front panel (to do this
turn the two front screws out);

Arrange a discharge at floor level provided
with siphon and connect to the floor drain by
means of a hose provided with an adequate
inclination. Make sure the drain hose is not
choked in any way.
Make sure the drain hose is resistant to a
temperature of 70 °C.
Carefully comply with any national or regional
regulations in force.

STEAM FEEDING *

As far as steam feeding is concerned,
connect to the machine fittings indicated
in the installation drawings. In order to
make the equipment independent from
the general steam distribution network, it

is necessary to use gate and gas on/off
valves (see draw 2 and 3).

This type of feeding should be supplied at
a pressure ranging from 1 bar (100°C) to
2 bar (121°C).

The steam used should be absolutely
saturated and dry.

STEAM EXHAUST *

The condensed steam exhaust shall have
an appropriate slope toward the recovery
installation or a blow-by pump, in order to
guarantee an autonomous scavenging of
the condensed steam.

N.B.: for possible maintenance operations,
it is advisable to arrange a gate valve
parallel with the discharge so that it is
possible to deviate condensation towards a
runoff pit.

* for steam machines only

32

VAPOURS SUCTION

For machines equipped with splashguard
with collar or normal collar, carry out the
necessary connection as showed in fig. 4.

In any case it is necessary to provide a
way to scavenge steam through a hood
or a similar system.

TESTING

Before starting machine:

During the testing operations, prior to
switching the dishwashing machine on,
check that thermostat of the rinsing boiler
(0°-90° C) is set to zero

and the direction of

rotation of the pumps is correct.
Should the pumps rotate in the reverse

direction, reverse two wires of the line .
Make a number of empty racks to pass

through, then check that water jets are
sprinkled fron the rinsing nozzles then
adjust the thermostat of the boiler to 85° C.

WORKING TEMPERATURES

Check that the thermostats are set
according to the following working
temperatures.

WASHING
The tank thermostat (CT3), also placed
near the wash tank, will be set according
to the following temperature:

Washing water: 55÷60°C.

RINSING
The rinsing thermostat (CT2) will be set
according to the following temperature:

Rinsing water: 80÷85°C.

DO NOT TAMPER WITH THE
THERMOSTAT CALIBRATION

33

TORQUE LIMITER

The limiter has already been described at
paragraph “SAFETY DEVICES”.
It is located in connection with the drawbar
and it is calibrated during testing by the
manufacturer.
In case it is necessary to calibrate it again,
proceed as follows:

1. Switch the machine off ;

2. Remove the protection panel;

3. Load the machine with baskets full of
dishes to be washed;

4. Loose the axial ring nut with the
hexagon ring wrench type “A”;

5. Disengage the friction with a hooked
key type “B” so that it slips;

6. At this point clockwise turn until the
drawbar manages to carry the whole
dishes charge;

7. The device is considered adequately
calibrated when the drawbar hardly
manages to carry the whole charge in
second gear.

34

STEAM CONDENSER

As regards the machines provided with “vapour
condensing” device, pay attention to the
following:

The adjustment of the device is carried out by
means of the regulator valve (COCK “V”)
placed inside the machine base plate and
marked with its special label.

The Manufacturer should rule this cock while
testing the machine.
Never touch this cock without a specific
reason.

This valve rules the water flow in the vapour
condensing battery.

If the machine needed a more precise
adjustment, under regular conditions, adjust
the valve until no more vapour comes out of
the “vapour condensing” cap.

Generally it is sufficient to slightly open the
valve.

ATTENTION! An excessive opening can
cause the cooling of the tank.

V

Desc-lav/DES-CVMREGOL-2012

WASHING AUTOTIMER

Thanks to the AUTOTIMER device it is
possible to reduce water and power
consumption when the machine is not used. As
default the function ‘Autotimer’ is disabled.
It’s possible to program the times of stop of
4’-6’-8’ (calculated from when the last rack has
come out) by setting up the dip-switch
positioned on the electronic card that is in the
control box.

Look at the following diagrams:

Disabled Autotimer :

123

4

ON

AUTOTIMER

OFF

OFF

Autotimer after 4’ min. :

123

4

ON

4’ min

OFF

Autotimer after 6’ min. :

123

4

ON

6’ min

OFF

Autotimer after 8’ min. :

1234

ON

8’ min

OFF

35

A LIST OF DRAWBACKS POSSIBLY OCCURRING WITH THE USE OF THE
DISHWASHING MACHINE, THEIR CAUSES AND POSSIBLE REMEDIES

1 - Lamp D (LS1) does not turn on upon switching the machine on

A - Check that the wall-mounting swith is ON and the respective fuses are not burnt.
B - Maybe lamp LS1 has burnt. In this case, replace it. The machine can work anyway .

2 - Lamp M (LS3) of overload cutout devices, ON
A - Check that the power supply voltage is not subjected to variations in ecces of 10% of the

nominal value .
B - Check, by using an ammeter, that the current drained by the motor does not exceed the
rated values .

3 - The tank don't fill, lamp G (LS2) does not turn on

A - Check that pressures switches CP1-CP2 (those existing) are effective and calibrated.
B - Check that the overflows are in their housing.
C - Check that the solenoid valve EV2 is effective and gets tension.

4 - The racks don't step up
A - Check that nothing is resting on limit switch micro FC1 and this is in good operating

conditions .
B - Check that there are no objects got stuck inside the tunnel bet ween the feeding group
and the fixed part of the machine.
C - Check that the locking ringnut of the friction clutch in speed reducer M01-M01A1 is not
slackened, if otherwise tighten it slowly until the feeding system operates.
D - Check that the overload cutout RM01 is not triggered, otherwise restore it. This drawback
is displayed by lamp M (LS3) being ON .
E - Check that the remote switch coil MT04 is effective.
F - Check that speed reducer M01 is in good operating conditions .

5 - The racks don't step up

A - Check whether one or several pawles are blocked .

6 - The racks don't stop

36

A - Check that the wheel of micro FC1 projects sufficiently from the bracket and is operated
by the shelf.
B - Check that micro FC1 is effective and the respective cable is connected correctly.

7 - The tanks don't stop being filled upon reaching the desired level
A - Check that the trap of the pressure switch has no porosities and the connection pipe is

not disconnected .
B - Check that the pressure switch is in good conditions and is calibrated .
C - Check that there is no dirty in the solenoid valve. This drawback can be noted because
the machine continues to load water, whilst the main on/off switch is off .

8 - Insufficient washing

A - Check that the detergent is effective, of the type for industrial dishwashing machines, and is
proportioned for the right concentration .
B - Check that the detergent container is not empty and operates correctely .
C - Check that the jets of the washing and pre-rinsing arms are not clogged. If necessary, clean them.
D - Check that the dishes are placed in the respective racks. Soup plates have to be mandatorily
placed in rack type P12-16.
E - Check that the temperatures in the tanks are the specified ones.
F - One or several pumps don't operate, in this case check that:

- the overload cutuot didn't switch the pump in question and, if nece ssary,restore it (this drawback

is displayed by lamp M (LS3) being ON)

- finally, the pump is not blocked, the motor is effective and rotates in the right direction.

PUMPS ELECTRICAL COMPONENTS

1st wash

PUMP M02
CONTACTOR MT5
CUTOUT RM2

H - Shadings or spots present on dishes,specially on glasses, may be caused by minerals present in
the water. In such an event, it is suggested to analyze the water used. The contents of calc ium and
magnesium in the water should not exceed 10°F. The presence of iron should not exceed 0,1 ppm. If
these values are exceed, it is suggested to treat the water as appropriate .
I - A preliminary softening is suggested prior to washing knives, forks and spoons

9 - Temperatures insufficient in one or several tanks

37

A - Check that the thermostats are effective and calibrated .
B - Check that the temperature of the feeding water is from 50° to 60° C, as specified .
C - Check that the thermostats relevant to the tanks are set to the right temperatures and
operate correctely .
D - Check that the fuses and the coil of the remote switch are not broken .
E - Check that the heater elements are effective .

HEATER ELECTRICAL COMPONENTS
1st wash

TEMPERATURE 50°-60°C
HEATERS R2
THERMOSTATS CT3
CONTACTORS MT2

10 - Rinsing insufficient
An effective rinsing also depends on correct washing operations . Therefore, prior to checking

the rinsing system, make sure that washing took place correct ly, and specifically look at item
X in the respective paragraph. Having ascertained that washing was made correctly, check
that :
A - The dynamic pressure of the feeding water is not less than 2 bars. Should the pressure
be insufficient, install rinse buster pump M07 in order to increase pressure .
B - The nozzles are not clogged by calcareous residuals and they are oriented to the right
direction .
C - Water inlet solenoid valve EV1 operates correctly.
D - The water input filter is not clogged
E - Energy-saver microswitch FCE1 and FCP9 are effecteive .
F - The curtain of the last tank is in the right position and does not cover the rinsing nozzles
when dishes pass there .
G - The boiler is not scaled to such an extent as to limit the water flow rate.

11 - Insufficient Rinsing temperature

The temperature of the rinsing water should range from 80° to 90° C.
Should it be lower.check that :
A - The thermometer is effective and calibrated .
B - The temperature of the feeding water ranges from 50° to 60° C specified (excluding
machines with drain heat recovery unit) .
C - The dynam ic pressure of the feeding water does not exceed 2 bars. If so, calibrate the
pressure reducer incorporated in the machine.
D - The rinsing nozzles have not been unduly widened or replaced.
E - The thermostats relevant to boiler CT2 is set to the right temperature and operate
correctly.

If the drawback is not due to any of the causes listed hereabove,proceed as follows :
for machines with electric heating

38

- check that the coil of remote switch MT03 is not broken

- check all elements of boiler heaters R1

- check the security thermostat CT1 is on

for machines with steam heating

- check that the steam inlet gate is open and it is present with a pressure not less than 0, 5

bars,

- check that the filter of the condensated steam drainage is not clogged;

- check that steam solenoid valve EV7 operates correctly,

- check that the input steam filter is not clogged to such an extent as to prevent the normal

flow rate,

- check that the condensated steam outlet pipe can freely drain by drop,

- check that the pipe-coil of the boiler is not scaled to such an extent as to limit the heat

exchange thereof .

12 - Insufficient drying

An effective drying is strictly related to an effective washing and rinsing. Prior to checking the
drying system, check whether washing and rinsing have been made correctly. Then check
that :
A - The rinse agent liquid container is not empty and the respective proportioner operates
correctly.
B - The air suction holes located on the upper panel are not clogged by foreign bodies.
C – The Overload cutout is not triggered. If so, restore it. This drawback is displayed by lamp
M (LS3) being ON.
D - Fuses and remote switch coil MT09 are not broken.
E - Motor M05 is not blocked and rotates in the right direction.
F - Using a maximum thermometer, check that t he temperature of the hot air jet is at least
80° C. Should it be lower, proceed as follows :

for machines with electrical heating

- check that thermostat CT6 is set to the right position and operates correctly.

- check that fuses and remote switch coil MT07 are affective.

- check that heater element R3 are effective.

for machines with steam heating

- check that the steam inlet gate is open and is present with a pressure not less than 0,5 bars,

- check that the filter of the condensated steam drainage is not clogged;

- check that steam solenoid valve EV7 operates correctly,

- check that the input steam filter is not clogged to such an extent as to prevent the normal

flow rate,

- check that the condensated steam outlet pipe can freely drain by drop.

12 - Insufficient aspiration and steam condensation
A - Check whether foreign bodies obstruct the upper air exhaust hole .

39

B - Check that the filter of the condenser battery is not clogged by fat residuals. In such an
event, wash it with boiling water and detersive. Rinse thoroughly.
C - Check that overload cutout is not triggered. If so, restore it. This drawback is dispalyed by
lamp M(LS3) being ON .
D - Check that fuses and remote switch coil MT16 are not broken.
E - Check that motor M08 is not blocked nor burnt and rotates in the right direction
F - Check that the cold water feed cock is open and water is present at a pr essure of at least
2 bars.
G - Check t hat cold water inlet filter D is not clogged to such an extent as to limit the flow
rate.

The manufacturer declines any responsibility for any misprints contained in this
booklet. The Manufacturer also reserves the right to make any modifications to its
products that don't affect the basic characteristics thereof.

40

ATTENTION !

ENGLISH

ETI-MANOV-TRAINO

FOR A CORRECT WORKING OF THE
MACHINE (PUMPS, FANS, ETC.), PLEASE
CHECK THAT THE

INSIDE THE MACHINE (FIG.”A”

) TURNS ANTICLOCKWISE, OR THAT THE

SHAFT UNDER THE
WASHING TANK (FIG.”B”) TURNS IN THE
DIRECTION INDICATED BY THE YELLOW
ARROW ON THE MOTOR BODY.

PULL-THROUGH

CRANK
DRIVE MOTOR

A

B

41

TABLE CONNECTION SCHEME

MURO/MUR/WALL/WAND

Piano di lavoro, plan de travail
work table, Arbeitstisch

42
