lamber DSP3 Instruction Manual

DSP3

INSTRUCTIONS MANUAL

INSTRUCTIONS D'EMPLOI

DISHWASHING MACHINE

GLASSWASHING MACHINE

LAVE-VAISSELLE

LAVE-VERRES

REV.07-GLF-2013

COMMERCIAL DISHWASHERS

13CA

COMMERCIAL DISHWASHERS

13CA

ANSI/NSF3

CONTENTS ENGLISH

General norms pag. 05
Introduction and safety norms pag. 06
Learn to use the appliance pag. 08

First section - FOR THE USER pag. 09
Control panel pag. 10
Working and use, cleansing agents, maintenance, possible troubles pag. 11
Glasses positioning pag. 13

Second section - FOR THE INSTALLER pag. 23
Installation pag. 24
Water drain, water connections, electrical connections pag. 25

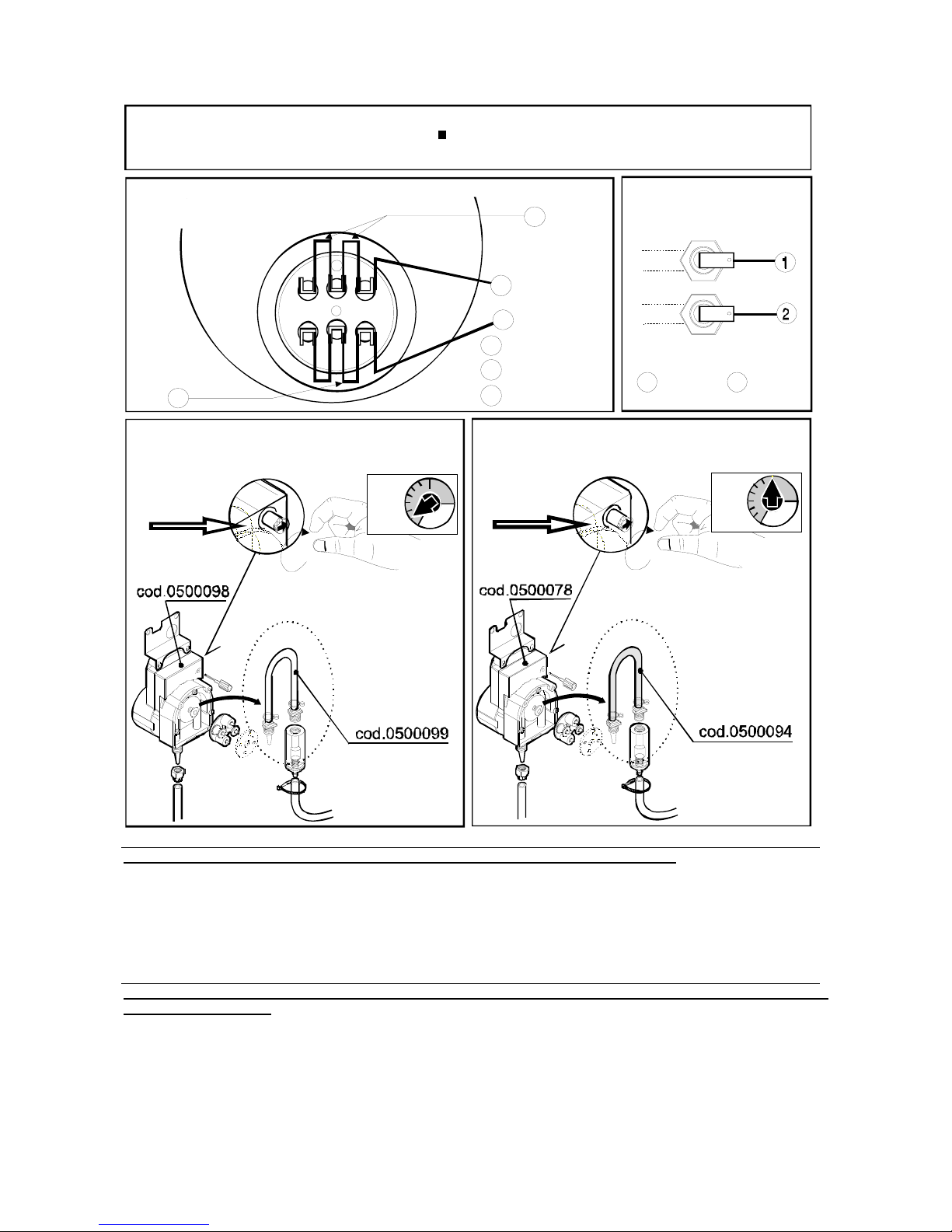

Detergent replacement and cleaning of the detergent pump hoses pag. 27

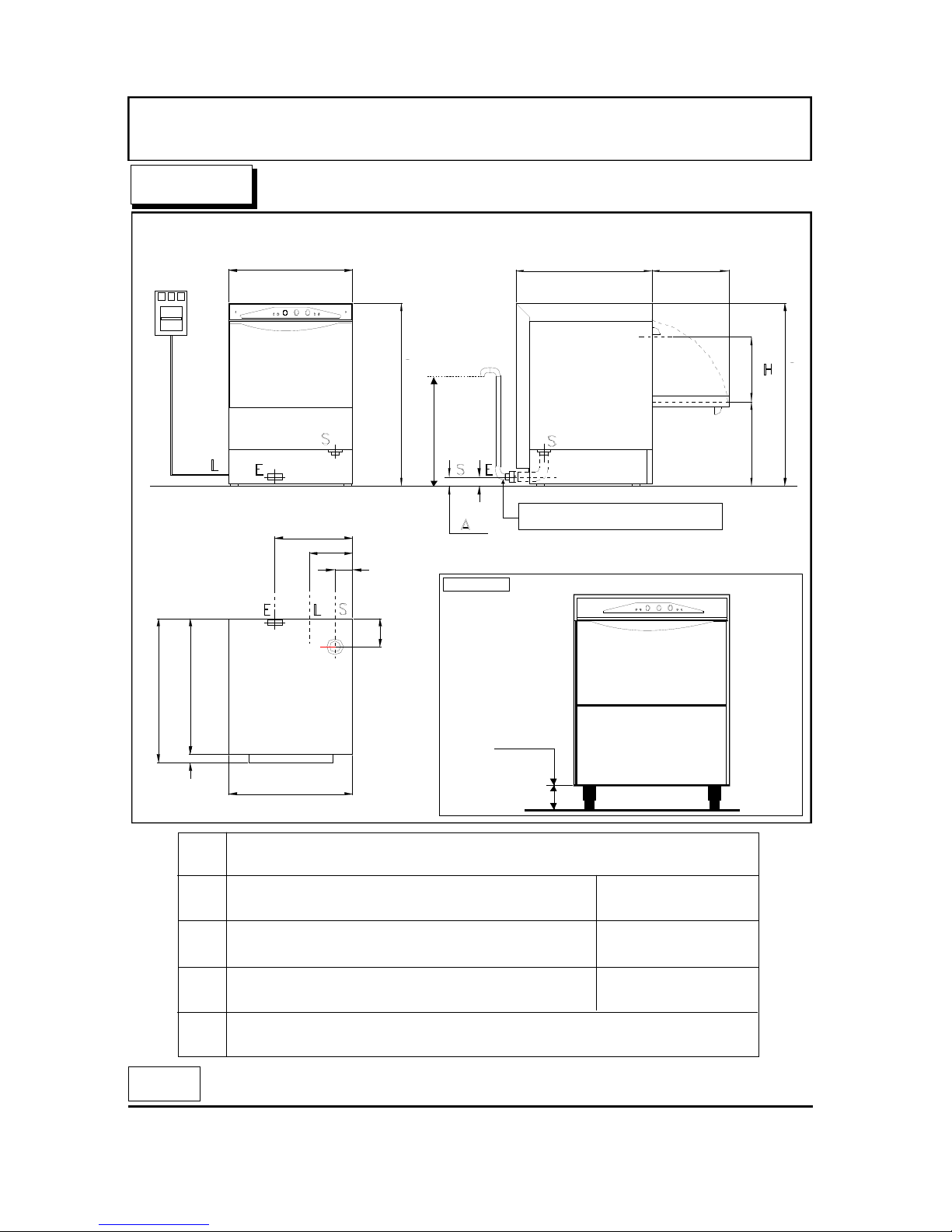

Connections scheme pag. 33
Wiring diagram pag. 34

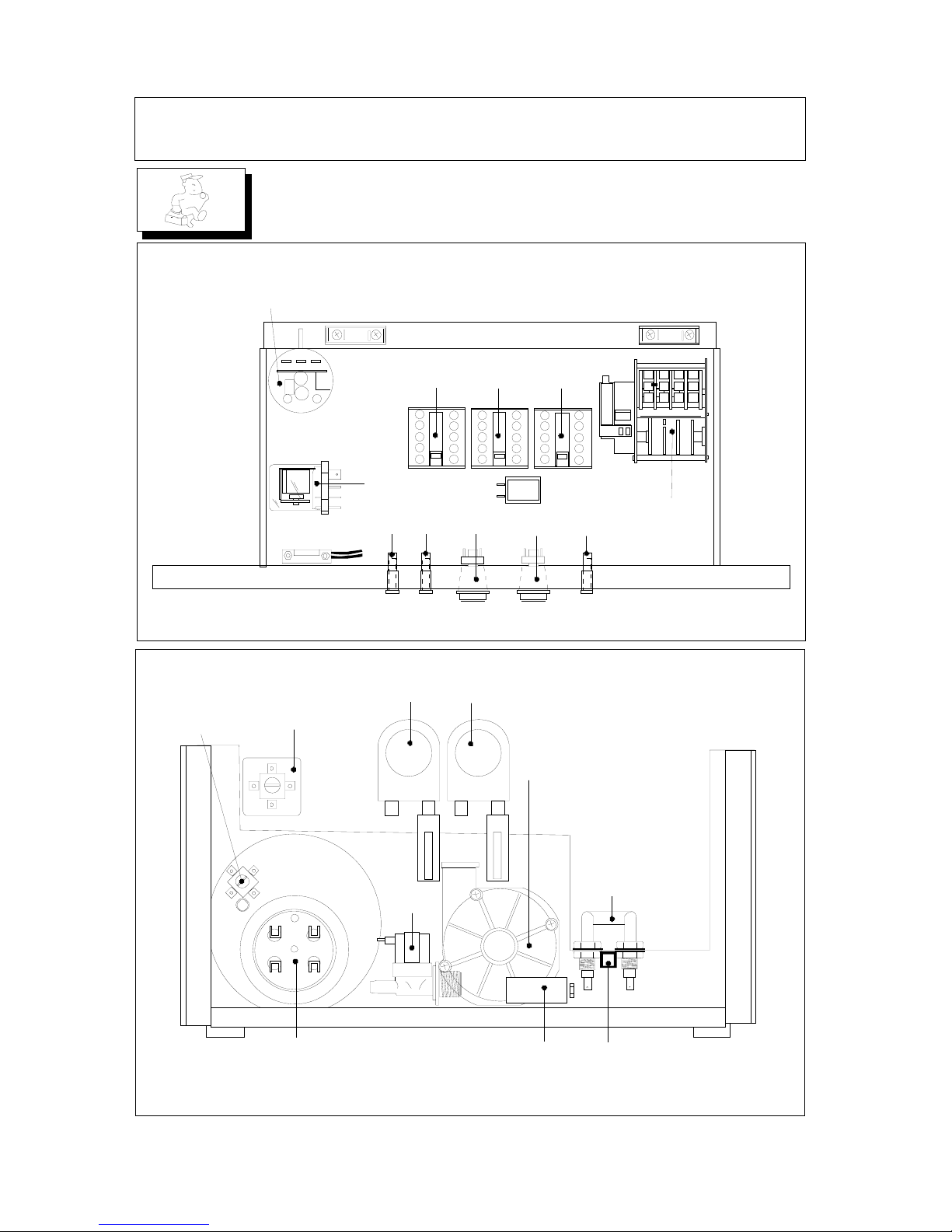

Components pag. 36
Specifications pag. 37

SOMMAIRE FRANÇAIS

Remarques générales pag. 05
Introduction et normes de securité pag. 07
Faites connaissance avec l'appareil pag. 08

Première partie - INSTRUCTIONS POUR L'UTILISATEUR pag. 09
Emploi contrôles pag. 10
Fonctionnement et emploi, detersifs, entretien, inconvenients pag. 15
Placement de la vaisselle pag. 17

Deuxième partie - Instructions pour l'installateur: pag. 23
Installation pag. 24
Branchement hydraulique, vidange, branchement electrique pag. 29
Substitution du produit lessiviel et nettoyage des tuyaux du doseur de lavage pag. 31
Schema branchements pag. 33
Schema electrique pag. 34
Composants pag. 36
Données techniques pag. 37

WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT DIRECTIVE (WEEE,RAEE in Italy) WASTE

OF ELECTRICAL AND ELECTRONIC EQUIPMENT DIRECTIVE (WEEE,RAEE in Italy) 2002/96/EC AND
SUBSEQUENT 2003/108/EC

The marking shown below indicates that the product cannot be disposed of as part of normal household waste.
Electrical and Electronic Equipment (EEE) can contain materials harmful to health and the environment, and therefore
is subject to separate waste collection: it must be disposed of at appropriate waste collection points or returned to the
distributor against purchase of new equipment of similar type or having the same functions.
The directive mentioned above, to which make reference for further details, provides for punitive actions in case of
illegal disposal of such waste.

Lamber guarantees a percentage of recovery at least of 90% in medium weight for each equipment. The 80% - always
as regards the medium weight- of recovered material is recycled or reused.
LAMBER, manufacturer of this equipment, is enrolled in the Italian WEEE Register – the Register of Producers of
Electrical and Electronic Equipment- from the 18

th

/02/2008 with the number IT08020000000617.

DIRECTIVE “RAEE” 2002/96/CE ET MODIFICATIONS SUCCESSIVE 2003/108/CE CONCERNANT LES
REBUTS D’APPAREILLAGES ÉLECTRIQUES ET ÉLECTRONIQUES

Le symbole ci-dessous indique que le produit ne peut pas être éliminé comme un normal déchet urbain.
Les appareillages électriques et électroniques (AEE) peuvent contenir des matériaux nocifs pour l’envirronnement et la
santé et doivent donc être objet de collecte différenciée : éliminés donc auprès de dècharges prévues à cet effet ou
rendus au distributeur pour l’achat d’un nouveau, de type équivalent ou ayant les mêmes fonctions.
La réglementation susmentionnée, à laquelle nous vous renvoyons pour les détails et les approfondissements
ultérieurs, prévoit des sanctions pour la mise en décharge abusive des dits rebuts.

Lamber garantie une pourcentage de récupération au moins du 90% du poids moyen pour appareillage. Le 80% ­toujours par rapport au poids moyen pour appareillage – du matériel récupéré est recyclé ou remployé.
LAMBER, constructeur du présent appareillage, est inscrit dans le Bureau National des producteurs de AEE
(Appareillages Electriques et Electroniques) à partir du 18/02/2008 avec le numéro IT08020000000617

GENERAL NORMS ENGLISH

Tank You for purchasing our Dishwashing/Glasswashing Machine.
Perfect washing-up results as far as hygiene concerns and a correct operation of the dishwashing machine
can be assured only in case the instructions reported in the present manual are carefully followed.
We hope the information reported in the present manual will be helpful to You.
They are based on data and our best updated knowledge.
Carefully read the Instructions reported in the manual, recommendations and suggestions included.
Carefully read the terms of sale too, the ones limiting warranty included.
Should the customer need to address the Manufacturer or its servicing centres, always quote the serial
number.
Please write your machine serial number here: Model______________Serial number______________

REMARQUES GENERALES FRANÇAIS

Nous Vous remercions de Votre choix lors de l'achat de votre LAVE-VAISSELLE/LAVE-VERRES.
Le fonctionnement parfait de l'appareil et les résultats de lavage optimaux sous le profil hygiénique
sanitaire,peuvent seulement être garantis si tous les avertissements dans ce manuel-ci sont respectés.
Nous souhaitons que les renseignements contenus dans ce manuel vous soient utiles. Ils sont basés sur les
donneés et sur notre meilleure connaissance actuelle.
Lisez attentivement ce qui est énancé dans le manuel, y compris les recommandations et les suggestions.
Lisez aussi les conditions de vente, y compris celles qui limitent la garantie.
Pour n’importe quelle comunication avec le Producteur ou ses centres d’assistance, mentionner le numéro
de matricule.
Rapporter ci-après le numéro de matricule: Modèle______________ Matricule_______________

6

INTRODUCTION ENGLISH
AND SAFETY NORMS

INTENDED USE

The glasswasher/dishwasher may only be used for cleaning cups, and similar restaurant ware and commercial catering.
Any change in design or use of the dishwasher carried out without the written permission will lead to warranty nullification.
If damage is caused to the glasswasher due to failure to observe the instructions given in this manual, no claims under
the warranty agreement can be submitted to.

PRELIMINARY OBSERVATION

Carefully read the instructions reported in the present user manual, as it gives important indications about safety of
installation, operation and maintenance:

- carefully keep the present manual for further consultations;

- the illustrations and drawings showing the machine are intended for general reference only and are not
necessarily accurate in every particular;

- the dimensions and characteristics of the machine, given in this Manual, are not to be considered binding and
may be changed without prior notice;

- having removed the packing material, check that all the equipment is present. If there is any doubt, do not use it
and contact qualified personnel. The packing elements (plastic bags, nails, etc.) should be kept away from
children, because they are dangerous.

GENERAL SAFETY REGULATIONS

THIS SAFETY CODE HAS BEEN COMPILED IN YOUR INTEREST. Strict adherence to these rules will reduce the risks
of injury both to yourself and to others;
Personnel working with this machine must adhere strictly to all statutory safety regulations as well as the specific rules
listed below. Failure to do so may result in personal inyury and damage to the machine;

- DO NOT attempt to move, install, set-up or operate this machine until you have read and fully understood this
Manual. If doubt persists, ask your supervisor;

- never leave tools, parts or other loose material on or in the machine;

- Before switching the equipment the equipment on, make sure that the model plate data conforms to that of the
electrical and water distribution network;

- remember that even with the mains isolator in the “OFF” position, the incoming cables are still live;

- BEFORE starting machine o cycle, after any maintenance or repair work, make sure all protective are correctly
installed;

- be vigilant at all times, remember that your safety and that of your fellow workers depend on you;

- when moving or lifting the machine, care must be taken to comply with all the relevant regulations governing such
operations;

- installation should be carried out by qualified personnel according to the manufacturer's instructions.

- this equipment should be destined to the use which it has been conceived for. Any other application should be
considered improper and consequently dangerous;

- the equipment should only be used by personnel trained for its use;

SPECIAL SAFETY REGULATIONS

- adjustement and repairs must be carried out only by personnel qualified. Repair carried out by unskilled personnel
may be dangerous;

- perfect washing-up results as far as hygiene concerns and a correct operation of the washing machine can be
assured only in case the instructions reported in the present handbook are carefully followed;

- the machine must be only used by authorized personnel which must comply with sanitary measures;

- do not leave the machine in environment with temperatures inferior to 0°C;

- the machine protection degree is IP21, therefore it should not be washed with direct high pressure jets of water;

- If the power cable is defective, it must be replaced by your manufacturer or by a technical assistance

service or by a qualified technician in order to avoid risks.

RESIDUAL RISK

Although the appliance is equipped with the above-mentioned safety devices, danger of burns to upper limbs persists.
As already mentioned in the paragraph “DURING WASHING OPERATIONS”, avoid dipping your naked hands into soapy
hot water of the tanks. This can cause burns and skin irritations.
In this case, immediately rinse them with plenty of water.Anyway consult the product card of the detergent employed.

7

INTRODUCTION FRANÇAIS
ET NORMES DE SECURITE'

EMPLOI DE LA MACHINE

Le lave-vaisselle/lave-verres peut être utilisé seulement pour le lavage des assiettes, tasses, et vaisselle similaire des
restaurants et de la restauration collective. Tout changement dans design ou emploi de la lave-vaisselle fait sans
l’autorisation écrite du constructeur va annuler la garantie.
Si le dommage à la lave-vaisselle est causé par une insuffisante ou mauvaise observation des instructions qui se
trouvent dans ce manuel d’instructions, aucune garantie ne sera accordée.

REMARQUES PRELIMINAIRES

Lisez attentivement les notices contenues dans ce mode d'emploi, car elles fournissent d'importantes indications

concernant la sécurité d'installation, d'emploi et d'entretien.

- Garder avec soin ce livret pour toute consultations ultérieure des divers opérateurs;

- Les illustrations et les dessins qui moutent l'appareil ne sont à considérer que comme des points de refrére
génériques et ne sont pas nécessairement soignés dans tous les détails;

- Les dimensions et les caractéristiques signalées dans ce manuel ne sont pas contraignantes et peuvent être
modifiées sans announce préalable.

- Après avoir enlevé l'emballage, il faut s'assurer de l'état de l'appareil. En cas de doute, ne pas l'utiliser et
s'adresser à votre revendeur. Les éléments de l'emballage (sachets en plastique, polystyrène expansé, clous,
etc.), ne doivent pas être laisséz à la portée des enfants;

NORMES GÉNÉRALES DE SÉCURITÉ

Cette liste de normes a été établie dans votre intérét. Le respect de ces normes réduira les risques d'accidents pour
vous-mêmes et pour les autres.
Le personnel opérant sur cette machine doit rigoureusement respecter toutes les normes générales de sécurité et les
normes spécifiques décrites ci-dessous. Le non respect de ces normes peut être cause des lésions personnelles et des
endommagements sur la machine.

- Ne pas essayer de déplacer, installer, mettre au point ou actionner la machine avant d'avoir lu et avoir pleinement
compris le contenu du manuel. En cas de doutes, s'adresser à son supérieur.

- Ne jamais laisser ustensiles, objets ou autre matériel sur la machine ou à l'intérieur de cette dernière.

- Avant de brancher l'appareil, s'assurer que les donnés de la plaque correspondent à celles du réseau
d'alimentation électrique et hydraulique.

- Se souvenir que même lorsque l'interrupteur général est sur la position "0", les câbles d'alimentation sont sous
tension.

- AVANT d'actionner la machine ou de réactiver le cycle de production à la suite d'opérations d'entretien ou de
réparation, s'assurer que tous les abris et couvertures de protection soient correctement installés.

- L'installation doit être effectuée selon les indications du constructeur par l'intermédiaire d'un personnel qualifié.

- Cette machine devra être destinée uniquement à l'utilisation pour laquelle elle a été conçue. Tout autre usage est
considéré impropre et donc dangereux;

- Cette machine doit être utilisée uniquement par des personnes qui ont appriis à l'utiliser.

NORMES SPÉCIALES DE SÉCURITÉ

- Les réglages et les réparations ne doivent être effectués que par des personnes compétentes.

Les éventuelles réparations effectuées par des personnes non qualifiées peuvent être dangereuses.

- La sécurité de tout appareillage supplémentaire non directement fourni par la maison constructrice et utilisé en
même temps que la machine est sous la responsabilité de l'utilisateur.

- Les résultats parfaits de lavage sous l'aspect hygiénique et le fonctionnement correct de la machine pourront être
garantis si tous les conseils contenus dans le manuel présent seront respectés.

- Le personnel préposé à la manipulation des vaisselles après le lavage doit respecter rigoureusement les normes
d'hygiène en vigueur.

- Ne pas utiliser la machine dans un endroit ou la température est inférieure à 0°C.

- L'indice de protection de la machine est IP21. Elle ne doit pas être lavée au jet d'eau direct à haute pression.

- Si le câble d'alimentation est défectueux, procéder à son remplacement par le fabricant ou par

le service d'assistance technique ou bien par un technicien qualifié afin de prévenir tout
risque.

AUTRES RISQUES

Même si la machine est munie des dispositifs de sécurité cités plus haut, le risque de brûlures aux membres supérieurs
est néanmoins présent. Ainsi que nous l'avons déjà expliqué dans le paragraphe PRECAUTIONS PENDANT LE
LAVAGE, il ne faut jamais plonger les mains nues dans l'eau savonneuse et chaude des cuves. Ceci pourrait provoquer
des brûlures et des irritations cutanées. Si cela devait arriver, les rincer immédiatement et abondamment sous l'eau
courante. Consulter en tous les cas la fiche du produit détergent utilisé.

8

descr-DSP3-ul-2010

S tainl es s ste el Uppe r fix ed ri ns in g
Rinçage supérieur fixe en acier inoxydable

Learn to use the appliance

Faites connaissance avec l'appareil

Control panel

Panneau de contrôle

S tainl es s ste el Lowe r ro tati ng washin g
Lavage in férieur rotatif en acier inoxydable

Ta nk filter

Filtre cuve

Stainless steel Suction pump filter

Filtre aspiration pompe en acier inoxydable

Overflow

Trop-plein

Washi ng pump
Pompe Lavage

Detergent pump
Doseu r de lavage

Rinse-aid pump
Doseur produit de rinç ag e

Body,tank and Top in Stainless steel construction

Châssis, cuve et capot en acier inoxydable

S tainl es s ste el Boile r w ith in su lation
Surchauffeur isolé en acier inox

Tan k Heati ng el eme nt

Résist ance cuve

S tainl es s ste el Lowe r ro tati ng ri nsin g ( 90° )
Rinçage inférieur rotatif en acier inoxydable (cône 90°)

Tank drain

Vidange cuve

Rinsing solenoid valve
Electrovanne Rinçage

W at e r inl e t sol e n o id va lv e
Electrovanne Entrée d 'eau

INSTRUCTIONS FOR THE USER

INSTRUCTIONS POUR L'UTILISATEUR

Qc-DSP3-UL-2010

CONTROL PANEL

EMPLOI CONTROLES

DSP3

Main switch
Interrupteur général

Cycle pushbutton
Bouton cycle

Main switch lamp
Lampe indicatrice de ligne

Cycle lamp
Lampe indicatrice de cycle

Temperature lamp
Lampe température

PRESS ION 20psi +/- 5psi

Pressure-gauge
Manomètre pression

Rinse detergent display
Affichage produit de rinçage

Wash detergent display
Affichage produit de lavage

WASHING

LAVAGE

RINSI NG
RINÇAGE

Wash and rinse thermometers
Thermomètres température de lavage
et rinçage

11

ENGLISH

First Section - FOR THE USER

WORKING AND USE

The machine protection degree is IP21, therefore it should not be washed with direct high pressure jet water;
The objects to be washed should be correctly arranged for a good washing-up result;
We suggest to descale dishes, from time to time, in order to remove calcareous and/or starchy sediments
by soaking it in suitable solutions suggested by your cleansing agent supplier.
If you need to buy new dishes remember the following: Dishes and cups: preference must be given to
china or non-porous pottery articles, with smooth surface. Glasses: choose a glass suitable to be washed
in dish-washing machines. Surfaces must be smooth and bottoms the least concave possible.

OPERATION BEFORE WORKING

B

EFORE STARTING THE WORKING OPERATION BE

SURE THAT

:

- the cock is open;

- the filters and the overflow are in

their housings;

- the wash arm and the rinse arm are free to

pivot;

- brightener and washing powder dispenser

containers are loaded.

- Make sure the front door is .

- Be sure that the outer general feeding switch is

off.

T

HEN PROCEED:

1 - Press the main switch “A” to “I” position .

The lamp “G” will light up and the tank will be filled
with water.

Wait that the water entry rustling stops.

2 - If you put it in by hand, pour the detergent

onto the pump suction filter in the tank
(ask the detergent supplier for measuring!).
If the machine is provided with automatic devices
for measuring the additional liquid detergent,
check that there is product in the containers.

3 - Put the dishes/glasses into the baskets

after having carefully removed any solid and fat
waste. Leave cutlery to soak previously and
dishes too, if necessary, in case they are going to
be washed long after having been used. Do not

overload baskets, dishes do not have to be placed
one on another, water must be able to cover any
side of the dishes.
In order to place dishes properly, see the special
paragraph.

WASHING
4 - Put the basket with dishes/glasses into the

machine.

5 - Close the dishwasher door.
6 - Press the button “B” . The lamp “F” will

light up and confirm the cycle:WASHING­PAUSE-RINSING. The cycle lasts two
minutes.

During the whole cycle the warning light “F” will
stay alight, it will go out only at the end of the
cycle.

Before starting the cycle, check that the lamp “E”
is ON: it indicates that the washing water and the
rinsing water have reached the ideal working
temperature.

NOTE. STOP CYCLE function: the washing cycle can
be stopped if you push again the cycle pushbutton “B”
(light “C” flashing now) :
to restarting washing cycl push again button “B”.

Manuel self-cleaning cycle:

- Ensure that the tank is empty,

- Make sure that the machine is switched off

- Remove the overflowpipe from the tank

- Close the door of the diswasher

- Press button “A” to switch the machine on

- Self-cleaning cycle starts,

- You can stop it after 5 minutes by pushing button
“A” to switch the machine off.

12

(for Machine with drain pump the tank fills with water
and stops when maximum level is reached: empty the
tank manually and repeat the operation if needed).

WARNING! Do not open the dishwasher door
durino the washing cycle.

In case of accidental opening the cycle stops. If
You close the door, the cycle starts again from
the point where it had stopped.

At the end of the cycle open the door and pull out
the basket.

ACHIEVEMENTS

Any deficiency in the washing process is
apparent when dirty residuals are visible. Any
halos might be caused by an insuffucuent
rinsing: in this case, check that the rinsing jets
are clean and there is a sufficient pressure in
the water distribution network.
In the case that residuals are present, check
that:

• the washing jets are clean

• there is detergent

• the pump suction filter is clean

• the positions of the objects in the rack are

correct.

Adding Rinse Aid and Detergent

CAUTION: Only use detergent and rinse aid

which are suitable for commercial washers, a
non-foaming industrial alkaline detergent.
Do not use any soap intended for a residential
dishwasher. This leads to large amounts of foam
building up in the washer and will void your
manufacturers warranty.

CAUTION: Detergents for commercial
dishwashers cause corrosion. Always follow the
instructions on the packaging and drums.

CAUTION: Do not mix different detergent
products, this could cause the dosing pump to
break down due to crystallization.

CLEANSING AGENTS

Choice of the suitable cleansing agent is an
essential condition if you want to obtain
extremely good washing results as regards
hygienic results. It is then important to consider
some points. First of all only highly alkaline and
chlorine-active antifoam products, especially
made for industrial dish-washing machines,
must be used and they must be produced by
well-known reliable Firms. Mean concentration
of the cleansing agents in powder must be

1,5÷2,5 g/lt. Mean concentration of liquid
cleansing agents must be 2÷4 g/lt.
In order to avoid scales and corrosions, put the
cleansing agent above water level on the
nearest area of the sucking pump filter, in this
way it will immediately dilute and will not deposit
on the tank bottom.

NSF 3-2009 requirements for detergent and
chemical sanitizer dispensers

Feeders (rinse-aid, or detergent) are
OPTIONAL.
When provided see instructions on page 31 in
this manual.

SANIFICATION

At least each 30 days it would be useful to do this
operation which guarantees the complete hygienic
conditions of the machine. We suggest to contact your
cleansing agent supplier who will give you quantity
and name of the most suitable product you can use
and that, generally, is an active chloride powder
(100÷200 ppm).
In order to avoid damage to the machine do not
increase the quantities and, once operations end,
rinse abundantly.

DESCALING

When hard water is used you can find, inside the
machine and also on dishes, calcareous sediments
which must be removed both for hygienic and
operating reasons by a descaling operation.
Operating process and frequency of this intervention
are suggested by your cleansing agent supplier who
has suitable products, generally containing phosphoric
acid.
In order to avoid damage to the machine do not
increase the quantities and once operations end rinse
abundantly.

RINSING ADDITIVES

To grant a perfect rinsing, a quick drying and to avoid
calcareous sediments on glasses and cups you must
add a surfactant on water (Brightener).
Your cleansing agent supplier will be able to suggest
the most suitable product. Your machine is equipped
with a rinse aid dispenser. Mean concentration used
is 0,15 g/lt.
