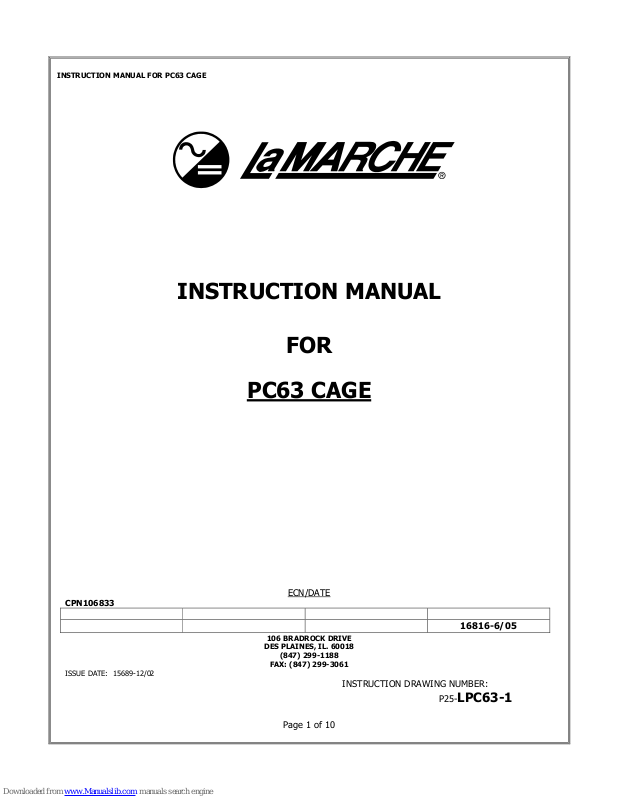

INSTRUCTION MANUAL FOR PC63 CAGE
Page 1 of 10
INSTRUCTION MANUAL
FOR
PC63 CAGE
ECN/DATE
CPN106833
16816-6/05
106 BRADROCK DRIVE
DES PLAINES, IL. 60018
(847) 299-1188
FAX: (847) 299-3061
ISSUE DATE: 15689-12/02
INSTRUCTION DRAWING NUMBER:
P25-
LPC63-1
Page 2
INSTRUCTION MANUAL FOR PC63 CAGE
Page 2 of 10
This manual contains important safety and operating instructions for the La Marche Power Conversion Equipment.
Before using this equipment, read all instructions and cautionary markings on (1) unit, (2) battery, and (3) product using
the battery.
CAUTION: To reduce risk of injury and/or damage to the batteries, use only the type of batteries specified
on the charger.
Do not
expose equipment to rain or snow.
Do not
operate equipment if it has received a sharp blow, been dropped, or otherwise damaged in any way;
take it to a qualified serviceman.
Do not
disassemble this unit; take it to a qualified serviceman when service or repair is required. Incorrect
re-assembly may result in a risk of electric shock or fire.
To reduce risk of electric shock, disconnect this unit from the d.c. supply, or batteries and loads before
attempting any maintenance or cleaning. Turning off controls will not reduce this risk.
WARNING – THERE IS A RISK OF EXPLOSIVE GASSES AND WORKING IN THE VICINITY OF A
BATTERY IS DANGEROUS. SOME BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL
BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT EACH TIME
BEFORE USING THIS UNIT, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
To reduce risk of battery explosion, follow these instructions and those published by the battery manufacturer and
manufacturer of any equipment you intend to use in the vicinity of the battery.
Review cautionary marking on all products.
PERSONAL PRECAUTIONS:
♦ Someone should be within range of your voice or close enough to come to your aid when you work near a battery.
♦ Have plenty of fresh water and soap nearby in case the battery electrolyte contacts skin, clothing, or eyes.
♦ Wear complete eye protection and clothing protection. Avoid touching eyes while working near a battery.
♦ If the battery electrolyte contacts skin or clothing, wash immediately with soap and water. If the electrolyte enters the
eye, immediately flood the eye with running cold water for at least ten (10) minutes and get medical attention
immediately.
♦ Never smoke or allow a spark or flame in vicinity of a battery.
♦ Be extra cautious to reduce risk of dropping a metal tool onto a battery. It might spark or short-circuit the battery or
other electric part that may cause an explosion.
♦ Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a battery. A battery
can produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn.
♦ NEVER charge a frozen battery.
IMPORTANT
SAFETY I
NSTRUCTIONS
FOR THE
LA MARCHE POWER CONVERSION EQUIPMENT
SAVE THESE INSTRUCTIONS
Page 3
INSTRUCTION MANUAL FOR PC63 CAGE
Page 3 of 10
PREPARING TO CHARGE
♦ If necessary to remove the battery connections, always remove grounded terminal from the battery first. Make sure
all loads are disconnected and unit is off, so as not to cause an arc.
♦ Be sure the area around the battery is well ventilated while the battery is being charged.
♦ When cleaning battery terminals, be careful to keep corrosion from coming in contact with eyes.
♦ Study all the battery manufacturer’s specific precautions such as removing or not removing cell caps while charging,
recommended rates of charge, and maintenance procedures.
UNIT LOCATION
♦ Never place this unit directly above the battery. Gases from the battery will corrode and damage equipment. A sealed
maintenance free or valve regulated lead acid (VRLA) may be placed below this equipment.
♦ Never allow the battery electrolyte to drip on this unit when reading the specific gravity or filling the battery.
♦ Do not operate this unit in a closed-in area or restrict ventilation in any way.
♦ Do not set a battery on top of this unit.
D.C. CONNECTION PRECAUTIONS
Connect and disconnect D.C. output cables only after setting all of this unit's switches to off position.
GROUNDING INSTRUCTIONS
This battery charger should be connected to a grounded, metal, permanent wiring system; or an equipment grounding
conductor should be run with circuit conductors and connected to equipment-grounding terminal or lead on battery
charger. Connections to battery should comply with all local codes and ordinances.
CAUTION: DO NOT PULL ON OUTPUT CABLES WHEN DISCONNECTION CHARGER FROM BATTERY
Page 4
INSTRUCTION MANUAL FOR PC63 CAGE
Page 4 of 10
RECEIVING INSTRUCTIONS
AND
GENERAL EQUIPMENT INFORMATION
CAUTION: To ensure safe installation and operation, the information given in the instruction manual
should be read and understood before installing or using the equipment.
RECEIVING INSTRUCTIONS
Unpacking and Inspection: Examine the shipping crate upon arrival. If there is obvious damage, describe on the receiving
documents. Within a few days after delivery, the equipment should be uncrated and carefully inspected for hidden
damages. When removing packaging material, be careful not to discard any equipment, parts, or manuals. If any damage
is detected you should:
1. File a claim with the carrier within five (5) days.
2. Send a copy of the claim to La Marche Mfg. Co.
3. Call La Marche Mfg. For a RETURN MATERIAL AUTHORIZATION NUMBER.
Failure to properly file a claim for shipping damages, or provide a copy of the claim to La Marche Mfg., may void warranty
service for any physical damages reported for repair.
HANDLING
WARNING: Equipment can be very heavy, and top-heavy. Use adequate manpower or equipment for handling. Until the
equipment is securely mounted, care must be used to prevent the equipment from being accidentally tipped over.
NOMENCLATURE PLATES
Each piece of La Marche Mfg. Equipment shipped is identified by part number on the nomenclature plate.
ADJUSTMENTS
All equipment is shipped from the factory fully checked and adjusted. Do not make any adjustments unless the equipment
has been powered-up and the settings have been determined to be incorrect.
SPARE PARTS
To minimize downtime during installation or normal service, it is advisable to purchase spare fuses, circuit boards and
other recommended components. Please refer to the list of recommended spare parts and their La Marche Mfg. Part
numbers included with the instruction manual. It is recommended that spare fuses be ordered for all systems.
To order spare parts, please contact La Marche Mfg. (847)-299-1188 during business hours and ask for the Parts
Department.
Page 5
INSTRUCTION MANUAL FOR PC63 CAGE
Page 5 of 10
Description:
The PC63 Cage is intended to be installed in a protected environment. The cage can have several
different combinations dependant as to what has been ordered. Either four A63s or two A63s and a
TPCD, can be inserted in a PC63 cage. The TPCD distribution panel is always inserted in the third
and fourth slot. The slots are numbered from 1 to 4 from left to right.
Although a PC63 cage can accept more than one A63 module, it does not need more than one to
power the load.
All A63 rectifiers must be plugged into the proper voltage cage. (i.e. 24V A63 into 24V PC63)
At least 6 inches of room should be provided in front and the rear of the PC63 cage for ventilation.
The PC63 cage can be mounted either in a 19” or 23” rack using the standard brackets provided. It
can be mounted flush to the rack or midway.
Typical Model # Slot 1 Slot 2 Slot 3 Slot 4
PC63-60-48V-130V 48V A63 48V A63 48V A63 48V A63
PC63-120-24V-130V 24V A63 24V A63 24V A63 24V A63
PC63-30-48V-130V 48V A63 48V A63 TPCD DISTRIBUTION CENTER
PC63-60-24V-130V 24V A63 24V A63 TPCD DISTRIBUTION CENTER
PC63-120-12V-130V 12V A63 12V A63 12V A63 12V A63
Input DC:
The A63 module has the input voltage range from 105Vdc to 150Vdc. No taps, jumpers, straps or
circuit breakers need to be changed. The input d.c. voltage terminal block is located on the backside
of the cage. (Each A63 converter has an input d.c. breaker.) Each converter draws approximately 10
amps.
Output DC with A63 Converters ONLY –
no distribution center (TPCD)
:
All A63 outputs are paralleled and brought to the PC63 cabinet d.c. output terminals. When
connecting the PC63 cage to the termination split buss, use both terminals located on the back of the
PC63 cage. Each terminal block will provide 60A of current up to a total of 120A.
The rear panel of the PC63 does not have to be removed to connect to the d.c. output terminals.
Remove the d.c. terminal cover to gain excess to the d.c. terminals. The d.c. cables can be passed
thru the holes on the PC63 cage or ½” conduit can be attached to the PC63 cage at the Feed Thru
holes. Remove the rear panel to access the rectifier failure alarm (RFA) terminals.
Page 6
INSTRUCTION MANUAL FOR PC63 CAGE
Page 6 of 10
MODEL DC OUTPUT OF PC63 CAGE Wire Gauge guide for runs less then
10FT
PC63-60-48V-130V 60A, 48V #8 from one Terminal Block
PC63-120-24V-130V
120A, 24V
#8 from both Terminal Blocks to a
Termination Buss Bar
PC63-120-12V-130V
120A, 12V
#8 from both Terminal Blocks to a
Termination Buss Bar
PC63-30-48V-130V
(PC63 with a TPCD)
30A, 48V
Wiring is depend on Fuse or Circuit Breaker
size in TPCD
PC63-60-24V-130V
(PC63 with a TPCD)
60A, 24V
Wiring is depend on Fuse or Circuit Breaker
size in TPCD
For wire distances exceeding 10 feet between the battery and unit or load and the unit refer to the
Power Cabling Formulas in the back of manual to determine the wire size.
Observe Proper Battery Polarity
The negative wire from the battery must be connected to the terminal marked negative, (-) and the
positive wire from the battery must be connected to the terminal marked positive (+) on the rear of
the PC63 cage.
If the cage is set up to accept a TPCD, connect the negative wire from the battery must be connected
to the terminal marked negative, (-) and the positive wire from the battery must be connected to the
terminal marked positive (+) on the rear of the TPCD.
Output DC with distribution center (TPCD):
Connect positive and negative wires from TPCD to the back plane of the cage (OBSERVE PROPER
POLARITY). Connect load positive to common load positive buss bar. Connect negative to load
negative terminal block.
Rectifier Failure Alarm Terminal:
The rectifier failure alarm terminals RFA1 and RFA2 are located on the rear of the PC63 cage. Each
A63 has a separate rectifier failure dry form “C” contact labeled A, B, and C. A to B is the normally
open contact and B to C is the normally closed contact. The maximum wire size for the alarm terminal
blocks is 12 gauge. The contacts are rated at 0.4 amps @ 120Vac or 1.25 amps @ 24 Vdc.
The rectifier failure is alarmed, with a loss of d.c. input voltage, low d.c. output voltage, high output
d.c. voltage, high temperature or improperly inserted A63 module.
Power Cabling
All electrical connections must conform to the National Electric Code and all local building and
electrical codes.
Page 7
INSTRUCTION MANUAL FOR PC63 CAGE
Page 7 of 10
INSTALLERS INFORMATION
The table below lists the a.c. and the d.c. minimum wire size requirements. At distances exceeding 10
feet, the d.c. wire size should be chosen to keep the voltage difference between the unit's terminals
and the battery at less than 1/2 volt when the unit is fully loaded. If the distance between the unit
and the battery exceeds 10 feet, use the Power Cabling Formulas to determine wire size.
WIRE SIZE TABLE
(Based upon unit fuse size)
FUSE
SIZE
WIRE SIZE
REQUIREMENT
CUSTOMER
CONNECTION
EQUIPMENT
GROUNDING
CONDUCTOR
MINIMUM
FUSE
SIZE
WIRE SIZE
REQUIREMENT
CUSTOMER
CONNECTION
EQUIPMENT
GROUNDING
CONDUCTOR
MINIMUM
1 #14 #14 150 #1 #6
3 #14 #14 175 #1/0 #6
4 #14 #14 200 #2/0 #6
5 #14 #14 225 #2/0 #4
6 #14 #14 250 #4/0 #4
10 #14 #14 300 250-MCM #4
15 #12 #12 350 350-MCM #2
20 #12 #12 400 400-MCM #2
25 #10 #12 450 500-MCM #2
30 #10 #10 500 600-MCM #2
35 #8 #10 600 900-MCM #1
40 #8 #10 700 1500-MCM 1/0
45 #8 #10 800 2/500-MCM 1/0
50 #8 #10 1000 2/800-MCM 4/0
60 #6 #10 1200 2/1000-MCM 4/0
70 #6 #8 1600 2/2000-MCM 4/0
80 #4 #8 2000 250-MCM
90 #4 #8 2500 350-MCM
100 #4 #8 3000 400-MCM
110 #2 #6 4000 500-MCM
125 #2 #6 5000 700-MCM
130 #2 #6 6000 800-MCM
NOTE: These are recommended wire sizes. All National and Local Wiring Codes must be followed.
Page 8
INSTRUCTION MANUAL FOR PC63 CAGE
Page 8 of 10
POWER CABLING FORMULAS
WIRE GAUGE TABLE
SIZE
AWG
AREA
CIR.
MILS
SIZE
MCM*
AREA
CIR.
MILS
18 1620 250 250000
16 2580 300 300000
14 4110 350 350000
12 6530 400 400000
10 10380 500 500000
8 16510 600 600000
6 26240 700 700000
4 41740 750 750000
3 52620 800 800000
2 66360 900 900000
1 83690 1000 1000000
0 105600 1250 1250000
00 133100 1500 1500000
000 167800 1750 1750000
0000 211600 2000 2000000
*Denotes all sizes larger than #0000 are expressed in MCM.
TABLE OF CONVENTIONS:
CMA = Cross-section of wire in circular MIL area.
A = Ultimate drain in amperes.
LF = Conductor loop feet.
MAX AMP = Maximum allowable amperes for given voltage drop.
CMA = Cross section of wire in circulate MIL area.
AVD = Allowable voltage drop.
LF = Conductor loop feet.
K = 11.1 Constant factor for commercial (TW Type) copper wire (KS5482-01).
= 17.4 for aluminum (KS20189)
1. Calculating Wire Size Requirements..................................................CMA= A x LF x K
AVD
2. Calculating Current Carrying Capacity of Wire..........................Max Amp = CMA x AVD
LF x K
SOURCE: HANDBOOK 100-NATIONAL BUREAU OF STANDARDS
NOTE: ALL WIRE #6 AND LARGER IS STRANDED.
Page 9
INSTRUCTION MANUAL FOR PC63 CAGE
Page 9 of 10
General Maintenance Procedure
Yearly
1. Blow out rectifier/inverter with a low-pressure air hose.
2. Make sure all connections are tight.
3. Perform a visual check on all internal components.
4. Check front panel meters and alarms for accuracy.
4th Year
REPEAT ABOVE WITH THE ADDITION OF:
1. Check relay contacts for pitting or corrosion.
2. Check capacitors for leakage.
7th Year
REPEAT ALL, WITH THE ADDITION OF:
1. Filter, resonating capacitors and control relays should be replaced.
10th Year
REPEAT ALL WITH THE ADDITION OF:
(except replacing capacitors and control relays, they should be replaced every 7 years)
1. Check magnetics, components and wiring for signs of excessive heat.
Page 10
INSTRUCTION MANUAL FOR PC63 CAGE
Page 10 of 10
MANUFACTURER’S WARRANTY
All La Marche Manufacturing Co. equipment has been thoroughly tested and found to be in proper operating condition
upon shipment from the factory and is warranted to be free from any defect in workmanship and material that may
develop within two (2) years from date of purchase under normal use.
If the equipment proves defective within a two year period, it shall be replaced without charge after examination at our
factory, providing such defect in our opinion, is due to faulty material or workmanship and not caused by tampering,
abuse, misapplication or improper installation.
Should the equipment require major replacement or repair, the equipment must be returned to the La Marche factory to
have the inspections, parts, replacements and testing performed by factory personnel. Should it be necessary to return a
piece of equipment to the factory, the customer or Sales representative must first obtain a RMA (Return Material
Authorization) from the factory. If upon inspection at the factory, the defect was due to faulty material or workmanship,
all repairs will be made at no cost to the customer during the warranty period.
All internal maintenance to be performed by La Marche. Warranty is void if seal is damaged.
La Marche reserves the right to honor the warranty with a replacement unit.
In accepting delivery of the equipment, the purchaser assumes full responsibility for proper installation, installation
adjustments and service arrangements. Should minor adjustments be required, the local La Marche Sales Representative
should be contacted to provide this service.
All sales are final. Only standard LaMarche units will be considered for return. A 25% restocking fee is charged when
return is factory authorized. Special units are not returnable.
In no event shall La Marche Manufacturing Co. have any liability for consequential damages, or loss, damage or expense
directly or indirectly arising from the use of the products, or any inability to use them either separately or in combination
with other equipment or materials, or from any other cause. In addition, any alterations of equipment made by anyone
other than La Marche Manufacturing Co. renders this warranty null and void.
La Marche Manufacturing Co. reserves the right to make revisions in current production of equipment, and assumes no
obligation to incorporate these revisions in earlier models.
The failure of La Marche Manufacturing Co. to object to provisions contained in customers' purchase orders or other
communications shall not be deemed a waiver of the terms or conditions hereof, nor acceptance of such provisions.
The above warranty is exclusive, supersedes and is in lieu of all other warranties, expressed or implied, including any
implied warranty of merchantability or fitness. No person, agent or dealer is authorized to give any warranties on behalf of
the Manufacturer, nor to assume for the Manufacturer any other liability in connection with any of its products unless
made in writing and signed by an official of the manufacturer.
Loading...
