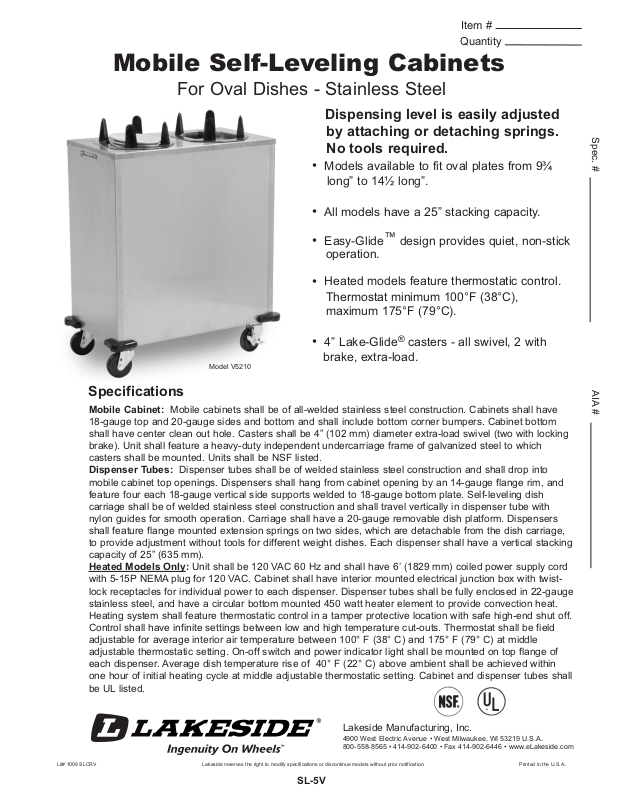

Lakeside Foodservice V5210 Specifications
Item #
uantity
Q
Mobile Self-Leveling Cabinets
For Oval Dishes - Stainless Steel
Dispensing level is easily adjusted
by attaching or detaching springs.
No tools required.
Models available to fit oval plates from 9¾
•
long” to 14½ long”.
All models have a 25” stacking capacity.
•
Easy-Glide™design provides quiet, non-stick
•
operation.
Heated models feature thermostatic control.
•
Thermostat minimum 100°F (38°C),
maximum 175°F (79°C).
Spec. #
4” Lake-Glide®casters - all swivel, 2 with
•
brake, extra-load.
Model V5210
Specifications
Mobile Cabinet: Mobile cabinets shall be of all-welded stainless steel construction. Cabinets shall have
18-gauge top and 20-gauge sides and bottom and shall include bottom corner bumpers. Cabinet bottom
shall have center clean out hole. Casters shall be 4” (102 mm) diameter extra-load swivel (two with locking
brake). Unit shall feature a heavy-duty independent undercarriage frame of galvanized steel to which
casters shall be mounted. Units shall be NSF listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop into
mobile cabinet top openings. Dispensers shall hang from cabinet opening by an 14-gauge flange rim, and
feature four each 18-gauge vertical side supports welded to 18-gauge bottom plate. Self-leveling dish
carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with
nylon guides for smooth operation. Carriage shall have a 20-gauge removable dish platform. Dispensers
shall feature flange mounted extension springs on two sides, which are detachable from the dish carriage,
to provide adjustment without tools for different weight dishes. Each dispenser shall have a vertical stacking
capacity of 25” (635 mm).
Heated Models Only
with 5-15P NEMA plug for 120 VAC. Cabinet shall have interior mounted electrical junction box with twistlock receptacles for individual power to each dispenser. Dispenser tubes shall be fully enclosed in 22-gauge
stainless steel, and have a circular bottom mounted 450 watt heater element to provide convection heat.
Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut off.
Control shall have infinite settings between low and high temperature cut-outs. Thermostat shall be field
adjustable for average interior air temperature between 100° F (38° C) and 175° F (79° C) at middle
adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of
each dispenser. Average dish temperature rise of 40° F (22° C) above ambient shall be achieved within
one hour of initial heating cycle at middle adjustable thermostatic setting. Cabinet and dispenser tubes shall
be UL listed.
: Unit shall be 120 VAC 60 Hz and shall have 6’ (1829 mm) coiled power supply cord
AIA #
Lakeside Manufacturing, Inc.
4900 West Electric Avenue • West Milwaukee, WI 53219 U.S.A.
800-558-8565 • 414-902-6400 • Fax 414-902-6446 • www.eLakeside.com
Lit# 1009 SLCRV Lakeside reserves the right to modify specifications or discontinue models without prior notification. Printed in the U.S.A.
SL-5V
Mobile Self-Leveling Cabinets
For Oval Dishes - Stainless Steel
Side
View
Dimensions
V6210
V6211
V6212
V6213
V6214
Heated
(58.0)
(59.4)
(60.3)
(61.2)
(62.6)
Unheated
Model Ship Wt. Model Ship Wt. W L H
V5210
V5211
V5212
V5213
V5214
101
(45.8)
103
(46.7)
106
(48.0)
108
(49.0)
111
(50.3)
Spec. # AIA #
Two Stack Models
128
131
133
135
138
6¾” x 9¾ to 7¾” x 10½”
8” x 10¾ to 8½” x 11½”
8¾” x 11¾ to 9¼” x 12½”
9½” x 12¾ to 10¼” x 13½”
9¾” x 13¾ to 10¾” x 14½”
Accommodates
Oval Plate Size
Measurements in ( ) denote metric millimeters, unless otherwise specified.
End
View
AutoCAD drawings available through KCL CADalog
Dimensions
20¾
(527
20¾
(527
20¾
(527
20¾
(527
22¾
(578
36½”
927
36½”
927
36½”
927
36½”
927
40½”
1028
Top
View
40”
1013)
40”
1013)
40”
1013)
40”
1013)
40”
1013)
Optional Accessories
• 220 VAC 50Hz
• 208/240 VAC 60Hz
• 8” (203 mm) vertical one-piece push handle
HEATED MODELS
Electrical Specifications
900 Watts, 7.5 Amps, 120VAC
• Bottom perimeter bumper
Lakeside Manufacturing, Inc.
4900 West Electric Avenue • West Milwaukee, WI 53219 U.S.A.
800-558-8565 • 414-902-6400 • Fax 414-902-6446 • www.eLakeside.com
Lit# 1009 SLCRV Lakeside reserves the right to modify specifications or discontinue models without prior notification. Printed in the U.S.A.
SL-5V
