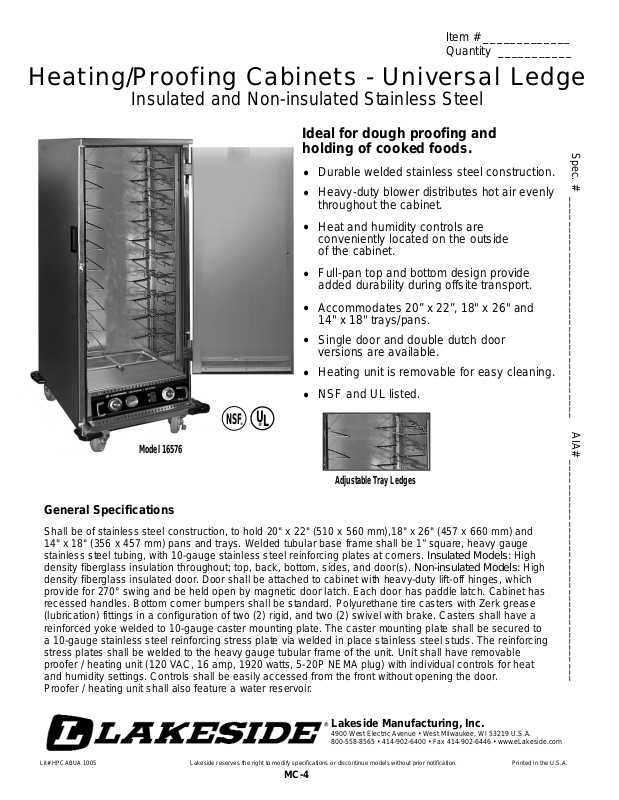

Lakeside Foodservice 16576 Specifications
Heating/Proofing Cabinets - Universal Ledge
Insulated and Non-insulated Stainless Steel
Item # _____________
Quantity ___________
Lakeside Manufacturing, Inc.
4900 West Electric Avenue • West Milwaukee, WI 53219 U.S.A.
800-558-8565 • 414-902-6400 • Fax 414-902-6446 • www.eLakeside.com
MC-4
Lit# HPCABUA 1005 Lakeside reserves the right to modify specifications or discontinue models without prior notification. Printed in the U.S.A.
General Specifications
Shall be of stainless steel construction, to hold 20" x 22" (510 x 560 mm),18" x 26" (457 x 660 mm) and
14" x 18" (356 x 457 mm) pans and trays. Welded tubular base frame shall be 1” square, heavy gauge
stainless steel tubing, with 10-gauge stainless steel reinforcing plates at corners. Insulated Models: High
density fiberglass insulation throughout; top, back, bottom, sides, and door(s). Non-insulated Models: High
density fiberglass insulated door. Door shall be attached to cabinet with heavy-duty lift-off hinges, which
provide for 270° swing and be held open by magnetic door latch. Each door has paddle latch. Cabinet has
recessed handles. Bottom corner bumpers shall be standard. Polyurethane tire casters with Zerk grease
(lubrication) fittings in a configuration of two (2) rigid, and two (2) swivel with brake. Casters shall have a
reinforced yoke welded to 10-gauge caster mounting plate. The caster mounting plate shall be secured to
a 10-gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing
stress plates shall be welded to the heavy gauge tubular frame of the unit. Unit shall have removable
proofer / heating unit (120 VAC, 16 amp, 1920 watts, 5-20P NEMA plug) with individual controls for heat
and humidity settings. Controls shall be easily accessed from the front without opening the door.
Proofer / heating unit shall also feature a water reservoir.
Ideal for dough proofing and
holding of cooked foods.
•
Durable welded stainless steel construction.
•
Heavy-duty blower distributes hot air evenly
throughout the cabinet.
•
Heat and humidity controls are
conveniently located on the outside
of the cabinet.
•
Full-pan top and bottom design provide
added durability during offsite transport.
•
Accommodates 20” x 22”, 18" x 26" and
14" x 18" trays/pans.
•
Single door and double dutch door
versions are available.
•
Heating unit is removable for easy cleaning.
•
NSF and UL listed.
Spec. # ____________________________________ AIA# ____________________________________
Model 16576
Adjustable Tray Ledges
C
U
L
®
NSF
®
Heating/Proofing Cabinets - Universal Ledge
Insulated and Non-insulated Stainless Steel
Lakeside Manufacturing, Inc.
4900 West Electric Avenue • West Milwaukee, WI 53219 U.S.A.
800-558-8565 • 414-902-6400 • Fax 414-902-6446 • www.eLakeside.com
MC-4
Lit# HPCABUA 1005 Lakeside reserves the right to modify specifications or discontinue models without prior notification. Printed in the U.S.A.
Insulated Models
Pan Capacity Ledge Door Overall Size Case Weight
Models Full Size Half Size Spacing Type W D H (A) Lbs. (kg)
16574 4 8 4.5” Single 28” 34” 33” 190 (86)
(114) (711 864 838)
16575 6 12 4.5” Single 28” 34” 42” 250 (114)
(114) (711 864 1067)
16576 10 20 4.5” Single 28” 34” 60” 280 (127)
(114) (711 864 1524)
16577 12 24 4.5” Single 28” 34” 69” 310 (141)
(114) (711 864 1753)
Non-insulated Models
Options
• Full Perimeter Bumper
• All Swivel Lake Glide Casters
• Floor Lock Centered (6” Casters)
• Additional Tray Slides
• Transport Latch
• Magnetic Latch
• Dutch Doors (Models 16577 and 6577)
• Clear Polycarbonate Door
• Vented Doors (single door only)
• Left-Hand Door Hinging
• Voltage 220 Volt, 50/60 Hz, Single Phase
• Transport Package
AIA# ____________________________________ Spec.# ___________________________________
Universal Slides Accommodate
The Following Per Slide:
1 ea. 18” x 26” Pan
1 ea. 15” x 20” Tray
1 ea. 16” x 22” Tray
1 ea. 20” x 22” Pan
2 ea. 14” x 18” Pan
2 ea. 13” x 18” Pan
2 ea. 12” x 20” Pan (3” Deep)
Measurements in ( ) denote metric millimeters, unless otherwise specified.
16574 16575 16576 16577 16577 Side View
6574 6575 6576 6577 6577 Side View
Pan Capacity Ledge Door Overall Size Case Weight
Models Full Size Half Size Spacing Type W D H (A) Lbs. (kg)
6574 4 8 4.5” Single 27.75” 34” 33” 150 (68)
(114) (705 864 838)
6575 6 12 4.5” Single 27.75” 34” 42” 190 (86)
(114) (705 864 1067)
6576 10 20 4.5” Single 27.75” 34” 60” 250 (114)
(114) (705 864 1524)
6577 12 24 4.5” Single 27.75” 34” 69” 270 (128)
(114) (705 864 1753)
Dimensions
Top View
