Serial
Matrix
Printer
The 8900 Series is designed for heavy-duty, reliable operation
and is ideal for shared resource use on a LAN, multiuser UNIX
computer, engineering workstation, minicomputer, or mainframe.
Intelligent – The 8900 Series printers adjust to the document
being printed. The intelligent forms processing of these printers
is unsurpassed, with leading edge technologies such as
Z-Axis Control™ adjustment for document thickness and Page
Finder™ which locates document edges. Thirty character
Answerback memory (ABM) for mission critical applications.
Sharp – Long-life metal tear bar for a clean edge and easy
form removal. Convenient features include zero tear-off, paper
parking and front load bottom feed tractors. Supports legacy
applications with TI 810/880 emulations. Heavy duty
printhead handles six part forms and up to nine part forms
in double strike mode.
Powerful – Control panel enables users to easily set up and
configure. Two line by sixteen character liquid crystal display
(LCD). Three Powerkey™ function keys and twelve operation
keys allow the user to quickly configure the most frequently
used printer functions such as pitch, print quality, font selection,
form align, form feed, form configuration and form select. Ten
user definable forms.
8920 FRN
Key Features
Factory ReNewed model offers the
longevity, performance and reliability
of new with substantial savings off
the new price.
Everything NEW including printer
mechanism with recertified printed
circuit boards.
Standard new unit 1 year warranty.
User manual and ribbon included.
®
Intelligent Forms Processing Technology
Z-Axis Control™ provides automatic
document thickness sensing and
adjustment.
Page Finder™ automatically detects
the top, left, and right edge of each
form that is loaded. Printing
always begins at the same position,
relative to the edges of the document.
Handling Tough Jobs
Designed for heavy-duty operation.
Multiuser environments.
Recommended work load: 18,000 pages
per month.
Typical Applications
Shared-resource environments
Office printing
Business reports, spreadsheets, color charts
Multipart forms
•
•
•
5321 Buffalo Rd • Erie, PA 16510 • USA
800-570-4533 • www.fastprinters.com
8920 FRN Printer
Serial
Matrix
Printer
Printing
Technology: Serial impact dot matrix
Printhead: 18-pin
Speeds:
10 cpi 12 cpi 15 cpi
DP 400 cps 480 cps 600 cps
Text 240 cps
LQ 100 cps
Fonts: Courier, Gothic
Options: Presenter, Prestige Elite,
OCR-A, OCR-B
Bar Codes:
Options: Code 3 of 9, Interleaved
2 of 5, POSTNET
Character Sets: US ASCII 96 charac-
ter set, IBM PC1, IBM PC2, Nordic
PC, ISO 8859/1 Multinational, IBM
Multinational
Print Modes: Normal, bold, emphasized
(shadow), expanded, compressed, underline, italics (Epson
only)
LF Interval: <27 msec
Character Spacing: 5, 6, 7.5, 8.3, 8.6,
10, 12, 15, 16.7, 17.1 cpi
Line Spacing: 3, 4, 6, and 8 lpi
Print Line: 13.6 in.
Dot Graphics (dpi): 240H x 216V
Flexible Paper Handling
Paper Handling: Zero-inch tear-off,
automatic top-of-form alignment,
Z-Axis control (auto forms
thickness adjustment), Page
Finder paper edge detection,
paper parking
Paper Drive: 5-pin push tractors
Paper Dimensions:
Continuous forms: 3" to 15" W x 57" L
maximum
Number of Copies:
6-part copies in standard mode
9-part copies in double strike mode
Maximum Forms Thickness: 0.32”
Paper Slew: 16 ips
Print Control
Formats: 10 user-defined forms
Emulations
TI 880,TI 855(Qume/Epson), IBM
Proprinter, Epson® FX (Escape/P),
Epson JX
Options: DEC LA120
Interfaces and Connectivity
CENTRONICS® parallel and EIA RS-232
serial
Input Buffer: 32K
Options: RS-422, current loop, RS-423,
MacAdapter, Ethernet 10BT
Physical
Size (HxWxD): 11.1 x 25.4 x 13 in.
(282 x 645 x 330 mm)
Weight: 52 Ibs (23.6 kg)
Acoustics: 61 dBa
Operating Environment
Voltage: 100-132, 200-264 VAC;
47-63 Hz, single phase
Power Input: 225 watts maximum
(768 BTU/hour)
Storage Temperature:
-22° to 150° F (-30° to 66° C]
Operating Temperature:
41° to 104° F (5° to 40° C)
Storage Humidity: 5% to 95%
(no condensation)
Operating Humidity: 10% to 90%
(no condensation)
®
Reliability
MTBF: 9,000 hours @ 100% duty cycle
Workload: 18,000 pages per month
MTTR: 20 minutes
Printhead Life: 300 million draft
characters
Ribbon Life:
Black: 13 million draft characters
Ribbon
Type: Continuous loop cartridge
ribbons
Black: 33 yards
Part number 2551152-0011
Life:
Black: 13 million draft characters
Warranty
1 year return to depot
Options
Printer stand
Stand mounted basket
Printer mounted basket
Acoustic cover
Bar code/OCR font
Presenter and Prestige Elite font
DECLA120
RS-422
RS-423
Current loop
MacAdapter
Ethernet 10BT
The 8900 Ethernet interface provides a
flexible solution for LAN environments.
Features
Easy setup and administration
Ethernet 802.3 RJ45/CAT5
Supports Windows 95, 98, NT, 2000,
UNIX and Novell
TCP/IP, IPX/SPX, NetBEUI protocols
BOOTP, SNMP, Telnet, TFTP, FTP,
lpd, RARP, DHCP
5321 Buffalo Rd • Erie, PA 16510 • USA
800-570-4533 • www.fastprinters.com
Serial
Matrix
Printer
8920 FRN Printer

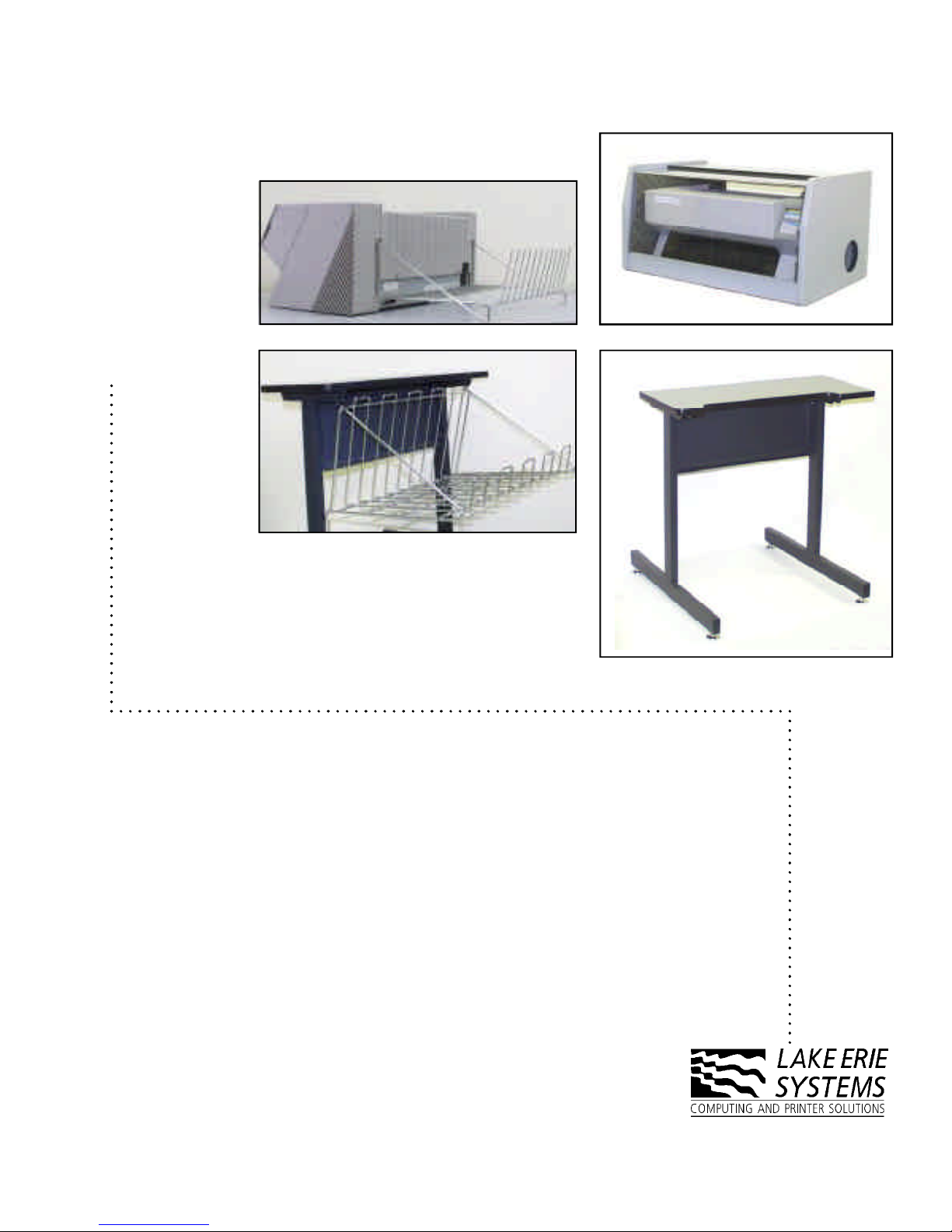

Printer Mounted Basket 2557749-0001
Stand Mounted Basket 2557762-0001
Acoustic Cover 2566304-0001
Supplies & Options
Interface Kits
Ethernet 10BT.............................................2563356-0015
Current Loop .............................................2563356-0001
RS-422 ........................................................2563356-0002
Ribbons / Printheads
Printhead ...................................................2551204-0203
Black Ribbon .............................................2551152-0011
Option Kits
Version 3.11 ROM Upgrade ......................2563417-0020
Barcode / OCR / Postnet Font .................2563352-0020
Presentor & Prestige Font ..........................2563351-0020
DEC LA120 Emulation ...............................2563407-0020
Printer Stand 2557748-0001
5321 Buffalo Rd • Erie, PA 16510 • USA
800-570-4533 • www.fastprinters.com
