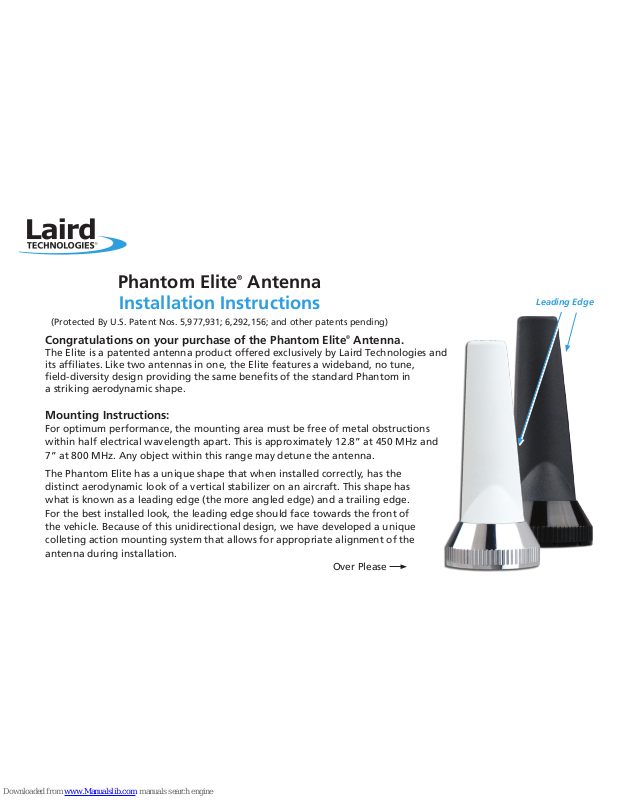

Congratulations on your purchase of the Phantom Elite® Antenna.
The Elite is a patented antenna product offered exclusively by Laird Technologies and
its afliates. Like two antennas in one, the Elite features a wideband, no tune,
eld-diversity design providing the same benets of the standard Phantom in
a striking aerodynamic shape.
Mounting Instructions:
For optimum performance, the mounting area must be free of metal obstructions
within half electrical wavelength apart. This is approximately 12.8” at 450 MHz and
7” at 800 MHz. Any object within this range may detune the antenna.
The Phantom Elite has a unique shape that when installed correctly, has the
distinct aerodynamic look of a vertical stabilizer on an aircraft. This shape has
what is known as a leading edge (the more angled edge) and a trailing edge.
For the best installed look, the leading edge should face towards the front of
the vehicle. Because of this unidirectional design, we have developed a unique
colleting action mounting system that allows for appropriate alignment of the
antenna during installation.
Phantom Elite® Antenna
Installation Instructions
(Protected By U.S. Patent Nos. 5,977,931; 6,292,156; and other patents pending)
Leading Edge
Over Please
Page 2
For ground plane or metallic surface antennas:
1. Prepare an NMO style mount on a metallic surface of the vehicle. It is recommended to mount at or nearest the
center of the surface away from other objects.
2. Check your Phantom Elite
®
to be certain the antenna resonant frequency range and your radio are compatible.
3. Install the Phantom Elite antenna by tightening it onto a threaded NMO style-mounting socket. A fair amount of torque is needed to fully tighten
the antenna until a seal is obtained between the bottom o-ring and vehicle surface. To assist tightening the antenna to the mount, apply two small
pieces of protective heat shrink tubing
(Part no. “Sealtube3”) to the jaws of a slip joint pliers (see illustration)
4. After the antenna is fully tightened and sealed to the mount surface, rotate the antenna body to position it with the leading edge (the more
angled edge) facing the front of the vehicle. O-ring and gasket seals are employed in the unique colleting design to provide a water seal. Take care
to rotate clockwise only once to achieve the proper position. Excessive rotation may compromise the colleting action and seal of the antenna. When
nished, inspect for a proper bottom o-ring seal. This will prevent water leaking into the mount and perhaps into the vehicle. NOTE: The molded plastic
radome and brass collet nut are designed to remain intact for proper water seal. Do not disassemble the collet nut from the antenna radome.
Model and Ordering Information
Model # Color Description
ETRA4503 White 450-470 MHz UHF 3 dB-MEG
ETRAB4503 Black 450-470 MHz UHF 3 dB-MEG
ETRA8063 White 806-866 MHz UHF 3 dB-MEG
ETRAB8063 Black 806-866 MHz UHF 3 dB-MEG
Warranty: Laird Technologies warrants to the original purchaser that this product will remain free from defects in materials and workmanship for a period of one year from the purchase date. If any such defect is discovered within
the warranty period, Laird Technologies will at its sole option, repair or replace your product free of charge. This warranty applies only if the product is used in a normal fashion, and is void if the product is abused, disassembled,
tampered with, used unreasonably, or fails as result of normal wear. Furthermore, this warranty applies only to defects which occur where the proper product is selected as recommended by Laird Technologies and is used in the
fashion recommended by Laird Technologies. This warranty is in lieu of all other warranties, expressed or implied, and is limited to a period of one year from date of original purchase. Laird Technologies is not liable for incidental
or consequential damages of any kind. Any warranty extended herein shall be limited to the price paid to Laird Technologies for the product. Where state and or local law governs the period of warranty such period shall control.
Antenna
Body
©Laird Technologies-All Rights Reserved
Tel: 847.839.6000 • Fax: 847.839.6036 • www.lairdtech.com
L:\Instruction Sheet PDF’s (Shop)\ANT_IS_PHANTOM ELITE INSTALL 0911.pdf
