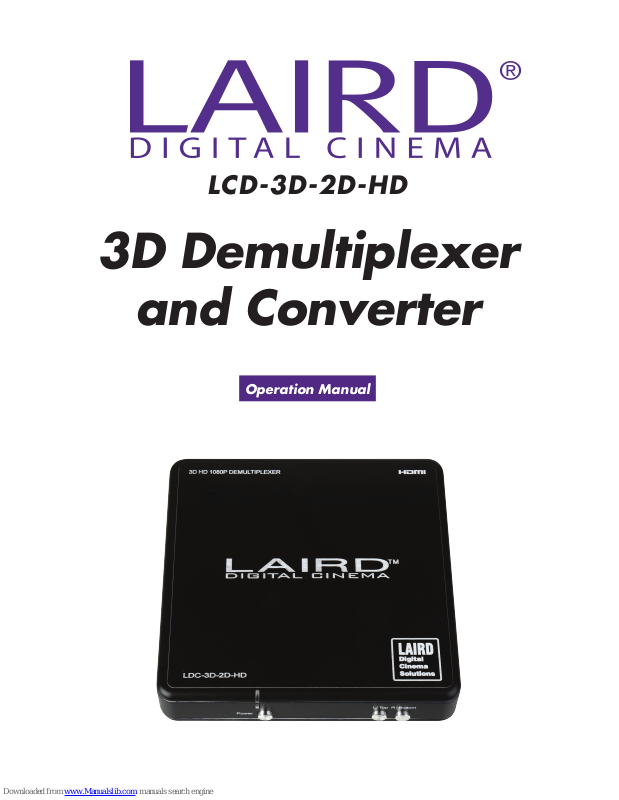

Page 1
3D Demultiplexer
and Converter
Operation Manual
LCD-3D-2D-HD
Page 2
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this
equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire, electrical
shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or
install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is
damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in
the unit housing that provide ventilation and allow for sufficient space for
air to circulate around the unit.
Page 3
CONTENTS
1. Introduction 1
2. Applications 1
3. Package Contents 1
4. System Requirements 1
5. Features 2
6. Operation Controls and Functions 3
6.1 Front Panel 3
6.2 Rear Panel 4
7. Connection Diagram 5
8. Specifications 8
9. Acronyms 8
Page 4
1
1. INTRODUCTION
The 3D Demultiplexer is a device used to separate a 3D signal into it’s left and
right signals for sending to two 2D projectors. The 3D signal must be sent via
a 1 to 2 HDMI splitter and each of the two 3D signals must be passed through
a 3D Demultiplexer whereby the left or right signal can then be outputted to be
passed through to each of the two 2D projectors. When alighted correctly, the
two 2D projectors
can then display each signal to produce a 3D image which can be viewed
using polarized 3D glasses.
In addition, the 3D Demultiplexer can convert 3D signals to 2D for
use with 2D screens. The device automatically detects the 3D or 2D content,
and checks if 3D content is in either Side-by-Side or Frame Packing format.
2. APPLICATIONS
• 3D source signal display on 2D TV
• 3D source signal display through 2D projectors (one unit per display)
3. PACKAGE CONTENTS
• 1×Demultiplexer
• 1x5 V DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• 3D source signal with HDMI splitter and output to two projectors with
polarized glasses.
• 3D source signal with connection cable and output to 2D Display.
Page 5
2
5. FEATURES
• Supports 3D content separations for Left/Right fields
• Automatically detects 2D or 3D contents
• Automatically detects if 3D content is Side-by-Side or Frame Packing
• Input resolution supports:
- 2D: 480i/p, 576i/p, 720p@50/60, 1080i@50/60 and 1080p@50/60
- 3D: 720p@50/60 (Frame Packing and Side-by-Side), 1080p@24
(Frame Packing)
• Output supports 1080p@60 Hz only
• Push button selection of Left or Right side fields
• Convert 3D signal to 2D for display on non-3D TVs/monitors/
projectors
Page 6
3
6. OPERATION CONTROLS AND
FUNCTIONS
6.1 Front Panel
Power
L/ Top R / Bottom
1 2 3
1 Power
Press this button to switch on the device, the LED will illuminate in
green. Press it again to set the device to standby mode, the LED will
illuminate in red.
2 L/Top
Press this button to set the output to Left/Top side signal to the
projector when displaying 3D contents through the 2D projectors. When
input signal is 2D, this button has no effect.
3 R/Bottom
Press this button to set the output to Right/Bottom side signal to the
projector when displaying 3D contents through the 2D projectors. When
input is with 2D signal, this button has no effect.
Page 7
4
6.2 Rear Panel
HDMI In
DC 5V
HDMI Out
1 2 3
1 HDMI Out
Connect to the HDMI input of a TV/projector with an HDMI cable
or HDMI to DVI cable or adaptor.
2 HDMI In
Connect to a 3D source such as Blu-ray player with HDMI cable or
DVI to HDMI cable or adaptor.
3 DC 5V
Plug the 5V DC power adaptor included in the package into an
AC wall outlet.
Page 8
5
7. CONNECTION DIAGRAM
HDMI In
DC 5V
HDMI Out
CLUX-12S HDMI 1.3 SPLITTER
HDMI OUT 1 HDMI OUT 2
HDMI In
DC 5V
HDMI Out
3D Source (Blu-ray Player)
HDMI
Input
HDMI
Output
HDMI
Output
1 x 2 HDMI Splitter
Projector 1
Power
Supply
Power
Supply
Projector 2
Polarizers
Polarized
Glasses
Projector Screen
3D Demultiplexer
L/Top
3D Demultiplexer
R/Bottom
Example 1:
3D Demultiplexer
Control System
Page 9
6
HDMI In
DC 5V
HDMI Out
3D Source (Blu-ray Player)
3D
HDMI Input
2D
HDMI Output
Power
Supply
2D TV/Monitor
3D
Demultiplexer
Example 2a:
Convert 3D to 2D
output for non-3D
Display
Page 10
7
CLUX-12S HDMI 1.3 SPLITTER
HDMI OUT 1 HDMI OUT 2
HDMI In
DC 5V
HDMI Out
3D
HDMI
Input
1 x 2 HDMI Splitter
3D
HDMI
Input
2D
HDMI
Output
3D
HDMI
Output
2D TV/
Monitor
3D TV/Monitor
3D Source (Blu-ray Player)
3D
Demultiplexer
Example 2b:
Share 3D output
with 3D and 2D
Displays
Page 11
8
8. SPECIFICATIONS
Input 1xHDMI
Output 1xHDMI
Input Resolution 2D: 480i/p, 576i/p, 720p@50/60,
1080i@50/60 & 1080p@50/60
3D: 720p@50/60 (Frame Packing and Side-by-
Side) & 1080p@24 (Frame Packing)
Output Resolution 1080p@60 Hz
ESD Protection Human-body Model:
± 8kV (air-gap discharge)
± 4kV (contact discharge)
Power Supply 5 V / 3 A DC (US/EU standards, CE/FCC/UL
certified)
Dimensions 163 mm (W)x165 mm (D)x34 mm (H)
Weight 300 g
Chassis Material Plastic
Silkscreen Color Black
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature −20 ˚C ~ 60˚C /−4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 8.5 W
9. ACRONYMS
ACRONYM COMPLETE TERM
DVI Digital Visual Interface
HDMI High Definition Multimedia Interface
Page 12
www.lairddigitalcinema.com
