Swift Series
4x8 and 4x4 Manual
LAGUNA TOOLS
2072 Alton Parkway
Irvine, California 92606
Ph: 800.234.1976
www.lagunatools.com
© 2017, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
Model Numbers:
MCNC Swift 48 X 48 1000-0233
MCNC Swift 48 X 96-0233
3
4
6
6
Table of Contents
Safety Rules
Page Number
Warranty
Noise Emission
Specification Sheet
Receiving Your CNC Router
Introduction to Your CNC Router
Parts of CNC Router 8
What You Receive with CNC Router
Where to Locate Your CNC Router
Unpacking Your CNC Router
10
11
11
5
7
7
Assembly and Set-Up
Maintenance and Troubleshooting
12
25
4
Safety Rules
As with all machinery, there are certain hazards involved with the
operation and use. Using it with caution will considerably lessen the
possibility of personal injury. However, if normal safety precautions are
overlooked or ignored, personal injury to the operator may result. If
you have any questions relative to the installation and operation, do not
use the equipment until you have contacted your supplying distributor.
Read carefully before operating the machine.
1. Keep the working area clean and be sure adequate lighting is
available.
2. Do not wear loose clothing, gloves, bracelets, necklaces or
ornaments. Wear face, eye, respiratory and body protection
devices as indicated for the operation or environment.
3. Be sure that the power is disconnected from the machine before
tools are serviced or an attachment is to be fitted or removed.
4. Never leave the machine with the power on.
5. Do not use dull, gummy or cracked cutting tools.
6. Be sure that the keys and adjusting wrenches have been removed
and all the nuts and bolts are secured.
Limited Warranty
New machines and accessories sold by Laguna Tools carry a one-year warranty
effective from the date of shipping. Machines sold through dealers must be registered
with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna
Tools guarantees all new machines and accessories sold to be free of manufacturers’
defective workmanship, parts and materials. We will repair or replace, without charge,
any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. We require
that the defective item/part be returned to Laguna Tools with the complaint. Any
machines returned to Laguna Tools must be returned with packaging in the same
manner in which it was received. If a part or blade is being returned it must have
adequate packaging to ensure no damage is received during shipping. In the event the
item/part is determined to be damaged due to lack of maintenance, cleaning or
misuse/abuse, the customer will be responsible for the cost to replace the item/part,
plus all related shipping charges. This limited warranty does not apply to natural
disasters, acts of terrorism, normal wear and tear, product failure due to lack of
maintenance or cleaning, damage caused by accident, neglect, lack of or inadequate
dust collection, misuse/abuse or damage caused where repair or alterations have been
made or attempted by others.
Laguna Tools, Inc. is not responsible for additional tools or modifications sold or
performed (other than from/by Laguna Tools, Inc.) on any Laguna Tools, Inc.
machine. Warranty maybe voided upon the addition of such described tools and/or
modifications, determined on a case-by-case basis.
Software purchased through Laguna Tools Inc. is not covered under this warranty
and all technical support must be managed through the software provider. Software is
non-refundable.
Normal user alignment, adjustment, tuning and machine settings are not covered by
this warranty. It is the responsibility of the user to understand basic machinery
operation, settings and procedures and to properly maintain the equipment in
accordance with the standards provided by the manufacturer.
Parts, under warranty, are shipped at Laguna Tools, Inc.’s cost either by common
carrier, FEDEX ground service or a similar method. Technical support to install
replacement parts is primarily provided by phone, fax, e-mail or Laguna Tools
Customer Support Website. The labor required to install replacement parts is the
responsibility of the user.
Laguna Tools is not responsible for damage or loss caused by a freight company or
other circumstances not in our control. All claims for loss or damaged goods must be
notified to Laguna Tools within twenty-four hours of delivery. Please contact our
Customer Service Department for more information.
Only new machines sold to the original owner are covered by this warranty.
For warranty repair information, call 1-800-332-4094.
6
Swift 48” x 48”
Swift 48” x 96”
Motor
3 hp very quiet
spindle
3 hp very quiet
spindle
Spindle
1 or 3 Phase
Cooled
1 or 3 Phase
Cooled
Spindle RPM
5,000 - 24,000
5,000 - 24,000
Controller
HHC Standard
Hand Held
HHC Standard
Hand Held
Dust chute
diameter
4 inches
With adaptor
4 inches
With adaptor
Volts
220V single phase
/ 30 amp
220V single phase
/ 30 amp
Ball Screw
Axis
Yes
Yes
Controller
Laguna HHC
Controller
Laguna HHC
Controller
Gantry Clearance
8 inches
8 inches
Machine Work
Table
T-Slot
T-Slot
Z Axis
Precision Ball
Screw
Precision Ball
Screw
X and Y Axes
Precision Ball
Screw
Precision Ball
Screw
Machine Foot Print
Work Envelope
Noise Emission
Notes concerning noise emission
Given that there exists a relationship between noise level and exposure times, it
is not precise enough to determine the need for supplementary precautions. The
factors affecting the true level of exposure to operators are clearly the amount of
time exposed and the characteristics of the working environment, such as other
sources of dust and noise - for example, adjacent machines - in other words, the
level of ambient noise. It is possible that exposure level limits will vary from
country to country.
Specification Sheet
Adjustable on all
Industrial Induction
Spindle, Liquid-
2 7/8”
Industrial Induction
Spindle, Liquid-
2 7/8”
73”w x 80”l x 55”h 67”w x 120”l x 58”h
48” x 48” 48” x 96”
7
Receiving Your CNC Router
Note. It is probable that your machine will be delivered by a third party. Before
you unpack your new machine, you will need to first inspect the packing, invoice,
and shipping documents supplied by the driver.
Ensure that there is no visible damage to the packing or the machine. You need
to do this prior to the driver leaving. All damage must be noted on the delivery
documents and signed by you and the delivery driver. You must then contact the
seller,
Laguna Tools within 24 hours.
Introduction to Your CNC Router
CNC is designed to give you years of safe service. Read this owner’s
The
manual in its entirety before assembly or use.
The advantage of the CNC machine is that it can, in most cases, fully machine the
complete job with out it being removed from the table so that you have finished
parts of high accuracy that are totally repeatable.
It can also produce intricate carvings with the purchase of the relevant software.
Nesting is also a valuable feature of CNC machining that saves on waste and
costs.
It is
possible to reduce the amount of different machines in the shop, as the CNC
will perform multiple functions and is a must for cabinetmakers and serious
wood workers.
8

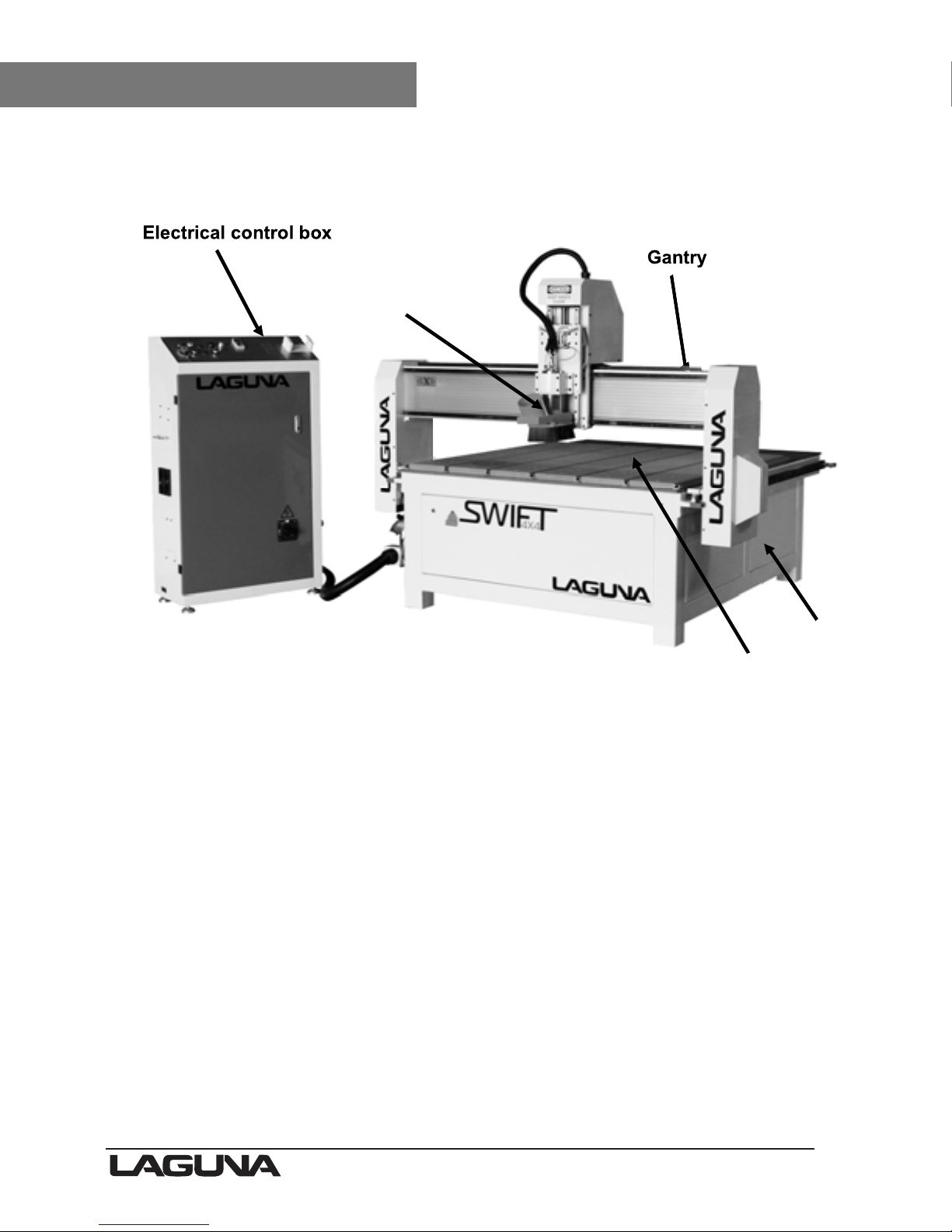

Parts of CNC Router
Gantry
Electrical control box
Router Spindle
Gantry
Bed
1. Bed
The bed of the machine consists of a heavy steel frame and a “T -Slot” Table. The
“T” sl ot s are used t o clamp the job or fixtures to the bed.
2. Gantry
The gantry straddles the bed and carries the router spindle motion system. It is
moved along the length of the bed by a precision ball screw system that is
controlled by the machine controller.
3. Router Spindle
The router spindle is moved along the gantry by a precision ball screw system
that is controlled by t
he machine controller.
4. Frame
The frame is a heavy welded construction that supports all the other parts of the
machine.
Frame
9
5. Electrical control box
The electrical control box is located on the side of the machine in a dust-free
enclosure.
6. Caterpillar track
The caterpillar track runs along the side of the machine in a trough and carries all
the electrical cables and the spindle cooling tubes.
7. Water pump
The water pump provides coolant for the router spindle motor. Running the
router spindle without the cooling pump running can lead to spindle-bearing
failure.
Additional instructions for the use of the CNC
Like all machines, there is danger associated with the machine. Injury is
frequently caused by lack of knowledge or familiarity. Use this machine with
respect. If normal safety precautions are overlooked or ignored, serious personal
injury may occur. As the CNC is under the control of the onboard machine
controller, it is important that you are clear of the cutter when operating the
machine.
